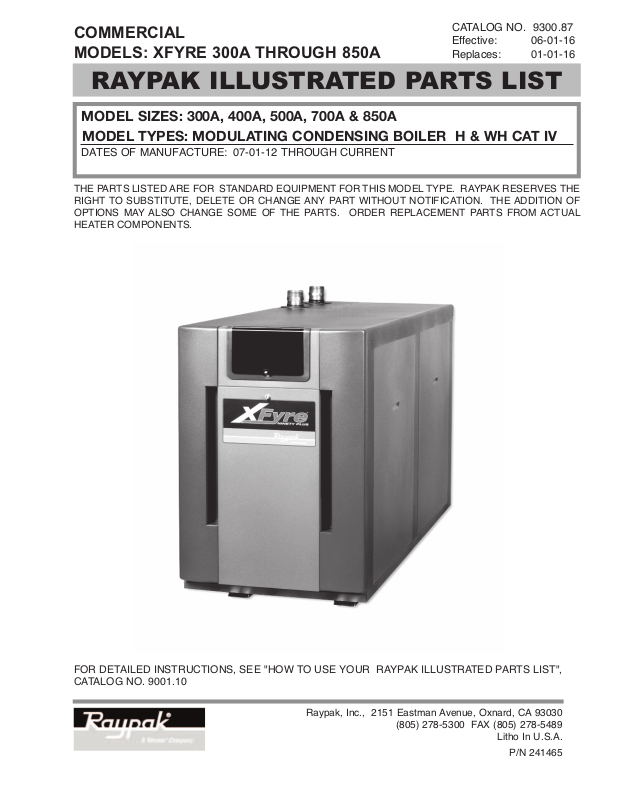

COMMERCIAL |
CATALOG NO. 9300.87 |
|
Effective: |
06-01-16 |
|
MODELS: XFYRE 300A THROUGH 850A |
eplaces: |
01-01-16 |
RAYPAK ILLUSTRATED PARTS LIST
MODEL SIZES: 300A, 400A, 500A, 700A & 850A
DATESMODELOF TYPES:MANUFACTURE:MODULATING07-01-12 THROUGHCONDENSINGCURRENTBOILER H & WH CAT IV
THE PARTS LISTED ARE FOR STANDARD EQUIPMENT FOR THIS MODEL TYPE. RAYPAK RESERVES THE RIGHT TO SUBSTITUTE, DELETE OR CHANGE ANY PART WITHOUT NOTIFICATION. THE ADDITION OF OPTIONS MAY ALSO CHANGE SOME OF THE PARTS. ORDER REPLACEMENT PARTS FROM ACTUAL HEATER COMPONENTS.
FOR DETAILED INSTRUCTIONS, SEE "HOW TO USE YOUR RAYPAK ILLUSTRATED PARTS LIST", CATALOG NO. 9001.10
Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030
(805) 278-5300 FAX (805) 278-5489
Litho In U.S.A.
P/N 241465
