This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
¶ As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio FW-C280 Philips
risponde alle prescrizioni dell’ar t. 2 comma 1 del
D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous
radiation exposure or other unsafe
operation.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
2
pg 01-28/C280/22-Eng12/7/00, 2:48 PM2
3139 115 20711
3 CD ROTARY CHANGER SYSTEM
CD REWRITABLE COMPATIBLE
CD SYNCHRO RECORDING
#
DISC CHANGE
DISC 1
DISC 2
DISC 3
OPEN•CLOSE
$
@
!
1
2
3
4
5
6
7
8
9
0
∞
STANDBY-ON
C
E
V
C
S
D
▲
OPEN
TAPE1
DC
3
CHANGER
3 CD ROTARY CHANGER SYSTEM
CD REWRITABLE COMPATIBLE
CD SYNCHRO RECORDING
•
•
•
%
^
MINI HIFI SYSTEM
&
JOG
CONTROL
B
B
D
CD1 • 2 • 3BAND
▲▲▲
▲
TUNING
L
A
M
I
T
P
O
Z
Z
SEARCH
A
J
K
C
RECORD
PROGRAM DIM
O
R
O
N
H
C
E
T
SOUNDNAVIGATION - JOG
STOP•CLEAR
DEMO STOP
PLAY• PAUSE PREV NEXT
DUBBING A.REPLAY
TAPE 1 • 2
TAPECDTUNER
CDR/VIDEO
AUX
▲
▲
PRESET
INCREDIBLE
SURROUND
CLOCK•TIMER
NEWSRDS
VOLUME
▲
OPEN
*
(
)
¡
™
TAPE 2
£
≤
3
pg 01-28/C280/22-Eng12/7/00, 2:48 PM3
3
3139 115 20711
4
pg 01-28/C280/22-Eng12/7/00, 2:48 PM4
3139 115 20711
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 29
Español --------------------------------------------- 53
interference requirements of the European
Community.
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied Accessories
– Remote control
– AM loop antenna
– FM wire antenna
– AC power cord
Safety Information
¶ Before operating the player, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your player is identical with the
voltage of your local power supply. If not, please
consult your dealer. The typeplate is located at
the rear of your player.
¶ When the player is switched on, do not move it
around.
¶ Place the player on a solid base (e.g. a cabinet).
¶ Place the player in a location with adequate
ventilation to prevent internal heat build-up in
your player. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from the each side.
¶ Do not expose the player to excessive moisture,
rain, sand or heat sources.
¶ Under no circumstances should you repair the
player yourself, as this will invalidate the
warranty!
¶ If the player is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the player. Should this occur, the CD
player will not operate normally. Leave the
power on for about one hour with no disc in the
player until normal playback is possible.
¶ Electrostatic discharge may cause unexpected
problems. See whether these problems
disappear if you unplug the AC power cord and
plug it in again after a few seconds.
¶ To disconnect the player from the power
supply completely, remove the AC power
plug from the wall socket.
English
pg 01-28/C280/22-Eng12/7/00, 2:48 PM7
7
3139 115 20711
Preparations
English
C
L
R
B
A
FM AERIAL
AUX IN
AUDIO OUT
75Ω
AM ANTENNA
AC
MAINS
~
E
D
+
R
–
–
L
+
Rear Connections
A AM Loop Antenna Connection
Connect the supplied loop antenna to the AM
ANTENNA terminal. Place the AM loop antenna
far away from the system and adjust its position
for the best reception.
B FM Wire Antenna Connection
Connect the supplied FM wire antenna to the
FM AERIAL (FM ANTENNA) 75 Ω terminal.
Adjust the position of the FM antenna for the
best reception.
Outdoor Antenna
For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) 75 Ω terminal using a 75 Ω coaxial
wire.
FM AERIAL 75Ω
FM ANTENNA 75Ω
OR
C Speakers Connection
¶ Connect the right speaker to Front terminal R,
with the colored wire to + and the black wire
to -.
¶ Connect the left speaker to Front terminal L,
with the colored wire to + and the black wire
to -.
8
¶ Clip the stripped portion of the speaker wire as
shown.
12 mm
unlocklock
CAUTION:
– For optimal sound performance, it is
recommended to use the supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminal.
– Do not connect speakers with impedance lower
than the speakers supplied. Please refer to
SPECIFICATION section of this manual.
D Connecting other equipment to your
player
You can connect the audio left and right OUT
terminals of a TV, VCR, Laser Disc player, DVD
player or CD Recorder to the AUX IN terminals
at the rear of the system.
E AC Power Supply
After all other connections have been made,
connect the AC power cord to the system and
to the wall outlet.
pg 01-28/C280/22-Eng12/7/00, 2:48 PM8
3139 115 20711
Preparation
Inserting batteries into the
Remote Control
¶ Inser t the batteries (not supplied) into the
remote control as shown in the battery
compartment (Type R06 or AA).
+
-
+
-
Controls on the player and
remote control
1 STANDBY-ON y
– switches the system to standby/on.
2 DIGITAL SOUND CONTROL PANEL
– to view the desired DSC display.
3 DBB (DYNAMIC BASS BOOST)
– to switch on bass boost to enhance bass
response or to switch off bass boost.
4 VEC
– to select the desired Vir tual Environment
Control effect : HALL, CINEMA or CONCERT.
5 DSC (DIGITAL SOUND CONTROL)
– to select the desired sound effect :
OPTIMAL, JAZZ, ROCK or TECHNO.
6 JOG CONTROL
– to select the desired DSC setting. You must
select the DSC feature first.
– to select the desired VEC setting. You must select
the VEC feature first.
7 PROGRAM
for CD .................to programme disc tracks.
for TUNER ........ to programme preset radio
for CLOCK .......to select 12 or 24 hour in clock
stations.
setting mode
.
8 RECORD
– to start recording on tape deck 2.
9 DUBBING
– to dub a tape in normal speed.
CAUTION
– Remove batteries if they are exhausted
or not to be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances, so
they should be disposed off properly.

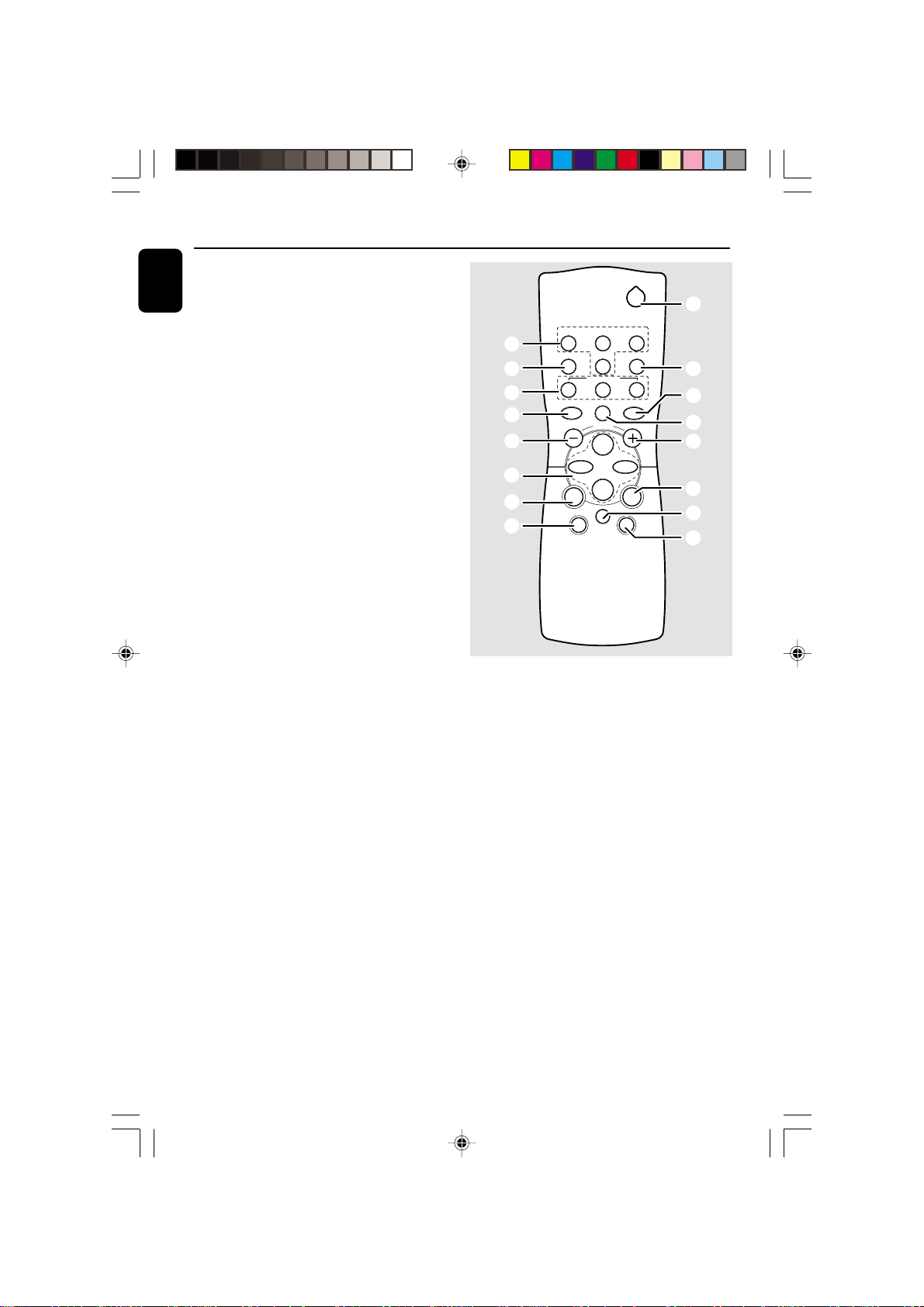

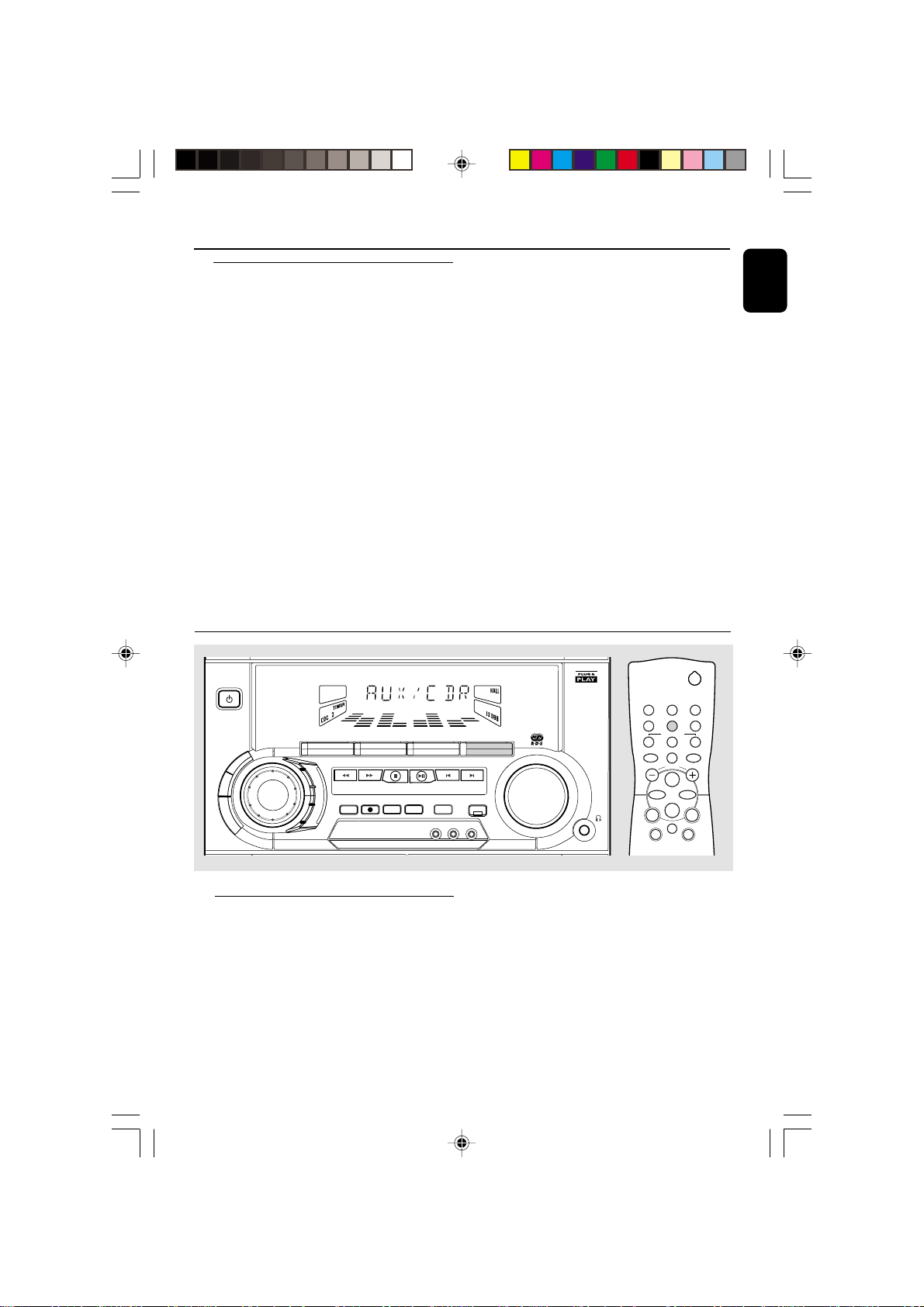

Controls (illustrations on page 3)
0 AUTO REPLAY
– to select playback mode either in continuous
AUTO PLAY or ONCE only.
! DISPLAY SCREEN
– to view the current setting of the system.
@ CD CHANGER TRAY
# DISC CHANGE
– to change disc(s).
$ OPEN•CLOSE
– to open or close the CD changer tray.
% DISC 1 / DISC 2 / DISC 3 (DISC DIRECT
PLAY)
– to select a disc tray for playback.
^ SOURCE – to select the following:
CD / (CD 1•2•3)
– to select CD mode. When disc playback is
stopped, press to select disc tray 1, 2 or 3.
TUNER / (BAND)
– to select Tuner mode. When in tuner mode,
press to select the waveband: FM, MW or LW.
TAPE / (TAPE 1• 2)
– to select Tape mode. When tape playback is
stopped, press to select either tape deck 1 or 2.
AUX (CDR/VIDEO)
– to select sound from an external source (e.g. TV,
VCR, Laser Disc player, DVD player or CD
Recorder).
English
pg 01-28/C280/22-Eng12/7/00, 2:48 PM9
9
3139 115 20711
