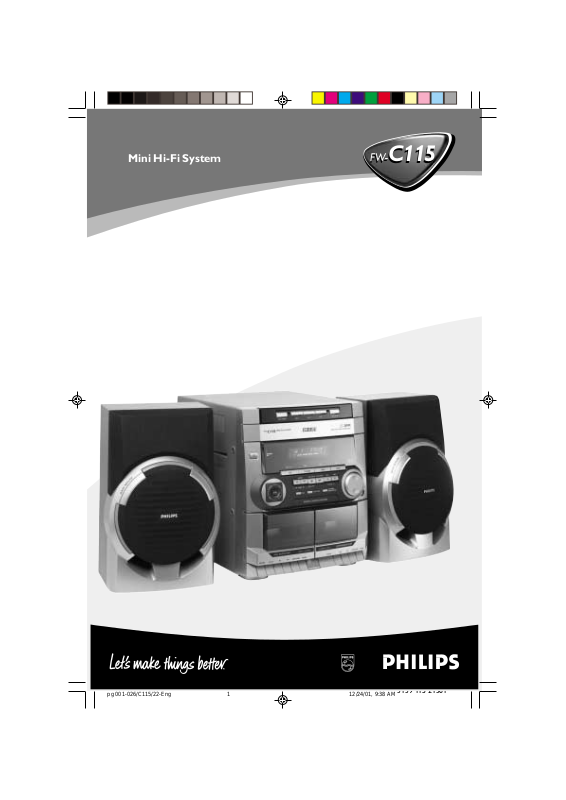

Philips FW-C115/22 User Manual

Mini Hi-Fi System
FW-
C115
FW-
C115
pg 001-026/C115/22-Eng 12/24/01, 9:38 AM1
1
3139 115 21361
Important notes for users in the U.K.
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).
As these colour s may not correspond with the
colour markings identifying the terminals in your plug, proceed as follows: – Connect the blue wire to the terminal marked N or coloured black. – Connect the brown wire to the terminal marked L or coloured red. – Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio FW-C115 Philips risponde alle prescrizioni dell’ar t. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.
CAUTION
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.
2
pg 001-026/C115/22-Eng 12/24/01, 9:39 AM2
3139 115 21361
7
& 6
*
9
8
^
DIM
CD DIRECT
REPEAT
VOLUME
í
à
DSC DBB
AUX
PAUSE
Å
É
Ç
MUTE
2
TUNERTAPE 1/2CD
SLEEP
21
SHUFFLE
¡
3
)
8 9
ë
á
(
!
4
3
2
1
^ %
$
PLAY/REC
TAPE 1
5
6
7
8
9
0
STANDBY ON
L
A
M
I
T
P
O
DSC
R
O
C
K
J
A
C
E
T
DISC CHANGE
MINI HIFI SYSTEMFW-
Z
Z
O
N
H
CD1 • 2 • 3
DISC 2
DISC 1
BAND
STOP•CLEAR
DEMO STOP
PLAY• PAUSE PREV NEXT
SEARCH
▲▲▲
TUNING
PROG CLOCK•TIMER
DIGITAL SOUND CONTROL
TAPE 1 • 2
TAP ECD TUNER
DISC 3
PRESET
DYNAMIC BASS BOOST
OPEN•CLOSE
CD/ CD-R/CD-RW COMPATIBLE
VIDEO
AUX
3
MASTER VOLUME
CHANGER
DC
!
PLAYBACK
TAPE 2
FULL AUTO STOP
RE
C
O
RD
PL
AY
.
ST
O
P
O
P
E
N
P
A
U
S
E
AY
L
P
.
E
S
U
A
P
N
E
P
O
P
O
T
S
@
#
3
pg 001-026/C115/22-Eng 12/24/01, 9:39 AM3
3
3139 115 21361
DK
Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.
Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.
S
Klass 1 laseraparat Varning! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.
Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkko­osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.
4
pg 001-026/C115/22-Eng 12/24/01, 9:39 AM4
3139 115 21361
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 27
Español --------------------------------------------- 50
Deutsch --------------------------------------------- 73
Nederlands ---------------------------------------- 95
Italiano -------------------------------------------- 117
English
Français
Español
DeutschNederlandsItalianoSvenskaDanskSuomi
pg 001-026/C115/22-Eng 12/24/01, 9:39 AM5
Svenska ------------------------------------------- 139
Dansk --------------------------------------------- 161
Suomi --------------------------------------------- 183
Português ---------------------------------------- 205
Português
∂ППЛУИО¿ ----------------------------------------- 227
∂ППЛУИО¿Polski
Polski ---------------------------------------------- 250
5
Contents
English
General Information
Supplied accessories ............................................ 7
Environmental information ................................ 7
Safety information ................................................ 7
Preparations
Rear connections ............................................. 8–9
Optional connection ........................................... 9
Inserting batteries into the remote control ... 9
Controls
Controls on the system and remote
control ........................................................... 10–11
Basic Functions
Plug and Play ........................................................ 12
Demonstration mode ........................................ 12
Switching the system on ................................... 13
Switching the system to standby mode ........ 13
Dim mode ............................................................ 13
Volume control ................................................... 13
Sound control ..................................................... 13
Power Antennas connection Speakers connection
DSC (Digital Sound Control) DBB (Dynamic Bass Boost)
Tape Operation/Recording
Loading tape ........................................................ 19
Playing tapes ........................................................ 19
Rewinding/Fast forwarding ............................... 20
General information on recording ................. 20
Preparation for recording ................................ 20
One touch recording......................................... 20
CD Synchronised start recording .................. 20
Dubbing tapes ..................................................... 21
External Sources
Listening to external sources .......................... 21
Clock/Timer
View clock ............................................................ 22
Clock setting ....................................................... 22
Timer setting ................................................ 22–23
Deactivating the timer
Activating the timer
Sleep timer setting ............................................. 23
Specifications ........................................... 24
Maintenance.............................................. 25
Troubleshooting ............................. 25–26
CD Operation
Discs for playback .............................................. 14
Loading discs ....................................................... 14
Playing discs ......................................................... 15
Selecting a desired track/passage .................... 15
Replacing discs during playback ...................... 15
Repeat and Shuffle .............................................. 15
Repeat play Random play
Programming the disc tracks ........................... 16
Erasing the programme ..................................... 16
Radio Reception
Tuning to radio stations .................................... 17
Storing preset radio stations .................... 17–18
Automatic preset programming Manual preset programming
Tuning to preset radio stations ....................... 18
6
pg 001-026/C115/22-Eng 12/24/01, 9:39 AM6
3139 115 21361
General Information
This product complies with the radio interference requirements of the European Community.
Supplied accessories
– 2 speaker boxes – remote control – AM loop antenna – FM wire antenna
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Safety information
Before operating the system, check that the
operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.
Place the system on a flat, hard and stable
surface.
Place the system in a location with adequate
ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.
Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.
The lens may cloud over when the system is
suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the system in the warm environment until the moisture evaporates.
The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or lubricated.
When the system is switched to Standby
mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.
English
pg 001-026/C115/22-Eng 12/24/01, 9:39 AM7
7
3139 115 21361
Preparations
Fix the claw to the slot
English
FM wire antenna
speaker
(right)
C
+
R
— —
L
+
SPEAKERS 3
AUX IN
AM loop
antenna
FM AERIAL
B
75
AM ANTENNA
speaker
(left)
AC
MAINS
LR
A
AC power cord
Rear connections
The type plate is located at the rear of the system. For users in the U.K.: please follow the instructions on page 2.
A Power
Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.
WARNING! – For optimal performance, use only the original power cable. – Never make or change any connections with the power switched on.
To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).
B Antennas Connection
Connect the supplied AM loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.
AM Antenna
Position the antenna as far as possible from a TV,
VCR or other radiation source.
8
pg 001-026/C115/22-Eng 12/24/01, 9:39 AM8
3139 115 21361
