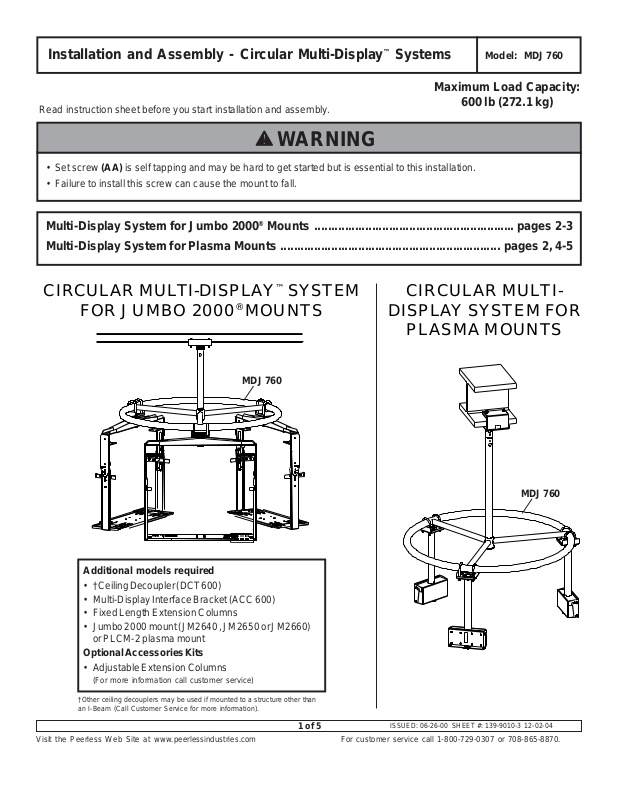

Installation and Assembly - Circular Multi-Display™ Systems
Model: MDJ 760
Maximum Load Capacity:
Read instruction sheet before you start installation and assembly.
600 lb (272.1 kg)
WARNING
• Set screw (AA) is self tapping and may be hard to get started but is essential to this installation.
• Failure to install this screw can cause the mount to fall.
Multi-Display System for Jumbo 2000® Mounts ........................................................... pages 2-3
Multi-Display System for Plasma Mounts ................................................................. pages 2, 4-5
CIRCULAR MUL TI-DISPLAY™ SYSTEM
FOR JUMBO 2000® MOUNTS
MDJ 760
Additional models required
• †Ceiling Decoupler (DCT 600)
• Multi-Display Interface Bracket (ACC 600)
• Fixed Length Extension Columns
• Jumbo 2000 mount (JM2640 , JM2650 or JM2660)
or PLCM-2 plasma mount
Optional Accessories Kits
• Adjustable Extension Columns
(For more information call customer service)
CIRCULAR MUL TI-
DISPLA Y SYSTEM FOR
PLASMA MOUNTS
MDJ 760
†Other ceiling decouplers may be used if mounted to a structure other than
an I-Beam (Call Customer Service for more information).
1 of 5
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 06-26-00 SHEET #: 139-9010-3 12-02-04
Part s List
Description Qty. Part #
A circular pipe 1 139-1076
B
B retaining collar 1 1800-375
C fiber washer 1 540-9432
D M5 x 0.8 x 10 mm pan head 1 520-9250
self-tapping phillips screw
Note: Some parts may appear slightly different than illustrated.
JUMBO JUMBO PIPE COLUMNS ACC 600 ACC 600 Approx. spacing
QTY. SIZE DI A METER REQ REQ (cent er to center for J umbos)
3
4
MODEL #
MDJ 760 JM2640 48" 1 3
MDJ 760 JM2640 48" 1 3
MDJ 760 JM2660 48" 1 3
MDJ 760 JM2640 48" 1 4
MDJ 760 JM2650 48" 1 4
C
A
D
End of one ring ex t ender pipe
90° / 36"
Ceiling Decoupler
C
B
D
DETAIL 1
Slide circular pipe (A) and fiber washer (C) over end of
extension column (sold separately). Thread retaining collar
(B) onto threaded end of extension column. Tighten four or
five complete turns. Insert and securely tighten one M5 x .8 x
10 mm self-tapping phillips screw (D) as shown in detail 1.
WARNING
• The M5 self-tapping phillips screw is essential for
safety . Be sure to lock retaining collar into place with
this screw.
Fixed Length Extension Column
Ring Extender Pipe
A
ACC 600
Jumbo 2000 mount
2 of 5
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 06-26-00 SHEET #: 139-9010-3 12-02-04
