JIGSAW PSTD 800 A1
JIGSAW
Translation of original operation manual
PENDELSTICKSÅG
Översättning av bruksanvisning i original
IAN 114249
HEILURIPISTOSAHA
Alkuperäisen käyttöohjeen käännös
PENDELHUBSTICHSÄGE
Originalbetriebsanleitung
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the
device.
Käännä ennen lukemista molemmat kuvalliset sivut esiin ja tutustu seuraavaksi laitteen kaikkiin toimintoihin.
Vik ut båda bildsidorna och ha den till hands när du läser igenom anvisningarna och gör dig bekant med
apparatens / maskinens funktioner.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
GB / IE Translation of original operation manual Page 1
FI Alkuperäisen käyttöohjeen käännös Sivu 9
SE Översättning av bruksanvisning i original Sidan 17
DE / AT / CH Originalbetriebsanleitung Seite 25

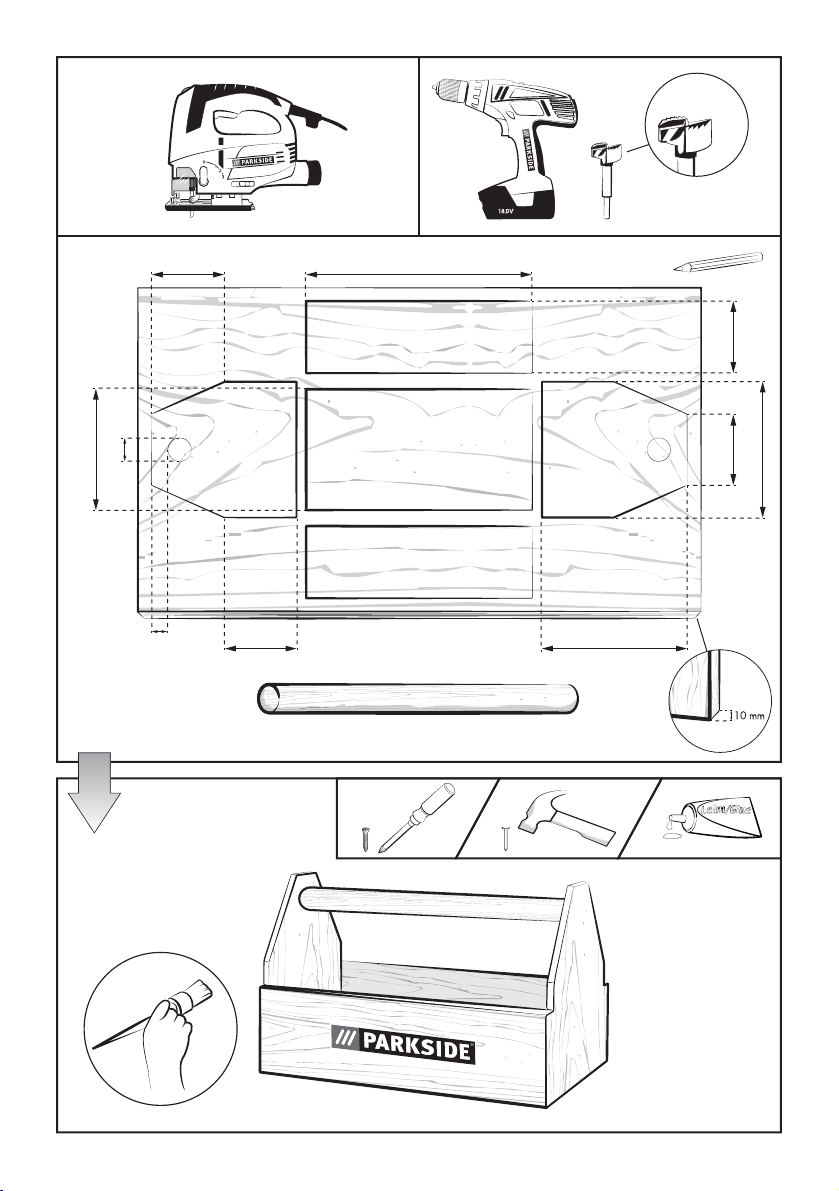

Ø 30 mm
395 mm110 mm
120 mm65 mm
185 mm
Ø 30 mm
30 mm
205 mm
260 mm150 mm
Ø 30 mm x 400 mm
Table of Contents
Introduction ......................................................2
Proper use .................................................................2
Features ................................................................... 2
Package contents ............................................................ 2
Technical details ............................................................. 2
General Power Tool Safety Warnings ................................3
1. Work area safety .......................................................... 3
2. Electrical safety ........................................................... 3
3. Personal safety ............................................................ 3
4. Power tool use and care .................................................... 4
5. Service .................................................................. 4
Safety instructions specifically for jigsaws ......................................... 4
Original accessories/additional equipment ........................................ 5
Information on saw blades ..................................................... 5
Initial operation ..................................................6
Fitting/changing the saw blade .................................................6
Fitting the guide fence ........................................................ 6
Connecting the sawdust extraction appliance ...................................... 6
Fitting the sliding shoe ........................................................ 6
Operation .......................................................6
Setting the cutting angle ....................................................... 6
Setting the stroke rate ......................................................... 6
Setting the pendulum stroke .................................................... 6
Switching on/off ............................................................. 6
Switching the laser/working light on/off .......................................... 7
Sawdust blowing function ..................................................... 7
GB
IE
Maintenance and Cleaning .........................................7
Warranty ........................................................7
Service ..........................................................7
Importer ........................................................8
Disposal .........................................................8
Translation of the original Conformity Declaration ......................8
PSTD 800 A1
1
JIGSAW PSTD 800 A1
GB
IE
Introduction
Congratulations on the purchase of your
new appliance. You have selected a high-
quality product. The operating instructions
are part of this product. They contain important
information on safety, use and disposal. Before
using the product, familiarise yourself with all
operating and safety instructions. Use this product
only as described and only for the specified areas
of application. Please also pass these operating
instructions on to any future owner(s).
Proper use
This appliance is suitable for straight and curved
cuts as well as mitre cuts of up to 45° on angular
workpieces made of plastic, wood and light metal.
This appliance is exclusively intended for private
use in dry rooms. Observe the information on saw
blade types. Any other usage of or modification
to the appliance is deemed to be improper usage
and carries the risk of serious personal injury.
The manufacturer accepts no responsibility for
damage(s) arising out of usage contrary to the
instructions specified below.
Features
Stroke rate adjusting wheel
On/off switch lock button
On/off switch
Housing
Power cable
Extraction connector
Baseplate
Sliding shoe (removable)
Switch for sawdust blower
Pendulum stroke switch
Guide fence
Guide roller
Saw blade
Insertion openings (each incl. clamping screw)
Guard
Pivoting guard
Quick-release chuck
ON/OFF switch laser/working light
Clamping screw
Toothing
Allen key
Package contents
1 jigsaw incl. extraction connector
1 guide fence
1 operating manual
3 saw blades for woodwork
1 saw blade for metalwork
1 allen key
Technical details
Jigsaw: Parkside PSTD 800 A1
Rated voltage: 230 V ∼ 50 Hz
Rated input: 800 W
No-load speed: max. n
3100 min
0
Cutting depth: wood/metal: 80/8 mm
Pendulum stroke: 3 stages and fine cut
adjustment
Diagonal cuts: 0–45° left/right
Protection class: II/
Noise and vibration data:
Noise measurement determined in accordance
with EN 60745. The A-rated noise level of the
electric tool is typically:
Sound pressure level: 94 dB(A)
Sound power level: 105 dB(A)
Uncertainty K: 3 dB
Wear ear protection!
Evaluated acceleration, typically:
Hand/arm vibration a
Uncertainty K = 1.5 m/s
= 8.6 m/s
h
2
-1
2
2
PSTD 800 A1
WARNING!
► The vibration level specified in these instruc-
tions has been measured in accordance
with the standardised measuring procedure
specified in EN 60745 and can be used to
make equipment comparisons. The specified
vibration emission value can also be used to
make an initial exposure estimate. The vibration level varies in accordance with the use of
the electric tool and may be higher than the
value specified in these instructions in some
cases. The vibration load could be underestimated if the electric tool is regularly used in
such a way.
NOTE
► For an accurate estimate of the vibration load
during a certain working period, the times
during which the appliance is switched off or
is running but not actually being used must
also be taken into consideration. This can
significantly reduce the vibration load over
the total working period.
General Power Tool
Safety Warnings
WARNING!
► Read all safety warnings and all instructions.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or ground-
ed surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk
of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
GB
IE
PSTD 800 A1
3
c) Prevent unintentional starting. Ensure the
GB
IE
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising
power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier
to control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking into account the working conditions and
the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement parts. This will ensure that the safety of
the power tool is maintained.
Safety instructions specifically for
jigsaws
■ Hold the electric tool by the insulated
handles when you are carrying out work
during which the electric tool may come
into contact with concealed power cables
or its own power cable. Contact with a live
cable may also cause metal parts of the appliance to become live and lead to electric shock.
■ Keep your hands away from the sawing area.
Do not reach underneath the workpiece. Contact
with the saw blade may result in injury.
■ Keep your hands away from the stroke
rod and the quick-release chuck. Contact
with these components may result in a crushing
injury.
■ Always switch on the electrical power tool before
applying it to the workpiece. Otherwise, there is
a risk of a kickback.
■ When sawing, ensure that the baseplate
is in contact with the workpiece.
4
PSTD 800 A1
■ After completing your work, switch the electric
tool off and do not pull the saw blade out
of the cut until the tool has come to a standstill.
This avoids kickbacks, and allows you to put
the tool down safely.
■ Only use undamaged saw blades that are in
perfect working order. Bent and blunt saw blades
can break or cause a kickback.
■ Do not try and slow the saw blade
after switching off by applying lateral pressure.
The saw blade can be damaged, break or
cause a kickback.
■ Immobilise the workpiece securely. Use clamps/
vices to hold the workpiece firmly. This is much
safer than simply holding it in your hand.
■ Always run the power cord away from the
appliance to the rear.
■ Never work on moistened materials or wet
surfaces.
■ Hazards caused by dust! When working for
extended periods on wood and, in particular,
materials that produce dusts that are hazardous
to health, connect the appliance to an appropriate dust extraction appliance.
■ Wear a dust mask.
■ Ensure there is sufficient ventilation.
WARNING! Protect yourself from
laser radiation!
down
WARNING!
► Looking at a laser beam through optical
instruments (e.g. magnifying glasses etc.)
can cause eye injuries.
► Caution! If operating and adjustment equip-
ment is used or procedures other than those
specified here are carried out, this may result
in hazardous radiation exposure.
■ Never aim the laser beam at reflective surfaces,
people or animals. Even brief visual contact
with a laser beam can result in eye injuries.
Original accessories/additional
equipment
■ Only use the accessories and additional
equipment that are specified in the operating instructions and are compatible with
the appliance.
Information on saw blades
The Parkside basic equipment includes saw blades
for use with wood and metal.
▯ 3 saw blades for general wood cuts
▯ 1 saw blade for light metals up to 3 mm
NOTE
► You can also use any other saw blades pro-
vided they are fitted with a suitable mounting
(single-lug shank).
GB
IE
■ Never look directly into the laser beam or into
the opening from which it emerges.
PSTD 800 A1
Saw blade type
suitable unsuitable
5
Initial operation
GB
IE
Fitting/changing the saw blade
Always remove the plug from the power socket
before working on the appliance.
♦ Flip up the pivoting guard
♦ Turn the quick-release chuck
this position.
♦ Press the required saw blade into the quick-
release chuck
♦ Release the quick-release chuck
return to its initial position. The saw blade is
now locked.
as far as the limit stop.
.
and hold it in
Fitting the guide fence
The guide fence can be fixed on the left or right
of the appliance.
♦ Undo both the clamping screws on the insertion
openings
♦ Push the guide fence
ings .
♦ Retighten the two clamping screws.
.
into the insertion open-
Connecting the sawdust extraction
appliance
♦ Push the extraction connector into the vacuum
extraction duct until it is secured.
♦ Attach an approved dust and sawdust extractor
to the extraction connector
.
Fitting the sliding shoe
When working on sensitive surfaces, you can fit
the sliding shoe on the baseplate to avoid
scratching the surface.
– it must
♦ Mount the sliding shoe
and press it up at the back until it clicks into
place on the baseplate .
♦ To remove the sliding shoe
the rear of the baseplate and slide it off
forwards.
onto the baseplate
, unfasten it at
Operation
Setting the cutting angle
♦ Undo the clamping screws with the Allen
key and pull the baseplate to the rear.
♦ Adjust the cutting angle to 0°/15°/30°/45°
with the aid of the markings on the baseplate
Push the baseplate to the front so that the
locking pin engages in the toothing .
♦ Retighten the clamping screws
key .
Setting the stroke rate
♦ Use the stroke rate preselection adjusting
wheel to set the required stroke rate.
Setting the pendulum stroke
♦ You can use the pendulum stroke switch to set
the pendulum movement of the saw blade .
You can achieve fine, clean cut edges without
pendulum movement (setting “0”). Switch the
pendulum movement off when working on thin
workpieces. You can achieve an increasingly
fast workrate with activated pendulum stroke
(settings 1–3).
Switching on/off
Switching the appliance on:
Press the ON/OFF switch .
with the Allen
.
Switching the appliance off:
Release the ON/OFF switch
Switching to continuous operation:
Press the ON/OFF switch
position with the ON/OFF switch lock button .
6
.
and lock it in this
PSTD 800 A1
Switching off continuous operation:
Press the ON/OFF switch
and release it again.
Switching the laser/working light
on/off
On/off switch:
Press the ON/OFF switch until the required
function is active.
LASER and WORKING LIGHT → WORKING
LIGHT → LASER → SWITCH OFF
Sawdust blowing function
Switching the sawdust blowing function on:
♦ Press the sawdust blower function switch
the rear.
Supporting the extraction function:
♦ Press the sawdust blower function switch
the front.
Maintenance and Cleaning
WARNING! RISK OF INJURY!
Switch the appliance off and remove
the power plug before starting any work.
■ The appliance must always be clean, dry and
free from oil or grease.
■ To clean the casing, use a soft dry cloth.
WARNING!
■ If the connecting cable needs to be replaced,
this must be carried out by the manufacturer
or his representative in order to avoid safety
hazards.
■ Replace the saw blade
are blunt and proper sawing is therefore no
longer possible.
■ Clean the appliance after completing your
sawing work.
■ Remove any dirt (e.g. sawdust). If necessary,
clean the saw blade mounting with a brush or
blow it out with compressed air.
as soon as its teeth
Warranty
The warranty provided for this appliance is
3 years from the date of purchase. This appli ance has been manufactured with care and
inspected meticulously prior to delivery. Please
retain your receipt as proof of purchase.
In the event of a warranty claim, please contact
your Customer Service by telephone. This is
the only way to guarantee free return of your
goods.
The warranty covers only claims for material and
manufacturing defects, not for transport damage,
worn parts or for damage to fragile components,
e.g. switches or batteries. This appliance is intended
solely for private use and not for commercial
to
purposes.
The warranty is deemed void if this product has
been subjected to improper or inappropriate handling, abuse or modifications that were not carried
to
out by one of our authorised service centres. Your
statutory rights are not restricted in any way by this
warranty.
The warranty period is not prolonged by repairs
made under the warranty. This also applies to
replaced and repaired parts. Damage and defects
present at the time of purchase must be reported
immediately after unpacking, or no later than two
days after the date of purchase. Repairs made
after expiry of the warranty period are chargeable.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 114249
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 114249
Hotline availability:
Monday to Friday 08:00 - 20:00 (CET)
GB
IE
PSTD 800 A1
7
Importer
GB
KOMPERNASS HANDELS GMBH
IE
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
The packaging is made from environmen-
tally friendly material and can be
disposed of at your local recycling plant.
Do not dispose of electric tools in
your normal domestic waste!
As required by European Directive 2012/19/EU,
worn-out electric tools must be collected separately
and fed into an environmentally compatible recycling process.
Your local communal or municipal authorities can
provide information on how to dispose of the wornout appliance.
Translation of the original
Conformity Declaration
We, KOMPERNASS HANDELS GMBH, Custodian
of Documents: Mr. Semi Uguzlu, BURGSTR. 21,
44867 BOCHUM, GERMANY, hereby declare that
this product complies with the following standards,
normative documents and the EC directives:
Machinery Directive
(2006 / 42 / EC)
EMC (Electromagnetic Compatibility)
(2004 / 108 / EC)
RoHS Directive
(2011 / 65 / EU)
Applied harmonised standards:
EN 60745-1 / A11: 2010
EN 60745-2-11: 2010
EN 62233: 2008
EN 55014-1 / A2: 2011
EN 55014-2 / A2: 2008
EN 61000-3-2 / A2: 2009
EN 61000-3-3: 2008
Type designation of machine:
Jigsaw PSTD 800 A1
Year of manufacture: 04 - 2015
Serial number: IAN 114249
Bochum, 30/03/2015
Semi Uguzlu
- Quality Manager -
Subject to technical changes in the course of
further developments.
8
PSTD 800 A1
Loading...
