Parkside PFS 100 B2 User Manual [el]
PAINT SPRAY GUN PFS 100 B2
PAINT SPRAY GUN
Operation and Safety Notes
Translation of original operation manual
PISTOL DE VOPSIT
Instrucţiuni de utilizare şi de siguranţă
Traducerea instrucţiunilor de utilizare originale
ΠΙΣΤΟΛΙ ΒΑΦΗΣ
Υποδείξεις χειρισμού και ασφαλείας
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
PIŠTOLJ ZA NANOŠENJE BOJE
Upute za posluživanje i za Vašu sigurnost
Prijevod originalnih uputa za uporabu
ПИСТОЛЕТ ЗА БОЯДИСВАНЕ
Инструкции за обслужване и безопасност
Превод на оригиналното ръководство за експлоатация
FARBSPRITZPISTOLE
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung
7
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the
device.
Rasklopite prije čitanja obije stranice sa slikama i nakon toga se upoznajte sa svim funkcijama uređaja.
Înainte de a citi instrucţiunile, priviţi ambele pagini cu imagini şi familiarizaţi-vă cu toate funcţiile aparatului.
Преди да прочетете отворете двете страници с фигурите и след това се запознайте с всички
функции на уреда.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
GB / CY Operation and Safety Notes Page 5
HR Upute za posluživanje i za Vašu sigurnost Stranica 15
RO Instrucţiuni de utilizare şi de siguranţă Pagina 23
BG Инструкции за обслужване и безопасност страница 33
GR / CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 43
DE / AT / CH Bedienungs- und Sicherheitshinweise Seite 53
A
9
10
1 2
14
B
5
8
6
7
4
8 9
3
1113 12
C
D
14
FE
x
x
Table of contents
Introduction
Proper use ......................................................................................................................Page 6
Features and equipment ...............................................................................................Page 6
Included items ...............................................................................................................Page 6
Technical data ...............................................................................................................Page 7
General safety advice for electrical power tools
1. Workplace safety .....................................................................................................Page 7
2.
Electrical safety .........................................................................................................Page 7
3. Personal safety ..........................................................................................................Page 8
4.
Careful handling and use of electrical power tools ...............................................Page 8
Additional safety advice for paint spray guns ............................................................Page 9
Advice on use
DIN-sec / Viscosity.........................................................................................................Page 9
Preparing the sprayed medium ....................................................................................Page 9
Preparing the surface to be sprayed ...........................................................................Page 10
Bringing into use
Selecting the nozzle ......................................................................................................Page 10
Switching ON / OFF .....................................................................................................Page 10
Spraying process ..........................................................................................................Page 10
Maintenance and cleaning .........................................................................Page 11
Service centre .......................................................................................................Page 11
Warranty ...................................................................................................................Page 11
Disposal ......................................................................................................................Page 12
Declaration of Conformity / Manufacturer..................................Page 13
5 GB/CY
Introduction

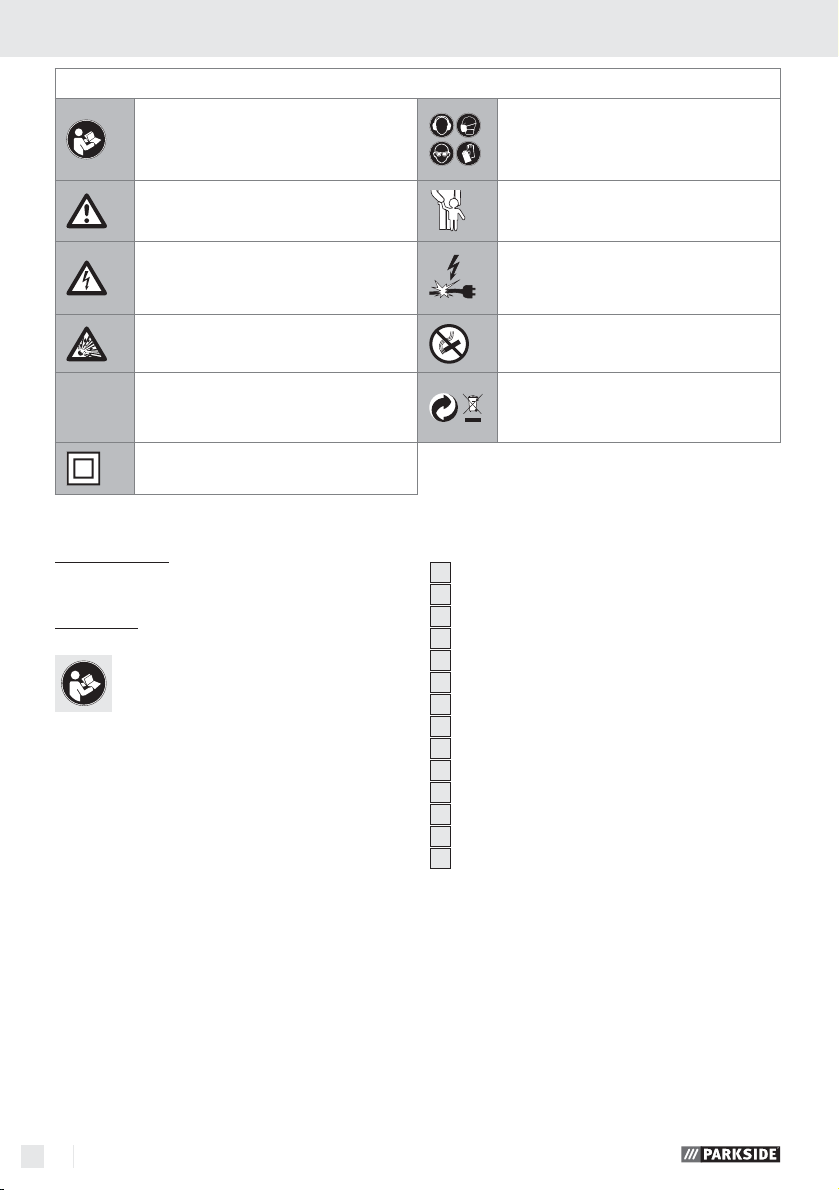

The following pictograms are used in these operating instructions / on the device:
Wear hearing protection, dust
Read instruction manual!
protection mask, protective glasses
and protective gloves.
Observe caution and safety notes!
Caution – electric shock!
Danger to life!
Explosive material! No smoking!
W
Watts (Effective power)
Safety class II
Paint spray gun PFS 100 B2
Introduction
Please make sure that you familiarise
yourself fully with the way the electrical
power tool works before you use it for
the first time and that you understand how to handle
electrical power tools correctly. To help you do this,
please read the accompanying instructions for use.
Keep these instructions in a safe place. If you pass
the electrical power tool on to anyone else, please
ensure that you also pass on all the documentation.
Proper use
Keep children away from
electrical power tools!
Check that the device, mains lead
and plug are in good condition!
Dispose packaging and appliance in
an environmentally-friendly way!
Features and equipment
1
Attachment screw
2
Regulator button
3
ON / OFF switch
4
Pump piston
5
Spring
6
Suction tube
7
Paint cup
8
Nozzle
9
Suction-pressure valve
10
Pump housing
11
Cleaning nozzle
12
Measuring cup
13
Nozzle extension
14
Metal stirrup
This device is intended for applying paints and varnishes. You can use the device to apply a sprayed
medium with a viscosity up to 80-DIN-sec. Any other
use or modification shall be deemed to be improper
use and could give rise to considerable risk of acci
We will not accept liability for loss or damage arising from improper use. The device is intended for
private, domestic use only.
6 GB/CY
dent.
Included items
1 Paint spray gun PFS 100 B2
2 Nozzles* 1 x 0.6, 1 x 0.8 mm
2 Suction pressure valves*
1 Cleaning nozzle
1 Nozzle extension
Introduction / General safety advice for electrical power tools
1 Measuring cup
1 Operating instructions
* 1 x prefitted
Technical data
Rated power: 100 W
Delivery capacity: 320 ml / min (water)
Viscosity capacity: max. 80 DIN-sec
Pressure: max. 160 bar
Paint cup: 700 ml
Protection class:
Noise and vibration data:
Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level
of the electrical power tool are typically:
Sound pressure level: 91.2 dB(A)
Sound power level: 104.2 dB(A)
Uncertainty K: 3 dB
Wear ear protection!
Weighted acceleration, typical: 15.00 m / s
Uncertainty K = 1.5 m / s
instructions has been measured in accordance with
a standardised measurement procedure specified in
EN 60745 and can be used to compare devices.
Different uses of the device give rise to different vibration levels and in many cases they may exceed the
values given in these instructions. It is easy to underestimate the vibration load if the electrical power
tool is used regularly in particular circumstances.
Note: If you wish to make an accurate assessment
of the vibration loads experienced during a particular
period of working, you should also take into account
the intervening periods of time when the device is
switched off or is running but is not actually in use.
This can result in a much lower vibration load over
the whole of the period of working.
2
The vibration level given in these
2
General safety advice for
electrical power tools
Read all the safety advice
and instructions! Failure to observe the safety
advice and instructions may result in electric shock,
fire and / or serious injury.
Keep all the safety advice and instructions
in a safe place for future reference!
The term “electrical tool” used in the safety advice
refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools
powered by rechargeable batteries (without a
mains lead).
1. Workplace safety
a) Keep your working area clean and
well lit. Untidy or poorly lit working areas
can lead to accidents.
b)
inflammable liquids, gases or dusts.
c)
Distractions can cause you to lose control of
Do not work with the device
in potentially explosive environments in which there are
Electrical power tools create sparks, which can
ignite dusts or fumes.
Keep children and other
people away while you are
operating the electrical tool.
the device.
2. Electrical safety
a)
The mains plug on the device must match
the mains socket. The plug must not
be modified in any way. Do not use
an adapter plug with devices fitted
with a protective earth. Unmodified
plugs and matching sockets reduce the risk of
electric shock.
b) Avoid touching earthed surfaces such
as pipes, radiators, ovens and refrigerators with any part of your body.
7 GB/CY
General safety advice for electrical power tools
There is an increased risk of electric shock if
your body is earthed
c) Keep the device away from rain or
moisture. Water entering an electrical device
increases the risk of electric shock.
d)
device, to hang up the device or to pull
e) When working outdoors with an
f) Use a residual current device (RCD)
Do not use the mains lead for
any purpose for which it was
not intended, e.g. to carry the
the mains plug out of the mains socket.
Keep the mains lead away from heat,
oil, sharp edges or moving parts of the
device. Damaged or tangled mains leads
increase the risk of electric shock.
electrical power tool always use extension cables that are also approved
for use outdoors. The use of an extension
cable suitable for outdoor use reduces the risk
of electric shock.
for protection if operating the electrical power tool in a moist environment
is unavoidable. The use of an RCD reduces
the risk of electric shock.
.
Accidents can happen if you carry the device
with your finger on the ON / OFF switch or with
the device switched on.
d) Remove any setting tools or spanners
before you switch the device on. A tool
or spanner left attached to a rotating part of a
device can lead to injury.
e) Avoid placing your body in an unnat-
ural position. Keep proper footing
and balance at all times. By doing this
you will be in a better position to control the
device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear
loose clothing or jewellery. Keep your
hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long
hair can become trapped in moving parts.
g) If vacuum dust extraction and collection
devices are fitted do not forget to
that they are properly connected and
correctly used. The use of these devices
reduces the hazard presented by dust.
check
4. Careful handling and use
of electrical power tools
3. Personal safety
a) Remain alert at all times, watch what
you are doing and always proceed
with caution. Do not use the device if
you are tired or under the influence of
drugs, alcohol or medication. One mo
of carelessness when using the device can lead
to serious injury.
b)
personal protective equipment such as dust
c) Avoid unintentional operation of the
8 GB/CY
Wear personal protective
equipment and always wear
safety glasses. The wearing of
masks, non-slip safety shoes, safety helmets or
ear protectors, appropriate to the type of electrical power tool used and work undertaken,
reduces the risk of injury.
device. Check that the electrical power
tool is switched off before you connect
it to the mains, pick it up or carry it.
ment
a) Do not overload the device. Always
use an electrical power tool that is
intended for the task you are undertaking. By using the right electrical power
tool for the job you will work more safely and
achieve a better result.
b) Do not use an electrical power tool if
its switch is defective. An electrical power
tool that can no longer be switched on and off
is dangerous and must be repaired.
c) Pull the mains plug from the socket
before you make any adjustments to
the device, change accessories or when
the device is put away. This precaution is
intended to prevent you from unintentionally
starting the device.
When not in use always ensure that
d)
electrical power tools are kept out of
reach of children. Do not let anyone use
the device if he or she is not familiar
with it or has not read the instructions
General safety advice for electrical power tools / Advice on use
and advice. Electrical power tools are dan-
gerous when they are used by inexperienced
people.
Look after the device carefully. Check
e)
that moving parts are working properly and move freely. Check for any
parts that are broken or damaged
enough to detrimentally affect the
functioning of the device. Have damaged parts repaired before you use
the device. Many accidents have their origins
in poorly maintained electrical power tools.
f) Use the electrical power tool, accesso-
ries, inserted tools etc. in accordance
with these instructions and advice, and
the stipulations drawn up for this particular type of device. In doing this, take
into account the working conditions
and the task in hand. The use of electrical
power tools for purposes other than those intended can lead to dangerous situations.
Additional safety advice
for paint spray guns
The spray gun must never be used for
spraying inflammable substances.
Spray guns must never be cleaned
using inflammable solvents.
If you do not know the level of danger
a substance presents, do not spray it.
Precise observation of the hazard
warnings, information and data
sheets available from the sprayed
medium manufacturer is essential.
Work in adequately ventilated
Never aim the spray at living
Wear a breathing / dust mask!
The inhalation of paint mist and solvent vapour is hazardous to health.
spaces only.
Wear protective glasses!
creatures.
DANGER OF EXPLOSION! Do
not use the device in environments
containing gases, open flames, fires
or gas-operated water heaters.
NO SMOKING!
Paint and solvents (thinners) must
have a flashpoint above 21°C.
Advice on use
DIN-sec / Viscosity
The Parkside paint spray gun PFS 100 B2 can be
used to apply sprayed media with a viscosity up to
80 DIN-sec. Viscosity is determined in a simplified
measuring procedure using the supplied measuring
cup (see Fig. C).
1. Immerse and fill the supplied measuring cup
12
to the top with the medium to be sprayed.
2. Lift the measuring cup
12
out of the medium
to be sprayed and let the liquid flow out (see
Figure C).
3. Measure the time in seconds it takes for the
flow of liquid out of the measuring cup to cease.
This time is the “DIN-seconds (DIN-s)” value of
viscosity.
4. If the value is too high, incrementally add and
mix in small quantities of a thinner compatible
with the medium to be sprayed. Proceed in accordance with the section about “Preparing the
sprayed medium”.
5. Remeasure the DIN-seconds value.
Repeat this procedure until a value is obtained
that complies with the values in the table.
Preparing the sprayed medium
NOTE: Most paints, varnishes etc. in the shops
are intended to be applied by brush not spray. To
achieve the best spraying result, you should prepare
your paint or varnish etc. in accordance with DIN
guidelines to achieve a suitable viscosity (see table).
Use a suitable thinner to achieve the required
9 GB/CY
Advice on use / Bringing into use
thinning of the medium.
Never exceed the maximum viscosity for the
device. The sprayed medium must not be too
thick for the spraying process, otherwise it
could clog up the device.
Ensure that the sprayed medium and the thinner
are compatible with one another. If the wrong
thinner is used, it can lead to lumps forming
which may clog up the device. Never mix nitrothinners with synthetic resin paint.
Consult the sprayed medium manufacturer’s
documentation for information about suitable
thinners (water, solvents).
1. Thoroughly mix the unthinned sprayed medium
and bring it to average room temperature
(20 - 22 °C).
Do not increase the temperature to change the
viscosity.
2. Add a suitable thinner.
3. Test the viscosity as described above (see Fig. C).
NOTE: Never use nitro-thinners to thin synthetic
resin paint!
Example of
material
Car body paint 16-20 DIN-sec
Acrylic paint 25-30 DIN-sec
Synthetic resin paint 25-30 DIN-sec
Primer 25-30 DIN-sec
Wood impregnation 25-30 DIN-sec
Glaze 25-30 DIN-sec
Hammer finish paint 30-35 DIN-sec*
Emulsion paint 40-80 DIN-sec
* This device cannot be used to spray media contain-
ing discrete particles / solids. The abrasive effect
of these media shortens pump and valve life.
DIN guidance
value
Preparing the surface
to be sprayed
The surface to be sprayed must be clean, dry and
free of grease.
Roughen smooth surfaces and remove any
abraded dust.
Always cover the surrounding area around the
surface to be sprayed. The spray cloud may
contaminate the surrounding area.
Bringing into use
Selecting the nozzle
Nozzle Use
Nozzle, 0.6 mm all paints, varnishes
Nozzle, 0.8 mm thick-flowing sprayed
Cleaning nozzle a thinner, harder spray
Nozzle extension for spraying in high or
Switching ON / OFF
Switching on:
To start the electrical power tool, press the
ON / OFF switch
Switching off:
To switch off the electrical power tool, release
the ON / OFF switch
Spraying process
media
for spot-cleaning of surfaces
low, more difficult to
reach corners
3
and keep it pressed.
3
.
10 GB/CY
1. You can vary the spray by adjusting the regulator
2
button
set when no drops are formed and the gun
produces a fine, consistent spray pattern.
2. Do not switch the device on or off while it is
over the surface to be sprayed. Instead, start
(see Fig. D). The spray is correctly
Bringing into use / Maintenance and cleaning / Service centre / Warranty
and stop the spraying process approximately
10 cm outside the surface to be sprayed.
NOTE: The distance between the nozzle and
the workpiece depends on the material being
sprayed (approx. 20 to 35 cm spraying distance, depending on the spray cone and the
desired amount of material to be applied).
Use the device in a horizontal orientation only
(as shown in Fig. D).
Carry out a trial in each case to determine the
most effective spraying distance.
Start with a longer distance.
3. Spray corners or small decorative details first
using short bursts of spray.
Then go on to the actual spraying process.
4. The spray process should follow the sequence
shown in Fig. E – keep the spray gun moving
parallel to the surface
– Do not incline the spray gun
– Move the spray gun at a constant speed
– Apply the sprayed medium as thinly as possible
– The layer(s) of sprayed medium need(s) to
be allowed to dry for some time before you
apply the next coat Fig. F) at right angles to
the previous coat.
5. Do not allow the paint cup
7
to empty com-
pletely while spraying – drops may form!
Cleaning instructions:
1. Unscrew the attachment screw
2. Take off the pump housing
3. Unscrew nozzle
pressure valve
4. Take the pump piston
the pump housing
5. Clean parts
8
and remove the suction-
9
.
4
10
.
4, 5, 8, 9
1
, see Fig. A.
10
downwards.
and spring 5 out of
with thinners.
6. Fit the components back in reverse order.
TIP: After use or cleaning, hang up the electrical
power tool from the metal stirrup
Service centre
14
.
Have your electrical
power tool repaired only by qualified
specialist personnel using original manufacturer parts only. This will ensure that
your electrical power tool remains safe to use.
lead needs to be
have the replacement
If the plug or mains
replaced, always
carried out by
the manufacturer or its service centre.
This will ensure that your electrical power tool
remains safe to use.
Maintenance and cleaning
General advice:
1.
Pull out the mains plug before you carry out any tasks on the spray gun.
Do the same when you take a break from spraying.
2. After each use, spray thinners (in the open
air only – danger of explosion!) or
water through the device.
3. To protect from rust after cleaning, you can
spray sewing machine oil through the device.
4.
DANGER TO LIFE
THROUGH ELECTRIC SHOCK! Never immerse the device in the cleaning medium.
5. Never use inflammable solvents to clean the
device.
6. Use a dry cloth to clean the housing. Never
use petrol, solvents or cleaning agents that
might attack plastic.
Warranty
The warranty for this appliance is for 3
years from the date of purchase. The appliance has been manufactured with care
and meticulously examined before delivery. Please retain your receipt as proof
of purchase. In the event of a warranty
claim, please make contact by telephone
with our Service Department. Only in this
way can a post-free despatch for your
goods be assured.
The warranty covers only claims for material and
maufacturing defects, but not for transport damage,
for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.
11 GB/CY
Warranty / Disposal
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch.
Your statutory rights are not restricted in any way
by this warranty.
The warranty period will not be extended by repairs
made unter warranty. This applies also to replaced
and repaired parts. Any damage and defects extant
on purchase must be reported immediately after
unpacking the appliance, at the latest, two days after
the purchase date. Repairs made after the expiration
of the warranty period are subject to payment.
GB
Service Great Britain
Tel.: 0871 5000 720
(0,10 GBP/Min.)
e-mail: kompernass@lidl.gb
IAN 63964
CY
Service Cyprus
Tel.: 8009 4409
e-mail: kompernass@lidl.cy
Environmental compatibility and
disposal of materials:
Paint, varnishes etc. are special wastes which
must be disposed of in the appropriate manner.
Observe the regulations applicable in your area.
Observe the manufacturer’s instructions.
Environmentally damaging chemicals must not
be allowed to enter the soil, groundwater or
watercourses.
Carrying out spraying at the edge of water-
courses or adjoining areas (catchments) is
therefore prohibited.
Consider their environmental compatibility
when buying paints, varnishes etc.
IAN 63964
Disposal
The packaging is wholly composed of
environmentally-friendly materials that can
be disposed of at a local recycling centre.
Do not dispose of electrical
power tools with the household
rubbish!
In accordance with European Directive 2002 / 96 / EC
(covering waste electrical and electronic equipment)
and its transposition into national legislation, worn
out electrical power tools must be collected separately
and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.
12 GB/CY
Declaration of Conformity /
Manufacturer
We, Kompernaß GmbH, the person responsible for
documents: Mr Felix Becker, Burgstr. 21, D-44867
Bochum, Germany, hereby declare that this product
complies with the following standards, normative
documents and EU directives:
Machinery Directive
(2006 / 42 / EC)
EU Low Voltage Directive
(2006 / 95 / EC)
Electromagnetic Compatibility
(2004 / 108 / EC)
Applicable harmonized standards
EN 50144-1/A2:2003
EN 50144-2-7:2000
EN 62233:2008
EN 55014-1/A1:2009
EN 55014-2/A2:2008
EN 61000-3-2/A2:2009
EN 61000-3-3:2008
Declaration of Conformity / Manufacturer
Type / Device description:
Paint spray gun PFS 100 B2
Date of manufacture (DOM): 03 - 2011
Serial number: IAN 63964
Bochum, 31.03.2011
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifications
in the course of product development.
13 GB/CY
14
Popis sadržaja
Uvod
Namjenska uporaba ...................................................................................................Stranica 16
Oprema .......................................................................................................................Stranica 16
Opseg pošiljke ............................................................................................................Stranica 16
Tehnički podaci ...........................................................................................................Stranica 17
Opće sigurnosne upute za električni alat
1. Sigurnost na radnom mjestu ...................................................................................Stranica 17
2.
Električna sigurnost .................................................................................................Stranica 17
3. Sigurnost osoba ......................................................................................................Stranica 18
4.
Pažljivo postupanje s električnim uređajima i njihovo korištenje .........................Stranica 18
Dopunske sigurnosne napomene za pištolje za prskanje boje................................Stranica 19
Radne upute
DIN-sek / Viskoznost ...................................................................................................Stranica 19
Priprema tvari za prskanje ..........................................................................................Stranica 19
Pripremanje površine za prskanje ..............................................................................Stranica 20
Pokretanje
Odabrati sapnicu ........................................................................................................Stranica 20
Uključivanje- / Isključivanje .........................................................................................Stranica 20
Postupak prskanja .......................................................................................................Stranica 20
Održavanje i čišćenje ....................................................................................Stranica 21
Servis ..........................................................................................................................Stranica 21
Jamstveni list........................................................................................................Stranica 21
Zbrinjavanje .........................................................................................................Stranica 22
Objašnjenje konformnosti / Proizvođač .......................................Stranica 22
15 HR
Uvod
U ovim uputama za uporabu / na uređaju rabi se slijedeće prikaze:
Čitati upute za rukovanje!
Obratiti pažnju na upozoravajuće i
sigurnosne upute!
Čuvajte se strujnog udara! Opasan
električni napon – Opasnost po život!
Opasnost od eksplozije! Zabranjeno pušenje!
W
W (efektivna snaga)
Zaštitna klasa II
Pištolj za nanošenje boje
PFS 100 B2
Uvod
Prije prvog pokretanja upoznajte se s funkcijama električnog alata i informirajte se o
pravilnom ophođenju električnim alatima.
Za to pročitajte slijedeću uputu za uporabu. Dobro
sačuvajte ovu uputu za uporabu. Pri predaji električnog alata trećim osobama predajte i sve dokumente.
Namjenska uporaba
Ovaj uređaj je prikladan za nanošenje boja i lakova.
Njime možete nanositi boju sve do najviše 80-DINsek. Svaka druga uporaba ili promjena uređaja,
smatrat će se nenamjenskom i može uzrokovati znatnu
opasnost od nezgoda. Za štete nastale od nenamjenske uporabe, ne preuzima se nikakva odgovornost.
Uređaj je isključivo namijenjen u privatne svrhe.
Nosite zaštitne naočale, zaštitu za
uši, zaštitnu masku i zaštitne rukavice.
Držite djecu podalje od električnog
alata!
Vodite računa o tome, da se ne ošteti
uređaj, mrežni kabel i utikač!
Materijal ambalaže i uređaj zbrinite
na način neškodljiv za okoliš!
Oprema
1
zaporni vijak
2
regulacijsko dugme
3
sklopka za UKLJUČIVANJE
4
klip pumpe
5
pero
6
usisna cijev
7
spremnik za boju
8
sapnica
9
usisno tlačni ventil
10
kućište pumpe
11
sapnica za pročišćavanje
12
mjerna posuda
13
produženje sapnice
14
metalni luk
Opseg pošiljke
1 pištolj za nanošenje boje PFS 100 B2
2 sapnice* 1 x 0,6, 1 x 0,8 mm
2 usisno tlačna ventila*
1 sapnica za pročišćavanje
1 produženje sapnice
1 mjerna posuda
1 upute za uporabu
16 HR
* 1 x prethodno montirano
Uvod / Opće sigurnosne upute za električni alat
Tehnički podaci
Nazivni napon: 100 W
Radni učinak: 320 ml / min (voda)
Viskozni učinak: najviše 80 DIN-sek
Tlak: najviše 160 bari
Spremnik za boju: 700 ml
Klasa zaštite:
Informacija o buci i vibraciji:
Mjerna vrijednost za buku utvrđena sukladno
EN 60745. A-ocjenjena razina buke električnog
alata iznosi tipično:
Razina zvučnog tlaka: 91,2 dB(A)
Razina snage zvuka: 104,2 dB(A)
Nesigurnost K: 3 dB
Nosite zaštitu za sluh!
Ocjenjeno ubrzanje, karakteristično: 15,00 m / s
Nesigurnost K = 1,5 m / s
u ovim uputama, je istražena i određena sukladno
normiranom postupku mjerenja, koji je naveden u
EN 60745 i koji je prikladan za uspoređivanje stroja.
Razina titranja je promijenljiva, ovisno o korištenju
električnog alata, te može u pojedinim slučajevima
ležati iznad vrijednosti, navedene u ovim uputama.
Razina opterećenja titranja može biti podcjenjena,
ako se električni alat redovito koristi na takav način.
Uputa: Za točnu procjenu titrajnog opterećenja
za određeno vrijeme rada, potrebno je također uzeti
u obzir vrijeme za koje je uređaj isključen ili uključen,
ali se ne rabi. Isto može znatno smanjiti titrajno
opterećenje tijekom ukupnog radnog vremena.
2
Razina titranja, navedena
2
Opće sigurnosne upute
za električni alat
Pročitajte sigurnosne
upute kao i sve ostale upute! U slučaju ne
pridržavanja sigurnosnih uputa kao i ostalih uputa,
prijeti opasnost od strujnog udara, požara i / ili
teških ozljeda.
Sačuvajte sve sigurnosne upute kao i sve
ostale upute za ubuduće!
U sigurnosnim uputa rabljeni izraz „električni alat“
odnosi se na električne uređaje sa mrežnim pogonom (sa mrežnim kabelom) i na električni alat sa
akumulatorskim pogonom (bez mrežnog kabela).
1. Sigurnost na radnom mjestu
a) Vodite uvijek računa o tome, da Vaše
radno mjesto bude čisto i dobro osvjetljeno. Nered i ne osvjetljeno područje
rada, može uzrokovati nezgode.
b)
ćine, plinovi ili prašine. Električni alati proiz-
c)
U slučaju nepažnje, možete izgubiti kontrolu
Ne rabite stroj u području gdje
prijeti opasnost od eksplozije,
gdje se nalaze zapaljive teku-
vode iskre, koje mogu zapaliti prašinu ili pare.
Za vrijeme uporabe elek
nog alata, držite djecu i druge
osobe izvan dohvata istoga.
nad strojem.
trič-
2. Električna sigurnost
a) Mrežni utikač uređaja mora odgova-
rati utičnici. Utikač se ni na kakav
način ne smije mijenjati. Ne koristite
adapterske utičnice zajedno s zaštitno
uzemljenim uređajima. Neizmijenjeni
utikači i odgovarajuće utičnice smanjuju rizik
električnog udara.
b) Izbjegavajte dodir tijela s uzemljenim
površinama kao što su cijevi, radijatori, pećnice i hladnjaci. Postoji povećana
opasnost od električnog udara ukoliko je vaše
tijelo uzemljeno.
c) Uređaj držite podalje od kiše i vlage.
Prodiranje vode u unutrašnjost uređaja povećava opasnost električnog udara.
d)
za izvlačenje utikača iz utičnice. Kabel
Ne koristite kabel u neke
druge svrhe, npr. za nošenje
uređaja, vješanje uređaja ili
17 HR
Opće sigurnosne upute za električni alat
držite podalje od topline, ulja, oštrih
rubova i pokretnih dijelova uređaja.
Oštećeni ili spetljani kabel ili utikač povećava
rizik električnog udara.
e) Kod rada na otvorenome koristite
samo produžni kabel koji je dozvoljen
za korištenje na otvorenome. Upotreba
produžnog kabla namijenjenog za korištenje
na otvorenome smanjuje rizik električnog udara.
f) Ako je korištenje električnog alata u
vlažnim prostorima neizbježno, rabite
zaštitnu strujnu sklopku. Korištenje zaštit-
ne strujne sklopke, smanjuje rizik strujnog udara.
3. Sigurnost osoba
a) Budite uvijek pozorni, vodite računa
o tome što radite i razumno pristupite
radu s električnim alatom. Ne rabite
stroj, ako ste umorni ili pod utjecajem
droga, alkohola ili lijekova. Jedan trenu
nepažnje za vrijeme korištenja stroja, može
uzrokovati teške ozljede.
b)
kao maske za prašinu, protuklizne zaštitne
c) Spriječite slučajno uključenje. Uvjerite
d) Prije uključenja stroja, uklonite alat
e) Izbjegavajte nenaravan polažaj tijela.
Nosite osobnu zaštitnu opre-
mu i uvijek zaštitne očale.
Korištenje osobne zaštitne opreme,
cipele, zaštitnu kacigu ili štitnik za uši, ovisno o
vrsti i uporabi električnog alata, smanjuje rizik
od ozljeda.
se u to, da je električni alat isključen,
prije uključenja na struju, podizanja
ili nošenja. Ako pri nošenju uređaja držite
prst na sklopki za UKLJUČENJE / ISKLJUČENJE
ili ako je uređaj uključen, prijeti opasnost od
nezgode.
za podešavanje ili vijčani ključ. Alat ili
ključ, koji se nalazi u rotirajućem dijelu stroja,
može prouzročiti ozljede.
Vodite računa o tome da sigurno
stojite na tlu i održavate vlastitu ravnotežu. Na taj način bolje možete kontrolira-
ti uređaj, posebno u neočekivanim situacijama.
tak
f) Nosite prikladnu odjeću. Ne nosite
široku odjeću ili nakit. Držite kosu,
odjeću i rukavice dalje od pomičnih
dijelova. Opuštena odjeća, nakit ili duga kosa
mogu biti zahvaćeni od pomičnih dijelova.
g) Ako se montira uređaje za usisavanje
i prihvaćanje prašine, uvjerite se u
to da su priključeni i da se pravilno
koriste. Uporaba tih uređaja, smanjuje
ugrožavanje od prašine.
4. Pažljivo postupanje s
električnim uređajima i
njihovo korištenje
a) Nemojte uređaj preopterećivati.
Koristite onaj električni uređaj koji
odgovara za Vaš rad. S odgovarajućim
električnim uređajem bolje i sigurnije ćete raditi u navedenom području rada.
b) Ne koristite električni uređaj s neisprav-
nim prekidačem. Električni uređaj koji se više
ne može uključiti i isključiti opasan je i treba
ga dati popraviti.
Izvucite utikač iz utičnice, prije namje-
c)
štanja uređaja, zamjene dijelova
opreme ili odlaganja uređaja. Ova
sigurnosna mjera spriječava slučajno
pokretanje električnog alata. Ova mje-
ra opreza spriječava nenamjerno pokretanje
uređaja.
d)
Čuvajte ne korišteni električni uređaj
tako da nije na dohvatu djeci. Ne
dopustite da uređaj koriste osobe
koje s njim nisu upoznate ili koje nisu
pročitale upute. Električni alati su opasni
kada ih korite osobe bez iskustva.
Pažljivo održavajte uređaj. Kontroli-
e)
rajte da li pokretni dijelovi uređaja
besprijekorno funkcioniraju i da ne
zapinju, da dijelovi nisu slomljeni ili
tako oštećeni da je funkcija uređaja
upitna. Molimo da oštećene dijelove
dadete popraviti prije korištenja uređaja. Brojne nesreće imaju uzrok zbog loše
održavanih električnih alata.
18 HR
Opće sigurnosne upute za električni alat / Radne upute
f) Rabite električni alat, opremu i ugrad-
ni alat, itd. sukladno ovim uputama i
na način kako je propisano za ovaj
posebni tip uređaja. Pri tome uzmite
u obzir radne uvjete i rad koji se izvodi.
Uporaba električnog alata za drugu osim
predviđene primjene, može uzrokovati opasne
situacije.
Dopunske sigurnosne
napomene za pištolje za
prskanje boje
Pištolj za prskanje boje ne smije se
koristiti za prskanje zapaljivih tvari.
Pištolji za prskanje boje ne smiju se
ispirati zapaljivim razrjeđivačima.
Ne prskati ikakve stvari za koje opa-
snost nije poznata.
Molimo da se točno pridržavate na-
pomena za opasnosti, informacija i
podatkovnih listova proizvođača boje
odnosno proizvođača sredstva za prskanje.
su za zdravlje.
Radite isključivo u dostatno prozrače-
Ne usmjeravajte nikad mlaz prema
premnika tople vode koji rade na plin.
Plamište lakova i razrjeđivača (razrje-
Nosite masku za zaštitu od
prašine! Udihavanje magle od
boje i plinova od razrijeđivača štetni
nim prostorijama.
Nosite zaštitne očale!
živim bićima.
OPASNOST OD EKSPLOZIJE!
Zabranjeno je korištenje uređaja u
blizini p linova / plamena / vatre / pri-
ZABRANJENO PUŠENJE!
đenje) treba ležati iznad 21°C.
Radne upute
DIN-sek / Viskoznost
Pomoću Parkside
B2 možete nanositi boju sve do najviše 80-DIN-sek.
(viskoznost). Viskoznost (viskozna kapljevina) određiva se u postupku pojednostavnjenog mjerenja
pomoću priložene mjerne posude (vidite prikaz C).
1. Nagrabite priloženu čašu za mjerenje
ruba sa sredstvom za prskanje.
2. Podignite čašu za mjerenje
prskanje i pustite da tekućina istječe (vidi prikaz C).
3. Mjerite vrijeme protoka u sekundama dok tok
tekućine ne prekine. Ovo vrijeme se naziva
„DIN-sekunde (DIN-s)“.
4. Kod previsoke vrijednosti dodajte razrjeđivač
koji odgovara sredstvu za prskanje i to postepeno u malim količinama. Stoga postupajte prema
poglavlju “Pripremiti sredstvo za prskanje”.
5. Ponovno mjerite DIN-sekunde. Ponovite taj postupak dok ne postignete vrijednosti iz tabele.
Priprema tvari za prskanje
UPUTA: Lakovi, boje,… koje se može kupiti u trgo-
vini su uglavnom namijenjeni za premazivanje, a ne
za prskanje. Za besprijekorni radni rezultat, potrebno je namjestiti viskoznost lakova, boja… sukladno
DIN-smjernici (vidite tabelu).
Potrebno razrjeđenje postižete pomoću odgovarajućeg razrjeđivača.
Ne prekoračite maksimalnu vrijednost visko-
znost za ovaj uređaj. Sredstvo za prskanje ne
smije biti pregusto za postupak prskanja. U suprotnome će se uređaj začepiti.
Pazite na to da sredstvo za prskanje i razrjeđi-
vač odgovaraju jedno drugome. Kod korištenja
krivog razrjeđivača nastaju kvržice koje mogu
začepiti uređaj. Lakove na bazi umjetne smole
nikada ne miješati s nitrorazrjeđivačem.
Informacije o odgovarajućem razrjeđivaču
(voda, razrjeđivač) vidite u dotičnim podacima
proizvođača sredstva za prskanje.
pištolj za nanošenje boje PFS 100
12
do
12
iz sredstva za
19 HR
Loading...
