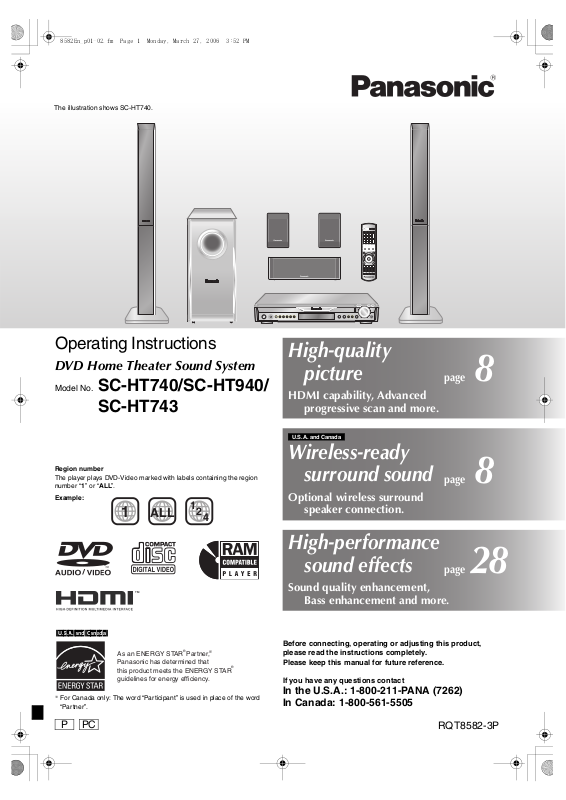

Panasonic SC-HT940, SC-HT740 User Manual

The illustration shows SC-HT740.

Operating Instructions

DVD Home Theater Sound System

Model No. SC-HT740/SC-HT940/

SC-HT743

Region number

The player plays DVD-Video marked with labels containing the region
number “1” or “ALL”.

Example:

1 ALL

1

2

4

High-quality


HDMI capability, Advanced

progressive scan and more.

U.S.A. and Canada

Wireless-ready

surround sound

Optional wireless surround

speaker connection.

High-performance

sound effects

Sound quality enhancement,

Bass enhancement and more.

page

page

page

8

8

28

[U.S.A.[and[Canada[

As an ENERGY STAR Partner,
Panasonic has determined that
this product meets the ENERGY STAR
guidelines for energy efficiency.

§

For Canada only: The word “Participant” is used in place of the word

“Partner”.

P PC

®

®

Before connecting, operating or adjusting this product,
please read the instructions completely.
Please keep this manual for future reference.

If you have any questions contact

In the U.S.A.: 1-800-211-PANA (7262)
In Canada: 1-800-561-5505

RQT8582-3P

Dear customer

Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully.

≥ These operating instructions are applicable to models

SC-HT740, SC-HT743 and SC-HT940 for a variety of regions.

≥ Unless otherwise indicated, illustrations in these operating

instructions are of SC-HT740 for U.S.A. and Canada.

≥ Operations in these instructions are described mainly with the

remote control, but you can perform the operations on the main
unit if the controls are the same.

[HT740]: indicates features applicable to SC-HT740 only.

[HT743]: SC-HT743 only.

[HT940]: SC-HT940 only.

System SC-HT740 SC-HT743 SC-HT940

Main unit SA-HT740 SA-HT743 SA-HT940

Front speakers SB-FS740 SB-FS740 SB-FS940

Center speaker SB-PC740 SB-PC740 SB-PC940

Surround speakers SB-FS741 SB-FS741 SB-FS941

Subwoofer SB-W740 SB-W740 SB-W940

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE, DO NOT EXPOSE THIS
APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television

IMPORTANT SAFETY INSTRUCTIONS

reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and receiver.
≥ Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

≥ Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would
void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Telephone No.: 1-800-211-7262

CAUTION!

≥

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT
IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT
THE VENTILATION VENTS.

≥

DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH
NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

≥

DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.

≥

DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY
MANNER.

The socket outlet shall be installed near the equipment and easily
accessible. The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.

THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the ap-

pliance.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed
below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.

\U.S.A.\and\Canada]

9)
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the

RQT8582

provided plug does not fit into your outlet, consult an electrician for

2

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.

13) Unplug this apparatus during lightning storms or when
unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power­supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

TABLE OF CONTENTS

Getting

Started

Playing

Discs

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . 2

Simple Setup

STEP 1

STEP 2

STEP 3

STEP 4

Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the remote control . . . . . . . . . . . . . . . . . . . . . . 15

Convenient functions . . . . . . . . . . . . . . . . . . . .16

Checking the disc type in each tray . . . . . . . . . . . . . . 16

Displaying current playback condition. . . . . . . . . . . . . 16

Playing CDs sequentially . . . . . . . . . . . . . . . . . . . . . . 16

Changing the zoom ratio. . . . . . . . . . . . . . . . . . . . . . . 16

Repeat play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Program and Random play . . . . . . . . . . . . . . . . . . . . . 17

Assembling the front speakers . . . . 4

Speaker installation options . . . . . . . . . . . . . 6

Positioning the speakers . . . . . . . . .7

Speaker connections

Audio and video connections. . . . . . 8

Television with an HDMI terminal . . . . . . . . . 8

Basic audio connection. . . . . . . . . . . . . . . . . 9

Basic video connection . . . . . . . . . . . . . . . . . 9

. . . . . . . . . . . . . 8

STEP 5

STEP 6

STEP 7

Control reference guide . . . . . . . . . . . . . . . . . 11

Discs that can be played. . . . . . . . . . . . . . . . . 12

Disc caution . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Product Service . . . . . . . . . . . . . . . . . . . . . . . . 13

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Playing data discs using navigation menus

Playing data discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting a track using CD text . . . . . . . . . . . . . . . . . 18

Playing HighMAT

Playing RAM and DVD-R/-RW (DVD-VR) discs. . . . . 19

Using on-screen menus . . . . . . . . . . . . . . . . . . 20

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Other Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing the player settings . . . . . . . . . . . . . . 23

Changing the delay time of the speakers. . . . . . . . . . 25

Radio and AC cord connections

Preparing the remote control . . . . 10

Performing QUICK SETUP . . . . . . 11

TM

discs . . . . . . . . . . . . . . . . . . . . . . 19

. . . . 10

. . . 18

Other

Operations

Reference

Using the radio . . . . . . . . . . . . . . . . . . . . . . . . . 26

Presetting stations automatically . . . . . . . . . . . . . . . . 26

Selecting the preset channels . . . . . . . . . . . . . . . . . . 26

Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using an outdoor antenna (optional) . . . . . . . . . . . . . 27

Using sound effects . . . . . . . . . . . . . . . . . . . . . 28

Changing the sound quality: Sound Field Control . . . 28
Enhancing the sound from the center speaker:

Center Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Enhancing the stereo sound: Dolby Pro Logic II . . . . 28

[HT940] Enhancing the surround sound effect:

Surround Enhancer. . . . . . . . . . . . . . . . . . . . . . . . . 28

Enhancing the bass sound: H.BASS . . . . . . . . . . . . . 29

Adjusting the amount of bass: Subwoofer level . . . . . 29

Troubleshooting guide . . . . . . . . . . . . . . . . . . .32

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Limited Warranty (ONLY FOR U.S.A.) . . . . . . . 37

Adjusting the volume of each speaker:

Speaker level adjustments . . . . . . . . . . . . . . . . . . . 29

Operating other equipment . . . . . . . . . . . . . . . 30

Operating the television . . . . . . . . . . . . . . . . . . . . . . . 30

Changing the remote control code. . . . . . . . . . . . . . . 30

Operating both the television and

[HT940]

the home theater system: Control with HDMI
(HDAVI Control

Using other useful functions . . . . . . . . . . . . . .31

Setting the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . 31

Muting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Using headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Using the Music Port . . . . . . . . . . . . . . . . . . . . . . . . . 31

Limited Warranty (ONLY FOR CANADA). . . . .38

Accessories . . . . . . . . . . . . . . . . . . . . Back cover

TM

) . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

RQT8582

3

STEP1

Preparation

≥ To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
≥ For assembly, use a Phillips-head screwdriver.
≥ Make sure you have all the indicated components before starting assembly, setup, and connection.
≥ There is no difference between the right and left speakers and stands.
≥ For optional wall mount, refer to page 6.

Simple Setup

[HT740] [HT743]

2 Front speakers
(with cover plate)

1

Attach the stand to the base.

1 Thread the speaker cable through the base.

For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the hole, and then pull
the rest of the cable through the base.

Assembling the front speakers

2 Bases2 Stands

(with cable)

3 Attach the speaker to the stand.

1 Pull out the end of

Cable

The supplied stands are specially designed for
attachment to Panasonic SB-FS740 or SB-FS940
front speakers. Use only as indicated in this setup.

8 Screws

the speaker cable
and position it
between the ridges.

Ridges

Stand

Cable

Assembling the front speakers

2 Attach the stand to the base while gently pulling on the

end of the speaker cable.

2 Secure the stand to the base.

Screw

Tighten securely.

Stand

Base

Stand

Base

Cable

Pull gently.

2 Attach the speaker to the stand.

Cover plate

Speaker

Stand

Remove before attaching
the speaker and keep for
wall-mount use (➜ page 6).

4 Secure the speaker to the stand.

Speaker

Screw

Tighten securely.

Stand

Ensure the speaker cable is
centered in the groove.

5 Connect the speaker cable.

_: White
`: Blue

Insert the wire fully.

Push!

Base

Press the speaker cable

Slide the speaker

RQT8582

4

Screws

Tighten securely.

cable into the groove.

into the groove.

[HT940]

2 Front speakers 2 Bases

2 Stands (with cable)

6 Screws 2 Sliders

The speaker height
can be adjusted.

Min: 110 cm (43
Max: 135 cm (53

1

/4z)

5

/32z)

Attach the speaker to the stand.

1

Place the polyfoam underneath the speaker for stability while
attaching the speaker to the stand.

1 Feed the speaker cable (the shorter par t) into the bottom

of the speaker and through the slot at the rear.

2 While pulling the speaker cable up through the slot, slide

the speaker stand into the bottom of the speaker.

Cable

Speaker

Polyfoam

3 Thread the cable through the middle hole of the slider and

fasten the slider with the two screws.

Cable

Slider

Screws

Tighten securely.

2 Attach the stand to the base.

1 Thread the speaker cable through the base.

For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the hole, and then pull
the rest of the cable through the base.

Cable

Stand

2 Insert the stand into the base while gently pulling on the

end of the cable.

Cable

3 Secure the stand to the base.

Screw

Tighten securely.

4 Adjust the speaker height.

1 Loosen the screws until

the speaker can slide up
and down the stand.

2 Raise the speaker to the

desired height, and then
re-tighten the screws .

Phillips-head
screwdriver

5 Connect the speaker cable.

Insert the wire fully.

_: White
`: Blue

Press the speaker cable into the groove.

Push excess cable back through the
slider holder.

Push!

Simple Setup

Assembling the front speakers

Rounded side

Large hole

Base

∫ Preventing the speakers from falling

≥ You will need to obtain the appropriate screw eyes to match the

walls or pillars to which they are going to be fastened.

≥ Consult a qualified housing contractor concerning the

appropriate procedure when attaching to a concrete wall or a
surface that may not have strong enough support. Improper
attachment may result in damage to the wall or speakers.

6 Secure the speaker cable to the base.

Slide the cable

into the groove.

e.g. [HT740] [HT743]

Rear of the speaker

String (not included)

Thread from the wall to the speaker and tie tightly.

Screw eye

(not included)

Wall

Cable

Approx.
150 mm

29

/32z)

(5

RQT8582

5

Speaker installation options

∫ Attaching to a wall

You can attach all of the speakers (except subwoofer) to a wall.

The wall or pillar on which the speakers are to be attached should be

≥

capable of suppor ting over 10 kg (22 lbs) [[HT940] 15 kg (33 lbs)
for the front speakers] per screw. Consult a qualified building
contractor when attaching the speakers to a wall. Improper
attachment may result in damage to the wall and speakers.

Simple Setup

Assembling the front speakers

≥ When mounting the front speakers to a wall, we recommend using

a string (not included) to prevent it from falling.

Preparation for front speakers

[HT740] [HT743]
1

Remove the speaker cable from the stand.

2 Connect the cable (➜ page 4).

[HT940]

1 Pull down the longer part

of the cable to release
the cable from the groove
inside the stand, and
then pull the speaker cable out from the stand.

2 Feed the cable into the bottom of the

speaker and through the slot at the rear.

2 Cover plates [HT740] [HT743]2 Screws [HT740] [HT743]

Release the cable
from the groove.

Front speaker [HT940]

255 mm

1

/16z)

(10

320 mm

19

(12

/32z)

e.g.

In this position, the
speaker will likely
fall if moved to the
left or right.

Reattaching the speaker cable to the stand

[HT740] [HT743]
1 Remove the eight screws

from the stand, and remove
the speaker net.

2 Position the cable.

Press the cable into
the groove.

Approx.
15 cm

29

/32z)

(5

Cable

Center speaker [HT940]

190 mm

15

(7

/32z)

Surround speaker [HT940]

Move the speaker
so that the screw
is in this position.

Screw

3 Attach the speaker net with the screws.

3 Connect the cable (➜ page 5).

1 [HT740] [HT743] Attach the cover plate to the front speaker.

Cover plate

Screw

Tighten securely.

[HT940]

1 Remove the two screws from the stand, and remove the metal cover.

Screw

Screw

Metal cover

Plastic cover

3

2 Pull the cable out about 40 cm (15

/4z) from the hole in the metal

cover, and insert the plastic cover.

2 Drive a screw (not included) into the wall.

‰4.0 mm (

5

/32q)

Wall or pillar

5.0 to 7.0 mm (

‰7.5 t o 9.5 mm

19

(

/64q to 3/8q)

3

/16q to 9/32q)

Approx. 40 cm (153/4z)

3 Insert the metal cover

so it does not disturb
the cable and close
tightly with the two screws.

∫ Fitting speaker stands (not included)

3 Fit the speaker securely onto the screw(s) with the hole(s).

Front speaker [HT740] [HT743]

106 mm

3

/16z)

(4

Center speaker [HT740] [HT743]

200 mm

7

/8z)

(7

340 mm

(133/8z

)

Surround speaker [HT740] [HT743]

RQT8582

6

(Except front speakers)

Ensure the stands meet these conditions before purchasing them.
Note the diameter and length of the screws and the distance
between screws as shown in the diagram.

≥ The stands must be able to support over 10 kg (22 lbs).

he stands must be stable even if the speakers are in a high position.

≥ T

e.g. Center speaker [HT740] [HT743]

Metal screw holes

For attaching to speaker
stands

3

/16q), pitch 0.8 mm (1/32q)

5mm (

Plate thickness plus
to 10 mm

(plus 9/32q to 13/32q)

7mm

60 mm (2

3

/8q)

Speaker stand (not included)

STEP2 Positioning the speakers

How you set up your speakers can affect the bass and the sound field. Note the following points:

≥ Place speakers on flat secure bases.
≥ Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick cur tains.
≥ Left and right speakers are interchangeable, but front and surround speakers are not.

FRONT

(L, R)

FRONT

(L, R)

SURROUND

(L, R)

SURROUND

(L, R)

CENTER SUBWOOFER

CENTER SUBWOOFER

≥Use only supplied speakers

Using other speakers can damage the unit, and sound quality will be
negatively affected.

≥ Set the speakers up on an even surface to prevent them from falling.

Take proper precautions to prevent the speakers from falling if you
cannot set them up on an even surface.

Main unit

[Note]

≥ Keep your speakers at least 10 mm (13/32q) away from the system for

proper ventilation.

≥ To allow for proper ventilation and to maintain good airflow around the

main unit, position it with at least 5 cm (2q) of space on all sides.

≥ Do not block the ventilation holes of the main unit.

Setup example

Place the front, center, and surround speakers at approximately the
same distance from the seating position.
The angles in the diagram are approximate.

e.g. [HT740] [HT743]

Main unit

Notes on speaker use

≥ You can damage your speakers and shorten their useful life if you play

sound at high levels over extended periods.

≥ Reduce the volume in the following cases to avoid damage:

– When playing distorted sound.
– When the speakers are reverberating due to a record player, noise

from FM broadcasts, or continuous signals from an oscillator, test

disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.

Simple Setup

Positioning the speakers

Center speaker

≥ Vibration caused by the center speaker can disrupt the picture if it is

placed directly on the television. Put the center speaker on a rack or
shelf.

≥ To prevent the speakers from falling, do not place directly on top of the

television.

Subwoofer

Place to the right or left of the television, on the floor or a sturdy shelf so
that it will not cause vibration. Leave about 30 cm (11
television.

13

/16q) from the

Caution

≥ Do not stand on the base.

Be cautious when children are near.

≥ Do not touch the netted area

of the speakers.

e.g. [HT740] [HT743] Front speaker

e.g. [HT740] [HT743] Surround speaker

If irregular coloring occurs on your television

The front and center speakers are designed to be used close to a
television, but the picture may be affected with some televisions and
setup combinations.

If this occurs, turn the television off for about 30 minutes.

The demagnetizing function of the television should correct the problem.
If it persists, move the speakers further away from the television.

Caution

≥ The main unit and supplied speakers are to be

used only as indicated in this setup. Failure to
do so may lead to damage to the amplifier and/
or the speakers, and may result in the risk of
fire. Consult a qualified service person if
damage has occurred or if you experience a
sudden change in performance.

≥ Do not attempt to attach these speakers to

walls using methods other than those
described in this manual.

RQT8582

7

STEP3 Speaker connections

≥Ensure the AC cord is disconnected before you make the speaker connections.

2 sheets of speaker cable stickers

≥ Attach the speaker-cable stickers to make connection easier.

CENTER

5

FRONT

Rch

2

FRONT

Lch

1

SURROUND

Rch

4

Simple Setup

Speaker cables

≥ [HT740] [HT743] 1kshort cable: For center speaker
≥ [HT940] 2kshort cables: For center speaker and subwoofer
≥ 2klong cables: For surround speakers

Be careful not to cross
(short-circuit) or reverse the
polarity of the speaker
wires as doing so may
damage the speakers.

6 SUBWOOFER

SUB

WOOFER

6

1

3

5

Lch

Lch

CENTER

SURROUND

FRONT

SURROUND

FRONT

CENTER

Lch Lch

5

3

1

2

6

WOOFER

Rch

Rch

SURROUND

FRONT

SUB

SURROUND

FRONT

SUB

Rch

Rch

WOOFER

6

442

The illustration shows SC-HT740 for U.S.A. and Canada.

Speaker cable sticker

CENTER

5

Insert the

5 CENTER

wire fully.

i: White
j: Blue

Push!

2 FRONT (R)

FRONT

Rch

2

1 FRONT (L)

FRONT

Lch

1

4 SURROUND (R)

SURROUND

Rch

4

SURROUND

Lch

3

Main unit

3 SURROUND (L)

DIGITAL

TRANSCEIVER

Push!

[HT940]

Insert the
wire fully.

i: White
j: Blue

Push!

Insert the wire fully.

i: White
j: Blue

SURROUND

Lch

3

\For\U.S.A.\and\Canada]only]

Speaker connections / Audio and video connections

Set your surround sound free!
Optional Panasonic wireless accessory (e.g. SH-FX60)

You can enjoy surround speaker sound wirelessly when you use the optional Panasonic wireless accessory (e.g. SH-FX60).
For details, please refer to the operating instructions for the optional Panasonic wireless accessory.

STEP4 Audio and video connections

≥ Do not connect through the video cassette recorder.

Due to copy guard protection, the picture may not be displayed properly.

≥ Turn the television off before connecting, and refer to the television’s operating instructions.

Television with an HDMI terminal

HDMI-compatible television

Back of the main unit

(not included)

AV IN AV OUT

HDMI cable (not included)

Use the HDMI connection to enjoy higher quality audio and video with a
single cable (➜ page 13, HDMI).
By connecting to an HDMI-compatible high-definition television, you can
enjoy high-definition video (720p or 1080i) with 2-channel audio.
≥ Set “Video Output” to “On” and “Audio Output” to “On” (➜ page 24,

“HDMI” tab).

RQT8582

≥ Set “Video Output Mode” (➜ page 21, Picture Menu).

8

[Note]

≥ It is recommended that you use Panasonic’s HDMI cable.

[Recommended part number: RP-CDHG15 (1.5 m/4.9 ft),
RP-CDHG30 (3.0 m/9.8 ft), RP-CDHG50 (5.0 m/16.4 ft), etc.]

≥ Non-HDMI-compliant cables cannot be utilized.

[HT940]

Control with HDMI (HDAVI Control)

If your Panasonic television is an HDMI control compatible television,
you can operate your television synchronizing with home-theater
operations or vice versa [➜ page 30, [HT940] Operating both the
television and the home theater system: Control with HDMI (HDAVI

TM

)].

Control

≥ Make the extra audio connection (➜ page 9) when you use HDAVI

Control function.

Video cable

Basic audio connection

AUX

AUX

VIDE O

OUT

Tel evis ion

(not included)

AUDIO

IN

Audio cable

§

[HT940]

Connect the audio cable to the TV AUDIO IN
terminal on the main unit and select “TV” as the

Back of the main unit

AUX

COMPONENT VIDEO OUT

L

R

P

§

(not included)

R

input source (SELECTOR ➜ page 11).

P

B

VIDEO

OUT

Y

S-VIDEO

OUT

AUDIO

OUT

L

R

VIDEO OUT

RF IN

VIDEO IN

Basic video connection

Television (not included)

VIDEO IN

Other video connections for improved picture quality

COMPONENT VIDEO OUT

Television

(not included)

COMPONENT

VIDEO IN

PB

PR

Y

≥

Using the

COMPONENT VIDEO OUT

The COMPONENT VIDEO OUT terminals provides a purer picture than
the S-VIDEO OUT terminal. These terminals can be used for either
interlaced or progressive output. Connection using these terminals
outputs the color difference signals (P
separately in order to achieve high fidelity in reproducing colors.
≥ The description of the component video input terminals depends on

the television or monitor (e.g. Y/P
to terminals of the same color.

≥ After making this connection, select “Darker” from the “Black Level

Control” in the “Video” tab (➜ page 24).

Video cables

(not included)

terminals

B/PR) and luminance signal (Y)

B/PR, Y/B-Y/R-Y, Y/CB/CR). Connect

Video cable (included)

Back of the
main unit

COMPONENT VIDEO OUT

P

B

Y

S-VIDEO

OUT

P

R

VIDEO

OUT

≥ This audio connection will enable you to play audio from your

television through your home theater system. Refer to “Operating other
equipment” (➜ page 30).

COMPONENT VIDEO OUT

P

R

Back of the main unit

P

B

Y

S-VIDEO

OUT

VIDEO

OUT

To enjoy progressive video

≥ Connect to a progressive output compatible television.

1 Set “Video Output” to “Off” (➜ page 24, “HDMI” tab).

2

Set “Video Output Mode” to “480p”, and then follow the
instructions on the menu screen

≥ All Panasonic televisions that have 480p input connectors are

compatible. Consult the manufacturer if you have another brand of

(➜ page 21, Picture Menu).

television.

S-VIDEO OUT

Back of the

Tel evis ion

(not included)

S-VIDEO

IN

S-video cable

(not included)

main unit

COMPONENT VIDEO OUT

P

B

P

R

VIDEO

OUT

Y

S-VIDEO

OUT

≥Using the S-VIDEO OUT terminal

The S-VIDEO OUT ter minal achieves a more vivid picture than the
VIDEO OUT terminal by separating the chrominance (C) and luminance
(Y) signals. (Actual results depend on the television.)

Simple Setup

Audio and video connections

∫ Cable TV box or video cassette recorder connection

Cable TV box or video cassette recorder

To yo ur c a b l e T V
service or television
antenna

(not included)

RF IN

RF OUT

RF cable

(not included)

Television

(not included)

RF IN

AUDIO

OUT

L

R

VIDEO OUT

AUDI O

VIDEO IN

Audio cable

§

[HT940]

Connect the audio cable to
the TV AUDIO IN terminal
on the main unit and select
“TV” as the input source

IN

(SELECTOR ➜ page 11).

§

(not included)

Video cable

(included)

Back of the main unit

COMPONENT VIDEO OUT

AUX

P

B

L

R

Y

S-VIDEO

OUT

P

R

VIDEO

OUT

[HT940]

You can use the AUX terminal for
the audio input when you connect
another external device (e.g.
video cassette recorder). Select
“AUX” as the input source
(SELECTOR ➜ page 11).

RQT8582

9

STEP5 Radio and AC cord connections

75

AC IN

AM loop antenna FM indoor antenna AC power supply cord

\U.S.A.\and\Canada]

Simple Setup

≥ Connect the AC power supply cord after all other connections are complete .
≥ Using an outdoor antenna (optional) (➜ page 27).

AM loop antenna

Stand the antenna up on its base.
Place the antenna where reception is best.
Keep loose antenna cable away from other wires
and cables.

Click!

Main unit

AC IN

AC power
supply cord

To household AC outlet (AC 120 V, 60 Hz)

[For\areas\except\U.S.A.\and\Canada]

≥ If the power plug does not fit your AC

outlet

Use the power plug adaptor (included).

Black

Red

\Others]

The illustration shows SC-HT740 for U.S.A. and Canada.

Loosen the terminal screw with
a Phillips-head screwdriver.

White

Power plug adaptor

\Areas\except\U.S.A.\and\Canada]

FM indoor antenna

Affix this end of the
antenna where
reception is best.

Adhesive tape

LOOP

Re-tighten the terminal
screw.

LOOP

ANT GND

FM ANT

75

AM
ANT

EXT

10

If it still does not fit, contact an electrical
parts distributor for assistance.

While pushing, insert the wire fully.

Conserving power

The main unit consumes a small amount of power, even when it is turned off (For U.S.A. and Canada: approx. 0.4 W or for other areas: approx.

0.9 W). To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.
You will need to reset some memory items after plugging in the unit.

Radio and AC cord connections / Preparing the remote control

[Note]

The included AC power supply cord is for use with this unit only. Do not use it with other equipment. Also, do not use cords for other equipment with
this unit.

STEP6 Preparing the remote control

Remote control Batteries

Insert so the poles (i and j) match those in the remote control.

R6/LR6, AA

RQT8582

Replace the cover.

Press in and lift up.

≥ Do not use rechargeable

type batteries.

Do not:

≥ mix old and new batteries.
≥ use different types at the same time.
≥ heat or expose to flame.
≥ take apart or shor t circuit.
≥ attempt to recharge alkaline or manganese batteries.
≥ use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can
severely damage the remote control.

Remove the batteries if the remote control is not going to be used for a
long period of time. Store in a cool, dark place.

∫ Use

Aim at the display (➜ page 11), avoiding obstacles, at a maximum
range of 7 m (23 feet) directly in front of the unit.

STEP7 Performing QUICK SETUP

The QUICK SETUP screen assists you to make necessary settings.

To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1, AV 1, etc.).

≥ To change your television’s video input mode, refer to its operating instructions.
≥ This remote control can perform some basic television operations (➜ page 30).

1 2 3 4 5 6

DVD

Turn on the
unit.

Select
“DVD/CD”.

Show the QUICK
SETUP screen.

To change these settings later

Select “QUICK SETUP” in the “Others” tab (➜ page 24).

Control reference guide

See page references in parentheses.

DVD/CD (11), FM/AM (26), AUX (30)/

FRONT MUSIC P./ REAR MUSIC P.

[HT940]

FRONT MUSIC P. /REAR MUSIC P.

Select disc’s title numbers etc./Enter numbers (15)

Select the disc or show disc information (16)

Select a group of contents to play (15)

Show a disc top menu (18) or program list (19)

Show a disc menu (18) or play list (19)

Standby/on switch [POWER Í/I]

Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power. (14)

MUSIC PORT
Connect an external device (31)

5 DISC SELECTOR
Select the disc tray (14)

§

Refer to page 31, Using the Music Port.

Turn the unit on/off (11)

EXT-IN

Select preset radio stations (26)

Basic operations for play (14, 15)

Equalizing the sound (14)

POWER

MUSIC

PORT

SETUP

Select the source

§

(31)

TV/AUX (30) /

§

(31)

SURROUND MUSIC

Equalizing the sound (14)

SURROUND

12345

MUSIC

5

DISC

SELECTOR

∫ /

-

TUNE MODE /-FM MODE

Stop playing (14) / Select the tuning mode (26)
Adjust the FM reception condition (26)

1/MEMORY

Play discs (14)/Memorize the receiving
radio stations (26)

Follow the messages and
make the settings.

DVD

DISC

GROUP

G

I

V

A

N

T

C

E

R

I

D

MENU RETURN

CANCEL

SUB

LEVEL

SLEEP

SETUP

4, 5 / X TUNING W

Select

RETURN

ENTER

Register

Television operations (30)

TV

AM

2
5

4

89

7

0

SKIP

STOP1PAUSE

N

U

O

R

R

U

S

R

O

T

A

U

N

E

M

P

ENTER

O

T

PLAY
LIST

MODE

PLAY

WOOFER

SFC

ZOOM

TEST

CH

VIDEOTV

P.

MUSICFM

AUX

3
6

10

SLOW SEARCH

QUICK

D

M

U

S

I

C

REPEAT

PL

DISPLAY

FL

SELECT

Change the television’s video input mode (30)

VOLUME

Adjust the television volume (30)

Select television channels (30)

Adjust the volume of the main unit (15)

CH

[HT940]

Enhance the surround sound (28)

VOLUME

SRD ENH

PLAY

OSD

Display current playback condition (16)

Frame-by-frame/ Select or register menu items on the

F

U

television screen (15)

N

C

T

I

O

N

S

Show on-screen menu (20)

Return to previous screen (15)

MODE

CD

H.BASS

C.FOCUS

MUTING

Skip or slow-search play (14) /

Select the radio stations (26)

Display

MEMORYMEMORY

TUNE MODETUNE MODE

FM MODEFM MODE

ENTER

Press to finish

Press to exit.

QUICK SETUP.

The illustration shows SC-HT740 for U.S.A. and Canada.

Start up and play a disc automatically/Control both
the home theater system and the television (30)

SURROUND MUSIC

C

U

H

O

P

T

L

E

A

N

Y

O

CANCEL PLAY MODE REPEAT

(15) (17) (16) (16)

SUB WOOFER

LEVEL

(29) (28)

SLEEP FL DISPLAY

(31)

SETUP

(23)

< OPEN/CLOSE

Open/Close the disc drawer (14)

OPEN/CLOSE

SELECTOR

TUNINGTUNING

VOLUME
Turn up/down the volume (14)

SELECTOR (26)

DVD/CD#FM#AM#([HT940] TV)#AUX #
FRONT MUSIC P. # REAR MUSIC P.
Return to DVD/CD

Equalizing the sound (14)

CD MODE

PL

(28)

(29)

H.BASS

(29)

C.FOCUS

MUTING

(31)

SFC

ZOOM

(16)(15)(28)

CH SELECT

TEST

(29)

DISC EXCHANGE

Open the disc drawer to
exchange the disc in the play
position (14)

DISC DISC

EXCHANGE SKIP

VOLUME

DISC SKIP
Skip to the next disc tray (14)

Phones
Connect headphones (31)

Jog LED

§

#

Simple Setup

SETUP

Performing QUICK SETUP / Control reference guide

RQT8582

11

Discs that can be played

Operations in these instr uctions are described mainly with formats. Icons such as [DVD-V] show the formats.

DVD-Video [DVD-V]

—

DVD-Audio [DVD-A] [DVD-V]

≥ [DVD-V] Some DVD-Audio discs contain DVD-Video content. To play DVD-Video content, select “Play as DVD-Video”

in Other Menu (➜ page 22).

Video CD [VCD]

≥ Including SVCD (Conforming to IEC62107)

DVD-RAM [DVD-VR] [MP3] [JPEG]

≥ [DVD-VR] Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard),

such as DVD video recorders, DVD video cameras, personal computers, etc.

≥ [JPEG] Recorded with Panasonic SD multi cameras or DVD video recorders using the DCF (Design rule for Camera

File system) Standard Version 1.0.

DVD-R (DVD-Video)

≥ Discs recorded and finalized

DVD-R (VR)

≥ Discs recorded and finalized

only) of the Video Recording Format (a unified video recording standard).

DVD-R/ DVD-RW [MP3] [JPEG]

§2

≥ Finalize

—

iR (Video)

≥ Discs recorded and finalized

§1

/DVD-RW (DVD-Video) [DVD-V]

§2

on DVD video recorders or DVD video cameras.

§1

/DVD-RW (VR) [DVD-VR]

the disc after recording.

§1

/iRW (Video) [DVD-V]

§2

on DVD video recorders or DVD video cameras using Version 1.1 (or 1.2 for DVD-R DL

§2

on DVD video recorders or DVD video cameras.

CD [CD] [WMA] [MP3] [JPEG] [VCD]

≥ This unit can play CD-R/RW recorded with the above formats. Close the sessions or finalize
≥ [CD] This unit is compatible with HDCD, but does not support the Peak Extend function (a function which expands the

dynamic range of high-level signals).
HDCD-encoded CDs sound better because they are encoded with 20 bits, as compared with 16 bits for all other CDs.

≥ [WMA] [MP3] [JPEG] This unit also plays HighMAT discs.
≥ [WMA] This unit does not support Multiple Bit Rate (MBR: a file that contains the same content encoded at several

different bit rates).

§1

Includes single-sided, dual-layer discs.

§2

A process that allows play on compatible equipment.

≥ It may not be possible to play all the above-mentioned discs in some cases due to the type of disc or condition of the recording.

Discs that can be played / Disc caution / Maintenance

∫ Discs that cannot be played

DVD-RW version 1.0, DVD-ROM, CD-ROM, CDV, CD-G, SACD,
DivX Video Discs and Photo CD, DVD-RAM that cannot be removed
from their cartridge, 2.6-GB and 5.2-GB DVD-RAM, and “Chaoji
VCD” available on the market including CVD, DVCD and SVCD that
do not conform to IEC62107.

Note about using a DualDisc

≥ The digital audio content side of a DualDisc does not meet the

technical specifications of the Compact Disc Digital Audio
(CD-DA) format so playback may not be possible.

≥ Do not use a DualDisc in this unit as it may not be possible to

insert it correctly and it may get scratched or scraped.

Disc caution Maintenance

∫ To clean discs

Wipe with a damp cloth and then
wipe dry.

∫ Disc handling precautions

≥ Do not attach labels or stickers to discs. This may cause disc

warping, render ing it unusable.

≥ Do not write on the label side with a ball-point pen or other writing

instrument.

≥ Do not use record cleaning sprays, benzine, thinner, liquids which

prevent static electricity, or any other solvent.

≥ Do not use scratch-proof protectors or covers.
≥ Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels

RQT8582

12

(rented discs, etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.

Clean this unit with a soft, dry cloth.

≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the instructions that

came with the cloth.

Do not use commercially available lens cleaners as they may cause
malfunction. Cleaning of the lens is generally not necessary although

this depends on the operating environment.

Before moving the unit, ensure the disc trays are empty. Failure
to do so will risk severely damaging the discs and the unit.

§2

the disc after recording.
