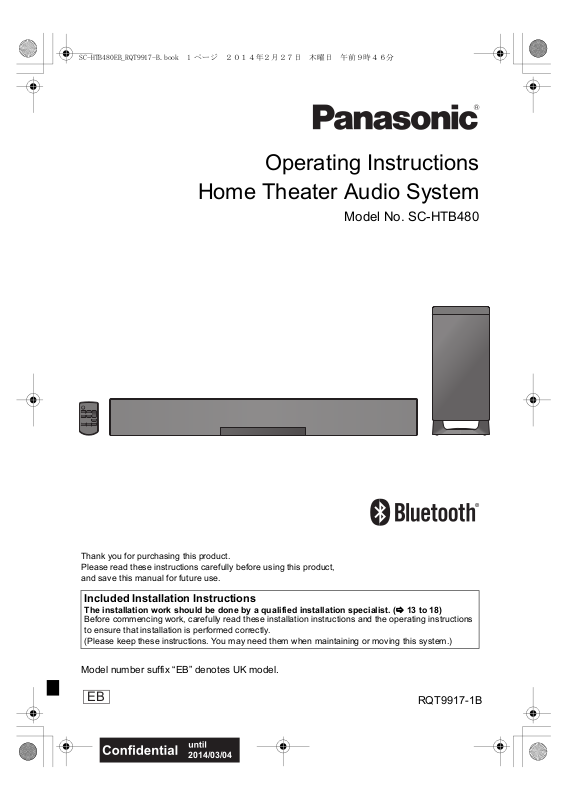

Panasonic SC-HTB480 Operating Instructions

Operating Instructions

Home Theater Audio System

Model No. SC-HTB480

Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.

Included Installation Instructions

The installation work should be done by a qualified installation specialist. (> 13 to 18)

Before commencing work, carefully read these installation instructions and the operating instructions
to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this system.)

Model number suffix “EB” denotes UK model.

EB

RQT9917-1B

Safety precautions

WARNING CAUTION

Unit

≥ To reduce the risk of fire, electric shock or

product damage,
jDo not expose this unit to rain, moisture,

dripping or splashing.

jDo not place objects filled with liquids, such as

vases, on this unit.

jUse only the recommended accessories.
jDo not remove covers.
jDo not repair this unit by yourself. Refer

servicing to qualified service personnel.

≥ To prevent injury, this apparatus must be

securely attached to the wall in accordance with
the installation instructions.

AC mains lead

≥ To reduce the risk of fire, electric shock or

product damage,
jEnsure that the power supply voltage

corresponds to the voltage printed on this unit.

j

Insert the mains plug fully into the socket outlet.

jDo not pull, bend, or place heavy items on the

lead.

jDo not handle the plug with wet hands.
jHold onto the mains plug body when

disconnecting the plug.

jDo not use a damaged mains plug or socket

outlet.

≥ The mains plug is the disconnecting device.

Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.

Button-type battery (Lithium battery)

≥ Risk of fire, explosion and burns. Do not

recharge, disassemble, heat above 60
incinerate.

≥ Keep the Button-Type battery out of the reach of

children. Never put Button-Type battery in
mouth. If swallowed call your doctor.

o

C or

Small object

≥ Keep the screws out of reach of children to

prevent swallowing.

≥ Keep the adhesive tape out of reach of children

to prevent swallowing.

≥ Keep the button-type battery out of reach of

children to prevent swallowing.

RQT9917

2

Unit

≥ Do not place sources of naked flames, such as

lighted candles, on this unit.

≥ This unit may receive radio interference caused

by mobile telephones during use. If such
interference occurs, please increase separation
between this unit and the mobile telephone.

≥ This unit is intended for use in moderate

climates.

≥ Product Identification Marking is located on the

bottom of the unit.

Placement

≥ Place this unit on an even surface.
≥ To reduce the risk of fire, electric shock or

product damage,
jDo not install or place this unit in a bookcase,

built-in cabinet or in another confined space.
Ensure this unit is well ventilated.

jDo not obstruct this unit’s ventilation openings

with newspapers, tablecloths, curtains, and
similar items.

jDo not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive
vibration.

Button-type battery (Lithium battery)

≥ Danger of explosion if battery is incorrectly

replaced. Replace only with the type
recommended by the manufacturer.

≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte

leakage and may cause a fire.
jRemove the battery if you do not intend to use

the remote control for a long period of time.
Store in a cool, dark place.

jDo not heat or expose to flame.
jDo not leave the battery(ies) in a car exposed

to direct sunlight for a long period of time with
doors and windows closed.

≥ When disposing of the batteries, please contact

your local authorities or dealer and ask for the
correct method of disposal.

Precautions

Caution for AC Mains Lead

Figure A

Figure B

Fuse cover

Figure A Figure B

Fuse
(5 ampere)

Fuse
(5 ampere)

(For the AC mains plug of three pins)

For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three
pin mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating of 5­ampere and that it is approved by ASTA or BSI to
BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on
the body of the fuse.

If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be
used until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the
AC mains plug fitted and follow the instructions
below.
Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

RQT9917

3

Table of contents

Safety precautions............................................................................................ 2

Caution for AC Mains Lead .............................................................................. 3

Before use

Supplied items .................................................................................................. 5

This system (SC-HTB480) ...................................................................................................5

Accessories .........................................................................................................................5

Control reference guide ................................................................................... 6

This system (Front) ..............................................................................................................6

This system (Rear) ..............................................................................................................7

Remote control ....................................................................................................................8

Getting started

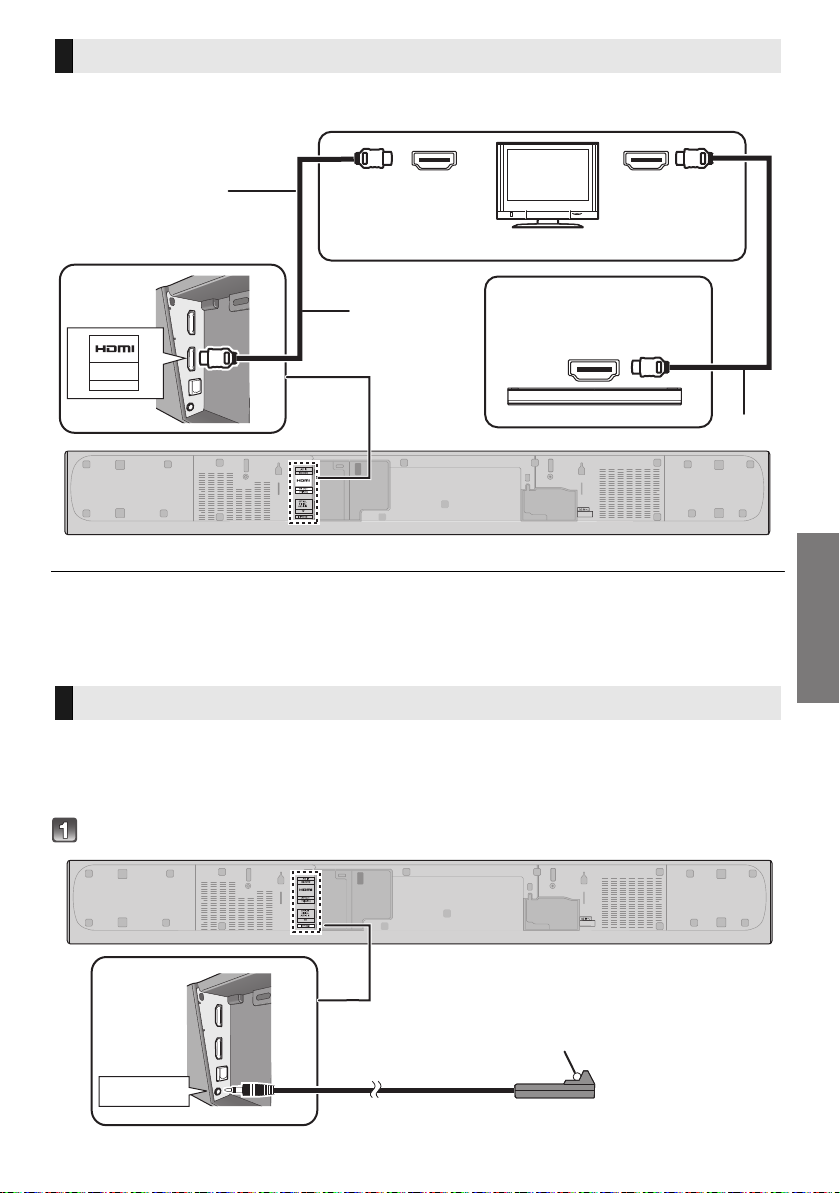

Step 1 Connections ......................................................................................... 9

Connection with the TV .......................................................................................................9

Connection from an HDMI compatible device ...................................................................10

Connection to a 4K Ultra HD TV ........................................................................................11

Using the IR Blaster ...........................................................................................................11

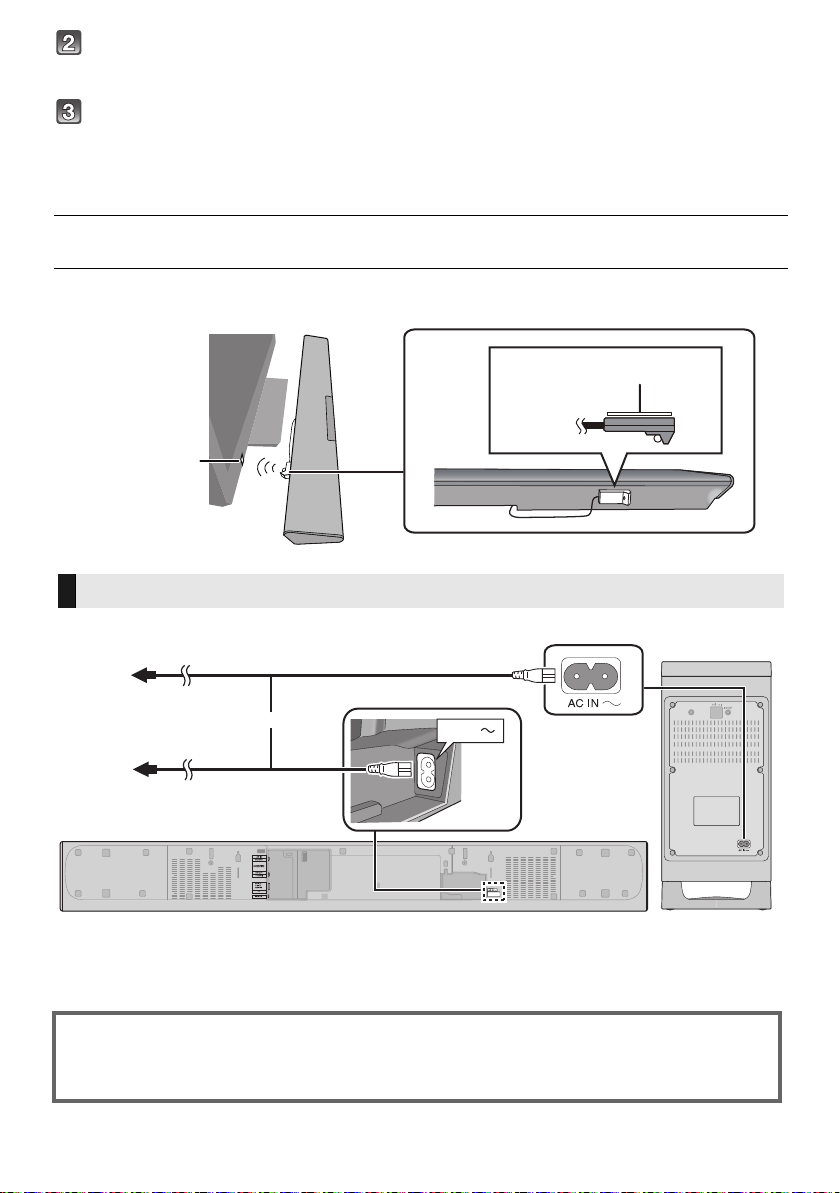

AC mains lead connection .................................................................................................12

Step 2 Placement ........................................................................................... 13

Safety Precautions ............................................................................................................13

The active subwoofer ........................................................................................................13

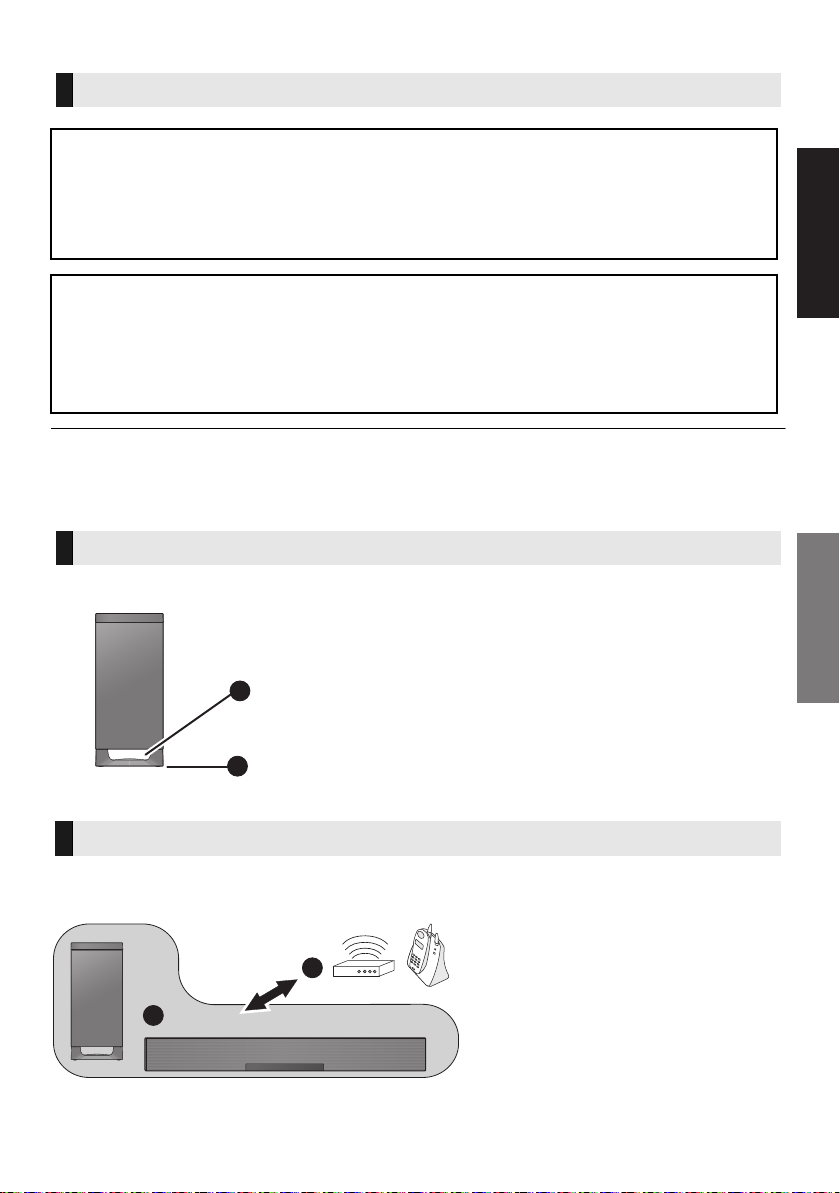

Wireless interference .........................................................................................................13

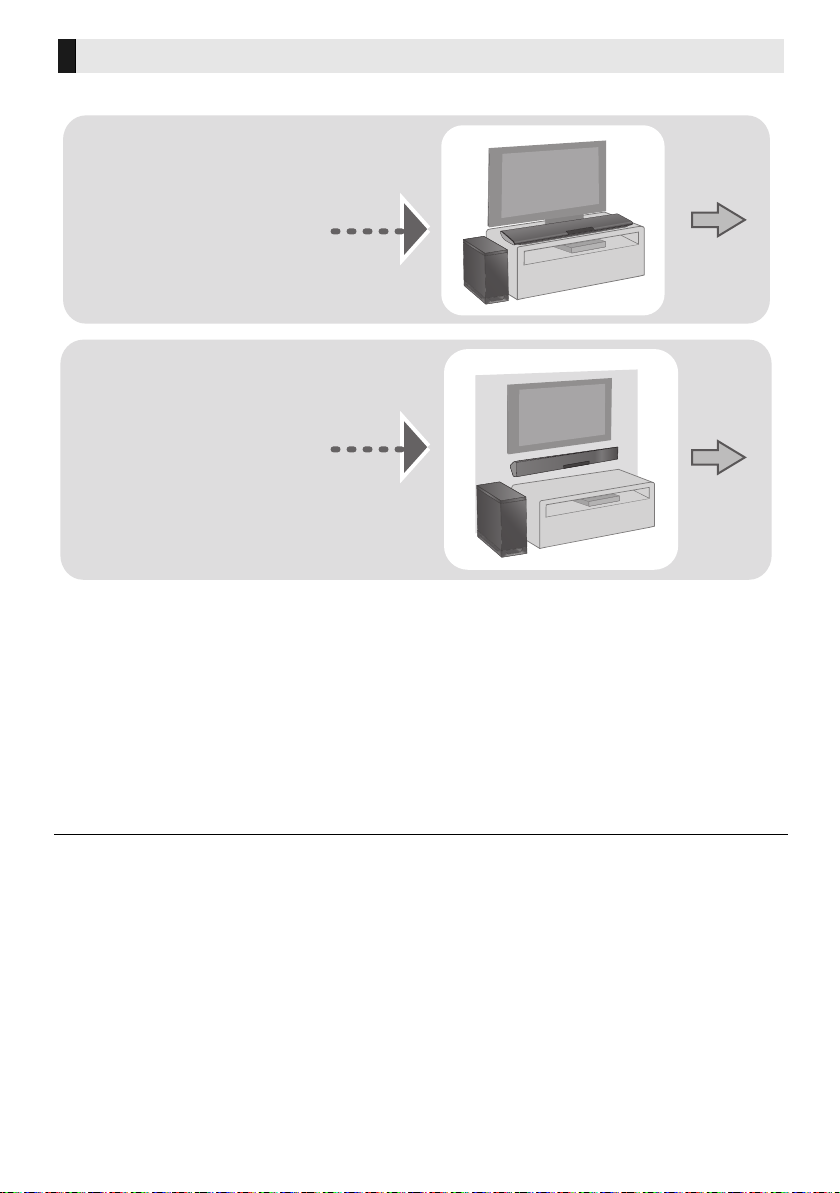

Selecting the placement method .......................................................................................14

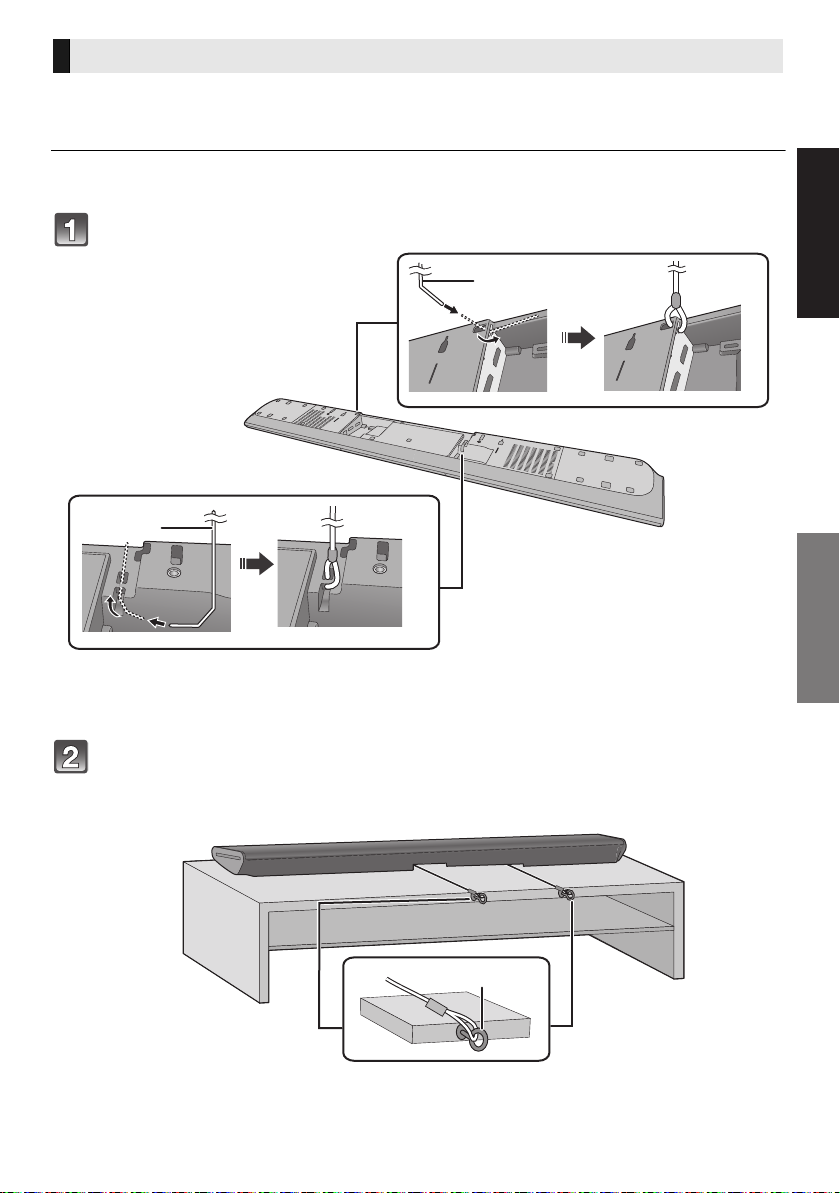

When placing the main unit in a rack or on a table ............................................................15

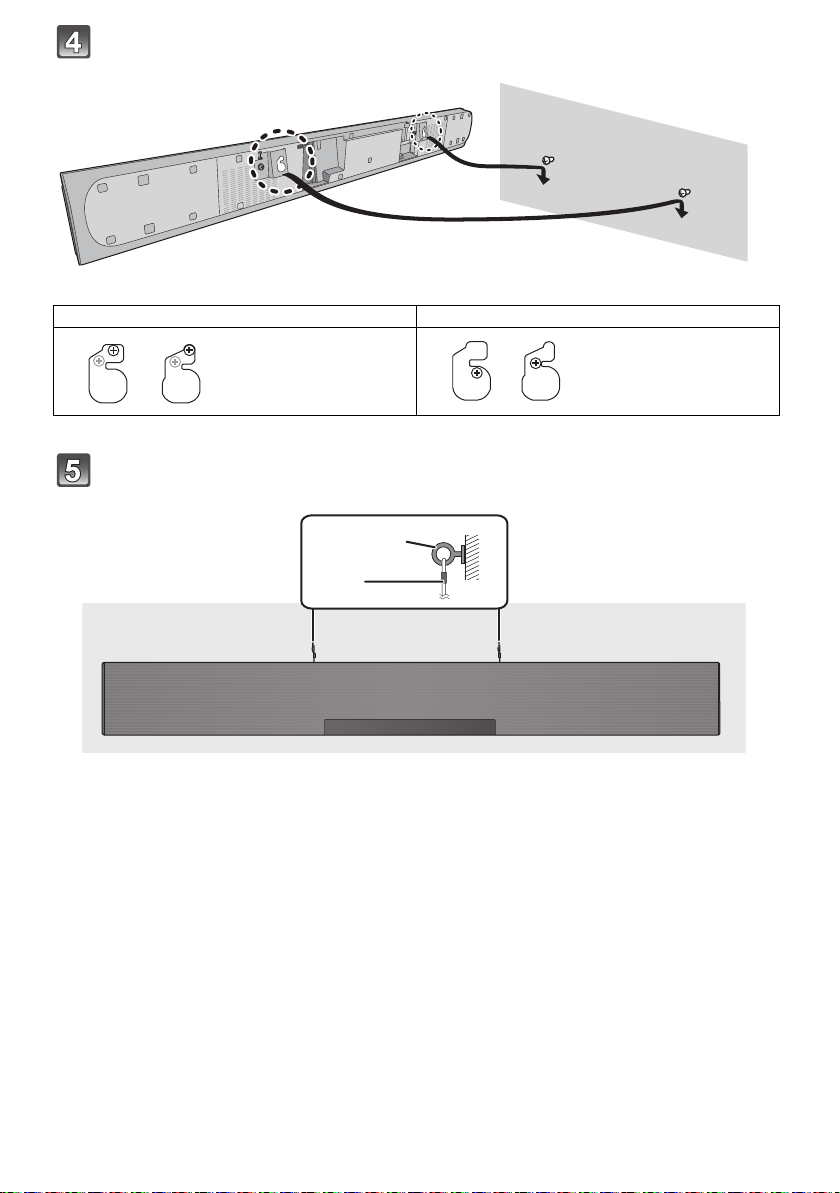

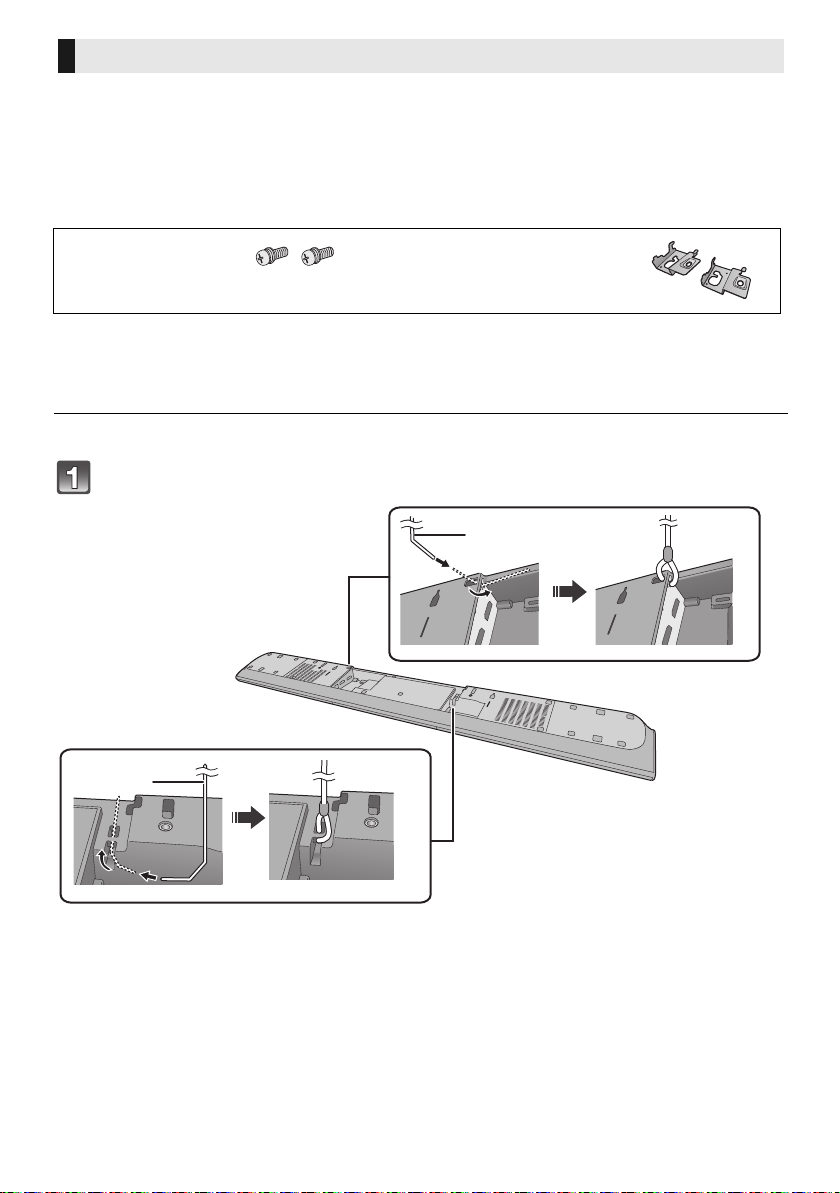

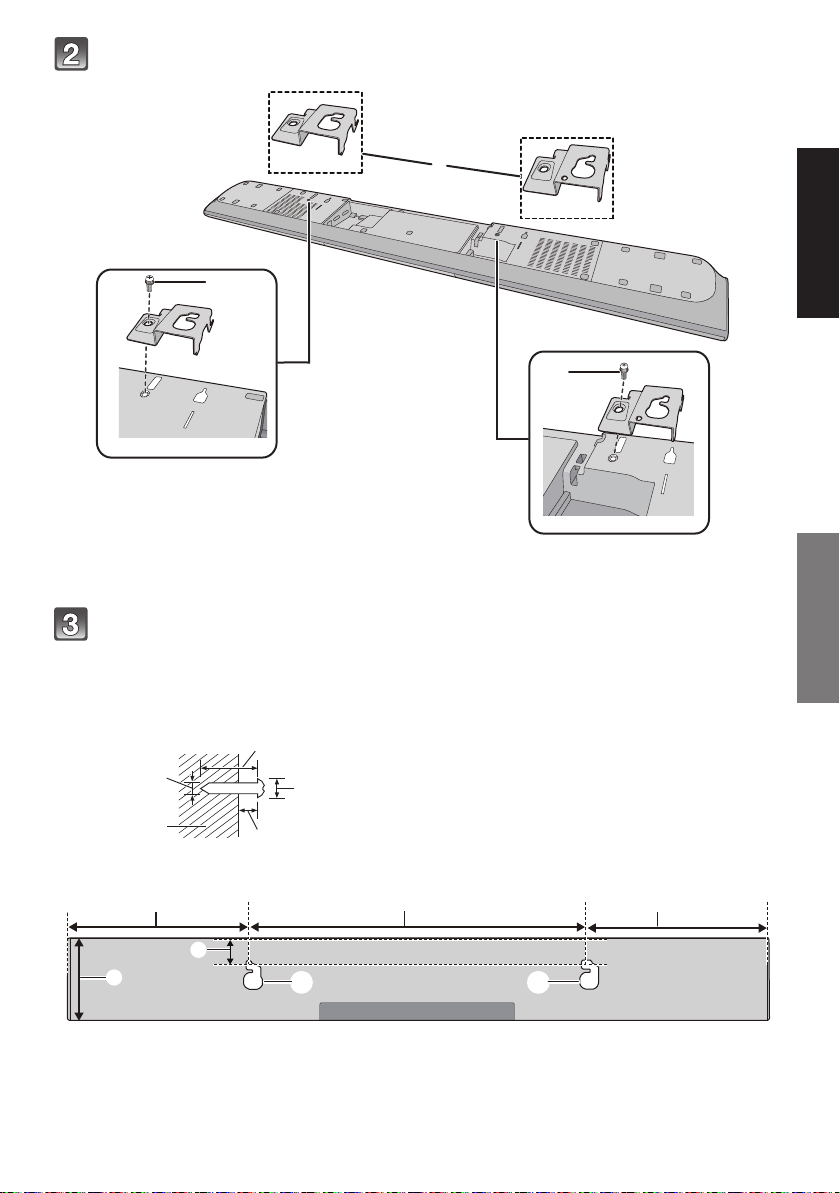

When attaching the main unit to a wall ..............................................................................16

Step 3 Wireless connections ........................................................................ 19

Active subwoofer wireless connection ...............................................................................19

Bluetooth

Remote control code ......................................................................................20

Operations

®

connection .......................................................................................................19

Using this system ...........................................................................................21

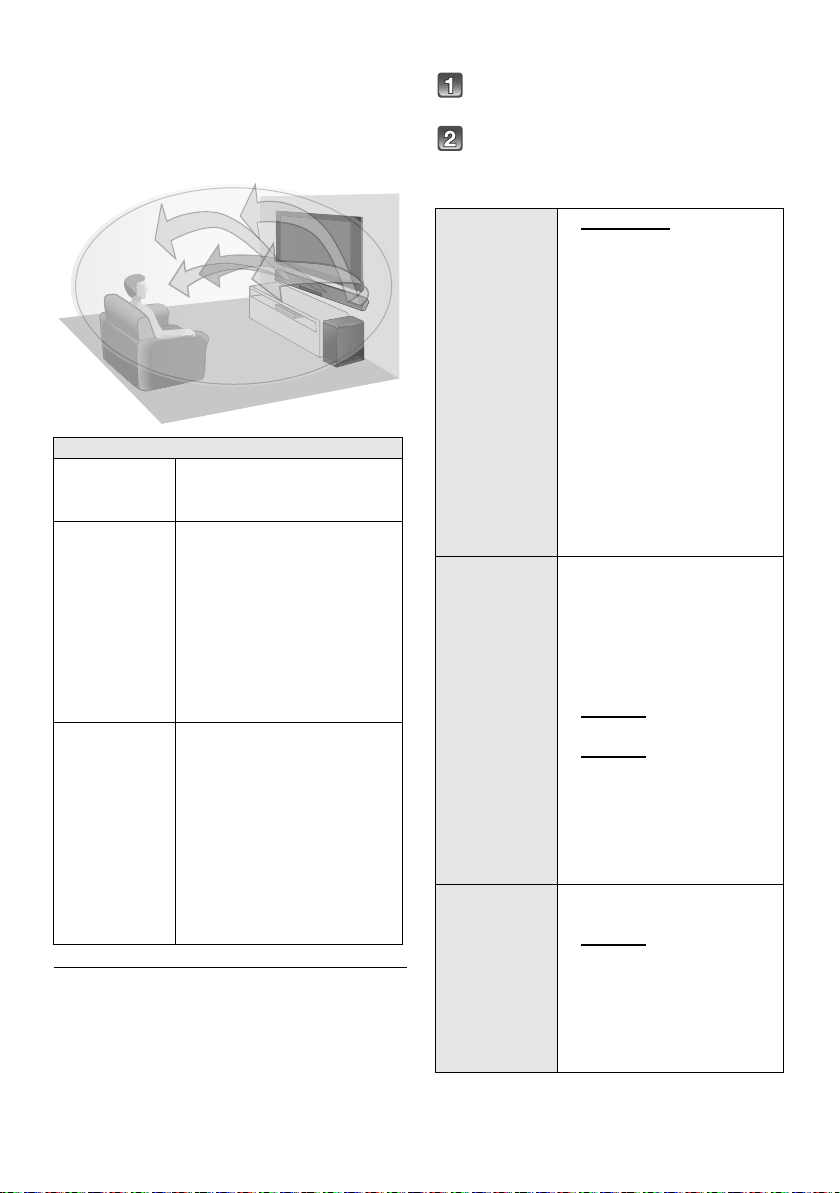

3D sound .........................................................................................................22

Sound menu ....................................................................................................22

Audio format ......................................................................................................................23

Setup menu ..................................................................................................... 24

Linked operations with the TV (VIERA Link “HDAVI Control

TM

”) ............... 25

Reference

Troubleshooting .............................................................................................26

®

About Bluetooth

Unit care ..........................................................................................................29

Licenses .......................................................................................................... 29

Specifications ................................................................................................. 30

RQT9917

4

............................................................................................29

Getting started

Operations

Reference

Before use

Precautions

Before use

≥ The illustrations shown may differ from your unit.
≥ Operations in this operating instructions are described mainly with the remote control, but

you can perform the operations on the main unit if the controls are the same.

Supplied items

This system (SC-HTB480)

∏ 1 Main unit (speaker)

(SU-HTB480)

∏ 1 Active subwoofer

(SB-HWA480)

Accessories

Check the supplied accessories before using this system.

∏ 1 Remote control (with a

battery)

(N2QAYC000098)

∏ 2 AC mains leads

(K2CT2YY00097)



≥ Product numbers are correct as of December 2013. These may be subject to change.
≥ The supplied AC mains lead is for use with this system only.

Do not use it with other equipment. Also, do not use cords from other equipment with this system.

∏ 1 IR Blaster

(K2ZZ02C00007)

∏ 2 Screws

(XYN5+J14FJK)

∏ 2 Wall mount brackets

(RMQ2281A, RMQ2281B)

RQT9917

5

Control reference guide

Main unit

Active subwoofer

This system (Front)

5

2134

1 Standby/on switch (Í/I)

Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit

is still consuming a small amount of power.
2 Adjust the volume of this system (> 21)
3 Select the input source (> 21)

“TV” --# “BD/DVD” --# “BLUETOOTH”

^--------------------------------------------------------}

6

7

8

®

4 Select the Bluetooth

(> 21)
5 NFC touch area (> 20)
6 Remote control signal sensor (> 8)
7 Display
8 WIRELESS LINK indicator (> 19)

device as the source

RQT9917

6

Before use

7

6

2

1

3
4

5

6

Main unit

Active subwoofer

This system (Rear)

1 HDMI AV IN (BD/DVD) terminal (> 10)
2 HDMI AV OUT (TV (ARC)) terminal (ARC

compatible) (> 9, 10)

3 OPTICAL DIGITAL AUDIO IN (TV) terminal

(> 10)

§ The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 28)

4 Ir SYSTEM terminal (> 11, 12)
5 USB port (for service use only)
6 AC IN terminal (> 12)
7 Active subwoofer on/off button (> 19)

RQT9917

7

Remote control





For table top layout

For wall mounting layout

∫ Before using for the first time

Remove the insulation sheet A.

1

2

3

INPUT

SETUP

SOUND

5

6

∫ To replace a button-type battery

4

OK

1 Turn the main unit on or off (> 21)
2 Select the input source (> 21)

“TV” --# “BD/DVD” --# “BLUETOOTH”

^--------------------------------------------------------}

3 Select the setup menu (> 24)
4 Select the sound menu (> 22)
5 Select the Bluetooth

(> 21)
6 Adjust the volume of this system (> 21)
7 Mute the sound (> 21)
8 Select and confirm the option

®

device as the source

7

8

Battery type: CR2025 (Lithium battery)





≥ Set the button-type battery with its (i) mark

facing upward.

∫ About remote control signal sensor

The remote control signal sensor is located on the main unit.

≥Use the remote control within the correct operation range.

Distance: Within approx. 7 m directly in front
Angle: Approx. 30

o

left and right



B Remote control signal sensor for table top layout
C Remote control signal sensor for wall mounting layout

RQT9917

8



Getting started

Before use

Getting started

HDMI IN (ARC)

AV OUT

TV(ARC)

A

Be sure to connect to
the TV’s ARC
compatible terminal.
(Refer to the operating
instructions for the TV.)

TV

Step 1 Connections

≥Turn off all equipment before connection and read the appropriate operating instructions.

Do not connect the AC mains lead until all other connections are completed.

∫ HDMI (High-Definition Multimedia Interface)

≥ The HDMI connection supports VIERA Link “HDAVI Control” (> 25) when used with a compatible Panasonic TV.
≥ Use the ARC compatible High Speed HDMI Cables. Non-HDMI-compliant cables cannot be utilised.
≥ It is recommended that you use Panasonic’s HDMI cable.

∫ IR (Infrared) Blaster

≥ Do not use the IR Blaster if the TV’s remote control sensor is not blocked by the main unit. (> 14)

Connection with the TV

Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.

Connection differs depending on the label printed next to the HDMI terminal.

Labelled “HDMI (ARC)”: Connection [A]
Not Labelled “HDMI (ARC)”: Connection [B]

∫ What is ARC?

ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labelled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.

Make the connection.

[A] Labelled “HDMI (ARC)”

A HDMI cable

RQT9917

9

[B] Not labelled “HDMI (ARC)”

HDMI IN

OPTICAL

OUT

TV

OPTICAL
DIGITAL
AUDIO IN

AV OUT

TV(ARC)

B

A

TV

HDMI OUT

BD/DVD

AV IN

A

e.g., Blu-ray Disc player

A HDMI cable

B Optical digital audio cable

≥ When you use the optical digital audio cable, insert

the tip correctly into the terminal.

Connection from an HDMI compatible device

You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc. to
this system.

Preparation

≥Connect the main unit to the TV. (> 9)

A HDMI cable

∫ HDMI standby pass-through

Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the HDMI AV IN terminal
will be sent to the TV connected to the HDMI AV OUT terminal (the sound will not be output from this system).

∫ 3D compatibility

Compatible with FULL HD 3D TV and Blu-ray Disc player.
≥ The main unit can pass-through the 3D video signal from a 3D compatible Blu-ray Disc player to a FULL HD 3D TV.



≥ Refer to the operating instructions of the connected HDMI compatible device for the necessary setting, to output the video and

audio signals.

RQT9917

10

Getting started

Connection to a 4K Ultra HD TV

HDMI IN (ARC)

HDMI OUT

HDMI IN (4K)

AV OUT

TV(ARC)

A

A

e.g., Blu-ray Disc player

(4K compatible)

TV

Connect both ends
to ARC compatible
HDMI terminals.

(4K compatible)

Infrared emitter

This system cannot pass-through the 4K content of a 4K compatible equipment to a 4K Ultra HD TV.
However, you can connect the system to a 4K Ultra HD TV to enjoy the 4K content.

A HDMI cable



≥ Refer to the operating instructions of the 4K Ultra HD TV (VIERA) and the 4K/60p compatible equipment for setup and for

playing the 4K content.

≥ To enjoy multi-channel output from this system, set the audio output of other equipment to Bitstream.
≥ The audio signal input to this system is up to 5.1 channels.

Using the IR Blaster

With the IR Blaster connection, it is possible to send the IR signal received by this system’s remote
control signal sensor to the TV’s sensor.

Use the TV’s remote control within the operation range of this system’s remote control signal sensor.

≥For the operation range, refer to page 8.

Connect the jack plug to the main unit’s Ir SYSTEM terminal.

Ir SYSTEM

RQT9917

11

Place the infrared emitter in sight of the TV’s remote control signal

TV remote control
signal sensor

Adhesive tape (supplied)







AC IN

sensor.

≥ For the location of the TV’s remote control signal sensor, refer to the operating instructions for the TV.

Aim the TV’s remote control at this system’s remote control sensor and
operate the TV.

≥ For the location of this system’s remote control signal sensor, refer to page 8.
≥ Make sure to clean the surface, where the adhesive tape is to be attached.
≥ If you peel off the adhesive tape, the surface may become damaged and exposed adhesive may remain. Once you have

confirmed the TV is operating correctly, secure it by attaching the adhesive tape.



≥ The supplied IR Blaster is only compatible with Panasonic TVs.

∫ Placement example

On the rear of the main unit:

AC mains lead connection

≥ Connect only after all other connections are completed.

A To a household mains socket
B AC mains lead (supplied)

This system consumes a small amount of AC power (>30) even when it is turned off. In the interest of power

≥

conservation, if you will not be using this system for a long time, unplug it from the household mains socket.

Saving energy

The main unit is designed to conserve its power consumption and save energy.

The main unit will automatically switch to standby mode when no signal is input and no operation is

≥

performed for approx. 20 minutes. Refer to page 24, “AUTO POWER DOWN” to turn this function off.

RQT9917

12

Getting started

Precautions

Step 2 Placement

A

B

D

C

Safety Precautions

Professional installation is required.
The installation should never be done by any other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY DAMAGE AND/OR SERIOUS INJURY, INCLUDING
DEATH RESULTING FROM IMPROPER INSTALLATION OR INCORRECT HANDLING.

≥ Be sure to install the main unit as indicated within this operating Instructions.
≥ Attach using techniques suited to the structure and materials of the installation location.

Caution

≥ This system is to be used only as indicated in these instructions. Failure to do so may lead to

damage to the amplifier and/or the speaker, and may result in the risk of fire. Consult a qualified
service person if damage has occurred or if you experience a sudden change in performance.

≥ Do not attempt to attach the main unit to a wall using methods other than those described in this

manual.



≥ Do not hold the main unit in one hand to avoid injury, you may drop the main unit when carrying it.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

The active subwoofer

When carrying the active subwoofer

A Do not hold the active subwoofer from this

opening.

The parts inside may get damaged.

B Always hold the bottom of the active subwoofer when

moving it.

Wireless interference

To avoid interference, maintain the following distances between the main unit/active subwoofer
and other electronic devices that use the same radio frequency (2.4 GHz band).

C Main unit/active subwoofer
D Wireless router, cordless phone and

other electronic devices: approx. 2 m

RQT9917

13

Selecting the placement method

When placing the main unit
in a rack or on a table

≥ Place the main unit on a flat

and horizontal surface.

When attaching the main
unit to a wall

≥ Place the main unit on a

flat and vertical surface.

Page 15

Page 16

Choose a placement method that suits you best.

∫ When placing the main unit in front of the TV

The main unit may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic
Tracking System) sensor, remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D
compatible TV.
≥If interference occurs, move the main unit further away from the TV. If the TV still does not function

correctly, try using it in a rack or in the wall mount position.

∫ If the TV’s remote control sensor is blocked by the main unit

Try using the TV’s remote control from a different angle. If the problem persists, you can use the supplied
IR Blaster to relay the signal to the TV. (> 11, 12)



≥ Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel facing upward.
≥ Do not use the main unit or the active subwoofer in a metal cabinet.
≥ Placing the active subwoofer too close to the walls and corners can result in excessive bass. Cover walls and windows with

thick curtains.

≥ If irregular colouring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the main unit and active

subwoofer further away from the TV.

≥ Keep magnetised items away. Magnetised cards, watches, etc., can be damaged if placed too close to the main unit and active

subwoofer.

RQT9917

14

Getting started

Precautions

When placing the main unit in a rack or on a table



Additionally required accessories (commercially available)

≥Fall prevention cord ...................................................................................................................... k 2

≥Screw eyes (to attach the fall prevention cord) ............................................................................. k 2



≥ Use commercially available screws that are capable of supporting over 26 kg.
≥ Use a cord that is capable of supporting over 26 kg (with a diameter of about 1.5 mm).

Attach the cord to the main unit.





A Cord

§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,

§

about 5 mm apart from the tip, at an angle of 45

o

(as illustrated above).

Place the main unit in the desired position and attach each cord onto the
rack or table.

≥ Make sure that the slack of the cord is minimal.
≥ Do not lean the main unit against the TV or wall.

B Screw eye

≥Attach at a position capable of supporting over 26 kg.
≥Depending on the placement of the main unit, the screwing position of the screw eye may differ.

RQT9917

15

When attaching the main unit to a wall

The main unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the
screw used and the wall are strong enough to support the weight of at least 26 kg.
The screws and other items are not supplied as the type and size will vary with each installation.

≥Refer to step 3 for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.

Supplied accessories

∏ 2 Screws ∏ 2 Wall mount brackets

Additionally required accessories (commercially available)

≥Screws for wall mounting............................................................................................................. k 2

≥Fall prevention cord ..................................................................................................................... k 2

≥Screw eyes (to attach the fall prevention cord)............................................................................ k 2



≥ Use a cord that is capable of supporting over 26 kg (with a diameter of about 1.5 mm).

Attach the cord to the main unit.





A Cord

§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,

§

about 5 mm apart from the tip, at an angle of 45

RQT9917

16

o

(as illustrated above).

Getting started

Precautions

Attach the wall mount brackets to the main unit.

















A Wall mount bracket (supplied)
B Screw (supplied)

Drive a screw into the wall.

≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.
≥ Position the main unit with at least 50 mm of free space to its right. If not, it may not be possible to access the buttons.
≥ Be sure to use a level to ensure that both mounting holes are level to each other.

C At least 30 mm
D ‰4.0 mm
E ‰7.0 mm to ‰9.4 mm
F Wall or pillar

Front view (semi-transparent image)

G 1.6 mm to 2.5 mm





H 400 mm I 275 mm J 275 mm

K 27 mm L 110 mm M Wall mounting hole













RQT9917

17

Fit the main unit securely onto the screw(s).





DO DO NOT

≥ Move the speaker so

that the screw is in
this position.

Secure the cord to the wall.

≥ Make sure that the slack of the cord is minimal.

≥ In this position, the

speaker will likely fall
if moved to the left or
right.

A Screw eye
B Cord

RQT9917

18

Getting started

Precautions

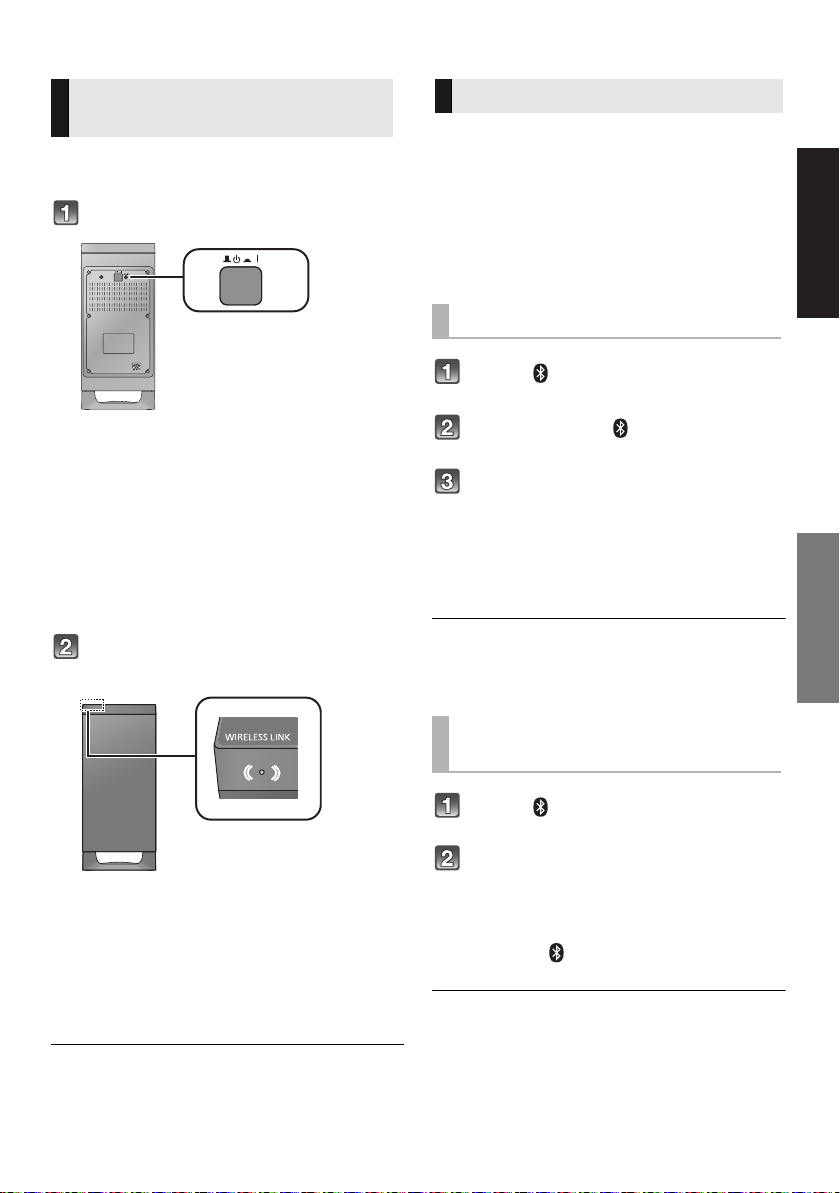

Step 3 Wireless connections

Active subwoofer
wireless connection

Preparation

≥ Turn on the main unit.

Press [BÍ CI].

Active subwoofer on/off button [B Í C I]

Use this button to turn the active subwoofer on
and off.

C I:

The active subwoofer is on.

B Í:

The active subwoofer is off.
The active subwoofer will still consume a small
amount of power even when it is turned off (

Check that the wireless link is
activated.

B, Í

Bluetooth® connection

By using the Bluetooth® connection, you can listen
to the sound from the Bluetooth
from this system wirelessly.

≥ Refer to the operating instructions of the Bluetooth® device

for further instruction on how to connect a Bluetooth
device.

®

audio device

Preparation

≥ Turn on the Bluetooth® feature of the device and

place the device near the main unit.

Bluetooth® pairing

Press [ ] to select “BLUETOOTH”.

≥ If “PAIRING” is indicated on the display, go to step 3.

Press and hold [ ] until “PAIRING”
is indicated on the display.

Select “SC-HTB480” from the
Bluetooth
menu.

≥

If prompted for the passkey on the Bl uetooth® device, enter “0000”.

≥ Once the Bluetooth® device is connected, the name of the

connected device will be indicated on the display for a few

).

seconds.



≥ You can register up to 8 devices with this system. If a 9th

device is paired, the device that has not been used for the
longest time will be replaced.

®

device’s Bluetooth®

®

WIRELESS LINK indicator
Lights red:

The wireless link is not activated.

Lights green:

The wireless link is activated.

Blinks green:

The active subwoofer is trying to activate the

wireless link with the main unit.



The wireless link will be activated when the main unit and the
active subwoofer are both turned on.

Connecting a paired

®

Bluetooth

device

Press [ ] to enter Bluetooth® mode.

“BLUETOOTH READY” is indicated on the display.

Select “SC-HTB480” from the

®

Bluetooth

device’s Bluetooth®

menu.

∫ Disconnecting a Bluetooth

Press and hold [ ] until the “BLUETOOTH
READY” is indicated on the display.



≥ When “BLUETOOTH” is selected as the source, this

system will automatically try and connect to the last
connected Bluetooth

≥ The Bluetooth

audio source (e.g. “TV”) is selected.

≥

This system can onl y be connected to on e device at a time.

≥

To change the sound qual ity, refer t o page 24 “LI NK MODE”.

®

device.

®

device will be disconnected if a different

®

device

RQT9917

19

One-Touch Connection
(Connecting by NFC)

For NFC-compatible Bluetooth® devices
(Android

Simply by touching an NFC (Near Field
Communication)-compatible Bluetooth
the main unit, you can complete all preparations,
from registering a Bluetooth
establishing a connection.

TM

devices) only

®

device to

®

device on

Preparation

≥ Turn on the NFC feature of the device.
≥ Android device version lower than 4.1 requires

the installation of the app “Panasonic Music
Streaming” (free of charge).

Enter “Panasonic Music Streaming” in the search

1

box of Google Play
“Panasonic Music Streaming”.

2 Start the app “Panasonic Music Streaming” on the

device.
– Follow on-screen instructions on your device.
– Always use the latest version of the app.

Press [ ] to select “BLUETOOTH”.

Touch and hold your device on the
NFC touch area of the main unit [ ].
(> 6)

Do not move the Bluetooth® device until it beeps,
displays a message or reacts in some way.
Once the Bluetooth
device away from the main unit.

≥When the registration and connection of the Bluetooth

device is complete, the name of the connected device is
indicated on the display for a few seconds.

≥The location of the NFC touch area differs depending on

the device. When a connection cannot be established
even if your Bluetooth
touch area of the main unit, change the position of the
device. The condition may also improve if you download
the dedicated app “Panasonic Music Streaming” and
start it up.

TM

to search, and then select

®

device has reacted, move the

®

device has touched the NFC

®

Remote control code

When other Panasonic devices respond to this
system’s remote control, change the remote
control code on this system and the remote
control.

Preparation

≥ Turn off all other Panasonic products.
≥ Turn on the main unit.

∫ To set the code to “REMOTE 2”

Press and hold [MUTE] and [OK] for more than
4 sec.

“REMOTE 2” is indicated on the display.

∫ To set the code to “REMOTE 1”

Press and hold [MUTE] and [4] for more than
4 sec.

“REMOTE 1” is indicated on the display.

Start playback on the Bluetooth®
device.



≥ If you touch another device to the main unit, you can

update the Bluetooth
connected device will be disconnected automatically.

≥ When the connection is established, playback may start

automatically depending on the type of device being used.

≥ The One-Touch Connection may not work properly

depending on the type of device being used.

RQT9917

20

®

connection. The previously

Getting started

Operations

Operations

SOUND

INPUT

SETUP





OK

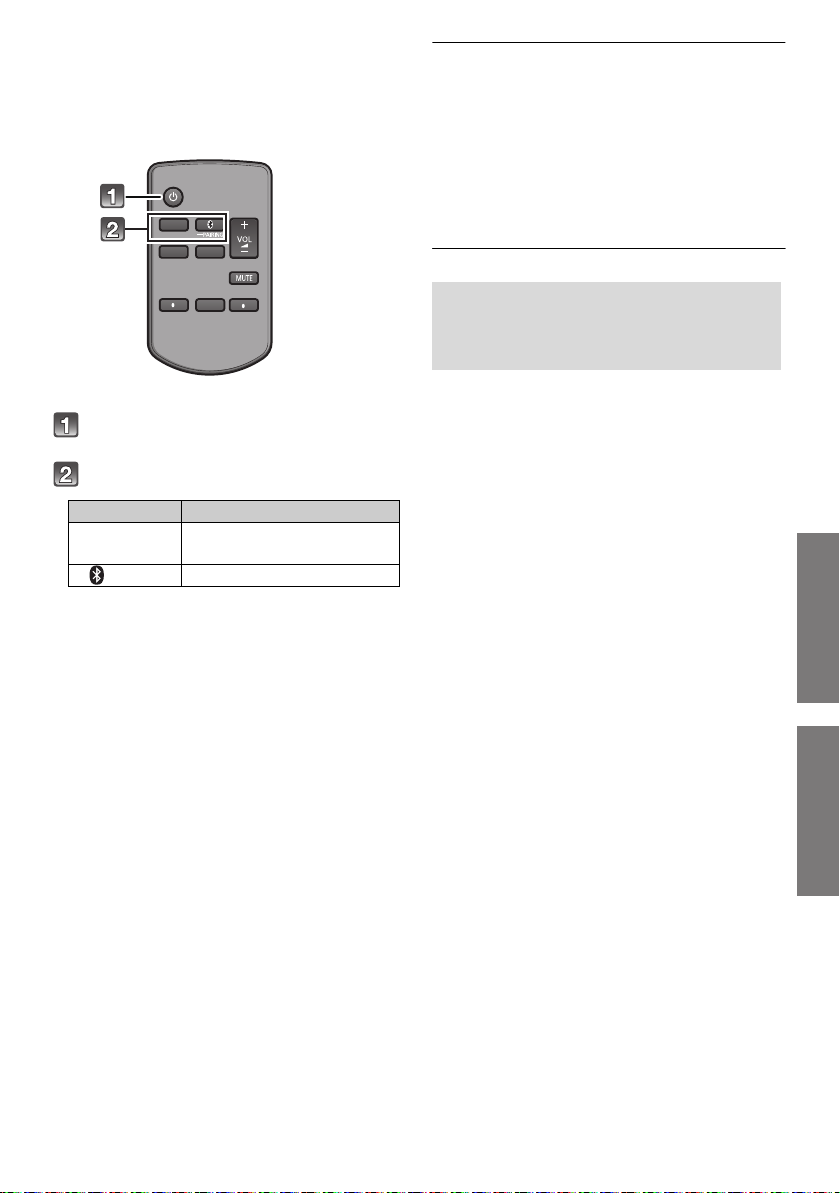

Using this system

Preparation

≥ Turn on the active subwoofer.
≥ Turn on the TV and/or connected device.

Press [Í] to turn on the main unit.

Select the source.

Press To select

[INPUT]

[] “BLUETOOTH”

≥ This remote control cannot be used to control the

operations of the connected devices.

∫ When “BLUETOOTH” is selected as

the source

On the Bluetooth® device:
Select this system as the output source of the
connected Bluetooth
playback.

∫ When “BD/DVD” is selected as the

source

On the TV and the connected device:
Select the TV’s input for this system and start the
playback on the connected device.

“TV” --------------# “BD/DVD”

^--- “BLUETOOTH”(---}

®

device and start the

∫ To adjust the volume of this system

Press [i VOL j].

≥ Volume range: 0 to 100

∫ To mute the sound

Press [MUTE].

≥ While muting, “MUTE” is indicated on the display.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is cancelled if the main unit is turned off.



If this system does not operate as
expected or sound is unusual, returning
the settings to the factory preset may
solve the problem. (> 26)

≥ If there is sound coming out of the TV’s speakers, reduce

the volume of the TV to its minimum.

RQT9917

21

3D sound

e.g., Image of 3D sound field

This system provides a feeling that the sound and
the image are as one.
≥ To change the applied effect, refer to “Sound

menu”. (> right)

Sound menu

Press [SOUND] repeatedly to select
the sound effect.

Press [3, 4] repeatedly to select
the desired setting and then press
[OK].

3D sound

®

Virtual

Dolby
Speaker

3D surround
effect

Clear-mode
dialog



≥ Dolby Virtual Speaker effect is ON except STEREO mode.
≥ To turn off Dolby Virtual Speaker and the 3D surround

effects, select “STEREO” as the sound mode. (> right)

≥ To turn off the 3D surround and the Clear-mode dialog

effects, refer to “3D CLR DIALOG”. (> 23)

With this effect you can enjoy
a surround sound effect
similar to 5.1ch.
Adding to the Dolby Virtual
Speaker effect, Panasonic
has applied its own sound
field controlling technology to
expand the sound field
forwards, backwards,
upwards, and downwards,
providing a sound with depth
and force that better matches
3D images.
Sports commentary and
dialogs from TV dramas are
heard as if the sound is
coming from the TV, giving
the feeling that the sound and
the image are one.
Also, the dialog will stand out
from the other sounds during
normal volume playback and
when the volume is lowered
for night time viewing.

SOUND
MODE

SUBWOOFER

DIALOG

STANDARD

for dramas and comedy
shows.
STADIUM: Produces a
realistic sound for live
sports broadcasts.
MUSIC: Enhance the
sound of musical
instruments and songs.
CINEMA: Produces three­dimensional sound unique
to movies.
NEWS: Enhance the voice
of news and sports
commentaries.
STEREO: Play any source
of sound in stereo.

You can adjust the amount
of bass. This system
automatically selects the
most suitable setting
according to the type of
playback source.

LEVEL 1
LEVEL 2

2 channel audio source

LEVEL 3

channel audio source

LEVEL 4

The setting you make is
retained and recalled every
time you play the same
type of source.

Adjust the dialog level.

LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4

“DIALOG” is not indicated
on the display when “3D
CLR DIALOG” is set to
“OFF”.

: Best suited

: Default for

: Default for multi-

22

RQT9917

Operations

H.BASS

3D CLR
DIALOG

DUAL
AUDIO

AGC

LOW VOL
MODE

Enhance the harmonic
bass effect.

ON
OFF

The 3D Clear Mode Dialog
feature creates a sound field
similar to the sound coming
from a TV screen and
makes dialogues clearer.
ON: 3D Surround, Clear
Mode Dialog and Dolby
Virtual Speaker effect
OFF: Dolby Virtual
Speaker effect
The setting is set back to
“ON” every time you turn
the main unit on.

Sets the preferred audio
channel mode when there
are two audio modes
received by this system.

M1

: Main
M2: Secondary
M1 + M2:

This effect only works if the
audio output of the TV or
player is set to “Bitstream”
and “Dolby Dual Mono” is
available in the sound source.

Auto gain control prevents
sudden loud sound by
reducing the sound level
automatically when the
input is too high.
This function is suitable for
TV broadcast that has
sound level difference.

ON
OFF

If the sound becomes
unnatural, select “OFF”.

Enhance the dialog in low
volume condition.

ON
OFF

Select “OFF” to cancel this
effect if the dialog does not
sound natural in low
volume condition.

Main + Secondary

Audio format

You can view the current audio format.

Press and hold [SOUND] for more than 4 sec.

DOLBY
DIGITAL

DTS DTS is the audio source.

PCM MULTI

PCM

Dolby Digital is the audio
source.

Linear pulse-code
modulation is the audio
source.

2 channel pulse-code
modulation is the audio
source.



≥ The default setting is underlined. Changed settings will be

kept until it is changed again, unless otherwise indicated.

RQT9917

23

Setup menu

Press [SETUP] repeatedly to select
the setup item.

Press [3, 4] repeatedly to select
the desired setting and then press
[OK].

Dims the display after

DIMMER

AUTO
POWER
DOWN

VOL
LIMITATION

BLUETOOTH
STANDBY

5 seconds of inactivity.

ON
OFF

The main unit
automatically is turned off if
there is no audio input and
when you do not use it for
approx. 20 minutes.

ON
OFF

Sets the volume limit to 50
when you turn on the main
unit although the volume is
set to above 50 before it is
turned off.

ON
OFF

This function allows you to
connect a paired
Bluetooth
the main unit is in standby
mode.

ON
OFF

The main unit will be
turned on automatically
when you connect a paired
Bluetooth

®

device when

®

device.

Change the Bluetooth
connection link mode to
suit the connection type.
Make sure to disconnect
the current connected

LINK
MODE

VIERA
LINK



≥ The default setting is underlined. Changed settings will be

kept until it is changed again, unless otherwise indicated.

device (“BLUETOOTH
READY” is indicated on the
display).
MODE 1: Emphasis on
connectivity.

: Emphasis on

MODE 2

sound quality.

Turn on the VIERA Link
function.

ON
OFF

Select “OFF” when your
HDAVI Control device does
not work correctly with this
system. ARC will be
disabled. Connect an
optical digital audio cable.
Turn off all connected
devices and then turn them
on again after changing the
setting.

®

24

RQT9917

Operations

Linked operations with the TV
(VIERA Link “HDAVI Control

TM

”)

What is VIERA Link “HDAVI
Control”?

VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
system, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.

Preparation

1 Confirm that the HDMI connection has been

made. (> 9, 10)

2 Set the “HDAVI Control” operations on the

connected equipment (e.g., TV).

3 For the optimal “HDAVI Control” operations

change the following settings on the
connected TV

≥ Set the default speaker settings to this system.
≥ Set the speaker selection settings to this system.

4 Turn on all “HDAVI Control” compatible

equipment and select the TV’s input for this
system so that the “HDAVI Control” function
works properly.

5 If a device is connected to the HDMI AV IN

terminal, start play to check that the picture is
displayed on the TV correctly.

When the connection or settings are changed,
repeat this procedure.

§1 The availability and function of the settings may vary

depending on the TV. Refer to the operating instructions
for the TV for details.

§2 If the TV has a default speaker setting within the VIERA

Link setting items, choosing this system as the default
speaker will automatically change the speaker selection
to this system.



≥ VIERA Link “HDAVI Control”, based on the control

functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a
unique function that we have developed and added. As
such, its operation with other manufacturers’ equipment
that supports HDMI CEC cannot be guaranteed.

≥ This unit supports “HDAVI Control 5” function.

“HDAVI Control 5” is the standard for Panasonic’s HDAVI
Control compatible equipment. This standard is compatible
with Panasonic’s conventional HDAVI equipment.

≥ Please refer to individual manuals for other manufacturers’

equipment supporting VIERA Link function.

§1

.

§2

What you can do with
VIERA Link “HDAVI Control”

To make sure that the audio is output from this
system, turn the main unit on by using the TV’s
remote control and selecting home cinema from
the speaker menu of VIERA Link menu.
The availability and function of the settings may
vary depending on the TV. Refer to the operating
instructions for the TV for details.

∫ Speaker control

You can select whether audio output is from this system
or the TV speakers by using the TV menu settings.

Home cinema

This system is active.

≥ When the main unit is in standby mode, changing the TV

speakers to this system in the VIERA Link menu will
automatically turn the main unit on.

≥ You can control the volume setting of this system using the

volume or mute button on the TV remote control.

≥ If you turn off the main unit, TV speakers will be

automatically activated.

≥ Audio will automatically be output from this system if the TV

is compatible to VIERA Link “HDAVI Control 4” or later.

TV

TV speakers are active.

≥ The volume of this system is set to its minimum.

∫ Automatic input switching

When the following operations are performed, the
main unit will automatically change the input to
the corresponding source.

jWhen play starts on an HDMI connected

j

§3 If the speaker output setting on the TV is set to this

§3

device.

When the TV input or the TV channel is changed.

system, the TV and the main unit turn on automatically
(Power on link).

∫ Power off link

When the TV is turned off, the main unit also turns
off automatically. (This function does not work
when Bluetooth

®

is the source.)

∫ Automatic lip-sync function

(for HDAVI Control 3 or later)
Delay between audio and video is automatically
adjusted by adding time-lag to the audio output,
enabling you to enjoy smooth audio for the picture.



The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and the
VIERA Link is set to on.

RQT9917

25

Reference

Troubleshooting

Before requesting service, make the following
checks. If you are in doubt about some of the
check points, or if the solutions indicated in the
following guide do not solve the problem, consult
your dealer for instructions.

To return to the factory preset.

While the main unit is on, press and hold [Í/I] on
the main unit for more than 4 sec.
(“RESET” is indicated on the display when this
system is reset.)

If this system does not operate as expected,
returning the settings to the factory preset
may solve the problem.

≥ The remote control code will return to

“REMOTE 1” when this system is returned to
the factory preset. To change the remote
control code, refer to page 20.

General operation

No power.

≥ Unplug the AC mains lead for 10 sec before

plug in again.
After turning the main unit on, if the main unit

≥

immediately turns off, unplug the AC mains lead
and consult your dealer.

≥

If the main unit does not turn on by turning on TV
(HDAVI control), turn on the main unit manually.
If the problem persists, refer to “HDMI” in
“Troubleshooting”.

The remote control does not work properly.

≥ The battery is depleted. Replace it with a new

one. (> 8)

≥ It is possible that the insulation sheet has not

been removed. Remove the insulation sheet.
(> 8)

≥ It may be necessary to set the code of the

remote control again after changing the battery
of the remote control. (> 20)

≥ Use the remote control within the correct

operation range. (> 8)

≥ Check which remote control signal sensor is

working by the following operation.
jPress and hold [INPUT] on the main unit for

more than 4 sec. “ON TABLE” or “ON WALL”
is indicated on the display for 4 sec.

jRefer to page 8 “About remote control signal

sensor” for the remote control signal sensor
location.

RQT9917

26

The main unit is automatically switched to
standby mode.

“AUTO POWER DOWN” function is on.
The main unit will automatically switch to standby
mode when no signal is input and no operation is
performed for approx. 20 minutes. Refer to page
24 to turn this function off.

The main unit is turned off when the TV’s
speakers are selected in the speaker control.

This is a normal feature when using VIERA Link
(HDAVI Control 4 or later). Please read the
operating instructions for the TV for details about
its power save feature. (> 25)

HDMI

This system does not operate correctly.

If the HDMI cable is connected to the wrong
terminal (HDMI AV IN or HDMI AV OUT), this
system will not operate correctly. Turn the main
unit off, disconnect the AC mains lead and
reconnect the HDMI cable(s). (> 9, 10)

VIERA Link related operations no longer
function properly.

≥ Check the VIERA Link setting on the connected

devices.
jTurn on VIERA Link function on the

connected devices.

jSelect this system as the speaker in the TV's

VIERA Link menu.

≥ Have you turned the VIERA Link settings off?

(> 24)

≥ When the HDMI connections are changed, after

a power failure or after the AC mains lead has
been removed, VIERA Link operations may not
function properly.
jTurn on all the devices that are connected to

the TV with an HDMI cable and then turn the
TV on.

jTurn off the VIERA Link settings of the TV and

turn it on again. For details refer to the
operating instructions for the TV.

jWhile the main unit and the TV are connected

with the HDMI cable, turn on the TV and then
remove the main unit’s AC mains lead and
reconnect it again.

Reference

The first few seconds of audio cannot be
heard when using the HDMI connection.

This may occur during DVD-Video chapter
playback. Change the digital audio output setting on
the connected device from “Bitstream” to “PCM”.

When operating an HDMI compatible device of
a different brand, the main unit reacts in an
unwanted manner.

HDAVI Control commands may use a different
signal depending on the brand of the device. In
this case, turn VIERA Link off. (> 24)

When the main unit is turned on or off, audio
and video are temporarily disabled

When the main unit is turned on or off it is normal for
the audio and video to be temporarily disabled. This is
not a malfunction. This can occur when the device it is
connected to, via HDMI, does not support Panasonic’s
VIERA Link feature (HDAVI Control 3 or later).

Bluetooth

Pairing cannot be done.

Check the Bluetooth

®

®

device condition.

The device cannot be connected.

≥ The pairing of the device was unsuccessful or

the registration has been replaced. Try pairing
the device again. (> 19)

≥ This system might be connected to a different

device. Disconnect the other device and try
pairing the device again.

The device is connected but audio cannot be
heard through this system.

For some built-in Bluetooth® devices, you have to set
the audio output to “SC-HTB480” manually. Read the
operating instructions for the device for details.

The sound is interrupted.

The device is out of the 10 m communication range.

≥

Bring the Bluetooth

®

device closer to the main unit.

≥ Remove any obstacle between the main unit

and the device.

≥ Other devices that use the 2.4 GHz frequency

band (wireless router, microwaves, cordless
phones, etc.) are interfering. Bring the
Bluetooth

®

device closer to the main unit and

distance it from the other devices.

≥ Select “MODE1” for stable communication.

(> 24)

The One-Touch Connection (NFC feature) is
not working.

Make sure the main unit and the NFC feature of
the device are turned on. (> 20)

Sound

No sound (or image).

≥ Turn muting off. (> 21)
≥ Check the connections to the other devices.

(> 9, 10)

≥ Make sure that the received audio signal is

compatible with this system. (> 30)

≥ Turn this system off and then on again.
≥ If the main unit is connected to the TV with only

an HDMI cable, make sure that the TV’s HDMI
terminal is labelled “HDMI (ARC)”. If not,
connect using the optical digital audio cable.
(> 9, 10)

≥ If the main unit is connected to a Panasonic TV

and turned on using the button on the main unit
or the remote control, sound might not be output
from this system. In this case, turn the main unit
on using the TV’s remote control. (> 25)

≥ If the connections are correct, there might be a

problem with the cables. Redo the connections
with different cables.

≥ Check the audio output settings on the

connected device.

The dual audio cannot be changed from main
to secondary.

If the audio received from the connected device is
not “Dolby Dual Mono” or the output setting is not
“Bitstream”, the setting cannot be changed from
this system. Change the setting on the connected
device.

The volume is lowered when the main unit is
turned on.

“VOL LIMITATION” is on.
If the main unit is turned off with the volume
setting in the greater half (above 50), the main
unit will automatically lower the volume to the
middle (50) when the main unit is turned on.
(> 24)

The dialog is too persistent or the dialog does
not sound natural.

This system has a function to make the dialog
stand out when the volume is low. (> 23)

RQT9917

27

There is no audio.
The power of the main unit turns off
automatically.

(When the main unit detects a problem, a safety
measure is activated and the main unit
automatically switches to standby mode.)

≥ There is a problem with the amplifier.
≥ Is the volume extremely high?

If so, lower the volume.

≥ Is this system placed in an extremely hot place?

If so, move this system to a cooler place and
wait a few moments and then try to turn it on

again.
If the problem persists, confirm the display, turn
this system off, remove the AC mains lead cord
and consult your dealer. Please be sure to
remember the display that was indicated and
inform the dealer.

Main unit displays

“F61”

≥ There is a problem with the amplifier of the

system.
≥ Disconnect the AC mains lead and consult the

dealer.

“F70 HDMI”

≥ Check HDMI connection.
≥ Turn off the main unit and then switch it on

again.
≥ Disconnect the HDMI cable.

“F76”

≥ There is a problem with the power supply.
≥ Disconnect the AC mains lead and consult the

dealer.

Active Subwoofer

No power.

Ensure the AC mains lead of the active subwoofer
is connected properly.

After turning the subwoofer on, it immediately
turns off.

Unplug the AC mains lead and consult your
dealer.

No sound from the subwoofer.

≥ Check that the active subwoofer is turned on.
≥ Check that the WIRELESS LINK indicator lights

green. (> 19)

The WIRELESS LINK indicator lights red.

≥ There is no link between the main unit and the

active subwoofer.

jCheck that the main unit is turned on.
jTurn the active subwoofer off and then back

on. Alternatively, turn the active subwoofer off,
disconnect the AC mains lead and then
reconnect it.

≥ The active subwoofer and the main unit may not

be paired correctly. Try the following operation.
(Wireless pairing)

1 Turn on the main unit and active subwoofer.
2 Press and hold [ID SET] on the rear of the

active subwoofer for more than 3 sec.
(The WIRELESS LINK indicator will blink in
red.)

3 While pressing and holding [INPUT] on

remote control, press and hold [VOL i] on
the main unit for more than 4 sec.
(“SUBWOOFER PAIRING” will be indicated
on the display.)

≥ When the wireless pairing is successful, “PAIRED”

will be indicated on the display for 2 sec and
WIRELESS LINK indicator lights green.

4 Turn the main unit off and on.

≥ Consult your dealer if the problem persists.

28

RQT9917

Reference

About Bluetooth

®

Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.

∫ Frequency band used

This system uses the 2.4 GHz frequency band.

∫ Certification of this device

≥ This system conforms to frequency restrictions

and has received certification based on
frequency laws. Thus, a wireless permit is not
necessary.

≥ The action below are punishable by law in some

countries:

jTaking apart or modifying the unit.
jRemoving specification indications.

∫ Restrictions of use

≥ Wireless transmission and/or usage with all

Bluetooth

≥ All devices must conform to standards set by

Bluetooth SIG, Inc.

≥ Depending on the specifications and settings of

a device, it can fail to connect or some
operations can be different.

≥ This system supports Bluetooth

features. But depending on the operating
environment and/or settings, this security is
possibly not sufficient. Transmit data wirelessly
to this system with caution.

≥ This system cannot transmit data to a

Bluetooth

®

equipped devices is not guaranteed.

®

security

®

device.

∫ Range of use

Use this device at a maximum range of 10 m.
The range can decrease depending on the
environment, obstacles or interference.

∫ Interference from other devices

≥ This system may not function properly and

troubles such as noise and sound jumps may
arise due to radio wave interference if the main
unit is located too close to other Bluetooth

®

devices or the devices that use the 2.4 GHz
band.

≥ This system may not function properly if radio

waves from a nearby broadcasting station, etc.
are too strong.

∫ Intended usage

≥ This system is for normal, general use only.
≥ Do not use this system near equipment or in an

environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc.).

Unit care

∫ Clean this system with a soft, dry

cloth

≥ When dirt is heavy, wring a cloth moistened in

water tightly to wipe the dirt, and then wipe it
with a dry cloth.

≥ When cleaning the speakers, use a fine cloth.

Do not use tissues or other materials (towels,
etc.) that can fall apart. Small grains may get
stuck inside the speaker cover.

≥ Never use alcohol, paint thinner or benzine to

clean this system.

≥ Before using chemically-treated cloth, carefully

read the instructions that came with the cloth.

∫ To dispose or transfer this system

This system may keep the user settings
information in the main unit. If you discard the
main unit either by disposal or transfer, then follow
the procedure to return all the settings to the
factory presets to delete the user settings. (> 26,
“To return to the factory preset.”)

≥ The operation history may be recorded in the

memory of the main unit.

Licenses

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of
Dolby Laboratories.

Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide
patents issued & pending. DTS, the Symbol, & DTS and the
Symbol together are registered trademarks & DTS Digital
Surround and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc. All Rights Reserved.

HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.

HDAVI ControlTM is a trademark of Panasonic Corporation.

The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Panasonic
Corporation is under license. Other trademarks and trade
names are those of their respective owners.

Google Play and Android are trademarks of Google Inc.

RQT9917

29

Specifications

AMPLIFIER SECTION

RMS output power: Dolby Digital Mode

Front ch (L, R ch)

60 W per channel (6 ≠), 1 kHz, 10 % THD

Subwoofer ch

130 W per channel (8 ≠), 100 Hz, 10 % THD

Total RMS Dolby Digital mode power

TERMINAL SECTION

HDAVI Control

This unit supports “HDAVI Control 5” function.

HDMI AV input (BD/DVD)

Input connector

Type A (19 pin)

HDMI AV output (TV (ARC))

Output connector

Type A (19 pin)

Digital audio input (TV)

Optical digital input

Optical terminal

Sampling frequency

32 kHz, 44.1 kHz, 48 kHz

88.2 kHz, 96 kHz (only LPCM)

Audio format

LPCM, Dolby Digital, DTS Digital Surround

IR Blaster

Term i n a l Type

3.5 mm jack

USB Port

For service use only.

250 W

GENERAL

Power consumption

Main unit

Active subwoofer

In standby condition

Main unit

1

Active subwoofer

1

Power supply

Dimensions (WkHkD)

Main unit

For table top layout

For wall mounting layout

Active subwoofer

Mass

Main unit

For table top layout

For wall mounting layout

Active subwoofer

Operating temperature range

Operating humidity range

§1

When “BLUETOOTH STANDBY” is “OFF”

When “BLUETOOTH STANDBY” is “ON”

Power switch off

The wireless link is not activated

20 % to 80 % RH (no condensation)

34 W

23 W

Approx. 0.48 W

Approx. 3 W

Approx. 0.25 W

Approx. 1.3 W

AC 220 V to 240 V, 50 Hz

950 mmk53 mmk11 0 m m

950 mmk110 mm k57 mm

180 mmk408 mmk306 mm

Approx. 2.5 kg

Approx. 2.6 kg

Approx. 5.0 kg

o

C to i40oC

0

30

RQT9917



§1 When the other connected devices are turned off.

Reference

SPEAKER SECTION

Bluetooth® SECTION

Front speakers (Built-in)

Full range

6.5 cm cone type k1/ch

Active subwoofer

Woofer

16 cm cone type k1

Bluetooth® system specification

Wireless equipment classification

Supported profiles

Operating frequency

Operating distance

WIRELESS SECTION



Wireless module

Frequency Range

2.40335 GHz to 2.47735 GHz

No. of channels

Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries must not be mixed
with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.
By disposing of them correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.

≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum

analyzer.

38

®

Bluetooth

Ver.3.0

Class 2

A2DP

2.4 GHz band FH-SS

10 m Line of Sight

Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

This product is intended for general consumer. (Category 3)

RQT9917

31

EU

Web Site: http://panasonic.net

Panasonic Corporation 2014

Panasonic Corporation

Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany

Panasonic Marketing Europe GmbH

Manufactured by:

Importer for Europe:

Panasonic Corporation
Kadoma, Osaka, Japan

Sales and Support Information

Customer Communications Centre

≥ For customers within the UK: 0844 844 3899
≥ For customers within Ireland: 01 289 8333
≥ Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
≥ For further support on your product, please visit our website:

www.panasonic.co.uk

Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your product with ease and confidence by phoning our

Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).

≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a

browse on our website for further details.

.

RQT9917-1B

F0114SB1024
