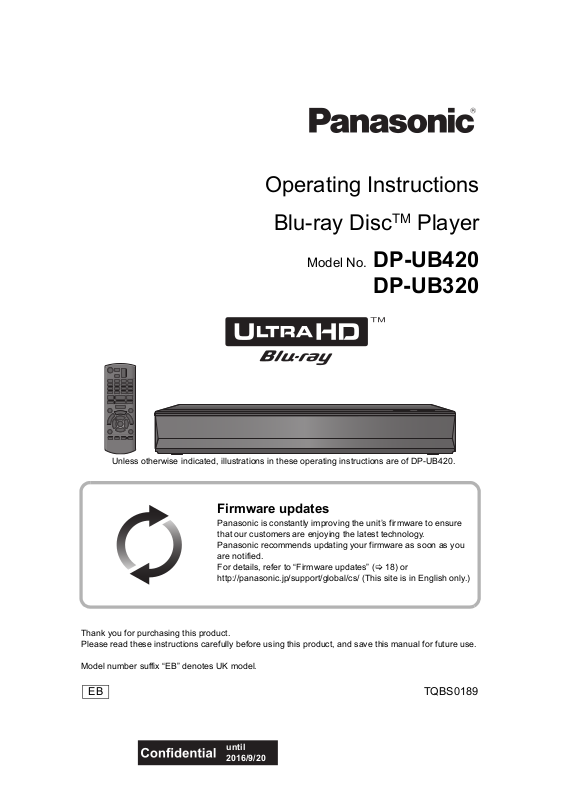

Panasonic DP-UB420, DP-UB320 User Manual

Operating Instructions

Unless otherwise indicated, illustrations in these operating instructions are of DP-UB420.

Firmware updates

Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology. Panasonic recommends updating your firmware as soon as you are notified. For details, refer to “Firmware updates” (> 18) or http://panasonic.jp/support/global/cs/ (This site is in English only.)

Blu-ray Disc

Player

Model No. DP-UB420

DP-UB320

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Model number suffix “EB” denotes UK model.

TQBS0189

Precautions

Fuse cover

Figure A Figure B

WARNING

Unit

To reduce the risk of fire, electric shock or product damage, ≥ Do not expose this unit to rain, moisture, dripping or

splashing.

≥ Do not place objects filled with liquids, such as vases, on

this unit.

≥ Use the recommended accessories. ≥ Do not remove covers. ≥ Do not repair this unit by yourself. Refer servicing to

qualified service personnel.

≥ Do not let metal objects fall inside this unit. ≥ Do not place heavy items on this unit.

AC mains lead

To reduce the risk of fire, electric shock or product damage, ≥ Ensure that the power supply voltage corresponds to the

voltage printed on this unit.

≥ Insert the mains plug fully into the socket outlet. ≥ Do not pull, bend, or place heavy items on the lead. ≥ Do not handle the plug with wet hands. ≥ Hold onto the mains plug body when disconnecting the

plug.

≥ Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

CAUTION

Unit

≥ This unit utilizes a laser. Use of controls or adjustments or

performance of procedures other than those specified herein may result in hazardous radiation exposure.

≥ Do not place sources of naked flames, such as lighted

candles, on this unit.

≥ This unit may receive radio interference caused by mobile

telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

≥ This unit is intended for use in moderate climates. ≥ Some portions of this unit may become hot during use.

When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage, ≥ Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure this unit is well ventilated.

≥ Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

≥ Do not place the unit on amplifiers/receivers or equipment

that may become hot. The heat can damage the unit.

≥ Do not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive vibration.

Batteries

Mishandling of batteries can cause electrolyte leakage and may cause a fire. ≥ Danger of explosion if battery is incorrectly replaced.

Replace only with the type recommended by the manufacturer.

≥ When disposing of the batteries, please contact your local

authorities or dealer and ask for the correct method of disposal.

≥ Do not mix old and new batteries or different types at the

same time.

≥ Do not heat or expose to flame. ≥ Do not leave the battery(ies) in a car exposed to direct

sunlight for a long period of time with doors and windows closed.

≥ Do not take apart or short circuit. ≥ Do not recharge alkaline or manganese batteries. ≥ Do not use batteries if the covering has been peeled off.

Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

Caution for AC Mains Lead

(For the AC mains plug of three pins)

For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

Figure A Figure B

Fuse (5 ampere)

- 2 -

Restriction on use of unauthorized copied content

This unit adopts the following technology for copyright protection. Cinavia Notice This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. (> 36, “To return all settings to the factory preset.”)

≥ The operation history may be recorded in the memory of

this unit.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

[UB420]

Wireless LAN connection

The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.

≥ Data transmitted and received over radio waves may be

intercepted and monitored.

≥ This unit contains delicate electronic components.

Please use this unit in the manner in which it was intended and follow the following points:

– Do not expose this unit to high temperatures or direct

sunlight. – Do not bend, or subject this unit to strong impacts. – Keep this unit away from moisture. – Do not disassemble or alter this unit in any way.

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Customers can download a copy of the original DoC to our RE products from our DoC server: http://www.ptc.panasonic.eu Contact to Authorised Representative: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

5.15 - 5.35 GHz band is restricted to indoor operations only in the following countries.

Type of wireless Frequency band

WLAN

2412-2472 MHz 5180-5320 MHz 5500-5700 MHz

Maximum power

(dBm e.i.r.p.)

20 dBm 23 dBm 23 dBm

- 3 -

[UB420]

Voice Control

For details, refer to

http://panasonic.jp/support/global/cs/

Precautions . . . . . . . . . . . . . . . . . 2

Getting started

Accessories . . . . . . . . . . . . . . . . . 5

Unit and media care . . . . . . . . . . . 5

Playable media. . . . . . . . . . . . . . . 6

Control reference guide . . . . . . . . 8

Connecting to a TV . . . . . . . . . . 10

Connecting to

an amplifier/receiver . . . . . . . . . 11

Connecting to the network . . . . . 16

Settings . . . . . . . . . . . . . . . . . . . 17

Playback

HOME menu . . . . . . . . . . . . . . . 19

Playback. . . . . . . . . . . . . . . . . . . 19

Enjoying Network Service . . . . . 22

Home Network feature . . . . . . . . 23

VIERA Link . . . . . . . . . . . . . . . . . 25

Option menu. . . . . . . . . . . . . . . . 26

Reference

Setup menu . . . . . . . . . . . . . . . . 29

Troubleshooting guide . . . . . . . . 36

Specifications . . . . . . . . . . . . . . . 41

Licenses . . . . . . . . . . . . . . . . . . . 44

To enjoy Ultra HD Blu-ray Disc featured with High Dynamic Range (HDR)

If you see a message about High Dynamic Range (HDR) compatible issue while an Ultra HD Blu-ray Disc is played back, please check your TV settings as follows.

An example of the message: “This player is not connected to a High Dynamic Range (HDR) compatible TV.”

1) When you use a Panasonic TV that is compatible with 4K/High Dynamic Range (HDR) and was released in 2015 or later, enable the HDR setting of the TV. (This setting may not be available depending on the TV. Refer to the operating instructions of the TV for details.)

2) If you use a TV not from Panasonic, compatible with 4K and High Dynamic Range (HDR), please refer to the operating instructions of the TV.

3) When you play a High Dynamic Range (HDR) disc on a TV without High Dynamic Range (HDR) capability, the disc can be played back (in non-HDR quality) even if the message appears.

- 4 -

Getting started



R6/LR6, AA



(Alkaline or manganese batteries)

DO NOT

Getting started

Accessories

Check the supplied accessories before using this unit.

1 Remote control

(N2QAYB001185)

2 Batteries for remote control 1 AC mains lead

(K2CT2YY00097)



≥ Product numbers are provided in these operating

instructions correct as of February 2018. These may be subject to change.

≥ Do not use AC mains lead with other equipment.

∫ Using the remote control

Insert the batteries to the terminal so that it (i and j) matches those in the remote control.

Point it at the remote control signal sensor on this unit. (> 9)

Unit and media care

∫ Clean this unit with a soft, dr y

cloth

≥ Never use alcohol, paint thinner or benzine to

clean this unit.

≥ Before using chemically treated cloth, carefully

read the instructions that came with the cloth.

∫ This unit’s lens

Use the lens cleaner (not supplied) to clean the unit’s lens.

∫ Clean discs

Wipe with a damp cloth and then wipe dry with a dry cloth.

∫ Disc handling precautions

≥ Handle discs by the edges to avoid inadvertent

scratches or fingerprints on the disc.

≥ Do not attach labels or stickers to discs. ≥ Do not use disc cleaning sprays, benzine,

thinner, static electricity prevention liquids or any other solvent.

≥ Do not use the following discs:

– Discs with exposed adhesive from removed

stickers or labels (rented discs, etc.). – Discs that are badly warped or cracked. – Irregularly shaped discs, such as heart

shapes.

- 5 -

Getting started

Playable media

Device Media markings Device types Contents format

DVD

Ultra HD Blu-ray*1*

BD-Video Video

BD-RE

BD-RE DL

BD-R

BD-R DL

DVD-Video Video

DVD-R

DVD-R DL

DVD-RW

— +R/+RW/+R DL

Music CD Music [CD-DA]

Video

Video, JPEG, MPO

Video, MKV, JPEG, MPO

Video, AVCHD, MKV, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

Video, AVCHD

MKV,

—

USB

≥ See pages 7 and 41 for more information on the types of content that can be played.

See “Enjoying Ultra HD Blu-ray” (> 21)

Unless otherwise indicated, BD-Video content includes Ultra HD Blu-ray content in these operating instructions.

—

CD-R

CD-RW

USB devices

(up to 4 TB)

JPEG, MPO, AAC, AIFF, ALAC, FLAC, MP3, Music [CD-DA], WAV, WMA

AVCHD, AVCHD 3D, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

- 6 -

Getting started

∫ Types of discs that cannot be

played by this unit

Any other disc that is not specifically supported or previously described.

≥ DVD-RAM ≥ Super Audio CD ≥ Photo CD ≥ DVD-Audio ≥ Video CD and Super Video CD ≥ HD DVD

∫ Region management information

The unit can play back BD-Video/DVD-Video discs of the following regions codes, including “ALL”: Example: BD-Video DVD-Video

∫ Finalize

Any DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW that are recorded by a recorder need to be finalized by the recorder to play on this unit. Please refer to the recorder’s instructions.

∫ BD-Video

This unit supports high bit rate audio (Dolby® Digital Plus, Dolby Resolution Audio adopted in BD-Video.

TrueHD, DTS-HD High

and DTS-HD Master AudioTM)

∫ USB device

≥ Connect a USB device while the Home screen

is displayed.

≥ This unit does not guarantee connection with all

USB devices.

≥ This unit does not support USB device

charging.

≥ FAT12, FAT16, FAT32, and NTFS file systems

are supported.

≥ The USB port on the front of the unit supports

USB 2.0 High Speed [UB420] and the USB port on the rear of the unit supports USB 3.0 Super-Speed.

≥ [UB420] The USB port on the rear of the unit

supports an HDD formatted in FAT32 and NTFS. If the HDD is not recognized, the power to the HDD may not be supplied. Supply power from an external source.

≥ [UB320] This unit supports an HDD formatted in

FAT32 and NTFS. If the HDD is not recognized, the power to the HDD may not be supplied. Supply power from an external source.

≥ [UB420] It is not possible to use two USB

devices simultaneously. (> 37)

≥ [UB420] For playback of 4K videos stored on a

USB device, use USB 3.0 port on rear of the unit and USB device conforming to USB 3.0.

∫ BD-RE, BD-R

This unit may not correctly play back the audio portion of a video recorded to a disc in multiple languages with a Blu-ray disc recorder.

∫ 3D

3D videos and 3D still pictures can be played back when this unit is connected to a 3D compatible TV using a High Speed HDMI Cable.

∫ Music CD

Operation and sound quality of CDs that do not comply with CD-DA specifications (copy control CDs, etc.) cannot be guaranteed to work.



≥ It may not be possible to play the above media in some

cases due to the type of media, the condition of the recording, the recording method, and how the files were created.

≥ The producers of the disc can control how discs are

played, so you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.

- 7 -

Getting started

Control reference guide

∫ Remote control

When other Panasonic devices respond to the remote control of the unit, change the remote control code. (> 35)

4 5

16 17

18 19

1 Turn the unit on and off 2 TV operation buttons

You can operate the Panasonic TV using this

unit’s remote control. Some buttons may not

work depending on the TV.

3 Select title numbers, etc./Enter numbers or

characters

4 Cancel

Clear the currently selected character.

(when entering a password for “Ratings” in

the Setup menu, for example)

5 Change soundtrack (> 20) 6 Basic playback control buttons (> 19) 7 Show Pop-up menu (> 20) 8 Show Top menu (> 20) 9 Show Option menu (> 26) 10 Coloured buttons (red, green, yellow, blue)

Used for various purposes depending on the

screen

11 Transmit the remote control signal 12 Open or close the disc tray (> 9) 13 Show the status messages (> 20) 14 Show “Playback Information Window” (> 20) 15 Show the Home screen of the Network

Service (> 22)

16 Show “HDR Setting” (> 20) 17 Show NETFLIX screen (> 22) 18 Show HOME menu (> 19) 19 [3, 4, 2, 1] : Move the highlight for

selection

[OK] : Confirm the selection

(2;)(;1) : Frame-by-frame (> 20)

20 Return to previous screen

- 8 -

∫ Front

[UB420]

Pull to flip down the front panel.

[UB320]

There is no front panel.

31 82 46 7

[UB320]

Getting started

1 Disc tray 2 USB port ( DC 5 V 500 mA)

This port supports USB 2.0 High Speed.

3 Remote control signal sensor

Distance: Within approx. 7 m Angle: Approx. 20e up and down, 30e left and right

4 POWER LED

When the unit is turned on, the LED flashes

first, and then lights up.

If the LED keeps flashing, there may be an

error. (> 40)

5 Open or close the disc tray 6 Standby/on switch (Í/I) (> 17)

3 42

Press to switch the unit from on to standby

mode or vice versa. In standby mode, the unit

is still consuming a small amount of power.

CAUTION

Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause malfunction.



≥ When inserting a media item, ensure that it is facing the correct way, which is the right side facing up. ≥ If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected

equipment. For details, refer to the instructions for the connected equipment.

∫ Rear

1 AC IN ( ) terminal (> 10) 2 Cooling fan 3 [UB420] HDMI AUDIO OUT terminal (> 11 ) 4 [UB420] HDMI VIDEO OUT terminal (> 10) 5 [UB320] HDMI AV OUT terminal (> 10) 6 LAN port (> 16)

7 [UB420] USB port (HDD) ( DC 5 V 900 mA)

This port supports USB 3.0 Super-Speed.

8 [UB420] DIGITAL AUDIO OUT terminal

(OPTICAL terminal) (> 12)

Class II equipment (The construction of the product is

double-insulated.)

- 9 -

Getting started

HDMI IN

To a household mains socket

AC mains lead (supplied)

HDMI cable

(18 Gbps)

[UB320]

Connecting to a TV

4K images can be played back when this unit is connected to 4K compatible TV.

≥ Before making any connections, please disconnect all the units from AC power.

(Connect the AC mains lead after making all connections.)

≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. ≥ This unit consumes a small amount of AC power (> 41) even when turned off in standby mode. For

the purpose of energy conservation, the unit should be disconnected if you will not be using it for extended period of time.

∫ Enjoying 4K output

≥ To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps.

When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less. It is recommended that you use Panasonic’s HDMI cable.

≥ If you connect this unit to a 4K-compatible TV and perform “Easy Settings”, 4K (50p/60p) will

be automatically selected. (> 17, 34)

≥ To view Ultra HD Blu-ray content in 4K/HDR format, connect to the HDMI terminal of a device that

supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR signals that meet Ultra HD Blu-ray standards.

Enjoying video and audio with a 4K-compatible TV

[UB420]

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)

- 10 -

Getting started

HDMI cable

(18 Gbps)

HDMI cable

Amplifier/receiver

(4K-compatible)

HDMI cable

(18 Gbps)

HDMI cable

(18 Gbps)

[UB320]

Connecting to an amplifier/receiver

[UB420] Enjoying video with a 4K-compatible TV and audio with an amplifier

You can enjoy richer sound by using the HDMI AUDIO OUT terminal. (Audio is output in high resolution.)

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)

≥ To enjoy audio with a TV

Set “HDMI(VIDEO) Output Mode” to “Video+Audio”. (> 29)



≥ The HDMI AUDIO OUT terminal is not compatible with 4K output and the VIERA Link (> 25).

HDMI INHDMI IN

Enjoying video with a 4K-compatible TV and audio with a 4K-compatible amplifier

HDMI OUT

HDMI IN

(ARC)

[UB420]

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)



≥ About ARC:

When using the TV or amplifier/receiver that does not have the indication of “(ARC)” (non-ARC-compatible) on the HDMI terminal, the amplifier/receiver and TV must also be connected using an optical digital cable or coaxial cable in order to enjoy the TV’s sound through the amplifier/receiver.

- 11 -

HDMI IN

(ARC)

Getting started

OPTICAL IN

Optical digital cable

Amplifier/receiver

HDMI OUT

(ARC)

HDMI IN

(ARC)

HDMI IN

Amplifier/receiver

HDMI cable

(18 Gbps)

[UB320]

[UB420] Enjoying audio with an amplifier connected to the OPTICAL terminal

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29) ≥ To enjoy audio with an amplifier connected to the OPTICAL terminal

Set “Audio Output” to “Off” in “Advanced Settings”. (> 30)

Connecting an amplifier to a 4K-compatible TV

3D or 4K images can be played back when this unit is connected to a 3D or 4K compatible TV.

≥ This connection only supports up to 5.1ch. ≥ To connect a TV and amplifier with an HDMI cable, connecting terminals on both the TV and amplifier

must be ARC-compatible. (> 11, “About ARC”)

[UB420]

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)

- 12 -

Getting started

HDMI cable HDMI cable

(18 Gbps)

Amplifier/receiver

Optical digital cable

[UB420] Enjoying video with a 4K-compatible TV in combination with an amplifier connected to the HDMI AUDIO OUT terminal and another amplifier connected to the OPTICAL terminal

HDMI INHDMI IN

OPTICAL IN

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)

≥ To enjoy audio with an amplifier connected to the OPTICAL terminal

Set “Audio Output” to “Off” in “Advanced Settings”. (> 30)

≥ To enjoy audio with a TV

Set “HDMI(VIDEO) Output Mode” to “Video+Audio”. (> 29)



≥ It is not possible to simultaneously output audio from both the amplifier connected to the HDMI AUDIO OUT terminal and the

other amplifier connected to the OPTICAL terminal.

- 13 -

Getting started

HDMI cable

(18 Gbps)

Projector (2K-compatible)

Amplifier/receiver

Optical digital cable

[UB420] Enjoying video with a 4K-compatible TV in combination with a 2K-compatible projector and an amplifier that is connected to the OPTICAL terminal

HDMI INHDMI IN

OPTICAL IN

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)

≥ To enjoy audio with an amplifier connected to the OPTICAL terminal

Set “Audio Output” to “Off” in “Advanced Settings”. (> 30)

≥ To enjoy audio with a TV

Set “HDMI(VIDEO) Output Mode” to “Video+Audio”. (> 29) Set “Audio Output” to “On” in “Advanced Settings”. (> 30)

≥ To enjoy video with a projector

Set “HDMI(AUDIO) Output Mode” to “Video+Audio”. (> 29) (It is not possible to output 3D, 4K or HDR content from the HDMI AUDIO OUT/HDMI VIDEO OUT terminal when “Video+Audio” is selected.)

- 14 -

Getting started

HDMI cable HDMI cable

(18 Gbps)

Amplifier/receiver

HDMI cable

Projector

(2K-compatible)

Amplifier/receiver

Optical digital cable

[UB420] Enjoying video with a 4K-compatible TV in combination with a 2K-compatible projector and an amplifier that is connected to the HDMI AUDIO OUT terminal and another amplifier that is connected to the OPTICAL terminal

HDMI OUT

OPTICAL IN

HDMI IN

HDMI INHDMI IN

Setting

Set the following items in the setup menu (> 29):

≥ Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29) ≥ Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)

≥ To enjoy audio with an amplifier connected to the OPTICAL terminal

Set “Audio Output” to “Off” in “Advanced Settings”. (> 30)

≥ To enjoy audio with a TV

Set “HDMI(VIDEO) Output Mode” to “Video+Audio”. (> 29)

≥ To enjoy video with a projector

Set “HDMI(AUDIO) Output Mode” to “Video+Audio”. (> 29) (It is not possible to output 3D, 4K or HDR content from the HDMI AUDIO OUT/HDMI VIDEO OUT terminal when “Video+Audio” is selected.)



≥ It is not possible to simultaneously output audio from both the amplifier connected to the HDMI AUDIO OUT terminal and the

other amplifier connected to the OPTICAL terminal.

- 15 -

Getting started

Wireless router, etc.

Internet

Broadband router, etc.

Internet

LAN Cable

[UB320]

Connecting to the network

The following services can be used when this unit is connected to broadband.

≥ Firmware can be updated (> 18) ≥ You can enjoy BD-Live/Network Service (> 21, 22) ≥ You can access other devices (Home Network) (> 23) ≥ [UB420] This unit supports Direct Access and can make a wireless connection to wireless devices

without router. You can use this function when enjoying Home Network feature, etc. Internet access is not available while connected via Direct Access. (> 24)

For details about connection method, refer to the instructions supplied with the connected equipment.

[UB420]

Wireless LAN connection

This unit has built-in wireless LAN and can be connected to a wireless router.

≥ The unit is not compatible with public wireless LAN services. ≥ See page 3 for the precautions of wireless LAN connection.

LAN cable connection

≥ Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices. ≥ Inserting any cable other than a LAN cable in the LAN port can damage the unit.

- 16 -

Getting started

4K(50p/60p) Output

Start

Start connection check with your 4K TV. Once connection check is started and if the video is not displayed correctly, please wait for the next display. The connection check could take up to 30 seconds to display the new message screen.

RETURN

Easy Network Setting

Wired

Wireless

Select a connection mode.

RETURN

e.g.

Link button

Settings

The following settings can be performed anytime in the Setup menu. (> 33, 34)

Easy Settings

After connecting your new player for the first time and pressing [Í], the basic settings screen will appear.

Preparation Turn on the TV and select the appropriate video input.

1 Press [Í].

Setup screen appears.

2 Follow the on-screen instructions to

continue with the settings.

(e.g., “Quick Start”) ≥ Certain recent models of Panasonic TVs

(VIERA) may automatically apply their language setting to this unit.

∫ When connected to a 4K (50p or

60p)-compatible TV

When connected to a 4K (50p or 60p)-compatible TV, you can set the video output format.

Easy Network Setting

After completing “Easy Settings”, you can perform “Easy Network Setting”.

e.g., [UB420]

Select “Wired” or “Wireless” and press [OK].

∫ “Wired” connection

Follow the on-screen instructions to apply your connection settings.

∫ “Wireless” connection

Preparation Before beginning wireless connection setup

≥ Obtain your network name (SSID* ≥ If your wireless connection is encrypted,

please be sure that you know your encryption key.

Follow the on-screen instructions to set the format.



≥ To reconnect this unit to a 4K (50p or 60p)-compatible TV

after connecting this unit to a 2K-compatible TV and completing “Easy Settings”, set “4K(50p/60p) Output” to “4K(50p/60p) 4:4:4” or “4K(50p/60p) 4:2:0”. (> 29)

Then follow the on-screen instructions and apply the settings.

PUSH button method*

If the wireless router supports the PUSH button method*

, you can connect to and configure the security settings of your wireless LAN device with ease by pressing the Link button on the router.

1 Press the green button on the remote

control.

2 Press Link button or corresponding button

of the wireless router until the lamp starts flashing. ≥ For details, refer to the operating

instruction of the wireless router.

3 Select “Start”.

- 17 -

Getting started

Firmware Update

Current Installed Version: X.XX

New Version: X.XX

Do you want to start firmware update? For the update information, please visit the following website: http://panasonic.net/support/

NoYes

RETURN

The firmware has been updated. Current Version

: x.xx

Search for wireless network:

≥ The available wireless networks will be

displayed on the screen. Select your network name. – If your network name is not displayed,

search again by pressing the red button on the remote control.

– Stealth SSID will not be displayed when

you press the red button on the remote control. Enter manually by using “Manual setting”. (> 33)

≥ If your wireless network is encrypted,

Encryption Key input screen will be displayed. Input the encryption key of your network.



≥ Refer to the operating instructions of the hub or router. ≥ [UB420] Do not use this unit to connect to any wireless

network for which you do not have usage rights. Using these networks may be regarded as illegal access.

≥ If you have trouble getting online on your PC after

performing network settings on this unit, perform the network settings on your PC.

≥ [UB420] Please be aware that connecting to a network

without encryption may result in the leaking of data such as personal or secret information.

An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches for both devices.

The PUSH button method is a connection method which allows you to set encryption for a wireless LAN connection with ease. You can connect to a wireless LAN network by pressing a certain button on the wireless access point [Link button, WPS (Wi-Fi Protected Setup

) button, etc.].

Firmware updates

This unit is capable of checking the firmware automatically when connected to the Internet via a broadband connection.* When a new firmware version is available, the following message is displayed.

Select “Yes” to start downloading the firmware. When the firmware update starts after the downloading is finished, a black screen is displayed and the POWER LED flashes rapidly.

You cannot operate the unit until the update is complete. Don’t remove the AC mains lead during the update. Removing the AC mains lead while the update is in progress may damage the unit.

After the firmware is installed, unit will restart and the following screen will be displayed.



≥ You can also download the latest firmware from the

following website and store it to a USB device to update the firmware. http://panasonic.jp/support/global/cs/

(This site is in English only.) When the update is complete the POWER LED will stop rapid flashings and start flashing in a repeating pattern of three flashes. Turn off and on the unit. (> 40)

≥ To show the firmware version on this unit. (> 35,

“Firmware Version Information”)

≥ Downloading will require several minutes. It may take

longer or may not work properly depending on the connection environment.

You must agree to the terms of use for the Internet function and the privacy policy. (> 34, “Legal Notices”)

“X.XX” represents the firmware version number.

- 18 -

Playback

HOME menu

Major functions of this unit can be operated from the HOME menu.

Preparation

Turn on the TV and select the appropriate video input.

1 Press [Í] to turn on the unit. 2 Press [OK] or [2, 1] to select the item.

≥ Press [OK] or [3, 4] to select the item if

necessary.

Videos/Music/Photos

Play back the contents.

Disc

USB

Home Network

Network Contents Playback

[UB420]

Mirroring Media Renderer

Network Service

Displays the Home screen of Network Service. (> 22)

Setup

Player Settings

Wallpap er

BD-Video Data Erase

To show the HOME menu

Press [HOME].

(> right) ≥ When multiple contents

are recorded, select the types of contents or the title.

≥ See “Playable media”

(> 6)

(> 24)

(> 23)

(> 24)

(> 29) Changes the background

of HOME menu.

(> 21)

Playback

1 Insert the media.

Playback starts depending on the media.

2 Select the item to play and press [OK].

Repeat this step if necessary.



≥ DISCS CONTINUE TO ROTATE WHILE MENUS ARE

DISPLAYED. Press [∫STOP] when you have finished playback to protect the unit’s motor, your TV screen and so on.

≥ When the following conditions are met, still pictures are

played back in 4K regardless of the image quality. – The unit is connected to a 4K compatible TV – “Video Format” is set to “Automatic” or “4K” (> 29)

≥ This unit can not output 4K images when playing back in

3D.

≥ It is not possible to play back AVCHD and MPEG2 videos

which have been dragged and dropped or copied and pasted to the media.

≥ To enjoy BD-Video that supports Dolby Atmos

(> 31)

≥ [UB420] If you press the blue button while displaying the

playback screen of an album or similar group of songs containing a sound source recorded at a live performance or concert (a music file containing songs that are recorded continuously)*, you can perform seamless playback without gaps between songs from the beginning of the selected folder or track. (Gapless Playback) (> 39)

* AIFF, DSD (DFF), FLAC, WAV

Operations during playback

Some operations may not work depending on the media and contents.

Stop

Press [∫STOP].

The stopping point is memorized.

Resume play function

Press [1PLAY] to restart from this point. ≥ The point is cleared if the media is removed. ≥ On BD-Video discs including BD-J, the

resume play function does not work.

Pause

Press [;PAUSE]. ≥ Press [;PAUSE] again or [1PLAY] to restart

play.

or D TS: XTM



≥ Items to be displayed may vary with the media.

- 19 -

Playback

Play

Ultra HD Blu-ray

T1 C1

D E

ラュンドヱヲナ

ヰㄖㄕㄑㄖㄕホフレバビフㄑ

HDR (High Dynamic Range)

Date 11/12/2010 Size 500 x 375 Manufacturer Equipment

No.

e.g., JPEG

Search/Slow motion

Search While playing, press [SEARCH6] or

[SEARCH5].

≥ Ultra HD Blu-ray, MKV, MP4 and MPEG2:

Audio is not heard.

Slow motion While paused, press [SEARCH6] or

[SEARCH5].

≥ BD-Video and AVCHD: [SEARCH5] only. ≥ MKV, MP4 and MPEG2: Not effective.

The speed increases up to 5 steps. ≥ Music, MP3, etc.: The speed is fixed to a single

step.

≥ Press [1PLAY] to revert to normal playback

speed.

Skip

While playing or paused, press [:] or [9].

Skip to the title, chapter or track.

Frame-by-frame

While paused, press [2] (2;) or [1] (;1). ≥ Each press shows the next frame. ≥ Press and hold to change in succession forward

or backward.

≥ Press [1PLAY] to revert to normal playback

speed.

≥ BD-Video and AVCHD: Forward only. ≥ MKV, MP4 and MPEG2: Not effective.

Changing soundtrack

Press [AUDIO].

You can change the audio channel number or soundtrack language, etc.

Show top menu/pop-up menu

Press [TOP MENU] or [POP-UP MENU].

Select the item and press [OK].

Adjust the screen brightness

While playing HDR video, press [HDR SETTING].

When HDR (High Dynamic Range) video is output to a connected HDR-compatible TV, a menu is displayed, allowing you to adjust the brightness of the entire screen. the setting.

Press [RETURN] to exit.

(> 4, 27)

Press [

2, 1]

to adjust

Show the status messages

While playing, press [PLAYBACK INFO.].

You can check the detailed video content* playback status.

Video attribute information of video content*

Audio attribute information of video content*

[UB420]

HDMI(VIDEO) output information

[UB420]

HDMI(AUDIO) output information

[UB320]

HDMI output information

Press [RETURN] to exit.

* BD-Video, DVD-Video, MKV, MP4, MPEG2 (except

Network Contents)

While playing, press [STATUS].

The status messages give you information about what is currently being played. Each time you press [STATUS], the display information may change or disappear from the screen. ≥ Depending on media and contents, the display

may change or not appear.

e.g., Ultra HD Blu-ray

A Displayed when an HDR (High Dynamic

Range) video signal is being output. – “HDR (High Dynamic Range: HLG to PQ

Conversion)” : The format of the HDR video is converted from HLG to PQ

– “Dynamic Range Conversion Output” : The

video signal is converted to SDR (Standard Dynamic Range)

T: Title, P: Programme, C: Chapter, PL: Playlist

B C Elapsed time in the title D Method of HDR (High Dynamic Range) video E Output resolution/Frame rate F Current position G To ta l ti me

- 20 -

Playback

Enjoying Ultra HD Blu-ray Enjoying 3D video and photos

You can enjoy the playback of Ultra HD Blu-ray discs with this unit.

Preparation

≥ For 4K/HDR viewing, connect to a device and

terminals that support HDCP2.2*

, 4K (50p/60p) 4:4:4 and HDR signals that meet Ultra HD Blu-ray standards. (> 10)

Due to copyright restrictions, it may not be possible to play back certain discs unless this unit is connected to the Internet.



≥ When connected to a device or terminal that does not

support HDCP2.2* Conversion* resolution. In addition, depending on the disc, it may not be possible to perform playback correctly.

≥ When connected to a device or terminal that supports 4K

(50p/60p) 4:2:0 (8 bit) and lower, this unit plays back 50p/ 60p content by applying Dynamic Range Conversion* its HDR signals to output them.

≥ When connected to a device or terminal that does not

support 4K resolution, this unit applies Dynamic Range Conversion* resolution.

≥ When connected to a device or terminal that does not

support HDR, this unit applies Dynamic Range Conversion* depending on the disc, it may not be possible to output content in 2K resolution or perform playback correctly.

HDCP is a technology designed to prevent illegal copying. “2.2” represents a version.

Dynamic Range Conversion is a function that converts HDR video signals into video signals suited to TVs that do not support HDR input.

, this unit applies Dynamic Range

to HDR signals to output them in 2K

to HDR signals to output them. In addition,

Preparation

Connect this unit to a 3D compatible TV. (> 10)

≥ Perform the necessary preparations for the TV. ≥ Play back following the instructions displayed

on the screen.

≥ 3D Settings (> 28, 32)



≥ Please refrain from viewing 3D images if you do not feel

well or are experiencing visual fatigue. In the event that you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.

≥ 3D video might not output the way it is set in “Video

Format” and “24p Output” (> 29).

≥ When playing back 3D photos from “Photos” screen, select

from the “3D” list. (Still pictures in “2D” are played back in 2D.) If “2D” and “3D” indications are not displayed, press the red button on the remote control to switch the view of playback contents.

Enjoying BD-Live

With “BD-Live” discs, you can enjoy bonus contents that use Internet access. For this BD-Live function, connection of a USB device is necessary along with Internet connection.

1 Perform network connection and settings.

(> 16, 17)

2 Connect a USB device with 1 GB or more

free space.

≥ The USB device is used as the local

storage.

3 Insert the disc.

∫ Deleting data on the USB device

Select “BD-Video Data Erase” in the HOME menu (> 19) and press [OK].



≥ The usable functions and the operating method may vary

with each disc, please refer to the instructions on the disc and/or visit their website.

≥ “BD-Live Internet Access” may need to be changed for

certain discs. (> 34)

- 21 -

Playback

Slideshow

Play a slideshow of photos and adjust various settings during the playback.

1 Insert the media. 2 Select “View Photos”. 3 Select an item and press the green button.

The following items can be set.

Start the slideshow.

Start Slideshow

Interval Change the display interval.

Transition Effect

Repeat Play

Soundtrack

Soundtrack Folder

Shuffle BGM

You can display still pictures in the selected folder one by one at a constant interval.

Select the effect when sliding pictures.

Set whether to repeat the slideshow.

Set whether to play background music. ≥ FLAC and MP3, etc., on the

USB device can be played back during the slideshow of JPEG on the USB device.

Select the folder from which the music files are played.

Background music is played in random order.

Enjoying Network Service

Network Service allows you to access some specific websites supported by Panasonic, and enjoy Internet contents such as photos, videos, etc. from Network Service home screen.

BACK

* Images are for illustration purposes, contents may change

without notice.

Preparation

≥ Network connection (> 16) ≥ Network setting (> 17)

– You must agree to the terms of use for the Internet

function and the privacy policy. (> 34, “Legal Notices”)

1 Press [INTERNET].

≥ Netflix can be accessed directly by

pressing [NETFLIX] button even when this unit is off.

2 Select the item and press [OK].

To exit from Network Service

Press [HOME].



≥ Still pictures displayed as “ ” cannot be displayed as

thumbnail with this unit.

≥ You cannot play back AAC and ALAC as background

music.

- 22 -

Playback

Player

Mirroring compatible

device



≥ In the following cases, settings are possible using the

Setup menu items. – When restricting the use of Network Service

(> 34, “Network Service Lock”)

– When the audio is distorted

(> 33, “Audio Auto Gain Control”)

– When wrong time is displayed

(> 33, “Time Zone”, “Summer Time”)

≥ When using a slow Internet connection, the video may not

be displayed correctly. A high speed Internet service with a speed of at least 6 Mbps is recommended.

≥ Be sure to update the firmware as soon as a firmware

update notice is displayed on the screen. If the firmware is not updated, you may not be able to use Network Service function properly. (> 18)

≥ Network Service Home Screen is subject to change

without notice.

≥ The services through Network Service are operated by

their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

≥ Some features of websites or content of the service may

not be available.

≥ Some content may be inappropriate for viewers. ≥ Some content may only be available for specific countries

and may be presented in specific languages.

Home Network feature

Before using the following features, be sure to configure the connected equipment on your Home Network.

[UB420]

Using Mirroring

Mirroring is a function which displays a smartphone or tablet’s screen on a TV via this unit. Enjoy the content shown on a Miracast device on your large TV screen. ≥ A device that supports the Mirroring function

-compatible smartphone or similar

and Android

ver. 4.2 or higher is required. For information on whether the smartphone, etc. supports Mirroring, contact the manufacturer of the device.

1 Press [HOME]. 2 Select “Home Network” and press [OK]. 3 Select “Mirroring” and press [OK]. 4 Operate the Mirroring compatible device.

≥ On the device, enable Mirroring and select

this unit (DP-UB420) as the device to be connected. For details, refer to the instructions supplied with the device.

To exit from Mirroring

Press [HOME].

- 23 -

Playback

Server

Player

Renderer

Server

Controller

Server

Controller

Renderer

Playing back contents on the Network Contents server

You can share photos, videos and music stored in the Network Contents server* recorders, etc.] connected to your home network.

≥ About support format of Network Contents

(> 43)

≥ When this unit is connected to a Panasonic

recorder with a server function, register this unit to the recorder.

[PC, smartphone,

1 Press [HOME]. 2 Select “Home Network” and press [OK]. 3 Select “Network Contents Playback” and

press [OK].

≥ The list can be updated by pressing the

green button on the remote control.

≥ The selected equipment can be deleted

from the list by pressing the red button on the remote control.

≥ [UB420] The connection method can be

switched to Direct Access*

by pressing the

yellow button on the remote control.

4 Select the equipment and press [OK]. 5 Select the item to play and press [OK].

≥ You may be able to use convenient

functions depending on the content by pressing [OPTION].

To exit from Network Contents Playback screen

Press [HOME].

Using the Digital Media Controller

You can use a smartphone or tablet as the Digital Media Controller (DMC) to playback contents from Network Contents server*

on the Renderer

(this unit).

Possible applications:

1 Press [HOME]. 2 Select “Home Network” and press [OK]. 3 Select “Media Renderer” and press [OK]. 4 [UB420] Select “Home Network” or “Direct

Access”*

and press [OK], then follow the

indications on the screen.

5 Operate the DMC compatible devices.

To exit from Media Renderer screen

Press [HOME].



≥ [UB420] Direct Access*2 connection while using Home

Network feature is only temporary, and the network connection method returns to the original setting when exiting.

≥ Depending on the device or connection environment, the

data transfer rate may decrease.

≥ Depending on the contents and the connected equipment,

playback may not be possible.

≥ Items displayed in grey on the display cannot be played

back by this unit.

DLNA compatible server, etc.

Direct Access is a function which allows you to wirelessly and directly connect wireless LAN-equipped devices to each other without a wireless router in between. You can connect devices such as those that support Wi-Fi Direct

DMC compatible software should be installed.

- 24 -

Playback

VIERA Link

What is VIERA Link?

VIERA Link is a convenient function which will link the operations of this unit and a Panasonic TV (VIERA) or other device under “VIERA Link”. You can use this function by connecting the equipment with an HDMI cable*. See the operating instructions for connected equipment for operational details.

* [UB420] Only when connecting via an HDMI VIDEO OUT

terminal on this unit.

Automatic input switching Power on link

When the following operations are performed, the input channel of the TV will be automatically switched and the screen of this unit will be displayed. If this unit is on and the TV is off, the TV automatically turns on. – When play starts on the unit – When you display a menu, such as the HOME

menu or Setup menu

Power off link

When you set the TV to standby mode, this unit is also automatically set to standby mode.

Playing music continuously even after turning off the TV

When the unit is connected to a Panasonic TV (VIERA) that supports VIERA Link and an amplifier/receiver supports VIERA Link. 1 While playing music

Press [OPTION].

2 Select “TV Power Off”.

Easy control only with VIERA remote control

Only when TV supports “VIERA Link”

By using the TV remote control, you can perform various playback operations and settings. See the operating instructions of the TV for more details.



≥ If you set “VIERA Link” to “Off”, set to “On” (> 34).

(The default setting is “On”.)

≥ The buttons and functions that you can use for this unit

vary depending on the TV. For details, refer to the operating instructions of the TV.

≥ The operation of this unit may be interrupted when you

press certain buttons on the TV remote control.

≥ VIERA Link, based on the control functions provided by

HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

≥ Please refer to individual manuals for other manufacturers’

equipment supporting VIERA Link function.

- 25 -

Playback

e.g.,

Option menu

A variety of playback operations and settings can be performed from this menu. Available options differ depending on the playing contents and the condition of the unit.

1 Press [OPTION].

e.g., Ultra HD Blu-ray

Operation Menu

Soundtrack

Subtitle Settings

Angle

Repeat Play

Secondary Video

Playback Information Window

Control Panel

Top Menu

Pop-up Menu

≥ When playing music, select “Playback

Settings” and press [OK].

2 Select an item and change the settings.

To exit the screen

Press [OPTION].

Regarding Language : (> 43)

Operation Menu

∫ Soundtrack (> 20)

This setting is also able to switch by pressing [AUDIO].

∫ Audio Channel

Select the audio channel number.

∫ Subtitles ∫ Subtitle Settings

Change the subtitle settings.

∫ Angle

Select the number of the angle.

∫ Repeat Play

Select the item that you want to repeat. ≥ You can repeat the playback of a chapter,

playlist, the entire disc, etc., but the items displayed will differ depending on the type of the media.

≥ Select “Off” to cancel.

1 ENG DTS-HD MSTR Multi

Off

∫ Shuffle

Select whether to play shuffle or not.

∫ Start Slideshow

Start the slideshow.

∫ Status

Show the status messages.

∫ Rotate RIGHT ∫ Rotate LEFT

Rotate the still picture.

∫ Wallpa pe r

Set the still picture to the wallpaper of HOME menu. (> 19)

∫ Video

The recording method of original video appears.

∫ Secondary Video

Select on/off for images. The

Video

recording method of original video appears.

Soundtrack

Select on/off for audio and the language.

∫ Playback Information Window (> 20)

This setting is also displayed by pressing [PLAYBACK INFO.].

∫ Control Panel

Display the Control Panel. Playing back while using VIERA Link, etc.

Press [RETURN] to hide the Control Panel.

∫ Top Menu

Display Top Menu.

∫ Pop-up Menu

Display Pop-up Menu.

∫ Menu

Display Menu.

[UB420]

∫ Reception

The radio wave status during the playback of Network Contents is displayed. (Only when a wireless connection is used)

- 26 -

Playback

Picture Settings

Noise Reduction

Sharpness Adjustment

Colour Adjustment

Optimum HDR Adjustment

Reset to Default Picture Settings

Luminance Adjustment

Set 1

Ultra HD Ultra HD Blu-ray Blu-ray

Ultra HD Blu-ray

Set 1

Ultra HD Ultra HD Blu-ray Blu-ray

Ultra HD Blu-ray

The icon changes depending on the playback media.

e.g., Ultra HD Blu-ray

Picture Settings

Switch “Set 1”, “Set 2” or “Standard” by using [2, 1]. ≥ Settings for BD Video playback, Ultra HD

Blu-ray playback and settings for the playback of other types of media are registered separately. (The default settings for “Set 1”/ ”Set 2” are the same as the settings for “Standard”.)

≥ You cannot change the “Standard” settings.

∫ Display

Select a setting suitable for your screen.

∫ Picture Type

Select the picture quality mode during play.

∫ Optimum HDR Adjustment

This setting is also displayed by pressing and holding [HDR SETTING] for more than 2 seconds. (> 20) ≥ [UB420] HDR Optimiser :

If “On” is selected, you can display highly bright scenes with smooth gradations based on the luminance information (static metadata) of playback content. – This function works only for HDR (PQ)

material.

– The effect may be enhanced by setting the

“HDR TV Type” that matches your TV in the Setup menu. (> 30)

≥ Dynamic Range Adjustment :

Set the brightness of the entire screen when outputting HDR (High Dynamic Range) video to a connected HDR-compatible TV.

≥ DR Conversion Adjustment :

When this unit is connected to a TV that does not support HDR (High Dynamic Range) input, HDR video is output converting to a SDR (Standard Dynamic Range) video signal. If you set a smaller value, their contrast will be reproduced more faithfully, but the entire screen will appear darker. To increase the brightness, set a larger value.

∫ Luminance Adjustment

Adjust the contrast, brightness and tone curve (white/black).

∫ Colour Adjustment

Adjust the colour saturation and hue.

∫ Sharpness Adjustment

Adjust the sharpness of images. The greater the value is, the sharper images will be.

∫ Noise Reduction

Reduce unnecessary noise in videos. The greater the value is, the less noise will appear.

∫ Bandwidth Limitation

Adjust the bandwidth limitations.

∫ Progressive

Select the method of conversion for progressive output to suit the type of material being played. ≥ If the video is disrupted when “Auto” is selected,

select either “Video” or “Film” depending on the material to be played back.

∫ Reset to Default Picture Settings

Return “Picture Settings” of the selected tab (“Set 1” or “Set 2”) to the factory preset.

- 27 -

Playback

Sound Settings

∫ Sound Effects

Select the sound effect. (Upsampling up to 192 kHz/32 bit is possible.) ≥ Night Surround :

Enjoy a movie with powerful sound even when the volume is kept low at night. The audio is set in such a way that it can be heard easily.

[UB420]

≥ Remaster :

This feature gives you brighter sound by increasing the high frequency portion of the audio. Recommended setting

Remaster 1 Pop and rock

Remaster 2 Jazz

Remaster 3 Classical

[UB420]

≥ Digital Tube Sound :

This feature gives you a warm sound, like that produced by a vacuum tube amplifier. Recommended setting

Digital Tube Sound 1

Digital Tube Sound 2

Digital Tube Sound 3

Digital Tube Sound 4

Digital Tube Sound 5

Digital Tube Sound 6

[UB420]

∫ Sound Effect Frequency

Set the maximum sampling frequency for the audio selected in “Sound Effects”. ≥ Even when “96/88.2kHz” is selected, an audio

source with a sampling frequency of 96 kHz or higher will be output with the original sampling frequency.

≥ When “Sound Effects” is set to “Off”, this setting

is disabled.

*1, *2

A crisp, delicate sound

A tight, hi-fi sound

A soft, rich sound

A clear, powerful sound

A distinctive mid-range sound

A soft, enveloping sound

∫ DSD Decode Sampling Frequency

Select the settings that suit your sound quality preferences.

∫ DSD LPF Setting

Select the settings that suit your sound quality preferences.

∫ Dialogue Enhancer*

The volume of the centre channel is raised to make dialog easier to hear.

[UB420]

∫ High Clarity Sound

Stop processing signals that affect the audio quality to make the audio quality clearer. (> 32) Select whether or not to output images. This setting is able to switch by pressing green button on the remote control during music playback. ≥ If “On (Video Off)” is selected, the setting will be

cancelled after you play back a video.

Not every function can be set individually.

This function is effective only when “Digital Audio Output” is set to “PCM” (> 31).

3D Settings

∫ Signal Format

Original Keep original picture format.

Side by side

∫ Graphic Display Level

3D position for the Option menu or message screen, etc. can be adjusted during 3D playback.

3D picture format comprising of left and right screens.

- 28 -

Reference

RETURN

Player Settings

System

Ratings

Network

Language

Sound


HDMI

Video Format

Automatic

4K(50p/60p) Output

Off

24p Output

Automatic

HDMI(VIDEO) Output Mode

Automatic

HDMI(AUDIO) Output Mode

Audio Only

Advanced Settings

Setup menu

Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.

1 Press [HOME]. 2 Select “Setup”. 3 Select “Player Settings”.

[UB420]

4 Select an item and change the settings.

To exit the screen

Press [HOME].

HDMI

∫ Video Format

The items supported by the connected devices are indicated on the screen as “¢”. When any item without “¢” is selected, the images may be distorted. ≥ If “Automatic”*

output resolution to the connected TV is automatically selected.

is selected, the best suited

Reference

∫ 4K(50p/60p) Output

This unit automatically chooses to output images

(50p/60p) when connected to a 4K (50p or

in 4K* 60p) compatible TV. ≥ This item is available only when “Video Format”

is set to “Automatic” and “4K”.

≥ [UB420] This item is not available when

“HDMI(AUDIO) Output Mode” is set to “Video+Audio”.

≥ To connect to a TV that supports 4K (50p/60p)

4:4:4/8 bit or 4K (50p/60p) 4:2:2/12 bit, select “4K(50p/60p) 4:4:4”. Images will not be output correctly with an HDMI cable that does not support 18 Gbps.

≥ To connect to a TV that supports 4K (50p/60p)

4:2:0/8 bit, select “4K(50p/60p) 4:2:0”.

∫ 24p Output

Content recorded at 24p*

, such as BD-Video

films, is output at 24p when played back. ≥ When this unit is connected to TV compatible

with 4K/24p and “Video Format” is set to “Automatic” or “4K”, images will be output in 4K/ 24p.

≥ When this unit is connected to a TV compatible

with 1080/24p and “Video Format” is set to “Automatic”, “1080i” or “1080p”, images will be output in 1080/24p.

≥ If images output in 24p are distorted, change

the setting to “Off”.

[UB420]

∫ HDMI(VIDEO) Output Mode

Set whether or not to output audio from the HDMI VIDEO OUT terminal. ≥ When an amplifier is connected to the HDMI

AUDIO OUT terminal and this menu item is set to “Automatic ( Video Only / Video+Audio )”, the TV may not output audio. In that case, select “Video+Audio”.

[UB420]

∫ HDMI(AUDIO) Output Mode

Set whether or not to output images from the HDMI AUDIO OUT terminal. ≥ It is not possible to output 3D, 4K or HDR

content from the HDMI AUDIO OUT/HDMI VIDEO OUT terminal when “Video+Audio” is selected.

- 29 -

Reference

∫ Advanced Settings

Press [OK] to show the following settings:

h Colour Mode

This setting is for selecting colour-space conversion of the image signal.

h Deep Colour Output

Set the output method to be used when this unit is connected to a TV that supports Deep Colour.

[UB320]

h HDR (High Dynamic Range) Output

Output images in HDR (High Dynamic Range) format depending on the content and connected device.

[UB420]

h HDR/Colour Gamut Output

Set the output type for HDR (High Dynamic Range) material.

[UB420]

h SDR/HDR Conv. (Network Service)

When Network Service content is played back, this converts SDR (Standard Dynamic Range) content to HDR signals to minimise the screen distortion that occurs when the displayed content changes.

h HLG / PQ Conversion

Set whether or not to convert HDR (High Dynamic Range) videos in HLG format to PQ format before outputting them when this unit is connected to a TV that supports only HDR (PQ) format. ≥ [UB420] When “HDR/Colour Gamut Output” is

set to other than “HDR/BT.2020 (Auto)”, this setting is disabled.

≥ [UB320] When “HDR (High Dynamic Range)

Output” is set to “Off”, this setting is disabled.

[UB420]

h HDR TV Type

Set the type of the connected HDR-compatible TV. The operation of “HDR Optimiser” in the “Picture Settings” is optimised based on this setting. (> 27)

h HDCP Output Setting

If you connect to a TV that does not support HDCP2.2 via an amplifier or speaker, some images may be displayed as black screens. In that case, select “HDCP1.4 Limit”.

h Contents Type Flag

Depending on the playback content, the TV will output adjusting to the optimal method when a TV that supports this function is connected.

[UB420]

h Audio Output

This setting selects whether or not to output audio from HDMI. ≥ To enjoy audio with the HDMI terminal, select

“On”. To enjoy audio with the OPTICAL terminal, select “Off”. Audio will not be output from the HDMI terminal regardless of the settings for “HDMI(VIDEO) Output Mode” and “HDMI(AUDIO) Output Mode”.

[UB420]

h 7.1ch Audio Reformatting

Surround sound with 6.1ch or less is automatically expanded and played back at 7.1ch.

≥

If “Off” is selected, sound is played over the original number of channels. (Note that in the case of 6.1ch audio, playback will be at 5.1ch.)

≥ Audio reformatting is enabled in the following

cases: – When you have selected “PCM” in “Digital

Audio Output”.

– When the audio is Dolby Digital, Dolby

Digital Plus, Dolby TrueHD or LPCM.

– BD-Video playback

It displays images at the highest resolution available on your TV.

A high resolution image/display technology of approximately 4000 (width) k 2000 (height) pixels.

A progressive image recorded at a rate of 24 frames per second (motion-picture film). Many BD-Video movie contents are recorded in 24 frames/second in accordance with the film materials.

- 30 -

Reference


∫ Still Mode

Select the type of picture shown when you pause playback.

Automatic

Field

Automatically selects the type of picture shown.

Select if jittering occurs when “Automatic” is selected.

Select if small text or fine

Frame

patterns cannot be seen clearly when “Automatic” is selected.

∫ Seamless Play

This enables smooth playback of the gaps between pieces of content such as programmes. ≥ The expected effect may not be achieved

depending on the content.

≥ If you select “Off”, playback will be accurate, but

the picture may freeze for a moment.

Sound

∫ Dynamic Range Compression

You can listen at low volumes but still hear dialogue clearly. (Dolby Digital, Dolby Digital Plus and Dolby TrueHD only) ≥ “Automatic” is effective only when playing Dolby

TrueHD.

∫ Digital Audio Output

Press [OK] to show the following settings:

h Dolby Audio h DTS/DTS-HD h MPEG Audio

Select the audio signal to output. ≥ Select “PCM”, when the connected

equipment cannot decode the respective audio format. This unit decodes the audio format and transmits to the connected equipment.

≥ If you do not make proper settings the audio

may be static or noisy.

h BD-Video Secondary Audio

Select whether or not to mix the primary and secondary audio (including the button click sound). If “Off” is selected, the unit outputs the primary audio only.



≥ To enjoy BD-Video that supports Dolby Atmos® or

DTS:X

Connect this unit to an AV amplifier or similar device that supports it with an HDMI cable, and select the following settings: – Dolby Audio: “Bitstream” – DTS/DTS-HD: “Bitstream” – BD-Video Secondary Audio: “Off”

Dolby Atmos is a trademark of Dolby Laboratories.

[UB420]

∫ OPTICAL Down Sampling

Set the maximum sampling frequency to be used when outputting down-sampled audio from the OPTICAL terminal. ≥ Set a frequency supported by the connected

device.

≥ When playing back BD-Video, signals are

converted to 48 kHz despite the settings in the following cases: – when the signals have a sampling frequency

of 192 kHz – when the disc has copy protection – when “BD-Video Secondary Audio” is set to

“On”

∫ Downmix

Select the downmix system of multi-channel to 2-channel sound. ≥ Select “Surround encoded”, when the

connected equipment supports the virtual surround function.

≥ The downmix effect is not available when

“Digital Audio Output” is set to “Bitstream”.

≥ The audio will be output in “Stereo” in the

following cases: – AVCHD playback – Playback of secondary audio (including the

button click sound).

- 31 -

Reference

[UB420]

∫ HDMI Output Settings of Music Playback

Minimise the audio noise during music playback by automatically switching the video output to 1080i.

[UB420]

∫ Settings for High Clarity Sound

Set a terminal that will stop processing audio signals when “High Clarity Sound” (> 28) is set to “On (Video Off)” or “On (Video On)”. ≥ Set an option for video playback and audio

playback.

∫ Audio Delay

Synchronization between picture and sound is corrected by adjusting the delay time of the audio output.

∫ 3D BD-Video Playback

Select the playback method of 3D compatible video software.

∫ 3D AVCHD Output

Select the output method of 3D AVCHD videos.

∫ 3D Playback Message

Set to display or hide the 3D viewing warning screen when playing back the 3D compatible video software.

Language

∫ Soundtrack Preference

Choose the language for audio. ≥ If “Original” is selected, the original language of

each disc will be selected.

≥ When the selected language is not recorded on

the disc, or depending on how the navigation is created on the disc, it may playback in a different language than the selected language.

≥ Enter a code (> 43) when you select “Other

****”.

∫ Subtitle Preference

Choose the language for the subtitle. ≥ When “Automatic” is selected, a subtitle for the

language selected in the “Soundtrack Preference” is displayed only when the language other than the language selected in the “Soundtrack Preference” is played back.

≥ When the selected language is not recorded on

the disc, or depending on how the navigation is created on the disc, it may playback in a different language than the selected language.

≥ Enter a code (> 43) when you select “Other

****”.

∫ Menu Preference

Choose the language for the disc menus. ≥ Enter a code (> 43) when you select “Other

****”.

∫ Subtitle Text

Select a desired item according to the language used for MKV subtitles text. ≥ This item is displayed only after playing back a

file.

∫ On-Screen Language

Choose the language for menus and on-screen messages.

- 32 -

Reference

Network

∫ Easy Network Setting (> 17)

∫ Network Settings

Perform network-related settings individually. Press [OK] to show the following settings:

[UB420]

h LAN Connection Mode

Select the LAN connection method. ≥ When not using wireless LAN (when turning it

off), select “Wired”.

[UB420]

h Wireless Settings

This allows the wireless router and connection settings to be set up. Current connection settings and connection state can be checked. The wireless router connection wizard will be displayed. Select a connection method to wireless access point.

Search for wireless network (> 18) PUSH button (> 17) PIN code

This method allows you to set encryption for a wireless LAN connection with ease. You can connect to a wireless LAN network by entering a PIN code generated by this unit into the wireless access point you want to connect to.

Manual setting

If a search using “Search for wireless network” does not find the wireless access point you want to connect to, or if you cannot connect to a wireless LAN network with other methods, enter an SSID manually to establish a wireless LAN connection.

h IP Address / DNS Settings

This is for checking the state of the network connection and setting the IP address and DNS-related. Press [OK] to show the respective setting.

h Proxy Server Settings

This is for checking the state of connection with the Proxy server and performing settings. Press [OK] to show the respective setting.

h Network Service Settings (> 22)

Press [OK] to show the following settings:

Audio Auto Gain Control

Volume that is different depending on the

contents is adjusted automatically to the

standard volume while using the Network

Service.

≥ Depending on contents, this function effect

will not work.

≥ Select “Off” when the audio is distorted.

Time Zone

Set the unit’s time to match your location.

≥ Some Network Service contents require the

time zone to be set. Set time zone if necessary.

Summer Time

Select “On” when using summer time.

h Network Drive Connection

This unit can access a hard disk shared folder on a network and play back videos, still pictures, and music.

h Remote Device Settings (> 24)

Press [OK] to show the following settings:

Device Name Entry

Set the name of this unit to be displayed on

the connected equipment.

Registration Type

Automatic

Manual

Remote Device List

Registering/deregistering of the displayed

equipment can be performed when “Manual”

in “Registration Type” is selected.

≥ You can register up to 16 devices.

Allow connections to all the equipment accessing this unit.

Set the permission for individual equipment connections accessing this unit.

- 33 -

Reference

[UB420]

Networked Standby

Even when “Quick Start” is set to “Off”, by using a remote device (smartphone or tablet), you can wake the unit from the off state and start certain Internet content services. ≥ To activate operation from the remote

device, select “On”. But power consumption in standby mode will increase. (> 41)

≥ To use this function, you will need a remote

device that can run a function that wakes another device from Networked Standby and apps designed for various services of “Network Service”. Refer to the instructions for the respective apps for details.

≥ Only the devices permitted by the “Remote

Device List” can be operated.

h BD-Live Internet Access (> 21)

You can restrict Internet access when BD-Live functions are used. ≥ If “Limit” is selected, Internet access is

permitted only for BD-Live contents which have content owner certificates.

[UB420]

h Voice Control Settings

Press [OK] to show the following settings:

Voice Control

Set whether to operate the unit using a network-connected device (smart speaker, etc.). ≥ When this is set to “Off” and the HOME

menu is displayed, this setting is also displayed by pressing and holding [OPTION] for more than 5 seconds.

Device ID

This is a number provided to identify another device, such as a smart speaker, when the unit is operated from that device. ≥ When “Voice Control” is set to “On” and the

HOME menu is displayed, this setting is also displayed by pressing and holding [OPTION] for more than 5 seconds.

Initialize Device Password

This initialises the “Device Password” displayed in “Device ID”. ≥ If you perform “Default Settings”, the

“Device Password” changes automatically.

∫ Legal Notices

Displays the terms of service for the cloud services.

Ratings

The following items use the same password. Don’t forget your password.

∫ DVD-Video Ratings

Set a ratings level to limit DVD-Video play.

∫ BD-Video Ratings

Set an age limit of BD-Video (including Ultra HD Blu-ray) play.

∫ Network Service Lock

You can restrict the usage of Network Service.

System

∫ Easy Settings

You can execute basic settings.

∫ TV Settings

Press [OK] to show the following settings:

h TV System

Perform the setup so it matches the TV System of the connected TV.

h Screen Saver Function

This is to prevent image retention on the screen. ≥ When this is set to “On”:

If a list of playback content is displayed and

there is no operation for 5 minutes or more,

the screen switches to HOME menu

automatically. ≥ While playing and pausing, etc., this function

is not available.

h On-Screen Messages

Choose whether to show status messages automatically.

h VIERA Link

Set to use “VIERA Link” function when connected via HDMI cable to a device that supports “VIERA Link”. ≥ Select “Off” when you do not want to use

“VIERA Link”.

- 34 -

Reference

∫ Quick Start

Speed of start-up from standby mode is increased. ≥ When set to “On”, the internal control unit will be

powered. The idle power consumption will increase so compared to when set to “Off”.

≥ The cooling fan may rotate at a slow speed to

prevent the internal temperature from rising.

∫ Remote Control

Change the remote control code if other Panasonic products react to this remote control.

∫ Firmware Update (> 18)

Press [OK] to show the following settings:

h Automatic Update Check

When this equipment remains connected to the Internet, it will check for the latest firmware version when it is turned on and you can update it if necessary.

h Update Now

You can update the firmware manually if a firmware update is available.

∫ System Information

Press [OK] to show the following settings:

h Software Licence

Information about the software used by this unit is displayed.

h Firmware Version Information

Display firmware version of this unit [UB420] and wireless LAN module.

∫ Default Settings

This returns all values in the Setup menu and the Option menu to the default settings, except for some settings of network, ratings, remote control code, on-screen language, etc.

- 35 -

Reference

Troubleshooting guide

Before requesting service, please perform the following checks. If the problem remains unresolved, consult your dealer for instructions.

Do you have the latest firmware installed?

Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology. (> 18)

The following do not indicate a problem with this unit:

– Regular disc rotating sounds. – Image disturbance during search. – Image disturbance when replacing 3D discs.

∫ Unit does not respond to remote

control or unit’s buttons.

Press and hold [Í/I] on the main unit for 3 seconds. – If still unable to turn the unit off, disconnect the

AC mains lead, wait 1 minute, then reconnect the AC mains lead.

∫ Cannot eject disc.

1 While the unit is on

Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. – POWER LED starts to flash, and “00 RET”

is displayed on the screen.

2 Press [1] (right) repeatedly on the remote

control until “06 FTO” is displayed on the screen.

3 Press [OK].

General operation

To return to the factory default.

h Select “Yes” in “Default Settings” in the Setup

menu. (> 35)

To return all settings to the factory preset.

h Reset the unit as follows:

1 While the unit is on

Press and hold [OK], the yellow button and

the blue button on the remote control at the

same time for more than 5 seconds.

– POWER LED starts to flash, and “00 RET”

is displayed on the screen.

2 Press [1] (right) repeatedly on the remote

control until “08 FIN” is displayed on the

screen.

3 Press and hold [OK] for more than 5 seconds.

This unit is turned off when the input for the TV is switched.

h This is a normal phenomenon when using

VIERA Link. For details please read the

operating instructions for the TV.

The remote control doesn’t work properly.

h Change the batteries in the remote control.

(> 5)

h The remote control and this unit are using

different codes.

Turn on this unit by using [Í/I] on the main

unit, and check “Remote Control ”, which is

displayed on the screen when you press a

button on the remote control.

Press and hold [OK] and the displayed

number (“”) for more than 5 seconds.

This unit is turned off automatically.

h To save on electricity, this unit is turned off

automatically depending on the media if there

is no button operation for about 20 minutes

when not playing back (such as when paused

or displaying the menu, displaying still

pictures, etc.).

- 36 -

Reference

You have forgotten your ratings password. You want to cancel the ratings level.

h The ratings level returns to the factory

defaults.

1 While the unit is on

Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. – POWER LED starts to flash, and “00 RET”

is displayed on the screen.

2 Press [1] (right) repeatedly on the remote

control until “03 VL” is displayed on the screen.

3 Press [OK].

The TV screen turns black.

h In the following cases, HDMI authentication

takes place and a black screen is displayed: – When “24p Output” is set to “Automatic”. – When the display is switched between 2D

and 3D images.

– When you quit the 4K playback by

displaying another screen, including the HOME menu.

– [UB420] When “HDMI Output Settings of

Music Playback” is set to “Sound Quality Priority”.

This unit does not recognize the USB connection correctly.

h Disconnect and re-connect the USB cable. If

it still does not recognize the connection, turn this unit off and on again.

h USB devices may not be recognized by this

unit when connected using the following : – a USB hub – a USB extension cable

h If you connect USB HDD to this unit, use the

USB cable that is supplied with the HDD.

h If the USB HDD is not recognized, the power

to the USB HDD may not be supplied. Supply power from an external source.

h [UB420] If you connect a second USB device

while a screen other than the Home screen is displayed, it will not be detected. Display the Home screen and reconnect the USB device you want to use.


Images from this unit do not appear on the TV screen, or they are distorted.

h An incorrect resolution is selected in “Video

Format”. Reset the setting as follows:

h The connected devices are changed. Reset

the setting as follows:

1 While the unit is on

Press and hold [OK], the yellow button and

the blue button on the remote control at the

same time for more than 5 seconds.

– POWER LED starts to flash.

2 Press [8] and the blue button on the remote

control at the same time for more than

5 seconds.

Set the item again. (> 29)

– When Dolby Digital Plus, Dolby TrueHD,

and DTS-HD select “Yes” in “Default Settings” (> 35) and make proper settings.

– “4K(50p/60p) Output” will be set to “Off”.

Make the correct setting again. (> 29)

h PAL discs cannot be correctly viewed on an

NTSC TV.

h When “3D BD-Video Playback” in the Setup

menu is set to “Automatic”, images may not

be output depending on the connection

method. After removing the disc from this unit,

select “Set before play” in the Setup menu,

and select “2D Playback” in the setup screen

displayed when playing 3D discs. (> 32)

h When outputting in 4K, images may be

distorted depending on the HDMI cable. Use

an HDMI cable that supports 18 Gbps.

[UB420]

Video is not output.

h Video is not output when the “High Clarity

Sound” is set to “On (Video Off)”. (> 28)

h Video from the HDMI AUDIO OUT terminal is

not output when the “HDMI(AUDIO) Output

Mode” is set to “Audio Only”. (> 29)

audio are not output properly,

- 37 -

Reference

Video is not output in 4K or high-definition.

h Confirm that “Video Format” in the Setup

menu is set properly. (> 29)

h Confirm the HDMI cable, related connections

and the compatibility of TV video input. To output images in 4K, connect the HDMI cable to a 4K compatible terminal of the connected device. (> 10)

h [UB420] Set “HDMI(AUDIO) Output Mode” to

“Audio Only”. (> 29)

h To enjoy image in 4K (50p/60p), set “4K(50p/

60p) Output” to “4K(50p/60p) 4:4:4” or “4K(50p/60p) 4:2:0”. (> 29)

h If “4K(50p/60p) Output” is set to “4K(50p/60p)

4:4:4”, check to see if the connected HDMI cable supports 18 Gbps. (> 10, 29)

h If 4K images are not output from the

connected 4K-compatible TV, set “4K(50p/ 60p) Output” to “4K(50p/60p) 4:4:4” or “4K(50p/60p) 4:2:0”. (> 29)

h When the unit is connected to a TV that

supports formats up to 4K(50p/60p) 4:2:0 or “4K(50p/60p) Output” is set to “4K(50p/60p) 4:2:0”, material recorded in 4K(50p/60p) cannot be output in HDR. To play back material recorded in 24p, set “24p Output” to “Automatic”. (> 29)

Cannot output video in HDR quality even when connected to an HDR-compatible TV.

h When connected to a device or terminal that

does not support HDR, this unit applies Dynamic Range Conversion to HDR signals to output them. In addition, depending on the disc, it may not be possible to output content in 2K resolution or perform playback correctly. (> 21)

h Video may not be output from your TV in HDR

quality, depending on the content. [UB420] Set “HDR/Colour Gamut Output” to “HDR/BT.2020 (Auto)” and “HLG / PQ Conversion” to “Automatic”. (> 30) [UB320] Set “HDR (High Dynamic Range) Output” and “HLG / PQ Conversion” to “Automatic”. (> 30)

3D video is not output.

h Connect to a 3D compatible device (e.g., TV

and amplifier/receiver).

h When a non-3D compatible amplifier/receiver

is connected between this unit and a TV, 3D

video is not output. (> 12)

h [UB420] If there is a non-3D compatible

amplifier/receiver connected to the HDMI

AUDIO OUT terminal, set the “HDMI(AUDIO)

Output Mode” to “Audio Only”. (> 29)

h Confirm the settings on this unit and the TV

for 3D. (> 21)

3D video is not output correctly as 2D.

h Select “Set before play” in the Setup menu,

and select “2D Playback” in the setup screen

displayed when playing 3D discs. (> 32, “3D

BD-Video Playback”)

h Discs that have recorded titles with Side by

side (2 screen structure) and that can be

enjoyed in 3D are played back in accordance

with the settings of the TV.

No picture is output from Netflix.

h When the unit is connected to a TV that does

not support HDCP2.2 via an amplifier or

speaker, it may not be possible to view

Netflix.*

If HDCP2.2 is not supported by your TV, try

either of the following solutions:

– Connect the unit and the TV directly.

(> 11, 12)

– Set “HDCP Output Setting” to “HDCP1.4

Limit”. (> 30)

* This limitation is due to a specification defined by Netflix,

Inc. Press [RETURN] if a black screen is displayed.

[UB420]

Cannot play back videos on the USB device smoothly.

h Use the port on the rear side of this unit,

which supports USB 3.0.

A black band is displayed around the edge of the screen. The aspect ratio of the screen is abnormal.

h Adjust the aspect setting on the TV.

There is a lot of image lag when playing video.

h Set “0” all items in the “Noise Reduction”.

(> 27)

- 38 -

Reference

Audio

Cannot hear the desired audio.

h Check the connections and the “Digital Audio

Output” settings. (> 11, 31)

h [UB420] To output audio from a device

connected with an HDMI cable, set “Audio Output” to “On” in the Setup menu. (> 30)

h [UB420] When connecting this unit to a TV via

an HDMI VIDEO OUT and to an amplifier/ receiver via an HDMI AUDIO OUT, set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 11, 29)

[UB420] Even when gapless playback is performed for an album or similar group of songs containing a sound source recorded at a live performance or concert (a music file containing songs that are recorded continuously), the playback is interrupted between songs.

h In the following cases, playback is interrupted

between songs: – When the file contains recordings that differ

from one another in their settings, such as file format, sampling frequency, and channel number

– When you set “Repeat Play” to “One track”

or “Shuffle” to “On” during gapless playback

– When files of 100 or more songs are

contained in a single folder

There is no sound coming out.

h [UB420] To output audio using OPTICAL

terminal, set “OPTICAL Down Sampling” properly. (> 31)

h Refer to “Connecting to an amplifier/receiver”

(> 11 - 15) to check the audio output settings suited to the connections of your device. [UB420] In the following cases, audio is not output from the terminals listed below:

≥HDMI VIDEO OUT terminal

– When a device is connected to the HDMI

AUDIO OUT terminal and “HDMI(VIDEO) Output Mode” is set to “Automatic ( Video Only / Video+Audio )” (> 29)

– When “Audio Output” in “Advanced

Settings” is set to “Off” (> 30)

– While playback is being performed with

“Audio Output” in “Settings for High Clarity Sound” set to “OPTICAL Only” (> 32)

≥HDMI AUDIO OUT terminal

– When “Audio Output” in “Advanced

Settings” is set to “Off” (> 30)

– While playback is being performed with

“Audio Output” in “Settings for High Clarity Sound” set to “OPTICAL Only” (> 32)

≥OPTICAL terminal

– When a device is connected to the HDMI

AUDIO OUT terminal and “Audio Output” in “Advanced Settings” is set to “On” (> 30)

– While playback is being performed with

“Audio Output” in “Settings for High Clarity Sound” set to “HDMI Only” (> 32)

Playback

Disc cannot be played.

h The disc is dirty. (> 5) h The disc is not finalized. (> 7) h Depending on the Ultra HD Blu-ray disc, it

may not be possible to perform playback

unless this unit is connected to the Internet.

Still pictures (JPEG) do not play back normally.

h The images that were edited on the PC, such

as Progressive JPEG, etc., may not be played

back.

I can’t play back BD-Live.

h Confirm that this unit is connected to the

broadband Internet. (> 16)

h Confirm the “BD-Live Internet Access”

settings. (> 34)

h Confirm a USB device is connected to the

USB port. (> 9)

Network

I can’t connect to the network.

h Confirm the network connection and settings.

(> 16, 17, 33)

h [UB420] There may be interference that

prevents the unit from detecting your home

network. Place the unit and the wireless

router closer to each other. This unit may be

able to detect your network name (> 18,

“SSID”).

h Check the operating instructions for each

device and connect accordingly.

- 39 -

Reference

[UB420]

When using wireless LAN connection, video from the Network Contents server* is not played back or video frames are dropped during playback.

h Higher transfer rate router such as 802.11n

(2.4 GHz or 5 GHz) or 802.11ac wireless router may solve the problem. If you use

802.11n (2.4 GHz or 5 GHz) or 802.11ac wireless router, it is necessary to set the encryption type to “AES”. Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems.

h On the “Wireless Settings” screen (> 33), the

continuous lighting of at least 4 “Reception” indicators is the target for a stable connection. If 3 or fewer indicators are lit or the connection is being interrupted, change the position or angle of your wireless router and see if the connection state improves. If there is no improvement, connect to a wired network and perform the “Easy Network Setting” (> 17) again.

* DLNA compatible server, etc.

Messages on the screen

Cannot read. Please check the disc.

h You inserted an incompatible disc.

Cannot play this file.

h You tried to play a non-compatible video.

No disc inserted.

h The disc may be upside down.

$ This operation cannot be performed now.

h Some operations are unsupported by the unit.

(For example, reverse slow motion, etc.)

IP address is not set.

h The “IP Address” in “IP Address / DNS

Settings” is “---. ---. ---. ---”. Set the “IP Address”, “Subnet Mask”, and “Gateway Address”. (Select the automatic address acquisition if necessary.)

[UB420]

The wireless access point currently has a low network security setting. It is recommended to change to a higher setting.

h Set a stronger network security level referring

to the wireless router operating instructions.

POWER LED

When the POWER LED is flashing other than during power up or down of this unit, check the message on the TV screen. If a message is not displayed on the TV screen, determine the type of the error by checking the way the POWER LED is flashing.

Symbols indicate the following states:

Flash No illumination

Repetition

(Flashes 6 times)

h The remote control and this unit are using

different codes.

Turn on this unit by using [Í/I] on the main

unit, and check “Remote Control ” which is

displayed on the screen when you press a

button on the remote control.

Press and hold [OK] and the displayed

number (“”) for at least 5 seconds.

(Flashes 4 times)

h The unit fails to operate properly. Press [Í/I]

on the main unit for 3 seconds to switch the

unit to standby, then switch back on.

(Flashes)

h The copyright protected disc cannot be

played back.

One of the devices connected to this unit (TV,

amplifier, etc.) does not support copyright

protection.

h Temperature of this unit is hot and the unit

switches to standby for safety reasons.

Wait for about 30 minutes.

Install or place this unit with good ventilation.

h A firmware update is in progress.

(Flashes 3 times)

h The disc in use cannot be played back since

the copyright information is invalid.

h A firmware update using a USB device is

complete.

- 40 -

Reference

Specifications

General

Signal system PAL /NT SC

Operating temperature range

Operating humidity range

[UB420]

DIGITAL AUDIO OUT (OPTICAL)

HDMI OUT (19 pin type A)

USB port (Type A) Front : 1 pc.,

LAN (Ethernet) Port 1pc.

[UB420]

Wireless LAN

LASER Specification Class 1 LASER Product

Power supply AC 220 V to 240 V, 50 Hz Power consumption [UB420]

[UB420]

Power consumption in networked standby mode

Power consumption in standby mode

i5 oC to i35 oC

10 % to 80 % RH (no condensation)

1pc. Output format : PCM, Dolby Digital, DTS

[UB420]

2 pcs.

[UB320]

1pc.

Output Audio format : PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS High Resolution Audio DTS-HD Master Audio

DC 5 V, Max. 500 mA [High-Speed USB (USB 2.0)]

[UB420]

Rear : 1 pc., DC 5 V, Max. 900 mA [Super-Speed USB (USB 3.0)]

, DTS-HD

10BASE-T/100BASE-TX

Standard Compliance:

IEEE802.11 a/b/g/n/ac

Frequency Range:

2.4 GHz/5 GHz band

Security: Encryption type: TKIP/AES, Authentication type: PSK, WEP (64 bit/128 bit)

Wave length: 770-800 nm (CDs)/ 650-666 nm (DVDs)/ 400-410 nm (BDs) Laser power: No hazardous radiation is emitted with the safety protection

Approx. 29 W

[UB320]

Approx. 21 W

Approx. 1 W

(Quick Start: Off, Networked Standby: On)

Approx. 0.3 W

(Quick Start: Off,

[UB420] Networked Standby: Off)

Dimensions (WkHkD) Including the projecting parts

Mass [UB420]

[UB420]

320 mmk45 mmk199 mm

[UB320]

320 mmk45 mmk193 mm

Approx. 1.4 kg

[UB320]

Approx. 1.3 kg

≥ Specifications are subject to change without notice.

File format

File format Extension Reference

“.MKV”, “.mkv”

MKV

(Compression

methods

Video: H.264/HEVC

Audio:AAC, PCM,

Vorbis, FLAC)

mp4

(Compression

methods

Video: H.264/HEVC

Audio: AAC)

MPEG

(TS/PS)

(Compression

methods

Video: MPEG2

/HEVC*

/H.264*

Audio: AAC* /Dolby Digital

/LPCM*

JPEG

MPO

MP3

Subtitles text file

“.SRT”, “.srt”, “.SUB”, “.sub”, “.TXT”, “.txt”

“.MP4”, “.mp4”, “.MOV”, “.mov”

“.MPG”, “.mpg”, “.MPEG”, “.mpeg”, “.M2TS”, “.m2ts”,

“.MTS”,

“.mts”, “.TS”,

)

“.ts”

“.JPG”, “.jpg”

“.MPO”, “.mpo”

“.MP3”, “.mp3”

≥ Resolution up to

3840x2160 25p/30p, 4096x2160 24p.

≥ The video file and

subtitles text file are inside the same folder, and the file names are the same except for the file extensions. Some MKV files may not

≥

be played back correctly, depending on the video resolution, frame rate condition, subtitle format and so on.

≥ Resolution up to

3840×2160 25p/30p, 4096×2160 24p. (except MPEG2)

≥ Some mp4/MPEG files

may not be played back correctly, depending on the video resolution, frame rate condition and so on.

≥ MOTION JPEG is not

supported.

≥ Depending on the audio

compression method, only images may be played back and it may not be possible to output audio.

≥ MOTION JPEG and

Progressive JPEG are not supported.

≥ You may not be able to

play back the file if you have edited the folder structure or the file name on a PC or other device.

3D still picture

This unit supports ID3 tags, but only titles, artist names and album names can be displayed.

- 41 -

Reference

File format Extension Reference

This unit supports tags, but

FLAC

WAV

AAC

WMA

DSD

(DFF, DSF)

ALAC

AIFF

TS only

PS only

≥ With certain recording states and folder structures, the play

order may differ or playback may not be possible.

≥ A combined total of up to 10,000 files and folders can be

displayed as playable data in each folder regardless of their format. (Even when the picture playback menu is displayed, for example, if a folder in the menu contains playable videos and music files, they are also counted as playable data.)

“.FLAC”, “.flac”

“.WAV”, “.wav”

“.M4A”, “.m4a”

“.WMA”, “.wma”

“.DSF”, “.dsf “.DFF “.dff

“.M4A”, “.m4a

“.aif”, “.aiff”

only titles, artist names and album names can be displayed. Maximum sampling rate: 192 kHz/ 24 bit

Maximum sampling rate:

[UB420]

384 kHz/32 bit

[UB320]

192 kHz/32 bit

Maximum sampling rate: 48 kHz/320 kbps

This unit supports tags, but only titles, artist names and album names can be displayed. Maximum sampling rate: 48 kHz/385 kbps

[UB420]

2.8 MHz (2 ch/5.1 ch),

5.6 MHz (2 ch/5.1 ch),

”,

11.2 MHz (2 ch only)

”,

[UB320]

”

2.8 MHz (2 ch/5.1 ch),

5.6 MHz (2 ch only)

96 kHz/32 bit (Max.7.1 ch),

176.4/192 kHz/32 bit

”

(Max.5.1 ch)

Maximum sampling rate:

[UB420]

384 kHz/32 bit

[UB320]

192 kHz/32 bit

Audio information

The audio output differs depending on the settings on the unit [UB420] and which terminals are connected to the amplifier/receiver. (> 31, “Digital Audio Output”)

≥ The number of channels listed is the maximum possible

number of output channels when connected to amplifier/ receiver compatible with the respective audio format.

Terminal

HDMI OUT

Output

channel

[UB320] The maximum possible number of Dolby sound is 2ch PCM.

When “BD-Video Secondary Audio” is set to “On”, the audio will be output as Dolby Digital, DTS Digital Surround BD-Video without secondary audio or navigation sounds, the audio is output as the original format.

The audio output is amplified from 5.1ch or 6.1ch to 7.1ch depending on the DTS, Inc. specifications.

[UB420]

DIGITAL

AUDIO

OUT

(OPTICAL)

or 5.1ch PCM. However, when playing

“Digital Audio Output”

“Bitstream”

Outputs using original audio

Dolby Digital/ DTS Digital Surround

“PCM”

BD-Video :

7.1ch PCM DVD-Video :

5.1ch PCM

Down-mixed 2ch PCM

*2*3

- 42 -

Reference

Supported format for Network Contents Playback

When this unit works as a Network Contents client, following contents are playable. ≥ File formats that are not supported by your

Network Contents server* cannot be played.

* DLNA compatible server, etc.

Video

Container Video codec Audio codec

AAC PCM

Vor bis

FLAC

MKV

H.264 HEVC

AVCHD H.264 Dolby Digital .mts

MP4

PS MPEG2

H.264 HEVC

MPEG2

H.264 HEVC

AAC .mp4, .mov

Dolby Digital

Linear PCM

AAC

Dolby Digital


Format Example of file extension

JPEG .jpg

Audio

Audio codec Example of file extension

MP3 .mp3

FLAC .flac

WAV . wav AAC .m4a, .adts

WMA .wma

ALAC .m4a

DSD .dsf, .dff AIFF .aif, .aiff

Linear PCM —

≥ Depending on the server, the contents other than stated

above can be played back.

Example of

file extension

.mkv

.mpg, .mpeg

.m2ts, .ts

Language code list

Language Code Language Code Language Code

Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Amharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali; Bangla: 6678 Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 Catalan: 6765 Chinese: 9072 Corsican: 6779 Croatian: 7282 Czech: 6783 Danish: 6865 Dutch: 7876 English: 6978 Esperanto: 6979 Estonian: 6984 Faroese: 7079 Fiji: 7074 Finnish: 7073 French: 7082 Frisian: 7089 Galician: 7176 Georgian: 7565 German: 6869 Greek: 6976 Greenlandic: 7576 Guarani: 7178

Gujarati: 7185 Hausa: 7265 Hebrew: 7387 Hindi: 7273 Hungarian: 7285 Icelandic: 7383 Indonesian: 7378 Interlingua: 7365 Irish: 7165 Italian: 7384 Japanese: 7465 Javanese: 7487 Kannada: 7578 Kashmiri: 7583 Kazakh: 7575 Kirghiz: 7589 Korean: 7579 Kurdish: 7585 Laotian: 7679 Latin: 7665 Latvian, Lettish: Lingala: 7678 Lithuanian: 7684 Macedonian: 7775 Malagasy: 7771 Malay: 7783 Malayalam: 7776 Maltese: 7784 Maori: 7773 Marathi: 7782 Moldavian: 7779 Mongolian: 7778 Nauru: 7865 Nepali: 7869 Norwegian: 7879 Oriya: 7982 Pashto, Pushto: Persian: 7065 Polish: 8076 Portuguese: 8084 Punjabi: 8065 Quechua: 8185

7686

8083

Rhaeto-Romance: 8277 Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387 Swedish: 8386 Tagalog: 8476 Tajik: 8471 Tamil: 8465 Tatar: 8484 Telugu: 8469 Thai: 8472 Tibetan: 6679 Tigrinya: 8473 Tonga: 8479 Turkish: 8482 Turkmen: 8475 Twi: 8487 Ukrainian: 8575 Urdu: 8582 Uzbek: 8590 Vietnamese: 8673 Volapük: 8679 Welsh: 6789 Wolof: 8779 Xhosa: 8872 Yiddish: 7473 Yoruba: 8979 Zulu: 9085

8372

Display languages list

Display Language Display Language Display Language

JPN

ENG FRA DEU ITA ESP NLD SVE NOR DAN POR RUS

English

French

German

Italian

Spanish

Dutch

Swedish

Norwegian

Danish

Portuguese

Russian

CHI KOR MAL VIE THA POL CES SLK HUN FIN

Vietnamese

Hungarian

Japanese

Chinese

Korean

Malay

Thai

Polish

Czech

Slovak

Finnish

ARA HIN PER IND MRI BUL RUM GRE TUR

Arabic

Hindi

Persian

Indonesian

Maori

Bulgarian

Romanian

Greek

Turkish

Others

- 43 -

Reference

Licenses

“AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/ Progressive” are trademarks of Panasonic Corporation and Sony Corporation.

Java is a registered trademark of Oracle and/or its affiliates.

Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The product with Hi-Res AUDIO logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

<AVC> This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com <VC-1> This product is licensed under the VC-1 Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the VC-1 Standard ("VC-1 Video") and/or (ii) decode VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

“Wi-Fi®”, “Miracast®”, and “Wi-Fi Direct®” are registered

trademarks of Wi-Fi Alliance®.

“Wi-Fi Protected SetupTM” and “WPATM” are trademarks of Wi-Fi

Alliance®.

Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.

Android is a trademark of Google Inc.

Adobe is a trademark or registered trademark of Adobe Systems Incorporated in the United States and/or other countries.

Copyright 2004-2014 Verance Corporation. CinaviaTM is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.

This product incorporates the following software: (1) the software developed independently by or for Panasonic

Corporation,

(2) the software owne d by th ird party and license d to Pa nasonic

Corporation,

(3) the software licensed under the GNU General Public License,

Version 2.0 (GPL V2.0),

(4) the software licensed under the GNU LESSER General Public

License, Version 2.1 (LGPL V2.1), and/or

(5) open source software other than the software licensed under

the GPL V2.0 and/or LGPL V2.1. The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the Player Settings menu. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof. Contact Information: oss-cd-request@gg.jp.panasonic.com The source code and the copyright notice are also available for free in our website below. https://panasonic.net/cns/oss/

(1) MS/WMA

This product is protected by certain intellectual property rights

of Microsoft Corporation and third parties. Use or distribution of

such technology outside of this product is prohibited without a

license from Microsoft or an authorized Microsoft subsidiary

and third parties. (2) MS/PlayReady/Final Product Labeling

This product contains technology subject to certain intellectual

property rights of Microsoft. Use or distribution of this

technology outside of this product is prohibited without the

appropriate license(s) from Microsoft. (3) MS/PlayReady/End User Notices

Content owners use Microsoft PlayReady™ content access

technology to protect their intellectual property, inclu ding

copyrighted content. This device uses PlayReady technology

to access PlayReady-protected content and/or

WMDRM-protected content. If the device fails to properly

enforce restrictions on content usage, content owners may

require Microsoft to revoke the device’s ability to consume

PlayReady-protected content. Revocation should not affect

unprotected content or content protected by other content

access technologies. Content owners may require you to

upgrade PlayReady to access their content. If you decline an

upgrade, you will not be able to access content that requires

the upgrade. (4) Vorbis, FLAC, [UB420] WPA Supplicant

The software licenses are displayed when “Software Licence”

in the Setup menu is selected. (> 35)

- 44 -

Reference

- 45 -

Sales and Support Information

(Inside of product) (Back of product)

Manufactured by:

Importer for Europe:

Panasonic Corporation Kadoma, Osaka, Japan Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany

Customer Communications Centre

≥ For customers within the UK: 0344 844 3899 ≥ For customers within Ireland: 01 289 8333 ≥ Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays). ≥ For further support on your product, please visit our website:

panasonic.co.uk

www.

Direct Sales at Panasonic UK ≥ Order accessory and consumable items for your product with ease and confidence by phoning our

Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).

≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com ≥ Most major credit and debit cards accepted. ≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK. ≥ It couldn’t be simpler! ≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a

browse on our website for further details.

Panasonic Corporation

Web Site: http://www.panasonic.com

TQBS0189

F0318HA0

Panasonic DP-UB420, DP-UB320 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Precautions

Table of contents

Getting started

Accessories

Unit and media care

Playable media

Control reference guide

Connecting to a TV

Connecting to an amplifier/receiver

Connecting to the network

Settings

Playback

HOME menu

Playback

Enjoying Network Service

Home Network feature

VIERA Link

Option menu

Reference

Setup menu

Troubleshooting guide

Specifications

Licenses
