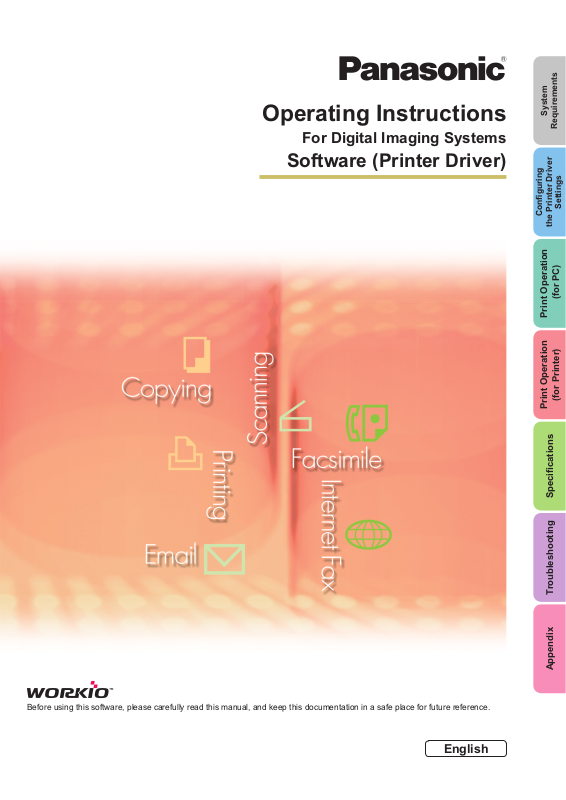

Operating Instructions

For Digital Imaging Systems

Software (Printer Driver)

System

Requirements

Settings

Confi guring

the Printer Driver

(for PC)

Print Operation

(for Printer)

Print Operation

Specifi cationsTroubleshootingAppendix

Before using this software, please carefully read this manual, and keep this documentation in a safe place for future reference.

English

The following trademarks and registered trademarks are used throughout this manual:

Microsoft, MS-DOS, Windows, Windows NT and Windows Server are either registered
trademarks or trademarks of Microsoft Corporation in the USA and other countries.
Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.
i386, i486, Celeron, Intel Centrino and Pentium are trademarks of Intel Corporation and its
subsidiaries.
The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, Inc.
TrueType is a registered trademark of Apple Computer, Inc.
Novell, NetWare, IntranetWare, NDS are registered trademarks of Novell, Inc. in the USA and
other countries.
PEERLESSPage™ is a trademark of the PEERLESS Systems Corporation; and,
PEERLESSPrint and Memory Reduction Technology
Systems Corporation; and, COPYRIGHT © 2005 PEERLESS Systems Corporation.
COPYRIGHT © 2005 Adobe Systems Incorporated. All Rights Reserved; and Adobe
PostScript® 3™.
Universal Font Scaling Technology (UFST) and all typefaces have been licensed from Agfa
Monotype.
Agfa® and the Agfa rhombus are registered trademarks of Agfa-Gevaert N.V. registered in the
U.S. Patent and Trademark Offi ce and may be registered in other jurisdictions. Monotype® is a
registered trademark of AMT registered in the U.S. Patent and Trademark Offi ce and may be
registered in other jurisdictions.
ColorTune® is a registered trademark of Agfa-Gevaert N.V. registered in the U.S. Patent and
Trademark Offi ce and may be registered in other jurisdictions. Profi le Tool Kit™, Profi le Studio™
and Profi le Optimizer™ are trademarks of AMT and may be registered in certain jurisdictions.
PCL is a trademark of Hewlett-Packard Company.
Adobe, Acrobat, Adobe Reader, Adobe Type Manager, PostScript, PostScript 3 and Reader are
either registered trademarks or trademarks of Adobe Systems Incorporated in the United States
and/or other countries.
All other product/brand names, trademarks or registered trademarks identifi ed herein are the
property of their respective owners.

®

are registered trademarks PEERLESS

®

2

© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
Unauthorized copying and distribution is a violation of law.
Published in Japan.

The contents of these Operating Instructions are subject to change without notice.

Memo

3

4

Table of Contents

System Requirements ....................................... 6

Configuring the Printer Driver Settings ............

8

Opening the Printer Properties Dialog Box ................................................ 8

Basic Tab ................................................................................................... 16

Output Tab ................................................................................................. 26

Job Type Tab ............................................................................................. 29

Quality Tab ................................................................................................. 31

Effects Tab ................................................................................................. 39

Profile Tab .................................................................................................. 44

Support Tab ................................................................................................ 46

Form/Tray Tab (Except for Windows 98/Windows Me) .............................. 47

Device Tab ................................................................................................. 48

Print Operation (for PC) ..................................... 50

Printing from Windows Applications ........................................................... 50

Printing on Network .................................................................................... 51

IPP (Internet Printing Protocol) Printing ..................................................... 52

Job Status Utility ......................................................................................... 55

Print Operation (for Printer) .............................. 60

SD Print ...................................................................................................... 60

Mailbox ....................................................................................................... 61

Mailbox

(For DP-C322/C262, DP-C354/C264/C323/C263/C213) .................. 63

Job Control (Output Queue)

(For DP-C322/C262, DP-C354/C264/C323/C263/C213) ........................... 65

Mailbox (For DP-8060/8045/8035) ............................................................. 67

Job Queue (For DP-8060/8045/8035) ........................................................ 68

MailBox (For DP-8020E/8020P*/8016P) .................................................... 69

Secure Mailbox (For DP-8020E/8020P*/8016P) ........................................ 71

Job Queue (For DP-8020E/8020P*/8016P) ............................................... 73

Specifications .................................................... 74

Specifications

(For DP-C354/C264/C323/C263/C213, DP-C322/C262) ......... 74

Specifications (For DP-8060/8045/8035) ................................................... 75

Specifications (For DP-8020E/8020P*/8016P) ........................................... 7

5

* DP-8020P is not available for USA and Canada.

Troubleshooting ................................................ 76

Printing Operation Failure .......................................................................... 76

Documents Not Printing Correctly

(For DP-C354/C264/C323/C263/C213, DP-C322/C262) .............................. 77

Documents Not Printing Correctly

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P) ................................ 78

Error Messages Displayed on the Computer ............................................. 79

Error Messages Displayed on Your Machine

(For DP-C354/C264/C323/C263/C213, DP-C322/C262) ......................................... 80

Appendix ............................................................ 82

Printing Area ............................................................................................... 82

* DP-8020P is not available for USA and Canada.

5

Requirements

System

System Requirements

Personal Computer : IBM PC/AT and compatibles (CPU Pentium II or greater is required, Pentium 4 or greater

System Memory : The minimum recommended Memory for each OS is as follows:

Free Disk Space : 40MB or greater

CD-ROM Drive : Used for installing the software and utilities from the CD-ROM.

is recommended)

Operating System : Windows 98* 1 , Windows Me* 2 , Windows NT 4.0* 3 (With Service Pack 3 or later is required),

Windows 2000* 4 , Windows XP* 5 , Windows Server 2003* 6

Windows 98, Windows Me : 128MB or greater

Windows 2000, Windows XP,

Windows NT 4.0,

Windows Server 2003

: 256MB or greater

Interface : 10Base-T/100Base-TX Ethernet Port/USB Port.

(USB connection is available for DP-C354/C264/C323/C263/C213)

*1 Microsoft

*2 Microsoft

*3 Microsoft

*4 Microsoft

*5 Microsoft

*6 Microsoft

®

Windows ® 98 operating system (hereafter Windows 98)

®

Windows ® Millennium Edition operating system (hereafter Windows Me)

®

Windows NT ® operating system Version 4.0 (hereafter Windows NT 4.0)

®

Windows ® 2000 operating system (hereafter Windows 2000)

®

Windows ® XP operating system (hereafter Windows XP)

®

Windows Server ® 2003 operating system (hereafter Windows Server 2003)

6

Memo

System

Requirements

7

Opening the Printer Properties Dialog Box

Windows 98/Windows Me

To change the printer settings, open the dialog box for the printer properties by performing the following steps.

the Printer Driver

Confi guring

Settings

Click the Start button, select Settings , and then click Printers .

Right-click on the printer icon in the Printers folder, and then select Properties in the pop-up menu.

8

The following printer properties dialog box appears. Click the desired tab(s) and confi gure the properties as

necessary.

Settings

Confi guring

the Printer Driver

General/Details/Color Management/Sharing Tab:

These tabs are Windows specifi c settings. Refer to Windows manuals, Windows pop-up help topics, and/or

Online Support.

Note:

To open Windows pop-up help topics:

Click the

Then click on unfamiliar object in the dialog box, the topic opens in a pop-up window. When you fi nish reading the

information in the pop-up window, you can close it by clicking anywhere in the window.

Color Management Tab is not available for DP-8060/8045/8035, and DP-8020E/8020P*/8016P with Standard Printer

Driver.

Basic/Output/Job Type/Quality/Effects/Profi le/Support/Device Tab:

These tabs are Panasonic Printing System associated settings. For additional details, refer to the page(s)

relevant to the subject you are interested in.

Basic Tab

Output Tab

Job Type Tab : See page 29

Quality Tab

?

icon at top right corner of the printer properties dialog box. The "?" mark will appear on your mouse cursor.

: See page 16

: See page 26

: See page 31

Effects Tab

Profi le Tab

Support Tab

Device Tab

: See page 39

: See page 44

: See page 46

: See page 48

9

Opening the Printer Properties Dialog Box

Windows NT 4.0 (Administrator)

To change the printer settings, open the dialog box for the printer properties by performing the following steps.

the Printer Driver

Confi guring

Settings

Note:

In Windows NT 4.0, setting of the properties depends on the logon account. This section describes properties to be
specifi ed by the administrator (system manager). See page 12 for details on user properties.

Logon to the computer/network using an account with administrator rights.

Click the Start button, select Settings , and then click the Printers icon.

Right-click on the desired printer icon in the Printers folder, and then select Properties in the pop-up menu.

10

The following printer properties dialog box appears. Click the desired tab(s) and confi gure the properties as

necessary.

Settings

Confi guring

the Printer Driver

General/Ports/Scheduling/Sharing/Security Tab:

These tabs are Windows specifi c settings. Refer to Windows manuals, Windows pop-up help topics, and/or

Online Support.

Note:

To open Windows pop-up help topics:

Click the

Then click on unfamiliar object in the dialog box, the topic opens in a pop-up window. When you fi nish reading the

information in the pop-up window, you can close it by clicking anywhere in the window.

Form/Tray/Device Tab:

These tabs are Panasonic Printing System associated settings. For additional details, refer to the page(s)

relevant to the subject you are interested in.

Form/Tray Tab

Device Tab : See page 48

icon at top right corner of the printer properties dialog box. The "?" mark will appear on your mouse cursor.

?

: See page 47

11

Opening the Printer Properties Dialog Box

Windows NT 4.0 (User)

To change the printer settings, open the dialog box for the printer properties by performing the following steps.

the Printer Driver

Confi guring

Settings

Select Print in the File menu of the application. (i.e. Microsoft ® WordPad)

Select the printer model in the name list box.

Click the

Properties

button in the Print dialog box.

The printer properties dialog box appears. Click the desired tab(s) and confi gure the properties as

necessary.

Basic Tab

Output Tab

Job Type Tab

Quality Tab

Effects Tab

Profi le Tab : See page 44

Support Tab

: See page 16

: See page 26

: See page 29

: See page 31

: See page 39

: See page 46

12

Opening the Printer Properties Dialog Box

Windows 2000/Windows XP/Windows Server 2003 (Administrator)

To change the printer settings, open the dialog box for the printer properties by performing the following steps.

Note:

In Windows 2000/Windows XP/Windows Server 2003, the available property settings depend on the logon account
access level. This section describes properties to be specifi ed by the administrator (system manager). See
" Windows2000/Windows XP/Windows Server 2003 (User) " on page 15 for details on user properties.

Logon to the computer/network using an account with administrator rights.

Click the Start button, select Settings and choose Printers and Faxes icon. (for Windows 2000: Click the

Start button, select Settings , and then click the Printers icon)

Right-click on the desired printer icon in the Printer and Faxes folder, and then select Properties in the

pop-up menu.

Settings

Confi guring

the Printer Driver

13

The following printer properties dialog box appears. Click the desired tab(s) and confi gure the properties as

necessary.

the Printer Driver

Confi guring

Settings

General/Sharing/Ports/Advanced/Color Management/Security Tab:

These tabs are Windows specifi c settings. Refer to Windows manuals, Windows pop-up help topics, and/or

Online Support.

Note:

To open Windows pop-up help topics:

Click the
Then click on unfamiliar object in the dialog box, the topic opens in a pop-up window. When you fi nish reading the

information in the pop-up window, you can close it by clicking anywhere in the window.

Color Management Tab is not available for DP-8060/8045/8035.

Form/Tray/Device Tab:

These tabs are Panasonic Printing System associated settings. For additional details, refer to the page(s)

relevant to the subject you are interested in.

Form/Tray Tab

Device Tab : See page 48

icon at top right corner of the printer properties dialog box. The "?" mark will appear on your mouse cursor.

?

: See page 47

14

Opening the Printer Properties Dialog Box

Windows 2000/Windows XP/Windows Server 2003 (User)

To change the printer settings, open the dialog box for the printer properties by performing the following steps.

Select Print in the File menu of the application. (i.e. Microsoft ® WordPad)

Select the printer model in the name list box.

Click the

The printer properties dialog box appears. Click the desired tab(s) and confi gure the properties as necessary.

Preferences

button in the Print dialog box.

Settings

Confi guring

the Printer Driver

Basic Tab : See page 16

Output Tab

Job Type Tab

Quality Tab

Effects Tab

Profi le Tab

Support Tab

: See page 26

: See page 29

: See page 31

: See page 39

: See page 44

: See page 46

15

Basic Tab

Basic tab is used for confi guring basic printing settings.

the Printer Driver

Confi guring

Settings

1

2

3

4

5

1. Paper Size

Displays the current Paper Size and Output

2. Paper Image

Represents the current settings, along with the

3. Icons

Represent the current settings, along with the

4.

Used to check the printer status, launch the

5.

Restores all the settings to the default value.

6. Paper Size/Output Paper Size

6

7
8

9
10
11

12

13

14

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

Paper Size settings.

icons shown below.

paper image shown above.

Printer Status...

button

Device Monitor , which displays the status.

This feature is only available when the printer is

connected over a TCP/IP network.

Restore All Defaults

button

There are two settings for paper size. They are

Paper Size and Output Paper Size .

Paper Size denotes the document size created

by the software applications.

6

1

2

3

4

5

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P :
PCL 6 Emulation Printer Driver)

Output Paper Size denotes the size of paper

used by the printer.

Custom paper sizes can be selected in the

Paper Size and Output Paper Size settings.

Note:

(For DP-C322/C262, DP-C354/C264/C323/C263/
C213) Choosing envelope paper sizes, automatically
switches the

Media Type

The
depending on the

Custom Paper...

7.

Media Type

and

Paper Size

button

Envelope

to

Paper Source

setting.

.

settings differ

(Available for PCL 6 Emulation Printer Driver only)

You can create, edit and delete custom papers.

Up to 50 custom papers can be registered.

Note:

Custom paper size is saved for individual users who
are logged on.

The saved Custom Papers will not be deleted when
the PCL 6 Emulation Printer Driver is uninstalled. The
Custom Paper fi les will be automatically recognized if
the PCL 6 Emulation Printer Driver is installed again.

Use Long Paper

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)
Creates Long Paper as a custom paper size.
Choose from the following paper sizes for long paper.
Width: 8.27-11.69 in.(210.0-297.0mm)
Length: 18.01-35.43 in.(457.3-900.0mm)

7
8

9
10
11

12

13

14

16

8. Orientation

Specifi es the direction of the image to be printed.

9. Media Type (Available for PCL 6 Emulation Printer Driver only)

Specifi es the type of paper.

Note (For DP-C322/C262, DP-C354/C264/C323/C263/C213):

Verify that the media type selection in the control panel matches the media loaded on the trays. (Ex: Select
"Transparency" when Transparencies are loaded in the Sheet Bypass)

Transparency

Envelope

Media Type

If the

is the only selectable

is only available if the selected

is only available if one of the envelope paper sizes is selected.

is other than

Plain Paper

Paper Source

.

Paper Size

Glossy/Photo Paper

,

is

A4

Letter

or

Recycled Paper

or

.

, then the

10. Paper Source

Specifi es the tray to be used for printing.

Automatically Select Paper is supplied from the tray that is loaded with the specifi ed paper. If the

specifi ed paper is loaded in multiple trays, it is supplied from the upper tray fi rst.
If a tray runs out of paper, paper is supplied from the next tray containing the
specifi ed paper, and continues in this sequence.

Multi-Purpose Tray

Settings

Confi guring

the Printer Driver

Multi-Purpose Tray
(Sheet Bypass)

As its name suggest, this tray is used for all supported sizes and media types that
can fi t in this tray.

Tray 1/Tray 2 This is the standard paper tray, and the fi rst tray the specifi ed paper is fed from.

Tray 3/Tray 4 These trays are the second paper source tier and optional trays thereafter.

The optional trays are only displayed if they are installed on the machine.

Note:

Be sure to specify on the printer what paper is loaded in the trays.

Automatically Select

is selected.

Device

on the

11.

If the settings are wrong, paper will not be supplied correctly when the printer driver is set to
Furthermore, be sure to set the paper on the Sheet Bypass properly when
After installing the optional paper feeders, you must change the
printer driver. For details, see "
(For DP-8060/8045/8035) If the matching paper size is not found, the printer driver will select the Bypass Tray.

The Tray 3, and Tray 4 are not available for DP-8016P.

Cover Page...

button

Device Tab

" on page 48 .

Number of Paper Tray

Multi-Purpose Tray

(Available for PCL 6 Emulation Printer Driver only)

You can confi gure the settings for cover pages.

To use a cover page, select Front Cover or Back Cover .

Specify the Cover Type either Blank or Printed .

(For DP-C322/C262,

DP-C354/C264/C323/

C263/C213)

Blank : Produces a blank cover page from the

specifi ed paper source.

Printed : Prints the fi rst or last page as the cover

page from the specifi ed paper source.

.

tab of the

In Other Pages section, specifi es the media type and

paper source used for pages other than the Front and

Back covers. Confi gure the same way as carried out

for Media Type and Paper Source in the Basic tab.

Note:

Cover pages are not available with
Cover pages are not available with

Back Cover Page

is not available with

Reverse Page Order

Poster

.

Booklet

.

.

(For DP-8060/8045/8035,

DP-8020E/8020P*/8016P :

PCL 6 Emulation

Printer Driver)

Continue on the next page...

17

12. Duplex

Duplex (double-sided) is the process of printing on both sides of a piece of paper.

None

Select this for single-sided printing. The default is None.

the Printer Driver

Confi guring

Settings

13. Duplex Margin (Available for PCL 6 Emulation Printer Driver only)

Specifi es the gutter for duplex printing.

Set the gutter in a range of 0.0-2.0in. (0-50mm) .

14. Layout Print

Flip on Long Edge

Perform double-sided printing, fl ipping the paper

along its long edge (sometimes called Long Edge

Binding).

Flip on Short Edge

Perform double-sided printing, fl ipping the paper

along its short edge (sometimes called Short Edge

Binding).

Portrait format Landscape format Portrait format Landscape format

Note:

Duplex printing is available if

Media Type

is set to

Plain Paper

Glossy/Photo Paper

,

Recycled Paper

,

Allows printing of documents in a variety of layouts.

.

Pages per Sheet

Booklet

Fit to Output

Paper Size

Save paper by printing several pages reduced onto a single sheet.

This feature is handy for creating your own booklets. After printing, fold sheets

in half to create booklets.

Scales the source document to fi t it onto the specifi ed paper.

Zoom

Poster

Note:

Windows NT 4.0:

This feature cannot be used when sending print jobs to a shared network printer.

Windows 2000/Windows XP/Windows Server 2003:

This feature is unavailable if the Windows NT 4.0 printer driver is installed. Be sure to install the driver that matches

your operating system.

Prints documents at the specifi ed magnifi cation.

Enlarges single-page documents for printing on several sheets. Assemble the

printed documents to make posters.

18

Basic Tab

Pages per Sheet

Several pages are reduced in size and printed next to each other on single sheets. This feature is convenient for

printing test sheets and conserving paper.

3

Settings

Confi guring

the Printer Driver

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2. Paper Image

Represents the current settings, along with the

icons shown below.

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

3. Icons

Represent the current settings, along with the

paper image shown above.

4. Pages per Sheet

Specifi es how many pages to reduce and print

on single sheets.

Choose from 2 up , 4 up , 6 up , 8 up , 9 up , or

16 up .

Continue on the next page...

19

5. Page Order

Specifi es the order in which multiple pages are arranged on single sheets.

2 up Portrait 2 up Landscape 4, 6, 8, 9, 16 up

the Printer Driver

Confi guring

Settings

6. Page Border

Select this option to print a border around each

: Left to Right

page.

Solid Print a solid line around each page.

None Do not print page borders.

: Right to Left

: Right, then Down

: Up to Down

: Down to Up

8. Output Paper Size

Specify the size of paper used by the printer.

The settings are the same as for Output Paper

Size confi gured in the Basic tab.

: Down, then Right

: Left, then Down

: Down, then Left

7. Style for Mixed Orientation (Except for

Windows 98/Windows Me)

In print jobs with different paper orientations, this

option specifi es in which direction the printed

image is rotated.

Rotate Left 90 Rotates the printed image

counter-clockwise 90°

Rotate Right 90 Rotates the printed image

clockwise 90°

Not Rotate Do not rotate the image.

20

Basic Tab

Booklet

Fold printouts in half to make booklets. This feature is handy for creating your own booklets. If you create

booklets from a large number of pages, you can increase the Unit number to divide them into several booklets.

Note (For DP-C322/C262, DP-C354/C264/C323/C263/C213):

Booklet selection is available if the Media Type is set to Plain Paper , Glossy/Photo Paper , or Recycled Paper .

Settings

Confi guring

the Printer Driver

1

2

3

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

4

1

2

5

6

7

3

8

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

4. Binding

Specifi es the side that is closed after folding

printouts in half.

4

5

6

7

8

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

Left Binding

Right Binding

Continue on the next page...

21

5. Unit

Specifi es the unit (sheet quantity) to be folded in

Choose from All Sheets , 1 Sheet , 2 Sheets , 4

the Printer Driver

Confi guring

Settings

For example, printing a 64-page document as a

6. Gutter

Specifi es the space added between the center

Set the gutter in a range of

Be aware that the margin added by the software

half.

Sheets , or 8 Sheets .

booklet in 4-sheet units produces four separate

blocks, as shown in the illustration.

Pages 49-64

Pages 33-48

Pages 17-32

Pages 1-16

and the printing area when the printout is folded

in half.

0.0 - 2.0 in. (0 - 50 mm)

application will be appended to the gutter, so the

actual gutter will be wider than the gutter you

specify.

7. Style for Mixed Orientation (Except for

Windows 98/Windows Me)

In print jobs with different paper orientations, this

option specifi es which direction the printed image

is rotated.

Rotate Left 90 Rotates the printed image

counter-clockwise 90°

Rotate Right 90 Rotates the printed image

clockwise 90°

Not Rotate Do not rotate the image.

8. Output Paper Size

Specify the size of paper used by the printer.

The settings are the same as for Output Paper

Size confi gured in the Basic tab.

.

22

Basic Tab

Fit to Output Paper Size

Scales the source document to fi t the specifi ed paper. For example, this feature is convenient for printing A3/

Ledger source documents on A4/Letter paper.

1

2

1

4

2

5

Settings

Confi guring

the Printer Driver

4

5

3

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

3

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

4. Maintain aspect ratio

Selecting this option preserves the

aspect ratio (the ratio of height to

width) when documents are scaled.

When the check mark is removed,

documents will be scaled to fi ll up the

maximum print area on the page.

If you want to ensure the document is not

distorted, select Maintain aspect ratio .

5. Output Paper Size

Specify the size of paper used by the printer.

The settings are the same as for Output Paper

Size confi gured in the Basic tab.

23

Basic Tab

You can reduce or enlarge documents by specifying the desired magnifi cation. You can also specify where

the Printer Driver

Confi guring

Settings

scaled documents are positioned on the page.

Zoom

1

2

3

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

4

1

2

5

3

6

4

5

6

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

4.

Zoom

The magnifi cation range can be adjusted

between 25-400% .

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

24

Note:

Depending on the Paper Size setting, 400%
enlargement may not be available.

5. Image Position

Specifi es the image position after scaling.

6. Output Paper Size

Specify the size of paper used by the printer.

The settings are the same as for Output Paper

Size confi gured in the Basic tab.

Basic Tab

Poster

Enlarges a single-page source document for printing in a specifi ed number of sheets. You can use this

feature to print large posters, just assemble the printed sheets.

1

2

1

4

2

Settings

Confi guring

the Printer Driver

4

3

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

5

6

3

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

4. Style

Specifi es the number of sheets to print the image

on.

Note:

Depending on the
styles are shown as image icon.

Paper Size

setting, the selectable

5. Overlap

Specifi es the amount of overlap involved when

printed sheets are assembled.

(0.0 - 2.0 in. (0 - 50 mm)).

5

6

6. Output Paper Size

Specify the size of paper used by the printer.

The settings are the same as for Output Paper

Size confi gured in the Basic tab.

25

Output Tab

Output tab is used for confi guring output settings.

the Printer Driver

Confi guring

Settings

8*

9*

3

10*

(For DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

* 8:Output Tray, 9:Staple, and 10:Punch functions

are not available for DP-8020E/8020P*/8016P.

Printer Status...

4.

Used to check the printer status, launch the

Device Monitor , which displays the status.

This feature is only available when the printer is

connected over a TCP/IP network.

5. Copies

Specifi es the number of copies to be printed.

button

26

6. Collate 8. Output Tray

Specifi es the output tray.

Copies are stacked in the order

they are printed. Multiple copies

are printed in separate sets in the

specifi ed quantity. For example, if

Automatically

Select

Inner Tray Sends printed jobs to the

you print three copies of a fi ve-page

document, the printer prints pages

Outer Tray Sends printed jobs to the

1-5 three times.

Remove the check mark to print

individual pages in the specifi ed

quantity. For example, if you

print three copies of a fi ve-page

Finisher Sends printed jobs to the

document, the printer prints page 1

three times before printing page 2

and so on.

Automatically selects one of

the following output trays.

inner tray.

outer tray. (Selection only

displays if the printer is

equipped with an outer tray)

fi nisher. (Selection only

displays if the printer is

equipped with a fi nisher)

Settings

Confi guring

the Printer Driver

Note:

Collated printing may take some time if the

Driver

is selected in

Output Options...

"
data is processed repeatedly, as many times as the

number of copies specifi ed.

Copy Controlled by

button

" on page 28 . Document

. See

7. Sort Method

Specifi es how pages are sorted when multiple

copies are printed.

None Printouts are stacked uniformly, one

on top of another.

Rotate Each set is rotated.

Shift Each set is shifted.

Note:

Shift

is available only if the printer is equipped with a

fi nisher.

Rotate

Rotate requires paper of the specifi ed size to be

is available only when

Automatically Select

loaded in two trays, loaded for landscape and portrait
printing.

.

Paper Source

Printer

is set to

Note:

(For DP-8060/8045/8035)
You can only select Bin 1/ Bin 2 for the output tray.

Staple 9.

Specifi es the position of the staple.

Choose the position from Left 1 , Left 2 , Right 1 ,

Right 2 , Top 2 or Saddle Stitch .

Note:

Only available if the printer is equipped with an

optional fi nisher.

Available staple position may be different depending

on the fi nisher.

The staple capacity differ depending on the types

of fi nisher and the paper size. (i.e. up to 50 sheets,
Letter or A4 size, 1-Bin Saddle Stitch Finisher) Refer
to Specifications in another provided booklet, the
Operating Instructions (For Basic Function).
When setting the staple position to Saddle Stitch with
the Booklet printing, set paper in Landscape position.

Top 2 staple position is not available for

DP-8060/8045/8035.

10. Punch

Specifi es the hole punch position.

Note:

Only available if the printer is equipped with an

optional fi nisher and puncher unit.
Hole punching can be performed on the following
paper sizes.

A3

A4

FLS2

DP-C354/C264/C323/C263/C213)

B4(JIS)

,

,

(FLS2 is only available for DP-C322/C262,

B5(JIS)

,

Ledger

,

Legal

,

Letter

,

and

Continue on the next page...

27

11. Reverse Page Order

the Printer Driver

Confi guring

Settings

12.

Select this option to print in reverse (fi rst page prints last) order.

Note:

Reverse Page Order

Windows NT 4.0:

This feature cannot be used with network printers connected to a print server.

Windows 2000/Windows XP/Windows Server 2003:

This feature is not available if the Windows NT 4.0 printer driver is installed. Be sure to install the driver that matches

your operating system.

Output Options...

cannot be used when

button

Pages per Sheet

Booklet

,

or

Poster

is selected.

Copy Controlled by :

Specifi es how collated printing is carried out when Collate is on.

Printer :

Collated printing is controlled by the printer.

Printer Driver :

Collated printing is controlled by the printer driver. If the printer does not have enough memory for collated
printing, try changing this setting.

Note:

Printing may take a while when

Printer Driver

The

is not selectable if the

Printer Driver

Front Cover

is selected because collation is processed internally by the printer driver.

Back Cover

or

is specifi ed on the

Basic

tab. (See page 17 )

Check Printer Status Prior to Printing :

Selecting this option obtains the printer status before printing to ensure printing is possible.

If printing is not possible, a warning dialog box is displayed.

Print Blank Pages :

Selecting this option will enable printing blank pages.

Note:

Print Blank Pages

The

Basic

tab. (See page 18 , 19 , 21 )
If the Watermark or Overlay is set to be enabled on the Basic tab, the device prints a blank page even the Print
Blank Pages is set off.

is not selectable if the

Duplex

Pages per Sheet

,

or

Booklet

is set to be enabled on the

Metafi le Spooling (Windows 98/Windows Me/Windows NT 4.0 only)

Selecting this option creates temporary enhanced metafi le (EMF).

For normal printing, leave it set to the default (enabled). If compatibility problems occur, you can disable the
feature.

28

29

Configuring

the Printer Driver

Settings

Job Type Tab

Job Type tab is used for configuring and identifying print jobs.

1.

Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2.

Paper Image

Represents the current settings, along with the

icons shown below.

3.

Icons

Represent the current settings, along with the

paper image shown above.

4.

Printer Status...

button

Used to check the printer status, launch the

Device Monitor, which displays the status.

This feature is only available when the printer is

connected over a TCP/IP network.

Continue on the next page...

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

5. Job Type

Printed documents can be saved on the printer's hard disk drive (HDD) if the printer is equipped with one.

Saved documents can be printed via the printer control panel. See "Mailbox" on page 61.

Note:

Using Job Type requires that the optional Hard Disk Drive Unit is installed in the printer, and the HDD Unit must be

Installed in Device tab. See "Device Tab" on page 48.

Enter the User ID (up to 8-digit).
Enter the Password (4-digit).

Check then Print

Allows you to print one proof set, before proceeding to print a large multi-set
with various settings. The documents data will be deleted from the printer
after printing.

Mailbox

Saves print data in the printer, in the mailbox specified by the

User ID.
The User ID must be entered to print documents saved in Mailbox. The
document data will remain in the printer until it is deleted.

Secure Mailbox

Saves print data in the printer, in the mailbox specified by the

User ID. The
User ID and Password must be entered to print confidential documents

saved in Secure Mailbox. The document data will remain in the printer until it
is deleted.

Check then Print function is not available for DP-8060/8045/8035, DP-8020E/8020P*/8016P.

30

Configuring

the Printer Driver

Settings

6. Job Information

Most print jobs are identified by associated job information. Job names are specified by the software
application, and user names correspond to the Windows logon account name. However, these names are
often hard to recognize. They may be made up of long or blank job names and logon account names that
are numbers. To prevent confusion from this, users can customize a User Name and Job Name. This
makes the job information easy to understand.

The specified Job Information is shown on the Control Panel of the printers when printing a file.

User Name:
Enter up to 20 characters. The entered user name will be the User Name for that job. If left blank, the
Windows logon account name will be applied.

Job Name:
Enter up to 80 characters. The entered job name will be the Job Name for that job. If left blank, the job
name specified by the software application will be applied. (i.e. File name)

The following characters are not available for the

User Name and Job Name.

\

/ * ? : ; . " < > |

Input when Printing:

Selecting this option under each item in the Job Type tab (Job Type/Job Information/Department
Counter) will display the screen below. Only the items selected will become active. Once you click OK, the
value selected under this tab will automatically be set as the default value of the printer driver.

7. Department Counter

If the printer has been set up with Department Codes, the Dept. ID must be provided before printing.

(Printing is not permitted without an ID.)

Enter the Dept. ID assigned by the administrator.

Note:

Job Information is not available for DP-8060/8045/8035, DP-8020E/8020P*/8016P.

Note:

Specify the User Name and Job Name using only in letters and numbers, because the control panel only capable of

displaying letters and numbers for the User Name and Job Name.

Also, if different options are selected at the same time using different applications, the setting will be
overwritten to the most recently selected value and printing will proceed.

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

If the property of your OS is set to Windows XP Style, the tabs displayed in the driver menu and the font color and the
button designs displayed in the Input Job Type screen may show up differently.

Note:

Quality Tab

Quality tab confi gures the settings that determine the print quality.

1

2

3

4

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1

2

3

4

1

5

2

6

7

12
13

3

14

4

15

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P :

Optional PCL 6 Emulation Printer Driver)

8

10

11

12
13

8

9

10

12

13

14

Settings

Confi guring

the Printer Driver

15

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P

Standard Printer Driver)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

4.

Printer Status...

button

Used to check the printer status, launch the

Device Monitor , which displays the status.

This feature is only available when the printer is

connected over a TCP/IP network.

:

5. Color Mode (Available for DP-C322/C262,

DP-C354/C264/C323/C263/C213 only)

Specifi es whether to print in color or grayscale.

Color Prints documents in color.

Photo Color Prints photos with the optimal

settings.

Grayscale Prints documents in

monochrome.

Note:

Photo Color

mode takes more time to print a fi le.

Continue on the next page...

31

6. Color Management (Available for DP-C322/C262, DP-C354/C264/C323/C263/C213 only)

the Printer Driver

Confi guring

Settings

To fi ne-tune color reproduction, click the

Detail...

button and adjust the settings as desired.

When printing documents in color:

Device Color Choose this option to adjust the original color settings. For more detailed

adjustment, click the

Detail...

button and adjust the colors as desired.

See " Color Space " on page 34 and " Adjustment " on page 35 .

ICM Choose this option to use ICM (Image Color Matching). For more detailed

adjustment, click the

Detail...

button and adjust the rendering intent.

See " Rendering Intent " on page 37 and " Adjustment " on page 36 .

When printing documents in grayscale:

Brightness Adjustment You can adjust the brightness for grayscale printing.

See " Brightness Adjustment " on page 38 .

Note:

ICM

The
ICM is not available in Windows NT 4.0.

is not available when the

Photo Color

is selected on the

Color Mode

menu.

7. Quality (Available for DP-C322/C262,

DP-C354/C264/C323/C263/C213 only)

Specifi es the printing resolution.

Choosing a higher resolution improves the print

quality but slows printing.

Standard Prints at a print engine

resolution of 600×600 dpi .

Enhance Prints at a print engine

resolution of 1200×1200 dpi .

Draft Prints at a print engine

resolution of 300×300 dpi .

Note:

Printing takes twice as long when
selected.
When the
is automatically set to
When the customized paper size to be set with

Long Paper (over 18 in)

automatically set to

Enhance

printer memory is installed. (See page 48 )

Resolution (Available for DP-8060/8045/8035, DP-

8.

Media Type

is not available unless the 512MB optional

Transparency

is

Standard

is printed, the quality is

Standard

Enhance

.

. (See page 16 )

is

, the quality

Use

8020E/8020P*/8016P only)

Specifi es the printing resolution.
Choosing a higher resolution improves the print

quality but slows printing.

1200 dpi

Prints at a print engine resolution
of 1200x1200 dpi.

600 dpi Prints at a print engine resolution

of 600x600 dpi.

300 dpi Prints at a print engine resolution

of 300x300 dpi.

Note:

1200 dpi Print is not available for Standard printer
Driver and, DP-8020E/8020P*/8016P.

Graphics Mode (Available for DP-8060/8045/8035,

9.

DP-8020E/8020P*/8016P PCL 6 Emulation Printer
Driver only)

Vector

Treat line information as graphic data.

Raster Treat all information as Bitmap data.

10. Halftone (Available for DP-8060/8045/8035,

DP-8020E/8020P*/8016P only)

PCL 6 Emulation Printer Driver

Normal, Fine, and Coarse can be selected.

Standard Printer Driver

None, Dither, and OS Halftone can be selected.

11. Contrast (Available for DP-8060/8045/8035,

DP-8020E/8020P*/8016P Standard Printer
Driver only)

Defi nes the darkness of the dots printed on the paper.

12. Toner Save
Choose this option to conserve toner. The overall

effect is lighter, so this feature is recommended
for test printing or producing documents for
which appearance is not critical.

32

13. Print All Text as Black

Prints all colored text in black. In grayscale mode, colored text may appear faint when printed. When this
option is on, the printer prints all text in black for better legibility.

Note:

Only available when
This does not change the color of text created as graphics.

When the Text color is in white, it does not change its color to black if you are using the Standard Printer Driver.

However, if you are using the PCL 6 Emulation Printer Driver, the text color will change to black if Print All Text as

Black is enabled. Please disable the checkbox if the background of a printing document is in black.

14.

Print Fine Patterns (Not available for DP-8060/8045/8035, and DP-8020E/8020P*/8016P with Standard Printer Driver)

Color Mode

is set to

Grayscale

.

Change this option if you are getting unexpected result with print fi les and patterns.
If this option is set “ON”, it may cause difference between on-screen appearance and printed out.

15.

Font...

button

Allows you to confi gure the font settings.

Settings

Confi guring

the Printer Driver

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

TrueType Fonts :

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P

PCL 6 Emulation Printer Driver)

Specifi es how TrueType fonts are downloaded by the printer.

Download as Bitmap Font Download fonts as Bitmaps.

Download as Outline Font

Download fonts as Outlines. If the document includes a lot of
text in large fonts, this may reduce the amount of print data.

Note:

Depending on the type of characters, in some cases, even if Download as Outline Font is selected, fonts may be
downloaded as bitmaps.
Font button is not available for DP-8060/8045/8035, DP-8020E/8020P*/8016P Standard Printer Driver.

Use Device Fonts :
Selecting this option makes the printer use resident fonts matching the document fonts. In this case, printing
is faster because only the character code is transferred, without downloading fonts.

Note:

A list of the available device fonts can be printed via the
Even if the fonts installed in Windows and on the printer have the same typeface name, they may be slightly different.
Thus, do not select this option if you want printouts to match the appearance on screen exactly.

Printer Settings

No. 07 on the Function Mode.

Font Substitution Table: (for DP-8060/8045/8035, DP-8020E/8020P*/8016P PCL 6 Emulation Printer Driver)

Note:

Font Substitution Table is not available for Windows NT
and Windows 2000.

33

Quality Tab

Color Space (When Device Color Selected in Color Management)

(Available for DP-C322/C262, DP-C354/C264/C323/C263/C213 only)

the Printer Driver

Confi guring

Settings

Click the
text, graphics and images.

Detail...

2

button of Quality tab, you can confi gure color and grayscale reproduction differently for

1

1. Color Profi le

Specifi es color reproduction for text, graphics, and images.

Standard

Vivid Print with more vivid color reproduction. A good choice for line art and graphics.

2. Gray Reproduction

Specifi es black output for text, graphics, and images.

CMYK Use the four colors of CMYK to reproduce intermediate shades of gray.

Black Use only black to reproduce intermediate shades of gray.

Print with color reproduction close to standard color monitors.

34

Quality Tab

Adjustment (When Device Color Selected in Color Management)

(Available for DP-C322/C262, DP-C354/C264/C323/C263/C213 only)

Click the

Detail...

1

2

button of Quality tab, to adjust the saturation and brightness.

Settings

Confi guring

the Printer Driver

1. Adjustment (Available only when Device Color is selected)

Adjusts the colors in each settings.

Saturation

RGB Balance

CMYK Balance

2. Brightness

Color brightness is adjustable. The adjusted output image is represented on the sample window

(reference only).

Color saturation is adjustable. The adjusted output image is represented on the

sample window (reference only).

The color levels are adjustable for red, green and blue. The adjusted output image

is represented on the sample window (reference only).

The color levels are adjustable for cyan, magenta, yellow and black. The adjusted

output image is represented on the sample window (reference only).

35

Quality Tab

the Printer Driver

Confi guring

Settings

Adjustment (When ICM Selected in Color Management)
(Available for DP-C322/C262, DP-C354/C264/C323/C263/C213 only)

1

1. Brightness

Color brightness is adjustable. The adjusted output image is represented on the sample window

(reference only).

36

Quality Tab

Rendering Intent (When ICM Selected in Color Management)

(Available for DP-C322/C262, DP-C354/C264/C323/C263/C213 only)

Click the

Detail...

button of Quality tab, to select the rendering intent.

Settings

Confi guring

the Printer Driver

37

Quality Tab

Brightness Adjustment (When Grayscale Selected in Color Mode)

(Available for DP-C322/C262, DP-C354/C264/C323/C263/C213 only)

the Printer Driver

Confi guring

Settings

Click the

Detail...

button of Quality tab, to adjust the brightness.

1

1. Brightness

Grayscale brightness is adjustable. The adjusted output image is represented on the sample window

(reference only).

38

Effects Tab

Add Watermark and/or Overlay to put your own signature on documents. To use these features, click the

appropriate check box and confi gure the settings.

1

2

3

4

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

4.

Printer Status...

button

Used to check the printer status, launch the

Device Monitor , which displays the status.

This feature is only available when the printer is

connected over a TCP/IP network.

5

1

2

6

3

4

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

5. Watermark

Check the check box to activate the Watermark

settings, click the

Detail...

button to open the

setting window.

(See Page 40 )

6. Overlay

Check the check box to activate the Overlay

settings, click the

Detail...

button to open the

setting window.

(See Page 42 )

5

6

Settings

Confi guring

the Printer Driver

39

Effects Tab

Watermark

Your choice of text can be printed in the document foreground or background as a watermark. You can also

the Printer Driver

Confi guring

Settings

specify the pages for watermark printing.

5

1

6

8
7
9

10

2

3

4

11
12

13
14
15

16

1. Preview

For previewing the watermark selected in the list.

2. Move to center

Specifi es to center the watermark on the page.

3. Page

Specifi es which pages to print.

All Pages Print the watermark on all

pages.

1st Page Only Print the watermark only on

the fi rst page.

All but 1st Page Print the watermark on

every page except the fi rst.

Odd Pages Print the watermark only on

odd pages.

Even Pages Print the watermark only on

even pages.

40

4. Layer

\

Specifi es the order to print layers (the watermark

and the document).

Watermark in

Background

Print it in the background

of the document.

15. As Outline Only

Select this option to print the text as an outline.

16. Border

You can apply a border around the text.

None No border.

Watermark in

Foreground

Print it in the foreground of

the document.

5. Watermark List

Lists the watermarks that have been created. A

preview of the selected watermark is displayed in

the preview area.

6.

Delete

button

Deletes the watermark selected in the watermark

list.

7. Name

Enter the name to identify the watermark.

Enter 31 single-byte characters or less.

8.

Save

button

Watermark names you enter in Name are saved

in the current setting.

The saved watermark is displayed in the

watermark list.

9. String

Enter the text to be printed.

Enter 63 single-byte characters or less.

10. Font

Select the font by clicking the

Select...

button

to display the font selection dialog box.

Circle Print the text in a circle.

Square Print the text in a square.

Note:

Watermark data is saved for individual users who
are logged on. Those created by other users are not
listed. However, for Windows 98/Windows Me, they
are saved on a per-OS basis. Watermarks data is
shared by all the users.

Windows NT 4.0:

This feature cannot be used when sending print jobs

to a shared network printer.
Windows 2000/Windows XP/Windows Server 2003:

This feature is not available if the Windows NT 4.0

printer driver is installed. Be sure to install the driver
that matches your operating system.

The feature is not enabled if the

Basic

on the
The saved watermark lists will not be deleted when
the PCL 6 Emulation Printer Driver, or the Standard
Printer Driver is uninstalled. The watermark lists will
automatically be recognized if the PCL 6 Emulation
Printer Driver, or the Standard Printer Driver is
installed again.

The following characters are not available for the

Watermark fi le name .

/ * ? : ; . " < > |

DP-8060/8045/8035 Standard Printer Driver:

When using the Watermark function select Dither for

the Halftone in the Quality Tab.

DP-8060/8045/8035 PCL 6 Emulation Printer Driver:

When using the Watermark function, select Vector

for the Graphics Mode in the Quality Tab.

tab. (See page 25 )

Poster

is selected

Settings

Confi guring

the Printer Driver

11. Size

Specify the watermark size in a range of 8-500

Points .

12. Angle

Specify the angle of watermark text in a range of

0-360 deg .

13. Color

Select the color by clicking the

Select...

button to display the color selection dialog box.

14. Transparent Text

Select this option for clear watermark text that

reveals the document underneath.

41

Effects Tab

Overlay

Your registered images can be printed in the document foreground or background. It's easy to enhance

the Printer Driver

Confi guring

Settings

documents with your company name or logo.

42

1. Preview

\

For previewing the overlay fi le selected in the

list.

The preview does not display until the overlay is

created.

2. Print with Overlay File

Print with an overlay. Select an overlay fi le and

confi gure the Print Options settings.

3. Make Overlay File

Make the new overlay fi le. The fi rst page will be

saved (without printing) as overlay data.

Note:

Only the fi rst page of multi-page documents can be
used as overlay data.

4. Overlay Files

List the overlay fi les that have been created.

A preview of the selected overlay fi le is displayed

on the left of the dialog box.

5.

Delete

button

Delete the selected overlay fi le.

6. Page

Specifi es which pages to print.

All Pages

Print the overlay on all

pages.

1st Page Only Print the overlay only on

the fi rst page.

All but 1st Page Print the overlay on every

page except the fi rst.

7. Layer

Specifi es the order to print layers (the overlay fi le

and the document).

Overlay in

Background

Prints the overlay in the

background, under the

document.

Overlay in

Foreground

Prints the overlay in the

foreground, over the

document.

8. Overlay File Name

Enter the name of overlay fi le

(up to 63 characters).

Note:

The following characters are not available for the
Overlay File Name.

/ * ? : ; . " < > |

Overlay fi le is saved for individual users who are

logged on.

Windows NT 4.0:

This feature cannot be used when sending print jobs

to a shared network printer.

Windows 2000/Windows XP/Windows Server 2003:

This feature is not available if the Windows NT 4.0

printer driver is installed. Be sure to install the driver
that matches your operating system.

The feature is not enabled if the

Basic

on the
The saved overlay files will not be deleted when

the PCL 6 Emulation Printer Driver, or the Standard
Printer Driver is uninstalled. The overlay files will
automatically be recognized if the PCL 6 Emulation
Printer Driver, or the Standard Printer Driver is

installed again.

tab. (See page 25 )

Poster

is selected

Settings

Confi guring

the Printer Driver

Odd Pages Print the overlay only on

odd pages.

Even Pages Print the overlay only on

even pages.

43

Profi le Tab

Registering the current settings as a profi le makes it easy to recall the settings next time you print. The

frequently used settings you save as profi les are easily adjustable as required.

the Printer Driver

Confi guring

Settings

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Paper Size

Displays the current Paper Size and Output

Paper Size settings.

2. Paper Image

Represents the current settings, along with the

icons shown below.

3. Icons

Represent the current settings, along with the

paper image shown above.

4.

Printer Status...

Used to check the printer status, launch the

Device Monitor , which displays the status.

This feature is only available when the printer is

connected over a TCP/IP network.

5. Profi les

List the profi les that have been created.

DEFAULT is the factory setting. UNTITLED is

the current setting that has not been saved.

button

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

Save as...

6.

Save the current settings. The profi le is named

and comments can be added before saving.

If the name of an existing profi le is used, that

profi le is overwritten.

Enter 31 single-byte characters or less for the

profi le name, 127 or less for the comment.

If you select Do not save Paper Size and

Orientation , Paper Size and Orientation will not

be saved in the profi le. These Paper settings are

also confi gured in each software applications,

so it is advisable to check the Profi le box before

saving the profi les.

Note:

DEFAULT

names.

The new profi les will be saved for all users who log on.

However, for Windows 98/Windows Me, profi les are

saved on a per-OS basis.
The saved profi les will not be deleted when the PCL

6 Emulation Printer Driver, or the Standard Printer
Driver is uninstalled. The saved user profiles will
automatically be recognized if the PCL 6 Emulation
Printer
installed again.

button

UNTITLED

and

Driver, or the Standard Printer Driver is

cannot be used as profi le

44

7.

Delete

Deletes the selected profi le.

Settings details of the deleted profi le will be

retained in the UNTITLED profi le until the

settings are changed.

Note:

The profi les DEFAULT and UNTITLED cannot be
deleted.

button

Export...

8.

Saves the selected profi le as a fi le.

Note:

The profi les DEFAULT and UNTITLED cannot be
exported.

9.

Import...

Loads an exported profi le and adds it to the list

of profi les.

10. Different settings from DEFAULT

Displays the differences between the current

setting and the default setting.

11. Comment

Displays comments about the profi le.

button

button

Settings

Confi guring

the Printer Driver

45

Support Tab

Displays the printer driver version and various support information.

the Printer Driver

Confi guring

Settings

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Version Information

Displays the version of printer driver confi guration

fi les.

2.

Status Web Page...

(Available for DP-C322/C262,

DP-C354/C264/C323/C263/C213 only)

To check the current printer status, you can

launch a default web browser and access the

Embedded Web Server of the connected printer.

Note:

Make sure that your printer is connected on your

network properly (TCP/IP only) to access the

Embedded Web

The button is not selectable if the

pooling

on the

is set to ON and multiple ports are selected

Ports

tab.

button

.

Enable printer

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

4.

Support Contacts...

Displays the dialog box with support information

registered in the driver.

button

3.

Driver Download...

Launches the default web browser and accesses

the manufacturer's download site to download

the latest Printer Driver.

button

46

Form/Tray Tab (Except for Windows 98/Windows Me)

Assigning media to specifi c trays can prevent printing mistakes and instances when the printer stops because of

paper mismatches.

Settings

Confi guring

the Printer Driver

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Tray Assignment
Specifi es the Paper Size and Media Type

assigned to the printer's Tray .

Select the paper tray from the list box, and then

choose the paper size and media type.

2. Paper Size
Specify the paper sizes loaded in each tray.
If you do not want to assign the paper size,

select Unspecifi ed .

3. Media Type
Specify the type of media loaded in each tray.
If you do not want to assign the media type,

select Unspecifi ed .

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P

PCL 6 Emulation Printer Driver)

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P

Standard Printer Driver)

Note:

This setting is not displayed for Windows 98/Windows Me.

If the Multi-Purpose Tray was selected, ensure that

the media type selection in the control panel matches
the media loaded on the tray.

After specifying the paper size and media type
loaded in each tray, the settings are not yet initiated
on the printer and require activation.
To activate the settings, click the Advanced tab
(or the Scheduling tab in Windows NT 4.0) and
select Hold mismatched documents . This ensures
printing jobs are held in the case of mismatches
between the specifi ed tray and the type of paper
loaded.

Media Type cannot be specifi ed for the
DP-8060/8045/8035 Standard Printer Driver.

47

Device Tab

Used for confi guring optional devices installed on the printer.

If the printer is connected to the Network (TCP/IP), use Auto Confi guration to confi gure the optional devices
installed on the printer or obtain information on the printer driver settings.

the Printer Driver

Confi guring

Settings

(For DP-C322/C262, DP-C354/C264/C323/C263/C213)

1. Number of Paper Tray

Specifi es the number of paper trays installed on

the device.

2. Duplex Unit (Available for DP-C322/C262,

DP-C354/C264/C323/C263/C213 only)

Select Installed if a duplex unit is installed.

3. HDD Unit

Select Installed if a hard disk drive unit is

installed.

4. Printer Memory (Available for DP-C322/C262,

DP-C354/C264/C323/C263/C213 only)

Select and specify the total amount of memory

installed on the printer (standard + optional

memory).

(For DP-8060/8045/8035)

5. Finisher (Not available for DP-8020E/8020P*/
8016P)

If the printer is equipped with a Finisher , select

it from the list.

6. Punch Unit (Not available for DP-8020E/
8020P*/8016P)

Select Installed if a punch unit is installed.

7.

Auto Configuration

If the printer is connected to a Network (TCP/IP),
clicking this button will search for installed printer
options, which are automatically detected and
confi gured.

Note:

Make sure that your printer is connected on your
network properly (TCP/IP only).
The button is not selectable if the

pooling

on the

is set to ON and multiple ports are selected

Ports

tab.

button

Enable printer

48

8.

Restore Defaults

Restores all Device tab settings to the factory

default values.

button

9.

Edit Support Contacts...

Allows the entry and editing of support

information.

button

Settings

Confi guring

the Printer Driver

10. Large Capacity Paper Tray (Available for

DP-8060/8045/8035 only)

Select Installed if the Large Capacity Paper Tray

is installed.

11. Change Paper Tray (For DP-8060/8045/8035 :

PCL 6 Emulation Printer Driver)

Auto Select, when chosen, allows the paper to

be fed continuously if the same size of paper

is loaded in another paper tray (Auto Tray

Switching). If Specifi ed Tray is selected, the

machine will stop if paper runs out in the chosen

paper tray.

49

Printing from Windows Applications

If the printer driver installed properly and is selected as the default printer in the printer setup, printing from any

Windows application is a simple operation.

To print from most Windows applications, use the Print command in the File menu.

Selecting the Print command typically displays the following Print dialog box:

Print Operation

(for PC)

Setup your preferred confi guration (page range, number of copies, etc.) fi rst, and then click the
button to start printing.

While documents are being printed, a printer icon appears in the System Tray near the clock in the bottom right

hand corner of the screen. The icon disappears when printing is completed.

You may double-click the printer icon in the system tray to open and verify the details of the print queue.

Note:

If more than one printer is installed on your PC, follow the steps below to set a default printer:

1. Click the Start button, select Settings, and then click the Printer icon.

2. Right-click on the desired printer icon, and then select

Windows NT)

in popup menu. The check mark next to the printer icon denotes a Default Printer.

Set as Default Printer

(Set as Default will be displayed for

Print

50

Printing on Network

When sharing a printer by connecting two or more computers via a crossover cable or using a hub, a connection

among computers must be established.

Connection between the computers can be verifi ed by displaying the connected computers in the Network

Neighborhood on the desktop.

Refer to the explanation on how to specify printer sharing settings in another provided booklet, the Operating

Instructions (For Setting Up).

(for PC)

Print Operation

NOTE

1. Refer to the instructions in the Network Card’s and Windows User’s Guide manuals for connecting
between computers.

2. On Windows 98/Windows Me, a computer connected to a printer must be setup to allow printer
sharing by performing the following operations:

a) Double-click on Network in control panel, and then click

Confi guration tab.

b) Check " I want to be able to allow others to print to my printer(s). " in the File and Print

Sharing dialog box.

File and Print Sharing...

button in the

51

IPP (Internet Printing Protocol) Printing

General Description

Prints documents from a machine located in a remote area via the Internet without its access being blocked by a

proxy server. This feature is only available on Windows 2000, Windows XP, Windows 2000 Server, or Windows

Server 2003.

A Client

Print Operation

(for PC)

Print

Print

Windows 2000

Windows 2000 Server

Windows XP

Windows Server 2003

52

NOTE

IPP (Internet Printing Protocol) Printing is not available for DP-8060/8045/8035/8020E/8020P*/8016P
Standard Printer Driver.

IPP (Internet Printing Protocol) Printing

Setting the IPP Printing

In the Printers and Faxes (For Windows 2000/

Windows Server 2003 Printers), right click

the printer icon to open the printer properties

screen.

Add Port...

On the "Ports" Tab, click the

Select Print using IPP, and click the

Next >

Select Connect using a local area network,

and click the

button.

Next >

button.

(for PC)

Print Operation

Printer Ports screen appears.

Select RPT Network Printer Port, and click the

New Port...

button.

Select Do not print using a proxy server, and

click the

Next >

button.

Continue on the next page...

53

Print Operation

(for PC)

Input the Printer's IP address after the "http://",

and add "/printer" at the end.

Next >

Next >

button.

Click the

Verify that the Destination print port name

is OK (change if necessary), and click the

button to proceed.

Close the Printer Ports Screen, and check the

new port has been added.

Click the

Finish

button.

54

Job Status Utility

The Job Status Utility software will display the popup notice on your PC screen when fi nishing the Print, PC Fax,

Copy, and Fax jobs.

The information displayed in the Completion Notice vary according to the type of job being performed.

Completion Notice

After a job completes, you will receive a notice like the illustrations shown below on the PC screen.

Print Completion Notice

Opens Log window. Opens Setup window.

PC Fax Completion Notice

(for PC)

Print Operation

55

Job Status Utility

Job Status Utility Log

To help you maintain records of the documents you send or print, the Job Status Utility is equipped to list the

transaction result as a Log fi le. The latest 100 transactions are recorded on the log.

To start Job Status Utility Log window, click

right-click the Job Status Utility icon on the taskbar, and then select from the menu.

Print Operation

(for PC)

Refreshes the Job Status Window Opens the Select Printer Window (See Below)

Log

The Job Status Utility Log window appears.

Note:

When the Job Status Utility icon
Panasonic

activate the Job Status Utility icon.

Job Status Utility Job Status Utility from the Start menu to

button on the Completion Notice window or

is not on the taskbar, select Programs

Saves the displayed Log as a CSV format fi le.

(Only for Completed Job Status)

NOTE

Completion Notice does not appear if the device is connected with a USB/Parallel cable.

56

Deletes the Selected Print Jobs, or

all Completed Jobs in the Log.

Chooses the printer name to monitor.

Job Status Utility

Setup

You may set the condition to display the Completion Notice window after completion of the job.

To start Setup window, click

Status Utility icon on the taskbar, and then select the Setup from the menu.

The Setup window appears.

Note:

When the Job Status Utility icon
Job Status Utility from the Start menu to activate the Job Status Utility icon.

Setup

is not on the taskbar, select Programs Panasonic Job Status Utility

button on the Completion Notice window, or right-click the Job

(for PC)

Print Operation

1. Display Conditions

Selects the condition to display the Completion

Notice window.

All

Error only

None Do not display.

Always display after each

transmission.

Displays when an error occurs.

2. Display Completion Notice in front

Specify whether the Completion Notice window

is displayed on the front of other windows.

When this option is not selected, the Completion

Notice window is displayed in the back of other

windows. When the Completion Notice is

displayed, the

Click the icon to bring the Completion

Notice to the front.

icon on the taskbar blinks.

57

Job Status Utility

Information displayed in the Completion Notice and the Job Status Utility Log. (See page 56 )

Status Indicates status of the job as completed, canceled, etc...

Error Indicates error information if available as information code, error message, etc...

Type Indicates type of job. The Completion Notice is used in common with PC Fax job, PC

Print job, Copy job, and Fax job (Sent from the device).

File Name Indicates the PC printed fi le name.

Page(s) (Print) Indicates the number of pages of PC Print job, and Copy job.

Print Operation

(for PC)

Page(s) (Fax) Indicates the number of pages of PC Fax job, and Fax job (Sent from the device).

Start Time Indicates the start date and time of the job. The format of the date and time depends on

the setting of Windows of your PC.

Finish Time Indicates the fi nish date and time of the job. The format of the date and time depends

on the setting of Windows of your PC.

Duration Time Indicates the duration time of the job. (hh:mm:ss)

Fax Number/Email

Address

Destination Name Indicates the registered Destination Name in the fax driver's phonebook when using

Device Name Indicates the Device Name registered in the device that is used for the fax transmission.

Device Location Indicates the Device Location registered in the device that is used for the fax

Device IP Address Indicates the Device IP Address that is used for the fax transmission.

User Name Indicates the logon user name which is executing the current job.

Machine Name Indicates the Computer Name/ IP Address that is executing the current job.

Indicates the Fax Number, or Email Address (Fax job only) of the Fax transmission.

the phonebook of the fax driver to transmit a document.

transmission.

58

Memo

(for PC)

Print Operation

59

SD Print

The features and operations are described on the Operating Instructions for Basic Operations.

Refer to Printing from SD Memory Card / PC in the Operating Instructions (For Basic Operations) of the

provided booklet.

Print Operation

(for Printer)

60

NOTE

SD Print is not available for DP-8060/8045/8035, DP-8020E/8020P*/8016P.

Mailbox

To save printed documents into the printer’s mailbox for later printing, the printer must be equipped with the

optional Hard Disk Drive. Saved documents can be printed from the printer’s control panel. The following three

types of mailbox printing is available.

Check then Print : Saves print data in the printer, in the mailbox specifi ed by the User ID . Allows you to

print one proof set, before proceeding to print a large multi-set with various settings. The

document data will be deleted from the printer after printing.

Mailbox : Saves print data in the printer, in the mailbox specifi ed by the User ID . The User ID must

be entered to print documents saved in the Mailbox. The document data will remain in the

printer until it is deleted.

Secure Mailbox : Saves print data in the printer, in the mailbox specifi ed by the User ID . The User ID and

Password must be entered to print confi dential documents saved in the Secure Mailbox.

The document data will remain in the printer until it is deleted.

(for Printer)

Print Operation

NOTE

This feature is available if the Hard Disk Drive Unit is installed in the printer unit, and the Hard Disk Drive Unit
is set to Installed in Device Settings or Device Options tab of the printer driver. See " Device Tab " on page 48 .

Turning the Power Switch OFF while a print fi le is being stored into the Mailbox/Secure Mailbox may

cause all fi les in it to be lost.

61

Mailbox

Saving a Print Job (from a PC)

Select Print in the File menu of the application.

Print Operation

(for Printer)

Click the

Click the Job Type tab and check the Job Type check box.

Select the following Job Type icons and enter the relevant Job Information .

Note:

See " Job Type Tab " on page 29 for more detailed information.
Saves print data in the printer, in the mailbox specifi ed by the User ID.

Properties

Check then Print

Mailbox

Secure Mailbox

button in the Print dialog box.

Click the

set will start printing if

Note:

Check then Print function is not available for DP-8060/8045/8035, DP-8020E/8020P*/8016P.

OK

button, and then the

Check then Print

is selected.

OK

button to save the document data. The fi rst proof

62

Mailbox (For DP-C322/C262, DP-C354/C264/C323/C263/C213)

Printing or Deleting Mailbox Data

Press the Print key if set in other function mode.

Print display appears on the printer control panel.

Enter the mailbox User ID number (up to 8-digit).

The total number of saved jobs in each mailbox

is displayed.

Select the desired mailbox.

The display shows the saved print jobs in the

selected mailbox.

Choose the job you want to print, and select the

Print

Select All

Close

or

button

button

Delete

button.

Selects all print jobs.

(Mailbox only)

Closes the mailbox

display.

(for Printer)

Print Operation

Select the

OK

Check then Print:

button.

Mailbox:

Continue on the next page...

63

Print Operation

(for Printer)

Secure Mailbox:

Secure Mailbox only

Password display appears if Secure Mailbox

is selected.

Enter the Password , and then select the

OK

button.

Check then Print only

The number of copies is displayed.

Enter the number of copies, and then select the

OK

Note:

After having fi nished printing the
job, it will be removed from the printer's hard disk
drive.

button to start printing.

Check then Print

Check then Print, Mailbox , or Secure Mailbox

Select whether to delete the print job after

printing.

64

Job Control (Output Queue) (For DP-C322/C262, DP-C354/C264/C323/C263/C213)

The Job Control menu of the printer control panel contains four buttons with the following functions.

On Line

Off Line

Cancel Print

Output Queue

This section describes how to use the

Press the Print key if set to other function mode.

Print display appears on the printer control

panel.

Select the

button

button

button

button

: Turns the printer on-line.

: Turns the printer off-line.

: Stops the current print job and deletes the job from the output queue.

: Checks the current print jobs.

Output Queue

Job Control

button.

button to perform operations on the print jobs in the output queue.

Displays a list of all pending output jobs that are

usually processed on a fi rst come fi rst served

basis.

Select the

Enter the password (4-digit), and then

select the

Print

OK

tab.

button.

(for Printer)

Print Operation

Select the

Output Queue

button.

Continue on the next page...

65

Displays a list of current and pending Print

jobs. Select the print job you want to manage,

and choose one of the following tasks to

perform.

Print Operation

(for Printer)

Select All

Delete

Priority

Close

button Selects all print jobs.

button Deletes the selected

job from the Output

Queue .

button

button Close the Output

Set or change the

printing order of the

selected job(s) in the

Output Queue .

Queue display.

66

Mailbox (For DP-8060/8045/8035)

Press the Print key on the Control Panel.

Print display appears on the Control panel.

Enter the mailbox User ID number (up to

8-digit).

Select the

The total number of saved jobs in each mailbox

is displayed. Select the desired mailbox.

OK

button.

The display shows the saved print jobs in the

selected mailbox.

Choose the job you want to print, and select the

PRINT

SELECT ALL

CLOSE

Mailbox:

Secure Mailbox:

or

button

button

DELETE

button.

Selects all print jobs.

(Mailbox only)

Closes the mailbox

display.

Secure Mailbox only

Password display appears if Secure Mailbox

is selected.

Enter the Password, and then select the

OK

button.

(for Printer)

Print Operation

67

Job Queue (For DP-8060/8045/8035)

Press the Print key on the Control Panel, then select the PRINT JOB QUEUE in the Job Control Tab.

Print Operation

(for Printer)

Enter the password (4-digit), and then select the

OK

button.

2

3
4
5

1. Print Jobs

Indicates all current and/or pending print jobs.

2.

SELECT ALL

Selects all print jobs.

3.

PRIORITY

Set or change the print job(s) priority. This

feature is available if the Hard Disk Drive Unit is

installed.

button

button

68

4.

DELETE

Deletes print job(s).

5.

CLOSE

Closes this screen.

button

button

MailBox (For DP-8020E/8020P*/8016P)

Follow the procedure below to print a fi le from a Mailbox on your machine.

Print a fi le to the Mailbox using the User ID.

(Up to 20 mailboxes per each User ID)

Press

Press

Enter the User ID (up to 8 digits) from the keypad

(i.e. 12345678)

Press

want to print.

Press

1

to print the displayed fi le.

2

to print all fi les for the User ID.

PRINT

FUNCTION

SET

or repeatedly until the display shows the fi le you

SET

.

1

.

.

SET

.

PRINTER ON LINE

ENTER USER ID

ENTER USER ID
12345678

USE OR TO SCROLL

TOTAL DOC=nn

(Panasonic) 10:11
(Pana.doc)

1:PRINT 2:ALL PRINT
3:DELETE 4:ALL DEL.

* PRINTING *
PC DATA

(for Printer)

Print Operation

Your machine will print the fi le. The fi le is automatically

deleted after printing.

PRINTER ON LINE

69

Deleting from the Mailbox

Follow the procedure below to delete a fi le from the Mailbox.

Print Operation

(for Printer)

Press

Press

PRINT

FUNCTION

.

1

SET

.

Enter the User ID (up to 8 digits) from the keypad

(i.e. 12345678)

Press

SET

.

or repeatedly until the display shows the fi le you

want to delete.

Press

3

to delete the displayed fi le.

4

to delete all fi les for the User ID.

SET

.

PRINTER ON LINE

ENTER USER ID

ENTER USER ID
12345678

USE OR TO SCROLL

TOTAL DOC=nn

(Panasonic) 10:11
(Pana.doc)

1:PRINT 2:ALL PRINT
3:DELETE 4:ALL DEL.

DELETE DOCUMENT?
1:YES 2:NO

Press 1

Note:

Turning the Power Switch OFF while a print fi le is being stored (DATA indicator lamp is fl ashing) into the Mailbox or

1.

Secure Mailbox may cause all fi les to be lost.

2. When using the Mailbox or Secure Mailbox feature, there is a limitation of 20 mailboxes per User ID. If more than 20 print
jobs are sent to an User ID, jobs will be deleted from the memory.
Jobs will also be deleted if the Hard Disk Drive Unit is full.

STOP

.

PRINTER ON LINE

70

Secure Mailbox (For DP-8020E/8020P*/8016P)

Follow the procedure below to print a fi le from a Secure Mailbox on your machine.

Print a fi le to the Secure Mailbox using the User ID and a Password.

(Up to 20 mailboxes per each User ID)

Press

Press

Enter the User ID (up to 8 digits) from the keypad

(i.e. 12345678)

Press

want to print.

Press

Enter the Password (4 digits) from the keypad (i.e. 1234)

PRINT

FUNCTION

SET

or repeatedly until the display shows the fi le you

SET

.

2

.

.

SET

.

PRINTER ON LINE

ENTER USER ID

ENTER USER ID
12345678

USE OR TO SCROLL

TOTAL DOC=nn

(Panasonic) 10:11
(Pana.doc)

ENTER PASSWORD

(for Printer)

Print Operation

ENTER PASSWORD
****

Press

Press 1.

Your machine will print the fi le. The fi le is automatically

deleted after printing.

SET

.

SECURE MAILBOX
1:PRINT 2:DELETE

* PRINTING *
PC DATA

PRINTER ON LINE

71

Deleting from the Secure Mailbox

Follow the procedure below to delete a fi le from a Secure Mailbox on your machine.

Print Operation

(for Printer)

Press

Press

PRINT

FUNCTION

.

2

SET

.

Enter the User ID (up to 8 digits) from the keypad

(i.e. 12345678)

Press

SET

.

or repeatedly until the display shows the fi le you

want to delete.

Press

SET

.

Enter the Password (4 digits) from the keypad (i.e. 1234)

PRINTER ON LINE

ENTER USER ID

ENTER USER ID
12345678

USE OR TO SCROLL

TOTAL DOC=nn

(Panasonic) 10:11
(Pana.doc)

ENTER PASSWORD

ENTER PASSWORD
****

Press

Press

2

Press 1

.

SET

STOP

.

SECURE MAILBOX
1:PRINT 2:DELETE

DELETE DOCUMENT?
1:YES 2:NO

.

PRINTER ON LINE

72

Job Queue (For DP-8020E/8020P*/8016P)

Follow the procedure below to verify the print jobs.

Press

Press

Press

PRINT

FUNCTION

SET

.

3

.

SET

3.

or repeatedly until the display shows the fi le you

want to print.

Press

SET

.

Enter the Password (3 digits) from the keypad.

(i.e. 123)

Press

SET

.

PRINTER ON LINE

3:JOB QUEUE ?
PRESS SET TO SELECT

USE OR TO SCROLL

TOTAL DOC=nn

(Panasonic) 10:11
(Pana.doc)

ENTER PASSWORD

ENTER PASSWORD
***

1:PRIORITY 2:DELETE
3:DELETE ALL

(for Printer)

Print Operation

1

to change the print job priority.

2

to delete the print fi le.

3

to delete all print fi les.

Ex: 2

1

STOP

Press

.

DELETE DOCUMENT?
1:YES 2:NO

PRINTER ON LINE

73

Specifi cations
(For DP-C354/C264/C323/C263/C213, DP-C322/C262)

Printing Speed

(A4/Letter size,

Plain paper from

Paper Tray,

600dpi, Simplex

printing)

Resolution

(dots per inch)

Interface USB 2.0

DP-C354

DP-C323

DP-C264

DP-C263

DP-C213

DP-C322

DP-C262 : :

600 x 600, 1200 x 1200

Ethernet (10Base-T/100Base-TX)

Black and White

: :

Color

Black and White

: :

Color

: :

Black and White

Color

Black and White

: :

Color

Black and White

: :

Color

: :

Black and White

Color

Black and White

Color

35 sheets/minute

26 sheets/minute

:

32 sheets/minute

21 sheets/minute

:

26 sheets/minute

:

26 sheets/minute

26 sheets/minute

:

21 sheets/minute

21 sheets/minute

21 sheets/minute

:

32 sheets/minute

:

21 sheets/minute

26 sheets/minute

:

21 sheets/minute

Specifi cations

Printer Language PCL 6 Emulation

Fonts 80 Typeface fonts

Supplied

Printer Driver

Operating

System Support

Network Printing

Protocol Support

Windows 98, Windows Me, Windows NT 4.0 (With Service Pack 3 or later is required),

Windows 2000, Windows XP, Windows Server 2003

Windows 98, Windows Me, Windows NT 4.0 (With Service Pack 3 or later is required),

Windows 2000, Windows XP, Windows Server 2003, NetWare 3.x, NetWare 4.x,

NetWare 5.x, NetWare 6 (Required IPX/SPX setup utility)

LPR, IPP, SMB, Standard TCP/IP Port Printing (RAW/LPR), NetWare

74

Specifi cations (For DP-8060/8045/8035)

Printing Speed

(A4/Letter size

plain paper,

simplex printing)

Resolution

(dots per inch)

Interface Parallel Port

Operating System

Support

Printer Working

Memory

DP-8035

DP-8045

DP-8060

300 x 300, 600 x 600, 1200 (Equivalent) x 600

Ethernet (10Base-T/100Base-TX)

Windows 98, Windows Me, Windows NT 4.0 (With Service Pack 3 or later is required),

Windows 2000, Windows XP, Windows Server 2003

20MB

35 sheets/minute

:

45 sheets/minute

:

60 sheets/minute

:

Specifi cations (For DP-8020E/8020P*/8016P)

Printing Speed

(A4/Letter size

plain paper,

simplex printing)

Resolution

(dots per inch)

Interface USB connection

Operating System

Support

Printer Working

Memory

DP-8020E : 20 cpm (Letter size)

DP-8020P* : 20 cpm (Letter size)

DP-8016P : 16 cpm (Letter size)

150 x 150, 300 x 300, 600 x 600

Ethernet (10Base-T/100Base-TX)

Windows 98, Windows Me, Windows NT 4.0 (With Service Pack 3 or later is required),

Windows 2000, Windows XP, Windows Server 2003

16MB

Specifi cations

75

Printing Operation Failure

If the printing operation fails, check the following items fi rst:

Ensure the connecting cable (USB, Parallel, or Ethernet LAN cable) is properly connected.

Power of the device is turned ON.

Paper is loaded properly in the device.

An error message is not displayed on the device. (See Note)

The above points can be verifi ed by printing a test page. Refer to the following pages for the procedures on

test page printing:

Windows 98/Windows Me

Windows NT 4.0 [General Tab] (See page 10 )

Windows 2000/Windows XP/Windows Server 2003 [General Tab] (See page 13 )

[General Tab] (See page 8 )

TroubleshootingTroubleshooting

NOTE

76

The status of the devices can be verifi ed by the
Refer to the Operating Instructions (For Device Monitor).

Device Monitor

.

Documents Not Printing Correctly (For DP-C354/C264/C323/C263/C213, DP-C322/C262)

Problem Possible Cause / Solution(s)

Incorrect printing position or print is

missing at the edge.

Characters and symbols not used

in documents are printed.

Printing operation takes excessive time. The wait time for printing operations depends on the spool settings.

Although print data is transferred to the

device, it is not printed.

Printing stops in the middle of the run.

Document is not printed from the

Multi-Purpose tray (Sheet Bypass).

Paper size or printing orientation is mismatched between the

application settings and the printer driver settings - Specify the

settings again.

The specifi ed paper has not been loaded into the device - Check

the settings again or load the appropriate paper.

The document margin is not suffi cient. (See page 82 )

Verify that the correct machine has been selected by users as the

printer driver.

Make sure the printer is Online.

Make sure the USB printer cable is connected properly.

Restore the power if the On line LED is Off even if the USB

printer cable is connected.

Check whether there is a Network problem.

Verify the Paper Size set on the Multi-Purpose tray

(Sheet Bypass).

Set the Paper Size by the following procedures.

1. Press the

2. Select "Paper/Output Tray" .

3. Select "Change Size/Media" .

4. Select the paper size, and then select "OK" .

Note:

Select "Auto" in step 4 if the following paper size is loaded on the
Multi-Purpose tray (Sheet Bypass). The Paper Size is automatically set
properly.

For USA and Canada users : Ledger, Legal, Letter, Invoice

Except for USA and Canada users : A3, B4, FLS, A4, A5

Copy

key.

Incorrect Output Image. Make sure that “Metafi le spooling” in the Output Tab is set to Off.

(For Windows NT4.0, and Windows 98/ME.)

77

TroubleshootingTroubleshooting

Documents Not Printing Correctly (For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

Problem Possible Cause / Solution(s)

Characters are not printed in the
correct positions or the
characters near the edges of the
page are missing.

Incorrect font type.

Printing stops in the middle of the run.

Although print data is transferred to

your machine, it does not print.

Incorrect Output Image.

Check and specify the paper size and the orientation settings

in the printer driver to coincide with the application.

The characters are set outside the printing area of the machine.

Check whether the selected font is installed on the PC.

Select "Use Printer TrueType fonts" on the Font tab of the

Printer Driver Properties dialog box.

Check whether there is a Network problem.

Make sure the printer is online.

Make sure the machine is not in the Shutdown Mode. Press

ENERGY SAVER key to return to standby mode. See the

Operating Instructions for Copy and Function Parameters for

details.

Make sure the Printer cable is connected properly.

Restore the power if the On line LED is Off even if the USB

printer cable is connected.

Set Raster for the Graphics Mode in the Quality Tab.

(For PCL 6 Emulation Printer Driver.)

Make sure that “Metafi le Spooling” is set to Off.

(For Windows NT4.0, and Windows 98/Me.)

Printing operation takes excessive

time.

TroubleshootingTroubleshooting

Paper exits from the unexpected paper

tray.

The wait time for printing operations depends on the spool

settings.

Reference :

Windows 98/Windows Me [Details Tab]

Windows NT 4.0 [Scheduling Tab]

Windows 2000/Windows XP/Windows Server 2003

[Advanced Tab]

If the paper runs out from the paper tray specifi ed by the user, the

machine automatically switches to the paper tray which contains

the same paper size by default.

To disable the automatic paper tray select function:

In the Function Mode of the Main Unit, set [Printer Settings]

→ [No. 04 Auto Tray Selection] to OFF. (For Standard Printer

Driver.)

Set Change Paper Tray in the Device Tab to the Specifi ed

Tray (See Page 49). (For DP-8060/8045/8035 PCL 6 Emulation

Driver.)

78

Error Messages Displayed on the Computer

Problem Possible Cause / Solution(s)

Error writing to USB.

Unable to write to the Specifi ed device.

Error writing to USB.

Printer timeout error occurred.

Printing is disabled due to an error in

the current printer settings.

Verify that the device is connected to the computer correctly.

Verify that the power of the device is turned On.

Verify that the power of the device is turned On.

Excessive data volume or number of pages may overfl ow the

device's memory, disabling data reception.

Increase the timeout setting value in properties (for transmission

retry).

Mismatch in settings such as paper size or printing orientation

exist between the application and the printer driver.

Correct the settings.

79

TroubleshootingTroubleshooting

Error Messages Displayed on Your Machine (For DP-C354/C264/C323/C263/C213, DP-C322/C262)

If a document does not print, an error may have occurred. From the error messages displayed on the Control

Panel, it is possible to identify what caused the problem, and how the problem can be rectifi ed.

Checking Error Messages: Press the Print key, select the

Then, select the

Once you identify the error message, check below for the cause and solution for the error.

Print History

tab. The error message(s) are shown on the Status column.

Job Control

button and the

Output Queue

button.

Error Messages Possible Cause

Print Parameter Error (001) The Duplex Unit does not

TroubleshootingTroubleshooting

Print Parameter Error (002) Specifi ed a Paper Source

Print Parameter Error (004)

Print Parameter Error (005)

function properly.

( Basic tab) that is not

installed on your machine.

Specifi ed the Output Tray

( Output tab) to Finisher .

However, the Finisher

Unit is not installed on the

machine.

Specifi ed the Sort Method

to Shift ( Output tab), or

specifi ed the position of the

staple. ( Output tab)

Solution(s)

Contact to the Panasonic Authorized Dealer to

repair your machine.

Verify the settings on the Device tab.

Click the

the settings properly when your machine is

connected to the network.

When your machine is connected with USB

cable, set the Number of Paper Tray on the

Device tab correctly.

Verify the settings on the Device tab.

Click the

the settings properly when your machine is

connected to the network.

When your machine is connected with USB

cable, set the Finisher on the Device tab

correctly.

Auto Configuration

Auto Configuration

button to confi gure

button to confi gure

80

Error Messages Possible Cause Solution(s)

Print Parameter Error (006) Specifi ed the hole punch

position ( Output tab).

However, the Punch Unit is

not installed on the machine.

Print Parameter Error (101) Specifi ed a Paper Source

that is unable to print in

Duplex Mode.

( Basic Tab)

(Duplex printing is not

possible from the tray set

with A5 in Portrait format)

Print Parameter Error (104) Specifi ed a Paper Source

that is unable to shift sort.

( Basic Tab & Output Tab)

-

Only when 1 Bin Finisher is in use.

DA-FS350 : DP-C354/C323/

C264/C263/C213

DA-FS320 : DP-C322/C262

Verify the settings on the Device tab.

Click the

the settings properly when your machine is

connected to the network.

When your machine is connected with USB

cable, set the Punch Unit on the Device tab

correctly.

Specify the tray set with the A5 in Landscape

format..

Select Automatically Select on the Paper

Source menu.

Click the

the settings properly when your machine is

connected to the network.

Auto Configuration

Auto Configuration

button to confi gure

button to confi gure

Print Parameter Error (106)

Print Parameter Error (107)

Print Parameter Error (108)

Print Parameter Error (109)

Print Parameter Error (119) Specifi ed the wrong Media

Specifi ed the wrong Paper

Source when printing a

document with stapling.

Specifi ed the wrong Paper

Source when printing a

document with punching.

Type when printing a

document with Rotate sorting.

Verify the settings on the Device tab.

Click the

the settings properly when your machine is

connected to the network.

When your machine is connected with an USB

cable, set the Finisher on the Device tab

correctly.

Verify whether stapling / punching is possible on

the specifi ed paper size.

Verify the settings on the Device tab.

Click the

the settings properly when your machine is

connected to the network.

When your machine is connected with an USB

cable, set the Punch Unit on the Device tab

correctly.

Select Automatically Select on the Paper

Source menu.

Verify the Media Type setting on your machine.

Select the same media type on the Basic tab as

set on your machine.

Auto Configuration

Auto Configuration

button to confi gure

button to confi gure

TroubleshootingTroubleshooting

81

Printing Area

When printing to the device, there is a non-printable margin on all 4 sides.

Top
3 mm - 5 mm

(0.12" - 0.20")

Less than 4 mm

(0.16")

(For DP-C354/C264/C323/C263/C213, DP-C322/C262)

Bottom
2 mm - 6 mm

(0.08" - 0.24")

Top
5 mm

(0.20")

Less than 4 mm

(0.16")

Unit: mm (inches)

Appendix

82

5 mm (0.20")

(For DP-8060/8045/8035, DP-8020E/8020P*/8016P)

5 mm (0.20")

Bottom Unit: mm (inches)
5 mm

(0.20")

Memo

83

Appendix

PANASONIC DIGITAL DOCUMENT COMPANY MAKES NO WARRANTIES, GUARANTEES OR
REPRESENTATIONS, EXPRESSED OR IMPLIED, TO THE CUSTOMER WITH RESPECT TO
THIS PANASONIC MACHINE, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

PANASONIC DIGITAL DOCUMENT COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT
TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE
CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC MACHINE. SEE
YOUR DEALER FOR DETAILS OF DEALER’S WARRANTY.

USA Only

WARRANTY

For Service, Call:

Panasonic Digital Document Company,
Unit of Panasonic Corporation of North America
One Panasonic Way
Secaucus, New Jersey 07094

http://panasonic.co.jp/pcc/en/

Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario L4W 2T3

http://www.panasonic.ca

For Customer Support (Except for
USA and Canada Users):
Panasonic Communications Co., Ltd.
Fukuoka, Japan

http://panasonic.net

C1106-2126(01)
PJQMC0348YC
December 2006
Published in Japan
