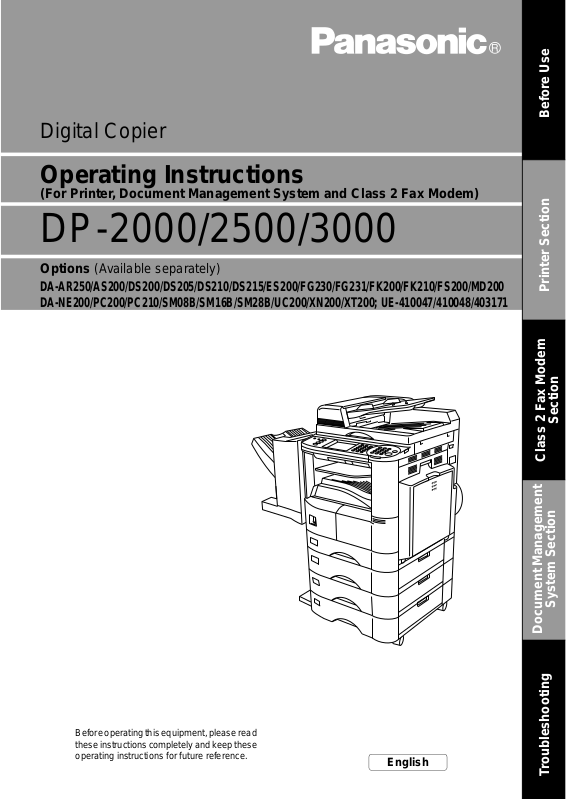

Digital Copier

Bef ore UsePrinter Section

Operating Instructions

(For Printer, Document Management System and Class 2 Fax Modem)

DP-2000/2500/3000

Options DA-AR250/AS200/DS200/DS205/DS210/DS215/ES200/FG230/FG231/FK200/FK210/FS200/MD200

DA-NE200/PC200/PC210/SM08B/SM16B/SM28B/UC200/XN200/XT200; UE-410047/410048/403171

(A vailable separately)

Section

Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference.

Class 2 Fax Modem

System Section

Document Management

English

Troubleshooting

■

Energy Star

The DP-2000/2500/3000 copier complies with Tier 2 of the En vironmental Protection Agency's Energy Star Program. This voluntary program specifies certain energy consumption and usage standards for copiers. These copiers will automatically “power down” after a specified period of non-use. The use of these Energy Star compliant copiers will reduce energy consumption and ultimately benefit the environment.

The default functions can be adjusted depending on your office requirements . Please see your authorized Panasonic copier dealer f or more details.

The following trademarks and registered trademarks are used throughout this manual: Microsoft, MS-DOS, Windows and Windows NT are registered trademarks of Microsoft

Corporation in the USA and other countries. i386, i486 and Pentium are trademarks of Intel Corporation. Centronics is a registered trademark of Centronics Data Computer Corporation. TrueType is a registered trademark of Apple Computer, Inc. All other trademarks identified herein are the property of their respective owners.

The contents of these Operating Instructions are subject to change without notice.

Before Use

Table of Contents........................................................................................................... 3

Before Use ................................................................................ 3

■

Precautions.....................................................................................................................5

External View and Control Panel.................................................................................. 6

External View ............................................................................ 6

■

Control Panel (For DP-2500/3000) ........................................... 7

■

Control Panel (For DP-2000) .................................................... 8

■

Installation and Configuration (Windows 95/98/Me)................................................... 10

Installing the LPR (Line Printer Remote) Monitor ...................... 10

■

Installing the Printer Driver ........................................................ 11

■

Configuring the Printer Driver Settings ...................................... 16

■

Setting Print Conditions: Setting on the Device ........................ 26

■

Installation and Configuration (Windows NT 4.0)........................................................ 27

Installing the LPR (Line Printer Remote) Monitor ...................... 27

■

Installing the Printer Driver ........................................................ 29

■

Configuring the Printer Driver Settings (Administrator) ............. 34

■

Configuring the Printer Driver Settings (User) ........................... 43

■

Setting Print Conditions: Setting on the Device ........................ 49

■

Installation and Configuration (Windows 2000).......................................................... 50

Installing the Printer Driver ........................................................ 50

■

Configuring the Printer Driver Setting on Windows 2000

■

(Administrator) ........................................................................... 57

Configuring the Printer Driver Settings (User) ........................... 66

■

Setting Print Conditions: Setting on the Device ........................ 73

■

Bef ore Use

Class 2 Fax Modem Section

Print Operation...................................... ..... ..... ............................................................... 74

Printing from Windows Applications .......................................... 74

■

Printing on Network .................................... ..... ..... .... ................. 75

■

Installing the Panasonic Class 2 Fax Modem.............................................................. 78

Installation (Windows 95/98/Me) ....... ..... .... ............................... 78

■

Installation (Windows NT 4.0) ................................................... 84

■

Installation (Windows 2000) ................................................... ... 87

■

Table of Contents

Document Management Sy stem Section

Installing the Document Management System............................................................ 94

Document Manager........... ..... .... ..... ............................................................................... 97

Main Window ............................... .... ..... ..... ................................ 97

■

Basic Operations ....................................................................... 99

■

Setting Plug-in ...........................................................................101

■

File Menu ..................................................................................103

■

Edit Menu ..................................................................................108

■

View Menu ................................................................................109

■

Document Menu ........................................................................110

■

Document Scanner............................... .... ..... ..... .............................................. ..............112

Main Window ............................... .... ..... .....................................112

■

Tool Menu .................................................................................115

■

Image Scanning ........................................................................117

■

Document Viewer..................................... ..... ..... ............................................................119

Main Window ............................... .... ..... .....................................119

■

Basic Operations .......................................................................121

■

Annotation Function .................................................................. 122

■

File Menu ..................................................................................123

■

Edit Menu ..................................................................................127

■

Page Menu ................................................................................128

■

Annotation Menu .......................................................................129

■

Image Menu ..............................................................................136

■

View Menu ................................................................................139

■

Status Monitor................................................................................................................140

Task Bar Display .................... ..... ..............................................140

■

Task Bar Menu ..........................................................................141

■

Display Status Details ........................................ ..... .... ..... ..... ....142

■

Configuration Editor ......................................................................................................145

Main Window ............................... .... ..... .....................................145

■

User Parameters Folder ............................................................147

■

Fax Parameters Folder ............................. .... ..... .......................148

■

Copier Settings Folder ..............................................................149

■

General Functions Folder ..........................................................150

■

Journal Folder ...........................................................................151

■

Phone Book Settings Shortcut Activation Folder ......................152

■

Phone Book Editor......................................................................................................... 153

Features .................................................................................... 153

■

Activation Procedure .................................................................154

■

Main Window (For DP-2000) .....................................................156

■

Retrieve/Write ........................................................................... 157

■

Open/Save File .........................................................................159

■

Insert Entry ................................................................................161

■

Delete Entry ..............................................................................162

■

Troubleshooting

Troubleshooting............................................................................................................. 163

Starting with: .............................................................................163

■

Document is not printed correctly ..............................................164

■

Error messages displayed on the computer ..............................165

■

Adding Paper( ) .....................................................................166

■

Replacing the Toner Cartridge and Waste Toner Bottle( ) ....167

■

Removing a Misfeed Paper .......................................................169

■

Removing a Paper Misfeed .......................................................171

■

Appendix.........................................................................................................................177

Printing/Scanning Area .............................................................177

■

Parallel Interface Connector ......................................................178

■

Precautions

For U.S.A.

This equipment has be en tested and found to comply wi th the limits for a Class A digital device, pursuant to part 15 o f the FCC R ule s. These lim its are desig ned to p rovide reaso nable protecti on aga inst h ar mful interference when the equipment is operated in a commercial environment. This equipment g enerates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause har mful interference to radio c ommunications. Op eration of this equipment in a residential area is likely to cause har mful i nterence in whi ch case the us er will be req uired to correc t the interference at his/her own expense.

Any unauthorized ch anges or m odifications to this equipm ent would voide the us ers author ity to operate this device.

You need to read the software license agreement before setting up the Printer Driver.

■

You need to read the following precautions which is described in the Copier Operating Instructions.

■

Installation

●

Ventilation

●

Handling

●

Toner and Paper

●

For your safety

●

● ●

Bef ore Use

External View and Control Panel

External View

Power switch

Usually set to ( ) position.

•

Parallel interface connector

Connect to the PC

•

Parallel interface cable

(A cable does not come with the unit.) Use a cable of

• IEEE1284 specifications, with a maximum length of 20 ft (6m). Consult a service provider for details.

Control Panel (For DP-2500/3000)

External View and Control Panel

Bef ore Use

LCD

CONTRAST

SORT

MULTI-SIZE

FEED

COPY

FAX

INTERNET

PRINTER

ADD TONER

ON LINE

ON LINE DATA

DP-2500

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

LEGAL

LETTER

INVOICE

INTERRUPT

FUNCTION

REDIAL/

PAUSE

FLASH/

SUB-ADDR

LINE

SELECT

MONITOR

SET

MON.VOL.

RESET

ABC

1 2 3

GHI

JKL

4 5 6

PQRS

TUV

7 8 9

TONE

ALARM ACTIVE

CLEAR

DEF

STOP

MNO

WXYZ

START

No. FunctionName

ON LINE OFF LINE

Switch the printer from off-line status to on-line status. Switch the printer to off-line status. (The printer cannot be set off line

when the data LED is blinking.)

SECURE PRINT

Used to print or delete the security print data. CANCEL Used to cancel the print job. ON LINE LED

Turned on: Printer is operational online

Turned off: Printer is offline DATA LED

Turned on: Data is being received from the PC, or printing is

under operation.

Turned off: Printer is in standby or printing has been completed.

External View and Control Panel

Control Panel (For DP-2000)

2SIDED

MULTI-SIZE FEED

COPIED

2 in 1 BOOK EDGE MARGIN

01f02g03h04i05

06k07l08m09n10

11p12q13r14s15

P1zP2 P3

1SIDED

COPY

MEMORY IN

FINE

SPACE

S-FINE

RESOLUTION LINE SELECT

SORT STAPLE SHIFT

STAMP

MEM XMT

SYMBOLSP5CAPS

COPY

BLANK

OHP

2PAGE

abcde

COPY

u17v18w19x20y

COPY

FAX

ON LINE

OUTPUT

ON LINE

TRAY

PAPER

TRAY

DATA

INTERNET

PRINTER

OCT-12-2000 15:00

PRINTER ON LINE

DP-2000

DIRECTORY

SERCH

LIGHTER DARKER

ZOOM/VOL

PHOTO TEXT/

PHOTO TEXT

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

LEGAL

LETTER

INVOICE

INTERRUPT

FUNCTION

REDIAL/

PAUSE

FLASH/

SUB-ADDR

ABBR

MONITOR

SET

RESET

ABC

1 2 3

GHI

JKL

4 5 6

PQRS

TUV

7 8 9

TONE

ALARM ACTIVE

CLEAR

DEF

STOP

MNO

WXYZ

START

No. FunctionName

ON LINE LED

Turned on: Printer is operational online Turned off: Printer is offline

DATA LED

Turned on: Data is being received from the PC, or printing is under operation. Turned off: Printer is in standby or printing has been completed.

STOP key Used to cancel the print job.

Printer Status

1=On Line 2=Off Line

Printer Settings

(See page )

Security Print

1=Print 2=Delete

Digital Copier

Printer Section

DP-2000/2500/3000

Bef ore UsePrinter Section

Printer Section

Section

Class 2 Fax Modem

System Section

Document Management

Troubleshooting

Installation and Configuration (Windows 95/98/Me)

Installing the LPR (Line Printer Remote) Monitor

Click on the Start button, and click on Run....

The Run dialog box appears.

Insert CD-ROM containing the LPR folder. In the Open: field, type:

D:\English\Lpr\Setup.exe

(When drive D is CD-ROM drive.) Click on the button.

The Welcome dialog box appears. Click on the button.

The setup program copies the necessary files onto your Hard Disk. When the setup process is completed, a message is displayed prompting you to restart your computer.

It is recommended that you restart your computer now so that the LPR Monitor is started.

Click on the button.

Installation and Configuration (Win dows 95/98/Me)

Installing the Printer Driver

1 2

Open the Printers folder. Click the Start key. Place the cursor on Settings and click Printers.

Double-click the Add Printer icon.

Printer Section

Click the button.

Select Local printer and click the button.

• Network printer is specified when a printer on the network is installed. Refer to the Windows 95/98/Me user's manual for details.

Installation and Configuration (Windows 95/98/Me)

Insert the CD-ROM containing the printer driver. Click the button.

Have Disk...

Specify the drive name and type

D:\English\Driver\Win9x. (Where "D" is your CD-ROM drive.) Click the button.

Select the device (Panasonic DP-2000, Panasonic DP-2500 or Panasonic DP-3000). Click the button.

Select LPT1. Click the button.

Installation and Configuration (Win dows 95/98/Me)

In response to Do you want your Windowsbased programs to use this printer as the default printer?, select Yes or No.

Click the button.

The required files are copied.

Finish

Printer Section

The Printers Icon is now displayed in the Printers folder.

You have completed the installation as a local printer.

If both the PC and the printer are connected on a network, please contact your network administrator for the IP Address of the printer and proceed to the next step.

NOTE

• Be sure to delete the drivers of earlier versions before updating drivers.

• Restart Windows after updating drivers.

Installation and Configuration (Windows 95/98/Me)

The following step is to Register the LPR Port for

network printing.

Before proceeding, ensure that the Printer is installed, connected to the Network, is turned ON and operating properly.

Right-click on the "Panasonic DP-2500" icon in the Printers folder and select Properties from the popup menu.

The Panasonic DP-2500 Properties dialog box appears.

Select the Details tab and click on the button.

Installation and Configuration (Win dows 95/98/Me)

The Add Port dialog box appears. Click the Other radio button, and select HLPRMON from "Click the type of port you want to add:" and click on the button.

The LPR Port Name dialog box appears. Type the IP Address of the DP-2500 and "lp"as the queue name separated by a ":"

Printer Section

Example: 192.168.3.23:lp Click on the button. If an error occurs because the queue name was already used for the same IP Address, select a unique name such as "lpr".

The screen reverts to DP-2500 Properties. Check that the "Print to the following port:"was changed as entered, and click on the Apply button first and then on the button.

Installation and Configuration (Windows 95/98/Me)

Configuring the Printer Driver Settings

To change the printer settings, open the dialog box for the printer properties by the following steps.

Click the Start button, place the cursor on Settings, and then click Printers.

Right-click the printer icon in the printers window, and select Properties in the dropdown menu.

The dialog box for the printer properties appears.

NOTE

• Upon printing, changing properties Paper/Layout, Handling, Quality and Device Options is allowed by clicking Properties in the print dialog box of an application.

• Management tab of the color of property dialog box is not used for the DP-2000/2500 /3000

• Sharing Tab in property dialog box is not displayed unless printer sharing has not been specified.

General Tab

■

Installation and Configuration (Win dows 95/98/Me)

Printer Section

Comment

Enter comments to the properties, if any. If another user sets up this printer on his or her computer when sharing the printer, the comment specified here will also appear on that computer. However, the comment displayed for an already set-up user will remain unchanged even if the comment is modified later.

Separator page

Inserts a separator page for every document to be printed. This feature is useful when multiple users share the same printer or when printing multiple documents at one time. The user can choose between Full, which is adorned with graphics, and Simple which consists of only text. To use a specific separator page, click on and then specify any Windows metafile (.WMF) to be used as the separator page.

Print Test Page

button

Prints a test page. This allows the user to verify if the printer is installed properly.

Browse...

Installation and Configuration (Windows 95/98/Me)

Details Tab

■

Print to the following port

Displays either the port to which the printer is connected or the path to the network printer. To change the printing destination, either select the printing destination port from the list or enter the network path here.

Print using the following driver

Displays the type of the printer driver. Specify the printer being used or a printer model which can be emulated with the printer being used.

Capture Printer Port... End Capture...

/ button

Assigns a port to the network drive or cancels a port assigned to the network drive.

Timeout settings - Not selected

Specify the amount of time (in seconds) allowed to elapse before the printer becomes online. If the printer is not online within this duration, an error message will be displayed.

Timeout settings - Transmission retry

Specify the amount of time (in seconds) allowed to elapse before the printer is ready for printing. If the printer is not ready for printing within this duration, an error message will be displayed. Increase this value if a timeout error occurs when printing a large document.

Add Port...

/ button

Adds/deletes a new port or a new network path.

New Driver...

button

Updates or modifies the printer driver.

Delete Port...

Installation and Configuration (Win dows 95/98/Me)

Spool Settings...

button

Specify the method of sending (spool) documents from the program to the printer.

Spool Data Type

Select spool data type (EMF format or RAW format). Specifying RAW format results in longer time before placing an application operational after printing on the application. Note: Spooling by EMF format (metafile compression) may cause the following problems on some application software.

1) Printing result is different from the screen display.

2) Printing requires excessive time.

Enable bidirectional support

Be sure to check the check box for "Enable bidirectional support" when installing the status monitor (See page 132 ). Printing may be disabled without checking it.

140

Port Settings...

button

Modifies printer port settings.

Printer Section

Installation and Configuration (Windows 95/98/Me)

Sharing Tab

■

Not Shared/Shared As

Select whether to display or use this printer with other computers.

Share Name

Specify the name of the shared printer. The displayed name can be used as it is or a new name may be entered. The name specified at this time will be displayed when other users view information about the printer on the network.

Comment

You can enter comment regarding a shared printer (such as the type of printer and the location where it is installed). When other users view information about the printer on the network, the comment specified here will be displayed.

Password

Specify a password when other users will connect to this printer. Leave the box blank in order not to use any password.

NOTE

• Sharing Tab in property dialog box is not displayed unless sharing of printer has been specified.

Paper/Layout Tab

■

Installation and Configuration (Win dows 95/98/Me)

Printer Section

Paper Size

Select a document size.

Paper Source

Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size.

Orientation

Select the print orientation (Portrait/Landscape).

Copies

Specify the number of copies to be printed. If the number of copies to be printed can be specified within the application, indicate one copy here and specify the number of copies in the Print dialog box of the application.

Zoom

Specify an enlargement or reduction percentage when printing documents. If enlargement/reduction can be set within the application, indicate 100% here and specify the enlargement/reduction percentage in the Print dialog box of the application.

N in 1

For printing two or more pages on one sheet, specify a printing method.

Layout is selected by combining with "Orientation." Each layout is displayed with icon.

2 in 1: Print 2 pages of manuscripts zoomed out by 65 or 71% on one sheet. 4 in 1: Print 4 pages of manuscripts zoomed out by 50% on one sheet.

Restore Defaults

button

Return all items in Paper/Layout Tab to standard settings (default).

Installation and Configuration (Windows 95/98/Me)

Handling Tab

■

Sorter

Select whether to Stack or Sort when printing multiple copies.

Printing on both sides (Duplex)

Select duplex printing for printing on both sides. Note 1) Duplex Printing is allowed only when the Dual-Path Exit Guide Unit, Paper Transport Unit and

Automatic Duplex Unit (DA-FK200/FK210/MD200) are mounted.

Note 2) Check [Duplex Unit] check box in Device Options Tab.

Flipping Direction

Select binding side (Long Edge/Short Edge) for duplex printing.

Binding Margin

Select the binding margin upon duplex printing. The width of the binding margin is specified on the main unit. (See page 30, copy section)

Output Tray

Specify the output destination. <Auto Selection, Inner Tray 1, Inner Tray 2> Note 1) Output Tray selection is allowed only with Dual-Path Exit Guide Unit, Paper Transport Unit, Exit

Tray (Outer) or 1-Bin Finisher (DA-FK200/FK210/XT200/FS200) is installed.

Note 2) Check [Inner Tray], [Finisher / Outer Tray] check boxes in Device Options Tab.

Installation and Configuration (Win dows 95/98/Me)

Staple

Specifying staple printing is allowed if the output bin is set to outer. Note 1) Staple printing is allowed only with Electronic Sorting Board (DA-ES200 : For DP-2000 only) and

1-Bin Finisher (DA-FS200) mounted. Note 2) Select "Sort" in the sort menu. Note 3) Paper is stapled at the top left or at the top right. (See table below.)

Document orientation

Letter

Letter/A4

Paper orientation

Letter

Letter/A4

Letter

Letter/A4

Stapling position

Top left

Letter

Printer Section

Top right

Letter

Note) Stapling on Invoice/B5 sheet is not

allowed.

Top right

Letter/A4

Top left

Letter/A4

Ledger

Legal

FLS

Ledger/Legal/

A3/FLS/B4

Ledger/Legal/

A3/FLS/B4

Note) Stapling on Invoice/B5 sheet is not

allowed.

Ledger

Legal

FLS

Note) Stapling on Invoice/B5 sheet is not

allowed.

Top right

Top left

Ledger/Legal/

A3/FLS/B4

Note) Stapling on Invoice/B5 sheet is not

allowed.

Installation and Configuration (Windows 95/98/Me)

Quality Tab

■

Halftone

Select method of expressing halftone. Select the setting according to the data to be printed and your preference.

Normal: Select the halftoning method to be used. Select it according to the details of data and your

preference.

Line Art: Use when printing originals containing line drawings or text.

Resolution

Select the printer resolution (300dpi/600dpi).

Density

Adjust the printing density (Contrast and Brightness) as desired.

Restore Defaults

button

Return all items in the Quality Tab to standard settings (default).

NOTE

• dpi (dot per inch) means the number of dots contained in one inch. The higher the value is, the higher the resolution becomes.

Device Options Tab

■

Installation and Configuration (Win dows 95/98/Me)

Printer Section

Secure Print Password

Set the password for Secure Print, to enable the feature.

Duplex Unit

Check this checkbox if the Automatic Duplex Unit (DA-MD200) is

installed

Inner Tray

Check this checkbox if the Exit Tray (Inner) and the Dual-Path Exit Guide Unit (DA-XN200/FK200) are Specifying inner bins, Inner 1 and Inner 2, is allowed for printing on the printer.

installed

Finisher/Outer Tray

Check this checkbox if the 1-Bin Finisher (DA-FS200) or Outer Tray (DA-XT200) is Setting of Finisher/Outer Tray option is allowed when the Inner Tray option is enabled. The staple function also is selectable when the Finisher/Outer Tray option is enabled.

installed

Number of Paper Tray

Select the number of available paper trays for the printer if an optional Paper Feed Module is installed.

Printer/Fax Memory

Select the size of the Expansion Flash Memory Card or whether a Fax Option (2MB) has been installed, to enable Secure Print.

Restore Defaults

Return all items in the Device Options Tab to standard settings (default).

button

About...

Displays the version information about the printer driver.

NOTE

button

• Device Options Tab is specified in the printer properties.

Installation and Configuration (Windows 95/98/Me)

Setting Print Conditions: Setting on the Device

MULTI-SIZE

COPY

SORT

CONTRAST

FEED

LCD

FAX

INTERNET

PRINTER

ADD TONER

ON LINE

ON LINE DATA

Touch-panel

2SIDED

MULTI-SIZE FEED

1SIDED

COPY

STAMP

MEMORYIN

COPIED

BLANK

OHP

abcde

2 in 1 BOOK EDGE MARGIN

01f02g03h04i05

06k07l08m09n10

11p12q13r14s15

u17v18w19x20y

P1zP2 P3

2PAGE

COPY

SYMBOLSP5CAPS

SPACE

FINE

S-FINE

RESOLUTION LINE SELECT

SORT STAPLE SHIFT

MEM XMT

COPY

FAX

ON LINE

INTERNET

PRINTER

ON LINE

DATA

display

OUTPUT

TRAY

PAPER TRAY

DP-3000

DP-2000

DIRECTORY

SERCH

LIGHTER DARKER

ZOOM/VOL

PHOTO TEXT/

PHOTO TEXT

Function Settings

Reset Key

INTERRUPT

FUNCTION

REDIAL/

FLASH/

SUB-ADDR

SELECT

MONITOR

MON.VOL.

RESET

PAUSE

LINE

SET

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

LEGAL

LETTER

INVOICE

Function Settings

Reset Key

INTERRUPT

FUNCTION

REDIAL/

FLASH/

SUB-ADDR

MONITOR

RESET

PAUSE

ABBR

SET

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

LEGAL

LETTER

INVOICE

1 2 3

GHI

JKL

4 5 6

PQRS

TUV

7 8 9

TONE

ALARM ACTIVE

STOP

MNO

WXYZ

START

CLEAR

ABC

DEF

Press the PRINTER key. Press the FUNCTION key. Press the PRINTER SETTINGS key. Select the 00 PRINTER OUTPUT TRAY. Select the desired Output Tray. After setting, press the OK key on the screen. Press the RESET key.

CLEAR

ABC

DEF

1 2 3

GHI

JKL

4 5 6

PQRS

TUV

7 8 9

TONE

ALARM ACTIVE

STOP

MNO

WXYZ

START

PRINTER OUTPUT TRAY

1:INNER 1

Press the PRINTER key. Press the FUNCTION key. Press 2 and the SET key. Select the desired Output Tray. After setting, press the SET key.

Setting mode Settings Preset value number

00 PRINTER OUTPUT TRAY Inner 1

Set the printer paper priority accommodation position. Outer/Inner 2/Inner 1

Installation and Configuration (Windows NT 4.0)

Installing the LPR (Line Printer Remote) Monitor

Click on the Start button, point to Settings, and click Control Panel.

The Control Panel window appears. Double-click on the Network applet. The Network dialog box appears.

Printer Section

Click on the Services tab. Verify whether the LPR Service is already installed. (Indicated by Microsoft TCP/IP Printing shown in the Network Services: list.) If it is installed, skip to Installing the Printer Driver on Windows NT 4.0 otherwise continue installing the LPR Service.

Installation and Configuration (Windows NT 4.0)

4 5

Click on the button to display the

Select Network Service dialog box, then select Microsoft TCP/IP Printing.

Click on the button .

Windows NT Setup dialog box appears. Insert the Windows NT 4.0 CD-ROM , and type D:\i386 (where "D:" is your CD-ROM drive). Click on the button.

After the files are copied into your Hard Drive, the display returns to the Network dialog box. Confirm that the Microsoft TCP/IP Printing service was added to Network Services: list. Click on the button.

Continue

Add...

NOTE: Delete and Reinstall the Microsoft TCP/IP

Printing if an error occurs, and the Microsoft TCP/IP Printing is displayed in the Network Services list, but, the OK button does not change into a Close button.

Network Settings Change dialog box is displayed, click on the button to confirm whether to restart your computer now. You have now completed the LPR Service installation. The next step is to install the Printer Driver on Windows NT 4.0.

Yes

Installation and Configuration (Windows NT 4.0)

Installing the Printer Driver

Open the Printers folder.

Click the Start button. Place the cursor on Settings and click Printers.

Double-click the Add Printer icon.

Printer Section

Select My Computer and then click the button.

• Network printer server is specified when a printer

on the network server is installed. (See page ) Refer to Windows NT 4.0 user's manual for details.

Installation and Configuration (Windows NT 4.0)

The Available Ports: list appears.

• For local printer, click the button and proceed to step 8.

• For network printer, click the button.

Printer Ports dialog box appears. Select LPR Port and click the button.

Add Port...

New Port

Add LPR compatible printer dialog box appears.

Enter the IP Address of the Printer in the upper field, and "lp" for the print queue name in the lower field.

Click the button.

(Please wait while the wizard verifies the IP Address and connectivity to the Network)

The Printer Ports dialog box is displayed again. Click the Close button.

Installation and Configuration (Windows NT 4.0)

Select the printer port and click the button.

Insert the CD-ROM containing the printer driver. Click the button.

Have Disk...

Printer Section

Specify drive name and type D:\English\Driver\WinNT4. (Where "D" is your CD-ROM drive.) Click the button.

Select the device (Panasonic DP-2000, Panasonic DP-2500 or Panasonic DP-3000). Click the button.

Installation and Configuration (Windows NT 4.0)

In response to Do you want your Windows-

based programs to use this printer as the default printer?, select Yes or No.

Click the button.

Select Not Shared and click the button.

• Select Shared only when installing on a network server. See the Windows NT 4.0 user's manual for details.

Select Yes [recommended] and click the

Finish

button.

• Test printing starts.

• Default (initial setting) for paper size

is Letter . See page for changing default paper size. Select No when skipping test printing, and click the button.

Finish

Installation and Configuration (Windows NT 4.0)

The required files are copied.

The Printers Icon is now displayed in the Printers folder.

Printer Section

NOTE

Notes:

• Be sure to delete the drivers of earlier versions before updating a driver.

• Restart Windows after updating drivers.

Installation and Configuration (Windows NT 4.0)

Configuring the Printer Driver Settings (Administrator)

To change the printer settings, open the dialog box for the printer properties by the following steps.

Click the Start button, place the cursor on Settings, and then click Printers.

2 3

Right-click the printer icon in the printers window, and select The dialog box for the printer properties appears.

Properties

in the dropdown menu.

NOTE

the

• In Windows NT4.0, setting describes properties to be specified by an administrator (system manager). See "Configuring the Printer Driver Settings (User)" for details of user properties. (See page )

properties depends on

the

log-in account. This section

General Tab

■

Installation and Configuration (Windows NT 4.0)

Printer Section

Comment

Enter comments to the properties, if any. If another user sets up this printer on his or her computer when sharing the printer, the comment specified here will also appear on that computer. However, the comment displayed for a user already set-up will remain unchanged even if the comment is modified later.

Location

Specify the printer location.

Driver

Displays the printer driver type. Specify the printer being used or a printer model that can be emulated with the printer being used.

New Driver...

button

Either updates or modifies the printer driver.

Separator Page...

button

Inserts a separator page for every document to be printed. This feature is useful when multiple users share the same printer or when printing multiple documents at one time. Enter the separator page file name in the Separator Page dialog box or Click on to specify the file (.sep) to be used as the separator page.

Browse...

Installation and Configuration (Windows NT 4.0)

Print Processor...

button

Specify the processor to be used for printing (Print Processor) and the data type (Default Data type). The processor and data type affect the manner in which the printer functions in Windows NT. Normally they do not need to be modified. However, modification might be necessary when the printer is used with a special application.

Print Test Page

button

Prints a test page. This allows you to verify if the printer is installed properly.

Ports Tab

■

Installation and Configuration (Windows NT 4.0)

Printer Section

Print to the following port(s)

Displays a list of available ports for printing (Port), their status (Description) and printers that are connected to these ports (Printer).

/ button

Adds/deletes a new port or a new network port.

Configure Port...

button

Configures the selected port. In case of a parallel port, Transmission Retry should be specified.

Delete Port...Add Port...

Enable bidirectional support

On a printer, this setting enables reception of configuration data and status data from computer. Be sure to check this checkbox when installing status monitor (See page ). Printing may be disabled without checking on the checkbox.

140

Enable printer pooling

Printer spool allows outputting data from one logical printer to two or more printers. With printer spool enabled, a transmitted printing job is output to the first printer that allows printing.

NOTE

• Specify time (seconds) waiting for ready for printing after

• If a timeout error occurs frequently upon printing a large size document, specify a larger value here.

the

specified time has elapsed, an error message is displayed.

the

printer to be ready for printing. If a printer is not

Installation and Configuration (Windows NT 4.0)

Scheduling Tab

■

Available

Schedules the printer for operation. Specify operating hours when From-To is selected.

Priority

Sets printing priority. The slider allows the priority to be adjusted from 1 through 99.

Spool print documents... / Print directly to the printer

Specify how documents should be sent from the application to the printer.

Hold mismatched documents

The spooler compares document settings against printer settings and holds printing of a document if its settings (Paper Size, Orientation, and so on) do not match the printer settings.

Print spooled documents first

Always prints spooled documents first regardless of printing priority.

Keep documents after they have printed

Holds documents in the print queue even after they have been printed. These documents can be printed again directly from the queue regardless of the state the application is in.

Sharing Tab

■

Installation and Configuration (Windows NT 4.0)

Printer Section

Not Shared/Shared

Select whether to display or use this printer on or with other computers.

Share Name

Specify the name of the shared printer. The displayed name can be used as it is or a new name may be entered. The name specified here will be displayed when other users on the network view information about the printer.

Alternate Drivers

Specify the operating systems of other computers that might share this printer.

NOTE

• When sharing a printer on the network, the print driver is installed on one print server,

other computers will automatically copy and use that driver. For this reason, the print server must be ready with printer drivers for all the operating systems of all computers that will be sharing the printer.

Installation and Configuration (Windows NT 4.0)

Security Tab

■

Permissions

button

Set printer access privileges.

Auditing

button

Displays the persons who used this printer and how they used.

Ownership

button

Set the ownership of the printer.

NOTE

• In order to utilize these features, you need to have selected Audit... from User

Manager's Policies and have enabled File and Object Access in the Audit Policy dialog box.

Device Settings Tab

■

Installation and Configuration (Windows NT 4.0)

Printer Section

Halftone Setup

Halftone Setup...

button

Select the halftoning method to be used (halftones specific to the printer). Select it according to the details of data and your preference.

• Halftone Pattern

Select the pixel size to be used for halftones. The greater the value, the coarser the image would become. However, a larger value is suited to printing in large areas. The Enhanced pattern allows printing at a higher resolution using the same number of pixels. However, the pattern might generate unnatural lines, patterns, moire effects, and so on depending on the image to be printed.

NOTE

• Device Settings Tab specifies device-specific settings and settings of optional devices. Refer to

for settings items.

• Settings specified in this section are saved as standard (default) settings of the printer.

the

operation manuals of the optional devices, or on-line manuals

Installation and Configuration (Windows NT 4.0)

•

Device Gamma

Adjust the gamma of print images (color intensities).

•

Pixel Diameter

Adjust the darkness of the print image. Manipulate the slider to specify the pixel size. You can select between specifying the real size in inches or specifying in percentage relative to the printer resolution.

•

Luminance (CIE Y)

Adjust the luminosity of the print image.

Duplex Unit

Check this checkbox if Automatic Duplex Unit (DA-MD200) is installed. Duplex printing function is enabled.

Output Tray

If Exit Tray (Inner) and Dual-Path Exit Guide Unit (DA-XN200/FK200) are installed, select inner option. This allows specifying Inner 1 and Inner 2 as output bins for printer output.

If 1-Bin Finisher or Exit Tray (Outer) (DA-FS200/XT200) is installed, select inner option + outer option. This allows specifying inner 1, inner 2, and outer as output bins for printer output. Also, stapling function becomes available if inner option and outer option are enabled.

Number of Paper Tray

Select the number of available paper tray for printer if an optional Paper Feed Module is installed.

Printer/Fax Memory

Select the size of the Expansion Flash Memory Card to enable the Secure Print.

Secure Print Password

Set the password for Secure Print.

Installation and Configuration (Windows NT 4.0)

Configuring the Printer Driver Settings (User)

To change the printer settings, open the dialog box for the printer properties by the following steps.

Select Print in the File menu of the application.

1 2

Click the button in the Print dialog box. The dialog box for the printer properties appears. Click the top tabs of the dialog box and specify the properties.

Properties...

Printer Section

NOTE

• In Windows NT4.0, setting properties depends on the log-in account. This section

describes properties to be specified by a user, upon executing a print operation on an application. See "Configuring the Printer Driver Settings (Administrator)" for details of administrator properties. (See page )

Installation and Configuration (Windows NT 4.0)

Page Setup Tab

■

Paper Size

Select the size of the document.

Paper Source

Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size.

Copy Count

Sort

Select whether to Stack or Sort when printing multiple copies.

Orientation

Select the print orientation (Portrait/Landscape).

Print on Both Sides (Duplex Printing)

Specify if duplex printing is performed. Select the binding side (None/Short Edge/Long Edge) for duplex printing.

Note 1) Duplex Printing on post card is not allowed. Note 2) Duplex Printing is allowed only when the Dual-Path Exit Guide Unit, Paper Transport Unit and

Automatic Duplex Unit (DA-FK200/FK210/MD200) are mounted.

Note 3) Check the [Duplex Unit] check box in Device Settings Tab.

Advanced Tab

■

Installation and Configuration (Windows NT 4.0)

Printer Section

Paper Size

Select the size of the document.

Orientation

Select the print orientation (Portrait/Landscape).

Paper Source

Specify where the paper you want to use is located in the machine. If you choose Auto Selection, the printer driver will automatically select an appropriate tray according to the Paper Size.

Copy Count

Print on Both Sides (Duplex Printing)

Specify if duplex printing is performed.

Resolution

Select the printer resolution (300dpi/600dpi).

Scaling

Specify custom zoom when printing a document by zooming in/out at a desired rate. If the zooming rate is specifiable in an application, specify "100%" (same size) here. Specify a zooming rate in the print dialog box of the application.

NOTE

• Settings specified in this section are valid until an application is shut down.

Installation and Configuration (Windows NT 4.0)

Advanced Tab

■

Metafile Spooling

With Metafile Spooling enabled, the file is spooled in EMF format (metafile compression). With the function disabled, the file is spooled in RAW (non-compression) format. Specifying RAW format results in longer time before placing an application operational after printing on the application. Note: Spooling by EMF format may cause the following problems on some application software.

1) Printing result is different from the screen display.

2) Printing requires excessive time.

N in 1

For printing two or more pages on one sheet, specify a printing method. Layout is selected by combining with "Orientation." Each layout is displayed with an icon. 2 in 1: Print 2 pages of documents zoomed out by 65 or 71% on one sheet. 4 in 1: Print 4 pages of documents zoomed out by 50% on one sheet.

Binding Margin

Select the binding margin for duplex printing. The width of the binding margin is specified on the main unit. (See page 30, copy section)

Installation and Configuration (Windows NT 4.0)

Staple

Specifying staple printing is allowed if the output bin is set to outer. Note 1) Staple printing is allowed only with Electronic Sorting Board (DA-ES200 : For DP-2000 only) and

1-Bin Finisher (DA-FS200) mounted.

Note 2) Paper is stapled at the top left or at the top right. (See table below.)

Document orientation

Letter

Letter/A4

Paper orientation

Letter

Letter/A4

Letter

Letter/A4

Stapling position

Top left

Letter

Top right

Letter

Note) Stapling on Invoice/B5 sheet is not

allowed.

Top right

Letter/A4

Top left

Letter/A4

Printer Section

Ledger

Legal

FLS

Ledger/Legal/

A3/FLS/B4

Ledger/Legal/

A3/FLS/B4

Note) Stapling on Invoice/B5 sheet is not

allowed.

Ledger

Legal

FLS

Note) Stapling on Invoice/B5 sheet is not

allowed.

Top right

Top left

Ledger/Legal/

A3/FLS/B4

Note) Stapling on Invoice/B5 sheet is not

allowed.

Installation and Configuration (Windows NT 4.0)

Output Tray

Specify the output destination. Note 1) Output Tray selection is allowed only when the Dual-Path Exit Guide Unit, Paper Transport Unit,

Exit Tray (Outer) or 1-Bin Finisher (DA-FK200/FK210/XT200/FS200) is installed.

Note 2) Post cards cannot be output from the outer tray.

Secure Print

Select to enable Security Print.

Halftone Color Adjustment

•

Contrast

Adjust the contrast of print images.

•

Brightness

Adjust the brightness of print images.

• Dark

•

• Input

•


Select this option in order to print dark images brighter.

Negative

Select this option in order to print images with black and white reversed.

RGB Gamma

Adjust the gamma of print images (color intensities). Red, Green and Blue can also be adjusted individually.

Black Ref/White Ref

Adjust the difference between the darkest and lightest colors of an image. Increasing the Black Ref value or decreasing the White Ref value will intensify the contrast of the image but reduces the range of colors in between.


Select a test pattern type. Selecting the View check box will display halftone adjustment results in the test pattern.

NOTE

• Settings specified in this section are valid until an application is shut down.

• Specifying [Yes] for [Binding Margin] moves a printing area vertically or horizontally

(for ensuring binding margin). For specifying margin in consideration of a double-page spread printing on application, specify [No] for [Binding Margin].

Installation and Configuration (Windows NT 4.0)

Setting Print Conditions: Setting on the Device

MULTI-SIZE

COPY

SORT

CONTRAST

FEED

LCD

FAX

INTERNET

PRINTER

ADD TONER

ON LINE

ON LINE DATA

Touch-panel

2SIDED

MULTI-SIZE FEED

1SIDED

SORT

COPY

STAPLE SHIFT

STAMP

MEMORYIN

COPIED

BLANK

OHP

abcde

2 in 1 BOOK EDGE MARGIN

01f02g03h04i05

06k07l08m09n10

11p12q13r14s15

u17v18w19x20y

P1zP2 P3

2PAGE

COPY

SYMBOLSP5CAPS

SPACE

FINE

S-FINE

RESOLUTION LINE SELECT

MEM XMT

COPY

FAX

ON LINE

INTERNET

PRINTER

ON LINE

DATA

display

OUTPUT

TRAY

PAPER

TRAY

DP-2500

DP-2000

DIRECTORY

SERCH

LIGHTER DARKER

ZOOM/VOL

Function Settings

Reset Key

INTERRUPT

FUNCTION

REDIAL/

FLASH/

SUB-ADDR

SELECT

MONITOR

MON.VOL.

RESET

PAUSE

LINE

1 2 3

GHI

4 5 6

PQRS

7 8 9

SET

TONE

ABC

JKL

TUV

ALARM ACTIVE

CLEAR

DEF

STOP

MNO

WXYZ

START

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

LETTER

INVOICE

LEGAL

Press the PRINTER key. Press the FUNCTION key.

Printer Section

Press the PRINTER SETTINGS key. Select the 00 PRINTER OUTPUT TRAY. Select the desired Output Tray. After setting, press the OK key on the screen. Press the RESET key.

Function Settings

Reset Key

INTERRUPT

FUNCTION

REDIAL/

FLASH/

SUB-ADDR

MONITOR

RESET

PAUSE

ABBR

1 2 3

GHI

4 5 6

PQRS

7 8 9

SET

TONE

ABC

JKL

TUV

ALARM ACTIVE

CLEAR

DEF

STOP

MNO

WXYZ

START

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

PHOTO TEXT/

LEGAL

PHOTO TEXT

LETTER

INVOICE

PRINTER OUTPUT TRAY

1:INNER 1

Press the PRINTER key. Press the FUNCTION key. Press 2 and the SET key. Select the desired Output Tray. After setting, press the SET key.

Setting mode Settings Preset value number

00 PRINTER OUTPUT TRAY Inner 1

Set the printer paper priority accommodation position. Outer/Inner 2/Inner 1

Installation and Configuration (Windows 2000)

Installing the Printer Driver

◆About Windows 2000

Panasonic has performed operational tests on the Document Scanner, Status Monitor and Printing System - software using Office 2000. However, the company does not necessarily guarantee normal

operation of all applications on Windows 2000. Panasonic has not registered with the Windows 2000 logo. Ignore the warning message about the logo upon installation. Windows 2000 is capable of disallowing installation of drivers without logo registration. If the function has been activated, cancel the function for installation.

Open the Printers folder.

Click the Start button. Place the cursor on Settings and click Printers.

Double-click the Add Printer icon.

Click the button.

Installation and Configuration (Windows 2000)

Select Local printer and click the button. Specify Network Printer for installing a printer on server upon network. Refer to the manual about Windows 2000. Even if the printer is networked, install as Local printer for now. This will be changed in later steps.

Click the button.

Printer Section

• For local printer, select a Printer Port and click the button. Then proceed to step 13.

• For network printer, select Create a new port to "Standard TCP/IP Port" and click the button.

Installation and Configuration (Windows 2000)

Click the button.

Enter the IP Address and the Port Name and click the button.

Note: The Port Name is automatically entered by

Windows 2000. You may change this as required.

Select Custom and click the button.

Settings...

Installation and Configuration (Windows 2000)

Select LPR on Protocol menu. Enter the Queue Name and select LPR Byte Counting Enabled on LPR Settings menu. Click the button.

Printer Section

Click the button.

Finish

Installation and Configuration (Windows 2000)

Insert the CD-ROM containing the printer driver. Click the button.

Have Disk...

Specify the drive name and type

D:\English\Driver\WinNT4. (Where "D" is your CD-ROM drive.) Click the button.

Select your device (Panasonic DP-2000, Panasonic DP-2500 or Panasonic DP-3000). Click the button.

Installation and Configuration (Windows 2000)

Click the button.

Select Do not share this printer and click the

button.

• Select Share as only when installing onto a network server. Refer to the manual for Windows 2000 for details.

Printer Section

Select No and click the button.

Installation and Configuration (Windows 2000)

Click the button.

Finish

Yes

The required files are copied.

The Printers Icon is now displayed in the Printers folder.

Installation and Configuration (Windows 2000)

Configuring the Printer Driver Setting on Windows 2000 (Administrator)

To change the printer properties, open the dialog box for the printer properties by the following steps.

Click the Start button, place the cursor on Settings, and then click Printers.

2 3

Right-click the printer icon in the printers window, and select The dialog box for the printer properties appears.

Properties

in the dropdown menu.

Printer Section

NOTE

• In Windows 2000, setting the properties depends on the log-in accounts. This section describes properties to be specified by an administrator (system manager). See "Configuring the Printer Driver Settings" for details of user properties. (See page )

Installation and Configuration (Windows 2000)

General Tab

■

Printer Name

Name of the printer specified upon installation is displayed.

Location and Comment

Enter a comment about the location of the printer installation and information about the printer. If a printer is shared, the location and comment specified in this field appears when another user sets up this printer on his/her computer. After completion of setup, however, changing this comment does not update the location and comment appearing on users PCs.

Model

Model name of the printer is displayed.

Features

Functions and settings of the printer are displayed.

Printing Preferences...

button

Changes properties (print settings) specifiable for each user. Refer to "Configuring the Printer Driver Settings" for details of settings (See page 58)

Print Test Page

■

button

Prints a test page. This operation verifies that a printer has been properly installed.

Sharing Tab

■

Installation and Configuration (Windows 2000)

Printer Section

Not shared/Shared as

Specify if this printer is displayed or used on a computer of other users. For sharing a printer, specify the share name of a printer to be shared. A name specified here appears when other users view the printer information on a network

Additional Drivers...

button

Install additional printer drivers on the system. When users running different versions of Windows share a printer, installing additional drivers avoids the necessity for installing new drivers on their systems.

NOTE

• If a printer is shared on a network, installing the printer driver on one print server allows other computers to copy the driver automatically for use. Accordingly, a print server is required to provide alternative printer drivers for other OS's that may use the printer.

Installation and Configuration (Windows 2000)

Ports Tab

■

Print to the following port(s)

Displays a list of ports that allows printing, their status (description), and printers connected to the ports.

Add Port... Delete Port

/ button

Add or delete a new local port or a new network port.

Configure Port...

button

Configure the port that is selected. On a parallel port, wait time (in seconds) for retransmission is specified.

Enable bidirectional support

On a printer, this setting enables reception of configuration data and status data from the computer. Be sure to check this checkbox when installing the status monitor (See page ). Printing may be disabled without checking this checkbox.

140

Enable printer pooling

Printer pooling allows outputting data from one logical printer to two or more printers. With printer pooling enabled, a transmitted printing job is output to the first printer that allows printing.

NOTE

• Specify time (seconds) waiting for the printer to be ready for printing. If a printer is not ready for printing after the specified time has elapsed, an error message is displayed. If a timeout error occurs frequently upon printing a large size document, specify a larger value here.

Advanced Tab

■

Installation and Configuration (Windows 2000)

Printer Section

Always available/Available from

Specify the operation schedule for a printer. Selecting Available from allows specifying an operation time.

Priority

Specify the priority in printing. Priority is adjustable from 1 to 99. ORIGINAL of higher priority are printed before those of lower priority.

Driver

Printer drivers are displayed. Specify a printer being used or specify a printer type that allows emulation by the printer being used.

New Driver...

button

Update or change the printer driver.

Spool print documents so program finishes printing faster

Specify the method of sending a document from the program to the printer.

Hold mismatched documents

Spooler compares the printer settings with the paper settings (such as paper size and printing orientation). If the settings are inconsistent, the printing is suspended.

Print spooled documents first

Always print spooled documents first regardless of the printing priority.

Installation and Configuration (Windows 2000)

Keep printed documents

After printing, documents are kept in the queue. The documents are allowed to be reprinted directly from the queue regardless of the status of an application.

Enable advanced printing features

Usually enables advanced printing features. Optional features of the printer (page ordering, booklet printing, numbering on sheets) are enabled. The features can be disabled if a problem occurs regarding compatibility. Disabling the features may disable the printing options also.

Printing Defaults...

button

Specifies standard (default) values for the properties (print settings) specifiable for each user. If a local printer is shared, the settings here are used as printing defaults for other users.

Refer to "Configuring the Printer Driver Settings" for detailed settings. (See page )

Print Processor...

button

Specify a print processor and data type to be used for printing. The processor and data type define operations of printers on Windows 2000. Usually no change is required in the settings. Use of a printer on a special application, however, may require changes on the settings.

Separator Page...

button

A Separator page is inserted between documents to be printed. This function is useful when using one printer among two or more users and when printing two or more documents by one operation.

Security Tab

■

Installation and Configuration (Windows 2000)

Printer Section

Displays a list of users and groups that are assigned access to this printer. A list of standard access permitted/prohibited for each group or user is displayed. Check the checkbox for permitting or prohibiting access. Gray checkbox indicates inheritance of access permission.

Add... Remove

/ button

Add or delete a user or group in the list.

Advanced...

button

Specify access to a printer, audit, and owner.

NOTE

• Windows 2000 provides the capability of managing access to various objects (e.g. printers) on users. Refer to manuals of Windows 2000 for details of access permission, audit, and owner.

Installation and Configuration (Windows 2000)

Device Settings Tab

■

Halftone Setup...

button

Select the method of expressing device halftone (printer-specific halftone). Select the settings according to printing data and preference.

• Halftone Pattern

Select the size of pixels to be used for halftone. Selecting larger size pixels results in a rough image, which is suitable for printing of wider area. Enhanced patterns, which allow printing an image of higher resolution using a same number of pixels, may cause random lines or patterns and moire.

• Device Gamma

Adjust the gamma (strength of colors) of printing image.

• Pixel Diameter

Adjust the density of a printing image. Specify the size of pixels by moving the slide bar. One of the two methods, specifying pixel size by inch or by ratio to the printer resolution (in per cent), is selectable.

• Luminance (CIE Y)

Adjust the luminance of a printing image.

Installation and Configuration (Windows 2000)

Duplex Unit

Check this checkbox if an optional duplex printing unit (DA-MD200) is installed. Duplex printing function is now enabled.

Output Tray

If the Exit Tray (Inner) and the Dual-Path Exit Guide Unit (DA-XN200/FK200) are installed, select Inner Tray option. This allows specifying Inner 1 and Inner 2 as the output tray for the printer output.

If the 1-Bin Finisher or Exit Tray (Outer) (DA-FS200/XT200) is installed, select Inner Tray option + Finisher/Outer Tray option. This allows specifying Inner 1, Inner 2, and Outer as output tray for the printer output. Also, the stapling function becomes available if the Inner Tray option and Finisher/Outer option are enabled.

Number of Paper Tray

Select the number of available paper tray(s) for the printer if an optional Paper Feed Module is installed.

Printer/Fax Memory

Select the size of the Expansion Flash Memory Card or whether a Fax Option (2MB) has been installed, to enable Security Print.

Printer Section

Security Print Password

Set the password for Security Print.

NOTE

• Device Settings Tab specifies device-specific settings and settings of optional devices. Refer to operation manuals of the optional devices, or on-line manuals for settings items.

• Settings specified in this section are saved as standard (default) settings of the printer.

Installation and Configuration (Windows 2000)

Configuring the Printer Driver Settings (User)

Changes the printer settings. Display the printer settings dialog box by the steps below:

Select Print in the File menu of an application.

1 2 3

Click the button of the print dialog box.

The dialog box for printer properties appears. Click the top tab of the dialog box and specify the properties.

Properties...

NOTE

• In Windows 2000, setting the properties depends on the log-in accounts. This section describes properties to be specified by a user, upon executing a print operation on an application. See "Settings Printer Driver on Windows 2000 (Administrator)" for details of administrator (system manager) properties. (See page )

General Tab

■

Installation and Configuration (Windows 2000)

Printer Section

Select Printer

Select a printer for printing.

Page Range

Select a page range for printing.

Number of copies

Specify the number of copies.

Collate

Upon printing two or more copies, pages are output for each copy.

Installation and Configuration (Windows 2000)

Layout Tab

■

Orientation

Select portrait (vertical) or landscape (horizontal).

Print on Both Sides (Duplex)

Specify duplex printing for printing on both sides. Select the binding side (None/Flip on Short Edge/Flip on Long Edge) for duplex printing.

Note 1) Duplex Printing on post card is not allowed. Note 2) Duplex Printing is allowed only with the Dual-Path Exit Guide Unit, Paper Transport Unit and

Automatic Duplex Unit (DA-FK200/FK210/MD200) mounted.

Note 3) Check [Duplex Unit] check box in Device Options Tab.

Advanced...

button

Specify detailed settings. Refer to Advanced (See page 62) for details.

Paper/Quality Tab

■

Installation and Configuration (Windows 2000)

Printer Section

Paper Source

Specify an input tray. Selecting Auto Selection allows automatic selection of an input tray according to the paper size.

Advanced...

button

Specify detailed settings. Refer to Advanced (See page 62) for details.

Installation and Configuration (Windows 2000)

Advanced

■

Paper Size

Select a paper size.

Resolution

Select resolution of the printer (600dpi/300dpi).

Scaling

Specify a custom zoom when printing a document by zooming in/out at a desired rate. If the zooming rate is specifiable on an application, specify "100%" (same size) here. Specify a zooming rate in the print dialog box of the application.

Metafile Spooling

With Metafile Spooling enabled, a file is spooled in EMF format (metafile compression). With the function disabled, a file is spooled in RAW (non-compression) format. Specifying RAW format results in a longer time before an application becomes operational after printing on the application.

Note: Spooling by EMF format may cause the following problems on some application software.

1) Printing result is different from screen display.

2) Printing requires excessive time.

N in 1

For printing two or more pages on one sheet, specify a printing method. Layout is selected by combining with Orientation. Each layout is displayed with an icon. 2 in 1: Print 2 pages of manuscripts zoomed out by 65 or 71% on one sheet. 4 in 1: Print 4 pages of manuscripts zoomed out by 50% on one sheet.

Installation and Configuration (Windows 2000)

Binding Margin

Select for ensuring the binding margin upon duplex printing. Specifying On for Binding moves a printing area vertically or horizontally (for ensuring binding margin). For specifying a margin in consideration of a double-page spread printing on application, specify Off for Binding. Width of binding margin is specified on the main unit. (See page 30, copy section)

Staple

Specifying staple printing is allowed if the output bin is set to outer. Note 1) Staple printing is allowed only with the Electronic Sorting Board (DA-ES200 : For DP-2000 only)

and 1-Bin Finisher (DA-FS200) mounted.

Note 2) Paper is stapled at the top left or at the top right. (See table below.)

Document orientation

Letter

Letter/A4

Paper orientation

Letter

Letter/A4

Letter

Letter/A4

Stapling position

Top left

Letter

Top right

Letter

Note) Stapling on Invoice/B5 sheet is not

allowed.

Top right

Letter/A4

Top left

Letter/A4

Printer Section

Ledger

Legal

FLS

Ledger/Legal/

A3/FLS/B4

Ledger/Legal/

A3/FLS/B4

Note) Stapling on Invoice/B5 sheet is not

allowed.

Ledger

Legal

FLS

Note) Stapling on Invoice/B5 sheet is not

allowed.

Top right

Top left

Ledger/Legal/

A3/FLS/B4

Note) Stapling on Invoice/B5 sheet is not

allowed.

Installation and Configuration (Windows 2000)

Output Tray

Specify the output destination. <Auto Selection, Outer, Inner 1, or Inner 2> Note 1) Output Tray selection is allowed only with the Dual-Path Exit Guide Unit, Paper Transport Unit,

Exit Tray (Outer) or 1-Bin Finisher (DA-FK200/FK210/XT200/FS200) is installed.

Note 2) Post card cannot be output from the outer tray.

Secure Print

Select to enable Security Print.

Halftone Color Adjustment

• Contrast

Adjust the contrast of the printing image.

• Brightness

Adjust the lightness of the printing image.

• Dark Picture

Check to print a dark image into light image.

• Negative

Check to print in reverse.

• Input RGB Gamma

Adjust the gamma (strength of colors) in the printing image. Red, green and blue colors can be individually adjusted.

• Black Ref/White Ref

Adjust the difference between the darkest color and the lightest color in an image. Increasing the black ref value or decreasing the white ref value strengthens the contrast of an image, narrowing the range of middle colors in the meantime.

• Picture

Select a test pattern. Checking the checkboxes displays results of halftone adjustments on the test pattern.

Installation and Configuration (Windows 2000)

Setting Print Conditions: Setting on the Device

MULTI-SIZE

COPY

SORT

CONTRAST

FEED

LCD

FAX

INTERNET

PRINTER

ADD TONER

ON LINE

ON LINE DATA

Touch-panel

2SIDED

MULTI-SIZE FEED

1SIDED

SORT

COPY

STAPLE SHIFT

STAMP

MEMORYIN

COPIED

BLANK

OHP

abcde

2 in 1 BOOK EDGE MARGIN

01f02g03h04i05

06k07l08m09n10

11p12q13r14s15

u17v18w19x20y

P1zP2 P3

2PAGE COPY

SYMBOLSP5CAPS

SPACE

FINE

S-FINE

RESOLUTION LINE SELECT

MEM XMT

COPY

FAX

ON LINE

INTERNET

PRINTER

ON LINE

DATA

display

OUTPUT

TRAY

PAPER TRAY

DP-3000

DP-2000

DIRECTORY

SERCH

LIGHTER DARKER

ZOOM/VOL

PHOTO TEXT/

PHOTO TEXT

Function Settings

Reset Key

INTERRUPT

FUNCTION

REDIAL/

FLASH/

SUB-ADDR

SELECT

MONITOR

MON.VOL.

RESET

PAUSE

LINE

SET

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

LEGAL

LETTER

INVOICE

Function Settings

Reset Key

INTERRUPT

FUNCTION

REDIAL/

FLASH/

SUB-ADDR

MONITOR

RESET

PAUSE

ABBR

SET

ENERGY SAVER

ORIGINAL COPY

SIZE SIZE

LEDGER

LEGAL

LETTER

INVOICE

1 2 3

GHI

JKL

4 5 6

PQRS

TUV

7 8 9

TONE

ALARM ACTIVE

STOP

MNO

WXYZ

START

CLEAR

ABC

DEF

CLEAR

ABC

DEF

1 2 3

GHI

JKL

4 5 6

PQRS

TUV

7 8 9

TONE

ALARM ACTIVE

STOP

MNO

WXYZ

START

Printer Section

PRINTER OUTPUT TRAY

1:INNER 1

Press the PRINTER key. Press the FUNCTION key. Press 2 and the SET key. Select the desired Output Tray. After setting, press the SET key.

Setting mode Settings Preset value number

00 PRINTER OUTPUT TRAY Inner 1

Set the printer paper priority accommodation position. Outer/Inner 2/Inner 1

Print Operation

Printing from Windows Applications

If the printer driver is installed properly and a printer is selected as the default printer in the printer setup, printing can be accomplished from any Windows application with simple operations.

To print from most Windows applications, use the Print... command on the File menu. Selecting the Print... command typically displays the following Print dialog box:

After selecting the print range to be printed and the number of copies, click on to start printing.

While documents are being printed, a printer indicator remains displayed on the left side of the clock on the task bar. The indicator disappears when printing is completed.

NOTE

Follow the steps below to set a default printer:

• Click the Start button and select Printers in the Settings menu.

• Select the printer icon in the window and select [Set As Default] in dropdown menu by

right-clicking it. Then the check mark is displayed.

Print Operati on

Printing on Network

For sharing a printer by connecting two computers via crossed-cable or using a hub, a connection among computers must be established. Establishing a connection among computers is verified by displaying the connected computers in Network Neighborhood on the desktop.

The settings for printer sharing is specified by the following steps:

Printer server (PC connected to a printer)

■

Install the printer driver on a computer to be connected to the main unit.

Click the Start button, place the cursor on Settings, and then click Printers.

Select the printer icon and select [Sharing...] in the dropdown menu by right-clicking it.

Select Shared As in the properties dialog box.

Click the button.

Upon completion of the settings, the shape of the icon changes displaying sharing settings.

Printer Section

NOTE

• Refer to manuals of network cards and Windows users guide for connection among computers.

• On Windows 95/98/Me, a computer connected to a printer must have been set up to allow printer sharing by the following operations:

1. Double-click on Network in control panel, and then click

button in the Network Configuration tab.

2. Check [I want to be able to allow others to print to my printer(s).] in the File and

Print Sharing dialog box.

File and Print Sharing...

Print Operation

Remote (PC that uses other computer's printer)

■

Click Start button, place cursor on Settings and then click Printers.

Double-click Add Printer in the printers folder.

2 3

Add Printer Wizard appears. Click the button.

Select Network Printer.

Click the button.

Specify the other computer's printer by entering the network path. Then, complete the installation by following the instruction of the Add Printer Wizard.

The operations above enable output from the remote computer to a printer connected to a printer server.

Digital Copier

Class 2 Fax Modem Section

DP-2000/2500/3000

Bef ore UsePrinter Section

Section

Class 2 Fax Modem

System Section

Document Management

Troubleshooting

Installing the P anasonic Class 2 Fax Modem

Installation (Windows 95/98/Me)

The installation is required for transmitting/receiving of Faxes with a PC using general-purpose PC fax function software (recommended: WinFax PRO 10.0).

■

Class 2 Fax Modem

Select Settings from the Start menu and open the

Control Panel.

Double-click the Add New Hardware icon.

Click the button.

Installing the Panasonic Class 2 Fax Modem

(Windows 98 only)

Click the button.

Select No, the device isn't in the list. Click the button.

(This screen will only appear if a new device is found.)

Section

(Windows 98/Me only)

Select No, I want to select the hardware from

a list.

Click the button.

Class 2 Fax Modem

Installing the Panasonic Class 2 Fax Modem

Select Ports (COM&LPT). Click the button.

Select Communications Port. Click the button.

Have Disk...

Click the button.

Click the button and restart the PC.

Enter D:\Setup. (Where "D" is your CD-ROM drive.) Click the button.

Finish

Yes

Repeat steps from "1" to "3."

12 13

Installing the Panasonic Class 2 Fax Modem

Select No, the device isn't in the list. Click the button.

(This screen will only appear if a new device is found.)

Select No, I want to select the hardware from a list. Click the button.

Select Modem. Click the button.

Section

Class 2 Fax Modem

Installing the Panasonic Class 2 Fax Modem

Select Don't detect my modem; I will select it

from a list.

Click the button.

Enter D:\English\Setup.

(Where "D" is your CD-ROM drive.)

Click the button.

Have Disk...

Select Panasonic DP-2000, DP-2500 or DP-3000 Class 2 Fax Modem. Click the button.

Installing the Panasonic Class 2 Fax Modem

Select Panasonic MFP Redirected Com Port (COM3*).

* COM number depends on the PC. Click the button.

Click the button.

• Installation of the modem is completed.

Finish

Section

Class 2 Fax Modem

Installing the Panasonic Class 2 Fax Modem

Installation (Windows NT 4.0)

Installing the Panasonic Class 2 Fax Modem. The installation is required for transmitting/receiving Faxes with a PC, using general-purpose PC fax function software (recommended: WinFax PRO 10.0).

■

Class 2 Fax Modem

Select Settings from the Start menu and open the Control Panel.

Double-click Modems icon.

Select Don't detect my modem; I will select it from a list. Click the button.

Click the button.

Have Disk...

Installing the Panasonic Class 2 Fax Modem

Enter D:\English\Setup. (Where "D" is your CD-ROM drive.)

Click the button.

Select Panasonic DP-2000, DP-2500 or DP- 3000 Class 2 Fax Modem. Click the button.

Select the COM port shown at the bottom of the COM ports list. Click the button.

Section

Class 2 Fax Modem

Click the button.

• Installation of the modem is completed.

Finish

Installing the Panasonic Class 2 Fax Modem

Close the Modems Properties screen.

Installing the Panasonic Class 2 Fax Modem

Installation (Windows 2000)

Installing the Panasonic Class 2 Fax Modem. The installation is required for transmitting/receiving FAX's with a PC, using a general-purpose PC fax function software (recommended: WinFax PRO 10.0).

■

Class 2 Fax Modem

Select Settings from the Start menu and open the Control Panel.

Double-click Add/Remove Hardware.

Click the button.

Select Add/Troubleshoot a device. Click the button.

Section

Class 2 Fax Modem

Installing the Panasonic Class 2 Fax Modem

Select Add a new device. Click the button.

Select No, I want to select the hardware

from a list. Click the button.

Select Modems. Click the button.

Installing the Panasonic Class 2 Fax Modem

Select Don't detect my modem; I will select it from a list.

Click the button.

Enter D:\English\Setup. (Where "D" is your CD-ROM drive.) Click the button.

Have Disk...

Section

Class 2 Fax Modem

Installing the Panasonic Class 2 Fax Modem

Select Panasonic DP-2000, DP-2500 or

DP-3000 Class 2 Fax Modem. Click the button.

Select the COM port shown at the bottom of the COM ports list. Click the button.

Installing the Panasonic Class 2 Fax Modem

If a warning message for logo certification appears, click the button and continue installation.

Yes

Click the button.

• Installation of the modem is completed.

Finish

Section

Class 2 Fax Modem

NOTE

Digital Copier

Bef ore UsePrinter Section

Document Management System Section

DP-2000/2500/3000

Section

Class 2 Fax Modem

System Section

Document Management

Troubleshooting

Installing the Document Management System

Insert the provided CD-ROM.

Select the language.

Click the button.

Click Install PDMS software.

Verify the installation destination and click the

button.

Installing the Document Management System

Check the model and click the button.

Click the Typical button.

Enter the program folder name and click the

button.

The required files are copied.

System Section

Document Management

Installing the Document Management System

NOTE

Click the button.

The Panasonic Document Management System folder is added to the Start menu, and the installation is completed.

• When installing on Windows NT4.0, log in using an account with the authority to change system settings (e.g. Administrator).

• Standard installation method installs all of the following drivers and applications. Selecting the custom installation allows the selected installation of scanner and MFP utilities individually.

- Scanner

Document Scanner (TWAIN scanner driver) (See page )

- Manager

Document Manager (Image management application) (See page ) Document Viewer (Image editing application) (See page )

- MFP utility

Status monitor (Device status monitor) (See page 132) Configuration Editor (See page 137) Phone Book Editor (See page 145)

• By installing this software, the system selects LPT1 as the parallel port to be connected to the device. For connecting the device to a port other than LPT1, change connection ports by selecting [Panasonic], [Panasonic Document Management System], and [Port Selection Utility] from the Start menu.

• Before updating the software, be sure to delete the older version of software.

• Take the following steps to install the software on Windows 2000:

1. For installation, log in using an account with the authority to change system settings

(e.g. Administrator).

2. Restart Windows after completion of installation.

3. After restart, log in again using an account with the authority to change system

settings (e.g. Administrator).

4. After completion of installation, normal operation is enabled by logging in with an

ordinary user account.

Finish

112

119

140 145 153

Document Manager

Main Window

Document Manager is an application for managing image files. By utilizing the Document Manager and Document Viewer (see page ) in combination, a number of image files can be classified, managed, browsed, and edited.

Selecting Panasonic ➝ Panasonic Document Management System ➝ Document Manager in Programs of the Start menu displays the main window of the Document Manager.

119

System Section

Document Management

Document Manager

Title Bar

Displays the title of a screen.

Menu Bar

Displays the menu of the Document Manager.

Tool Bar

Displays the tool buttons of the Document Manager. Tool buttons correspond to functions of the menus in the menu bar.

Folder Window

Displays the folders containing the documents in tree form.

Link Icon

Dropping a dragged document onto a link icon, an application corresponding to the function of the icon is activated.

Status Bar

Displays information such as the number of documents in a folder, the number of selected documents, and file sizes, etc.

Document Window

Displays a list of documents in the selected folder. Documents are displayed in thumbnails (reduced images). Page number and and buttons are displayed at the bottom of a thumbnail image for grouped documents (configured with two or more pages). Clicking the buttons turns the pages.

Document Manager

Basic Operations

The Document Manager allows editing and managing documents displayed in thumbnail images by dragging and dropping. The function enables various operations as described below:

Selecting documents

■

Clicking thumbnail images in the document window allows selection of documents. Dragging a mouse cursor on the screen or clicking with the Shift key held down allows selecting two or more documents at one time.

Editing documents

■

Double-clicking thumbnail images in document window activates Document Viewer (See page ), allowing opening and editing documents.

119

System Section

Document Management

Document Manager

Copying/Moving Documents

■

Dragging a thumbnail image in document window and dropping it onto a folder in the folder window allows moving the document to the folder. Dragging & dropping with the Ctrl key held down copies a document.

Dragging a document and dropping it onto another document in a document folder results in grouping the two documents together.

Dragging a document and dropping onto a link icon activates an application corresponding to the function of each icon. Link icons are registered and deleted by selecting

Launch to another application ➝ External Application Setup in the File menu.

100

Panasonic DP-3000, DP-2000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Energy Star

Table of Contents

Before Use

Class 2 Fax Modem Section

Document Management Sy stem Section

Troubleshooting

Precautions

External View and Control Panel

External View

Control Panel (For DP-2500/3000)

Control Panel (For DP-2000)

Installation and Configuration (Windows 95/98/Me)

Installing the LPR (Line Printer Remote) Monitor

Installing the Printer Driver

Configuring the Printer Driver Settings

Setting Print Conditions: Setting on the Device

Installation and Configuration (Windows NT 4.0)

Installing the LPR (Line Printer Remote) Monitor

Installing the Printer Driver

Configuring the Printer Driver Settings (Administrator)

Configuring the Printer Driver Settings (User)

Setting Print Conditions: Setting on the Device

Installation and Configuration (Windows 2000)

Installing the Printer Driver

Configuring the Printer Driver Setting on Windows 2000 (Administrator)

Configuring the Printer Driver Settings (User)

Setting Print Conditions: Setting on the Device

Print Operation

Printing from Windows Applications

Printing on Network

Installing the P anasonic Class 2 Fax Modem

Installation (Windows 95/98/Me)

Installation (Windows NT 4.0)

Installation (Windows 2000)

Installing the Document Management System

Document Manager

Main Window

Basic Operations
