Contents |
|
CD Receiver |
Getting Started.................................... |
2 |
CR-545 |
|
|
CR-545UKD |
Connections .................................... |
13 |
Instruction Manual |
|
|
|
Basic Operations ............................ |
18 |
|
Disc Playback ................................. |
20 |
|
iPod / iPhone Playback .................... |
27 |
Thank you for purchasing an Onkyo CD receiver. Please read this manual thoroughly before making any connections and plugging it in.
Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new CD receiver.
Please retain this manual for future reference.
USB Playback ................................. |
30 |
Listening to the Radio .................... |
34 |
Clock and Timer .............................. |
42 |
Miscellaneous ................................. |
47 |
Troubleshooting .............................. |
47 |
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Important Safety Instructions
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments / accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15.Damage Requiring Service
Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:
A.When the power-supply cord or plug is damaged,
B.If liquid has been spilled, or objects have fallen into the apparatus,
C.If the apparatus has been exposed to rain or water,
D.If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,
E.If the apparatus has been dropped or damaged in any way, and
F.When the apparatus exhibits a distinct change in performance this indicates a need for service.
16.Object and Liquid Entry
Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of this unit.
17.Batteries
Always consider the environmental issues and follow local regulations when disposing of batteries.
18.If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.
Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.
2
Precautions
1.Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.
2.AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact your Onkyo dealer.
3.Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.
4.Power WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.
AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.
Pressing the [ON/STANDBY] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.
5.Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.
6.Preventing Hearing Loss Caution
Excessive sound pressure from earphones and headphones can cause hearing loss.
7.Batteries and Heat Exposure Warning
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.
8.Handling Notes
•If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.
•Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.
•This unit’s top and rear panels may get warm after prolonged use. This is normal.
•If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.
•When you’ve finished using this unit, remove
all discs and turn off the power.
9.Installing this Unit
•Install this unit in a well-ventilated location.
•Ensure that there’s adequate ventilation all around this unit, especially if it’s installed in an audio rack. If the ventilation is inadequate,
the unit may overheat, leading to malfunction.
•Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.
•Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker.
•Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.
•If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.
10.Moisture Condensation
Moisture condensation may damage this unit.
Read the following carefully:
Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.
•Moisture condensation can occur in the following situations:
–The unit is moved from a cold place to a warm place.
–A heater is turned on, or cold air from an air conditioner is hitting the unit.
–In the summer, when this unit is moved from an air conditioned room to a hot and humid place.
–The unit is used in a humid place.
•Do not use this unit when there’s the possibility of moisture condensation occurring. Doing so may damage your discs
and certain parts inside this unit.
If condensation does occur, unplug the power cord and leave the unit for two to three hours in the room temperature.
3
Precautions—Continued
This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit.
To prevent being exposed to the laser beam, do not try to open the enclosure.
CAUTION:
CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
The label on the right is applied on the rear panel.
1.This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.
2.To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.
For British models
Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IMPORTANT
The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.
If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.
For European Models
Declaration of Conformity
We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY
declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.
GROEBENZELL,
GERMANY
ONKYO EUROPE ELECTRONICS GmbH
4
Features
Amplifier
•Digital Amplifier
•1 Audio Input
•Subwoofer Pre Out
CD Player
•Plays CDs, MP3 / WMA*1, CD-Rs and CD-RWs*2
•25 Track Programming
•3 Repeat Modes (Track / Full / 1 Folder)
•4 Play Modes (Normal / Random / Memory / 1 Folder)
iPod / iPhone *3
•Made for iPod touch (1st and 2nd generation), iPod classic, and iPod nano (2nd, 3rd, 4th, and 5th generation).
•Made for iPhone 3GS, iPhone 3G, and iPhone.
•Digital Connection
Supplied Accessories
Make sure you have the following accessories:
Remote controller and two batteries (R6 / AA)
Indoor FM antenna (CR-545)
Indoor FM / DAB antenna (CR-545UKD)
USB Interface
• |
MP3 / WMA*1 compatible |
|
• |
25 Track Programming |
AM loop antenna (CR-545) |
|
|
•3 Repeat Modes (Track / Full / 1 Folder)
•4 Play Modes (Normal / Random / Memory / 1 Folder)
Tuner & Other
•40 FM / AM Presets (CR-545)
•30 FM / 30 DAB Presets (CR-545UKD)
•4-Program Timer (Play / Once or Every)
•Sleep Timer
•Battery-Free Memory Backup
•Headphone Jack
•Aluminum Front Panel
•Speaker Binding Post
*1.
Note:
In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.
Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
*2. Make sure to use discs that have been finalized.
*3. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respecively, and has been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
5
Before Using the CD Receiver
Installing the Batteries
1Open the battery compartment, as shown.
2Insert two batteries (R6 / AA) into the battery compartment.
Carefully follow the polarity diagram (positive (+) and negative (–) symbols) inside the battery compartment.
3After the batteries are installed and seated correctly, attach the compartment cover.
Notes:
•If the remote controller doesn’t work reliably, try replacing the batteries.
•Don’t mix new and old batteries or different types of batteries.
•If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.
•Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.
Using the Remote Controller
When you operate the remote controller, point it at the CD receiver’s remote control sensor.
Remote control sensor
|
|
|
m |
|
|
|
5 |
|
|
. |
|
|
rox |
||
p |
|
) |
|
p |
|
|
|
A |
|
. |
|
|
t |
||
|
|
f |
|
|
6 |
|
|
1 |
|
|
|
( |
|
|
|
Notes:
•The remote controller may not work reliably if the CD receiver is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.
•If another remote controller of the same type is used in the same room, or the CD receiver is installed close to equipment that uses infrared rays, the remote controller may not work reliably.
•Don’t put anything, such as a book, on the remote controller because the buttons may be pressed inadvertently, thereby draining the batteries.
•The remote controller may not work reliably if the CD receiver is installed in a rack behind colored glass doors. Keep this in mind when installing.
•The remote controller will not work if there’s an obstacle between it and the CD receiver’s remote
control sensor.
6
Contents
Getting Started |
|
Important Safety Instructions ................ |
2 |
Precautions .......................................... |
3 |
Features ............................................... |
5 |
Supplied Accessories ........................... |
5 |
Before Using the CD Receiver ............. |
6 |
Installing the Batteries ....................... |
6 |
Using the Remote Controller ............. |
6 |
Getting to Know the CD Receiver ........ |
8 |
Front Panel ....................................... |
8 |
Rear Panel ........................................ |
8 |
Display .............................................. |
9 |
Remote Controller ........................... |
10 |
Disc Notes ........................................... |
11 |
Connections |
|
Connecting Antennas ......................... |
13 |
Connecting the Indoor FM Antenna (CR-545) ... |
13 |
Connecting the AM Loop Antenna (CR-545) .. |
13 |
Connecting the DAB / FM Antenna (CR-545UKD) .. |
14 |
Connecting an Outdoor FM Antenna (CR-545) .. |
14 |
Connecting Speakers ......................... |
15 |
Connecting Other Components .......... |
16 |
Connecting a Subwoofer ................. |
16 |
Connecting Sound Reproduction Equipments ... |
16 |

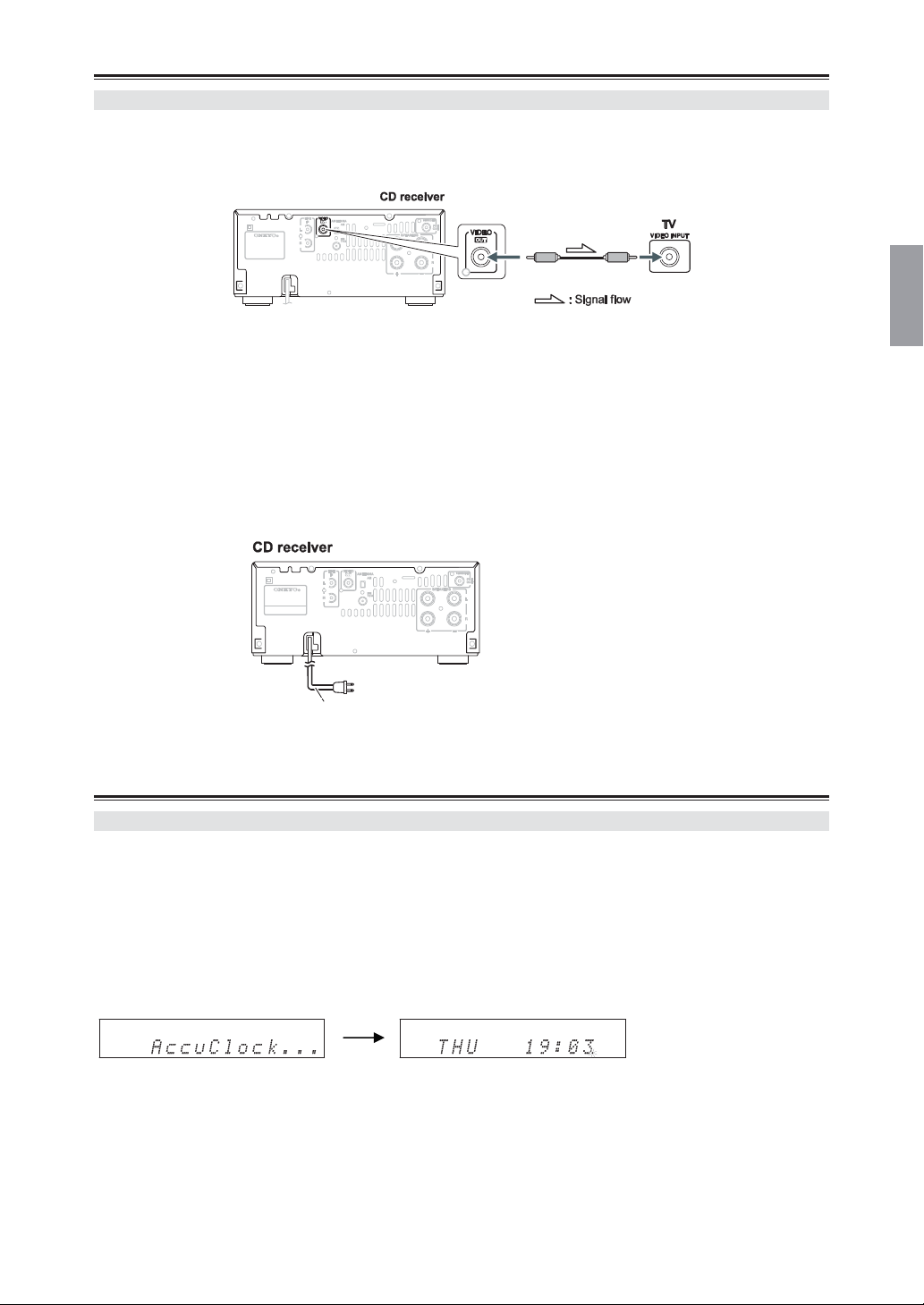

Connecting a TV ............................. |
17 |
First Time Setup ................................. |
17 |
AccuClock - Automatic Clock Setting .... |
17 |
Basic Operations |
|
Basic Operations ................................ |
18 |
Turning On the CD Receiver .......... |
18 |
Adjusting the Volume ...................... |
18 |
Selecting the Input Source .............. |
18 |
Using Headphones ......................... |
18 |
Muting the Sound ............................ |
18 |

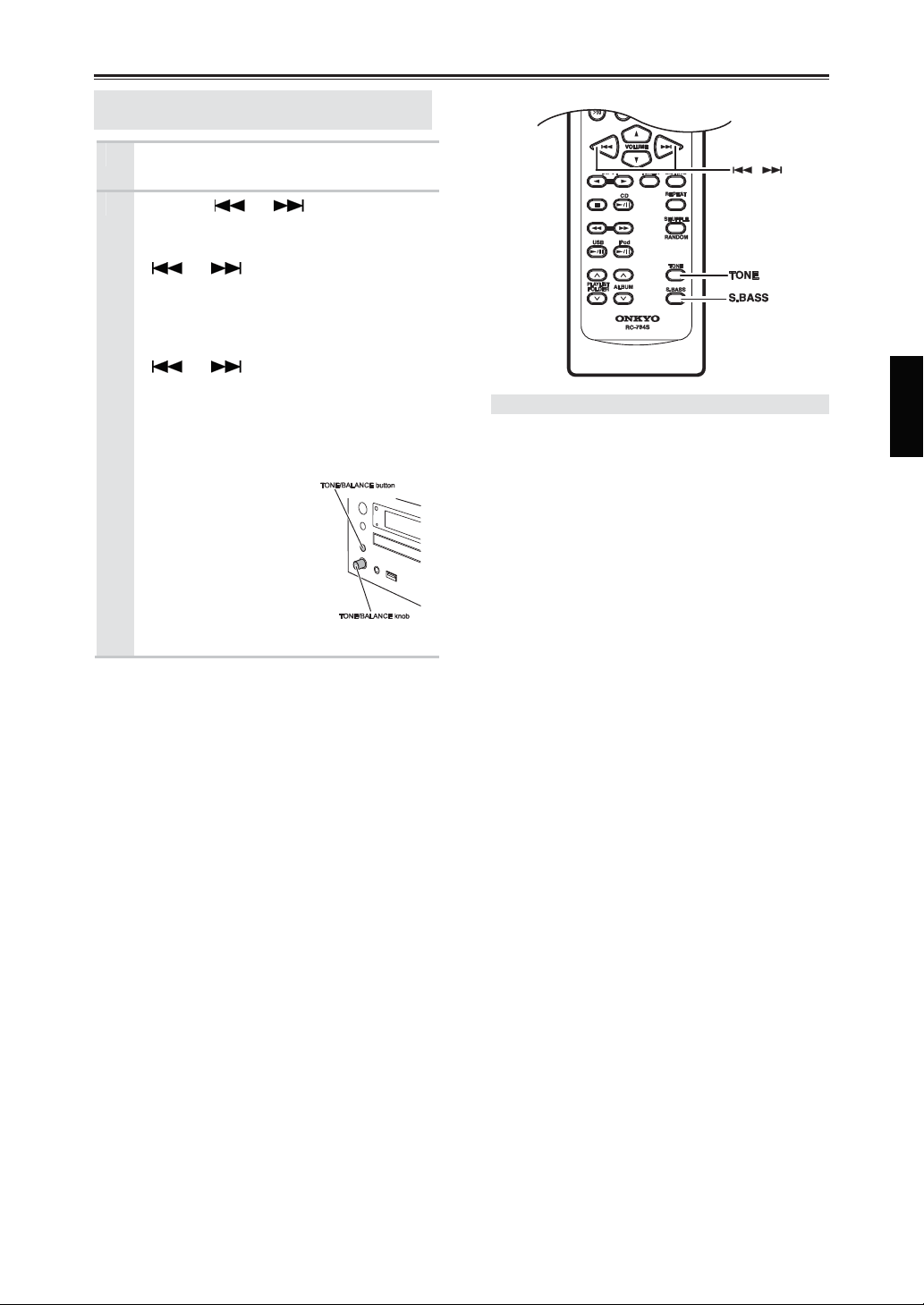

Adjusting the Bass, Treble and Balance ...... |
19 |
Using the Super Bass Function ....... |
19 |
Disc Playback |
|
Using the CD receiver ..................... |
20 |
Using the Remote Controller ........... |
21 |

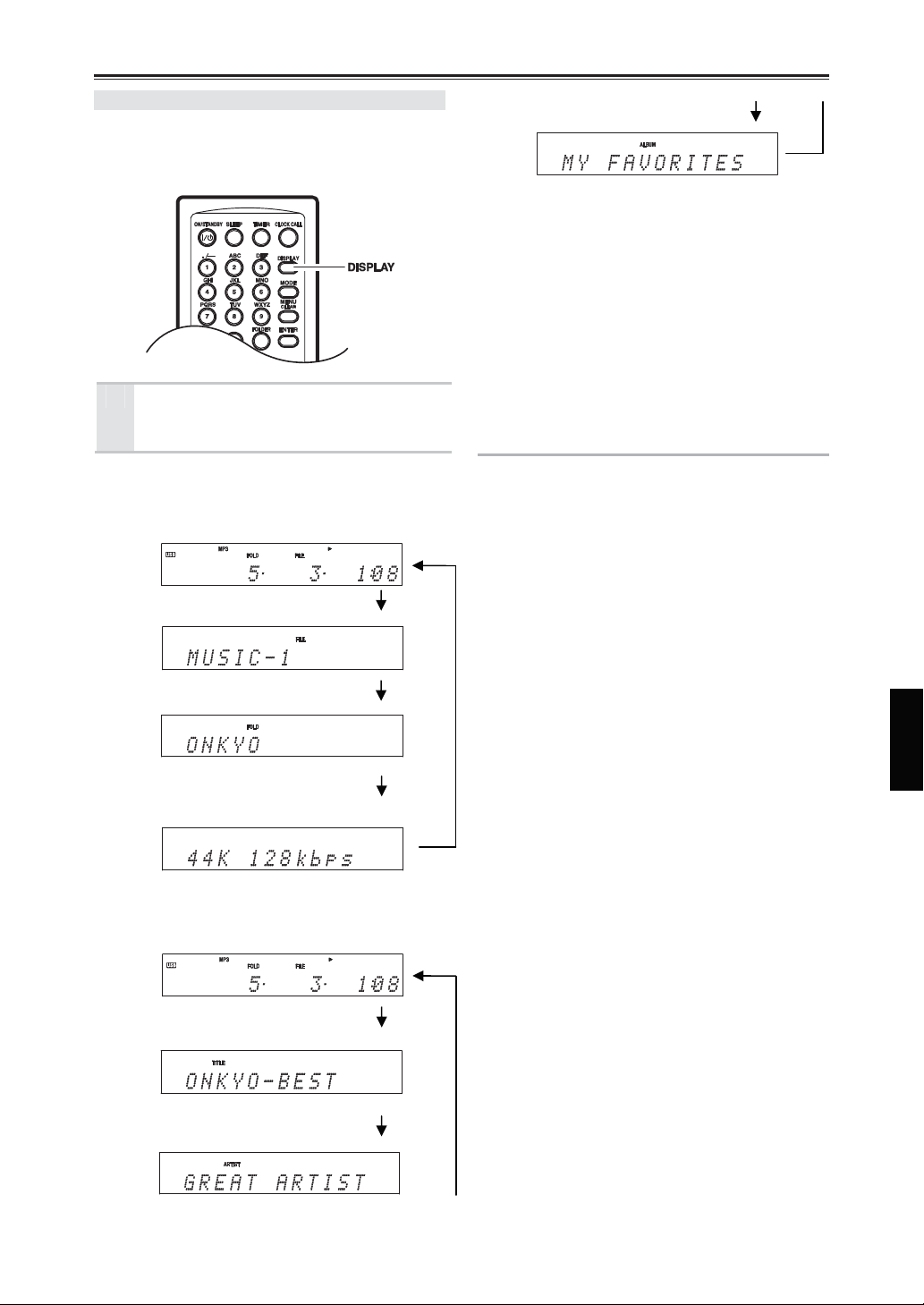

Displaying CD Information .............. |
21 |
Selecting MP3 / WMA Files ............. |
22 |
Displaying MP3 / WMA Information ...... |
23 |
One Folder Playback ...................... |
23 |
Random Playback ........................... |
24 |
Repeat Playback ............................. |
24 |
Memory Playback ........................... |
24 |
Setting DISC Preferences ............... |
25 |
iPod / iPhone Playback |
|
Installing the iPod / iPhone Universal Dock Adapter .. |
27 |
Playing iPod / iPhone ....................... |
27 |
Using the iPod / iPhone Menu (only remote control) .. |
28 |
Displaying Music File Information .... |
28 |
Setting for iPod / iPhone ...................... |
29 |
USB Playback |
|
Playing Music Files on a USB Flash Drive .... |
31 |
Random Playback ............................ |
32 |
Repeat Playback .............................. |
32 |
Displaying Music File Information .... |
33 |
Listening to the Radio |
|
Tuning into FM /AM Radio Stations . 34 |
|
Displaying FM / AM Radio Information ... |
35 |
Receiving RDS ................................ |
35 |
Listening to DAB Digital Radio (CR-545UKD) .... |
35 |
Selecting DAB Stations (CR-545UKD) ... |
36 |
DAB Setup (CR-545UKD) ..................... |
36 |
Presetting FM Stations Automatically (Auto Preset) ... |
37 |
Presetting FM / AM Stations Manually ............ |
38 |
Presetting DAB Stations Manually (CR-545UKD) ... |
38 |
Selecting Preset Stations ................. |
39 |
Naming Presets (FM /AM only) ........ |
39 |
Copying Presets (FM /AM only) ....... |
40 |
Erasing a Preset’s Name (FM /AM only) .. |
41 |
Erasing Presets (FM /AM only) ....... |
41 |
Adjusting the Display’s Brightness .... 41 |
|
Clock and Timer |
|
Setting the Clock ................................. |
42 |
AccuClock with a Specific Station .... |
42 |
Using the Timers ................................. |
44 |
Programming the Timers .................. |
44 |
Turning Timers On and Off ............... |
46 |
Checking Timer Settings .................. |
46 |
Using the Sleep Timer ..................... |
46 |
Miscellaneous |
|
Troubleshooting ................................... |
47 |
How to reset to factory default? ........... |
47 |
Specifications ...................................... |
51 |
7
Getting to Know the CD Receiver
Front Panel
1 |
INPUT button |
9 |
USB port |
2 |
ON/STANDBY button |
10 |
Disc tray |
3 |
STANDBY indicator |
11 |
Previous / Next [ ] / [ ] buttons |
4 |
Remote control sensor |
|
or PRESET [ ] / [ ] buttons |
5 |
Display |
12 |
Stop [ ] button |
6 |
VOLUME control knob |
13 |
Play/Pause [ ] button |
7 |
TONE/BALANCE button / knob |
14 |
Open/Close [ ] button |
8PHONES jack
Rear Panel
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
LINE IN |
5 |
SUBWOOFER PRE OUT |
|||||||||||||||||||||||
2 |
VIDEO OUT |
6 |
Power cord |
|||||||||||||||||||||||
3 |
AM ANTENNA (CR-545) |
7 |
FM ANTENNA (CR-545) |
|||||||||||||||||||||||
4 |
SPEAKERS |
8 |
DAB / FM ANTENNA (CR-545UKD) |
|||||||||||||||||||||||
8
Getting to Know the CD Receiver—Continued
Display
1 |
Input source indicator |
7 |
iPod menu mode indicator |
|
(“DAB” is only for CR-545UKD) |
|
|
2 |
File format indicators |
8 |
MUTING indicator |
|
MP3 |
9 |
TITLE, ARTIST, and ALBUM indicators |
|
WMA |
10 |
Message area |
3 |
S.BASS indicator |
11 |
FILE indicator |
4 |
FOLD indicator |
12 |
TRACK indicator |
5 |
Playback mode indicators |
13 |
Play [ ] and pause [ ] indicators |
|
1FOLD |
14 |
TIMER indicators |
|
MEM |
|
|
|
RDM |
15 |
DISC, TOTAL indicators |
|
(REPEAT) |
16 |
SLEEP indicator |
|
(REPEAT 1) |
|
|
6 |
Tuning indicators |
|
|
|
AUTO |
|
|
FM ST
RDS
9
Getting to Know the CD Receiver—Continued
Remote Controller
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
SLEEP button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
ON/STANDBY button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
Number buttons |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
Previous / Next [ ] / [ ] buttons |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
INPUT [ ] / [ ] buttons |
|||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
STOP button |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
CD Play/Pause [ ] button |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
Fast Reverse / Fast Forward [ ] / [ ] |
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
buttons |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
USB Play/Pause [ ] button |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
iPod Play/Pause [ ] button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11 |
PLAYLIST / FOLDER [ ] / [ ]buttons |
||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
ALBUM [ ] / [ ] buttons |
||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
TIMER button |
|||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
CLOCK CALL button |
|||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 |
DISPLAY button |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
MODE button |
|||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
17 |
MENU / CLEAR button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
ENTER button |
|||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
19 |
FOLDER button |
||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
VOLUME [ ] / [ ] buttons |
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
21 |
TUNER button |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
MUTING button |
||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
23 |
REPEAT button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
SHUFFLE / RANDOM button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
25 |
TONE button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
26 |
S.BASS button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
10
Disc Notes
Precautions for Playback
Compact discs (CDs) with the following logo on the label surface can be used.
Do not use discs designed for purposes other than audio, such as CD-ROMs for PC use. Abnormal noise could damage the speakers or amplifier.
•A disc recorded on a personal computer may not play because of the application settings or environment. Record the disc with the proper format. (Contact the application maker for details.)
•A disc with insufficient storage capacity may not playback properly.
*This CD receiver supports CD-R and CD-RW discs.
Note that some discs may not playback because of the disc characteristics, scratches, contamination or the recording state. A disc recorded with an audio CD record will not playback unless it is finalized.
Never use discs which have a special shape (such as hearts or octagons). These types of discs could jam and damage the CD receiver.
CD Playback with Copy-control Function
Some audio CDs with copy-control function do not comply with official CD standards. These are special discs and cannot be played with this CD receiver.
Playback of MP3 and WMA Discs
MP3 and WMA files recorded on a CD-R/CD-RW can be played with this CD receiver.
•Use discs which have been recorded following the ISO9660 Level 2 file system. (The supported directory depth is eight levels, the same as ISO9660 Level 1)
Discs recorded with the hierarchical file system (HFS) cannot be played.
•Up to 99 folders (including the root folder), and up to 499 folders (including root) and files can be recognized and played.
•Always close the disc tray.
Notes:
•A disc recorded with a recorder or personal computer may not play in some cases. (Cause: Disc’s characteristics, damaged or dirty disc, dirt on player’s lens, dew condensation, etc.)
Playback of MP3 Discs
•Only MP3 files with the extension “.MP3” or “. mp3” are supported.
•This CD receiver supports files recorded in MPEG 1 Audio Layer 3 (32-320kbps), with the sampling rate of 32/44.1/48kHz.
•Variable bitrates (VBR) between 32kbps and 320kbps are supported. The time information during VBR playback may not display correctly.
Playback of WMA Discs
•WMA stands for “Windows Media® Audio”, an audio compression technology developed by Microsoft Corporation USA.
•Only WMA files with the extension “.WMA” or “.wma” are supported.
•Encode the WMA file with an application approved by Microsoft Corporation USA. The file may not playback correct if encoded with an unapproved application.
•Variable bitrates (VBR) between 64kbps and 160kbps (32/44.1/48kHz) are supported. The time information during VBR playback may not display correctly.
•Copyright-protected WMA files cannot be played back.
•WMA Pro, Lossless and Voice are not supported.
* Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or in other countries.
Handling Discs
Hold discs by the edge, or by the center hold and edge. Avoid touching the playback surface (surface with nothing printed on it).
Label surface
(printed surface)
Playback surface
Do not attach paper or stickers, or write on the playback or label surface of the disc. Take care not to scratch or damage the disc.
11
Disc Notes—Continued
Precautions for Rental Discs
Do not use discs with residue from cellophane tape, rental discs with labels which are peeling off, or discs with decorative labels. This type of disc could get stuck in the CD receiver, or could damage the CD receiver.
Precautions for Inkjet Printable Discs
Do not leave a CD-R/CR-RW having a label printed with an inkjet printer in the CD receiver for a long time. The disc could get stuck in the CD receiver, or could damage the CD receiver.
Remove the disc from the CD receiver when not being played, and store it in a case. A freshly printed disc will stick easily, and should not be played immediately.
Caring for Discs
If the disc is dirty, the CD receiver will have a hard time reading signals, and the audio quality may drop. If the disc is dirty, gently wipe off fingerprints and dust with a soft cloth. Lightly wipe from the center outwards.
To remove stubborn dust or dirt, wipe the disc with a soft cloth dampened with water, and then dry it with a dry cloth. Do not use
cleaning spray for analog
records or antistatic agents, etc. Never use volatile chemicals such as benzine or paint thinner as they can
impregnate the disc surface.
12
Connecting Antennas
This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM antenna. The CD receiver won’t pick up any radio signals without an antenna connected, so you must connect the antenna to use the tuner.
AM antenna jack (CR-545)
FM antenna jack (CR-545)
DAB / FM antenna jack (CR-545UKD)
Connecting the AM Loop Antenna (CR-545)
The supplied indoor AM loop antenna is for indoor use only.
1Assemble the AM loop antenna, inserting the tabs into the base, as shown.
Connecting the Indoor FM Antenna (CR-545)
The supplied indoor FM antenna is for indoor use only.
1Attach the FM antenna, as shown.
Insert the plug (colored side) fully into the jack.
2Use thumbtacks or something similar to fix the FM antenna into position.
Thumbtacks, etc.
Caution:
Be careful that you don’t injure yourself when using thumbtacks.
If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead (see page 14).
2Connect the terminal of the AM loop antenna to the AM antenna jack, as shown.
13
Connecting Antennas—Continued
Connecting the DAB / FM Antenna |
2 |
Use thumbtacks or something |
|
(CR-545UKD) |
|||
|
similar to fix the DAB / FM antenna |
||
The supplied indoor DAB / FM antenna is for indoor |
|
into position. |
|
use only. |
|
|
|
1 Attach the DAB / FM antenna, as |
|
|
|
shown. |
|
Thumbtacks, etc. |
|
|
|
||
|
|
Caution: |
|
|
|
Be careful that you don’t injure yourself |
|
|
|
when using thumbtacks. |
Connecting an Outdoor FM Antenna (CR-545)
If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.
Notes:
•Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.
•For best results, install the outdoor FM antenna well away from tall buildings, preferably with a clear line of sight to your local FM transmitter.
•Outdoor antenna should be located away from possible noise sources, such as neon signs, busy roads, etc.
•For safety reasons, outdoor antenna should be situated well away from power lines and other high-voltage equipment.
•Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.
Using a TV / FM Antenna Splitter
It’s best not to use the same antenna for both FM and TV reception, as this can cause interference problems. If circumstances demand it, use a TV / FM antenna splitter, as shown.
TV / FM antenna
|
splitter |
To CD receiver |
To TV (or VCR) |
14
Connecting Speakers
-Terminal posts-
Strip about 15 mm (5/8") of insulation from the ends of the speaker cables, and twist the bare wires tightly. Unscrew the terminal. Fully insert the bare wire, making sure that it’s touching the threaded shaft in the center. Screw the terminal tight.
•Connect the right speaker to the CD receiver’s right (R) SPEAKERS terminals. Connect the left speaker to the left (L) SPEAKERS terminals.
•Connect the positive (+) terminal on each speaker to the corresponding positive (+) terminal on the CD receiver.
Connect the negative (–) terminal on each speaker to the corresponding negative (–) terminal on the CD receiver.
Use the red wires to connect the positive (+) terminals.
•Connect only speakers with an impedance of between 4 and 16 ohms. Connecting a speaker with a lower impedance may damage the CD receiver.
•Be careful not to short the positive and negative wires. Doing so may damage the CD receiver.
•Do not connect both speaker cables to the same L or R terminals (Fig. 1). Do not connect more than two speaker terminals to each speaker (Fig. 2).
Fig. 1 |
Fig. 2 |
15
Connecting Other Components
About Connections
•Before making any connections, read the manuals supplied with your other components.
•Don’t connect the power cord until you’ve completed and double-checked all connections.
Connection Color Coding
RCA-type audio connections are usually color-coded: red and white. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”).
Note:
Do not put anything on top of the CD receiver, as it may interfere with proper ventilation.
Connecting a Subwoofer
The CD receiver has a SUBWOOFER PRE OUT jack for connecting a powered subwoofer (i.e., a subwoofer with a built-in amplifier).
Connecting Sound Reproduction Equipments
The following diagram shows how to connect sound reproduction equipments.
Connect the CD receiver’s LINE IN jacks to the cassette deck’s or MD recorder's, etc. OUTPUT (PLAY) jacks.
16
Loading...
