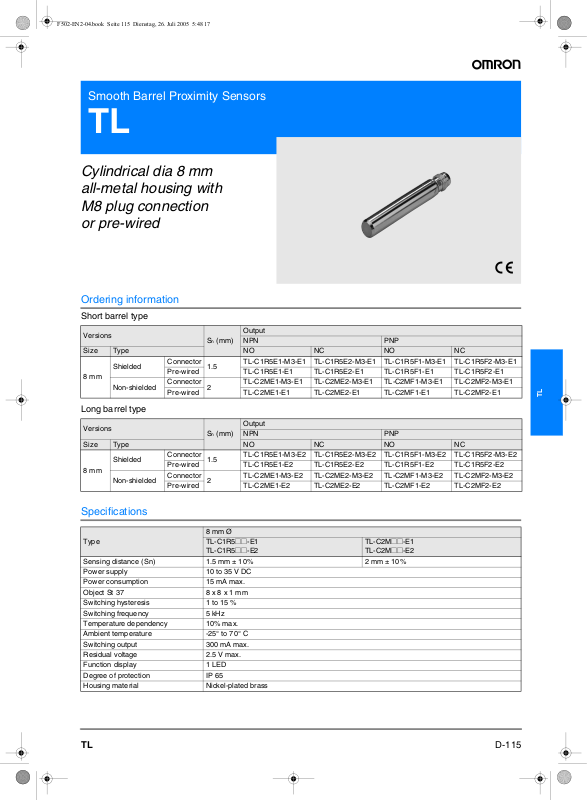

Omron TL DATASHEET

Smooth Barrel Proximity Sensors

TL

Cylindrical dia 8 mm
all-metal housing with
M8 plug connection
or pre-wired

Ordering information

Short barrel type

Versions

Size Type NO NC NO NC

Shielded

8 mm

Non-shielded

Connector
Pre-wired TL-C1R5E1-E1 TL-C1R5E2-E1 TL-C1R5F1-E1 TL-C1R5F2-E1
Connector
Pre-wired TL-C2ME1-E1 TL-C2ME2-E1 TL-C2MF1-E1 TL-C2MF2-E1

Sn (mm)

1.5

2

Output
NPN PNP

TL-C1R5E1-M3-E1 TL-C1R5E2-M3-E1 TL-C1R5F1-M3-E1 TL-C1R5F2-M3-E1

TL-C2ME1-M3-E1 TL-C2ME2-M3-E1 TL-C2MF1-M3-E1 TL-C2MF2-M3-E1

TL

Long barrel type

Versions

Size Type NO NC NO NC

Shielded

8 mm

Non-shielded

Connector
Pre-wired TL-C1R5E1-E2 TL-C1R5E2-E2 TL-C1R5F1-E2 TL-C1R5F2-E2
Connector
Pre-wired TL-C2ME1-E2 TL-C2ME2-E2 TL-C2MF1-E2 TL-C2MF2-E2

Sn (mm)

1.5

2

Output
NPN PNP

TL-C1R5E1-M3-E2 TL-C1R5E2-M3-E2 TL-C1R5F1-M3-E2 TL-C1R5F2-M3-E2

TL-C2ME1-M3-E2 TL-C2ME2-M3-E2 TL-C2MF1-M3-E2 TL-C2MF2-M3-E2

Specifications

8 mm Ø

Type

Sensing distance (Sn) 1.5 mm ± 10% 2 mm ± 10%
Power supply 10 to 35 V DC
Power consumption 15 mA max.
Object St 37 8 x 8 x 1 mm
Switching hysteresis 1 to 15 %
Switching frequency 5 kHz
Temperature dependency 10% max.
Ambient temperature -25° to 70° C
Switching output 300 mA max.
Residual voltage 2.5 V max.
Function display 1 LED
Degree of protection IP 65
Housing material Nickel-plated brass

TL-C1R5@@-E1
TL-C1R5@@-E2

TL-C2M@@-E1
TL-C2M@@-E2

D-115TL

Output circuits

PNP output

+

Circuit

A

Load

-

Reduction factors (typical values)

Chrome-nickel Sn x 0.9
Brass Sn x 0.5
Aluminium Sn x 0.45
Copper Sn x 0.4

Dimensions (mm)

TL-C1R5@@-E1

NPN output

Circuit

+

Load

A

-

TL-C1R5@@-E2

A

+

-

TL-C2M@@-E1

TL-C2M@@-E2

D-116 Inductive Sensors
