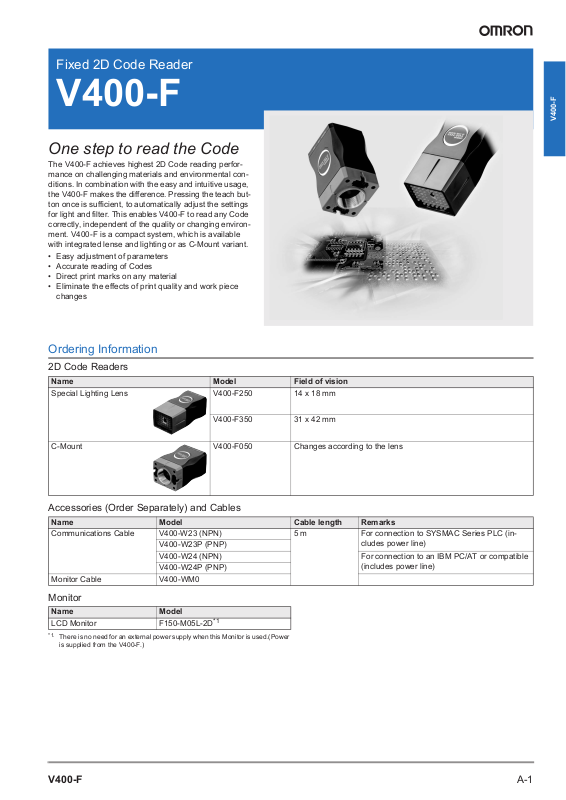

Fixed 2D Code Reader
V400-F
One step to read the Code
The V400-F achieves highest 2D Code reading performance on challenging materials and environmental conditions. In combination with the easy and intuitive usage,
the V400-F makes the difference. Pressing the teach button once is sufficient, to automatically adjust the settings
for light and filter. This enables V400-F to read any Code
correctly, independent of the quality or changing environment. V400-F is a compact system, which is available
with integrated lense and lighting or as C-Mount variant.
• Easy adjustment of parameters
• Accurate reading of Codes
• Direct print marks on any material
• Eliminate the effects of print quality and work piece
changes
V400-F
Ordering Information
2D Code Readers
Name Model Field of vision
Special Lighting Lens V400-F250 14 x 18 mm
V400-F350 31 x 42 mm
C-Mount V400-F050 Changes according to the lens
Accessories (Order Separately) and Cables
Name Model Cable length Remarks
Communications Cable V400-W23 (NPN) 5 m For connection to SYSMAC Series PLC (in-
V400-W23P (PNP)
V400-W24 (NPN) For connection to an IBM PC/AT or compatible
V400-W24P (PNP)
Monitor Cable V400-WM0
Monitor
Name Model
LCD Monitor F150-M05L-2D
*1.
There is no need for an external power supply when this Monitor is used.(Power
is supplied from the V400-F.)
*1
cludes power line)
(includes power line)
A-1V400-F
Page 2
System Configuration
POWER
SYNC
Lighting
Moritex MG-Wave Series
recommended.
Lens
C mount
V400-F250/350
External Lighting Connector
V400-F050
Monitor Cable
V400-WM0*
5 m
V400-W23/23P*
5 m
Power Supply
V400-W24/24P*
5 m
Power Supply
Recommended power supply: OMRON S8VS-03024
*Use only the specified cable.
POWER
SYNC
LCD Color Monitor
F150-M05L-2D
SYSMAC Series PLC
Personal computer
(Connected to the RC-232C port)
The CS1W-CIF31 USB-Serial
Conversion Cable (mfd. by OMRON)
is recommended for connection to a
USB terminal.
Specifications
Model V400-F050 V400-F250 V400-F350
Dimensions 40 x 50 x 75.3 mm 40 x 50 x 97.1 mm
Working distance (WD) Depends on the lens. Approx. 100 mm Approx. 200 mm
Field of vision Depends on the lens. Approx. 14 x 18 mm Approx. 31 x 42 mm
Lighting Up to two can be directly
powered.
Image sensor 1/3" CCD
Effective pixels 640 x 480 pixels
Power supply voltage 24 VDC ±10%
Power consumption 0.5 A max.
Insulation resistance 20 MΩ min.
Withstand voltage 1,000 VAC for 1 min
Leakage current 0.25 mA max.
Noise resistance Power line: 2 kVp-p, Pulse width: 50 ns, Rise time: 5 ns, Consecutive burst time: 15 ms, Cycle: 300 ms
Applicable standards CE: EN 61326:1997, +A1:1998, +A2:2001 (EMI: Class A)
Vibration resistance 10 to 150 Hz, 0.35-mm half-amplitude (maximum acceleration: 50 m/s²)
10 times for 8 minutes each in 3 directions
Shock resistance 150 m/s² 3 times each in 6 directions
Ambient humidity Operating: 0 to 45°C, Storage: -25 to 65°C
Ambient temperature Operating/storage: 25% to 85% (with no icing or condensation)
Ambient environment No corrosive gasses
Degree of protection None IEC 60529 IP67
Weight Approx. 130 g Approx. 150 g
Red LED
A-2 Handheld 2D Code Reader
Page 3

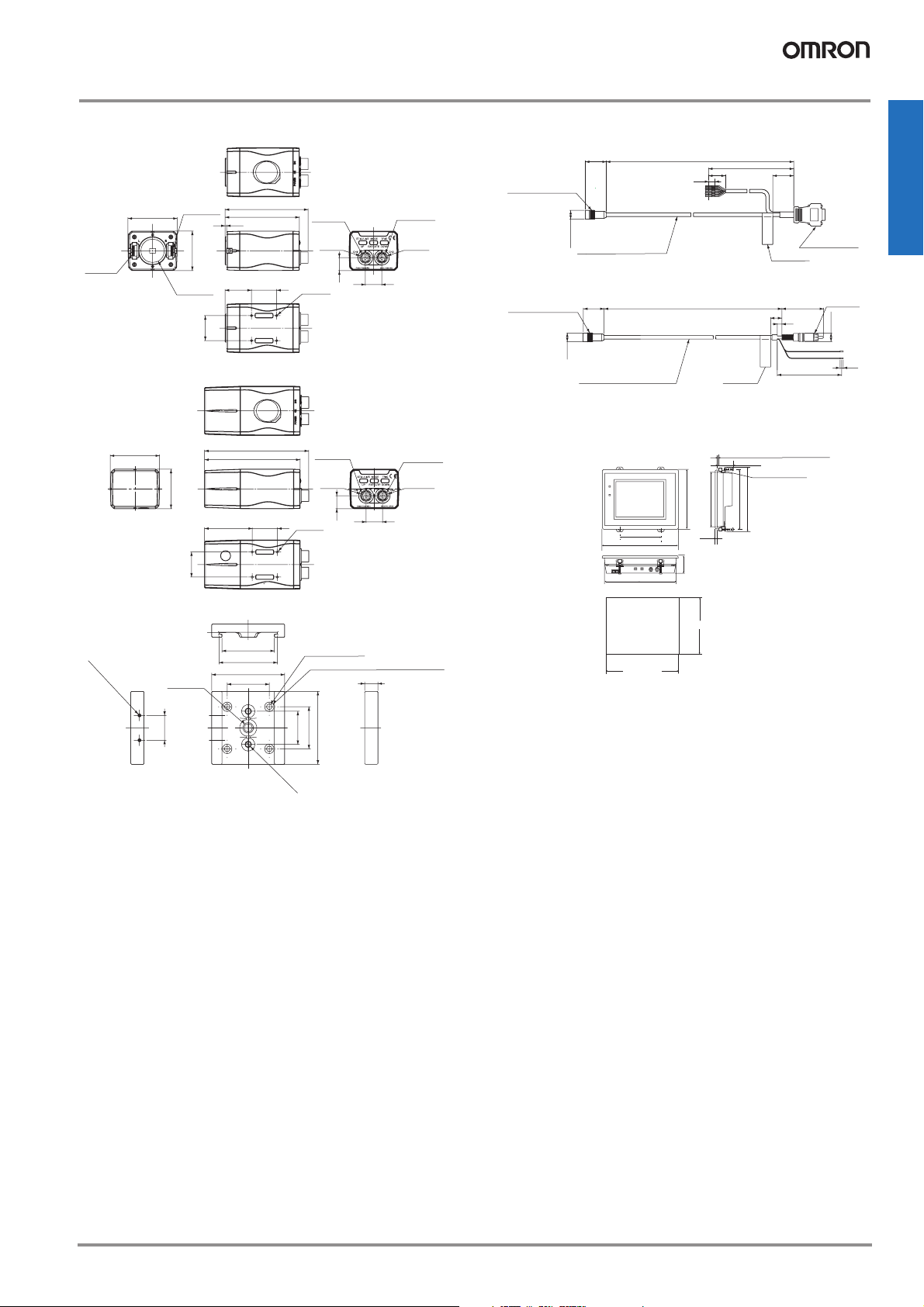

Dimensions
2D Code Readers
V400-F050
Lighting
connector
(R-CH)
50
Lighting
connector
(L-CH)
40
1"-32UN-2A
(C mount)
V400-F250/350
50
40
25.4
Mounting Base
Two M2, depth: 5
1/4-20UNC
25.4
48.6 25.4
1.6
26.8
(105.9)
31.6
35.2
44
25.4
97.1
(84.1)
75.3
25.4
Power supply,
communications
connector
11.5 dia.
(13.1)
Four M3,
depth: 5
Power supply,
communications
connector
11.5 dia.
(13.1)
Four M3,
depth: 5
Four 3.4-dia holes
Four 5.4-dia. countersunk holes, depth: 2.2
(16.8)
(16.8)
8
Monitor cable
connector
11.5 dia.
Monitor cable
connector
11.5 dia.
Communication Cable and Monitor Cable
V400-W23/23P/24/24P
12-pin round connector
39.8
Vinyl-insulated round cable,
15.5 dia.
6.5-dia. with 12 conductors
5000
20
500
50
50
Nameplate
V400-WM0
12-pin round connector
15.5 dia.
39.8
Vinyl-insulated round cable,
6.5-dia. with 3 conductors
5000
70
Nameplate
LCD Monitor
F150-M05L-2D
Mounting plate thickness: 1.6 to 4.8
(46 max.)
Mounting bracket
132
(155)
(145)
• Tolerance: ±1 mm
Panel Cutout
POWER
SYNC
(100)
185
174
175.5
+0.5 mm
0
42.2
143
133.5
(5.5)
+0.5 mm
0
V400-F
D-sub 9-pin
connector
RCA jack
60
40
12.2 dia.
10
150
15
holes
Two M4
44
20
25.4
A-3V400-F
Page 4
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. Q148-E2-01-X
In the interest of product improvement, specifications are subject to change without notice.
