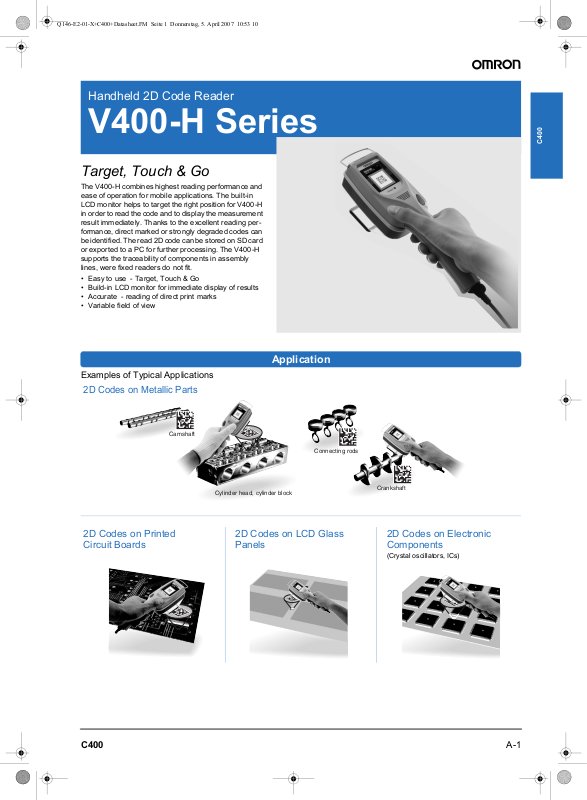

Handheld 2D Code Reader
V400-H Series
Target, Touch & Go
The V400-H combines highest reading performance and
ease of operation for mobile applications. The built-in
LCD monitor helps to target the right position for V400-H
in order to read the code and to display the measurement
result immediately. Thanks to the excellent reading performance, direct marked or strongly degraded codes can
be identified. The read 2D code can be stored on SD card
or exported to a PC for further processing. The V400-H
supports the traceability of components in assembly
lines, were fixed readers do not fit.
• Easy to use - Target, Touch & Go
• Build-in LCD monitor for immediate display of results
• Accurate - reading of direct print marks
• Variable field of view
C400
Examples of Typical Applications
2D Codes on Metallic Parts
Camshaft
2D Codes on Printed
Circuit Boards
Application
Cylinder head, cylinder block
2D Codes on LCD Glass
Panels
Connecting rods
Crankshaft
2D Codes on Electronic
Components
(Crystal oscillators, ICs)
A-1C400
Page 2
System Configuration
The Code Reader can be connected with other equipment via RS232C.
V400-W20-2M
V400-W21-2M
V400-H111
V400-H211
V400-W22-2M
Special AC Adaptor (V600-A22)
SYSMAC Series
Power Supply
(Recommended Power Supply: OMRON Model S8VS-01505)
Personal
computer
Power Supply
(Recommended Power Supply: OMRON Model S8VS-01505)
(Connect to RS-232C port.)
Personal
computer
(Connect to RS-232C port.)
Ordering Information
Main Unit
Name Model
2D Code Reader V400-H111 RS-232C 5 × 5 to 10 × 10 mm
V400-H211 RS-232C 15 × 15 to 30 × 30 mm
Communications interface Field of vision
Accessories (Purchase separately)
Name Model Cable length Remarks
Contactor
V400-AC2 ---
V400-W20-2M 2 m
V400-W20-5M 5 m
Communications Cable
AC Adaptor V600-A22 ---
V400-W21-2M 2 m
V400-W21-5M 5 m
V400-W22-2M 2 m
V400-W22-5M 5 m
Specifications
Remarks
Contactor for positioning
(detachable)
For SYSMAC Series connection
(with power cord)
For PC-compatible connection
(with power cord)
For PC-compatible connection
(when using AC Adaptor)
A-2 Handheld 2D Code Reader
Page 3
Rating and Specifications
Item V400-H111 V400-H211
Field of vision 5 × 5 to 10 × 10 mm 15 × 15 to 30 × 30 mm
Working distance 40 mm (flush when Contactor is mounted)
Power supply 5 VDC ±10%
Current consumption 1.0 A max.
Serial interface RS-232C
Applicable codes
Operation method Pressing the trigger button
Settings
Memory card SD Memory Card
Monitor 1.8 inch TFT LCD, displaying images and read data
Display illumination Operation display, memory card access
Ambient temperature Operation: 0 to 40 °C; storage: -25 to 60 °C
Ambient humidity 35 to 85% (with no condensation)
Ambient conditions No corrosive gases
Vibration resistance 10 to 150 Hz, single amplitude 0.35 mm (50 m2/s max. acceleration)
Shock resistance 150 m2/s in ±X, Y, and Z directions, 3 times
Weight Approx. 230 g
Degree of protection IEC 60529 IP64
Materials Case: ABS; optical surface: PC; display surface: PMMA
Data Matrix, ECC200, 10 × 10 to 64 × 64, 8 × 18 to 16 × 48, QR Code (Models 1, 2),
21 × 21 to 57 × 57 (Versions 1 to 10)
Make settings by using the manual setting window, uploading from an SD Memory Card,
or by using Support Software.
C400
A-3C400
Page 4

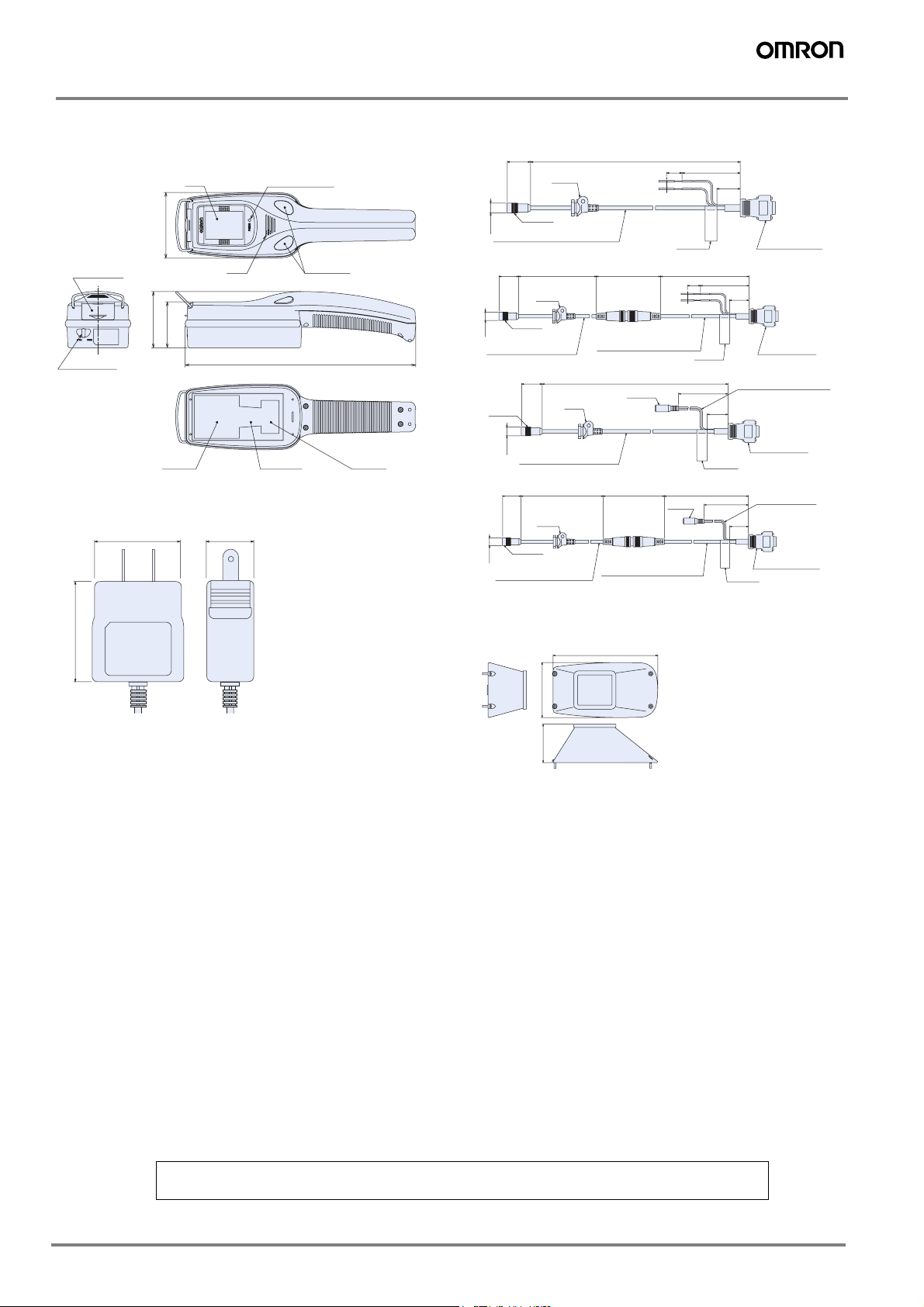

Dimensions (Unit: mm)
Main Unit
V400-H111
V400-H211
Memory Card Slot
Zoom Lever
AC Adaptor
V600-A22
55
64
45
Illumination
Monitor
Buzzer
25.448
Power Indicator (green)
Trigger Buttons
225
Reading Port
Illumination
Communications Cable
V400-W20-2M/W21-2M
29.8
Bush
Connector
12.6 dia.
Vinyl-insulated round cable, 5.4-dia. conductor
Standard length: 2 m
V400-W20-5M/W21-5M
29.8
Vinyl-insulated round cable, 5-dia.
12.6 dia.
with 4 conductors
Standard length: 2 m
V400-W22-2M
Connector
12.6 dia.
V400-W22-5M
29.8
12.6 dia.
Vinyl-insulated round cable, 5-dia.
with 4 conductors
Standard length: 2 m
500 (99)
Bush
Connector
29.8
Bush
Vinyl-insulated round cable, 5-dia.
with 4 conductors
Standard length: 2 m
500 5,000
Bush
Connector
2,000
Vinyl-insulated round cable, 6.1-dia.
with 8 conductors
Standard length: 2 m
Connector
Vinyl-insulated round cable, 6.1-dia.
with 8 conductors
Standard length: 2 m
2,000
(99)
20
Nameplate
Connector
300
30
5,000
20 200
30
Nameplate
Vinyl-insulated round cable, 2 x 2-dia.
with 2 conductors
Standard length: 0.2 m
200
30
Nameplate
200
30
Nameplate
D-sub 9-pin connector
D-sub 9-pin connector
D-sub 9-pin connector
Vinyl-insulated
round cable, 2 x 2-dia.
with 2 conductors
Standard length: 0.2 m
D-sub 9-pin connector
Contactor
54
V400-AC2
109
57
40
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. Q146-E2-01-X
In the interest of product improvement, specifications are subject to change without notice.
