Programmes After Market Services (PAMS)
Technical Documentation
NON–SERVICEABLE
ACCESSORIES
PAMS
Technical Documentation
AMENDMENT RECORD SHEET
NHB–3
Non Serviceable Accessories
Amendment
Number
Date Inserted By Comments
Original 26/97
Page 2
PAMS
Technical Documentation
NHB–3 ACCESSORY OVERVIEW
Contents
Battery Packs BBH–1S (NiMH 550mAh), BTH–2S (NiCd 400mAh) Page 4
Specification Page 4
Battery Packs BBH–1H (NiMH 1500mAh), BBH–2H (NiCd 1200mAh) Page 5
Specification Page 5
Battery Pack BBH–1XV (NiMH Vibra 550mAh) Page 6
Specification Page 6
AC Rapid Charger ACH–4U Page 7
Specification Page 7
AC Power Supply ACS–6U Page 8
Specification Page 8
SWH–1 Carry Strap Page 9
In Car Holder MBH–6 Page 10
Specification Page 10
Mounting Plate MKE–1 Page 11
Specification Page 11
Assembly Parts Page 11
Swivel Mount HHS–1 Page 12
Specification Page 12
Assembly Parts Page 12
Data Cable DKH–4 Page 13
Specification Page 13
PCMCIA Card DTP–8 Page 14
Specification Page 14
NHB–3
Non Serviceable Accessories
Original 26/97
Page 3
PAMS
Technical Documentation
Battery Packs BBH–1S/2S.
NHB–3
Non Serviceable Accessories
The BBH–1S/2S is a NiMH/NiCd light battery pack to provide an acceptable
level of performance in a package (ie including phone) weighing 234g/236g
Product Code
Battery pack BBH–1S 0670027
Battery Pack BBH–2S 0670029
Specification
Dimensions (h x w d): 101 x 56 x 8 mm/101 x
56 x 8 mm
Weight: 100g/102g
Capacity: 550 mAh/400mAh
Original 26/97
Page 4
PAMS
Technical Documentation
Battery Pack BBH–1H/2H.
NHB–3
Non Serviceable Accessories
The BBH–1H/2H is a NiMH/NiCd extended battery pack to provide an acceptable level of performance in a package (ie including phone) weighing
318g/308g
Product Code
Battery Pack BBH–1H: 0670028
Battery Pack BBH–2H: 0670030
Specification
Dimensions (h x w x d): 101 x 56 x 20mm/101 x 56 x 20mm
Weight: 165g/155g
Capacity: 1500 mAh/1200mAh
Original 26/97
Page 5
PAMS
Technical Documentation
BBH–1XV Battery Pack (NiMH Vibra 550mAh)
NHB–3
Non Serviceable Accessories
G0670119
The BBH–1XV is a NiMH vibrating battery pack to provide an acceptable level
of performance in a package (ie including phone) weighing 254g.
Product Code
Battery Pack BBH–1XV 0670119
Specification
Dimensions (h x w x d): 101 x 56 x 15mm
Weight: 120g
Capacity: 550 mAh
Original 26/97
Page 6
PAMS
Technical Documentation
AC Rapid Charger ACH–4U
NHB–3
Non Serviceable Accessories
A light and compact fast AC charger designed to charge the batteries over periods of time ranging from 40 mins (battery type BTH–1S/H) to 100 mins
(BTH–2S/H)
Product Code
Rapid Charger ACH–4U 0675036
Specification
Dimensions in mm (h x w x d): 52 x 35 x 73
Weight in g: 95
Weight in g: 95
Input Voltage: 120V ac +
Output Voltage: 12V +
Output Current: 800mA +
Cable Length in m: 2
10% (4U)
1V
70mA
Original 26/97
Page 7
PAMS
Technical Documentation
AC Power Supply ACS–6U
NHB–3
Non Serviceable Accessories
Designed to power the Handsfree Desktop Charger CHH–8P.
Product Code
AC Power Supply ACS–6U 0680018
Specification
Dimensions in mm (h x w x d): 96 x 63 x 72.8
Weight in g: 500
Input Voltage: 120V ac +
Output Voltage: 13.8 V dc
Output Current: 900mA
Cable Length in m: 2
10% (6U)
Original 26/97
Page 8
PAMS
Technical Documentation
SWH–1 Carry Strap
NHB–3
Non Serviceable Accessories
The wrist strap provides a means of carrying the phone.
Product Code
Carry Strap SWH–1 0720005
Original 26/97
Page 9
PAMS
Technical Documentation
MBH–6 Mobile Holder
NHB–3
Non Serviceable Accessories
The MBH–6 In–Car Holder is designed primarily for a basic car installation ie in
conjunction with the Cigarette Lighter Charger (LCH–2). However, the holder
also forms part of the Compact Handsfree Car Kits (CARK10P).
The MBH–6 In–Car Holder comes complete with a mounting kit (MKE–1).
Specification
Dimensions in mm (h x w x d): 43.5 x 73 x 73
Weight in g: 55
Original 26/97
Page 10
PAMS
Technical Documentation
Mounting Plate MKE–1
NHB–3
Non Serviceable Accessories
The MKE–1 Mounting Plate provides a mehtod of fixing the in–car holder
(MBH–6) to the vehicle interior. The in–car holder, normally comes complete
with MKE–1 and, in certain countries, an anti–vibration mount (MKA–1). The
MBH–9 ”kit” also forms part of the Compact Handsfree Car Kit (CARK10P).
Specification
Dimensions in mm (h x w x d): 7.3 x 45 x 48
Weight in g: 8
Assembly Parts
ITEM
1 9460016 Cradle Adaptor CRE–1 3D 21416
2 4 6270405 Screw 3.5 x 16 DIN7981 FeZn
3 4 6150330 Screw M3 x 8 4D 22336
4 4 6292279 Screw KB30 x 10
QTY CODE DESCRIPTION VALUE, TYPE
black
Original 26/97
Page 11
PAMS
Technical Documentation
Swivel Mount HHS–1
NHB–3
Non Serviceable Accessories
The HHS–1 Swivel Mount provides an alternative (to MKE–1) method of locating the in–car holder (MBH–6). The swivel mount also forms part of the Compact Car Kit (CARK10P)
Specification
Dimensions in mm (h x w x d): 20 x 44.5 x 48
Weight in g: 30
ITEM
1 6190460 Screw M5 x 20 DIN912 FeZn 8.8 Yellow
2 6270405 Screw 3.5 x 16 DIN7981 FeZn Black
3 6292279 PT screw KB30 x 10 WN1442 FeZn Black
4 6310601 Nut M5 DIN934 FeZn Yellow
5 9302119 Joint Support 3D 20097
6 2 93021260 Joint Part 3D 20098
7 9310261 Support Bracket of Screw 4D 20439
8 9310279 Support of Nut 4D 20440
9 9450036 Cradle Holder 2D 21419
QTY CODE DESCRIPTION VALUE, TYPE
Original 26/97
Page 12
PAMS
Technical Documentation
DKH–4 Data Cable
NHB–3
Non Serviceable Accessories
The cable forms the interface between DTP–8 Data Card and a PCMCIA slot in
a PCMCIA compatible computer.
Product Code
DKH–4 Data Cable 0730037
Specifications
Length: 600m
Weight: 28g
Original 26/97
Page 13
PAMS
Technical Documentation

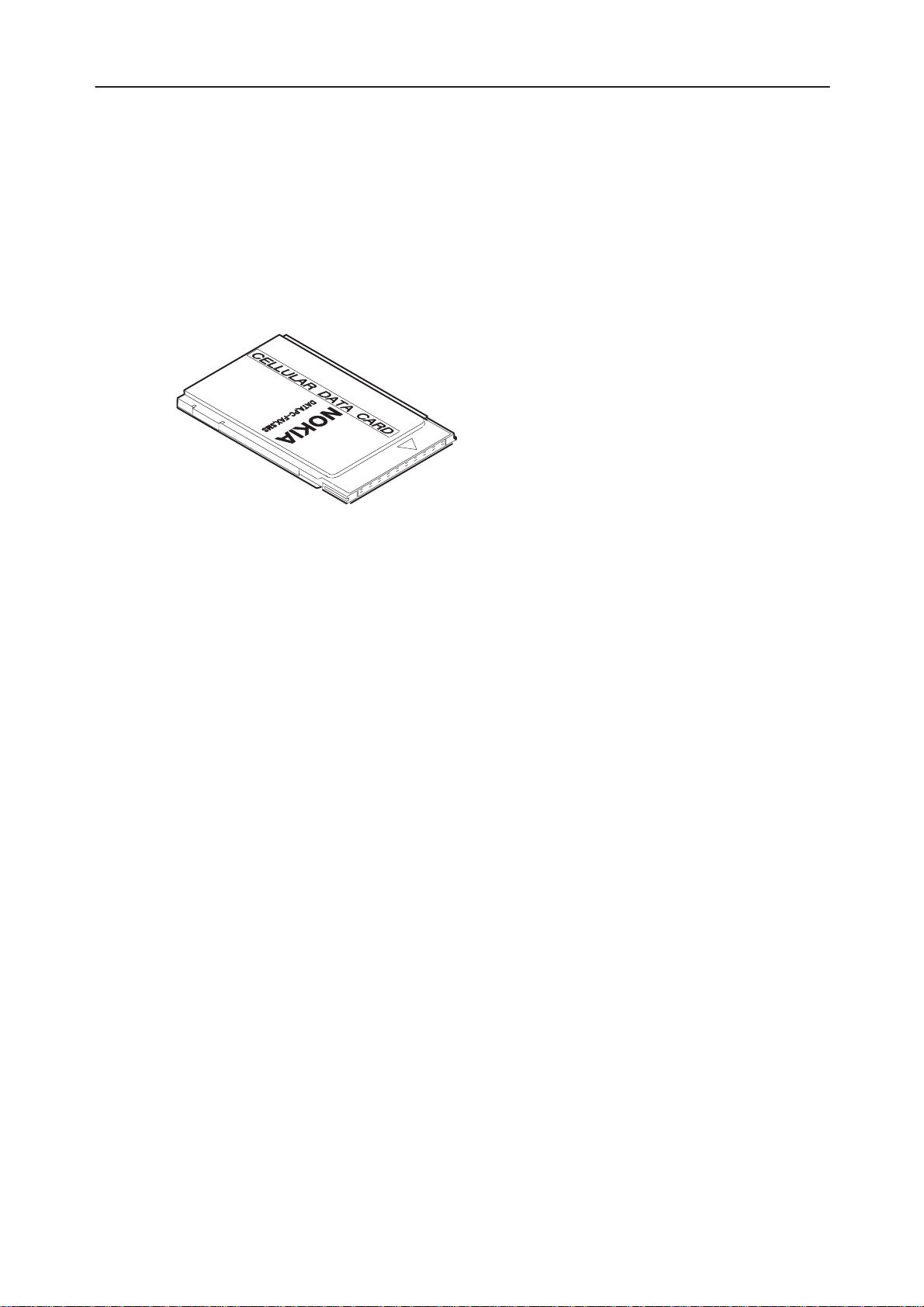

DTP–8 Data Card
G0750029
NHB–3
Non Serviceable Accessories
Forms part of the PCMCIA kit. The kit allows a modem connection between the
phone and a PCMCIA–compatible computer. The credit card sized modem
plugs into any computer with a PCMCIA slot.
Product Code
Data Card DTP–8 0750088
Original 26/97
Page 14
