System Module GR8

Introduction

GR8 is the baseband/RF module NHE–4 cellular tranceiver. The GR8 module carries out all the system and RF functions of the tranceiver. System module GR8 is designed for a handportable phone, that operate in GSM system.

Technical Section

All functional blocks of the system module are mounted on a single multi layer printed circuit board. The chassis of the radio unit has separating walls for baseband and RF. All components of the baseband section are surface mountable. They are soldered using reflow. The connections to accessories are taken through the bottom connector of the radio unit. The connections to the User Interface module (UIF) are fed through a flex connector. There is no physical connector between the RF and baseband sections.

01/98OJ Technical Documentation

8–3

WARNINGS

The maximum battery voltage during the transmission should not exceed 8.0 V. Higher battery voltages may destroy the power amplifier. This will be quaranteed by hardware based limiting which has maximum value 7.6

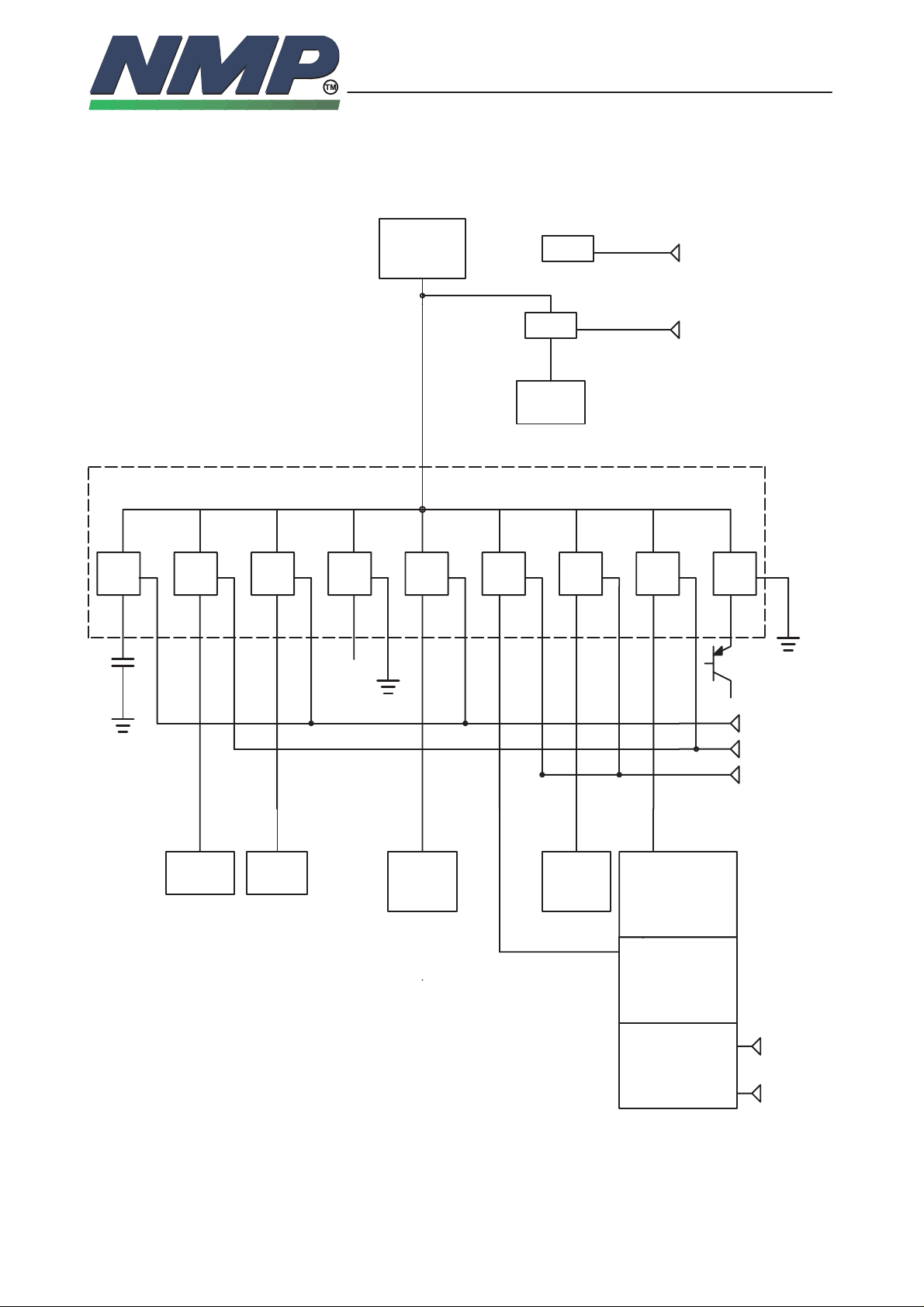

External and Internal Connectors

The system module has two connector, external bottom connector and internal UIF module connector.

Battery connector

Antenna connector

X100

Charging connector

0.3 V.

System connector

X196

UIF module connector

D0000323

SYSTEM MODULE GR8

NHE–4

Bottom Connector X100

System Connector

Pin: Name: Description: 1, 9 GND Digital ground

2 MIC/JCONN External audio input from accessories or

3 AGND Analog ground for accessories. Connected

4 TDA Transmitted DBUS data to the accessories. 5 M2BUS Serial bidirectional data and control between

6 HOOK/RXD2 HOOK indication. The phone has a 100 kΩ

01/98OJ Technical Documentation

handsfree microphone. Multiplexed with junction box connection control signal.

16.8 kΩ pull down in phone.

directly to digital ground on the PCB.

the handportable and accessories.

pull–up resistor. Data to flash from flash programmer.

8–4

7 PHFS/TXD2 Handsfree device power on/off. Data to flash

programming device. 8, 16 VCHAR Battery charging voltage. 10 EAR/HFPWR External audio output to accessories or

handsfree speaker. 100 kΩ pull–down resistor

in phone to turn on the junction box. 11 DSYNC DBUS data bit sync clock. 12 RDA DBUS received data from the accessories. 13 NC Not used. 14 VF Programming voltage for flash. 15 DCLK DBUS data clock.

SYSTEM MODULE GR8

NHE–4

Battery Connector

Pin: Name: Description: 1 GND Ground

2 TBAT Battery temperature 3 BTYPE Battery type 4 VBATT Battery voltage

Charging Connector

Pin: Name: Description: 1 VCHAR Battery charging voltage

2 GND Ground 3 VCHAR Battery charging voltage 4 GND Ground

01/98OJ Technical Documentation

8–5

Antenna Connector

Pin: Name: Description: 1 RF EXT External antenna signal

2 GND Ground

SYSTEM MODULE GR8

NHE–4

UIF Module Connector X196

Pin: Name: Description: 1 VL1 Logic supply voltage 4.65 V

2 GND Ground 3, 30 VBATT Battery voltage 4 BACKLIGHT Backlights on/off 5 – 8 UIF(0;3) Lines for keyboard read and LCD controller 9 UIF4 Line for keyboard read and LCD controller

10 UIF5 Line for keyboard read and LCD controller

11 UIF6 LCD controller enable strobe 12 MIC ENA Microphone bias enable

01/98OJ Technical Documentation

read/write strobe

data/instruction register selection

8–6

13 – 16 COL(0;3) Lines for keyboard write 17 CALL LED Call LED enable 18 MICP Microphone (positive node) 19 MICN Microphone (negative node) 20 EARP Earpiece (negative node) 21 EARN Earpiece (positive node) 22 BUZZER PWM signal buzzer control 23 XPWRON Power key (active low) 24 VA1 Analog supply voltage 4.65 V 25 SIMCLK Clock for SIM data 26 SIMRESET Reset for SIM 27 VSIM SIM voltage supply voltage 28 SIMDATA Serial data for SIM 29 AGND Analog ground

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

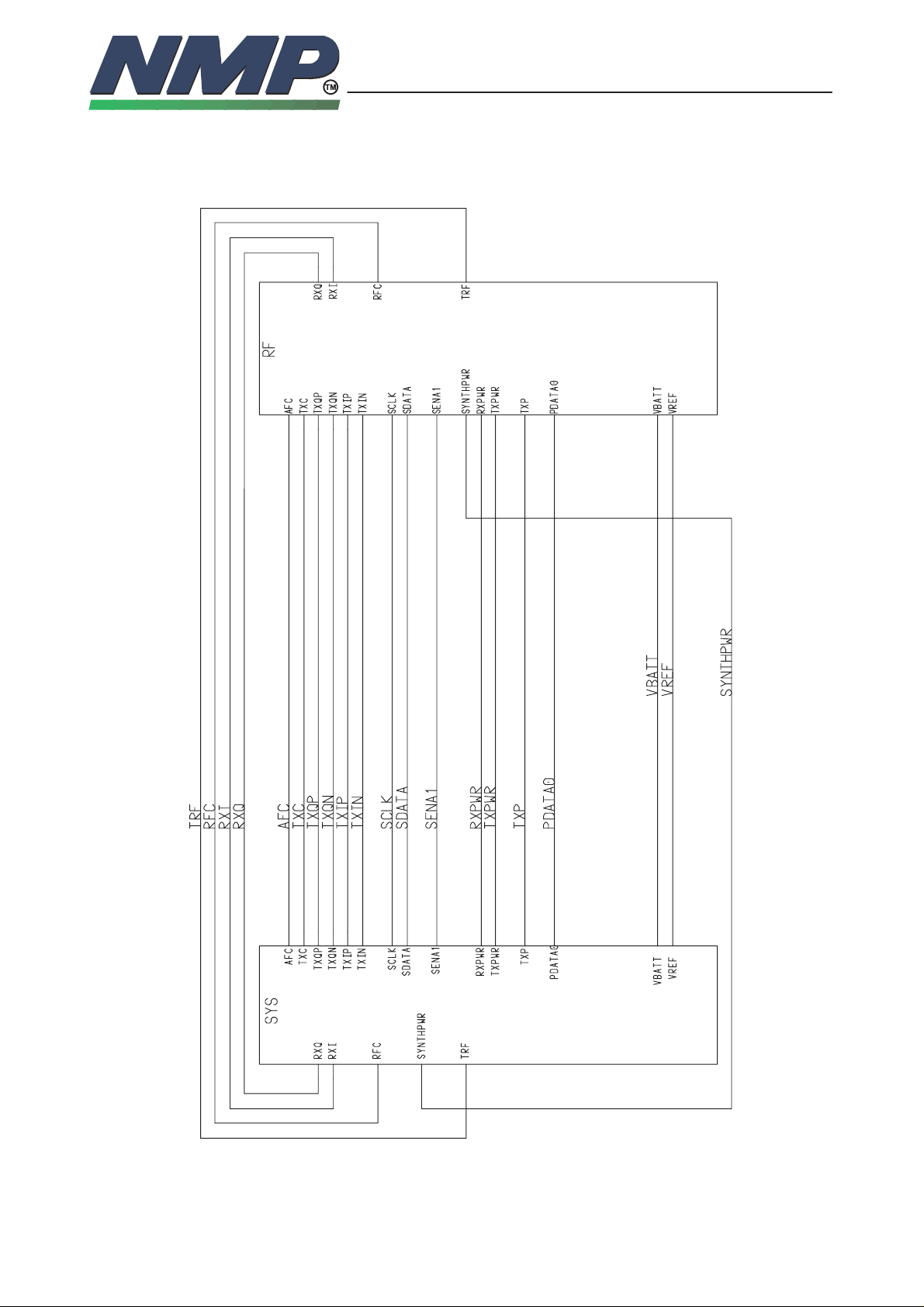

Internal Signals Between RF and ASIC

Symbol: Description: Values: SCLK Synthesizer clock

• load impedance:

• frequency:

SDATA Synthesizer data

• load impedance:

• data rate frequency:

SENA1 Synthesizer enable

• PLL contr. disabled:

• PLL activated:

• current:

RXPWR RX supply voltage on/off

• RX supply voltage on:

• RX supply voltage off:

• current:

8–7

10 k

Ω

3.25 MHz

10 k

Ω

3.25 MHz

4.5...4.65...4.8 V

0...0.2...0.7 V 50 µA

4.5...4.65...4.8 V

0...0.2...0.7 V

0.5 mA

SYNTHPWR Supply voltage on/off

• RF regulators on:

• RF regulators off:

• current:

TXPWR TX supply voltage on/off

• TX supply voltage on:

• TX supply voltage off:

• current:

TXP TX enable

• transmitter power enable:

• transmitter power disable:

CLKIN 26 MHz clock to ASIC

4.5...4.65...4.8 V

0...0.2...0.7 V

1.0 mA

4.5...4.65...4.8 V

0...0.2...0.7 V

0.5 mA

4.5...4.65...4.8 V

0...0.2...0.7 V

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Internal Signals Between RF and RFI

Symbol: Description: Values: AFC Automatic frequency control voltage

• voltage min/max:

• resolution:

• load impedance (dynamic):

TXC TX transmit power control voltage

• voltage range min/max:

• impedance:

TXQP,TXQN Differential TX quadrature signal

• differential voltage swing:

• D.C. level:

• load impedance:

TXIP,TXIN Differential TX inphase signal

• differential voltage swing:

• D.C. level:

• load impedance:

8–8

0.35...4.35 V 11 bits 10 k

Ω

0.3...4.2 V 10 k

Ω

1.15...1.2...1.25 V

2.30...2.35...2.40 V 30 k

Ω

1.15...1.2...1.25 V

2.30...2.35...2.40 V 30 k

Ω

PDATA0 Front end AGC control

• reduced front end gain:

• normal front end gain:

• current:

RXQ RX quadrature signal

• output level:

• source impedance:

RXI RX inphase signal

• output level:

• source impedance: 470 Ω

0...0.2...0.7 V

4.5...4.65...4.8 V

0.1 mA

25 mV 470

25 mV

Ω

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Functional Description of Baseband Block

The purpose of the baseband module is to control the phone and process audio signals to and from RF. The module also controls the user interface.

Technical Specifications

There are three different operation modes: – active mode – idle mode – power off mode In the active state all circuits are powered and part of the module may be in idle

mode. The module is usually in the idle mode when there is no call and the phone is in

SERV. In the idle mode circuits are reset, powered down and clocks are stopped or the frequency reduced. All the clocks except the main clock from VCTCXO can be stopped in that mode. Whether the SIM clock is stopped or not depends on the network.

8–9

In power off mode only the circuits needed for power up are powered. This means that only power up block inside the PSL+ is powered. The power key on the flex is pulled up with a pull up resistor inside the PSL+.

Names of Functional Blocks

Name: Function: CTRLU Control unit for phone

PWRU Power supply DSPU Digital signal processing block AUDIO Audio coding ASIC D2CA GSM/PCN system ASIC; several functions RFI RF baseband interface

SYSTEM MODULE GR8

NHE–4

Clocking Scheme

DSP Clock

60.2 MHz differential sine wave

OSCILLATOR

ear

mouth

AUDIO CODEC

DSP

01/98OJ Technical Documentation

RFI Clock 13 MHz

Sleep Mode: 135.4kHz

enable

RFI

ASIC

8–10

RF System Clock

26 MHz

VCTCXO

SIMCLKSIMCLK

3.25 / 1.625 MHz

Codec Sync Clock

8 kHz

DBUSCLK 512kHz

DBUSSYNC 8kHz

Most of the clocks are generated from the 26 MHz VCTCXO frequency by the ASIC:

– 26 MHz clock for the MCU. MCU‘s internal clock frequency is half of

– 13 MHz for the RFI. The ASIC also generates 135.4 kHz sleep mode clock

– 3.25 MHz clock for SIM. When there is no data transfer between the SIM

– 512 kHz main clock for the codec and for the data transfer between the DSP

MCU Clock

Codec Main Clock and data Transfer clock

512kHz

26 MHz

MCU

that (13 MHz).

for the RFI.

card and the HP the clock can be reduced to 1.625 MHz. Some SIM cards also allows the clock to be stopped in that mode.

and the codec.

– 8 kHz synchronization clock for data transfer between the DSP and the co-

dec.

– 512 kHz clock and 8 kHz sync. clock for the DBUS data transfer.

SYSTEM MODULE GR8

NHE–4

The DSP has its own crystal oscillator which can be turned off and on by the ASIC. The DSP uses differential sinusoidal clock. The frequency is 60.2 MHz.

The system ASIC generates 8 kHz clock to the codec for the control data transfer.

In the idle mode all the clocks can be stopped except 26 MHz main clock coming from the VCTCXO.

Reset and Power Control

reset in

DSP

01/98OJ Technical Documentation

RFI

Reset Out Reset Out

ASIC

Vcc Reset in

resetreg

8–11

SIMReset

PSL+

VL1

XRES reset in

XPWRON

XPwrOff

approx 2Hz

There are three different ways to switch power on: – Power key pressing grounds the XPWRON line. The PSL+ detects that and

switches the power on.

– Charger detection on PSL+ detects that charger is connected and switches

power on.

– PSL+ will switch power on when the battery is connected. After that the

MCU will detect if power key is pressed or charger connected. If not the power will be switched off.

All devices are powered up at the same time by the PSL+. It supplies the reset to the ASIC at power up. The ASIC starts the clocks to the DSP and the MCU. After 100 ms PSL+ releases the reset to ASIC.

XPWRON

MCU

SYSTEM MODULE GR8

NHE–4

ASIC releases MCU and RFI reset after 256 13 MHz clock cycles. DSP reset release time from DSP clock activation can be selected from 0 to 255 13MHz clock cycles. In our case it is 255. SIM reset release time is according to GSM SIM specifications.

To turn power off the user presses the PWR key. The MCU detects this. The MCU cuts off any ongoing call, exits all tasks, acts inoperative to the user and leaves the PSL+ watchdog without resets. After power–down delay, the PSL+ cuts off the supply from all circuitry.

If charging is on the phone stays on but it looks to the user like it is powered off (lights are off and the display is blank) except the charging indicator stays on.

Watchdog System

01/98OJ Technical Documentation

8–12

reset

DSP

ASIC

POWER

PSL

XPWROFF

reset

MCU

Normal operation:

1. MCU tests DSP

2. MCU updates ASIC watchdog timer (> 2 Hz)

3. MCU pulses the XPWROFF input on the PSL+ (about 2 Hz) Failed operation:

4. ASIC resets MCU and DSP after about 0.5 s failure

5. PSL+ switches power off about 1.5 s after the previous XPWROFF pulse

SYSTEM MODULE GR8

NHE–4

CTRLU

01/98OJ Technical Documentation

8–13

The Control block contains a microcontroller unit (MCU) and three memory circuits (FLASH, SRAM, EEPROM), a 20 bit address bus, an 8 bit data bus and memory circuit control signals.

Main Features of the CTRLU block: MCU functions: – system control – communication control – user interface – authentication – RF monitoring – power up/down control – accessory monitoring – battery monitoring and charging control – self–test and production testing – flash loading

Main Components of CTRLU

– Hitachi H8/536

H8/536 is a CMOS microcontroller unit (MCU) comprising a CPU core and on–chip supporting modules with 16–bit architecture. The data bus to outside world has 8 bits.

– 1024k*8bit FLASH memory

– 150 ns. maximum read access time with 1 wait state – contains the main program code for the MCU; part of the DSP

program code also located on FLASH

– ASIC can address two 4 Mbit memories or one 8 Mbit memory.

– 32 k x 8 bit SRAM memory

– 100 ns. maximum read access time

– 8 k x 8 bit EEPROM memory

– 250 ns. maximum read access time with 1 wait state – contains user defined information. – there is a register bit on the ASIC which must be set before the

write operation to the EEPROM.

SYSTEM MODULE GR8

NHE–4

Input Signals of CTRLU

Name(from): Description: VL1(PWRU) Power supply voltage for CTRLU block

VREF(PWRU) Reference voltage for MCU A/D converter VBATDET(PWRU) Battery voltage detection VC(PWRU) Charger voltage monitoring ROMAD18(ASIC) ROM address (paging) EROMSELX(ASIC) Chip select for the EEPROM memory ROMSELX(ASIC) Chip select for the FLASH memory ROM2SELX(ASIC) Chip select for the second FLASH memory RAMSELX(ASIC) Chip select for the SRAM memory RESETX(ASIC) Reset signal for MCU NMI(ASIC) Non–maskable interrupt request

01/98OJ Technical Documentation

8–14

MCUCLK(ASIC) Main clock for MCU IRQX(ASIC) Interrupt request PCMCDO(AUDIO) Audio codec control data receiving TRF(RF) RF module temperature detection VF(syst.conn.) Programming voltage for FLASH memory RXD2_HOOK The use of handsfree monitoring

(syst.conn.) FLASH programming data input on the production line TBAT(batt.conn.) Battery temperature detection. Vibra cont. for vibrabattery. BTYPE(batt.conn.) Battery size identification MIC_JCONN Junction box connection identification

(sys.conn.)

Output Signals of CTRLU

Name(to): Description: XPWROFF(PWRU) Power off control, PSL+ watchdog reset

PWM(PWRU) Charger on/off control VOLTLIM(PWRU) Voltage limiting; affects to HW voltage limit level WSTROBEX(ASIC) MCU write strobe RSTROBEX(ASIC) MCU read strobe MCUAD(19:0)(ASIC)20 bit MCU address bus MBUSDET(ASIC) MBUS activity detection

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

BATDET(ASIC) Battery type and SIM card presence detection PCMCLK(AUDIO) Clock for audio codec control data transfer PCMCDI(AUDIO) Audio codec control data transmitting XSELPCMC(AUDIO)Chip select for audio codec TXD2_PHFS Power on/off control for HF device, verification output

(syst.connector) of the programmed data of FLASH during programming CALL_LED(UIF) ’Incoming’ call indicator light control BACKLIGHT(UIF) LCD and display backlight on/off control BUZZER(UIF) Buzzer signal

Bidirectional Signals of CTRLU

Name(to/from): Description: MCUDA(7;0)(ASIC) MCU’s 8 bit data bus

8–15

M2BUS(sys. conn) Asynchronous serial data bus

Block Description of CTRLU

– MCU – memories

The MCU has a 20 bits wide address bus A(19:0) and an 8 bit data bus with memories. The address bits A(19:16) are used for chip select decoding. The decoding is done in the D2CA ASIC. The ASIC can address two 4 Mbit (or smaller) or one 8 Mbit flash memories. Hitachi HD647536 processor has internal ROM and RAM memories. One wait state is used with external memory access.

On the Hitachi HD647536 internal memory map there is the following:

• 00000 – 001FF Vector tables

• 00200 – 0F67F 62 k bytes internal ROM

• 0F680 – 0FE7F 2 k bytes internal RAM

• 0FE80 – 0FFFF 384 bytes register field

• 10000 – 1FFFF 32 k * 8 bytes RAM

• 20000 – 2FFFF 8 k * 8 bytes EEPROM

• 30000 – 3FFFF 26 * 8 bytes ASIC

• 40000 – 7FFFF 2 Mbit Flash, paged by ASIC page bit to 4 Mbit

• 80000 – FFFFF 4 Mbit Flash

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Chip select generation: Chip select: Page: A19: A18: A17: A16:

RAM X 0001 EEPROM X 0010 ASIC X 0011 FLASH1 (8 Mbit) X 1 X X X

– Flash programming

In flash programming a special flash programming box and a PC is needed. Loading is done through the bottom connector of HP; multiplexed with HOOK and PHFS line. First MCU goes to minimum mode (MBUS command from PC or if MBUS is connected to MIC_JCONN line in power up). Then the flash software is loaded from PC to flash loading box. When the loading is complete flash loading to HP can be started by MBUS command from PC to the MCU. After that the MCU asks the test box to start flash loading to HP. The box supplies 12 V programming voltage for flash and starts to send 250 bytes data blocks to the MCU via HOOK line. The baud rate is 406 kbit/s. The MCU calculates the check sum, sends acknowledge via PHFS line and sends the data to flash. When all the data is loaded the HP makes reset and tells the flash loading box if the loading was succeeded or not. Only PSL+, ASIC and MCU must be active during the loading.

8–16

– CTRLU – PWRU

MCU controls the watchdog timer in PSL+. It sends a positive pulse at approximately 2 Hz to XPWROFF pin of the PSL+ to keep the power on. If MCU fails to deliver this pulse, the PSL+ will remove power from the system. MCU also controls the charger on/off switching in the PWRU block. When power off is requested or MCU leaves PSL+ watchdog without reset. After the watchdog time has elapsed PSL+ cuts off the supply voltages from the phone.

SYSTEM MODULE GR8

NHE–4

– CTRLU – ASIC

MCU and ASIC have a common 8–bit data bus and a 9–bit address bus. Bits A(4:0) are used for normal addressing whereas bits A(19:16) are decoded in ASIC to chip select inputs for CTRLU memories. ASIC controls the main clock, main reset and interrupts to MCU. The internal clock of MCU is half the MCUCLK clock speed. RESETX resets everything in MCU except the contents of the RAM. IRQX is a general purpose interrupt request line from ASIC. After IRQX request the interrupt register of the ASIC is read to find out the reason for interrupt. NMI interrupt is used only to wake up MCU from software standby mode.

– CTRLU – DSPU

MCU and DSP communicate through ASIC. ASIC has an MCU mailbox and a DSP mailbox. MCU writes data to DSP mailbox where DSP can only read the incoming data. In MCU mailbox the data transfer direction is the opposite. When power is switched on the MCU loads data from the flash memory to DSP‘s external memory through this mailbox.

01/98OJ Technical Documentation

8–17

– CTRLU – AUDIO

When the the chip select signal XSELPCMC goes low, MCU writes or reads control data to or from the speech codec registers at the rate defined by PCMCLK. PCMCDI is an output data line from MCU to codec and PCMCDO is an input data line from codec to MCU.

– CTRLU – RF/BATTERY monitoring

MCU has internal 8 channel 10 bit AD converter. Following signals are used to monitor battery, charging and RF:

– BTYPE battery size – TBAT battery temperature (used also for

vibrabattery control) – VBATDET battery voltage – VC charging voltage – TRF RF temperature

– CTRLU – keyboard and LCD driver interface

MCU and user interface communication is controlled through ASIC.

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

– CTRLU – ACCESSORIES

M2BUS is used to control external accessories. This interface can also be used for factory testing and maintenance purposes.

There are also some control and indication signals for the accessories:

– PHFS is used to turn power on to HF accessories. – JCONN is used to indicate that junction box is connected. Phone

can also enter minimum mode when M2BUS is connected to

MIC_JCONN line. – HOOK is used to indicate accessories hook state. – TBAT is used to control vibrabattery. (Used also for monitoring

battery temperature.)

8–18

SYSTEM MODULE GR8

NHE–4

PWRU

The power block creates the supply voltages for the baseband block and contains the charging electronics.

Main Components of PWRU

– PSL+ ASIC

Generates voltages, contains power on switch, charger and battery voltage detector and watchdog.

– Transistor BCP69–25 and schottky STPS340U

The charging current is passed through these components.

– Transistor BCX51 and BCP69–25

VL regulators of PSL+ external output transistors.

Input Signals of PWRU

01/98OJ Technical Documentation

8–19

Name(from): Description: XPWRON(UIF) PWR on switch

XPWROFF(CTRLU) Power off control VOLTLIM(CTRLU) Voltage limiting; affects HW voltage limit level VBATT(syst.conn.) Battery voltage PWM(CTRLU) Charger on/off control VCHAR(syst.conn.) Charging voltage

Output Signals of PWRU

Name(from): Description: XRES(ASIC) Master reset

CHRDET(ASIC) Battery charger detection VL1(CTRLU,ASIC, Logic supply voltage, max 150 mA

RFI,UIF) VL2(DSPU) Logic supply voltage, max 150 mA VA1(AUDIO,UIF) Analog supply voltage, max 40 mA VA2(RFI) Analog supply voltage, max 80 mA VREF(CTRLU,RF) Reference voltage 4.65 V ±2 %, max 5 mA VBATDET(CTRLU) Switched VBATT divided by 2 VC(CTRLU) Attenuated VCHAR

SYSTEM MODULE GR8

NHE–4

Block Description of PWRU

The PSL+ IC produces the following supply voltages: Name: Description:

VL1, VL2 150 mA for logic VA1 40 mA for audios VA2 80 mA for RFI VREF 5 mA reference In addition, it has internal watchdog, voltage detection and charger detection

functions. The watchdog will cut off output voltages if it is not reset once in every 1.5 (±0.75) second. The voltage detector resets the phone if the battery voltage falls below 4.8 V (±0.2 V). The charger detection starts the phone if it is in power–off state when the charging voltage is applied.

The charging electronics is controlled by the MCU. When the charging voltage is applied to the phone and the phone is powered up, the MCU detects it and starts controlling charging. If MCU detects too high charging voltage (over 14 volts) or current (over 78 A/D bit difference between VC and VBATDET) it will cut off the charging. The phone will accept charging voltages from 5 to 14 volts.

01/98OJ Technical Documentation

8–20

If the phone is in power–off state, the PSL+ will detect the charging voltage and turn on the phone. If the battery voltage is high enough the reset will be released and the MCU will start controlling charging. If the battery voltage is too low the phone stays in reset state and the charging control circuitry will pass charging current to the battery. When the battery voltage has reached 5.25 V (± 0.2 V) the reset will be removed and the MCU starts controlling charging.

MCU controls the charging with pulse width modulation output. Charging voltage is limited by hardware in normal operation to 8.9 V and during a call to

7.6 V. Battery and charging voltages are calibrated in production; 6V is fed to the bat-

tery and charger pin and the MCU‘s A/D converter values are stored to EEPROM.

SYSTEM MODULE GR8

NHE–4

DSPU

01/98OJ Technical Documentation

Main interfaces of the DSP: – MCU via ASIC mailbox – ASIC – audio codec – data bus interface (DBUS) for accessories – digital audio interface (DAI) for type approval measurements Main features of the DSP block: – speech processing

– speech coding/decoding

– RPE–LTP–LPC (regular pulse excitation long term

prediction linear predictive coding) – voice activity detection (VAD) for discontinuous transmission

(DTX)

8–21

– comfort noise generation during silence – acoustic echo cancellation

– channel coding and transmission

– block coding (with ASIC) – convolutional coding – interleaving – ciphering (with ASIC) – burst building and writing it to ASIC

– Reception

– reading the A/D conversion results from ASIC – impulse response calculation – matched filtering – bit detection (with Viterbi on ASIC) – deinterleaving of soft decisions – convolutional decoding (with Viterbi) – block decoding (with ASIC)

– Adjacent cell monitoring

– signal strength measurements – neighbor timing measurements – neighbor parameter reception

SYSTEM MODULE GR8

NHE–4

– control functions

– RF controls

– frame structure control

– test functions

– functions for RF measurements – debugging functions for product development

01/98OJ Technical Documentation

8–22

– synthesizer control – power ramp programming – automatic gain control (AGC) – automatic frequency control (AFC)

– control the operations during a TDMA frame (with ASIC) – controlling the multiframe structure – channel configuration control

Main Components of DSPU

– AT&T DSP 1616–S11

– Digital signal processor with 12 kword internal ROM

– Two 32 k * 8 70 ns SRAMs for DSP external memory – 60.2 MHz crystal osc. to generate differential small signal clock for the DSP

Input Signals of DSPU

Name(from): Description: VL2(PWRU) Logic supply voltage, max 150 mA

DSPCLKEN(ASIC) Clock enable for DSP clock oscillator circuit DSP1RSTX(ASIC) Reset for the DSP PCMDATRCLKX PCM data input clock

(ASIC) DBUS data output clock CODEC_CLK PCM data output clock PCMOUT(AUDIO) Received audio in PCM format DBUSCLK DBUS data output clock DBUSSYNC DBUS data bit sync clock RDA DBUS received data INT0, INT1(ASIC) Interrupts for the DSP PCMCOSYCLKX PCM data bit sync clock

(ASIC)

SYSTEM MODULE GR8

NHE–4

Output Signals of DSPU

Name(to): Description: PCMIN(AUDIO) Transmitted audio in PCM format

IOX(ASIC) I/O enable, indicates access to DSP address space RWX(ASIC) Read/write X DSPAD(16;9)(ASIC) Address bus and control signals DBUSDET(ASIC) DBUS activity detection

Bidirectional Signals of DSPU

Name(from/to): Description: DSPDA(15;0)(ASIC) 16 bit data bus

Block Description of DSPU

01/98OJ Technical Documentation

8–23

The Control unit communicates with the DSP circuitry through a mailbox in the D2CA ASIC. The software for the external memories are loaded through this mailbox in start up.

The DSP includes two serial busses. One is used for speech data transfer between the DSP and the codec. The other is used as an external data bus and it is connected to the bottom connector. This bus can be used by data accessories and also as a digital audio interface (DAI) in audio type approval measurements. The clocks (512 kHz main clock and 8 kHz sync. clock) are generated by the ASIC.

In transmit mode the DSP codes the speech and routes the resulting transmit slots to the D2CA. The D2CA ASIC controls timing, and at specified intervals sends these bits to the RFI for DA conversion.

In digital receive mode the RFI AD converts the IF signal from the RF unit under the control of the D2CA. The DSP controls the D2CA and receives the converted bits. After channel and speech decoding, bits are converted into an analog signal in the PCM codec, routed and fed to the earpiece.

The DSP controls the RF through the D2CA ASIC, where all necessary timing functions are implemented, and control I/O lines are provided e.g. for synte loading.

The DSP emulator can be connected to DSP pins TCK, TMS, TDO, TDI, GND and VDD.

SYSTEM MODULE GR8

NHE–4

AUDIO

The AUDIO block consists of an audio codec with some peripheral components. The codec contains microphone and earpiece amplifier and all the necessary switches for routing. The codec is controlled by the MCU. The PCM data comes from and goes to the DSP.

Main Components of AUDIO

– Audio codec ST5080

Includes e.g. PCM codec, audio routing switches, microphone and earpiece amplifiers for 2 connections (internal and external devices) and DTMF generator.

Input Signals of AUDIO

Name(from): Description:

01/98OJ Technical Documentation

8–24

VA1(PWRU) Analog supply voltage, max 40 mA PCMIN(DSPU) Received audio in PCM format SYNC(ASIC) 8 kHz frame sync CODEC_CLK(ASIC) 512 kHz codec main clock PCMCDI(CTRLU) Audio codec control data PCMCLK(CTRLU) Clock for audio codec control data transfer XSELPCMC Audio codec chip select

(CTRLU) MIC_JCONN External microphone

(syst.conn.) MICN,MICP(UIF) Differential microphone signal

Output Signals of AUDIO

Name(to): Description: PCMOUT(DSPU) Transmitted audio in PCM format

PCMCDO(CTRLU) Audio codec control data MIC_ENA(UIF) Microphone enable EAR_HFPWR External received audio

(syst.conn.) EARN,EARP(UIF) Internal received audio JCONN(CTRLU) Junction box connected signal (multiplexed with HFMIC)

SYSTEM MODULE GR8

NHE–4

Block Description of AUDIO

The codec has two microphone inputs and two earphone outputs. Handportable and external audios can therefore be connected directly to the codec. The codec has internal switches to select which input or output is used. It also has microphone amplifier and earphone attenuator. Input/output selection and amplification/attenuation can be done with codec register settings. The register control is done by the MCU.

Handportable microphone and earphone (located on the flex) are connected directly to the codec‘s differential input and output. External audios are connected single sided. There is 21 dB attenuation in the external microphone line before the codec to prevent clipping.

Microphone signal is routed to the microphone amplifier. After that it is fed to the bandpass filter and then to the A/D converter. After the conversion the digital speech is sent to the DSP.

Digital downlink signal from the DSP is fed to the D/A converted. After the converter there is low pass filter and attenuator before the earphone output. All these are inside the codec. The ASIC generates the 512 kHz and 8 kHz clocks for the codec and data transmission between the codec and the DSP

01/98OJ Technical Documentation

8–25

The audio codec communicates with the DSP (analog speech) through an SIO (signals: PCMIN, SYNC, CODEC_CLK and PCMOUT) . The MCU controls the audio codec function through a separate serial bus (signals: PCMCDO, PCMCDI, PCMCLK and XSELPCMC).

The codec generates DTMF tones (key beeps) to the earphone and in HF mode to the external speaker. In portable mode the MCU generates ringing tones and also some warning tones to the buzzer. In HF mode they are generated by the codec and driven to the external speaker line. Several tones are network originated. Depending on network transceiver is either commanded to generate tone, or network sends the tone itself.

One codec output pin is used to switch on/off the microphone bias circuit on the flex.

External microphone line is used also to detect if junction box is connected to the bottom connector. Microphone signal is therefore routed to the MCU A/D converter.

Also external earphone signal is multiplexed. 100 kΩ pull down resistor is used to turn power on to the HF accessories.

SYSTEM MODULE GR8

NHE–4

ASIC

The ASIC takes care of the following functions: – interface between MCU and UIF – interface between MCU, DSP and RFI – hardware accelerator functions to DSP – clock generation and disable/enable – RF controls – UIF interface – timers – M2BUS interface – SIM interface

Main Components of ASIC

01/98OJ Technical Documentation

8–26

– D2CA ASIC – RFC buffer

Inverter buffer stage is used as a buffer for the VCTCXO clock.

Input Signals of ASIC

Name(from): Description: VL1(PWRU) Logic supply voltage, max 150 mA

VL2(PWRU) Logic supply voltage, max 150 mA CHRDET(PWRU) Battery charger detection IOX(DSPU) I/O enable, indicates access to DSP address space RWX(DSPU) Read/write X WSTROBEX MCU’s write strobe

(CTRLU) RSTROBEX MCU’s read strobe

(CTRLU) RFC(RF) Reference clock from VCTCXO XRES(PWRU) Master reset DSPAD(16;0)(DSPU)Address bus and control signals MCUAD(19;16,4;0) MCU’s address bus

(CTRLU) DAX(RFI) Data acknowledge BATDET(CTRLU) Battery type and SIM card presence detection

SYSTEM MODULE GR8

NHE–4

MBUSDET(CTRLU) MBUS activity detection DBUSDET(DSPU) DBUS activity detection

Output Signals of ASIC

Name(to): Description: INT0,INT1(DSPU) Interrupts for DSP

NMI(CTRLU) Not maskable interrupt request IRQX(CTRLU) Interrupt request RESETX Master (power µp) reset

(CTRLU,RFI) DSP1RSTX(DSPU) Reset for the DSP SIMRESET Reset for the SIM WRX(RFI) Write strobe

01/98OJ Technical Documentation

8–27

RDX(RFI) Read strobe RFIAD(3;0)(RFI) RFI address bus SCLK(RF) Synthesizer load clock SDATA(RF) Synthesizer load data SENA1(RF) UHF and VHF PLL enable RXPWR(RF) RX circuitry power enable TXPWR(RF) TX circuitry power enable SYNTHPWR(RF) Synthesizer circuitry power enable TXP(RF) Transmitter power control enable MCUCLK(CTRLU) Main clock for MCU DSPCLKEN(DSPU) DSP clock circuit enable RFICLK(RFI) RFI master clock RFI2CLK(RFI) RFI sleep clock CODEC_CLK PCM data clock

(DSPU,AUDIO) PCMDATRCLKX Inverted PCM data clock, used as input clock for

(DSPU) codec and DBUS interface SYNC(AUDIO) Bit sync clock PCMCOSYCLKX Bit sync clock, inverted

(DSPU) DCLK(syst.conn.) DBUS data clock DSYNC(syst.conn.) DBUS bit sync clock

SYSTEM MODULE GR8

NHE–4

DBUSCLK(DSPU) DBUS data clock DBUSSYNC(DSPU) DBUS bit sync clock SIMCLK(UIF) SIM data clock VSIM(UIF) SIM power control ROMAD18(CTRLU) ROM address (paging) ROMSELX(CTRLU) Chip select for the FLASH memory ROM2SELX Chip select for the second FLASH memory

(CTRLU) EROMSELX Chip select for the EEPROM memory

(CTRLU) RAMSELX(CTRLU) Chip select for the SRAM memory COL(3;0)(UIF) Lines for keyboard column write

Bidirectional Signals of ASIC

01/98OJ Technical Documentation

8–28

Name(from/to): Description: DSPDA(15;0) 16 bit data bus

(DSPU) MCUDA(7;0) MCU’s 8 bit data bus

(CTRLU) RFIDA(11;0)(RFI) 12 bit data bus UIF(6;0)(UIF) LCD controller control and keyboard read bus SIMDATA(UIF) Serial data to SIM

SYSTEM MODULE GR8

NHE–4

Block Description of ASIC

PSL+ supplies the reset to the ASIC at power up. The ASIC starts the clocks to the DSP and the MCU. MCU and RFI reset is released after 256 13 MHz clock cycles. DSP reset release time from DSP clock activation can be selected from 0 to 255 13 MHz clock cycles. In our case 255 is selected. SIM reset release time is according to GSM SIM specifications.

The RFC buffer buffers the 26MHz clock from the VCTCXO to the ASIC. In the ASIC the clock is further buffered and divided for the MCU, RFI, SIM. It also generates main and sync clocks for audio codec, DSP‘s SIOs and DBUS. The clock outputs can be disabled in order to save current when the clock is not needed. Also the DSP oscillator can be stopped by the ASIC.

Interface to the MCU is done with 8 bit data bus ,5 bit lower address bus, 4 bit upper address bus, RSTRBEX, WSTROBEX, IRQX and NMI. ASIC is in the same memory space as MCU memories. The ASIC generates chip selects from the address bits A16–19. There is also M2BUS detector and netfree counter on the ASIC. Netfree interrupt IRQX occurs if no activity is detected in M2BUS in about 3ms. NMI is used to wake up the MCU from sleep mode.

01/98OJ Technical Documentation

8–29

MCU and User Interface (keyboard and display) communication is controlled through the ASIC.

COL(0–3) are used as column lines in keyboard. UIF(0–5) are used as row lines They are also multiplexed with display driver control signals.

When a key is pressed the ASIC generates an interrupt from low input of row and starts scanning. One column at the time is written to low and rows are used to read which key it was.

Row lines and UIF6 are used for display driver control. UIF(0–3) are used as 4 bit parallel data bus for the LCD driver. UIF4 is used as read/write strobe, UIF5 to select data or instruction register and UIF6 as enable strobe.

The SIM interface is the electrical interface between the smart card used in the GSM and PCN applications and the MCU via the ASIC. ASIC converts the serial data received from the SIM to parallel data for MCU and converts parallel data from MCU to serial mode for the card. The SIM interface also takes care of the power up and down procedure to the card, frame and parity error checking. The communication between card and ASIC is asynchronous and half duplex. Four signals are used between the ASIC and the SIM card: SIMDATA, SIMCLK, SIMRESET and The clock frequency is 3.25 MHz. When there is no data transfer between the SIM card and the HP the clock can be reduced to

1.625 MHz. Some SIM cards also allows the clock to be stopped in that mode. Supply voltage VSIM can be switched off by the ASIC. The supply voltage is

4.65 V. The carddetect input on the ASIC is connected to BTYPE pin and when the battery is removed the ASIC will drive the SIM down.

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

8–30

The interface to the DSP is done using 6 bit address bus, 16 bit data bus, IOX and RWX lines. Data bus is latched using IOX, address bus is not. The ASIC also generates interrupt INT0 when an edge occurs in DBUS line (if the mask bit is off). INT1 is used as RX interrupt and as MFI modulator interrupt to the DSP.

Viterbi is used to perform GSM/PCN convolutional decoding and bit detection according to viterbi algorithm. It can be controlled and accessed thoroughly by the DSP.

Coder is used to perform block encoding, decoding, and ciphering according to GSM algorithm A5 or A5/2. (D2CA supports both algorithms.)

The ASIC takes care of the interface between the DSP and the RFI: TX modulator, RX filter, TX and RX sample buffers and controlling state machine. The interface to RFI is done using 12 bit data bus, 4 bit address bus, RDX and WRX. There is data acknowledge (DAX) from RFI to ASIC. Also in this block are the serial RF synthesizer interface (SCLK, SDAT) and the digital RF control signals (RXPWR, TXPWR, TXP, SYNTHPWR).

SYSTEM MODULE GR8

NHE–4

RFI

The block consists of RFI ASIC and its reference voltage generator. This block is an interface between RF and baseband. The RFI block has the following functions:

– IF receiving and A/D conversion – I/Q separation – I and Q transmit and D/A conversion – AFC D/A – TXC – AGC (in combination with TXC)

Main Components of RFI

– RFI ASIC – 4.096 V external voltage reference LM4040 for RFI

01/98OJ Technical Documentation

8–31

Input Signals of RFI

Name(from): Description: VL1(PWRU) Logic supply voltage, max 150 mA

VA2(PWRU) Analog supply voltage, max 80 mA RESETX(PWRU) Master (power up) reset RFIAD(3;0)(ASIC) RFI address bus RDX(ASIC) Read strobe WRX(ASIC) Write strobe RFICLK(ASIC) RFI master clock RFI2CLK(ASIC) RFI sleep clock RXQ(RF) RX quadrature signal RXI(RF) RX inphase signal

SYSTEM MODULE GR8

NHE–4

Output Signals of RFI

Name(to): Description: DAX(ASIC) Data acknowledge

AFC(RF) Automatic frequency control voltage TXC(RF) TX transmit power control voltage, AGC control TXQP,TXQN(RF) Differential TX quadrature signal TXIP,TXIN(RF) Differential TX inphase signal PDATA0(RF) Front end AGC data

Bidirectional Signals of RFI

Name(to): Description: RFIDA(11;0)(ASIC) 12 bit data bus

01/98OJ Technical Documentation

8–32

Block Description of RFI

The RFI provides A/D conversion of the in–phase (RXI) and quadrature (RXQ) signals in receive path. It has 12 bit sigma–delta A/D converters and the sample rate is 541.667 kHz.

Analog transmit path includes 8 bit D/A converters to generate the in–phase (TXI) and quadrature (TXQ) signals. RFI has differential outputs for TXI and TXQ. The sample rate is 1.0833 MHz.

There is 11 bit D/A converter for automatic frequency correction. The sample rate is 1.3542 kHz.

Power ramp is done with 10 bit D/A converter. The sample frequency is 1.0833 MHz.

The AGC is voltage controlled in HD841. (In HD740 AGC control was digital.) Front end AGC control is done with PDATA0 output. Main part of AGC is controlled by TXC.

The RFI has 12 bit data bus to the ASIC. The registers in the RFI are accessed using 4 address bits. Control and clock signals are coming from the ASIC.

The RFI has external 4.096 V voltage reference.

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Functional Description of RF block

The RF block carries out all the RF functions of the transceiver. The RF block works in GSM system.

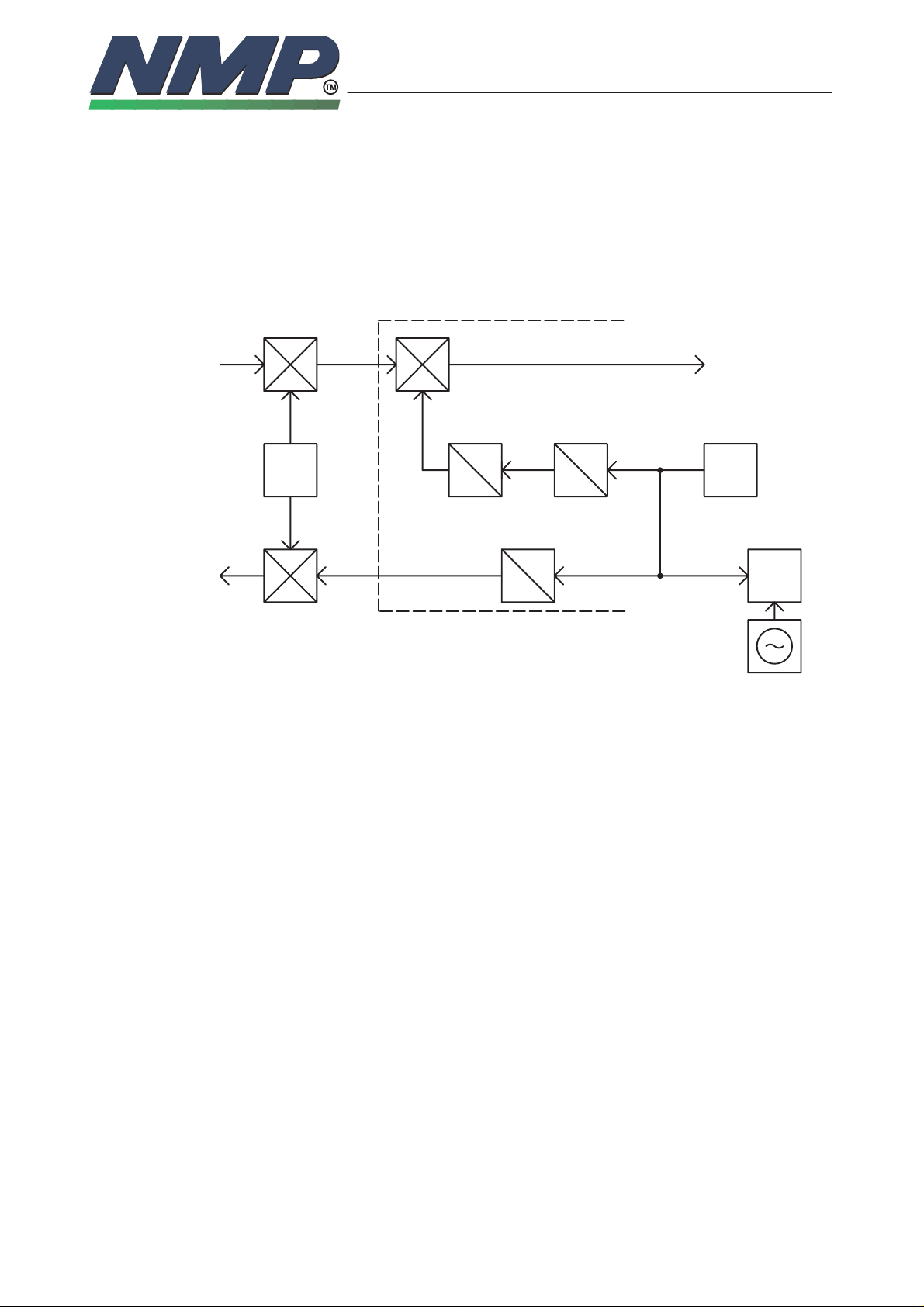

RF Frequency Plan

GSM

1st IF 2nd IF

935–960

LO 1 1006– 1031

71 13

f/2

CRFRT

f/2

LO 2 232

8–33

890–915

Regulators

There is one regulator IC in the RF unit. The regulator IC CRFCONT is an RF power supply circuit basically intended for digital handportable phones. It has 8 separate linear regulators. Each regulator can be individually disabled and enabled. It also has a voltage reference output.

See more details on Figure; Power Distribution Diagram of RF

116

f/2

VCXO: 26 MHz (I) 13 MHz (H)

PLL

SYSTEM MODULE GR8

NHE–4

Power Distribution

All currents in the power distribution diagram are peak currents. Activity percentages are in SPEECH–mode 24.6 % for RXPWR, 15.8 % for TXPWR and 100 % for SYNTHPWR. In IDLE–mode activities are 0.4 %, 0.0 % and 1.77 % respectively. The current of each block is controlled independently and for example TXPWR and RXPWR are not on at the same time.

Current Consumption

In the following table the RF current consumption can be seen with different status of the control signals. The VCTCXO is not included in the results.

SYNTHPWR:RXPWR: TXPWR: TXP: Typ. load current: Notes: L L L L 0.05 mA Leakage current

H L L L 41.5 mA Synthesizer active H H L L 115.5 mA Reception H L H L 93.5 mA TX active H L H H 1393.5 mA Transmission

01/98OJ Technical Documentation

8–34

SYSTEM MODULE GR8

NHE–4

Receiver

01/98OJ Technical Documentation

8–35

The receiver is a double conversion receiver. The received RF signal from the antenna is fed via a duplex filter to the receiver

unit. The signal is amplified by a discrete low noise preamplifier. The gain of the amplifier is controlled by the AGC control line (PDATA0). The nominal gain of

16.5 dB in GSM is reduced in the strong field condition about 36 dB. After the preamplifier the signal is filtered by SAW RF filter. The filter rejects spurious signals coming from the antenna and spurious emissions coming from the receiver unit.

In GSM the filtered RF signal is down converted by a passive diode mixer. The frequency of the first IF is 71 MHz. The first local signal is generated by the UHF synthesizer.

The IF signal 71 is amplified and filtered by SAW filter in GSM. The filter rejects adjacent channel signal, intermodulating signals and the last IF image signal. The filtered IF signal is fed to the receiver part of the integrated RF circuit CRFRT.

In CRFRT the filtered IF signal is amplified by an AGC amplifier which has gain control range of 57 dB. The gain is controlled by an analog signal via TXC line. The amplified IF signal is down converted to the last IF in the mixer of CRFRT. The last local signal is generated from VHF VCO by dividing the original signal by 4 in the dividers of CRFRT.

The last IF 13 MHz is filtered by a ceramic filter. The filter rejects signals of the adjacent channels.

The filtered last IF is fed back to CRFRT where it is amplified and fed out via RXIF line. IF signal is split to +45 and –45 signals and then fed to RFI.

Duplex Filter

The duplex filter consists of two functional parts; RX and TX filters. The TX filter rejects the noise power at the RX frequency band and TX harmonic signals. The RX filter rejects blocking and spurious signals coming from the antenna.

SYSTEM MODULE GR8

NHE–4

Pre–Amplifier

The bipolar pre–amplifier amplifies the received signal coming from the antenna. In the strong field conditions the gain of the amplifier is reduced 36 dB in GSM, typically.

Parameter Frequency band:

Supply voltage (min/typ/max): Current consumption (min/typ/max): Insertion gain (min/typ/max): Gain flatness: ± Noise figure (typ/max): Reverse isolation (min): Gain reduction (min/typ/max):

01/98OJ Technical Documentation

8–36

Value 935–960 Mhz

4.27...4.5...4.73 V

5...6....7 mA

15...16.5...17 dB

0.5 dB

2.0...2.5 dB 15 dB

33...36...39 dB

IIP3: (min/typ): Input VSWR; zo=50 Ω (max): Output VSWR; zo=50 Ω (max):

RX Interstage Filter

The RX interstage filter is a SAW filter in GSM. The filter rejects spurious and blocking signals coming from the antenna. It rejects the local oscillator signal leakage, too.

–12...–10 dBm

2.0

SYSTEM MODULE GR8

NHE–4

First Mixer

The first mixer is a single balanced passive diode mixer. The local signal is balanced by a printed circuit transformer. The mixer down converts the received RF signal to IF signal.

Parameter RX frequency range:

LO frequency range: IF frequency: Conversion loss (min/typ/max): IIP3 (min/typ): LO – RF isolation (min): LO power level (min):

First IF Amplifier

01/98OJ Technical Documentation

8–37

Value 935–960 Mhz

1006–1031 Mhz 71 Mhz

5...6...7 dB

2...5 dBm

15.0 dB 3 dBm

The first IF amplifier is a bipolar transistor amplifier. Parameter

Operation frequency: Supply voltage (min/typ/max): Current consumption (typ/max): Insertion gain (min/typ/max): Noise figure (typ/max): IIP3 (min/typ):

First IF filter

The first IF filter is a SAW filter in GSM. The IF filter rejects some spurious and blocking signal coming from the front end of the receiver.

Value 71 Mhz

4.27...4.5...4.73

12...20 mA

18...20...22 dB

3.5...4.0 dB –5...–3 dBm

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Receiver IF circuit, RX part of CRFRT

The receiver part of CRFRT consists of an AGC amplifier of 57 dB gain, a mixer and a buffer amplifier for the last IF. The mixer of the circuit down converts the received signal to the last IF frequency. After external filtering the signal is amplified and fed to baseband circuitry. The supply current can be switched OFF by an internal switch, when the RX is OFF.

Parameter Supply voltage (min/typ/max):

Current consumption (max/max): Input frequency range (min/max):

Local frequency range of mixer (min/max):

2nd IF range (min/max):

8–38

Value

4.27...4.5...4.73 V

35...44 mA 45 MHz (–1 db point)

...87 MHz (–3 dB point)

170...400 MHz

2...17 MHz

Voltage gain (max gain) of AGC amplifier (min):

Noise figure (max): AGC gain control slope (min/typ/max): Mixer output 1 dB compression

point (typ): Max output level after last IF buffer (typ):

Last IF Filter

The last IF is a ceramic filter, which makes the part of the channel selectivity of the receiver.

47 dB 15 max gain

40...84...100 dB/V

1.0 V

1.6 V

SYSTEM MODULE GR8

NHE–4

Transmitter

The TX intermediate frequency is modulated by an I/Q modulator contained on transmitter section of CRFRT IC. The TX I and Q signals are generated in the RFI interface circuit and they are fed differentially to the modulator.

Modulated intermediate signal is amplified or attenuated in temperature compensated controlled gain amplifier (TCGA). The output of the TCGA is amplified and the output level is typically –10 dBm.

The output signal from CRFRT is band–pass filtered to reduce harmonics and the final TX signal is achieved by mixing the UHF VCO signal and the modulated TX intermediate signal with passive mixer. After mixing the TX signal is amplified and filtered by two amplifier and one filter. This filter is dielectric filter. After these stages the level of the signal is typically 1 mW (0 dBm).

The discrete power amplifier amplifies the TX signal to the desired power level. The maximum output level is typically 1.8...2.0 W.

The power control loop controls the output level of the power amplifier. The power detector consists of a directional coupler and a diode rectifier. Transmitted power is controlled with controlled gain amplifier (TCGA) on TX path of CRFRT. Power is controlled with TXC and TXP signals. The power control signal (TXC), which has a raised cosine form, comes from the RF interface circuit, RFI.

01/98OJ Technical Documentation

8–39

Modulator Circuit, TX part of CRFRT

The modulator is a quadrature modulator contained in TX section of CRFRT IC. The I– and Q– inputs generated by RFI interface are D.C. coupled and fed via buffers to the modulator. The local signal is divided by two to get accurate 90 degrees phase shifted signals to the I/Q mixers. After mixing the signals are combined and amplified with temperature compensated controlled gain amplifier (TCGA). Gain is controlled with power control signal (TXC). The output of the TCGA is amplified and the maximum output level is –10 dBm, typically.

Parameter Supply voltage (min/typ/max):

Supply current (typ/max):

Transmit frequency input LO input frequency (min/max):

LO input power level (typ): LO input resistance (min/typ/max):

Value

4.27...4.5...4.73 V

36...45 mA

Value

170...400 MHz

0.2 V

70...100...130

Ω

LO input capacitance (typ):

4 pF

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Modulator Inputs (I/Q): Input bias current, balanced (max):

Input common mode voltage (min/typ/max):

Input level, balanced (max): Input frequency range (min/max): Input resistance, balanced (min): Input capacitance, balanced (max):

Modulator Output: Output frequency (min/max):

Available linear RF power (typ): Available saturated RF power (min/typ):

Value 100 nA

2.0...2.2...2.4 V

1.1 V

0...300 kHz 200 k

Ω

4 pF

Value

85...200 MHz –10 dBm, ZiL=50 k

Ω

–5...0 dBm, ZiL=50 k

8–40

Ω

Total gain control range (min): Gain control slope (typ): Suppression of 3rd order prods (min): Carrier suppression (typ): Single sideband suppression: Noise floor P

OUT

• –10 (max):

• –18 (max):

• –24 (max):

• –30 (max):

• –40 (max):

Transmitted I/Q phase balance: drift in whole temperature range:

Transmitted I/Q amplitude balance: drift in whole temperature range:

45 dB 84 dB/V 35 dB 35 dB

–132 dBm/Hz avg. –137 dBm/Hz avg. –140 dBm/Hz avg. –142 dBm/Hz avg. –144 dBm/Hz avg.

–5...5 deg –2...2 deg

–0.5...0.5 dB –0.2...0.2 dB

SYSTEM MODULE GR8

NHE–4

Upconversion Mixer

The upconversion mixer is a single balanced passive diode mixer. The local signal is balanced by a printed circuit transformer. The mixer upconverts the modulated IF signal coming from quadrature modulator to RF signal.

Parameter: RX frequency range:

LO frequency range: IF frequency (nom): Conversion loss (min/typ/max): IIP3 (min): LO – RF isolation (min): LO power level (min):

TX Interstage Filters

01/98OJ Technical Documentation

8–41

Value

890...915 MHz

1006...1031 MHz 116 MHz

6.0...7.0...8.0 dB

0.0 dBm 15 dB

3.0 dBm

The TX filters reject the spurious signals generated in the upconversion mixer. They reject the local, image and IF signal leakage and RX band noise, too.

1st TX buffer

The TX buffer is a bipolar transistor amplifier. It amplifies the TX signal coming from the upconversion mixer.

Parameter: Operating frequency range:

Supply voltage (min/typ/max): Current consumption (typ/max): Insertion gain (min/typ/max): Input VSWR, Zo=50 Ω (max): Output VSWR, Zo=50 Ω (max):

Value

890...915 MHz

4.25...4.5...2.8 V

4.5...5.0 mA

11...12...13 dB

2.0

SYSTEM MODULE GR8

NHE–4

2nd TX buffer

The TX buffer is a bipolar transistor amplifier. It amplifies the TX signal coming from the first interstage filter.

Parameter: Operation frequency range:

Supply voltage (min/typ/max): Current consumption (typ/max): Insertion gain (min/typ/max): Output power, Zo=50 Ω (min/typ): Input VSWR, Zo=50 Ω (max): Output VSWR, Zo=50 Ω (max):

Power Amplifier

01/98OJ Technical Documentation

8–42

Value

890...915 MHz

4.25...4.5...4.8 V

9.0...10.0 mA

11...12...13 dB

0...3 dBm

2.0

The power amplifier is a three stage discrete amplifier. It amplifies the 0 dBm TX signal to the desired output level. It has been specified for 6 volts operation.

Parameter: D.C. supply voltage, no RF (max):

D.C. supply voltage (min/typ/max): Operation frequency: Operating case temp. range (max): Max output power (min/typ/max): Max output power (min/typ/max):

Value 10 V

5.3...6.0...8.5 V

890...915 MHz 90 °C

34.5...35...36 dBm, norm cond.

33.5...34...35 dBm, extreme cond. VCC=5.4 V, Ta=55°C

Input power (min): Gain (min/typ/max): Efficiency (typ): Input VSWR, Zo=50 Ω (max): Output VSWR, Zo=50 Ω (max):

0 dBm

34.5...35...36 dB 42 %, Po=35 dBm

2.0

Harmonics, 2 fo: 3 fo, 4 fo, 5 fo:

Noise power (max): Ruggedness (min): Stability, load VSWR 6:1 (min):

–30 dBc, Po=35 dBm –40 dBc, Po=35 dBm

–114 dBm at receiver band 8 V VSWR=7, P

OUT

=4 W

60 dBc, all spurious

SYSTEM MODULE GR8

NHE–4

Power Control Circuitry

The power control loop consists of a power detector and a differential control circuit. The power detector is a combination of a directional coupler and a diode rectifier. The differential control circuit compares the detected voltage and the control voltage (TXC) and controls voltage controlled amplifier (in CRFRT) or the power amplifier. The control circuit is a part of CRFRT.

Parameter: Supply voltage (min/typ/max):

using CRFRT: Supply current (typ/max): Power control range (min): Power control inaccuracy (max): ± Dynamic range (min): Input control voltage range (min/max):

01/98OJ Technical Documentation

8–43

Value

4.5...4.7...4.9

4.27...4.5...4.73

3.0...5.0 mA 20 dB

1.0 dB

80 dB

0.1...2.8 V

SYSTEM MODULE GR8

NHE–4

Synthesizer

The stable frequency source for the synthesizers and base band circuits is discrete voltage controlled crystal oscillator, VCXO. The frequency of the oscillators is controlled by an AFC voltage, which is generated by the base band circuits.

The UHF PLL generates the down conversion signal for the receiver and the up conversion signal for the transmitter. The UHF VCO is a discrete oscillator. The PLL circuits is UMA1018.

The VHF PLL signal (divided by 4 in CRFRT) is used as a local for the last mixer. Also the VHF PLL signal (divided by 2 in CRFRT) is used in the I/Q modulator of the transmitter chain.

Reference Oscillator

The reference oscillator is a discrete VCXO and the frequency is 26 MHz. The oscillator signal is used for a reference frequency of the synthesizers and

the clock frequency for the base band circuits.

01/98OJ Technical Documentation

8–44

Parameter: Centre frequency:

Frequency control range: Supply voltage (min/typ/max): Current consumption (typ/max): Output voltage (min/typ/max):

Harmonics (max): Control voltage range (min/max): Nominal voltage for centre frequency: Control sensitivity (min/typ/max): Frequency stability

• temperature:

• supply voltage:

• load:

• aging:

Value 26 MHz

67 ppm

4.6...4.7...4.8 V

1.5..1.7 mA

1.3...1.7...2.0 VPP, sine wave for PLLs

5 dBc

0.25...4.45 V

2.2 V

12...16...22 ppm/V

10 ppm, –25...+75 °C 1 ppm, 4.7 V ±5 %

0.1 ppm, load ±10 % 1 ppm, year

Operating temperature range (min/max): Load impedance, resistive part:

parallel capacitance:

–20...70 °C 2 k

Ω

20 pF

SYSTEM MODULE GR8

NHE–4

VHF PLL

01/98OJ Technical Documentation

8–45

The VHF PLL consists of the VHF VCO, PLL integrated circuit and loop filter. The output signal is used for the 2nd mixer of the receiver and for the I/Q modulator of the transmitter.

Parameter: Start up setting time (max):

Phase error (max):

Value 5 ms

1 deg., rms

Sidebands (typ/max)

• ±200 kHz:

• ±400 kHz:

• ±1 MHz:

• ±2 MHz:

• ±3 MHz:

• >4 MHz:

–75...–70 dB –84...–70 dB <–85...–70 dB <–85...–75 dB <–85...–80 dB <–85...–80 dB

VHF VCO + buffer

The VHF VCO uses a bipolar transistor as a active element and a combination of a chip coil and varactor diode as a resonance circuit. The buffer is combined into the VCO circuit so, that they use same collector current.

Parameter: Supply voltage (min/typ/max):

Control voltage (min/max): Supply current (typ/max): Operation frequency (typ): Output power level (typ): Control voltage sensitivity (typ): Phase noise (max)

• fo ±200 kHz

• fo ±1600 kHz

• fo ±3000 kHz

Harmonics (typ/max):

Value

4.2...4.5...4.8 V

0.5...4.0 V

2.5...5.0 mA 232 MHz 168 mV

RMS

/1 k

12 MHz/V

–123 dB –133 dB –143 dB

–32...–30 dB

Ω

SYSTEM MODULE GR8

NHE–4

UHF PLL

01/98OJ Technical Documentation

8–46

The UHF PLL consists of a UHF VCO, PLL circuit and a loop filter. The output signal is used for the 1st mixer of the receiver and the upconversion mixer of the transmitter.

Parameter: Start up setting time (max):

Phase error (max): Settling time ±93 MHz (typ/max):

Value 5 ms

4 deg., rms

525...800 µs

Sidebands (typ/max)

• ±200 kHz:

• ±400 kHz:

• ±600 kHz:

• 1.4...3.0 MHz:

• >3.0 MHz:

–80...–60 dB –87...–65 dB <–90...–70 dB <–90...–80 dB <–80 dB

UHF VCO + buffer

The UHF VCO uses a bipolar transistor as a active element and a combination of a chip coil and a varactor diode as a resonance circuit.

UHF VCO Buffers

The UHF VCO output signal is divided into the 1st mixer of the receiver and the upconversion mixer of the transmitter. The UHF VCO signal is amplified after division. There is one buffer for TX and one for RX.

Parameter: Supply voltage (min/typ/max):

Supply current (typ/max): Input power (typ): Harmonics (max): Output power (typ):

Value

4.2...4.5...4.8 V

5.5...6.5 mA –3 dBm –10 dBc 700 mV

RMS

/1 k

Ω

SYSTEM MODULE GR8

NHE–4

PLL Circuit

01/98OJ Technical Documentation

8–47

The PLL is PHILIPS UMA1018. The circuit is a dual frequency synthesizer including both the UHF and VHF synthesizers.

Parameter: Supply voltage (min/max):

Supply current (typ): Principal input frequency (min/max): Auxiliary input frequency (min/max): Input reference frequency (min/max): Input signal level (min/max):

Value

2.7...5.5 V

8.5 mA

500...1200 MHz, VDD = 4.5 V

20...300 MHz, VDD = 4.5 V

3...40 MHz, VDD = 4.5 V

50...500 mV

RMS

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Block Diagram of Baseband

UIF–module

mic

ear

sio

PCM CODEC

DBUS

sio

DSP

sio

ext mem

32K x 16 SRAM

A14:0, D15:0

A5:0, D15:0

RFI

12 bit parallel + 8 x control

ASIC

8–48

UIF–module

SIM CARD

READER

LCD

DRIVER

LCD

A4:0, A19:16, D7:0

xearxmic

A14:0,D7:0

32K x 8 SRAM

PSL+ CHRGR

FLASH LOAD

M2 BUS

Interface

io ext mem

sio

MCU

A19:0,D7:0

A12:0,D7:0

E2PROM

8K X 8

A17:0,D7:0

1024K x 8 FLASH

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

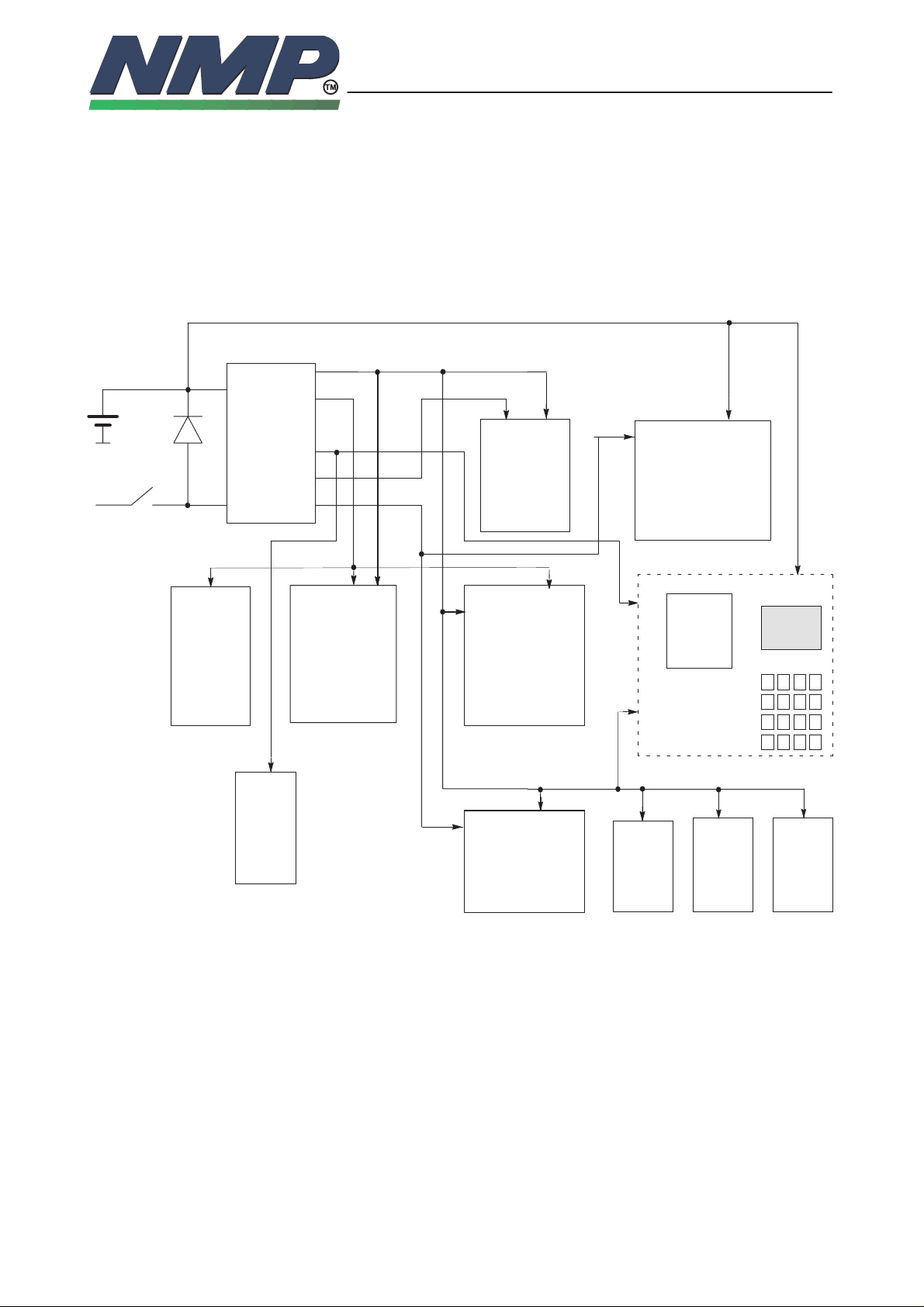

Power Distribution Diagram of Baseband

PSL+

VBATT

VCHAR

VL1 VL2

VA1 VA2

VREF

VA2 VL1

RFI

8–49

VBATTVREF

VL2

32Kx16 SRAM

VA1

PCM CODEC

VL2

VL1 VL2

VL1

DSP

VREF VL1

ASIC

MCU

VA1

VL1

E2PROM

8K x 8

UIF–module

LCD Driver

VL1

512K x 8 FLASH

VBATT

LCD

VL1

32K x 8 SRAM

SYSTEM MODULE GR8

NHE–4

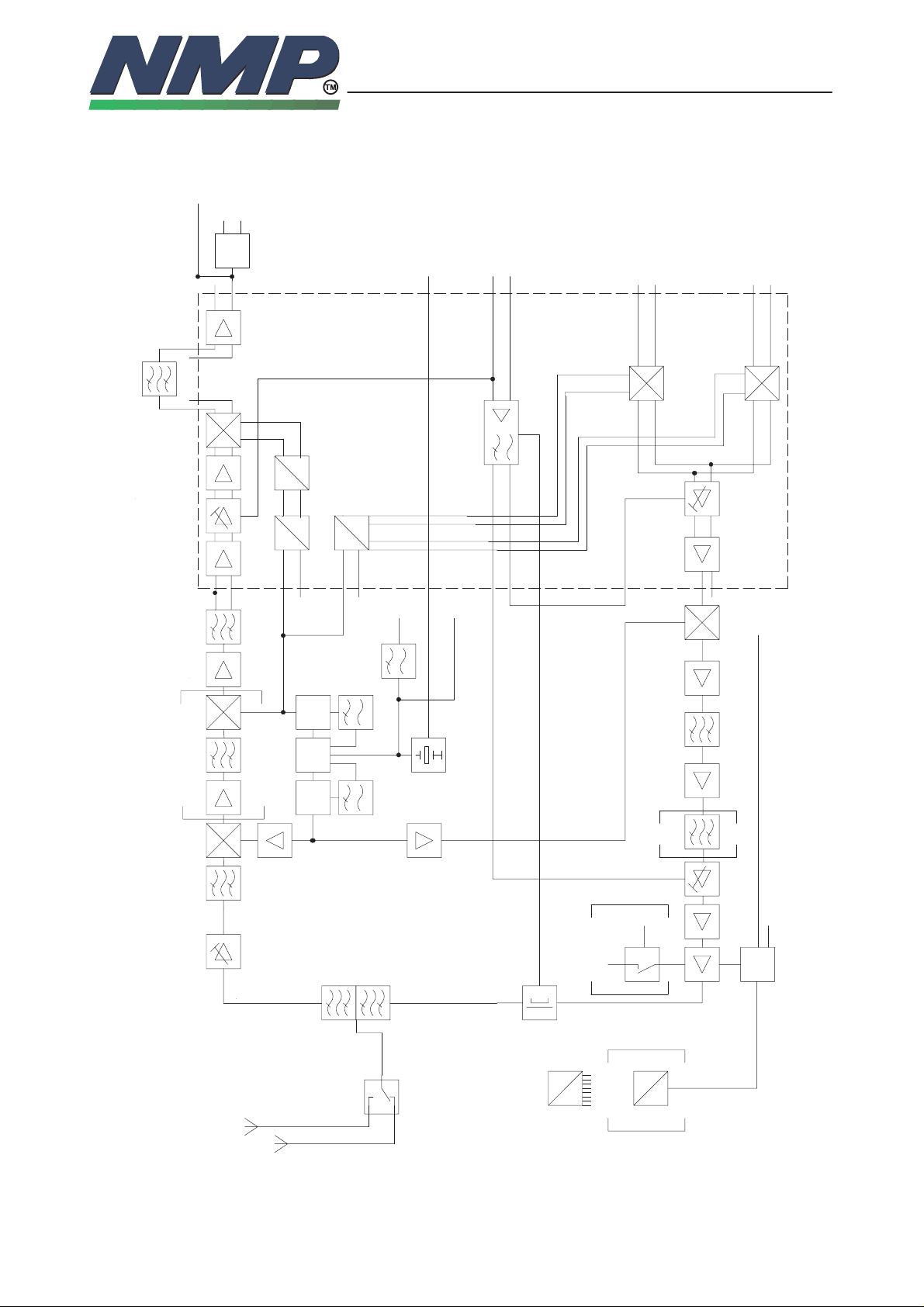

Block Diagram of RF

product I

product H

90 deg

CRFRT

f/2

01/98OJ Technical Documentation

TXC

AFC

f/2

TXP

TX power control

8–50

TXIP

TXIN

TXQP

TXQN

PCN

VHF

VCO

PLL

UHF

VCO

(21 – 27 dB PCN)

step AGC (25 – 30 dB)

product H

sinewave

to ASIC

clipped sinewave

Product I

VCTCXO/

VCXO

PCN

Batt.volt.

TXC

PCN

TXP (GSM)

TXP

BIAS

H no external antenna

+6 V

CRFCONT

+4.5V

PCN

+6 V

–4 V

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Power Distribution Diagram of RF

Battery

6 V

(min 5.3 V)

CRFCONT

VCXO

Switch

Power Amplifier

8–51

2 mA

GSM: 1300 mA PCN: 900 mA

VREF

TXP

VR1 VR2 VR3 VR4 VR5 VR6 VR7 VR8Vbias

+4V5_TX: TX buffers

GSM: 13 mA

PCN: 21 mA

VHLO: VHF LO

GSM: 8 mA PCN: 17 mA GSM: 18 mA

VPLL: PLL–IC Negat.volt.

18.5 mA

+4V5_RX: RF LNA IF amps

PCN: 31 mA

SYNTHPWR TXPWR RXPWR

VTX: CRFRT (VTX) CRFRT (VTX_slow)

39 mA VRX:

CRFRT (VRX)

35 mA

CRFRT (VB_ext)

< 1 mA

VB_EXT

VREF

PSL

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Connections between System and RF Blocks

Version: 5.0 Edit: 111

8–52

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Connections between RX and TX Blocks

Version: 6.0 Edit: 73

8–53

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; System Blocks

8–54

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; CPU & Memories

8–55

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; Power Supply IC & Batt. Charg. unit

8–56

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; DSP, Clock Generator & Memories

8–57

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; Audio Codec IC

8–58

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; ASIC IC

8–59

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; RFI IC

8–60

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; RF Receiver and Regulator

8–61

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Circuit Diagram of GR8; RF Transmitter

8–62

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Layout Diagram of GR8 Side 1 Version 09

8–63

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Layout Diagram of GR8 Side 2 Version 09

8–64

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

Parts List of GR8 (EDMS Issue: 6.8 Code: 0200514)

ITEM CODE DESCRIPTION VALUE TYPE

R070 1430788 Chip resistor 22 k 5 % 0.063 W 0402 R071 1430794 Chip resistor 39 k 5 % 0.063 W 0402 R072 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R073 1430764 Chip resistor 3.3 k 5 % 0.063 W 0402 R074 1430730 Chip resistor 150 5 % 0.063 W 0402 R075 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R076 1430744 Chip resistor 470 5 % 0.063 W 0402 R077 1430796 Chip resistor 47 k 5 % 0.063 W 0402 R078 1430796 Chip resistor 47 k 5 % 0.063 W 0402 R079 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R110 1430842 Chip resistor 680 k 1 % 0.063 W 0402 R111 1430840 Chip resistor 220 k 1 % 0.063 W 0402 R112 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R113 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R114 1430732 Chip resistor 180 5 % 0.063 W 0402 R140 1430792 Chip resistor 33 k 5 % 0.063 W 0402 R141 1430788 Chip resistor 22 k 5 % 0.063 W 0402 R142 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R143 1430764 Chip resistor 3.3 k 5 % 0.063 W 0402 R144 1430764 Chip resistor 3.3 k 5 % 0.063 W 0402 R145 1430732 Chip resistor 180 5 % 0.063 W 0402 R146 1430846 Chip resistor 2.7 k 1 % 0.063 W 0402 R147 1430844 Chip resistor 3.9 k 1 % 0.063 W 0402 R148 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R149 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R150 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R151 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R152 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R160 1430726 Chip resistor 100 5 % 0.063 W 0402 R161 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R162 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R163 1430726 Chip resistor 100 5 % 0.063 W 0402 R164 1430788 Chip resistor 22 k 5 % 0.063 W 0402 R165 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R166 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R169 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R170 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R171 1430788 Chip resistor 22 k 5 % 0.063 W 0402

8–65

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

R172 1430798 Chip resistor 56 k 5 % 0.063 W 0402 R173 1430794 Chip resistor 39 k 5 % 0.063 W 0402 R174 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R175 1430700 Chip resistor 10 5 % 0.063 W 0402 R176 1430726 Chip resistor 100 5 % 0.063 W 0402 R177 1430726 Chip resistor 100 5 % 0.063 W 0402 R178 1430726 Chip resistor 100 5 % 0.063 W 0402 R179 1430726 Chip resistor 100 5 % 0.063 W 0402 R180 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R181 1430726 Chip resistor 100 5 % 0.063 W 0402 R182 1430726 Chip resistor 100 5 % 0.063 W 0402 R183 1430734 Chip resistor 220 5 % 0.063 W 0402 R184 1430726 Chip resistor 100 5 % 0.063 W 0402 R185 1430726 Chip resistor 100 5 % 0.063 W 0402 R186 1430726 Chip resistor 100 5 % 0.063 W 0402 R190 1430726 Chip resistor 100 5 % 0.063 W 0402 R191 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R192 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R193 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R194 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R195 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R196 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R197 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R198 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R199 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R210 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R230 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R231 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R232 1430842 Chip resistor 680 k 1 % 0.063 W 0402 R233 1430788 Chip resistor 22 k 5 % 0.063 W 0402 R234 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R235 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R236 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R237 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R238 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R239 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R240 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R241 1430744 Chip resistor 470 5 % 0.063 W 0402 R243 1430788 Chip resistor 22 k 5 % 0.063 W 0402 R246 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R247 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R248 1430726 Chip resistor 100 5 % 0.063 W 0402

8–66

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

R249 1430726 Chip resistor 100 5 % 0.063 W 0402 R250 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R251 1430792 Chip resistor 33 k 5 % 0.063 W 0402 R252 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R253 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R254 1430760 Chip resistor 1.8 k 5 % 0.063 W 0402 R255 1430726 Chip resistor 100 5 % 0.063 W 0402 R256 1430726 Chip resistor 100 5 % 0.063 W 0402 R257 1430726 Chip resistor 100 5 % 0.063 W 0402 R260 1430726 Chip resistor 100 5 % 0.063 W 0402 R261 1430784 Chip resistor 15 k 5 % 0.063 W 0402 R262 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R263 1430760 Chip resistor 1.8 k 5 % 0.063 W 0402 R264 1430792 Chip resistor 33 k 5 % 0.063 W 0402 R265 1430792 Chip resistor 33 k 5 % 0.063 W 0402 R267 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R270 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R501 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R502 1430732 Chip resistor 180 5 % 0.063 W 0402 R503 1430732 Chip resistor 180 5 % 0.063 W 0402 R504 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R505 1430772 Chip resistor 5.6 k 5 % 0.063 W 0402 R506 1430710 Chip resistor 22 5 % 0.063 W 0402 R507 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R508 1430804 Chip resistor 100 k 5 % 0.063 W 0402 R509 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R511 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R512 1430832 Chip resistor 2.7 k 5 % 0.063 W 0402 R513 1430740 Chip resistor 330 5 % 0.063 W 0402 R514 1430710 Chip resistor 22 5 % 0.063 W 0402 R541 1430710 Chip resistor 22 5 % 0.063 W 0402 R542 1430734 Chip resistor 220 5 % 0.063 W 0402 R543 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R544 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R545 1430758 Chip resistor 1.5 k 5 % 0.063 W 0402 R546 1430724 Chip resistor 82 5 % 0.063 W 0402 R547 1430744 Chip resistor 470 5 % 0.063 W 0402 R551 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R552 1430788 Chip resistor 22 k 5 % 0.063 W 0402 R553 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R554 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R555 1430788 Chip resistor 22 k 5 % 0.063 W 0402

8–67

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

R556 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R557 1430730 Chip resistor 150 5 % 0.063 W 0402 R558 1430732 Chip resistor 180 5 % 0.063 W 0402 R559 1430740 Chip resistor 330 5 % 0.063 W 0402 R560 1430764 Chip resistor 3.3 k 5 % 0.063 W 0402 R562 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R563 1430728 Chip resistor 120 5 % 0.063 W 0402 R564 1430738 Chip resistor 270 5 % 0.063 W 0402 R565 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R566 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R567 1430728 Chip resistor 120 5 % 0.063 W 0402 R568 1430734 Chip resistor 220 5 % 0.063 W 0402 R569 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R570 1430726 Chip resistor 100 5 % 0.063 W 0402 R571 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R572 1430276 Chip resistor 47 k 2 % 0.063 W 0603 R573 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R574 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R576 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R577 1430792 Chip resistor 33 k 5 % 0.063 W 0402 R578 1430794 Chip resistor 39 k 5 % 0.063 W 0402 R579 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R580 1430790 Chip resistor 27 k 5 % 0.063 W 0402 R583 1430794 Chip resistor 39 k 5 % 0.063 W 0402 R584 1430310 Chip resistor 75 k 2 % 0.063 W 0603 R585 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R586 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R601 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R602 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R603 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R701 1430832 Chip resistor 2.7 k 5 % 0.063 W 0402 R702 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R703 1430710 Chip resistor 22 5 % 0.063 W 0402 R704 1430740 Chip resistor 330 5 % 0.063 W 0402 R705 1430724 Chip resistor 82 5 % 0.063 W 0402 R708 1430690 Chip jumper 0402 R711 1430758 Chip resistor 1.5 k 5 % 0.063 W 0402 R712 1430832 Chip resistor 2.7 k 5 % 0.063 W 0402 R713 1430744 Chip resistor 470 5 % 0.063 W 0402 R714 1430700 Chip resistor 10 5 % 0.063 W 0402 R715 1430693 Chip resistor 5.6 5 % 0.063 W 0402 R716 1430693 Chip resistor 5.6 5 % 0.063 W 0402

8–68

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

R717 1430734 Chip resistor 220 5 % 0.063 W 0402 R725 1430792 Chip resistor 33 k 5 % 0.063 W 0402 R726 1430790 Chip resistor 27 k 5 % 0.063 W 0402 R727 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R728 1430730 Chip resistor 150 5 % 0.063 W 0402 R736 1430786 Chip resistor 18 k 5 % 0.063 W 0402 R737 1430786 Chip resistor 18 k 5 % 0.063 W 0402 R738 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R739 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R740 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R741 1430746 Chip resistor 560 5 % 0.063 W 0402 R742 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R743 1430700 Chip resistor 10 5 % 0.063 W 0402 R755 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R756 1412279 Chip resistor 2.2 5 % 0.1 W 0805 R765 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R766 1430748 Chip resistor 680 5 % 0.063 W 0402 R767 1430732 Chip resistor 180 5 % 0.063 W 0402 R768 1430752 Chip resistor 820 5 % 0.063 W 0402 R769 1430693 Chip resistor 5.6 5 % 0.063 W 0402 R774 1430724 Chip resistor 82 5 % 0.063 W 0402 R775 1430722 Chip resistor 68 5 % 0.063 W 0402 R780 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R781 1430740 Chip resistor 330 5 % 0.063 W 0402 R782 1430726 Chip resistor 100 5 % 0.063 W 0402 R783 1430690 Chip jumper 0402 R784 1430726 Chip resistor 100 5 % 0.063 W 0402 R785 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R800 1430778 Chip resistor 10 k 5 % 0.063 W 0402 R801 1430796 Chip resistor 47 k 5 % 0.063 W 0402 R802 1430796 Chip resistor 47 k 5 % 0.063 W 0402 R803 1430754 Chip resistor 1.0 k 5 % 0.063 W 0402 R804 1430788 Chip resistor 22 k 5 % 0.063 W 0402 R805 1430786 Chip resistor 18 k 5 % 0.063 W 0402 R806 1430774 Chip resistor 6.8 k 5 % 0.063 W 0402 R807 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R808 1430734 Chip resistor 220 5 % 0.063 W 0402 R809 1820024 NTC resistor 47 k 5 % 0.2 W 0805 R811 1430774 Chip resistor 6.8 k 5 % 0.063 W 0402 R820 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R821 1430762 Chip resistor 2.2 k 5 % 0.063 W 0402 R822 1430798 Chip resistor 56 k 5 % 0.063 W 0402

8–69

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

R823 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R824 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R825 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R826 1430780 Chip resistor 12 k 5 % 0.063 W 0402 R827 1430774 Chip resistor 6.8 k 5 % 0.063 W 0402 R828 1430786 Chip resistor 18 k 5 % 0.063 W 0402 R829 1430718 Chip resistor 47 5 % 0.063 W 0402 R830 1430718 Chip resistor 47 5 % 0.063 W 0402 R840 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R841 1430770 Chip resistor 4.7 k 5 % 0.063 W 0402 R842 1430844 Chip resistor 3.9 k 1 % 0.063 W 0402 R843 1430832 Chip resistor 2.7 k 5 % 0.063 W 0402 R844 1430734 Chip resistor 220 5 % 0.063 W 0402 R845 1430700 Chip resistor 10 5 % 0.063 W 0402 R846 1430726 Chip resistor 100 5 % 0.063 W 0402 R847 1430718 Chip resistor 47 5 % 0.063 W 0402 R860 1430716 Chip resistor 39 5 % 0.063 W 0402 C040 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C041 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C042 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C043 2320598 Ceramic cap. 3.9 n 5 % 50 V 0402 C044 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C045 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C046 2320598 Ceramic cap. 3.9 n 5 % 50 V 0402 C047 2320598 Ceramic cap. 3.9 n 5 % 50 V 0402 C109 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C110 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C111 2312410 Ceramic cap. 1.0 u 10 % 16 V 1206 C112 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C113 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C114 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C115 2604329 Tantalum cap. 4.7 u 20 % 10 V 3.5x2.8x1.9 C116 2604329 Tantalum cap. 4.7 u 20 % 10 V 3.5x2.8x1.9 C117 2604329 Tantalum cap. 4.7 u 20 % 10 V 3.5x2.8x1.9 C118 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C119 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C120 2604329 Tantalum cap. 4.7 u 20 % 10 V 3.5x2.8x1.9 C121 2604329 Tantalum cap. 4.7 u 20 % 10 V 3.5x2.8x1.9 C122 2312410 Ceramic cap. 1.0 u 10 % 16 V 1206 C124 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C125 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C126 2320560 Ceramic cap. 100 p 5 % 50 V 0402

8–70

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

C127 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C140 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C141 2312410 Ceramic cap. 1.0 u 10 % 16 V 1206 C142 2320598 Ceramic cap. 3.9 n 5 % 50 V 0402 C160 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C170 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C171 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C172 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C173 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C175 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C176 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C177 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C178 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C180 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C181 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C182 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C183 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C185 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C186 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C187 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C188 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C195 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C196 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C197 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C198 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C200 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C201 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C202 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C203 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C210 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C211 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C220 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C221 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C230 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C231 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C232 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C233 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C234 2320598 Ceramic cap. 3.9 n 5 % 50 V 0402 C235 2320598 Ceramic cap. 3.9 n 5 % 50 V 0402 C236 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C237 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C239 2320560 Ceramic cap. 100 p 5 % 50 V 0402

8–71

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

C248 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C250 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C251 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C252 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C253 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C255 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C256 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C257 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C258 2320536 Ceramic cap. 10 p 5 % 50 V 0402 C259 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C260 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C261 2320110 Ceramic cap. 10 n 10 % 50 V 0603 C262 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C263 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C264 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C265 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C266 2320598 Ceramic cap. 3.9 n 5 % 50 V 0402 C267 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C268 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C269 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C270 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C271 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C272 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C276 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C277 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C278 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C279 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C282 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C283 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C286 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C287 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C290 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C291 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C296 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C501 2320522 Ceramic cap. 2.7 p 0.25 % 50 V 0402 C502 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C503 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C504 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C505 2320544 Ceramic cap. 22 p 5 % 50 V 0402 C506 2320526 Ceramic cap. 3.9 p 0.25 % 50 V 0402 C511 2320534 Ceramic cap. 8.2 p 0.25 % 50 V 0402 C512 2320550 Ceramic cap. 39 p 5 % 50 V 0402

8–72

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

C513 2320518 Ceramic cap. 1.8 p 0.25 % 50 V 0402 C514 2320520 Ceramic cap. 2.2 p 0.25 % 50 V 0402 C515 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C516 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C517 2320550 Ceramic cap. 39 p 5 % 50 V 0402 C521 2320554 Ceramic cap. 56 p 5 % 50 V 0402 C536 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C541 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C542 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C543 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C544 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C545 2320728 Ceramic cap. 220 p 10 % 50 V 0402 C546 2320728 Ceramic cap. 220 p 10 % 50 V 0402 C551 2320536 Ceramic cap. 10 p 5 % 50 V 0402 C552 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C553 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C554 2320564 Ceramic cap. 150 p 5 % 50 V 0402 C555 2320564 Ceramic cap. 150 p 5 % 50 V 0402 C556 2320752 Ceramic cap. 2.2 n 10 % 50 V 0402 C557 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C558 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C559 2320752 Ceramic cap. 2.2 n 10 % 50 V 0402 C560 2320752 Ceramic cap. 2.2 n 10 % 50 V 0402 C561 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C562 2320075 Ceramic cap. 470 p 5 % 50 V 0603 C563 2320578 Ceramic cap. 560 p 5 % 50 V 0402 C564 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C565 2310470 Ceramic cap. 270 p 5 % 50 V 0805 C566 2320558 Ceramic cap. 82 p 5 % 50 V 0402 C567 2310470 Ceramic cap. 270 p 5 % 50 V 0805 C569 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C570 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C571 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C572 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C573 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C574 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C575 2320530 Ceramic cap. 5.6 p 0.25 % 50 V 0402 C580 2320584 Ceramic cap. 1.0 n 5 % 50 V 0402 C601 2310784 Ceramic cap. 100 n 10 % 25 V 0805 C602 2312410 Ceramic cap. 1.0 u 10 % 16 V 1206 C603 2312410 Ceramic cap. 1.0 u 10 % 16 V 1206 C604 2310784 Ceramic cap. 100 n 10 % 25 V 0805

8–73

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

C605 2312410 Ceramic cap. 1.0 u 10 % 16 V 1206 C606 2310752 Ceramic cap. 10 n 20 % 50 V 0805 C607 2310784 Ceramic cap. 100 n 10 % 25 V 0805 C608 2310784 Ceramic cap. 100 n 10 % 25 V 0805 C609 2310784 Ceramic cap. 100 n 10 % 25 V 0805 C701 2320548 Ceramic cap. 33 p 5 % 50 V 0402 C702 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C703 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C704 2320518 Ceramic cap. 1.8 p 0.25 % 50 V 0402 C705 2320520 Ceramic cap. 2.2 p 0.25 % 50 V 0402 C710 2320534 Ceramic cap. 8.2 p 0.25 % 50 V 0402 C711 2320558 Ceramic cap. 82 p 5 % 50 V 0402 C712 2320530 Ceramic cap. 5.6 p 0.25 % 50 V 0402 C713 2320516 Ceramic cap. 1.5 p 0.25 % 50 V 0402 C716 2320530 Ceramic cap. 5.6 p 0.25 % 50 V 0402 C720 2320552 Ceramic cap. 47 p 5 % 50 V 0402 C721 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C722 2320524 Ceramic cap. 3.3 p 0.25 % 50 V 0402 C723 2320518 Ceramic cap. 1.8 p 0.25 % 50 V 0402 C725 2320552 Ceramic cap. 47 p 5 % 50 V 0402 C726 2320524 Ceramic cap. 3.3 p 0.25 % 50 V 0402 C728 2320526 Ceramic cap. 3.9 p 0.25 % 50 V 0402 C730 2320552 Ceramic cap. 47 p 5 % 50 V 0402 C731 2320522 Ceramic cap. 2.7 p 0.25 % 50 V 0402 C732 2320534 Ceramic cap. 8.2 p 0.25 % 50 V 0402 C735 2320584 Ceramic cap. 1.0 n 5 % 50 V 0402 C736 2320584 Ceramic cap. 1.0 n 5 % 50 V 0402 C737 2320546 Ceramic cap. 27 p 5 % 50 V 0402 C738 2320536 Ceramic cap. 10 p 5 % 50 V 0402 C739 2320538 Ceramic cap. 12 p 5 % 50 V 0402 C740 2320584 Ceramic cap. 1.0 n 5 % 50 V 0402 C741 2320556 Ceramic cap. 68 p 5 % 50 V 0402 C742 2320536 Ceramic cap. 10 p 5 % 50 V 0402 C743 2320546 Ceramic cap. 27 p 5 % 50 V 0402 C744 2320538 Ceramic cap. 12 p 5 % 50 V 0402 C755 2320556 Ceramic cap. 68 p 5 % 50 V 0402 C756 2320578 Ceramic cap. 560 p 5 % 50 V 0402 C757 2320578 Ceramic cap. 560 p 5 % 50 V 0402 C758 2320556 Ceramic cap. 68 p 5 % 50 V 0402 C759 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C760 2320546 Ceramic cap. 27 p 5 % 50 V 0402 C761 2320530 Ceramic cap. 5.6 p 0.25 % 50 V 0402

8–74

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

C762 2320524 Ceramic cap. 3.3 p 0.25 % 50 V 0402 C763 2500708 Electrol. cap. 3300 u 20 % 16 V C764 2320361 Ceramic cap. 18 p 2 % 25 V 0603 C768 2320584 Ceramic cap. 1.0 n 5 % 50 V 0402 C780 2320536 Ceramic cap. 10 p 5 % 50 V 0402 C781 2320536 Ceramic cap. 10 p 5 % 50 V 0402 C782 2320546 Ceramic cap. 27 p 5 % 50 V 0402 C783 2320546 Ceramic cap. 27 p 5 % 50 V 0402 C784 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C800 2604079 Tantalum cap. 0.22 u 20 % 35 V 3.2x1.6x1.6 C801 2310791 Ceramic cap. 33 n 20 % 50 V 0805 C803 2320564 Ceramic cap. 150 p 5 % 50 V 0402 C804 2320552 Ceramic cap. 47 p 5 % 50 V 0402 C805 2320728 Ceramic cap. 220 p 10 % 50 V 0402 C806 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C807 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C808 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C809 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C810 2320728 Ceramic cap. 220 p 10 % 50 V 0402 C820 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C821 2310167 Ceramic cap. 1.0 n 5 % 50 V 1206 C822 2320053 Ceramic cap. 56 p 5 % 50 V 0603 C823 2310248 Ceramic cap. 4.7 n 5 % 50 V 1206 C824 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C828 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C829 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C830 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C831 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C832 2320756 Ceramic cap. 3.3 n 10 % 50 V 0402 C840 2320548 Ceramic cap. 33 p 5 % 50 V 0402 C841 2610100 Tantalum cap. 1 u 20 % 10 V 2.0x1.3x1.2 C842 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C843 2320546 Ceramic cap. 27 p 5 % 50 V 0402 C844 2320538 Ceramic cap. 12 p 5 % 50 V 0402 C845 2320604 Ceramic cap. 18 p 5 % 50 V 0402 C846 2320534 Ceramic cap. 8.2 p 0.25 % 50 V 0402 C847 2320602 Ceramic cap. 4.7 p 0.25 % 50 V 0402 C848 2320560 Ceramic cap. 100 p 5 % 50 V 0402 C849 2320744 Ceramic cap. 1.0 n 10 % 50 V 0402 C850 2320604 Ceramic cap. 18 p 5 % 50 V 0402 C851 2320550 Ceramic cap. 39 p 5 % 50 V 0402 C862 2320602 Ceramic cap. 4.7 p 0.25 % 50 V 0402

8–75

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

C863 2320522 Ceramic cap. 2.7 p 0.25 % 50 V 0402 L004 3641302 Chip coil 470 n 5 % Q=30/25 MHz 1008 L140 3606946 Ferrite bead 0.2r 26r/100mhz 1206 1206 L180 3606946 Ferrite bead 0.2r 26r/100mhz 1206 1206 L270 3641262 Ferrite bead 30r/100mhz 2a 1206 1206 L271 3641262 Ferrite bead 30r/100mhz 2a 1206 1206 L272 3606946 Ferrite bead 0.2r 26r/100mhz 1206 1206 L273 3606946 Ferrite bead 0.2r 26r/100mhz 1206 1206 L511 3641550 Chip coil 120 n 10 % Q=35/150 MHz 0805 L532 3641550 Chip coil 120 n 10 % Q=35/150 MHz 0805 L541 3641550 Chip coil 120 n 10 % Q=35/150 MHz 0805 L542 3608326 Chip coil 330 n 5 % Q=33/50 MHz 1206 L543 3641560 Chip coil 220 n 10 % Q=30/100 MHz 0805 L544 3641560 Chip coil 220 n 10 % Q=30/100 MHz 0805 L545 3608326 Chip coil 330 n 5 % Q=33/50 MHz 1206 L546 3608326 Chip coil 330 n 5 % Q=33/50 MHz 1206 L551 3641538 Chip coil 39 n 20 % Q=40/250 MHz 0805 L700 3606946 Ferrite bead 0.2r 26r/100mhz 1206 1206 L705 3640013 Chip coil 8 n 5 % Q=50/250 MHz 0805 L710 3641626 Chip coil 220 n 2 % Q=30/100 MHz 0805 L711 3641542 Chip coil 56 n 10 % Q=40/200 MHz 0805 L800 3641206 Chip coil 10 % Q=25/7.96 MHz 1008 L801 3641206 Chip coil 10 % Q=25/7.96 MHz 1008 L840 3641574 Chip coil 68 n 5 % Q=40/200 MHz 0805 L841 3641538 Chip coil 39 n 20 % Q=40/250 MHz 0805 B001 4510044 Crystal 60.2 M B800 4510071 Crystal 26.000 M G001 4352933 Vco 1006–1031mhz4.5v 15ma dct2gsm DCT2GSM Z500 4512046 Dupl 890–915/935–960mhz 37x14.7 37x14.7 Z505 4511016 Saw filter 947.5+–12.5 M 5.4x5.2 Z541 4511026 Saw filter 71+–0.08 M 14.2x8.4 Z551 4556998 Cer.filt 13+–0.22mhz 330r 7x3rad 7x3rad Z713 4550101 Cer.filt 902.5+–12.5mhz 9.4x8.9 9.4x8.9 T070 3640402 Transformer 4:1 balun 800mhz smd SMD V110 4210020 TransistorBCP69–25 pnp 20 V 1 A SOT223 V111 4200877 TransistorBCX51–16 pnp 45 V 1.5 A SOT89 V141 4113828 Trans. supr. SMBJ28ADO214AA V142 4210020 TransistorBCP69–25 pnp 20 V 1 A SOT223 V143 4200226 Darl. transistor BCV27 npn 30 V 300 mA SOT23 V144 4200226 Darl. transistor BCV27 npn 30 V 300 mA SOT23 V145 4200909 TransistorBC858B/BCW30 pnp 30 V 100 mA SOT23 V147 4110126 Zener diode BZX84 5 % 4.3 V 0.3 W SOT23

8–76

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

8–77

V148 4110074 Schottky diode STPS340U 40 V 3 A SOD6 V160 4210100 TransistorBC848W npn 30 V SOT323 V161 4210100 TransistorBC848W npn 30 V SOT323 V210 4110014 Sch. diode x 2 BAS70–07 70 V 15 mA SOT143 V214 4210079 Transistor SOT23 V215 4210079 Transistor SOT23 V216 4210050 TransistorDTA114EE pnp RB V EM3 V219 4210100 TransistorBC848W npn 30 V SOT323 V250 4210100 TransistorBC848W npn 30 V SOT323 V251 4200909 TransistorBC858B/BCW30 pnp 30 V 100 mA SOT23 V252 4210102 TransistorBC858W pnp 30 V 100 mA 200MWSOT323 V270 4117998 Precision voltage reference 4.096 4.096 V501 4210046 TransistorBFP182 npn 20 V 35 mA SOT143 V502 4210102 TransistorBC858W pnp 30 V 100 mA 200MWSOT323 V503 4210100 TransistorBC848W npn 30 V SOT323 V511 4115802 Sch. diode x 2 4V 30 mA SOT23 V512 4210066 TransistorBFR93AW npn 12 V 35 mA SOT323 V541 4210066 TransistorBFR93AW npn 12 V 35 mA SOT323 V701 4210066 TransistorBFR93AW npn 12 V 35 mA SOT323 V702 4100567 Sch. diode x 2 BAS70–04 70V15 mA SERSOT23 V710 4200755 TransistorBFR92A npn 15 V 25 mA SOT23 V725 4200755 TransistorBFR92A npn 15 V 25 mA SOT23 V726 4210102 TransistorBC858W pnp 30 V 100 mA 200MWSOT323 V735 4210100 TransistorBC848W npn 30 V SOT323 V736 4217070 Transistor x 2 IMD V737 4210102 TransistorBC858W pnp 30 V 100 mA 200MWSOT323 V738 4210090 TransistorBFG540/X npn 15 V 129 mA SOT143 V755 4210102 TransistorBC858W pnp 30 V 100 mA 200MWSOT323 V756 4210133 TransistorBFG10W/X npn 10 V 0.25 A SOT343 V765 4210100 TransistorBC848W npn 30 V SOT323 V766 4210100 TransistorBC848W npn 30 V SOT323 V767 4100285 Diode x 2 BAV99 70 V 200 mA SER.SOT23 V768 4210135 TransistorBLT82 npn 10 V SO8S V780 4110014 Sch. diode x 2 BAS70–07 70 V 15 mA SOT143 V800 4110081 Cap. diode BB640 28/1 V SOD323 V801 4210066 TransistorBFR93AW npn 12 V 35 mA SOT323 V802 4210066 TransistorBFR93AW npn 12 V 35 mA SOT323 V840 4210066 TransistorBFR93AW npn 12 V 35 mA SOT323 V841 4210066 TransistorBFR93AW npn 12 V 35 mA SOT323 V842 4110018 Cap. diode BB135 30 V SOD323 D181 4346010 IC, SRAM 32kx8 bit 70 ns TSOP28 D184 4342282 M28c6 4C150 EEPROM 8KX8 150NSTSO2150NSTSO28

SYSTEM MODULE GR8

NHE–4

01/98OJ Technical Documentation

D185 4340201 IC, flash memory E28F008 TSO40 D191 4340126 IC, 1xnand 2input cmos ss TC7S00F SSO5 D192 4340126 IC, 1xnand 2input cmos ss TC7S00F SSO5 D200 4372231 IC, ROM DSP1616S11 TQFP100 D210 4346012 IC, SRAM 32kx8 bit 70 ns TSO28 D211 4346010 IC, SRAM 32kx8 bit 70 ns TSOP28 D230 4370092 IC, D2CA GSM/PCN ASIC SQFP144 D231 4375174 IC, MCU SQFP80 N260 4343132 IC, PCM coded/filter ST5080 SO28W N270 4370015 IC, ASIC SQFP64 N271 4375588 IC, PSL+ power supply SO24W N551 4370091 Crfrt_st tx.mod+rxif+pwc sqfp44 SQFP44 N601 4370095 Crfcontf 8xreg4.5v vref2v5 vsop28 VSOP28 N820 4340069 IC, 2xsynt 3v sso UMA1018M/C1/C3/S1 SSO20 X100 5469033 System conn 4DC+JACK+16AF+1RF X196 5431718 Flexfoil connect 1x30 0.5mm smd X501 9510143 Antenna clip 4D23053 NHK–1XA W501 9780074 Coax cable 4D23278 NHK–1XA

9380233 Sticker brady lat–11–747w–5 9480204 Damping pad 4D25528 NHE–4 9854011 PCB GR8 50.0X139.0X1.0 M6 2/PA

8–78

Nokia 2110i, 2110 SYSTEM MODULE GR8

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents of System Module GR8

SYSTEM MODULE GR8

Introduction

Functional Description of Baseband Block

Functional Description of RF block

Block Diagram of Baseband

Power Distribution Diagram of Baseband

Block Diagram of RF

Power Distribution Diagram of RF

Connections between System and RF Blocks

Connections between RX and TX Blocks

Parts List of GR8 (EDMS Issue: 6.8 Code: 0200514)
