Nissan X-Trail 2014 User Manual

(3,1)

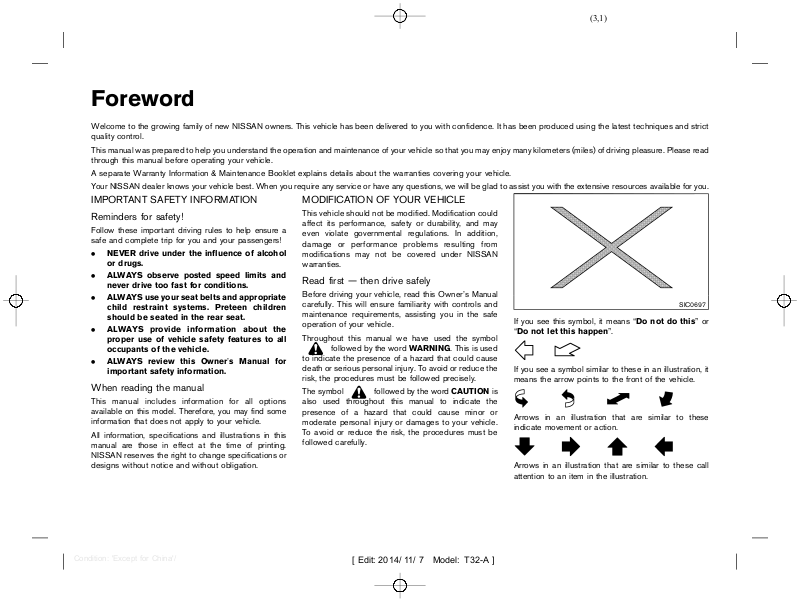

Foreword

Welcome to the growing family of new NISSAN owners. This vehicle has been delivered to you with confidence. It has been produced using the latest techniques and strict quality control.

This manual was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many kilometers (miles) of driving pleasure. Please read through this manual before operating your vehicle.

A separate Warranty Information & Maintenance Booklet explains details about the warranties covering your vehicle. Your NISSAN dealer knows your vehicle best. When you require any service or have any questions, we will be glad to assist you with the extensive resources available for you.

IMPORTANT SAFETY INFORMATION

Reminders for safety!

Follow these important driving rules to help ensure a safe and complete trip for you and your passengers!

. NEVER drive under the influence of alcohol

. ALWAYS observe posted speed limits and

. ALWAYS use your seat belts and appropriate

. ALWAYS provide information about the

. ALWAYS review this Owner’s Manual for

When reading the manual

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle.

All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or designs without notice and without obligation.

T32A130827-5D7BE647-65D8-496C-8EE3-C047095E8C7 C

T32A130827-43177320-DB4C-414E-979E-3880F123E9F 3

T32A130827-F0682CE4-B884-4433-BD8A-47771628A26D

or drugs.

never drive too fast for conditions.

child restraint systems. Preteen children should be seated in the rear seat.

proper use of vehicle safety features to all occupants of the vehicle.

important safety information.

T32A130827-FCDF74CF-E97A-4F06-A19F-099B7A0C209 6

MODIFICATION OF YOUR VEHICLE

This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modifications may not be covered under NISSAN warranties.

Read first — then drive safely

Before driving your vehicle, read this Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

Throughout this manual we have used the symbol

to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

The symbol also used throughout this manual to indicate the presence of a hazard that could cause minor or moderate personal injury or damages to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

T32A130827-0A0B6A4E-B210-478D-BC6C-8E20CC8B66 D7

T32A130827-C8F46367-1E3C-449F-8525-B3535299080 3

followed by the word WARNING. This is used

followed by the word CAUTION is

SIC0697

If you see this symbol, it means “Do not do this” or “Do not let this happen”.

NOS1274

If you see a symbol similar to these in an illustration, it means the arrow points to the front of the vehicle.

NOS1275

Arrows in an illustration that are similar to these indicate movement or action.

NOS1276

Arrows in an illustration that are similar to these call attention to an item in the illustration.

(4,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Air bag warning labels:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0243X

“NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.”

Be sure to read “Air bag warning labels” (P.1-30).

Trademarks:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

NOS1617

Bluetooth®is a trademark owned by Bluetooth SIG, Inc. and licensed to Visteon Corporation and Bosch.

ON-PAVEMENT AND OFF-ROAD DRIVING (4WD model)

T32A130827-A92ECF76-8233-4402-BEA7-174ED86FCE 6B

This vehicle will handle and maneuver differently from an ordinary passenger car, because it has a higher center of gravity. As with other vehicles with features of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Be sure to read the “On-pavement and off-road driving precautions” (P.5-7) of this manual.

2014 NISSAN MOTOR CO., LTD.

Condition: 'Except for China'/

(1,1)

Illustrated table of contents

Safety — seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Display screen, heater and air conditioner, and audio system

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical information

Index

Table of Contents

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Condition: 'Except for China'/

(2,1)

(5,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0 Illustrated table of contents

Seats, seat belts and Supplemental Restraint System (SRS) ........ 0-2

Exterior front .................................................................................................. 0-3

Exterior rear ................................................................................................... 0-4

Passenger compartment ............................................................................ 0-5

Cockpit ........................................................................................................... 0-6

Left-Hand Drive (LHD) model ............................................................ 0-6

Right-Hand Drive (RHD) model ........................................................ 0-7

Instrument panel .......................................................................................... 0-8

Left-Hand Drive (LHD) model ......................................................... 0-8

Right-Hand Drive (RHD) model ...................................................... 0-9

Meters and gauges ................................................................................. 0-10

Engine compartment ............................................................................... 0-11

QR25DE engine model ................................................................. 0-11

MR20DD engine model ................................................................. 0-12

R9M engine model ........................................................................ 0-13

Condition: 'Except for China'/

(6,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-2 Illustrated table of contents

T32A130827-10AA2C4F-D507-45FE-933C-FA9FCA7F70C1

JVC0589X

1. Supplemental front-impact air bags (Page 1-27)

2. Seat belts (P.1-9)

3. Head restraints (P.1-7)

4. Supplemental curtain side-impact air bags* (P. 1-27)

5. Child restraint anchor point (for top tether strap child restraint)* (P.1-20)

6. Front seats (P.1-2)

7. Supplemental side-impact air bags* (P.1-27)

8. Pre-tensioner seat belt system (P.1-36)

9. Second row seats (P.1-5) — Child restraints (P.1-14)

10. ISOFIX child restraint system (for second row seats) (P.1-19)

11. Child restraint anchor point (for top tether strap child restraint) (P.1-20)

12. Third row seats* (P.1-6)

*: if equipped

SEATS, SEAT BELTS AND SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Condition: 'Except for China'/

(7,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

GUID-7CE776F2-0199-429C-BE30-880769DCFEDA

JVC0642X

1. Engine hood (P.3-22)

2. Windshield wiper and washer — Switch operation (P.2-47) — Window washer fluid (P.8-19)

3. Headlight cleaner* (P.2-44)

4. Front camera* (P.4-10, 2-37, 5-39)

5. Sunroof* (P.2-52)

6. Power windows (P.2-50)

7. Front view camera* (P.4-10)

8. Recovery hook (P.6-12)

9. Headlights and turn signal lights (P.2-39)

10. Fog lights* (P.2-45)

11. Sonar (parking sensor) system* (P.5-50) — Park Assist (PA)* (P.4-17)

12. Tires — Tires and wheels (P.8-36, 9-7) — Flat tire (P.6-2) — Tire placard (P.9-9)

13. Outside mirrors (P.3-29)

14. Side view camera* (P.4-10)

15. Side turn signal light (P.2-44)

16. Doors — Keys (P.3-2) — Door locks (P.3-4) — Intelligent Key system* (P.3-10) — Remote keyless entry system* (P.3-7) — Security system (P.3-20)

*: if equipped

Illustrated table of contents 0-3

EXTERIOR FRONT

Condition: 'Except for China'/

(8,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-4 Illustrated table of contents

T32A130827-BA5074E9-D21C-4E66-B0EF-AE9C682D0B E4

JVC0599X

1. Rear window defogger (P.2-49)

2. Rear window wiper and washer — Switch operation (P.2-49) — Window washer fluid (P.8-19)

3. High-mounted stop light — Bulb replacement (P.8-28)

4. Antenna (P.4-43)

5. Roof rail* (P.2-60)

6. Parking sensor (sonar) system* (P. 5-50) — Park Assist (PA)* (P.4-17)

7. Rear fog light* (P. 2-46)

8. Back door (P.3-23) — Intelligent Key system* (P.3-10) — Remote keyless entry system* (P.3-7) — Rear view camera* (P.4-7, P.4-10)

9. Rear combination light (P. 8-27)

10. Fuel filler lid (P.3-27)

11. Child safety rear door locks (P.3-7)

*: if equipped

EXTERIOR REAR

Condition: 'Except for China'/

(9,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

T32A130827-640688FC-866B-4E18-8CE1-364B86D3233 C

JVC0654X

1. Inside rearview mirror (P.3-28)

2. Sunglasses holder (P.2-55)

3. Front map lights (P.2-62) — Microphone* (P.4-78, P.4-84, P.4-87, P.4-94

, P.4-98)

4. Sunroof* (P.2-52)

5. Cancel switch for ultrasonic and tilt sensors* (P.3-20)

6. Sun visors (P.2-61, P.3-29)

7. Room light* (P.2-62)

8. Rear personal lights* (P.2-63)

9. Coat hook (Driver’s side) (P.2-59)

10. Rear armrest (Second row seats) (P.1-7) — Rear cup holders (P.2-55)

11. Door armrest — Power window switch (P.2-50) — Power door lock switch* (P.3-6) — Outside rearview mirror remote control

switch (Driver’s side) (P.3-29)

12. Front cup holders (P.2-55)/Ashtray* (P.2-54)

13. Heated seat switch* (P.1-4)

14. Console box (P.2-55)

15. Luggage room — Storages (P.2-54) — Luggage hooks (P.2-57) — Tonneau cover* (P.2-60) — Power outlet (P.2-53) — Spare tire (P.6-2)

*: if equipped

Illustrated table of contents 0-5

PASSENGER COMPARTMENT

Condition: 'Except for China'/

(10,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-6 Illustrated table of contents

GUID-10473ED5-F428-4070-A4B6-3AE4A1D1CCC6

LEFT-HAND DRIVE (LHD) MODEL

GUID-5B92FB7E-BFCD-4E4C-9506-C5094664CBDF

JVC0643X

1. Instrument brightness control (P.2-10)

2. TRIP RESET switch (P.2-7, P.2-8)

3. Headlight and turn signal switch (P.2-39)/Fog light switch* (P.2-45)

4. Steering-wheel-mounted controls (left side) — Audio control* (P.4-76 or Navigation system

**) — Vehicle information display control (P.2-20)

— Bluetooth®Hands-Free Phone System (without navigation)* (P.4-78, P.4-84, P.4-87)

— Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94)

5. Steering wheel (P.3-28) — Horn (P.2-50)

6. Wiper and washer switch (P.2-47)

7. Hazard indicator flasher switch (P.6-2)

8. Steering-wheel-mounted controls (right side) — Cruise control switches* (P.5-43) — Speed limiter switches* (P.5-41) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78, P.4-84, P.4-87) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94) — Voice recognition system switch* (P.4-98)

9. Shift lever — Continuously Variable Transmission (CVT)

(P.5-13) — Manual Transmission (MT) (P.5-17)

10. Vehicle Dynamic Control (VDC) OFF switch or Electronic Stability Program (ESP) OFF switch (P.5-27)

11. Headlight aiming control switch* (P.2-42)

12. Parking brake (Pedal type)* (P.3-30)

13. ECO switch* (P.5-47)

14. Headlight cleaner switch* (P.2-44)

15. Parking sensor (sonar) system OFF switch* (P.5-51)

16. Power back door switch* (P.3-24)

17. Stop/Start OFF switch* (P.5-21)

18. Power back door main switch* (P.3-24)

19. Push-button ignition switch (model with Intelligent Key system)* (P.5-9)

20. Ignition switch (model without Intelligent Key system)* (P.5-7)

21. Parking brake (Switch type)* (P.3-30)

22. Hill descent control switch* (P.5-30)

23. Four-Wheel Drive (4WD) mode switch* (P.5-22)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

COCKPIT

Condition: 'Except for China'/

(11,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

RIGHT-HAND DRIVE (RHD) MODEL

GUID-2C73B5AA-609C-4CA5-AC9C-A8EFFF6B2BCF

JVC0649X

1. Hill descent control switch* (P.5-30)

2. Steering-wheel-mounted controls (left side) — Audio control* (P.4-76 or Navigation system

**) — Vehicle information display control (P.2-20) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78, P.4-84) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94)

3. Hazard indicator flasher switch (P.6-2)

4. Headlight and turn signal switch (P.2-39)/Fog light switch* (P.2-45) or Wiper and washer switch (P.2-47)

5. Push-button ignition switch (model with Intelligent Key system)* (P.5-9)

6. Steering-wheel-mounted controls (right side) — Cruise control switches* (P.5-43) — Speed limiter switches* (P.5-41)

— Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78, P.4-84) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94) — Voice recognition system switch* (P.4-98)

7. Wiper and washer switch (P.2-47) or Headlight and turn signal switch (P.2-39)/Fog light switch* (P.2-45)

8. Power back door main switch* (P.3-24)

9. Power back door switch* (P.3-24)

10. Instrument brightness control (P.2-10)

11. TRIP RESET switch (P.2-7, P.2-8)

12. Vehicle Dynamic Control (VDC) OFF switch or Electronic Stability Program (ESP) OFF switch (P.5-27)

13. Four-Wheel Drive (4WD) mode switch* (P.5-22)

14. Shift lever — Continuously Variable Transmission (CVT)

(P.5-13) — Manual Transmission (MT) (P.5-17)

15. Parking brake (Switch type)* (P.3-30)

16. Steering wheel (P.3-28) — Horn (P.2-50)

17. Parking brake (Pedal type)* (P.3-30)

18. Ignition switch (model without Intelligent Key system)* (P.5-7)

19. Stop/Start or Idling Stop OFF switch* (P.5-21)

20. Parking sensor (sonar) system OFF switch* (P.5-51)

21. ECO switch* (P.5-47)

22. Headlight aiming control switch* (P.2-42)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Illustrated table of contents 0-7

Condition: 'Except for China'/

(12,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-8 Illustrated table of contents

GUID-6AB30B05-199D-4C45-BA41-DAF524C5659F

LEFT-HAND DRIVE (LHD) MODEL

T32A130827-288FF21B-7739-4FAD-8E2C-DC0FB640F389

JVC0663X

1. Side ventilator (P.4-26)

2. Meters and gauges (P.2-7)/Clock (P.2-22)

3. Center ventilator (P.4-25)

4. Audio system* (P.4-35) or Navigation system** — Rear view monitor* (P.4-7) — Around view monitor* (P.4-10) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78)

— Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94) — Voice Recognition System* (P.4-98)

5. Passenger’s front-impact air bag (P.1-27)

6. Fuse box cover (P.8-24)

7. Fuel filler lid release handle (P.3-27)

8. Hood release handle (P.3-22)

9. Steering wheel lock lever (P.3-28)

10. Driver’s front-impact air bag (P.1-27)/Horn (P.2-50)

11. Heater/air conditioner control (P.4-26)

12. Auxiliary input jack* (P.4-75) and USB port* (P.4-75)

13. Power outlet*/Cigarette lighter* (P.2-53)

14. Defogger switch (P.2-49)

15. Glove box (P.2-54)

16. Fuse box cover* (P.8-24)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

INSTRUMENT PANEL

Condition: 'Except for China'/

(13,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

RIGHT-HAND DRIVE (RHD) MODEL

T32A130827-2C6B73CA-1866-4562-9175-5F11892A2EE 0

JVC0662X

1. Side ventilator (P.4-26)

2. Passenger’s front-impact air bag (P.1-27)

3. Audio system* (P.4-35) or Navigation system** — Rear view monitor* (P.4-7) — Around view monitor* (P.4-10) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94)

— Voice Recognition System* (P.4-98)

4. Center ventilator (P.4-25)

5. Meters and gauges (P.2-7)/Clock (P.2-22)

6. Driver’s front-impact air bag (P.1-27)/Horn (P.2-50)

7. Glove box (P.2-54) — Fuse box (P.8-24)

8. Heater/air conditioner control (P.4-26)

9. Power outlet*/Cigarette lighter* (P.2-53)

10. Auxiliary input jack* (P.4-75) and USB port* (P.4-75)

11. Defogger switch (P.2-49)

12. Steering wheel lock lever (P.3-28)

13. Hood release handle (P.3-22)

14. Fuel filler lid release handle (P.3-27)

15. Fuse box cover* (P.8-24)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Illustrated table of contents 0-9

Condition: 'Except for China'/

(14,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-10 Illustrated table of contents

T32A130827-085CACB4-087F-44F7-8187-1F542FC0BFEF

JVC0581X

1. Tachometer (P.2-8)

2. Warning/indicator lights (P.2-12)

3. Vehicle information display (P.2-20) — Odometer/twin trip odometer (P.2-7, P.2-8)

4. Speedometer (P.2-7)

5. Engine coolant temperature gauge (P.2-9)

6. Fuel gauge (P.2-9)

METERS AND GAUGES

Condition: 'Except for China'/

(15,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

T32A130827-5B4D951A-E33B-40B3-B46A-59CAD646A8 B4

QR25DE ENGINE MODEL

T32A130827-690FA407-2649-46DA-9338-40A3EC16529D

JVC0580X

1. Engine coolant reservoir (P.8-9)

2. Brake fluid reservoir (P.8-16) — RHD model

3. Engine oil filler cap (P.8-10)

4. Brake fluid reservoir (P.8-16) — LHD model

5. Air cleaner (P.8-17)

6. Battery (P.8-20)

7. Window washer fluid reservoir (P.8-19)

8. Engine drive belts (P.8-14)

9. Engine oil dipstick (P.8-10)

10. Radiator cap (P.8-8) — Vehicle overheat (P.6-10)

11. Fuse/fusible link box (P.8-24)

Illustrated table of contents 0-11

ENGINE COMPARTMENT

Condition: 'Except for China'/

(16,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-12 Illustrated table of contents

MR20DD ENGINE MODEL

T32A130827-0469BBE0-67EA-4CAC-8CA8-6DA80E9EE1C A

JVC0592X

1. Engine coolant reservoir (P.8-9)

2. Brake and clutch* fluid reservoir (P.8-16) — RHD model

3. Brake and clutch* fluid reservoir (P.8-16) — LHD model

4. Air cleaner (P.8-17)

5. Fuse/fusible link box (P.8-24)

6. Window washer fluid reservoir (P.8-19)

7. Engine drive belts (P.8-14)

8. Radiator cap (P.8-8) — Vehicle overheat (P.6-10)

9. Engine oil dipstick (P.8-10)

10. Engine oil filler cap (P.8-10)

11. Battery (P.8-20)

*: For Manual Transmission (MT) Model

Condition: 'Except for China'/

(17,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

R9M ENGINE MODEL

GUID-DC3E00C5-19FD-4DBF-908D-ED1B5BC31993

JVC0640X

1. Engine coolant reservoir (P.8-9)

2. Brake and clutch* fluid reservoir (P.8-16) — RHD model

3. Engine oil filler cap (P.8-10)

4. Brake and clutch* fluid reservoir (P.8-16) — LHD model

5. Air cleaner (P.8-17)

6. Window washer fluid reservoir (P.8-19)

7. Engine drive belts (P.8-14)

8. Engine oil dipstick (P.8-10)

9. Battery (P.8-20)

10. Fuse/fusible link box (P.8-24) *: For Manual Transmission (MT) Model

Illustrated table of contents 0-13

Condition: 'Except for China'/

(18,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-14 Illustrated table of contents

MEMO

Condition: 'Except for China'/

(19,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1 Safety — seats, seat belts and supplemental

restraint system

Seats ............................................................................................................... 1-2

Front seats .............................................................................................. 1-2

Second row seats ................................................................................. 1-5

Third row seats (if equipped) ............................................................ 1-6

Armrest .................................................................................................... 1-7

Head restraints ............................................................................................. 1-7

Adjustable head restraint .................................................................... 1-7

Non-adjustable head restraint ........................................................... 1-7

Remove .................................................................................................... 1-8

Install ........................................................................................................ 1-8

Adjust ....................................................................................................... 1-8

Seat belts ...................................................................................................... 1-9

Precautions on seat belt usage ........................................................ 1-9

Child safety .......................................................................................... 1-11

Pregnant women ................................................................................ 1-12

Injured persons ................................................................................... 1-12

Center mark on seat belts ............................................................... 1-12

Three-point type seat belts ........................................................... 1-12

Seat belt maintenance ................................................................... 1-13

Child restraints ......................................................................................... 1-14

Precautions on child restraint usage .......................................... 1-14

Universal child restraints for front seat and rear seats

(for Europe) ....................................................................................... 1-15

ISOFIX child restraint system (for second row seats) .......... 1-19

Child restraint anchorage (for second row seats) .................. 1-20

Child restraint installation using ISOFIX .................................... 1-20

Child restraint installation using 3-point type seat belt ......... 1-23

Supplemental Restraint System (SRS) .............................................. 1-27

Precautions on Supplemental Restraint System (SRS) ........ 1-27

Supplemental air bag systems ..................................................... 1-32

SRS air bag deployment conditions ........................................... 1-34

Pre-tensioner seat belt system ................................................... 1-36

Repair and replacement procedure ............................................ 1-37

Condition: 'Except for China'/

(20,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-2 Safety — seats, seat belts and supplemental restraint system

T32A130827-544A337B-5822-4F19-AD26-8D99DEA6015 1

SSS0133A

WARNING:

. Do not drive and/or ride in the vehicle with

the seatback reclined. This can be dangerous. The shoulder belt will not be properly against the body. In an accident, you and your passengers could be thrown into the shoulder belt and receive neck or other serious injuries. You and your passengers could also slide under the lap belt and receive serious injuries.

. For the most effective protection while the

vehicle is in motion, the seatback should be upright. Always sit well back in the seat and adjust the seat belt properly. (See “Seat belts” (P.1-9).)

CAUTION:

When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damages.

FRONT SEATS

T32A130827-F0BDEADE-E0E8-43E7-B8D5-DAAAE4636 2C7

WARNING:

Do not adjust the driver’s seat while driving so that full attention may be given to vehicle operation.

Manual seat adjustment

T32A130827-44B2F3FC-EF1E-4159-AA42-22C9D53C6 CFA

WARNING:

After adjusting a seat, gently shake the seat to confirm that the seat is locked securely. If the seat is not locked securely, it may move suddenly and could cause the loss of control of the vehicle.

SEATS

Condition: 'Except for China'/

(21,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

JVR0332X

Forward and backward:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull up the adjusting lever

2. Slide the seat to the desired position.

3. Release the adjusting lever to lock the seat in position.

Reclining:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull up the adjusting lever

2. Tilt the seatback to the desired position.

3. Release the adjusting lever to lock the seatback in position.

The reclining feature allows the adjustment of the seatback for occupants of different sizes to help obtain the proper seat belt fit. (See “Seat belts” (P.1-9).)

The seatback may be reclined to allow occupants to rest when the vehicle is parked.

Seat lifter (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0333X

Pull up or push down the adjusting lever to adjust the seat height until the desired position is achieved.

Power seat adjustment

T32A130827-8BB0095E-C954-4EA7-BCA6-E3736507277F

WARNING:

Never leave children or adults who would normally require the support of others alone in the vehicle. Pets should not be left alone either. They could unknowingly activate switches or controls and inadvertently become involved in a serious accident and injure themselves.

Operating tips:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

. The power seat motor has an auto-reset overload

protection circuit. If the motor stops during the seat adjustment, wait 30 seconds, then reactivate the switch.

. To avoid discharge of the battery, do not operate

the power seats for a long period of time when the engine is not running.

Safety — seats, seat belts and supplemental restraint system 1-3

Condition: 'Except for China'/

(22,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-4 Safety — seats, seat belts and supplemental restraint system

JVR0334X

Forward and backward:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Move forward or backward the adjusting switch

the desired position.

Reclining:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Move forward or backward the adjusting switch

the desired position. The reclining feature allows the adjustment of the

seatback for occupants of different sizes to help obtain the proper seat belt fit. (See “Seat belts” (P.1-9).)

The seatback may be reclined to allow occupants to rest when the vehicle is parked.

Seat lifter (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0119X

Pull up or push down the adjusting switch to adjust the seat height until the desired position is achieved.

Lumbar support (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

SSS1053

The lumbar support feature provides lower back support to the driver.

Push each side of the adjusting switch to adjust the seat lumbar area until the desired position is achieved.

Heated seats (if equipped)

T32A130827-12F30A00-21DA-4474-BB84-80C0B5836ADB

JVR0322X

The front seats can be warmed by built-in heaters. The switches located on the center console can be operated independently of each other.

1. Start the engine.

Condition: 'Except for China'/

(23,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2. Select heat range.

For high heat, push the HI (High) side of the switch

For low heat, push the LO (Low) side of the switch

The indicator light

will illuminate when low

or high is selected.

3. To turn off the heater, return the switch to the level position. Make sure the indicator light turns off.

The heater is controlled by a thermostat, automatically turning the heater on and off. The indicator light will remain on as long as the switch is on.

When the vehicle’s interior is warmed, or before you leave the vehicle, be sure to turn off the switch.

CAUTION:

. The battery could run down if the seat heater

is operated while the engine is not running.

. Do not use the seat heater for extended

periods or when no one is using the seat.

. Do not put anything on the seat which

insulates heat, such as a blanket, cushion, seat cover, etc. Otherwise, the seat may become overheated.

. Do not place anything hard or heavy on the

seat or pierce it with a pin or similar object. This may result in damage to the seat heater.

. Any liquid spilled on the heated seat should

be removed immediately with a dry cloth.

. When cleaning the seat, never use gasoline,

thinner, or any similar materials.

SECOND ROW SEATS

T32A130827-3C944850-5F36-4EC0-8FC1-B5D4740BE525

Adjustment

T32A130827-C4C3921B-4C08-4E61-8F01-E53BD4BE934 E

JVR0330X

Forward and backward:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull up the adjusting lever

2. Slide the seat to the desired position.

3. Release the adjusting lever

to lock the seat in

position.

Reclining:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull the adjusting lever

2. Tilt the seatback to the desired position.

3. Release the adjusting lever

to lock the

seatback in position.

The reclining feature allows the adjustment of the seatback for occupants of different sizes to help obtain the proper seat belt fit. (See “Seat belts” (P.1-9).)

The seatback may be reclined to allow occupants to rest when the vehicle is parked.

JVR0376X

Folding:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. For vehicles not equipped with third row seat: Pull up the lever

and fold the seatback flat.

For vehicles equipped with third row seat: Pull up the lever

and pull the strap

on the lower

side of the outboard seats to fold the seatback flat.

2. To return the seats to a seating position, push up on the seatback until it latches in place.

WARNING:

. Never allow anyone to ride in the luggage

area or on the rear seats when they are in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury in an accident or sudden stop.

. Do not fold down the second row seats when

occupants are in the second row seat area or any luggage is on the second row seats.

. Properly secure all luggage to help prevent it

from sliding or shifting. Do not place luggage higher than the seatbacks.

Safety — seats, seat belts and supplemental restraint system 1-5

Condition: 'Except for China'/

(24,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-6 Safety — seats, seat belts and supplemental restraint system

. When returning the seatbacks to the upright

position, be certain they are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

Walk-in mechanism (Three-row model):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The second row seats can tilt and slide for easy entry/ exit to/from the third row seats.

WARNING:

After operating the walk-in mechanism, be sure to return the seat to the rearmost position and then tilt up the seatback until it latches.

CAUTION:

. When operating the walk-in mechanism,

push and hold the seatback and operate slowly. If the seatback is tilted down quickly and then allowed to slide, there is a risk that it could contact your face or other parts of your body, or pinch your hand or foot, causing injury.

. When operating the walk-in mechanism, be

sure not to contact any moving parts to avoid possible injuries and/or damage.

. When operating the walk-in mechanism, be

sure that the second row seats are not occupied by passengers and/or any objects to avoid possible injuries and/or damage.

. Do not operate the walk-in mechanism with

objects, drinks, etc. on the seat. This may cause objects to break or cause the passenger room to be soiled.

JVR0355X

1. Pull the lever

to tilt down the seatback.

2. Slide the seat forward.

3. When returning the seat to its original position, slide the seat backward, tilt the seatback up and then secure it in place.

THIRD ROW SEATS (if equipped)

GUID-6AFED800-DD55-4234-8775-F187F0285680

Folding

GUID-F0E0E98B-1F35-427F-AE1C-9E5024C736F1

JVR0329X

To fold the third row seats flat for maximum cargo capacity:

1. Make sure the head restraints are all the way down.

2. Pull the strap

to release the seat.

3. Once released, push the seatback forward

. To return the third row seats to a seating position: Use the pull straps

to raise each seatback. Pull back until the seatback latches into position. Make sure to properly raise each seatback to an upright and secured position.

WARNING:

When the seat is returned to the normal seating position, the head restraints must be returned to the upright position to properly protect vehicle occupants.

Condition: 'Except for China'/

(25,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

ARMREST

GUID-0CFA7136-CE0F-460F-B8C8-64D55ED211DE

Pull the armrest down until it rests on the seat cushion.

JVR0337X

Second row seats

Fold down the armrest while pulling the strap until it rests on the seat cushion.

T32A130827-DB0E9BDD-2C29-4173-B3C0-5A08C9BDE19 9

WARNING:

Head restraints supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjustable head restraints must be adjusted properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the head restraint stalks or remove the head restraint. Do not use the seat if the head restraint has been removed. If the head restraint was removed, reinstall and properly adjust the head restraint before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the head restraint. This may increase the risk of serious injury or death in a collision.

. Your vehicle is equipped with a head restraint that

may be integrated, adjustable or non-adjustable.

. Adjustable head restraints have multiple notches

along the stalk to lock them in a desired adjustment position.

. The non-adjustable head restraints have single

locking notch to secure them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the head restraint

so the center of your ear is approximately level with the center of the head restraint.

— If your ear position is still higher than the

recommended alignment, place the head restraint at the highest position.

. If the head restraint has been removed, ensure

that it is reinstalled and locked in place before riding in that designated seating position.

ADJUSTABLE HEAD RESTRAINT

T32A130827-C9F74993-858A-41B5-9556-616AFC9796B A

SSS0992

1. Removable head restraint

2. Multiple notches

3. Lock knob

4. Stalks

NON-ADJUSTABLE HEAD RESTRAINT

T32A130827-2CDD1BB5-1601-41B1-8E92-E1A700D921 F6

JVR0203X

1. Removable head restraint

2. Single notch

3. Lock knob

Safety — seats, seat belts and supplemental restraint system 1-7

HEAD RESTRAINTS

Condition: 'Except for China'/

(26,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-8 Safety — seats, seat belts and supplemental restraint system

4. Stalks

REMOVE

T32A130827-492400AE-FA4A-4337-994A-64826B9647C6

SSS1037

Use the following procedure to remove the head restraint.

1. Pull the head restraint up to the highest position.

2. Push and hold the lock knob.

3. Remove the head restraint from the seat.

4. Store the head restraint properly in a secure place so it is not loose in the vehicle.

5. Reinstall and properly adjust the head restraint before an occupant uses the seating position.

INSTALL

T32A130827-AC0F950A-602B-45AB-9D97-17CEDE4AA04D

SSS1038

1. Align the head restraint stalks with the holes in the seat. Make sure that the head restraint is facing the correct direction. The stalk with the adjustment notch

must be installed in the hole with the

lock knob

2. Push and hold the lock knob and push the head restraint down.

3. Properly adjust the head restraint before an occupant uses the seating position.

ADJUST

T32A130827-ED3FF471-57AE-4DB8-96D1-FF8165FFA3F4

SSS0997

For adjustable head restraint

Adjust the head restraint so the center is level with the center of your ears. If your ear position is still higher than the recommended alignment, place the head restraint at the highest position.

JVR0259X

For non-adjustable head restraint

Make sure the head restraint is positioned from the stored position or any non-latch position so the lock knob is engaged in the notch before riding in that designated seating position.

Raise

T32A130827-21BF58C9-E66B-43AB-8465-6BA3A92920D4

SSS1035

Type A

To raise the head restraint, pull it up.

Condition: 'Except for China'/

(27,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

SSS1037

Type B

To raise the head restraint, push and hold the lock knob. Then, pull it up.

Make sure the head restraint is positioned from the stored position or any non-latch position so the lock knob is engaged in the notch before riding in that designated seating position.

Lower

T32A130827-FA4C1475-83A4-4F07-AB5A-232C4EC6648D

SSS1036

To lower, push and hold the lock knob and push the head restraint down.

Make sure the head restraint is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

T32A130827-70A68760-75B8-47F3-AB2C-B69D82C30 139

PRECAUTIONS ON SEAT BELT USAGE

T32A130827-2F565D7D-05DE-4FB6-B3C3-300FCA1D36C 5

If you are wearing the seat belt properly adjusted and sitting upright and well back in the seat, chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes the supplemental air bag systems.

Safety — seats, seat belts and supplemental restraint system 1-9

SEAT BELTS

Condition: 'Except for China'/

(28,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-10 Safety — seats, seat belts and supplemental restraint system

SSS0134A

SSS0136A

SSS0014 SSS0016

WARNING:

. Seatbelts are designed to bear upon the

bony structure of the body, and should be worn low across the front of the pelvis or the pelvis, chest and shoulders, as applicable; wearing the lap section of the belt across the abdominal area must be avoided. Serious injury may occur if a seat belt is not worn properly.

. Position the lap belt as low and snug as

possible around the hips, not the waist. A lap belt worn too high could increase the risk of internal injuries in an accident.

. Do not allow more than one person to use

the same seat belt. Each belt assembly must only be used by one occupant; it is dangerous to put a belt around a child being carried on the occupant’s lap.

. Never carry more people in the vehicle than

there are seat belts.

. Never wear seat belts inside out. Belts

should not be worn with straps twisted. Doing so may reduce their effectiveness.

. Seatbelts should be adjusted as firmly as

possible, consistent with comfort, to provide the protection for which they have been designed. A slack belt will greatly reduce the protection afforded to the wearer.

. Every person who drives or rides in this

vehicle should use a seat belt at all times. Children should be properly restrained in the rear seat and, if appropriate, in a child restraint system.

Condition: 'Except for China'/

(29,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

. Do not run the belt behind your back or

under your arm. Always route the shoulder belt over your shoulder and across your chest. The belt should be away from your face and neck, but not falling off your shoulder. Serious injury may occur if a seat belt is not worn properly.

. No modifications or additions should be

made by the user which will either prevent the seat belt adjusting devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.

. Care should be taken to avoid contamina-

tion of the webbing with polishes, oils and chemicals, and particularly battery acid. Cleaning may safely be carried out using mild soap and water. The belt should be replaced if webbing becomes frayed, contaminated or damaged.

. All seat belt assemblies including retractors

and attaching hardware should be inspected after any collision by a NISSAN dealer. NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and, when necessary, replaced if either damage or improper operation is noted.

. It is essential to replace the entire assembly

after it has been worn in a severe impact even if damage to the assembly is not obvious.

. Once the pre-tensioner seat belt has acti-

vated, it cannot be reused. It must be replaced together with the retractor. Contact a NISSAN dealer.

. Removal and installation of the pre-ten-

sioner seat belt system components should be done by a NISSAN dealer.

CHILD SAFETY

T32A130827-21B0DB95-14A2-473E-92AA-1384BE5E3 511

WARNING:

. Infants and children need special protection.

The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hipbones. In an accident, an improperly fitted seat belt could cause serious or fatal injury.

. Always use an appropriate child restraint

system.

Children need adults to help protect them. They need to be properly restrained. The proper restraint depends on the child’s size.

Infants and small children

T32A130827-062F78D7-5A66-41DD-980F-C2B540812034

SSS0099

NISSAN recommends that infants and small children be seated in a child restraint system. You should choose a child restraint system that fits your vehicle and the child, and always follow the manufacturer’s instructions for installation and use.

Large children

T32A130827-080B8EE5-AA4F-4AF7-AC3E-2E920E4076 D3

WARNING:

. Never allow children to stand or kneel on

any seats.

. Never allow children in the cargo areas while

the vehicle is moving. A child could be seriously injured in an accident or sudden stop.

Children who are too large for a child restraint system should be seated and restrained by the seat belts that are provided.

If the child’s seating position has a shoulder belt that fits close to the face or neck, the use of a booster seat (commercially available) may help overcome this. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle portion of the shoulder and the lap belt is low on the hips. The booster seat should also fit the vehicle seat. Once the child has grown so that the shoulder belt is no longer on or near the face or neck of the child, use the shoulder belt without the booster seat. In addition, there are many types of child restraint systems available for larger children that should be used for maximum protection.

Safety — seats, seat belts and supplemental restraint system 1-11

Condition: 'Except for China'/

(30,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-12 Safety — seats, seat belts and supplemental restraint system

PREGNANT WOMEN

T32A130827-A867B9F9-1F54-4C43-BDBA-D95D9ECBC7C 9

NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/ shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

INJURED PERSONS

T32A130827-0BA2B1BE-CCEE-4963-85CA-E7F2231B869A

NISSAN recommends that injured persons use seat belts. Contact your doctor for specific recommendations.

CENTER MARK ON SEAT BELTS

T32A130827-0794F2A3-5762-4467-B86E-B51DB80CB0A 0

Selecting correct set of seat belts

T32A130827-82DC900D-2C78-496F-838E-D2570976281A

SSS0671

The center seat belt buckle is identified by the CENTER mark. The center seat belt tongue can be fastened only into the center seat belt buckle.

THREE-POINT TYPE SEAT BELTS

T32A130827-4BC79D60-6662-49C4-A68D-826748688021

SSS0292

WARNING:

Every person who drives or rides in this vehicle should use a seat belt at all times.

Fastening seat belts

T32A130827-2B97C5AF-CA20-4A75-9D52-7A34F4DFC 205

WARNING:

The seatback should not be in a reclined position any more than needed for comfort. Seat belts are most effective when the passenger sits well back and straight up in the seat.

1. Adjust the seat. (See “Seats” (P.1-2).)

2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage.

The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.

If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.

SSS0467

3. Position the lap belt portion low and snug on the hips as shown.

4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and is snug across your chest.

Shoulder belt height adjustment (if equipped)

T32A130827-976237C8-B793-46BA-8839-54E163FF3DE E

SSS0351A

Condition: 'Except for China'/

+ 370 hidden pages
