NEC VT46 User Manual

Portable Projector

VT46

User’s Manual

Important Information

Safety Cautions

Precautions

Please read this manual carefully before using your NEC VT46 Projec­tor and keep the manual handy for future reference. Y our serial number
is located on the bottom of your projector. Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power
outlet.
The power outlet socket should be installed as near to the
equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
NO USER-SERVICEABLE PAR TS INSIDE.
REFER SERVICING TO QUALIFIED NEC SERVICE PER­SONNEL.

This symbol warns the user that uninsulated voltage within the
unit may be sufficient to cause electrical shock. Therefore, it is
dangerous to make any kind of contact with any part inside of
the unit.

This symbol alerts the user that important information con­cerning the operation and maintenance of this unit has been
provided.
The information should be read carefully to avoid problems.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD
OR IN AN OUTLET UNLESS ALL TWO PRONGS CAN BE FULLY
INSERTED.
DO NOT OPEN THE CABINET . THERE ARE HIGH-VOL T AGE COM­PONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALI­FIED NEC SERVICE PERSONNEL.

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.

Acoustic Noise Information Ordinance-3. GSGV:

The sound pressure level is less than 70 dB (A) according
to ISO 3744 or ISO 7779.

CAUTION

•Avoid displaying stationary images for a prolonged pe­riod of time.
Doing so can result in these images being temporarily
sustained on the surface of the LCD panel.
If this should happen, continue to use your projector. The
static background from previous images will disappear.

• Do not put the projector on its side when the lamp is
turned on.
Doing so may cause damage to the projector.

RF Interference

WARNING

The Federal Communications Commission does not allow any
modifications or changes to the unit EXCEPT those specified
by NEC Soluctions (America), Inc. in this manual. Failure to com­ply with this government regulation could void your right to
operate this equipment. This equipment has been tested and
found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guar­antee that interference will not occur in a particular installa­tion. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for
help.

In UK, a BS approved power cable with moulded plug has a Black (five
Amps) fuse installed for use with this equipment. If a power cable is not
supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector
and to prevent fire and shock. Please read them carefully and heed all
warnings.

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from
dust and moisture.

3. Do not place your projector in direct sunlight, near heaters or heat
radiating appliances.

4. Exposure to direct sunlight, smoke or steam can harm internal com­ponents.

5. Handle your projector carefully. Dropping or jarring can damage in­ternal components.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling:

a. Do not attempt to install the projector yourself.
b. The projector must be installed by qualified technicians in order

to ensure proper operation and reduce the risk of bodily injury.

c. In addition, the ceiling must be strong enough to support the

projector and the installation must be in accordance with any
local building codes.

d. Please consult your dealer for more information.

E-2

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unob­structed to prevent the build-up of heat inside your projector. Allow
at least 3 inches (10 cm) of space between your projector and a
wall.

2. Prevent foreign objects such as paper clips and bits of paper from
falling into your projector.

Do not attempt to retrieve any objects that might fall into your pro­jector. Do not insert any metal objects such as a wire or screwdriver
into your projector. If something should fall into your projector, dis­connect it immediately and have the object removed by a qualified
NEC service personnel.

3. Do not place any liquids on top of your projector.

4. Do not look into the lens while the projector is on. Serious damage
to your eyes could result.

5. Keep any items such as magnifying glass out of the light path of the
projector. The light being projected from the lens is extensive, there­fore any kind of abnormal objects that can redirect light coming out
of the lens, can cause unpredictable outcome such as fire or injury
to the eyes.

6. Do not cover the lens with the supplied lens cap or equivalent while
the projector is on. Doing so can lead to melting of the cap and
possibly burning your hands due to the heat emitted from the light
output.

7. The projector is designed to operate on a power supply of 100-120
or 200-240 V 50/60 Hz AC. Ensure that your power supply fits this
requirement before attempting to use your projector.

8. Handle the power cable carefully and avoid excessive bending.
A damaged cord can cause electric shock or fire.

9. If the projector is not to be used for an extended period of time,
disconnect the plug from the power outlet.

10. Do not touch the power plug during a thunderstorm. Doing so can
cause electrical shock or fire.

CAUTION

1. Do not try to touch the ventilation outlet on the left side (when seen
from the front) as it can become heated while the projector is turned
on.

2. Do no use the tilt-foot for purposes other than originally intended.
Misuses such as gripping the tilt-foot or hanging on the wall can
cause damage to the projector.

3. Enable High-Speed Fan mode if you continue to use the projector
for consecutive days. (From the menu, select [Advanced] → [High
Speed Fan Mode].)

4. Do not unplug the power cable from the wall outlet under any one of
the following circumstances.

Doing so can cause damage to the projector:

* While the Hour Glass icon appears.
* While the cooling fans are running. (The cooling fans continue

to work for 60 seconds after the projector is turned off).

Lamp Replacement

•To replace the lamp, follow all instructions provided on page E-25.

• Be sure to replace the lamp when the message "The lamp has

reached the end of its usable life. Please replace the lamp."

appears. If you continue to use the lamp after the lamp has reached
the end of its usable life, the lamp bulb may shatter, and pieces of
glass may be scattered in the lamp case. Do not touch them as the
pieces of glass may cause injury.

If this happens, contact your NEC dealer for lamp replacement.

• Allow a minimum of 60 seconds to elapse after turning off the pro­jector. Then turn off the main power switch, disconnect the power
cable and allow 60 minutes to cool the projector before replacing
the lamp.

What's in the Box?

Make sure your box contains everything listed. If any pieces are miss­ing, contact your dealer.
Please save the original box and packing materials if you ever need to
ship your VT46 Projector.

Lens cap
(24F38091)

Projector

H

N

A

P

A

J

S

T

L

M

O

n

V

CR2032

O

3

2

-

L

L

i

L

C

E

Remote control
(7N900421)

Power cable
(US:7N080206)
(EU:7N080005)

Soft carrying case
(24BS7201)

Quick

Connect

Guide

Information

Important

Lithium battery
(CR2032)

RGB signal cable
(7N520012)

CD-ROM
User’s manual

Guarantee

policy

E-3

TABLE OF CONTENTS

Important Information ........................................... E-2

Safety Cautions ...........................................................................................E-2

What's in the Box? ...................................................................................... E-3

INTRODUCTION .................................................... E-5

Introduction to the Projector ....................................................................... E-5

Part Names of the Projector ........................................................................ E-6

Top Features.............................................................................................E-7

Terminal Panel Features ...........................................................................E-8

Part Names of the Remote Control........................................................... E-8

Battery Installation ................................................................................ E-9

Remote Control Precautions ................................................................. E-9

Operating Range for Wireless Remote Control .....................................E-9

INSTALLATION AND CONNECTIONS............................. E-10

Setting Up the Screen and the Projector ................................................... E-10

Selecting a Location ............................................................................... E-10

Throw Distance and Screen Size ............................................................ E-11

Making Connections ..................................................................................E-12

Connecting Your PC or Macintosh Computer......................................... E-12

To connect SCART output (RGB)............................................................ E-12

Connecting Your DVD Player.................................................................. E-13

Connecting Your VCR or Laser Disc Player ............................................E-14

Connecting the Supplied Power Cable.................................................... E-14

PROJECTING AN IMAGE (BASIC OPERATION)................. E-15

Turning on the Projector............................................................................E-15

Selecting a Source..................................................................................... E-15

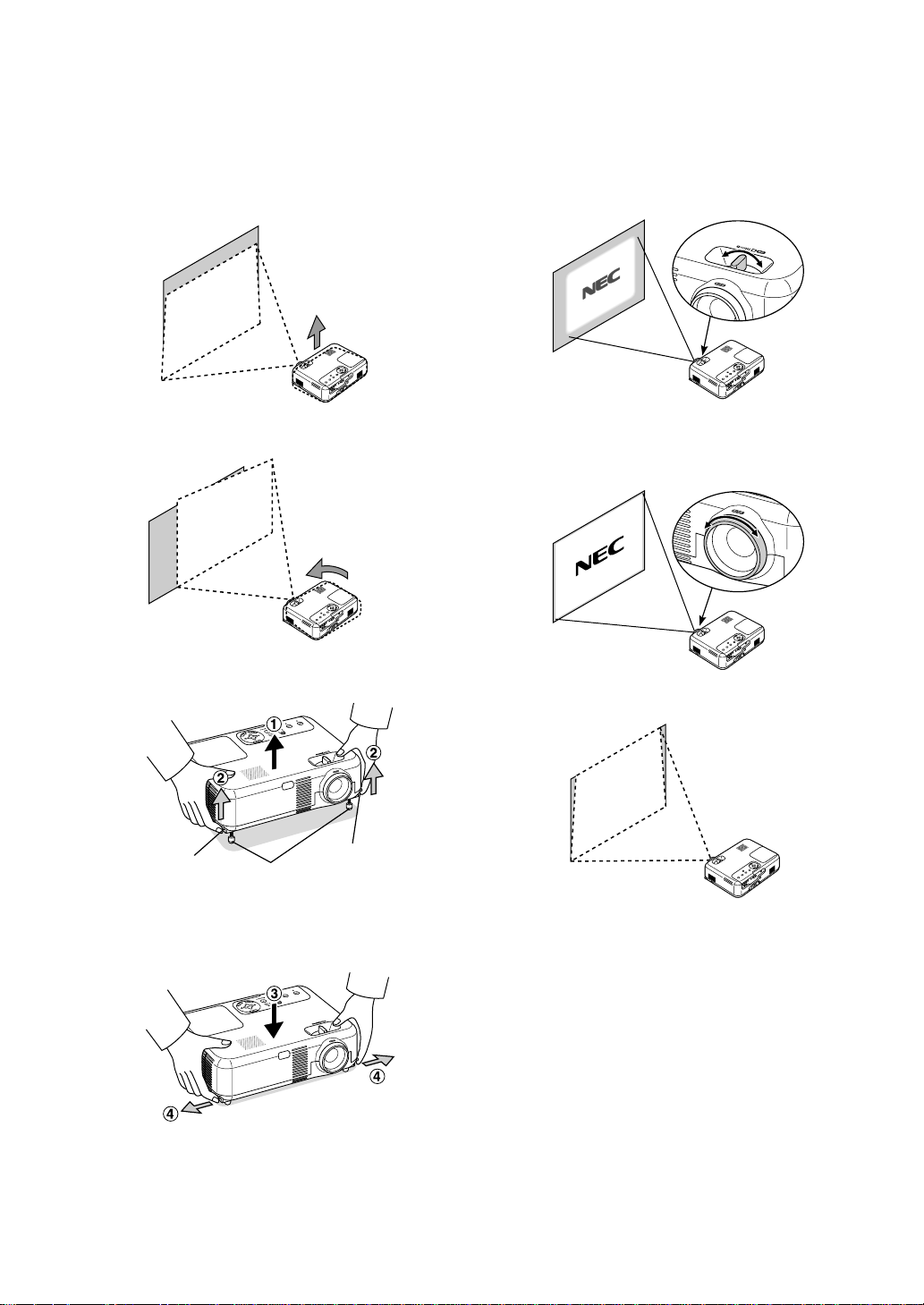

Adjusting the Picture Size and Position ..............................................E-16

Correcting the Vertical Keystone Distortion .........................................E-16

Optimizing RGB Picture Automatically ............................................... E-17

Turning Up or Down Volume .....................................................................E-17

Turning off the Image and Sound ............................................................ E-17

Turning off the Projector ......................................................................... E-17

MAINTENANCE ................................................... E-25

Replacing the Lamp ............................................................................... E-25

Cleaning.................................................................................................. E-26

Cleaning or Replacing the Filter ........................................................ E-26

Cleaning the Cabinet and the Lens .................................................... E-26

TROUBLESHOOTING ..............................................E-27

Power Indicator ......................................................................................... E-27

Status Indicator ......................................................................................... E-27

Lamp Indicator .......................................................................................... E-27

Common Problems & Solutions ................................................................E-28

SPECIFICATIONS ................................................. E-29

APPENDIX ......................................................... E-30

Cabinet Dimensions .................................................................................. E-30

Pin Assignments of D-Sub RGB Input Connector...................................... E-30

Compatible Input Signal List .....................................................................E-31

PC Control Codes ...................................................................................... E-32

Cable Connection ...................................................................................... E-32

TravelCare Guide .......................................................................................E-33

USING ON-SCREEN MENU ....................................... E-18

Basic Menu Operation ...............................................................................E-18

Using the Menus .................................................................................... E-18

List of Menu Items ....................................................................................E-19

Menu Elements.......................................................................................... E-20

Menu Descriptions & Functions ................................................................E-21

Picture.................................................................................................... E-21

Brightness/Contrast/Sharpness/Color/Hue ......................................... E-21

Picture Management ........................................................................... E-21

Image ..................................................................................................... E-21

Correcting Vertical Keystone Distortion [Keystone] ......................E-21

Saving Vertical Keystone Correction [Keystone Save] .................. E-21

Selecting Aspect Ratio [Aspect Ratio] .......................................... E-22

Adjusting the Vertical Position of Image [Cinema Position](for Cinema only)

Setup .................................................................................................... E-22

Selecting Menu Language [Language] ............................................ E-22

Selecting Menu Color [Menu Color Select] .................................... E-22

Selecting Menu Display Time [Menu Display Time] ..................... E-22

Selecting a Color or Logo for Background [Background]................. E-22

Selecting Projector Orientation [Orientation] .............................. E-22

Advanced ............................................................................................. E-22

Security ............................................................................................ E-22

Disabling the Cabinet Buttons [Control Panel Key Lock] ............. E-23

Enabling High Speed Fan Mode [High Speed Fan Mode] ............... E-23

Selecting Signal Format [Signal Select] ....................................... E-23

Page2................................................................................................ E-23

Enabling Power Management [Power Management] ...................... E-23

Selecting Noise Reduction Level [Noise Reduction] ................... E-23

Enabling Auto Adjust [Auto Adjust] ................................................ E-24

Adjusting Position/Clock (when Auto Adjust is off) ..................... E-24

Selecting Communication Speed [Communication Speed] .......... E-24

Information ......................................................................................... E-24

Default ................................................................................................. E-24

Returning to Factory Default [Factory Default] ............................. E-24

Resetting the Filter Usage Hours [Clear Filter Usage] ................. E-24

Clearing Lamp Hour Meter [Clear Lamp Hour Meter] ...................... E-24

.. E-22

E-4

INTRODUCTION

Introduction to the Projector

This section introduces you to your new VT46 Projector and describes
the features and controls.

Congratulations on Your Purchase of The VT46
Projector

The VT46 is one of the very best projectors available today. The VT46
enables you to project precise images up to 300 inches across (mea­sured diagonally) from your PC or Macintosh computer (desktop or note­book), VCR, DVD player, document camera, or a laser disc player.
You can use the projector on a tabletop or cart, you can use the projec­tor to project images from behind the screen, and the projector can be
permanently mounted on a ceiling*
wirelessly.

1

*

Do not attempt to mount the projector on a ceiling yourself.
The projector must be installed by qualified technicians in order

to ensure proper operation and reduce the risk of bodily injury.
In addition, the ceiling must be strong enough to support the pro-

jector and the installation must be in accordance with any local
building codes. Please consult your dealer for more information.

Features you'll enjoy:

• Keystone correction allows you to correct trapezoidal distortion so
that the image is square.

• Low level operation noise

• Short focal length lens

• 160W lamp

• Direct keys for source selection

• New Color Management system

• New menu design improves operation

• NEC’s exclusive Advanced AccuBlend intelligent pixel blending tech­nology - an extremely accurate image compression technology - of­fers a crisp image with UXGA (1600⳯1200) resolution*

• Supports most IBM VGA, SVGA, XGA , SXGA/UXGA(with Advanced
AccuBlend)*
other RGB signals within a horizontal frequency range of 24 to 100
kHz and a vertical frequency range of 50 to 120 Hz. This includes
NTSC, PAL, PAL-N, PAL-M, PAL60, SECAM and NTSC4.43 stan­dard video signals.

2

*

NOTE: Composite video standards are as follows:
NTSC: U.S. TV standard for video in U.S. and Canada.
PAL: TV standard used in Western Europe.
PAL-N: TV standard used in Argentine, Paraguay and Uruguay.
PAL-M: TV standard used in Brazil.
PAL60: TV standard used for NTSC playback on PAL TVs.
SECAM: TV standard used in France and Eastern Europe.
NTSC4.43: TV standard used in Middle East countries.

• The supplied remote control can be used without a cable.

•You can control the projector with a PC using the PC Control port.

• The contemporary cabinet design is light, compact, easy to carry,
and complements any office, boardroom or auditorium.

2

, Macintosh, component signal (YCbCr/ YPbPr) or any

A UXGA (1600⳯1200), SXGA (1280⳯ 1024) and XGA
(1024⳯768) image are displayed with NEC’s Advanced
AccuBlend.

1

. The remote control can be used

2

.

About this user's manual

The fastest way to get started is to take your time and do ev­erything right the first time. Take a few minutes now to review
the user's manual. This may save you time later on. At the
beginning of each section of the manual you'll find an over­view. If the section doesn't apply, you can skip it.

• IBM is a trademark or registered trademark of International Business
Machines Corporation.

• Mac and PowerBook are trademarks of Apple Computer , Inc., regis­tered in the U.S. and other countries.

• Windows, Windows 98, Windows Me, Windows XP or Windows 2000
are trademarks or registered trademarks of Microsoft Corporation.

• Other product and company names mentioned in this user’s manual
may be the trademarks or registered trademarks of their respective
holders.

E-5

Part Names of the Projector

Monaural Speaker (1W)

Lamp Cover (See page E-25)

Lamp Cover Screw

Ventilation (outlet)
Heated air is exhausted from here

Adjustable Tilt Foot Lever
(See page E-16)

Adjustable Tilt Foot (See page E-16)

Ventilation (inlet) / Filter Cover

Main Power Switch
When you plug the supplied power cable into
an active wall outlet and turn on the Main
Power switch, the POWER indicator turns
orange and the projector is in standby mode.
(See page E-15)

Controls (See page E-7)

Zoom Lever

Focus Ring
Lens
Adjustable Tilt Foot Lever

(See page E-16)

Adjustable Tilt Foot
(See page E-16)

Lens Cap

Remote Sensor (See page E-9)

Remote Sensor
(See page E-9)

Built-in Security Slot ( )*

AC Input
Connect the supplied power cable's two­pin plug here, and plug the other end into
an active wall outlet. (See page E-14)

* This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kensington Microware Inc. The logo is

trademarked and owned by Kensington Microware Inc.

E-6

Top Features

765 10

8

2 3 4 11

1319 12

1. POWER Button (ON / STAND BY)( )
Use this button to turn the power on and off when the main power is
supplied and the projector is in standby mode.
To turn on the projector, press and hold this button for a minimum of
two seconds. To turn off the projector, press this button twice.

2. POWER Indicator
When this indicator is green, the projector is on; when this indicator
is orange, it is in standby mode. See the Power Indicator section on
page E-27 for more details.

3. STA TUS Indicator
If this light blinks red rapidly, it indicates that an error has occurred,
the lamp cover is not attached properly or the projector has over­heated. If this light remains orange, it indicates that you have pressed
a cabinet key while the Control Panel Key Lock is enabled. See the
Status Indicator section on page E-27 for more details.

4. LAMP Indicator
If this light blinks red rapidly, it's warning you that the lamp has reached
the end of its usable life. After this light appears, replace the lamp as
soon as possible (See page E-25). See the Lamp Indicator section
on page E-27 for more details.

5. VIDEO Button
Press this button to select a video source from a VCR, DVD player,
laser disc player or document camera.

6. S-VIDEO Button
Press this button to select an S-Video source from a VCR, DVD player,
laser disc player or document camera.

7. RGB Button
Press this button to select an RGB source from computer or compo­nent equipment connected to your RGB port.

8. AUTO ADJ. Button
Use this button to adjust Position-H/V and Pixel Clock/Phase for an
optimal picture (See page E-17).

9. Source Indicators
When one of the RGB, VIDEO or S-VIDEO input is selected, the
corresponding source indicator lights.

10. MENU Button
Displays the menu.

11. SELECT GHFE / Volume Buttons
GH : Use these buttons to select the menu of the item you wish to

adjust.

FE : Use these buttons to change the level of a selected menu item.

A press of the E button executes the selection. When no menus
appear, these buttons work as a volume control.

12. ENTER Button
Executes your menu selection and activates items selected from the
menu.

13. CANCEL Button
Pressing this button will return to the previous menu.
While you are in the main menu, pressing this button will close the
menu.

E-7

Terminal Panel Features

34

12 5

Part Names of the Remote Control

1

4

2

3

5

1. RGB IN / Component Input Connector (Mini D-Sub 15 Pin)
Connect your computer or other analog RGB equipment such as IBM
compatible or Macintosh computers. Use the supplied RGB cable to
connect to your computer. This also serves as a component input
connector that allows you to connect a component video output of
component equipment such as a DVD player. This connector also
supports SCART output signal. See page E-12 for more details.

2. RGB AUDIO Input Mini Jack (Stereo Mini)
This is where you connect the audio output from your computer or
DVD player when connected to the RGB input. A commercially avail­able audio cable is required.

3. S-VIDEO IN Connector (Mini DIN 4 Pin)
Here is where you connect the S-Video input from an external source
like a VCR.

NOTE: S-Video provides more vivid color and higher resolution than the tra­ditional composite video format.

S-VIDEO AUDIO Input Jacks R/L (RCA)
These are your left and right channel audio inputs for stereo sound
from an S-Video source.

4. VIDEO IN Connector (RCA)
Connect a VCR, DVD player, laser disc player , or document camera
here to project video.

VIDEO AUDIO Input Jacks R/L (RCA)
These are your left and right channel audio inputs for stereo sound
from a Video source.

5. PC CONTROL Port (DIN 8 Pin)
Use this port to connect your PC to control your projector. This en­ables you to use your PC and serial communication protocol to con­trol the projector. If you are writing your own program, typical PC
control codes are on page E-32.

6

8

1. Infrared Transmitter
Direct the remote control toward the remote sensor on the projector
cabinet.

2. MENU Button
Displays the menu for various settings and adjustments.

3. SELECT GHFE / Volume Buttons

GH : Use these buttons to select the menu of the item you wish

to adjust.

FE : Use these buttons to change the level of a selected menu

item. A press of the E button executes the selection. When
no menus appear, these buttons work as a volume control.

4. ENTER Button
Executes your menu selection and activates items selected from the
menu.

5. CANCEL Button
Pressing this button will return to the previous menu.
While you are in the main menu, pressing this button will close the
menu.

6. POWER Button (ON/STAND BY) (
Use this button to turn the power on and off when the main power is
supplied and the projector is in standby mode.
To turn on the projector, press and hold this button for a minimum of
two seconds. To turn off the projector, press this button twice.

7. SOURCE Button
Press this button to select a video source such as a PC, VCR or DVD
player. Each time this button is pressed, the input source will change
as follows:
RGB → Video → S-Video → RGB → ...

8. ASPECT Button
Press this button to display the Aspect Ratio select screen. See page
E-22.

9. MUTE Button
This button turns off the image and sound for a short period of time.
Press again to restore the image and sound.

)

7

9

E-8

Battery Installation

i

C

E

L

L

3

V

O

L

T

S

J

A

P

A

N

H

C

R

2032

L

L

3

V

O

L

T

S

J

A

P

A

N

H

C

R

2032

M

n

O

2

-

L

i

C

E

L

L

3

V

O

L

T

S

J

A

P

A

N

H

C

R

2032

1. Push the catch to the right and remove the battery holder.

Catch

Battery holder

Remote Control Precautions

• Handle the remote control carefully.

• If the remote control gets wet, wipe it dry immediately.

•Avoid excessive heat and humidity.

• If you will not be using the remote control for a long time, remove the
battery.

• Do not place the battery upside down.

• Keep the coin cell battery out of reach of children so as not to allow
them to swallow the cell battery.

CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by
the manufacturer.
Dispose of used batteries according to your local regulations.

Operating Range for Wireless Remote Control

2. Remove the old Lithium coin cell and install new one (CR2032).
Ensure that the side with the mark “+” is up.

H

N

A

P

A

J

S

T

L

M

O

n

V

CR2032

O

3

2

-

L

L

i

L

C

E

3. Push the battery holder back into the remote control until you feel a
click.

7m/22 feet

˚

30

˚

30

Remote sensor on
projector cabinet

7m/22 feet

30
30

Remote control

˚
˚

• The infrared signal operates by line-of-sight up to a distance of about
22 feet/7 m and within a 60-degree angle of the remote sensor on the
projector cabinet.

• The projector will not respond if there are objects between the re­mote control and the sensor, or if strong light falls on the sensor.
Weak battery will also prevent the remote control from properly oper­ating the projector.

E-9

INSTALLATION AND CONNECTIONS

This section describes how to set up your projector and how to connect video and audio sources.

1

Your projector is simple to set up and use.
But before you get started, you must first:

Set up a screen and the projector.

1
2

Connect your computer or video equip­ment to the projector. See page
E-12 – 14.

3

Connect the supplied power cable. See
page E-14.

2

NOTE: Ensure that the power cable and any
other cables are disconnected before moving
the projector. When moving the projector or
when it is not in use, cover the lens with the
lens cap.

To the wall outlet.

3

Setting Up the Screen and the Projector

Selecting a Location

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 21" (0.53 m)
measured diagonally when the projector is roughly 27.6 inches (0.7 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when
the projector is about 393.7 inches (10 m) from the wall or screen. Use the drawing below as a guide.

Screen size (Unit: cm/inch)

609.6(W)X457.2(H)/240(W)X180(H)

365.8(W)X274.3(H)/144(W)X108(H)

304.8(W)X228.6(H)/120(W)X90(H)

243.8(W)X182.9(H)/96(W)X72(H)

203.2(W)X152.4(H)/80(W)X60(H)

162.6(W)X121.9(H)/64(W)X48(H)

121.9(W)X91.4(H)/48(W)X36(H)

81.3(W)X61.0(H)/32(W)X24(H)

61.0(W)X45.7(H)/24(W)X18(H)

50.8(W)X38.1(H)/20(W)X15(H)

42.7(W)X32(H)/17(W)X13(H)

Lens center

487.7(W)X365.8(H)/192(W)X144(H)

406.4(W)X304.8(H)/160(W)X120(H)

180"

150"

120"

100"

80"

60"

40"

30"

25"

21"

0.7/27.6"

0.8/31.5"

1.0/39.4"

2.0/78.7"

1.3/51.2"

2.7/106.3"

240"

200"

3.4/133.9"

300"

4.0/157.5"

Screen Size

5.1/200.8"

6.1/240.2"

6.7/263.8"

8.1/318.9"

10.1/397.6"

E-10

Distance (Unit: m/inch)

Throw Distance and Screen Size

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Distance Chart

Screen Height

inch

21
25
30
40
60
72
80
84

90
100
120
150
180
200
210
240
270
300

Screen Width

Screen Diagonal

(B)

(D)

Throw Angle (α)

Screen Size B C

inch

inch

120
144
160
168
192
216
240

13

17

15

20

18

24

24

32

36

48

43

58

48

64

50

67

54

72

60

80

72

96

90
108
120
126
144
162
180

inch

10
15
17
19
20
22
24
29
36
44
48
51
58
65
73

5
6
7

Wide – TeleDiagonal Width Height
––– - 29

29 - 35
35 - 42
47 - 57
71 - 86
86 - 103

96 - 115
101 - 121
108 - 129
120 - 144
144 - 173
181 - 217
217 - 260
241 - 290
253 - 304
290 - 348
326 - 391
363 - 400

Screen center

Lens Center

Throw Distance (C

inch

B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and top of screen (bottom of
screen for desktop)
α = Throw angle

NOTE: Distances may vary +/-5%.

Screen Bottom

)

α

D D

Wide – Tele

degree

inch

––– - 10.0

1
1

11.8 - 9.9

11.7 - 9.8

2

11.6 - 9.7

2
3

11.5 - 9.6

11.4 - 9.6

4

11.4 - 9.6

5
5

11.4 - 9.6

11.4 - 9.5

5

11.4 - 9.5

6
7

11.4 - 9.5

11.4 - 9.5

9

11.3 - 9.5

10
12

11.3 - 9.5

11.3 - 9.5

12

11.3 - 9.5

14
16

11.3 - 9.5

11.3 - 9.5

17

Screen Size B C

mm
427
508
610

813
1219
1463
1626
1707
1829
2032
2438
3048
3658
4064
4267
4877
5486
6096

mm
320
381
457
610

914
1097
1219
1280
1372
1524
1829
2286
2743
3048
3200
3658
4115
4572

mm
533
635

762
1016
1524
1829
2032
2134
2286
2540
3048
3810
4572
5080
5334
6096
6858
7620

mm

130
150
180
250
370
440
490
520
550
610
740

920
1110
1230
1290
1470
1660
1840

Wide – TeleDiagonal Width Height

mm
––– - 740
740 - 880
890 -1070

1200 -1440
1810 -2180
2180 -2620
2430 -2920
2550 -3060
2740 -3290
3050 -3660
3660 -4400
4590 -5510
5510 -6610
6130 -7350
6440 -7720
7360 -8830
8290 -9940
9210 -11050

mm

110
120
120
130
150
180
220
270
300
310
350
400
440

30
40
40
60
90

α

Wide – Tele

degree

––– - 10.0

11.8 - 9.9

11.7 - 9.8

11.6 - 9.7

11.5 - 9.6

11.4 - 9.6

11.4 - 9.6

11.4 - 9.6

11.4 - 9.5

11.4 - 9.5

11.4 - 9.5

11.4 - 9.5

11.3 - 9.5

11.3 - 9.5

11.3 - 9.5

11.3 - 9.5

11.3 - 9.5

11.3 - 9.5

WARNING
* Installing your projector on the ceiling must be done by a quali-

fied technician. Contact your NEC dealer for more information.

* Do not attempt to install the projector yourself.

• Only use your projector on a solid, level surface. If the projector falls
to the ground, you can be injured and the projector severely dam­aged.

• Do not use the projector where temperatures vary greatly. The pro­jector must be used at temperatures between 32˚F (0˚C) and 95˚F
(35˚C).

• Do not expose the projector to moisture, dust, or smoke. This will
harm the screen image.

• Ensure that you have adequate ventilation around your projector so
heat can dissipate. Do not cover the vents on the side or the front of
the projector.

Reflecting the Image

Using a mirror to reflect your projector's image enables you to enjoy a
much larger image. Contact your NEC dealer if you need a mirror. If
you're using a mirror and your image is inverted, use the MENU and
SELECT buttons on your projector cabinet or your remote control to
correct the orientation. (See page E-22.)

E-11

Making Connections

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most
cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector.

* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software.
* If you accidentally hit the POWER (ON/STAND BY) button on the remote control, wait 60 seconds and then press the POWER (ON/STAND BY) button again to

resume.

Connecting Your PC or Macintosh Computer

Audio cable (not supplied)

IBM PC or Compatibles (Desktop type)
or Macintosh (Desktop type)

PHONE

NOTE: For older Macintosh,
use a commercially available
pin adapter (not supplied) to
connect to your Mac's video
port.

AUDIO IN

RGB IN

RGB signal cable (supplied)
To mini D-Sub 15-pin connector on the pro­jector. It is recommended that you use a
commercially available distribution amplifier
if connecting a signal cable longer than the
supplied one.

PHONE

IBM VGA or Compatibles (Notebook type)
or Macintosh (Notebook type)

Connecting your PC or Macintosh computer to your projector will en­able you to project your computer's screen image for an impressive pre­sentation.
To connect to a PC or Macintosh, simply:

1. Turn off the power to your projector and computer .

To connect SCART output (RGB)

Before connections: An exclusive SCART adapter (ADP-SC1) and a
commercially available SCART cable are required for this connection.

NOTE: Audio signal is not available for this connection.

Video equipment
such as DVD player

Commercially available
SCART cable

Female

RGB IN

ADP-SC1

Projector

To RGB IN

2. Use the supplied signal cable to connect your PC or Macintosh to the
projector.

3. Turn on the projector and the computer.

4. If the projector goes blank after a period of inactivity, it may be caused
by a screen saver installed on the computer you've connected to the
projector.

1. Turn off the power to the projector and your video equipment.

2. Use the NEC ADP-SC1 SCART adapter and a commercially avail­able SCART cable to connect the RGB input of your projector and a
SCART output (RGB) of your video equipment.

3. Turn on the power to the projector and your video equipment.

4. Use the RGB button on the projector cabinet to select the RGB input.

5. Press the MENU button on the projector cabinet to display the menu.

6. From the menu, select [Advanced]

→

[Signal Select RGB] → [Scart].
SCART is a standard European audio-visual connector for TVs, VCRs
and DVD players. It is also referred to as Euro-connector.

NOTE: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Eu­rope. Contact your NEC dealer in Europe for more information.

E-12

Connecting Your DVD Player

RGB IN

Optional 15-pin-to-RCA
(female)

⳯

3 cable (ADP-CV1)

Audio Equipment

AUDIO IN

LR

Audio cable (not supplied)

You can connect your projector to a DVD player with component output
or Video output. To do so, simply:

1. Turn off the power to your projector and DVD player.

2. If your DVD player has the component video (Y,Cb,Cr) output, use a
commercially available component video cable (RCAX3) and the op-

⳯

tional 15-pin-to-RCA (female)

3 cable to connect your DVD player

to the RGB IN connector on the projector.

Component video RCA

⳯

3 cable

(not supplied)

DVD player

AUDIO OUT

L

For a DVD player without component video (Y,Cb,Cr) output, use
common RCA cables (not provided) to connect a composite VIDEO
output of the DVD player to the Video Input of the projector.

3. Turn on the projector and DVD player.

NOTE: Refer to your DVD player's owner's manual for more information about
your DVD player's video output requirements,

R

Component

YCbCr

E-13

Connecting Your VCR or Laser Disc Player

VIDEO IN S-VIDEO IN

Video cable (not supplied)

VCR/ Laser disc player

AUDIO OUT

LR

S-VIDEO OUT

VIDEO OUT

Use common RCA cables (not provided) to connect your VCR, laser
disc player or document camera to your projector.
To make these connections, simply:

1. Turn off the power to the projector and VCR, laser disc player or
document camera.

2. Connect one end of your RCA cable to the video output connector on
the back of your VCR or laser disc player, connect the other end to
the Video input on your projector. Use an audio cable (not supplied)
to connect the audio from your VCR or laser disc player to your audio
equipment (if your VCR or laser disc player has this capability). Be
careful to keep your right and left channel connections correct for
stereo sound.

3. Turn on the projector and the VCR or laser disc player.

S-Video cable (not supplied)

Audio equipment

AUDIO IN

LR

Audio cable
(not supplied)

NOTE: Refer to your VCR or laser disc player owner's manual for more informa­tion about your equipment's video output requirements.

NOTE: An image may not be displayed correctly when a Video or S-Video source
is played back in fast-forward or fast-rewind via a scan converter.

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector.
First connect the supplied power cable's two-pin plug to
the AC IN of the projector, and then connect the other
plug of the supplied power cable in the wall outlet.

E-14

PROJECTING AN IMAGE (BASIC OPERATION)

This section describes how to turn on the projector and to project a
picture onto the screen.

Turning on the Projector

NOTE:

• The projector has two power switches: main power switch and POWER (ON/
STAND BY) button.

• When plugging in or unplugging the supplied power cable, make sure that the
main power switch is pushed to the off (O) position. Failure to do so may
cause damage to the projector.

To turn on the main power to the projector, press the Main Power switch
to the on position ( I ).

Before you turn on your projector, ensure that the computer or video
source is turned on and that your lens cap is removed.
Only after you press the POWER (ON/STAND BY) button on the pro­jector cabinet or the remote control for a minimum of 2 seconds will the
power indicator turn to green and the projector become ready to use.

2. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu operation.
If you want, you can select the menu language later. See "Language"
on page E-22.

NOTE: Immediately after turning on the projector , screen flicker may occur. This
is not a fault. Wait 3 to 5 minutes until the lamp lighting is stabilized.

If one of the following things happens, the projector will not turn on.
* If the internal temperature of the projector is too high, the projector

detects abnormal high temperature. In this condition the projector
will not turn on to protect the internal system. If this happens, wait for
the projector's internal components to cool down.

* When the lamp reaches its end of usable life, the projector will not

turn on. If this happens, replace the lamp.

* If the lamp fails to light, and if the STATUS indicator flashes on and

off in a cycle of six times, wait a full minute and then turn on the
power.

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup screen. This
screen gives you the opportunity to select one of the 19 menu languages:
English, German, French, Italian, Spanish, Swedish, Japanese, Korean,
the Simplified Chinese, Polish, Hungarian, Russian, Greek, Turkish,
Dutch, Norwegian, Finnish, Portuguese and Czech.
To select a menu language, follow these steps:

1. Use the SELECT G or H button to select one of the 19 languages for

the menu.

Selecting a Source

Selecting the computer or video source

Using the Remote Control

Press the SOURCE button.

Using the cabinet buttons

Press any one of the RGB,
VIDEO or S-VIDEO buttons.

NOTE: If no input signal is available, the projector will display a blue background
(factory preset).

E-15

Adjusting the Picture Size and Position

Place your projector on a flat level surface and ensure that the projector
is square to the screen.

Lift the front edge of the projector to center the image vertically.
* If the projected image does not appear square to the screen then

use the Keystone feature for proper adjustment. See page E-21.

CAUTION
Do not use the tilt-foot for purposes other than originally intended.
Misuses such as gripping the tilt-foot or hanging on the wall can
cause damage to the projector.

Zoom

Use the ZOOM lever to finely adjust the image size on the screen.

Move the projector left to center the image horizontally on the screen.

Adjust the Tilt Foot

1. Lift the front edge of the projector.

Adjustable Tilt Foot Lever

2. Push up the Adjustable Tilt Foot Levers on the right and left sides of
the projector to extend the adjustable tilt feet (maximum height).

3. Push down the Adjustable Tilt Foot Levers.

Adjustable Tilt Foot

Adjustable Tilt Foot Lever

You can use the ZOOM lever to enlarge or reduce an image size.

Focus

Use the FOCUS ring to obtain the best focus.

Correcting the V ertical Keystone Distortion

Use Keystone correction for proper adjustment. See page E-21.

4. Lower the front of the projector to the desired height (max. 40mm/

1.6”) and release the Adjustable Tilt Foot Lever to lock the Adjust­able tilt foot. There is approximately 10 degrees of up and down ad­justment for the front of the projector.

E-16

Optimizing RGB Picture Automatically

Turning off the Image and Sound

Adjusting the Image Using Auto Adjust

Optimizing RGB image automatically
Press the AUTO ADJ. button on the projector cabinet to optimize an
RGB image automatically.

[Poor picture]

[Normal picture]

Press the AUTO ADJ. button on the projector cabinet to fine-tune the
computer image or to remove any vertical banding that might appear
and to reduce video noise, dot interference or cross talk (this is evident
when part of your image appears to be shimmering). This function ad­justs the clock frequencies that eliminate the horizontal banding in the
image. This function also adjusts the clock phase to reduce video noise,
dot interference or cross talk. (This is evident when part of your image
appears to be shimmering.)
This adjustment may be necessary when you connect your computer
for the first time.

NOTE:

• Some signals may not be displayed correctly or take time.

• The Auto Adjust function does not work for component and video signal.

• If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock
and Phase manually. See page E-24.

Press the MUTE button on the remote control to turn off the image and
sound for a short period of time. Press again to restore the image and
sound.

Turning off the Projector

To turn off the projector:

First, press the POWER (ON/STAND BY) button on the projector cabi­net or the remote control. The “Power Off / Are you sure?” message will
appear.

Secondly, press the ENTER button or press the POWER (ON/STAND
BY) button again.
The power indicator will glow orange. After the projector turns off, the
cooling fans keep operating for 60 seconds (Cooling-off time).

Lastly, turn off the Main Power switch. The power indicator will go out.
Last unplug the power cable.

Turning Up or Down Volume

Sound level from the speaker on the projector can be adjusted.

NOTE: When the menu appears, you cannot adjust the volume.

decrease volume

increase volume

CAUTION
Do not unplug the power cable from the wall outlet or do not turn
off the main power under any one of the following circumstances.
Doing so can cause damage to the projector:

• While the Hour Glass icon appears.

• While the cooling fans are running. (The cooling fans continue
to work for 60 seconds after the projector is turned off).

E-17

USING ON-SCREEN MENU

Basic Menu Operation

Using the Menus

NOTE: The on-screen menu may not be displayed correctly while interlaced mo­tion video image is projected.

1. Press the MENU button on the remote control or projector cabinet to
display the Menu.

2. Press the SELECT GH buttons on the remote control or the projec­tor cabinet to highlight the menu for the item you want to adjust or
set.

6. Repeat steps 2-5 to adjust an additional item, or press the MENU
button to close the menu.

3. Press the SELECT
control or the projector cabinet to select a submenu or item.

4. Adjust the level or turn the selected item on or off by using SELECT

F

or E buttons on the remote control or the projector cabinet.

The on-screen slide bar will show you the amount of increase or
decrease.

5. Changes are stored until you adjust it again.

CANCEL ........ Return to the previous screen.

E

button or the ENTER button on the remote

E-18

List of Menu Items


Brightness
Contrast
Sharpness
Color
Hue
Picture Management


Keystone
Keystone Save On, Off
Aspect Ratio Normal, Wide Zoom, Cinema, Native
Cinema Position

Setup

Language Language-1 English, Deutsch, Français, Italiano, Español, Português, Nederlands

Menu Color Select Color, Monochrome
Menu Display Time Manual, Auto 5 sec, Auto 15sec, Auto 45 sec
Background Blue, Black, Logo
Orientation Desktop Front, Ceiling Rear, Desktop Rear, Ceiling Front

Presentation, Video, Movie, Graphic, sRGB
User

Base Setting Presentation, Video, Movie, Graphic, sRGB
White Balance Brightness R,G,B Contrast R,G,B
Gamma Correction Dynamic, Black Detail, Natural

Language-2 Svenska, Norsk, Suomi, Česky, Magyar, Polski, Türkçe
Language-3 , , , ,

Advanced

Security On, Off
Control Panel Key Lock
High Speed Fan Mode
Signal Select RGB RGB/Component, RGB, Component, Scart

Video Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM
S-Video Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

Page2 Power Management On, Off

Information

Page1 Source Index, Horizontal Frequency, Vertical Frequency, Sync Polarity
Page2 Signal Type, Video Type, Sync Type, Interlace
Page3 Remaining Lamp Time, Lamp Hour Meter, Filter Usage, Projector Usage

Default

Factory Default Current Signal

Clear Filter Usage
Clear Lamp Hour Meter

Enable, Disable
On, Off

Noise reduction Off, Low, High
Auto Adjust On, Off
Vertical
Horizontal
Clock
Phase
Communication Speed 4800, 9600, 19200

All Data

NOTE: Some menu items are not available depending on the input source.

E-19

Menu Elements

Title

Slide bar

Radio button

Highlight

Source

Menu windows or dialog boxes typically have the following elements:

Title .................... Indicates the menu title.

Highlight ............. Indicates the selected menu or item.

Source................ Indicates the currently selected source.

Solid triangle ...... Indicates further choices are available. A highlighted

triangle indicates the item is active.

Tab ..................... Indicates a group of features in a dialog box. Select-

ing on any tab brings its page to the front.

Radio button....... Use this round button to select an option in a dialog

box.

Check mark ........ Indicates the item is selected.

Slide bar ............. Indicates settings or the direction of adjustment.

Key symbol ........ Indicates the Control Panel Key Lock is enabled.

Check mark Solid triangle

Tab

Key symbol

E-20

Menu Descriptions & Functions


Adjusting Brightness, Contrast, Sharpness, Color, Hue and Picture
Management.

Brightness...... Adjusts the brightness level or the back raster inten-

sity.

Contrast ......... Adjusts the intensity of the image according to the

incoming signal.

Sharpness ..... Controls the detail of the image for Video.

Color .............. Increases or decreases the color saturation level (not

valid for RGB).

Hue ................ Varies the color level from +/- green to +/-blue. The

red level is used as reference. This adjustment is only

valid for Video and Component inputs (not valid for

RGB).

Picture Management

User Adjust (when using User )

When selecting user adjustable presetting (User), the submenu will
be displayed.
You can customize each gamma or color . To do so, first select “User”
and press the ENTER button, and then proceed the following steps.

Selecting Base Setting <Base Setting>

This feature allows you to use white balance or gamma values as
reference data to optimize for various types of images. You can se­lect one of the following five settings.

• Presentation

• Video

• Movie

• Graphic

• sRGB

Adjusting White Balance <White Balance>

This allows you to adjust the white balance. Brightness for each color
(RGB) is used to adjust the black level of the screen; Contrast for
each color (RGB) to adjust the white level of the screen.

Selecting Gamma Correction Mode <Gamma Correction>

Each mode is recommended for :

Dynamic......... For true color reproduction of natural tones

Black Detail.... For dark portions of a picture

Natural ........... Normal settings


This option allows you to adjust neutral tint for yellow, cyan or ma­genta.
There are 5 factory presets optimized for various types of images, or
you can set user adjustable settings.

Presentation .. Recommended for making a presentation using a

PowerPoint file

Video ............. Recommended for regular picture such as TV pro-

gram

Movie ............. Recommended for movie

Graphic .......... Recommended for graphics

sRGB ............. Standard color values

User ............... User adjustable

NOTE: When “sRGB”, “Graphic”, “Video” or “Movie” is selected, the bright­ness decreases slightly when compared to “Presentation”. This is not a mal­function.

E-21

Correcting Vertical Keystone Distortion [Keystone]

This feature corrects the keystone (trapezoidal) distortion to make
the top of the screen longer or shorter to be the same as the bottom.
Use the F or E buttons on the slide bar to correct the keystone (trap-
ezoidal) distortion.

NOTE: The keystone angle can be corrected between 30 degrees upward and 30
degrees downward at a 0 degree-projection angle. Depending on the type of
graphics being used, the picture may get blurred or keystone correction may not
be possible when excessive keystone correction is used. The idea is, the closer
you are to native resolution, the better image you will see.

Saving Vertical Keystone Correction [Keystone Save]

This option enables you to save your current keystone settings.
Saving your change once affects all sources. The changes are saved
when the projector is off.

Selecting Aspect Ratio [ Aspect Ratio]

Aspect Ratio allows you to select the best Aspect mode to display
your source image. Y ou can also display the Aspect Ratio window by
pressing the “ASPECT” button on the remote control. (See page E-8).
When 4:3 is selected from the source (i.e. DVD player), the following
selections will display:

Normal Wide Zoom Cinema Native

Standard

4:3 Aspect

When 16:9 is selected from the source (i.e. DVD player), the follow­ing selections will display:

Normal Wide Zoom Cinema Native

16:9 image

displayed in

4:3 mode

Native (RGB only): Turns off the Advanced AccuBlend feature. The
projector displays the current image in its true resolution.

Left and right

stretched

Left and right

stretched

Left and right

stretched

Left and right

stretched to

display the true

aspect

NOTE:

* While you are displaying an image with higher resolution than the projector’s

native resolution, “Native” is not available.

*You can adjust image positions for Cinema. See “Cinema Position” for set-

ting image positions.

Copyright

Please note that using this projector for the purpose of commercial gain or
the attraction of public attention in a venue such as a coffee shop or hotel and
employing compression or expansion of the screen image with a "Aspect
Ratio" setting may raise concern about the infringement of copyrights which
are protected by copyright law.

Adjusting the Vertical Position of Image [Cinema Position] (for Cin­ema only)

This feature adjusts the vertical position of the image when viewing
video with an aspect ratio selected.
When “Cinema” is selected in “Aspect Ratio”, the image is displayed
with black borders on the top and bottom.
You can adjust the vertical position between top and bottom.

NOTE: This option is available only when “Cinema” is selected in Aspect Ra­tio.

Selecting Menu Language [Language]

You can choose one of 19 languages for on-screen instructions.
The options are: English, German, French, Italian, Spanish, Swed­ish, Japanese, Korean, the Simplified Chinese, Polish, Hungarian,
Russian, Greek, Turkish, Dutch, Norwegian, Finnish, Portuguese and
Czech.

Selecting Menu Color [Menu Color Select]

You can choose between two color modes for menu color: color and
monochrome.

Selecting Menu Display Time [Menu Display Time]

This option allows you to select how long the projector waits after the
last touch of a button to turn off the menu.
The preset choices are “Manual”, “Auto 5 sec”, “Auto 15 sec”, and
“Auto 45 sec”. The “Auto 45 sec” is the factory preset.

Selecting a Color or Logo for Background [Background]

Use this feature to display a black/ blue screen or logo when no sig­nal is available.

Selecting Projector Orientation [Orientation]

This sets your image for your type of projection. The options are:
desktop front projection, ceiling rear projection, desktop rear projec­tion, and ceiling front projection.

NOTE: Selecting “Ceiling front” or “Ceiling rear” will turn on the Auto Adjust
feature to optimize an RGB image automatically. (See page E-24)

Advanced

Security

A keyword can be set for your projector to avoid operation by an unau­thorized user using the Menu. When a keyword is set, turning on the
projector will display the Keyword input screen. Unless the correct key­word is entered, the projector cannot project an image.

To enable the Security function:

1. Select [Advanced] → [Security] and press the F button to select “On”.

Setup

The [Keyword] screen will be displayed.

E-22

2. Type in a combination of the four SELECT buttons ( GHFE ) and
press the ENTER button.

NOTE: A keyword must be four to 10 digits in length.

The [Confirm Keyword] screen will be displayed.

3. Type in the same combination of SELECT buttons ( GHFE ) and
press the ENTER button.
The confirmation screen will be displayed.

4. Select “Yes” and press the ENTER button.
The Security function has been enabled.

To disable the Security function:

1. Select [Advanced] → [Security] and press the E button to select “Off”.

NOTE: If you forget your keyword, contact your dealer. Your dealer will pro­vide you with your keyword in exchange for your request code. Your request
code is displayed in the Keyword Confirmation screen. In this example “K992­45L8-JNGJ-4XU9-1YAT-EEA2” is a request code.

Disabling the Cabinet Buttons [Control Panel Key Lock]

This option turns on or off the Control Panel Key Lock function.

NOTE:

* This Control Panel Key Lock does not affect the remote control and the PC

Control functions.

* When the cabinet buttons are disabled, pressing and holding the CANCEL

button for about 10 seconds will change the setting to enable.

* Key symbol indicates the Control Panel Key Lock is enabled.

Enabling High Speed Fan Mode [High Speed Fan Mode]

This option allows you to select two modes for fan speed: high-speed
mode and normal speed mode.
When you wish to cool down the temperature inside the projector
quickly, select “On”.

NOTE: Enable High Speed Fan mode if you continue to use the projector for
consecutive days.

Selecting Signal Format [Signal Select]

<RGB>
Allows you to choose “RGB” for an RGB source such as a computer,
or “Component” for a component video source such as a DVD player.
Normally select “RGB/Component” and the projector automatically
detects a component signal. However there may be some compo­nent signals that the projector is unable to detect. If this is the case,
select “Component”. Select “Scart” for the European Scart.

<Video & S-Video System Select>
This feature enables you to select composite video standards manu­ally. Normally select “Auto”.
When you select the video standard for Video and S-Video, select
the video standard from the pull-down menu.
This must be done for Video and S-Video respectively.

Page2

The Keyword confirmation screen will be displayed.

2. Type in your keyword and press the ENTER button.
When the correct keyword is entered, the Security function will be
disabled.

When the Security function is enabled and the projector is turned
on, the projector will display a blue background.

To display an image at this time, press the MENU button to display the
Keyword input screen.

Type in the correct keyword. The projector will display an image.

Enabling Power Management [Power Management]

When this option is on and there is no input for five minutes or more,
the projector will automatically turn itself off.

Selecting Noise Reduction Level [Noise Reduction]

Select one of the three levels for reducing video noise: Off, Low, or
High.

NOTE: The lower the Noise Reduction level, the better the image quality by
way of higher video bandwidth.

E-23

Enabling Auto Adjust [Auto Adjust]

When “Auto Adjust” is set to “On”, the projector automatically deter­mines the best resolution for the current RGB input signal to project
an image using NEC’s Advanced AccuBlend Intelligent Pixel Blend­ing T echnology.
The image can be automatically adjusted for position and stability;
“Horizontal Position”, “Vertical Position”, “Clock” and “Phase”.

On .................. Automatically adjusts image “Horizontal Position”,

“Vertical Position”, “Clock” and “Phase”.

Off .................. User can adjust the image display functions (“Hori-

zontal Position”, “Vertical Position”, “Clock” and
“Phase”) manually.

NOTE: Selecting “Ceiling front” or “Ceiling rear” for “Orientation” will auto­matically turn on this feature.

Adjusting Position/Clock (when Auto Adjust is off)

This allows you to manually adjust the image horizontally and verti­cally, and adjust Clock and Phase.

<Horizontal/Vertical>
Adjusts the image location horizontally and vertically.
This adjustment is made automatically when the Auto Adjust is turned
on.

<Clock>
Use this item with the “Auto Adjust off” to fine tune the computer
image or to remove any vertical banding that might appear. This func­tion adjusts the clock frequencies that eliminate the horizontal band­ing in the image. This adjustment may be necessary when you con­nect your computer for the first time. This adjustment is made auto­matically when the Auto Adjust is turned on.

<Phase>
Use this item to adjust the clock phase or to reduce video noise, dot
interference or cross talk. (This is evident when part of your image
appears to be shimmering.)
Use “Phase” only after the “Clock” is complete.
This adjustment is made automatically when the Auto Adjust is turned
on.

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC Control port (DIN 8 Pin). It
supports data rates from 4800 to 19200 bps.
The default is 19200 bps.
Select the appropriate baud rate for your equipment to be connected
(depending on the equipment, a lower baud rate may be recommended
for long cable runs).

Information

[Page 1]
Source Index
Horizontal Frequency
Vertical Frequency
Sync Polarity

[Page 2]
Signal Type
Video Type
Sync Type
Interlace

[Page 3]
Remaining Lamp Time (%)*
Lamp Hour Meter (H)
Filter Usage
Projector Usage
* The progress indicator shows the percent-

age of remaining bulb life. The value in­forms you of the amount of lamp usage.
When the remaining lamp time reaches 0,
the Remaining Lamp Time bar indicator
changes from 0% to 100 Hours and starts
counting down.
If the remaining lamp time reaches 0 hours,
the projector will not turn on.

Default

Returning to Factory Default [Factory Default]

The Factory Default feature allows you to change adjustments and set­ting to the factory preset for source except the following:

<Current Signal>
Resets the adjustments for the current signal to the factory preset lev­els.
The items that can be reset are: Brightness, Contrast, Color, Hue, Sharp­ness, Aspect Ratio, Horizontal Position, V ertical Position, Clock, Phase
and Picture Management.

<All Data>
Reset all the adjustments and settings for all the signals to the factory
preset.
The items can be reset except Language, Lamp Remaining Time, Lamp
Hour Meter and Filter Usage. To reset the lamp usage time, see “Clear
Lamp Hour Meter” and “Clear Filter Usage”.

Resetting the Filter Usage Hours [Clear Filter Usage]

Resets the filter usage back to zero. Selecting this option displays
submenu for a confirmation.

Clearing Lamp Hour Meter [Clear Lamp Hour Meter]

Resets the lamp clock back to zero. Selecting this option displays
submenu for a confirmation.

Displays the status of the current signal and lamp usage. This item has
three pages. The information included is as follows:

NOTE: The projector will turn off and go into standby mode after 3100 hours of
service. If this happens, press and hold the ON/STAND BY and CANCEL buttons
on the remote control simultaneously for a minimum of 10 seconds to reset the
lamp clock back to zero. Do this only after replacing the lamp.

E-24

MAINTENANCE

This section describes the simple maintenance procedures you should
follow to replace the lamp and clean the filter.

Replacing the Lamp

After your lamp has been operating for 3000 hours or longer, the LAMP
indicator in the cabinet will blink red and the message will appear. Even
though the lamp may still be working, replace it at 3000 hours to main­tain optimal projector performance.

CAUTION

• DO NOT TOUCH THE LAMP immediately after it has been used.
It will be extremely hot. Turn the projector off, wait 60 seconds,
turn off the main power switch and then disconnect the power
cable. Allow at least one hour for the lamp to cool before han­dling.

• DO NOT REMOVE ANY SCREWS except the lamp cover screw
and two lamp case screws. Y ou could receive an electric shock.

• The projector will turn off and go into stand by mode after 3100
hours of service. If this happens, be sure to replace the lamp. If
you continue to use the lamp after 3000 hours of use, the lamp
bulb may shatter, and pieces of glass may be scattered in the
lamp case. Do not touch them as the pieces of glass may cause
injury. If this happens, contact your NEC dealer for lamp replace­ment.

To replace the lamp:

1. Loosen the lamp cover screw until the screwdriver goes into a free­wheeling condition and remove the lamp cover. The lamp cover screw
is not removable.

Catch

3. Insert a new lamp housing until the lamp housing is plugged into the
socket.

CAUTION
Do not use a lamp other than the NEC replacement lamp (VT60LP).
Order this from your NEC dealer.

Secure it in place with the two screws.
Be sure to tighten the screws.

4. Reattach the lamp cover.
Tighten the lamp cover screw.

Be sure to tighten the screw.

2. Loosen the two screws securing the lamp housing until the screw­driver goes into a freewheeling condition. The two screws are not
removable.

Remove the lamp housing by holding it.

NOTE: There is an interlock on this case to prevent the risk of electrical shock.
Do not attempt to circumvent this interlock.

Catch

Interlock

5. After you install a new lamp, select the menu
Lamp Hour Meter] to reset the lamp usage hours.

NOTE: When the lamp exceeds 3100 hours of service, the projector cannot
turn on and the menu is not displayed. If this happens, press and hold the
ON/STAND BY and CANCEL buttons on the remote control simultaneously
for a minimum of 10 seconds while in standby mode. When the lamp time
clock is reset to zero, the LAMP indicator goes out.

→

[Default] → [Clear

E-25

Cleaning

Cleaning or Replacing the Filter

The air-filter sponge keeps the inside of the projector from dust or dirt
and should be cleaned after every 100 hours of operation (more often in
dusty conditions). If the filter is dirty or clogged, your projector may over­heat.

CAUTION

•Turn off the projector, turn off the main power switch and un­plug the projector before replacing the filter.

• Only clean the outside of the filter cover with a vacuum cleaner.

• Do not attempt to operate the projector without the filter cover.

To clean the air-filter:

Vacuum the filter-through the filter cover.

To reset the filter usage time, from the menu, select [Default] → [Clear
Filter Usage].
See also page E-24 for resetting the filter usage time.

To replace the filter (sponge):

1. Remove the filter cover by pushing up on the catch of the cover until
you feel it detach.

Catch

3. Reinstall the new filter cover.

NOTE: Do not wash the filter with soap and water. Soap and water will damage
the filter membrane. Before replacing the filter, remove dust and dirt from the
projector cabinet. Keep out dust and dirt during filter replacement.

NOTE: When you replace the lamp, it is also wise to replace the filter. The filter
comes in the same package with your replacement lamp.

Cleaning the Cabinet and the Lens

1. Turn off the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled,
use a mild detergent. Never use strong detergents or solvents such
as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to
scratch or mar the lens.

2. Gently peel off the filter (sponge) and replace it with the new one.

E-26

TROUBLESHOOTING

This section helps you resolve problems you may encounter while setting up or using the projector.

Power Indicator

Indicator Condition

Blinking light

Steady light

Status Indicator

Indicator Condition

Blinking light

Green

Orange

Green
Orange

Red

Off

0.5 sec On,

0.5 sec Off

0.5 sec On,
