NEC VT480 User Manual

Portable Projector
VT580/VT480/VT58/VT48
User’s Manual
© NEC Viewtechnology, Ltd. 2005 First edition October 2005
• IBM is a trademark or registered trademark of International Business Machines Corporation.
• Macintosh, Mac OS X and PowerBook are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
• Other product and company names mentioned in this user's manual may be the trademarks or registered trade­marks of their respective holders.
NOTES
(1) The contents of this guide may not be reprinted in part or whole without permission. (2) The contents of this guide are subject to change without notice. (3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points,
errors or omissions, please contact us.
(4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to
result from using the Projector.
Important Information
Safety Cautions
Precautions
Please read this manual carefully before using your NEC VT580/VT480/VT58/VT48 projector and keep the manual handy for future reference. Your serial number is located on the bottom of your projector. Record it here:
CAUTION
To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.
This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.
WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNITS PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED.
DOC Compliance Notice (for Canada only)
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Acoustic Noise Information Ordinance-3. GSGV (for Germany only):
The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.
CAUTION
Avoid displaying stationary images for a prolonged period of time. Doing so can result in these images being temporarily sustained on the surface of the LCD panel. If this should happen, continue to use your projector. The static background from previous images will
disappear.
Disposing of your used product
EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product. After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact such as mercury contained in a lamp to the human health and the environment at the minimum level. The mark on the electrical and electronic products only applies to the current European Union Member States.
i
Important Information
WARNING TO CALIFORNIA RESIDENTS:
Handling the cables supplied with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.
RF Interference (for USA only)
WARNING
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Solutions (America), Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radi­ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.
For UK only: In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.
Important Safeguards
These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.
Installation
Do not place the projector in the following conditions:
- on an unstable cart, stand, or table.
- near water, baths or damp rooms.
- in direct sunlight, near heaters or heat radiating appliances.
- in a dusty, smoky or steamy environment.
- on a sheet of paper or cloth, rugs or carpets.
If you wish to have the projector installed on the ceiling:
- Do not attempt to install the projector yourself.
- The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.
- In addition, the ceiling must be strong enough to support the projector and the installation must be in accor­dance with any local building codes.
- Please consult your dealer for more information.
ii
Important Information
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
10°
Fire and Shock Precautions
Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall.
Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off.
Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your project. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel.
Do not place any objects on top of the projector.
Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.
The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply
fits this requirement before attempting to use your projector.
Do not look into the lens while the projector is on. Serious damage to your eyes could result.
Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.
Do not cover the lens with the black lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.
Do not place any objects, which are easily affected by heat, in front of the projector lens or a projector exhaust vent. Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the light output and exhaust.
Handle the power cable carefully. A damaged or frayed power cable can cause electric shock or fire.
- Do not use any power cables than the supplied one.
- Do not bend or tug the power cable excessively.
- Do not place the power cable under the projector, or any heavy object.
- Do not cover the power cable with other soft materials such as rugs.
- Do not heat the power cable
- Do not handle the power plug with wet hands.
Turn off the projector, unplug the power cable and have the object removed by a qualified NEC service personnel under the following conditions:
- When the power cable or plug is damaged or frayed.
- If liquid has been spilled into the projector, or if it has been exposed to rain or water.
- If the projector does not operate normally when you follow the instructions described in this user's manual.
- If the projector has been dropped or the cabinet has been damaged.
- If the projector exhibits a distinct change in performance, indicating a need for service.
- If the projector is not to be used for an extended period of time.
Disconnect the power cable and any other cables before carrying the projector
Turn off the projector and unplug the power cable before cleaning the cabinet or replacing the lamp.
iii
Important Information
CAUTION
Do no use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.
Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged.
When carrying the projector by the carrying handle, make sure the two screws that attach the carrying handle to the projector cabinet are tight.
Insufficient tightening of the two screws could result in the projector falling and causing injury.
Select [High] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [Setup] [Options] [Fan Mode] [High].)
Do not turn off the AC power by pressing the main power switch or by unplugging the power cable when the projector is powered on.
Do not turn off the AC power for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green.Doing so could cause premature lamp failure.
Remote Control Precautions
Handle the remote control carefully.
If the remote control gets wet, wipe it dry immediately.
Avoid excessive heat and humidity.
Do not heat, take apart, or throw batteries into fire.
If you will not be using the remote control for a long time,remove the batteries.
Ensure that you have the batteries polarity (+/-) aligned correctly.
Do not use new and old batteries together, or use different types of batteries together.
Dispose of used batteries according to your local regulations.
Lamp Replacement
To replace the lamp, follow all instructions provided on page 51.
Be sure to replace the lamp when the message [The lamp has reached the end of its usable life. Please
replace the lamp.] appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.
If this happens, contact your dealer for lamp replacement.
A Lamp Characteristic
The projector has a high-pressure mercury lamp as a light source. A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on and off will increase the possibility of its lower brightness.
CAUTION:
When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out.
iv
Table of Contents
Important Information ----------------------------------------------------------- i
1. Introduction ---------------------------------------------------------------------- 1
What's in the Box? --------------------------------------------------------------------------------- 1 Introduction to the Projector --------------------------------------------------------------------- 2 Part Names of the Projector --------------------------------------------------------------------- 3
Attaching the supplied carrying handle ---------------------------------------------------- 4 Top Features-------------------------------------------------------------------------------------- 5 Terminal Panel Features----------------------------------------------------------------------- 6
Part Names of the Remote Control ------------------------------------------------------------ 7
Battery Installation ------------------------------------------------------------------------------ 8 Remote Control Precautions ----------------------------------------------------------------- 8 Operating Range for Wireless Remote Control------------------------------------------ 8
2. Installation and Connections ------------------------------------------- 9
Setting Up the Screen and the Projector ----------------------------------------------------- 9
Selecting a Location (VT580/VT480/VT58)----------------------------------------------- 9 Selecting a Location (VT48) ---------------------------------------------------------------- 10 Throw Distance and Screen Size ----------------------------------------------------------11
Making Connections ----------------------------------------------------------------------------- 13
Enabling the computers external display ----------------------------------------------- 13 Connecting Your PC or Macintosh Computer ------------------------------------------ 13 To connect SCART output (RGB) --------------------------------------------------------- 14 Connecting an External Monitor ----------------------------------------------------------- 15 Connecting Your DVD Player with Component Output ------------------------------ 16 Connecting Your VCR or Laser Disc Player -------------------------------------------- 17 Connecting the Supplied Power Cable -------------------------------------------------- 18
3. Projecting an Image (Basic Operation)-------------------------- 19
Turning on the Projector ------------------------------------------------------------------------ 19
Note on Startup screen (Menu Language Select screen)--------------------------- 20
Selecting a Source ------------------------------------------------------------------------------- 21 Adjusting the Picture Size and Position----------------------------------------------------- 22 Correcting Keystone Distortion --------------------------------------------------------------- 24 Optimizing RGB Picture Automatically------------------------------------------------------ 26 Turning Up or Down Volume------------------------------------------------------------------- 26 Turning off the Projector ------------------------------------------------------------------------ 27After Use-------------------------------------------------------------------------------------------- 28
v
Table of Contents
4. Convenient Features ------------------------------------------------------ 29
Turning off the Image and Sound ------------------------------------------------------------ 29 Freezing a Picture-------------------------------------------------------------------------------- 29 Enlarging a Picture------------------------------------------------------------------------------- 29 Changing Lamp Mode--------------------------------------------------------------------------- 30 Preventing the Unauthorized Use of the Projector--------------------------------------- 30 Using Remote Mouse Receiver (VT580/VT480 only)----------------------------------- 33
5. Using On-Screen Menu --------------------------------------------------- 35
Using the Menus---------------------------------------------------------------------------------- 35 Menu Elements ----------------------------------------------------------------------------------- 37 List of Menu Items-------------------------------------------------------------------------------- 38 Menu Descriptions & Functions [Picture]--------------------------------------------------- 40 Menu Descriptions & Functions [Image Options] ---------------------------------------- 41 Menu Descriptions & Functions [Setup] ---------------------------------------------------- 43 Menu Descriptions & Functions [Information] --------------------------------------------- 47 Menu Descriptions & Functions [Reset] ---------------------------------------------------- 48
6. Maintenance ------------------------------------------------------------------- 49
Cleaning or Replacing the Filters------------------------------------------------------------- 49 Cleaning the Cabinet and the Lens---------------------------------------------------------- 50 Replacing the Lamp ----------------------------------------------------------------------------- 51
7. Appendix ------------------------------------------------------------------------- 54
Troubleshooting----------------------------------------------------------------------------------- 54 Specifications-------------------------------------------------------------------------------------- 57 Cabinet Dimensions ----------------------------------------------------------------------------- 59 Pin Assignments of D-Sub COMPUTER Input Connector----------------------------- 60 Compatible Input Signal List------------------------------------------------------------------- 61 PC Control Codes and Cable Connection ------------------------------------------------- 62 Troubleshooting Check List-------------------------------------------------------------------- 64 TravelCare Guide--------------------------------------------------------------------------------- 66
vi
1. Introduction
What's in the Box?
Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector.
Projector
J. D
O A T
AU
E C
R
T I
U
X
E
O S
Y B
D N A
T S /
T
N
C
O
E
EL S
R E T
U N
N
E
E
M
R E
W
O
S
P
U
T A
T
S P M
A L
M O
ZO
CUS
FO
Lens cap (24FT9641)
Soft case (24BS7581)
M
E
N
U
ENTER
L
-
C
L
IC
K V
ID
E
X
E
I
O
M
T
O
U
S
C
-V
S
O
E
R
ID
M
-
P
C
E
U
L
O
T
I
1
C
E
R
K
V
O
A
L
U
U
T
O
M
A
E
2
D
J
.
L
A
A
S
M
P
P
E
M
C
O
T
D
P
E
I
C
T
H
U
E
R
L
E
P F
R
E
E
Z
E
O
F
F
M
A
G
N
I
P
F
O
Y
W
P
E
IC
R
O
-
M
N
U
T
E
P
A
G
E
U
P
D
O
W
N
Power cable (US: 7N080220) (EU: 7N080007)
Quick Setup Guide Important Information
For VT580 and VT480 only
Remote mouse receiver (7N900721)
VGA signal cable (7N520054)
CD-ROM User’s manual
Carrying handle (24FT9651) Screw (M4
2: 24V00411)
Remote control (7N900731)
For North America only
Registration card Limited warranty
For Europe only
Guarantee policy
Batteries (AAA⳯2)
1
1. Introduction
Introduction to the Projector
This section introduces you to your new projector and describes the features and controls.
Congratulations on Your Purchase of the Projector
This projector is one of the very best projectors available today. The projector enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player, document camera, or a laser disc player. You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling*1. The remote control can be used wirelessly.
1
Do not attempt to mount the projector on a ceiling yourself.
*
The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.
In addition, the ceiling must be strong enough to support the projector and the installation must be in accor­dance with any local building codes. Please consult your dealer for more information.
Features you'll enjoy:
Auto vertical keystone correction up to +/ 30 degrees (VT580 only)
Built-in Wall Color Correction presets provide for adaptive color correction when projecting onto non-white
screen material
Quick start & quick cool down Eight seconds after turning on the power, the projector is ready to display PC or video images. Powering down; The fans stop 30 seconds after turning off the power from the remote control or cabinet control
panel. The projector can be put away immediately after the projector is powered down. Also, the main power of the projector can be turned off by pressing the main power switch or unplugging the
power cable even during the cool down period after the projector is turned off.
HDTV (1080i, 720p) and SDTV (576p, 480p) compatibility
Color Management system
Short focal length lens
Display popular wide screen and full screen aspect ratios 16:9 and 4:3
Built-in speaker for an integrated audio solution
High resolution display - up to UXGA compatible, XGA native resolution (SVGA: VT480 and VT48).
Multiple video mode selections (depending on your source)
Security feature prevents unauthorized individuals from displaying images.
You can control the projector with a PC or control system using the PC Control port.
Easy set up and operation
The contemporary cabinet design is light, compact and complements any office, boardroom Auditorium.
You can use the supplied wireless remote control and remote mouse receiver to operate your PC mouse from
across the room. The remote mouse receiver supports almost any PC using a USB connection (VT580 and VT480 only).
About this user's manual
The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an overview. If the section doesn't apply, you can skip it.
2
Part Names of the Projector
Front/Top
1. Introduction
Zoom Lever (VT580/VT480/VT58)
Digital Zoom Button (VT48)
Controls (→ page 5)
(→ page 23)
M
O
O
Z
ADJ.
S
U
C
O
F
Remote sensor
(→ page 7) Focus Ring
(→ page 23)
M
O
O
S
Z
U
C
O
F
AUTO
E C
R
T I
U
X
E
O S
BY
TAND
T
N/S
C
O
E
L
E
S
R TE
NU
N
E
E
M
R
E
W
O
S
P
U
T
A
T
S
P
M
A
L
Ventilation (inlet) / Filter Cover (→ page 49) Two filters on VT580 and VT480 One filter on VT58 and VT48
Built-in Security Slot ( )*
Lens
Adjustable Tilt Foot Button (→ page 22)
Lens Cap
Adjustable Tilt Foot (→ page 22)
* This security slot supports the MicroSaver ® Security System. MicroSaver ® is a registered trademark of
Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
Rear
F O
C U
S
Z
O
O
M
M
E N
U
S
L
E
A
E
L
M
E
P
N
C
S
T
T
T
A
T
E
U
P
R
O
S
W
E
R
T I
X
E
O N
/S T
A N
D B
Y
S O
U R C
E
A
U T O
A D
J .
Terminal Panel
(→ page 6)
Remote sensor (VT580 and VT480 only) (→ page 8)
Monaural Speaker
(1W)
Ventilation (outlet) Heated air is exhausted from here.
AC Input Connect the supplied power cable's two-pin plug here, and plug the other end into an active wall outlet. (→ page 18)
Main Power Switch When you plug the supplied power cable into an active wall outlet and turn on the Main Power, the POWER indicator turns orange and the projector is in standby mode. (→ page 19)
3
Bottom
Rear Foot (Left / Right) (→ page 22)
Adjustable Tilt Foot (→ page 22)
1. Introduction
Adjustable Tilt Foot Button (→ page 22)
Lamp Cover (→ page 51)
Attaching the supplied carrying handle
You can carry the projector by attaching the supplied carrying handle securely to the projector. To attach the supplied carrying handle, use a Phillips-head screwdriver and the supplied two screws. Place a soft cloth on the working surface before turning the projector over to prevent scratching the top cover. Make sure that the carrying handle is attached with correct orientation as shown below.
Screw
Phillips-head screwdriver (not supplied)
Carrying handle
CAUTION
When carrying the projector by the carrying handle, make sure the two screws that attach the carrying handle to the projector cabinet are tight.
4
Top Features
1. Introduction
1
ENTER
LAMP STATUS
2
POWER
ON/STAND BY
4
3
1. LAMP Indicator (page 51,54)
2. STATUS Indicator (page 54)
3. POWER Indicator (page 19,27,54)
4. POWER Button (ON / STAND BY) (
(page 19,27)
5. SOURCE Button
6. AUTO ADJ. Button (page 26)
7. MENU Button
8. SELECT  / Volume Buttons  / Keystone Buttons 
9. ENTER Button
10.EXIT Button
)
78
MENU
SELECT
5 6
XIT
E
10 9
AUTO ADJ.SOURCE
5
Terminal Panel Features
VT580/VT480
VT58/VT48
S-VIDEO
IN
S-VIDEO
IN
VIDEO IN
VIDEO IN
L
R
AUDIO IN
L
R
AUDIO IN
PC CONTROL
PC CONTROL
76

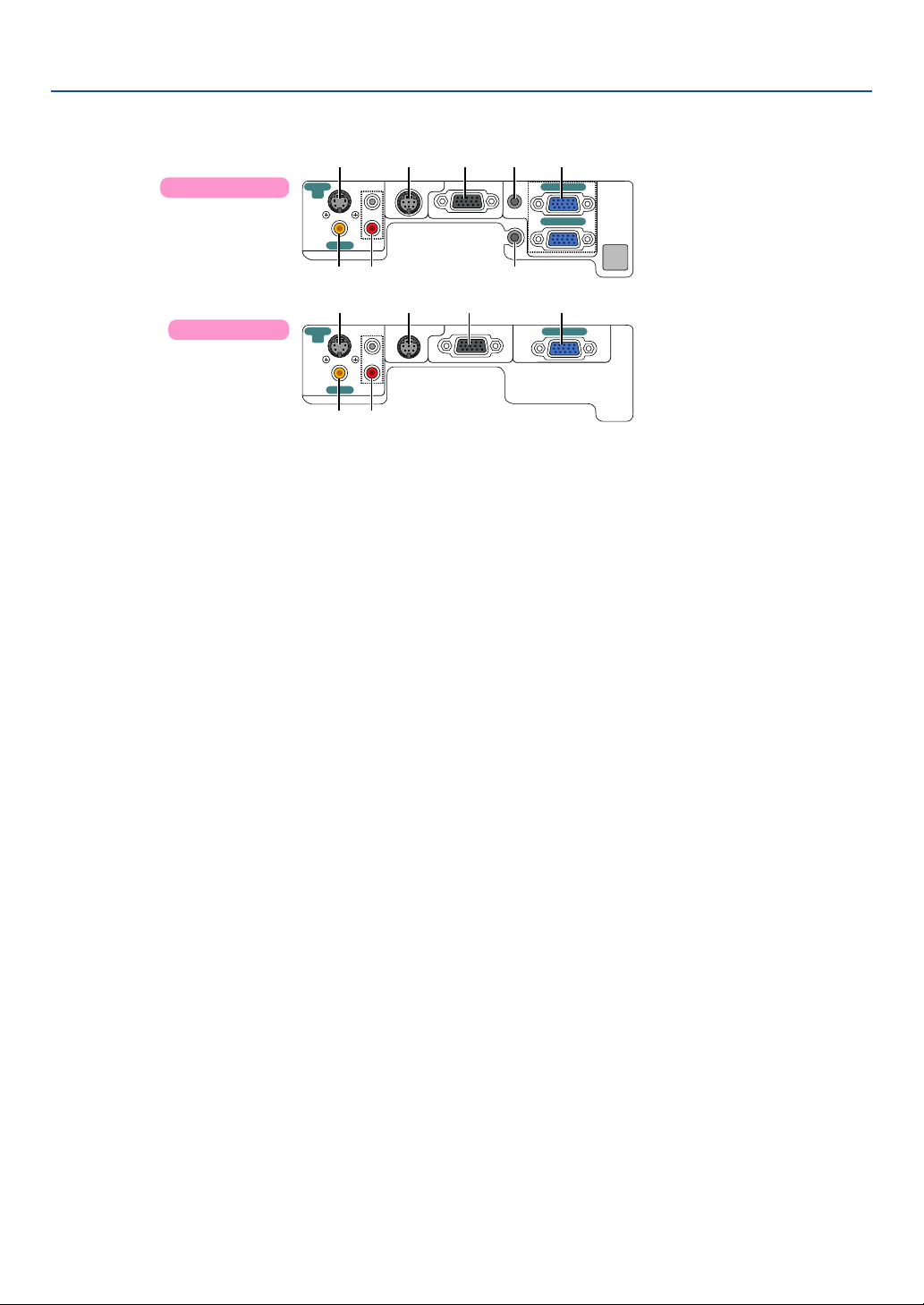

1. COMPUTER 1 and 2 IN/ Component Input Connector (Mini D-Sub 15 Pin)
(VT580/VT480) (→page 13,14,16)
COMPUTER IN/ Component Input Connector (Mini D-Sub 15 Pin)
(VT58/VT48) (→page 13,14,16)
2. AUDIO IN Mini Jack (Stereo Mini) (page 13,15,16) (Not available on VT58/VT48)
3. AUDIO OUT Mini Jack (Stereo Mini) (→page 15) (Not available on VT58/VT48)
4. MONITOR OUT Connector (Mini D-Sub 15 Pin)
(page 15)
5. S-VIDEO IN Connector (Mini DIN 4 Pin)
(page 17)
6. VIDEO IN Connector (RCA) (page 17)
7. AUDIO Input Jacks L/R (RCA) (page 17)
8. PC CONTROL Port (DIN 8 Pin) (page 62,63)
Use this port to connect a PC or control system. This enables you to control the projector using serial communication protocol. If you are writing your own program, typical PC control codes are on page 62.
MONITOR OUT(COMP 1)
AUDIO IN
AUDIO OUT
376
MONITOR OUT
1. Introduction
1485 2
COMPUTER 1 IN
COMPUTER 2 IN
1485
COMPUTER IN
6

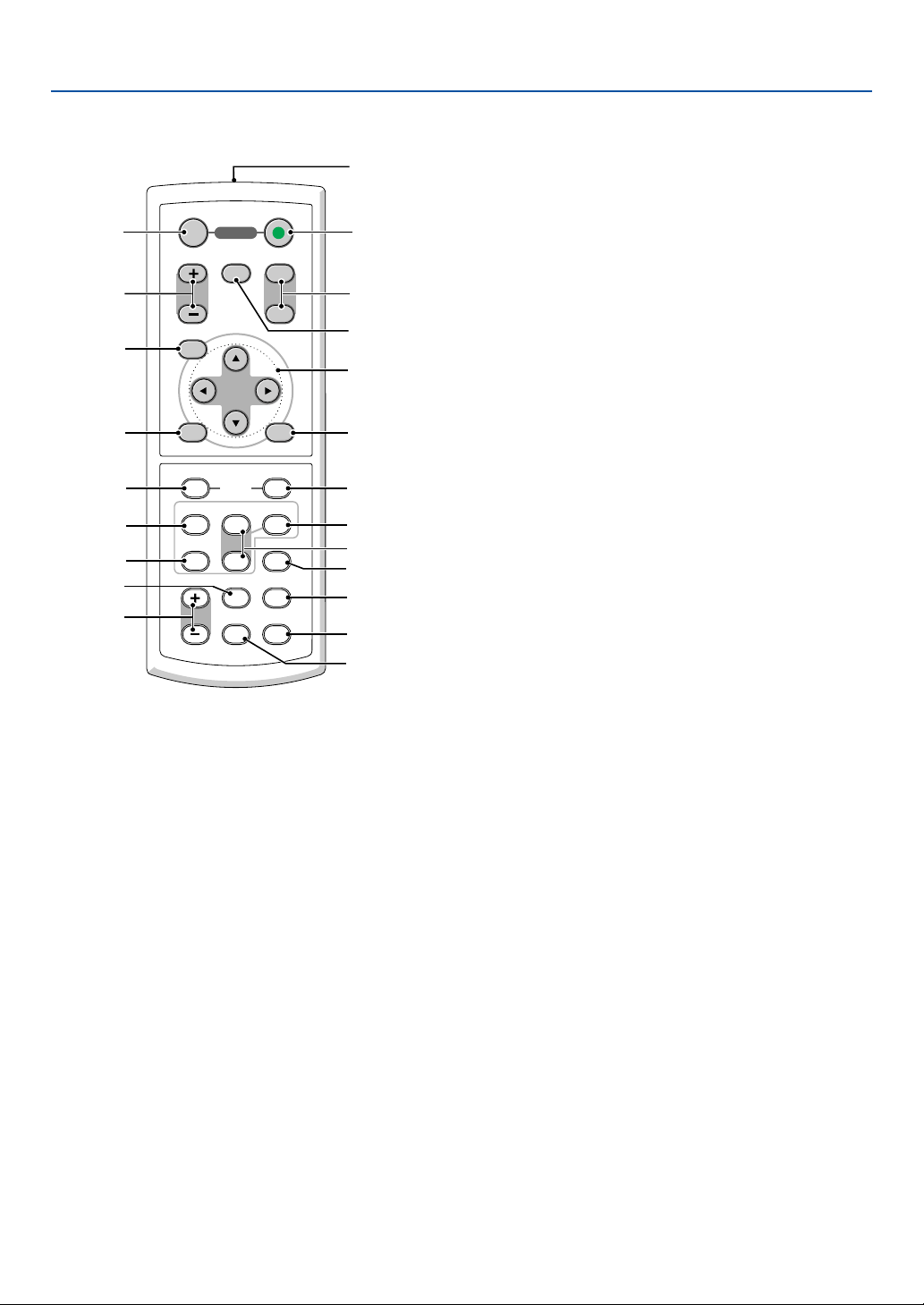

Part Names of the Remote Control
1
1. Introduction
OFF
3
MAGNIFY PAGE
PIC-MUTE
4
7
MENU
POWER
ON
UP
DOWN
2
6
5
8
9
11
13
14 19
17
ENTER
L-CLICK
VIDEO
S-VIDEO
VOLUME
COMPUTER
EXIT
R-CLICK
MOUSE
COMPUTER
AUTO ADJ.
1
LAMP MODE
2
ASPECT HELP
FREEZEPICTURE
10
12
16 15
18 21
22 20
1. Infrared Transmitter
( page 8)
2. POWER ON Button
( page 19)
3. POWER OFF Button
( page 27)
4. MAGNIFY (+)(–) Button
( page 29)
5. PIC-MUTE Button
( page 29)
6. PAGE UP/DOWN Button* (Not available on VT58 and VT48)
( page 33,34)
7. MENU Button
8. SELECT  Button
9. ENTER Button
10.EXIT Button
11.MOUSE L-CLICK Button* (Not available on VT58 and VT48)
( page 33,34)
* The P AGE UP/DOWN, MOUSE L-CLICK and MOUSE R-CLICK buttons work only when the supplied remote mouse
receiver is connected with your computer.
12.MOUSE R-CLICK Button* (Not available on VT58 and VT48)
( page 33,34)
13.VIDEO Button
( page 21)
14.S-VIDEO Button
( page 21)
15.COMPUTER 1/2 Button (The COMPUTER 2 button is not available on VT58 and VT48)
( page 21)
16.AUTO ADJ. Button
( page 26)
17.VOLUME (+)(–) Button
( page 26)
18.LAMP MODE Button ( page 30)
19.ASPECT Button
( page 41)
20.PICTURE Button
( page 40 to 41)
21.HELP Button
( page 47)
22.FREEZE Button
( page 29)
7
Battery Installation
1. Introduction
1
Press firmly and slide the battery cover off.
2
Install new batteries (AAA). Ensure that you have the batteries' polarity (+/–) aligned correctly.
3
Slip the cover back over the bat­teries until it snaps into place. Do not mix different types of batter­ies or new and old batteries.
Remote Control Precautions
Handle the remote control carefully.
If the remote control gets wet, wipe it dry immediately.
Avoid excessive heat and humidity.
Do not heat, take apart, or throw batteries into fire.
If you will not be using the remote control for a long time, remove the batteries.
Ensure that you have the batteries polarity (+/-) aligned correctly.
Do not use new and old batteries together, or use different types of batteries together.
Dispose of used batteries according to your local regulations.
Operating Range for Wireless Remote Control
Remote sensor on projector cabinet
Remote control
7m/22 feet
30°
30°
30°
(*)
EXIT
AUTO ADJ.SOURCE
MENU
FOCUS
ZOOM
SELECT
ENTER
ON/STAND BY
LAMP
STATUS
POWER
30°
7m/22 feet
*NOTE: The VT58 and VT48 do not have the remote sensor on the rear panel.
The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of the remote sensor on the projector cabinet.
The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.
8
2. Installation and Connections
This section describes how to set up your projector and how to connect video and audio sources. Your projector is simple to set up and use. But before you get started, you must first:
1 Set up a screen and the projector. 2 Connect your computer or video equip-
ment to the projector. ( pages 13 to 17)
F O C U
S
Z O O M
M E N U
S
L
E
A
E
L
M
E
P
N
C
S
T
T
T
A
T
E
U
P O
R
S W E R
T I X
E
O N / S T A N D B
Y S O U R C E A
U
T
O
A
D
J
.
To the wall outlet.
Setting Up the Screen and the Projector
Selecting a Location (VT580/VT480/VT58)
The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 21" (0.53 m) measured diagonally when the projector is roughly 30 inches (0.8 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 400 inches (10 m) from the wall or screen.
Screen Size (Unit: cm/inch)
609.6(W)457.2(H) / 240(W)180(H)
300"
3 Connect the supplied power cable.
( page 18)
NOTE: Ensure that the power cable and any other cables are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the lens cap.
Screen Size
487.7(W)365.8(H) / 192(W)144(H)
240
"
406.4(W)304.8(H) / 160(W)120(H)
365.8(W)274.3(H) / 144(W)108(H)
200
180"
"
304.8(W)228.6(H) / 120(W)90(H)
150"
243.8(W)182.9(H) / 96(W)72(H)
203.2(W)152.4(H) / 80(W)60(H)
162.6(W)121.9(H) / 64(W)48(H)
121.9(W)91.4(H) / 48(W)36(H)
81.3(W)61.0(H) / 32(W)24(H)
61.0(W)45.7(H) / 24(W)18(H)
42.7(W)32(H) / 17(W)13(H)
Lens center
30"
21"
F
O C U S
M E N U
S
L
ELE
A
E
MP
N
C
S T
T
T
A
TU
E
P O
S
R
W ER
0.8/
T I X
E
O N / S T A N D B Y S O U R C E
A U T O A D J .
30
40"
1.0/39
60"
80"
1.3/
120"
100"
53
2.0/80
2.7/106
3.4/133
4.1/160
5.1/200
6.1/240
ta
is
D
6.8/267
(U
e
c
n
n
it: m
8.1/321
c
/in
10.2/402
)
h
TIP:
• The distances are indicated by intermediate values between tele and wide. Use as a rule of thumb.
• The Zoom lever adjusts the image size +/-10%
• For more details on throw distance, see page 11.
9
2. Installation and Connections
Selecting a Location (VT48)
The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 25" (0.64 m) measured diagonally when the projector is roughly 35 inches (0.9 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 434 inches (11.0 m) from the wall or screen. Use the drawing below as a guide.
Screen Size (Unit: cm/inch)
609.6(W)457.2(H) / 240(W)180(H)
300
Screen Size
"
487.7(W)365.8(H) / 192(W)144(H)
240
"
406.4(W)304.8(H) / 160(W)120(H)
100
"
"
1.4/57
120
"
180
150
"
2.2/86
200
"
"
"
2.9/115
3.7/144
4.4/173
5.5/217
6.6/260
7.3/289
11.0/434
8.8/347
365.8(W)274.3(H) / 144(W)108(H)
304.8(W)228.6(H) / 120(W)90(H)
243.8(W)182.9(H) / 96(W)72(H)
203.2(W)152.4(H) / 80(W)60(H)
162.6(W)121.9(H) / 64(W)48(H)
121.9(W)91.4(H) / 48(W)36(H)
81.3(W)61.0(H) / 32(W)24(H)
50.8(W)38.1(H) / 20(W)15(H)
Lens center
S
L
E
A
E
L
M
E
P
N
C
S
T
T
T
A T
E
U
P
R
OW
S E R
T I X E
O N / S T A N D B Y S O
U R C E A U T O A D J .
80
60
40
"
25"
F O C U S
M E N U
0.9/
35
Distance (Unit: m/inch)
TIP:
• The distances are indicated by intermediate values between tele and wide. Use as a rule of thumb.
• Digital Zoom can result in a blurry image due to the electronic zoom.
• The Zoom button adjusts the image size -10%
• For more details on throw distance, see next page.
10
2. Installation and Connections
Throw Distance and Screen Size
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.
Distance Chart
Projector bottom
C
Screen center
α
Lens center
Screen bottom
B = Vertical distance between lens center and
screen center C = Throw distance D = Vertical distance between lens center and
screen bottom (top of screen for ceiling
application) α = Throw angle
B
D
NOTE: Distances may vary +/-5%.
VT580/VT480/VT58
inch
100 120 150 180 200 210 240 270 300
21 25 30 40 60 72 80 84 90
Diagonal
mm
533 635
762 1016 1524 1829 2032 2134 2286 2540 3048 3810 4572 5080 5334 6096 6858 7620
Screen Size C α
Width Height wide tele wide tele
inch
mm
inch
120 144 160 168 192 216 240
17
427
20
508
24
610
32
813
48
1219
58
1463
64
1626
67
1707
72
1829
80
2032
96
2438 3048 3658 4064 4267 4877 5486 6096
108 120 126 144 162 180
mm
13
320
15
381
18
457
24
610
36
914
43
1097
48
1219
50
1280
54
1372
60
1524
72
1829
90
2286 2743 3048 3200 3658 4115 4572
inch
B
mm
inch
mm
-
inch
104 116 122 131 145 174 218 262 291 306 350 394
438
mm
30
750
35
900
43
1090
57
1460
87
2200 2650 2940 3090 3310 3690 4430 5540 6660 7400 7770
8890 10000 11120
4
110
-
-
5
140 160 220 320 390 430 450 490 540 650 810
970 1080 1140 1300 1460 1620
101 109 121 145 182 218 243 255 291 328 365
29 35 48 72 87 96
6
9 13 15 17 18 19 21 26 32 38 43 45 51 57 64
740
900 1210 1830 2200 2450 2570 2760 3070 3690 4620 5540 6160 6470 7400 8330 9260
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
inch
-10
-13
-16
-17
-18
-21
-24
-26
D
mm
-130
-160
-180
-190
-200
-220
-270
-330
-400
-440
-460
-530
-600
-660
degree
-50
-60
-70
-90
-2
-2
-3
-3
-5
-6
-7
-7
-8
-9
10.3
10.2
10.1
10.1
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
-
degree
-
-
9.9
9.9
9.9
8.6
-
8.5
-
8.5
-
8.4
-
8.4
-
8.4
-
8.4
-
8.4
-
8.4
-
8.3
-
8.3
-
8.3
-
8.3
-
8.3
-
8.3
-
8.3
-
8.3
-
8.3
VT48
Diagonal
inch
25 30 40 60 72 80 84
90 100 120 150 180 200 210 240 270 300
mm
635
762 1016 1524 1829 2032 2134 2286 2540 3048 3810 4572 5080 5334 6096 6858 7620
Screen Size
Width Height
inch
120 144 160 168 192 216 240
20 24 32 48 58 64 67 72 80 96
mm
508 610
813 1219 1463 1626 1707 1829 2032 2438 3048 3658 4064 4267 4877 5486 6096
inch
108 120 126 144 162 180
DCB
15 18 24 36 43 48 50 54 60 72 90
mm
381 457 610
914 1097 1219 1280 1372 1524 1829 2286 2743 3048 3200 3658 4115 4572
inch
5 6
9 13 15 17 18 19 21 26 32 38 43 45 51 57 64
mm
140 160 220 320 390 430 450 490 540 650 810
970 1080 1140 1300 1460 1620
inch
103 115 121 129 144 173 217 260 289 304 347 391 434
35 42 57 86
mm
890 1070 1440 2180 2620 2920 3060 3290 3650 4390 5500 6610 7340 7710 8820 9930
11030
inch
-10
-13
-16
-17
-18
-21
-24
-26
-2
-3
-3
-5
-6
-7
-7
-8
-9
mm
-60
-70
-90
-130
-160
-180
-190
-200
-220
-270
-330
-400
-440
-460
-530
-600
-660
α
degree
8.7
8.6
8.5
8.5
8.4
8.4
8.4
8.4
8.4
8.4
8.4
8.4
8.4
8.4
8.4
8.4
8.4
11
2. Installation and Connections
WARNING
* Installing your projector on the ceiling must be done
by a qualified technician. Contact your NEC dealer for more information.
* Do not attempt to install the projector yourself.
Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.
Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 41˚F (5˚C) and 104˚F (40˚C) (Eco mode selected automatically at 95˚F to 104˚F/35˚C to 40˚C).
Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.
Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the side or the front of the projector.
Reflecting the Image
Using a mirror to reflect your projectors image enables you to enjoy a much larger image when a smaller space is required. Contact your NEC dealer if you need a mirror system. If you're using a mirror system and your image is inverted, use the MENU and SELECT buttons on your projector cabinet or your remote control to correct the orientation. ( page 44)
12
L
COMPUTER IN
MONITOR OUT
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CONTROL
R
COMPUTER IN
2. Installation and Connections
Making Connections
NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC. In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up. * If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power
management software.
Enabling the computer’s external display
Displaying an image on the notebook PCs screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually , the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

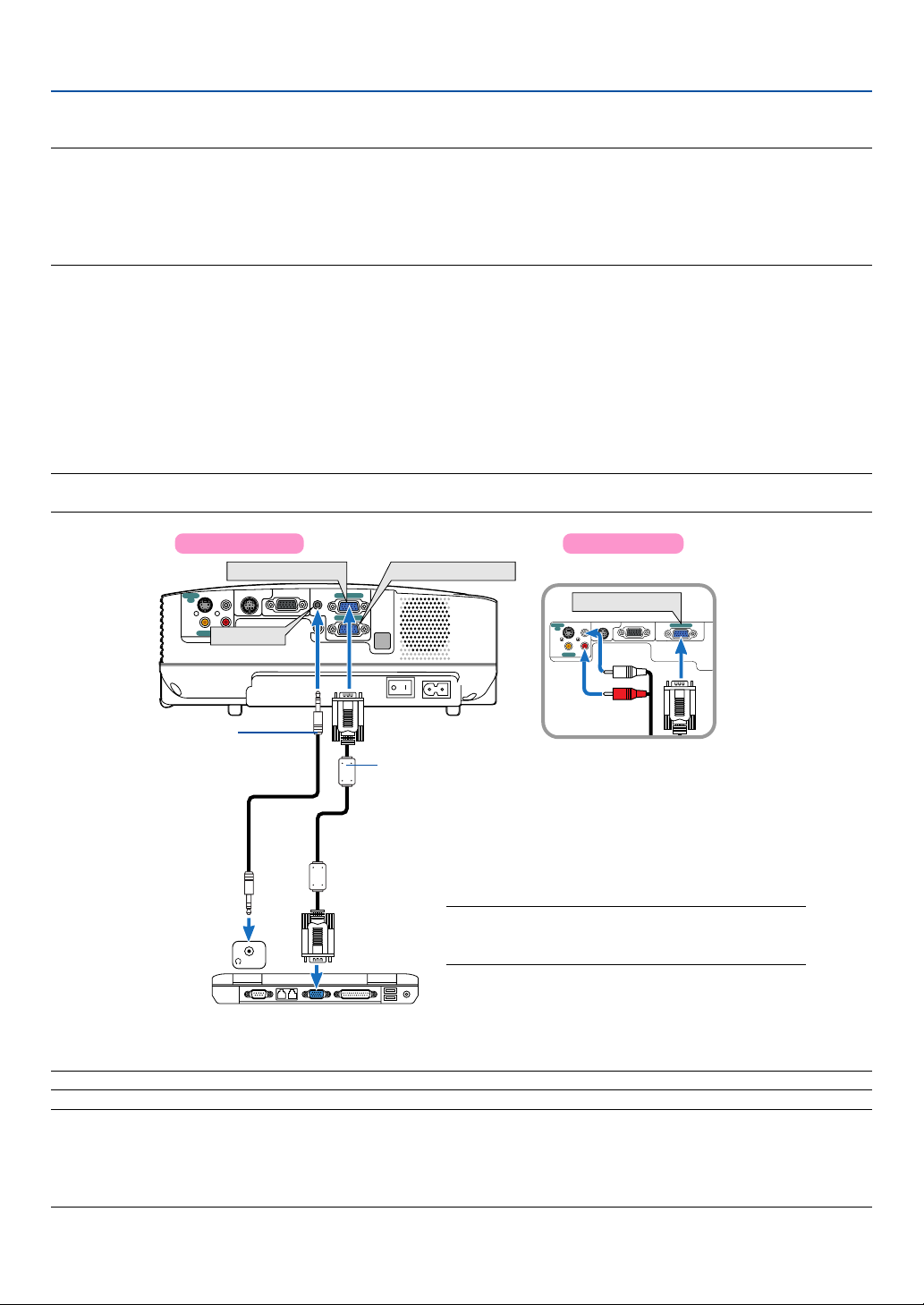

Connecting Your PC or Macintosh Computer
NOTE: VT580/VT480: The COMPUTER 1 connector supports Plug & Play (DDC2).
VT58/VT48: The COMPUTER connector supports Plug & Play (DDC2).
VT580/VT480
COMPUTER 1 IN
MONITOR OUT(COMP 1)
L
R
VIDEO IN
AUDIO IN
AUDIO IN
PC CONTROL
S-VIDEO
IN
Audio cable (not supplied)
PHONE
IBM VGA or Compatibles (Notebook type) or Macintosh (Notebook type)
AUDIO IN
AUDIO OUT
COMPUTER 1 IN
COMPUTER 2 IN
VT58/VT48
COMPUTER 2 IN
VGA signal cable (supplied)
To mini D-Sub 15-pin connector on the projector. It is recommended that you use a commercially available distribution amplifier if connecting a signal cable longer than the supplied one.
NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.
NOTE: The projector is not compatible with video decoded outputs of either the NEC ISS-6020 and ISS-6010 switchers.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available scan converter. This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following. * When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly:
Project an image to fill the screen and then press the AUTO ADJ button on the remote control or the projector cabinet.
13

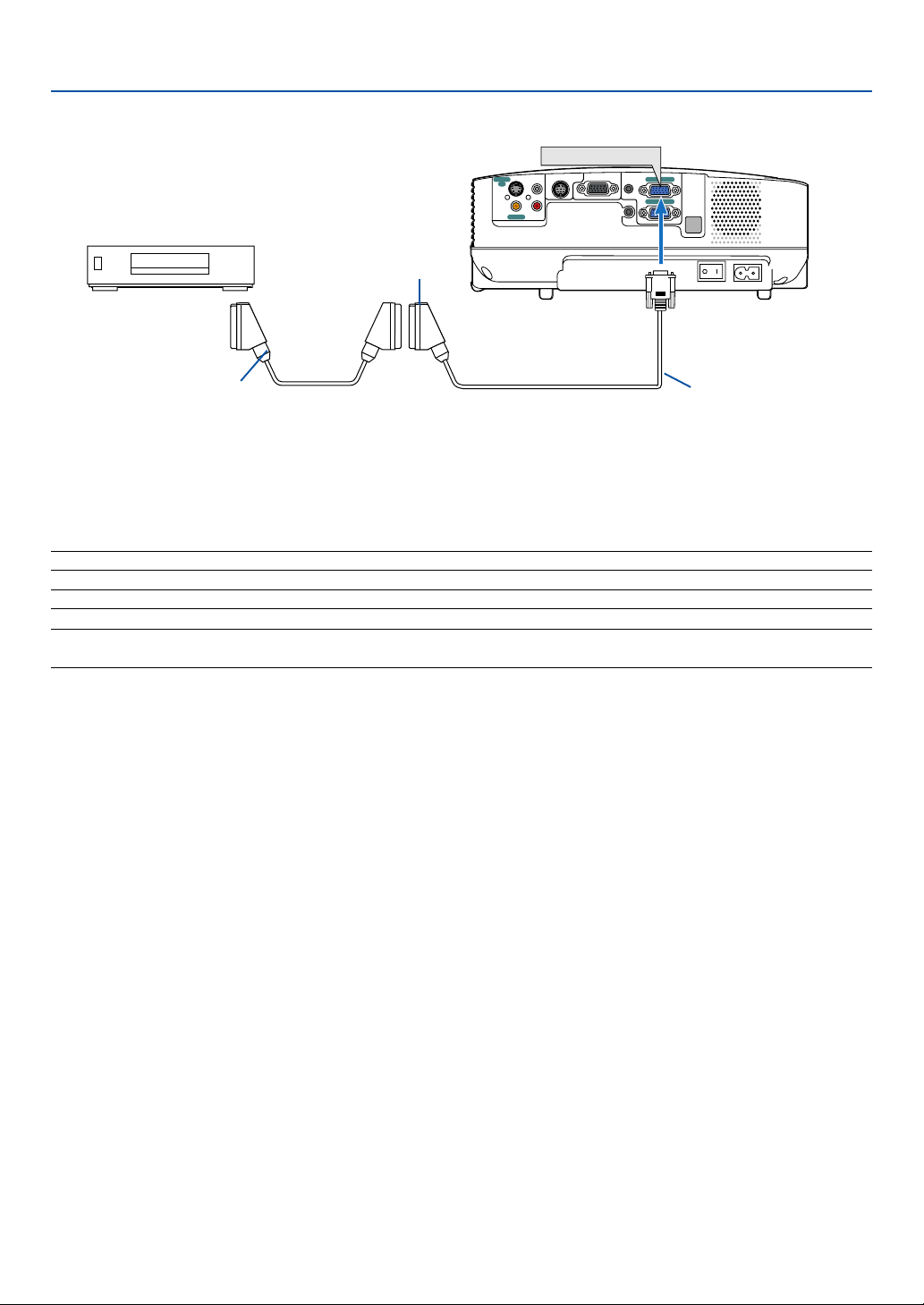

To connect SCART output (RGB)
Video equipment such as DVD player
Female
COMPUTER 1 IN
S-VIDEO
L
IN
R
VIDEO IN
AUDIO IN
2. Installation and Connections
Projector
PC CONTROL
MONITOR OUT(COMP 1)
AUDIO IN
AUDIO OUT
COMPUTER 1 IN
COMPUTER 2 IN
To COMPUTER 1 input (COMPUTER input on VT58/ VT48)
Commercially available SCART cable
ADP-SC1
Before connections: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are re­quired for this connection. From the menu, select [Setup] → [Options] → [Signal Select] [Computer 1 ([Computer] on VT58/VT48)] [Scart]. SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro­connector.
TIP: If a DVD or VCR source will not be displayed correctly, stop playback and restart it.
NOTE: Audio signal is not available for this connection.
TIP: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more information.
14
Connecting an External Monitor
2. Installation and Connections
MONITOR OUT
T
I
X
E
.
J
D
A
O
T U A
E
C
R
U
O
S
Y
B D N
A
T S /
N
O
VIDEO IN
AUDIO IN
PC CONTROL
L
R
AUDIO
S-VIDEO
IN
MONITOR OUT(COMP 1)
IN
AUDIO OUT
COMPUTER 1 IN
AUDIO IN
COMPUTER 2 IN
AUDIO OUT
VGA signal cable (supplied)
VGA signal cable (not supplied)
You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog image you're projecting.
NOTE:
Daisy chain connection is not possible.
The signal from the COMPUTER 2 IN connector cannot be output from the MONITOR OUT connector on VT580 and VT480.
The VT58 and VT48 do not have the AUDIO OUT connector.
15

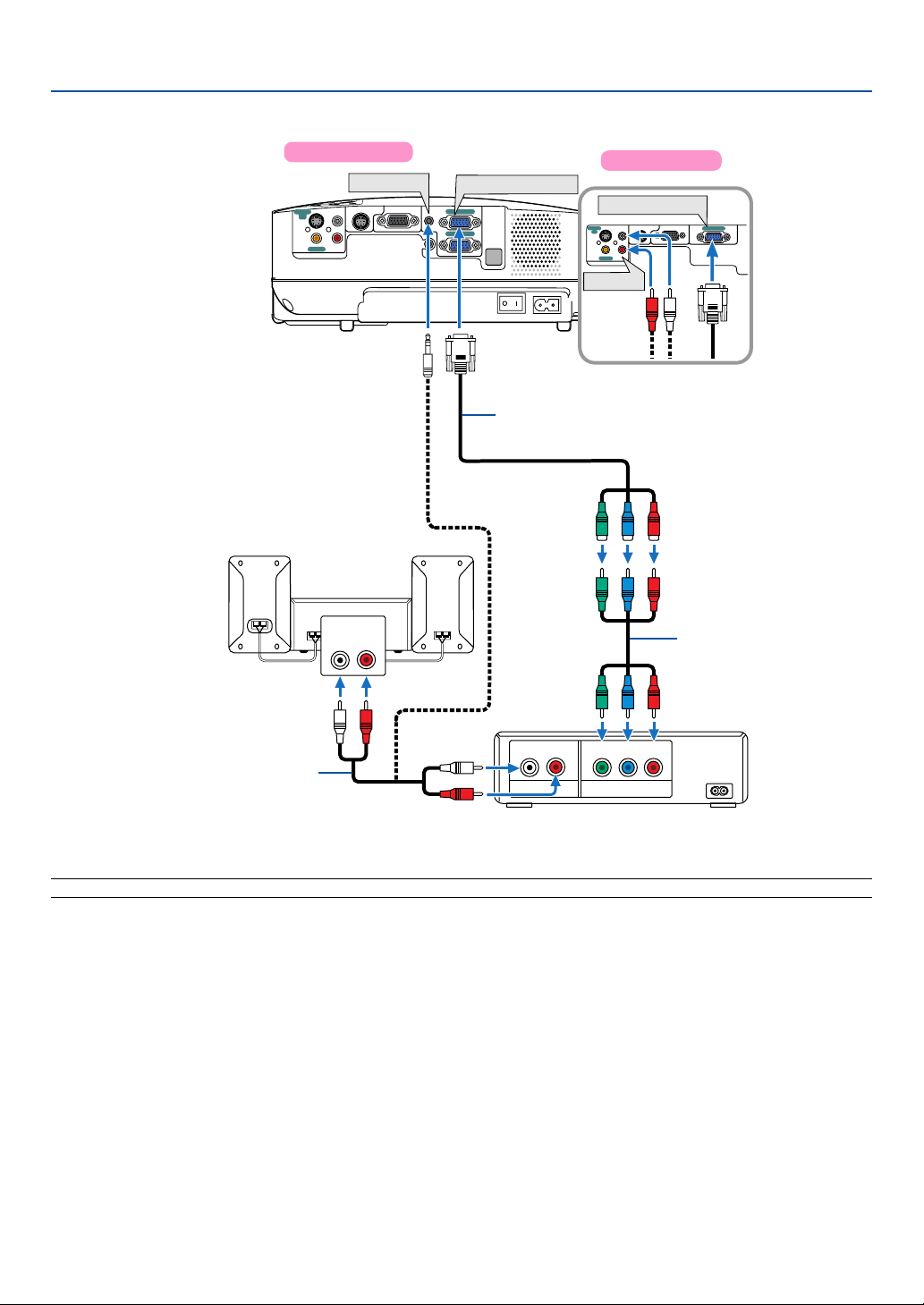

Connecting Your DVD Player with Component Output
2. Installation and Connections
VT580/VT480
Y B
D
N
A
T S /
N
O
S-VIDEO
IN
VIDEO IN
Audio Equipment
AUDIO IN
T
I
X
E
. J
D
A
O
T
U
A E C
R
U
O
S
PC CONTROL
L
R
AUDIO IN
AUDIO IN
LR
MONITOR OUT(COMP 1)
COMPUTER 1 IN
COMPUTER 1 IN
AUDIO IN
COMPUTER 2 IN
AUDIO OUT
VT58/VT48
COMPUTER IN
MONITOR OUT
PC CONTROL
S-VIDEO
L
IN
R
VIDEO IN
AUDIO IN
AUDIO IN
Optional 15-pin - to - RCA (female)
3 cable (ADP-CV1)
COMPUTER IN
Component video RCA⳯3 cable (not supplied)
DVD player
L R
Y Cb Cr
Audio cable (not supplied)
AUDIO OUT
Component
A component signal will be automatically displayed. If not, from the menu, select [Setup] [Options] [Signal Select] [Computer 1 ([Computer] on VT58/VT48)], and then place a check mark in the Component radio button.
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.
16

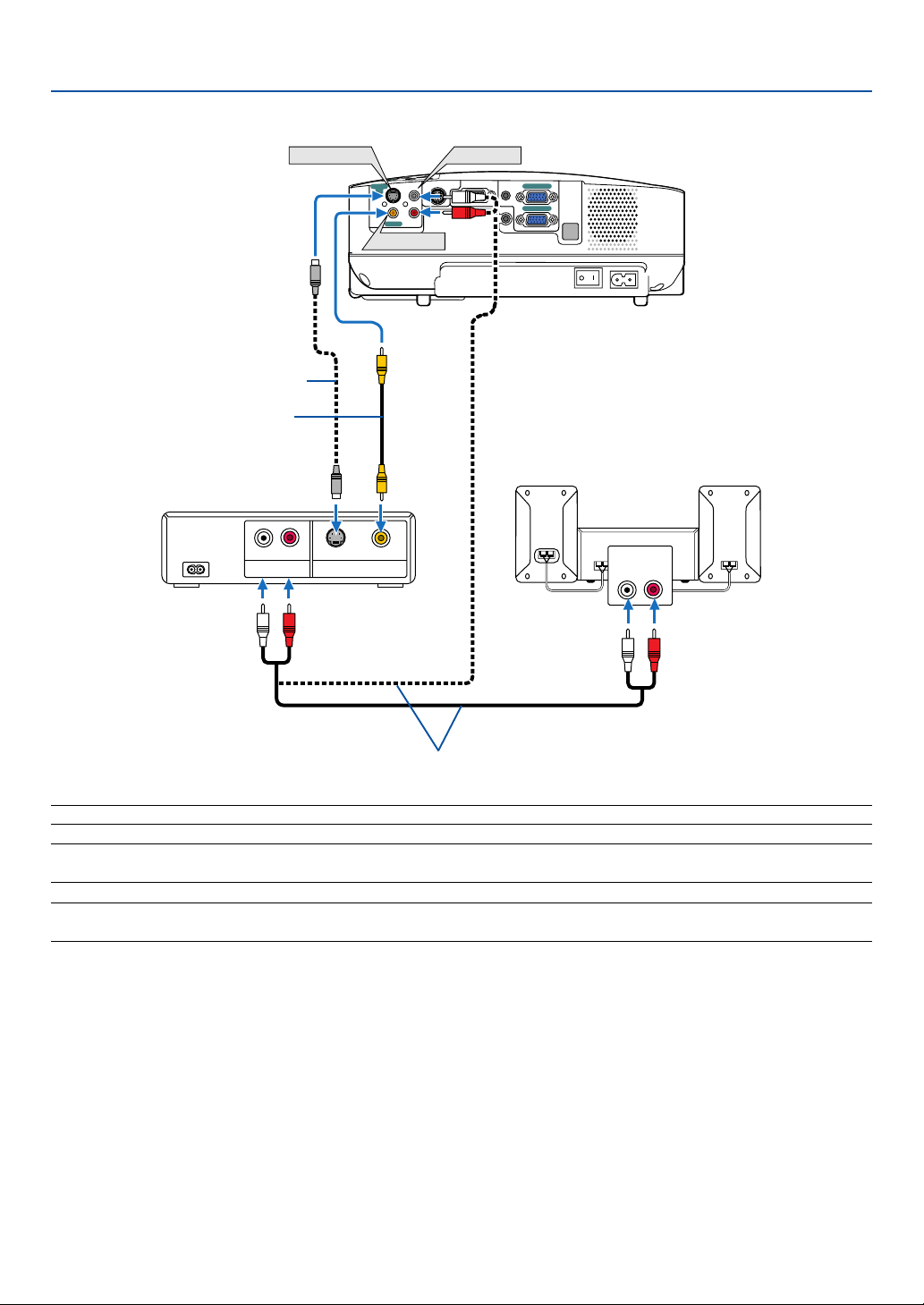

Connecting Your VCR or Laser Disc Player
2. Installation and Connections
S-Video cable (not supplied) Video cable (not supplied)
VCR/ Laser disc player
L R
AUDIO OUT
S-VIDEO IN
S-VIDEO VIDEO
VIDEO OUT
E
C
R
U O S
Y
B
D
N A T
S
/ N O
S-VIDEO
L
IN
R
VIDEO IN
AUDIO IN
VIDEO IN
T
I
X
E
. J D
A
O
T
U
A
PC CONTROL
AUDIO IN
MONITOR OUT(COMP 1)
AUDIO IN
AUDIO OUT
COMPUTER 1 IN
COMPUTER 2 IN
Audio equipment
AUDIO IN
LR
Audio cable (not supplied)
NOTE: The AUDIO IN L/MONO and R jacks (RCA) are shared between the Video and S-Video inputs.
NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter.
17
2. Installation and Connections
Connecting the Supplied Power Cable
Connect the supplied power cable to the projector. First connect the supplied power cable's two-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet.
F O
C
U
S
Z O
O
M
M
E
N
U
SELECT
LAMP
E
N
STATUS
T E
POWER
R
IT
X
E
O
N
/S
TA
N
D
B
Y
S
O
U
R
CE
A
U
T
O
A
D
J
.
To wall outlet

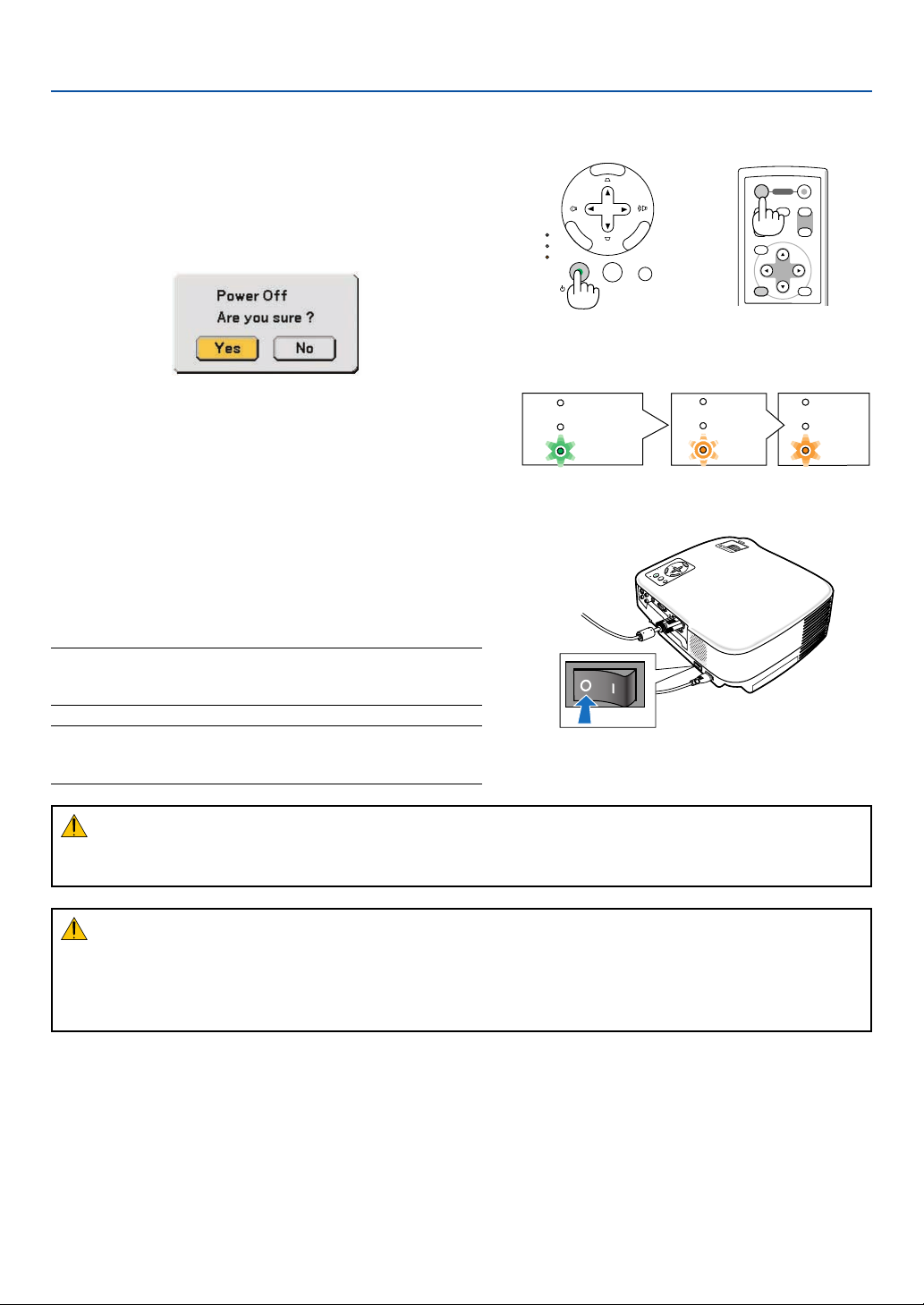

Make sure that the prongs are fully inserted into both the AC IN and the wall outlet.
CAUTION:
Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off.
CAUTION:
Do not turn off the AC power by pressing the main power switch or by unplugging the power cable when the projector is powered on. Doing so can cause damage to the projector.
TIP: The projector can be turned off (by either the main power switch or by unplugging the power cable) during its cool down period after it is turned off using the remote control or via the power button on the control panel.
18
3.
MENU
UP
MAGNIFY PAGE
OFF
POWER
ON
PIC-MUTE
DOWN
Projecting an Image (Basic Operation)
This section describes how to turn on the projector and to project a picture onto the screen.
Turning on the Projector
NOTE:
The projector has two power switches: a main power switch and a POWER (ON/STAND BY) button (POWER ON and OFF on the remote control).
When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off ( position. Failure to do so may cause damage to the projector.
)
1. To turn on the main power to the projector, press the
Main Power switch to the on position ( I ).
The POWER indicator will light orange. See the Power Indicator section.( page 54)
2. Remove the lens cap
3. Press the POWER (ON/STAND BY) button on the
projector cabinet or the POWER ON button on the remote control for 1 second.
The POWER indicator will turn to green and the projector will become ready to use.
After you turn on your projector, ensure that the computer or video source is turned on and that your lens cap is removed.
NOTE: When no signal is available, a blue or black screen is displayed. (only black screen on VT48) When the projector displays a blue or black screen, the projector will automatically switch to the Eco mode. The projector will return to the Normal mode once a signal is connected.
NOTE: If you turn on the projector immediately after the lamp is turned off or when the temperature is high, the fans run without displaying an image for some time and then the projector will display the image.
LAMP STATUS
FOCUS
POWER
ME
NU
S
L
E
A
E
L
M
E
P
N
C
S
T
T
T
A T
E
U
P
R
O
S
W
E R
T I
X
E
O N / S
T A N
D B Y
S O U R
C E
A U T O
A D J
.
MENU
SELECT
E
N
LAMP STATUS POWER
TER
ON/STAND BY
IT
X
E
AUTO ADJ.SOURCE
Standby Blinking Power On
LAMP
STATUS
POWER
LAMP STATUS
LAMP STATUS
POWER POWER
CAUTION:
The projector cannot be turned off for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green. Doing so could cause premature lamp failure.
19
Steady orange light Blinking green
light
( page 54)
Steady green
light
3. Projecting an Image (Basic Operation)
Note on Startup screen (Menu Language Select screen)
When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 8 menu languages.
To select a menu language, follow these steps:
1. Use the SELECT  or  button to select one of the 8
languages from the menu.
2. Press the ENTER button to execute the selection.
After this has been done, you can proceed to the menu op­eration. If you want, you can select the menu language later. ( [Language] on page 38 and 43)
LAMP STATUS POWER
2
ENTER
ON/STAND BY
1
MENU
SELECT
OFF
ON
POWER
MAGNIFY PAGE
PIC-MUTE
UP
EXIT
AUTO ADJ.SOURCE
MENU
2
ENTER
DOWN
1
EXIT
NOTE: Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp lighting is stabilized.
When the Lamp mode is set to Eco, the LAMP indicator will light green. If one of the following things happens, the projector will not turn on.
If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal components to cool down.
When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.
If the lamp fails to light, and if the ST ATUS indicator flashes on and off in a cycle of six times, wait a full minute and
then turn on the power.
20
Selecting a Source
Selecting the computer or video source
NOTE: Turn on the computer or VCR connected to the projector.
3. Projecting an Image (Basic Operation)
Selecting from Source List
Press and quickly release the SOURCE button on the projector cabinet to display the Source list. Each time the SOURCE button is pressed, the input source will change as follows: Computer 1, Computer 2 (VT580/ VT480 only), ”Video” (VCR or laser disc player), “S-Video”, To display the selected source, allow 1 second to elapse.
Detecting the Signal Automatically
Press and hold the SOURCE button for a minimum of 2 seconds, the projector will search for the next available input source. Each time you press and hold the SOURCE button for a minimum of 2 seconds, the input source will change as follows:
VT580/VT480
Computer1 Computer2 Video S-Video Computer1 ...
VT58/VT48
Computer Video S-Video Computer ...
TIP: If no input signal is present, the input will be skipped. When the input source you wish to project is displayed, release the SOURCE button.
LAMP STATUS POWER
LAMP STATUS POWER
EN
TER
ON/STAND BY
E
NTER
ON/STAND BY
MENU
SELECT
MENU
SELECT
IT
X
E
AUTO ADJ.SOURCE
IT
X
E
AUTO ADJ.SOURCE
Using the Remote Control
Press any one of the COMPUTER 1/2, VIDEO, S-VIDEO buttons.
NOTE: the COMPUTER 2 button is not available on the VT58 and VT48.
21
L-CLICK
VIDEO
S-VIDEO
VOLUME
MOUSE
COMPUTER
1
2
ASPECT HELP
R-CLICK
AUTO ADJ.
LAMP MODE
FREEZEPICTURE
3. Projecting an Image (Basic Operation)
1
P
U
S
H
Adjusting the Picture Size and Position
Place your projector on a flat level surface and ensure that the projector is square to the screen.
Lift the front edge of the projector to center the image vertically. * If the projected image does not appear square to the screen then use the
Keystone feature for proper adjustment. ( page 24)
Move the projector left to center the image horizontally on the screen.
Adjust the Tilt Foot
1. Lift the front edge of the projector.
CAUTION:
Do not try to touch the ventilation outlet during Tilt Foot adjustment as it can become heated while the projector is turned on and during its cool down period after it is turned off.
2. Push and hold the Adjustable Tilt Foot Button on the front of the
projector to extend the adjustable tilt foot.
3. Lower the front of the projector to the desired height.
4. Release the Adjustable Tilt Foot Button to lock the Adjustable tilt
foot.
There is approximately 10 degrees (up) of adjustment for the front of the projector.
Adjusting the height of a projected image or changing projection angle will run the Auto Keystone correction function to quickly correct the vertical distortion. The "Keystone" screen will be displayed.
For operating the "Keystone" screen, see " Correcting Keystone Distortion" on page 24.
The rear foot height can be adjusted up to 0.4 inch/10 mm. Rotate the rear foot to the desired height in order to square the image on
the projection surface, but the vertical distance from the bottom to the desk or floor should be 0.4 inch /10mm to make the projector horizontal on the flat surface.
NOTE: If you rotate the rear foot too much, it will come off from the bottom.
CAUTION:
Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector.
F O C U S
Z O O M
M E N U
S
L
E
A
E
L
M
E
P
N
C S T
T
T
A T
E
U
P
R
S
O W E
R
T I X
E
O N / S T A
N D B Y
S O U R C
E A U
T O A D J .
F O C U
S
Z O O
M
M
E
N
U
S
L
E
A
E
L
M
E
P
N
C S T
T
T
A
T
E
U
P
R
S
O
W E R
T I X
E
O N / S T A N
D B Y S O
U R C E
A U T O A
D J .
Adjustable Tilt Foot Button
2
Adjustable Tilt Foot
4
3
S
L
E
A
L
E
M
E
P
C
N
S
T
T
T
A
E
T
U
P
R
S
O
W
E
R
T I X
E
O
N /
S T A
N D
B Y
S O
U R
C E
A U
T O
A D
J .
S
-
V
I
D
E
O
I
N
L
P
C
C
O
N
T
R
O
L
M
O
N
I
T
O
R
O
U
T
(
C
V
O
I
D
M
P
E
O
1
)
I
N
A
U
D
I
O
I
N
C
O
M
P
U
T
E
R
1
I
N
A
U
D
IO
O
U
T
C
O
M
P
U
T
E
R
2
I
Up
N
Down
Up
Down
22
Zoom
VT580/VT480/VT58
Use the ZOOM lever to adjust the image size on the screen.
3. Projecting an Image (Basic Operation)
VT580/VT480/VT58
.
J D A
O T
U A
E
C R
T I
X
E
OU S
Y B
D N
A T S /
N
CT
O
LE
E
S
TER
U
N
E
EN
M
POWER
STATUS
LAMP
VT48
Use the Digital ZOOM button on the projector cabinet to electronically enlarge or reduce the image size.
NOTE: Digital Zoom can result in a blurry image due to the electronic zoom.
Focus
Use the FOCUS ring to obtain the best focus.
VT48
Z
S
U
O
O
M
M E N
U
S
L
E
A
E
L
M
E
P
N
C
S
T
T
T
A T
E
U
P
R
O
S
W
E R
T
I X E
O N /S T
A N D BY
SO U R C
E AU T
O A D J .
ZOOM
C
O
F
F O C U
S
Z
O O M
. J D
A
O T U
A
E
C R
T I
U
X
E
O S
Y
B D N
A ST /
N O
SELECT
ER
U
N E
ENT
M
R
E
W
O
S
P
U
T
A
T
S
P
M
A
L
23
S
U C
O F
3. Projecting an Image (Basic Operation)
Correcting Keystone Distortion
Correcting Keystone Distortion
If the screen is tilted vertically, keystone distortion becomes large. Proceed with the following steps to correct keystone distortion
NOTE: The Keystone correction can cause an image to be slightly blurred because the correction is made electronically.
NOTE: The Keystone correction range can be made narrower, depending on a signal or its aspect ratio selection.
Adjusting with buttons on the cabinet
1. Press the SELECT  or  button with no menus displayed
After the Keystone screen is displayed, press the SELECT or button to correct the keystone distortion.
2. Press the EXIT button.
The Keystone screen will be closed. The changes will take effect.
NOTE: When the menu is displayed, the above operation is not available. When the menu is displayed, press the MENU button to display the menu and start the Keystone correction from the menu. From the menu, select [Setup] → [General] → [Keystone]. The changes can be saved with [Keystone Save]. (→page 43)
Adjusting with the Remote Control
1. Press the MENU button.
The menu will be displayed.
2. Press the SELECT  button to select [Setup] and press the ENTER button.
3. Press the SELECT
4. Press the SELECT
Adjust so that the image is rectangular.
5. Press the MENU button.
The menu will be closed.
NOTE: The Keystone correction can cause an image to be slightly blurred because the correction is made electronically.
TIP: The changes can be saved with [Keystone Save]. (→page 43)
button to select [Keystone].
or  button.
24
3. Projecting an Image (Basic Operation)
Adjusting with the Auto Keystone Function (VT580 only)
The Auto Keystone correction feature will correct the vertical distortion of a projected image on the screen. No special operation required. Just put the projector on a flat surface.
TIP: Even when the menu setting for [Auto Keystone] is turned on, [Keystone] can be adjusted manually.
To turn on [Auto Keystone], proceed the following steps.
1. Press the MENU button
The menu will be displayed.
2. Press the SELECT  button to select [Setup] and press the ENTER button.
The [General] tab will be highlighted.
3. Press the SELECT  button.
The [Auto Keystone] will be highlighted.
4. Press the SELECT  or  button to select [On].
5. Press the MENU button.
The menu will be closed.
NOTE:
Vertical distortions between offset angles of +/- 30 degrees can be corrected.
The Auto Keystone correction will take effect in 2 seconds after changing the projection angle during projection.
The left and right (horizontal) keystone correction is not available.
Place the projector so that the lens surface is parallel to the screen. The rear feet of the projector can be adjusted to level the projector.
NOTE:
Auto and Manual Keystone correction angle could be less than 30 degrees depending on the signal and/or aspect ratios.
Using keystone correction can cause the image to be slightly blurred because the correction is made electronically.
NOTE:
When the menu is displayed, the Keystone Correction operation is not available by using the buttons on the projector cabinet. When the menu is displayed, press the EXIT button to close the menu and then perform the Keystone correction.
From the menu, select [Setup] (→page 43)
[General] → [Keystone]. The changes can be saved with [Keystone Save].
25
3. Projecting an Image (Basic Operation)
AUTO ADJ.
S-VIDEO
VIDEO
COMPUTER
LAMP MODE
1
2
Optimizing RGB Picture Automatically
Adjusting the Image Using Auto Adjust
Optimizing an RGB image automatically. Press the AUTO ADJ. button to optimize an RGB image automatically. This adjustment may be necessary when you connect your computer for the first time.
[Poor picture]
LAMP STATUS POWER
ENTER
ON/STAND BY
MENU
SELECT
IT
X
E
AUTO ADJ.SOURCE
L-CLICK
VOLUME
R-CLICK
MOUSE
ASPECT HELP
FREEZEPICTURE
[Normal picture]
NOTE: Some signals may take time to display or may not be displayed correctly.
The Auto Adjust function does not work for component and video signal.
If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Horizontal/Vertical Position Clock and Phase
manually. (→page 42)
Turning Up or Down Volume
L-CLICK
R-CLICK
Sound level from the speaker can be adjusted.
AUTO ADJ.
1
LAMP MODE
2
FREEZEPICTURE
Increase volume
Decrease volume
VIDEO
S-VIDEO
VOLUME
MOUSE
COMPUTER
ASPECT HELP
TIP: When no menus appear, the SELECT  and  buttons on the projector cabinet work as a volume control.
26
Turning off the Projector
To turn off the projector:
1. First, press the POWER (ON/STAND BY) button on the projector cabinet or the POWER OFF button on the remote control. The [Power Off / Are you sure?] message will appear.
3. Projecting an Image (Basic Operation)
LAMP STATUS POWER
ENTER
MENU
SELECT
IT
X
E
OFF
POWER
MAGNIFY PAGE
PIC-MUTE
MENU
ON
UP
DOWN
2. Secondly, press the ENTER button or press the POWER (ON/STAND BY) or the POWER OFF button again.
The power indicator will glow orange. After the projector turns off, the cooling fans keep operating for 30 seconds (Cool-down time).
Immediately after turning on the projector and displaying an image, you cannot turn off the projector for 60 seconds.
3. Finally, turn off the Main Power switch. The power indicator will go out.
TIP: The main power of the projector can be turned off by pressing the main power switch or by unplugging the power cable even during the cool down period after the projector is turned off.
NOTE: Do not turn off the main power within 10 seconds of making adjustment or setting changes and closing the menu. Doing so can cause loss of adjustments and settings.
ON/STAND BY
AUTO ADJ.SOURCE
ENTER
Power On Fan running Standby
LAMP STATUS
POWER
LAMP STATUS POWER
Steady green light Blinking
orange light
F O C
U S
Z O
O M
M E
N U
S
L
E
A
E
L
M
E
P
N
C
S
T
T
T
A T
E
U
P
R
O
S
W
E R
T I X
E
O
N / S T A N
D B Y S
O U R
C E
A U
T O
A D J .
EXIT
LAMP
STATUS
POWER
Steady orange
light
CAUTION:
Parts of the projector will become heated during operation. Use caution when picking up the projector immediately after it has been operating.
CAUTION:
The projector cannot be turned off for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green. Doing so could cause premature lamp failure.
Do not turn off the AC power by pressing the main power switch or by unplugging the power cable when the projector is powered on. Doing so can cause damage to the projector.
27
3. Projecting an Image (Basic Operation)
After Use
Preparation: Make sure that the projector is turned off.
1. Unplug the power cable.
2. Disconnect any other cables.
3. Retract adjustable tilt feet if extended.
4. Cover the lens with the lens cap.
5. Put the projector and accessories in the supplied soft case.
CAUTION:
Use caution when putting the projector in the soft case immediately after the projector has been operating. The projector cabinet is hot.
28
4. Convenient Features
1
Turning off the Image and Sound
Press the PIC-MUTE button to turn off the image and sound for a short period of time. Press again to restore the image and sound.
NOTE: Sound from the AUDIO OUT jack (Stereo mini) on the VT580/VT480 can be turned off.
Freezing a Picture
Press the FREEZE button to freeze a picture. Press again to resume motion.
Enlarging a Picture
You can enlarge the picture up to four times.
NOTE: The maximum magnification may be less than four times depending on a signal.
To do so:
1. Press the MAGNIFY (+) button to magnify the picture.
,,
To move the magnified image, use the SELECT
button.
or
OFF
POWER
MAGNIFY PAGE
PIC-MUTE
MENU
ENTER
S-VIDEO
LAMP MODE
2
VOLUME ASPECT HELP
FREEZEPICTURE
ON
UP
DOWN
EXIT
2. Press the MAGNIFY (-) button to return the image to the original size.
OFF
POWER
MAGNIFY PAGE
PIC-MUTE
MENU
ENTER
OFF
POWER
MAGNIFY PAGE
PIC-MUTE
MENU
ENTER
OFF
POWER
MAGNIFY PAGE
PIC-MUTE
MENU
ENTER
ON
UP
DOWN
EXIT
ON
UP
DOWN
EXIT
ON
UP
DOWN
EXIT
29
Changing Lamp Mode
This feature enables you to select two brightness modes of the lamp: Normal and Eco modes. The lamp life can be extended by using the Eco mode.
4. Convenient Features
Lamp Mode Normal Mode
Eco Mode
To change to the [Eco] mode, do the following:
1. Press the LAMP MODE button on the remote control to display [Lamp Mode] screen.
2. Use the SELECT
3. Press the ENTER button.
To change from [Eco] to [Normal], Go back to Step 2 and select [Normal]. Repeat Step 3.
NOTE:
The Lamp Mode can be changed by using the menu. Select [Setup]
The lamp life remaining and lamp hours used can be checked in [Usage Time]. Select [Information]
If the projector is overheated in Normal mode, there may be a case where the Lamp mode automatically changes to Eco mode
to protect the projector. When the projector is in Eco mode, the picture brightness decreases. When the projector comes back to normal temperature, the Lamp mode returns to Normal mode. Thermometer symbol [ high.
or  button to select [Eco] mode.
[General] → [Lamp Mode].
] indicates the lamp mode is automatically set to Eco mode because the internal temperature is too
Description This is the default setting (100%
Brightness).
Select this mode to increase the lamp life (80% Brightness).
Status of LAMP indicator Off
Steady Green light
[Usage Time].
Preventing the Unauthorized Use of the Projector
To enable the Security function:
1. Press the MENU button.
The menu will be displayed.
2. Use the SELECT  or  button to select [Setup] and press the ENTER button.
3. Use the SELECT  or  button to select [Installation].
4. Use the SELECT
or  button to select [Security] and press the SELECT  button.
30
Example of menu for VT580, VT480 and VT58
Loading...
