Mitsubishi Electronics PAC-YG63MCA User Manual

GB
Mitsubishi Electric Air Conditioner Network System
AI controller
PAC-YG63MCA
Installation/Instruction Manual
Table of Contents
1. Safety Precautions ..............................................1
2. Usage ..................................................................2
3. Parts List.............................................................. 2
4. Specifications ......................................................2
4-1. Device Specifications .........................2
4-2. External Dimensions........................... 3
5. Example of System Configuration .......................3
6. Installation ...........................................................4
6-1. Parts Purchased Separately...............4
6-2. Installation Instructions ....................... 5
7. Wiring Instructions ............................................... 6
7-1. Terminal Diagram ............................... 6
7-2. Connecting the Power and M-NET
7-3. Connecting the Sensors .....................8
(1) Channel 1 Pt100 Input........................8
(2) Channel 1 (Channel 2)
7-4. Connecting Alarm Setpoint Outputs ...9
8. Initial Settings ....................................................10
9. Dip Switch Functions ......................................... 12
10. LED Display Designations ................................. 13
10-1. Alarm Setpoint Output and Error
10-2. Sensor and Communication Error
11. System Operation Test......................................14
Transmission Lines.............................7
Analog Input ......................................8
Displays ............................................ 13
Displays ............................................ 13
Before using the device, carefully read this installation/instruction manual to ensure proper operation. Keep this manual for future reference and give it to the technician when the device is reinstalled or repaired.
1 Safety Precautions
• Thoroughly read the following safety precautions before use.
• Hazards that can occur from incorrect handling are classified by the symbols below:
Warning Incorrect handling can result in death, serious injury, etc.
Caution Incorrect handling can result in bodily injury and/or structure damage.
• After reading this manual, keep this manual for future reference. When the device is reinstalled or repaired, give this manual to those who provide these services. When the user changes, make sure that the new user receives this manual.
WARNING
Only a dealer or qualified technician should install, relocate, reinstall, or repair the device.
Improper installation or repair may result in electrical shock or fire.
Properly install the device on a stable, load-bearing surface.
Device installed on an unstable surface may fall and cause injury.
Only use the specified cables; securely connect each so that the terminals do not bear any cable weight.
Improperly connected or short-circuited cables may produce heat and cause a fire.
Do not install the device in a location where a flammable gas leak may occur.
Gas may leak, collect around the device, ignite, and/or explode.
Do not install the device in environments where large amounts of oil (including machine), sulfidizing gas, or acidic, alkaline, chemical sprays are present.
These types of substances may damage internal parts, cause device performance to be reduced, and cause electrical shock.
When installing the device in a hospital, communication facilities, etc., provide sufficient protection against frequency noise.
Power generators and inverters, high-frequency medical, or radio communication equipment may interfere with the normal operation of this device. Subsequently, the device may also affect medical treatment, image broadcasting, etc., by creating frequency noise.
Include some slack in the power supply wires.
Tension on the wires may cause them to excessively heat up and/or break, resulting in a fire.
Do not install the device in a location where there is direct sunlight or where the temperature may become greater than 40°C (104°F) or less than 0°C (32°F).
If the device is installed in such place, it may result in deformation or malfunctions.
Do not make any modifications or alternations to the device.
Modifications or improper repair may result in electric shock or fire. Consult your dealer for repair.
All electrical work should be performed by an authorized electrician according to local regulations and instructions outlined in this manual.
Capacity shortage to the power supply circuit or improper installation may result in electrical shock or fire.
Properly install the device according to the instructions in this Installation/Instruction Manual.
Improper installation may result in electric shock or fire.
CAUTION
Do not install the device in a bathroom, kitchen, or any room where steam could form. Condensation may develop and cause
electrical shock and/or the device to malfunction.
Use standard wires with the proper current capacity to avoid the possibility of current leak, excessive heat, and/or fire.
Do not touch the main circuit board; also, make sure that dust does not accumulate on the circuit board.
Do not immerse the device in water.
Doing so may lead to electric shock or malfunctions.
The maximum applied voltage for the device is 24 VDC - do not use with an AC power source. (The maximum applied voltage for the M-NET terminal is 30 VDC.)
Using the incorrect voltage may result in device failure, ignition, and/ or fire.
1
2 Usage
The AI controller measures temperature and humidity; it also has an alarm capability if the measurement data exceeds defined setpoints. Historical measurement data can be displayed via only the G(B)-50A Web browser and TG-2000A. Temperature and humidity cannot be displayed on the G-50A LCD.
Furthermore, an alarm can be output if measurement data exceeds a preset upper or lower limit. The AI controller also features a function that interlocks M-NET devices for indoor units, etc. set in advance and performs
settings such as temperature control and operation/stoppage using measurement data values.
Caution: Usage Restrictions
• Mitsubishi Electric does not take financial responsibility for damages caused by issues beyond our control or special circumstances (predicable or unpredictable); and secondary or accidental damages, and damages to other objects. We also do not take financial responsibility for opportunities lost as a result of device failure, or electrical power failure at the end­user site. Mitsubishi Electric does not take financial responsibility caused by end-users' requests including, but not limited to, device testing, startup, readjustment and replacement.
• Do not use this device in disaster prevention security or "critical to life" applications.
3 Parts List
• The following parts should be included in your shipment:
Number Part Name Quantity
1 AI controller 1 2 Installation/instruction manual (this document) 1
* In addition to the parts listed above, see your local Mitsubishi Electric dealer to purchase the other parts necessary to operate this device (Refer to
section 6-1). Furthermore, depending on the application, other Mitsubishi Electric parts may be required. For details, refer to "6. Installation".
4 Specifications
4-1. Device Specifications
Item Description
Power Supply
Interface
Interlock Function
Environment Conditions
Dimensions 200 (W) × 120 (H) × 45 (D) mm / 7 Weight 0.6 kg / 1 Time Backup
During Power Failure
Installation Environment
*1: Supply electric power from a power supply unit for the transmission line or an outdoor unit. Furthermore, the power consumption factor of the M-
NET circuitry of this unit is "1/4" (equivalent to one ME Remote Controller). *2: Configure the dip switch settings for the analog input method to use while referring to "9. Dip Switch Functions". *3: The measurement error for the system includes the measurement error for this unit, sensor, and wiring.
a%FS (full scale) = a% × ([measurement range's upper limit value] - [lower limit value]) *4: Settings for the interlock function are performed from the Maintenance Tool. For details, refer to the operation manual for the Maintenance Tool. *5: M3 and M3.5 are sizes of the screw on the terminal block (ISO metric screw thread). The number indicates the screw diameter (mm).
24 VDC±10%: 5 W
M-NET communication 17 to 30 VDC (*1)
Ch Sensor
Pt100
(3-wire system)
Ch1
Input
Ch2
(*2) 0 to 10 VDC
alarm interlock output
(non-voltage contact)
Output
Interlock M-NET devices according to measurement data values. (*4)
Temperature
Humidity 30 to 90%RH (no condensation)
In the event of power failure or shut-off, the internal capacitor will continue to track time for approximately one week. (The internal capacitor takes about 24 hours to fully charge; a replacement battery is not necessary.)
Inside a control panel (indoors) * Use this product in a hotel, a business office environment or similar environment.
4 to 20 mADC
1 to 5 VDC
Analog
0 to 10 VDC
4 to 20 mADC
1 to 5 VDC
Analog
Upper/lower limit
3
/8 lb
Measurement
target
Temperature
Temperature/
humidity
Temperature/
humidity
Operating temperature range 0 to 40°C [32°F to 104°F] Storage temperature range -20 to 60°C [-4°F to 140°F]
7
/8 (W) × 43/4 (H) × 125/32 (D) in
Measurement
range
-30 to 60°C
[-22 to 140°F]
(Set by system
controller)
(Set by system
controller)
Applied load
MAX: 24 VDC, 5 W MIN: 5 VDC, 2 mW * AC loads cannot be connected.
Measurement error
±0.3%FS ±0.1°C (0.18°F)
[at 25°C (77°F)]
±0.5%FS ±0.1°C (0.18°F)
±0.5%FS ±0.1%RH
[at 25°C (77°F)]
±0.5%FS ±0.1°C (0.18°F)
±0.5%FS ±0.1%RH
[at 25°C (77°F)]
(*3)
(*3)
(*3)
Screw terminal block (M3) (*5)
Screw terminal block (M3) (*5)
External
connection method
Screwless terminal
block (3 poles)
Screwless terminal
block (2 poles)
Screwless terminal
block (2 poles)
Screw terminal
block (M3.5) (*5)
2
4-2. External Dimensions
200
150
Al controller
PAC-YG63MCA
This device complies with Part15 of the FCC Rules.Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
[ INPUT ]
Ch1 Ch2
Pt100 4 to 20 mA / 1 to 5 V / 0 to 10 V 4 to 20 mA / 1 to 5 V / 0 to 10 V
1
)
(
26
1
/
32
83.5
(
3
)
32
/
1
26
1
(
13
)
(
46
1
/
16
25
(
)
45
1
/
7
(
)
7
/
8
29
)
(
5
/
5
[
Output LEDs
Alarm Alarm
/
16
32
]
Ch2Ch1
Al controller
MODEL
SERVICE REF. PAC-
INPUT
WEIGHT
SERIAL No.
MADE IN JAPAN
)
[
OUTPUT ] Non-voltage Contact Output
Alarm Alarm
PAC-YG63MCA
YG60MCA-J
VOLTAGE
0.6 kg / 1 /
[ 24 VDC Power Supply]
27
N623
DC24V;0.2A
(
1
4.5
3
(
)
/
16
Ch2Ch1
)
)
4
32
/
/
3
11
4
(
4
(
3
lb
8
3
)
/
32
120
110
32
3
)
(
9
/
8
)
32
/
15
19
(
5 Example of System Configuration
Centralized control line
Power supply unit
PAC-SC50KUA
M-NET
G-50A or GB-50A
LAN
G(B)-50A Web or TG-2000A
Temperature sensor,
humidity sensor,
AI controller
(1)
etc.
TB7
(3) (4)
(2)
Upper/lower limit
alarm interlock
devices, etc.
)
32
/
1
26
1
(
Unit: mm (in)
(1) Channel 1 temperature or humidity sensor input (2) Channel 2 temperature or humidity sensor input (3) Channel 1 upper/lower limit alarm output (4) Channel 2 upper/lower limit alarm output <Restrictions> Maximum of 50 units per G(B)-50A
However, the number of units that can be connected to a G
(B)-50A is up to 50 including this device, an indoor unit,
LOSSNAY unit, etc.
M-NET
TB3
Indoor control line
AI controller
24 VDC Power
Supply
CITY MULTI
(3) (4)
(2)
etc.
(1)
Upper/lower limit
alarm interlock
devices, etc.
24 VDC Power
Supply
Temperature sensor,
humidity sensor,
* This figure omits the power supply line and only shows the transmission line.
Note:
• For the shield ground of the M-NET centralized control line, use single-point grounding at the power unit for the transmission line. However, when supplying electric power to the M-NET centralized control line from the R410A series outdoor unit without using a power supply unit for the transmission line, use single-point grounding at the TB7 of that outdoor unit. Furthermore, when connecting the M-NET transmission line of this device to the M-NET indoor control line, use grounding at the TB3 for each outdoor unit system.
• If the M-NET transmission line of this device is connected to an M-NET indoor control line and the outdoor unit is down because, for example, the power supply is interrupted for servicing or there is a failure, the AI controller cannot be set and monitored from the system controller.
• The sensor connected to the AI controller can only be monitored from G(B)-50A Web browser and TG-2000A. The sensor cannot be monitored from the G-50A LCD.
3
6 Installation
6-1. Parts Purchased Separately
Prepare the following parts to install this device.
Required Part Specification
Unit fixing screws M4 screw × 4 (* M4: ISO metric screw thread)
Commercially available power source: 24 VDC±10% 0.2 A (Minimum loading), SELV circuit, power line with grounding terminal
Ripple noise: Lower than 200 mVp-p Power supply for this device
Power supply for sensors
Power line
M-NET transmission line
Signal lines (Sensor input lines)
Compatible specification
Authorized or CE marked products.
Subject to regulations: - IEC60950 (or EN60950)
- CISPR22/24 (or EN55022/24)
- IEC61000-3-2/3-3 (or EN61000-3-2/3-3)
A separate power supply for sensors may be required. In the case of 24 VDC voltage, the capacity of the power supply for this unit can be increased so that the power supply can be shared.
Use a sheathed vinyl cord or cable.
At least 0.75 mm² (AWG18)
Type of the cable: Sheathed vinyl cords or cable which comply with the following specifications or equivalent.
• CPEV Φ1.2 mm to Φ1.6 mm • CVVS 1.25 mm² to 2 mm² (AWG 16 to 14)
* CPEV: PE insulated PVC jacketed shielded communication cable
* CVVS: PVC insulated PVC jacketed shielded control cable
PE: Polyethylene PVC: Polyvinyl chloride
Power needs to be supplied to the M-NET circuitry of this device. Use an outdoor unit or a separately purchased power supply unit for the transmission line.
Shows the size of the electric wire (copper wire) that is adapted to the terminal block of this device. Refer to the usage and cautionary items of the sensor when performing settings. However, use a line with shielded line.
Electric wire size ···· (1) Solid wire: Φ0.65 mm (AWG21) - Φ1.2 mm (AWG16)
(2) Stranded wire: 0.75 mm² (AWG18) - 1.25 mm² (AWG16)
Single strand: At least Φ0.18 mm
[Parts to be Purchased Separately]
Name Model Application Remark
Power supply unit PAC-SC50KUA
Power supply to the M-NET transmission line
This is not required when power is to be supplied from an outdoor unit.
[Commercially available parts]
Part Use Remark
External 24 VDC power source
Sensor Measures temperature and humidity. Temperature sensor (PAC-SE40TSA) cannot be
Supplies power to the AI controller. Refer to "Power supply for this device" and "Power
supply for sensors" in "Required Part" above for the capacity of the power supply.
connected.
4
6-2. Installation Instructions
The AI controller PAC-YG63MCA does not have a waterproof structure.
Be sure to install the AI controller inside a control panel that is located indoors. Prepare a control panel capable of storing this device such as the one shown in the figure. (Install the device in a control
panel strong enough to withstand a weight of 0.6 kg [1 This device can be installed horizontally, or as shown below, vertically. The following diagram also provides a rough
estimate of how much space is required around the installation.
100
15
(
)
3
/
16
3
/8 lb].)
100
15
(
3
)
/
16
100
15
(
)
3
/
16
100
15
(
3
)
/
16
Size of the device: 200 (W) × 120 (H) × 45 (D) mm/
7
7
/8 (W) × 43/4 (H) × 125/32 (D) in
Unit: mm (in)
Note: The space shown above does not include space for peripherals. Additionally, the amount of space necessary varies according
to the functions that are used and the wiring method. Secure enough space appropriate for the type of installation.
(1) Fix the top of this device to the control panel at two points by loosely tightening the screws (M4) that were procured locally.
Fix the bottom in place with two screws and then tighten all four of the screws.
Screw pitch
29
(
)
150
5
/
32
11
(
)
110
4
/
32
Unit: mm (in)
(2) To remove the cover, as shown in the figure, remove the two screws for fixing the cover in place and then remove the cover by
unhooking the upper hook section from the lower case. To attach the cover, hook the upper hook section on the lower case and then fix the cover in place with the two screws that were removed.
Hooks
Screws for fixing the cover
Note: Two hooks are located on the upper section of the cover.
5
(3) Refer to "7. Wiring Instructions" and connect the wires for the power line, M-NET transmission line, output signal lines, and sensor
input signal lines.
M-NET Sensor input signal lines
Output
signal lines
Power line
Note:
• Do not install the sensor input signal lines parallel to or near the M-NET transmission line or power line. Also avoid loop wiring.
• Be sure to ground this device, PAC­SC50KUA and 24 VDC Power
AI
controller
Relay
source. Measurement accuracy may be affected if devices are not grounded.
Caution:
• Perform wiring so that the terminal
Junction terminal
block
24 VDC
Power source
NFG L-V+V
PAC-SC50KUA
block is not strained. If strained, use a wire guide or junction terminal to alleviate the stress on the terminal block.
Do not connect the wires directly from the top of the control panel to the
M-NET
terminal block. Moisture may enter this device along the wiring and cause electric shock or fire.
Diagram Image (Installed within a Control Panel)
7 Wiring Instructions
7-1. Terminal Diagram
LED17
M-NET
power on
Status LEDs
LED 11/ 12/ 13/ 14/ 15/ 16
M-NET
A / B / S
CN02
Function
Settings
Analog Input
Setting
SW01
Output
LEDs
(CPU power on)
SW11
SW02
LED03
SW03
/
02
M-NET
Address
* The wiring in the diagram has been simplified.
Non-voltage Contact
Output
SW08
SW09
CN03
10s
SW06 SW07
SW12
1s
24 VDC Power Supply
V+ / V- / FG
CN10 CN05 CN08
Channel 1
Pt100 Input
Channel 1
Analog Input
6
CN01
Channel 2
Analog Input
7-2. Connecting the Power and M-NET Transmission Lines
R
Tightening torque for terminal screws: 1 N·m
Connect the M-NET transmission line of this device to a power supply unit (PAC-SC50KUA) for the M-NET transmission line or an outdoor unit (either a centralized control line or indoor control line can be connected).
* Only the M-NET circuitry of this device receives the power from the
M-NET transmission line. The power consumption factor is "1/4" (equivalent to one ME Remote Controller).
CN02
A
/B/S
V+/V-/FG
(M1) (M2)
AI controller
M-NET
S / B / A

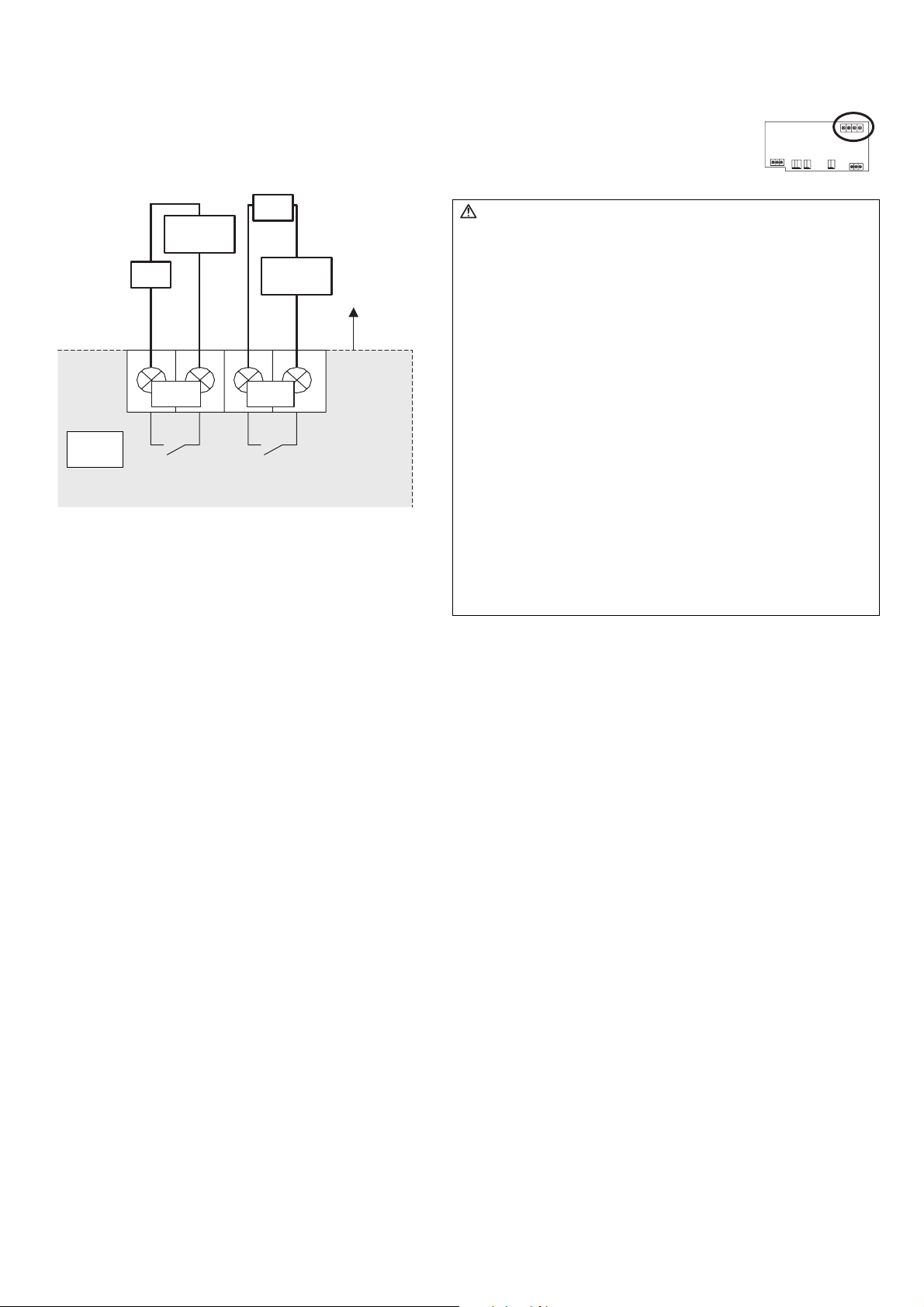

Field Connections (example)
Caution:
• Use a power line and M-NET transmission line that satisfy the specifications described in "6-1. Parts Purchased Separately".
• Attach a circuit comprising the following components to the supply primary side of the 24 VDC power supply.
• It is important to pay attention to the polarity when connecting to the 24 VDC power supply terminal block.
• Fix the power line and M-NET transmission line in place on the outside to ensure that the terminal block is not affected by
AC power Line
S
Fuse
Var isto r
U
Arrester
Var isto r
U
Noise
Filter
24 VDC Power source
FG
Figure 7-1 Example of Connecting the Power Line and M-NET Transmission Line
(1) Varistor, (2) Arrester, (3) Noise filter, (4) Fuse
Connecting the positive and negative in the reverse order will cause a failure.
any external force. Not securely connecting and fixing the wires in place may cause heat generation and fire. Make sure that the copper wiring is not short-circuiting the plates (cover, lower case) or neighboring wires. Cover the shielded line of the M-NET transmission line with materials such as vinyl tape and prevent short-circuiting with the plates.
* Functional
ground
Note:
• If the M-NET transmission line of this device is connected to an M-NET indoor control line and the outdoor unit is down because, for example, the power supply is interrupted for servicing or there is a failure, the AI controller cannot be set and monitored from the system controller.
• Be sure to ground this device, PAC-SC50KUA and 24 VDC Power source. Measurement accuracy may be affected if devices are not grounded.
7
7-3. Connecting the Sensors
For channel 1, select one of the following four types: Pt100 detection, 4 to 20 mADC, 1 to 5 VDC, or 0 to 10 VDC analog input.
• For channel 2, select one of the following three types: 4 to 20 mADC, 1 to 5 VDC, or 0 to 10 VDC analog input.
• The wire length depends on the specifications of the sensor. However, since the use of long wires makes the device susceptible to noise, using wires shorter than 12 m (39.4 ft) is recommended. Use a shielded line for the sensor line and connect to the FG terminal on this unit or the FG terminal on the control panel.
(1) Channel 1 Pt100 Input
To use these, various settings need to be configured. Refer to "8. Initial Settings".
B /
A / B
CN10
Device side
Caution:
• Use a 3-wire system for Pt100.
• A/B polarity is important for Pt100. Be sure to match the polarity when using Pt100.
• Do not install the sensor input line parallel to or near the M-NET transmission line or power line. Also avoid loop wiring.
BBA
Field Connections
Furthermore, confirm the precautions for the sensor.
• Strip 12±1 mm (
15
/32 ±1/32 in) of the wire coating and insert firmly into the
terminal.
• Make sure that the copper wiring is not short-circuiting the plates (cover, lower case) or neighboring wires.
Pt100 (3-wire system)
• Perform wiring so that the terminal block is not strained. If strained, use a wire guide or junction terminal to alleviate the stress on the terminal block.
(2) Channel 1 (Channel 2) Analog Input
(4 to 20 mADC, 1 to 5 VDC, 0 to 10 VDC)
To use these, various settings need to be configured. Refer to "8. Initial Settings".
(a) When 1 to 5 VDC, 0 to 10 VDC, or 4 to 20 mADC
(type for which power is supplied to the sensor)
(b) When 4 to 20 mADC (type for which power is
supplied to the signal line) is connected
is connected
Device side
Field Connections
Power supply
CN05 (CN08)
Device side
CN05
Field Connections
Sensor
Power supply
(CN08)
Sensor
Caution:
• Select a power supply that is suitable for the sensor to be used.
• Do not install the sensor input line parallel to or near the M-NET transmission line or power line. Also avoid loop wiring. Furthermore, confirm the precautions for the sensor.
• Strip 12±1 mm (
15
/32 ±1/32 in) of the wire coating and insert firmly into the terminal.
• Make sure that the copper wiring is not short-circuiting the plates (cover, lower case) or neighboring wires.
• Perform wiring so that the terminal block is not strained. If strained, use a wire guide or junction terminal to alleviate the stress on the terminal block.
8
7-4. Connecting Alarm Setpoint Outputs
(Non-valtage Contacts)
The maximum wire length is 100 m. However, since the use of long wires makes the device susceptible to noise, using wires no more than 10 m long is recommended.
To use these, various settings need to be configured. Refer to "8. Initial Settings".
Load
Power supply
V1 (DC)
X1
Ch1 Ch2
Device
side
Upper/lower
limit alarm
Power supply
V2 (DC)
Upper/lower
limit alarm
Field Connections
CN03
Tightening torque for terminal screws: 1 N·m.
* The contact of the internal relay is always ON during
detection of an upper/lower limit alarm. (Level output)
Caution:
• To use X1 relay, obtain one that satisfies the following specifications. Operating coil [Applied load]
MAX: 24 VDC, 5 W (Built-in diode) MIN: 5 VDC, 2 mW (Built-in diode) *1 AC loads cannot be connected. *2 Provide a power supply (V1, V2) that matches the load
and relay to be used.
• To drive a direct load, use ones within the following. [Applied load]
MAX: 24 VDC, 5 W MIN: 5 VDC, 2 mW * AC loads cannot be connected.
• Make sure that the copper wiring is not short-circuiting the plates (cover, lower case) or neighboring wires.
• Perform wiring so that the terminal block is not strained. If strained, use a wire guide or junction terminal to alleviate the stress on the terminal block.
• Do not connect the wires directly from the top of the control panel to the terminal block. Moisture may enter this device along the wiring and cause electric shock or fire.
9
8 Initial Settings
After completing the procedures described in "6. Installation" and "7. Wiring Instructions", set the initial settings in accordance with the procedure described below.
(1) M-NET address settings
10s
1s
Note:
• An address from 01 to 50 can be set.
• Set an address that is not the same as that of another unit.
The address is set to "01" at factory default.
SW06 SW07
In the case of address "41"
(2) Use the dip switches to select functions.
Select the function required for each input/output channel to be used. The switch assignment for each channel is shown below. Configure each of the settings while referring to "9. Dip Switch Functions ".
• For channel 1, select one of the following four types: Pt100 detection, 4 to 20 mADC, 1 to 5 VDC, or 0 to 10 VDC analog input.
• For channel 2, select one of the following three types: 4 to 20 mADC, 1 to 5 VDC, or 0 to 10 VDC analog input.
(a) When using Pt100 detection (only channel 1 can be used)
Ch Setting Setting Switch Pt100 To not use
Ch1 Pt100 used
(b) When using one of the analog inputs (4 to 20 mADC detection, 1 to 5 VDC detection, and 0 to 10 VDC detection)
(1) SW01-1 (2) SW01-3
ON ON
OFF OFF
Ch Setting Setting Switch
Ch1 Setting of sensor to use
Ch2 Setting of sensor to use
(c) When using upper/lower limit alarm interlock output
Ch Setting Setting Switch To use To not use
Ch1 Usage of upper/lower limit alarm interlock output (1) SW01-5 ON OFF
Ch2 Usage of upper/lower limit alarm interlock output (1) SW02-5 ON OFF
(d) Measurement data backup interval setting (for servicing)
Ch Setting Setting Switch 1 min 2 min 5 min 10 min
Common Measurement data backup interval setting
(1) SW11-1 (2) SW11-2 (3) SW01-1 (4) SW01-2 (5) SW01-3
(1) SW12-1 (2) SW12-2 (3) SW02-1 (4) SW02-2
(1) SW03-1 (2) SW03-2
4 to
20 mADC
ON ON
ON OFF OFF
ON
ON
ON OFF
OFF OFF
1 to
5VDC
OFF
ON
ON OFF OFF
OFF
ON
ON OFF
OFF
ON
0 to
10 VDC
OFF OFF
ON ON
OFF
OFF OFF
ON ON
ON
OFF
To not
use
OFF OFF OFF OFF OFF
OFF OFF OFF OFF
ON ON
10
(3) Turn on the power of this device.
Verify that the LED16 (CPU power on) and LED17 (M-NET power on) are lit.
(4) Set the time.
Set the current time from a system controller (G(B)-50A, TG-2000A) or a Maintenance Tool.
(5) Configure the settings of the system controller (G(B)-50A or TG-2000A).
Configure settings for the system controller (G(B)-50A or TG-2000A) such as the type of sensor to use and the measurement range. The main items that should be set are shown below.
(a) When using Pt100 detection (only channel 1 can be used)
Ch Setting Setting with G(B)-50A or TG-2000A
Measurement category setting
Ch1
(b) When using an analog input (4 to 20 mADC detection, 1 to 5 VDC detection, or 0 to 10VDC detection)
Ch Setting Setting with G(B)-50A or TG-2000A
Ch1
Ch2
Measurement range setting
Measurement correction
Measurement category setting Select the temperature/humidity
Measurement range setting Set the upper limit and lower limit values
Measurement correction Input the measurement correction value (offset value)
Measurement category setting Select the temperature/humidity
Measurement range setting Set the upper limit and lower limit values
Measurement correction Input the measurement correction value (offset value)
Select temperature/humidity (Be sure to select temperature.)
Set the upper limit and lower limit values (Set a range from -30°C [-22°F] to 60°C [140°F].)
Input the measurement temperature correction value (offset value)
(c) When using upper/lower limit alarm interlock output
Ch Setting Setting with G(B)-50A or TG-2000A
Ch1
Ch2
(6) Settings for the interlock function are performed from the Maintenance Tool.
Perform settings such as interlock criteria for this device from Maintenance Tool. For details, refer to the operating manual for the Maintenance Tool.
Upper/lower limit alarm detection value and cancellation value settings
Upper/lower limit alarm detection value and cancellation value settings
Upper/lower limit alarm detection value and cancellation value settings
Upper/lower limit alarm detection value and cancellation value settings
11
9 Dip Switch Functions
SW
SW01 1
SW02 1
SW03
SW06
SW07
SW08 1 Unused Set to OFF
SW09 1 Unused Set to OFF
SW11
SW12
Supported
Channel
Selection of the input to use No Yes Specify whether to use the channel 1 input terminal.
2
3–
Channel 1
4 Unused Set to OFF
5
6 Unused Set to OFF
7 Unused Set to OFF
8 Unused Set to OFF
2
3 Unused Set to OFF
4 Unused Set to OFF
Channel 2
5
6 Unused Set to OFF
7 Unused Set to OFF
8 Unused Set to OFF
Measurement data backup interval
1
1-minute interval: (2 hours worth) 2-minute interval: (4 hours worth) 5-minute interval: (10 hours worth)
2
10-minute interval: (20 hours worth)
3 Unused Set to OFF
4 Unused Set to OFF
5 Unused Set to OFF
6 Unused Set to OFF
7 Unused Set to OFF
8 Unused Set to OFF
M-NET address
2 Unused Set to OFF
3 Unused Set to OFF
4 Unused Set to OFF
5 Unused Set to OFF
6 Unused Set to OFF
2 Unused Set to OFF
1
Channel 1
2
1
Channel 2
2
Selection of the analog input type (1)
Selection of upper/lower limit alarm interlock output use
Selection of the input to use No Yes Specify whether to use the channel 2 input terminal.
Selection of the analog input type (1)
Selection of upper/lower limit alarm interlock output use
Selection of analog input type (2)
Selection of analog input type (2)
Function OFF ON Remark
0 to 10 VDC detection : 1 to 5 VDC detection : Setting not possible : 4 to 20 mADC detection:
0 to 10 VDC detection : 1 to 5 VDC detection : Setting not possible : 4 to 20 mADC detection:
4 to 20 mADC/
1 to 5 VDC
detection
No Yes
4 to 20 mADC/
1 to 5 VDC
detection
No Yes
SW03-1
OFF OFF
ON ON
(Address 10s)
0 to 9 (decimal)
0 to 9 (decimal)
SW11-1
OFF OFF
ON ON
SW12-1
OFF OFF
ON ON
0 to 10 VDC
detection
detection
0 to 10 VDC
detection
SW03-2
(Address 1s)
SW11-2
SW12-2
Pt100
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Set the type of analog input for channel 1 (1). * This should also be set in accordance with the selection
of analog input type (2) (SW11-1 and 2).
* The setting of SW01-2 is disabled when SW01-3 is ON.
Specify whether to use channel 1 upper/lower limit alarm interlock output.
Set the type of analog input for channel 2 (1). * This should also be set in accordance with the selection
of analog input type (2) (SW12-1 and 2).
Specify whether to use channel 2 upper/lower limit alarm interlock output.
Set to back up measurement data to the fixed memory. Excess past data will be erased.
An address from 01 to 50 can be set. Set an address that is not the same as that of another unit.
Set the type of analog input for channel 1 (2) *1: This setting is not necessary when SW01-3 is ON.
Set the type of analog input for channel 2 (2)
Set the dip switches for function selection according to the system to be used. At factory default, the SW01, SW02, SW03, SW08, and SW09 dipswitches are all set to OFF; the SW11 and SW12
dipswitches are both set to ON, and the M-NET address is set to 01. Be sure to turn off the power before changing switch settings.
12
10 LED Display Designations
The LEDs of this device indicate the upper/lower limit alarm interlock output status and error status of this device.
10-1.Alarm Setpoint Output and Error Displays
Display Item Display LED Content
Note :On, :Off, :Flashing
Power supply status (1) Power supply to CPU LED16
(CPU power on)
Output status
(2) Power supply to M-NET
circuit
Ch1, 2 (1) Upper/lower limit alarm
interlock output status
LED17 (M-NET power on)
LED03/02 (Output LEDs)
: Lights when the CPU is energized.
: Flashes during M-NET communication.
: Lights when the M-NET is energized.
Output Method
Level Output
Ch1 Ch2
LED 03 LED 02
: Alarm output : Alarm stop
: Alarm output : Alarm stop
Error status (*1) (1) 4-digit error code LED12/13/14/15
(Status display LEDs)
*1: When a sensor error or communication error occurs, the error status is displayed.
Refer to "10-2. Sensor and Communication Error Displays".
10-2.Sensor and Communication Error Displays
If a sensor error or communication error occurs, a 4-digit error code will be repeatedly displayed according to the steps shown below.
"Sensor and Communication Error Displays" consist of the following 10 steps. This operation is performed repeatedly to indicate the 4-digit error code for the error.
Note :On, :Off, :Flashing
LED11 LED12 LED13 LED14 LED15
Common
Error code display (Binary number indication)
3
=8 22=4 21=2 20=1
2
STEP1
Starting Point Indication
STEP2 Blank Turn Off
STEP3 / / / / Error code 1000's digit
STEP4 Blank Turn Off
STEP5 / / / / Error code 100's digit
STEP6 Blank Turn Off
STEP7 / / / / Error code 10's digit
STEP8 Blank Turn Off
STEP9 / / / / Error code 1's digit
STEP10 Blank Turn Off
Function Remark
"Sensor and
Communication Error
Displays"
LEDs 12 to 15 flash 3 times
Error code 1000's digit
In the case of 6,
In the case of 6,
In the case of 0,
Error code 1's digit indication
In the case of 7,
indication
Error code 100's digit
indication
Error code 10's digit
indication
The error codes that are displayed for M-NET communication errors and sensor errors are as shown below.
Error Code Description of Error Error Code Description of Error
6600 Multiple address error 6607 No ACK error
6601 M-NET polarity unset error 6608 No return of response frame
6602 Transmission processor hardware error 5010 Sensor trouble in Channel 1
6603 Transmission bus-busy error 5020 Sensor trouble in Channel 2
6606 Communications with transmission processor error
13
11 System Operation Test
Use the following procedure to confirm operation of the system.
(1) Configure the settings of this device and the system controller while referring to "8. Initial Settings". (2) Confirm whether the measurement values of channel 1 and channel 2 are displayed on the system controller properly.
* Depending on the conditions, compare the measurement values with those of, for example, a commercially available portable
thermohygrometer. If the measurement accuracy of the sensor used results in extreme differences in the measurement values, use the measurement correction value (offset value) input function of the system controller to correct the measurement values.
(3) When upper/lower limit alarm interlock is to be used, input a value that exceeds the set alarm level and confirm whether the alarm
is displayed on the controller. Furthermore, confirm whether the alarm output operation takes place from the contact output at the same time.
If there is a problem, check the wiring and settings. For details on configuring settings, refer to "8. Initial Settings" and "9. Dip switch functions".
14
This product is designed and intended for use in the residential,
commercial and light-industrial environment.
This product at hand is based on the following EU regulations:
• Low Voltage Directive 2006/95/EC
• Electromagnetic Compatibility Directive 2004/108/EC
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
WT04975X02
Printed in Japan
Loading...
