Mitsubishi Electronics MDS-D2, MDS-DH2 User Manual

Introduction

Thank you for selecting the Mitsubishi numerical control unit. This instruction manual describes the handling and caution points for using this AC servo/spindle.Incorrect handling may lead to unforeseen accidents, so always read this instruction manual thoroughly to ensure correct usage. Make sure that this instruction manual is delivered to the end user. Always store this manual in a safe place. In order to confirm if all function specifications described in this manual are applicable, refer to the specifications for each CNC.

Notes on Reading This Manual

(1) Since the description of this specification manual deals with NC in general, for the specifications of individual

machine tools, refer to the manuals issued by the respe c t ive machine manufacturers. The "restrictions" an d "available functions" described in the manuals issued by the machine manufacturers have precedence to those in this manual.

(2) This manual describes as many special operations as possible, but it should be kept in mind that items not

mentioned in this manual cannot be performed.

Precautions for Safety

Please read this manual and auxiliary documents before starting installation, operation, maintenance or inspection to ensure correct usage. Thoroughly understand the device, safety information and precautions before starting operation. The safety precautions in this instruction manual are ranked as "WARNING" and "CAUTION".

DANGER

When there is a potential risk of fatal or serious injuries if handling is mistaken.

WARNING

When a dangerous situation, or fatal or serious injuries may occur if handling is mistaken.

CAUTION

When a dangerous situation may occur if handling is mistaken leading to medium or minor injuries, or physical damage.

Note that some items described as " CAUTION" may lead to major results depending on the situation. In any case, important information that must be observed is described.

The signs indicating prohibited and mandatory matters are explained below.

Indicates a prohibited matter. For example, "Fire Prohibited" is indicated as .

Indicates a mandatory matter. For example, groun din g is indi ca te d a s .

The meaning of each pictorial sign is as foll ow s .

CAUTION

Prohibited

After reading this specifications and instructions manual, store it where the user can access it easily for reference.

The numeric control unit is configured of the control unit, operation board, servo drive unit, spindle drive unit, power supply, servo motor and spindle motor, etc. In this section "Precautions for safety", the following items are generically called the "motor".

• Servo motor

• Linear servo motor

• Spindle motor

• Direct-drive motor

In this section "Precautions for safety", the following items are generically called the "unit".

• Servo drive unit

• Spindle drive unit

• Power supply unit

• Scale interface unit

• Magnetic pole detection unit

CAUTION rotated

Disassembly is

prohibited

object

CAUTION HOT Danger Electric shock

KEEP FIRE AWAY General instruction

Danger explosive

risk

Earth ground

POINT

Important matters that should be understood for operation of this machine are indicated as a POINT in this manual.

For Safe Use

Mitsubishi CNC is designed and manufactured solely for applications to machine tools to be used for industrial purposes. Do not use this product in any applications other than those specified above, especially those which are substantially influential on the public interest or which are expected to have significant influence on human lives or properties.

1. Electric shock prevention Do not open the front cover while the power is ON or during op eration. Fa ilure to observe this could le ad to

electric shocks. Do not operate the unit with the front cover removed. The high voltage terminals and charged sections will

be exposed, and can cause electric shocks. Do not remove the front cover and connector even when the power is OFF unless carrying out wiring work

or periodic inspections. The insi de of the un its is charged, and can cause electric shoc k s. Since the high voltage is su pp lied to the main circuit connector while the power is ON or during operation,

do not touch the main circuit connector with an adjustment screwdriver or the pen tip. Failure to observe this could lead to electric shocks.

Wait at least 15 minutes after turning the power OFF, confirm that the CHARGE lamp has gone out, and check the voltage between P and N terminals with a tester, etc., before starting wiring, maintenance or inspections. Failure to observe this could lead to electric shocks.

Ground the unit and motor. For the motor, ground it via the drive unit. Wiring, maintenance and inspection work must be done by a qualified technician. Wire the servo drive unit and servo motor after installation. Failure to observe this could lead to electric

shocks. Do not touch the switches with wet hands. Failure to observe this could lead to electric shocks. Do not damage, apply forcible stress, place heavy items on the cables or get them caught. Failure to

observe this could lead to electric shocks. After assembling the built-in IPM spindle motor, if the rotor is rotated by hand etc., voltage occurs between

the terminals of lead. Take care not to get electric shocks.

WARNING

2. Injury prevention When handling a motor, perform operations in safe clothing. In the system where the optical communication with CNC is executed, do not see directly the light

generated from CN1A/CN1B connector of drive unit or the end of cable. When the light gets into eye, you may feel something is wrong for eye. (The light source of optical communication corresponds to class1 defined in JISC6802 or IEC60825-1.)

The linear servo motor, direct-drive motor and built-in IPM spindle motor uses permanent magnets in the rotor, so observe the following precautions.

(1)Handling

• The linear servo motor, direct-drive motor and built-in IPM spindle motor could adversely affect medical electronics such as pacemakers, etc., therefore, do not approach the rotor.

• Do not place magnetic materials as iron.

• When a magnetic material as iron is placed, take safety measure not to pinch fingers or hands due to the magnetic attraction force.

• Remove metal items such as watch, piercing jewelry, necklace, etc.

• Do not place portable items that could malfunction or fail due to the influence of the magnetic force.

• When the rotor is not securely fixed to the machine or device, do not leave it unattended but store it in the package properly.

(2)Transportation and storage

• Correctly store the rotor in the package to transport and store.

• During transportation and storage, draw people's attention by applying a notice saying "Strong magnetHandle with care" to the package or storage shelf.

• Do not use a damaged package.

(3)Installation

• Take special care not to pinch fingers, etc., when installing (and unpacking) the linear servo motor.

WARNING

1. Fire prevention Install the units, motors and regenerative resistor on non-combustible material. Direct installation on

combustible material or near combustible materials could lead to fires. Always install a circuit protector and contactor on the servo drive unit power input as explained in this

manual. Refer to this manual and select the correct circuit protector and contactor. An incorrect selection could result in fire.

Shut off the power on the unit side if a fault occurs in the units. Fires could be caused if a large current continues to flow.

When using a regenerative resistor, provide a sequence that shuts off the powe r with the regenerative resistor's error signal. The regenerative resistor could abnormally overheat and cause a fire due to a fault in the regenerative transistor, etc.

The battery unit could heat up, ignite or rupture if submerged in water, or if the poles are incorrectly wired. Cut off the main circuit power with the contactor when an alarm or emergency stop occurs.

2. Injury prevention Do not apply a voltage other than that specified in this manual, on each terminal. Failure to observe this

item could lead to ruptures or damage, etc. Do not mistake the terminal connections. Failure to observe this item could lead to ru ptures or damage,

etc. Do not mistake the polarity (+,- ). Failure to observe this item could lead to ruptures or damage, etc. Do not touch the radiation fin on unit back face, regenerative resistor or motor, etc., or place parts (cables,

etc.) while the power is turned ON or immediately after turning the power OFF. These parts may reach high temperatures, and can cause burns or part damage.

Structure the cooling fan on the unit back face, etc., etc so that it cannot be touc hed after installation. Touching the cooling fan during operati on could lead to injuries.

Take care not to suck hair, clothes, etc. into the cooling fan.

CAUTION

3. Various precautions

Observe the following precautions. Incorrect handling of the unit could lead to faults, injuries and electric shocks, etc.

(1) Transportation and installation

Correctly transport the product according to its weight. Use the motor's hanging bolts only when transporting the motor. Do not transport the mach ine when the

motor is installed on the machine. Do not stack the products above the tolerable number. Follow this manual and install the unit or motor in a place where the weight can be borne. Do not get on top of or place heavy objects on the unit.

Do not hold the cables, axis or encoder when transporting the motor.

Do not hold the connected wires or cables when transporting the units. Do not hold the front cover when transporting the unit. The unit could drop. Always observe the installation directions of the units or motors. Secure the specified distance between the units and control panel, or between the servo drive unit and

other devices. Do not install or run a unit or motor that is damaged or missing parts. Do not block the intake or exhaust ports of the motor provided wit h a cooling fan. Do not let foreign objects enter the units or motors. In particular, if conductive objects such as screws or

metal chips, etc., or combustible materials such as oil enter, rupture or breakage could occur. Provide adequate protection using a material such as connector for conduit to prevent screws, metallic

detritus, water and other conductive matter or oil and other combustible matter from entering the motor through the power line lead-out port.

The units, motors and encoders are precision devices, so do not dro p them or apply strong impacts to them.

CAUTION

Store and use the units under the following environment conditions.

Environment Unit Motor

Operation: 0 to 55°C (with no freezing),

Ambient temperature

Ambient humidity

Atmosphere

Altitude

Vibration/impact According to each unit or motor specification

Storage / Transportation: -15°C to 70°C

(with no freezing)

Operation: 90%RH or less

(with no dew condensation)

Storage / Transportation: 90%RH or less

(with no dew condensation)

Indoors (no direct sunlight)

With no corrosive gas, inflammable gas, oil mist, dust or conductive fine particles

Operation/Storage:

1000 meters or less above sea level,

Transportation:

13000 meters or less above sea level

(Note 1) For details, confirm each unit or motor specifications in addition. (Note 2) -15°C to 55°C for linear servo motor.

When disinfectants or insecticides must be used to treat wood packaging materials, always use methods other than fumigation (for example, apply heat treatment at the minimum wood core temperature of 56 °C for a minimum duration of 30 minutes (ISPM No. 15 (2009))). If products such as units are directly fumigated or packed with fumigated wooden materials, halogen substances (including fluorine, chlorine, bromine and iodine) contained in fumes may contribute to the erosion of the capacitors. When exporting the products, make sure to comply with the laws and regulations of each country.

Do not use the products in conjunction with any components that contain halogenated flame retardants (bromine, etc). Failure to observe this may cause the erosion of the capacitors.

Securely fix the servo motor to the machine. Insufficient fixing could lead to the servo motor slipping off during operation.

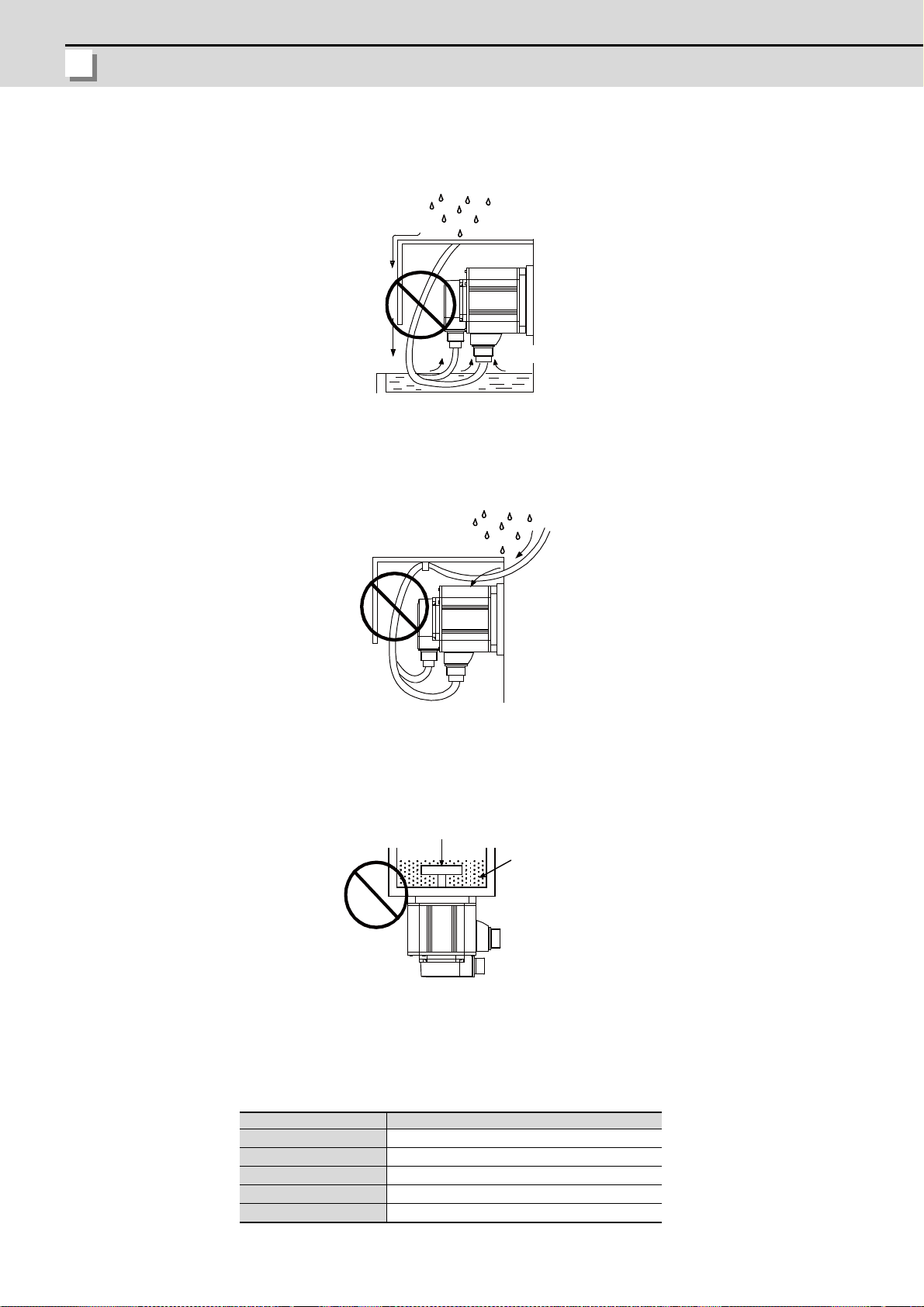

Always install the servo motor with reduction gear in the designated direction. Failure to do so could lead to oil leaks.

Structure the rotary sections of the motor so that it can never be touched during operation. Install a cover, etc., on the shaft.

When installing a coupling to a servo motor shaft end, do not apply an impact by hammering, etc. The encoder could be damaged.

Do not apply a load exceeding the tolerable load onto the servo motor shaft. The shaft could break. Store the motor in the package box. When inserting the shaft into the built-in IPM spindle motor, do not heat the rotor higher than 130°C. The

magnet could be demagnetized, and the specifications characteristics will not be ensured. Always use a nonmagnetic tool (explosion-proof beryllium copper alloy safety tool: NGK Insulators, etc.)

when installing the built-in IPM spin dle motor, direct-drive motor and linear servo motor. Always provide a mechanical stopper on the end of the linear servo motor's travel path. If the unit has been stored for a long time, always check the operation before starting actual operation.

Please contact the Service Center, Service Station, Sales Office or delayer.

Operation: 0 to 40°C (with no freezing),

Storage: -15°C to 70°C (Note2) (with no freezing)

Operation: 80%RH or less

(with no dew condensation),

Storage: 90%RH or less

(with no dew condensation)

Operation:

1000 meters or less above sea level,

Storage:

10000 meters or less above sea level

CAUTION

)

COM (24VDC)

Servo drive unit

Control output signal

(2) Wiring

Correctly and securely perform the wiring. Failure to do so could lead to abnormal operation of the motor. Do not install a condensing capacitor, surge absorber or radio noise filter on the output side of the drive

unit. Correctly connect the output side of the drive unit (terminals U, V, W). Failure to do so could lead to

abnormal operation of the motor. When using a power regenerative power supply unit, always install an AC reactor for each power supply

unit. In the main circuit power supply side of the unit, always install an appropriate circuit protector or contactor

for each unit. Circuit protector or contactor cannot be shared by several units. Always connect the motor to the drive unit's output terminals (U, V, W). Do not directly connect a commercial power supply to the servo motor. Failure to observe this could result

in a fault. When using an inductive load such as a relay, always connect a diode as a noise measure parallel to the

load. When using a capacitance load such as a lamp, always connect a protective resistor as a noise measure

serial to the load. Do not reverse the direction of a diode which

connect to a DC relay for the control output signals such as contractor and motor brake output, etc. to suppress a surge. Connecting it backwards could cause the drive unit to malfunction so that signals are not output, and emergency stop and other safety circuits are inoperable.

Do not connect/disconnect the cables connected between the units while the power is ON. Securely tighten the cable connector fixing screw or fixing mechanism. An insecure fixing could cause the

cable to fall off while the power is ON. When using a shielded cable instructed in the instruction manual, always ground the cable with a cable

clamp, etc. Always separate the signals wires from the drive wire and power line. Use wires and cables that have a wire diameter, heat resistance and flexibility that conforms to the system.

COM (24VDC



(3) Trial operation and adjustment

Check and adjust each program and parameter before st arting operation. Failure to do so could lead to unforeseen operation of the machine.

Do not make remarkable adjustments and changes of parameter as the operation could become unstable. The usable motor and unit combination is predetermined. Always check the comb inations and parameters

before starting trial operation. The direct-drive motor and linear servo motor do not have a stopping device such as magnetic brakes.

Install a stopping device on the machine side. When using the linear servo motor for an unbalance axis, adjust the unbalance weight to 0 by installing an

air cylinder, etc. on the machine side. The unbalance weight disables the initial magnetic pole adjustment.

CAUTION

(4) Usage methods

In abnormal state, install an external emergency stop circuit so that the operation can be stopped and power shut off immediately.

Turn the power OFF immediately if smoke, abnormal noise or odors are generated from the unit or motor. Do not disassemble or repair this product. Never make modifications. When an alarm occurs, the machine will start suddenly if an alarm reset (RST) is carried out while an

operation start signal (ST) is being input. Always confirm that the operation signal is OFF before carrying out an alarm reset. Failure to do so could lead to accidents or injuries.

Reduce magnetic damage by installing a noise fil t er. Th e electronic devices used near the unit could be affected by magnetic noise. Install a line noise filter, etc., if there is a risk of magnetic noise.

Use the unit, motor and regenerative resistor with the designated combination. Failure to do so could lead to fires or trouble.

The brake (magnetic brake) of the servo motor are for holding, and must not be used for normal braking. There may be cases when holding is not possible due to the magnetic brake's life, the machine

construction (when ball screw and servo motor are coupled via a timing belt, etc.) or the magnetic br ake's failure. Install a stop device to ensure safety on the machine side.

After changing the programs/parameters or after maintenance and inspection, always test the operation before starting actual operation.

Do not enter the movable range of the machine during automatic operation. Never place body parts near or touch the spindle during rotation.

Follow the power supply specification conditions given in each specification for the power (input voltage, input frequency, tolerable sudden power failure time, etc.).

Set all bits to "0" if they are indicated as not used or empty in the explanation on the bits. Do not use the dynamic brakes except during the emergency stop. Continued use of the dynamic brakes

could result in brake damage. If a circuit protector for the main circuit power supply is shared by several units, the circuit protector may

not activate when a short-circuit fault occurs in a small capacity unit. This is dangerous, so never share the circuit protector.

Mitsubishi spindle motor is dedicated to machine tools. Do not use for other purposes.

(5) Troubleshooting

If a hazardous situation is predicted during power failure or product tro ub le , use a servo mo tor with magnetic brakes or install an external brake mechanism.

Use a double circuit configuration that allows the operation circuit for the magnetic brakes to be operated

Shut off with the servo motor brake control output.

even by the external emergency stop signal. Always turn the main circuit power of the motor OFF

Servo motor

MBR

when an alarm occurs.

Magnetic

If an alarm occurs, remove the cause, and secure the



brake

safety before resetting the alarm.

Shut off with NC brake control PLC output.

EMG

24VDC

CAUTION

(6) Maintenance, inspection and part replacement

Always backup the programs and parameters before starting maintenance or inspections. The capacity of the electrolytic capacitor will drop over time due to self-discharging, etc. To prevent

secondary disasters due to failures, replacing this part every five years when used under a normal environment is recommended. Contact the Service Center, Service Station, Sales Office or delayer for repairs or part replacement.

Do not perform a megger test (insulation resistance measurement) during inspections. If the battery low warning is issued, immediately replace the battery. Replace the batteries while applying

the drive unit's control power. Do not short circuit, charge, overheat, incinerate or disassemble the battery. For after-purchase servicing of the built-in motor, only the servicing parts for MITSUBISHI encoder can be

supplied. For the motor body, prepare the spare parts at the machine manufacturers. For maintenance, part replacement, and services in case of failures in the built-in motor (including the

encoder), take necessary actions at the machine manufacturers. For drive unit, Mitsubishi can offer the after-purchase servicing as with the general drive unit.

(7) Disposal

Take the batteries and backlights for LCD, etc., off from the controller, drive unit and motor, and dispose of them as general industrial wastes.

Do not disassemble the unit or motor. Dispose of the battery according to local laws. Always return the secondary side (magnet side) of the linear servo motor to the Service Center or Service

Station. When incinerating optical communication cable, hydrogen fluoride gas or hydrogen chloride gas which is

corrosive and harmful may be generated. For disposal of optical communica tion cable, request for specialized industrial waste disposal services that has incineration facility for disposing hydrogen fluoride gas or hydrogen chloride gas.

(8) Transportation

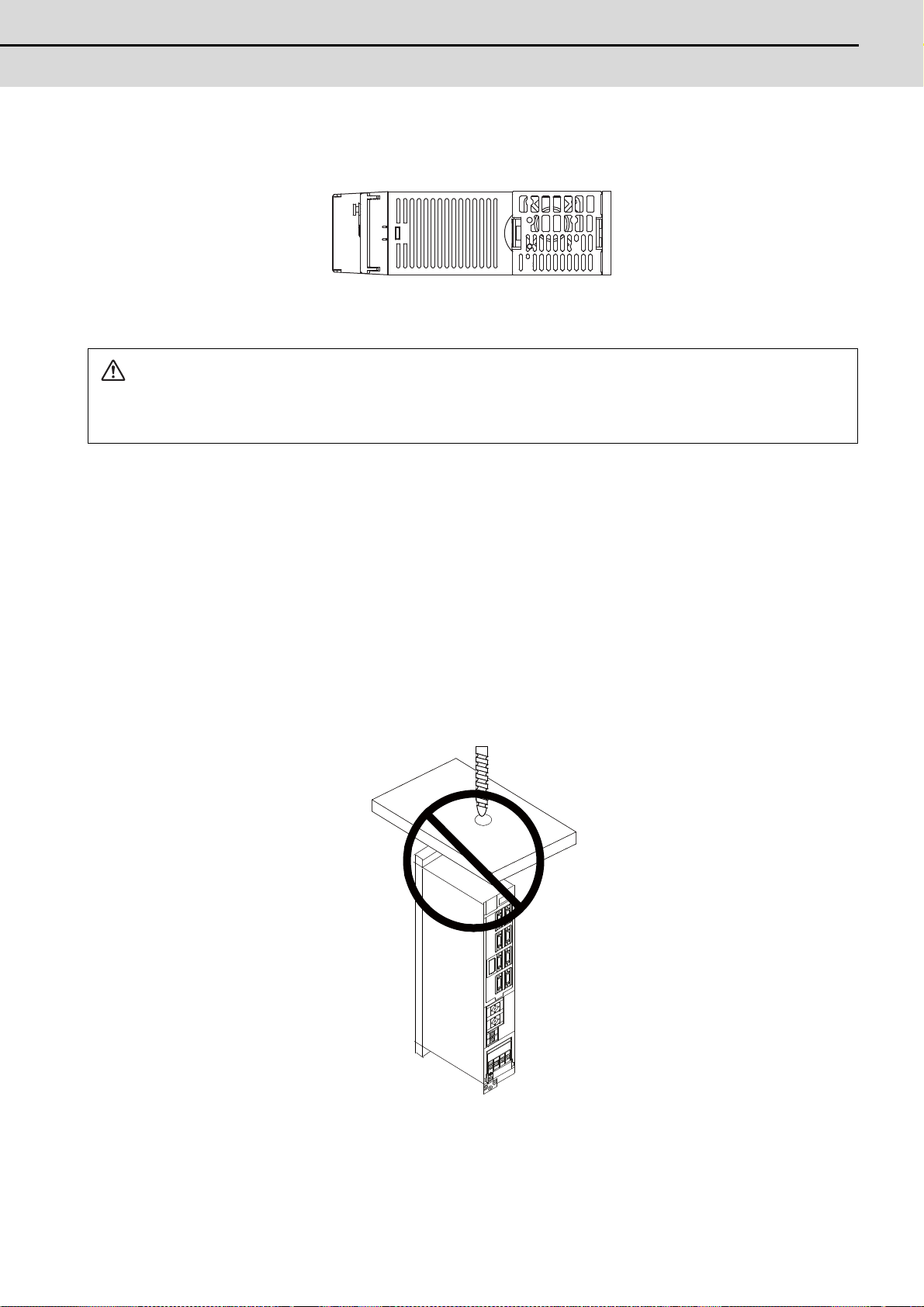

The unit and motor are precision parts and must be handled carefully. According to a United Nations Advisory, the battery unit and battery must be transported according to the

rules set forth by the International Civil Aviation Organization (ICAO), International Air Transportation Association (IATA), International Maritime Organization (IMO), and United States Department of Transportation (DOT), etc.

(9) General precautions

The drawings given in this manual show the covers and safety partitions, etc., removed to provide a clearer explanation. Always return the covers or partitions to their respective places before starting operation, and always follow the instructions given in this manual.

Treatment of waste

The following two laws will apply when disposing of this product. Considerations must be made to each law. The following laws are in effect in Japan. Thus, when using this product overseas, the local laws will have a priority. If necessary, indicate or notify these laws to the final user of the product.

(1) Requirements for "Law for Promotion of Effective Utilization of Resources"

(a) Recycle as much of this product as possible when finished with use. (b) When recycling, often parts are sorted into steel scraps and electric parts, etc., and sold to scrap

contractors. Mitsubishi recommends sorting the product and selling the members to appropriate contractors.

(2) Requirements for "Law for Treatment of Waste and Cleaning"

(a) Mitsubishi recommends recycling and selling the pr oduct when n o longer needed a ccording to item

(1) above. The user should make an effort to reduce waste in this manner. (b) When disposing a product that cannot be resold, it shall be treated as a waste product. (c) The treatment of industrial waste must be commissioned to a licensed industrial waste treatment

contractor, and appropriate measures, including a manifest control, must be taken. (d) Batteries correspond to "primary batteries", and must be disposed of according to local disposal

laws.

Disposal

(Note) This symbol mark is for EU countries only.

This symbol mark is according to the directive 2006/66/EC Article 20 Information for endusers and Annex II.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol means that batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%) In the European Union there are separate collection systems for used batteries and accumulators. Please, dispose of batteries and accumulators correctly at your local community waste collection/ recycling centre.

Please, help us to conserve the environment we live in!

Trademarks

MELDAS, MELSEC, EZSocket, EZMotion, iQ Platform, MELSOFT, GOT, CC-Link, CC-Link/LT and CC-Link IE are either trademarks or registered trademarks of Mitsubishi Electric Co rporation in Japan and/or other countries.

Other company and product names that appear in this manual are trademarks or registe red trademarks of t he respective companies.

本製品の取扱いについて

( 日本語 /Japanese) 本製品は工業用 ( クラス A) 電磁環境適合機器です。販売者あるいは使用者はこの点に注意し、住商業環境以外での使用をお願いいたします。

Handling of our product

(English) This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

본 제품의 취급에 대해서

( 한국어 /Korean) 이 기기는 업무용 (A 급 ) 전자파적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며 가정외의 지역에 서 사용하는 것을 목적으로 합니다 .

1 Installation................................................................. .... ... ... ................................................................... 1 - 1

1.1 Installation of Servo Motor.................................................... ... ... ... .... ... ............................................ 1 - 2

1.1.1 Environmental Conditions ........................................................................................................1 - 2

1.1.2 Quakeproof Level......................................................................................................................1 - 3

1.1.3 Cautions for Mounting Load (Prevention of Impact on Shaft)............................................. .... .. 1 - 4

1.1.4 Installation Direction.................................................................................................................. 1 - 4

1.1.5 Shaft Characteristics................................................................................................................. 1 - 5

1.1.6 Machine Accuracy.....................................................................................................................1 - 6

1.1.7 Coupling with the Load .............................................................................................................1 - 7

1.1.8 Oil / Water Standards................................................................................................................1 - 8

1.1.9 Installation of Servo Motor...................................................................................................... 1 - 10

1.1.10 Cable Stress ......................................................................................................................... 1 - 11

1.2 Installation of Spindle Motor............................................................................................................ 1 - 12

1.2.1 Environmental Conditions ......................................................................................................1 - 12

1.2.2 Balancing the Spindle Motor (Unit).........................................................................................1 - 13

1.2.3 Shaft Characteristics............................................................................................................... 1 - 15

1.2.4 Machine Accuracy...................................................................................................................1 - 15

1.2.5 Coupling with the Fittings........................................................................................................ 1 - 16

1.2.6 Ambient Environment.............................................................................................................. 1 - 16

1.2.7 Installation of Spindle Motor.................................................................................................... 1 - 16

1.2.8 Connection.............................................................................................................................. 1 - 17

1.2.9 Cable Stress ...........................................................................................................................1 - 18

1.3 Installation of Tool Spindle Motor.................................................................................................... 1 - 19

1.3.1 Environmental Conditions ......................................................................................................1 - 19

1.3.2 Shaft Characteristics............................................................................................................... 1 - 19

1.3.3 Installation of Tool Spindle Motor............................................................................................1 - 19

1.4 Installation of the Drive Unit............................................................................................................1 - 20

1.4.1 Environmental Conditions ......................................................................................................1 - 20

1.4.2 Installation Direction and Clearance....................................................................................... 1 - 21

1.4.3 Prevention of Entering of Foreign Matter................................................................................ 1 - 23

1.4.4 Panel Installation Hole Work Drawings (Panel Cut Drawings)................................................ 1 - 24

1.4.5 Heating Value .........................................................................................................................1 - 26

1.4.6 Heat Radiation Countermeasures...........................................................................................1 - 27

1.5 Installation of the Machine End Encoder ........................................................................................1 - 30

1.5.1 Spindle Side ABZ Pulse Output Encoder (OSE-1024 Series)................................................ 1 - 30

1.5.2 Spindle Side PLG Serial Output Encoder (TS5690, MU1606 Series) .................................... 1 - 31

1.5.3 Twin-head Magnetic Encoder (MBA405W, MBE405W Series).............................................. 1 - 37

1.6 Noise Measures................................... .... ... ... ... ... .... ... ....................................... ... ... ... ....................1 - 41

2 Wiring and Connection.......................................................................................................................... 2 - 1

2.1 Part System Connection Diagram............... ... ....................................... ... ... ... .... ............................... 2 - 3

2.2 Main Circuit Terminal Block/Control Circuit Connector..................................................................... 2 - 4

2.2.1 Names and Applications of Main Circuit Terminal Block Signals and

Control Circuit Connectors........................................................................................................ 2 - 4

2 - 5

2.2.2 Connector Pin Assignment .................................................... .... ... ... ... ... .... ... ... ... .... ... ... ... .......

2.3 NC and Drive Unit Connection....................... ... ... .... ... ... ....................................... ... ... .... ... ... .......... 2 - 16

2.4 Connecting with Optical Communication Repeater Unit.................................................................2 - 18

2.5 Motor and Encoder Connection ......................................................................................................2 - 20

2.5.1 Connection of the Servo Motor............................................................................................... 2 - 20

2.5.2 Connection of the Full-closed Loop System ........................................................................... 2 - 25

2.5.3 Connection of the Speed Command Synchronization Control System................................... 2 - 27

2.5.4 Connection of the Spindle Motor.............................................................................................2 - 29

2.5.5 Connection of Tool Spindle Motor...........................................................................................2 - 31

2.6 Connection of Power Supply....................... ....................................... ... ... ... ... ................................. 2 - 34

2.6.1 Power Supply Input Connection.............................................................................................. 2 - 34

2.6.2 Connecting the Grounding Cable............................................................................................2 - 36

2.7 Wiring of the Motor Brake ..............................................................................................................2 - 37

2.7.1 Wiring of the Motor Magnetic Brake........................................................................................2 - 37

2.7.2 Dynamic Brake Unit Wiring.....................................................................................................2 - 40

2.8 Peripheral Control Wiring................................................................................................................2 - 41

2.8.1 Input/Output Circuit Wiring......................................................................................................2 - 41

2.8.2 Specified Speed Output..........................................................................................................2 - 43

2.8.3 Spindle Coil Changeover.. ... ....................................... ... .... ... ... ... ............................................ 2 - 45

2.8.4 Proximity Switch Orientation.......................... ... .... ... ... ....................................... ... ... .... ... ........ 2 - 49

3 Safety Function ......................................................................................................................................3 - 1

3.1 Safety Function......... ....................................... ... ... ... .... ...................................... .... ... .......................3 - 2

3.1.1 Harmonized Standard.............................. ... ....................................... ... ... ... .... ... .......................3 - 2

3.1.2 Outline of Safety Function.............. ... ....................................... ... .... ... ... ... .................................3 - 2

3.2 Emergency Stop Observation...........................................................................................................3 - 3

3.2.1 SLS (Safely Limited Speed) Function......................... ... .... ... ... ... .... ...................................... ....3 - 8

3.3 STO (Safe Torque Off) Function.....................................................................................................3 - 12

4 Setup.......................................................................................................................................................4 - 1

4.1 Initial Setup ............................ ... ... .... ...................................... .... ... ... ... .... ..........................................4 - 2

4.1.1 Setting the Rotary Switch......... ... ....................................... ... ... ... .... ... .......................................4 - 2

4.1.2 Setting DIP Switch ............................................ .... ... ....................................... ... ... ... .................4 - 3

4.1.3 Transition of LED Display After Power Is Turned ON........ ...................................... .... ... ... ... ....4 - 4

4.2 Setting the Initial Parameters for the Servo Drive Unit........................................ .... ... ... ... .... .............4 - 5

4.2.1 Setting of Servo Specification Parameters ...............................................................................4 - 6

4.2.2 Setting of Machine Side Encoder............. .................................................................................4 - 8

4.2.3 Setting of Distance-coded Reference Scale ........................................................................... 4 - 14

4.2.4 Setting of Speed Command Synchronous Control .................................................................4 - 16

4.2.5 List of Standard Parameters for Each Servo Motor ................................................................ 4 - 17

4.2.6 Servo Parameters ................................... ... ....................................... ... ... ... .... ... .....................4 - 27

4.3 Setting the Initial Parameters for the Spindle Drive Unit................................................................. 4 - 62

4.3.1 Setting of Parameters Related to the Spindle......................................................................... 4 - 62

4.3.2 List of Standard Parameters for Each Spindle Motor..............................................................4 - 67

4.3.3 Spindle Specification Parameters......................... ... ....................................... ... ... ... .... ... ......4 - 102

4.3.4 Spindle Parameters .................... ... ....................................... ... ... .... ... ...................................4 - 123

5 Servo Adjustment ..................................................................................................................................5 - 1

5.1 Servo Adjustment Procedure........... ... ....................................... ... ... ... .... ... .......................................5 - 2

5.2 Gain Adjustment........................... ....................................... ... .... ... ... .................................................5 - 3

5.2.1 Current Loop Gain ....................................................................................................................5 - 3

5.2.2 Speed Loop Gain........................... ... .... ... ....................................... ... ... ... ... ..............................5 - 4

5.2.3 Position Loop Gain............ ....................................... ... ... .... ... ....................................................5 - 8

5.2.4 OMR-FF Function................................................. ... ... ... ....................................... ... .... ...........5 - 11

5.3 Characteristics Improvement ........................ ... ... ... ... .... ...................................... .... ... ... ... ...............5 - 18

5.3.1 Optimal Adjustment of Cycle Time..........................................................................................5 - 18

5.3.2 Vibration Suppression Measures................................ ....... ... ... ... .... ... ... ... ... .... ... ... ... .... ... ... .....5 - 21

5.3.3 Improving the Cutting Surface Precision.................................................................................5 - 28

5.3.4 Improvement of Characteristics during Acceleration/Deceleration .........................................5 - 31

5.3.5 Improvement of Protrusion at Quadrant Changeover.............................................................5 - 35

5.3.6 Improvement of Overshooting.................................................................................................5 - 39

5.3.7 Improvement of the Interpolation Control Path .......................................................................5 - 42

5.4 Adjustment during Full Closed Loop Control...................................................................................5 - 44

5.4.1 Outline.................. ... ....................................... ... .... ... ... ... .........................................................5 - 44

5.4.2 Speed Loop Delay Compensation ..........................................................................................5

3 Dual Feedbac

5.4.

5.5 Settings for Emergency Stop ........................ ... ... ....................................... ... ... ... .... ... .....................5 - 48

5.5.1 Deceleration Control... ... ... ... .... ... ... ....................................... ... ... .... ... .....................................5 - 48

5.5.2 Vertical Axis Drop Prevention Control.....................................................................................5 - 51

5.5.3 Vertical Axis Pull-up Control ...................................................................................................5 - 58

5.6 Protective Functions............................ ... ....................................... ... ... .... ... ... ..................................5 - 59

5.6.1 Overload Detection............................................... ... ... ... ....................................... ... .... ...........5 - 59

5.6.2 Excessive Error Detection.... .... ... ... ....................................... ... ... .... ... .....................................5 - 60

5.6.3 Collision Detection Function ...................................................................................................5 - 61

5.7 Servo Control Signal.......................................................................................................................5 - 65

5.7.1 Servo Control Input (NC to Servo)..........................................................................................5 - 65

k Control...........................................................................................................5 - 46

- 45

5.7.2 Servo Control Output (Servo to NC).......................................................................................5 - 68

6 Spindle Adjustment ............................................................................................................................... 6 - 1

6.1 Adjustment Procedures for Each Control..........................................................................................6 - 2

6.1.1 Basic Adjustments ....................................................................................................................6 - 2

6.1.2 Gain Adjustment ....................................................................................................................... 6 - 3

6.1.3 Adjusting the Acceleration/Deceleration Operation .................................................................. 6 - 7

6.1.4 Orientation Adjustment ........................................................................................................... 6 - 14

6.1.5 Synchronous Tapping Adjustment..........................................................................................6 - 18

6.1.6 High-speed Synchronous Tapping..........................................................................................6 - 21

6.1.7 Spindle C Axis Adjustment (For Lathe System)............................... ... ... .... ... ... ....... ... ... ... ... .... 6 - 22

6.1.8 Spindle Synchronization Adjustment (For Lathe System)....................................................... 6 - 27

6.1.9 Deceleration Coil Changeover Valid Function by Emergency Stop........................................6 - 29

6.1.10 High-response Acceleration/Deceleration Function.............................................................. 6 - 30

6.1.11 Spindle Cutting Withstand Level Improvement.....................................................................6 - 31

6.1.12 Spindle Motor Temperature Compensation Function........................................................... 6 - 32

6.2 Settings for Emergency Stop ..........................................................................................................6 - 37

6.2.1 Deceleration Control...............................................................................................................6 - 37

6.3 Spindle Control Signal ................................................................ ... .... ... ... ... .................................... 6 - 38

6.3.1 Spindle Control Input (NC to Spindle).....................................................................................6 - 38

6.3.2 Spindle Control Output (Spindle to NC)..................................................................................6 - 43

7 Troubleshooting..................................................................................................................................... 7 - 1

7.1 Points of Caution and Confirmation ............................................ ... .... ...................................... .........7 - 2

7.1.1 LED Display When Alarm or Warning Occurs ..........................................................................7 - 3

7.2 Protective Functions List of Units................... ... ... .... ...................................... .... ... ... ... ......................7 - 4

7.2.1 List of Alarms............................................................................................................................ 7 - 4

7.2.2 List of Warnings........................................................................................................................ 7 - 9

7.3 Troubleshooting... ... ....................................... ... ... .... ... ... ....................................... ... ... ....................7 - 10

7.3.1 Troubleshooting at Power ON................................................................................................. 7 - 10

7.3.2 Troubleshooting for Each Alarm No........................................................................................ 7 - 11

7.3.3 Troubleshooting for Each Warning No....................................................................................7 - 36

7.3.4 Parameter Numbers during Initial Parameter Error ................................................................7 - 39

7.3.5 Troubleshooting the Spindle System When There Is No Alarm or Warning...........................7 - 42

8 Maintenance ................................. .... ... ... ... .... ...................................... .... ... ... ... ...................................... 8 - 1

8.1 Periodic Inspections....................... ... ... .... ... ....................................... ... ... ... ... .... ............................... 8 - 2

8.1.1 Inspections................................................................................................................................ 8 - 2

8.1.2 Cleaning of Spindle Motor.........................................................................................................8 - 2

8.2 Service Parts........... ... .... ... ... ....................................... ... ... .... ... ... .................................................... 8 - 14

8.3 Adding and Replacing Units and Parts.... ... ....................................................................................8 - 15

8.3.1 Replacing the Drive Unit........................... ... .... ... ... ... .... ...... ... .... ... ... ... ... .... ... ... ... .... ... ... ..........8 - 15

8.3.2 Replacing the Unit Fan ...........................................................................................................8 - 16

8.3.3 Replacing the Battery..............................................................................................................8 - 19

8.3.4 Replacing the Fuse................................................................................................................. 8 - 21

9 Power Backup System...........................................................................................................................9 - 1

9.1 Deceleration and Stop Function at Power Failure ............................................................................

Spec

9.1.1

9.1.2 Wiring of Deceleration and Stop Function at Power Failure..................................................... 9 - 3

9.1.3 Setup of Deceleration and Stop Function at Power Failure...................................................... 9 - 4

9.2 Retraction function at power failure .................................................................................................. 9 - 6

9.2.1 Wiring of Retraction Function at Power Failure ........................................................................9 - 6

9.2.2 Setup of Retraction Function at Power Failure System............................................................9 - 9

9.3 Explanation of Each Part of Power Backup System ....................................................................... 9 - 11

9.3.1 How to Set Rotary Switch and Dip Switches .......................................................................... 9 - 11

9.3.2 Transition of LED Display After Power Is Turned ON............................................................. 9 - 11

9.4 Troubleshooting for Power Backup System.................................................................................... 9 - 12

9.4.1 LED Display When Alarm or Warning Occurs ........................................................................9 - 12

9.4.2 List of Power Backup Function Alarms................................................................................... 9 - 13

9.4.3 List of Power Backup Function Warnings...............................................................................9 - 13

9.4.4 Troubleshooting for Each Alarm No........................................................................................ 9 - 14

ifications of Stop Method for Deceleration and Stop Function at Power Failure System..9 - 2

9 - 2

9.4.5 Troubleshooting for Each Warning No........ ... ... .... ... ....................................... ... ... ... .... ... ........9 - 17

9.4.6 Trouble Shooting at Power ON......................... .... ... ... ... .... ... ... ....................................... ... .....9 - 18

Appendix 1 Cable and Connector Specifications .................................................................Appendix 1 - 1

Appendix 1.1 Selection of Cable......................... ... ... ... ... .... ... ... ....... ... ... ... .... ... ... ... ... .... ... ... ... . Appendix 1 - 2

Appendix 1.1.1 Cable Wire and Assembly.........................................................................Appendix 1 - 2

Appendix 1.2 Cable Connection Diagram....... .... ... ... ... ... .... ... ...... .... ... ... ... .... ... ... ... ... .... ... ... ... . Appendix 1 - 5

Appendix 1.2.1 Battery Cable ........................................ ... ... ... ....................................... ... . Appendix 1 - 5

Appendix 1.2.2 Power Supply Communication Cable and Connector...............................Appendix 1 - 6

Appendix 1.2.3 Optical Communication Repeater Unit Cable ...........................................Appendix 1 - 7

Appendix 1.2.4 STO Cable ........................................ .... ... ... ....................................... ... ... . Appendix 1 - 7

Appendix 1.2.5 Servo / Tool Spindle Encoder Cable.........................................................Appendix 1 - 8

Appendix 1.2.6 Brake Cable and Connector....................................................................Appendix 1 - 13

Appendix 1.2.7 Spindle Encoder Cable..... .... ... ... ............................................................Appendix 1 - 14

Appendix 1.2.8 Twin-head Magnetic Encoder Cable.......................................................Appendix 1 - 16

Appendix 1.3 Main Circuit Cable Connection Diagram.........................................................Appendix 1 - 17

Appendix 1.4 Connector Outline Dimension Drawings......................................................... Appendix 1 - 18

Appendix 1.4.1 Connector for Drive Unit .........................................................................Appendix 1 - 18

Appendix 1.4.2 Connector for Servo and Tool Spindle.................................................... Appendix 1 - 22

Appendix 1.4.3 Connector for Spindle.............................................................................Appendix 1 - 25

Appendix 1.4.4 Power Backup Unit Connector................................................................Appendix 1 - 27

Appendix 2 Cable and Connector Assembly.........................................................................Appendix 2 - 1

Appendix 2.1 CMV1-xPxxS-xx Plug Connector......................................................................Appendix 2 - 2

Appendix 2.2 1747464-1 Plug Connector...............................................................................Appendix 2 - 8

Appendix 2.2.1 Applicable Products ..................................................................................Appendix 2 - 8

Appendix 2.2.2 Applicable Cable.......................................................................................Appendix 2 - 8

Appendix 2.2.3 Related Documents ..................................................................................Appendix 2 - 8

Appendix 2.2.4 Assembly Procedure.................................................................................Appendix 2 - 8

Appendix 3 D/A Output Specifications for Drive Unit...........................................................Appendix 3 - 1

Appendix 3.1 D/A Output Specifications.................................................................................Appendix 3 - 2

Appendix 3.2 Output Data Settings.... ....... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... ....... ... ... ... .... ... ... ... . Appendix 3 - 3

Appendix 3.2.1 Servo Drive Unit Settings..........................................................................Appendix 3 - 3

Appendix 3.2.2 Spindle Drive Unit Settings.......................................................................Appendix 3 - 5

Appendix 3.3 Setting the Output Magnification.......................................................................Appendix 3 - 8

Appendix 3.3.1 Servo Drive Unit Settings..........................................................................Appendix 3 - 8

Appendix 3.3.2 Spindle Drive Unit Settings.......................................................................Appendix 3 - 9

Appendix 4 Compliance to EC Directives..............................................................................Appendix 4 - 1

Appendix 4.1 Compliance to EC Directives ............................................................................Appendix 4 - 2

Appendix 4.1.1 European EC Directives.............. ... ...........................................................Appendix 4 - 2

Appendix 4.1.2 Cautions for EC Directive Compliance......................................................Appendix 4 - 2

Appendix 5 EMC Installation Guidelines ............... ................................................................Appendix 5 - 1

Appendix 5.1 Introduction .......................................................................................................Appendix 5 - 2

Appendix 5.2 EMC Instructions.... ... ... .... ... ... ... ....... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... ....... ... ... . Appendix 5 - 2

Appendix 5.3 EMC Measures ................................................... ... ....... ... ... .... ... ... ... ... .... ... ... ... . Appendix 5 - 3

Appendix 5.4 Measures for Panel Structure ...........................................................................Appendix 5 - 3

Appendix 5.4.1 Measures for Control Panel Unit...............................................................Appendix 5 - 3

Appendix 5.4.2 Measures for Door ...................................................................................Appendix 5 - 4

Appendix 5.4.3 Measures for Operation Board Panel .......................................................Appendix 5 - 4

Appendix 5.4.4 Shielding of the Power Supply Input

Appendix 5.5 Measures for Various Cables.... ....... .................................................................Appendix 5 - 5

Appendix 5.5.1 Measures for Wiring in Panel....................................................................Appendix 5 - 5

Appendix 5.5.2 Measures for Shield Treatment.................................................................Appendix 5 - 5

Appendix 5.5.3 Servo/Spindle Motor Power Cable............................................................Appendix 5 - 6

Appendix 5.5.4 Servo/Spindle Motor Feedback Cable ......................................................Appendix 5 - 7

Appendix 5.6 EMC Countermeasure Parts.................. ...........................................................Appendix 5 - 7

Appendix 5.6.1 Shield Clamp Fitting..................................................................................Appendix 5 - 7

Appendix 5.6.2 Ferrite Core...............................................................................................Appendix 5 - 8

Appendix 5.6.3 Power Line Filter.......................................................................................Appendix 5 - 8

Appendix 5.6.4 Surge Protector.......................................................................................Appendix 5 - 15

Section

............................................Appendix 5 - 4

Appendix 6 EC Declaration of Conformity.............................................................................Appendix 6 - 1

Appendix 6.1 EC Declaration of Conformity ........................................................................... Appendix 6 - 2

Appendix 6.1.1 Low Voltage Equipment............................................................................ Appendix 6 - 2

Appendix 6.1.2 EMC Directives......................................................................................... Appendix 6 - 3

Appendix 7 Higher Harmonic Suppression Measure Guidelines........................................Appendix 7 - 1

Appendix 7.1 Higher Harmonic Suppression Measure Guidelines.........................................Appendix 7 - 2

Appendix 7.1.1 Calculating the Equivalent Capacity of the Higher Harmonic Generator.. Appendix 7 - 3

Outline for MDS-D2/DH2 Series

Specifications Manual (IB-1501124-B)

1 Introduction

1.1 Servo/Spindle Drive System Configuration

1.1.1 System Configuration

1.2 Explanation of Type

1.2.1 Servo Motor Type

1.2.2 Servo Drive Unit Type

1.2.3 Spindle Motor Type

1.2.4 Tool Spindle Motor Type

1.2.5 Spindle Drive Unit Type

1.2.6 Power Supply Unit Type

1.2.7 AC Reactor Type

2 Specifications

2.1 Servo Motor

2.1.1 Specifications List

2.1.2 Torque Characteristics

2.2 Spindle Motor

2.2.1 Specifications

2.2.2 Output Characteristics

2.3 Tool Spindle Motor

2.3.1 Specifications

2.3.2 Output Characteristics

2.4 Drive Unit

2.4.1 Installation Environment Conditions

2.4.2 Servo Drive Unit

2.4.3 Spindle Drive Unit

2.4.4 Power Supply Unit

2.4.5 Unit Outline Dimension Drawing

2.4.6 AC Reactor

2.4.7 Explanation of Each Part

3 Function Specifications

Function Specifications List

3.1 Base Control Functions

3.1.1 Full Closed Loop Control

3.1.2 Position Command Synchronous Control

3.1.3 Speed Command Synchronous Control

3.1.4 Distance-coded Reference Position Control

3.1.5 Spindle's Continuous Position Loop Control

3.1.6 Coil Changeover Control

3.1.7 Gear Changeover Control

3.1.8 Orientation Control

3.1.9 Indexing Control

3.1.10 Synchronous Tapping Control

3.1.11 Spindle Synchronous Control

3.1.12 Spindle/C Axis Control

3.1.13 Proximity Switch Orientation Control

3.1.14 Power Regeneration Control

3.1.15 Resistor Regeneration Control

3.2 Servo/Spindle Control Functions

3.2.1 Torque Limit Function

3.2.2 Variable Speed Loop Gain Control

3.2.3 Gain Changeover for Synchronous Tapp ing Control

3.2.4 Speed Loop PID Changeover Control

3.2.5 Disturbance Torque Observer

3.2.6 Smooth High Gain Control (SHG Control)

3.2.7 High-speed Synchronous Tapping Control (OMR-DD Control)

3.2.8 Dual Feedback Control

3.2.9 HAS Control

3.2.10 OMR-FF Control

3.2.11 Control Loop Gain Changeover

3.2.12 Spindle Output Stabilizing Control

3.2.13 High-response Spindle Acceleration/Deceleration Function

3.3 Compensation Control Function

3.3.1 Jitter Compensation

3.3.2 Notch Filter

3.3.3 Adaptive Tracking-type Notch Filter

3.3.4 Overshooting Compensation

3.3.5 Machine End Compensation Control

3.3.6 Lost Motion Compensation Type 2

3.3.7 Lost Motion Compensation Type 3

3.3.8 Lost Motion Compensation Type 4

3.3.9 Spindle Motor Temperature Compensation Function

3.4 Protection Function

3.4.1 Deceleration Control at Emergency Stop

3.4.2 Vertical Axis Drop Prevention/Pull-up Control

3.4.3 Earth Fault Detection

3.4.4 Collision Detection Function

3.4.5 SLS (Safely Limited Speed) Function

3.4.6 Fan Stop Detection

3.4.7 Open-phase Detection

3.4.8 Contactor Weld Detection

3.4.9 STO (Safe Torque Off) Function

3.4.10 Deceleration and Stop Function at Power Failure

3.4.11 Retraction Function at Power Failure

3.5 Sequence Functions

3.5.1 Contactor Control Function

3.5.2 Motor Brake Control Function

3.5.3 External Emergency Stop Function

3.5.4 Specified Speed Output

3.5.5 Quick READY ON Sequence

3.6 Diagnosis Function

3.6.1 Monitor Output Function

3.6.2 Machine Resonance Frequency Display Function

3.6.3 Machine Inertia Display Function

3.6.4 Motor Temperature Display Function

3.6.5 Load Monitor Output Function

3.6.6 Open Loop Control Function

3.6.7 Power Supply Diagnosis Display Function

4 Characteristics

4.1 Servo Motor

4.1.1 Environmental Conditions

4.1.2 Quakeproof Level

4.1.3 Shaft Characteristics

4.1.4 Machine Accuracy

4.1.5 Oil / Water Standards

4.1.6 Installation of Servo Motor

4.1.7 Overload Protection Characteristics

4.1.8 Magnetic Brake

4.1.9 Dynamic Brake Characteristics

4.2 Spindle Motor

4.2.1 Environmental Conditions

4.2.2 Shaft Characteristics

4.2.3 Machine Accuracy

4.2.4 Installation of Spindle Motor

4.3 Tool Spindle Motor

4.3.1 Environmental Conditions

4.3.2 Shaft Characteristics

4.3.3 Tool Spindle Temperature Characteristics

4.3.4 Installation of Tool Spindle Motor

4.4 Drive Unit

4.4.1 Environmental Conditions

4.4.2 Heating Value

4.4.3 Drive Unit Arrangement

5 Dedicated Options

5.1 Servo Options

5.1.1 Dynamic Brake Unit (MDS-D-DBU)

5.1.2 Battery Option (ER6V-C119B, A6BAT,

MDS-BTBOX-36)

5.1.3 Ball Screw Side Encoder (OSA105ET2A,

OSA166ET2NA)

5.1.4 Machine Side Encoder

5.1.5 Twin-head Magnetic Encoder (MBA Series)

5.2 Spindle Options

5.2.1 Spindle Side ABZ Pulse Output Encoder

(OSE-1024 Series)

5.2.2 Spindle Side PLG Serial Output Encoder

(TS5690, MU1606 Series)

5.2.3 Twin-head Magnetic Encoder (MBE Series)

5.2.4 Spindle Side Accuracy Serial Output Encod-

er (ERM280, MPCI Series)(Other Manufacturer's

Product)

5.2.5 Machine Side Encoder

5.3 Encoder Interface Unit

5.3.1 Serial Output Interface Unit for ABZ Analog

Encoder MDS-B-HR

5.3.2 Serial Signal Division Unit MDS-B-SD

5.3.3 Pulse Output Interface Unit for ABZ Analog

Encoder IBV Series (Other Manufacturer's Prod-

uct)

5.3.4 Serial Output Interface Unit for ABZ Analog

Encoder EIB192M (Other Manufacturer's Prod-

uct)

5.3.5 Serial Output Interface Unit for ABZ Analog

Encoder EIB392M (Other Manufacturer's Prod-

uct)

5.3.6 Serial Output Interface Unit for ABZ Analog

Encoder ADB-20J Series (Other Manufacture r 's

Product)

5.4 Drive Unit Option

5.4.1 Optical Communication Repeater Unit

(FCU7-EX022)

5.4.2 DC Connection Bar

5.4.3 Side Protection Cover

5.4.4 Power Backup Unit (MDS-D/DH-PFU)

5.4.5 Regenerative Resistors for Power Backup

Unit (R-UNIT-6,7)

5.4.6 Capacitor Unit for Power Backup Unit

(MDS-D/DH-CU)

5.5 Cables and Connectors

5.5.1 Cable Connection Diagram

5.5.2 List of Cables and Connectors

5.5.3 Optical Communication Cable Specifications

6 Specifications of Peripheral Devices

6.1 Selection of Wire

6.1.1 Example of Wires by Unit

6.2 Selection of Circuit Protector and Contactor

6.2.1 Selection of Circuit Protector

6.2.2 Selection of Contactor

6.3 Selection of Earth Leakage Breaker

6.4 Branch-circuit Protection (for Control Power Supply)

6.4.1 Circuit Protector

6.4.2 Fuse Protection

6.5 Noise Filter

6.6 Surge Absorber

6.7 Relay

6.8 Selection of Link Bar

6.8.1 Wire Size for L11 and L21 Link Bar

6.8.2 Wire Size for L+ and L- Link Bar

7 Selection

7.1 Selection of the Servo Motor

7.1.1 Outline

7.1.2 Selection of Servo Motor Capacity

7.1.3 Motor Shaft Conversion Load Torque

7.1.4 Expressions for Load Inertia Calculation

7.2 Selection of the Spindle Motor

7.3 Selection of the Power Supply Unit

7.3.1 Calculation of Spindle Output

7.3.2 Calculation of Servo Motor Output

7.3.3 Selection of the Power Supply Unit

7.3.4 Required Capacity of Power Supply

7.3.5 Example for Power Supply Unit and Power Supply Facility Capacity

7.3.6 Selection of Regenerative Resistor for Power Backup Unit (R-UNIT-6,7) and Capacitor Unit for Power Backup Unit (MDS-D/DH-CU)

Appendix 1 Cable and Connector Specifications

Appendix 1.1 Selection of Cable

Appendix 1.1.1 Cable Wire and Assembly

Appendix 1.2 Cable Connection Diagram

Appendix 1.2.1 Battery Cable Appendix 1.2.2 Power Supply Communication Cable and Connector Appendix 1.2.3 Optical Communication Repeater Unit Cable Appendix 1.2.4 STO Cable Appendix 1.2.5 Servo / Tool Spindle Encoder Cable Appendix 1.2.6 Brake Cable and Connector Appendix 1.2.7 Spindle Encoder Cable Appendix 1.2.8 Twin-head Magnetic Encoder Ca-

ble Appendix 1.3 Main Circuit Cable Connection Diagram

Appendix 1.4 Connector Outline Dimension Drawings

Appendix 1.4.1 Connector for Drive Unit Appendix 1.4.2 Connector for Servo and Tool Spindle Appendix 1.4.3 Connector for Spindle Appendix 1.4.4 Power Backup Unit Connector

Appendix 2 Restrictions for Lithium Batteries

Appendix 2.1 Restriction for Packing

Appendix 2.1.1 Target Products Appendix 2.1.2 Handling by User

Appendix 2.1.3 Reference Appendix 2.2 Products Information Data Shee t (ER Battery) Appendix 2.3 Issuing Domestic Law of the United States for Primary Lithium Battery Transportation

Appendix 2.3.1 Outline of Regulation

Appendix 2.3.2 Target Products

Appendix 2.3.3 Handling by User

Appendix 2.3.4 Reference Appendix 2.4 Restriction Related to EU Battery Directive

Appendix 2.4.1 Important Notes

Appendix 2.4.2 Information for End-user

Appendix 3 Compliance to EC Directives

Appendix 3.1 Compliance to EC Directives

Appendix 3.1.1 European EC Directives

Appendix 3.1.2 Cautions for EC Directive Compli-

ance

Appendix 4 EMC Installation Guidelines

Appendix 4.1 Introduction Appendix 4.2 EMC Instructions Appendix 4.3 EMC Measures Appendix 4.4 Measures for Panel Structure

Appendix 4.4.1 Measures for Control Panel Unit

Appendix 4.4.2 Measures for Door

Appendix 4.4.3 Measures for Operation Board

Panel

Appendix 4.4.4 Shielding of the Power Supply In-

put Section Appendix 4.5 Measures for Various Cables

Appendix 4.5.1 Measures for Wiring in Panel

Appendix 4.5.2 Measures for Shield Treatment

Appendix 4.5.3 Servo/Spindle Motor Power Cable

Appendix 4.5.4 Servo/Spindle Motor Feedback

Cable Appendix 4.6 EMC Countermeasure Parts

Appendix 4.6.1 Shield Clamp Fitting

Appendix 4.6.2 Ferrite Core

Appendix 4.6.3 Power Line Filter

Appendix 4.6.4 Surge Protector

Appendix 5 EC Declaration of Conformity

Appendix 5.1 EC Declaration of Conformity

Appendix 5.1.1 Low Voltage Equipment

Appendix 5.1.2 EMC Directives

Appendix 6 Instruction Manual for Compliance with UL/c-UL Standard

Appendix 6.1 Operation Surrounding Air Ambient Temperature Appendix 6.2 Notes for AC Servo/Spindle System

Appendix 6.2.1 Warning Appendix 6.2.2 Installation Appendix 6.2.3 Short-circuit Ratings (SCCR) Appendix 6.2.4 Over-temperature Protection for Motor Appendix 6.2.5 Peripheral Devices Appendix 6.2.6 Field Wiring Reference Tab le for Input and Output (Power Wiring) Appendix 6.2.7 Motor Over Load Protection Appendix 6.2.8 Flange of Servo Motor Appendix 6.2.9 Spindle Drive/Motor Combinations Appendix 6.2.10 Servo Drive/Motor Combinations

Appendix 6.3 AC Servo/Spindle System Connection

Appendix 6.3.1 MDS-D, D2/DH, DH2/DM, DM2Vx/SP Series Appendix 6.3.2 MDS-D/DH-CV, D/D2-Vx/SPx, DH/DH2-Vx/SPx, DM/DM2-V3 Series with MDSD/DH-PFU Appendix 6.3.3 MDS-D2/DH2-CV, D/D2-Vx/SPx, DH/DH2-Vx/SPx, DM/DM2-V3 Series with MDSD/DH-PFU Appendix 6.3.4 MDS-D-SVJ3/SPJ3/MDS-DJ Series Appendix 6.3.5 MDS-DM, DM2-SPV Series

Appendix 7 Compliance with Restrictions in China

Appendix 7.1 Compliance with China CCC Certification System

Appendix 7.1.1 Outline of China CCC Certification System Appendix 7.1.2 First Catalogue of Products Subject to Compulsory Product Certification Appendix 7.1.3 Precautions for Shipping Products Appendix 7.1.4 Application for Exemption Appendix 7.1.5 Mitsubishi NC Product Subject to/

Not Subject to CCC Certification Appendix 7.2 Response to the China Environment Restrictions

Appendix 7.2.1 Outline of the Law on the Pollution

Prevention and Control for Electronic Information Products Appendix 7.2.2 Response to the Drive Product for Mitsubishi NC Appendix 7.2.3 Indication Based on "Pollution Suppression Marking Request for Electronic Information Product"

For outline dimension drawings, refer to "DRIVE SYSTEM DATA BOOK" (IB-1501142(ENG)) .

< Power Supply specification >

Function Specifications List

MDS-DM2-

Item MDS-D2-CV MDS-DH2-CV

Software version A3 A3 A1 A5 A4 1

Base control functions

4 Protection function

5 Sequence function

6 Diagnosis function

1.14 Power regeneration control

1.15 Resistor regeneration control ---

4.6 Fan stop detection

4.7 Open-phase detection

4.8 Contactor weld detection

4.10 Deceleration and stop function at power failure (Note 1)

4.11 Retraction function at power failure (Note 2)

5.1 Contactor control function

5.3 External emergency stop function

5.5 High-speed READY ON sequence 6-7 Power supply diagnosis display

function

●● ●

●● ● ●●

●● ●

●● ● ●●

●●

●● ● ●●

●● ●

SPV2/3,SPHV3

built-in

converter

---

MDS-DJ-V1/V2

built-in

converter

●●

MDS-DJ-

SP/SP2 built-in

converter

(Note 1) The power backup unit and resistor unit option are requi red. (Note 2) The power backup unit and capacitor unit option are required.

< Servo specification >

Item

Software version A5 A5 A5 A5 A5

1.1 Full closed loop control

1 Base control functions

2 Servo control function

3 Compensation control function

4 Protection function

5 Sequence function

6 Diagnosis function

1.2 Position command synchronous control

1.3 Speed command synchronous control

1.4 Distance-coded reference position control

2.1 Torque limit function (stopper function)

2.2 Variable speed loop gain control

2.3 Gain changeover for synchronous tapping control

2.4 Speed loop PID changeover control

2.5 Disturbance torque observer

2.6 Smooth High Gain control (SHG control)

2.7 High-speed synchronous tapping control (OMR-DD control)

2.8 Dual feedback control

2.9 HAS control

2.10 OMR-FF control

3.1 Jitter compensation

3.2 Notch filter

3.3 Adaptive tracking-type notch filter

3.4 Overshooting compensation

3.5 Machine end compensation control

3.6 Lost motion compensation type 2

3.7 Lost motion compensation type 3

3.8 Lost motion compensation type 4

4.1 Deceleration control at emergency stop

4.2 Vertical axis drop prevention/pull-up control

4.3 Earth fault detection

4.4 Collision detection function

4.5 SLS (Safely Limited Speed) function

4.6 Fan stop detection

4.9 STO (Safe Torque Off) function

5.2 Motor brake control function (Note 1)

5.4 Specified speed output

5.5 Quick READY ON sequence

6.1 Monitor output function

6.2 Machine resonance frequency display function

6.3 Machine inertia display function

MDS-D2-V1/

V2/V3

●●●●

●●●●●

● (Note 2)

●●●●

●●●●●

●●●●

●●●●●

Variable

frequency: 4

Fixed

frequency: 1

●●●●●

●●●

●●●●●

MDS-DH2-V1/

●

Variable

frequency: 4

Fixed

frequency: 1

MDS-DM2-

SPV2/3,

SPHV3

---

Variable

frequency: 4

Fixed

frequency: 1

MDS-DJ-V1 MDS-DJ-V2

Variable

frequency: 4

Fixed

frequency: 1

Variable

frequency: 4

Fixed

frequency: 1

(Note 1) For the multiaxis drive unit, a control by each axis is not available.

It is required to turn the servo of all axes OFF in the drive unit in order to enable a motor brake output.

(Note 2) Always set L-axis as primary axis and M-axis as secondary axis for the speed command synchronous control using

MDS-D2-V3. Other settings cause the initial parameter error alarm.

< Spindle specifications >

Item MDS-D2-SP

Software version A4 A4 A4 A4 A4 A4

1 Base control functions

2 Spindle control functions

3 Compensation control function

4 Protection function

5 Sequence functions

6 Diagnosis functions

1.1 Full closed loop control

1.5 Spindle's continuous position loop control

1.6 Coil changeover control

1.7 Gear changeover control

1.8 Orientation control

1.9 Indexing control

1.10 Synchronous tapping control

1.11 Spindle synchronous control

1.12 Spindle/C axis control

1.13 Proximity switch orientation control

2.1 Torque limit function

2.2 Variable speed loop gain control

2.5 Disturbance torque observer

2.6 Smooth High Gain control (SHG control)

2.7 High-speed synchronous tapping control (OMR-DD control)

2.8 Dual feedback control

2.11 Control loop gain changeover

2.12 Spindle output stabilizing control

2.13 High-response spindle acceleration/ deceleration function

3.1 Jitter compensation

3.2 Notch filter

3.3 Adaptive tracking-type notch filter

3.4 Overshooting compensation

3.6 Lost motion compensation type 2

3.9 Spindle motor temper at u r e compensation function

4.1 Deceleration control at emergency stop

4.3 Earth fault detection

4.5 SLS (Safely Limited Speed) function

4.6 Fan stop detection

4.9 STO (Safe Torque Off) function

5.4 Specified speed output

5.5 Quick READY ON sequence

6.1 Monitor output function

6.2 Machine resonance frequency display function

6.3 Machine inertia display function

6.4 Motor temperature display function

6.5 Load monitor output function

6.6 Open loop control function

●●●●●

●●●●●●

●●

●●●●●●

●●

●●●●●●

●●●●●

●●●●●●

Variable

frequency: 4

Fixed

frequency: 1

●●●●●●

●●●●

●●●●●●

MDS-DH2-SPMDS-D2-

Variable

frequency: 4

Fixed

frequency: 1

SP2

● (Note)

Variable

frequency: 4

Fixed

frequency: 1

MDS-DM2-

SPV2/3,

SPHV3

●

●●

Variable

frequency: 4

Fixed

frequency: 1

MDS-DJ-SP

Variable

frequency: 4

Fixed

frequency: 1

MDS-DJ-

● (Note)

Variable

frequency: 4

frequency: 1

(Note) As for 2-axis spindle drive unit, setting is available only for one of the axes.

SP2

Fixed

1 - 1

Installation

1 Installation

MITSUBISHI CNC

1.1 Installation of Servo Motor

CAUTION

1. Do not hold the cables, axis or encoder when transporting the motor. Failure to observe this could lead to faults or injuries.

2. Securely fix the motor to the machine. Insufficient fixing could lead to the motor deviating during operation. Failure to observe this could lead to injuries.

3. When coupling to a servo motor shaft end, do not apply an impact by hammering, etc. The encoder could be damaged.

4. Never touch the rotary sections of the motor during operations. Install a cover, etc., on the shaft.

5. Do not apply a load exceeding the tolerable load onto the servo motor shaft. The shaft could break. Failure to observe this could lead to injuries.

6. Do not connect or disconnect any of the connectors while the power is ON.

1.1.1 Environmental Conditions

Environment Conditions

Ambient temperature 0°C to +40°C (with no freezing) Ambient humidity 80% RH or less (with no dew condensation) Storage temperature -15°C to +70°C (with no freezing) Storage humidity 90% RH or less (with no dew condensation)

Atmosphere

Altitude

No corrosive gas, inflammable gas, oil mist or dust

Operation / storage: 1000m or less above sea level

Transportation: 10000m or less above sea level

Indoors (no direct sunlight)

1 - 2

MDS-D2/DH2 Series Instruction Manual

1.1 Installation of Servo Motor

1.1.2 Quakeproof Level

Speed (r/min)

1000

2000

3000

Vibration amplitude

(double-sway width) (

100

200

Servo motor

Acceleration

Series Motor type

HF75, 105 HF54, 104, 154, 224, 123, 223, 142 HP54, 104, 154, 224

200V

series

400V

series

HF204, 354, 303, 453, 703, 302 HP204, 354, 454, 704 HF903 HP903, 1103

HF-KP23, 43, 73 HF-H75, 105

HF-H54, 104, 154 HP-H54, 104, 154, 224 HF-H204, 354, 453, 703 HP-H204, 354, 454, 704 HF-H903 HP-H903, 1103

HC-H1502S-S10

The vibration conditions are as show n be lo w .

Axis direction (X)

24.5m/s

(2.5G) or less 24.5m/s2 (2.5G) or less

(2.5G) or less 29.4m/s2 (3G) or less

(1G) or less 9.8m/s2 (1G) or less

9.8m/s

49m/s

(5G) or less 49m/s2 (5G) or less

(2.5G) or less 24.5m/s2 (2.5G) or less

(2.5G) or less 29.4m/s2 (3G) or less

(1G) or less 9.8m/s2 (1G) or less

9.8m/s

(1G) or less 9.8m/s2 (1G) or less

Acceleration direction

Direction at right angle to axis

(Y)

1 - 3

1 Installation

MITSUBISHI CNC

1.1.3 Cautions for Mounting Load (Prevention of Impact on Shaft)

[1] When using the servo motor with key way, use the screw hole at the end of the shaft to mount the pulley onto the

shaft. To install, first place the double-end stud into the shaft screw holes, contact the coupling end surface against the washer, and press in as if tightening with a nut. When the shaft does not have a key way, use a frictional

coupling, etc. [2] When removing the pulley, use a pulley remover, and make sure not to apply an impact on the shaft. [3] Install a protective cover on the rotary sections such as the pulley installed on the shaft to ensure safety. [4] The direction of the encoder installed on the servo motor cannot be changed.

Servo motor

Pulley

Double-end stud

Nut

Washer

CAUTION

Never hammer the end of the shaft during assembly.

1.1.4 Installation Direction

[1] There are no restrictions on the installation direction. Installation in any direction is possible, but as a standard the

motor is installed so that the motor power line and encoder cable cannon plugs (lead -in wires) face downward.

Installation in the standard direction is effective against dripping. Measure to prevent oil and water must be taken

when not installing in the standard direction. When the motor is not installed in the standard direction, refer to

section "Oil/Water Standards" and take the appropriate measures.

The brake plates may make a sliding sound when a servo motor with magnetic brake is installe d with the shaft

facing upward, but this is not a fault.

Down

Standard installation direction

1 - 4

MDS-D2/DH2 Series Instruction Manual

1.1 Installation of Servo Motor

1.1.5 Shaft Characteristics

There is a limit to the load that can be applied on the motor shaft. Make sure that the load applied on the radial direction and thrust direction, when mounted on the machine, is below the tolerable values given below. These loads may affect the motor output torque, so consider them when designing the machine.

Series Servo motor Tolerable radial load Tolerable thrust load

HF75T, 105T (Taper shaft) 245N (L=33) 147N HF75S, 105S (Straight shaft) 245N (L=33) 147N HF54T, 104T, 154T, 224T,123T, 223T, 142T (Taper shaft) 392N (L=58) 490N HF54S, 104S, 154S, 224S,123S, 223S, 142S (Straight shaft) 980N (L=55) 490N HF204S, 354S, 303S, 453S, 703S, 302S (Straight shaft) 2058N (L=79) 980N HF903S (Straight shaft) 2450N (L=85) 980N

200V

series

400V

series

(Note 1) The tolerable radial load and thrust load in the above table are values applied when each motor is used

(Note 2) The symbol L in the table refers to the value of L below.

HP54T, 104T, 154T, 224T (Taper shaft) 392N (L=52.7) 490N HP54S, 104S, 154S, 224S (Straight shaft) 980N (L=52.7) 490N HP204S, 354S, 454S (Straight shaft) 1500N (L=52.7) 490N HP704S (Straight shaft) 1300N (L=52.7) 590N HP903S (Straight shaft) 2500N (L=52.7) 1100N HP1103S (Straight shaft) 2700N (L=52.7) 1500N HF-KP23, 43 (Straight shaft) 245N (L=30) 98N HF-KP73 (Straight shaft) 392N (L=40) 147N HF-H75T, 105T (Taper shaft) 245N (L=33) 147N HF-H75S, 105S (Straight shaft) 245N (L=33) 147N HF-H54T, 104T, 154T (Taper shaft) 392N (L=58) 490N HF-H54S, 104S, 154S (Straight shaft) 980N (L=55) 490N HF-H204S, 354S, 453S, 703S (Straight shaft) 2058N (L=79) 980N HF-H903S (Straight shaft) 2450N (L=85) 980N HP-H54T, 104T, 154T, 224T (Taper shaft) 392N (L=52.7) 490N HP-H54S, 104S, 154S, 224S (Straight shaft) 980N (L=52.7) 490N HP-H204S, 354S, 454S (Straight shaft) 1500N (L=52.7) 490N HP-H704S (Straight shaft) 1300N (L=52.7) 590N HP-H903S (Straight shaft) 2500N (L=52.7) 1100N HP-H1103S (Straight shaft) 2700N (L=52.7) 1500N HC-H1502S-S10 (Straight shaft) 3234N (L=140) 1470N

independently.



Radial load

Thrust load

L: Length from flange installation surface to center of load mass [mm]

1 - 5

1 Installation

MITSUBISHI CNC

CAUTION

1. Use a flexible coupling when connecting with a ball screw, etc., and keep the shaft core deviation to below the tolerable radial load of the shaft.

2. When directly installing the gear on the motor shaft, the radial load increases as the diameter of the gear decreases. This should be carefully considered when designing the machine.

3. When directly installing the pulley on the motor shaft, carefully consider so that the radial load (double the tension) generated from the timing belt tension is less than the values shown in the table above.

4. In machines where thrust loads such as a worm gear are applied, carefully consider providing separate bearings, etc., on the machine side so that loads exceeding the tolerable thrust loads are not applied to the motor.

1.1.6 Machine Accuracy

Machine accuracy of the servo motor's output shaft and around the installation part is as below. (Excluding special products)

Accuracy

Run-out of the flange surface to the output shaft Run-out of the flange surface's fitting outer diameter

Run-out of the output shaft end c 0.02mm 0.02mm 0.03mm 0.03mm

Measurement

point

a 0.05mm 0.06mm 0.08mm 0.08mm

b 0.04mm 0.04mm 0.06mm 0.08mm

Less than 100 SQ. 100 SQ., 130 SQ. 176 SQ. - 250 SQ. 280 SQ. or over

a c

Flange size [mm]

1 - 6

MDS-D2/DH2 Series Instruction Manual

1.1 Installation of Servo Motor

1.1.7 Coupling with the Load

Load shaft

Spun ring

Flexible coupling

Motor shaft

Load shaft

Spun ring

Flexible coupling

Motor shaft

(a) Taper shaft

(b) Straight shaft

There are several ways to couple the motor shaft and machine, such as direct coupling with flexible coupling or rigid coupling, gear connection, timing belt connection, etc. Summarized comparison is as follows.

Degree of

freedom in

motor

installation

△

Cautions in motor

installation

Shaft core deviation

(In the case of single)

Shaft core deviation

Angle deviation

Backlash too small

Pitch diameter too small

Belt stretched too much

Pitch diameter too small

Noise

Direct coupling

with

flexible coupling

Direct coupling

with

rigid coupling

Gear ××

Timing belt

◯◯◯ ◯

△◯◯

lubric

ation

Backl

Rigidity

ash

△△

Reliability

in coupling

◯

Looseness of bolt

◯

Looseness of bolt

△

Tooth chipping

Belt is broken

Torque

Life

increased at deceleration

◯

△◯ ◯

××

◯◯

CAUTION

If the cautions in motor installation in the above table are not observed, the motor will have a broken shaft, or the bearing will have a shorter life. Carry out design and installation adjustment so that the load on the motor shaft will be below the tolerable loads mentioned in "Shaft Characteristics".

(1) Direct coupling - Flexible coupling

When coupling the load directly, a flexible coupling is recommended. The benefits of a flexible coupling are as below. (a) Shaft's angle deviation and core deviation can be absorbed to some extent, so adjustment in motor installation

is easier. However, in the case of single, shaft core deviation cannot be allowed, so it is required to design and adjust so that the shaft cores of the motor and ball screw align. Check the specification of the coupling to use. If the shaft core deviation exceeds the coupling's tolerable level, the motor will have a broken shaft, or the bearing will have a shorter life. Thus, in order to simplify the installation adjustment, use a double flexible coupling.

(b) Less looseness produces less vibration and less noise at the coupling part.

On the other hand, if assembling is loose, lower rigidity may be caused. When using a coupling with lower rigidity, the accuracy in centering the core doesn't have to be high, however, it is undesirable for servo. In order to fully utilize the servo's effici en cy t o e n sure the maximum durability of the equipments, it is required to use a highly rigid coupling, and to fully align the shaft cores in the initial installation. It is also required to select the optimum flexible coupling according to the working conditions, and use it correctly according to the manufacturer's specification manual.

Example of direct coupling with load

1 - 7

1 Installation

MITSUBISHI CNC

(2) Direct coupling - Rigid coupling

Load side

Coupling

Motor side

0.01mm or less

Load side

Motor side

Example of gear connection with load

A rigid coupling has benefits such as high rigidity, and relatively lower price. However, shaft core deviation and angle deviation of the motor shaft and ball screw are not allowed, so full attention is required in installing the rigid coupling. Shaft core deviation is desired to be 0.01mm or less. If enough accuracy cannot be ensured, the motor will have a broken shaft, or the bearing will have a shorter life. In addition, note that a rigid coupling is not acceptable for HF-KP Series servo motors.

Also note that the motor side ball screw bearing must be locked so that to avoid the thrust load on the motor shaft due to expansion and contraction of the ball screw.

(3) Gear connection

Gear's accuracy and backlash amount greatly affect on the machine's positioning accuracy and noise during operation. Thus, according to the machine's specification, appropriately select the accuracy and backlash amount. In gear connection, it is required to take measures against oil to enter the motor.

1.1.8 Oil / Water Standards

(1) The motor protective format uses the IP type, which complies with IEC Standard.

However, these Standards are short-term performance specifications. They do not guarantee continuous environmental protection characteristics. Measures such as covers, etc., must be taken if there is any possibility that oil or water will fall on the motor, and the motor will be constantly wet and permeated by water. Note that the motor's IP-type is not indicated as corrosion-resistant.

1 - 8

Oil or water

Servo motor

MDS-D2/DH2 Series Instruction Manual

1.1 Installation of Servo Motor

(2) When a gear box is installed on the servo motor, make sure that the oil level height from the center of the shaft is higher

than the values given below. Open a breathing hole on the gear box so that the inner pressure does not rise.

Series Servo motor Oil level (mm)

HF75, 105 15 HF54, 104, 154, 224, 123, 223, 142 22.5 HP54, 104, 154, 224 20 HF204, 354, 303, 453, 302 30

200V

series

400V

series

HP204, 354, 454, 704 25 HF703 30 HF903 34 HP903, 1103 30 HF-KP23, 43 12.5 HF-KP73 15 HF-H75, 105 15 HF-H54, 104, 154 22.5 HP-H54, 104, 154, 224 20 HF-H204, 354, 453 30 HP-H204, 354, 454, 704 25 HF-H703 30 HF-H903 34 HP-H903, 1103 30 HC-H1502S-S10 45

Gear

Servo motor

Oil level

Lip

Oil seal

(3) When installing the servo motor horizontally, set the power cable and encoder cable to face downward. When installing

vertically or on an inclination, provide a cable trap.

Cable trap

CAUTION

1. The servo motors, including those having IP67 specifications, do not have a completely waterproof (oil-proof) structure. Do not allow oil or water to constantly contact the motor, enter the motor, or accumulate on the motor. Oil can also enter the motor through cutting chip accumulation, so be careful of this also.

2. When the motor is installed facing upwards, take measures on the machine side so that gear oil, etc., does not flow onto the motor shaft.

1 - 9

1 Installation

MITSUBISHI CNC

(4) Do not use the unit with the cable submerged in oil or water.

<Fault> Capillary tube phenomenon

Servo motor

Lubricating oil

(Refer to following drawing.)

Cover

Servo motor

Oil water

(5) Make sure that oil and water do not flow along the cable into the motor or encoder.

(Refer to right drawing.)

Cover

Servo motor

<Fault> Respiration

(6) When installing on the top of the shaft end, make sure that oil from the gear box, etc., does not enter the servo motor.

The servo motor does not have a waterproof structure.

Gear

1.1.9 Installation of Servo Motor

Mount the servo motor on a flange which has the following size or produces an equivalent or higher heat dissipation effect:

1 - 10

Flange size (mm) Servo motor capacity

150×150×6 100W

250×250×6 200 to 400W 250×250×12 0.5 to 1.5kW 300×300×20 2.0 to 7.0kW 800×800×35 9.0 to 11.0kW

MDS-D2/DH2 Series Instruction Manual

1.1 Installation of Servo Motor

1.1.10 Cable Stress

Encoder cable bending life

(Material of Mitsubishi optional encoder cable: A14B2343)

(Note) The values in this graph are calculated values and are not guaranteed.

4 7 10 20 40 70 100 200

1× 10

5× 10

2× 10

1× 10

5× 10

2× 10

1× 10

5× 10

2× 10

1× 10

5× 10

3× 10

Bending radius (mm)

No. of bends (times)

4 7 10 20 40 70 100 200

3 x 104

5 x 104

1 x 105

2 x 105

5 x 105

1 x 106

2 x 106

5 x 106

1 x 107

2 x 107

5 x 107

1 x 108

[1] Sufficiently consider the cable clamping method so that bending stress and the stress from the cable's own weight

is not applied on the cable connection part.

[2] In applications where the servo motor moves, make sure that excessive stress is not applied on the cable.

If the encoder cable and servo motor wiring are stored in a cable bear and the servo motor moves, make sure that the cable bending part is within the range of the optional encoder cable. Fix the encoder cable and power cable enclosed with the servo motor.

[3] Make sure that the cable sheathes will not be cut by sharp cutting chips, worn or stepped on by workers or vehicles.

The bending life of the encoder cable is as shown below. Regard this with a slight allowance. If the servo mo tor/spindle motor is installed on a machine that moves, make the bending radius as large as possible.

1 - 11

1 Installation

MITSUBISHI CNC

1.2 Installation of Spindle Motor

CAUTION

1. Do not hold the cables, axis or encoder when transporting the motor. Failure to observe this could lead to faults or injuries.

2. Securely fix the motor to the machine. Insufficient fixing could lead to the motor deviating during operation. Failure to observe this could lead to injuries.

3. When coupling to a servo motor shaft end, do not apply an impact by hammering, etc. The encoder could be damaged.

4. Never touch the rotary sections of the motor during operations. Install a cover, etc., on the shaft.

5. Do not apply a load exceeding the tolerable load onto the servo motor shaft. The shaft could break. Failure to observe this could lead to injuries.

6. Do not connect or disconnect any of the connectors while the power is ON.

7. When coupling the motor directly with the spindle, perform the adequate centering and parallel correcting with the axis to

be coupled. The vibration of the motor should be 4.9m/s

8. Perform a running-in before operating the machine.

1.2.1 Environmental Conditions

Environment Conditions

Ambient temperature 0°C to +40°C (with no freezing) Ambient humidity 90%RH or less (with no dew condensation) Storage temperature -20°C to +65°C (with no freezing) Storage humidity 90%RH or less (with no dew condensation)

Atmosphere

Altitude Vibration

(Note) Refer to each spindle motor specifications for details on the spindle motor vibration class.

Indoors (Where unit is not subject to direct sunlight)

No corrosive gases, flammable gases, oil mist or dust

Operation/storage: 1000m or less above sea level

(0.5G) or less after balancing the spindle unit.

Transportation: 10000m or less above sea level

X:29.4m/s

(3G) Y:29.4m/s2 (3G)

1 - 12

MDS-D2/DH2 Series Instruction Manual

1.2 Installation of Spindle Motor

1.2.2 Balancing the Spindle Motor (Unit)

Load side bracket (axial direction)

Counter load side bracket (horizontal)

Load

side bracket (horizontal, vertical)

Locations where motor vibration is measured

Measuring device

Coupling

Cushioning mat

When a spindle motor is driven at a high speed with unbalance generated on the rotor, the whirling load is generated and the load to the motor's internal bearings is increased. Thus abnormal vibration, and/or damages known as fretting or flaking occurs to the bearings, which may result in shorter bearing life. Therefore, it is important to balance the rotation so that great vibration does not occur during rotation at high speed. When balancing the spindle motor, perform to the entire rotational objects including the gear, pulley, coupling, etc. that are attached directly on the motor shaft. Provide a balancing mechanism including screw holes on the fittings while measuring the vibration so that the vibration is suppressed to the specified level or lower during high speed rotation.

(1) Fittings for the motor shaft

When you select fittings for the motor shaft, such as a gear, pulley, and coupling, choose those that meet the motor specifications (shaft diameter, rotation speed and output torque).

CAUTION

1. We consider key-less shaft as standard in order to simplify balancing procedure of such as gear, pulley, and coupling. We recommend you to choose a gear, pulley and coupling that have a fully symmetric shape, and arrange screw holes on their end faces at short and equal intervals in the circumferential direction.

2. Use a fastener such as a shaft lock element to fix those fittings to the motor shaft.

3. When you attach fittings to the motor shaft, be careful not to apply excessive impact by striking with a hammer, etc. This may cause the shaft distortion and bearing damage.

4. When using screws for balancing, apply thread locker on the screws after balancing.

(2) How to measure the unbalance

After attaching the fittings such as gear, pulley, and coupling, carry out no-load operation, and use an accelerometer or vibrometer compatible with frequency analysis to confirm the vibration on the points as illustrated below (on the brackets where the bearings are stored). Make sure to place the motor on a cushioning mat to avoid vibration to the spindle from external sources during measurement. Reaction torque is generated when accelerating/decelerating the motor, so securely fix the motor with a belt, etc. to avoid rolling during measurement.

1. Make sure to place the motor on a cushioning mat to avoid resonance with surrounding devices during measurement.

2. Always secure the spindle motor body with a belt, etc. to prevent it from rolling due to the reaction torque generated

CAUTION

during acceleration/deceleration.

1 - 13

1 Installation

MITSUBISHI CNC

(3) How to balance the rotation

Find out the rotation speed at which the vibration reaches the maximum, within the actual rotation speed range of the spindle motor. Run the motor at the speed found above and perform balancing to minimize the vibration. When balancing is decided, measure the vibration at different roration speeds and make a further fine adjustment so that

the vibration acceleration generated is always 0.5G (4.9m/s

) or less.

(The vibration acceleration of 0.5G is about 4.7μm when expressed in terms of the amplitude at the rotation speed of 10,000r/min. The higher the rotation speed is, the smaller the corresponding amplitude becomes.)

Confirm the vibration in the motor rotation

speed range

Distinguish the resonance (rotation) speed

Balancing

Vibration acceleration

ӌ0.5G(4.9m/s )

YES

Confirm the vibration in the motor rotation

speed range

Vibration acceleration

ӌ0.5G(4.9m/s )

YES

Installing the spindle motor

Confirm the vibration after the installation

1 - 14

MDS-D2/DH2 Series Instruction Manual

1.2 Installation of Spindle Motor

1.2.3 Shaft Characteristics

There is a limit to the load that can be applied on the motor shaft. Make sure that the load applied on the radial direction, when mounted on the machine, is below the tolerable values given below. These loads may affect the motor output torque, so consider them when designing the machine.

Series Spindle motor Tolerable radial load

SJ-VL11-05FZT-S01 98N SJ-VL2.2-02ZT 196N

200V

series

400V

series

SJ-DL5.5/150-01T, SJ-DL5.5/200-01T,SJ-V3.7-02ZT,SJ-VL11-02FZT, SJ-VL18.5-05FZT SJ-DL0.75/100-01T, SJ-DL1.5/100-01T 490N SJ-D3.7/100-01, SJ-D5.5/120-02,SJ-DJ5.5/100-01,SJ-DJ5.5/120-01, SJ-DL7.5/150-01T,SJ-V2.2-01T,SJ-V7.5-03ZT SJ-D5.5/100-01, SJ-D5.5/120-01,SJ-DJ7.5/100-01, SJ-DJ7.5/120-01 1470N SJ-D7.5/100-01,SJ-D7.5/120-01,SJ-D11/100-01,SJ-DJ11/100-01, SJ-DJ15/80-01,SJ-V11-08ZT,SJ-V11-13ZT,SJ-V11-01T SJ-V22-06ZT 2450N SJ-V15-01ZT,SJ-V15-09ZT,SJ-V18.5-01ZT,SJ-V18.5-04ZT,SJ-V22-01ZT, SJ-V22-04ZT,SJ-V26-01ZT,SJ-V11-09T,SJ-V15-03T,SJ-V18.5-03T,SJ-V22-05T SJ-V37-01ZT, SJ-V45-01ZT, SJ-V22-09T, SJ-VK22-19ZT 3920N SJ-V55-01ZT 5880N

SJ-4-V2.2-03T, SJ-4-V3.7-03T, SJ-4-V3.7-05ZT,SJ-4-V7.5-13ZT 980N SJ-4-V5.5-07T 1470N SJ-4-V7.5-12T, SJ-4-V11-18ZT, SJ-4-V11-23ZT 1960N SJ-4-V26-08ZT 2450N SJ-4-V15-18T, SJ-4-V18.5-14T, SJ-4-V22-15T, SJ-4-V22-18ZT, SJ-4-V30-15ZT, SJ-4-V11-21T, SJ-4-V15-20T, SJ-4-V18.5-17T, SJ-4-V22-16T SJ-4-V37-04ZT, SJ-4-V45-02T 3920N SJ-4-V55-03T 5880N

245N

980N

1960N

2940N

Radial load

(Note) The load point is at the one-half of the shaft length.

CAUTION

Consider on the machine side so that the thrust loads are not applied to the spindle motor.

1.2.4 Machine Accuracy

Machine accuracy of the spindle motor's output shaft and around the installation part is as below. (Excluding special products)

Accuracy

Run-out of the flange surface to the output shaft a 0.03mm 0.05mm Run-out of the flange surface's fitting outer diameter b 0.02mm 0.04mm Run-out of the output shaft end c 0.01mm 0.02mm

Measurement

point

A71, B71, A90, B90,

C90, D90, A112, B112

(Note) Refer to Specifications Manual for the frame number of each spindle motor.

a c

Frame No.

A160, B160, C160, A180, B180, A225

1 - 15

1 Installation

MITSUBISHI CNC

1.2.5 Coupling with the Fittings

Standard installation direction for connector connection type

Down

[1] If the selection or tension of belt is incorrect, an excessive force is applied to the shaft end and bearings, which may

result in shorter life or damages. We recommend you to adjust the dynamic balance (field balance) before fastening

a belt. [2] When the load by the belt exceeds the tolerable radial load of the moto r, reselect the motor or belt/pulley. [3] The position deviation in the axial direction between the motor pulley and spindle side pulley should be as small as

possible and perform parallel correcting carefully.

1.2.6 Ambient Environment

If you continue to use the spindle motor with dirt such as oil mist and dust adhered, its cooling performance degrades and the motor is unable to fully exercise its performance, which may cause the spindle motor overheat alarm. In some cases this may result in damage to the bearing or cooling fan. Use a filter, etc. to protect the motor from oil mist and dust.

1.2.7 Installation of Spindle Motor

Make sure that the spindle motor is installed so that the motor shaft points from downward to 90° as shown below. When installing upward more than 90°, contact your Mitsubishi Electric dealer.

The spindle motor whose motor power line and detection lead wires are connected with connectors, as a standard, should be installed with the connectors facing down. Installation in the standard direction is effective against dripping. Measure to prevent oil and water must be taken when not installing in the standard direction.

CAUTION

1. Rubber packing for waterproof is attached on the inner surface of the top cover of terminal block. After checking that the packing is installed, install the top cover.

2. When installing a motor on a flange, chamfer(C1) the part of flange that touches inside low part of the motor.

To yield good cooling performance, provide a space of at least 30mm between the cooling fan and wall. If the motor is covered by a structure and the air is not exchanged, its cooling performance degrades and the motor is unable to fully exercise its performance, which may cause the spindle motor overheat alarm. Do not use the spindle motor in an enclosed space with little ventilation.

30mm or more

Cooling fan

wall

1 - 16

MDS-D2/DH2 Series Instruction Manual

1.2 Installation of Spindle Motor

1.2.8 Connection

Outer diameter

(1) Cable wiring

When connecting the power line to the terminal block, tighten the screws with proper torque as shown below.

Screw size Proper torque [N•m]

M4 2.0 M5 2.5 M6 3.0 M8 10.0

CAUTION

1. When connecting the power line to the terminal block, tighten the screws with proper torque described in this section.

2. Make sure to connect the terminal to the terminal block. If running the motor with the terminal loosened, fires could be caused by motor overheat, and earth fault, short circuit and electric shocks could be caused by disconnection of the terminal.

3.To keep the insulation distance, always cover crimp terminals with insulation tubes when connecting crimp terminals at the end of the power line.

(2) Connection of conduit connector

When installing a connector to a terminal box, select a water proof connector with rubber packing and prevent conductive foreign matter and other combustible foreign matter from entering through the wiring hole on the terminal box. Use a smaller nut than the following size to fix the connector on the terminal box. For the wiring hole diameter, refer to "DRIVE SYSTEM DATA BOOK (IB-1501142(ENG)) ". Prepare a bushing, nut, and O-ring when using a connector smaller than the wiring hole on the terminal box.

SJ-V/SJ-VL/SJ-PMF/SJ-4-V Series

Wiring hole diameter [mm] Outer diameter [mm]

SJ-D/SJ-DJ Series

Wiring hole diameter [mm] Outer diameter [mm]

Φ35 Φ58 Φ44 Φ58 Φ51 Φ93 Φ63 Φ93

Φ44 Φ56

1 - 17

1 Installation

MITSUBISHI CNC

Connection method to a screwless terminal block for fan motor

(1) Lead-out length

Strip the sheath of the cable in the range of 8 to 9mm with an appropriate tool. Applicable cable size: 0.08mm2 to 2.5mm2 (28AWG to 12AWG)

(2) Tool

Use a flat-blade screwdriver whose blade edge size is 0.6×3.5mm for connecting.

(3) Work procedure

(a) Insert the edge of screwdriver into the insertion point (small square hole) in a diagonal direction. When the

spring touches the blade edge, push the screwdriver down to the position that hits a conductive plate, tilting it in the inside direction of terminal block. In this state, the spring is completely opened and the screwdriver is held to the terminal block. Make sure that the screwdriver is completely held, not to create difficulties in inserting the cable for the next procedure.

(b) Check the stripped length of cable (8 to 9mm) and insert the cable end slowly along the outside of the insertion

point (big square hole) as far as it will go, not to unravel wires. Make sure not to push thin cables too much.

cable will be connected.

(d) Gently pull the cable to make sure the connection. No need for a strong pull.

[4]

[2]

Wire

[3]

[1]

Conductive plate

Screwdriver

Spring

CAUTION

1. Connection of a cable is restricted to one to one spring.

2. For connecting a cable, both twisted wire and solid wire can be used as it is without termination after the sh eath has been stripped. The cable attached with bar terminal can also be connected.

1.2.9 Cable Stress

[1] Do not apply the bending stress and the stress from the cable's own weight on the cable connection part. [2] Make sure that the cable sheathes will not be cut by sharp cutting chips, worn or stepped on by workers or vehicles.

1 - 18

MDS-D2/DH2 Series Instruction Manual

1.3 Installation of Tool Spindle Motor



Radial load

Thrust load

1.3.1 Environmental Conditions

Environment Conditions

Atmosphere

Altitude Vibration

No corrosive gas, inflammable gas, oil mist or dust

Operation/storage: 1000m or less above sea level

Transportation: 10000m or less above sea level

1.3.2 Shaft Characteristics

Tool spindle motor Tolerable radial load Tolerable thrust load

HF-KP46, 56 245N (L=30) 98N HF-KP96 392N (L=40) 147N HF-SP226, 406 980N(L-55 490N HF75S, 105S 245N (L=33) 147N HF54S, 104S, 154S, 224S 980N (L=55) 490N HF204S, 354S,453S,703S 2058N (L=79) 980N HF903S 2450(L=85) 980N

(Note 1) The tolerable radial load and thrust load in the above table are values applied when each motor is used

independently.

(Note 2) The symbol L in the table refers to the value of L below.

Indoors (no direct sunlight)

X:19.6m/s

(2G) Y:19.6m/s2 (2G)

L: Length from flange installation surface to center of load mass [mm]

1.3.3 Installation of Tool Spindle Motor

Mount the servo motor on a flange which has the following size or produces an equivalent or higher heat dissipation effect:

Flange size (mm) Tool spindle motor capacity

250×250×6 400W 250×250×12 0.5 to 1.5kW 300×300×20 2.0 to 3.0kW 800×800×35 9.0kW

1 - 19

1 Installation

MITSUBISHI CNC

1.4 Installation of the Drive Unit

CAUTION

1. Install the unit on noncombustible material. Direct installation on combustible material or near combustible materials may lead to fires.

2. Follow the instructions in this manual and install the unit while allowing for the unit mass.

3. Do not get on top of the units or motor, or place heavy objects on the unit. Failure to observe this could lead to injuries.

4. Always use the unit within the designated environment conditions.

5. Do not let conductive objects such as screws or metal chips, etc., or combustible materials such as oil enter the units.

6. Do not block the units intake and outtake ports. Doing so could lead to failure.

7. The units and servo motor are precision devices, so do not drop them or apply strong impacts to them.

8. Do not install or run units or servo motor that is damaged or missing parts.

9. When storing for a long time, please contact your dealer.

10. Always observe the installation directions. Failure to observe this could lead to faults.

11. Secure the specified distance between the units and panel, or between the units and other devices. Failure to observe this could lead to faults.

1.4.1 Environmental Conditions

Environment Conditions

Ambient temperature 0°C to +55°C (with no freezing) Ambient humidity 90% RH or less (with no dew condensation) Storage temperature -15°C to +70°C (with no freezing) Storage humidity 90% RH or less (with no dew condensation)

Atmosphere

Altitude Vibration

(Note) When installing the machine at 1,000m or more above sea level, the heat dissipation characteristics

will drop as the altitude increases in proportion to the air density. The ambient temperature drops 1% with every 100m increase in altitude. When installing the machine at 1,800m altitude, the heating value of the drive unit must be reduced to 92% or less. The heating value is proportional to the square of the current, and required current decreasing rate follows the expression below.

Required current decreasing rate =

Therefore, use the unit with the reduced effective load rate to 95% or less.

Indoors (no direct sunlight);

no corrosive gas, inflammable gas, oil mist, dust or conductive fine particles

Operation/storage: 1000m or less above sea level

Transportation: 13000m or less above sea level

Operation/storage: 4.9m/s

(0.5G) or less Transportation: 49m/s2(5G) or less

0.92 = 0.95

1 - 20

MDS-D2/DH2 Series Instruction Manual

1.4 Installation of the Drive Unit

1.4.2 Installation Direction and Clearance

60mm/67mm

92mm

Exhaust

Inlet

Filter

100mm or more

1mm or more

60mm

260 mm

100mm or more

10mm

80mm

or more

100mm or more

60mm

Exhaust

75mm or more

114mm or more

Radiation fin size Installation clearance A

Install a partition plate inside to separate inlet and exhaust.

Fan inlet hole

Wire each unit in consideration of the maintainability and the heat dissipation, as well as secure sufficient space for ventilation.

Installation clearance

CAUTION

1. The ambient temperature condition for the power supply unit or the drive units is 55°C or less.

2. Because heat can easily accumulate in the upper portion of the units, give sufficient consideration to heat dissipation when designing the panel. If required, install a fan in the panel to agitate the heat in the upper portion of the units.

Panel structure of the unit back face

The type ‘(a)’ that has substantial cooling effect is recommended.

(a) Back face inlet type

Filter

Cooling will be more highefficiency by installing a partition plate inside to separate inlet and exhaust.

(b) Side face inlet type

Filter

Fan inlet hole

1 - 21

1 Installation

MITSUBISHI CNC

Cooling fan position

غ40

105

غ60

105

غ 60

170

غ92.5

105

غ92.5

170

غ92.5

105

غ92.5

170

200

150

69.25

190

101.5

غ 92.5

240

130

غ 120  2

190

300

غ 92.5

(MDS-D2-SP-320) (* MDS-D2/DH2-CV-300 to 450)

60mm width

unit

150mm width

unit

< MDS-D2/DH2-V1/V2/SP/SP2 Series >

[Unit: mm]

90mm width

unit

240mm width

unit

120mm width

unit

150mm width

300mm width

unit

1 - 22

MDS-D2/DH2 Series Instruction Manual

1.4 Installation of the Drive Unit

< MDS-D2-V3 Series >

The drive unit of MDS-D2-V3 Series has a cooling fan in the top.

Cooling fan

Top view

CAUTION

1. Design the inlet so that it is the position of the cooling fan.

2. Make the inlet and exhaust size more than the area that is a total of the cooling fan area.

1.4.3 Prevention of Entering of Foreign Matter

Treat the cabinet with the following items. (1) Make sure that the cable inlet is dust and oil proof by using packing, etc. (2) Make sure that the external air does not enter inside by using head radiating holes, etc. (3) Close all clearances of the cabinet. (4) Securely install door packing. (5) If there is a rear cover, always apply packing. (6) Oil will tend to accumulate on the top. Take special measures such as oil-proofing to the top so that oil does not

enter the cabinet from the screw holds.

(7) After installing each unit, avoid machining in the periphery. If cutting chips, etc., stick onto the electronic parts,

trouble may occur.

(8) When using the unit in an area with toxic gases or high levels of dust, protect the unit with air purging (system to

blow clean air so that the panel's inner pressure is higher than the outer pressure).

1 - 23

1 Installation

MITSUBISHI CNC

1.4.4 Panel Installation Hole Work Drawings (Panel Cut Drawings)

Prepare a square hole to match the unit width.

[Unit: mm]

2-M5 screw hole

Square hole

Unit width:

60mm

342

360

2-M5 screw hole

Square hole

Unit width:

90mm

342

360

2-M5 screw hole

Square hole Square hole

112

Unit width: 120mm

360

342

4-M5 screw hole

142

Unit width:

150mm

342

360

POINT

Attach packing around the square hole to provide a seal.

1 - 24

MDS-D2/DH2 Series Instruction Manual

1.4 Installation of the Drive Unit

120

360

180

Square hole Square hole

[Unit: mm]

341

360

341

POINT

222

Unit width:

240mm

4-M5 screw hole

Attach packing around the square hole to provide a seal.

282

Unit width:

300mm

4-M5 screw hole

1 - 25

1 Installation

MITSUBISHI CNC

1.4.5 Heating Value



50%

100%

100%

Unit Load rate

Servo drive unit

Spindle drive unit

Power supply unit

The values for the servo drive unit apply at the stall output. The values for the spindle drive unit apply for the continuous rated output. The values for the power supply unit include the AC reactor's heating value.

< MDS-D Series >

Servo drive unit Spindle drive unit Power supply unit

Heating value

Type

MDS-

D2-

V1-20 18 22 V2-2020 26 44 SP-20 24 31

V1-40 20 38 V2-4020 28 60 SP-40 29 65

V1-80 25 71 V2-4040 31 75 SP-80 37 121 V1-

160 V1-

160W V1-

320 V1-

320W

[W]

In-

side

panel

36 148

44 201

59 307

72 399

Type

Out-

side

panel

MDS-

V2-8040 35 109

V2-8080 40 142 V2-

16080 V2-

160160 V2-

160160W V3-

202020 V3-

404040

D2-

Heating value

[W]

In-

Out-

side

panel

51 219

62 296

77 403

89 0

159 0

Type MDS-

D2-

SP160

SP200

SP240

SP320

SP400

SP640

Heating value

[W]

In-

Out-

side

panel

side

panel

54 236

78 404

100 520

118 688

148 897

196 1231

< MDS-DH2 Series >

Type

MDS-

D2-

SP22020

SP24020

SP24040S

SP24040

SP28040

SP216080S

SP28080

SP216080

Heating value

[W]

In-

Out-

side

panel

28 62

33 96

38 130

46 186

70 358

54 242

70 358

Power backup

unit

Heating value

Type

MDS-

D2-

CV-37 20 34 PFU 15

CV-75 24 55 CV-

110 CV-

185 CV-

300 CV-

370 CV-

450 CV-

550

[W]

In-

side

panel

25 99

32 161

45 272

53 343

104 392

164 431

Outside

panel

Type

MDS-

D-

Heating

value

[W]

Servo drive unit Spindle drive unit Power supply unit

Type

MDS-

DH2-

V1-10 19 27 V2-1010 28 54 SP-20 32 88 CV-37 20 34 PFU 15 V1-20 22 46 V2-2010 30 74 SP-40 42 158 CV-75 24 55 V1-40 27 87 V2-2020 33 93 SP-80 54 237 CV-110 25 99 V1-80 40 175 V2-4020 39 133 SP-100 73 369 CV-185 32 161 V1-80W 47 222 V2-4040 45 173 SP-160 110 639 CV-300 45 272 V1-160 62 328 V2-8040 57 262 SP-200 126 746 CV-370 53 343 V1-160W 81 461 V2-8080 70 350 SP-320 168 1034 CV-450 104 392 V1-200 105 630 V2-8080W 83 445 SP-480 232 1488 CV-550 164 431

Heating value [W] Inside

panel

Outside

panel

Type

MDS-

DH2-

Heating value [W]

Inside

panel

Outside

panel

Type MDSDH2-

Heating value [W]

Inside

panel

Outside

panel

Type

MDS-

DH2-

CV-750 228 614

Heating value [W]

Inside

panel

Outside

panel

Power backup

unit

Type

Heating

MDS-

DH-

value

[W]

POINT

1. Design the panel's heating value taking the actual axis operation (load rate) into consideration.

2. The heating values in the above tables are calculated with the following load rates.

1 - 26

MDS-D2/DH2 Series Instruction Manual

1.4 Installation of the Drive Unit

1.4.6 Heat Radiation Countermeasures

(1) Heat radiation countermeasures in the control panel

In order to secure reliability and life, design the temperature in the panel so that the ambient temperature of each unit is 55°C or less. If the heat accumulates at the top of the unit, etc., install a fan or heat exchanger so that the temperature in the panel remains constant.

Please refer to following method for heat radiation countermeasures.

Calculate total heat radiation of each

unit in panel (W)

Calculate panel’s cooling capacity

Manufacturing and evaluation

(W1)

Comparison of

W and W1

W҇W1

Evaluate temperature

in panel

T 10

W>W1

Consider heat

exchanger

Consider adding fan or

heat exchanger

T > 10

[1] Average temperature in panel: T

[2] Panel peripheral temperature: Ta

[3] Internal temperature rise value:

<Point>

[1] Refer to the section “ Heating Value” for the heat

generated by each unit.

[2] Refer to the following calculation for calculation W1 of the

panel’s cooling capacity (thin steel plate).

W1 = U x A x

U: 6W/m

A: Effective heat radiation area [m

T: Internal temperature rise value (10°C)

[3] Points in manufacturing and evaluation

Understanding the temperature rise in the panel, and

install a fan or heat exchanger.

T (average value) 10°C

(maximum value) 15°C

max

x °C (with internal agitating fan)

4W/m

x °C (without internal agitating fan)

㧔

Heat dissipation area in panel㧕

Sections contacting other objects are excluded.

55°C

0 to 45°C

T=T-Ta

max

]

=10°C

Completion

Examples of mounting heat exchanger and temperature measurement positions (reference)

Flow of air

Relay, etc

Heat

exchanger

Unit

Heat exchanger

Relay, etc

Unit

Flow of air

Temperature measurement positions

1 - 27

1 Installation

MITSUBISHI CNC

The following shows a calculation example for considering heat radiation countermeasures.

A=0.6×0.3＋0.6×0.6×2＋0.6×0.3×2=1.26(m)

(Top face) (Front/back face)

(Side face)

< Control panel outline dimension (assumption) >

When installing four units which have the heating value in the panel of 15W

Top of panel inside Fan for agitating

600

300

Heat radiation area (A): When a bottom section contacts with a machine

600

(Note) Actually, sections contacting other objects are excluded.

Heating value in panel (W): when installing four units which are 15W

W = 15 × 4 = 60 (W)

< Considering necessity of agitating fan >

1 Temperature standard

(1) Standard of temperature in panel (around each unit) T ≦ 55°C (2) External peripheral temperature Ta = 0 to 45°C (3) Internal temperature rise value DT = T - Ta (MAX) = 10°C

2 Cooling capacity of control panel (W1)

W1 = U × A × DT DT = Internal temperature rise value (=10°C)

U = 6W/m 4W/m A = Effective heat radiation area (m

• °C (with internal agitating fan)

• °C (without internal agitating fan)

) (1) With internal agitating fan W1 = 6 × 1.26 × 10 = 75.6 (W) > 60 (W) (2) Without internal agitating fan W1 = 4 × 1.26 × 10 = 50.4 (W) < 60 (W) -- Internal fan is required.

POINT

Measure an actual internal temperature, and install a fan or heat exchanger which agitates the heat at the top of the unit if the temperature rise exceeds 10°C.

1 - 28

MDS-D2/DH2 Series Instruction Manual

1.4 Installation of the Drive Unit

(2) Heat radiation countermeasures outside the control panel

Measure the temperature at 40mm form tops of all units, and design the temperature rise so that it is 20°C or less against the ambient temperature. If the temperature rise at the temperature measurement position exceeds 20°C, consider adding a fan.

40mm

Side face Back face

Temperature measurement position

POINT

The temperature of some units may rise locally, because air accumulates at a particular point. Therefore, take a temperature measurement in each unit. If a temperature at even one point exceeds 20°C in the temperature measurements, take a heat radiation countermeasure such as addicting fans.

1 - 29

1 Installation

MITSUBISHI CNC

1.5 Installation of the Machine End Encoder

Opposite encoder shaft side

Flexible coupling



1.5.1 Spindle Side ABZ Pulse Output Encoder (OSE-1024 Series)

To maintain the encoder life and performance, a flexible coupling should be used to couple the spindle side encoder and C-axis encoder with the spindle.

Encoder

0.02

Encoder and coupling installation accuracy

Recommended coupling

Recommendation 1 Recommendation 2

Manufacturer Tokushu Seiko Eagle Model Model M1 FCS38A Resonance frequency 1374Hz 3515Hz

Position detection error Tolerable speed 20,000r/min 10,000r/min

Mis-alignment

Outline dimensions

Core deviation 0.7mm 0.16mm

Angle displacement 1.5° 1.5°

Max. length 74.5mm 33mm

Max. diameter φ57mm φ38mm

0.8×10

-3

° 1.2×10-3 °

CAUTION

Confirm that the gear ratio (pulley ratio) of the spindle end to the encoder is 1:1.

Refer to the coupling catalog, etc., for details on the coupling.

1 - 30

MDS-D2/DH2 Series Instruction Manual

1.5 Installation of the Machine End Encoder

1.5.2 Spindle Side PLG Serial Output Encoder (TS5690, MU1606 Series)

Detection gears

Sensor section

Output connector



※Thermal sensor

terminals

※Thermal sensor terminals are not used when the encoder is installed on the spindle side.

(1) Part configuration

The encoder is configured of a sensor and detection gear. The sensor and detection gear must be used in the designated combination. These are precision parts, and require care when handling. Do not apply an excessive force on the sensor's detection surface, as this could result in faults. Do not pull and apply a load on the lead wires. Make sure that foreign matters (iron chips, etc.) do not get on the sensor's detection surface or detection gears. If any foreign matter should get on these parts, carefully remove while taking care not to damage the parts. When handling the detection gears, take care not to damage or deform the teeth.

Spindle side PLG serial output encoder TS5690 Series

(2) Installing the detection gears

[1] Install the detection gears so that the first gear's teeth side (Z phase) face the sensor's lead side. [2] The detection gears and shaft or sleeve should be fixed with shrink fitting. Refer to the following table for the

shrink fitting values. The detection gears should be heated evenly between 120 and 150°C using an electric furnace, etc.

Guideline for detection gear shrink fitting values

Inner diameter (mm) Shrink fitting (mm) Inner diameter (mm) Shrink fitting (mm)

φ40 0.020 to 0.040 φ140 0.050 to 0.085 φ70 0.030 to 0.055 φ160 0.060 to 0.090 φ80 0.030 to 0.055 φ215 0.080 to 0.110

φ125 0.050 to 0.085

[3] Keep the run-out of the outer diameter, when the detection gears are installed on the shaft, to 0.02mm or less. [4] To remove a detection gear fixed with shrink fitting, use the screw holes opened in the axial direction for pulling

(two M5 screw holes or two M8 screw holes), or push the end with a jig. Carry out this work carefully. Applying excessive force when pulling out the gears could cause the inner diameter of the detection gears to deform.

[5] Before reusing detection gears which have been removed, always measure the inner diameter dimensions,

and carefully check that the inner diameter is not deformed, and that the sufficient tightening amount can be secured. Do not reuse the detection gears if the inner diameter is deformed, or if any abnormality such as damage to the teeth is found.

1 - 31

1 Installation

MITSUBISHI CNC

(3) Installing the sensor section

16.5mm

22.5mm ± 0.25mm

Sensor installation surface

Sensor installation seat

Installing the detector

R section

phase side

Run-out of the outer

diameter

0.02 mm or le ss

To the end of the outer diameter

[1] Prepare the notched fitting section at the machine side's installation

position to be of the specified dimensions in advance.

[2] With the sensor installation seat's R section butted against the

notched fitting section, fix the sensor installation seat with a mounting screw (M5 × 0.8 screws). A locking agent should be applied on the mounting screw before it is tightened.

[3] Fix the sensor with its R section butted against the notched fitting

section so that the position relation between the detection gear and sensor is kept constant. This ensures favorable accuracy of the sensor installation.

[4] Keep the deviation of the sensor center and outer diameter center of

the detection gear to ±0.25mm or less. If the center deviation cannot be directly measured, set so that the dimension from the sensor installing surface to the outer diameter edge of the detection gears is

22.5±0.25mm. (Some detection gears have thickness at the inner diameter section.)

[5] Make sure that force is not constantly applied on the sensor's lead

wires.

[6] Check the gap between the encoder sensor and the gear (0.3±0.05mm).

POINT

Lead wire

To install the sensor section, the notched fitting section on the machine side must have the specified dimensions. The sensor's installation accuracy is assured by adjusting the outside dimensions of the notched fitting section.

3.0mm

Butt the back side of the sensor installation seat against here

Butt the R section of the sensor installation seat against here

Notched section's outer diameter



Screw holes' height from the rotation center

2-M5×0.8 screw



 

Shape of notched fitting section

Installing dimension of the sensor sec t io n

Sensor series type

Screw holes’ height from the

rotation center (mm)

Notched fitting section's outer

TS5690N6400 51.4 φ72.0 TS5690N1200 77.0 φ122.0 TS5690N2500 128.2 φ223.6

38mm

Notched section's outer diameter

diameter (mm)

+0.060

-0.010 +0.025

-0.025 +0.025

-0.025



1 - 32

MDS-D2/DH2 Series Instruction Manual

1.5 Installation of the Machine End Encoder

(4) Installation accuracy diagnosis for spindle side PLG encoder

CAUTION

Do not operate the spindle before performing this installation accuracy diagnosis. If operated with an improperly installed spindle side PLG encoder, the spindle motor may rotate at high speed. Always perform this diagnosis before normal operation.

[1] Outline

In this section, check if the installation polarity of spindle side PLG encoder corresponds to the parameter setting, and the gap between the gear and the sensor is appropriate. In a full-closed loop control where the encoder is also installed on the spindle side, it is controlled based on the feedback of the spindle side encoder during the speed command operation (S command). Do not command a normal spindle operation before confirming the installation accuracy of the spindle side encoder.Spindle side PLG encoders (TS5690 Series) have the specified gap from the gear by installing the sensor section on the machine-notched fitting section. Whether a signal is detected correctly or not can be confirmed using the servo diagnosis screen on NC while rotating the spindle motor in an open loop control.

[2] Confirmation of encoder installation pola rity

Open the drive monitor/spindle unit on the NC Diagnosis screen, and display "Machine position", "Motor end FB" and "FB error".Confirm that "Machine position" and "Motor end FB" are counted on the same polarity, and that "FB error" is not cumulated while rotating the spindle by hand. When the polarity of "Machine position" and "Motor end FB" is different and "FB error" is cumulated, change the setting of #13017/bit4(SP017/bit4).Set the spindle parameter so that the spindle system is in a full-closed loop control during this confirmation.

- #13019(SP019) Set the encoder resolution of spindle side PLG encoder correctly

- #13031(SP031) Set to full closed loop control (6200)

[3] Confirmation of encoder installation accuracy

Whether the gap between the sensor section and the gear is ensured correctly or not can be confirmed using the servo diagnosis screen, [PLG diagn] on NC while rotating the spindle motor in an open loop control. Confirm it according to the following procedures.

1) Power ON the spindle drive unit and the NC.

2) Set the spindle parameter #13018/bit1 (SP018/bit1) to 1, and set to an open loop control.

3) Turn the NC power OFF and then ON again.

4) Rotate the spindle by inputting 100r/min command. Although this is the same as normal S command operation, neither the spindle side encoder feed back or the motor side encoder feed back is used for the motor control on the spindle drive unit since the open loop control is set with the spindle parameter.

5) Switch to the [Servo diagn] menu on the NC maintenance screen and change from [Spindle unit] to [PLG diagn].When all the diagnosis signal bits are constantly at "0", the installation of PLG encoder is normal. When the diagnosis signal bit is "1", the result of diagnosis is abnormal. Perform troubleshooting following "(4) Diagnosis and remedy" by reference to the error details and main cause.

6) Set the spindle parameter #13018/bit1 (SP018/bit1) to 0 again and finish the open loop control.

CAUTION

The spindle PLG diagnosis is only performed during the open loop control operation.Diagnosis screen is displayed even during the normal operation, however, the error detection ("1" display) will not be performed.

1 - 33

1 Installation

MITSUBISHI CNC

Information for spindle PLG diagnosis (For details of each diagnosis signal bit, refer to the next page.)

When an error is detected with spindle PLG diagnosis →

"1" is displayed on the corresponding diagnosis signal bit

Spindle

motor

Spindle

MU1606 (Gear)

TS5690 (Sensor)

Spindle

gear

Motor gear

MU1606 (Gear)

TS5690 (Sensor)

Open loop

Power ON

)

Judgment with the diagnosis signal bit by the PLG diagnosis display

NC power ON again

Open loop control parameter setting

Spindle rotation with 100r/min command

Item Details

Encoder Diagn L Display the motor end PLG diagnosis signal bit 7 to 0.

Encoder Diagn H D isplay the motor end PLG diagnosis signal bit F to 8.

Sub Encoder Diagn L Display the machine end PLG diagnosis signal bit 7 to 0.

Sub Encoder Diagn H Display the machine end PLG diagnosis signal bit F to 8.

Details of each diagnosis signal bit which is displayed as information for spindle PLG diagnosis are shown in the following table.

1 - 34

To CN2

To CN3

Installation diagnosis for spindle side PLG encoder

MDS-D2/DH2 Series Instruction Manual

1.5 Installation of the Machine End Encoder

Diagnosis

signal bit

0 A-phase amplitude excessive The A-phase amplitude is larger than the specified value. Too small gap 1 A-phase amplitude too small The A-phase amplitude is smaller than the specified value. Excessive gap

3 A-phase offset excessive - The A-phase offset is larger than the specified value to - side. 4 B-phase amplitude excessive The B-phase amplitude is larger than the specified value. Too small gap

5 B-phase amplitude too small The B-phase amplitude is smaller than the specified value. Excessive gap 6

7 B-phase offset excessive - The B-phase offset is larger than the specified value to - side. 8 Z-phase width excessive The Z-phase width is larger than the specified value. [AL2C factor] Too small gap

9 Z-phase width too small The Z-phase width is smaller than the specified value. Excessive gap A Z-phase error incorrect output

B Z-phase error sliver waveform C Z-phase error no signal The Z-phase signal is not detected. [AL2C factor] Excessive gap, detection gear error

D-- E Z-phase error logic reversed The Z-phase logic (normally positive) is reversed. [AL2C factor] Detection gear error F-- -

Error details Description Main factor

A-phase offset excessive ＋

B-phase offset excessive ＋

The A-phase offset is larger than the specified value to + side.

The B-phase offset is larger than the specified value to + side.

The relation of the phases between AB and Z is abnormal. [AL2C factor]

The deviation between the sensor and the center of the gear

The deviation between the sensor and the center of the gear The deviation between the sensor and the center of the gear

The deviation between the sensor and the center of the gear

[4] Diagnosis and remedy

When the diagnosis signal bit on [PLG diagn] is "1", check the installation of the PLG encoder again. <When the waveform of spindle end PLG installation gap diagnosis is abnormal>

The gap between the sensor section and the gear may deviate from the specified value. Confirm that the sensor section is installed on the notched fitting section properly. Also confirm that the notched fitting section is machined properly based on the specified dimensions for each PLG encoder.

The sensor section may deviate from the center of the gear. Confirm the installation of the sensor section and the gear.

CAUTION

1. When finely adjusting the sensor installation position, adjust after turning the power of the drive unit OFF.

2. "00000000" is also displayed in the following cases. (1) When the spindle parameter #13018/bit1(SP018/bit1) is 0 (open loop disabled) (2) When the spindle side PLG encoder (TS5690 Series) is not connected

1 - 35

1 Installation

MITSUBISHI CNC

【#13017(PR)】 SP017 SPEC1 Spindle specification 1

bit 4 : fdir Position feedback

Set the machine side encoder's installation polarity. 0: Forward polarity 1: Reverse polarity

【#13018(PR)】 SP018 SPEC2 Spindle specification 2

bit 1 : oplp Open loop control

This allows the operation in which no encoder feedback signals are used. It is used when adjusting the encoder, etc. 0: Disable 1: Enable

【#13113】 SP113 OPLP Current command value for open loop

Set the current command value for when the open loop control is enabled. When "0" is set, the state will be the same as when "50" is set. When not using, set to "0". The open loop control is enabled when "SP018/bit1" is set to "1".

---Setting range---

0 to 999 (Short-time rated %)

1 - 36

MDS-D2/DH2 Series Instruction Manual

1.5 Installation of the Machine End Encoder

1.5.3 Twin-head Magnetic Encoder (MBA405W, MBE405W Series)

CAUTION

1. Handle with care as this is a precision component. Especially, do not apply external force on the sensor head component (thin metal film section) and the magnetized section (magnet) of the magnetic drum.

2. Pay attention not to apply excessive external force on the product by hauling the sensor head cable strongly or by hanging the installation ring with holding the cable. Applying such force will cause a fault.

3. The magnetic drum has magnets in it. Pay attention so that any magnetic dust will not adhere on the drum. If any dust adheres on it, remove it using air blow.

4. Do not make magnetic screw drivers or tools touched the magnetized section of the magnetic drum during installation.

5. Use iron screws (carbon steel, chromium molybdenum steel) for fixing the magnetic drum.

6. This product is equivalent of IP67 (IP67 is realized when cables are connected to all connectors). Note that, however, if the liquid such as oil, cutting fluid or water is constantly splashed on the product, it may cause a fault. Make sure to provide measures against splash on the machine side as much as possible.

7. Connect the preamp to the ground. Screw the preamp cabinet on the machine for grounding.

8. If the CN3 connector of the preamp is not used when using the product, leave the cap on it to prevent water from entering.

9. Accuracy of this product has been adjusted as a set of magnetic drum, installation ring (with main head and sub head) and preamp of the same serial No. So use this product as a set of those components. Note that normal accuracy cannot be achieved if this is replaced with another set having a different serial No.

[Method for checking the serial No.] Check the serial No. of magnetic drum, installation ring (with main head and sub head) and preamp with each nameplate sticker attached on the following part.

< Preamp >

(1) Check part for preamp

X X X X X X X ENCODER MB X 405W -B X X X X

X X X X 䃩䃩䃩䃩䃩䃩

< Magnetic drum / installation ring >

Make sure that the serial Nos. (䧵 6 digits) of the nameplate stickers attached on the above three parts are the same.

(2) Check part for installation ring

(3) Check part for

magnetic drum

䃩䃩䃩䃩䃩䃩

10. This product compensates an offset deviation with age in analog signals.

1 - 37

1 Installation

MITSUBISHI CNC

(1) Installing a magnetic drum

0.01

0.015

R0..2

or less

Shaft

Flange

Centering track part

Iron-based screw

Magnetizing part

(magnet)

Magnetic drum

installation hole

Design the flange's outer diameter ǾB to have the clearance (0.1mm) from the magnetic drum's inner diameter that allows the run-out of the shaft rotation center to be 15mm or less. *If the gap is large, adjustment may take time and if it is too small, the run-out cannot be adjusted.

Install a flange on the shaft side and fix with screw in the axial direction by using the magnetic drum installation hole. Center the core with centering track so that the amplitude to the shaft rotation center is 15μm or less to install

the magnetic drum.

[Unit:mm]

1. To avoid the interference with the sensor head, design the flange outer diameter φC so that it is equal to the magnetic

2. Fix the magnetic drum with screw on the shaft. (Do not fix with shrink fitting.)

3. Center the core with centering track. Do not perform by striking on the magnetizing part as it may result in damages.

4. Adherence of magnetic materials to the magnetizing part could lead to incorrect detections. Perform an air blow when

CAUTION

drum outer diameter or less.

the core alignment is completed.

Type

MBA405W-BE082 MBE405W-BE082

MBA405W-BF125 MBE405W-BF125

MBA405W-BG160 MBE405W-BG160

Centering track

outer diameter [mm]

φ98

φ148.3

φ198.6

Magnetic drum installation hole

position [mm]

8-φ3.4 through (evenly spaced

around φ90 circumference)

8-φ4.5 through (evenly spaced

around φ134 circumference)

8-φ4.5 through (evenly spaced

around φ170 circumference)

Installation

screw

Recommended

screw torque

M3 0.61 to 0.83

M4 1.39 to 1.89

M5 2.75 to 3.63

[N•m]

1 - 38

MDS-D2/DH2 Series Instruction Manual

1.5 Installation of the Machine End Encoder

(2) Installing a installation ring

R1.0

ǾD

0.015

0.02

Installation ring

or less

Spigot-joint

Sensor head

Flange

Shaft

Create a spigot-joint on machine side and fit the installation ring on the inner diameter of the spigot-joint to install the installation ring. Ensure the accuracy for the dimension of machine side spigot-joint as shown below so as not to degrade the detection accuracy. Confirm the gap between the magnetic drum and the sensor head is secured by 0.29mm or more with clearance gauge etc. after the installation.

[Unit:mm]

CAUTION

1. Do not contact to the magnetic drum when installing the installation ring as it may result in damages of magnetic drum or sensor head.

2. The sensor head is joined after adjusting the positional relationship with the installation ring beforehand, so do not remove the sensor head fixing screw.

3. Create a spigot-joint as close to the machine side and fit the installation ring on the spigot-joint to install. Do not center the core by striking on the installation ring outer diameter. etc.

4. Adherence of foreign materials to the element part of the sensor head (metallic thin film part) could lead to incorrect detections. Remove with an air blow when foreign materials are adhered so as not to damage them.

[Unit:mm]

Height from installation ring

bottom surface to magnetic

drum bottom surface

(F)

MBA405W-BE082 MBE405W-BE082

MBA405W-BF125 MBE405W-BF125

MBA405W-BG160 MBE405W-BG160

Type

Installation ring

outer diameter

φ140

φ190

φ242

-0.015 0

-0.015

Spigot-joint

inner diameter

(φD)

+0.015

φ140

0 +0.015

φ190

0 +0.015

φ242

Spigot-joint

height

(E)

3.0 to 5.5 9.5±0.2

3.0 to 7.5 11.5±0.2

3.0 to 9.5 13.5±0.2

1 - 39

1 Installation

MITSUBISHI CNC

(3) For Z-phase signal detection

Magnetic drum

Forward run

After turning the encoder power ON, Z-phase signal is required to be detected by the main head (Z-phase signal position mark is required to pass the main head). For the device configuration which the magnetic drum cannot drive more than one rotation, install the encoder so that Z-phase can pass the main head in the shaft stroke.

Main head

Z-phase signal position mark

(4) For the rotation direction of the encoder

Seeing a encoder from the upper surface as shown below, when the magnetic drum rotates clockwise is the forward run. Confirm the rotation direction of the encoder and motor by reference to each motor specifications.

(5) For MBA405W (absolute encoder)

The initial setup operation is required after the operation is enabled for NC system to connect MBA405W to the servo drive unit. Refer to "4.2.2 Setting of Machine Side Encoder" for details. The initial setup is required only for the first time after installing the encoder to the machine.

1 - 40

MDS-D2/DH2 Series Instruction Manual

1.6 Noise Measures

Noise includes "propagation noise" generated from the power supply or relay, etc., and propagated along a cable causing the power supply unit or drive unit to malfunction, and "radiated noise" propagated through air from a peripheral device, etc., and causing the power supply unit or drive unit to malfunction. Always implement these noise measures to prevent the peripheral devices and unit from malfunctioning. The measures differ according to the noise propagation path, so refer to the following explanation and take appropriate measures.

(1) General noise measures

(a) Avoid laying the drive unit's power line and signal wire in a parallel or bundled state. Always separate these

wires. Use a twisted pair shielded wire for the encoder cable and signal wires such as the communication

cable connected with the NC unit, and accurately ground the devices. (d) Ground the shield of the servo encoder's cable with a cable clamp. (c) Accurately ground th e AC reactor.

(2) Propagation noise measures

Take the following measures when noise generating devices are installed and th e power supply unit or drive unit could malfunction. (a) Install a surge killer on devices (magnetic contacts, relays, etc.) which generate high levels of noise. (b) Install a power line filter in the stage before the power supply unit. (c) Install a ferrite core on the signal wire. (d) Ground the shield of the servo encoder's cable with a cable clamp. (e) Wire the spindle PLG encoder cable away from other wires.

(3) Measures against radiated noise

The types of propagation paths of the noise and the noise measures for each propagation path are shown below.

Noise generated from drive unit

Airborne propagation noise

Magnetic induction noise

Static induction noise

Cable propagation noise

Path [4]

and [5]

Noise directly radiated from drive unit

Noise radiated from power line

Noise radiated from servo motor/spindle motor

Noise propagated over power line

Noise lead in from grounding wire by leakage current

Path [1]

Path [2]

Path [3] Path [6]

Path [7]

Path [8]

1 - 41

1 Installation

MITSUBISHI CNC

[5]

[7]

[2]

[1]

[3]

Servo motor Spindle motor

[2]

Drive

unit

[6]

[4]

Instrument

[7]

Receiver

Generated noise of drive system

Noise propagation path Measures

When devices such as instrument, receiver or sensor, which handle minute signals and are easily affected by noise, or the signal wire of these devices, are sto r ed in the same panel as the drive units and the wiring is close, the device could malfunction due to airborne propagation of the noise. In this case, take the following measures. (a) Install devices easily affected as far away from the drive units as possible.

[1] [2] [3]

(b) Lay devices easily affected as far away from the signal wire of the drive unit as possible. (c) Avoid laying the signal wire and power line in a parallel or bundled state. (d) Insert a line noise filter on the input/output wire or a radio filter on the input to suppress the noise radiated from the wires. (e) Use a shield wire for the signal wire and power line, or place in separate metal ducts.

If the signal wire is laid in parallel to the power line, or if it is bundled with the power line, the noise could be propagated to the signal wire and cause malfunction because of the magnetic induction noise or static induction noise. In this case, take the following measures.

[4] [5] [6]

(a) Install devices easily affected as far away from the drive unit as possible. (b) Lay devices easily affected as far away from the signal wire of the drive unit as possible. (c) Avoid laying the signal wire and power line in a parallel or bundled state. (d) Use a shield wire for the signal wire and power line, or place in separate metal ducts.

If the power supply for the peripheral devices is connected to the power supply in the same system as the drive units, the noise generated from the power supply unit could

[7]

back flow over the power line and cause the devices to malfunction. In this case, take the following measures. (a) Install a radio filter on the power supply unit's power line. (b) Install a power filter on the power supply unit's power line.

If a closed loop is created by the peripheral device and drive unit's grounding wire, a

[8]

leakage current could flow and cause the device to malfunction. In this case, change the device grounding methods and the grounding place.

Sensor

power supply

Sensor

[8]

1 - 42

2 - 1

Wiring and Connection

2 Wiring and Connection

MITSUBISHI CNC

WARNING

Servo drive unit

Control output signal

COM (24VDC)

1. Wiring work must be done by a qualified technician.

2. Wait at least 15 minutes after turning the power OFF and check the voltage with a tester, etc., before starting wiring. Failure to observe this could lead to electric shocks.

3. Securely ground the drive units and servo/spindle motor.

4. Wire the drive units and servo/spindle motor after installation. Failure to observe this could lead to electric shocks.

5. Do not damage, apply forcible stress, place heavy items on the cables or get them caught. Failure to observe this could lead to electric shocks.

6. Always insulate the power terminal connection section. Failure to observe this could lead to electric shocks.

CAUTION

1. Correctly and securely perform the wiring. Failure to do so could result in runaway of the servo/spindle motor or injury.

2. Do not mistake the terminal connections.

3. Do not mistake the polarity ( + , - ). Failure to observe this item could lead to ruptures or damage, etc.

4. Do not mistake the direction of the diodes for the surge absorption installed on the DC relay for the motor brake and contactor (magnetic contactor) control. The signal might not be output when a failure occurs.

5. Electronic devices used near the drive units may receive magnetic obstruction. Reduce the effect of magnetic obstacles by installing a noise filter, etc.

6. Do not install a phase advancing capacitor, surge absorber or radio noise filter on the power line (U, V, W) of the servo/ spindle motor.

7. Do not modify this unit.

8. If the connectors are connected incorrectly, faults could occur. Make sure that the connecting position and the connection are correct.

9. When grounding the motor, connect to the protective grounding terminal on the dri ve units, an d ground from the other protective grounding terminal.(Use one-point grounding) Do not separately ground the connected motor and drive unit as noise could be generated.

2 - 2

MDS-D2/DH2 Series Instruction Manual

2.1 Part System Connection Diagram

(PE)

CN24

CN41

MDS-D2/DH2

CN23

CN8

CN5

CN8

CN20

CN5

Optical communication cable

: Control circuit

SH21 cable

reactor

Machine side encoder

External emergency

stop input

: Main circuit

Spindle

motor

Motor side encoder

Servo motor

Optical communication cable

Mitsubishi CNC

Spindle drive unitPower supply unit

Servo drive unit

Servo motor

Circuit

protector

Circuit

protector

ە: Ground

OPT1,2

CN1A

CN1B

CN1A

CN1B

24VDC

Ground

Contactor

EMG2

EMG1

MC1

MC2

L11

L21

TE1

TE3

TE2

CN4

CN9

L-

Ground

CN4

CN9

L+

L-

L11

L21

TE2

TE3

TE1

CN3

CN2

Ground

PLG

CN4

CN9

L+

L-

L11

L21

TE2

TE3

TE1

CN3L

CN3M

CN2L

CN2M

Ground

(Note 1) The total length of the optical communication cable from the NC must be within 30m and the minimum-bending

radius within 80mm. (Note 2) The connection method will differ according to the used mo tor. (Note 3) Battery for the encoder back up is built-in the drive unit. (An external battery is available as an option.)

(Note 4) The main circuit ( ◎ ) and control circuit ( ○ ) and ground ( ● ) are safely separated. (Note 5) Connect the ground of the motor to the ground of the connected drive unit.

2 - 3

2 Wiring and Connection

MITSUBISHI CNC

2.2 Main Circuit Terminal Block/Control Circuit Connector

2.2.1 Names and Applications of Main Circuit Terminal Block Signals and Control Circuit Connectors

The following table shows the details for each terminal block signal.

Name Signal name Description

Main circuit power supply input terminal

L1, L2, L3

L11, L21

MC1, MC2 Contactor control Contactor control terminal

U, V, W

LU, LV, LW

MU, MV, MW

LU, LV, LW

MU, MV, MW

SU, SV, SW

Main circuit power supply

Control circuit power supply

Motor output (Single-axis unit)

Motor output (Triple-axis unit)

Protective grounding (PE)

For MDS-D2 : Connect a 3-phase 200VAC (50Hz) or 200 to 230VAC (60Hz) power supply. For MDS-DH2 : Connect a 3-phase 380V to 440VAC (50Hz) / 380V to 480VAC (60Hz) power supply.

Control circuit power supply input terminal For MDS-D2 : Connect a single-phase 200VAC (50Hz) or 200 to 230VAC (60Hz) power supply. For MDS-DH2 : Connect a single-phase 380V to 440VAC (50Hz) / 380V to 480VAC (60Hz) power supply.

Servo/spindle motor power output terminal The servo/spindle motor power terminal (U, V, W) is connected.

Servo motor power output terminal (L-axis/M-axis) The servo/spindle motor power terminal (U, V, W) is connected.

Servo motor power output terminal (L-axis/M-axis/S-axis)) The servo/spindle motor power terminal (U, V, W) is connected.

Grounding terminal The servo motor/spindle motor grounding terminal is connected and grounded.

CAUTION

1. Always use one AC reactor per power supply unit. Failure to observe this lead to unit damage.

2. When sharing a circuit protector for several power supply units, of a short-circuit fault occurs in a small capacity unit, the circuit protector could trip. This can be hazardous, so do not share the circuit protector.

3. Be sure to use the circuit protector of proper capacity for each power supply unit.

2 - 4

MDS-D2/DH2 Series Instruction Manual

2.2 Main Circuit Terminal Block/Control Circuit Connector

2.2.2 Connector Pin Assignment

[2]

[3]

[1]

under

develop-

ment

[2]

[3]

[4]

[1]

1.2Nm

M4 x 12

U V W



Compatible unit

Screw size

Tightening torque

All of CV

(Note) This is a bottom view.

under

develop-

ment

under

development

2.0Nm

M5 x 12



U V W

Compatible unit

Screw size Tightening torque

All of CV

4.0Nm

M6 x 16

L+

L-

Compatible unit

Screw size Tightening torque

All of CV

M4 × 12

1.2Nm

L11 L21

Compatible unit

Screw size Tightening torque

All of CV

CAUTION

Do not apply a voltage other than that specified in Instruction Manual on each terminal. Failu re to observe this item could lead to rupture or damage, etc.

(1) Main circuit terminal block and connector Power supply unit

Unit Terminal

Terminal

position

MDS-D2-CV-37 to 75

MDS-D2-CV-110 to 185

MDS-DH2-CV-37 to 185

[1] TE1

Terminal

specification/

assignment

[2] TE2

[3] TE3

- The PE screw size is the same as TE1.

[4]

(Note) The illustrations of drive units are shown as an example.

2 - 5

2 Wiring and Connection

MITSUBISHI CNC

Unit

[2]

[3]

[4]

[1]

[2]

[3]

[4]

[2]

[1]

6.0Nm

M8 x 16

U V W

Compatible unit

Screw size

Tightening torque

All of CV

11.0Nm

M10 x 20

M8 x 15

6.0Nm

Compatible unit

Screw size

Tightening torque

550 to 750

D2-CV

DH2-CV

550

4.0Nm

M6 x 16

M10 x 20

11. 0Nm

L+

L-

M6 x 16

4.0Nm

Compatible unit

Screw size

Tightening torque

300 to 750

D2-CV

DH2-CV --

300 to 450

550 Left side 550 Right side

11.0Nm

M10 x 20

M8 x 16

6.0Nm

Compatible unit

Screw size

Tightening torque

D2-CV

DH2-CV

550

550 to 750

Terminal

position

MDS-D2-CV-300 to 450

MDS-DH2-CV-300 to 450

MDS-D2-CV-550

MDS-DH2-CV-550 to 750

Terminal

specification/

assignment

[1] TE1

[2] TE2

[3] TE3

L11 L21

Compatible unit

Screw size

Tightening torque

D2-CV

DH2-CV

300 to 450

M4 x 12

1.2Nm

U V W

550300 to 450

550 to 750

M4 x 8

1.2Nm

(Note) The illustrations of drive units are shown as an example.

2 - 6

[4]

Screw size: M8×14

Tightening torque: 6.0Nm

MDS-D2/DH2 Series Instruction Manual

2.2 Main Circuit Terminal Block/Control Circuit Connector

1-axis servo drive unit / 1-axis spindle drive unit

[2]

[3]

[1]

[4]

[2]

2.0Nm

M5 x 12

M8 x 12

6.0Nm

U V W

Compatible unit

Screw size

Tightening torque

240 to 320

DH2-V1DH2-SP-

320W

D2-V1D2-SP-

160W to 320

160 to 200

160 to 160W

100 to 160

Unit Terminal

Terminal

position

MDS-D2-V1-160 or less

MDS-D2-SP-80 or less

MDS-DH2-V1-80W or less

MDS-DH2-SP-80 or less

U V W

MDS-D2-V1-160W or more

MDS-D2-SP-160 to 320

MDS-DH2-V1-160 to 160W

MDS-DH2-SP-100 to 160

[3]

[1]

[4]

[1] TE1

Terminal

(Note) This is a bottom view.

specification/

assignment

L+

[2] TE2

L-

[3] TE3

L11 L21

[4]

Screw size: M5×12

Tightening torque: 2.0Nm

(Note) The illustrations of drive units are shown as an example.

Compatible unit

Screw size Tightening torque

Compatible unit

Screw size Tightening torque

All of V1/V2/SP

M6 x 16

4.0Nm

All of V1/V2/SP

M4 x 12

1.2Nm

The PE screw size is the same as TE1.

2 - 7

2 Wiring and Connection

MITSUBISHI CNC

Unit

[1]

[3]

[2]

[4]

4.0Nm

M6 x 16

M10 x 20

11.0Nm

L+

L-

Compatible unit

Screw size

Tightening torque

400 to 640

200

200 to 480

DH2-V1-

DH2-SP-

D2-SP-

6.0Nm

M8 x 16

M10 x 20

11.0Nm

Screw size

Tightening torque

Compatible unit

400 to 640

200

200 to 480

DH2-V1DH2-SP-

D2-SP-

Terminal

position

MDS-D2-SP-400 to 640

MDS-DH2-V1-200

MDS-DH2-SP-200 to 480

Terminal

specification/

assignment

[1] TE1

[2] TE2

[3] TE3

U V W

Compatible unit

Tightening torque

(Note) Refer to "POINT" below.

D2-SP-

DH2-V1-

DH2-SP-

Screw size

L11 L21

200

200 to 480

M8 x 15

6.0Nm

Compatible unit

Screw size

Tightening torque

D2-SP-

DH2-V1-

DH2-SP-

400 to 640

M10 x 20

11.0Nm

400 to 640

200

200 to 480

M4 x 8

1.2Nm

(Note) The illustrations of drive units are shown as an example.

2 - 8

[4]

POINT

Always install a large capacity drive unit in the left side of power supply unit, and connect with DC connectio n bar.

MDS-D2/DH2 Series Instruction Manual

2.2 Main Circuit Terminal Block/Control Circuit Connector

2-axis servo/spindle drive unit

[2]

[3]

[1]

[4]

[2]

[3]

[1]

[4]

MU MV MW

LU LV LW

(Note) This is a bottom view.

For M axis For L axis

D2-SP2-

DH2-V2-

D2-V2-

160160W

1.2Nm

M4 x 12

M5 x 12

2.0Nm

8080W

8080, 16080

2020 to 8040

1010 to 8080

2020 to 160160

Screw size

Tightening torque

Compatible unit

Unit Terminal

Terminal

position

[1] TE1

MDS-D2-V2-160160 or less

MDS-D2-SP2-8080 or less

MDS-DH2-V2-8080W or less

MDS-D2-V2-160160W

MDS-D2-SP2-16080S,16080

MU MV MW

LU LV LW

Compatible unit

Screw size

Tightening torque

D2-V2-

D2-SP2-

160160W

16080

M5 x 12

2.0Nm

Terminal

specification/

assignment

(Note) The illustrations of drive units are shown as an example.

[2] TE2

[3] TE3

[4]

D2-V2-

2020 to 160160W

2020 to 16080

1010 to 8080W

M6 x 16

4.0Nm

2020 to 160160W

2020 to 16080

1010 to 8080W

M4 x 12

1.2Nm

L+

L-

L11 L21

Compatible unit

Tightening torque

Compatible unit

Tightening torque

D2-SP2-

DH2-V2-

Screw size

D2-SP2-

DH2-V2-

Screw size

2 - 9

2 Wiring and Connection

MITSUBISHI CNC

3-axis servo drive unit

[1]

[2]

[3]

[4]

LU , LV, LW,

MU, MV, MW,

SU, SV, SW,

For L axis

For M axis

For S axis

4.0Nm

M6 x 16

L+

L-

Compatible unit

Screw size

Tightening torque

All of V3

Unit Terminal

Connector

position

[1] TE1

MDS-D2-V3-202020 MDS-D2-V3-404040

Terminal

specification/

assignment

[2] TE2

[3] TE3

L11 L21

[4]

(Note) The illustrations of drive units are shown as an example.

(Note) This is bottom view.

Compatible unit

Screw size

Tightening torque

Screw size: M5×12

Tightening torque: 2.0Nm

All of V3

M4 x 12

1.2Nm

2 - 10

MDS-D2/DH2 Series Instruction Manual

2.2 Main Circuit Terminal Block/Control Circuit Connector

(2) Control circuit connector

[5]

[9]

[1]

[4]

[7]

[2]

[8]

[3]

[6]

[9] [1]

No.10

No.1

No.11

No.20

Pin No.

1-axis servo drive unit

Unit Terminal

Connector

position

[1] CN1A [2] CN1B

MDS-D2-V1

MDS-DH2-V1-160W or less

Optical communication connector

MDS-DH2-V1-200

[2]

[4]

[6] [7] [8]

[3]

[5]

Connector

specification

[3] CN5

[4] CN9 [5] CN4

[6] CN8

[7] CN2L [8] CN3L

[9] CN20

No.7

No.1

No.9

No.10

Pin No.

No.1

No.5

No.8

No.2

No.1

No.2

No.1 No.2 No.3

(Note) The illustrations of drive units are shown as an example.

2 - 11

2 Wiring and Connection

MITSUBISHI CNC

2-axis servo drive unit

[5]

[11]

[1]

[4]

[7]

[2]

[8]

[9]

[10]

[3]

[6]

No.1

No.2

No.10

No.9

No.1 No.2

Pin No.

No.3

Unit Terminal

Connector

position

[1] CN1A [2] CN1B

MDS-D2/DH2-V2

Optical communication connector

Connector

specification

[3] CN5

[4] CN9 [5] CN4

[6] CN8

[7] CN2L [8] CN3L [9] CN2M [10] CN3M

No.20

No.11

No.7

No.1

No.5

Pin No.

No.10

No.1

No.8

No.2

[11] CN20

(Note) The illustrations of drive units are shown as an example.

2 - 12

MDS-D2/DH2 Series Instruction Manual

2.2 Main Circuit Terminal Block/Control Circuit Connector

3-axis servo drive unit

[1]

[4]

[7]

[2]

[8]

[6]

[5]

[13]

[3]

[9]

[10]

[11]

[12]

No.1

No.5

No.10

No.1

No.11

No.20

Pin No.

No.1 No.2

Pin No.

No.3

Unit Terminal

Connector

position

[1] CN1A [2] CN1B

MDS-D2-V3-202020 MDS-D2-V3-404040

Optical communication connector

Connector

specification

[3] CN5

[4] CN9 [5] CN4

[6] CN8

[7] CN2L [8] CN3L [9] CN2M [10] CN3M [11] CN2S [12] CN3S

[13] CN20

No.7

No.1

No.9

No.10

No.8

No.2

No.1

No.2

(Note) The illustrations of drive units are shown as an example.

2 - 13

2 Wiring and Connection

MITSUBISHI CNC

1-axis spindle drive unit

[5]

[1]

[4]

[7]

[2]

[8]

[3]

[6]

[5]

[4]

[1]

[2]

[7]

[8]

[3]

[6]

No.1

No.2

No.10

No.9

Unit Terminal

Connector

position

[1] CN1A [2] CN1B

MDS-D2-SP-320 or less

MDS-DH2-SP-160 or less

Optical communication connector

MDS-D2-SP-400 or more

MDS-DH2-SP-200 or more

[3] CN5

Connector

specification

[4] CN9 [5] CN4

[6] CN8

[7] CN2L [8] CN3L

(Note) The illustrations of drive units are shown as an example.

No.20

No.11

No.7

No.1

No.5

Pin No.

No.10

No.1

No.8

No.2

2 - 14

MDS-D2/DH2 Series Instruction Manual

2.2 Main Circuit Terminal Block/Control Circuit Connector

2-axis spindle drive unit

[1]

[4]

[7]

[2]

[8]

[9]

[10]

[6]

[5]

[3]

[1]

[4]

[7]

[2]

[8]

[9]

[10]

[6]

[5]

[3]

No.10

No.1

No.11

No.20

Pin No.

Unit Terminal

Connector

position

[1] CN1A [2] CN1B

MDS-D2-SP2-8080 or less MDS-D2-SP2-16080S,16080

Optical communication connector

[3] CN5

Connector

specification

[4] CN9 [5] CN4

[6] CN8

[7] CN2L [8] CN3L [9] CN2M [10] CN3M

(Note) The illustrations of drive units are shown as an example.

No.7

No.1

No.9

No.10

No.1

No.5

No.8

No.2

No.1

No.2

2 - 15

2 Wiring and Connection

MITSUBISHI CNC

2.3 NC and Drive Unit Connection

CN4

Refer to the instruction manual of each NC for details.

MDS-D2/DH2-V2

1st/2nd axis

MDS-D2/DH2-V1

3rd axis

MDS-D2/DH2-SP

6th axis

(Final axis)

MDS-D2/DH2-CVMDS-D2-SP2

4th/5th axis

Connect the optical communication cables from the NC to the each drive unit so that they run in a straight line from the NC to the drive unit that is a final axis. And up to 16 axes can be connected per system. Note that the number of connected axes is limited by the NC.

CAUTION

1. Connect the NC and the drive units by the optical communication cables. The distance between the NC and the final drive unit must be within 30m and the bending radius within 80mm.

2. For the main circuit wiring of the drive unit and power supply unit, the drive unit of 200V series is to be wired with MDSD2-CV, and the drive unit of 400V series is to be wired with MDS-DH2-CV.

3. A spindle drive unit that controls the high-speed synchronous tapping (OMR-DD control) has to be connected on the farther side from the NC than the servo drive unit that is subject to the synchronous tapping control.

POINT

Axis Nos. are determined by the rotary switch for setting the axis No. (Refer to section "Setting the rotary switch".) The axis No. has no relation to the order for connecting to the NC.

(1) When using one power supply unit

Connect the largest-capacity spindle drive unit to the final axis of the NC communication bus in order to control the power supply unit. The spindle drive unit must be installed adjacent to the power supply unit. In the system with servo only, a servo drive unit for controlling unbalance axis must be installed in the same manner in the same way.

< Connection >

CN1A : CN1B connector on NC or previous stage's drive unit CN1B : CN1A connector on next stage's drive unit CN4 : Connector for communication between power supply unit (master side) and drive unit

Connected

to the NC

Optical communication cable

2 - 16

The optical communication cables from the NC to the final drive unit must be within 30m.

Connection when using one power supply unit

MDS-D2/DH2 Series Instruction Manual

2.3 NC and Drive Unit Connection

(2) When using two or more power supply units within a single NC communicat io n bu s sy s te m

Two or more power supply units may be required within a single NC communication bus system if the spindle drive unit capacity is large. The drive unit receiving power (L+, L-) from each power supply unit must always have NC communication cable connection at the NC side of each power supply unit. In the NC communication bus connection example below, power supply [1] cannot supply power (L+, L-) to the 5th axis servo drive unit. For basic connection information, refer to "(1) When using one power supply unit".

MDS-D2/DH2-CV

CN4

Connected to the NC

Optical communication cable

MDS-D2/DH2-V2

1st/2nd axis

MDS-D2/DH2-V2

3rd/4th axis

(CV control axis)

CN4

MDS-D2/DH2-CV

[1]

CN4

MDS-D2/DH2-V1

5th axis

Power

cannot be

supplied

MDS-D2-SP2

6th/7th axis

MDS-D2/DH2-SP

8th axis

(CV control axis)

Connections when using two power supply units within a single NC communication bus system

CAUTION

1. The drive unit receiving power (L+, L-) from each power supply unit must always have NC communication bus connection at the NC side of each power supply unit.

[2]

CN4

2. If two or more power supply units are connected in the drive system, confirm that the units are not connected with each other through the L+ and L- lines before turning ON the power. Also make sure that the total capacity of the drive units connected to the same power supply unit meets the unit's selected capacity.

2 - 17

2 Wiring and Connection

MITSUBISHI CNC

2.4 Connecting with Optical Communication Repeater Unit

DCOUT

OPT1INOPT1OUT

MDS-D2/DH2/DM2

FCU7-EX022

DCIN

CF01

DCOUT

DCIN

F070

OPT2INOPT2OUT

G380

ACIN

G380

DCOUT

F070

ACIN

OPT

Drive Units

24VDC stabilized power supply

Electric cabinet

Control unit

Operation panel

L1 : Max. cable length > 30m

Relay box

L2 : Max. cable length < 30m

L3 : Max. cable length < 30m

24VDC stabilized power supply

Optical communication repeater unit

CAUTION

Optical communication repeater unit cannot be used to connect betwe en two servo drive units.

(1) Connection example

Connect the control unit to OPT1IN and the drive unit to OPT1OUT.

2 - 18

L1: Distance between the drive unit and the control unit. L2: Distance between the drive unit and the optical communication repeater un it. (The wire length of G380 cable) L3: Distance between the optical communication repeater unit and the control unit. (The wire length of G380 cable)

Cable drawing "Cable: F070 Cable", "Cable: G380 Cable" Connector pin assignment: "General Specifications: Optical Communi cation Repeater Unit" (DCIN connector, OPT1IN connector, OPT1OUT connector)

MDS-D2/DH2 Series Instruction Manual

2.4 Connecting with Optical Communication Repeater Unit

(2) Power Supply Sequence

The diagram below shows the timing of power ON/OFF of the drive unit 200VAC (400VAC), the optical communication repeater unit, and the control unit.

[Power ON] Turn the power ON in the following order; drive unit -> optical communication repeater unit -> control unit If the control unit is powered ON before the optical communication repea ter unit, the initial communication with the drive unit may fail and cause an alarm.

[Power OFF] Turn the power OFF in the following order; control unit -> optical communication repeater unit -> drive unit. Set aside more than 8ms the time difference between the power OFF of the control unit and the power OFF of the optical communication repeater unit. If the optical communication repeater unit is powered OFF before the drive unit, or the time lag is less than 8ms, data acquisition from the drive unit may fail and cause an alarm.

200VAC

(400VAC)

(Drive unit power)

t10ms

24VDC

(The optical communication

repeater unit power)

24VDC

(The control unit power)

t20ms

t38ms

t1: Time lag between the power-ON of the drive unit and the optical communication repeater unit t2: Time lag between the power-ON of the optical communication repeater unit and the control unit t3: Time lag between the power-OFF of the optical communication repeater unit and the control unit

2 - 19

2 Wiring and Connection

MITSUBISHI CNC

2.5 Motor and Encoder Connection



U V



A B C D



B1 B2



1 2

1 RQ 2 RQ* 3 4 BAT 5 LG(GND) 6 SD 7 SD* 8 P5(+5V) 9

10 SHD

MDS-D2/DH2-V1



RQ*

SD*



2 4 6 8



P5(+5V)



1 3 5 7 9

NamePinNamePin

Ground

NamePin

Name

Power wire and grounding wire (Refer to Specification manual for details on selecting the wire.)

(Refer to section

"Wiring of the motor magnetic brake" for details.)

2.5.1 Connection of the Servo Motor

(1) Connecting the HF75(B) / HF105(B)/ HF54(B) / HF104(B) / HF154(B) / HF224(B) /

HF123(B) / HF223(B) / HF142(B) HP54(B) / HP104(B) / HP154(B) / HP224(B) HF-H75(B) / HF-H105(B) / HF-H54(B) / HF-H104(B) / HF-H154(B) HP-H54(B) / HP-H104(B) / HP-H154(B) / HP-H224(B)

Optional cable: CNV2E (Refer to Appendix 2 for details on the cable treatment.)

Encoder connector

CMV1-R10P

4 5

7 6

Brake connector

CMV1-R2P

1 2

These are 24VDC, and have no polarity.

Max. 30m

Motor magnetic brake wiring

Encoder connector : CN2L

Pin No.

No.9 No.1

CN2L

No.10 No.2

U V W

Power connector

CE05-2A18-10PD

D

B

2 - 20

MDS-D2/DH2 Series Instruction Manual

2.5 Motor and Encoder Connection

(2) Connecting the HF204(B) / HF303(B) / HF354(B) / HF453(B) / HF302(B)

B C D

B1 B2

1 2

1 RQ 2 RQ* 3 4 BAT 5 LG(GND) 6 SD 7 SD* 8 P5(+5V) 9

10 SHD

CN2L

MDS-D2/DH2-V1

RQ*

SD*

2 4 6 8

P5(+5V)

SD BT

1 3 5 7 9

NamePinNamePin

Name

NamePin

Name

Ground

Power wire and grounding wire (Refer to Specification manual for details on selecting the wire.)

No.9 No.1

(Refer to section

"Wiring of the motor

magnetic brake" for details.)

HP204(B) / HP354(B) / HP454(B) HF-H204(B) / HF-H354(B) / HF-H453(B) / HF-H703(B) HP-H204(B) / HP-H354(B) / HP-H454(B) / HP-H704(B)

Encoder connector

CMV1-R10P

4 5

7 6

Brake connector

CMV1-R2P

1 2

These are 24VDC, and have no polarity.

Optional cable: CNV2E (Refer to Appendix 2 for details on the cable treatment.)

Max. 30m

Motor magnetic brake wiring

U V W

Power connector

CE05-2A22-22PD

Encoder connector : CN2

Pin No

No.10 No.2

2 - 21

2 Wiring and Connection

MITSUBISHI CNC

(3) Connecting the HF703(B) / HF903(B)

RQ*

SD*

2 4 6 8

10

P5(+5V)

SD BT

1 3 5 7 9

U V

A B C D

CN2L

B1 B2

1 2

1RQ 2RQ* 3 4BAT 5 LG(GND) 6SD 7SD* 8P5(+5V) 9

10 SHD

MDS-D2/DH2-V1

NamePinNamePin

Name

Ground

NamePin

Name

Power wire and grounding wire (Refer to Specification manual for details on selecting the wire.)

HP704(B) / HP903(B) / HP1103(B) HF-H903(B) HP-H903(B) / HP-H1103(B)

Encoder connector

CMV1-R10P

7 6

Brake connector

CMV1-R2P

1 2

These are 24VDC, and have no polarity.

CAUTION

Optional cable: CNV2E (Refer to Appendix 2 for details on the cable treatment.)

Max. 30m

1 2

4 5

Motor brake magnetic wiring

(Refer to section

"Wiring of the motor

magnetic brake" for details.)

U V W

Encoder connector : CN2L

Pin No

No.9 No.1

No.10 No.2

Power connector

CE05-2A32-17PD

D

Dynamic brake unit is required for HP1103 and HP-H1103. Refer to section "Dynamic brake unit wiring" for details.

2 - 22

MDS-D2/DH2 Series Instruction Manual

2.5 Motor and Encoder Connection

(4) Connecting the HF-KP23 / HF-KP43 / HF-KP73

U V

1 2 3 4

JN4AT04NJ1-R

B1 B2

1 2

JN4AT02PJ1-R

RQ*

CNT

LG(GND)

SD* 8 9

SHD

P5 (+5V)

78 9

RQ*

SD*

2 4 6 8

P5 (+5V)

SD BT

1 3 5 7 9

MDS-D2-V1

Power connector

Ground

Optional cable: CNV2E (Refer to Appendix 2 for details on the cable treatment.)

Max : 10m

Encoder connector

Encoder connector ： CN2L

NamePin

Brake connector

These are 24VDC, and have no polarity.

NamePin

No.10 No.2

Optional cable: MR-PWS1CBL

CN2L

Pin No.

No.9 No.1

Motor magnetic brake wiring

(Refer to section

"Wiring of the motor

magnetic brake" for details.)

U V W

2 - 23

Mitsubishi Electronics MDS-D2, MDS-DH2 User Manual

Specifications and Main Features
