McIntosh MVP871 User Manual

Audio Video Player

Manufactured under license from Dolby Laboratories. “Dol­by”, “MLP Lossless” and the double-D symbol are t rademarks
of Dolby Laboratories.

HDMI, the HDMI long and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.

This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and other
limited viewing uses only unless other wise authorized by
Macrovision. Reverse engineering or disassembly is prohib
ited.

“DTS” and “DTS Digital Surround” are registered trademarks
of DTS, Inc.

®, HDCD®, High Definition Compatible Digital® and
Microsoft
Microsoft Corporation, Inc. in the United States and/or other
countries. HDCD system manufactured under license from
Microsoft Corporation, Inc. This product is covered by one
or more of the following: In the USA: 5,479,168, 5,638,074,
5,640,161, 5,808,574, 5,838,274, 5,854,600, 5,864,311,
5,872,531, and in Australia: 669114. Other patents pending.

DivX, DivX Certif ied, and associated logos are trademarks of
DivX, Inc. and are used under licence.

-

®

are either registered trademarks or trademarks of

MVP871

Owner’s Manual

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: [phone] FAX: [phone]

The lightning flash with arrowhead,
within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “danger­ous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.

The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of im­portant operating and maintenance
(servicing) instructions in the litera­ture accompanying the appliance.

WARNING - TO REDUCE RISK OF

FIRE OR ELECTRICAL SHOCK, DO

NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

CAUTION -

Invisible Laser Radiation when open. DO
NOT stare into the beam or view directly
with optical instruments. Use of controls
or adjustments or performance of proce
dures other than those specified in the
Owners Manual may result in Hazardous
Radiation Exposure.

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO

QUALIFIED PERSONNEL.

To prevent the risk of electric shock, do not remove cover or

back. No user-serviceable parts inside.

-

VAROITUS!

VARNING!

This product incorporates an embedded

2

Laitteen kayttaminen muulla kuin
tassa kayttoohjeessa mainitulla
tavalla saattaa altistaa kayttajan
turvallisuusluokan 1 ylittavalle
nakymattomalle lasersateiiylle.

Om apparaten anvands pa annat satt
an i denna bruksanvisning specifi
cerats, kan anvandaren utsattas for
osynbg laserstraining, som overskrider
gransen for laserklass 1.

CLASS 3R Laser (IEC60825-1).

-

IMPORTANT SAFETY

INSTRUCTIONS!

PLEASE READ THEM BEFORE
OPERATING THIS EQUIPMENT.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radia­tors, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A ground­ing type plug has two blades and a third ground­ing prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience re­ceptacles, and the point where they exit from the
apparatus.

11. Only use attachments/accessories specified by the
manufacturer.

12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer,
or sold with the apparatus. When a
cart is used, use caution when mov­ing the cart/apparatus combination
to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or
when unused for long periods of time.

14. Refer all servicing to qualified service person­nel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the appara­tus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

15. Do not expose this equipment to dripping or
splashing and ensure that no objects filled with liq­uids, such as vases, are placed on the equipment.

16. To completely disconnect this equipment from the
a.c. mains, disconnect the power supply cord plug
from the a.c. receptacle.

17. The mains plug of the power supply cord shall
remain readily operable.

18. Do not expose batteries to excessive heat such as
sunshine, fire or the like.

3

Thank You

Table of Contents

Your decision to own this McIntosh MVP871 Audio Video
Player ranks you at the very top among discriminating
music listeners. You now have “The Best.” The McIntosh
dedication to “Quality,” is assurance that you will receive
many years of visual and musical enjoyment from this unit.
Please take a short time to read the information in this
manual. We want you to be as familiar as possible with all
the features and functions of your new McIntosh.

Please Take A Moment

The serial number, purchase date and McIntosh Dealer
name are important to you for possible insurance claim or
future service. The spaces below have been provided for
you to record that information:

Serial Number: __________________________________

Purchase Date: __________________________________

Dealer Name: ___________________________________

Technical Assistance

If at any time you have questions about your McIntosh
product, contact your McIntosh Dealer who is familiar
with your McIntosh equipment and any other brands that
may be part of your system. If you or your Dealer wish
additional help concerning a suspected problem, you can
receive technical assistance for all McIntosh products at:

McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Phone: [phone]
Fax: [phone]

Safety Instructions ............................................................

Thank You and Please Take a Moment .............................

Technical Assistance and Customer Service .................... 4

Table of Contents .............................................................. 4

General Information .........................................................5

Disc Information ...............................................................6

Connector and Cable Information ....................................

Introduction .......................................................................7

Performance Features ....................................................... 7

Dimensions .......................................................................8

Installation ........................................................................ 9

Connections:

Rear Panel Connections .................................................. 10

How to Connect Control, Analog and Digital Audio ......11

How to Connect Video and AC Power ............................12

Front Panel Features:

Front Panel Indicators and Push-buttons ........................ 14

Front Panel Information Display ..................................... 15

Remote Control:

Remote Control Push-buttons ......................................... 16

How to Operate by Remote Control ............................... 17

Setup:

How to Operate the Setup Mode .................................... 18

Default Settings .............................................................. 19

Language Setup ..............................................................20

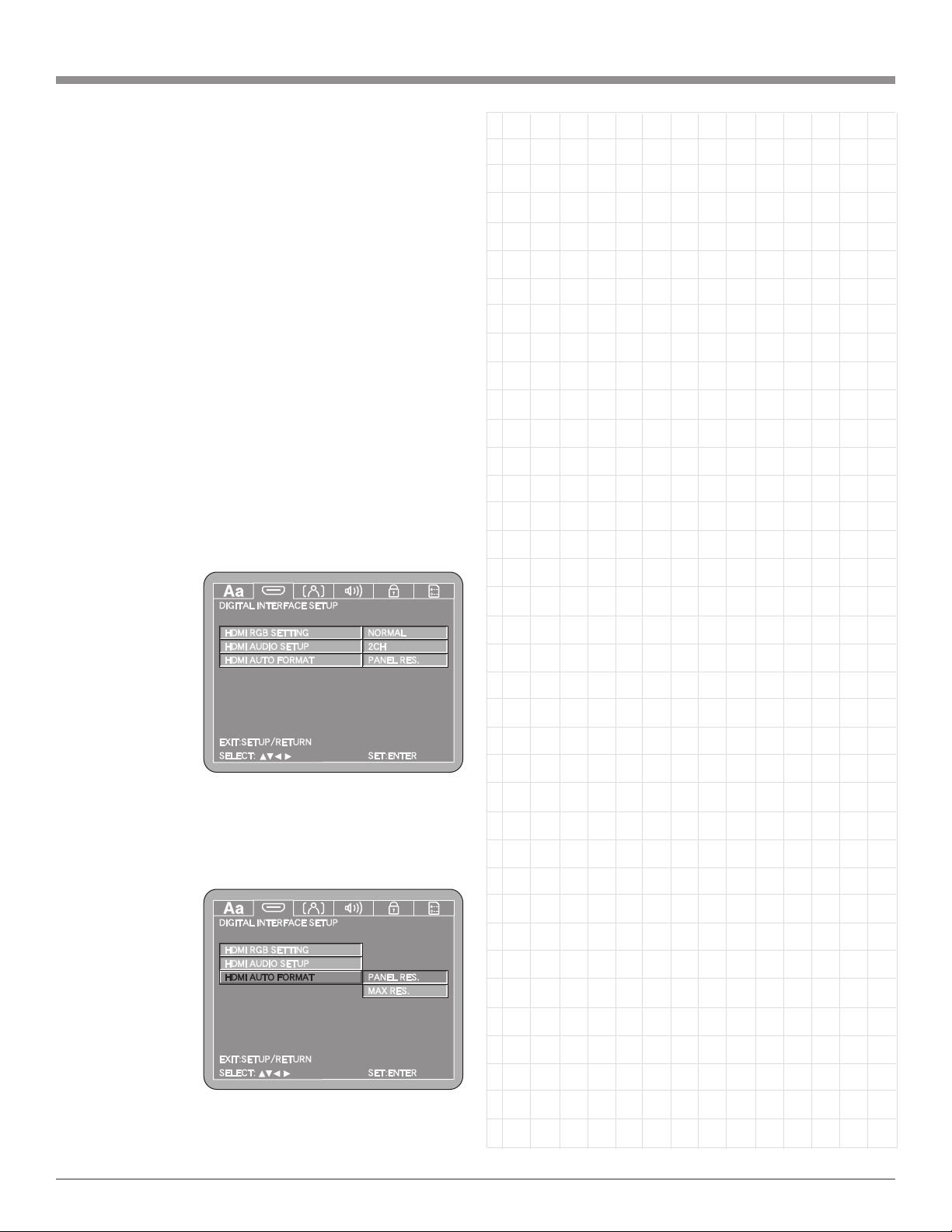

Digital Interface Setup .................................................... 21

Video Setup ..................................................................... 26

Audio Setup ....................................................................30

Set the Ratings ................................................................35

Other Setup ..................................................................... 37

2
4

6

Customer Service

If it is determined that your McIntosh product is in need of
repair, you can return it to your Dealer. You can also return
it to the McIntosh Laboratory Service Department. For
assistance on factory repair return procedure, contact the
McIntosh Service Department at:

McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Phone: [phone]
Fax: [phone]

Copyright 2007 © by McIntosh Laboratory, Inc.

4

Operation:

How to Operate ............................................................... 40

Video Settings and Adjustments ..................................... 47

Additional Information:

Specifications .................................................................. 50

Packing Instruction ......................................................... 51

General Information



1. For additional connection information, refer to the
owner’s manual(s) for any component(s) connected to
the MVP871 Audio Video Player.

2. If the MVP871 will be connected to a TV/Monitor us­ing the Component Video connections, please refer to
the Setup Section entitled “Component Video Out” on
page 27 of this Owner’s Manual for important informa­tion.

3. The Super Audio Compact Discs (SACD) Audio Signals
are converted internally from Digital to Analog.

4. A PCM version of the decoded MP3 Signal is available
at the Digital Audio Outputs.

5. The MVP871 has built-in 192kHz 24-Bit DACs (Digital
to Analog Converter) to allow playing of DVDs re­corded with a higher bit and sample rate, by using the
Analog Audio Outputs.

6. Some Multichannel DVD, DVD-Video, DVD-Audio
and Super Audio Compact Discs might contain Low
Frequency Audio Signals (below 80Hz) in the Center
and/or Surround Channels. If the Loudspeakers in your
sound system are not capable of reproducing those Low
Frequencies, distortion and/or possible damage to the
Loudspeakers may occur. Refer to page 22. For addi­tional information, consult with your Dealer or refer to
the Owner’s Manual for your Loudspeakers.

7. The DVD-Audio and Super Audio Compact Discs
Audio Signals are converted internally from Digital to
Analog. The Six Channel Analog Signals are available
at the UNBALANCED AUDIO OUTPUTS 5.1CH.

8. The MVP871 basic transport functions may also be
controlled by using the Remote Control that comes with
a McIntosh Control Center or Preamplifier. McIntosh
Keypads can also be used to remotely control the basic
transport functions of the MVP871. Remote Controls
of certain McIntosh Control Centers or Preamplifiers
also have additional Push-buttons including Direction
Keys, Select, Title, Display and Menu that perform the
same functions as the supplied MVP871 Remote Con­trol. The labeling of Push-buttons on some McIntosh
Remote Controls and Keypads are different from the
supplied MVP871 Remote Control. Refer to the follow­ing listing and illustrations:

MVP871 Remote Control Control Center/Preamp/Keypad

Play Play
Next Next
Back Back
Stop Stop
Review Review
0-9 0-9
Pause E
+10 Review

General Information and Disc Information

McIntosh Remote Controls for A/V Control Centers and Pream­plifiers

5

PIN 1

PIN 2

PIN 3

Power
Control

Ground

N/C

Data
Signal

N/C

Data
Ground

IR Data
Control

Ground

N/C

Disc Information, Connector and Cable Information

Disc Information

1. Compact Discs that are not round (e.g. Novelty discs
with octagonal or heart shapes) will not play properly in
the MVP871 and should not be tried, as possible damage
may occur.

2. The MVP871 Audio Video Player is designed to play
all standard CD Audio Discs that conform to the Of­ficial Compact Disc Standards which is indicated by the
Symbol .

3. The MVP871 will play most of the following discs, how­ever some recorded discs may not be able to play due to
the condition of the recording:

Super Audio CD (SACD), HDCD, CD-R, CD-RW,
Video CD, Picture CD (Kodak), Fujicolor CD,
WMA(Windows), DVD-Audio, DVD-Video, DVD-R,
DVD+R, DVD-RW, DVD+RW and DivX.

4. The MVP871 plays DivX Videos including DivX 3, 4, 5
and 6 as well as purchased or rented DivX Movies.

5. CD Audio Discs recorded in the MP3 Format will play­back on the MVP871 except discs that contain multi­session recordings.

6. The CD audio side of the Dual Disc does not meet the
Compact Disc Digital Audio specifications found in the
industry “Redbook”; the MVP871 may not read the CD
side of a Dual Disc.

7. Several of the DVD, DVD-Audio and SACD perfor­mance features available on the MVP871 are active only
if the Disc includes the supporting encoded information.

8. DVD-Video Discs are designed to only play in certain
region(s) of the world. A region may be a single country
or a group of countries. Usually on the back cover of
the DVD-Video Disc container is a Globe Symbol with
“Number(s)” or the word “All” inside it. The MVP871 is
designed to play discs for Regions “1” and “All”.

9. Certain Dolby Digital and DTS Encoded Discs display
their own unique Audio Mode Selection menu, every
time the disc is loaded into the player. If you do not
make a choice from this menu, the disc will revert to its
default Audio Mode when play is started.

Connector and Cable Information

XLR Connectors

Below is the Pin configuration for the XLR Balanced
Output Connectors on the MVP871. Refer to the diagram
for connection:
PIN 1: Shield/Ground
PIN 2: + Output
PIN 3: - Output

Power Control Connector

The MVP871 Power Control Input/Output Jacks receive/
send Power On/Off Signals when con
nected to other McIntosh Components.
A 1/8 inch stereo mini phone plug is
used for connection to the Power Con­trol Input/Output on the MVP871.

Note: The Data ad Power Control Connecting Cable is avail-

able from the McIntosh Parts Department:

Data and Power Control Cable Part No. 170-202

Six foot, shielded 2 conductor, with 1/8 inch stereo mini
phone plugs on each end.

Data and IR Input Port Connectors

The MVP871 Data In Port receives Re­mote Control Signals. A 1/8 inch stereo
mini phone plug is used for connection.
The IR Ports also use a 1/8 inch stereo
mini phone plug and allow the connec­tion of other brand IR Receivers to the
MVP871.

RS232 DB9 Connector Pin Layout

1. N/C 6. N/C

2. Data Out (TXD) 7. N/C

3. Data In (RXD) 8. N/C

4. N/C 9. N/C

5. Gnd.

-

6

Introduction

The McIntosh MVP871 Audio Video Player offers the
latest in audio/video technology, providing state of the art
reproduction of digital video and audio program sources.
A full complement of performance features allows for the
enjoyment of DVDs. SACD, DVD Audio, Audio CDs,
special audio and special video formats are all reproduced
with flawless realism. The advanced mechanical design of
the transport ensures many years of smooth trouble free
operation.

Introduction and Performance Features

• Balanced Outputs
The MVP871 has Balanced Outputs for the Left and Right
Channels when playing a CD. When a Multichannel Disc
is playing, the Balanced Left and Right Outputs provide a
two channel mix down of the Multichannel Recording.

• Built-in Dolby Digital and DTS Digital Decoders
The MVP871 provides built-in decoding of Dolby Digital
and DTS Digital Sound Tracks.

Performance Features

• Twin Laser Pickup

The MVP871 incorporates two laser elements, with differ­ent wavelengths, that are focused through one lens as­sembly. This unique design allows reading many different
types of Audio and Video Disc Formats.

• Advanced Transport

The MVP871 has a new vibration-resistant Transport with
an advanced digital servo for faster, quieter and accurate
operation. The DVD Data is read into memory from the
disc at twice the normal rate. Likewise CD Audio Data is
read into memory at four times the normal rate. The fast
read speeds help to insure better disc tracking and error
correction processing.

• Video Output with Up Scaling to 1080p

The MVP871’s special video processing circuitry scales
the native 480i resolution image quality of a DVD disc to
480p, 720p, 1080i or 1080p via the Digital Video Output.

• Multiple Video Outputs

The Component Video Output has switchable Progressive
Scan Processing and offers the highest possible analog pic­ture quality available. There are also S-Video and Compos­ite Video Outputs for a variety of applications.

• Advanced Video Circuitry

An advanced technology 12-Bit DAC (Digital Analog Con­verter) operating at 216MHz with Multi-Directional Diago­nal Filter together with Pixel Image Correction, performs
video signal processing for enhanced DVD picture quality.

• 24 BIT Burr Brown Audio DAC

The MVP871 has three built-in Burr Brown 2-channel
Digital to Analog Converters are capable of sampling rates
up to 192kHz with 24 Bits of resolution.

• Digital Audio Outputs
There are Coaxial, Optical and Digital Audio Outputs for
external decoding of Dolby Digital, DTS Digital Signals,
PCM or MP3 Signals from CDs.

• On Screen Setup and Calibration
Level and Time Delay Adjustments are available for Dolby
Digital, DTS Digital, DVD-Audio and SACD Disc Signals
and effect the multichannel analog audio outputs.

• Power Control

The Power Control Input connection provides convenient
Turn-On/Off of the MVP871 when connected to a McIn
tosh System with Power Control.

• Remote Control

The Remote Control with illuminated push-buttons, pro
vides control of the MVP871 operating functions. A Data
Port Connection to a McIntosh A/V Control Center or
Preamplifier allows for convenient system operation using
one Remote Control. An External IR Sensor Input allows
for remote operation when the MVP871 is located behind
closed doors.

• Special Power Supply

A fully regulated Power Supply, with a special R-Core
Power Transformer, ensures stable noise free operation
even though the power line varies.

• Machined Side Panels

The sides of the MVP871 are machined from thick alumi
num panels with a smooth black finish.

• Fiber Optic Solid State Front Panel Illumination

The Illumination of the Glass Front Panel is accomplished
by the combination of custom designed Fiber Optic Light
Diffusers and extra long life Light Emitting Diodes
(LEDs). This provides even Front Panel Illumination and is
designed to ensure the pristine beauty of the MVP871 will
be retained for many years.

-

-

-

7

Dimensions

17-1/2"

44.45cm

4-5/8"

11.75cm

6"

15.24cm

14-1/2"

36.83cm

15-7/8"

40.32cm

3/16"

0.48cm

4-13/16"

12.22cm

10-1/2"

26.67cm

13-1/4"

33.65cm

17"

43.18cm

Front View of the MVP871

Rear View of the MVP871

Side View of the MVP871

5-3/8"

13.69cm

13/16"

2.06cm

2"

5.08cm

1-15/16"

4.92cm

The following dimensions can assist in determining the
best location for your MVP871. There is additional in­formation on the next page pertaining to installing the
MVP871 into cabinets.

Dimensions

8

Installation

4-7/8"

12.38cm

17-1/16"

43.34cm

Cutout Opening for Custom Mounting

MVP871 Front Panel
Custom Cabinet Cutout

8-5/8"

21.91cm

15-1/2"

39.37cm

15-1/16"

38.26cm

1"

2.54cm

Cutout Opening
for Ventilation

Cutout Opening for Ventilation

Support
Shelf

Cabinet
Front
Panel

Chassis
Spacers

MVP871 Side View
in Custom Cabinet

MVP871 Bottom View
in Custom Cabinet

1-1/16"

2.70cm

12-5/16"

31.27cm

3"

7.62cm

Note: Center the cutout Horizontally on the unit.
For purposes of clarity, the above
illustration is not drawn to scale.

�

The MVP871 can be placed upright on a table or shelf,
standing on its four feet. It also can be custom installed in
a piece of furniture or cabinet of your choice. The four feet
may be removed from the bottom of the MVP871 when it
is custom installed as outlined below. The four feet togeth­er with the mounting screws should be retained for pos­sible future use if the MVP871 is removed from the custom
installation and used free standing. The required panel
cutout, ventilation cutout and unit dimensions are shown.
Always provide adequate ventilation for your MVP871.
Cool operation ensures the longest possible operating life
for any electronic
instrument. Do
not install the
MVP871 directly
above a heat gen­erating component
such as a high
powered amplifier.
If all the compo­nents are installed
in a single cabinet,
a quiet running
ventilation fan can
be a definite asset
in maintaining all
the system compo­nents at the coolest
possible operating
temperature.
A custom cabinet
installation should
provide the fol­lowing minimum
spacing dimen­sions for cool
operation.
Allow at least 2
inches (5.08cm)
above the top, 2
inches (5.08cm)
below the bot­tom and 1 inch
(2.54cm) on each
side of the Audio
Video Player, so
that airflow is not
obstructed. Do not

block the ventilation holes on the top and bottom cover.
Allow 1 inch (2.54 cm) in front of the mounting panel for
clearance. When the DVD/CD tray is opened, the panel
clearance required in front of mounting panel is 6-3/4
inches (17.2cm). Be sure to cut out a ventilation hole in the
mounting shelf according to the dimensions in the draw­ing.

Installation

9

Rear Panel Connections

OPTICAL DIGITAL
AUDIO OUTPUT
sends signals to a Con­trol Center with a D/A
Converter or a decoder

COAXIAL DIGI­TAL AUDIO OUT­PUT sends signals
to a Control Center
with a D/A Con­verter or a decoder

HDMI OUT supplies
digital video and digi­tal audio signals to an
Input of an A/V Con­trol Center or other au­dio/video component

Y OUTPUT connects to the Y Component Input of
the TV/Monitor or other video component.

/C

P

B

B

Input of the TV/Monitor or other video component.

/C

P

R

Input of the TV/Monitor or other video component

S-VIDEO OUTPUT
supplies video signals
to a S Input of an A/V
Control Center or oth­er video component

OUTPUT connects to the P

OUTPUT connects to the P

R

Component

/C

B

B

Component

/C

R

R

Connect the MVP871
power cord to a live AC
outlet. Refer to informa
tion on the back panel of
your MVP871 to deter­mine the correct voltage
for your unit

-

UNBALANCED
AUDIO OUT­PUT supplies Two
Channels of Ana­log Audio and con­nects to the Analog
Input of an A/V
Control Center

UNBALANCED
AUDIO OUTPUTS
supply Six Channels
of analog audio and
connects to the Exter­nal Input of an A/V
Control Center

10

VIDEO OUTput sup­plies video signals
to connect to a Com­posite Input of an
A/V Control Center
or other video com­ponent

BALANCED
AUDIO OUTPUTS
supply two channels
of analog audio to
connect to Balanced
Inputs of other com­ponents

RS-232C
connector for
connection
to a remote
control device

IR INput for
connecting an
IR Receiver

DATA IN
receives op

­erating data
from a McIn­tosh Control
Center

POWER CONTROL IN
receives turn-on signals
from a McIntosh compo­nent and POWER CON­TROL OUT sends turn-on
signals on to another
McIntosh Component

How to Connect Control, Analog and Digital
Audio

1. Connect a Power Control Cable from the MVP871
POWER CONTROL IN to the POWER CONTROL
ACC Output jack of a McIntosh A/V Control Center.

2. Connect a Data Cable from the MVP871 DATA IN
jack to the DVD DATA jack on the McIntosh A/V
Control Center.

3. Connect a Coaxial Cable from the MVP871 DIGITAL
AUDIO COAXIAL OUTPUT to the DVD Coaxial
DIGITAL INPUT of a McIntosh A/V Control Center.

Note: An optional connecting method is to use an optical

cable from the MVP871 DIGITAL AUDIO OPTI­CAL OUTPUT to the Optical Digital Input of a
McIntosh A/V Control Center.

How to Connect Control, Analog and Digital Audio

4. Connect Audio Cables from the MVP871 UNBAL­ANCED 2CH AUDIO OUTPUTS to the DVD Inputs
on a McIntosh A/V Control Center.

5. Optionally connect Audio Cables from the MVP871
BALANCED 2CH AUDIO OUTPUTS to the Zone A
Balanced 1 Inputs on a McIntosh A/V Control Center.

6. Connect Audio Cables from the MVP871 UNBAL­ANCED 5.1CH AUDIO OUTPUTS (all six channels)
to the External AUDIO INPUTS on a McIntosh A/V
Control Center.

McIntosh A/V Control Center

11

How to Connect Video and AC Power

1. Connect component video cables between the MVP871
and the McIntosh A/V Control Center as follows:

Note: The MVP871’s default setting for the Component

Video Output Signal is Progressive Scan. Before
connecting AC Power to the MVP871, please refer
to the Setup Section entitled “Component Video
Out” on page 27 of this Owner’s Manual for im­portant information.

A. Connect a cable from the MVP871 Y OUTPUT to

the Component Video Input of the McIntosh A/V
Control Center.

B. Connect a cable from the MVP871 P

to the PB Component Video Input of the McIntosh
A/V Control Center.

C. Connect a cable from the MVP871 P

to the P

Component Video Input of the McIntosh

R

A/V Control Center.

2. Connect a cable from the OUT connector on the

OUTPUT

B/CB

OUTPUT

R/CR

How to Connect Video and AC Power

MVP871 to the 4 connector on the McIntosh A/V

Control Center.
To provide a Video Signal for making a recording, for
viewing in Zone B and/or a TV/Monitor without either a
Component Video Input and/or Input then connect as fol
lows:

3. Optionally, connect a S-Video Cable from the MVP871
S-VIDEO OUT jack to the DVD S-Video input jack on
the McIntosh A/V Control Center.

4. Optionally, connect a Video Cable from the MVP871
VIDEO OUT jack to the DVD Video input jack on the
McIntosh A/V Control Center

5. Connect the MVP871 power cord to a live AC outlet.

Note: When AC Power is initially applied to the MVP871

the unit will momentarily switch On and then go
into the Standby Mode.

-

12

To AC Outlet

McIntosh A/V Control Center

Notes

13

Front Panel Displays and Push-buttons

Selects the video
signal output at
the HDMI Output

Selects the video sig­nal output resolution
at the HDMI Output

Disc Tray opens to
load and unload a disc

IR Sensor receives
commands from a
Remote Control

Standby Power On
Indicator

Selects the SACD
or CD Audio
Layer from a
hybrid disc

Move rapidly
backward through
a track during
playback

14

Move rapidly
forward through
a track during
playback

Move forwards
one track/chapter
at a time

Move backwards
one track/chapter
at a time

Front Panel
Information
Display

Stops disc
playback

Use to Pause
during play
back

Starts disc
playback

-

STANDBY/ON
Push-button switch­es the MVP871 ON
or OFF (Standby)
and resets the micro­processors

Opens and Closes
the disc tray for
loading or un­loading discs

Front Panel Information Display

Indicates the type of
disc loaded; CD, CD­Video, DVD, DVD­Audio, or DVD-Video

Indicates
when the
Play Mode
is active

Indicates the Re­peat Mode selected;
Repeat All, Repeat
1Track or Repeat
from point A to
point B on the disc

Indicates when
the two digits be­low are display­ing the Group or
Title Number

Indicates
when the two
digits below
are display­ing the Track
or Chapter
Number

Indicates when
the disc con­tains multiple
viewing angles

Indicates
the Pro­gramed
Track/
Group
Play Mode
is active

Indicates
the Random
Play Mode
is active

Indicates
when the
numeric
display is
indicating
the Total
Playing
Time

Indicates when
the numeric
display is in­dicating the
current Track
Playing Time

Indicates
when the
numeric
display is
indicat­ing the
Remaining
Playing
Time

Indicates when
the CD Disc
playing is
HDCD encoded

Indicates the channels of
sound available on the disc;
which includes Front Left,
Front Center, Front Right,
Surround Left, Mono Sur­round, Surround Right
and Low Frequency Effect
Channel

Indicates
when the
Pause
Mode is
active

Indicates
the Source
Video Signal
Type; F for
Film based,
V for Video
based or G
for Graphic
based

Indicates Title
Number on the
Disc and the
Group Number
on DVD-Audio
Discs

Indicates the
Progressive
Scan Video
Processing
Circuit is
active

Note: Items not identified above are for use with other McIntosh Components

Indicates the
current Multi­Channel Sound
track is down­mixed and avail­able at the 2CH
Outputs as a ste­reo audio signal

Indicates Track or
Chapter Number
of the Disc

Indicates the type of Digital
Signal being decoded by the
MVP871; which includes DTS,
Dolby Digital, Packed Pulse
Code Modulation (PCM), Linear
PCM, MPEG and MP3

Indicates the current Track
Time, Remaining Track
Time, Total Disc Playing
Time and various other Infor
mation

When the indicator is On (Steady),
actual communication is occurring
between MVP871 HDMI Output

-

and the TV/Monitor’s HDMI
Input. When the indicator is just
flashing the HDMI Output is se­lected with no communication oc­curring between components

15





Use to select NTSC or PAL
video output format

Use to change the brightness of
the Front Panel Alphanumeric
Display from bright to off

Remote Control Push-Buttons

Use to toggle the
power On and Off to the
MVP871

Use to access the standard or
one of five preset user defined
video settings

Access any numbered
operating function

Use to Clear the last
programmed track

Press to select between
various on-screen pag­es of information on
DVD-Audio Discs

Return to the previous
setup menu screen

Use to move the on­screen cursor up, down,
left, right; also use to
select the highlighted on­screen menu item

Use to select various disc
information including time.
It is displayed on-screen and
on the Front Panel Alphanu­meric display

Starts Playback of a disc and
allows moving forward or back­ward one chapter at a time on
a DVD-Video; or one track at
a time on DVD-Audio, SACD
and CD Discs

Press for random playback
of tracks from Video and
Audio CDs

Press to enlargen the video
image from the disc

Use to access the Setup
Menu

Use to switch power On
and Off to the MVP871

To access Track Numbers on
CDs and DVD-Audio Discs
greater than 10

Use to view on-screen the current
title, chapter, group or track number
along with direct access to change it
using the number push-buttons

Use to view and/or change the on­screen subtitle language

Use to view or change the current
Audio Selection

Access the on-screen Top Menu
from the disc (disc dependent)

Access the on-screen Disc
Menu from a DVD disc

Use to quick stop, full stop or pause
the disc playback. Also use to activate
the Still Image Video Mode

Move forward or backward through
a disc chapter or track, also use to set
the Still Video Image step rate

Use to preselect (program) from
an audio disc the desired tracks for
playback

Use to review the preselected
tracks from the disc on the
Front Panel Alphanumeric
display, while in the program
mode

16

Use to mark up to five
starting points on a disc

Selects the video sig­nal output at the HDMI
Output

Note: Push-buttons whose function is not identified above are for use with other McIntosh Components

Select a different
picture Angle

Use to select one of
various repeat modes

Selects the SACD or CD Audio
Layer from a hybrid disc

Selects the video signal output
resolution at the HDMI Output

Use to set a starting and ending time segment
on a disc for continuous repeat play
