Magellan Cyclo 105, Cyclo 100 User Manual
User Manual
Welcome
Contents
Thank you for purchasing this Magellan Cyclo 100 products. Please read this
manual carefully before using your Magellan for the first time. Keep this manual
in a safe place and use as your first point of reference.
Important information for using the manual
It is important to understand the terms and typographical conventions used in
this manual.
Bold — Components or items displayed on screen, including buttons, headings,
field names and options.
Italics — Indicates the name of a screen.
Disclaimer
Not all models are available in all regions.
Depending on the specific model purchased, the colour and look of your device
and accessories may not exactly match the graphics shown in this document.
Magellan operates a policy of ongoing development. Magellan reserves the
right to make changes and improvements to any of the products described
in this document without prior notice. Magellan does not warrant that this
document is error-free. The screenshots and other presentations shown in
this manual may differ from the actual screens and presentations generated
by the actual product. All such differences are minor and the actual product
will deliver the described functionality as presented in this User Manual in all
material respects.
Copyright
© 2012 MiTAC International Corporation. Magellan is either a registered
trademark or trademark of MiTAC International Corporation and is used under
licence by Magellan Technology Limited. All rights reserved.
All other trademarks and registrations are the property of their respective
owners.
Revision: R01
(05/2013)
Welcome 2
Important information for using the manual .................................................2
Disclaimer ..............................................................................................................2
Copyright ...............................................................................................................2
Contents 2
Knowing your device 3
Main unit................................................................................................................3
Accessories ............................................................................................................4
Getting started 4
Charging the battery ...........................................................................................4
Performing the initial start-up ...........................................................................5
Connecting your device to the computer ........................................................5
Installing the device 6
Mounting the device on your bike ....................................................................6
Installing the sensors on your bike ...................................................................7
Putting on the heart rate monitor ....................................................................8
Operating basics 9
Main menu ............................................................................................................9

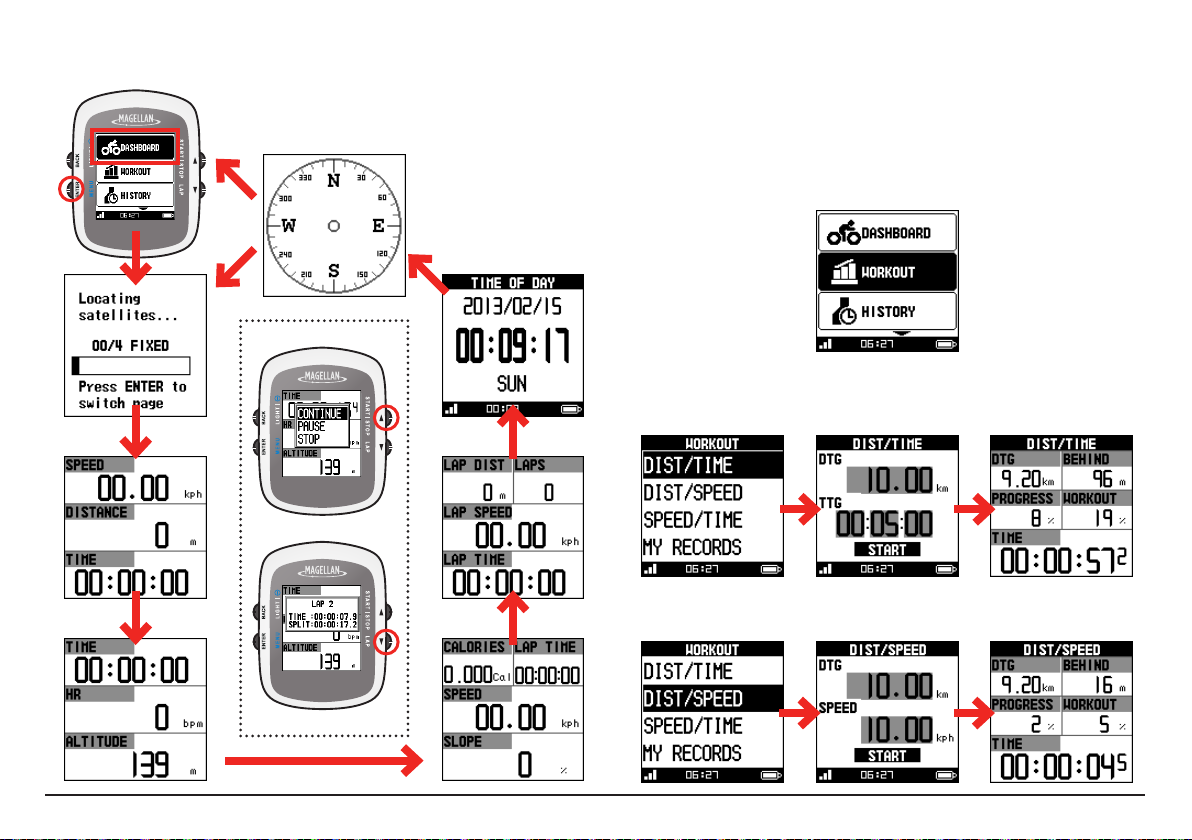

DASHBOARD screens..........................................................................................9
WORKOUT mode...............................................................................................10
Viewing the HISTORY ....................................................................................... 11
SETTINGS menu .................................................................................................12
Customising your device 13
ABOUT PRODUCT ............................................................................................. 13
ACCESSORIES .....................................................................................................13
ALERTS .................................................................................................................14
AUTO LAP ............................................................................................................14
AUTO PAUSE ......................................................................................................14
BAROMETER .......................................................................................................14
COMPASS ............................................................................................................15
FACTORY RESET ................................................................................................. 15
GPS SETTING ......................................................................................................15
2
MAP MODE .........................................................................................................16
MEMORY STATUS ..............................................................................................16
PAGE SETTINGS .................................................................................................16
PROFILES .............................................................................................................17
RECORDED DATA ..............................................................................................17
SLOPE ................................................................................................................... 17
SYS UPGRADE .................................................................................................... 17
SYSTEM ................................................................................................................18
Managing data on the device 19
Installing the PC utility .....................................................................................19
Sharing your experience on the Internet .......................................................19
For more information 19
Online support ...................................................................................................19
Caring for your Magellan cyclo .......................................................................19
Troubleshooting ................................................................................................ 20
What is GPS? ..................................................................................................... 20
IPX7 .......................................................................................................................21
Safety precautions ............................................................................................. 21
Regulatory information ....................................................................................21
WEEE ....................................................................................................................21
End User License Agreement............................................................................22
Knowing your device
Main unit
1. POWER / LIGHT / BACK
• Press and hold for 2 seconds to turn your device on/off.
• When the device is turned on and in DASHBOARD menu, press to switch
the backlight on/off.
• While navigating through the menus(except DASHBOARD), press to
return to the previous screen.
2. MENU / ENTER
• In DASHBOARD menu, press to switch between the screens.
Press and hold for 2 seconds to return to the Main menu.
• While in the menu screen/option list, press to select the desired function/
option.
3. UP / START|STOP
• Press to scroll up in the menu screen/option list.
• In DASHBOARD menu, press to select CONTINUE, PAUSE, or STOP the
timer in training.
4. DOWN / LAP
• Press to scroll down in the menu screen or in the option list.
• In DASHBOARD menu, press to create a lap while the timer is counting
for training.
5. Bike mount socket: for the device mount.
6. Mini-USB connector: connects to the charger or USB cable.
3
Accessories
Your device comes with the following accessories:
Note: Depending on the specific model purchased, the colour and look of your device and
accessories may not exactly match the graphics shown in this document.
x
2
Power adapter
USB cable
x 5
Bike mount kit
Getting started
Charging the battery
Your device has an internal battery that may not be fully charged when you
purchase it. You should charge the battery for at least 3.5 hours before you
start using it for the very first time.
To charge the battery:
• Using a mains power socket
Plug the home charger cable into the USB connector on the back of your
device and the mains power charger into the power socket.
Heart rate belt*
(ANT+™ sensor)
* May be sold separately and used for selected models only.
Speed and cadence sensor kit*
(ANT+™ sensor)
To use your device on a bike, ensure you use the specific bike mount kit that
came with your device. Magellan may provide optional accessories for specific
models.
Please visit Magellan website (www.magellangps.com.au) for information.
Information:
This device is ANT+ certified and is compatible with ANT+ sensor devices that support
heart rate and combined bike speed & cadence data. For more information please visit:
www.thisisant.com
• Via the computer
Connect your device to the computer by using the provided USB cable. For
more information, see "Connecting your device to the computer" in this
section.
4
CAUTION: For optimal performance of the lithium battery, note the following:
• Do not charge the battery where the temperature is high (e.g. in direct sunlight).
The battery will stop charging when the ambient temperature is less than -10ºC (14ºF)
or more than 60ºC (140ºF).
• Recharge the battery when it is nearly discharged. When recharging, make sure that
the battery is fully charged. Doing so can extend the battery life.
• If you will not use the product for a long period of time (over one month) or find the
discharge/recharge time has been shortened, be sure to fully discharge the battery
first before recharging it. You are also advised to fully discharge and recharge the
battery once every 1~2 months.
• Failure to follow the battery usage instructions could cause damage to your device,
battery and even bodily injury or property damage and will void the warranty.
Tip: You will only have to do this the first time you use your Magellan. You can change
these settings from the SETTINGS menu while using the device.
4. Once your device is turned on, it will search for satellite signals
automatically. This may take several seconds depending on the location.
When GPS is fixed, the GPS signal icon ( ) on the screen indicates the
GPS status.
Note: Please complete GPS fix on the device before starting your training/workout.
You can record the training/workout data correctly only when GPS is fixed.
5. Depending on your device model, you will need to scan and pair the heart
rate monitor and cadence/speed sensor with the device. After installing the
cadence/speed sensor and heart rate monitor, enable the device to scan
them from Main menu > SETTINGS > ACCESSORIES > SENSORS.
Performing the initial start-up
1. Mount the device and accessories on to your bike. For more information, see
the “Installing the device” section.
2. Press and hold the POWER button for 2 seconds to turn your device on.
3. Follow the prompts to personalise your device, including:
• Select your preferred language
• select the coordination format: degree or degree/minute/second
• select the units format: imperial or metric
• set up date and time format, including the correct time zone and daylight
saving function
• set up your profile, including gender, birthday, weight, height, and
workout level
• select your bike type (race, city, or mountain) and complete the bike’s
data (weight and wheel size*)
* For selected models only.
Connecting your device to the computer
1. Turn on the computer.
2. Turn on your device. Connect the mini-USB end of the USB cable to the back
of your device and the other end to a USB port on your computer.
3. When prompted, select the desired connection type from the CONNECT TO
PC message window:
• YES: Your device will be connected to the computer so you can transfer
your training data to the computer.
Tip: For more information, see the "Managing data on the device" section.
• NO: You will be able to continue using your device with the battery in
charging mode via the computer.
5
Installing the device
Follow the instructions in this section to mount the device and the cadence/
speed sensor kit (for selected models only) on your bike. In addition, you will
need to put on the heart rate monitor during your workouts.
Mounting the device on your bike
The bike mount kit includes two types of rubber pads, allowing you to attach
the bike mount to your bike securely.
1. Select the rubber pad that best fits the handle bars on your bike and then
attach it using the two plastic straps.
2. Align the latch on the back of the device with the slot on the bike mount,
and then rotate the device clockwise to lock the device to the bike mount.
You can choose to mount the device on the handlebar (a) or on the stem (b).
See the following figure for the examples of mounting the device.
3. To remove the device from the bike mount, rotate it anticlockwise.
6
Installing the sensors on your bike
1
a
c
b
d
3
2
3
The cadence/speed sensor kit is used for selected models only.
1. Follow the instruction below to install the cadence/speed sensor kit on your
bike.
3. When done, you can pair the sensor(s) with your device from Main menu >
SETTINGS > ACCESSORIES > SENSORS.
• Select SPEED > SCAN to pair the speed sensor with your device; or
• Select CADENCE > SCAN to pair the cadence sensor with your device; or
• Select SPEED/CADENCE > SCAN to pair both the cadence/speed sensors
with your device.
Information:
The cadence sensor contains a replaceable CR2032 battery. Follow the instructions
below to replace the battery:
1. Locate the battery cover on the back of the sensor, and then twist the cover
anticlockwise (e.g. by using a coin) to remove the cover and battery.
2. Insert the new battery into the battery chamber and replace the cover.
3. Twist the cover clockwise (e.g. by using a coin) to close the cover.
2. Ensure that the magnets are aligned with the sensing area on the sensors.
7
Loading...
