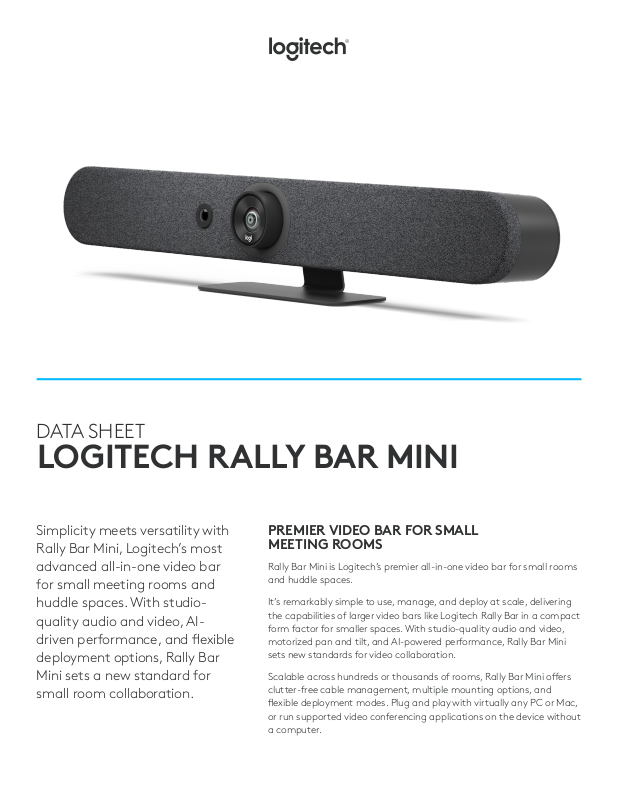

Logitech RALLY BAR MINI DATA SHEET

DATA SHEET

LOGITECH RALLY BAR MINI

Simplicity meets versatility with
Rally Bar Mini, Logitech’s most
advanced all-in-one video bar
for small meeting rooms and
huddle spaces. With studio­quality audio and video, AI­driven performance, and exible
deployment options, Rally Bar
Mini sets a new standard for
small room collaboration.

PREMIER VIDEO BAR FOR SMALL
MEETING ROOMS

Rally Bar Mini is Logitech’s premier all-in-one video bar for small rooms
and huddle spaces.

It’s remarkably simple to use, manage, and deploy at scale, delivering
the capabilities of larger video bars like Logitech Rally Bar in a compact
form factor for smaller spaces. With studio-quality audio and video,
motorized pan and tilt, and AI-powered performance, Rally Bar Mini
sets new standards for video collaboration.

Scalable across hundreds or thousands of rooms, Rally Bar Mini oers
clutter-free cable management, multiple mounting options, and
exible deployment modes. Plug and play with virtually any PC or Mac,
or run supported video conferencing applications on the device without
a computer.

FEATURES & BENEFITS

LOGITECH RALLY BAR MINI

SIMPLE TO SET UP SIMPLE TO USE SIMPLE TO MANAGE

USB Plug and Play

Easily connects to virtually any PC or Mac®,
with no additional software required

Appliance Mode

Built-in compute allows you to run
supported video conferencing applications
such as Zoom directly on the device

All-in-One Design

Sleek, minimal footprint expedites setup
and reduces clutter

Streamlined, Flexible Installs

Condently deploy at scale with smart
cable management and multiple mounting
options

RightSense Technologies

RightSight

Detects meeting participants,
automatically moves the lens and adjusts
the zoom so no one is left out of the picture

RightLight

Intelligently adjusts video settings in all light
conditions so everyone always looks their
best

RightSound

AI-driven voice leveling and unwanted noise
suppression deliver outstanding clarity

One-Touch Join

Optionally deploy with Tap to quickly and
easily initiate meetings across Zoom,
Microsoft Teams, and other cloud services

Logitech Sync

Single platform to monitor room health and
keep devices up to date, plus insights on
room occupancy

Deploy Updates at Scale

Easily propagate upgrades and bug xes to
Rally Bar and your other supported Logitech
devices

Forward-Looking Architecture

Sync API is a robust foundation for new
insights and integrations

Partner Dashboard Support

Fully integrated with partner solutions like
Microsoft Teams, Zoom, and others for a
simplied device management experience

AUDIO VIDEO AI VIEWFINDER

Room-lling Sound

Ultra low distortion speakers with
RightSound™ convey every word with
outstanding clarity

Adaptive Beamforming Mic Array

Beamforming mics pick up voices at
every seat and focus on the active talker
while suppressing ambient noise

Expansion Ready

Add up to two Rally mic pods for even
greater coverage in larger settings

Ultra-HD Video

Brilliantly sharp video, outstanding
color, and exceptional optical accuracy
at resolutions up to 4K

Expansive Room Coverage

Mechanical pan and tilt covers
rooms 163° across by 110° high, with
exceptional image quality

Cinema Quality

Logitech RightLight™ technology
captures natural-looking skin tones,
even in dim or backlit conditions

Framed to Perfection

A second built-in camera lens has the
ability to detect meeting participants,
amplifying RightSight™ autoframing

See Everyone Clearly

All meeting participants, even late arrivals,
are automatically seen and included

Move About Freely

AI Viewnder uses scene awareness to keep
the camera on the action

ACCESSORIES & TECH SPECS

ACCESSORIES

LOGITECH RALLY BAR MINI

TV Mount for Video Bars

Securely mount Rally Bar Mini above
or below a TV or monitor

Rally Mic Pod Extension
Cable

Easily connect mic pods to Rally Bar
with up to two 10m extension cables

Wall Mount for Video Bars

Neatly and condently secure
Rally Bar on the wall for minimal
footprint

Rally Mic Pod Mount in
Graphite and White

Hide cables and anchor mics on the
table or ceiling for a clean, nished
look

Rally Mic Pod in Graphite

Expand audio coverage and
provide convenient access to
mute controls

Logitech Tap Controller

Deploy with Tap for easy one­touch to join

Rally Mic Pod in White

Expand audio coverage and provide
convenient access to mute controls

Rally Mic Pod Hub

Customize microphone placement
for your conference table
conguration

TECH SPECS

CERTIFICATIONS & COMPATIBILITY GENERAL CAMERA

Certications: Zoom™ Certied, Certied for
Microsoft Teams as a USB device. Contact
the manufacturer for additional information
on pending and granted certications.

Compatibility: Plug and play USB connectivity
with virtually any video conferencing
application

Appliance Mode: Supports compatible
video conferencing software in appliance
mode (no PC required), including Zoom
Rooms Appliances. Certication pending
for Microsoft Teams Rooms on Android and
additional video conferencing platforms.

Built-in Components: 6 beamforming
microphones, PTZ camera, 3 speakers, AI
Viewnder, cable management & retention
system, table stand, Logitech CollabOS
platform

Enclosure: All-in-one enclosure with integrated
table stand and patented speaker suspension
system to eliminate vibration-induced camera
shake and audio interference

Device Management: Logitech Sync

Displays Supported: 2

Display Resolution: Up to 4k

Resolution: 4K, 1440p, 1080p, 900p, 720p, and
SD at 30fps

Pan: Motorized ±25°

Tilt: Motorized ±15°

Zoom: 4X HD digital zoom

Diagonal Field of View: 120°

Horizontal Field of View: 113°

Vertical Field of View: 80.7°

Total Room Coverage (eld of view + pan and
tilt): 163° horizontal x 110° vertical

DIMENSIONS SPEAKERS RIGHTSENSE™ TECHNOLOGIES

Height: 91.4 mm / 3.6 in

Width: 719 mm / 2.36 ft

Depth: 101 mm / 3.98 in

Lens Depth: 18.5 mm / 0.73 in

Weight: 4.03 kgs / 8.88 lbs

Woofer: 70mm / 2.7in

Mid-range: 2x / 1.5in

Output: 90dB SPL @1W, 99dB SPL @8.0W,
both +/-2dB at ½ meter

Sensitivity: 86+/-2dB SPL at 1W, ½ meter

THD: 1kHz < 2%

Speaker Sampling Rate: 48 kHz

RightLight™: Renders natural skin tones for
each participant.

RightSight™: Maintains persistent room
awareness and detects human gures to
auto-frame participants.

RightSound™: Distinguishes speech from
other sounds to auto-level voices while
suppressing background noise and echo.

PRODUCT SPECS & LINKS

MICROPHONES INTERFACES POWER & CABLES

LOGITECH RALLY BAR MINI

Frequency Response: 90Hz – 16kHz

Sensitivity: >-36dBFS +/-1dB @ 1Pa

Microphone Data Rate Output: 48 kHz

Pickup Range: 4.5m / 15 ft

Beamforming Elements: Six omnidirectional
digital MEMS microphones forming ve
adaptive acoustic broadside beams

Audio Processing: AEC (Acoustic Echo
Cancellation), VAD (Voice Activity Detector)

Noise Suppression: AI lter

Add-on Mics: Supports up to 2 additional
Rally Mic Pods

ENVIRONMENTAL SECURITY WARRANTY

Operating Temperature: 0 to 40 °C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting

PACKAGE CONTENTS PRODUCT SPECS

HDMI Out: 2

HDMI In: 1

USB 3.0: 3x Type A, 1x Type C

Network: 10/100/1G Ethernet

WiFi: 802.11a/b /g/n/ac (MIMO)

External Mic Input: Yes (proprietary input
supports optional Rally Mic Pod, Rally Mic Pod
Hub, and Rally Mic Pod Extension Cable)

Remote Control: Bluetooth® Low Energy

Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP

Power Supply: Auto-sensing

Operating Voltage/Power: 100-240V, 19V,

4.74A

Power Supply Dimensions: 127mm x 51mm x
30mm

DC Cable: 1.5m / 4.9 ft

AC Cable: 1m / 3.28 ft

HDMI 1.4 Cable: 2m / 6.5 ft

USB A to USB C 3.0 Cable: 2.2m / 7.2 ft

Standard: 2-year limited hardware warranty
included

Extended: Additional one-year extended
warranty available at the time of hardware
purchase. Contact your reseller for availability.

Rally Bar Mini
Power supply
AC power cord
HDMI cable

USB cable
Remote control
Lens caps for main lens and AI Viewnder
User documentation

www.logitech.com/RallyBarMini

Contact your reseller
or contact us at
www.logitech.com/ vcsales

Logitech Americas

7700 Gateway Blvd.
Newark, CA 94560 USA

Logitech Europe S.A.

EPFL - Quartier de l’Innovation
Daniel Borel Innovation Center
CH - 1015 Lausanne

Logitech Asia Pacific Ltd.

Tel : [phone]
Fax : [phone]

Rally Bar Mini - Graphite

Part #: 960-001336

UPC: 097855162199

© 2020 Logitech. Logitech, the Logitech logo and other Logitech marks are
owned by Logitech and may be registered. All other trademarks are the properties
of their respective owners. Logitech assumes no responsibility for any errors
that may appear in this publication. Product, pricing and feature information
contained herein is subject to change without notice.

Published October 2020

Rally Bar Mini - White

Part #: 960-001348

UPC: 097855162250
