Logitech®

Installation QuickCam® Communicate STX

Contents

English. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. 3

.

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.



Français. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13.



Português. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18



Logitech® QuickCam® Installation

English

Thank.you.for.purchasing.your.new.Logitech® .QuickCam®,.the.world’s.most. popular.webcams..

1. Camera.Features

Integrated privacy shade

Activity light

Snapshot button







Lens





Microphone

Flexible clip/base

2. Install.the.Software.First

Install the software before plugging in the camera.

English   

Logitech® QuickCam® Installation

3. Camera.Setup

During the Camera Setup step of the installation process, you will beprompted to connect the camera to a USB port on your computer. Important:.Do.NOT.connect.the.camera.until.you.are.prompted..

to.do.so..

4. Position.Your.Camera,.Microphone,.and.Speakers

Your camera comes with Logitech® RightSoundecho-cancellation technology. The following steps will ensure the best possible audio performance:

1.Position your camera in the middle of your monitor for optimal eye contact.

2.Position your camera’s microphone no more than 3 feet (1 m) away from you and point it toward you.

3.Position your speakers (if used) at least 12 inches (30 cm) away from your microphone to reduce feedback, and then angle your speakers away from your microphone.

Tip Do not place objects between you and the microphone.

    English

LOGITECH QuickCam Communicate STX Plus User Manual

Logitech® QuickCam® Installation

5. The.Audio.Tuning.Wizard

The first time that you start QuickCam, you are guided through the Microphone/Speaker Setup Utility and Audio Tuning Wizard that lets you do the following:

Select the audio input device (microphone) and audio output device (speakers).

Enable Acoustic Echo Cancellation (AEC)—recommended.

Specify microphone input volume and speaker output volume.

Test audio settings.

Tip To change these settings later, in the QuickCam® software, click the Settings button and then click the Audio tab.

English   

Logitech® QuickCam® Installation

6. Congratulations

Your camera is now set up and ready to go! Enjoy using your new QuickCam® to make live video calls with any popular video messaging program.

You have successfully completed installation. Now you can begin to enjoy live video images with your webcam using any popular video application. For example, you can do the following:

Make free video calls and video instant messages (IM)

Take still photos or videos and email them

Use the integrated microphone for audio calls

Add videos to your Ebay auctions (see www..logitech..com/videosnap).

7Using.the.QuickCam® .Software

To start the Logitech® QuickCam® program, do either of the following:

• On your desktop, double-click the QuickCam® icon.

- or-

• In the lower-right corner of your desktop in the taskbar, click the QuickCam® icon.

    English

Logitech® QuickCam® Installation

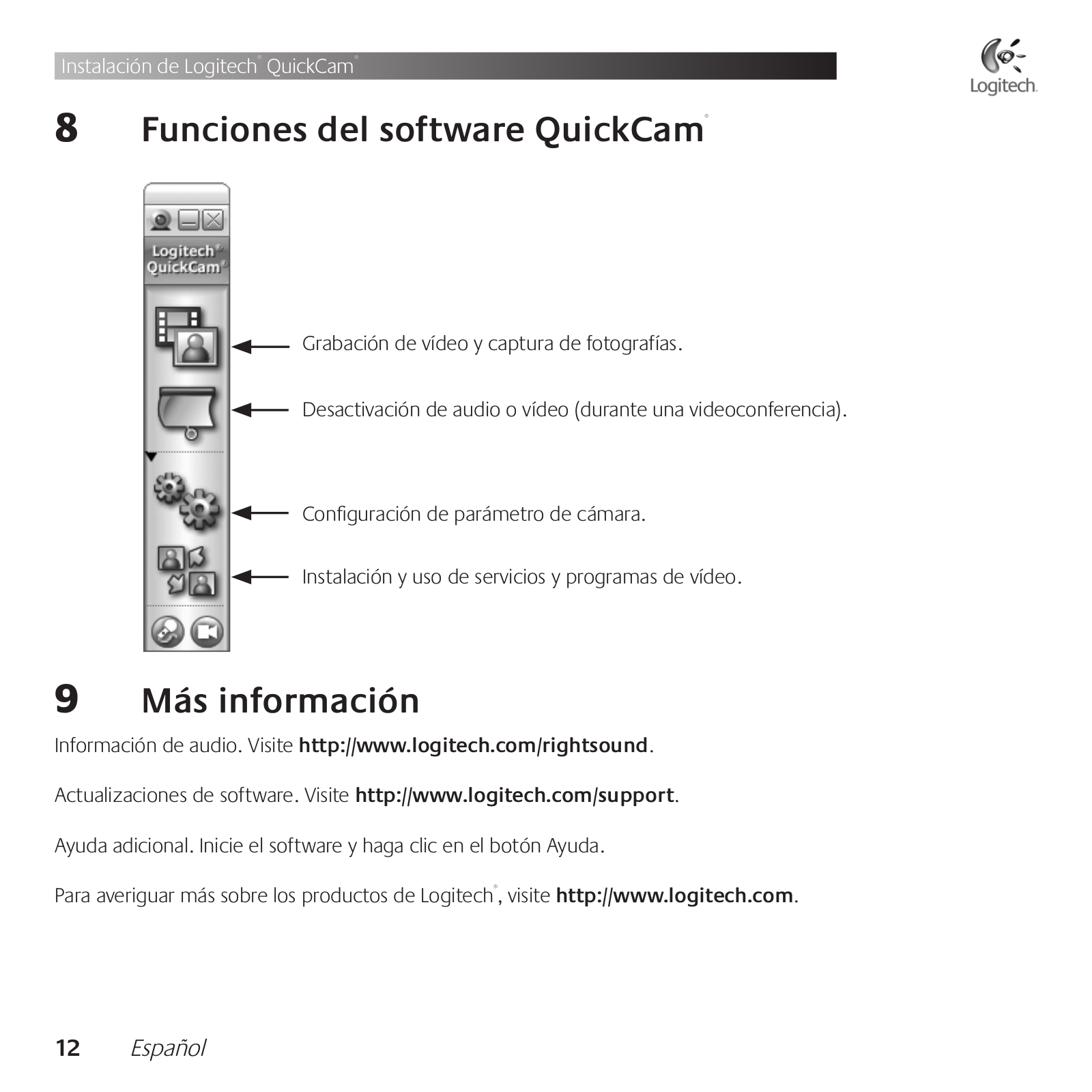

8QuickCam® .Software.Features

Record videos or capture images.

Enable Audio & Video Mute (when on a video call).

Specify camera settings.

Install and use video programs and services.

9For.More.Information

Audio Information. Go to http://www..logitech..com/rightsound.

Software Updates. Go to http://www..logitech..com/support.

Additional Help. Launch the software and click the Help button.

To learn more about Logitech® products, go to http://www..logitech..com..

English   

Instalación de Logitech® QuickCam®

Español

Le.agradecemos.la.adquisición.de.Logitech® .QuickCam®,.la.cámara.Web.más.vendida. enelmundo..

1. Componentes.de.la.cámara

Tapa de privacidad integrada

Diodo de actividad

Botón de captura de instantáneas







Objetivo





Micrófono

Clip/base versátil

2. PRIMERO.instale.el.software

Debe instalar el software antes de conectar la cámara.

    Español
