Thank you for purchasing your new Logitech® QuickCam®,
the world’s most popular web cameras.
Camera Features
Camera
LED
Base
Lens
Stand
Microphone
USB cable
English 1
623917-1403.book Page 2 Thursday, July 21, 2005 1:31 PM

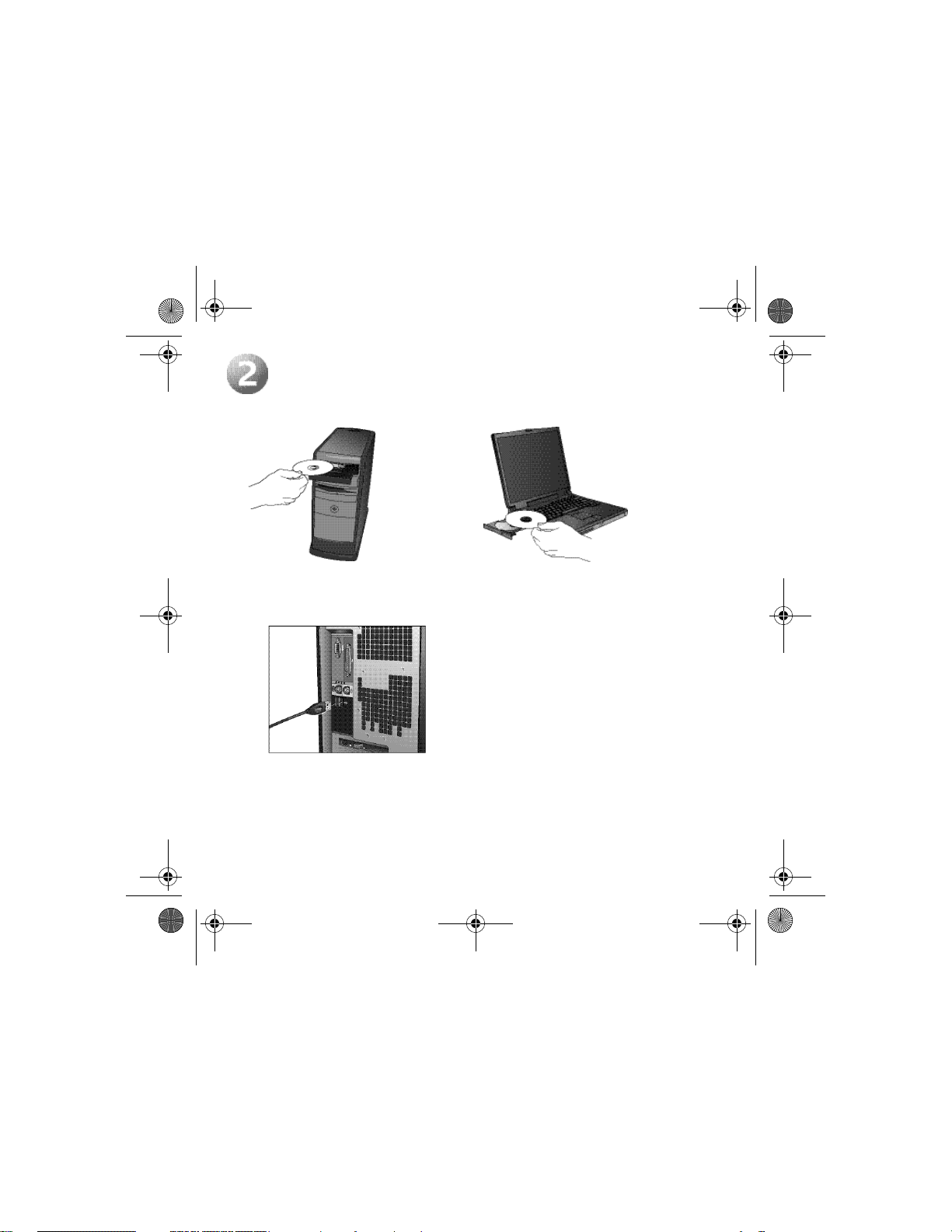

Install the Software
1. Install the software FIRST, and follow the on-screen instructions.
2. During software installation, you are prompted to connect the camera USB cable to the USB port:
• Wait until you receive the software prompt before inserting the cable into the computer’s
USB port.
• Complete software and hardware installation by following the on-screen instructions.
These instructions include an audio tuning wizard, which will ensure optimum
audio performance. See the Audio Setup Guide for more information.
2 English
623917-1403.book Page 3 Thursday, July 21, 2005 1:31 PM
Position the Camera and Your Speakers
1. Tabletop Placement. The camera can be placed on a tabletop next to your computer monitor.
Use the camera on its base, or use the stand to raise the camera to your eye level.
2. Monitor Placement. If there is a flat, stable surface on top of your monitor, place the camera
on the base in the middle of your monitor. You don’t need to use the stand on your monitor.
3. Camera Rotation. Do not manually rotate the camera on the base or on the stand.
You could damage the camera. Use your mouse or keyboard to pan and tilt the camera.
Or activate face-tracking for automatic camera movements. Refer to “Tips” in this manual.
4. If you are using the camera with desktop speakers (not included), angle the speakers slightly away
from the computer monitor to ensure optimum audio performance during video calls.
Using the Camera Stand
1. Remove the camera from the base.
2. Connect the stand to the base. Carefully use the alignment features to connect the stand
easily to the base.
English 3
623917-1403.book Page 4 Thursday, July 21, 2005 1:31 PM
3. Connect the camera to the stand. Carefully line up the connectors on the stand with
the connectors on the camera.
4. Do not carry the camera by the stand. The base could detach from the stand, and the base
could get damaged if it were to hit the floor. Move the unit by holding on to the base and stand
at the same time.
Stand topCamera bottom
4 English
Line up connectors
Line up connectors
Base top
Stand bottom
Correct: Hold base and stand
to move camera.
Incorrect
623917-1403.book Page 5 Thursday, July 21, 2005 1:31 PM
Launch the Software
1. To launch the software, double-click the Logitech® QuickCam® shortcut on the desktop,
or click Start on the Windows® Taskbar, and then select Programs\Logitech\Logitech QuickCam.
2. Choose your favorite video instant messaging application, or choose one of the other available
software activities.
Audio Setup
If you plan to use the camera’s integrated microphone or a headset, you must configure it to perform
properly. Follow the instructions in the Audio Setup Guide to complete this task.
English 5
623917-1403.book Page 6 Thursday, July 21, 2005 1:31 PM
Tips
Pan, Tilt, and Zoom. Use the Quick Assistant, which is displayed automatically when your camera is
in use, to access the Pan, Tilt, and Zoom features. Use your mouse and keyboard to pan left and right,
tilt up and down, or Zoom in or out while doing video instant messaging or recording videos.
(Refer to the software help system for more information.)
Lighting. The Logitech® RightLight™ Technology will automatically provide the best image in a variety
of lighting conditions. However, for best results shoot videos with bright light sources behind
the camera and out of the picture area whenever possible. Click on the QuickCam® icon in
the Windows® system tray and select Camera Settings for additional video controls, such as Low Light
Filter and Color Boost.
Face Tracking. Activate face-tracking from within “Camera Controls” so that the camera can follow
your movements.
Echo Cancellation. Run the Audio Tuning wizard from the Logitech® QuickCam® software to ensure
optimum audio performance. Please see the Audio Setup Guide for more information.
Taking Still Pictures. Use the QuickCapture™ feature from the QuickCam software to take still
pictures with your camera.
Software Updates. To check for new software updates, click on the QuickCam icon in the Windows
system tray and select Check for Updates, or go to http://www.logitech.com/support.
Learning More About the Camera
To learn more about your camera and its software, access the Logitech QuickCam® software
(Programs\Logitech\Logitech QuickCam), and then click the Help button. For additional support
information about Logitech QuickCam web cameras, as well as other Logitech® products,
please visit www.logitech.com.
6 English
623917-1403.book Page 7 Thursday, July 21, 2005 1:31 PM
Warranty
Limited Warranty. Logitech warrants that any hardware product accompanying this documentation shall be free from significant
defects in material and workmanship for a period of two (2) years from the date of purchase. Logitech's limited warranty is
nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights
which vary under local laws.
Remedies. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to: (a) repair
or replace the hardware, or (b) refund the price paid, provided that the hardware is returned to the point of purchase or such other
place as Logitech may direct, with a copy of the sales receipt. Any replacement hardware will be warranted for the remainder of
the original warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the hardware has resulted from
accident, abuse, misapplication, or any unauthorized repair, modification or disassembly. Further, for cordless devices, these remedies
are void if you use battery types other than those recommended by Logitech. Upon request from Logitech, you must prove the date
of the original purchase of the hardware by a dated bill of sale or dated itemized receipt.
DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES.
LOGITECH AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS WITH RESPECT
TO THE HARDWARE, SOFTWARE, DOCUMENTATION AND ANY OTHER MATERIALS PROVIDED BY LOGITECH AND/OR ITS SUPPLIERS, AND ANY
WARRANTIES OF NON-INTERFERENCE OR ACCURACY OF INFORMATIONAL CONTENT. NO LOGITECH DEALER, AGENT, OR EMPLOYEE IS
AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. Some jurisdictions do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you.
LIMITATION OF LIABILITY. IN NO EVENT WILL LOGITECH OR ITS SUPPLIERS BE LIABLE FOR ANY COSTS OF PROCUREMENT OF SUBSTITUTE
PRODUCTS OR SERVICES, LOST PROFITS, LOSS OF INFORMATION OR DATA, OR ANY OTHER SPECIAL, INDIRECT, CONSEQUENTIAL,
OR INCIDENTAL DAMAGES ARISING IN ANY WAY OUT OF THE SALE OF, USE OF, OR INABILITY TO USE ANY LOGITECH PRODUCT OR SERVICE,
EVEN IF LOGITECH HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL LOGITECH'S AND ITS SUPPLIERS' TOTAL
LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE LOGITECH PRODUCT OR SERVICE GIVING RISE TO THE LIABILITY. Some jurisdictions
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply
to you. The above limitations will not apply in case of personal injury where and to the extent that applicable law requires such liability.
How to Obtain Warranty Support. Before submitting a warranty claim, we recommend you visit the support section
at www.logitech.com for technical assistance. Valid warranty claims are generally processed through the point of purchase during
the first two years of the warranty period; however, this period may vary in different countries, such as in the U.K., where valid warranty
claims are processed through the point of purchase during the first year only. Valid warranty claims that are not processed through
the point of purchase, and any other warranty related questions, should be addressed directly to Logitech. The addresses and customer
service telephone numbers for Logitech can be found in the documentation accompanying your product and on the web at
www.logitech.com.
Logitech camera products are intended to be used in a lawful manner. Certain uses of digital PC camera products may be
prohibited by local laws in some countries or states, such as the surreptitious recording of audio and/or video communications for certain
purposes. If you have any question about whether a proposed use of your product is lawful, you should consult a local legal authority
before proceeding.
