Liebherr LR 1100 User Manual

Technical data
LR 1100
Hydraulic lift crane
Complies with ANSI/ASME B 30.5 1001.01
Dimensions
Basic machine with undercarriage
6´5´´
R 20´8´´
9´6´´
17´7´´
21´2´´
24´11´´
8´10´´
59´´
R 15´5´´
55.1´´
14´3´´
11´6´´
50´´
13.8´´
16´7´´
38´9´´
Operating weight
The operating weight includes the basic machine with crawlers, 2 main winches 26,980 lbf and 46 ft main boom, consisting of A-frame, boom foot (18 ft), boom head (28 ft), 71,200 lbs basic counterweight,33,100 lbs carbody counterweight and 220,500 lbs hook block.
Total weight approx. 242,100 lbs
Ground pressure
Ground bearing pressure 16.22 PSI
Equipment
Main boom (No. 1311.xx) max. length 223 ft High reach (No. 1311.xx and 1008.x x) max. length 272 ft Luffing jib (No. 1008.xx) max. length 203 ft Max. combination main boom – 125 ft luffing jib – 203 ft Fixed jib (No. 0806.xx) 36 ft – 105 ft Auxiliary jib 53,000 lbs lifting capacity (option 79,400 lbs)
Remarks
1. The lifting capacities stated are valid for lifting operation only (corresponding with crane classification according to F.E.M.
1.0 01. cra ne g rou p A1).
2. Crane standing on firm, horizontal ground.
3. The weight of the lifting device (hoisting ropes, hook block, shackle etc.) must be deducted form the gross lifting capacity to obtain a net lifting value.
4. Additional equipment on boom (e.g. boom walkways, auxiliary jib) must be deducted to get the net lifting capacity.
5. For max. wind speed please refer to lift chart in operator‘s cab or manual.
6. Working radii are measured from center of swing and under load.
7. The lifting capacities are valid for 360 degrees of swing.
8. Calculation of stability under load is based on ANSI/ASME B 30.5 load ratings as well as ISO 4305 Table 2 and is tested according to SAE J765.
9. Loads for calculation of structures are corresponding to F.E.M.
1.001-1998 and are tested according to SAE J987.
2 LR 1100 ANSI/ASME B 3 0.5
Transport dimensions and weights
Basic machine and boom (No. 1311.xx)
Basic machine
with undercarriage, boom foot (No. 1311.22), A-frame, 2x 26,980 lbf crane winches without wire ropes and basic counterweight
Width 11´6´´
Weight 123,900 lbs
Weight of wire rope 2.28 lbs/ft
Basic machine
with boom foot (No. 1311.22), A-frame, 2x 26,980 lbf crane winches without wire ropes, basic counterweight and crawlers
Width 11´6´´
Weight 78,925 lbs
Weight of wire rope 2.28 lbs/ft
Crawler 2x
Track pads 35.4´´
Width 36.0´´
Weight 22,500 lbs
Option 51.2´´
21´
38´5´´
38´5´´
5´7´´
10´1´´
Option 11´8´´
10´5´´
13.8´´
10´5´´
34.3´´
50´´
10´4´´
20´2´´
39´10´´
31´2´´
1) Pendant straps fo r main bo om s 2) Penda nt stra ps for jib
53.2´´
53.2´´
53.2´´
9´
Boom section (No. 1311.22) 10 f t
Width 4´7´´
Weight with HPT
Weight with HPT
1)
1,025 lbs
1)
and NDL2) 1,170 lbs
Boom section (No. 1311.22) 20 ft
Width 4´7´´
Weight with HPT
Weight with HPT
1)
1,720 lbs
1)
and NDL2) 1,965 lbs
Boom section (No. 1311.21) 40 ft
Width 4´7´´
Weight with HPT
Weight with HPT
1)
2,910 lbs
1)
and NDL2) 3,420 lbs
Boom head (No. 1311.21)
Width 5´5´´
Weight with HPT
1)
5,070 lbs
9´5´´
Boom transport option
(without pendant straps)
8´2´´
*Actual lengths of boom sections are metric (e.g. 3m, 6m, 12m). The figures shown above are approximate conversions to fe et.
Length 39.8 ft
Weight 13,700 lbs
LR 1100 ANSI/ASME B 3 0.5 3
Transport dimensions and weights
Luffing jib (No. 1008.xx)
Luffing jib head (No. 1008.17)
6´11´´
20´8´´
40.1´´
10´4´´
Width 43.3 inch
Weight* 2,250 lbs
Luffing jib section (No. 1008.17) 10 f t
Width 43.3 inch
Weight* 660 lbs
20´2´´
39´10´´
25´3´´
39´10´´
Fixed jib (No. 0806.xx)
40.1´´
40.1´´
8´4´´
51,2´´
Luffing jib section (No. 1008.17) 20 ft
Width 43.3 inch
Weight* 1,005 lbs
Luffing jib section (No. 1008.17) 40 ft
Width 43.3 inch
Weight* 1,875 lbs
Luffing jib foot with A-frames (No. 1008.20)
Width 65 inch
Weight* 8,050 lbs
Boom section tapered (No. 1311/1008.21) 40 ft
Width 55.1 inch
Weight* 2,670 lbs
19´10´´
10´4´´
20´2´´
22´10´´
*) Including pendant straps
4 LR 1100 ANSI/ASME B 3 0.5
38.6´´
32.3´´
32.3´´
45.9´´
Fixed jib head (No. 0806.16)
Width 37.4 inch
Weight* 1,015 lbs
Fixed jib section (No. 0806.15) 10 f t
Width 37.4 inch
Weight* 320 lbs
Fixed jib section (No. 0806.15) 20 ft
Width 37.4 inch
Weight* 550 lbs
Fixed jib foot with A-frame (No. 0806.16)
Width 7´3´´
Weight* 2,295 lbs
Transport dimensions and weights
Luffing jib (No. 1309.xx)
Luffing jib head (No. 1309.22)
6´5´´
20´8´´
45.3´´
10´4´´
Width 54.7 inch
Weight* 3,530 lbs
Luffing jib section (No. 1309.20) 10 ft
Width 54.7 inch
Weight* 930 lbs
20´2´´
*) Including pendant straps
29´2´´
38´9´´
45.3´´
45.3´´
8´6´´
Luffing jib section (No. 1309.20) 20 ft
Width 54.7 inch
Weight* 1,150 lbs
Luffing jib section (No. 1309.20) 38 ft
Width 54.7 inch
Weight* 2,120 lbs
Luffing jib foot with A-frames (No. 1309.22)
Width 5´7´´
Weight* 9,810 lbs
LR 1100 ANSI/ASME B 3 0.5 5
Transport dimensions and weights
Counterweight
Counterweight 10 x
18.7´´
37.8´´
Width 33.5 inch
Weight 3,310 lbs
6´5´´
11´6´´
48´´
33.1´´
Counterweight 1 x
Width 41.3 inch
Weight 38,140 lbs
Carbody counterweight 2 x
Width 5´5´´
Weight 16,535 lbs
Hooks
5´11´´
5´11´´
5´3´´
43.3´´
30.3´´
30.3´´
31.5´´
15.7´´
220,500 lbs hook block – 5 sheaves
Width 21.3 25.2 27.6 inch
Weight 2,870 3,970 5,070 lbs
176,400 lbs hook block – 3 sheaves
Width 14.2 18.1 22.1 inch
Weight 2,205 3,310 4,410 lbs
88,200 lbs hook block – 1 sheave
Width 11.8 15.7 19.7 inch
Weight 1,545 2,425 3,310 lbs
27,600 lbs single hook
Width 15.7 inch
Weight 1,325 lbs
6 LR 1100 ANSI/ASME B 3 0.5
Technical description
Engine
Power rating according to ISO 9249, 270 kW (362 hp) at 2000 rpm Engine type Fuel tank indicator and reserve warning Engine complies with NRMM exhaust certification EPA/CARB Tier 4i or 97/68 EC Stage IIIB.
Liebherr D 936 A7 SCR 211 gal capacity with continuous level
Hydraulic system
A double axial displacement pump supplies the open loop hydraulic system, allowing all functions to be operated simultaneously. To minimize peak pressure an automatic working pressure cut–off is integrated in the pump. All filters are electronically monitored. The use of synthetic environmentally friendly (biodegradable) oils is possible. Working pressure Oil tank capacity
max. 350 bar 650 l
Luffing jib winch
Main winches
Line pull (1st layer) max. 39,345 lbf Line pull (7th layer) Rope diameter Drum diameter Rope speed Rope capacity in 7 layers The winches are outstanding in their compact design and easy assembly. Propulsion is via a planetary gearbox in an oil bath. Load support by the hydraulic system; additional safety factor provided by a spring loaded, multi–disc holding brake. The main winches use pressure controlled, variable flow hydraulic motors. This system features sensors that automatically adjust oil flow to provide max. winch speed depending on load. Option – winch with freefall system: Clutch and braking functions on the freefall system are provided by a compact designed, low wear and maintenance free multi–disc brake.
26,980 lbf
26 mm
22.8 inch
0 – 446 ft/min
1,6 04 ft
Crawlers
Propulsion through axial piston motor, hydraulically released spring loaded multi–disc brake, crawler tracks, hydraulic chain tensioning device. Track pads Drive speed
35.4 inch 0 – 0,8 mph
Line pull max. 23,605 lbf Rope diameter Jib luffing
20 mm 46 sec. from 15° to 78°
Boom winch
Line pull max. 28,325 lbf Rope diameter Boom up
20 mm 44 sec. from 15° to 86°
Swing
Consists of rollerbearing with external teeth, swing drive with fixed axial piston hydraulic motor, spring loaded and hydraulically released multi–disc holding brake, planetary gearbox and pinion. Both swing modes are possible – speed control or free swing. A multi– disc holding brake acts automatically at zero swing motion. Swing speed from 0 – 1.8 rpm continuously variable.
Control
The hear t of the hydraulic crawler cranes is the Liebherr control system which has been developed and manufactured in-house. It includes all control and monitoring functions and is designed to withstand extreme environmental conditions and heavy duty construction tasks. Complete machine operating data as well as warning signals and irregularities are clearly displayed on the high resolution monitor in the operator‘s cab in the required language. The electro-hydraulic proportional control allows several movements to be performed simultaneously. This ensures that all categories of loads can be positioned with utmost precision. Option:
s¬ '3-'023¬TELEMATICS¬MODULE
Noise emission
Noise emissions correspond with 2000/14/EC directive on noise emission by equipment used outdoors.
LR 1100 ANSI/ASME B 3 0.5 7

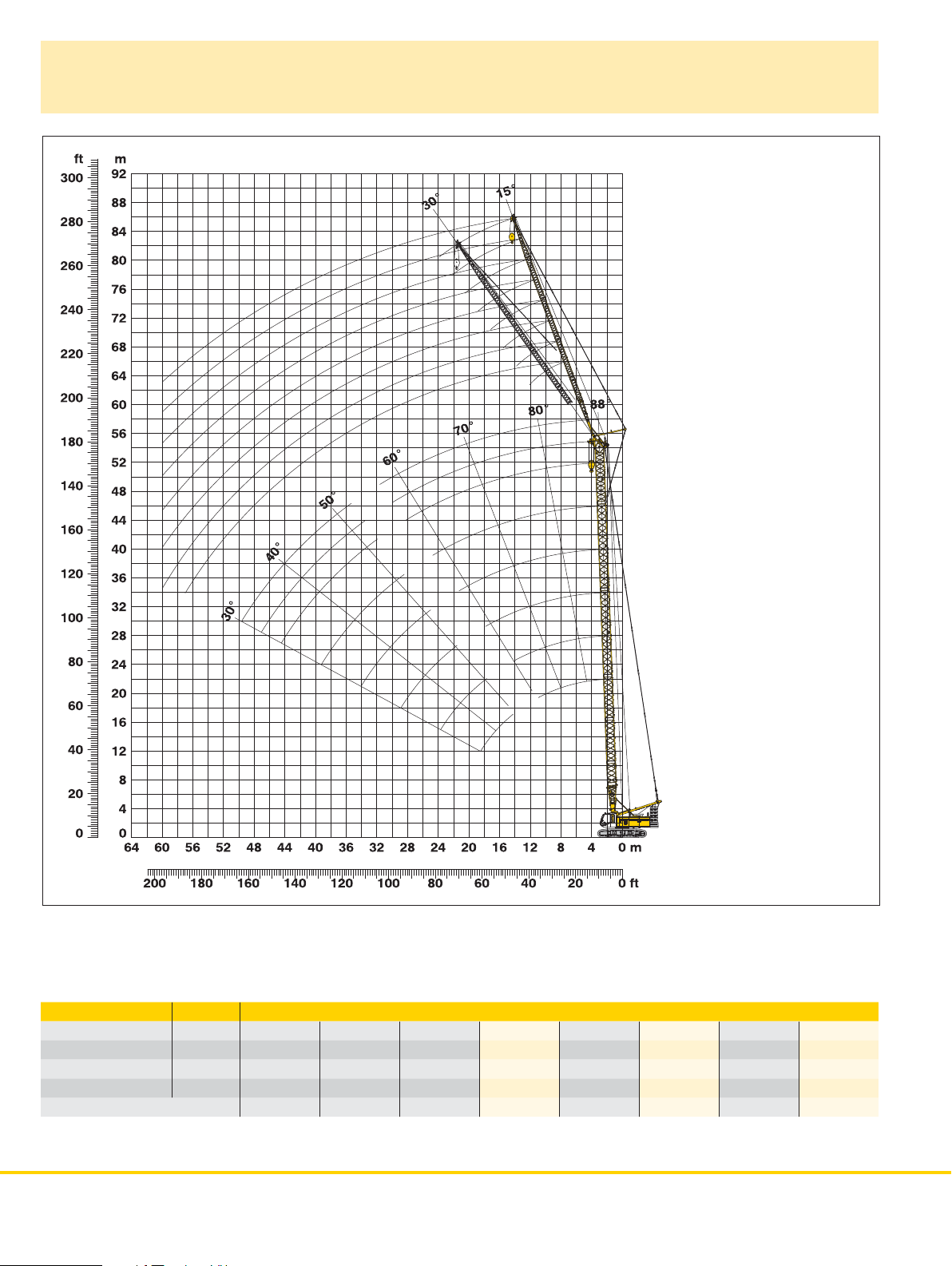

Boom combinations
8.5 m (28 ft)
No. 131
1.21
12 m (40 ft)
No. 131
1.21
12 m (40 ft)
No. 131
12 m (40 ft)
No. 131
1.21
1.21
5.5 m (18 ft)
No. 1008.17
12 m (40 ft)
No. 1008.17
No. 1008.17
Tapered
No. 131
12 m (40 ft)
6 m (20 ft)
No. 1008.17
3 m (10 ft)
No. 1008.17
12 m (40 ft)
1/1008.21
12 m (40 ft)
No. 131
1.21
5.5 m (18 ft)
No. 0806.15
6 m (20 ft)
No. 0806.15
6 m (20 ft)
No. 0806.15
6 m (20 ft)
No. 0806.15
3 m (10 ft)
No. 0806.15
5.5 m (18 ft)
No. 0806.16
8.5 m (28 ft)
No. 131
No. 131
1.21
12 m (40 ft)
1.21
12 m (40 ft)
No. 131
1.21
6 m (20 ft)
No. 131
1.22
6 m (20 ft)
No. 131
1.22
3 m (10 ft)
No. 131
1.22
3 m (10 ft)
No. 131
1.22
5.5 m (18 ft)
No. 131
1.22
Main boom No. 1311.xx 223 ft
8 LR 1100 ANSI/ASME B 3 0.5
6 m (20 ft)
No. 131
1.22
6 m (20 ft)
No. 131
1.22
3 m (10 ft)
No. 131
1.22
5.5 m (18 ft)
No. 131
1.22
Max. combination 272 ft
Main boom
Tapered
Luffing jib
No. 1311.xx 107 ft
No. 1311/1008.xx 40 ft
No. 1008.xx 125 ft
6 m (20 ft)
No. 131
1.22
6 m (20 ft)
No. 131
1.22
3 m (10 ft)
No. 131
1.22
5.5 m (18 ft)
No. 131
1.22
Max. combination 279 ft
Main boom
Fixed jib
No. 1311.xx 174 ft
No. 0806.xx 105 ft
Boom combinations
5.5 m (18 ft)
No. 1008.17
12 m (40 ft)
No. 1008.17
12 m (40 ft)
No. 1008.17
12 m (40 ft)
No. 1008.17
12 m (40 ft)
No. 1008.17
3 m (10 ft)
No. 1008.17
5.5 m (18 ft) No. 1008.20
8.5 m (28 ft)
No. 131
1.21
5.5 m (18 ft)
No. 1309.22
11.7 m (38 ft)
No. 1309.20
11.7 m (38 ft)
No. 1309.20
11.7 m (38 ft)
No. 1309.20
11.7 m (38 ft)
No. 1309.20
6 m (20 ft)
No. 1309.20
No. 1309.20
3 m (10 ft)
5.5 m (18 ft) No. 1309.22
8.5 m (28 ft)
No. 131
1.21
12 m (40 ft)
No. 131
1.21
6 m (20 ft)
No. 131
1.22
6 m (20 ft)
No. 131
1.22
5.5 m (18 ft)
No. 131
1.22
Max. combination 328 ft
Main boom
No. 1311.xx 125 ft
Luffing jib No. 1008.xx 203 ft
Main boom
No. 1311.xx 134 ft
Luffing jib No. 1008.xx 144 ft
12 m (40 ft)
No. 131
1.21
6 m (20 ft)
No. 131
1.22
3 m (10 ft)
No. 131
1.22
5.5 m (18 ft)
No. 131
1.22
Max. combination 334 ft
Main boom
No. 1311.xx 115 ft
Luffing jib No. 1309.xx 219 ft
Main boom
No. 1311.xx 125 ft
Luffing jib No. 1309.xx 151 ft
LR 1100 ANSI/ASME B 3 0.5 9
Self assembly system
Unloading of basic machine (option)
Unloading and assembly of crawlers
Unloading of basic machine (standard)
Unloading and assembly of carbody counterweight Unloading and assembly of boom
Unloading and assembly of counterweight
10 LR 1100 ANSI/ASME B 30 .5
