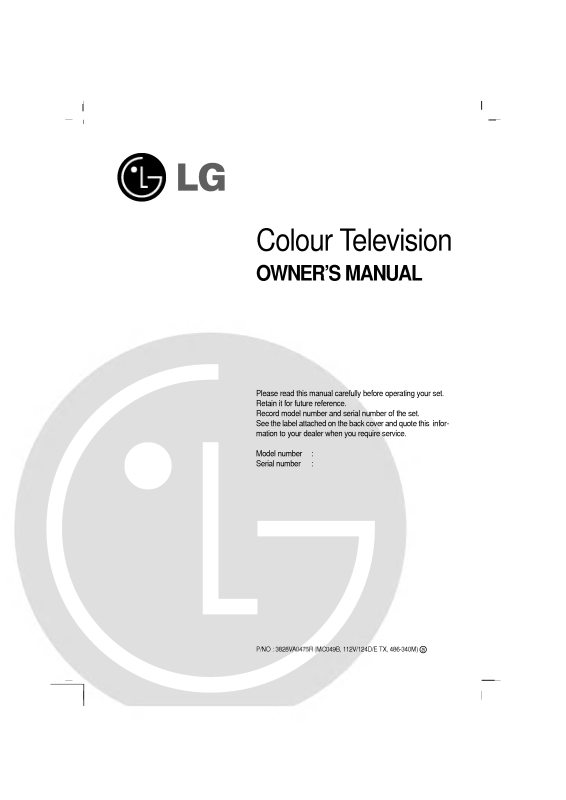

CT-21D75M
Colour
Television
OWNER'S
MANUAL
Please
read
this
manual
carefully
before
operating
your
set.
Retain
it
for
future
reference.
Record
model
number
and
serial
number
of
the
set.
See
the
label
attached
on
the
back
cover
and
quote
this
infor-
mation
to
your
dealer
when
you
require
service.
Model
number
:
Serial
number
:
P/NO
:
3828VA0475R
(MC049B,
112V/124D/E
TX,
486-340M)
a
Contents
Installation
3
Location
and
function
of
controls
4
Remote
control
handset
Battery
installation
Front
panel
/
Side
panel
Basic
operation
7
On
and
off
/
Programme
selection
Volume
adjustment
/
Quick
view
Mute
function
On
screen
language
selection
(option)
On
screen
menus
8
Menu
selection
Setting
up
TV
stations
9
Auto
programme
tuning
Manual
programme
tuning
Programme
edit
Favourite
programme
Calling
the
programme
table
adjustment
15
PSM
(Picture
Status
Memory)
adjustment
/
Eye
(option)
Turbo
selection
(option)
Sound
adjustment
(option)
17
SSM
(Sound
Status
Memory)
/
Sound
adjustment
Turbo
sound
selection
(option)
Sound
output
selection
(option)
Stereo/Dual
reception
(option)
NICAM
reception
(option)
Time
setting
20
Setting
the
clock
/
Setting
the
On/Off
timer
Auto
sleep
Other
functions
21
TV
and
AV
modes
/
Auto
AV
switching
(option)
Child
lock
/
Blue
back
(option)
/
Tilt
(option)
Degaussing
(option)
/
Games
(option)
/
Sleep
timer
PIP
operation
(option)
24
On
and
off
/
Input
mode
selection
for
sub
Swapping
between
main
and
sub
pictures
Programme
selection
for
sub
Sub
size
/
Sub
freeze
Sub
position
change
/
9
or
4
sub
Teletext
(option)
25
Switch
on/off
/
SIMPLE
text
TOP
text
(option)
/
FASTEXT
/
Special
teletext
functions
Connection
of
external
equipment
28
Aerial
socket
Audio/Video
in/out
sockets
(option)
Euro
scart
socket
(option)
S-video/Audio
in
sockets
(S-AV)
(option)
Component
in
sockets
(option)
Headphone
socket
(option)
Troubleshooting
check
list
31
2
Installation
Power
This
set
operates
on an
AC
mains
supply,
the
voltage
is
as
indicat-
ed
on
the
label
on
the
back
cover.
Never
apply
DC
power
to
the
set.
In
the
event
of
thunderstorms
or
powercuts,
please
pull
out
the
aer-
ial
and
mains
plugs.
Warning
To
prevent
fire
or
shock
hazard,
do
not
expose
the
set
to
rain
or
moisture.
Do
not
place
anything
containing
liquid
on
top
of
the
set,
this
may
cause
a
fire
or
could
give
an
electric
shock.
Service
Never
remove
the
back
cover
of
the
set
as
this
can
expose
you
to
very
high
voltage
and
other
hazards.
If
the
set
does
not
operate
properly,
unplug
it
and
call
your
dealer.
Aerial
Connect
the
aerial
cable
to
the
socket
marked
+75
Ω
on
the
back
cover.
For
the
best
reception
an
outdoor
aerial
should
be
used.
Location
Position
your
set
so
that
no
bright
light
or
sunlight
falls
directly
onto
the
screen.
Care
should
be
taken
not
to
expose
the
set
to
any
unnecessary
vibration,
moisture,
dust
or
heat.
Also
ensure
that
the
set
is
placed
in
a
position
to
allow
a
free
flow
of
air.
Do
not
cover
the
ventilation
openings
on
the
back
cover.
3
All
the
functions
can
be
controlled
with
the
remote
control
handset.
Some
functions
can
also
be
adjusted
with
the
buttons
on
the
front
panel
of
the
set.
Remote
control
handset
Before
you
use
the
remote
control
handset,
please
install
the
bat-
teries.
See
the
next
page.
1.
POWER
switches
the
set
on
from
standby
or
off
to
standby.
2.
NUMBER
BUTTONS
switches
the
set
on
from
standby
or
directly
select
a
number.
3.
MENU
(or
INDEX)
selects
a
menu.
selects
an
index
page
in
the
teletext
mode
(only
TELETEXT
models).
(option)
4.
EYE/*
(option)
switches
the
eye
function
on
or
off.
5.
/
(Programme
Up/Down)
selects
a
programme
or
a
menu
item.
switches
the
set
on
from
standby.
scans
programmes
automatically.
F
/
G
(Volume
Up/Down)
adjusts
the
volume.
adjusts
menu
settings.
OK
accepts
your
selection
or
displays
the
current
mode.
6.
Q.VIEW
returns
to
the
previously
viewed
programme.
7.
TELETEXT
BUTTONS
(option)
These
buttons
are
used
for teletext.
For
further
details,
see
the
'Teletext'
section.
8.
PSM
(Picture
Status
Memory)
recalls
your
preferred
setting.
9.
FAVOURITE
selects
a
favorite
programme.
10.
TURBO
/
SOUND
BUTTON
(option)
selects
Turbo
and
sound.
11.
MUTE
switches
the
sound
on
or
off.
12.
TV/AV
selects
TV
or
AV
mode.
switches
the
set
on
from
standby.
Location
and
function
of
controls
4
()
()
OK
PR
VOL
PR
VOL
PLAY
P/STILL
STOP
REC
REW
FF
I/II/
SSM/
LIST
PSM
PIP
FAVOURITE
Q.VIEW
SLEEP
?
MIX
TIME
SWAP
INPUT
REVEAL
MODE
SIZE
STILL
POSITION 9/4PIP
i
M
0
TV/AV
MENU
SOUND
1
2 3
4 5 6
7
8 9
POWER
MUTE
EYE/
PR
PR
TURBO/
TEXT/
()
()
1
2
10
5
18
13
15
11
12
3
14
6
4
16
9
8
19
7
Location
and
function
of
controls
5
13.
I/II/*
(option)
selects
the
language
during
dual
language
broadcast.
(option)
selects
the
sound
output.
14.
LIST
displays
the
programme
table.
15.
SLEEP
sets
the
sleep
timer.
16.
SSM/*
(Sound
Status
Memory)
(option)
recalls
your
preferred
sound
setting.
17.
SURROUND
(º/*)
(option)
selects
surround
sound.
18.
VCR
BUTTONS
(option)
control
a
LG
video
cassette
recorder.
19.
PIP
BUTTONS
(option)
PIP
switches
the
sub
on
or
off.
PR
+/-
selects
a
programme
for
the
sub
picture.
SWAP
alternates
between
main
and
sub
picture.
INPUT
selects
the
input
mode
for
the
sub
picture.
SIZE
adjusts
the
sub
size.
STILL
freezes
motion
of
the
sub
picture.
POSITION
relocates
the
sub
in
clockwise
direction.
9/4
PIP
switches
on
or
off
the
9
or
4
sub
pictures.
*
:
No
function
COLOURED
BUTTONS
:
These
buttons
are
used
for
teletext
(only
TELETEXT
models)
or
programme
edit.
Battery
installation
The
remote
control
handset
is
powered
by
two
AAA
(or
AA)
type
batteries.
To
load the
batteries,
turn
the
remote
control
handset
over
and
open
the
battery
compartment.
Install
two
batteries
as
indicated
by
the
polarity
symbols
(
and
)
marked
inside
the
com-
partment.
Note
:
To avoid
damage
from
possible
battery
leakage,
remove
the
batteries
if
you
do
not
plan
to
use
the
remote
control
handset
for
an
extended
period
of
time.
+
-
(Without
TELETEXT
/
PIP)
POWER
MUTE
1
2 3
4 5 6
7 8 9
MENU/INDEX
TV/AV
0
EYE/
Q.VIEW
LIST
I/II/
()
PR
()
PR
OK
VOLVOL
PSM
SSM/
SLEEP
SOUND
/
TURBO/
FAVOURITE
TV
1
2
3
4
5
6
8
10
11
12
13
14
15
17
16
9
TEXT/MIX/
SIZE/
HOLD/
Q.VIEW
LIST
UPDATE/
PSM
SSM/
SLEEP/
M
X
TIME/
REVEAL/
?
SOUND
/
TURBO/
FAVOURITE
7
(With
TELETEXT
/
Without
PIP)
or
Front
panel
Shown
is
a
simplified
representation
of
front
or
side
panel.
Here
shown
may
be
somewhat
different
from
your
set.
1.
MAIN
POWER
(ON/OFF)
switches
the
set
on
or
off.
2.
POWER/STANDBY
INDICATOR
illuminates
brightly
when
the
set
is in
standby
mode.
dims
when
the
set
is
switched
on.
3.
REMOTE
CONTROL
SENSOR
4.
MENU
selects
a
menu.
5.
OK
accepts
your
selection
or
displays
the
current
mode.
F
/
G
(Volume
Up/Down)
adjusts
the
volume.
adjusts
menu
settings.
D
/
E
(Programme
Up/Down)
selects
a
programme
or
a
menu
item.
switches
the
set
on
from
standby.
6.
AUDIO(or
AUDIO-L/R)/VIDEO
IN
SOCKETS
(AV2)
(option)
Connect
the
audio/video
out
sockets
of
external
equipment
to
these
sockets.
7.
HEADPHONE
SOCKET
(option)
Connect
the
headphone
plug
to
this
socket.
8.
TURBO
SOUND/PICTURE
(option)
switches
Turbo
sound
or
Turbo
on
or
off.
9.
EYE
(option)
adjusts
according
to
the
surrounding
conditions.
Location
and
function
of
controls
6
! !
6
7
VIDEO
(L/MONO)
I
AUDIO
I
(R)
VIDEO
AUDIO
! !
6
VIDEO
(L/MONO)
I
AUDIO
I
(R)
VIDEO
AUDIO
7
ON/OFF
r
MENU
OK
F
VOL
G
E
PR
D
VIDEO
(L/MONO)-AUDIO-(R)
!
P-TURBO-S
1234
5
67
8
9
TURBO
ON/OFF
r
MENU
OK
F
VOL
G
E
PR
D
VIDEO
AUDIO
!
SOUND
1234
5
6
789
1
234
5 9
PRD
ON/OFF
r
MENU
F
VOL
VOLG
OK
PRE
(Side
panel)
ON/OFF
r
MENU
OK
F
VOL
G
E
PR
D
VIDEO
(L/MONO)-AUDIO-(R)
!
S-TURBO-P
1234
5
6
789
Basic
operation
On
and
off
1.
Press
the
main
power
button
to
switch
the
set
on.
2.
If
the
set
is in
standby
mode,
press
the
POWER,
D
/
E,
TV/AV
or
NUMBER
buttons
on
the
remote
control
handset
to
switch
it
on
fully.
3.
Press
the
POWER
button
on
the
remote
control
handset.
The
set reverts
to
standby
mode.
4.
Press
the
main
power
button
again
to
switch
the
set
off.
Note
:
If,
while
the
set
is
switched
on,
the
mains
plug
is
discon-
nected
the
set
will
switch
to
standby
or
power
on
when
the
mains
plug
is
replaced
in
the
mains
power
socket.
Programme
selection
You
can
select
a
programme
number
with
the
D
/
E
or
NUMBER
buttons.
Volume
adjustment
Press
the
F
/
G
button
to
adjust
the
volume.
Quick
view
Press
the
Q.VIEW
button
to
view
the
previous
programme
you
were
watching.
Mute
function
Press
the
MUTE
button.
The
sound
is
switched
off
and
the
display
W
appears.
You
can
cancel
it
by
pressing
the
MUTE,
F
/
G,
SSM/*,
I/II/*,
TURBO SOUND
button.
On
screen
language
selection
(option)
The
menu
can
be
displayed
on
the
screen
in
desired
language.
First
select
your
language.
1.
Press
the
MENU
button
and
then
D
/
E
button
to
select
the
Special
menu.
2.
Press
the
G
button
to
select
Language.
3.
Press
the
G
button
and
then
D
/
E
button
to
select
your
desired
language.
All
the
on
screen
displays
will
appear
in
the
selected
language.
Press
the
OK
or
F
button
to
select
the
Special
menu.
4.
Repeatedly
press
the
MENU
button
to
return
to
normal
TV
viewing.
7
OK
PR
VOL
PR
VOL
SSM
Q.VIEW
0
TV/AV
MENU
SOUND
1
2 3
4
5 6
7
8
9
POWER
MUTE
TURBO/
()
()
I/II/
/
The
dialogue
between
you
and
your
set
takes
place
on
screen
with
an
operator
menu.
The
buttons
required
for
the
operating
steps
are
also
displayed.
Menu
selection
1.
Press
the
MENU
button
and
then
D
/
E
button
to
display
each
menu.
2.
Press
the
G
button
and
then
D
/
E
button
to
select
a
menu
item.
3.
Press
the
G
button
to
display
the
sub
menu
or
the
pull-down
menu.
4.
Change
the
setting
of
an
item
in
the
sub
or
pull-down
menu
with
F/GorD/E.
You
can
move
to
the
higher
level
menu
with
OK
or
F
button
and
to
move
to
the
lower
level
menu
press
the
G
button.
Note
:
a.
In
the
teletext
mode,
menus
are
not
displayed.
b.
In
some
models,
the
Normal/Turbo
search
will
not
display,
only
the
Start
will
display
in
the
Auto
programme
menu.
c.
In
mono
models,
the
Sound
menu
does
not
appear.
d.
In
some
models,
Tilt,
Degauss,
Game
or
Booster
will
not
dis-
play.
e.
On
some
models,
the
Language
will
not
display.
On
screen
menus
8
OK
PR
VOL
PR
VOL
I/II
SSM
Q.VIEW
0
TV/AV
MENU
SOUND
1
2 3
4
5 6
7
8
9
POWER
MUTE
TURBO
()
()
TV
programme
AutoOprogramme
{
ManualOprogramme
{
ProgrammeOedit
{
FavouriteOprogramme
{
()O}{OOKOMENU
StorageOfrom
{
NormalOsearch
{
TurboOsearch
{
OOO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
DeleteOOOCopy
MoveOOOOOSkip
O0OOCO03
menu
Station
menu
PSM
{
Contrast
{
Brightness
{
Colour
{
Sharpness
{
()O}{OOKOMENU
Sound
menu
()O}{O
OKOMENU
Special
menu
()O}{OOKOMENU
T
ime
menu
()O}{OOKOMENU
()O}{O
OKOMENU
System
{
Channel
{
Search
{
Name
{
Booster
{
()O}{O
OKOMENU
()}{OOKOMENU
System
{
Storage
{
Station
Sound
Time
Special
Auto
programme
Manual
programme
Programme
edit
BG
I
DK
M
2
SSM
{
AVL
{
DBS
{
Balance
{
Clock
{
Offotime
{
Onotime
{
Autoosleep
{
Language
{
Input
{
Childolock
{
Blueoback
{
Tilt
{
Degauss
{
Game
{
9
Setting
up
TV
stations
Up
to
100
TV
stations
can
be
stored
by
programme
numbers
(0
to
99).
Once
you
have
preset
the
stations,
you
will
be
able
to
use
the
D
/
E
or
NUMBER
buttons
to
scan
the
stations
you
programmed.
Stations
can
be
tuned
using
automatic
or
manual
modes.
Note
:
In
some
models,
up
to
200
TV
stations
can
be
stored.
Auto
programme
tuning
All
stations
that
can
be
received
are
stored
by
this
method.
It
is
rec-
ommended
that
you
use
auto
programme
during
installation
of
this
set.
1.
Press
the
MENU
button
to
select
the
Station
menu.
2.
Press
the
G
button
and
then
D
/
E
button
to
select
Auto
pro-
gramme.
3.
Press
the
G
button
to
display
the
Auto
programme
menu.
4.
Press
the
G
button.
Select
a
TV
system
with
the
D
/
E
button
on
the
System
pull-down
menu;
BG
:
(Asia/New
Zealand/M.East/Africa/Australia)
I
:
(Hong
Kong/South
Africa)
DK
:
(East
Europe/China/Africa/CIS)
M
:
(USA/Korea/Philippines)
(option)
5.
Press
the
OK
or
F
button.
6.
Press
the
D
/
E
button
to
select
Storage
from.
7.
Press
the
G
button.
Select
the
beginning
programme
number
with
the
F
/
G
button
or
NUMBER
buttons
on
the
Storage
from
pull-down
menu.
Any
number
under
10
is
entered
with
a
numeric
'0'
in
front
of
it,
i.e.
'05'
for
5.
8.
Press
the
OK
button.
9.
Press
the
D
/
E
button
to
select
Normal
or
Turbo
search.
Option:
In
some
models,
you
can
only
select
Start.
Note
:
a.
Turbo
search
is
faster
than
Normal
search
and
in
some
models,
these
searches
will
automatically
store
all
receivable
stations.
b.
If
the
programmed
station
has
poor
quality
sound,
select
the
system
again
in
the
Manual
programme
menu.
10.
Press
the
G
button
to
begin
auto
programming.
All
receivable
stations
are
stored.
To
stop
auto
programming,
press
the
MENU
button.
When
auto
programming
is
completed,
the
Programme
edit
menu
appears
on
the
screen.
See
the
'Programme
edit'
section
to
edit
the stored
programme.
11.
Repeatedly
press
the
MENU
button
to
return
to
normal
TV
viewing.
OK
PR
VOL
PR
VOL
I/II
SSM
Q.VIEW
0
TV/AV
MENU
SOUND
1
2 3
4
5 6
7
8
9
POWER
MUTE
TURBO
()
()
AutoOprogramme
{
ManualOprogramme
{
ProgrammeOedit
{
FavouriteOprogramme
{
()O}{OOKOMENU
StorageOfrom
{
NormalOsearch
{
TurboOsearch
{
BG
I
DK
M
()O}{OOKOMENU
OOCO01O(BG)
7
36%
(Normal
search)
(Turbo
search)
Station
Auto
programme
System
{
StorageOfrom
{
NormalOsearch
{
TurboOsearch
{
System
{
StorageOfrom
{
NormalOsearch
{
TurboOsearch
{
MENU
MENU
7
36%
OOCO01O(BG)
Auto
programme
Auto
programme
System
{
Setting
up
TV
stations
Auto
programme
scan
To
automatically
scan
the
pictures
of
stored
programmes,
press
theD(
)
or
E(
)
button
for
about
3
seconds.
The
of
stored
programmes
appears
on
the
screen
one
by
one.
To
stop
auto
programme
scanning,
press
any
button
except
VCR
buttons.
Manual
programme
tuning
Manual
programme
lets
you
manually
tune
and
arrange
the
sta-
tions
in
whatever
order
you
desire.
Also
you
can
assign
a
station
name
with
five
characters
to
each
programme
number.
1.
Press
the
MENU
button
to
select
the
Station
menu.
2.
Press
the
G
button
and
then
D
/
E
button
to
select
Manual
programme.
3.
Press
the
G
button
to
display
the
Manual
programme
menu.
4.
Press
the
D
/
E
button
to
select
Storage.
5.
Press
the
G
button
to
select
the
programme
number.
Select
the
desired
programme
number
(0
to
99)
with
the
F
/
G
button
or
NUMBER
buttons
on
the
Storage
pull-down
menu.
Any
number
under
10
is
entered
with
a
numeric
'0'
in
front
of
it,
i.e.
'05'
for
5.
6.
Press
the
OK
button.
7.
Press
the
D
/
E
button
to
select
System.
8.
Press
the
G
button.
Select
a
TV
system
with
the
D
/
E
button
on
the
System
pull-down
menu;
BG
:
(Asia/New
Zealand/M.East/Africa/Australia)
I
:
(Hong
Kong/South
Africa)
DK
:
(East
Europe/China/Africa/CIS)
M
:
(USA/Korea/Philippines)
(option)
9.
Press
the
OK
or
F
button.
10.
Press
the
D
/
E
button
to
select
Channel.
11.
Press
the
G
button.
Press
the
D
/
E
button
to
select
V/UHF
or
Cable
on
the
Channel
pull-down
menu.
If
possible,
select
the
channel
number
directly
with
the
number
buttons.
Any
number
under
10
is
entered
with
a
numeric
'0'
in
front
of
it,
i.e.
'05'
for
5.
12.
Press
the
OK
or
F
button.
13.
Press
the
D
/
E
button
to
select
Search.
14.
Press
the
G
button.
Press
the
F
/
G
button
to
commence
searching
on
the
Search
pull-down
menu.
If
a
station
is
found
the
search
will
stop.
15.
Press
the
OK
button
to
store
it.
The
display
Stored
will
appear.
16.
To
store
another
station,
repeat
steps
4
to
15.
17.
Repeatedly
press
the
MENU
button
to
return to
normal
TV
viewing.
E
E
D
D
10
OK
PR
VOL
PR
VOL
I/II
SSM
Q.VIEW
0
TV/AV
MENU
SOUND
1
2 3
4
5 6
7
8
9
POWER
MUTE
TURBO
()
()
AutoOprogramme
{
ManualOprogramme
{
ProgrammeOedit
{
FavouriteOprogramme
{
()O}{O
OKOMENU
Station
System
{
Channel
{
Search
{
Name
{
Booster
{
2
Storage
{
()O}{OOKOMENU
Manual
programme
Storage
{
System
{
Channel
{
Search
{
Name
{
Booster
{
Stored
Manual
programme
{{{
Loading...
