Technical Datasheet

OPTIWAVE 5200 C/F

OPTIWAVE 5200 C/FOPTIWAVE 5200 C/F

Technical DatasheetTechnical Datasheet

Radar (FMCW) Level Transmitter for liquids in storage and process applications

•

Modular design of housing and antenna ensures suitability for a variety of mounting positions and applications

•

Universal measurement device for liquids, pastes and slurries

•

SIL2-compliant according to IEC 61508 for safety-related systems

CONTENTS

OPTIWAVE 5200 C/F

1 Product features 3

1.1 The low-cost FMCW level radar ....................................................................................... 3

1.2 Overview............................................................................................................................ 5

1.3 Applications ...................................................................................................................... 7

1.4 Antenna selection............................................................................................................. 8

1.5 Measuring principle.......................................................................................................... 9

2 Technical data 11

2.1 Technical data................................................................................................................. 11

2.2 Minimum power supply voltage ..................................................................................... 19

2.3 Pressure ratings............................................................................................................. 20

2.4 Dimensions and weights ................................................................................................ 26

3 Installation 35

3.1 Intended use ................................................................................................................... 35

3.2 Installation...................................................................................................................... 35

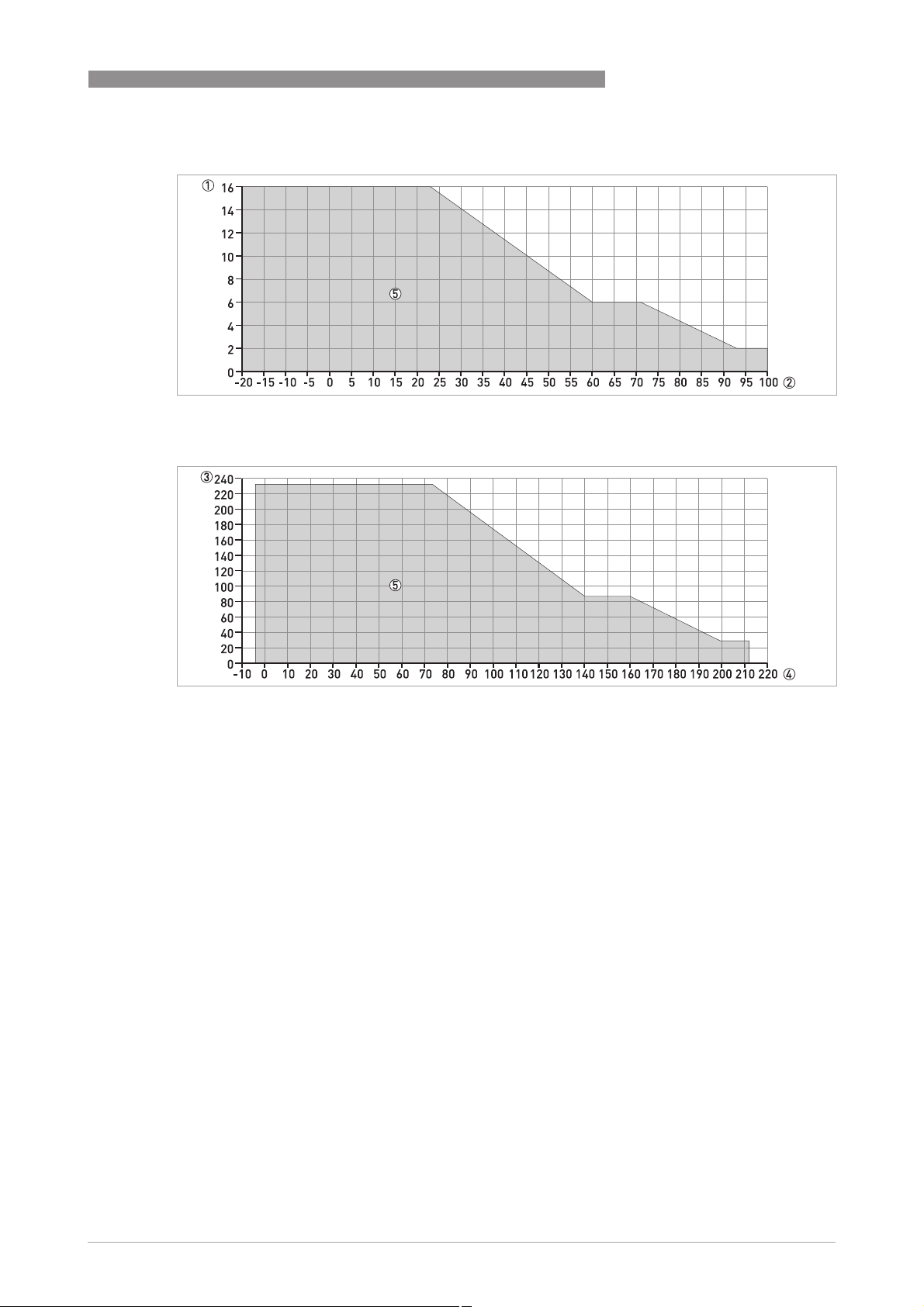

3.2.1 Pressure and temperature ranges....................................................................................... 35

3.2.2 Recommended mounting position........................................................................................ 41

3.2.3 Mounting restrictions............................................................................................................ 43

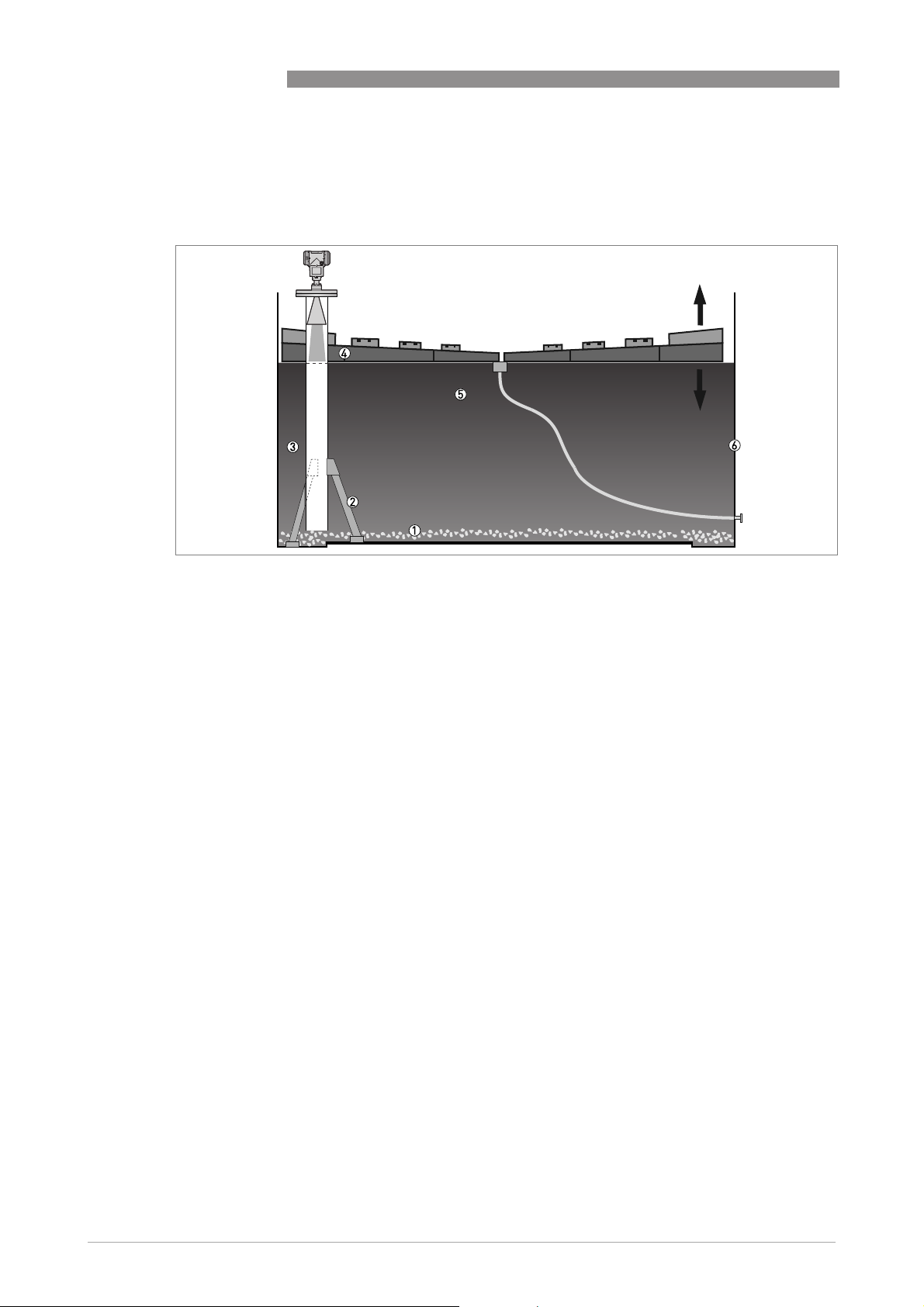

3.2.4 Standpipes (stilling wells and bypass chambers) ................................................................ 46

4 Electrical connections 51

4.1 Electrical installation: 2-wire, loop-powered ................................................................ 51

4.1.1 Compact version ................................................................................................................... 51

4.1.2 Remote version ..................................................................................................................... 51

4.2 Non-Ex devices............................................................................................................... 52

4.3 Devices for hazardous locations .................................................................................... 52

4.4 Networks ........................................................................................................................ 53

4.4.1 General information.............................................................................................................. 53

4.4.2 Point-to-point connection..................................................................................................... 53

4.4.3 Multi-drop networks ............................................................................................................. 54

4.4.4 Fieldbus networks................................................................................................................. 55

5 Order information 57

5.1 Order code ...................................................................................................................... 57

6 Notes 63

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

1.1 The low-cost FMCW level radar

This device is a non-contact radar level meter that uses FMCW technology. It measures distance, level and volume of liquids and pastes. It is ideal for measuring the level of corrosive products with its PP or PTFE antenna options.

PRODUCT FEATURES

1 PP or PTFE Wave Horn antennas for the measurement of corrosive products 2 Optional remote converter can be installed up to 100 m / 328 ft away from the antenna 3 Wall support 4 Horizontal / vertical housings and antenna options makes the device suitable for many applications and for installation

in a variety of positions

5 Aluminium or stainless steel housing 6 2-wire level meter 7 Optional LCD display with 4-button keypad 8 Converter is rotatable 360° and removable under process conditions 9 Dual process seal system

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

PRODUCT FEATURES

Optional integrated display

The display can be ordered with the device or as an accessory. It shows measurement data on a 128 × 64 pixel screen. The configuration menu permits the device to be set up in a small number of intuitive steps. 9 languages are available.

OPTIWAVE 5200 C/F

Highlights

• PP or PTFE Wave Horn antennas for the measurement of corrosive products

• Modular design: horizontal or vertical position of housing is suitable for almost all

installations

• Optional local display with an integrated 4-button keypad. It is not necessary to remove the housing cover to get access to the keypad.

• Quick coupling system permits removal of the housing under process conditions and rotation

of the housing through 360°

• Bayonet housing cover permits easy opening and closing of the housing, even after years in service

• Measuring range up to 30 m / 98.4 ft

• Converter is backwards compatible with all BM 70x flange systems

• SIL2-compliant according to IEC 61508 for safety-related systems

• Each device is calibrated on dedicated calibration rigs before it leaves the factory

Industries

• Chemical market

• Oil & Gas

• Power

• Food

• Wastewater

• Metals, Minerals & Mining

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Applications

• Storage tanks

• Process tanks

• Open channel flow (if PACTware™ software tool is used)

• River level

1.2 Overview

OPTIWAVE 5200 C - Compact / Vertical version

PRODUCT FEATURES

• The converter is vertical. It is attached directly to the process connection (compact version).

• For installation of the device on the ground or in a recess.

• The optional LCD display is attached to the top or the side of the device.

OPTIWAVE 5200 C - Compact / Horizontal version

• The converter is horizontal. It is attached directly to the process connection (compact version).

• This version is ideal for installation in areas with low roof clearances.

• For locations where it is easier to read data on the optional LCD display if the converter is in a horizontal position.

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

PRODUCT FEATURES

OPTIWAVE 5200 F - Remote version

OPTIWAVE 5200 C/F

• Users can read measurements and configure the device from the bottom of the tank.

• The remote converter can be installed up to 100 m / 328 ft away from the process connection on the tank.

• Attach the remote converter to a wall, pipe or rigid surface with the supplied wall support.

Weather protection

A weather protection option can also be ordered with the device. It is recommended for outdoor applications.

• Can be ordered for the compact version of the device and the antenna housing of the remote version.

• Easily opened and closed.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

1.3 Applications

1. Level measurement of liquids

2. Volume (mass) measurement

PRODUCT FEATURES

The level meter can measure the level of a wide range of liquid products on a large variety of installations within the stated pressure and temperature range. It does not require any calibration: it is only necessary to do a short configuration procedure.

A strapping table function is available in the configuration menu for volume or mass measurement. Up to 30 volume (mass) values can be related to level values. For example:

Level 1= 2 m / Volume 1= e.g. 0.7 m³ Level 2= 10 m / Volume 2= e.g. 5 m³ Level 3= 20 m / Volume 3= e.g. 17 m³

3. Flow rate measurement

This data permits the device to calculate (by linear interpolation) volume or mass between strapping table entries.

Flow rate measurement is available for field devices

that are used with PACTware™ software. A flow rate

conversion function is in the DTM supplied with the device. Make a selection from 6 flow profiles: Parshall (ISO 9826), Venturi Rectangular (ISO 4359), Venturi Trapezoidal (ISO 4359), Venturi U (ISO 4359), V-Notch (ISO 1438) or Rectangular Notch (ISO 1438).

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

PRODUCT FEATURES

1.4 Antenna selection

The graphs below show which antenna to select for the application based on:

• D, the measuring range, , is the dielectric constant of the product being measured

• ε

OPTIWAVE 5200 C/F

Figure 1-1: Selection of antenna (graph of distance in m against εr)

Figure 1-2: Selection of antenna (graph of distance in ft against ε

1 Tank height / Measuring range [m] 2 Tank height / Measuring range [ft]

for storage tanks with smooth product surface

3 ε

4 ε

for process tanks without agitator or foam

5 All antennas:

– DN150 and DN200 Metallic Horn antenna with or without a stilling well* and PTFE and PP Wave Horn antennas – DN65/2.5¨, DN80/3¨ and DN100/4¨ Metallic Horn antenna: only for use in a stilling well*. Maximum measuring range

is 10 m / 32.81 ft.

– Wave Guide antenna: maximum measuring range is 6 m / 19.68 ft – DN80 and DN : maximum measuring range is 6 m / 19.68 ft

6 DN150 and DN200 Metallic Horn antennas with or without a stilling well* and PTFE and PP Wave Horn antennas 7 DN150/6¨ and DN200/8¨ Metallic Horn antenna with or without a stilling well* 8 DN200/8¨ Metallic Horn antenna with or without a stilling well*

)

* A stilling well is equivalent to the Wave Guide antenna option or a bypass chamber

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

1.5 Measuring principle

A radar signal is emitted via an antenna, reflected from the product surface and received after a time t. The radar principle used is FMCW (Frequency Modulated Continuous Wave).

The FMCW-radar transmits a high frequency signal whose frequency increases linearly during the measurement phase (called the frequency sweep). The signal is emitted, reflected on the measuring surface and received with a time delay, t. Delay time, t=2d/c, where d is the distance to the product surface and c is the speed of light in the gas above the product.

For further signal processing the difference Δf is calculated from the actual transmitted frequency and the received frequency. The difference is directly proportional to the distance. A large frequency difference corresponds to a large distance and vice versa. The frequency difference Δf is transformed via a Fourier transformation (FFT) into a frequency spectrum and then the distance is calculated from the spectrum. The level results from the difference between the tank height and the measured distance.

PRODUCT FEATURES

Figure 1-3: Measuring principle of FMCW radar

1 Transmitter 2 Mixer 3 Antenna 4 Distance to product surface, where change in frequency is proportional to distance 5 Differential time delay, Δt 6 Differential frequency, Δf 7 Frequency transmitted 8 Frequency received 9 Frequency 10 Time

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

PRODUCT FEATURES

Measurement modes

"Direct" mode

"Direct" mode"Direct" mode If the dielectric constant of the liquid is high (ε

surface of the liquid.

"TBF Partial" mode

"TBF Partial" mode"TBF Partial" mode If the dielectric constant of the liquid is low (ε

use "TBF Partial" mode to measure level correctly. "TBF Partial" is an automatic mode that lets the device make a selection between "Direct" mode and "TBF" mode. If the device finds a large radar reflection above the "tank bottom area" (the bottom 20% of the tank height), the device will use "Direct" mode. If the device finds a large radar reflection in the "tank bottom area", the device uses TBF mode. This mode can be used only in tanks with flat bottoms.

"TBF Full" mode

"TBF Full" mode"TBF Full" mode TBF = Tank Bottom Following. If the dielectric constant of the liquid is very low (ε

must use "TBF Full" mode to measure level correctly. The device uses the radar reflection on the bottom of the tank (the signal goes through the liquid). This mode can be used only in tanks with flat bottoms.

OPTIWAVE 5200 C/F

≥1.8), the level signal is a reflection on the

<1.8, for long-distance measurement), you must

<1.6), you

"TBF FULL" AND "TBF PARTIAL" MODES It is important to enter the correct dielectric constant value in menu item 2.5.3 Er Product. If this value is incorrect, the device will not measure level accurately.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

TECHNICAL DATA

2.1 Technical data

•

The following data is provided for general applications. If you require data that is more relevant to your specific application, please contact us or your local sales office.

•

Additional information (certificates, special tools, software,...) and complete product documentation can be downloaded free of charge from the website (Downloadcenter).

Measuring system

Measuring principle 2-wire loop-powered level transmitter; FMCW radar

Frequency range X-band (8.5...10.6 GHz)

Radio frequency output power < 41.3 dBm (outside of the tank)

Application range Level measurement of liquids, pastes and slurries

Primary measured value Distance and reflection

Secondary measured value Level, volume, mass and flow rate

Design

Construction The measurement system consists of a measuring sensor (antenna) and a signal

Options Integrated LCD display (-20..+60°C/ -4…+140°F); if the ambient temperature is not

converter Compact (C) version: Measuring sensor (antenna) attached directly to a signal converter Remote (F) version: Measuring sensor (antenna) installed on a tank and connected by a signal cable (max. length 100 m / 328 ft) to a signal converter

in these limits, the display switches off automatically

High-temperature (HT) extension (if the process connection temperature is more than +150°C / +302°F – Metallic Horn antenna only)

Straight antenna extensions Max. extension length, PTFE Wave Horn antenna: 300 mm / 11.8¨; Max. extension length, Metallic Horn antenna: 1000 mm / 39.4¨

S-bend antenna extension – only for DN150/6¨and DN200/8¨ Metallic Horn antenna and Wave Guide antenna options

L-bend (right angle) antenna extension – only for DN150/6¨ and DN200/8¨ Metallic Horn antenna and Wave Guide antenna options

Antenna purging system (2 device options: liquid or gas) – only for DN150/6¨ and DN200/8¨ Metallic Horn antenna options

Heating / cooling system (with or without the antenna purging system) – only for DN150/6¨ and DN200/8¨ Metallic Horn antenna options

Signal cable for remote housing version (refer to cable properties in "Electrical connection: Remote device version")

Weather protection – for the compact version or the antenna housing of the remote version

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

OPTIWAVE 5200 C/F

Max. measuring range PTFE and PP Wave Horn antennas:

Min. tank height 1m/ 3.3ft Top dead zone Minimum value: Antenna length + antenna extension length + 100 mm / 3.9¨ Beam angle (½ angle) of antenna PP Wave Horn: 10°

Display and user interface

Display and user interfaceDisplay and user interface

Display LCD display

Interface languages 3 language pack options (the language is given in the customer order):

PTFE and PP Wave Horn antennas:

PTFE and PP Wave Horn antennas:PTFE and PP Wave Horn antennas: 20 m / 65.6 ft

DN65 / DN80 / DN100 Metallic Horn antennas (installation only in stilling wells):

DN65 / DN80 / DN100 Metallic Horn antennas (installation only in stilling wells):DN65 / DN80 / DN100 Metallic Horn antennas (installation only in stilling wells): 10 m / 32.8 ft

DN150 / DN200 Metallic Horn antennas:

DN150 / DN200 Metallic Horn antennas:DN150 / DN200 Metallic Horn antennas: 30 m / 98.4 ft

Wave Guide antenna:

Wave Guide antenna:Wave Guide antenna: 6m/ 19.7ft

Also depends on the dielectric constant of the product and the installation type. Refer also to "Antenna selection".

PTFE Wave Horn: 10° Metallic Horn DN65 / 2.5¨: 20°– used only in RC W5200 reference chamber Metallic Horn DN80 / 3¨: 16°– used only in stilling wells Metallic Horn DN100 / 4¨: 12°– used only in stilling wells Metallic Horn DN150 / 6¨: 8° Metallic Horn DN200 / 8¨: 6° Wave Guide / stilling well: n/a – the radar signal is inside the tube.

128 × 64 pixels in 8-step greyscale with 4-button keypad

1 English, French, German and Italian 2 English, French, Spanish and Portuguese 3 English, Chinese (simplified), Japanese and Russian

Measuring accuracy

Resolution 1mm/ 0.04¨ Repeatability ±1mm/ ±0.04¨ Accuracy Standard: ±10 mm / ±0.4¨, when distance < 10 m / 33 ft;

Reference conditions acc. to EN 61298-1

Reference conditions acc. to EN 61298-1Reference conditions acc. to EN 61298-1 Temperature +15...+25°C / +59...+77°F Pressure 1013 mbara ±50 mbar / 14.69 psia ±0.73 psi Relative air humidity 60% ±15%

Target Metal plate in an anechoic chamber

±0.1% of measured distance, when distance > 10 m / 33 ft Option: ±5mm/ ±0.2¨, when distance < 10 m / 33 ft; ±0.05% of measured distance, when distance > 10 m / 33 ft

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

TECHNICAL DATA

Operating conditions

Temperature

TemperatureTemperature Ambient temperature -40…+80°C/ -40…+176°F

Storage temperature -50…+85°C/ -58…+185°F (min. -40°C/ -40°F for devices with the integrated LCD

Process connection temperature (higher temperature on request)

Pressure

PressurePressure

Process pressure PP Wave Horn antenna:

Purging system (options for gas or liquid)

Heating / cooling system (option) Max. 6 barg / 87 psig (higher pressure on request)

Other conditions

Other conditionsOther conditions

Dielectric constant (εr) Direct mode: ≥1.8

Ingress protection IEC 60529: IP66 / IP67

Maximum rate of change 10 m/min / 32.8 ft/min

Integrated LCD display: -20...+60°C / -5...+140°F; if the ambient temperature is not in these limits, the display switches off. The device continues to operate correctly.

display option)

PP Wave Horn antenna:

PP Wave Horn antenna:PP Wave Horn antenna:

-20...+100°C / -4...+212°F

PTFE Wave Horn antenna:

PTFE Wave Horn antenna:PTFE Wave Horn antenna:

-50...+150°C / -58...+302°F

Metallic Horn antenna / Wave Guide antenna:

Metallic Horn antenna / Wave Guide antenna:Metallic Horn antenna / Wave Guide antenna: Standard: FKM/FPM (-40…+150°C/ -40…+302°F (+200 / +392°F with an HT extension)); Options: Kalrez® 6375 (-20…+150°C/ -4…+302°F (+250°C / +482°F with an HT extension)); PFA (-60°C…+130°C/ -76…+266°F); EPDM (-50...+130°C/

-58...+266°F)The process connection temperature must agree with the temperature limits of the gasket material. Ex: see supplementary operating instructions or approval certificates

PP Wave Horn antenna:

PP Wave Horn antenna:PP Wave Horn antenna:

-1…16 barg / -14.5…232 psig. For more data, refer to

PTFE Wave Horn antenna:

PTFE Wave Horn antenna:PTFE Wave Horn antenna:

-1…40 barg / -14.5…580 psig. For more data, refer to

Metallic Horn antenna / Wave Guide antenna:

Metallic Horn antenna / Wave Guide antenna:Metallic Horn antenna / Wave Guide antenna: Standard: -1…40 barg / -14.5…580 psig; subject to the process connection used and the flange temperature. Higher pressure on request.

Max. 6 barg / 87 psig (higher pressure on request)

TBF mode: ≥1.1 Refer also to "Technical data: Antenna selection".

NEMA 250: NEMA type 4X (housing) and type 6P (antenna)

Pressure ratings

on page 20.

Installation conditions

Process connection size The nominal diameter (DN) should be equal to or larger than the antenna diameter.

Process connection position Make sure that there are not any obstructions directly below the process

Dimensions and weights For dimensions and weights data, refer to

connection for the device. For more data, refer to

Dimensions and weights

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

Installation

on page 35.

on page 26.

TECHNICAL DATA

OPTIWAVE 5200 C/F

Materials

Housing Standard: Polyester-coated aluminium

Option: Stainless steel (1.4404 / 316L)

Antenna options / Wetted materials

Feedthrough PP Wave Horn antenna: this is a single-piece antenna (the feedthrough is filled with

Cable gland Standard: none

Weather protection (Option) Stainless steel (1.4404 / 316L)

PTFE Wave Horn antenna with a PTFE flange cladding

PP Wave Horn antenna with a PP jacket/threaded process connection

Stainless steel (1.4404 / 316L) Metallic Horn antenna with a PTFE process seal and an FKM/FPM, EPDM, Kalrez® 6375 or PFA O-ring gasket

Stainless steel (1.4404 / 316L) Wave Guide antennas with a PTFE process seal and an FKM/FPM, EPDM, Kalrez® 6375 or PFA O-ring gasket

PP)

PTFE Wave Horn antenna: this is a single-piece antenna (the feedthrough is filled with PTFE)

Metallic Horn and Wave Guide antennas: Dual process seal system – 1st seal: PTFE with O-ring gasket, 2nd seal: Metaglas® with O-ring gasket

Options: Plastic (Non-Ex: black, Ex i-approved: blue); nickel-plated brass; stainless steel

Process connections

Thread PP Wave Horn antenna: G 1½A...2A; 1½...2 NPT

Flange version

Flange versionFlange version EN PTFE Wave Horn antenna: DN50…200 in PN16, PN40

Metallic Horn and Wave Guide antennas: DN80…200 in PN16, PN40; others on request

ASME PTFE Wave Horn antenna: 2¨…8¨ in 150 lb / 300 lb

Metallic Horn and Wave Guide antennas: 3¨…8¨ in 150 lb / 300 lb; others on request DN65 Metallic Horn antenna: 2¨ 300 lb for installation on the RC W5200 reference

chamber

JIS PTFE Wave Horn antenna: 50...150A in 10K

Metallic Horn and Wave Guide antennas: 80…200A in 10K; others on request

Other Others on request

Electrical connections

Power supply Terminals output

Maximum current 22 mA

Current output load Non-Ex / Ex i:

Cable entry Standard: M20×1.5; Option: ½ NPT

Cable gland Standard: none

Terminals output – Non-Ex / Ex i:

Terminals output Terminals output

11.5…30 VDC; min./max. value for an output of 22 mA at the terminal

Terminals output

Terminals output – Ex d:

Terminals output Terminals output

13.5…36 VDC; min./max. value for an output of 22 mA at the terminal

Non-Ex / Ex i: RL [Ω] ≤ ((U

Non-Ex / Ex i:Non-Ex / Ex i:

power supply voltage

Ex d:

Ex d: RL [Ω] ≤ ((U

Ex d:Ex d:

voltage

on page 19.

Options: M20×1.5 (cable diameter (non-Ex / Ex i: 6...7.5 mm / 0.24...0.30¨; Ex d: 6...10 mm / 0.24...0.39¨)); others are available on request

Non-Ex / Ex i:

Non-Ex / Ex i: Non-Ex / Ex i:

Ex d:

Ex d: Ex d:

-11.5 V)/22 mA). For more data, refer to

ext

on page 19.

-13.5 V)/22 mA). For more data, refer to

ext

Minimum

Minimum power supply

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

TECHNICAL DATA

Signal cable – remote version None for non-Ex devices (4-wire shielded cable of max. length 100 m / 328 ft to be

Cable entry capacity (terminal) 0.5…2.5 mm²

supplied by the customer). Supplied with all Ex-approved devices. For more data, refer to the handbook

Input and output

Current output / HART

Current output / HART®

Current output / HARTCurrent output / HART Output signal 4…20 mA HART® or 3.8…20.5 mA acc. to NAMUR NE 43 Resolution ±3 µA

Temperature drift Typically 50 ppm/K Digital temperature drift Max. ±15 mm / 0.6¨ for the full temperature range Error signal High: 22 mA; Low: 3.6 mA acc. to NAMUR NE 43; Hold (frozen value – not available if

PROFIBUS PA

PROFIBUS PAPROFIBUS PA

Type PROFIBUS MBP interface that agrees with IEC 61158-2 with 31.25 kbit/s; voltage

Function blocks 1 × Physical Block, 1 × Level Transducer Block, 4 × Analog Input Function Blocks Device power supply 9...32 VDC – bus powered; no additional power supply required

Polarity sensitivity No

Basic current 15 mA

FOUNDATION

FOUNDATION™ fieldbus

FOUNDATIONFOUNDATION Physical layer FOUNDATION™ fieldbus protocol that agrees with IEC 61158-2 and FISCO model

Communication standard H1

ITK version 6.1

Function blocks 1 × Resource Block (RB), 3 × Transducer Blocks (TB), 3 × Analog Input Blocks (AI),

Device power supply Not intrinsically safe: 9...32 VDC

Basic current 14 mA

Maximum error current FDE 20.5 mA (= basic current + error current = 14 mA + 6.5 mA)

Polarity sensitivity No

Minimum cycle time 250 ms

Output data Level, distance, ullage conversion, level conversion

Input data None

Link Active Scheduler Supported

fieldbus

fieldbus fieldbus

the output agrees with NAMUR NE 43)

mode (MBP = Manchester-Coded, Bus-Powered)

1 × Proportional Integral Derivative Block (PID)

Analog Input Block: 30 ms

Proportional Integral Derivative Block: 40 ms

Intrinsically safe: 9...24 VDC

Approvals and certification

CE This device fulfils the statutory requirements of the EC directives. The

manufacturer certifies successful testing of the product by applying the CE mark.

Vibration resistance EN 60068-2-64

Metallic Horn (without antenna extension options): 5 Hz to 100 Hz: 4g Metallic Horn, PTFE or PP Wave Horn: 3.5 mm up to 8 Hz and 10 m/s²: 1g, 8.5 to 2000 Hz

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

Explosion protection

Explosion protectionExplosion protection

ATEX (Ex ia or Ex d or Ex tb) DEKRA 11ATEX0166 X

ATEX (Ex ic) DEKRA 13ATEX0051 X

IECEx IECEx DEK 11.0060 X

OPTIWAVE 5200 C/F

Compact version

Compact versionCompact version

II 1/2 G, 2 G Ex ia IIC T6...T2 Ga/Gb or Ex ia IIC T6...T2 Gb; II 1/2 D, 2 D Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db;

II 1/2 G, 2 G Ex d ia IIC T6...T2 Ga/Gb or Ex d ia IIC T6...T2 Gb; II 1/2 D, 2 D Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db

Remote version, transmitter

Remote version, transmitterRemote version, transmitter

II 2 G Ex ia [ia Ga] IIC T6...T4 Gb; II 2 D Ex ia [ia Da] IIIC T90°C Db;

II 2 G Ex d ia [ia Ga] IIC T6...T4 Gb; II 2 D Ex ia tb [ia Da] IIIC T90°C Db

Remote version, sensor

Remote version, sensorRemote version, sensor

II 1/2 G Ex ia IIC T6...T2 Ga/Gb or II 2 G Ex ia IIC T6...T2 Gb; II 1/2 D Ex ia IIIC T90°C Da/Db or II 2 D Ex ia IIIC T90°C Db;

II 1/2 G Ex ia IIC T6...T2 Gb or II 2 G Ex ia IIC T6...T2 Gb; II 1/2 D Ex ia IIIC T90°C Db or II 2 D Ex ia IIIC T90°C Db

Compact version

Compact versionCompact version

II 3 G Ex ic IIC T6...T2 Gc; II 3 D Ex ic IIIC T90°C Dc

Remote version, transmitter

Remote version, transmitterRemote version, transmitter

II 3 G Ex ic [ic] IIC T6...T4 Gc; II 3 D Ex ic [ic] IIIC T90°C Dc

Remote version, sensor

Remote version, sensorRemote version, sensor

II 3 G Ex ic IIC T6...T2 Gc; II 3 D Ex ic IIIC T90°C Dc

Compact version

Compact versionCompact version Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc; Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc;

Ex d ia IIC T6...T2 or Ex d ia IIIC T6...T2 Gb; Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db

Remote version, transmitter

Remote version, transmitterRemote version, transmitter Ex ia [ia Ga] IIC T6…T4 Gb or Ex ic IIC T6…T4 Gc; Ex ia [ia Da] IIIC T90°C Db or Ex ic [ic] IIIC T90°C Dc;

Ex d ia [ia Ga] IIC T6...T4 Gb; Ex ia tb [ia Da] IIIC T90°C Db

Remote version, sensor

Remote version, sensorRemote version, sensor Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc; Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

TECHNICAL DATA

cFMus – Dual Seal-approved NEC 500 (Division ratings)

NEPSI Ex ia IIC T2~T6 Gb or Ex ia IIC T2~T6 Ga/Gb DIP A20/A21 T

DNV / INMETRO DNV 13.0142

Other standards and approvals

Other standards and approvalsOther standards and approvals

SIL – only for 4...20 mA output

EMC Essential requirements of Electromagnetic Compatibility Directive 2014/30/EU in

NEC 500 (Division ratings)

NEC 500 (Division ratings)NEC 500 (Division ratings) XP-AIS / Cl. I / Div. 1 / Gr. ABCD / T6–T1; DIP / Cl. II, III / Div. 1 / Gr. EFG / T6–T1; IS / Cl. I, II, III / Div. 1 / Gr. ABCDEFG / T6–T1; NI / Cl. I / Div. 2 / Gr. ABCD / T6–T1

NEC 505 (Zone ratings)

NEC 505 (Zone ratings)NEC 505 (Zone ratings) Cl. I / Zone 0 / AEx d [ia] / IIC / T6–T1; Cl. I / Zone 0 / AEx ia / IIC / T6–T1; Cl. I / Zone 2 / AEx nA / IIC / T6–T1; Cl. I / Zone 2 / AEx ic / IIC / T6–T1 FISCO; Zone 20 / AEx ia / IIIC / T90°C; Zone 20 / AEx tb [ia] / IIIC / T90°C

Hazardous (Classified) Locations, indoor/outdoor Type 4X and 6P, IP66, Dual Seal

CEC Section 18 (Zone ratings)

CEC Section 18 (Zone ratings)CEC Section 18 (Zone ratings) Cl. I, Zone 0, Ex d [ia], IIC, T6–T1; Cl. I, Zone 0, Ex ia, IIC, T6–T1; Cl. I, Zone 2, Ex nA, IIC, T6–T1; Cl. I, Zone 2, Ex ic, IIC, T6–T1 FISCO

CEC Section 18 and Annex J (Division ratings)

CEC Section 18 and Annex J (Division ratings)CEC Section 18 and Annex J (Division ratings) XP-AIS / Cl. I / Div. 1 / Gr. BCD / T6–T1; DIP / Cl. II, III / Div. 1 / Gr. EFG / T6–T1; IS/ Cl.I/ Div.1/ Gr.BCD/ T6–T1; NI / Cl. I / Div. 2 / Gr. ABCD / T6–T1

T90°C IP6X

Ex d ia IIC T2~T6 Gb or Ex d ia IIC T2~T6 Ga/Gb DIP A20/A21 T

Compact version

Compact versionCompact version Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc; Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc;

Ex d ia IIC T6...T2 or Ex d ia IIIC T6...T2 Gb; Ex ia tb IIIC T90°C Da/Db or Ex ia tb IIIC T90°C Db

Remote version, transmitter

Remote version, transmitterRemote version, transmitter Ex ia [ia Ga] IIC T6…T4 Gb or Ex ic IIC T6…T4 Gc; Ex ia [ia Da] IIIC T90°C Db or Ex ic [ic] IIIC T90°C Dc;

Ex d ia [ia Ga] IIC T6...T4 Gb; Ex ia tb [ia Da] IIIC T90°C Db

Remote version, sensor

Remote version, sensorRemote version, sensor Ex ia IIC T6…T2 Ga/Gb or Ex ia IIC T6…T2 Gb or Ex ic IIC T6…T2 Gc; Ex ia IIIC T90°C Da/Db or Ex ia IIIC T90°C Db or Ex ic IIIC T90°C Dc

Compact version: SIL 2 – certified according to all the requirements in EN 61508 (Full Assessment) and for high/low demand mode operation. HFT=0, SFF=94.1% (for non-Ex / Ex i devices) or 91% (for Ex d devices), type B device

conjunction with EN 61326-1 (2013) SIL 2-approved devices agree with EN 61326-3-1 (2008) and EN 61326-3-2 (2008)

T90°C IP6X

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

OPTIWAVE 5200 C/F

Radio approvals RED

LVD Essential requirements of Low-Voltage Directive 2014/35/EU in conjunction with

NAMUR NAMUR NE 21 Electromagnetic Compatibility (EMC) of Industrial Process and

WHG Z-65.16-546

CRN This certification is applicable for all Canadian provinces and territories. For more

Construction code Metallic Horn and Wave Guide antennas: NACE MR0175 / ISO 15156; NACE MR0103

1 If the process connection temperature is more than +150°C / +302°F and the device has Kalrez® 6375 or FKM/FPM gaskets, the device

will also have an high temperature extension between the converter and the process connection. Kalrez® is a registered trademark of DuPont Performance Elastomers L.L.C.. The process connection temperature must agree with the temperature limits of the gasket material.

2 Metaglas® is a registered trademark of Herberts Industrieglas, GMBH & Co., KG 3 HART® is a registered trademark of the HART Communication Foundation 4 Only the 3.6 mA error signal is applicable to SIL-approved devices. Only the 22 mA error signal is applicable to WHG-approved devices.

RED

REDRED Radio Equipment Directive 2014/53/EU in conjunction with ETSI EN 302 372

FCC Rules

FCC RulesFCC Rules Part 15

Industry Canada

Industry CanadaIndustry Canada License-exempt RSS-210

EN 61010-1

Laboratory Control Equipment

NAMUR NE 43 Standardization of the Signal Level for the Failure Information of Digital Transmitters

NAMUR NE 53 Software and Hardware of Field Devices and Signal Processing Devices with Digital Electronics

NAMUR NE 107 Self-Monitoring and Diagnosis of Field Devices In conformity with the German Federal Water Act, §9

data, refer to the website.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

2.2 Minimum power supply voltage

Use these graphs to find the minimum power supply voltage for a given current output load.

Non-Ex and Hazardous Location approved (Ex i / IS) devices

TECHNICAL DATA

Figure 2-1: Minimum power supply voltage for an output of 22 mA at the terminal (Non-Ex and Hazardous Location approval (Ex i / IS))

X: Power supply U [VDC] Y: Current output load R

[Ω]

Hazardous Location (Ex d / XP/NI) approved devices

Figure 2-2: Minimum power supply voltage for an output of 22 mA at the terminal (Hazardous Location approval (Ex d / XP/NI))

X: Power supply U [VDC] Y: Current output load R

[Ω]

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

2.3 Pressure ratings

Make sure that the devices are used within their operating limits.

EN flanges: Metallic Horn, Wave Guide and PTFE Wave Horn antennas

OPTIWAVE 5200 C/F

Figure 2-3: Pressure / temperature rating (EN 1092-1), flange connections, in °C and barg

-80

-60 -40 -20 050

Figure 2-4: Pressure / temperature rating (EN 1092-1), flange connections, in °F and psig

1 p [barg] 2 T [°C] 3 p [psig] 4 T [°F] 5 Flange connection, PN16: Metallic Horn and Wave Guide antennas 6 Flange connection, PN40: Metallic Horn and Wave Guide antennas 7 Flange connection, PN40: Metallic Horn, Wave Guide and PTFE Wave Horn antennas 8 Flange connection, PN16: Metallic Horn, Wave Guide and PTFE Wave Horn antennas

100

122

150 167

200212 257 300 400 480

500

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

ISO threaded connections: PP Wave Horn antenna

Figure 2-5: Pressure / temperature rating (ISO 228), threaded connection, in °C and barg

TECHNICAL DATA

Figure 2-6: Pressure / temperature rating (ISO 228-1), threaded connection, in °F and psig

1 p [barg] 2 T [°C] 3 p [psig] 4 T [°F] 5 Threaded connection, G (ISO 228-1): PP Wave Horn antenna

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

ASME flanges: Metallic Horn, Wave Guide and PTFE Wave Horn antennas

Figure 2-7: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °C and barg

OPTIWAVE 5200 C/F

Figure 2-8: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °F and psig

1 p [barg] 2 T [°C] 3 p [psig] 4 T [°F] 5 Flange connection, Class 150: Metallic Horn and Wave Guide antennas 6 Flange connection, Class 300: Metallic Horn and Wave Guide antennas 7 Flange connection, Class 300: Metallic Horn and Wave Guide and PTFE Wave Horn antennas 8 Flange connection, Class 150: Metallic Horn and Wave Guide and PTFE Wave Horn antennas

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

CRN CERTIFICATION There is a CRN certification option for devices with process connections that agree with ASME standards. This certification is necessary for all devices that are installed on a pressure vessel and used in Canada.

ASME flanges for CRN-approved devices: Metallic Horn, Wave Guide and PTFE Wave Horn antennas

TECHNICAL DATA

Figure 2-9: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °C and barg

Figure 2-10: Pressure / temperature rating (ASME B16.5), flange and threaded connections, in °F and psig

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

ASME threaded connections: PP Wave Horn antenna

Figure 2-11: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °C and barg

OPTIWAVE 5200 C/F

Figure 2-12: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °F and psig

1 p [barg] 2 T [°C] 3 p [psig] 4 T [°F] 5 Threaded connection, NPT (ASME B1.20.1): PP Wave Horn antenna

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

ASME threaded connections for CRN-approved devices: PP Wave Horn antenna

Figure 2-13: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °C and barg

TECHNICAL DATA

Figure 2-14: Pressure / temperature rating (ASME B1.20.1), threaded connection, in °F and psig

1 p [barg] 2 T [°C] 3 p [psig] 4 T [°F] 5 Threaded connection, NPT (ASME B1.20.1): PP Wave Horn antenna

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

2.4 Dimensions and weights

Housing, process connection and antenna options

Housing, process connection and antenna optionsHousing, process connection and antenna options

OPTIWAVE 5200 C/F

Figure 2-15: Housing, process connection and antenna options

1 Housing options.

Housing options. From left to right: compact converter with horizontal housing, compact converter with vertical hous-

Housing options.Housing options. ing, and remote converter (top) and antenna housing (bottom)

2 Process connection options.

Process connection options. From left to right: flange connection for PTFE Wave Horn antenna, threaded connection

Process connection options.Process connection options. for PP Wave Horn antenna, flange connection for Metallic Horn and Wave Guide antennas, flange connection with a high-temperature (HT) extension for Metallic Horn and Wave Guide antennas, flange connection for DN65 Metallic Horn antenna

3 Antenna options.

Antenna options. From left to right: PTFE Wave Horn antenna, PP Wave Horn antenna, Metallic Horn antenna (with or

Antenna options.Antenna options. without an antenna extension option: straight, L-bend or S-bend extension), Wave Guide antenna, DN65 horn antenna with 2¨ 300 lb RF (ASME B16.5) flange for RC W5200 reference chamber

All housing covers have bayonet connectors unless it is an explosion-proof (XP / Ex d-approved) device. The terminal compartment cover for explosion-proof devices has a thread with a flame path.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

TECHNICAL DATA

Housing options: Dimensions in mm and inches

Dimensions Compact – horizontal Compact – vertical Remote

Non-Ex or Ex i (Ex d) Non-Ex or Ex i (Ex d) Non-Ex or Ex i (Ex d)

[mm] [inches] [mm] [inches] [mm] [inches]

aaaa 191 (258) 7.5 (10.2) 147 (210) 5.79 (8.27) 104 (104) 4.09 (4.09)

bbbb 214 (214) 8.43 (8.43) 258 (258) 10.16 (10.16) 181 (181) 7.13 (7.13)

cccc 127 (127) 5.00 (5.00) 127 (127) 5.00 (5.00) 129 (129) 5.08 (5.08)

d — — — — 195 (195) 7.68 (7.68)

e — — — — 146 (209) 5.75 (8.23)

f — — — — 100 (100) 3.94 (3.94)

g — — — — 130 (130) 5.12 (5.12)

Process connection and antenna options: Dimensions in mm

Dimensions

[mm]

hhhh 68 33 100 (220 for the HT extension)

k — — — 100, 200, 300, 400, 500, 1000

mmmm 296

Øp

Øp 43 43 65 80 100 140 200 30

ØpØp

1 The HT extension is only for Metallic Horn and Wave Guide antennas. It is attached between the signal converter and the flange if the

process connection temperature is +150...+250°C.

2 These are the length options for the straight antenna extension. For data about the dimensions of S-bend and L-bend extensions, refer

to the illustrations that follow.

3 Other antenna lengths are available: 396, 496 or 596 mm. These options are for tanks with long nozzles.

PTFE Wave

Horn

PP Wave

Metallic Horn Wave

Horn

DN65 DN80 DN100 DN150 DN200

322 86 112 148.5 223 335 1000...6000

Guide

Process connection and antenna options: Dimensions in inches

Dimensions

[inches]

hhhh 2.68 1.30 3.94 (8.66 for the HT extension)

k — — — 3.94, 7.87, 11.81, 15.75, 19.68 or 39.37

mmmm 11.65

Øp

Øp 1.69 1.69 2.56 3.15 3.94 5.51 7.87 1.18

ØpØp

1 The HT extension is only for Metallic Horn and Wave Guide antennas. It is attached between the signal converter and the flange if the

process connection temperature is +302...+482°F.

2 These are the length options for the straight antenna extension. For data about the dimensions of S-bend and L-bend extensions, refer

to the illustrations that follow.

3 Other antenna lengths are available: 15.59¨, 19.53¨ or 23.46¨. These options are for tanks with long nozzles.

PTFE Wave

Horn

PP Wave

Metallic Horn Wave

Horn

2.5¨ 3¨ 4¨ 6¨ 8¨

12.68 3.39 4.41 5.85 8.78 13.19 39.4...236.2

Guide

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

Special antenna extensions for tanks with obstructions (DN150 / 6¨ and DN200 / 8¨

Metallic Horn antenna options only)

Figure 2-16: Special antenna extensions for tanks with obstructions (DN150 / 6¨ and DN200 / 8¨ Metallic Horn antenna options only)

1 L-bend (right angle) antenna extension 2 S-bend antenna extension

OPTIWAVE 5200 C/F

Special antenna extensions: Dimensions in mm

Dimensions

[mm]

With L-bend (right angle) extension With S-bend extension

DN150 / 6¨ DN200 / 8¨ DN150 / 6¨ DN200 / 8¨

k1 271 300

k1k1

k2 271 322

k2k2

mmmm 494 606 545 657

Øp

Øp 140 200 140 200

ØpØp

Metallic Horn antenna

Special antenna extensions: Dimensions in inches

Dimensions

[inches]

With L-bend (right angle) extension With S-bend extension

DN150 / 6¨ DN200 / 8¨ DN150 / 6¨ DN200 / 8¨

k1 10.67 11.81

k1k1

k2 10.67 12.68

k2k2

mmmm 19.45 23.86 21.46 25.87

Øp

Øp 5.51 7.87 5.51 7.87

ØpØp

Metallic Horn antenna

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Purging and heating/cooling system options

Figure 2-17: Purging and heating/cooling system options

1 Flange connection with purging option 2 Flange connection with heating/cooling system option 3 G ¼ threaded connection for purging system (the plug is supplied by the manufacturer) 4 G ¼ threaded connection for the heating/cooling system outlet (the plug is supplied by the manufacturer) 5 G ¼ threaded connection for the heating/cooling system inlet (the plug is supplied by the manufacturer)

TECHNICAL DATA

Purging system and heating/cooling system: Dimensions in mm

Dimensions

[mm]

Purging system Heating/cooling system

DN150 / 6¨ DN200 / 8¨ DN150 / 6¨ DN200 / 8¨

mmmm 223 351 202 360

Øp

Øp 140 200 139.7 195

ØpØp

qqqq 34 34 53 70

1 This is the standard length. Longer on request.

Metallic Horn antenna

Purging system and heating/cooling system: Dimensions in inches

Dimensions

[inches]

Purging system Heating/cooling system

DN150 / 6¨ DN200 / 8¨ DN150 / 6¨ DN200 / 8¨

mmmm 8.78 13.82 8.0 14.17

Øp

Øp 5.51 7.87 5.5 7.68

ØpØp

qqqq 1.34 1.34 2.1 2.76

1 This is the standard length. Longer on request.

Metallic Horn antenna

All wetted parts (flange, antenna and heating/cooling jacket) of the heating/cooling system option are made of 316L / 1.4404.

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

Weather protection option (vertical signal converters – for the compact version only)

OPTIWAVE 5200 C/F

Figure 2-18: Weather protection option for vertical signal converter versions (compact version only)

1 Non-Ex / Ex i / IS: Rear view (with weather protection closed) 2 Non-Ex / Ex i / IS: Right side (with weather protection closed) 3 Non-Ex / Ex i / IS: Front view (with weather protection closed) 4 Ex d / XP: Rear view (with weather protection closed) 5 Ex d / XP: Right side (with weather protection closed) 6 Ex d / XP: Front view (with weather protection closed)

Dimensions and weights in mm and kg

Weather protection Version Dimensions [mm] Weights [kg]

a b c d

Vertical signal converter Non-Ex / Ex i / IS 277 120 96 77 1.3

Ex d / XP 277 120 166 77 1.5

Dimensions and weights in inches and lb

Weather protection Version Dimensions [mm] Weights [kg]

a b c d

Vertical signal converter Non-Ex / Ex i / IS 10.9 4.7 3.8 3.0 2.9

Ex d / XP 10.9 4.7 6.5 3.0 3.3

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Weather protection option (horizontal signal converters – for the compact version only)

TECHNICAL DATA

Figure 2-19: Weather protection option for horizontal signal converter versions (compact version only)

1 Non-Ex / Ex i / IS: Front view (with weather protection closed) 2 Non-Ex / Ex i / IS: Left side (with weather protection closed) 3 Non-Ex / Ex i / IS: Rear view (with weather protection closed) 4 Ex d / XP: Front view (with weather protection closed) 5 Ex d / XP: Left side (with weather protection closed) 6 Ex d / XP: Rear view (with weather protection closed)

Dimensions and weights in mm and kg

Weather protection Version Dimensions [mm] Weights [kg]

a b c d

Horizontal signal converter Non-Ex / Ex i / IS 279 120 96 77 1.3

Ex d / XP 279 120 166 77 1.5

Dimensions and weights in inches and lb

Weather protection Version Dimensions [inches] Weights [lb]

a b c d

Horizontal signal converter Non-Ex / Ex i / IS 11.0 4.7 3.8 3.0 2.9

Ex d / XP 11.0 4.7 6.5 3.0 3.3

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

OPTIWAVE 5200 C/F

Weather protection option (antenna housing – for the remote version only)

Figure 2-20: Weather protection option for the antenna housing (remote converter version only)

1 Front view (with weather protection closed) 2 Left side (with weather protection closed) 3 Rear view (with weather protection closed)

Dimensions and weights in mm and kg

Weather protection Dimensions [mm] Weights [kg]

a b c d

Antenna housing 204 120 96 77 1.3

Dimensions and weights in inches and lb

Weather protection Dimensions [inches] Weights [lb]

a b c d

Antenna housing 8.0 4.7 3.8 3.0 2.9

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

TECHNICAL DATA

Converter and antenna housing weights

Type of housing Weights

Aluminium housing Stainless steel housing

[kg] [lb] [kg] [lb]

Non-Ex / intrinsically-safe (Ex i / IS)

Non-Ex / intrinsically-safe (Ex i / IS)Non-Ex / intrinsically-safe (Ex i / IS)

Compact converter 3.0 6.6 6.6 14.6

Remote converter

Antenna housing

Explosion proof (Ex d / XP)

Explosion proof (Ex d / XP)Explosion proof (Ex d / XP)

Compact converter 3.2 7.1 7.5 16.5

Remote converter

Antenna housing

1 The remote version of the device has a "remote converter" and an "antenna housing". For more data, refer to "Housing dimensions"

at the start of this section.

2.5 5.5 5.9 13.0

2.0 4.4 4.1 9.0

2.9 6.40 7.1 15.65

2.0 4.4 4.1 9.0

Antenna option weights

Antenna options Min./Max. weights

[kg] [lb]

Standard options, without converter

Standard options, without converterStandard options, without converter

PTFE Wave Horn antenna with flange connection 3.7 8.2 PTFE Wave Horn antenna with flange connection, with 100 mm / 3.94¨ antenna extension 3.78 8.3 PTFE Wave Horn antenna with flange connection, with 200 mm / 7.87¨ antenna extension 3.86 8.5 PTFE Wave Horn antenna with flange connection, with 300 mm / 11.81¨ antenna extension 3.94 8.7

PP Wave Horn antenna with threaded connection 0.7 1.5 DN65 / 2.5¨ Metallic Horn antenna with flange connection

– only for the RC W5200 reference chamber DN80 / 3¨ Metallic Horn antenna with flange connection, standard length 5.6...37.1 12.3...81.8 DN100 / 4¨ Metallic Horn antenna with flange connection, standard length 9.1...37.2 20.1...82 DN150 / 6¨ Metallic Horn antenna with flange connection, standard length 13.6...37.5 30...82.7 DN200 / 8¨ Metallic Horn antenna with flange connection, standard length 14.0..37.8 30.9...83.3

Wave Guide antenna with flange connection, 1...6 m / 3.28...19.68 ft 1.6...9.9 3.5...21.8

Antenna extension options

Antenna extension optionsAntenna extension options

Straight extension, length 100 mm / 3.94¨ Straight extension, length 200 mm / 7.87¨ Straight extension, length 300 mm / 11.81¨ Straight extension, length 400 mm / 15.75¨ Straight extension, length 500 mm / 19.69¨ Straight extension, length 1000 mm / 39.37¨

5.35 11.8

+0.76 +1.68

+0.94 +2.07

+1.12 +2.47

+1.30 +2.87

+1.48 +3.26

+2.38 +5.25

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

TECHNICAL DATA

OPTIWAVE 5200 C/F

Antenna options Min./Max. weights

[kg] [lb]

S-bend extension

L-bend (right-angle) extension

Other options

Other optionsOther options

HT extension

1 This option is for Metallic Horn and Wave Guide antenna options 2 This component is only for the Metallic Horn and Wave Guide antennas. It is attached between the signal converter and the flange if the

process connection temperature is +150...+250°C / +302...+482°F.

+1.56 +3.44

+1.48 +3.26

+0.98 +2.16

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

3.1 Intended use

Responsibility for the use of the measuring devices with regard to suitability, intended use and corrosion resistance of the used materials against the measured fluid lies solely with the operator.

The manufacturer is not liable for any damage resulting from improper use or use for other than the intended purpose.

This radar level transmitter measures distance, level, mass, volume, flow rate (in open channels) and reflectivity of liquids, pastes and slurries. It does not touch the measured product.

3.2 Installation

3.2.1 Pressure and temperature ranges

If the ambient temperature is more than +70 device. Use a protective cover or metallic grid to prevent injury.

INSTALLATION

C / +158°F, there is a risk of injury if you touch the

Figure 3-1: Pressure and temperature ranges

1 Temperature at the process connection

Non-Ex devices: The temperature range depends on the type of antenna, process connection and the seal material. Refer to the table that follows. Devices with Hazardous Location approvals: see supplementary instructions

2 Ambient temperature for operation of the display

-20...+60°C / -4...+140°F If the ambient temperature is not between these limits, the display screen switches off automatically. The device continues to operate.

3 Ambient temperature

Non-Ex devices: refer to the ambient temperature / flange temperature graphs in this section Devices with Hazardous Location approvals: see supplementary instructions

4 Process pressure

Depends on the type of antenna and process connection. Refer to the table that follows.

The process connection temperature range must agree with the temperature limits of the gasket material.

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

INSTALLATION

OPTIWAVE 5200 C/F

Antenna type Process

Seal Process connection

connection

PP Wave Horn G1½...2;

PTFE Wave Horn Flange with

Metallic Horn

Wave Guide

1 Higher temperature on request 2 Higher pressure on request

1½...2 NPT

PTFE plate

Flange Metaglas®

— -20...+100 -4...+212 -1...16 -14.5...232

— -50...+150 -58...+302 -1...40 -14.5...580

with

FKM/FPM

Metaglas®

with

Kalrez®

6375

Metaglas®

with PFA

Metaglas® with EPDM

For more data on pressure ratings, refer to

temperature

[°C] [°F] [barg] [psig]

-40...+200 1-40...+392

-20...+250

-60...+130 1-76...+266

-50...+130 1-58...+266

Pressure ratings

-4...+482

on page 20

Process pressure

-1...40 2-14.5...580

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

PP Wave Horn: compact and remote versions

Ambient temperature / flange temperature, flange and threaded connection, in °C

Figure 3-2: Ambient temperature / flange temperature, flange and threaded connection, in °C

Ambient temperature / flange temperature, flange and threaded connection, in °F

INSTALLATION

Figure 3-3: Ambient temperature / flange temperature, flange and threaded connection, in °F

1 Maximum ambient temperature, °C 2 Maximum flange temperature, °C 3 Maximum ambient temperature, °F 4 Maximum flange temperature, °F 5 Compact and remote versions of the device with the PP Wave Horn antenna 6 Remote version of the device with the PP Wave Horn antenna

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

INSTALLATION

PTFE Wave Horn: compact and remote versions

Ambient temperature / flange temperature, flange and threaded connection, in °C

Figure 3-4: Ambient temperature / flange temperature, flange and threaded connection, in °C

Ambient temperature / flange temperature, flange and threaded connection, in °F

OPTIWAVE 5200 C/F

Figure 3-5: Ambient temperature / flange temperature, flange and threaded connection, in °F

1 Maximum ambient temperature, °C 2 Maximum flange temperature, °C 3 Maximum ambient temperature, °F 4 Maximum flange temperature, °F 5 Compact and remote versions of the device with the PTFE Wave Horn antenna 6 Compact version of the device with the PTFE Wave Horn antenna

When the process temperature is -50°C/ -58°F, there is a de-rating for the ambient

temperature. The minimum ambient temperature is -36

C / -32.8°F.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Metallic Horn and Wave Guide: compact and remote versions

Ambient temperature / flange temperature, flange and threaded connection, in °C

Figure 3-6: Ambient temperature / flange temperature, flange and threaded connection, in °C

Ambient temperature / flange temperature, flange and threaded connection, in °F

INSTALLATION

Figure 3-7: Ambient temperature / flange temperature, flange and threaded connection, in °F

1 Maximum ambient temperature, °C 2 Maximum flange temperature, °C 3 Maximum ambient temperature, °F 4 Maximum flange temperature, °F 5 Compact and remote versions of the device with the Metallic Horn or Wave Guide antenna 6 Compact version of the device with the Metallic Horn or Wave Guide antenna

When the process temperature is -50°C/ -58°F and the device has an EPDM gasket, there is a

de-rating for the ambient temperature. The minimum ambient temperature is -35

C/ -31°F.

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

INSTALLATION

Metallic Horn and Wave Guide: compact and remote versions with the hightemperature (HT) extension

Ambient temperature / flange temperature, flange and threaded connection, in °C

Figure 3-8: Ambient temperature / flange temperature, flange and threaded connection, in °C

Ambient temperature / flange temperature, flange and threaded connection, in °F

OPTIWAVE 5200 C/F

Figure 3-9: Ambient temperature / flange temperature, flange and threaded connection, in °F

1 Maximum ambient temperature, °C 2 Maximum flange temperature, °C 3 Maximum ambient temperature, °F 4 Maximum flange temperature, °F 5 Compact and remote versions of the device with the Metallic Horn or Wave Guide antenna, the HT extension and EPDM

and PFA gaskets

6 Compact and remote versions of the device with the Metallic Horn or Wave Guide antenna, the HT extension and a PFA

gasket

When the process temperature is -50°C/ -58°F and the device has an EPDM gasket, there is a

de-rating for the ambient temperature. The minimum ambient temperature is -39

When the process temperature is -60

C/ -76°F and the device has a PFA gasket, there is a de-

rating for the ambient temperature. The minimum ambient temperature is -37

C / -38.2°F.

C / -34.6°F.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

3.2.2 Recommended mounting position

Follow these recommendations to make sure that the device measures correctly. They have an effect on the performance of the device.

INSTALLATION

Figure 3-10: Recommended mounting position for liquids, pastes and slurries

1 Sockets for the PP Wave Horn antenna 2 Nozzles for the PTFE Wave Horn antenna 3 Nozzles for DN150 or DN200 Metallic Horn antennas 4 Nozzles for Wave Guide antennas 5 Tank diameter 6 Minimum distance of the nozzle or socket from the tank wall (depends on the antenna type and size - refer to items

1, 2 , 3 and 4 in this list):

- PP/PTFE Wave Horn (1 and 2): 1/7 × tank height

- Metallic Horn (3): 1/10 × tank height

- Wave Guide (4): There is no minimum distance from the Wave Guide antenna to metallic walls and other metal ob-

jects

Maximum distance of nozzle from the tank wall (depends on the antenna type and size - refer to items 1, 2 and 3 in this list):

- PP/PTFE Wave Horn (1 and 2): 1/3 × tank diameter

- Metallic Horn (3): 1/3 × tank diameter

- Wave Guide (4): There is no maximum distance from the Wave Guide antenna to metallic walls and other metal ob-

jects

7 Tank height

If there is a nozzle on the tank before installation, the nozzle must be a minimum of 200 mm /

from the tank wall. The tank wall must be flat and there must not be obstacles adjacent to

7.9

the nozzle or on the tank wall.

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

INSTALLATION

Figure 3-11: A maximum of 4 FMCW radar level meters can be operated in a tank

OPTIWAVE 5200 C/F

Figure 3-12: Tanks with dish-shaped or conical bottoms

Dish-shaped or conical bottoms have an effect on the measuring range. The device cannot measure to the bottom of the tank.

1 Axis of radar beam 2 Minimum level reading

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

3.2.3 Mounting restrictions

Follow these recommendations to make sure that the device measures correctly. They have an effect on the performance of the device.

We recommend that you prepare the installation when the tank is empty.

Mounting restrictions: General data

INSTALLATION

Figure 3-13: Mounting restrictions: General data

1 Do not tilt the device more than 2° 2 We recommend that you do an empty spectrum recording if there are obstacles in the radar beam (refer to Operation

If necessary, install a bypass chamber or stilling well or use an S-bend antenna extension or an L-bend antenna extension (the device must be installed on the side of the tank) to move the device away from obstacles.

3 2.5 mm / 0.1¨ max. for high-dielectric constant liquids 4 Beam radius (DN80 (3¨) Metallic Horn antenna): increments of 290 mm/m or 3.4¨/ft (16°)

Beam radius (DN100 (4¨) Metallic Horn antenna): increments of 210 mm/m or 2.6¨/ft (12°) Beam radius (DN150 (6¨) Metallic Horn antenna): increments of 140 mm/m or 1.7¨/ft (8°) Beam radius (DN200 (8¨) Metallic Horn antenna): increments of 100 mm/m or 1.3¨/ft (6°) Beam radius (PP Wave Horn and PTFE Wave Horn antenna): increments of 176 mm/m or 2.1¨/ft (10°)

Operation).

OperationOperation

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

INSTALLATION

Obstacles in the tank

Figure 3-14: Obstacles in the tank

Do not put the device directly above obstacles (agitator, support beams, heating tubes etc.). Parasitic signals from obstacles will cause the device to measure incorrectly.

1 Solution 1: Put the device on another process connection away from obstacles 2 Solution 2: Use the same process connection, but also use an S-bend extension 3 Solution 3: Attach the device to the side of the tank and use an L-bend (right angle) extension

OPTIWAVE 5200 C/F

Do not put the device near to the product inlet. If the product that enters the tank touches the antenna, the device will measure incorrectly. If the product fills the tank directly below the antenna, the device will also measure incorrectly.

Figure 3-15: Product inlets

1 The device is in the correct position. 2 The device is too near to the product inlet.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Devices with Metallic Horn antenna

Figure 3-16: Devices with Metallic Horn antenna

1 If the roof is not flat, the antenna must project out of the nozzle 2 Short tank nozzle 3 Long tank nozzle (device with an antenna extension) 4 If the roof is flat and the tank fitting is symmetrical, it is not necessary for the antenna to project out of the nozzle.

Thus, the device can have a larger measuring range.

INSTALLATION

The antenna must project out of the nozzle. If necessary, use an antenna extension. But if the tank roof is flat and the tank fitting is symmetrical, it is not necessary for the antenna to project out of the nozzle. Thus, the device can have a larger measuring range.

Devices with PTFE or PP Wave Horn antenna

Figure 3-17: Devices with PTFE or PP Wave Horn antenna

Recommended height of tank process connection, a = 44...200 mm / 1.7...7.87¨ 1 Device with a PTFE Wave Horn antenna and a flange connection. There are antenna extension options available

(100 mm / 4¨, 200 mm / 8¨ and 300 mm / 12¨) for long nozzles.

2 Device with a PP Wave Horn antenna and a thread connection

Do not install devices with Wave Horn antennas on plastic nozzles that have a diameter of

50 mm / 2

If there are parasitic signals, the device will not measure correctly. Parasitic signals are caused by:

•

Objects in the tank.

•

Sharp corners that are perpendicular to the path of the radar beam.

•

Sudden changes in tank diameter in the path of the radar beam.

Do an Empty Spectrum recording (refer to Operation

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

Operation) to remove parasitic signals with a filter.

OperationOperation

INSTALLATION

3.2.4 Standpipes (stilling wells and bypass chambers)

Use a standpipe if:

• There is highly conductive foam in the tank.

• The liquid is very turbulent or agitated.

• There are too many other objects in the tank.

• The device is measuring a liquid (petro-chemicals) in a tank with a floating roof.

• The device is installed in a horizontal cylindrical tank (refer to the end of this section).

OPTIWAVE 5200 C/F

Figure 3-18: Installation recommendations for standpipes (stilling wells and bypass chambers)

1 A stilling well solution 2 A bypass chamber solution 3 Air circulation hole 4 Level of the liquid

•

The standpipe must be electrically conductive.

•

The inside diameter of the standpipe must not be more than 5 mm / 0.2¨ over the diameter of the antenna (for a high-dielectric constant liquid).

•

The standpipe must be straight. There must be no sudden changes in internal diameter

greater than 1 mm / 0.04

•

The standpipe must be vertical.

•

Recommended surface roughness: <±0.1 mm / 0.004¨.

•

Make sure that there are no deposits at the bottom of the standpipe.

•

Make sure that there is liquid in the standpipe.

You can drill an air circulation hole if the stilling well is in a closed space (a metallic container). This condition is necessary to obey TLPR standards. For more data, refer to the handbook.

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Installation in tanks containing one liquid and foam

• Drill an air circulation hole (max. Ø10 mm / 0.4¨) in the stilling well above the maximum level.

• Remove the burr from the hole.

Installation in tanks containing one liquid or more without foam

• Drill an air circulation hole (max. Ø10 mm / 0.4¨) in the stilling well above the maximum level.

• Drill 1 or more liquid circulation holes in the stilling well (if there is more than 1 liquid in the

tank).

i These holes help the liquid to move freely between the stilling well and the tank.

• Remove the burr from the hole.

Stilling wells – reference point

We recommend that you attach a flat cruciform target at the bottom of the stilling well. It must have a width of 1/3 of the internal diameter of the stilling well tube. This target is the limit of the measuring range in the stilling well.

INSTALLATION

Figure 3-19: Reference point in the stilling well

a ≥ 1/3 × ØD

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

INSTALLATION

Stilling wells: floating roofs

If the device must be installed on a tank with a floating roof, install it in a stilling well.

OPTIWAVE 5200 C/F

Figure 3-20: Floating roofs

1 Sediment 2 Support fixtures 3 Stilling well 4 Floating roof 5 Product 6 Tank

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Stilling wells: horizontal cylindrical tanks

We recommend that you install the device in a stilling well if the device:

• is for a horizontal cylindrical tank,

• is in a metallic tank,

• measures a product with a high dielectric constant and

• is on the centerline of the tank.

INSTALLATION

Figure 3-21: Horizontal cylindrical tanks

1 The device is installed without a stilling well. There are multiple reflections. Refer to the CAUTION! that follows. 2 The device is installed in a stilling well and measures correctly.

If the device is installed in horizontal cylindrical tank that contains a high dielectric constant liquid without a stilling well, do not put it on the tank centerline. This will cause multiple reflections and the device will not measure accurately. Use the 2.3.12 Multiple Reflections function in Supervisor > Basic Parameters

Supervisor > Basic Parameters to keep the effects of multiple reflections to a

Supervisor > Basic ParametersSupervisor > Basic Parameters

2.3.12 Multiple Reflections

2.3.12 Multiple Reflections2.3.12 Multiple Reflections

minimum. For more data, refer to "Function description" in the handbook.

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

INSTALLATION

Bypass chambers Installation next to tanks containing one liquid and foam

• The top process connection of the bypass chamber must be above the maximum level of

liquid.

• The bottom process connection of the bypass chamber must be below the lowest measured

level of liquid.

Installation next to tanks containing more than one liquid

• The top process connection of the bypass chamber must be above the maximum level of

liquid.

• The bottom process connection of the bypass chamber must be below the lowest measured

level of liquid.

• Additional process connections are necessary for the liquids to circulate freely along the

length of the bypass chamber.

OPTIWAVE 5200 C/F

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

ELECTRICAL CONNECTIONS

4.1 Electrical installation: 2-wire, loop-powered

4.1.1 Compact version

Terminals for electrical installation

Figure 4-1: Terminals for electrical installation

1 Grounding terminal in the housing (if the electrical cable is shielded) 2 Current output - 3 Current output + 4 Location of the external grounding terminal (at the bottom of the converter)

Electrical power to the output terminal energizes the device. The output terminal is also used for

HART

communication.

4.1.2 Remote version

Terminals for electrical installation

Figure 4-2: Terminals for electrical installation

1 Grounding terminal in the housing (if the electrical cable is shielded) 2 Current output - 3 Current output + 4 Location of the external grounding terminal (on the wall support)

Electrical power to the output terminal energizes the device. The output terminal is also used for

HART

communication.

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

ELECTRICAL CONNECTIONS

Connections between the remote converter and the antenna housing

Figure 4-3: Connections between the remote converter and the antenna housing

1 Remote converter 2 Antenna housing 3 Power supply: voltage in - 4 Power supply: voltage in + 5 Signal cable B 6 Signal cable A 7 Shielding wire (attached to Faston connectors in the housings of the remote converter and the antenna housing)

OPTIWAVE 5200 C/F

For more electrical installation data, refer to

4.2 Non-Ex devices

Figure 4-4: Electrical connections for non-Ex devices

1 Power supply 2 Resistor for HART® communication 3 Optional connection to the grounding terminal 4 Output: 11.5...30 VDC for an output of 22 mA at the terminal 5 Device

4.3 Devices for hazardous locations

Compact version

on page 51.

For electrical data for device operation in hazardous locations, refer to the related certificates of compliance and supplementary instructions (ATEX, IECEx, etc.). You can find this documentation on the DVD-ROM delivered with the device or it can be downloaded free of charge from the website (Download Center).

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

4.4 Networks

4.4.1 General information

The device uses the HART® communication protocol. This protocol agrees with the HART®

Communication Foundation standard. The device can be connected point-to-point. It can also have a polling address of 1 to 63 in a multi-drop network.

The device output is factory-set to communicate point-to-point. To change the communication mode from point-to-point

4.4.2 Point-to-point connection

point-to-point to multi-drop

point-to-pointpoint-to-point

ELECTRICAL CONNECTIONS

multi-drop, refer to "Network configuration" in the handbook.

multi-dropmulti-drop

Figure 4-5: Point-to-point connection (non-Ex)

1 Address of the device (0 for point-to-point connection) 2 4...20 mA + HART® 3 Resistor for HART® communication 4 Power supply 5 HART® converter 6 HART® communication software

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

ELECTRICAL CONNECTIONS

4.4.3 Multi-drop networks

OPTIWAVE 5200 C/F

Figure 4-6: Multi-drop network (non-Ex)

1 Address of the device (each device must have a different address in multidrop networks) 2 4mA + HART® 3 Resistor for HART® communication 4 Power supply 5 HART® converter 6 HART® communication software

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

4.4.4 Fieldbus networks

For more data, refer to the supplementary instructions for FOUNDATION™ fieldbus and

PROFIBUS PA.

FOUNDATION™ fieldbus network (non-Ex)

ELECTRICAL CONNECTIONS

Figure 4-7: FOUNDATION™ fieldbus network (non-Ex)

1 Field device 2 Junction box 3 H1 network 4 H1/HSE converter 5 High Speed Ethernet (HSE) 6 Workstation

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

ELECTRICAL CONNECTIONS

PROFIBUS PA/DP network (non-Ex)

OPTIWAVE 5200 C/F

Figure 4-8: PROFIBUS PA/DP network (non-Ex)

1 Field device 2 Bus termination 3 PROFIBUS PA bus segment 4 Segment coupler (PA/DP link) 5 PROFIBUS DP bus line 6 Control system (PLC / Class 1 master device) 7 Engineering or operator workstation (Control tool / Class 2 master device)

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

5.1 Order code

Make a selection from each column to get the full order code. The characters of the order code highlighted in light grey describe the standard.

ORDER INFORMATION

VF50 4 OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applications

VF50

VF50 4 Order code (complete this code on the pages that follow)

VF50VF50

OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applications

OPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applicationsOPTIWAVE 5200 C/F 10 GHz Radar (FMCW) Level Transmitter for liquids in storage and process applications

Converter version (Housing material

Converter version (Housing material – protection category)

Converter version (Housing material Converter version (Housing material 1 OPTIWAVE 5200 C: Compact version (Aluminium – IP66/67) 2 OPTIWAVE 5200 C: Compact version (Stainless steel – IP66/67) 3 OPTIWAVE 5200 F: Remote version (converter & antenna housing: Aluminium – IP66/67) 4 OPTIWAVE 5200 F: Remote version (converter & antenna housing: Stainless steel – IP66/67)

Approval

ApprovalApproval

0 Without

1 ATEX II 1/2 G Ex ia IIC T6 Ga/Gb + II 1/2 D Ex ia IIIC Da/Db

2 ATEX II 1/2 G Ex d ia IIC T6 Ga/Gb + II 1/2 D Ex ia tb IIIC Da/Db

4 ATEX II 3 G Ex ic IIC T6 Gc + II 3 D Ex ic IIIC Dc (Zone 2 & 22)

6 IECEx Ex ia IIC T6 Ga/Gb + Ex ia IIIC Da/Db

7 IECEx Ex d ia IIC T6 Ga/Gb + Ex ia tb IIIC Da/Db

8 IECEx Ex ic IIC T6 Gc + Ex ic IIIC Dc (Zone 2 & 22)

A cFMus IS CL I/II/III DIV 1 GPS A-G + CL I zone 0/20 Ex ia IIC/IIIC T6

B cFMus XP-AIS/DIP CL I/II/III DIV 1 GPS A-G (A not for Canada) + CL I zone 0/20 Ex d[ia]/tb[ia] IIC/IIIC

C cFMus NI CL I/II/III DIV 2 GPS A-G + CL I zone 2 Ex nA IIC T6

L NEPSI Ex ia IIC T6 Ga/Gb + DIP A20/A21

M NEPSI Ex d ia IIC T6 Ga/Gb + DIP A20/A21

R INMETRO Ex ia IIC T6 Ga/Gb + Ex ia IIIC Da/Db

S INMETRO Ex d ia IIC T6 Ga/Gb + Ex ia tb IIIC Da/Db

T INMETRO Ex ic IIC T6 Gc + Ex ic IIIC Dc (Zone 2 & 22)

Other approval

Other approvalOther approval

0 Without 1 SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA output

4 CRN (Canadian Registration Number) 5 CRN + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA output A WHG – must be supplied with a calibration certificate

B EAC Russia

C EAC Belarus D EAC Russia + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA

output

E EAC Belarus + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a 4…20 mA

output

K EAC Kazakhstan L EAC Kazakhstan + SIL 2 – only available for the OPTIWAVE 5200 C (compact version) with a

4…20 mA output

Order code (complete this code on the pages that follow)

Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)

protection category)

protection category) protection category)

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

ORDER INFORMATION

Process seal

Process seal – Temperature / Pressure / Material / Remarks (higher flange temperature and

Process seal Process seal process pressure on request)

process pressure on request)

process pressure on request)process pressure on request)

0 Without 1 -40...+150°C (-40…+302°F) / -1...40 barg (-14.5…580 psig) / FKM/FPM / Metaglas® for

Metallic Horn and Wave Guide

5 -50...+130°C (-58…+266°F) / -1...40 barg (-14.5…580 psig) / EPDM / Metaglas® for Metallic

Horn and Wave Guide

6 -20...+150°C (-4…+302°F) / -1...40 barg (-14.5…580 psig) / Kalrez® 6375 / Metaglas® for

Metallic Horn and Wave Guide

A -60...+130°C (-76…+266°F) / -1...40 barg (-14.5…580 psig) / PFA / Metaglas® for Metallic

Horn and Wave Guide

D -40...+200°C (-40…+392°F) / -1...40 barg (-14.5…580 psig) / FKM/FPM / Metaglas® for

Metallic Horn and Wave Guide with distance piece

K -20...+250°C (-4…+482°F) / -1...40 barg (-14.5…580 psig) / Kalrez® 6375 / Metaglas® for

Metallic Horn and Wave Guide with distance piece

R -20...+100°C (-4…+212°F) / -1...16 barg (-14.5…232 psig) / PP / for PP Wave Horn with G and

NPT threaded connections

T -50...+150°C (-58…+302°F) / -1...40 barg (-14.5…580 psig) / PTFE / for PTFE Wave Horn with

Type B1 (EN 1092-1) or Raised Face (ASME B16.5) flange facing

Antenna

AntennaAntenna

0 Without 1 Metallic Horn (sheet metal) DN80 (3¨) L= 110 mm (4.33¨) / 316L 2 Metallic Horn (sheet metal) DN100 (4¨) L= 148 mm (5.83¨) / 316L 3 Metallic Horn (sheet metal) DN150 (6¨) L= 223 mm (8.78¨) / 316L 4 Metallic Horn (sheet metal) DN 200 (8¨) L= 335 mm (13.19¨) / 316L 5 Metallic Horn (machined) DN65 (2.5¨) L= 86 mm (3.38¨) for RC W5200 G Wave Horn Ø43 mm (1.69¨) L= 322 mm (12.68¨)/ PP H Wave Horn Ø43 mm (1.69¨) L= 296 mm (11.65¨)/ PTFE L Metallic Wave Guide Ø30 mm (1.18¨) ≤1 m (3.28 ft) / 316L M Metallic Wave Guide Ø30 mm (1.18¨) ≤1.5 m (4.92 ft) / 316L N Metallic Wave Guide Ø30 mm (1.18¨) ≤2 m (6.56 ft) / 316L P Metallic Wave Guide Ø30 mm (1.2¨) ≤2.5 m (8.20 ft) / 316L R Metallic Wave Guide Ø30 mm (1.18¨) ≤3 m (9.84 ft) / 316L S Metallic Wave Guide Ø30 mm (1.18¨) ≤3.5 m (11.48 ft) / 316L T Metallic Wave Guide Ø30 mm (1.18¨) ≤4 m (13.12 ft) / 316L U Metallic Wave Guide Ø30 mm (1.18¨) ≤4.5 m (14.76 ft) / 316L V Metallic Wave Guide Ø30 mm (1.18¨) ≤5 m (16.40 ft) / 316L W Metallic Wave Guide Ø30 mm (1.18¨) ≤5.5 m (18.05 ft) / 316L X Metallic Wave Guide Ø30 mm (1.18¨) ≤6 m (19.69 ft) / 316L

VF50

VF50 4 Order code (complete this code on the pages that follow)

VF50VF50

Order code (complete this code on the pages that follow)

Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)

Temperature / Pressure / Material / Remarks (higher flange temperature and

Temperature / Pressure / Material / Remarks (higher flange temperature and Temperature / Pressure / Material / Remarks (higher flange temperature and

OPTIWAVE 5200 C/F

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Antenna extension

Antenna extensionAntenna extension

ORDER INFORMATION

0 Without 6 100 mm (3.94¨) L= 396 mm (15.59¨) / PTFE (for the PTFE Wave Horn antenna) 7 200 mm (7.87¨) L= 496 mm (19.53¨) / PTFE (for the PTFE Wave Horn antenna) 8 300 mm (11.81¨) L= 596 mm (23.47¨) / PTFE (for the PTFE Wave Horn antenna) E 100 mm (3.94¨) / 316L (for the Metallic Horn antenna) F 200 mm (7.87¨) / 316L (for the Metallic Horn antenna) G 300 mm (11.81¨) / 316L (for the Metallic Horn antenna) H 400 mm (15.75¨) / 316L (for the Metallic Horn antenna) K 500 mm (19.69¨) / 316L (for the Metallic Horn antenna) R 1000 mm (39.37¨) / 316L (for the Metallic Horn antenna)

W S-bend extension / 316L

X L-bend (right angle) extension / 316L

Process connection (size / pressure rating / flange face)

Process connection (size / pressure rating / flange face)Process connection (size / pressure rating / flange face)

0 0 0 Without Threaded – ISO 228 G P 0 G1½ A – for the PP Wave Horn antenna

H P 0 G2A– for the PP Wave Horn antenna Threaded – ASME B1.20.1 G A 0 1½ NPT – for the PP Wave Horn antenna H A 0 2NPT– for the PP Wave Horn antenna EN / DIN flanges – EN 1092-1 H E 1 DN50 PN16 – Type B1 H G 1 DN50 PN40 – Type B1

L E 1 DN80 PN16 – Type B1 L G 1 DN80 PN40 – Type B1 M E 1 DN100 PN16 – Type B1 M G 1 DN100 PN40 – Type B1 P E 1 DN150 PN16 – Type B1 P G 1 DN150 PN40 – Type B1 R E 1 DN200 PN16 – Type B1 R G 1 DN200 PN40 – Type B1

ASME B16.5 / ANSI flanges H 1 A 2¨ 150 lb RF H 2 A 2¨ 300 lb RF

L 1 A 3¨ 150 lb RF L 2 A 3¨ 300 lb RF M 1 A 4¨ 150 lb RF M 2 A 4¨ 300 lb RF P 1 A 6¨ 150 lb RF P 2 A 6¨ 300 lb RF R 1 A 8¨ 150 lb RF R 2 A 8¨ 300 lb RF

VF50

VF50 4 Order code (complete this code on the pages that follow)

VF50VF50

Order code (complete this code on the pages that follow)

Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

ORDER INFORMATION

JIS B2220 flanges

H U P 10K 50A RF

L U P 10K 80A RF

M U P 10K 100A RF

P U P 10K 150A RF

R U P 10K 200A RF

Alternative flange faces

2 Type B2, EN 1092-1 (surface roughness must be specified in the order)

3 Type C, EN 1092-1 (Tongue)

4 Type D, EN 1092-1 (Groove)

5 Type E, EN 1092-1 (Spigot)

6 Type F, EN 1092-1 (Recess)

B FF, ASME B16.5 (Flat face)

Output

OutputOutput

1 2-wire / 4...20 mA passive HART A 2-wire / FOUNDATION™ fieldbus

B 2-wire / PROFIBUS PA

Cable entry / cable gland

Cable entry / cable glandCable entry / cable gland

1 M20×1.5 / Without

2 M20×1.5 / Plastic

3 M20×1.5 / Nickel-plated brass

4 M20×1.5 / Stainless steel A ½ NPT (nickel-plated brass) / Without B ½ NPT (stainless steel) / Without

VF50

VF50 4 Order code (complete this code on the pages that follow)

VF50VF50

Housing

Housing – Orientation / Display / Weather protection

Housing Housing 1 Horizontal / Without / Without – for the compact version 2 Horizontal / Display on side / Without – for the compact version 3 Horizontal / Without / With – for the compact version 4 Horizontal / Display on side / With – for the compact version

A Vertical / Without / Without

B Vertical / Display on top / Without

C Vertical / Display on side / Without

D Vertical / Without / With

E Vertical / Display on top / With

F Vertical / Display on side / With

Orientation / Display / Weather protection

Orientation / Display / Weather protection Orientation / Display / Weather protection

(not available for Ex d ia and cFMus-approved devices)

Order code (complete this code on the pages that follow)

Order code (complete this code on the pages that follow)Order code (complete this code on the pages that follow)

OPTIWAVE 5200 C/F

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

Display language

Display languageDisplay language

0 Without (if no display)

1 English

2 German

3 French

4 Italian

5 Spanish

6 Portuguese

7 Japanese

8 Chinese (simplified)

A Russian

Version

VersionVersion

0 Standard orders and orders for solid applications in China

6 Orders with FCC radio approval (FCC Part 15 and

RSS-210)

A Orders for liquid applications in China

0 Options for the remote version (OPTIWAVE 52000 F)

Options for the remote version (OPTIWAVE 52000 F)

Options for the remote version (OPTIWAVE 52000 F)Options for the remote version (OPTIWAVE 52000 F)

0 Without

6 Signal cable 10 m (32.81 ft) / grey (non-Ex) or blue

7 Signal cable 25m (82.02 ft) / grey (non-Ex) or blue

8 Signal cable 50m (164.04 ft) / grey (non-Ex) or blue

A Signal cable 75m (246.06 ft) / grey (non-Ex) or blue

B Signal cable 100m (328.08 ft) / grey (non-Ex) or

VF50

VF50 4 Order code (complete this code on the

VF50VF50

ORDER INFORMATION

(Ex)

(Ex

(Ex)

blue (Ex)

Adaptor for BM 70 A, BM 700 and BM 702 A

Adaptor for BM 70 A, BM 700 and BM 702 A Adaptor for BM 70 A, BM 700 and BM 702 A process connections

process connections

process connectionsprocess connections

0 Without

1 For BM70x process connection

Calibration certificate

Calibration certificateCalibration certificate

0 Without 1 Calibration certificate ±5 mm 2 factory

default points for accuracy of ±5 mm (0.2¨)

TAG Number

TAG NumberTAG Number

0 Without

2 Tag No. stainless steel plate

(18 characters max.)

Order code (complete this code on the

Order code (complete this code on the Order code (complete this code on the pages that follow)

pages that follow)

pages that follow)pages that follow)

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

ORDER INFORMATION

Other constructions

Other constructionsOther constructions

OPTIWAVE 5200 C/F

0 Without

1 NACE design

(MR0175 / MR0103 / ISO 15156)

3 Heating / Cooling

5 Purging with liquid

6 Purging with liquid + Heating /

Cooling

A Purging with gas

B Purging with gas + Heating / Cooling

VF50

VF50 4 0 Order code

VF50VF50

1 For more data, refer to the Technical data section (Approvals and certification) 2 DIP= Dust Ignition Proof 3 Only for a standpipe (bypass chamber or stilling well) 4 The device is installed on top of a BM 26 A. The device must have a 2¨ 300 lb RF (ASME B16.5) flange without an antenna extension.

Refer to the BM 26 A technical data sheet to make a selection of options for the measuring chamber.

5 For device dimensions, refer to the "Dimensions and weights" section 6 Refer to the accessory list to attach a low-pressure stainless steel flanges to the threaded connection 7 Other flange faces are available. Refer to your local supplier for more data. Flanges with the PTFE Wave Horn antenna option have a

slip on-type design with an anti-blowout feature.

8 Minimum flange size for the PTFE Wave Horn antenna. This is not available for the Metallic Horn antenna. 9 Minimum flange size for the PTFE Wave Horn antenna. This flange is also available with the DN65 Metallic Horn antenna for the

RC W5200 reference chamber.

10For DN150 and DN200 Metallic Horn antenna only

Order code

Order codeOrder code

www.krohne.com 07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

OPTIWAVE 5200 C/F

NOTES

www.krohne.com07/2016 - 4001905503 - TD OPTIWAVE 5200 R03 en

KROHNE – Process instrumentation and measurement solutions

•

Flow

•

Level

•

Temperature

•

Pressure

•

Process Analysis

•

Services

Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com

The current list of all KROHNE contacts and addresses can be found at: www.krohne.com

KROHNE OPTIWAVE 5200 C-F Specifications

Specifications and Main Features

Frequently Asked Questions

User Manual
