OPTIMASS 2000
CONTENTS
1 Safety instructions 5
1.1 Software History ............................................................................................................... 5
1.2 Intended use ..................................................................................................................... 5
1.3 CE certification ................................................................................................................. 5
1.4 Associated documents ..................................................................................................... 6
1.5 Pressure Equipment Directive (PED)............................................................................... 7
1.6 Safety instructions from the manufacturer ..................................................................... 8
1.6.1 Copyright and data protection ................................................................................................ 8
1.6.2 Disclaimer ............................................................................................................................... 8
1.6.3 Product liability and warranty ................................................................................................ 9
1.6.4 Information concerning the documentation........................................................................... 9
1.6.5 Warnings and symbols used................................................................................................. 10
1.7 Safety instructions for the operator............................................................................... 10
2 Device description 11
2.1 Scope of delivery............................................................................................................. 11
2.1.1 Meters with hygienic connections ........................................................................................ 12
2.2 Nameplates .................................................................................................................... 12
2.3 CSA Dual Seal................................................................................................................. 12
2.4 Temperature differential and thermal shock ................................................................ 13
3 Installation 14
3.1 Notes on installation ......................................................................................................14
3.2 Storage ........................................................................................................................... 14
3.3 Handling.......................................................................................................................... 15
3.4 Installation conditions ....................................................................................................17
3.4.1 Supporting the meter............................................................................................................ 17
3.4.2 Mounting the meter .............................................................................................................. 18
3.4.3 Side mounting ....................................................................................................................... 19
3.4.4 Cross talk .............................................................................................................................. 19
3.4.5 Flange connections............................................................................................................... 20
3.4.6 Maximum pipework forces (end loadings) ........................................................................... 20
3.4.7 Pipework reducers................................................................................................................ 21
3.4.8 Flexible connections ............................................................................................................. 21
3.4.9 Hygienic installations............................................................................................................ 22
3.4.10 Heating and insulation ........................................................................................................ 22
3.4.11 Purge ports ......................................................................................................................... 24
3.4.12 Burst discs .......................................................................................................................... 24
3.4.13 Zero calibration................................................................................................................... 25
3.4.14 Sunshades........................................................................................................................... 26
4 Electrical connections 27
4.1 Safety instructions.......................................................................................................... 27
4.2 Electrical and I/O connections ....................................................................................... 27
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
3
CONTENTS
OPTIMASS 2000
5 Service 28
5.1 Spare parts availability...................................................................................................28
5.2 Availability of services .................................................................................................... 28
5.3 Returning the device to the manufacturer..................................................................... 28
5.3.1 General information.............................................................................................................. 28
5.3.2 Form (for copying) to accompany a returned device............................................................ 29
5.4 Disposal .......................................................................................................................... 29
6 Technical data 30
6.1 Measuring principle (twin tube) ..................................................................................... 30
6.2 Technical data................................................................................................................. 32
6.3 Measuring accuracy ....................................................................................................... 37
6.4 Guidelines for maximum operating pressure................................................................ 38
6.5 Dimensions and weights ................................................................................................ 40
6.5.1 Flanged versions................................................................................................................... 40
6.5.2 Hygienic versions .................................................................................................................. 45
6.5.3 Heating jacket version .......................................................................................................... 47
6.5.4 Purge port option .................................................................................................................. 48
7 Notes 49
4
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
1.1 Software History
Release date Software version Documentation
Aug 2008 V2.2.xx MA MFC 300 R02
1.2 Intended use
This mass flowmeter is designed for the direct measurement of mass flow rate, product density
and product temperature. Indirectly, it also enables the measurement of parameters like total
mass, concentration of dissolved substances and the volume flow. For use in hazardous areas,
special codes and regulations are also applicable and these are specified in a separate
documentation.
1.3 CE certification
CE marking
SAFETY INSTRUCTIONS 1
MA OPTIMASS 2000 R01
This device conforms with the following EC directives:
• EMC Directive 2004/108/EC
• ATEX Directive 94/9/EC
• Low Voltage Directive 2006/95/EC
• Pressure Equipment Directive 97/23/EC
The manufacturer declares conformity and the device carries the CE mark.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
5
1 SAFETY INSTRUCTIONS
1.4 Associated documents
This handbook should be read in conjunction with relevant documents in relation to:
• hazardous areas
• communications
• concentration
• corrosion
OPTIMASS 2000
6
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
1.5 Pressure Equipment Directive (PED)
LEGAL NOTICE!
The Pressure Equipment Directive places legal requirements on both the manufacturer and the
end user. Please read this section carefully!
Visual check
XXXXX
To ensure the PED integrity of the meter, you MUST check that the serial numbers on the
converter nameplate and the sensor nameplate are the same.
To comply with the requirements of the Pressure Equipment Directive (PED) the manufacturer
provides all the relevant technical data in the technical data section of this handbook. In addition
to which, the following should also be noted:
SAFETY INSTRUCTIONS 1
• Secondary pressure containment is NOT supplied as standard.
• The non PED / CRN approved outer cyclinder has a typical burst pressure greater than
100 barg / 1450 psig at 20°C / 68°F.
• The wiring feedthrough is made of Epoxy, PPS or PEEK with two O-rings made from FPM /
FKM & Hydrogenated Nitrile.
• If the measuring tube/s fails, the O-ring and feedthrough will be in contact with the process
product.
• You MUST make sure that the O-ring ring and feedthrough material is suitable for the
application.
• Alternative O-ring materials are available on request.
Secondary pressure containment
Where the meter is being used to measure high pressure gases and / or gases kept as liquids by
high pressure and / or where there is a risk of tube failure because of the use of corrosive or
erosive fluids, frequent pressure and / or thermal cycling, seismic or other shock loading, a
secondary containment option MUST be purchased
Where the above situation applies and the process pressure exceeds the secondary pressure
containment (please refer to technical data) or where secondary pressure containment is not
available, the burst disc option MUST also be purchased. For more information, please contact
your nearest representative.
DANGER!
If it is suspected that the primary measuring tube has failed, de-pressurise the meter and
remove it from service as soon as it is safe to do so.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
7
1 SAFETY INSTRUCTIONS
1.6 Safety instructions from the manufacturer
1.6.1 Copyright and data protection
The contents of this document have been created with great care. Nevertheless, we provide no
guarantee that the contents are correct, complete or up-to-date.
The contents and works in this document are subject to copyright. Contributions from third
parties are identified as such. Reproduction, processing, dissemination and any type of use
beyond what is permitted under copyright requires written authorisation from the respective
author and/or the manufacturer.
The manufacturer tries always to observe the copyrights of others, and to draw on works created
in-house or works in the public domain.
The collection of personal data (such as names, street addresses or e-mail addresses) in the
manufacturer's documents is always on a voluntary basis whenever possible. Whenever
feasible, it is always possible to make use of the offerings and services without providing any
personal data.
OPTIMASS 2000
We draw your attention to the fact that data transmission over the Internet (e.g. when
communicating by e-mail) may involve gaps in security. It is not possible to protect such data
completely against access by third parties.
We hereby expressly prohibit the use of the contact data published as part of our duty to publish
an imprint for the purpose of sending us any advertising or informational materials that we have
not expressly requested.
1.6.2 Disclaimer
The manufacturer will not be liable for any damage of any kind by using its product, including,
but not limited to direct, indirect or incidental and consequential damages.
This disclaimer does not apply in case the manufacturer has acted on purpose or with gross
negligence. In the event any applicable law does not allow such limitations on implied warranties
or the exclusion of limitation of certain damages, you may, if such law applies to you, not be
subject to some or all of the above disclaimer, exclusions or limitations.
Any product purchased from the manufacturer is warranted in accordance with the relevant
product documentation and our Terms and Conditions of Sale.
The manufacturer reserves the right to alter the content of its documents, including this
disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable
in any way for possible consequences of such changes.
8
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
1.6.3 Product liability and warranty
The operator shall bear responsibility for the suitability of the device for the specific purpose.
The manufacturer accepts no liability for the consequences of misuse by the operator. Improper
installation and operation of the devices (systems) will cause the warranty to be void. The
respective "Standard Terms and Conditions" which form the basis for the sales contract shall
also apply.
1.6.4 Information concerning the documentation
To prevent any injury to the user or damage to the device it is essential that you read the
information in this document and observe applicable national standards, safety requirements
and accident prevention regulations.
If this document is not in your native language and if you have any problems understanding the
text, we advise you to contact your local office for assistance. The manufacturer can not accept
responsibility for any damage or injury caused by misunderstanding of the information in this
document.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device. Special considerations and precautions are also described in the
document, which appear in the form of underneath icons.
SAFETY INSTRUCTIONS 1
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
9
1 SAFETY INSTRUCTIONS
1.6.5 Warnings and symbols used
Safety warnings are indicated by the following symbols.
DANGER!
This information refers to the immediate danger when working with electricity.
DANGER!
This warning refers to the immediate danger of burns caused by heat or hot surfaces.
DANGER!
This warning refers to the immediate danger when using this device in a hazardous atmosphere.
DANGER!
These warnings must be observed without fail. Even partial disregard of this warning can lead to
serious health problems and even death. There is also the risk of seriously damaging the device
or parts of the operator's plant.
OPTIMASS 2000
WARNING!
Disregarding this safety warning, even if only in part, poses the risk of serious health problems.
There is also the risk of damaging the device or parts of the operator's plant.
CAUTION!
Disregarding these instructions can result in damage to the device or to parts of the operator's
plant.
INFORMATION!
These instructions contain important information for the handling of the device.
LEGAL NOTICE!
This note contains information on statutory directives and standards.
• HANDLING
HANDLING
HANDLINGHANDLING
This symbol designates all instructions for actions to be carried out by the operator in the
specified sequence.
i RESULT
RESULT
RESULTRESULT
This symbol refers to all important consequences of the previous actions.
1.7 Safety instructions for the operator
10
WARNING!
In general, devices from the manufacturer may only be installed, commissioned, operated and
maintained by properly trained and authorized personnel.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device.
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
2.1 Scope of delivery
Compact version
1 Mass flowmeter.
2 Carton.
3 Documentation.
4 2.5 mm and 5 mm hex head tools.
5 CD-ROM and calibration certificate.
DEVICE DESCRIPTION 2
Remote version
1 Mass flowmeter.
2 Converter. This will be either: field (as shown), wall or rack.
3 Carton.
4 2.5 mm and 5 mm hex head tools.
5 CD-ROM and calibration certificate.
6 Documentation.
If any items are missing, please contact the manufacturer.
If your meter has flange connections, the flange specification is stamped on the outer edge of the
flange. Check that the specification on the flange is the same as your order.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
11
2 DEVICE DESCRIPTION
2.1.1 Meters with hygienic connections
1 Fully welded - the O-rings between the meter and the process pipework are not supplied as standard but can be or-
dered.
2 DIN 11864-2 Form A - the O-rings between the Form A and Form B parts of the connection are not supplied as standard
but can be ordered.
3 The 11864-2 Form B is not supplied as part of this connection but it can be ordered.
2.2 Nameplates
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
OPTIMASS 2000
2.3 CSA Dual Seal
To comply with the requirements of ANSI/ISA -12.27.01-2003 “Requirements for process Sealing
Between electrical systems and Flammable or Combustible process Fluids” a secondary seal is
incorporated into all OPTIMASS / GAS products. If the primary seal fails, the secondary seal will
prevent escaping fluid reaching the electronic compartment.
Pressures and / or temperatures are limited by tube, temperature, connection and Ex limits.
Check the meter nameplates and relevant documentation for full details. On all meters
operating on gas measurement, the casing of the meter is fitted with a burst disc. If the primary
seal (tube) fails leakage will occur from the burst disc. Install the meter so that the burst disc is
pointing away from personnel.
Liquids
Liquids (Example model code: OPTIMASS 2000C S250 - LIQUID)
LiquidsLiquids
Pressure and temperature data:
Pressure and temperature data:
Pressure and temperature data:Pressure and temperature data:
OPTIMASS 2000 / 2300 / 2010 -45°C...+130°C and 100...14000 kPa
If the primary seal fails, the casing of the meter will fill with liquid and the meter will stop
working. The meter will notify the operator by going into <Startup> mode and a diagnostic error
will be shown on the converter or PLC display. This is an indication that the primary seal (tube)
has failed and the status of the meter should be checked.
Meter status:
Meter status:
Meter status:Meter status:
12
The meter will also go into <Startup> mode if the primary seal (tube) fails, or if they are not
completely filled with fluid. For example, if the meter is drained or re/filled.
To check the status of the meter, drain and re/fill with fluid and note the converter or PLC
display. See the relevant section of the converter handbook for a list of status messages and
diagnostics information.
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
If the meter remains in <Startup> mode you MUST assume that the primary seal (tube) has failed
and the appropriate action MUST be taken.
DEVICE DESCRIPTION 2
Gases
Gases (Example model code: OPTIMASS 2000C S250
GasesGases
Pressure
Pressure / temperature data:
Pressure / temperature data:Pressure / temperature data:
OPTIMASS 2000 / 2300 / 2010 -45°C...+130°C and 500...14000 kPa
Pressures and/or temperatures may be further limited by tube, temperature, connection and Ex
limits. Consult the meter nameplate and relevant documentation for full details.
On all meters operating on gas measurement the casing of the meter is fitted with a burst disc. If
the primary seal (tube/s) fails leakage will occur from the burst disc. Install the meter so that the
burst disc is pointing away from personnel.
Regular maintenance of the burst disc:
Regular maintenance of the burst disc:
Regular maintenance of the burst disc:Regular maintenance of the burst disc:
Carry out regular maintenance checks on burst discs for leakage and/or blockages. On all
OPTIMASS meters, the primary seal is considered to be the measuring tube of the meter. The
materials of construction of the measuring tube/s are described within the relevant sections of
this handbook and the customer’s product and any other fluid flowing through the tube must be
compatible with the material of construction. If failure of the primary seal is suspected then the
process line should be de-pressurised and the meter removed as soon as it is safe to do so.
Please contact customer service for servicing or replacement of the meter.
emperature data:
/ t
- GAS)
2.4 Temperature differential and thermal shock
Temperature differential
Temperature differential
Temperature differentialTemperature differential
The maximum difference between ambient temperature and process (operating) temperature is
100°C / 212°F.
Thermal shock
Thermal shock
Thermal shockThermal shock
Thermal shock occurs when there is a sudden and extreme change (shift) in process
temperature. To avoid thermal shock, refer to the following table for the maximum temperature
shift.
Meter
Meter Maximum temperature shift
MeterMeter
S100 +90°C / +194°F (+110°C / +230°F with a maximum operating pressure of 40 barg / 580 psig)
S150 +80°C / +176°F
S250 +50°C / +122°F
Maximum temperature shift
Maximum temperature shiftMaximum temperature shift
CAUTION!
Operation outside these limits may result in shifts in density and mass flow calibration. Repeated
shocking may also lead to premature failure of the meter! However, higher thermal shocks are
possible at lower working pressures. For more information, please contact your nearest
representative.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
13
3 INSTALLATION
3.1 Notes on installation
INFORMATION!
Inspect the cartons carefully for damage or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.
INFORMATION!
Check the packing list to check if you received completely all that you ordered.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
3.2 Storage
• Store the device in a dry and dust-free location.
• Avoid direct exposure to the sun.
• Store the device in its original packing.
• Do not allow the ambient temperature to fall below -50°C / -58°F or rise above +85°C /
+185°F.
OPTIMASS 2000
14
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
3.3 Handling
Using a sling to lift and carry the meter
1
INSTALLATION 3
2
3
1 Use a well maintained sling to lift the meter by the spigots.
2 DO NOT lift the meter with the sling part way along the outer cylinder.
3 DO NOT lift the meter using the flange bolt holes.
4 DO NOT lift the meter by the converter housing or the electronics stem.
4
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
15
3 INSTALLATION
Standing the meter before installation
1 When standing the meter prior to installation, use blocks or similar to keep the meter upright.
2 NEVER stand the meter upright without blocks (or similar) .
OPTIMASS 2000
16
1 If the meter is not blocked it can roll over
2 This can cause severe damage to the meter, or injury to personnel
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
3.4 Installation conditions
3.4.1 Supporting the meter
Support for meters with flange connections
1 The meter can be supported directly by its body
2 The meter can also be supported by the process pipework
INSTALLATION 3
Support for meters with hygienic connections
1 Always support the meter body.
2 DO NOT use the process pipework to support the weight of the meter. The thin wall of the pipework usually used in the
hygienic industry, is not strong enough to carry the weight of the meter.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
17
3 INSTALLATION
3.4.2 Mounting the meter
Mounting positions
OPTIMASS 2000
18

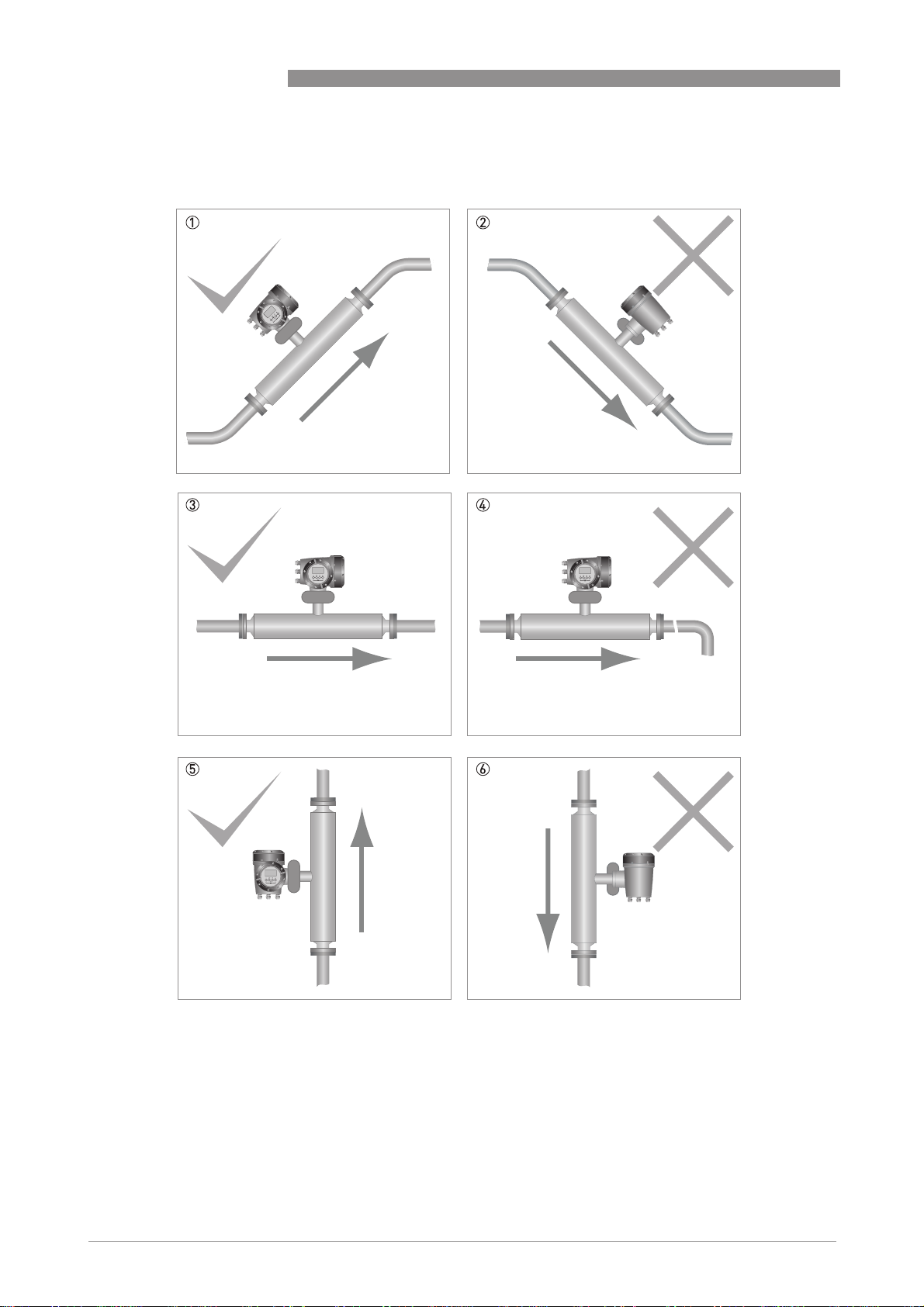

1 The meter can be mounted at an angle but it is recommended that the flow is uphill.
2 Avoid mounting the meter with the flow running downhill because it can cause siphoning. If the meter has to be mount-
ed with the flow running downhill, install an orifice plate or control valve downstream of the meter to maintain backpressure.
3 Horizontal mounting with flow running left to right.
4 Avoid mounting meter with long vertical runs after the meter as it can cause cavitation. Where the installation includes
a vertical run after the meter, install an orifice plate or control valve downstream to maintain backpressure.
5 The meter can be mounted vertically but it is recommended that the flow is uphill.
6 Avoid mounting the meter vertically with the flow running downhill. This can cause siphoning. If the meter has to be
installed this way, install an orifice plate or control valve downstream to maintain backpressure.
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
3.4.3 Side mounting

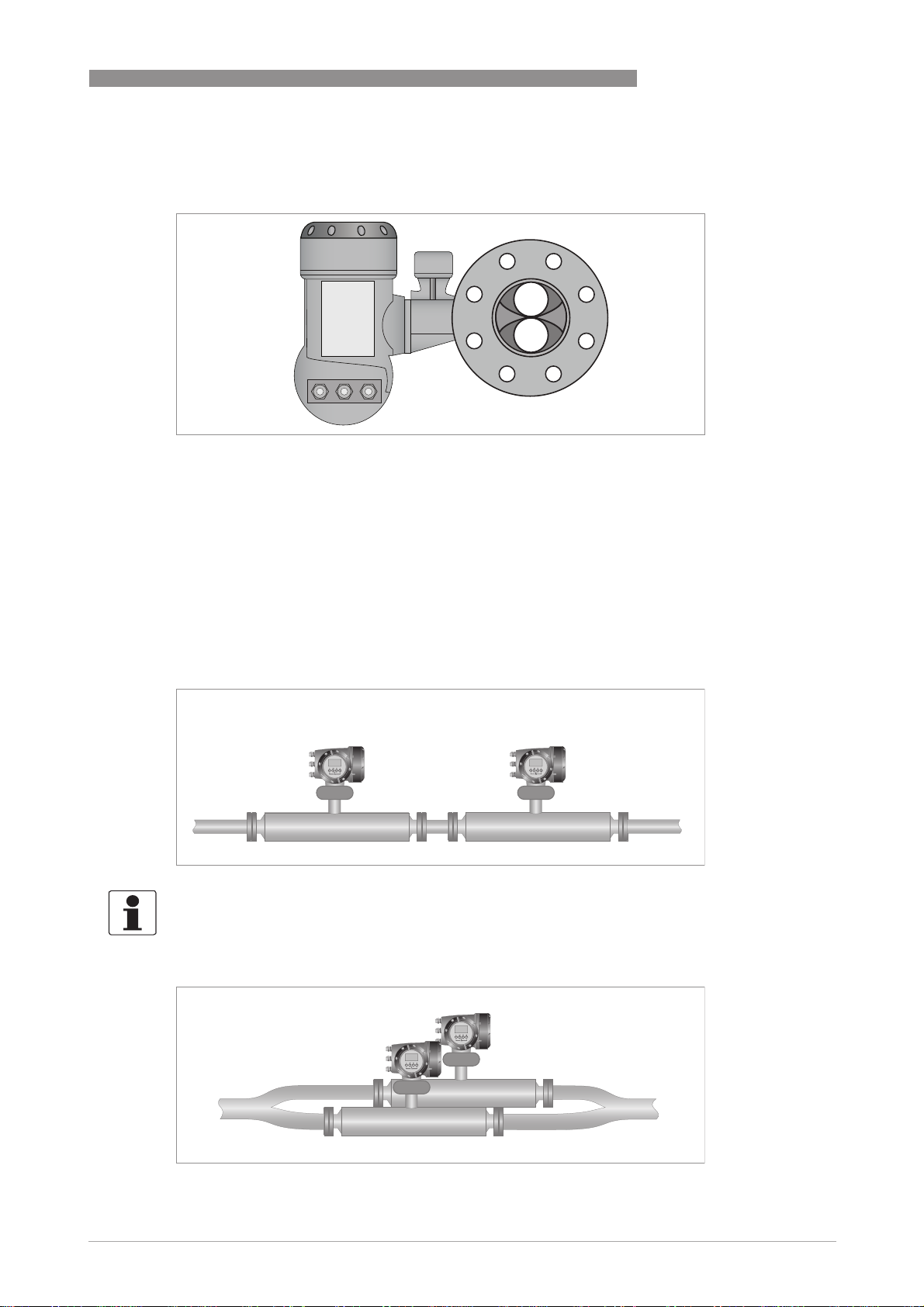

The meter can be installed with the converter (or remote junction box) on the side of the meter
so that the measuring tubes are sitting one above the other. Avoid this method of installation
where there is a two phase process flow, or where the process fluid contains gas. If this situation
cannot be avoided, please contact the manufacturer for advice.
INSTALLATION 3
3.4.4 Cross talk
Where more than one meter is being installed, a very high level of immunity to cross talk means
that the meters can be mounted within close proximity to each other. The meters can be
mounted either in series or parallel, as shown.
Meters in series
INFORMATION!
Where the meters are installed in series, it is strongly recommended that the process pipe
diameter remains constant. For more information, please contact the manufacturer.
Meters in parallel
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
19
3 INSTALLATION
3.4.5 Flange connections
Tighten the flange bolts evenly and in turn.
OPTIMASS 2000
Use a regular pattern to tighten the bolts evenly
3.4.6 Maximum pipework forces (end loadings)
Mass flowmeters have a maximum level of force (negative or positive) that can be applied to the
ends of the meter. Refer to the table below for permitted forces.
20
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
INSTALLATION 3
Maximum end loadings
S100 S150 S250
Flanges
Flanges
FlangesFlanges
20°C 40 barg 150kN 350kN 550kN
100 barg 100kN 120kN 60kN
150 barg
180 barg
130°C 32 barg 150kN 280kN 400kN
80 barg 60kN 50kN 50kN
115 barg
130 barg
Hygienic (all connections)
Hygienic (all connections)
Hygienic (all connections)Hygienic (all connections)
130°C 10 barg 5kN - -
• These (axial) loads have been calculated, based on 316L schedule 80 process pipework,
where un-radiographed butt welds have been used in pipe joints.
• The loads shown are the maximum permitted static load. If loads are cycling (between
tension and compression) these loads should be reduced. For advice, consult the
manufacturer.
3.4.7 Pipework reducers

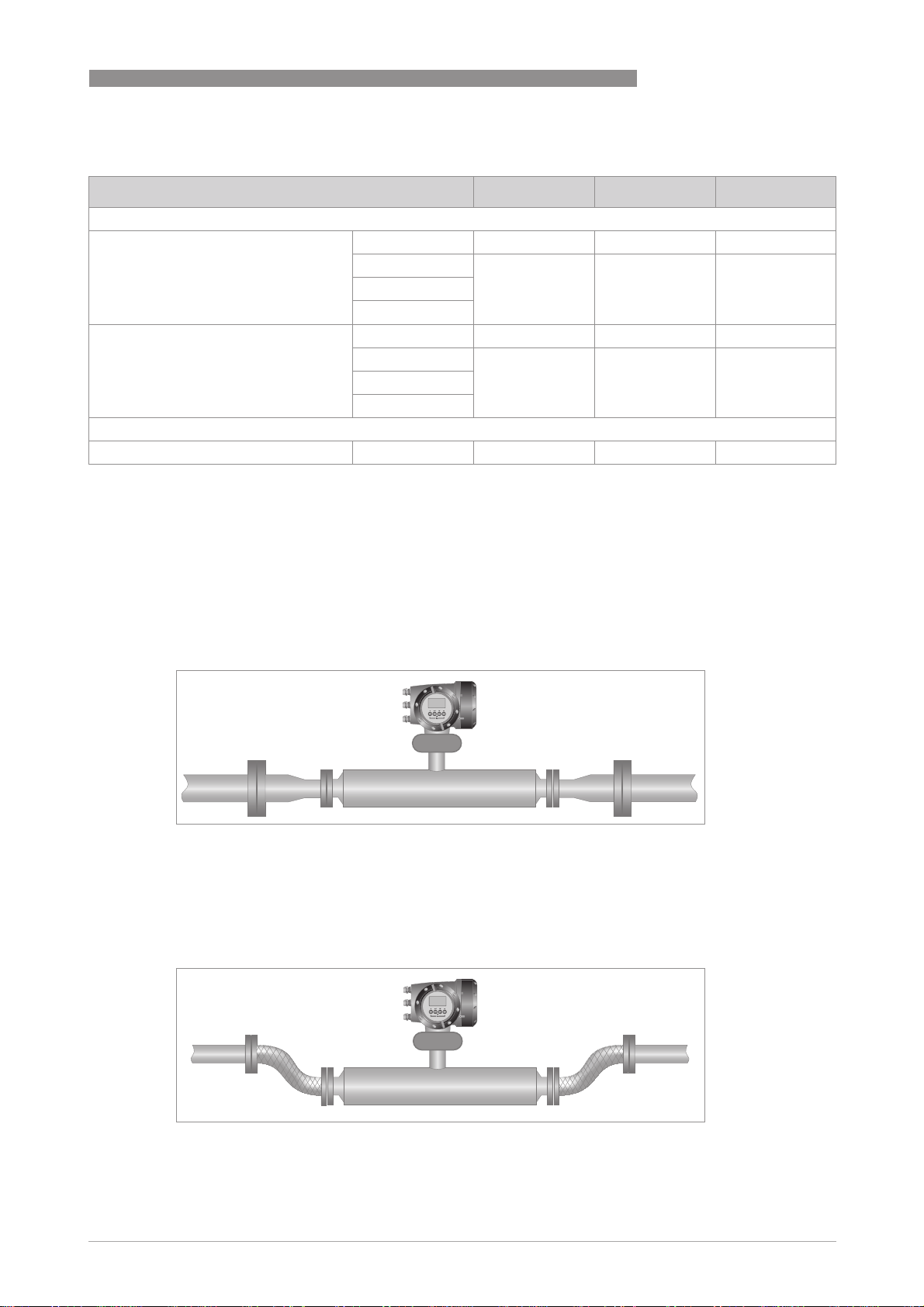

Always avoid extreme step changes in pipe size. Use pipework reducers, where there is a large
difference between pipework size and meter flanges.
3.4.8 Flexible connections
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
21
3 INSTALLATION
Flexible connections can be used but because of the high flow rates associated with large
diameter meters, it is recommended that flexible connections are not used on meters larger
than size 80.
3.4.9 Hygienic installations
OPTIMASS 2000
1 Install the meter at an angle to allow self-draining.
2 DO NOT install the meter horizontally.
Where the meter has been approved by the sanitary requirements of the European Hygienic
Engineering and Design Group, you MUST give consideration to:
• Installation - install the meter at an angle to allow self-draining (see illustration).
• Cleaning fluids - cleaning fluids should flow uphill with a velocity rate greater than
1.5 m/s / 5ft/s. If the process flow is downhill, install a flow restrictor downstream of the
meter. This will make sure that the meter is completely filled with the cleaning fluid.
• Process connections and seals MUST be in accordance with EHEDG documentation.
The manufacturer also recommends that you refer to EHEDG (www.ehedg.org) document
number 8 "HYGIENIC EQUIPMENT DESIGN CRITERIA".
3.4.10 Heating and insulation
Heating
Heating
HeatingHeating
The meter can be heated by electrical tape (or similar) as shown. ONLY heat the meter in the
area marked A.
22
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
Insulation
Insulation
InsulationInsulation
The meter can also be insulated to a maximum depth as shown (B). Do not insulate above this
depth as this will cause the electronics to overheat.
Electrical heating and insulation
1 Area that can be heated (A). Refer to the table for the maximum sizes.
2 Maximum depth of insulation (B). DO NOT insulate above this depth.
Heated area
INSTALLATION 3
S100 S150 S250
Dimension of A [mm] 200 250 250
Dimension of A [inches] 7.9 9.8 9.8
Factory fitted heating jacket
Factory fitted heating jacket
Factory fitted heating jacketFactory fitted heating jacket
If the meter has been ordered with a heating jacket, it will be supplied with NPT, Ermeto or
flange connections.
Connecting / using the heating jacket
• Use reinforced flexible hoses to connect the heating jacket to the heat source.
• The heating jacket material is 316L but the heating medium is also in contact with the outer
cylinder, which might be a lower grade stainless steel.
• Suitable heating mediums are steam or hot oil. Avoid the use of heating mediums that can
cause crevice corrosion in Stainless Steel.
• Where liquid is being used, set up the pipe configuration so that air can be vented from the
system.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
23
3 INSTALLATION
• Where steam is being used, set up the pipe configuration so that condensation can be drained
off.
• Heat the jacket to working temperature before flowing the process fluid through the meter.
CAUTION!
The maximum heating pressure and temperature for heating jackets is 10 barg at
°
C / 145 psig at 266°F
130
Heating times
Temperature [°C / °F] 1 Time [minutes]
40 / 104 7 7 10
60 / 140 10 10 17
80 / 176 15 15 30
100 / 212 20 20 60
110 / 230 30 50 90
120 / 248 75 200 270
1 Measured at the spigot end of the measuring tube.
OPTIMASS 2000
S100 S150 S250
Reference conditions
Ambient temperature +25°C / +77°F
Heating medium Hot liquid
Heating medium temperature +130°C / +266°F
3.4.11 Purge ports
If the meter has been ordered with a purge port, it will be supplied with NPT female connections
which are clearly marked. The connections are sealed with NPT plugs and PTFE tape.
CAUTION!
DO NOT remove these plugs.
The meter is factory sealed with a dry nitrogen gas fill and if moisture is allowed to enter the
meter casing it will cause damage. The plugs should only be removed to purge the meter casing
in the event that the primary measuring tube fails.
If it is suspected that the primary measuring tube has failed, de-pressurise the meter and
remove it from service, as soon as it is safe to do so.
3.4.12 Burst discs
If the meter has been ordered with a burst disc, it will be supplied with the disc fitted. The failure
pressure of the disc is 20 barg at +20°C / 290 psig at +68°F.
24
Automatic fitment
Automatic fitment
Automatic fitmentAutomatic fitment
If the connection rating of the meter is greater than 100 barg / 1450 psig but the 150 barg / 2175
psig secondary containment option has not been purchased, the meter will be supplied with a
burst disc fitted as a safety feature.
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
CAUTION!
The fitted burst disc will be suitable for the flow rates and process conditions specified on the
original order. If the process conditions alter in any way, it is recommended that you contact the
manufacturer for advice regarding suitability.
If the process product is hazardous (in any way) it is recommended that an exhaust tube is
connected to the NPT male thread of the burst disc and the pipe routed so that the process
product can be discharged to a safe area. Use a tube with a diameter large enough AND routed in
such a way, so that pressure cannot build up in the meter case.
3.4.13 Zero calibration
The procedure for zero calibration is contained in the converter handbook. However, the
following information should be considered when installing the meter.
Zero calibration
INSTALLATION 3
1 Where the meter has been installed vertically, install shut-off valves either side of the meter to assist with zero cali-
bration.
2 If the process flow cannot be stopped, install a bypass section for zero calibration.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
25
3 INSTALLATION

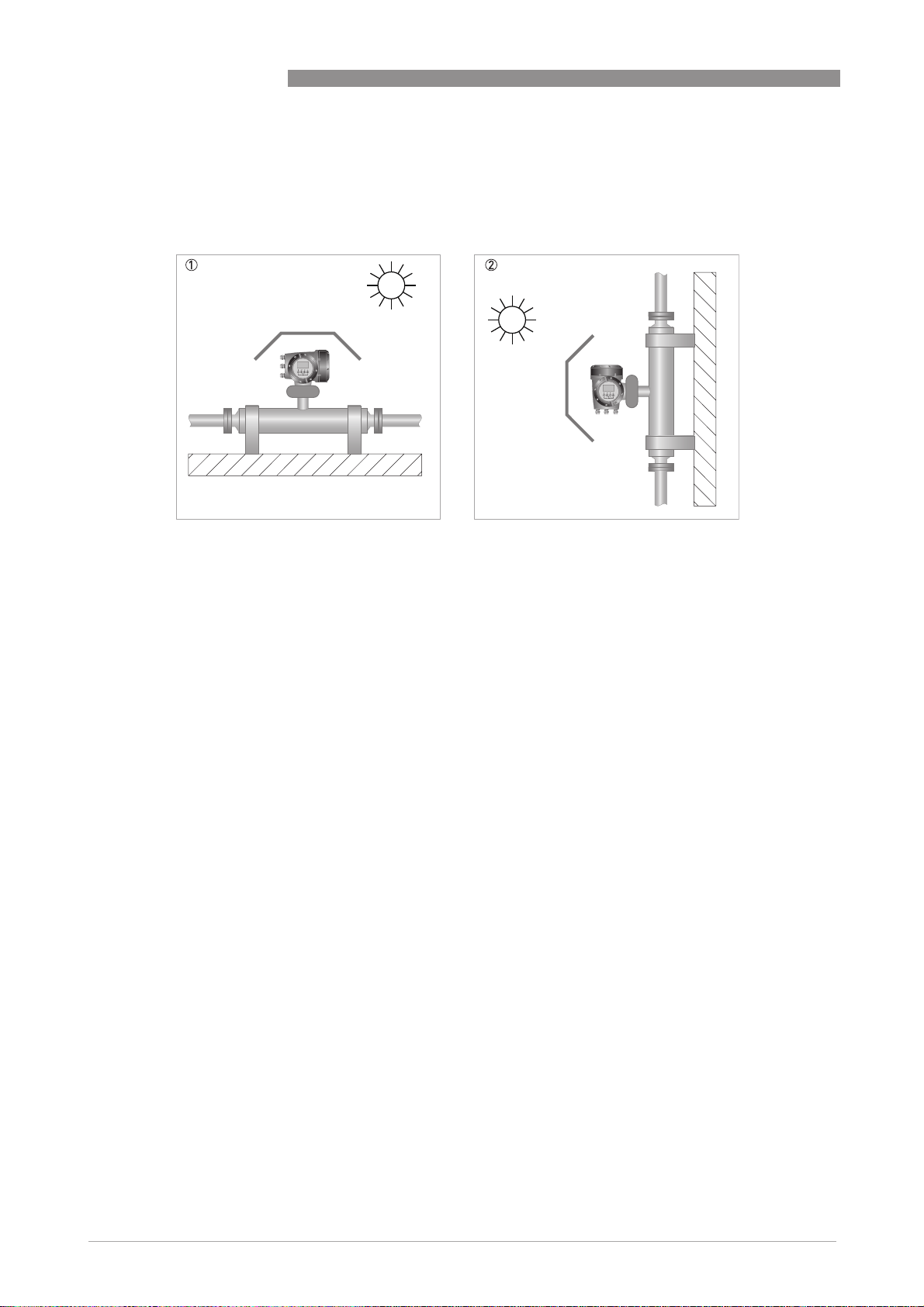

3.4.14 Sunshades
The meter MUST be protected from strong sunlight.
OPTIMASS 2000
1 Horizontal installation
2 Vertical installation
26
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
4.1 Safety instructions
DANGER!
All work on the electrical connections may only be carried out with the power disconnected. Take
note of the voltage data on the nameplate!
DANGER!
Observe the national regulations for electrical installations!
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
WARNING!
Observe without fail the local occupational health and safety regulations. Any work done on the
electrical components of the measuring device may only be carried out by properly trained
specialists.
ELECTRICAL CONNECTIONS 4
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
4.2 Electrical and I/O connections
For information regarding electrical and I/O connections, please refer to the handbook for the
relevant signal converter.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
27
5 SERVICE
5.1 Spare parts availability
The manufacturer adheres to the basic principle that functionally adequate spare parts for each
device or each important accessory part will be kept available for a period of 3 years after
delivery of the last production run for the device.
This regulation only applies to spare parts which are subject to wear and tear under normal
operating conditions.
5.2 Availability of services
The manufacturer offers a range of services to support the customer after expiration of the
warranty. These include repair, maintenance, technical support and training.
INFORMATION!
For more precise information, please contact your local representative.
5.3 Returning the device to the manufacturer
OPTIMASS 2000
5.3.1 General information
This device has been carefully manufactured and tested. If installed and operated in accordance
with these operating instructions, it will rarely present any problems.
CAUTION!
Should you nevertheless need to return a device for inspection or repair, please pay strict
attention to the following points:
•
Due to statutory regulations on environmental protection and safeguarding the health and
safety of our personnel, manufacturer may only handle, test and repair returned devices that
have been in contact with products without risk to personnel and environment.
•
This means that the manufacturer can only service this device if it is accompanied by the
following certificate (see next section) confirming that the device is safe to handle.
CAUTION!
If the device has been operated with toxic, caustic, flammable or water-endangering products,
you are kindly requested:
•
to check and ensure, if necessary by rinsing or neutralizing, that all cavities are free from
such dangerous substances,
•
to enclose a certificate with the device confirming that is safe to handle and stating the
product used.
28
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
5.3.2 Form (for copying) to accompany a returned device
Company: Address:
Department: Name:
Tel. no.: Fax no.:
Manufacturer's order no. or serial no.:
The device has been operated with the following medium:
SERVICE 5
This medium is: water-hazardous
toxic
caustic
flammable
We checked that all cavities in the device are free from such
substances.
We have flushed out and neutralized all cavities in the
device.
We hereby confirm that there is no risk to persons or the environment through any residual media
contained in the device when it is returned.
Date: Signature:
Stamp:
5.4 Disposal
CAUTION!
Disposal must be carried out in accordance with legislation applicable in your country.
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
29
6 TECHNICAL DATA
6.1 Measuring principle (twin tube)
Static meter not energised and with no flow
1 Measuring tubes
2 Drive coil
3 Sensor 1
4 Sensor 2
OPTIMASS 2000
A Coriolis twin tube mass flowmeter consists of two measuring tubes 1 a drive coil 2 and two
sensors (3 and 4) that are positioned either side of the drive coil.
Energised meter
1 Measuring tubes
2 Direction of oscilation
3 Sine wave
When the meter is energised, the drive coil vibrates the measuring tubes causing them to
oscillate and produce a sine wave 3. The sine wave is monitored by the two sensors.
30
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
Energised meter with process flow
1 Process flow
2 Sine wave
3 Phase shift
When a fluid or gas passes through the tubes, the coriolis effect causes a phase shift in the sine
wave that is detected by the two sensors. This phase shift is directly proportional to the mass
flow.
Density measurement is made by evaluation of the frequency of vibration and temperature
measurement is made using a Pt500 sensor.
TECHNICAL DATA 6
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
31
6 TECHNICAL DATA
OPTIMASS 2000
6.2 Technical data
INFORMATION!
•
The following data is provided for general applications. If you require data that is more
relevant to your specific application, please contact us or your local representative.
•
Additional information (certificates, special tools, software,...) and complete product
documentation can be downloaded free of charge from the website (Download Center).
Measuring system
Measuring principle Coriolis mass flow
Application range Mass flow and density measurement of fluids, gases and solids
Measured values Mass, density, temperature
Calculated values Volume, referred density, concentration, velocity
Design
Basic System consists of a measuring sensor and a converter to process the
Features Fully welded maintenance free sensor with dual-straight measuring tube
Variants
Variants
VariantsVariants
Compact version Integral converter
Remote version Available with field, wall or 19" rack mount versions of the converter
Modbus version Sensor with integral electronics providing Modbus output for connection to a
output signal
PLC
Measuring accuracy
Mass
Mass
MassMass
Liquid ±0.1% of actual measured flow rate + zero stability
Gas ±0.5% of actual measured flow rate + zero stability
Repeatability Better than 0.05% plus zero stability (includes the combined effects of
Zero stability
Zero stability
Zero stabilityZero stability
S100 < 7 kg/h
S150 < 18 kg/h
S250 < 50 kg/h
Reference conditions
Reference conditions
Reference conditionsReference conditions
Product Water
Temperature +20°C / +68°F
Operating pressure 1 barg / 14.5 psig
Effect on sensor zero point caused by a shift in process temperature
Effect on sensor zero point caused by a shift in process temperature
Effect on sensor zero point caused by a shift in process temperatureEffect on sensor zero point caused by a shift in process temperature
Stainless Steel 0.0004% per 1°C / 0.000022% per 1°F
Effect on sensor zero point caused by a shift in process pressure
Effect on sensor zero point caused by a shift in process pressure
Effect on sensor zero point caused by a shift in process pressureEffect on sensor zero point caused by a shift in process pressure
Stainless Steel 0.0002% of the max flow rate per 1 bar
Density
Density
DensityDensity
Measuring range
Accuracy
repeatability, linearity and hysteresis)
per 1 psig
400...3000 kg/m3 / 25...187 lbs/ft
±2 kg/m3 / ±0.13 lbs/ft
3
3
. / 0.0000014% of the max flow rate
rel
32
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
TECHNICAL DATA 6
On site calibration
Temperature
Temperature
TemperatureTemperature
Accuracy ±1°C / ±1.8°F
±0.5 kg/m3 / ±0.033 lbs/ft
3
Operating conditions
Maximum flow rates
Maximum flow rates
Maximum flow ratesMaximum flow rates
S100 420000 kg/h / 14698 lbs/min
S150 900000 kg/h / 33804 lbs/min
S250 2300000 kg/h / 84510 lbs/min
Custody transfer flow rates (mass)
Custody transfer flow rates (mass)
Custody transfer flow rates (mass)Custody transfer flow rates (mass)
S100 11000...220000 kg/h / 404...8083 lbs/min
S150 25000...500000 kg/h / 919...18371 lbs/min
S250 60000...1200000 kg/h / 2205...44092 lbs/min
Custody transfer flow rates (volume)
Custody transfer flow rates (volume)
Custody transfer flow rates (volume)Custody transfer flow rates (volume)
S100
S150
S250
Ambient temperature
Ambient temperature
Ambient temperatureAmbient temperature
Compact version with Aluminium
converter
Compact version with Stainless Steel
converter
Remote versions -40...+65°C / -40…+149°F
Process temperature
Process temperature
Process temperatureProcess temperature
Flanged connection -45…+130°C / -49…+266°F
Hygienic connection (S100 only)
Nominal pressure at 20
Nominal pressure at 20°C / 68
Nominal pressure at 20Nominal pressure at 20
Measuring tube (Duplex UNS S31803)
Measuring tube (Duplex UNS S31803)
Measuring tube (Duplex UNS S31803) Measuring tube (Duplex UNS S31803)
PED 97/23/EC -1…150 barg / -14.5…2175 psig
FM -1…140 barg / -14.5…2030 psig
CRN / ASME B31.3 -1…100 barg / -14.5…1450 psig
Measuring tube (Super Duplex UNS S32750)
Measuring tube (Super Duplex UNS S32750)
Measuring tube (Super Duplex UNS S32750) Measuring tube (Super Duplex UNS S32750)
PED 97/23/EC -1…180 barg / -14.5…2610 psig
FM -1…140 barg / -14.5…2030 psig
CRN / ASME B31.3 (pending) -1…130 barg / -14.5…1885 psig
Outer cylinder
Outer cylinder
Outer cylinderOuter cylinder
Non PED / CRN approved Typical burst pressure > 100 barg / 1450 psig
PED approved secondary containment -1...40 barg / -14.5...580 psig
Effect on sensor zero point caused by a shift in process temperature
Effect on sensor zero point caused by a shift in process temperature
Effect on sensor zero point caused by a shift in process temperatureEffect on sensor zero point caused by a shift in process temperature
Stainless Steel 0.0004% per 1°C / 0.000022% per 1°F
C / 68°F
C / 68C / 68
F
FF
11...220 m3/h / 1660...33210 bbl/day
25...500 m3/h / 3774...75478 bbl/day
60...1200 m3/h / 9057...181147 bbl/day
Assumes operating density 1000 kg/m3 / 62.4 lb/ft
-40...+60°C / -40…+140°F
Extended temperature range: 65°C / 149°F for some I/O options. For more
information contact manufacturer.
-40...+55°C / -40…+130°F
-1...150 barg / -14.5...2175 psig (Duplex option)
3
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
33
6 TECHNICAL DATA
Effect on sensor zero point caused by a shift in process pressure
Effect on sensor zero point caused by a shift in process pressure
Effect on sensor zero point caused by a shift in process pressureEffect on sensor zero point caused by a shift in process pressure
Stainless Steel 0.0002% of the max flow rate per 1 bar
per 1 psig
Fluid properties
Fluid properties
Fluid propertiesFluid properties
Permissible physical condition Liquids, gases, slurries
Permissible gas content (volume) Contact manufacturer for information.
Permissible solid content (volume) Contact manufacturer for information.
Protection category (acc. to EN 60529) IP 67, NEMA 4X
Installation conditions
Inlet runs None required
Outlet runs None required
Materials
Measuring tube Stainless Steel UNS S31803 (1.4462)
Optional UNS S32750 (1.4410)
Spigot Stainless Steel UNS J92205 (1.4470)
Optional UNS J93404 (1.4469)
Flanges Stainless Steel AISI 316 / 316L (1.4401 / 1.4404) dual certified
Optional Stainless Steel UNS S31803 (1.4462) (NACE approved)
Optional UNS S32750 (1.4410) (NACE approved)
Outer cylinder Stainless Steel AISI 304 / 304L (1.4301 / 1.4307) dual certified
Optional Stainless Steel AISI 316 / 316L (1.4401 / 1.4404) dual certified
Optional Stainless Steel UNS S31803 (1.4462) 1
Heating jacket version
Heating jacket version
Heating jacket versionHeating jacket version
Heating jacket Stainless Steel 316L (1.4404)
Note: the outer cylinder is in contact with the heating medium
All versions
All versions
All versionsAll versions
Sensor electronics housing Stainless Steel 316L (1.4409)
Optional Stainless Steel 316 (1.4469)
Junction box (remote version) Die cast Aluminium (polyurethane coating)
. / 0.0000014% of the max flow rate
rel
OPTIMASS 2000
Process connections
Flange
Flange
FlangeFlange
DIN DN100…300 / PN16…160
ASME 4...12" / ASME 150…1500
JIS 100A / 10...20K
Hygienic
Hygienic
HygienicHygienic
Tri-clover 4"
Tri-clamp DIN 32676 DN100
Tri-clamp ISO 2852 4"
DIN 11864-2 Form A DN100
Male thread DIN 11851 DN100
Male thread SMS 4"
Male thread IDF / ISS 4"
Male thread RJT 4"
34
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
TECHNICAL DATA 6
Electrical connections
Electrical connections For full details, including: power supply, power consumption etc., see
I/O For full details of I/O options, including data streams and protocols, see
technical data for the relevant converter.
technical data for the relevant converter.
Approvals
Mechanical
Mechanical
MechanicalMechanical
Electromagnetic compatibility (EMC)
acc. to CE
European Pressure Equipment Directive PED 97-23 EC (acc. to AD 2000 Regelwerk)
Factory Mutual / CSA Class I, Div 1 groups A, B, C, D
ANSI / CSA (Dual Seal) 12.27.901-2003
Hygienic 3A 28-03
Custody Transfer MID 2004/22/EC MI-005
ATEX (acc. 94/9/EC)
ATEX (acc. 94/9/EC)
ATEX (acc. 94/9/EC)ATEX (acc. 94/9/EC)
non Ex i Signal outputs
non Ex i Signal outputs
non Ex i Signal outputs non Ex i Signal outputs
Ex d connection compartment II 2 G Ex d [ib] IIC T6....T1
Ex e connection compartment II 2 G Ex de [ib] IIC T6....T1
OPTIMASS 2300C Ex i signal outputs
OPTIMASS 2300C Ex i signal outputs
OPTIMASS 2300C Ex i signal outputsOPTIMASS 2300C Ex i signal outputs
Ex d connection compartment II 2(1) G Ex d [ia/ib] IIC T6....T1
Ex e connection compartment II 2(1) G Ex de [ia/ib] IIC T6....T1
OPTIMASS 2000 / 2010C
OPTIMASS 2000 / 2010C II 2 G Ex ib IIC T6…T1
OPTIMASS 2000 / 2010COPTIMASS 2000 / 2010C
1 Where this option is ordered, the electronics stem material is UNS J92205 (1.4470)
Namur NE 21/5.95
2004/108/EC (EMC)
2006/95/EC (Low Voltage Directive)
Class II, Div 1 groups E, F, G
Class III, Div 1 hazardous areas
Class I, Div 2 groups A, B, C, D
Class II, Div 2 groups F, G
Class III, Div 2 hazardous areas
ASME BPE
II 2 D Ex tD A21 IP6x T160°C
II 2 D Ex tD A21 IP6x T160°C
II 2(1) D Ex tD [iaD] A21 IP6x T160°C
II 2(1) D Ex tD [iaD] A21 IP6x T160°C
II 2 D Ex ibD 21 T165 °C
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
35
6 TECHNICAL DATA
ATEX (acc. 94/9/EC) temperature limits
OPTIMASS 2000
Ambient temp.
T
°C
amb
OPTIMASS 2000 / 2010C with or without
heating jacket / insulation
OPTIMASS 2300C Aluminium converter
housing - with or without heating jacket
/ insulation
OPTIMASS 2300C Stainless Steel
converter housing - with or without
heating jacket / insulation
1 depending on I/O option. Please call for more information.
40 65 T6 T80
65 75 T5 T95
40 50 T6 T80
50 65 T5 T95
60 60 T4-T1 T90
65 1 65 T4-T1 T95
40 50 T6 T80
50 65 T5 T95
55 55 T5-T1 T85
Max. medium
temp. T
75 T5 T95
110 T4 T130
130 T3-T1 T150
110 T4 T130
130 T3-T1 T150
65 T5 T95
100 T4 T130
130 T3-T1 T160
100 T4-T1 T130
65 T5 T95
100 T4 T130
120 T3-T1 T150
75 T4-T1 T105
°C
m
Temp. class Max. surface
temp. °C
Maximum end loadings
S100 S150 S250
Flanges
Flanges
FlangesFlanges
20°C 40 barg 150kN 350kN 550kN
100 barg 100kN 120kN 60kN
150 barg
180 barg
130°C 32 barg 150kN 280kN 400kN
80 barg 60kN 50kN 50kN
115 barg
130 barg
Hygienic (all connections)
Hygienic (all connections)
Hygienic (all connections)Hygienic (all connections)
130°C 10 barg 5kN - -
36
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
6.3 Measuring accuracy
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
TECHNICAL DATA 6
X flow rate [%]
Y measuring error [%]
Measuring error
The measuring error is obtained from the combined effects of accuracy and zero stability.
Reference conditions
Product Water
Temperature +20°C / +68°F
Operating pressure 1 barg / 14.5 psig
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
37
6 TECHNICAL DATA
6.4 Guidelines for maximum operating pressure
Notes:
• Ensure that the meter is used within its operating limits
• All hygienic process connections have a maximum operating rating of 10 barg
at 130°C / 145 psig at 266°F
Pressure / temperature de-rating, all meter sizes in metric (flanged connections as
Pressure / temperature de-rating, all meter sizes in metric (flanged connections as
Pressure / temperature de-rating, all meter sizes in metric (flanged connections as Pressure / temperature de-rating, all meter sizes in metric (flanged connections as
per EN 1092-1:2007)
per EN 1092-1:2007)
per EN 1092-1:2007)per EN 1092-1:2007)
OPTIMASS 2000
X temperature [°C]
Y pressure [barg]
1 Measuring tube (UNS S32750) PED certification
2 Measuring tube (UNS S31803) PED certification
3 Measuring tube (UNS S31803 / S32750) FM certification
4 Measuring tube (UNS S31803) CRN certification
Linear de-rating of PED certified secondary containment
Outer cylinder material -45°C20°C 130°C
304 / L or 316 / L 40 barg 40 barg 32 barg
UNS S31803 150 barg 150 barg 100 barg
38
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000

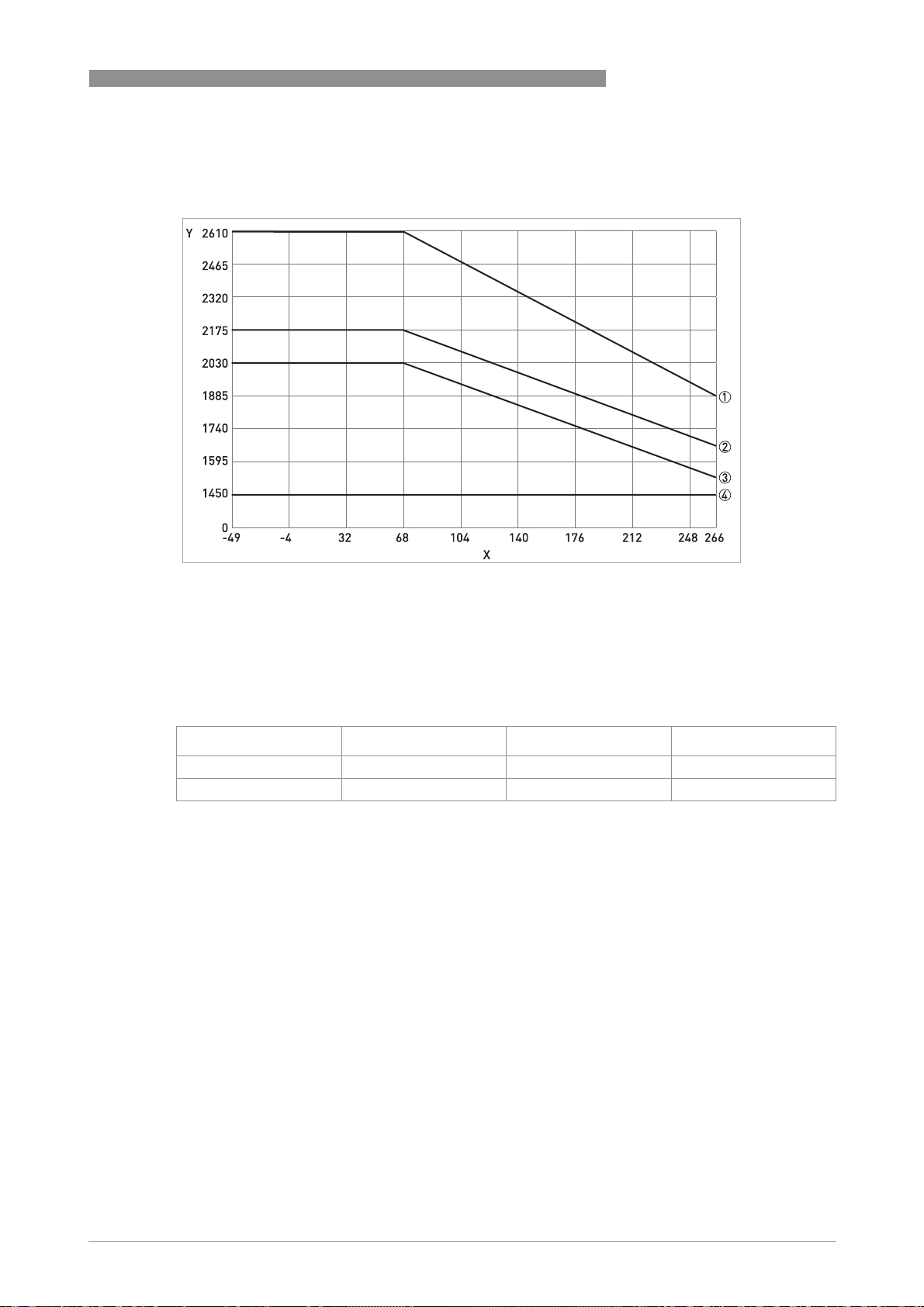

Pressure / temperature de-rating, all meter sizes, in imperial (flanged connections as
Pressure / temperature de-rating, all meter sizes, in imperial (flanged connections as
Pressure / temperature de-rating, all meter sizes, in imperial (flanged connections as Pressure / temperature de-rating, all meter sizes, in imperial (flanged connections as
per ASME B16.5)
per ASME B16.5)
per ASME B16.5)per ASME B16.5)
TECHNICAL DATA 6
X temperature [°F]
Y pressure [psig]
1 Measuring tube (UNS S32750) PED certification
2 Measuring tube (UNS S31803) PED certification
3 Measuring tube (UNS S31803 / S32750) FM certification
4 Measuring tube (UNS S31803) CRN certification
Linear de-rating of PED certified secondary containment
Outer cylinder material -49°F68°F 266°F
304 / L or 316 / L 580 psig 580 psig 464 psig
UNS S31803 2175 psig 2175 psig 1450 barg
Flanges
• DIN flange ratings are based on EN 1092-1 2007 table G.4.1 material group 14EO
• ASME flange ratings are based on ASME B16.5 2003 table 2 material group 2.2
• JIS flange ratings are based on JIS 2220: 2001 table 1 division 1 material group 022a
Notes
• The maximum operating pressure will be either the flange rating or the measuring tube
rating, WHICHEVER IS THE LOWER!
• The manufacturer recommends that the seals are replaced at regular intervals. This will
maintain the hygienic integrity of the connection.
WHICHEVER IS THE LOWER!
WHICHEVER IS THE LOWER!WHICHEVER IS THE LOWER!
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
39
6 TECHNICAL DATA

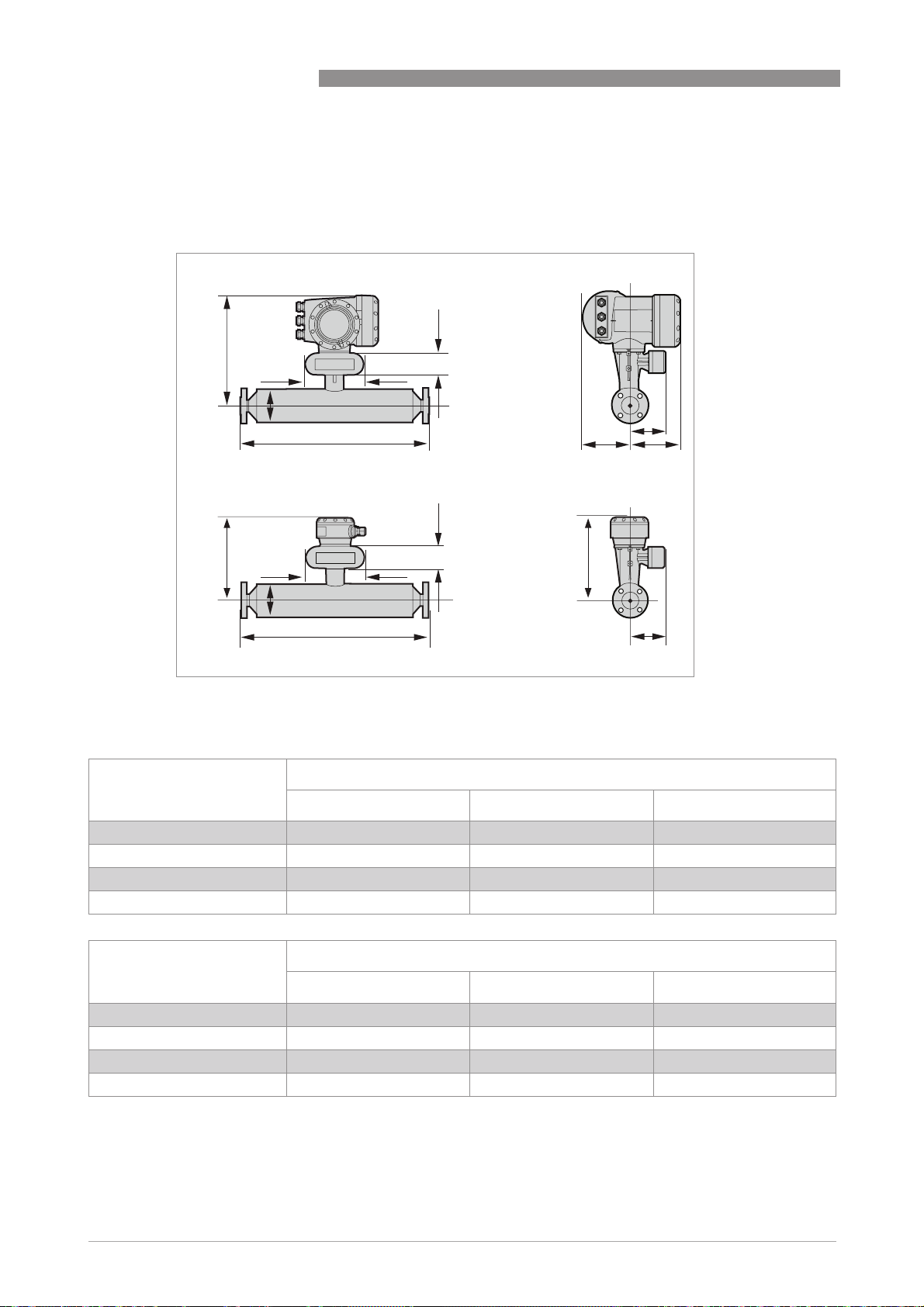

6.5 Dimensions and weights
6.5.1 Flanged versions
1
C1
D
A
OPTIMASS 2000
E
H
2
C2
1 Compact version
2 Remote version
D
B
E
A
B
FG
C2
H
Meter weights (PN40 flanges).
Weight [kg]
S100 S150 S250
Aluminium (compact) 84.8 211.5 444.5
Stainless Steel (compact) 90.1 216.8 449.8
Aluminium (remote) 80.8 207.5 440.5
Stainless Steel (remote) 81.7 208.4 441.4
Weight [lbs]
S100 S150 S250
Aluminium (compact) 187 466 980
Stainless Steel (compact) 198 478 991
Aluminium (remote) 178 457 971
Stainless Steel (remote) 180 459 973
For meter weights with different flange ratings, please contact the manufacturer.
40
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
TECHNICAL DATA 6
Measuring tube in Stainless Steel
Dimensions [mm]
S100 S150 S250
A 219 ±5 323 ±5 406 ±5
C1 (compact) 370 ±5 422 ±5 463 ±5
C2 (remote) 293 ±5 345 ±5 386 ±5
D 160
E 60
F 123.5
G 137
H 98.5
Dimensions [inches]
S100 S150 S250
A 8.6 ±0.2 12.7 ±0.2 16 ±0.2
C1 (compact) 14.6 ±0.2 16.6 ±0.2 18.2 ±0.2
C2 (remote) 11.5 ±0.2 13.6 ±0.2 15.2 ±0.2
D 6.3
E 2.4
F 4.9
G 5.4
H 3.9
Flange connections
Dimension B [mm]
S100 S150 S250
PN16
PN16
PN16PN16
DN100 1284 - -
DN150 1284 1581 -
DN200 - 1581 -
DN250 - - 1960
DN300 - - 1960
PN40
PN40
PN40PN40
DN100 1310 - -
DN150 1330 1621 -
DN200 - 1647 -
DN250 - - 2030
DN300 - - 2050
PN63
PN63
PN63PN63
DN100 1336 - -
DN150 1370 1661 -
DN200 - 1691 -
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
41
6 TECHNICAL DATA
Dimension B [mm]
S100 S150 S250
DN250 - - 2070
DN300 - - 2100
PN100
PN100
PN100PN100
DN100 1360 - -
DN150 1410 1701 -
DN200 - 1731 -
DN250 - - 1977
DN300 - - 2160
PN160
PN160
PN160PN160
DN100 1380 - -
DN150 1436 1727 -
DN200 - 1751 -
DN250 2130
DN300 - - 2170
ASME 150
ASME 150
ASME 150ASME 150
4" 1334 - -
6" 1358 1649 -
8" - 1675 -
10" - - 2024
12" - - 2050
ASME 300
ASME 300
ASME 300ASME 300
4" 1352 - -
6" 1378 1669 -
8" - 1695 -
10" - - 2056
12" - - 2082
ASME 600
ASME 600
ASME 600ASME 600
4" 1398 - -
6" 1428 1719 -
8" - 1751 -
10" - - 2138
12" - - 2146
ASME 900
ASME 900
ASME 900ASME 900
4" 1422 - -
6" 1474 1765 -
8" - 1809 -
10" - - 2202
12" - - 2234
ASME 1500
ASME 1500
ASME 1500ASME 1500
4" 1442 - -
6" 1554 - -
OPTIMASS 2000
42
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
TECHNICAL DATA 6
Dimension B [mm]
S100 S150 S250
8" - 1911 -
10" - - 2400
12" - - 2400
JIS 10K
JIS 10K
JIS 10KJIS 10K
100A 1332 - -
JIS 20K
JIS 20K
JIS 20KJIS 20K
100A 1332 - -
Dimension B [inches]
S100 S150 S250
PN16
PN16
PN16PN16
DN100 50.5 - -
DN150 50.5 62.2 -
DN200 - 62.2 -
DN250 - - 77.2
DN300 - - 77.2
PN40
PN40
PN40PN40
DN100 51.5 - -
DN150 52.6 64 -
DN200 - 65.5 -
DN250 - - 80.7
DN300 - - 82.3
PN63
PN63
PN63PN63
DN100 53.2 - -
DN150 52.3 67 -
DN200 - 65 -
DN250 - - 84.8
DN300 - - 81.5
PN100
PN100
PN100PN100
DN100 53.9 - -
DN150 55.5 66.6 -
DN200 - 68.3 -
DN250 - - 83.5
DN300 - - 85.9
PN160
PN160
PN160PN160
DN100 54.3
DN150 56.5 68 -
DN200 68.9 -
DN250 83.9
DN300 - - 85.4
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
43
6 TECHNICAL DATA
Dimension B [inches]
S100 S150 S250
ASME 150
ASME 150
ASME 150ASME 150
4" 52.5 - -
6" 53.4 65 -
8" - 66 -
10" - - 80.4
12" - - 81.5
ASME 300
ASME 300
ASME 300ASME 300
4" 53.2 - -
6" 54.2 65.8 -
8" - 66.8 -
10" - - 81.7
12" - - 82.7
ASME 600
ASME 600
ASME 600ASME 600
4" 54.9 - -
6" 56.1 67.8 -
8" - 68.9 -
10" - - 85
12" - - 85.2
ASME 900
ASME 900
ASME 900ASME 900
4" 55.2 - -
6" 57.9 69.5 -
8" - 71.2 -
10" - - 87.5
12" - - 88.7
ASME 1500
ASME 1500
ASME 1500ASME 1500
4" 56.8 - -
6" 61.2 - -
8" - 75.3 -
10" - - 94.5
12" - - 94.5
JIS 10K
JIS 10K
JIS 10KJIS 10K
100A 52.5 - -
JIS 20K
JIS 20K
JIS 20KJIS 20K
100A 52.5 - -
OPTIMASS 2000
44
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
6.5.2 Hygienic versions
Hygienic connections: all welded versions
S100 S150 S250
TECHNICAL DATA 6
Dimension B [mm]
Tri-clover
Tri-clover
Tri-cloverTri-clover
4" 1223 - -
Tri-clamp DIN 32676
Tri-clamp DIN 32676
Tri-clamp DIN 32676Tri-clamp DIN 32676
DN100 1236 - -
Tri-clamp ISO 2852
Tri-clamp ISO 2852
Tri-clamp ISO 2852Tri-clamp ISO 2852
4" 1223 - -
DIN 11864-2 form A
DIN 11864-2 form A
DIN 11864-2 form ADIN 11864-2 form A
DN100 1296 - -
Dimension B [inches]
S100 S150 S250
Tri-clover
Tri-clover
Tri-cloverTri-clover
4" 48 - -
Tri-clamp DIN 32676
Tri-clamp DIN 32676
Tri-clamp DIN 32676Tri-clamp DIN 32676
DN100 48.7 - -
Tri-clamp ISO 2852
Tri-clamp ISO 2852
Tri-clamp ISO 2852Tri-clamp ISO 2852
4" 48 - -
DIN 11864-2 form A
DIN 11864-2 form A
DIN 11864-2 form ADIN 11864-2 form A
DN100 51 - -
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
45
6 TECHNICAL DATA
OPTIMASS 2000
Hygienic connections: adapter versions (male thread)
Dimension B [mm]
S100 S150 S250
Male thread DIN 11851
Male thread DIN 11851
Male thread DIN 11851Male thread DIN 11851
DN100 1288 - -
Male thread SMS
Male thread SMS
Male thread SMSMale thread SMS
4" 1236 - -
Male thread IDF/ISS
Male thread IDF/ISS
Male thread IDF/ISSMale thread IDF/ISS
4" 1223 - -
Male thread RJT
Male thread RJT
Male thread RJTMale thread RJT
4" 1234 - -
Dimension B [inches]
S100 S150 S250
Male thread DIN 11851
Male thread DIN 11851
Male thread DIN 11851Male thread DIN 11851
DN100 50.1 - -
Male thread SMS
Male thread SMS
Male thread SMSMale thread SMS
4" 48.7 - -
Male thread IDF/ISS
Male thread IDF/ISS
Male thread IDF/ISSMale thread IDF/ISS
4" 48 - -
Male thread RJT
Male thread RJT
Male thread RJTMale thread RJT
4" 48.6 - -
46
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
6.5.3 Heating jacket version
Dimensions [mm]
S100 S150 S250
Heating connection size 25 mm (ERMETO)
TECHNICAL DATA 6
A 254 ±2.5 355 ±2.5 444 ±2.5
B 178 ±2.0 228 ±2.0 208 ±2.0
C 28 ±2.0 28 ±2.0 6.5 ±2.0
Dimensions [inches]
S100 S150 S250
Heating connection size 1" (NPTF)
A 10 ±0.1 14 ±0.1 17.5 ±0.06
B 7 ±0.08 9 ±0.08 8.2 ±0.08
C 1.1 ±0.08 1.1 ±0.08 0.25 ±0.08
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
47
6 TECHNICAL DATA
6.5.4 Purge port option
Dimensions [mm]
S100 S150 S250
A 70 ±1.0 100 ±1.0
B 70 ±1.0 100 ±1.0
OPTIMASS 2000
Dimensions [inches]
S100 S150 S250
A 2.75 ±0.04 4.0 ±0.04
B 2.75 ±0.04 4.0 ±0.04
48
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
NOTES 7
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
49
7 NOTES
OPTIMASS 2000
50
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
OPTIMASS 2000
NOTES 7
www.krohne.com10/2010 - 4000810002- MA OPTIMASS 2000 R02 en
51
KROHNE product overview
• Electromagnetic flowmeters
• Variable area flowmeters
• Ultrasonic flowmeters
• Mass flowmeters
• Vortex flowmeters
• Flow controllers
• Level meters
• Temperature meters
• Pressure meters
• Analysis products
• Measuring systems for the oil and gas industry
• Measuring systems for sea-going tankers
Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
D-47058 Duisburg (Germany)
Tel.:+49 (0)203 301 0
Fax:+49 (0)203 301 10389
info@krohne.de
© KROHNE 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en - Subject to change without notice.
The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
Loading...
