Adjustment

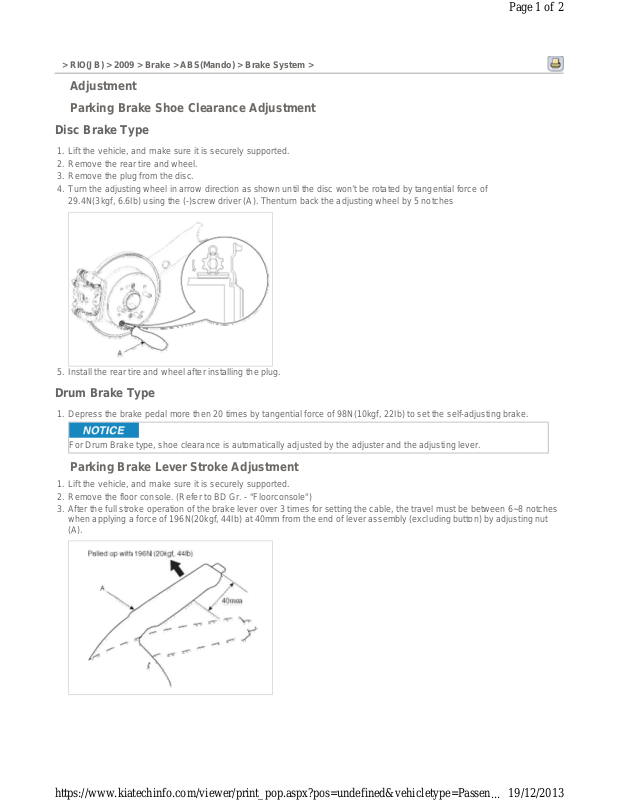

Parking Brake Shoe Clearance Adjustment

Disc Brake Type

1. Lift the vehicle, and make sure it is securely supported.

2. Remove the rear tire and wheel.

3. Remove the plug from the disc.

4. Turn the adjusting wheel in arrow direction as shown until the disc won’t be rotated by tangential force of

29.4N(3kgf, 6.6Ib) using the (-)screw driver (A). Thenturn back the adjusting wheel by 5 notches

Page 1 of 2

5. Install the rear tire and wheel after installing the plug.

Drum Brake Type

1. Depress the brake pedal more then 20 times by tangential force of 98N(10kgf, 22Ib) to set the self-adjusting brake.

For Drum Brake type, shoe clearance is automatically adjusted by the adjuster and the adjusting lever.

Parking Brake Lever Stroke Adjustment

1. Lift the vehicle, and make sure it is securely supported.

2. Remove the floor console. (Refer to BD Gr. - "Floor console")

3. After the full stroke operation of the brake lever over 3 times for setting the cable, the travel must be between 6~8 notches
when applying a force of 196N(20kgf, 44Ib) at 40mm from the end of lever assembly (excluding button) by adjusting nut
(A).

...

19/12/2013https://www.kiatechinfo.com/viewer/print_pop.aspx?pos=undefined&vehicletype=Passen

Page 2 of 2

4. Release the parking brake lever fully, and check that parking brakes do not drag when the rear wheels are turned.
Readjust if necessary.

5. Make sure that the parking brakes are fully applied when the parking brake lever is pulled up fully.

6. Parking indicator lamp must be “OFF”when the lever assembly is released. It must be “ON” when the lever assembly is
operated by 1 notch.

7. Install the floor console. (Refer to BD Gr. - "Floor console")

After repairing the parking brake shoe, adjust the brake shoe clearance, and then adjust the parking brake lever stroke.

...
