KIA Optima Hybrid 2018 Optimaphev Owners Manual

Kia, THE COMPANY

Thank you for becoming the owner of a new Kia vehicle.

As a global car manufacturer focused on building high-quality vehi­cles with exceptional value, Kia Motors is dedicated to providing you
with a customer service experience that exceeds your expectations.

All information contained in this Owner’s Manual was accurate at the
time of publication. However, Kia reserves the right to make changes
at any time so that our policy of continual product improvement can
be carried out.

This manual applies to all models of this vehicle and includes descrip­tions and explanations of optional as well as standard equipment. As a
result, you may encounter material in this manual that is not applica­ble to your specific Kia vehicle.

Drive safely and enjoy your Kia!

i

Thank you for choosing a Kia vehicle.
When you require service, remember that your Kia dealer

knows your vehicle best. Your dealer has factory-trained tech­nicians, recommended special tools and genuine Kia replace­ment parts. It is dedicated to your complete customer satisfac­tion.

Because subsequent owners require this important information
as well, this publication should remain with the vehicle if it is
sold.

This manual will familiarize you with operational, mainte­nance and safety information about your new vehicle. It is sup­plemented by a Warranty and Consumer Information manual
that provides important information on all warranties regarding
your vehicle.

We urge you to read these publications carefully and follow the
recommendations to help assure enjoyable and safe operation
of your new vehicle.

Kia offers a great variety of options, components and features
for its various models. Therefore, some of the equipment
described in this manual, along with the various illustrations,
may not be applicable to your particular vehicle.

The information and specifications provided in this manual
were accurate at the time of printing. Kia reserves the right to
discontinue or change specifications or design at any time
without notice and without incurring any obligation. If you
have questions, always check with your Kia dealer.

We assure you of our continuing interest in your motoring
pleasure and satisfaction in your Kia vehicle.

© 2017 Kia Canada Inc.
All rights reserved. Reproduction by any means, electronic or

mechanical, including photocopying, recording, or by any
information storage and retrieval system or translation in
whole or part is not permitted without written authorization
from Kia Canada Inc..

Printed in Korea

Foreword

ii

Foreword

We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways.We strong­ly recommend that you read the
entire manual. In order to minimize
the chance of death or injury, you
must read the WARNING and CAU­TION sections in the manual.

Illustrations complement the words
in this manual to best explain how to
enjoy your vehicle. By reading your
manual, you will learn about fea­tures, important safety information,
and driving tips under various road
conditions.

The general layout of the manual is
provided in the Table of Contents.
Use the index when looking for a
specific area or subject; it has an
alphabetical listing of all information
in your manual.

Sections: This manual has nine sec­tions plus an index. Each section
begins with a brief list of contents so
you can tell at a glance if that section
has the information you want.

You will find various WARNINGs,
CAUTIONs, and NOTICEs in this
manual.These WARNINGs were pre­pared to enhance your personal safe­ty.You should carefully read and f ollow
ALL procedures and recommenda­tions provided in these WARNINGs,
CAUTIONs and NOTICEs.

✽✽

NOTICE

A NOTICE indicates interesting or
helpful information is being provided.

HOW T O USE THIS MANUAL

WARNING

A WARNING indicates a situa­tion in which harm,serious bod­ily injury or death could result if
the warning is ignored.

CAUTION

A CAUTION indicates a situation
in which damage to your vehicle
could result if the caution is
ignored.

1

2

3

4

5

6

7

8

I

Introduction

Your vehicle at a glance

Safety features of your vehicle

Features of your vehicle

Audio system

Driving your vehicle

What to do in an emergency

Maintenance

9

Specifications & Consumer information

Index

table of contents

HEV (HYBRID ELECTRIC VEHICLE) SYSTEM / H2

PHEV (PLUG-IN ELECTRIC VEHICLE) SYSTEM / H3

CHARGING THE PLUG-IN HYBRID VEHICLE / H4

DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE / H21

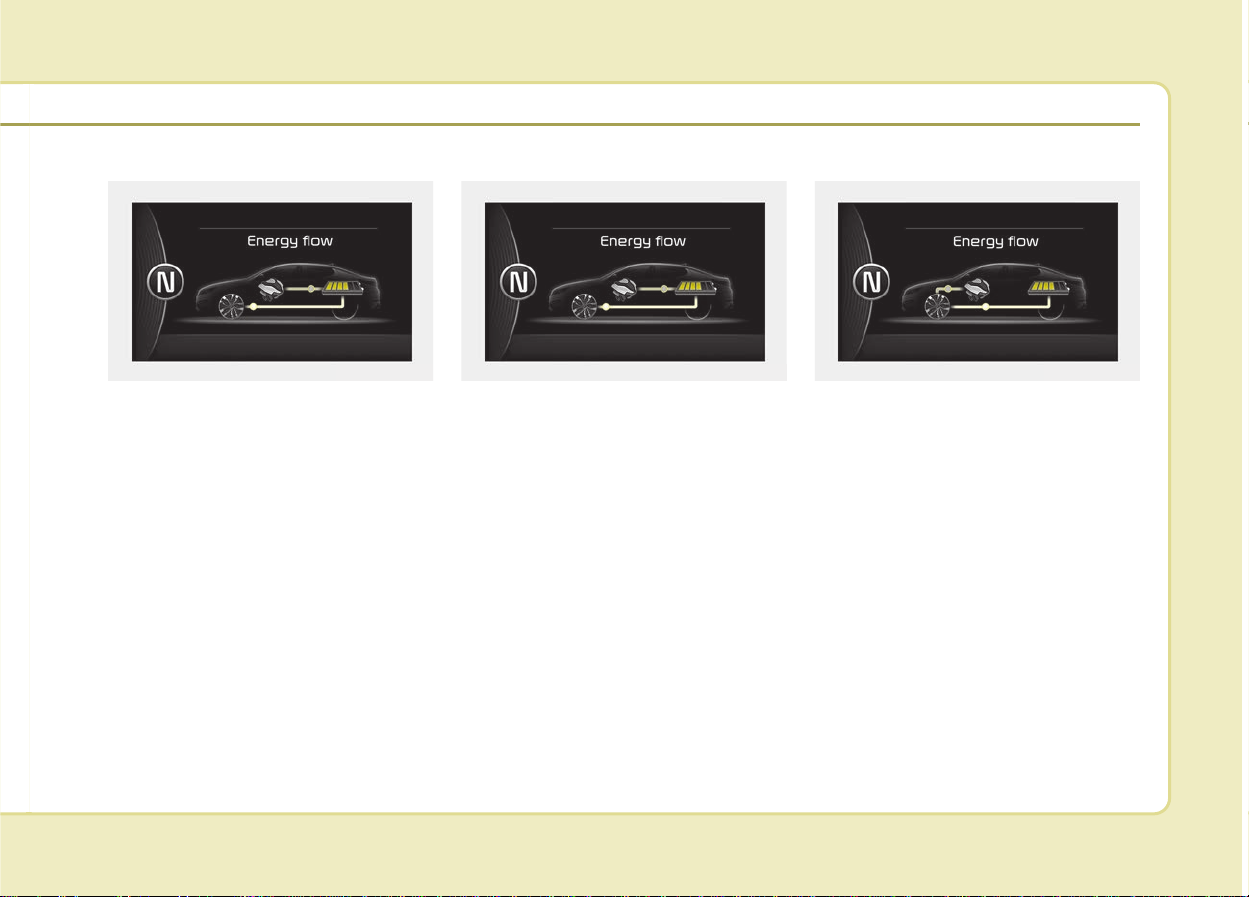

ENERGY FLOW HYBRID/PLUG-IN HYBRID VEHICLE / H28

STARTING THE HYBRID/PLUG-IN HYBRID VEHICLE (SMART KEY) / H32

COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE / H34

Hybrid/Plug-in Hybrid System Overview

H2

HEV (HYBRID ELECTRIC VEHICLE) SYSTEM

The Kia Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the electr ic motor for power. The electric
motor is run by a 270V high-voltage HEV battery.

Depending on the driving conditions, the HEV computer selectively operates between the engine and the electric
motor or even both at the same time.

Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the electric motor with the HEV
battery.

The HEV battery charge must be maintained for the times when the engine acts as a generator, such as when
stopped at idle. Charging also occurs when decelerating or by regenerative braking.

OJFH055281L

H3

PHEV (PLUG-IN ELECTRIC VEHICLE) SYSTEM

The Kia Plug-in Hybrid Electric Vehicle (PHEV) shares the characteristics of both a conventional hybrid electric vehi­cle and an all-electric vehicle.

When used as a conventional h ybrid electric vehicle , the HEV computer selectively operates between the engine and
the electric motor or even both at the same time.

When it is operating in the electric vehicle mode, the vehicle is driven only using the electric motor over a certain dis­tance until the hybrid battery becomes low.The driving distance in EV mode depends on customer driving style and road
conditions. Aggressive driving maneuvers may at times temporarily enable the engine to operate for maximum power.

The hybrid battery can be fully charged by connecting a plug to an external electric power source.

OJFHP056290L

Electric Vehicle Mode

Start up/Low speed

Acceleration High speed

Deceleration

External charging

Electric motor

CD (Charge Depleting) Mode

CS (Charge Sustaining) Mode

Charging

Motor

Engine+Motor

Engine

Charging

Battery charging

6

H4

Charging Information

• Normal Charger: The plug-in
hybrid vehicle is charged by plug­ging into a normal charger installed
in your home or a public charging
station. (For further details, refer to
the 'Normal Charge'.)

• Tr ickle Charger: The plug-in hybrid
vehicle can be charged by using
household electricity.

The electrical outlet in your home
must comply with regulations and
can safely accommodate the
Voltage / Current (Amps) / Power
(Watts) ratings specified on the
trickle charge.

Charging Time

• Normal Charger : Takes about from
2 and a half hours to 3 hours at
room temperature (Can be charged
to 100%.).Depending on the condi­tion and durability of the high-volt­age battery, charger specifications,
and ambient temperature, the time
required for charging the high-volt­age battery may vary.

CHARGING THE PLUG-IN HYBRID VEHICLE

Charging T ypes

An actual charger image and a charging method may vary in accordance with the charger manufacturers.

Category

Charging Inlet

(Vehicle)

Charging Connector Charging Outlet Charging Method Charging Time

Normal
Charger

Normal charger
installed in homes or
public charging sta­tions

Approximately from 2
and a half hours to 3
hours (to fully charge
the plug-in hybrid
vehicle, 100%)

Trickle
Charger

Household current

Use in emergency situ­ations only.

OJFHPQ016006

OJFHPQ016007

OJFHPQ016007

OJFHPQ016008L

OJFHPQ016021L

OJFHPQ016006

H5

Charging Status

You can monitor the charging status
outside of the vehicle when charging
the high-voltage battery.

Scheduled Charging
(if equipped)

• You can set reserved charging
using the AVN.

Refer to the AVN for detailed infor
mation about setting reserved
charging.

• Scheduled charging can only be
done when using a normal charger
or the portable charging cable
(ICCB: In-Cable Control Box).

OJFHPQ016009L

Charging Status Indicator

Charging in

progress

Illuminates (green)

Fully charged Off

Scheduled charging

Blinks (green) and

then turns off

Malfunction Blinks (red)

H6

• When scheduled charging is set
and the normal charger or the
portable charging cable (ICCB: In­Cable Control Box) is connected
for charging, the indicator lamp
blinks (for 3 minutes) to indicate
that scheduled charging is set.

• When scheduled charging is set,
charging is not initiated immediate­ly when the normal charger or
portable charging cable (ICCB: In­Cable Control Box) is connected.
When immediate charging is
required, use the AVN to deacti­vate the scheduled charge setting.

Charging Precautions

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

OJFHPQ016009L

OJFHPQ016021L

■ Normal Charger

WARNING

- Fires caused by dust or
water

Do not connect the charging
cable connector plug to the
vehicle if there is water or dust
on the charging inlet.
Connecting while there is water
or dust on the charging cable
connector and plug may cause
a fire or electric shock.

H7

• Comply with the following in order
to prevent electrical shock when
charging:

- Use a waterproof charger

- Make sure to not touch the charg-

ing connector and charging plug
when your hand is wet

- Do not charge when there is light-

ning

- Do not charge when the charging

connector and plug is wet

WARNING

-

Interference with electron­ic medical devices

When using medical electric
devices such as an implantable
cardiac pacemaker ,make sure to
ask the medical team and manu­facturer whether charging your
electric vehicle will impact the
operation of the medical
devices.In some instances,elec­tromagnetic waves that are gen­erated from the charger can seri­ously impact medical electric
devices such as an implantable
cardiac pacemaker.

WARNING

-

Touching the charging
connector

Do not touch the charging con­nector, charging plug, and the
charging inlet when connecting
the cable to the charger and the
charging inlet on the vehicle.
Doing so may result in electro­cution.

WARNING

-

Public Electric Outlets

Do not use old or worn out pub­lic electric outlets to charge
your vehicle. There may be a
risk of fire and injury when
using old worn out public elec­trical outlets.

H8

• Always keep the charging connec­tor and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.

• Make sure to use the designated
charger for charging the vehicle.
Using any other charger may
cause failure.

• Before charging the battery, turn
the vehicle OFF.

• Be careful not to drop the charging
connector.The charging connector
can be damaged.

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

WARNING - Charging

cable

• Immediately stop charging
when you find abnormal
symptoms (smell, smoke).

• Replace the charging cable if
the cable coating is damaged
to prevent electrical shock.

• When connecting or removing
the charging cable, make sure
to hold the charging connec­tor handle and charging plug.

If you pull the cable itself
(without using the handle),the
internal wires may disconnect
or get damaged.This may lead
to electric shock or fire.

WARNING - Cooling fan

Do not touch the cooling fan
while vehicle is charging.When
the vehicle is switched OFF
while charging, the cooling fan
inside the motor compartment
may automatically operate.

H9

Normal Charge

You can charge your vehicle by plug­ging into a public charger at a charg­ing station.

How to Connect Normal Charger

1.Depress the brake pedal and
apply the parking brake.

2. Turn OFF all switches, move the
shift lever to P (Park), and turn
OFF the vehicle.

3. After unlocking doors, open the
charging door by pressing it.

✽✽

NOTICE

• The charging door does not open
when the theft alarm system is
armed.

• Close the charging door after door
lock is released.

OJFHPQ016021L

■ Normal Charger

OJFHPQ016010L

H10

4. Remove any dust on the charging
connector and charging inlet.

5. Hold the charging connector han­dle and insert it into the charging
inlet while pressing the release
button(1), until you hear a click
sound.If it is not fully connected, a
bad connection between the
charging connector and the charg­ing terminals may cause a fire.

6. Check if the charging cable con­nection indicator of the high volt­age battery in the instrument clus­ter is turned ON.

Charging does not occur when the
indicator is OFF. When the charg­ing connector is not connected
properly, reconnect the charging
cable to charge.

✽✽

NOTICE

• The charging is in progress only
with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. However,
it may discharge the 12-V battery.
Thus, if possible, charge the bat­tery with the Engine Start/Stop
button in the OFF position.

• Moving the shift lever from P
(Park) to R (Reverse)/N(Neutral)/D
(Drive) stops the charging process.
To restart the charging process,
move the shift lever to P (Park),
press the Engine Start/Stop button
to the OFF position, and discon­nect the charging cable. Then,
connect the charging cable.

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

OJFHPQ016026 OJFHP046428L

H11

7. After charging has started, the
estimated charging time is dis­played on the instrument cluster
for about 1 minute. It is also dis­played, when the driver’s door is
opened with charging in progress.
When scheduled charging is set,
the estimated charging time is dis­played as “--" .

Unlock Charging Door in
Emergency

If the charging door does not open
due to battery discharge, open the
hood and slightly pull the emergency
cable which is located in headlamp
cover as shown above.

The charging door will then open.

Charging Status

Checking Charging Status

You can monitor the charging status
outside of the vehicle when charging
the high-voltage battery.

OJFHP046429L

OJFHP076232N OJFHPQ016009L

H12

How to Disconnect Normal
Charger

1.The vehicle doors must be
unlocked in order to be able to dis­connect the charging connector.A
lock system prevents charger
cable disconnection when the
vehicle's doors are locked.

2. Hold the charging connector han­dle and pull it while pressing the
release button(1).

OJFHPQ016028

Charging Status Indicator

Charging in

progress

Illuminates (green)

Fully charged Off

Scheduled charging

Blinks (green) and

then turns off

Malfunction Blinks (red)

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

CAUTION

In order to disconnect the
charging connector, unlock the
doors to unlatch the charging
connector lock system. If not,
the charging connector and the
vehicle's charging inlet may be
damaged.

CAUTION

When disconnecting the charg­ing connector, do not try to dis­connect it by force while not
pressing the release button.
This may damage the charging
connector and vehicle charging
inlet.

H13

3. Make sure to securely close the
charging door.

✽✽

NOTICE

• Keep the charging connector and
the charging plug clean and dry.
The charging cable should be also
kept dry.

• Use an air gun to blow any foreign
substances from the charging con­nector and the charging plug.

Trickle Charger

Trickle charger can be used if
Normal Charger is unavailable.

❈➀:Charging connector

➁ : Charging cable
➂ : Control box
➃ : Cord and plug (cord set)

OJFHPQ016014N

OJFHPQ016013

WARNING

Do not modify or disassemble
the charging cable compo­nents. Doing so may cause a
fire or an electric shock result­ing in personal injuries.

H14

How to Connect Portable
Charging Cable
(ICCB: In-Cable Control Box)

1. Turn OFF all switches, move the
shift lever to P (Park), and turn
OFF the vehicle.

2. Connect the plug to a household
electric outlet.

3. Check if all LED lamps on the con­trol box blinks for 0.5 seconds.
Then, check if the power lamp
(green) turns ON.

4.Depress the brake pedal and
apply the parking brake.

5. After unlocking doors, open the
charging door by pressing it.

✽✽

NOTICE

The charging door does not open
when the theft alarm system is
armed.

OJFHPQ016016L OJFHPQ016010L

OJFHPQ016015N

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

H15

6. Remove any dust on the charging
connector and charging inlet.

7. Hold the charging connector han­dle and insert it into the charging
inlet while pressing the release
button(1), until you hear a click
sound. If it is not fully connected,
improper connection between the
charging connector and the charg­ing terminals are a potential fire
hazard.

8. Charging star ts automatically.
Check if the power lamp and charg-

ing lamp (orange) are ON.

9. Check if the charging cable con­nection indicator of the high volt­age battery in the instrument clus­ter is turned ON.

Charging does not occur when the
indicator is OFF. When the charg­ing connector is not connected
properly, reconnect the charging
cable to charge.

OJFHPQ016026 OJFHPQ016016L OJFHP046428L

H16

✽✽

NOTICE

• The charging is in progress only
with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. However,
it may discharge the 12-V battery.
Thus, if possible, charge the bat­tery with the Engine Start/Stop
button in the OFF position.

• Moving the shift lever from P
(Park) to R (Reverse)/N(Neutral)/D
(Drive) stops the charging process.
To restart the charging process,
move the shift lever to P (Park),
press the Engine Start/Stop button
to the OFF position, and discon­nect the charging cable. Then,
connect the charging cable and
restart the vehicle again.

10. After charging has started, the
estimated charging time is dis­played on the instrument cluster
for about 1 minute. It is also dis­played, when the driver’s door is
opened with charging in progress.
When scheduled charging is set,
the estimated charging time is dis­played as "--".

Checking Charging Status

You can monitor the charging status
outside of the vehicle when charging
the high-voltage battery.

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

OJFHPQ016009L

OJFHP046429L

H17

Charge cable storage

We recommend that the trickle
charger cable should be put in a stor­age box after use. Keep the storage
box above the main battery pack
inside the trunk.

OJFHPQ016029N

Charging Status Indicator

Charging in

progress

Illuminates (green)

Fully charged Off

Scheduled charging

Blinks (green) and

then turns off

Malfunction Blinks (red)

H18

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

Charger Status

Control Box

ON/OFF Status

Power Charge Fault Status / Diagnosis / Countermeasure

Initial Preparation Mode

  

When applying power to the initial ICCB wall

Charging Preparation
Mode



- -

When ICCB charging connector is not connected
to the vehicle, or connected but charging status
is in Standby mode

Charging Mode

 

-

Charging

Failure

ICCCB failure
or electrical
leakage detected



-



Stop charging immediately and we recommend
you contact an authorized Kia dealer for ICCB
check.



-



Category Lamp ON Lamp OFF Blinking

LED Status



-



Charging Status Indicator Lamp for Portable Charging Cable

OJFHPQ016017L

OJFHPQ016018L

OJFHPQ016019L

OJFHPQ016020L

H19

How to Disconnect
PortableCharging Cable

(ICCB: In-Cable Control Box)

1. Before disconnecting the charging
connector, make sure the doors
are unlocked. When the door is
locked, the charging connector
lock system will not allow discon­nection.

2. Hold the charging connector han­dle and pull it while pressing the
release button(1).

3. Make sure to securely close the
charging door.

4.Disconnect the plug from the
household electric outlet. Do not
pull the cable when disconnecting
the plug.

5. Close the protective cover for the
charging connector so that foreign
material cannot get into the termi­nal.

6. Put the charging cable inside the
cable compartment to protect it.

OJFHPQ016028 OJFHPQ016015N

CAUTION

In order to disconnect the charg­ing connector, unlock the doors
to unlatch the charging connec­tor lock system.If not,the charg­ing connector and the vehicle's
charging inlet may be damaged.

H20

Precautions for Portable
Charging Cable
(ICCB: In-Cable Control Box)

• Use the portable charging cable
that is certified by Kia.

• Do not try to repair, disassemble, or
adjust the portable charging cable.

• Do not use an extension cord or
adapter.

• Stop using immediately if failure
warning light occurs.

• Do not touch the plug and charging
connector with wet hands.

• Do not touch the terminal part of the
normal charging connector and the
normal charging inlet on the vehicle.

• Do not connect the charging con­nector to voltage that does not
comply with regulations.

• Do not use the portable charging
cable if it is worn out, exposed, or
there exists any type of damage on
the portable charging cable.

• If the ICCB case and normal
charging connector is damaged,
cracked, or the wires are exposed
in any way, do not use the portable
charging cable.

• Do not let children operate or touch
the portable charging cable.

• Keep the control box free of water.

• Keep the normal charging connec­tor or plug terminal free of foreign
substances.

• Do not step on the cable or cord.
Do not pull the cable or cord and
do not twist or bend it.

• Do not charge when there is light­ning.

• Do not drop the control box or
place a heavy object on the control
box.

• Do not place an object that can
generate high temperatures near
the charger when charging.

• Charging with the worn out or dam­aged household electric outlet can
result in a risk of electric shock. If
you are in doubt to the household
electric outlet condition, have it
checked by a licensed electrician.

• Stop using the portable charging
cable immediately if the household
electric outlet or any components
is overheated or you notice burnt
odors.

CHARGING THE PLUG-IN HYBRID VEHICLE (CONT.)

H21

Changing plug-in hybrid mode

Pressing the HEV button changes
the plug-in hybrid system modes, as
below.

• Shortly pressed:
EV mode ↔ HEV mode

• Press and hold:
It changes to the HEV-charging

mode.

When the HEV button is pressed in
the HEV-charging mode, the mode
changes as below.

- Shor tly pressed : It changes to the
CS mode.

- Press and hold: It remains in the
HEV-charging mode.

Plug-in hybrid mode indicator

• CD (Charge Depleting, Electric) mode
:The high-voltage

(hybrid) battery is
used to drive the
vehicle.

• CS (Charge Sustaining, Hybrid) mode
:The high-voltage

(hybrid) battery
and gasoline
engine is used to
drive the vehicle.

• HEV-charging mode
: Gasoline engine is

used to drive the
vehicle and charge
the high-voltage
(hybrid) battery

A corresponding message is displayed
to indicate the selected mode.

DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE

OJFHP056292L

OJFHP046420L

OJFHP046421L

OJFHP046422L

OJFHP046425L/OJFHP046426L/OJFHP046427L

H22

Warning and indicator lights

Ready Indicator

This indicator illuminates :

When the vehicle is ready to be driven.

- ON : Normal driving is possible.

- OFF : Normal driving is not possible,
or a problem has occurred.

- Blinking : Emergency driving.

When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, we recommend
that you have your vehicle inspected
by an authorized Kia dealer.

Hybrid system warning
light

This warning light illuminates:

When there is a malfunction with the
hybrid system.

In this case, we recommend that you
have the vehicle inspected by an
authorized Kia dealer.

When the warning light illuminates
while driving, or does not go OFF
after starting the vehicle, have your
vehicle inspected by an authorized
Kia dealer.

EV Mode Indicator

This indicator illuminates when the
vehicle is driven by the electric motor .

Charging Cable
Connection Indicator
(Plug-in hybrid)

This indicator illuminates in red when
the charging cable is connected.

DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE (CONT.)

EV

H23

Coasting guide (if equipped)

A chime will sound and the coasting
guide indicator will blink four times to
inform the driver when to take the
foot off from the accelerator by antic­ipating a decelerating event* based
on the analysis of driving routes and
road conditions of the navigation. It
encourages the driver to remove foot
from the pedal and allow coasting
down the road with EV motor only.
This helps prevent unnecessary fuel
consumption and increases fuel effi­ciency.

❈ Example of a deceleration event is

going down an extended hill, slow­ing down approaching a toll booth,
and approaching reduced speed
zones.

• User settings
Press the Engine Start/Stop button

and put the shift lever in P(Par k). In
the User Settings Mode, select
Driving Assist, Coasting Guide, and
then On to turn on the system.
Cancel the selection of coasting
guide to turn off the system. For the
explanation of the system, press and
hold the [OK] button.

• Operation conditions
To activate the system, take the fol-

lowing procedures. Enter your desti­nation information on the navigation
and select the driving route. Select
the ECO mode in the Integrated
Driving Control System.Then, satisfy
the following.

- The driving speed should be
between 60 km/h (37 mph) and 160
km/h (99 mph).

❈ The operating speed may vary

due to difference between instru­ment cluster and navigation effect­ed by tire inflation level.

✽✽

NOTICE

Coasting guide is only a supplemen­tal system to assist with fuel-efficient
driving. Thus, the operating condi­tions may be different in accordance
with traffic/road conditions (i.e.
driving in a traffic jam, driving on a
slope, driving on a curve). Thus,
take the actual driving conditions
into consideration, such as distances
from the vehicles ahead/ behind,
while referring to the coasting guide
system as guidance.

H24

Unplug vehicle to start
(Plug-in hybrid)

The message is displayed when you
start the engine without unplugging
the charging cable. Unplug the
charging cable, and then start the
vehicle.

Shift to P to charge
(Plug-in hybrid)

The message is displayed when the
charging connector is plugged with
the shift lever in R (Reverse), N
(Neutral) or D (Drive). Move the shift
lever to P (Park) and re-start the
charging process.

Remaining charge time
(Plug-in hybrid)

The message is displayed to notify
the remaining time to fully charge the
battery.

EV / HEV/ CHG modes
(Plug-in hybrid)

A corresponding message is dis­played when a mode is selected by
pressing the HEV button.

Battery charged. Maintaining cur­rent (Plug-in hybrid)

This message is displayed when
unable to convert to charging mode
even when pressing and holding the
HEV button during EV/HEV mode
driving because the high­voltage(hybrid) battery is already
fully charged.

Low battery. Maintaining Hybrid
(Plug-in hybrid)

This message is displayed when
unable to convert to EV mode even
when pressing the HEV button dur­ing HEV mode driving due to insuffi­cient high-voltage(hybrid) battery
level.

DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE (CONT.)

H25

Low battery temp. Maintaining
current (Plug-in hybrid)

This message is displayed when
unable to convert to EV mode even
when pressing the HEV button dur­ing HEV mode driving due to low bat­tery temperature.

Charging complete. Switching to
Hybrid (Plug-in hybrid)

This message is displayed automati­cally converting to HEV mode due to
completed battery charging during
charging mode driving.

Charger Error! (Plug-in hybrid)

This messages is displayed when
the charging failed by e xternal charg­er error.

This message is for Normal charger.
The purpose of this message is to let

you know the error has occurred in
charger itself not in vehicle.

Low/High System Temp.
Maintaining Hybrid (Plug-in hybrid)

This message is displayed when
unable to convert to EV mode even
when pressing the HEV button dur­ing HEV mode driving due to
low/high system temperature

Switching to Hybrid mode to
allow heating (Plug-in hybrid)

• When the coolant temperature is
lower than -14 °C (57 °F), and you
turn the climate control On for
heating, the above message will be
displayed in the cluster. Then, the
vehicle will automatically switch to
HEV mode.

• When the coolant temperature is
higher than -14 °C (57 °F), or you
turn the climate control Off, the
vehicle will automatically return to
EV mode.

H26

Wait until fuel door opens
(Plug-in hybrid)

The message is displayed when you
attempt to open the fuel filler lid with
the fuel tank pressurized. Wait until
the fuel tank is depressurized.

✽✽

NOTICE

• It may take up to 20 seconds to
open fuel filler lid.

• When the fuel filler lid is frozen
and does not open after 20 seconds
at freezing temperature, slightly
tap the fuel filler lid and then
attempt to open it.

Fuel door open (Plug-in hybrid)

This message is displayed when the
fuel filler lid is opened.

Also means "Ready to refuel".

Check fuel door (Plug-in hybrid)

This message is displayed when the
fuel filler lid is open or an abnormal­ity has occurred.

Refuel after stopping
(Plug-in hybrid)

This message is displayed when the
fuel filler lid open button is pressed
when a vehicle equipped with a plug­in hybrid seal-type fuel tank is in
motion (vehicle speed is greater than
0 km/h(mi/h)).

DRIVING THE HYBRID/PLUG-IN HYBRID VEHICLE (CONT.)

H27

Open fuel door after disconnecting
charging cable (Plug-in hybrid)

This message is displayed when you
press fuel filler lid open button while
charging.

This message explains that refueling
is allowed to finish charging.

Fuel lid is not opened when charging
cable is connected to vehicle.

Charging Door Open
(Plug-in hybrid)

This message indicates that the
charging door is open while in driv­ing-ready state to encourage you to
inspect and close the door.

(Driving with the charging door open
may result in moisture inflow or dam­age.This message is used to prevent
such occurrences.)

Open fuel door after disconnecting
charging cable (Plug-in hybrid)

This message is displayed when you
press fuel filler lid open button while
charging.

This message explains that refueling
is allowed to finish charging.

Fuel lid is not opened when charging
cable is connected to vehicle.

Charging Door Open
(Plug-in hybrid)

This message indicates that the
charging door is open while in driv­ing-ready state to encourage you to
inspect and close the door.

(Driving with the charging door open
may result in moisture inflow or dam­age.This message is used to prevent
such occurrences.)

EV / HEV/ CHG modes
(Plug-in hybrid)

A corresponding message is dis­played when a mode is selected by
pressing the HEV button.

OJFHP046426L

OJFHP046425L

OJFHP046427L

H28

Kia hybrid system notifies the drivers
of energy flow in various operating
modes. Eleven Modes show drivers
the current operating condition.

Vehicle Stop

The mode means the vehicle at stop.
(There is no energy flow.)

EV Propulsion

Electric power is used to move the
vehicle.(Battery ➞ Wheel)

ENERGY FLOW HYBRID/PLUG-IN HYBRID VEHICLE

OJFH045389L OJFH045390L

H29

Power Assist

Electric and Engine power are used
to move the vehicle.

(Battery & Engine ➞ Wheel)

Engine Only Propulsion

Engine power is used to move the
vehicle.(Engine ➞ Wheel)

Engine Generation

Vehicle is stopped with the Engine
charging the hybrid battery.

(Engine ➞ Battery)

OJFH045392L OJFH045391L OJFH045393L

H30

Regeneration

Hybrid battery is being charged by
regenerative braking.

(Wheel ➞ Battery)

Engine Brake

The vehicle is being slowed by
engine compression.

(Wheel ➞ Engine)

Power Reserve

Engine is both driving the vehicle
and charging the hybrid battery.

(Engine ➞ Wheel & Batter y)

OJFH045397L OJFH045395LOJFH045394L

ENERGY FLOW HYBRID/PLUG-IN HYBRID VEHICLE

H31

Engine Generation/Regeneration

The engine and regenerative braking
system charge the hybrid battery
driving deceleration.

(Engine & Wheel ➞ Battery)

Engine Generation/Motor Drive

The vehicle is being slowed b y engine
compression and regenerative brak­ing. The hybrid battery is being
charged by regenerative braking.

(Engine ➞ Battery ➞ Wheel)

Engine Brake/Regeneration

The engine compression can be
used to slow the vehicle.The regen­erative braking system can be used
to charge the hybrid system.

(Wheel ➞ Engine & Batter y)

OJFH045398L

OJFH045399L

OJFH045396L

H32

Starting the Hybrid System

1.Carry the smart key into the vehicle .

2.Make sure the parking brake is
firmly applied.

3.Place the shift lever in the P(Park)
position.

In N (neutral) position, you can not
start the vehicle.

4.Depress the brake pedal.

5.Press the engine start/stop button.

6.The engine should be star ted with­out pressing the accelerator. In
extremely cold weather or after the
vehicle has not been operated fro
several da ys, let the engine w arm up
without depressing the accelerator.

• Even if the smart key is in the

vehicle, if it is far away from you,
the engine may not start.

• When the engine start/stop but­ton is in the ACC or ON position,
if any door is open, the system
checks for the smart key. If the
smart key is not in the vehicle, the
warning, "Key is not in vehicle"
will come on, and if all doors are
closed, the chime will also sound
for about 5 seconds. The indica­tor will turn off while the vehicle is
moving.Keep the smart key in the
vehicle when using the ACC posi­tion or if the vehicle engine is on.

If the starting procedure is fol­lowed, the " " symbol on the
instrument cluster will turn on.
For more details, Please check
chapter 6.

STARTING THE HYBRID/PLUG-IN HYBRID VEHICLE (SMART KEY)

H33

ECONOMICAL and SAFE
OPERATION of Hybrid system

• Drive smoothly. Accelerate at a
moderate rate and maintain a
steady cruising speed. Don't make
"jack-rabbit" starts. Don't race
between stoplights.

Avoid heavy traffic whenever pos­sible. Always maintain a safe dis­tance from other vehicles so you
can avoid unnecessary braking.
This also reduces brake wear.

• The regenerative brake generates
energy when the vehicle deceler­ates.

• When the hybrid battery power is
low , the h ybrid system automatical­ly recharges the hybrid battery.

• When the engine runs in "N" posi­tion, the hybrid system cannot gen­erate electricity. The hybrid battery
cannot recharge in "N" position.
Please refer to chapter 6.

✽✽

NOTICE

When the hybrid system is in
READY mode, the engine will auto­matically start and stop as needed.
The " " symbol will illuminate in
the cluster when the system is oper­ational.

CAUTION - Extended

cranking

Do not crank the engine for a
prolonged period of time with­out the engine starting. This
could result in damage to the
HEV battery and become totally
discharged.

H34

COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE

1. Engine : 2.0L

2. Motor : 35kW

3.Transmission : 6AT

4. Hybrid starter generator (HSG)

5. HPCU (Hybrid Power Control Unit)

6. High voltage battery system

7. Genergative brake system

8.Virtual Engine Sound System (VESS)

OJFHPQ016001N

❈ The actual shape may differ from the illustration.

H35

The Hybrid battery uses high voltage
top operate the electric motor and
other components and other compo­nents. High voltage is dangerous if
touched.

Your vehicle is equipped with orange
colored insulation and covers over
the high voltage components to pro­tect people from electric shock. High
voltage warning labels are attached
to some system components as
additional warnings. Your vehicle is
recommended to be serviced by an
authorized Kia dealer.

WARNING - High voltage

components

Never touch orange or high volt­age labeled components includ­ing wires, cables, and connec­tions. If the insulators or covers
are damaged or removed,severe
injury or death from electrocu­tion may occur.

WARNING - Touching

HPCU

When replacing the fuses in the
engine compartment, never
touch the HPCU.The HPCU car­ries high voltage. Touching the
HPCU could result in electrocu­tion, serious injur y, or death.

OJFHQ015002

OJFHQ015003

HPCU

HEV Battery

H36

✽✽

NOTICE - Prolonged parking

Prolonged parking might cause bat­tery discharge and operation failure
due to natural discharge. Driving
the vehicle approximately once
every 2 months, more than 15 km (9
mile) is recommended. The battery
will be charged automatically when
driving the vehicle.

CAUTION - High Voltage

Battery Damage

When loading your vehicle, be
careful of transporting items in a
manner that could damage the
high voltage battery. Do not
store items on top of the high
voltage battery or overload the
trunk area. Such actions may
ultimately damage the high volt­age battery unit.

CAUTION - Carrying

Liquids in Trunk

Do not load large amounts of liq­uid in open containers in the vehi­cle. If spilled onto the HEV bat­tery, the liquid may cause a short
or further damage to the battery.

COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE(CONT.)

WARNING - Battery

Electrolyte

As with all batteries, avoid fluid
contact with the Hybrid battery.
If the battery is damaged and if
electrolyte comes in contact
with your body, clothes or eyes,
immediately flush with a large
quantity of fresh water.

OYFH021002N

Motor

WARNING - After-market

Battery Charger

Do not use an after-market bat­tery charger to charge the
Hybrid battery. Doing so may
result in death or serious injury.

H37

WARNING - High Waters

• Avoid high waters as this may
result in your vehicle becom­ing saturated with water and
could compromise the high
voltage components.

• Do not touch the any of the
high voltage components
within your vehicle if your
vehicle has been submerged
in water equal to half of the
vehicle height. Touching high
voltage components once
submerged in water could
result in severe burns or elec­tric shock that could result in
death or serious injury.

WARNING

-

Exposure to High Voltage

• High voltage in the hybrid bat­tery system is very dangerous
and can cause severe burns
and electric shock. This may
result in serious injury or death.

• For your safety, never touch,
replace, dismantle or remove
any portion of the hybrid bat­tery system including compo­nents, cables and connectors.

CAUTION - Cleaning

Engine

When you clean the engine com­partment, do not wash using
water. Water may cause electric
arcing to occur and damage elec­tronic parts and components.

WARNING - Use of Water

or Liquids

If water or liquids come into
contact with the hybrid system
components, and you are also
in contact with the water,severe
injury or death due to electrocu­tion may occur.

WARNING

-

Hot Components

When the hybrid battery system
operates, the HEV battery sys­tem can be hot. Heat burns may
result from touching even insu­lated components of the HEV
system.

H38

COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE(CONT.)

Safety plug

Some Special Features of the
Hybrid Vehic le.

Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may
hear a sound from the hybrid battery
system behind the rear seat. If you
apply the accelerator pedal rapidly,
you may hear a sound. When you
apply the brake pedal, you may hear
a sound from the regenerative brake
system. When the hybrid system is
turned off or on, you may hear a
sound in the engine compartment. If
you depress the brake pedal repeat­edly when the hybrid system is
turned on, you may hear a sound in
the engine compartment. None of
these sounds indicate a problem.

They are characteristics of hybrid
vehicles.

When the hybrid system is turned on,
the engine may run. This does not
indicate a malfunction. If the " "
symbol is on, the hybrid system is
operating.Even if the gasoline engine
is off, you can operate the vehicle.

The HEV system may emit electromag­netic waves which can affect the per­formance of electronic devices appli­ances, such as laptop computers,
which are not part of the vehicle design.

If you park the vehicle for a long time,
the hybrid system will discharge.You
need to drive the vehicle sev eral times
per month to maintain a charge.

When you start the hybrid system in
the "P" transmission position, the
"

”

symbol is illuminated in the
cluster.The driver can drive the vehi­cle even if the engine is stopped.

OJFHQ015004

WARNING - Safety Plug

Never touch the safety plug.
Safety plug is attached to high
voltage hybrid battery system.
Touching safety plug will result
in death or serious injury.
Service personnel should follow
procedure in service manual.

WARNING - Turning off

HEV system

When you leave the vehicle, you
should turn off the hybrid sys­tem. If you depress the accelera­tor pedal by mistake and the vehi­cle is not in the "P" position, the
vehicle will accelerate. This may
result in serious injury or death.

H39

Virtual Engine Sound System
(VESS)

The Virtual Engine Sound System
generates an engine sound for
pedestrians to hear vehicle while at
low speeds in EV mode.

High Voltage Battery Air Intake

Hybrid battery air intake

The hybrid battery air intake is locat­ed on bottom the rear seats. The air
intake cools down the hybrid battery.
When the hybrid battery air intake is
blocked, the hybrid battery may be
overheated. Do not obstruct the air
intake with any other objects.

Plug-in Hybrid Vehicle

The high-voltage battery air intake is
located on the left side of the rear
seats. The air intake cools down the
high-voltage battery.

When the high-voltage battery air
intake is blocked, the high-voltage
battery may be overheated and the
vehicle performance may become
limited and set a hybrid warning
lamp. Do not obstruct the air intake
with any other objects.

OJFHQ015005

OJFHP036114L

WARNING - Interference

with electronic medical
devices

Electromagnetic waves that are
generated from the charger can
impact medical electric devices
such as an implantable cardiac
pacemaker. When using such
medical electric devices, ask
your medical professional and
the device manufacturer
whether charging your electric
vehicle will impact the operation
of the medical electric devices.

H40

COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE(CONT.)

If An Accident Occurs

• Avoid the engine compartment.

• Avoid any orange or high voltage
wires, cables, or components.

• Assume that a high voltage com­ponent is exposed and move away
from the vehicle as promptly as
possible.

• Refer to Chapter 7 for towing infor­mation.

✽✽

NOTICE

• If a small scale fire occurs, use a
fire extinguisher (ABC, BC) that is
meant for electrical fires.
If it is impossible to extinguish the
fire in the early stage, remain a
safe distance from the vehicle and
immediately call your local fire
emergency responders. Also,
advise them that a hybrid vehicle
is involved.
If the fire spreads to the high volt­age battery, large amount of water
is needed to put out the fire.
Using small amount of water or
fire extinguishers not meant for
electrical fires could cause serious
injury or death from electrical
shocks.

• If you need towing, refer to chap­ter 7.

WARNING - Air Intake

• Blocking the air intake behind
the rear seats may damage
the HEV battery.

• Do not allow any water into
the air intake even when
cleaning. If any water enters
the air intake, the Hybrid bat­tery may cause an electric
shock which can cause seri­ous injury or death due to
electrocution.

H41

If a vehicle accident occurs:

1.Stop the vehicle and shift the trans­mission into "P" position.

And then depress the parking
brake.

2.Turn off the Hybrid system by
pushing the Engine Start/Stop
Button.

3.Evacuate to the safety place.

4.Call emergency services for help
and let them know the vehicle is a
Hybrid vehicle.

If an immersion in water occurs:
If your vehicle was flooded and has

soaked carpeting or water on the
flooring, you should not try to start
the Hybrid system. Have the car
towed to an authorized Kia dealer.

When the hybrid vehicle shuts
off

When the high voltage battery or 12­volt battery discharges, or fuel tank is
empty, the hybrid system may not
operate.

If the Hybrid system stops operating
while the vehicle is moving, reduce
the vehicle speed gradually.Pull your
vehicle off the road in a safe area,
and shift the transmission in to Park
(P) position and;

1. T urn on the hazard warning flashers.

2. Set the start button at OFF, and try
to start the Hybrid system by
applying the brake pedal and
pushing the start button.

3. If the Hybrid system will not oper­ate, refer to "EMERGENCY
STARTING" in chapter 7.

Before you try to jump start the vehi­cle, confirm the fuel level. If the fuel
level is low add more fuel before
attempting as emergency start.

WARNING

If a submersion in water occurs:
If your vehicle was flooded and

has soaked carpeting or water
on the flooring, you should not
try to start the Hybrid system.
Never touch the high voltage
cables, connectors and pack­age modules, because an elec­trical shock may occur causing
injury or death. High Voltage
cables are orange in color.

We recommend that the car
towed to an authorized Kia dealer.

H42

COMPONENTS OF THE HYBRID/PLUG-IN HYBRID VEHICLE(CONT.)

WARNING - Accident

Vehicle

Never touch electric wires or
cable. If exposed electric wires
or cables are visible inside or
outside of your vehicle, an elec­tric shock may occur.

WARNING - Putting out

fire

Never use a small quantity of
water to put out a fire in your
vehicle. If a fire occurs, evacu­ate the car immediately and
contact the fire department.

Introduction

Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

• Gasoline containing alcohol and methanol . . . . . . . . . 1-2

• Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

• Fuel additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

• Operation in foreign countries. . . . . . . . . . . . . . . . . . . 1-4

Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . 1-5

HEV/PHEV powertrain. . . . . . . . . . . . . . . . . . . . . . 1-5

Vehicle data collection and event data recorders. . 1-6

1

Introduction

21

Your new vehicle is designed to use
only unleaded fuel having a pump
octane number ((R+M)/2) of 87
(Research Octane Number 91) or
higher. (Do not use methanol blend­ed fuels.)

Your new vehicle is designed to
obtain maximum performance with
UNLEADED FUEL, as well as mini­mize exhaust emissions and spark
plug fouling.

Never add any fuel system cleaning
agents to the fuel tank other than
what has been specified.(Consult an
authorized Kia dealer for details.)

• Tighten the cap until it clicks one
time, otherwise the Check Engine

light will illuminate.

Gasoline containing alcohol and
methanol

Gasohol, a mixture of gasoline and
ethanol (also known as grain alco­hol), and gasoline or gasohol con­taining methanol (also known as
wood alcohol) are being marketed
along with or instead of leaded or
unleaded gasoline.

Pursuant to EPA regulations, ethanol
may be used in your vehicle.

Do not use gasohol containing more
than 15% ethanol, and do not use
gasoline or gasohol containing any
methanol. Ethanol provides less
energy than gasoline and it attracts
water, and it is thus likely to reduce
your fuel efficiency and could lower
your MPG results.

Methanol may cause drivability prob­lems and damage to the fuel system,
engine control system and emission
control system.

Discontinue using gasohol of any
kind if drivability problems occur.

Vehicle damage or drivability prob­lems may not be covered by the
manufacturer’s warranty if they result
from the use of:

1. Gasoline or gasohol containing
methanol.

2. Leaded fuel or leaded gasohol.

3.Gasohol containing more than
15% ethanol.

WARNING - Refueling

• Do not "top off" after the noz­zle automatically shuts off.
Attempts to force more fuel
into the tank can cause fuel
overflow onto you and the
ground causing a risk of fire.

• Always check that the fuel cap
is installed securely to pre­vent fuel spillage, especially
in the event of an accident.

FUEL REQUIREMENTS

13

Introduction

"E85" fuel is an alternative fuel com­prised of 85 percent ethanol and 15
percent gasoline, and is manufac­tured exclusively for use in Flexible
Fuel Vehicles. “E85” is not compati­ble with your vehicle. Use of “E85”
may result in poor engine perform­ance and damage to your vehicle's
engine and fuel system. Kia recom­mends that customers do not use
fuel with an ethanol content exceed­ing 15 percent.

✽✽

NOTICE

Your New Vehicle Limited Warranty
does not cover damage to the fuel sys­tem or any performance problems
caused by the use of “E85” fuel.

✽✽

NOTICE

Never use any fuel containing
methanol. Discontinue use of any
methanol containing product which
may inhibit proper drivability.

Other fuels

Using fuels that contain Silicone (Si),
MMT (Manganese, Mn), Ferrocene
(Fe), and Other metalic additives,
may cause vehicle and engine dam­age or cause misfiring, poor acceler­ation, engine stalling, catalyst melt­ing, clogging, abnormal corrosion,
life cycle reduction, etc.

Also, the Malfunction Indicator Lamp
(MIL) may illuminate.

✽✽

NOTICE

Damage to the fuel system or per­formance problem caused by the use
of these fuels may not be covered by
your New Vehicle Limited
Warranty.

Use of MTBE

Kia recommends avoiding fuels con­taining MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen
Content 2.7% weight) in your vehicle .

Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle perf ormance and
produce vapor lock or hard starting.

✽✽

NOTICE

Your New Vehicle Limited
Warranty may not cover damage to
the fuel system and any perform­ance problems that are caused by
the use of fuels containing methanol
or fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight.)

Introduction

41

Gasoline containing MMT

Some gasoline contains harmful man­ganese-based fuel additives Such as
MMT(Methylcyclopentadienyl
Manganese Tr icarbonyl). Kia does not
recommend the use of gasoline con­taining MMT. This type of fuel can
reduce vehicle performance and affect
your emission control system. The
Malfunction Indicator Lamp on the
cluster may come on.

Do not use methanol

Fuels containing methanol (wood
alcohol) should not be used in your
vehicle.This type of fuel can reduce
vehicle performance and damage
components of the fuel system,
engine control system and emission
control system.

Fuel Additives

Kia recommends that you use good
quality gasolines treated with deter­gent additives such as TOP TIER
Detergent Gasoline, which help pre­vent deposit formation in the engine.
These gasolines will help the engine
run cleaner and enhance perform­ance of the Emission Control System.
For more information on TOP TIER
Detergent Gasoline, please go to the
website (www.toptiergas.com)

For customers who do not use TOP
TIER Detergent Gasoline regularly,
and have problems starting or the
engine does not run smoothly, addi­tives that can be purchased sepa­rately may be added to the gasoline.

If TOP TIER Detergent Gasoline is
not available, one bottle of additive
should be added to the fuel tank at
every 12,000 km (7,500 miles) or
every engine oil change is recom­mended.Additives are av ailab le from
your authorized Kia dealer along with
information on how to use them. Do
not mix other additives.

Operation in foreign countries

If you are going to drive your vehicle
in another country, be sure to:

• Observe all regulations regarding
registration and insurance.

• Determine that acceptable fuel is
available.

15

Introduction

No special break-in period is needed.
By following a f e w simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo­my and life of your vehicle.

• Do not race the engine.

• While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.

• Do not maintain a single speed for
long periods of time, either fast or
slow .V arying engine speed is need­ed to properly break-in the engine.

• Avoid hard stops, except in emer­gencies, to allow the brakes to seat
properly.

• Don't tow a trailer during the first
2,000 km (1,200 miles) of operation.

By following a f e w simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo­my and life of your vehicle.

• Do not race the engine.

• Avoid hard stops, except in emer­gencies, to allow the brakes to seat
properly.

VEHICLE BREAK-IN
PROCESS

HEV/PHEV POWERTRAIN

Introduction

61

This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys­tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:

• How various systems in your
vehicle were operating;

• Whether or not the driver and
passenger safety belts were
buckled/ fastened;

• How far (if at all) the driver was
depressing the accelerator
and/or brake pedal; and,

• How fast the vehicle was travel­ing.

These data can help provide a bet­ter understanding of the circum­stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving
conditions and no personal data
(e.g., name , gender, age, and
crash location) are recorded.
However, other parties, such as
law enforcement, could combine
the EDR data with the type of per­sonally identifying data routinely
acquired during a crash investiga­tion.

To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

Your vehicle at a glance

Exterior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5

Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2

Your vehicle at a glance

EXTERIOR OVERVIEW

■ Front view

1. Hood......................................................4-27

2. Head lamp (Features of your vehicle)...4-100

Head lamp (Maintenance).....................8-83

3.Wheel and tire................................8-47, 9-4

4. Outside rearview mirror.........................4-48

5. Panorama sunroof.................................4-36

6. Front windshield wiper blades

(Features of your vehicle)....................4-108

Front windshield wiper blades

(Maintenance) .......................................8-44

7.Windows................................................4-23

❈ The actual shape may differ from the illustration.

22

OJFHP016001N

■ Rear view

Your vehicle at a glance

1. Door locks.............................................4-13

2. Fuel filler lid..................................4-29, 4-33

3. Rear combination lamp

(Maintenance) .......................................8-83

4. High mounted stop lamp

(Maintenance) .......................................8-93

5.Trunk ............................................4-17, 4-19

6. Antenna...................................................5-2

7. Rearview camera..................................4-98

8. Parking assist system (Rear)................4-95

❈ The actual shape may differ from the illustration.

OJFH015002L

23

Your vehicle at a glance

INTERIOR OVERVIEW

1. Inside door handle ...................................4-14

2. Driver position memory button................3-11

3. Power window switch...............................4-23

4. Central door lock switch..........................4-15

5. Power window lock button.......................4-26

6. Outside rearview mirror control...............4-48

7. Outside rearview mirror folding...............4-50

8. Fuel filler lid open button................4-29, 4-33

9.Trunk open button....................................4-17

10. ESC off button.......................................6-34

11. Instrument panel illumination control ....4-52

12. BSD On/Off button.................................6-78

13. LDWS On/Off button..............................6-85

14. Steering wheel .......................................4-42

15. Tilt and telescopic steering control lever....4-43

16. Inner fuse panel.....................................8-66

17. Brake pedal............................................6-18

18. Parking brake pedal...............................6-20

19. Hood release lever.................................4-27

20. Seat..........................................................3-4

❈ The actual shape may differ from the illustration.

42

OJFA015003

INSTRUMENT PANEL OVERVIEW

❈ The actual shape may differ from the illustration.

Your vehicle at a glance

1. Steering wheel audio controls...............5-3

2, Driver`s front air bag...........................3-58

3. Horn.....................................................4-45

4. Instrument cluster................................4-51

5.Wiper and washer control lever.........4-108

6. Engine start/stop button........................6-6

7. Cruise control......................................6-52

Advanced Smart Cruise Control .........6-56

8. Audio.....................................................5-2

9. Hazard warning flasher.........................7-2

10. Automatic climate control system....4-116

11. Shift lever A/T....................................6-11

12. Heated steering wheel button ...........4-44

13.Drive mode button (Hybrid vehicle)....6-73

14. Seat warmer....................................4-137

Air ventilation seat...........................4-138

15. Electronic parking brake (EPB) switch..6-21

16. Auto Hold On/Off button....................6-28

17. 360° camera monitoring system

ON/OFF button ..................................4-99

18.Power outlet......................................4-139

19. USB charger....................................4-140

20. Center console storage box............4-134

21. Smart phone wireless charger ........4-141

22. Active ECO button

(Plug-in hybrid vehicle)......................6-75

23. Glove box........................................4-134

24. Passenger’s front air bag ..................3-58

OJFHP016004C

25

Your vehicle at a glance

ENGINE COMPARTMENT

■■

Gasoline Engine (Nu 2.0L - GDI)

1. Engine coolant reservoir ...................8-30

2. Engine oil filler cap ...........................8-26

3. Engine oil dipstick .............................8-26

4. Brake fluid reservoir..........................8-33

5. Air cleaner.........................................8-36

6. Fuse box...........................................8-65

7. Inverter coolant reservoir ..................8-30

8. Radiator cap .....................................8-31

9.Windshield washer fluid reser voir.....8-34

❈ The actual engine room in the vehicle may differ from the illustration.

62

OJFH075161L

Safety features of your vehicle

Important safety precautions . . . . . . . . . . . . . . . . . 3-2

• Always wear your seat belt. . . . . . . . . . . . . . . . . . . . . . 3-2

• Restrain all children . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

• Air bag hazards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

• Driver distraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

• Control your speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

• Keep your vehicle in safe condition. . . . . . . . . . . . . . . 3-3

Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

• Front seat adjustment - manual. . . . . . . . . . . . . . . . . . 3-7

• Front seat adjustment - power. . . . . . . . . . . . . . . . . . . 3-8

• Driver position memory system (for power seat). . . 3-11

• Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . 3-12

• Seatback pocket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-21

• Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-27

• Seat belt precautions. . . . . . . . . . . . . . . . . . . . . . . . . . 3-29

• Care of seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31

Child restraint system (CRS) . . . . . . . . . . . . . . . . 3-32

• Children always in the rear . . . . . . . . . . . . . . . . . . . . 3-32

• Selecting a child restraint system (CRS). . . . . . . . . . 3-33

• Installing a child restraint system (CRS) . . . . . . . . . 3-36

Air bag - advanced supplemental restraint

system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43

• How does the air bag system operate? . . . . . . . . . . . 3-44

• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-46

• SRS components and functions . . . . . . . . . . . . . . . . . 3-47

• Occupant detection system (ODS). . . . . . . . . . . . . . . 3-50

• Driver's and passenger's front air bag . . . . . . . . . . . 3-58

• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61

• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63

• Inflation and non-inflation conditions of the air bag. . 3-64

• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69

• Adding equipment to or modifying your air

bag-equipped vehicle. . . . . . . . . . . . . . . . . . . . . . . . . 3-70

• Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . . 3-70

3

Safety features of your vehicle

23

You will find many safety precautions
and recommendations throughout
this section, and throughout this man­ual.The safety precautions in this sec­tion are among the most important.

Always wear your seat belt

A seat belt is your best protection in
all types of accidents. Air bags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with air
bags, ALWAYS make sure you and
your passengers wear your seat
belts, and wear them properly.

Restrain all children

All children under age 13 should ride
in your vehicle properly restrained in
a rear seat, not the front seat.Infants
and small children should be
restrained in an appropriate child
restraint. Larger children should use
a booster seat with the lap/shoulder
belt until they can use the seat belt
properly without a booster seat.

Air bag hazards

While air bags can save lives, they
can also cause serious or fatal
injuries to occupants who sit too
close to them, or who are not prop­erly restrained. Infants, young chil­dren, and shorter adults are at the
greatest risk of being injured by an
inflating air bag. Follow all instruc­tions and warnings in this manual.

Driver distraction

Driver distraction presents a serious
and potentially deadly danger, espe­cially for inexperienced drivers.
Safety should be the first concern
when behind the wheel and drivers
need to be aware of the wide array of
potential distractions, such as drowsi­ness, reaching for objects, eating,
personal grooming, other passen­gers, and using cellular phones.

Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel
to focus on activities other than driv­ing.To reduce your risk of distraction
or getting into an accident:

• ALWAYS set up your mobile
devices (i.e., MP3 pla yers, phones,
navigation units, etc.) when your
vehicle is parked or safely stopped.

IMPORTANT SAFETY PRECAUTIONS

33

Safety features of your vehicle

• ONLY use your mobile device
when allowed by laws and when
conditions permit safe use.NEVER
text or email while driving. Most
countries have laws prohibiting
drivers from texting. Some coun­tries and cities also prohibit drivers
from using handheld phones.

• NEVER let the use of a mobile
device distract you from driving.
You have a responsibility to your
passengers and others on the road
to always drive safely, with your
hands on the wheel as well as your
eyes and attention on the road.

Control your speed

Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi­tions, regardless of the maximum
speed posted.

Keep your vehicle in safe con­dition

Having a tire blowout or a mechani­cal failure can be extremely haz­ardous. To reduce the possibility of
such problems, check your tire pres­sures and condition frequently, and
perform all regularly scheduled
maintenance.

Safety features of your vehicle

43

Driver’s seat

(1) Seat adjustment, forward /

backward

(2)

Seatback recliner

(3)

Seat adjustment, height
(4) Lumbar support *
(5)

Driver position memory system *
(6) Headrest

Front passenger’s seat

(7) Seat adjustment, forward /

backward
(8)

Seatback recliner
(9) Seat cushion height
(10) Lumbar support*
(11) Headrest

Rear seat

(12) Armrest
(13) Headrest
(14) Seat-back folding lever*

* : if equipped

SEAT

OJFA035001

35

Safety features of your vehicle

WARNING - Uprighting

seat

Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact­ing you or other passengers.

WARNING - Loose

objects

Do not place anything in the dri­ver's foot well or under the front
seats. Loose objects in the dri­ver's foot area could interfere
with the operation of the foot
pedals.

W ARNING - Driver respon-

sibility for passengers

The driver must advise the pas­sengers to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the restraint system's ability to
restrain will be greatly reduced.

1KMN3662

WARNING

- Seat cushion

Occupants should never sit on
aftermarket seat cushions or sit­ting cushions. The passenger's
hips may slide under the lap por­tion of the seat belt during an
accident or a sudden stop.

WARNING - Driver’s seat

• Never attempt to adjust the
seat while the vehicle is mov­ing. This could result in loss
of control of your vehicle.

• Do not allow anything to inter­fere with the normal position
of the seatback. Storing items
against the seatback could
result in serious or fatal injury
in a sudden stop or collision.

• Sit as far back as possible from
the steering wheel while still
maintaining comfortable con­trol of the your vehicle. A dis­tance of at least 25 cm (10 in.)
from your chest to the steering
wheel is recommended. Failure
to do so can result in air bag
inflation injuries to the driver.

Safety features of your vehicle

63

Feature of Seat Leather

• Leather is made from the outer
skin of an animal, which goes
through a special process to be
available for use. Since it is a nat­ural substance, each part differs in
thickness or density.

Wrinkles may appear as a natural
result of stretching and shrinking
depending on the temperature and
humidity.

• The seat is made of stretchable
fabric to improve comfort.

• The parts contacting the body are
curved and the side supporting
area is high which provides driving
comfort and stability.

• Wrinkles may appear naturally
from usage. It is not a fault of the
product.

WARNING - Unexpected

Seat Movement

After adjusting a manual seat,
always check that it is loc ked b y
shifting your weight to the front
and back. Sudden or unexpect­ed movement of the driver's
seat could cause you to lose
control of the vehicle.

W ARNING - Rear seatbacks

Always lock the rear seatback
before driving. Failure to do so
could result in passengers or
objects being thrown forward
injuring vehicle occupants.

WARNING - Seat

adjustment

• Do not adjust the seat while
wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.

• Do not place your hand near
the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.

WARNING - Small

Objects

Use extreme caution when pick­ing up small objects trapped
under the seats or between the
seat and the center console.
Your hands might be cut or
injured by the sharp edges of
the seats mechanism.

37

Safety features of your vehicle

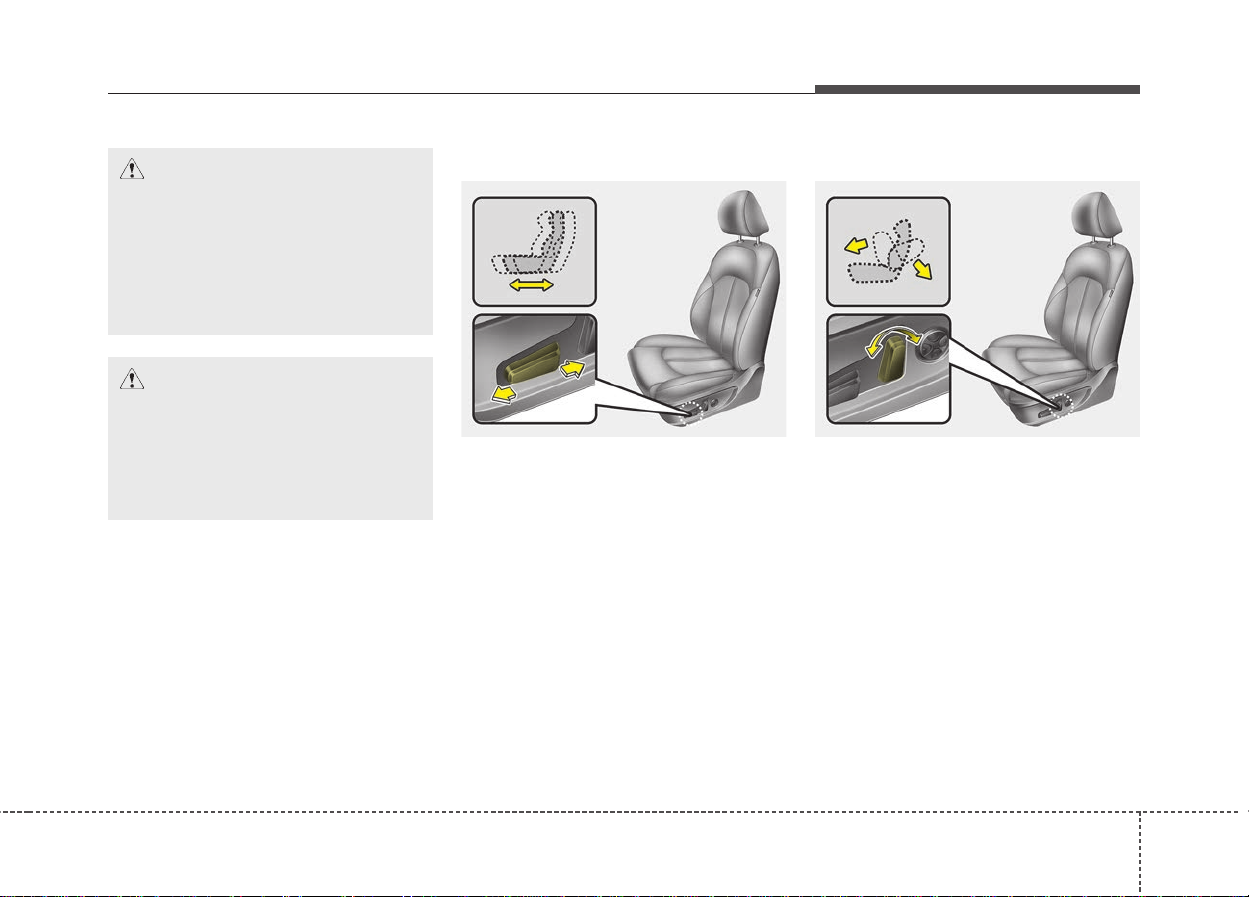

Front seat adjustment - manual

Forward and backward

T o mo ve the seat f orward or backw ard:

1.Pull the seat slide adjustment
lever up and hold it.

2. Slide the seat to the position you
desire.

3. Release the lever and make sure
the seat is locked in place.

Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back­ward without using the lever. If the
seat moves, it is not locked properly.

Seatback angle

To recline the seatback:

1. Lean forward slightly and lift up the
seatback recline lever.

2. Carefully lean back on the seat
and adjust the seatback of the
seat to the position you desire.

3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig­inal position for the seatback to
lock.)

OJF035003

OJF035004

CAUTION

• Wrinkles or abrasions which
appear naturally from usage
are not covered by warranty.

• Belts with metallic acces­sories, zippers or keys inside
the back pocket may damage
the seat fabric.

• Make sure not to wet the seat.
It may change the nature of
natural leather.

• Jeans or clothes which could
bleach may contaminate the
surface of the seat covering
fabric.

Safety features of your vehicle

83

Seat height

To change the height of the seat, push
the lever upwards or downwards.

• T o lo wer the seat cushion, push the
lever down several times.

• To raise the seat cushion, pull the
lever up several times.

Lumbar support (if equipped)

The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the seat.

1.Press the front portion of the
switch to increase support, or the
rear portion of the switch, to
decrease support.

2. Release the switch once it reach­es the desired position.

Front seat adjustment - power
(if equipped)

The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so you can easily con­trol the steering wheel, pedals and
switches on the instrument panel.

WARNING - Unattended

children

Do not leave children unattend­ed in the vehicle.Children might
operate features of the vehicle
that could injure them.

OJF035006

OJF035005

39

Safety features of your vehicle

When in operation, the power seat­consumes a large amount of electri­cal power. To prevent unnecessary
system drain, don’t adjust the power
seat longer than necessary while the
engine is not running.

Forward and backward

Push the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.

Seatback angle

Push the control switch forward or
backward to move the seatback to
the desired angle. Release the
switch once the seat reaches the
desired position.

CAUTION - Power seat

adjustments

The power seating controls
function by electronic motor.

Excessive operation may cause
damage to the electrical equip­ment.

CAUTION - Power Seating

Do not operate two or more
power seat control switches at
the same time. Doing so may
damage the power seat motor or
electrical components.

OJF035008 OJFA035009

Safety features of your vehicle

103

Seat height

Pull the front portion of the control
switch up to raise or press down to
lower the front part of the seat cush­ion. Pull the rear portion of the con­trol switch up to raise or press down
to lower the seat cushion. Release
the switch once the seat reaches the
desired position.

Lumbar support (if equipped)

The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the seat.

Type A

1.Press the front portion of the
switch to increase support, or the
rear portion of the switch, to
decrease support.

2. Release the switch once it reach­es the desired position.

Type B

1.Press the front portion of the
switch (1) to increase support, or
the rear portion of the switch (2),
to decrease support.

2. Release the switch once it reach­es the desired position.

3. Press the upper por tion (3) of the
switch to move the support posi­tion up, or press the lower portion
(4) of the switch, to move the sup­port position down.

4. Release the switch once it reach­es the desired position.

OJF035010L OJF035011L

■ Type A

OJF035075L

■ Type B

311

Safety features of your vehicle

Driver position memory system
(if equipped, for power seat)

A driver position memory system is
provided to store and recall the driv­er seat and outside rearview mirror
position with a simple button opera­tion. By saving the desired position
into the system memory, different
drivers can reposition the driver seat
based upon their driving preference.
If the battery is disconnected, the
desired seat position memory will
need to be re-saved.

Storing positions into memory
using the buttons on the door

Storing driver’s seat positions

1. Shift the shift lever into P while the
engine start/stop button is ON.

2. Adjust the driver’s seat and out­side rearview mirror comfortable
for the driver.

3. Press SET button on the control
panel.The system will beep once.

4. Press one of the memory buttons
(1 or 2) within 5 seconds after
pressing the SET button.The sys­tem will beep twice when memory
has been successfully stored.

When recalling an adjustment mem­ory button while sitting in the vehicle,
you can be surprised by the setting
chosen if the memory has been
adjusted by someone else. If that
occurs, immediately push the seat
position control knob in the direction
of the desired position to stop further
undesired movement.

WARNING - Driver

Position Memory System

Never attempt to operate the
driver position memory system
while the vehicle is moving.

This could result in loss of con­trol, and an accident causing
death or serious injury.

OJF035065L

Safety features of your vehicle

123

Recalling positions from memory

1. Shift the shift lever into P while the
engine start/stop button is ON.

2.To recall the position in the memo­ry, press the desired memory but­ton (1 or 2). The system will beep
once, then the driver’s seat will
automatically adjust to the stored
position.

Adjusting the control switch for the
driver’s seat while the system is
recalling the stored position will
cause the movement to stop and
move in the direction that the control
switch is moved.

Easy access function (if equipped)

The system will move the driver's
seat automatically as follows:

• With smart key system

- It will move the driver’s seat rear­ward when the engine start/stop
button is changed to the OFF
position.

- It will move the driver’s seat for­ward when the engine start/stop
button is changed to the ACC or
START position.

You can activate or deactivate this
feature. Refer to "User settings" in
chapter 4.

Headrest (for front seat)

The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and comf ort.

The headrest not only provides com­fort for the driver and front passenger ,
but also helps protect the head and
neck in the event of a rear collision.

For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.

OMG038400

313

Safety features of your vehicle

Also, adjust the headrest as close to
your head as possible. For this rea­son, the use of a cushion that holds
the body away from the seatback is
not recommended.

Adjusting the height up and down

To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).

✽✽

NOTICE

If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may
come in contact with the sunvisor or
other parts of the vehicle.

WARNING - Headrest

removal/adjustment

• Do not operate the vehicle
with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.

• Do not adjust the headrest
height while the vehicle is in
motion. Driver may lose con­trol of the vehicle.

OJF035013

OYFH034205

Safety features of your vehicle

143

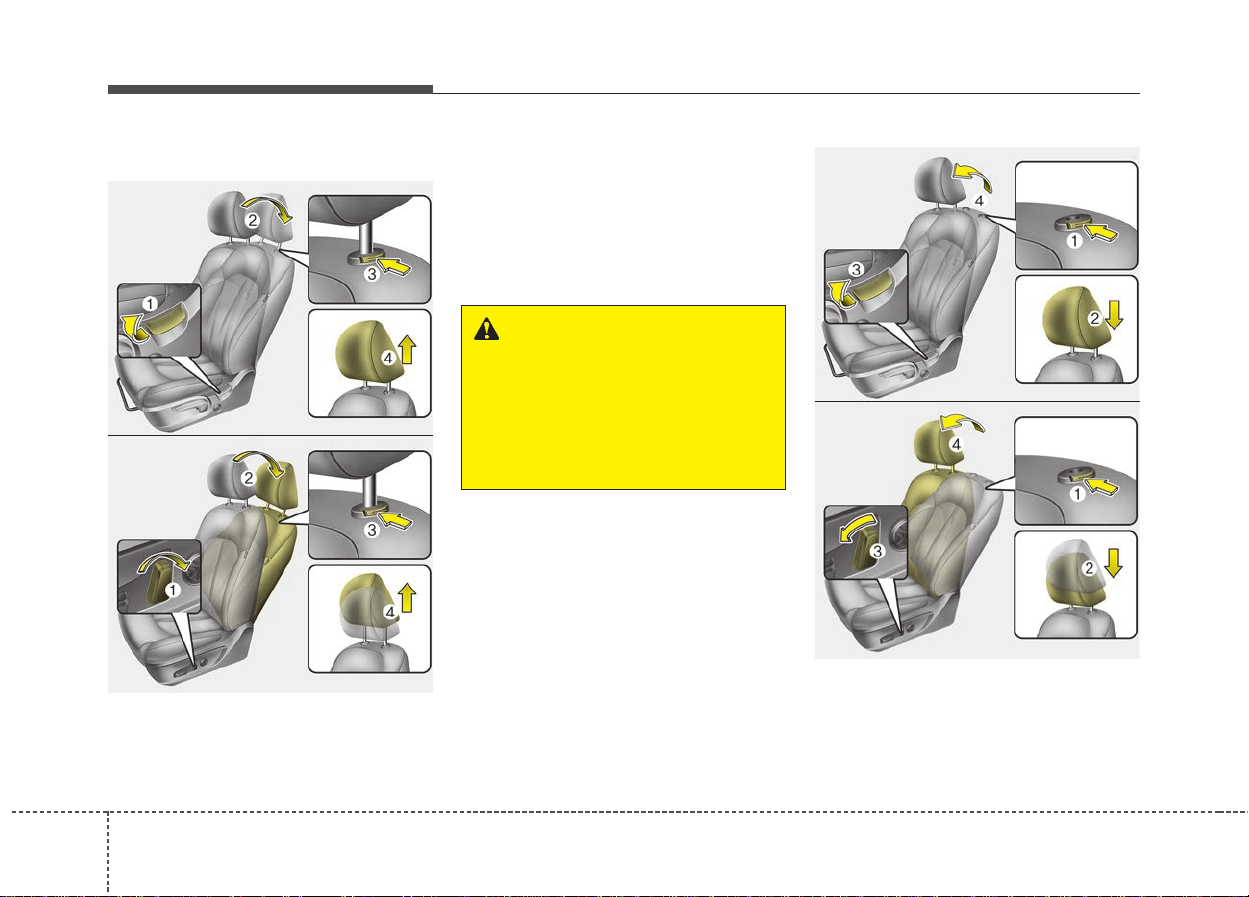

Removal and reinstallation

To remove the headrest:

1. Recline the seatback (2) with the
recline lever or switch (1).

2. Raise headrest as far as it can go.

3. Press the headrest release button
(3) while pulling the headrest up (4).

OJF035015

OJF035016L

■ Type B

■ Type A

WARNING - Headrest

Removal

NEVER allow anyone to ride in a
seat with the headrest removed.
Headrests can provide critical
neck and head support in a
crash.

OJF035017

OJF035018L

■ Type B

■ Type A

315

Safety features of your vehicle

To reinstall the headrest :

1. Put the headrest poles (2) into the
holes while pressing the release
button (1) or switch(1).

2. Recline the seatback (4) with the
recline lever or switch (3).

3. Adjust the headrest to the appro­priate height.

Seatback pocket

The seatback pocket is provided on
the back of the front passenger’ s and
driver’s seatbacks.

Rear seat adjustment

Headrest

The rear seat is equipped with head­rests in all the seating positions for
the occupant's safety and comfort.

The headrest not only provides com­fort for passengers, but also helps
protect the head and neck in the
event of a collision.

WARNING - Headrest

Reinstallation

To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly
after reinstalling.

OJF035020

WARNING - Seatback

pockets

Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.

OMG038401

Safety features of your vehicle

163

For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's heads is similar with
the height as the top of their eyes.

Also, adjust the headrest as close to
your head as possible. For this rea­son, the use of a cushion that holds
the body away from the seatback is
not recommended.

Adjusting the height up and down
(if equipped)

To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).

Removal and reinstallation
(if equipped)

To remove the headrest, raise it as
far as it can go then press the
release button (1) while pulling the
headrest upward (2).

To reinstall the headrest, put the
headrest poles (3) into the holes
while pressing the release button (1).
Then adjust it to the appropriate
height and ensure that it locks in
position.

OJF035021 OJF035077L

317

Safety features of your vehicle

Armrest

To use the armrest, pull it forward
from the seatback.

Carrying long/narrow cargo
(if equipped)

Additional cargo space is provided to
accommodate long/narrow cargo
(skis, poles, etc.) not able to fit prop­erly in the trunk when closed.

1. Pull the armrest down.

2. Pull the cover down while pushing
the release lever down.

Folding the rear seat (if equipped)

The rear seatbacks may be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.

OJF035026

WARNING - Folded

Seatback

The purpose of the fold-down
rear seatbacks is to allow you to
carry longer objects than could
not otherwise be accommodated.

• Never allow a passenger to sit
on top of the folded down
seatback while the car is mov­ing. This is not a proper seat­ing position since no seat
belts are available for use.

• To reduce the risk of injury
caused by sliding cargo within
the passenger compartment
of the vehicle, objects carried
on the folded down seatback
should not extend higher than
the top of the front seats.

OJF035027

CAUTION

Be careful when loading cargo
through the rear passenger
seats to prevent damage to the
vehicle interior.

Safety features of your vehicle

183

To fold down the rear seatback
(for Hybrid, if equipped):

1. Make sure the rear seat belt web­bing is in the guide to prevent the
seat belt from being damaged.

2.Set the front seatback to the
upright position and if necessary,
slide the front seat forward.

3. Lower the rear headrests to the
lowest position.

OJF035081L

CAUTION - Blocked HEV

battery duct

Do not put objects in the center
lower part of rear seats. This
could block the battery cooling
duct causing battery degradation.

OJFHQ015005

■ Hybrid

CAUTION - Blocked PHEV

Battery Duct

Do not put objects on the left
side of rear seat. This could
block the battery cooling duct
causing battery degradation.

OJFHP036114L

■ Plug-in hybrid

319

Safety features of your vehicle

4.Pull out the seatback locking
knob(1) in the trunk, then fold the
seat toward the front of the vehicle .

5. To use the rear seat, lift and pull
the seatback backward. Pull the
seatback firmly until it clicks into
place. Make sure the seatback is
locked in place.

6. Return the rear seat belt to the
proper position.

✽✽

NOTICE

After folding the rear seat, unless
the driver’s position is properly set
according to the driver’s physical
figure, do not fold the rear seat.

OJF035025

WARNING - Objects

Objects carried on the folded
down seatback should not
extend higher than the top of
the front seatbacks. This could
allow cargo to slide forwar d and
cause injury or damage during
sudden stops.

WARNING - Uprighting

seat

When you return the seatback
to its upright position, hold the
seatback and return it slowly. If
the seatback is returned with­out holding it, the back of the
seat could spring forward,
resulting in injury caused by
being struck by the seatback.

OJFH035024

Safety features of your vehicle

203

When returning the rear seatbacks to
the upright position, remember to
return the rear shoulder belts to their
proper position.

CAUTION - Damaging

rear seat belt buckles

When you fold the rear seat­back, insert the buckle between
the rear seatback and cushion.
Doing so can prevent the buckle
from being damaged by the rear
seatback.

WARNING - Cargo loading

Make sure the engine is off, the
automatic transaxle is in P (Park)
and the parking brake is secure­ly applied whenever loading or
unloading cargo. Failure to take
these steps may allow the vehi­cle to move if the shift lever is
inadvertently moved to another
position.

WARNING - Cargo

Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Do not
place objects in the rear seats,
since they cannot be properly
secured and may hit the front
seat occupants in a collision.

WARNING - Rear

Seatback

To ensure maximum protection
in the event of an accident or
sudden stop,when returning the
rear seat to the upright position:

• Be careful not to damage the
seat belt webbing or buckle.

• Do not allow the seat belt
webbing or buckle to become
pinched or caught in the rear
seat.

• Ensure the seatback is com­pletely locked into its upright
position by pushing on the
top of the seatback.

Failure to adhere to any of
these instructions could
result in serious injury or
death in the event of a crash.

321

Safety features of your vehicle

SEAT BELTS

Seat belt restraint system

• For maximum restraint system pro­tection, the seat belts must always
be used whenever the vehicle is
moving. A properly positioned
shoulder belt should be positioned
midway over your shoulder across
your collarbone.

• Never allow children to ride in the
front passenger seat. See child
restraint system section for further
discussion.

Seat belts are designed to bear upon
the bony structure of the body, and
should be worn low across the front
of the pelvis, chest and shoulders, as
applicable;wearing the lap section of
the belt across the abdominal area
must be avoided.

Seat belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection for
which they have been designed.

A slack belt will greatly reduce the
protection afforded to the wearer.

Care should be taken to avoid con­tamination of the webbing with pol­ishes, oils and chemicals, and partic­ularly battery acid. Cleaning may
safely be carried out using mild soap
and water. The belt should be
replaced if webbing becomes frayed,
contaminated or damaged.

WARNING - Damaged

seat belt

Replace the entire seat belt
assembly if any part of the web­bing or hardware is damaged as
you can no longer be sure that a
damaged seat belt will provide
protection in a crash.

WARNING - Twisted seat

belt

Make sure your seat belt is not
twisted when worn. A twisted
seat belt may not properly pro­tect you in an accident and
could even cut into your body.

WARNING - Shoulder Belt

• Never wear the shoulder belt
under your arm or behind
your back. An improperly
positioned shoulder belt can­not protect the occupant in a
crash.

• Always wear both the shoul­der portion and lap portion of
the lap/shoulder belt.

Safety features of your vehicle

223

• No modifications or additions
should be made by the user which
would either prevent the seat belt
adjusting devices from operating to
remove slack, or prevent the seat
belt assembly from being adjusted
to remove slack.

• When you fasten the seat belt, be
careful not to latch the seat belt in
buckles of other seat.It's very dan­gerous and you may not be pro­tected by the seat belt properly.

• Do not unfasten the seat belt and
do not fasten and unfasten the seat
belt repeatedly while driving. This
could result in loss of control, and
an accident causing death, serious
injury, or property damage.

• When fastening the seat belt,
make sure that the seat belt does
not pass over objects that are hard
or can break easily.

Driver's seat belt warning

As a reminder to the driver, the seat
belt warning light will illuminate and
warning chime will sound for approx­imately 6 seconds each time engine
start/stop button is ON if the seat belt
is unfastened.

WARNING - Seat belt

buckle

Do not allow foreign material
(gum, crumbs, coins, etc.) to
obstruct the seat belt buckle.
This may prevent the seat belt
from fastening securely.

OJF035091L

323

Safety features of your vehicle

If you continue not to fasten the seat
belt and you drive over 9km/h
(6mph), the warning light will stay illu­minated until you drive under 6km/h
(4mph). (if equipped)

If you continue not to fasten the seat
belt and you drive over 20km/h
(12mph) the seat belt warning chime
will sound for approximately 100 sec­onds and the corresponding warning
light will blink. (if equipped)

If you unfasten the seat belt while
driving under 20km/h (12mph), the
seat belt warning light will illuminate
until the seat belt is fastened.

If you unfasten the seat belt while
driving over 20km/h (12mph), the
seat belt warning chime will sound
for approximately 100 seconds and
the corresponding warning light will
blink.

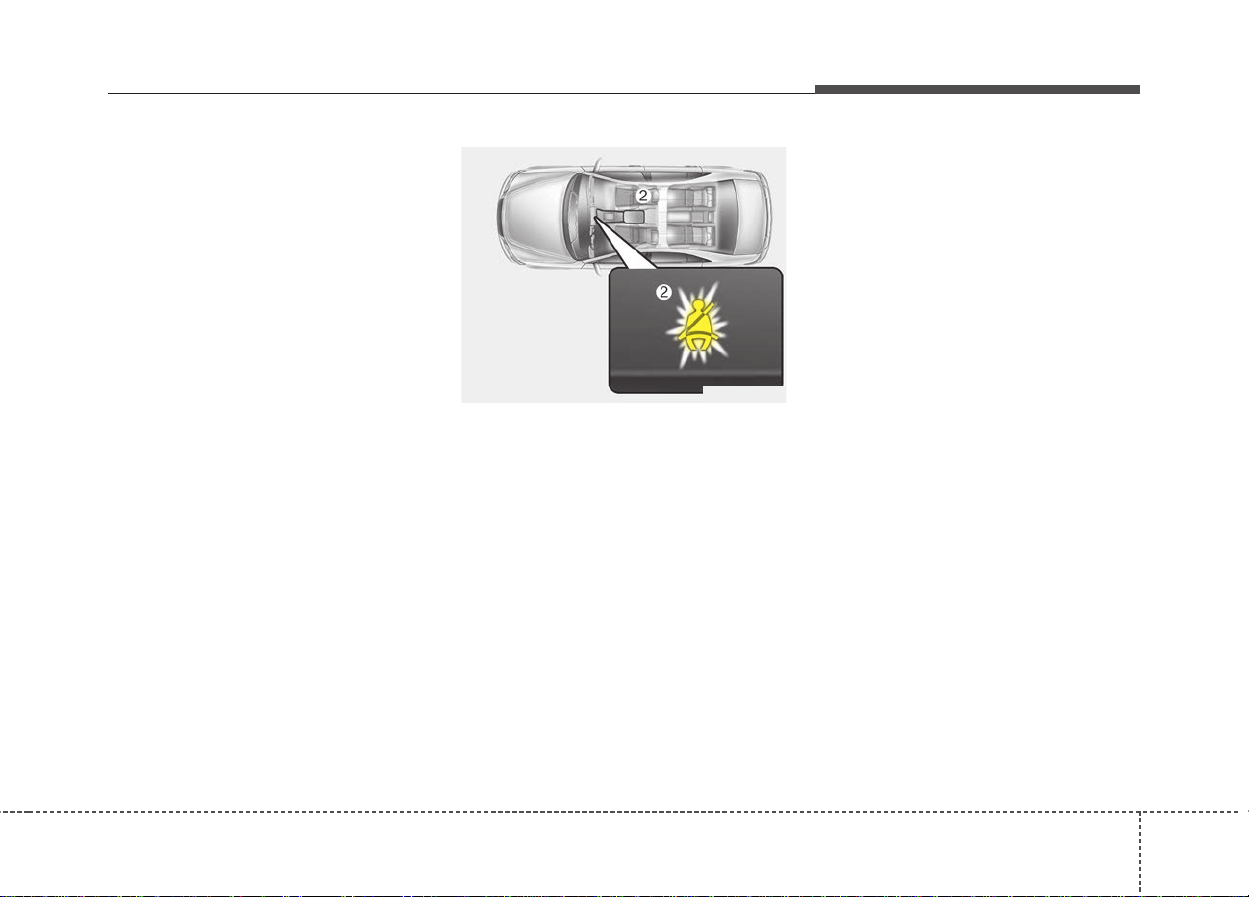

Front passenger's seat belt warning

As a reminder to the front passenger,
the front passenger’s seat belt warn­ing lights will illuminate for approxi­mately 6 seconds each time engine
start/stop button is ON regardless of
belt fastening.

If you continue not to fasten the seat
belt and you drive over 9km/h
(6mph), the warning light the warn­ing light will stay illuminated.

If you unfasten the seat belt while
driving in case of under 20km/h
(12mph) the seat belt warning light
will illuminate until the seat belt is
fastened.

If you unfasten the seat belt while
driving over 20km/h (12mph), the
seat belt warning chime will sound
for approximately 100 seconds and
the corresponding warning light will
blink.

OJF035092L

Safety features of your vehicle

243

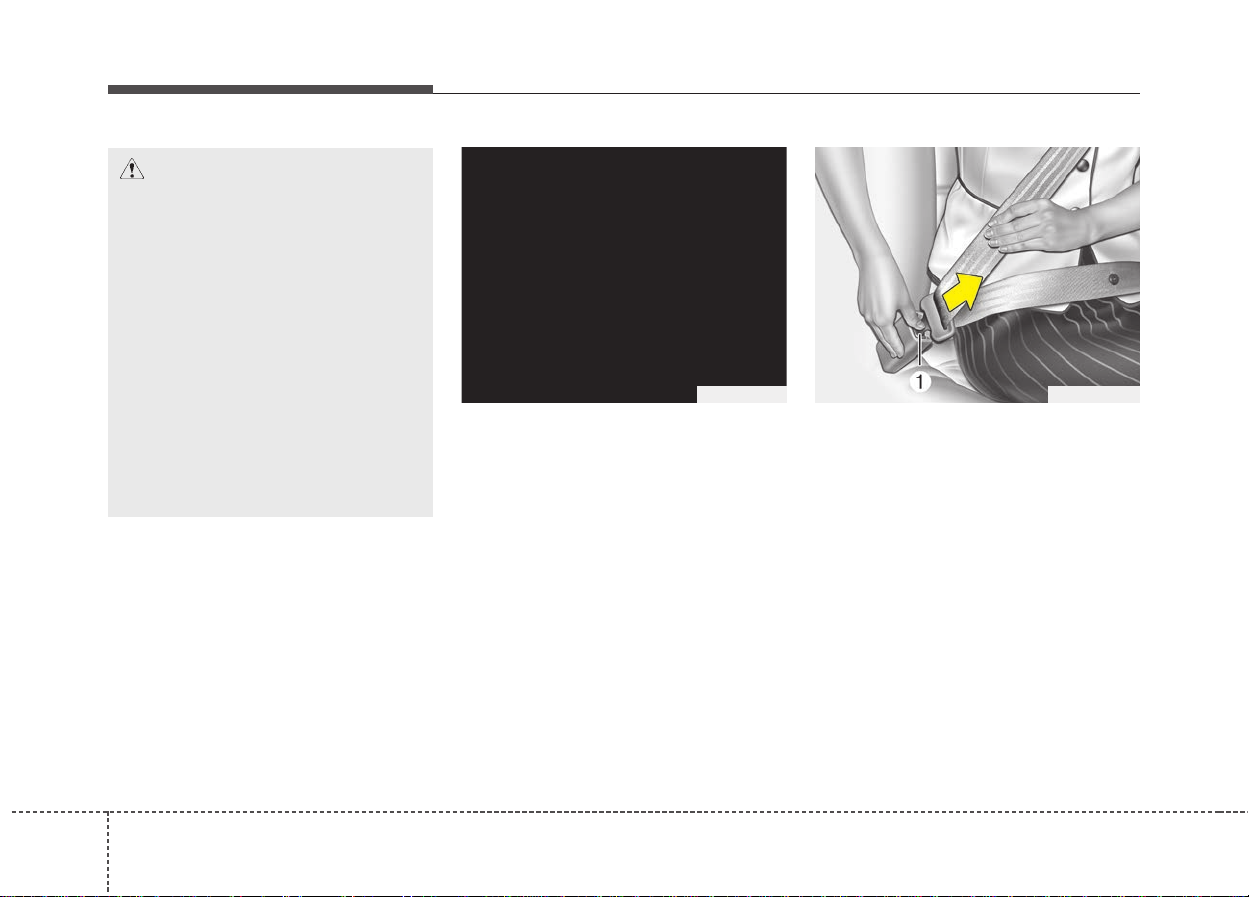

Seat belt - Driver's 3-point system
with emergency locking retractor

To fasten your seat belt:

To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible "click" when the tab locks
into the buckle.

The seat belt automatically adjusts to
the proper length only after the lap
belt portion is adjusted manually so
that it fits snugly around your hips. If
you lean forward in a slow, easy
motion, the belt will extend and let
you move around. If there is a sud­den stop or impact, however, the belt
will lock into position. It will also lock
if you try to lean forward too quickly.

✽✽

NOTICE

If you are not able to pull out the
seat belt from the retractor, firmly
pull the belt out and release it. Then
you will be able to pull the belt out
smoothly.

Height adjustment

You can adjust the height of the shoul­der belt anchor to one of the 4 posi­tions for maximum comf ort and safety.

The height of the adjusting seat belt
should not be too close to your neck.
The shoulder portion should be
adjusted so that it lies across your
chest and midway over your shoulder
near the door and not your neck.

To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.

To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).

B180A01NF-1

B200A02NF

OJF035031

Front seat

325

Safety features of your vehicle

Release the button to lock the
anchor into position. Try sliding the
height adjuster to make sure that it
has locked into position.

Improperly positioned seat belts can
cause serious injuries in an accident.

Seat belts - Front passenger and
rear seat 3-point system with
combination locking retractor

To fasten your seat belt:

Combination retractor type seat belts
are installed in the rear seat posi­tions to help accommodate the
installation of child restraint systems.
Although a combination retractor is
also installed in the front passenger
seat position, it is strongly recom­mended that children always be
seated in the rear seat. NEVER
place any infant restraint system in
the front seat of the vehicle.

This type of seat belt combines the
features of both an emergency lock­ing retractor seat belt and an auto­matic locking retractor seat belt. To
fasten your seat belt, pull it out of the
retractor and insert the metal tab into
the buckle. There will be an audible
"click" when the tab locks into the
buckle. When not securing a child
restraint, the seat belt operates in the
same way as the driver's seat belt
(Emergency Locking Retractor Type).

It automatically adjusts to the proper
length only after the lap belt portion
of the seat belt is adjusted manually
so that it fits snugly around your hips.

When the seat belt is fully extended
from the retractor to allow the instal­lation of a child restraint system, the
seat belt operation changes to allow
the belt to retract, but not to extend
(Automatic Locking Retractor Type).
Refer to “Using a child restraint sys­tem” in this section.

✽✽

NOTICE

Although the combination retractor
provides the same level of protection
for seated passengers in either emer­gency or automatic locking modes,
have the seated passengers use the
emergency locking feature for improv­ed convenience. The automatic locking
function is intended to facilitate child
restraint installation. To convert from
the automatic locking feature to the
emergency locking operation mode,
allow the unbuckled seat belt to fully
retract.

WARNING - Shoulder belt

positioning

Never position the shoulder belt
across your neck or face.

WARNING - Seat belt

replacement

Replace your seat belts after
being in an accident. Failure to
replace seat belts after an acci­dent could leave you with dam­aged seat belts that will not pro­vide protection in the event of
another collision.

Safety features of your vehicle

263

When using the rear center seat belt,
the buckle with the “CENTER” mar k
must be used.

To release the seat belt:

The seat belt is released by pressing
the release button (1) on the locking
buckle. When it is released, the belt
should automatically draw back into
the retractor.

If this does not happen, check the
belt to be sure it is not twisted, then
try again.

CAUTION

Do NOT fold down the left por­tion of the rear seat back when
the rear center seat belt is buck­led. ALWAYS UNBUCKLE the
rear center seat belt before fold­ing down the left portion of the
rear seat back. If the rear center
seat belt is buckled when the
left portion of the rear seat back
is folded down, distortion and
damage to the top portion of the
seat back and seat belt garnish
may result, causing the seat
back to lock into the folded
down position.

B210A01NF-1OBH038023N

327

Safety features of your vehicle

Pre-tensioner seat belt

Your vehicle is equipped with driver's
and front passenger's pre-tensioner
seat belts (retractor pretensioner and
EFD (Emergency Fastening Device)).
The pre-tensioner seat belts may be
activated, when a frontal collision is
severe enough, together with the air
bags.

When the vehicle stops suddenly, or if
the occupant tries to lean forward too
quickly, the seat belt retractor may
lock into position.In certain frontal col­lisions, the pre-tensioner will activate
and pull the seat belt into tighter con­tact against the occupant's body.

(1) Retractor Pretensioner

The purpose of the retractor pre-

tensioner is to make sure that the
shoulder belts fit in tightly against
the occupant's upper body in cer­tain frontal collisions.

(2) EFD (Emergency Fastening Device)

The purpose of the EFD is to

make sure that the pelvis belts fit
in tightly against the occupant's
lower body in certain frontal colli­sions.

If the system senses excessive ten­sion on the driver or passenger's
seat belt when the pre-tensioner sys­tem activates, the load limiter inside
the retractor pre-tensioner will release
some of the pressure on the affected
seat belt.

✽✽

NOTICE

When the pre-tensioner seat belts
are activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment.
These are normal operating condi­tions and are not hazardous.

OXMA033101

Safety features of your vehicle

283

The seat belt pre-tensioner system
consists mainly of the following com­ponents.Their locations are shown in
the illustration:

(1) SRS air bag warning light
(2) Front retractor pre-tensioner

assembly
(3) SRS control module
(4) Emergency fastening device

(EFD)
(5) Rear retractor pre-tensioner

assembly (if equipped)

✽✽

NOTICE

• Both the driver's and front pas­senger's seat belt pre-tensioner sys­tem may be activated not only in
certain frontal collision, but also in
certain side collisions or rollovers,
if the vehicle is equipped with a
side or curtain air bag.

• Because the sensor that activates
the SRS air bag is connected with
the pre-tensioner seat belt, the
SRS air bag warning light on
the instrument panel will illumi­nate for approximately 6 seconds
after engine start/stop button has
been changed to ON position, and
then it should turn off.

WARNING - Skin Irritation

Wash all exposed skin areas
thoroughly after an accident in
which the pre-tensioner seat
belts were activated. The fine
dust from the pre-tensioner
activation may cause skin irrita­tion and should not be breathed
for prolonged periods.

OJF045207L

OJF045205L

329

Safety features of your vehicle

If the pre-tensioner seat belt system
is not working properly, this warning
light will illuminate even if there is not
a malfunction with the SRS air bag. If
the SRS air bag warning light does
not illuminate when engine start/stop
button has been changed to ON, or if
it remains illuminated after illuminat­ing for approximately 6 seconds, or if
it illuminates while the vehicle is
being driven, have an authorized Kia
dealer inspect the pre-tensioner seat
belt and SRS air bag system as soon
as possible.

✽✽

NOTICE

Do not attempt to service or repair
the pre-tensioner seat belt system in
any manner. Do not attempt to
inspect or replace the pre-tensioner
seat belts yourself. This must be
done by an authorized Kia dealer.

Pre-tensioners are designed to oper­ate only one time. After activation,
pre-tensioner seat belts must be
replaced. If the pre-tensioner must
be replaced, contact an authorized
Kia dealer.

Seat belt precautions

Infant or small child

You should be aware of the specific
requirements in your country. Child
and/or infant seats must be properly
placed and installed in the rear seat.
For more information about the use of
these restraints, refer to “Child
restraint system” in this section.

✽✽

NOTICE

Small children are best protected
from injury in an accident when
properly restrained in the rear seat
by a child restraint system that meets
the requirements of the Safety stan­dards of your country. Before buying
any child restraint system, make sure
that it has a label certifying that it
meets Safety standards of your coun­try. The restraint must be appropri­ate for your child's height and
weight. Check the label on the child
restraint for this information. Refer
to “Child restraint system” in this
section.

WARNING - Hot preten-

sioner

Do not touch the pre-tensioner
seat belt assemblies for several
minutes after they have been
activated. When the pre-ten­sioner seat belt mechanism
fires during a collision the pre­tensioner becomes hot and can
burn you.

Safety features of your vehicle

303

Larger children

Children who are too large for child
restraint systems should always
occupy the rear seat and use the
available lap/shoulder belts. The lap
portion should be fastened and
snugged on the hips as low as possi­ble. Check periodically to insure that
the belt fits.A child's squirming could
put the belt out of position. Children
are given the most safety in the e v ent
of an accident when they are
restrained by a proper restraint sys­tem in the rear seat. If a larger child
(over age 12) must be seated in the
front seat, the child should be
securely restrained by the available
lap/shoulder belt and the seat should
be placed in the rearmost position.
Children age 12 and under should be
restrained securely in the rear seat.
NEVER place a child age 12 and
under in the front seat.NEVER place
a rear facing child seat in the front
seat of a vehicle.

If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the center of
the vehicle. If the shoulder belt still
touches their face or neck the y need to
be returned to a child restraint system.

Restraint of pregnant women

Pregnant women should wear
lap/shoulder belt assemblies when­ever possible according to specific
recommendations by their doctors.
The lap portion of the belt should be
worn AS SECURELY AND LOW AS
POSSIBLE.

WARNING - Small children

Do not allow small children to
ride in the vehicle without an
appropriate child restraint sys­tem. If the shoulder belt comes
in contact with your child's neck
or face your child is too small to
ride in the vehicle. In a crash the
seat belt will inflict injury to your
child's neck, throat and face.

WARNING - Pregnant

women

Pregnant women must never
place the lap portion of the seat
belt above or on the abdomen
where the fetus is located. The
force of the seat belt during a
collision will crush the fetus.

331

Safety features of your vehicle

Injured person

A seat belt should be used when an
injured person is being transported.
When this is necessary, you should
consult a physician for recommenda­tions.

One person per belt

Two people (including children)
should never attempt to use a single
seat belt. This could increase the
severity of injuries in case of an acci­dent.

Do not lie down

To reduce the chance of injuries in
the event of an accident and to
achieve maximum effectiveness of
the restraint system, all passengers
should be sitting up and the front and
rear seats should be in an upright
position when the vehicle is moving.
A seat belt cannot provide proper
protection if the person is lying down
in the rear seat or if the front and rear
seats are in a reclined position.

Care of seat belts

Seat belt systems should never be
disassembled or modified. In addi­tion, care should be taken to assure
that seat belts and belt hardware are
not damaged by seat hinges, doors
or other abuse.

Periodic inspection

All seat belts should be inspected
periodically for wear or damage of
any kind. Any damaged parts should
be replaced as soon as possible.

Keep belts clean and dry

Seat belts should be kept clean and
dry .If belts become dirty, they can be
cleaned by using a mild soap solu­tion and warm water. Bleach, dye,
strong detergents or abrasives
should not be used because they
may damage and weaken the fabr ic.

When to replace seat belts

The entire in-use seat belt assembly
or assemblies should be replaced if
the vehicle has been involved in an
accident.This should be done even if
no damage is visible. Additional
questions concerning seat belt oper­ation should be directed to an
authorized Kia dealer.

WARNING - Pinched seat

belt

Make sure that the webbing
and/or buckle does not get
caught or pinched in the rear
seat when returning the rear
seatback to its upright position.
A caught or pinched webbing/
buckle may become damaged
and could fail during a collision
or sudden stop.

WARNING

Seatbelts can become hot in a
vehicle that has been closed up
in sunny weather. They could
burn infants and children.

Safety features of your vehicle

323

CHILD RESTRAINT SYSTEM (CRS)

Children Always in the Rear

Children under age 13 must always
ride in the rear seats and must always
be properly restrained to minimize the
risk of injury in an accident, sudden
stop or sudden maneuver. According
to accident statistics, children are
safer when properly restrained in the
rear seats than in the front seat. Even
with air bags, children can be serious­ly injured or killed. Children too large
for a child restraint must use the seat
belts provided.

Most countries have child restraint
laws which require children to travel
in approved child restraint devices.
The laws governing the age or
height/weight restrictions at which
seat belts can be used instead of
child restraints differs among coun­tries, so you should be aware of the
specific requirements in your coun­try, and where you are travelling.

Child restraint systems must be
properly placed and installed in the
rear seat. You must use a commer­cially available child restraint system
that meets the requirements of the
Safety Standards of your country.

Child restraint systems are generally
designed to be secured in a vehicle
seat by lap belt portion of a
lap/shoulder belt, or by a LATCH sys­tem in the rear seats of the vehicle.

WARNING - Restraint

Location

Never install a child or infant
seat on the front passenger's
seat. A child riding in the front
passenger seat can be forceful­ly struck by an inflating airbag
and seriously injured.

WARNING - Hot Child

Restraint

A child restraint system can
become very hot if it is left in a
closed vehicle on a sunny day.
Be sure to check the seat cover,
buckles and latches before
placing a child in the restraint
system.

333

Safety features of your vehicle

Child restraint system (CRS)

Infants and younger children must be
restrained in an appropriate rear-fac­ing or forward-facing CRS that has
first been properly secured to the
rear seat of the vehicle. Read and
comply with the instructions for
installation and use provided by the
manufacturer of the child restraint.

✽✽

NOTICE

After an accident, have a Kia dealer
check the child restraint system, seat
belts, tether anchors and lower
anchors.

Selecting a Child Restraint
System (CRS)

When selecting a CRS for your child,
always:

• Make sure the CRS has a label
certifying that it meets applicable
Safety Standards of your country.

• Select a child restraint based on
your child’s height and weight.The
required label or the instructions
for use typically provide this infor­mation.

• Select a child restraint that fits the
vehicle seating position where it
will be used.

• Read and comply with the warn­ings and instructions for installation
and use provided with the child
restraint system.

WARNING

-

Child Restraint Installation

An improperly secured child
restraint can increase the risk
of serious injury or death in an
accident. Always take the fol­lowing precautions when using
a child restraint system:

• Always follow the child
restraint system manufactur­er’s instructions for installa­tion and use.

(Continued)

(Continued)

• Always properly restrain your
child in the child restraint.

• If the vehicle head restraint
prevents proper installation of
a child seat (as described in
the child restraint system
manual), the head restraint of
the respective seating posi­tion shall be readjusted or
entirely removed.

• Do not use an infant carrier or
a child safety seat that
"hooks" over a seatback, it
may not provide adequate
protection in an accident.

Safety features of your vehicle

343

Child restraint system types

There are three main types of child
restraint systems: rear-facing seats,
forward-facing seats, and booster
seats. They are classified according
to the child’s age, height and weight.

WARNING - Holding

Children

Never hold a child in your arms
or lap when riding in a vehicle.
The violent forces created dur­ing a crash will tear the child
from your arms and throw the
child against the car’s interior.
Always use a child restraint
system which is appropriate for
your child's height and weight.

WARNING - Unattended

Children

Never leave children unattended
in a vehicle.The car can heat up
very quickly, resulting in injuries
to the child in the vehicle.

WARNING - Seat Belt Use

Do not use one seat belt for two
occupants at the same time.
This will eliminate any safety
benefit provided by the seat belt
to the occupants.

335

Safety features of your vehicle

Rear-facing child seats

A rear-facing child seat provides
restraint with the seating surface
against the back of the child. The
harness system holds the child in
place, and in an accident, acts to
keep the child positioned in the seat
and reduces the stress to the neck
and spinal cord.

All children under age one must
always ride in a rear-facing infant
child restraint.

Convertible and 3-in-1 child seats
typically have higher height and
weight limits for the rear-facing posi­tion, allowing you to keep your child
rear-facing for a longer period of time.

Continue to use a rear-facing child
seat for as long as your child will fit
within the height and weight limits
allowed by the child seat manuf actur­er. It’s the best way to keep them
safe. Once your child has outgrown
the rear-facing child restraint, your
child is ready for a forward-facing
child restraint with a harness.

Forward-facing child restraints

A forward-facing child seat provides
restraint for the child’s body with a
harness. Keep children in a forward­facing child seat with a harness until
they reach the top height or weight
limit allowed by your child restraint’s
manufacturer.

Once your child outgrows the for­ward-facing child restraint, your child
is ready for a booster seat.

CRS09

OJF035032

Safety features of your vehicle

363

Booster seats

A booster seat is a restraint designed
to improve the fit of the vehicle’s seat
belt system. A booster seat positions
the seat belt so that it fits properly
over the lap of your child.

Keep your child in a booster seat
until they are big enough to sit in the
seat without a booster and still have
the seat belt fit properly. For a seat
belt to fit properly, the lap belt must
lie snugly across the upper thighs,
not the stomach. The shoulder belt
should lie snug across the shoulder
and chest and not across the neck or
face. Children under age 13 must
always ride in the rear seats and
must always be properly restrained
to minimize the risk of injury.

Installing a Child Restraint
System (CRS)

After selecting a proper child seat for
your child, check to make sure it fits
properly in your vehicle. Follow the
instructions provided by the manu­facturer when installing the child
seat. Note these general steps when
installing the seat to your vehicle:

• Properly secure the child
restraint to the vehicle. All child
restraints must be secured to the
vehicle with the lap part of a
lap/shoulder belt or with the
LATCH system.

• Make sure the child restraint is
firmly secured. After installing a
child restraint to the vehicle, push
and pull the seat forward and from
side-to-side to verify that it is
securely attached to the seat. A
child restraint secured with a seat
belt should be installed as firmly as
possible. However, some side-to­side movement can be expected.

• Secure the child in the child
restraint. Make sure the child is
properly strapped in the child
restraint according to the manufac­turer instructions.

337

Safety features of your vehicle

Lower Anchors and Tether for
Children (LATCH) System

The LATCH system holds a child
restraint during driving and in an
accident. This system is designed to
make installation of the child restraint
easier and reduce the possibility of
improperly installing your child
restraint. The LATCH system uses
anchors in the vehicle and attach­ments on the child restraint. The
LATCH system eliminates the need
to use seat belts to secure the child
restraint to the rear seats.

Lower anchors are metal bars built
into the vehicle.There are two lower
anchors for each LATCH seating
position that will accommodate a
child restraint with lower attach­ments.

To use the LATCH system in your
vehicle, you must have a child
restraint with LATCH attachments.

The child seat manufacturer will pro­vide you with instructions on how to
use the child seat with its attach­ments for the LATCH lower anchors.

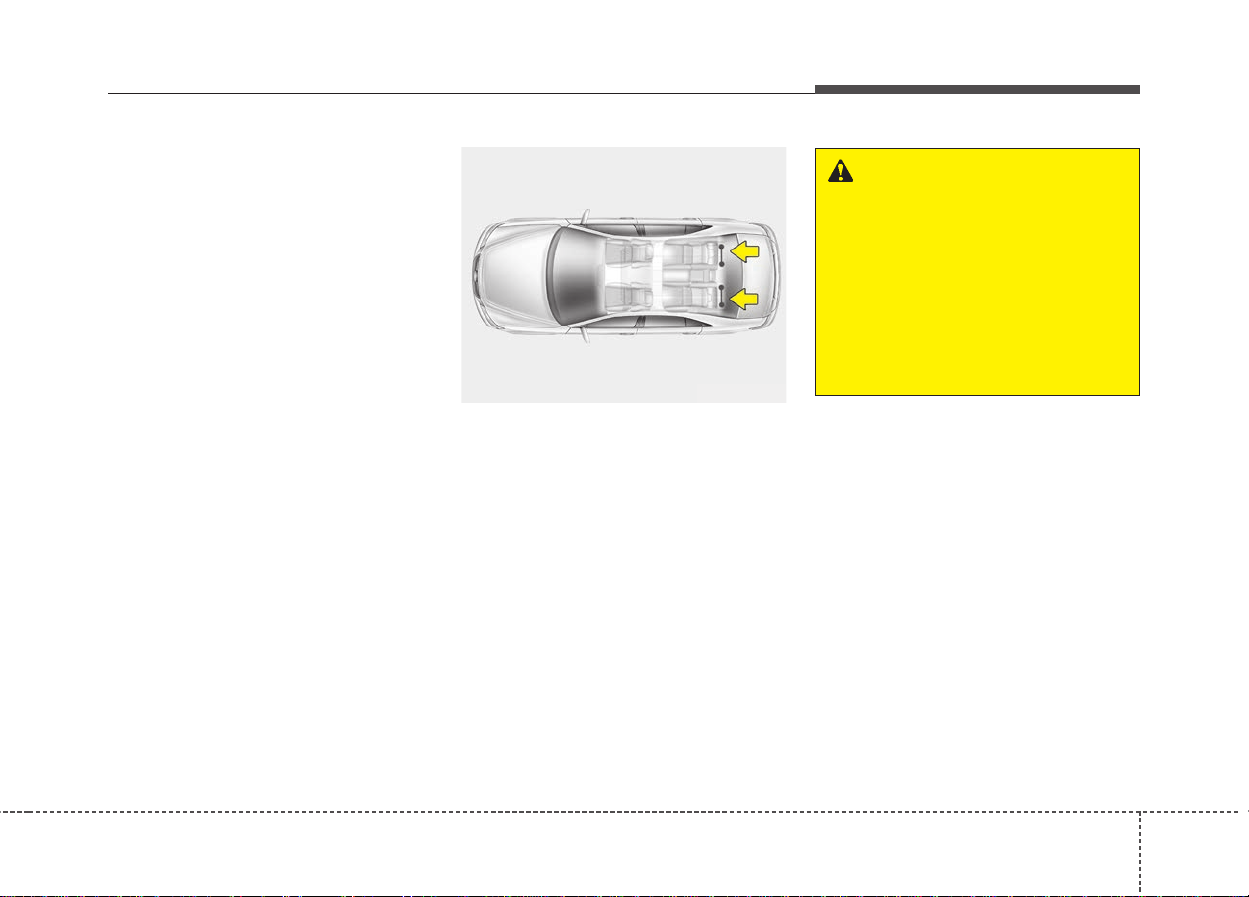

LATCH anchors have been provided
in the left and right outboard rear
seating positions.Their locations are
shown in the illustration. There are
no LATCH anchors provided for the
center rear seating position.

B230D01NF

WARNING - LATCH Lower

Anchors

Never attempt to attach a LATCH
equipped seat in the center
seating position. LATCH lower
anchors are only to be used in
the left and right rear outboard
seating positions.You may dam­age the anchors or the anchors
may fail and break in a collision.

Safety features of your vehicle

383

The lower anchor position indicator
symbols are located on the left and
right rear seat backs to identify the
position of the lower anchors in your
vehicle (see arrows in illustration).

The LATCH anchors are located
between the seatback and the seat
cushion of the rear seat left and right
outboard seating positions.

To use the lower anchor, push the
upper portion of the lower anchor
cover.

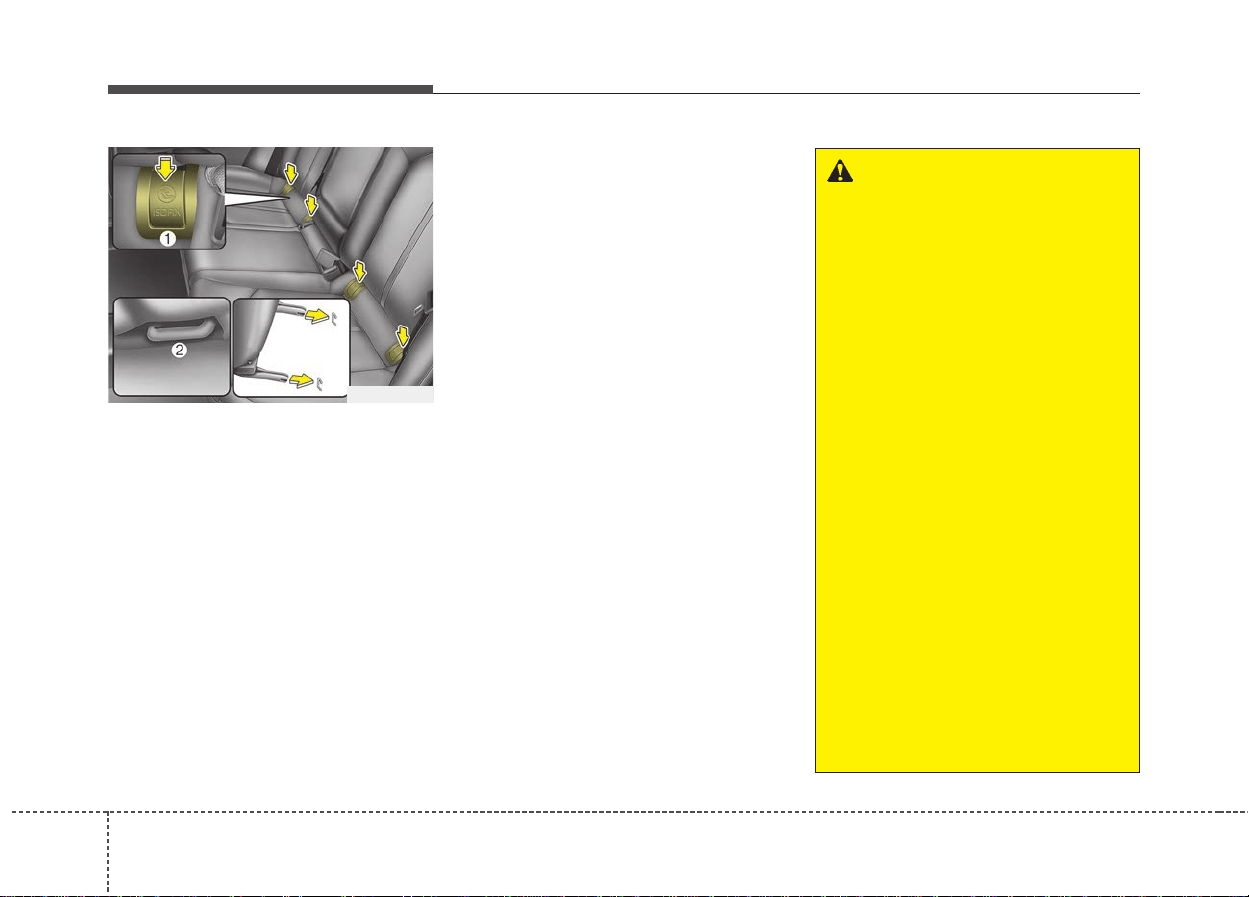

❈ (1) : Lower Anchor position indicator

(2) : Lower Anchor

Securing a child restraint with
the LATCH anchors system

To install a LATCH-compatible child
restraint in either of the rear outboard
seating positions:

1. Move the seat belt buckle away
from the lower anchors.

2. Move any other objects away from
the anchors that could prevent a
secure connection between the
child restraint and the lower
anchors.

3. Place the child restraint on the
vehicle seat, then attach the seat
to the lower anchors according to
the instructions provided by the
child restraint manufacturer.

4. Follow the child restraint instruc­tions for properly adjusting and
tightening the lower attachments
on the child restraint to the lower
anchors.

OJF035035L

WARNING

Take the following precautions
when using the LATCH system:

• Read and follow all installation
instructions provided with
your child restraint system.

• To prevent the child from
reaching and taking hold of
unretracted seat belts, buckle
all unused rear seat belts and
retract the seat belt webbing
behind the child. Children can
be strangled if a shoulder belt
becomes wrapped around their
neck and the seat belt tightens.

• NEVER attach more than one
child restraint to a single
anchor. This could cause the
anchor or attachment to come
loose or break.

• Always have the LATCH sys­tem inspected by your author­ized Kia dealer after an acci­dent. An accident can damage
the LATCH system and may
not properly secure the child
restraint.

339

Safety features of your vehicle

Securing a child restraint seat
with "Tether Anchor" system

First secure the child restraint with
the LATCH lower anchors or the seat
belt. If the child restraint manufactur­er recommends that the top tether
strap be attached, attach and tighten
the top tether strap to the top tether
strap anchor.

Child restraint hook holders are
located on the shelf behind the rear
seats.

To install the tether anchor:

1. Route the child restraint tether
strap over the child restraint seat­back. Route the tether strap under
the head restraint and between
the head restraint posts, or route
the tether strap over the top of the
vehicle seatback. Make sure the
strap is not twisted.

2. Connect the tether strap hook to
the tether anchor, then tighten the
tether strap according to the child
seat manufacturer’s instructions to
firmly secure the child restraint to
the seat.

OJFA035095

WARNING

Take the following precautions
when installing the tether strap:

• Read and follow all installation
instructions provided with
your child restraint system.

• NEVER attach more than one
child restraint to a single teth­er anchor. This could cause
the anchor or attachment to
come loose or break.

• Do not attach the tether strap
to anything other than the cor­rect tether anchor. It may not
work properly if attached to
something else.

• Do not use the tether anchors
for adult seat belts or harness­es, or for attaching other items
or equipment to the vehicle.

• Always fasten the seat belts
behind the child restraint seat
when they are not used to
secure the child seat. Failure
to do so may result in child
strangulation.

OJF035034

Safety features of your vehicle

403

3. Check that the child restraint is
securely attached to the seat by
pushing and pulling the seat for­ward and from side-to-side.

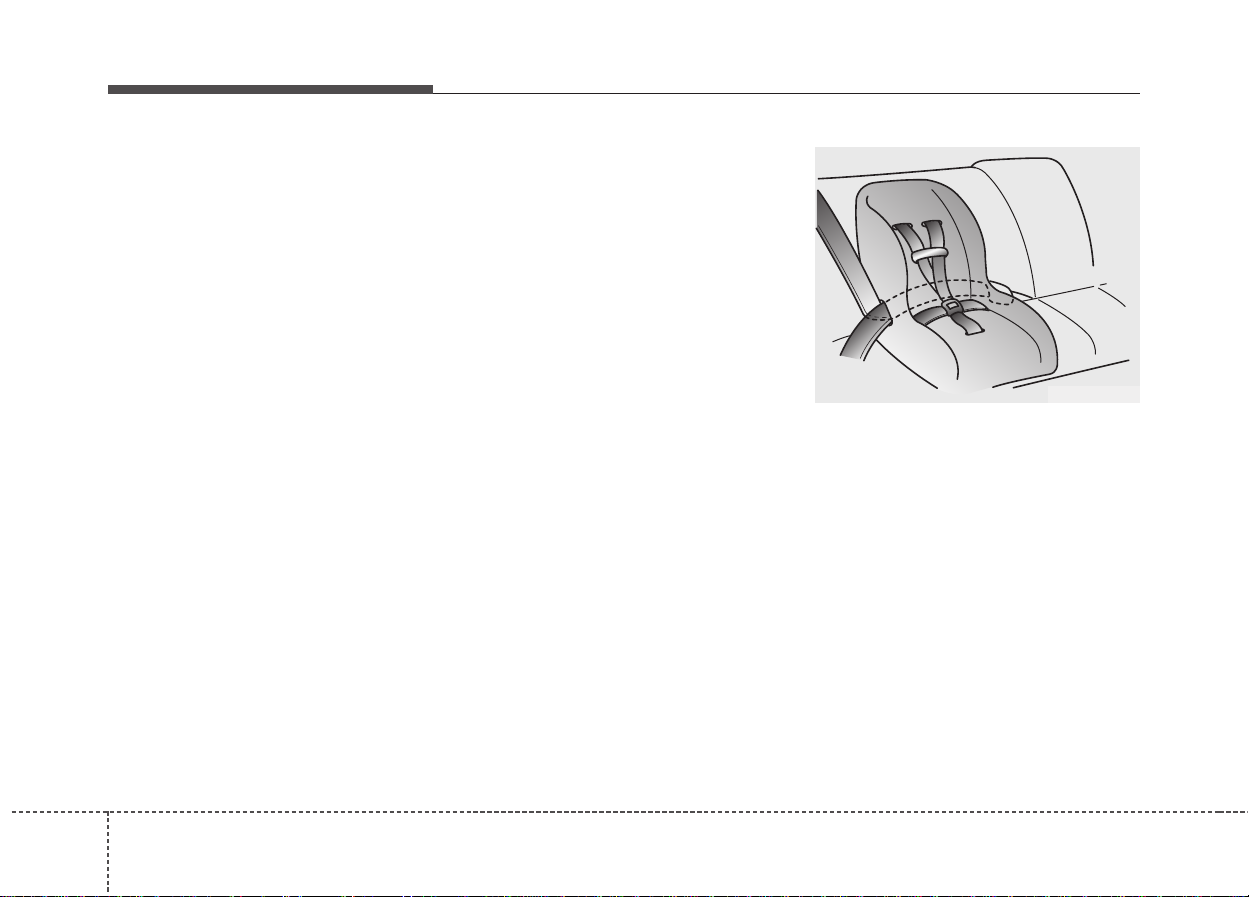

Securing a child restraint with a
lap belt or lap/shoulder belt

When not using the LATCH system,
all child restraints must be secured to
a vehicle rear seat with the lap part
of a lap/shoulder belt.

Automatic locking mode

Since all passenger seat belts move
freely under normal conditions and
only lock under extreme or emer­gency conditions (emergency locking
mode), you must manually pull the
seat belt all the way out to shift the
retractor to the “Automatic Locking”
mode to secure a child restraint.

The “Automatic Locking” mode will
help prevent the normal movement
of the child in the vehicle from caus­ing the seat belt to loosen and com­promise the child restraint system.T o
secure a child restraint system, use
the following procedure.

OLMB033044

341

Safety features of your vehicle

To install a child restraint system on
the rear seats, do the following:

1.Place the child restraint system on

a rear seat and route the lap/ shoul­der belt around or through the child
restraint, following the restraint
manufacturer’s instr uctions.

Be sure the seat belt webbing is
not twisted.

2. Fasten the lap/shoulder belt latch
into the buckle. Listen for the dis­tinct "click" sound.

Position the release button so that
it is easy to access in case of an
emergency.

3. Pull the shoulder portion of the
seat belt all the way out.When the
shoulder portion of the seat belt is
fully extended, it will shift the
retractor to the "Automatic
Locking" (child restraint) mode.

OEN036101 OEN036102
