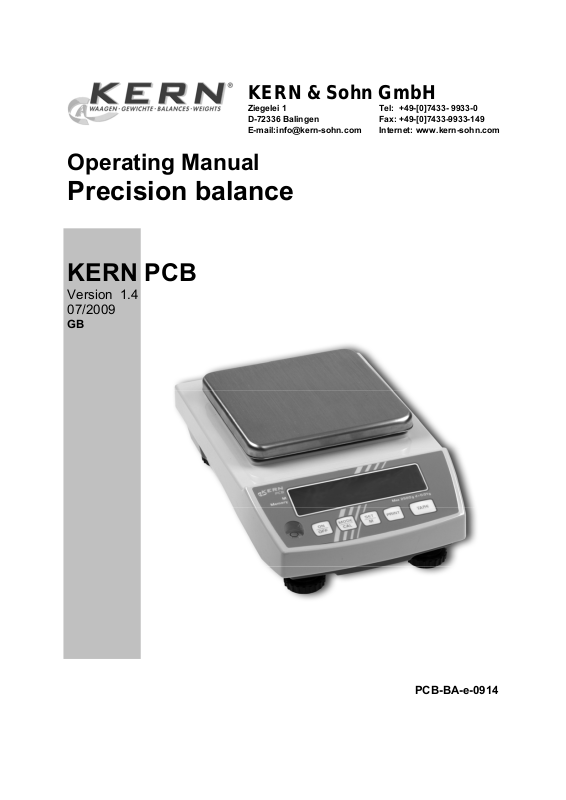

KERN & Sohn GmbH
Ziegelei 1 |
Tel: +49-[0]7433- 9933-0 |
D-72336 Balingen |
Fax: +49-[0]7433-9933-149 |
E-mail:info@kern-sohn.com |
Internet: www.kern-sohn.com |
Operating Manual
Precision balance
KERN PCB
Version 1.4 07/2009
GB
PCB-BA-e-0914
|
GB |
KERN PCB |
|
|
Version 1.4 07/2009 |
|
|
|
|
Operating Manual |
|
|
|
Compact balance |
|
|
|
|
|
|
|
|
|
Table of Contents |
|
|
|
1 |
Technical Data |
............................................................................................... |
4 |
2 |
Declaration of conformity ........................................................................... |
10 |
|
3 |
Basic Information (General) ........................................................................ |
11 |
|
3.1 |
Proper use ............................................................................................................................... |
|
11 |
3.2 |
Improper Use .......................................................................................................................... |
|
11 |
3.3 |
Warranty .................................................................................................................................. |
|
11 |
3.4 |
Monitoring of Test Resources ............................................................................................... |
11 |
|
4 |
Basic Safety Precautions ............................................................................ |
12 |
|
4.1 |
Pay attention to the instructions in the Operation Manual ................................................ |
12 |
|
4.2 |
Personnel training |
.................................................................................................................. |
12 |
5 |
Transportation & Storage ............................................................................ |
12 |
|
5.1 |
Testing upon acceptance ...................................................................................................... |
12 |
|
5.2 |
Packaging ................................................................................................................................ |
|
12 |
6 |
Unpacking, Setup and Commissioning ..................................................... |
12 |
|
6.1 |
Installation Site, Location of Use .......................................................................................... |
12 |
|
6.2 |
Unpacking/erection ................................................................................................................ |
13 |
|
6.3 |
Mains connection ................................................................................................................... |
|
13 |
6.4 |
Operation using a (rechargeable) battery (optional) .......................................................... |
14 |
|
6.5 |
Connection of peripheral devices ......................................................................................... |
14 |
|
6.6 |
Initial Commissioning ............................................................................................................ |
15 |
|
6.7 |
Adjustment .............................................................................................................................. |
|
15 |
6.8 |
Adjustment .............................................................................................................................. |
|
15 |
6.9 |
Underfloor weighing .............................................................................................................. |
16 |
|
7 |
Operation elements ..................................................................................... |
17 |
|
7.1 |
Overview of display ................................................................................................................ |
17 |
|
7.2 |
Keyboard overview ................................................................................................................. |
17 |
|
8 |
Basic Operation ........................................................................................... |
18 |
|
Start-up................................................................................................................................................. |
|
18 |
|
Switching Off ....................................................................................................................................... |
|
18 |
|
Weighing .............................................................................................................................................. |
|
18 |
|
Taring |
.................................................................................................................................................... |
|
18 |
PRE-TARE ............................................................................................................................-Function |
|
19 |
|
Plus/minus .........................................................................................................................weighings |
|
20 |
|
Parts counting ..................................................................................................................................... |
|
20 |
|
Net-total .............................................................................................................................weighings |
|
21 |
|
Percent ........................................................................................................................determination |
|
22 |
2 |
PCB-BA-e-0914 |
9 |
Menu ............................................................................................................. |
23 |
9.1 |
Navigation in the menu.......................................................................................................... |
23 |
9.2 |
Menu overview........................................................................................................................ |
26 |
9.3 |
Description of individual menu items .................................................................................. |
28 |
Weighing Units .................................................................................................................................... |
28 |
|
Dosing and Zero-tracking................................................................................................................... |
29 |
|
Selection adjustment weight.............................................................................................................. |
29 |
|
Display background illumination....................................................................................................... |
31 |
|
Animal weighing function................................................................................................................... |
32 |
|
Reset to factory setting ..................................................................................................................... |
33 |
|
9.4 |
Interface parameters .............................................................................................................. |
34 |
Data transfer mode.............................................................................................................................. |
34 |
|
printout ................................................................................................................................................. |
35 |
|
Baud rate .............................................................................................................................................. |
36 |
|
10 |
Data output RS 232 C .................................................................................. |
36 |
10.1 |
Technical Data ........................................................................................................................ |
36 |
10.2 |
Pin allocation of balance output bushing:........................................................................... |
36 |
10.3 |
Explanation of the data transfer ........................................................................................... |
37 |
10.4 |
Output on bar code printer.................................................................................................... |
39 |
11 |
Service, maintenance, disposal.................................................................. |
39 |
11.1 |
CLEANING............................................................................................................................... |
39 |
11.2 |
Service, maintenance............................................................................................................. |
39 |
11.3 |
Disposal................................................................................................................................... |
39 |
12 |
Instant help................................................................................................... |
40 |
PCB-BA-e-0914 |
3 |
1 |
Technical Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
KERN |
|
PCB 40-3 |
|
|
PCB 60-3 |
|
PCB 100-3 |
|
PCB 160-3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Readability (d) |
|
0,001 g |
|
|
0,001 g |
0,001 g |
0,001 g |
|||
|
|
|
|
|
|
|
|
|
|||
|
Weighing range (max) (d) |
|
40 g |
|
|
60 g |
100 g |
160 g |
|||
|
|
|
|
|
|
|
|
|
|||
|
Taring range (subtractive) |
|
40 g |
|
|
60 g |
100 g |
160 g |
|||
|
|
|
|
|
|
|
|
|
|||
|
Reproducibility |
|
0,001 g |
|
|
0,001 g |
0,001 g |
0,001 g |
|||
|
|
|
|
|
|
|
|
|
|||
|
Linearity |
|
±0,003 g |
|
|
±0,003 g |
±0,003 g |
±0,003 g |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
Minimum unit weight at |
|
0,002 g |
|
|
0,002 g |
0,002 g |
0,002 g |
|||
|
piece counting |
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|||
|
Warm-up time |
|
|
|
|
2 hours |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Reference quantities at |
|
|
5, 10, 20, 25, 50 |
|
|
|||||
|
piece counting |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
||||||||
|
Weighing Units |
|
Details „Weighing units“ see chpt. 9.3 |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Recommended adjustment |
|
|
|
|
|
|
|
|
|
|
|
weight, not added (class) |
|
40g (F1) |
|
|
50g (F2) |
|
100 g (F1) |
|
150 g (F1) |
|
|
Details for „Selection of the |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
||
|
Adjustment weight“ in ch. 9.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stabilization time (typical) |
|
|
|
|
3 sec. |
|
||||
|
|
|
|
|
|
|
|
||||
|
Operating temperature |
|
|
|
|
+ 5° C .... + 35° C |
|
||||
|
|
|
|
|
|
||||||
|
Humidity of air |
|
|
max. 80 % (not condensing) |
|
||||||
|
|
|
|
|
|||||||
|
Housing (B x D x H) mm |
|
163 x 245 x 79 without windscreen |
||||||||
|
|
163 x 245 x 123 with windscreen |
|||||||||
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
||||
|
Windscreen |
|
|
|
|
Ø 90, 53 high |
|
||||
|
|
|
|
|
|
|
|||||
|
Weighing plate mm |
|
|
Ø 81 |
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Weight kg (net) |
|
|
1,1 |
|
|
|||||
|
|
|
|
||||||||
|
Electric Supply |
|
220V-240V AC, 50 Hz / 9 V, 300 mA |
||||||||
|
|
|
|
||||||||
|
Battery operation |
|
9 V compound battery (optional) |
||||||||
|
|
|
|
|
|||||||
|
|
|
|
Operating time 24 h with display background |
|||||||
|
Rechargeable battery (optional) |
|
illumination |
|
|
|
|
|
|
|
|
|
|
Operating time 48 h without display background |
|||||||||
|
|
|
|
illumination/loading time 8 h |
|
|
|
||||
|
|
|
|
|
|
|
|
||||
|
Interface |
|
|
|
|
RS 232 |
|
||||
|
|
|
|
|
|
|
|
|
|||
|
Underfloor weighing |
|
|
|
|
standard |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
4 |
PCB-BA-e-0914 |
|
KERN |
|
PCB 200- |
|
|
PCB 250- |
|
PCB 350- |
|
PCB 400- |
|
|
PCB 400- |
|
|
|
|
|
2 |
|
|
|
3 |
|
3 |
|
2 |
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Readability (d) |
|
0,01 g |
|
|
|
0,001 g |
|
0,001 g |
|
0,01 g |
|
0,1 g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Weighing range (max) (d) |
|
200 g |
|
|
|
250 g |
|
350 g |
|
400 g |
|
400 g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Taring range (subtractive) |
|
200 g |
|
|
|
250 g |
|
350 g |
|
400 g |
|
400 g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Reproducibility |
|
0,01 g |
|
|
|
0,001 g |
|
0,001 g |
|
0,01 g |
|
0,1 g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Linearity |
|
± 0,02 g |
|
|
|
±0,003 g |
|
±0,003 g |
|
±0,03 g |
|
±0,2 g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Minimum unit weight at |
|
0,02 g |
|
|
|
0,002 g |
|
0,002 g |
|
0,02 g |
|
0,2 g |
||
|
piece counting |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Warm-up time |
|
30 min. |
|
|
|
2 hours |
|
2 hours |
|
2 hours |
|
10 min. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reference quantities at |
|
|
5, 10, 20, 25, 50 |
|
|
|
|
|||||||
|
piece counting |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
Weighing Units |
|
Details „Weighing units“ see chpt. 9.3 |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Recommended adjustment |
|
200g |
|
|
|
200g |
|
300g |
|
400g |
|
400g |
||
|
weight, not added (class) |
|
|
|
|
|
|
|
|||||||
|
Details for „Selection of the |
|
(M1) |
|
|
|
(F1) |
|
(F1) |
|
(F2) |
|
(M 2) |
||
|
Adjustment weight“ in ch. 9.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stabilization time (typical) |
|
|
|
|
|
|
|
3 sec. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Operating temperature |
|
|
|
|
|
+ 5° C .... + 35° C |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Humidity of air |
|
|
|
|
|
max. 80 % (not condensing) |
|
|
||||||
|
|
|
|
|
|
|
|
|
|||||||
|
Housing (B x D x H) mm |
|
|
|
163 x 245 x 79 without windscreen |
|
|
||||||||
|
|
|
|
|
|
163 x 245 x 123 with windscreen |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
Windscreen |
- |
|
Ø 90, |
|
Ø 90, |
- |
|
|
- |
|
||||
|
|
|
|
53 high |
|
53 high |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Weighing plate mm |
Ø 105 |
|
|
|
Ø 81 |
|
Ø 81 |
Ø 105 |
|
|
130 x 130 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Weight kg (net) |
|
|
1,1 |
|
|
|
|
1,4 |
|
|||||
|
|
|
|
|
|
||||||||||
|
Electric Supply |
|
|
220V-240V AC, 50 Hz / 9 V, 300 mA |
|||||||||||
|
|
|
|
|
|
|
|
|
|
||||||
|
Battery operation |
|
|
|
|
|
9 V compound battery (optional) |
|
|
||||||
|
|
|
|
|
|
||||||||||
|
|
|
Operating time 24 h with display background |
|
|
||||||||||
|
Rechargeable battery (optional) |
|
illumination |
|
|
|
|
|
|
|
|
||||
|
|
Operating time 48 h without display background |
|||||||||||||
|
|
|
illumination/loading time 8 h |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interface |
|
|
|
|
|
|
|
RS 232 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Underfloor weighing |
|
|
|
|
|
|
|
standard |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PCB-BA-e-0914 |
5 |
|
KERN |
|
PCB 600-2 |
|
PCB 800-2 |
|
|
PCB 1000-2 |
|
|
PCB 1000-1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Readability (d) |
|
0,01 g |
|
0,01 g |
|
|
0,01 g |
0,1 g |
||
|
|
|
|
|
|
|
|
|
|||
|
Weighing range (max) (d) |
|
600 g |
|
800 g |
|
|
1000 g |
1000 g |
||
|
|
|
|
|
|
|
|
|
|||
|
Taring range (subtractive) |
|
600 g |
|
800 g |
|
|
1000 g |
1000 g |
||
|
|
|
|
|
|
|
|
|
|||
|
Reproducibility |
|
0,01 g |
|
0,01 g |
|
|
0,01 g |
0,1 g |
||
|
|
|
|
|
|
|
|
|
|||
|
Linearity |
|
±0,03 g |
|
± 0,03 g |
|
|
±0,03 g |
±0,2 g |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Minimum unit weight at |
|
0,02 g |
|
0,02 g |
|
|
0,02 g |
0,2 g |
||
|
piece counting |
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Warm-up time |
|
2 hours |
|
2 hours |
|
|
2 hours |
30 minutes |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Reference quantities at |
|
|
5, 10, 20, 25, 50 |
|
|
|
||||
|
piece counting |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
Weighing Units |
|
Details „Weighing units“ see chpt. 9.3 |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Recommended adjustment |
|
|
|
|
|
|
|
|
|
|
|
weight, not added (class) |
|
500 g (F2) |
|
700 g (F1) |
|
|
1000g (F1) |
|
1000g (M1) |
|
|
Details for „Selection of the |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Adjustment weight“ in ch. 9.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Stabilization time (typical) |
|
|
|
3 sec. |
|
|||||
|
|
|
|
|
|
|
|||||
|
Operating temperature |
|
|
|
+ 5° C .... + 35° C |
|
|||||
|
|
|
|
|
|
|
|||||
|
Humidity of air |
|
|
|
max. 80 % (not condensing) |
|
|||||
|
|
|
|
|
|
|
|||||
|
Housing (B x D x H) mm |
|
|
|
163 x 245 x 79 |
|
|||||
|
|
|
|
|
|
|
|
|
|||
|
Weighing plate mm |
Ø 105 |
|
|
|
|
130 x 130 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight kg (net) |
1,1 |
|
|
|
|
1,4 |
|
|
|
|
|
|
|
|
|
|||||||
|
Electric Supply |
|
220V-240V AC, 50 Hz / 9 V, 300 mA |
||||||||
|
|
|
|
||||||||
|
Battery operation |
|
9 V compound battery (optional) |
||||||||
|
|
|
Operating time 24 h with display background |
||||||||
|
|
|
|||||||||
|
Rechargeable battery (optional) |
|
illumination |
|
|
|
|
|
|
|
|
|
|
Operating time 48 h without display background |
|||||||||
|
|
|
illumination/loading time 8 h |
|
|
|
|
||||
|
|
|
|
|
|
|
|||||
|
Interface |
|
|
|
RS 232 |
|
|||||
|
|
|
|
|
|
|
|||||
|
Underfloor weighing |
|
|
|
standard |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
6 |
PCB-BA-e-0914 |
|
KERN |
|
PCB 1600-2 |
|
PCB 2000-1 |
PCB 2500-2 |
PCB 3500-2 |
|
|
|
|
|
|
|
|
|
|
|
Readability (d) |
|
0,01 g |
|
0,1 g |
0,01 g |
|
0,01 g |
|
|
|
|
|
|
|
|
|
|
Weighing range (max) (d) |
|
1600 g |
|
2000 g |
2500 g |
|
3500 g |
|
|
|
|
|
|
|
|
|
|
Taring range (subtractive) |
|
1600 g |
|
2000 g |
2500 g |
|
3500 g |
|
|
|
|
|
|
|
|
|
|
Reproducibility |
|
0,01 g |
|
0,1 g |
0,01 g |
|
0,01 g |
|
|
|
|
|
|
|
|
|
|
Linearity |
|
±0,03 g |
|
±0,2 g |
±0.03 g |
|
0,03 g |
|
|
|
|
|
|
|
|
|
|
Minimum unit weight at |
|
0,02 g |
|
0,2 g |
0,02 g |
|
0,02 g |
|
piece counting |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Warm-up time |
|
2 hours |
|
30 minutes |
2 hours |
|
2 hours |
|
|
|
|
|
|
|
|
|
|
Reference quantities at |
|
|
5, 10, 20, 25, 50 |
|
|
||
|
piece counting |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Weighing Units |
|
Details „Weighing units“ see chpt. 9.3 |
|||||
|
|
|
|
|
|
|
|
|
|
Recommended adjustment |
|
|
|
|
|
|
|
|
weight, not added (class) |
|
1500g (F1) |
|
2000 g (M1) |
2000 g (F1) |
||
|
Details for „Selection of the |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
Adjustment weight“ in ch. 9.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stabilization time (typical) |
|
|
|
3 sec. |
|
||
|
|
|
|
|
|
|
||
|
Operating temperature |
|
|
|
+ 5° C .... + 35° C |
|
||
|
|
|
|
|
|
|||
|
Humidity of air |
|
|
max. 80 % (not condensing) |
|
|||
|
|
|
|
|
|
|
||
|
Housing (B x D x H) mm |
|
|
|
163 x 245 x 79 |
|
||
|
|
|
|
|
|
|
||
|
Weighing plate mm |
|
|
|
130 x 130 |
|
||
|
|
|
|
|
|
|
||
|
Weight kg (net) |
|
|
1.4 |
|
|
||
|
|
|
|
|||||
|
Electric Supply |
|
220V-240V AC, 50 Hz / 9 V, 300 mA |
|||||
|
|
|
|
|
||||
|
Battery operation |
|
9 V compound battery (optional) |
|
||||
|
|
|
Operating time 24 h with display background illumination |
|||||
|
Rechargeable battery |
|
||||||
|
|
Operating time 48 h without display background |
||||||
|
(optional) |
|
||||||
|
|
illumination/loading time 8 h |
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
||
|
Interface |
|
|
|
RS 232 |
|
||
|
|
|
|
|
|
|
||
|
Underfloor weighing |
|
|
|
standard |
|
||
|
|
|
|
|
|
|
|
|
PCB-BA-e-0914 |
7 |
|
KERN |
|
PCB 4000-1 |
|
PCB 4000-0 |
PCB 6000-1 |
|
PCB 6000-0 |
|
|
|
|
|
|
|
|
|
|
Readability (d) |
|
0,1 g |
|
1 g |
0,1 g |
|
1 g |
|
|
|
|
|
|
|
|
|
|
Weighing range (max) (d) |
|
4000 g |
|
4000 g |
6 kg |
|
6 kg |
|
|
|
|
|
|
|
|
|
|
Taring range (subtractive) |
|
4000 g |
|
4000 g |
6 kg |
|
6 kg |
|
|
|
|
|
|
|
|
|
|
Reproducibility |
|
0,1 g |
|
1 g |
0,1 g |
|
1 g |
|
|
|
|
|
|
|
|
|
|
Linearity |
|
± 0,3 g |
|
± 2,0 g |
± 0,3 g |
|
± 2 g |
|
|
|
|
|
|
|
|
|
|
Minimum unit weight at |
|
0,2 g |
|
2,0 g |
0,2 g |
|
2 g |
|
piece counting |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Warm-up time |
|
2 hours |
|
10 minutes |
2 hours |
|
2 hours |
|
|
|
|
|
|
|
|
|
|
Reference quantities at |
|
|
5, 10, 20, 25, 50 |
|
|
||
|
piece counting |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Weighing Units |
|
Details „Weighing units“ see chpt. 9.3 |
|||||
|
|
|
|
|
|
|
|
|
|
Recommended adjustment |
|
|
|
|
|
|
|
|
weight, not added (class) |
|
4000 g (F2) |
|
4000 g (M2) |
5000 g (F2) |
|
5000 g (M2) |
|
Details for „Selection of the |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Adjustment weight“ in ch. 9.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stabilization time (typical) |
|
|
|
3 sec. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating temperature |
|
|
|
+ 5° C .... + 35° C |
|
|
|
|
|
|
|
|
|
|
||
|
Humidity of air |
|
|
max. 80 % (not condensing) |
|
|
||
|
|
|
|
|
|
|
|
|
|
Housing (B x D x H) mm |
|
|
|
163 x 245 x 79 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Weighing plate mm |
|
|
|
150 x 170 |
|
|
|
|
|
|
|
|
|
|
||
|
Weight kg (net) |
|
|
1.7 |
|
|
||
|
|
|
|
|||||
|
Electric Supply |
|
220V-240V AC, 50 Hz / 9 V, 300 mA |
|||||
|
|
|
|
|||||
|
Battery operation |
|
9 V compound battery (optional) |
|||||
|
|
|
Operating time 24 h with display background |
|||||
|
|
|
||||||
|
Rechargeable battery |
|
illumination |
|
|
|
|
|
|
(optional) |
|
Operating time 48 h without display background |
|||||
|
|
|
illumination/loading time 8 h |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Interface |
|
|
|
RS 232 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Underfloor weighing |
|
|
|
standard |
|
|
|
|
|
|
|
|
|
|
|
|
8 |
PCB-BA-e-0914 |
|
KERN |
|
PCB 8000-1 |
|
PCB 10K0.05 |
|
|
PCB 10000-1 |
|
|
|
|
|
|
|
|
|
|
Readability (d) |
|
0,1 g |
|
0,05 g |
|
0,1 g |
|
|
|
|
|
|
|
|
|
|
|
Weighing range (max) (d) |
|
8 kg |
|
10 kg |
|
10 kg |
|
|
|
|
|
|
|
|
|
|
|
Taring range (subtractive) |
|
8 kg |
|
10 kg |
|
10 kg |
|
|
|
|
|
|
|
|
|
|
|
Reproducibility |
|
0,1 g |
|
0,05 g |
|
0,1 g |
|
|
|
|
|
|
|
|
|
|
|
Linearity |
|
± 0,3 g |
|
±0,15 g |
|
± 0,3 g |
|
|
|
|
|
|
|
|
|
|
|
Minimum unit weight at |
|
0,2 g |
|
0,10 g |
|
0,2 g |
|
|
piece counting |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Warm-up time |
|
2 hours |
|
2 hours |
|
2 hours |
|
|
|
|
|
|
|
|
|
|
|
Reference quantities at |
|
|
5, 10, 20, 25, 50 |
|
|
|
|
|
piece counting |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
Weighing Units |
|
Details „Weighing units“ see chpt. 9.3 |
|||||
|
|
|
|
|
|
|
|
|
|
Recommended adjustment |
|
|
|
|
|
|
|
|
weight, not added (class) |
|
7 kg (F1) |
|
10 kg (F1) |
|
10 kg (F1) |
|
|
Details for „Selection of the |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Adjustment weight“ in ch. 9.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stabilization time (typical) |
|
|
|
3 sec. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating temperature |
|
|
|
+ 5° C .... + 35° C |
|
|
|
|
|
|
|
|||||
|
Humidity of air |
|
max. 80 % (not condensing) |
|||||
|
|
|
|
|
|
|
|
|
|
Housing (B x D x H) mm |
|
|
|
163 x 245 x 79 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Weighing plate mm |
|
|
|
150 x 170 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight kg (net) |
|
|
1,7 |
|
|
|
|
|
|
|
|
|||||
|
Electric Supply |
|
220V-240V AC, 50 Hz / 9 V, 300 mA |
|||||
|
|
|
|
|||||
|
Battery operation |
|
9 V compound battery (optional) |
|||||
|
|
|
Operating time 24 h with display background illumination |
|||||
|
Rechargeable battery |
|
||||||
|
|
Operating time 48 h without display background |
||||||
|
(optional) |
|
||||||
|
|
illumination/loading time 8 h |
|
|
||||
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Interface |
|
|
|
RS 232 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Underfloor weighing |
|
|
|
standard |
|
|
|
|
|
|
|
|
|
|
|
|
PCB-BA-e-0914 |
9 |
KERN & Sohn GmbH
D-72322 Balingen-Frommern |
Phone: 0049-[0]7433- 9933-0 |
Postbox 4052 |
Fax: 0049-[0]7433-9933-149 |
email: info@kern-sohn.de |
Internet: www.kern-sohn.de |
Declaration of conformity
EC-Konformitätserklärung ECDéclaration de conformité
EC-Dichiarazione di conformità ECDeclaração de conformidade EC-Deklaracja zgodności
EC-Declaration of -Conformity EC-Declaración de Conformidad EC-Conformiteitverklaring
ECProhlášení o shode EC-Заявление о соответствии
D |
Konformitäts- |
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht, |
|||||
|
|
erklärung |
mit den nachstehenden Normen übereinstimmt. |
||||
GB |
Declaration of |
We hereby declare that the product to which this declaration refers conforms |
|||||
|
|
conformity |
to the following standards. |
|
|
||
CZ |
Prohlášení o |
Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu |
|||||
|
|
shode |
s níže uvedenými normami. |
|
|
||
E |
Declaración de |
Manifestamos en la presente que el producto al que se refiere esta |
|||||
|
|
conformidad |
declaración está de acuerdo con las normas siguientes |
||||
F |
Déclaration de |
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la |
|||||
|
|
conformité |
présente déclaration, est conforme aux normes citées ci-après. |
||||
I |
Dichiarazione di |
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si |
|||||
|
|
conformitá |
riferisce è conforme alle norme di seguito citate. |
||||
NL |
Conformiteit- |
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking |
|||||
|
|
verklaring |
heeft, met de hierna vermelde normen overeenstemt. |
||||
P |
Declaração de |
Declaramos por meio da presente que o produto no qual se refere esta |
|||||
|
|
conformidade |
declaração, corresponde às normas seguintes. |
||||
PL |
Deklaracja |
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie |
|||||
|
|
zgodności |
dotyczy, jest zgodny z poniższymi normami. |
||||
RUS |
Заявление о |
Мы заявляем, что продукт, к которому относится данная декларация, |
|||||
|
|
соответствии |
соответствует перечисленным ниже нормам. |
||||
Electronic Scale: KERN NDE, PCB, FCB, FKB…A, FCE |
|||||||
|
|
|
|
|
|
|
|
Mark applied |
|
EU Directive |
Standards |
||||
|
|
|
|
|
2004/108/EC |
EN 55022 : 1998+A1+A2 |
|
|
|
|
|
|
|
EN 61000-3-2 : 2000+A2 |
|
|
|
|
|
|
|
EN 61000-3-3 : 1995+A1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EN 55024 : 1998+A1+A2 |
|
|
|
|
|
|
|
|
|
Date: 27.10.2008 |
Signature: |
Gottl. KERN & Sohn GmbH
Management
Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149
10 |
PCB-BA-e-0914 |
The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate. As soon as a stable weighing value is reached the weighing value can be read.
Do not use balance for dynamic weighing. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be displayed due to the “stability compensation“ in the balance. (Example: Slowly draining fluids from a container on the balance). Do not leave permanent load on the weighing plate. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this.
Never operate balance in explosive environment. The serial version is not explosion protected.
The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.
Warranty claims shall be voided in case
•Our conditions in the operation manual are ignored
•The appliance is used outside the described uses
•The appliance is modified or opened
•Mechanical damage and damage caused by media, liquids
•Natural wear and tear
•The appliance is improperly set up or incorrectly electrically connected
•The measuring system is overloaded
In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.
PCB-BA-e-0914 |
11 |
Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances.
The appliance may only be operated and maintained by trained personnel.
When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.
Keep all parts of the original packaging in case you need to return the appliance. Only use original packaging for returning.
Before sending, disconnect all connected cables and loose/movable parts.
Attach possibly existing transport safeguards. Secure all parts, e.g. weighing plate, mains adapter etc., to prevent slipping and damage.
The balances are designed in a way that reliable weighing results are achieved in common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
•Place the balance on a firm, level surface;
•Avoid extreme heat as well as temperature fluctuation caused by installing next to a radiator or in the direct sunlight;
•Protect the balance against direct draughts due to open windows and doors;
•Avoid jarring during weighing;
•Protect the balance against high humidity, vapors and dust;
•Do not expose the device to extreme dampness for longer periods of time. Nonpermitted condensation (condensation of air humidity on the appliance) may occur if a cold appliance is taken to a considerably warmer environment. In this case, acclimatize the disconnected appliance for ca. 2 hours at room temperature.
•Avoid static charge of goods to be weighed and weighing container.
12 |
PCB-BA-e-0914 |
