Before use
Precautions
#WARNING
Ñ To prevent injury or fire, take the
following precautions:
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools)
inside the unit.
• Do not watch or fix your eyes on the unit’s display
when you are driving for any extended period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories, check
with your JVC dealer to make sure that they work
with your model and in your area.
• The Radio Data System or Radio Broadcast Data
System feature won’t work where the service is
not supported by any broadcasting station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ballpoint pen or
similar tool with the sharp tip.

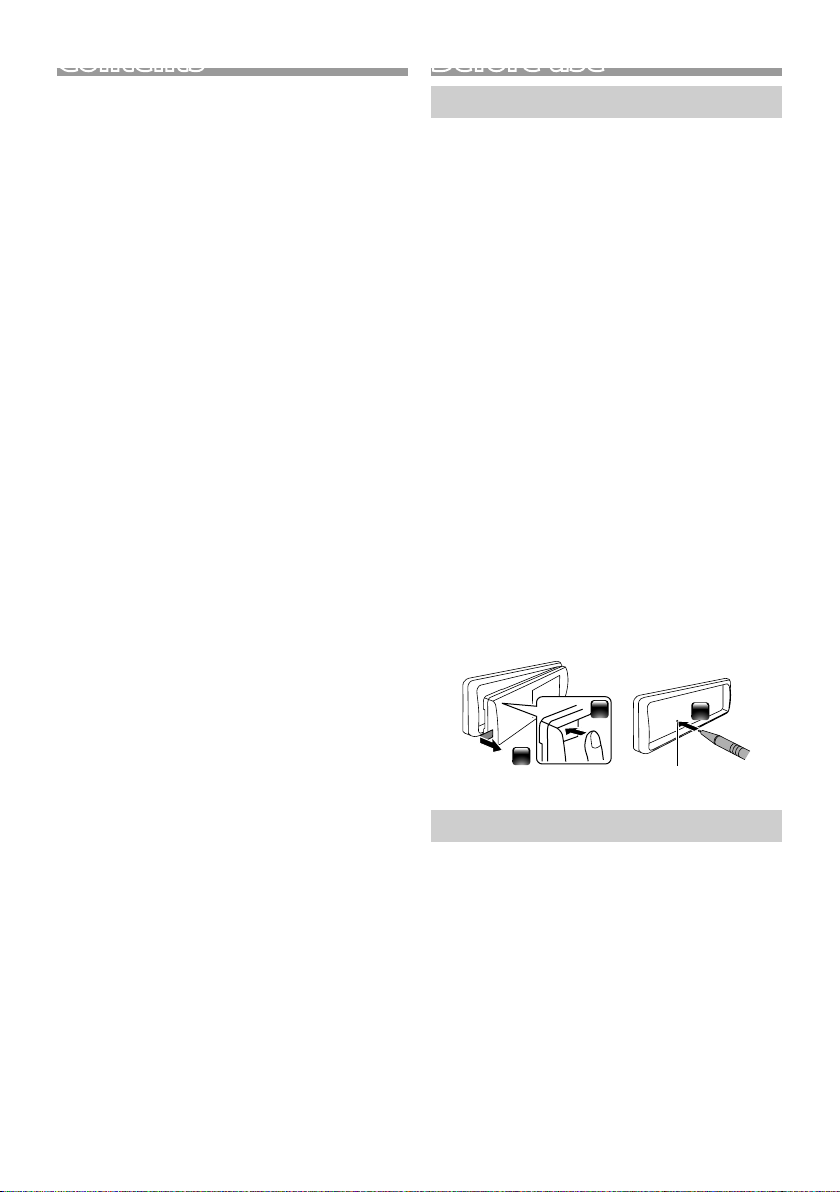

Ñ How to reset your unit
If the unit or the connected unit fails to operate
properly, reset the unit.
1
2
How to read this manual
• The panels shown in this guide are examples used to
provide clear explanations of the operations. For this
reason, they may be different from the actual panels.
• In operation procedures, bracket shape indicates the
item you should control.
[ ]: indicates the selected items or menu.
< >: indicates the name of panel buttons.
• Display language: English is used for the purpose of
explanation. You can select a display language from
the [Language] menu. See Language (P.14).
3
Reset button
2
Getting Started
Initial settings
1 Turn the ignition key of your car to ACC.
The unit is turned on.
2 Turn the volume knob to select the item to set
(see the table below), then press the knob to
make a selection.
Language
Select the language used for the control screen and
setting items. Default is “English”.
Area
EUROPE (Default): For Europe, AM/FM intervals: 9
kHz/50 kHz.
M. EAST: For Middle East, AM/FM intervals: 9 kHz/50
kHz.
Date/Clock
Adjust the date, then adjust the time.
Hour / Minute / Day / Month / Year
Demo
Set the demonstration mode. Default is “ON”.
3 Turn the volume knob to select [Finish], then
press the knob.
Clock settings
Ñ Synchronizing the clock time with FM
RDS
Activate [RDS Clock Sync].
See “Tuner function settings” (P. 9).
Ñ Adjusting the clock manually
✎ NOTE
• Deactivate [RDS Clock Sync] before adjusting the
clock. See “Tuner function settings” (P. 9).
1 Press and hold < > to display the settings.
2 Press <E>/< F> to select [ ].
3 Turn the volume knob to select [Time Format],
then press the knob to select the time format
([12h] or [24h]).
4 Turn the volume knob to select [Date/Clock],
then press the knob.
Clock screen appears.
5 Turn the volume knob to adjust the hour, then
press the knob.
6 Turn the volume knob to adjust the minute,
then press the knob.
7 Turn the volume knob to adjust the day, then
press the knob.
8 Turn the volume knob to adjust the month,
then press the knob.
9 Turn the volume knob to adjust the year, then
press the knob.
10
Press < >.
English |
3
BasicsBasics
25364
7
1
Volume knob (turn/press)
Common operations
Ñ Turning on the power
1 Press < >.
Ñ Turning off the power
1 Press and hold < >.
Ñ Adjusting the volume
1 Turn the volume knob.
Ñ Mutes the sound
1 Press and hold the volume knob.
appears when the mute function is active.
To restore the sound, press and hold again, or
adjust the volume.
Ñ Display the clock
1 Press and hold the <DIM> button.
Ñ Select dimmer mode
1 Press the <DIM> button.
Dimmer 1, Dimmer 2, Dimmer 3
How to attach/detach the faceplate
AttachDetach
1
1
Remote sensor
MonitorDetach button
Select a source
1 Press < > to display the HOME screen.
HOME screen appears.
2 Turn the volume knob to select the source, then
press the knob.
Clock display
1
Switches to the FM tuner broadcast. (P.8)
2
Switches to the AM tuner broadcast. (P. 8)
3
Switches to the DAB broadcast. ( P.10)
4
(K D-X 561DBT onl y)
Plays a Bluetooth audio player. (P.13)
5
6
[USB]
Plays files on a USB device. (P. 5)
[iPod]
Plays an iPod/iPhone. (P.7)
• When iPod/iPhone is connected.
Switches to an external component connected to
7
the AUX input terminal. (P.11)
2
4
2
USB
1
2
USB
Preparation
Ñ Connecting a USB device
1 Open the front port cover.
2 Connect the USB device with the USB cable
(sold separately).
The unit reads the device and playback star ts.
• USB maximum power supply current :
DC 5 V = 1 A
Ñ To disconnect the USB device:
1 Press < > to display the HOME screen.
2 Turn the volume knob to select other than
[USB], then press the knob.
3 Detach the USB device.
Ñ Usable USB device
This unit can play MP3/ WMA/ AAC/ WAV/ FLAC/
OGG/ MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ JPEG/
BMP/ PNG files stored in a USB mass storage class
device. (P.21)
• Fi le s yst em: FAT16/ FAT32 /NTFS
• This unit can recognize a total of 20 000 files
(Audio files).
• The maximum number of folder layers : 6
• The maximum number of characters:
– Folder names : 128 characters
– File names : 128 characters
– Tag : 128 characters
✎ NOTE
• When the USB device is connected to this unit, it can
be charged through the USB cable.
• Install the USB device in the place where it will not
affect safe driving.
• You cannot connect a USB device via a USB hub and
Multi Card Reader.
• Take backups of the audio files used with this unit.
The files may be erased depending on the operating
conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
• No USB device comes with this unit. You need to
purchase a commercially available USB device.
• Cap the USB terminal whenever not using.
Playback operations
Audio files/Video files
To Do this
Play/pause Press the volume knob.
Select a file Press <E>/<F> repeatedly.
Fast-backward/
Fast-forward
Picture files
To Do this
Rotates the
Zoom Press the volume knob.
Ñ Source screen (Audio files)
Playback status/Playing time/File number
1
Play time bar : For confirmation of current playing
position
: Repeat playback mode indicator
: Random playback mode indicator
Displays the information of the current file.
2
Only a file name is displayed if there is no tag
information.
Press and hold <E>/<F>.
• Video files: Each time you press
the button, the search speed
changes.
Turn the volume knob.
x2, x3, x4, x1/2, x1/3, x1/4, x1
• Turn the volume knob to move the
position up and down.
• Press <E>/< F> to move the
position left and right.
English |
5
USB
Ñ Selecting a track in a list (Searches file)
1 Press < > to display the LIST screen.
2 Press <E>/< F> to select whether you
search by audio files [ ], video files [ ] or
picture files [ ].
3 Turn the volume knob to select the desired
folder, then press the knob.
• When you select a folder its contents are
displayed.
• To return to the previous layer, press <
4 Turn the volume knob to select the desired
item, then press the knob.
Playback starts.
Function settings
1 Press < > to display the function menu.
2 Turn the volume knob to select the item to set
(see the table below), then press the knob to
make a selection.
3 Press < > to exit.
Audio files (MP3/WMA/AAC/WAV/FLAC/OGG)
Repeat
Random
Video files (MPEG1/MPEG2/MPEG4/H.264/MKV)
Screen
>.
Adjustment
Repeat
Video
Setting
Picture files (JPEG/BMP/PNG)
Slideshow
Video
Setting
All: Repeats all files.
(
indicator lights up.)
One: Repeats current file.
(
indicator lights up.)
OFF: Normal playback.
ON: Randomly plays all files.
(
indicator lights up.)
Auto/Full/16:9/4:3 : Selects the aspect
ratio.
All: Repeats all files.
One: Repeats current file.
Brightness/Contrast/Color/Tint (0 to
8 : Default 4) : You can adjust image
quality.
Reset: To clear the adjustment.
ON/OFF: Select the slideshow.
Brightness/Contrast/Color/Tint (0 to
8 : Default 4) : You can adjust image
quality.
Reset: To clear the adjustment.
6
iPod/iPhone
1
2
iPod/iPhone
Preparation
Ñ Connecting iPod/iPhone
1 Open the front port cover.
2 Connect the iPod/iPhone using the KS-U62
(optional accessory).
The unit reads the device and playback star ts.
• USB maximum power supply current :
DC 5 V = 1 A
Ñ To disconnect the iPod/iPhone
1 Press < > to display the HOME screen.
2 Turn the volume knob to select other than
[iPod], then press the knob.
3 Detach the iPod/iPhone.
Ñ Connectable iPod/iPhone
The following models can be connected to this unit.
Made for
• iPhone X
• iPhone 8 Plus
• iPhone 8
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPod touch (6th
generation)
✎ NOTE
• If you start playback after connecting the iPod, the
music that has been played by the iPod is played
first.

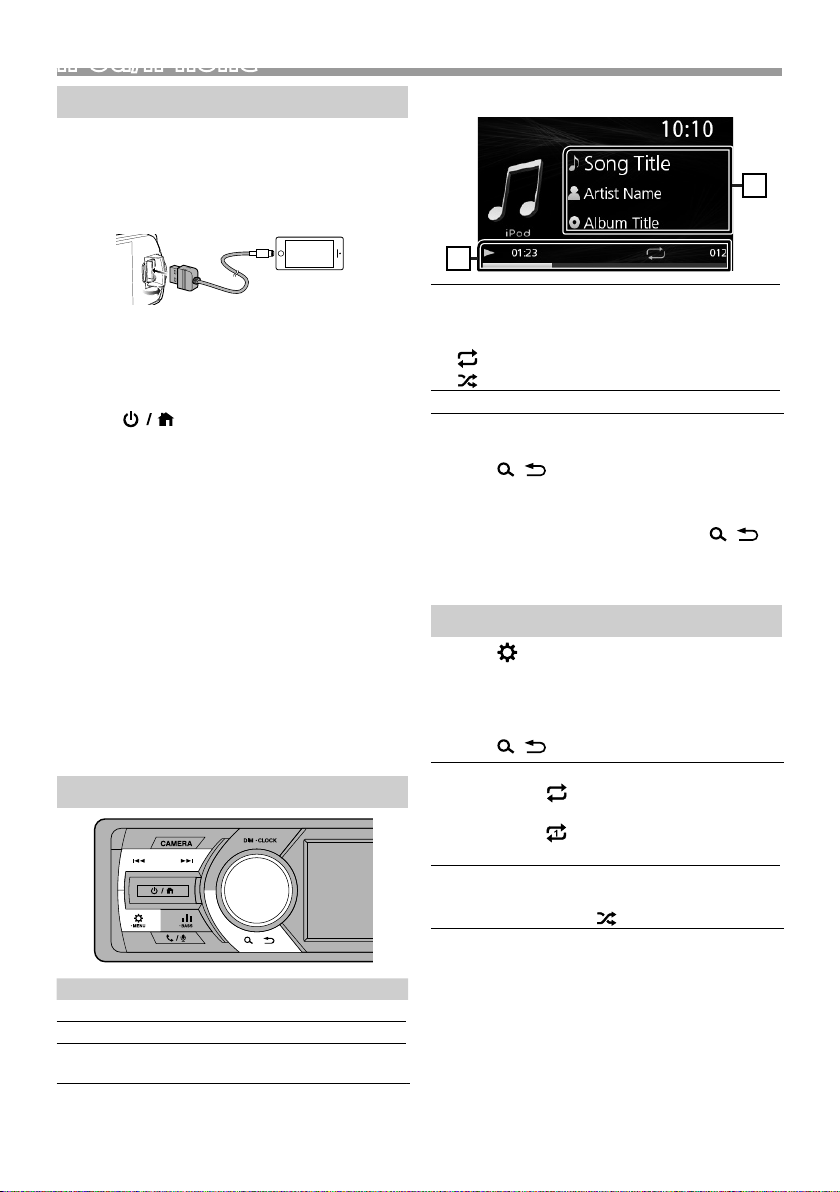

Playback operations
Ñ Source screen
Playback status/Playing time/File number
1
Play time bar : For confirmation of current playing
position
: Repeat playback mode indicator
: Random playback mode indicator
Displays the information of the current file.
2
Ñ Selecting a content in a list
1 Press < > to display the LIST screen.
2 Turn the volume knob to select category, then
press the knob.
• To return to the previous layer, press <
3 Turn the volume knob to select the desired
item, then press the knob.
Function settings
1 Press < > to display the function menu.
2 Turn the volume knob to select the item to set
(see the table below), then press the knob to
make a selection.
3 Press < >.
Repeat
Random
All: Repeats all files.
(
indicator lights up.)
One: Repeats current file.
(
indicator lights up.)
OFF: Repeat off.
OFF: Normal playback.
All: Functions the same as “Shuff le
Songs”. (
indicator lights up.)
>.
To Do this
Play/pause Press the volume knob.
Select a file Press <E>/<F> repeatedly.
Fast-backward/
Fast-forward
Press and hold <E>/<F>.
English |
7
Tuner
1
3
2
Tuner
Tuner basic operations
1 Press < > to display the HOME screen.
2 Turn the volume knob to select [FM] or [AM],
then press the knob.
3 Press <E>/< F> to search for a station
automatically.
“Auto Seek” appears.
(or)
Press and hold <E>/<F> repeatedly to
search for a station manually.
“Manual Seek” appears.
✎ NOTE
• The ST indicator lights up when receiving an FM
stereo broadcast with sufficient signal strength.
• To store stations, perform [Manual Store] or [Auto
Store].
Ñ Source screen
Ñ Store a station
You can preset 15 stations for FM and 15 stations
for AM.
1 Select the station you wish to store in the
memory.
2 Press < > to display the function menu.
3 Turn the volume knob to select [Manual Store],
then press the knob.
4 Turn the volume knob to select a preset
number, then press the knob.
✎ NOTE
• To exit, press <
Ñ Select a stored station
>.
1 Press < > to display the LIST screen.
2 Turn the volume knob to select a preset
number, then press the knob.
✎ NOTE
• To exit, press <
>.
LOCAL indicator
1
ST (Stereo) indicator
2
Displays the information of the current station:
3
PS name, Frequency, PTY Genre, Indicator Items
8
Tuner
Tuner function settings
1 Press < > to display the function menu.
2 Turn the volume knob to select the item to set
(see the table below), then press the knob to
make a selection.
3 Press < >.
Manual
Store
Auto
Store
Local
Seek
Area EUROPE(Default): For Europe, AM/FM
Mono *
RDS *
PTY *
AF *
TA *
RDS
Clock
Sync *
*1 FM only
Stores a station manually.
While listening to a station you want to
store, turn the volume knob to select a
preset number, then press the knob.
Automatically searches and stores the 15
stations with the strongest signals for the
selected band.
• “Auto Store” appears.
Tunes in only to the stations with sufficient
signal strength. (LOCAL indicator lights
up.)
“ON”, “OFF” (Default)
intervals: 9 kHz/50 kHz.
M. EAST: For Middle East, AM/FM intervals:
9 kHz/50 kHz.
1
Determines whether to receive stereo
broadcasts in the stereo mode or
monaural mode (the MONO indicator
lights up).
“ON”, “OFF” (Default)
1
ON: Activates FM Radio Data System
features
OFF: Deactivates the function.
1
Searches for a program by program type.
1
When station reception is poor,
automatically switches to the station that
is broadcasting the same program over
the same Radio Data System network.
“ON” (Default), “OFF”
1
Switches to the traffic information
automatically when the traffic bulletin
starts. (TI indicator lights up.)
“ON”, “OFF” (Default)
Synchronizing the Radio Data System
station time data and this unit’s clock.
1
“ON” (Default), “OFF”
Ñ Search by program type
1 Press < > to display the function menu.
2 Turn the volume knob to select [PTY], then
press the knob.
3 Turn the volume knob to select a program type,
then press the knob
PTY Search starts.
✎ NOTE
• To exit, press <
>.
English |
9
DAB (KD-X561DBT)
1
2
DAB (KD-X561DBT)
DAB Basic Operation
1 Press < > to display the HOME screen.
2 Turn the volume knob to select [DAB], then
press the knob.
3 Press <E>/< F> to search for an ensemble
automatically.
“Auto Seek” appears.
(or)
Press and hold <E>/<F> repeatedly to
search for an ensemble manually.
“Manual Seek” appears.
4 Press and hold <E>/< F> select a service
(either primary or secondary) to listen to.
✎ NOTE
• To store service, perform [Favorite].
Ñ Source screen
Ñ Select a service
1 Press < > to display the LIST screen.
2 Turn the volume knob to select a service, then
press the knob.
Ñ Store a services
You can store up to 15 services
1 Select a service you wish to store in memory.
2 Press < > to display the function menu.
3 Turn the volume knob to select [Favorite], then
press the knob.
4 Turn the volume knob to select a preset
number, then press the knob.
✎ NOTE
• To exit, press <
Ñ Select a stored service
You can store up to 15 services
>.
1 Press < > to display the LIST screen.
2 Press <E>/< F> to select [ ].
3 Turn the volume knob to select a service, then
press the knob.
✎ NOTE
• To exit, press <
>.
DAB function settings
1 Press < > to display the function menu.
2 Turn the volume knob to select the item to set
(see the table below), then press the knob to
make a selection.
3 Press < > to exit.
Displays the received signal strength.
1
Displays the information of the current service:
2
Service name, Ensemble name, PTY Genre
10
Scan Station Updates the DAB Service List.
Favorite Stores a service.
While listening to a service you want
to store, turn the volume knob to
select a preset number, then press
the knob.
Reset Select [Reset] and then select [Yes]
to set the DAB settings to the initial
default settings.
TI Switches to the traffic information
automatically when the traffic bulletin
starts.
“ON”, “OFF” (Default)
1
2
DAB (KD-X561DBT)
Setup
Priority If the same service is provided by
Related
Service
Antenna
Power
PTY Search Searches for a program by program
Zoom DLS Display the Dynamic Label Segment
SERVICE Displays the Service List screen.
Ñ Search by program type
1 Press < > to display the function menu.
2 Turn the volume knob to select [PTY Search],
then press the knob.
3 Turn the volume knob to select a program type,
then press the knob
PTY Search starts.
✎ NOTE
• To exit, press <
Radio Data System when reception of
the service being provided by Digital
Radio becomes poor, automatically
switches to Radio Data System.
“ON”, “OFF” (Default)
When you select ON, the unit switches
to a related service (if exists) when a
DAB service network is not available.
“ON”, “OFF” (Default)
Sets power supply to the Digital Radio
antenna. Set to “ON” when the Digital
Radio antenna in use is equipped with
a booster.
Default is “ON”.
type.
screen.
>.
External Components
Using external audio players
3.5 mm stereo mini plug (Sold separately)
1
Use a 3-core plug head stereo mini plug for
optimum audio output.
Portable audio player (Sold separately)
2
Ñ Starting playback
1 Connect an external component to the AUX
input terminal.
2 Press < > to display the HOME screen.
3 Turn the volume knob to select [AUX], then
press the knob.
4 Turn on the connected component and start
playing the source.
Rear view camera
To use a rear view camera, the REVERSE lead
connection is required. For connecting a rear view
camera. (P.20)
Ñ Displaying the picture from the rear
view camera
The rear view screen is displayed when you shift the
gear to the reverse (R) position.
Ñ To display the picture from the rear view
camera manually
1 Press <CAMERA>.
English |
11
Bluetooth® smartphoneBluetooth® smartphone
Ñ About the Bluetooth smartphone and
Bluetooth audio player
This unit conforms to the following Bluetooth
specifications:
Version
Bluetooth Ver.4.2
Profile
Smartphone/ Cell-phone:
HFP (Hands Free Profile)
PBAP (Phonebook Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
Sound codec
SBC
Ñ About smartphone compatible with
Phone book Access Profile (PBAP)
If your smartphone supports PBAP, you can display
the following items when the smartphone is
connected.
• Phone book (up to 1000 entries)
• Dialed calls, received calls, and missed calls (up to 20
entries in total)
Register your smartphone to the unit
You can use your Bluetooth smartphone when
paired to this unit.
• You can pair the device and the unit using SSP
(Secure Simple Pairing) which only requires
confirmation.
• One device can be connected at a time.
• When you register a new Bluetooth device,
disconnect the Bluetooth device currently
connected and then register the new device.
1 Turn on the Bluetooth function on your
smartphone/cell-phone.
2 Search the unit (“KD-X56*”) from your
smartphone/cell-phone.
If a PIN code is required, enter the PIN code
(“0000”).
Ñ Disconnecting the device
• Turn off the Bluetooth function from your
smartphone/cell-phone.
• Turn off the ignition switch.
Receive a call
To Do this
Answer a call
Ñ Operations during a call
To Do this
End a call
Adjust the phone
volume
Switching between
hands-free mode and
phone mode
Press <
Press <
Turn the volume knob.
Press <
Each time you press the
button, “Transfer!” appears
and talking method is
switched between handsfree mode and phone mode.
>.
>.
>.
12
Bluetooth® smartphone
1
2
Make a phone call
1 Press < > to enter Bluetooth mode.
2 Press <E>/< F> to select a method to make
a call ([ ]: from the calls history/[ ]: from
the phone book).
3 Turn the volume knob to select the target, then
press the knob to make a call.
✎ NOTE
• Calls history icon:
Calls),
(Missed Calls).
Ñ Call by voice
(Incoming Calls), (Outgoing
1 Press and hold < > to display the voice
dialing screen.
You can also display the voice dialing screen by
selecting [
the phone screen.
] as the method to make a call on
2 Press the volume knob to activate voice
recognition function.
“Please speak after the beep” appears and the
beep sounds.
3 Say the name of the person you want to call.
Playing Bluetooth Audio Device
1 Press < > to display the HOME screen.
2 Turn the volume knob to select [BT Audio], then
press the knob.
To Do this
Play/pause Press the volume knob.
Select a file Press <E>/<F> repeatedly.
Fast-backward/
Fast-forward
Press and hold <E>/<F>.
Ñ Source screen
Playback status/Playing time/File number
1
Play time bar : For confirmation of current playing
position
: Repeat playback mode indicator
: Random playback mode indicator
Displays the information of the current file.
2
✎ NOTE
• Operations and display indications may dif fer
according to their availability on the connected
device.
Ñ Selecting a content in a list
1 Press < > to display the LIST screen.
2 Turn the volume knob to select an item, then
press the knob.
• To return to the previous layer, press <
>.
English |
13
Bluetooth smartphone
Setup
Function settings
1 Press < > to display the function menu.
2 Turn the volume knob to select the item to set
(see the table below), then press the knob to
make a selection.
3 Press < > to exit.
Repeat
Random
All: Repeats all files.
(
indicator lights up.)
One: Repeats current file.
(
indicator lights up.)
OFF: Repeat off.
OFF: Normal playback.
All: Randomly plays all files.
(
indicator lights up.)
Settings
1 Press and hold < > to display the settings.
2 Press <E>/< F> to select the category.
3 Turn the volume knob to select an item (see the
following table), then press the knob.
4 Repeat step 3 until the desired item is selected/
activated or follow the instructions stated on
the selected item.
5 Press < >.
Audio Settings
Fader R12 — F12 (00): Adjusts the front and
rear speaker output balance.
Balance L12 — R12 (00): Adjusts the left and
right speaker output balance.
14
General Settings
Beep ON/OFF: Activates or deactivates the
Date/Clock Adjusts the date and clock. (P.3)
Language Selects the text language used for on-
Time
Format
Wallpaper Black/Blue: Selects the wallpaper
Demo Set the demonstration mode. Default
Initialize Select [Initialize] and then select [Yes]
keypress tone. Default is “ON”.
screen information.
12h/24h: Selects time format. Default
is “24h”.
image.
is “O N”.
to set all the settings to the initial
default settings.
Setup
Bluetooth Settings
Sync
Phonebook
BT
Information
ON/OFF: Activates or deactivates the
synchronization of the phonebook
in the connected smartphone with
the unit.
Displays the information about the
connected Bluetooth device (device
name, phone name, and mac address).

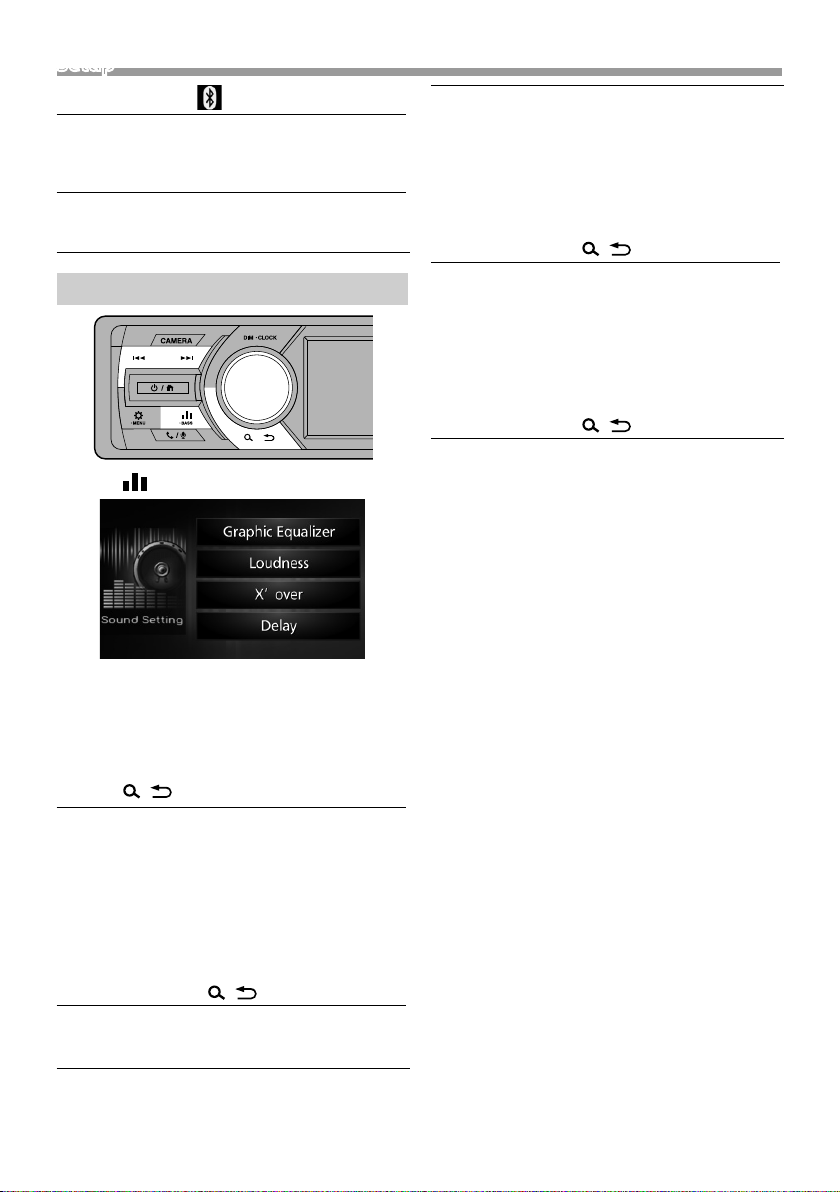

Sound settings
1 Press < > to display the sound setting.
X’over You can set the crossover frequency of
Delay Adjust the sound delay time so that the
speakers.
1) Press <E>/<F> to select the
speaker.
2) Press the volume knob to select the
item.
3) Turn the volume knob to adjust the
value.
4) Press <
sounds from different speakers arrive at
the listener sitting on the selected seat
at the same time.
1) Press <E>/<F> to select the
speaker.
2) Turn the volume knob to adjust the
value.
3) Press <
>.
>.
2 Turn the volume knob to select an item (see the
following table), then press the knob.
3 Repeat step 2 until the desired item is selected/
activated or follow the instructions stated on
the selected item.
4 Press < >.
Graphic
Equalizer
Loudness Sets the amounts of boost of low and
Selects a preset equalizer suitable to the
music genre.
Flat / DRVN / Hard Rock / Hip Hop / Jazz
/ Pop/ R & B / User / Classical
Select [User] to use the settings made
1) Press the volume knob to select the
frequency.
2) Turn the volume knob to adjust the
level.
3) Press <
high tones.
“ON”, “OFF” (Default)
>.
English |
15
Remote control
This unit can be operated using the remote control.
The remote control RM-RK258 (optional accessory)
can be used.
Functions of the remote control buttons
• Aim the remote control directly at the remote sensor
on the faceplate.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
SRC Switches to the source to be played.
VOL + – Adjusts the volume.
ATT Mutes/restores the sound
DISP Select dimmer mode.
FM/R
AM/S
E 2
F 3
ANGLE Not used.
Û
DIRECT Not used.
ASPECT Not used.
Numeric
Keypad
CLR Not used.
ENT Not used.
Selects the folder to be played.
Selects the track or file to be played.
During tuner source, switches to
broadcast stations received by the unit.
When a call comes in, answers the call.
Not used.
16
Installation
Installation
Before installation
Before installation of this unit, please note the
following precautions.
#WARNINGS
• If you connect the ignition wire (red) and the battery
wire (yellow) to the car chassis (ground), you may
cause a short circuit, that in turn may start a fire.
Always connect those wires to the power source
running through the fuse box.
• Do not cut out the fuse from the ignition wire (red)
and the battery wire (yellow). The power supply
must be connected to the wires via the fuse.
#CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during and
shortly af ter the use of the unit. Metal part such as
the heat sink and enclosure become hot.
✎ NOTE
• Mounting and wiring this product requires skills and
experience. For best safety, leave the mounting and
wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC
power supply.
• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of water
splashing.
• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.
• If your car’s ignition does not have an ACC position,
connect the ignition wires to a power source that
can be turned on and off with the ignition key. If you
connect the ignition wire to a power source with a
constant voltage supply, such as with battery wires,
the battery may be drained.
• If the console has a lid, make sure to install the unit
so that the front panel will not hit the lid when
closing and opening.
• If the fuse blows, first make sure the wires aren’t
touching to cause a short circuit, then replace the
old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other
similar material. To prevent a short circuit, do not
remove the caps on the ends of the unconnected
wires or the terminals.
• Secure the wires with cable clamps and wrap vinyl
tape around the wires that comes into contact with
metal parts to protect the wires and to prevent short
circuit.
• Connect the speaker wires correctly to the terminals
to which they correspond. The unit may be
damaged or fail to work if you share the ¤ wires or
ground them to any metal part in the car.
• When only two speakers are being connected to
the system, connect the connectors either to both
the front output terminals or to both the rear output
terminals (do not mix front and rear). For example,
if you connect the ¢ connector of the left speaker
to a front output terminal, do not connect the ¤
connector to a rear output terminal.
• After the unit is installed, check whether the brake
lamps, blinkers, wipers, etc. on the car are working
properly.
• Mount the unit so that the mounting angle is 30°
or less.
• Do not press hard on the panel surface when installing
the unit to the vehicle. Otherwise scars, damage, or
failure may result.
• Reception may drop if there are metal objects near
the Bluetooth antenna.
Bluetooth antenna unit
Ñ Supplied accessories for installation
1
3
5
(3 m)
x1
x2
2
x1
4
x1
x1
English |
17
Installation
Ñ Installation procedure
1) To prevent a short circuit, remove the key from
the ignition and disconnect the ¤ terminal of the
batter y.
2) Make the proper input and output wire
connections for each unit.
3) Connect the wire on the wiring harness.
4) Take Connector B on the wiring harness and
connect it to the speaker connector in your vehicle.
5) Take Connector A on the wiring harness and
connect it to the external power connector on your
vehicle.
6) Connect the wiring harness connector to the unit.
7) Install the unit in your car.
8) Reconnect the ¤ terminal of the battery.
9) Press the reset button.
Installing the unit
Ñ Non-Japanese cars
2
A
Bend the tabs of the
mounting sleeve with a
screwdriver or similar utensil
and attach it in place.
✎ NOTE
• Make sure that the unit is installed securely in place.
If the unit is unstable, it may malfunction (eg, the
sound may skip).
• If the panel opening of your vehicle is too small to
fit the unit (A), trim (the upper and lower sides and
right and left sides of ) panel opening.
Ñ Tri m plate
1) Attach accessory 1 to the unit.
1
Ñ Microphone unit
1) Check the installation position of the microphone
(accessory 5).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 5), and stick the microphone to the
place shown below.
4) Wire the microphone cable up to the unit with it
secured at several positions using tape or other
desired method.
5) Adjust the direction of the microphone (accessory
5) to the driver.
5
Fix a cable with a commercial item of tape.
✎ NOTE
• Use the clips if necessary.
18
Installation
Ñ Removing the trim plate
1) Use the extraction key (accessory 4) to lever out
the four tabs (two on the top part, two on the
bottom part).
4
2) Pull the trim plate forward.
Ñ Removing the unit
1) Remove the trim plate by referring to step 1 in
“Removing the trim plate”.
2) Detach the faceplate.
1
2
3) Insert the two extraction key (accessory 3) deeply
into the slots on each side, as shown.
3
Ñ Wiring harness connector function guide
Pin Color and function
A-4 Yel low Batter y
A-5 Blue/White
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground) Connection
B-1/ B-2 Purple (+) / Purple/Black (–) Rear Right
B-3/ B-4 Gray (+) / Gray/Black (–) Front Right
B-5/ B-6 White (+) / White/Black (–) Front Left
B-7/ B-8 Green (+) / Green/Black (–) Rear Left
[1]
Max. 150mA, 12V
• Speaker Impedance: 4-8 Ω
[1]
Power Control
! CAUTION
Before you connect the commercially available
ISO connectors to the unit, check the following
condition:
• Make sure that the pin assignment of the connector
matches with the JVC unit.
• Take extra notice of the power wire.
• In case battery wire and ignition wire are not
corresponding then change them accordingly.
• In case the car does not have an ignition wire, use a
commercially available interface.
4) Lower the removal tool toward the bottom, and
pull out the unit halfway while pressing towards
the inside.
✎ NOTE
• Be careful to avoid injury from the catch pins on
the extraction key.
5) Pull the unit all the way out with your hands, being
careful not to drop it.
English |
19
Installation
Ñ Connecting wires to terminals
Light Green (Parking sensor wire)
For best safety, be sure to connect the parking
PRK SW
sensor.
Purple/White (Reverse sensor wire)
Connect to vehicle’s reverse lamp harness when using the
REVERSE
optional rear view camera.
Light Blue/Yellow (Steering remote control wire)
To steering remote
To use the steering wheel remote control feature, you need an exclusive
STEERING
WHEEL
REMOTE
INPUT
remote adapter (not supplied) matched to your car.
Connect to the
vehicle’s parking brake
detection switch
harness.
Accessor y 5:
Bluetooth Microphone
FM/AM antenna
FM/AM antenna input
DAB antenna jack (SMB connector)
KD -X5 61DBT o nly
!
When using a commercially available
DAB antenna, the diameter of the SMB
connector must be Φ6.5 mm or less.
Φ 6.5 mm (maximum)
Connector A
Connector B
1 3 5 7
15A
2 4 6 8
1 3 5 7
2 4 6 8
Fuse (15A)
ISO Connector
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout (Blue)
Rear view camera input (Yellow)
20
About this Unit
About this Unit
Maintenance
Ñ Cleaning the Unit
If the front panel of this unit is stained, wipe it with
a dry soft cloth such as a silicon cloth. If the front
panel is stained badly, wipe the stain of f with a cloth
moistened with neutral cleaner, then wipe it again
with a clean soft dry cloth.
! CAUTION
• Applaying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the front panel
with a hard cloth or using a volatile liquid such as
thinner or alcohol may scratch the surface or erase
screened print.
Ñ Cleaning the connector
Detach the faceplate and clean the connector gently
with a cotton swab. Be careful not to damage the
connector.
Connector (on the reverse side of the faceplate)
More information
Ñ Playable Audio files
Audio format Bit rate/
Bit count
MP3 (. mp3) 32 – 320kbps,
VBR
WMA (.wma) 16 – 384kbps 8 – 48 kHz
AAC-LC (.m4a) 16 – 448kbps 8 – 48 kHz
WAV (.wav) 16 /24 bit 8 – 96 kHz
FLAC (.flac) 16/ 24 bit 8 – 96 kHz
Vorbis (.ogg) 500kbps 48 kHz
• This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4
(for MP3).
• The maximum number of characters:
– Tag : 128 characters
Sampling
frequency
16 – 48 kHz
✎ NOTE
• WMA and AAC of which is covered with DRM cannot
be played.
• Although the audio files are complied with the
standards listed above, the play may be impossible
depending on the types or conditions of media or
device.
Ñ Acceptable Video files
Video format Video codec Audio codec
MPEG -1
(.mpg, .mpeg)
MPEG -2
(.mpg, .mpeg)
MPEG-4
(.mp4, .avi)
H.264 (.mp4,
.mkv, .avi, .flv,
.f4v)
Matroska
(.mkv)
MPEG -1 MPEG1 Audio Layer 2
MPEG -2 MPEG1 Audio Layer 2
MPEG-4 MP3, AAC-LC (2ch)
H.264/MPG-4
AVC
H.264/MPEG-4
AVC, MPEG4
MP3, AAC
MP3, AAC,LPCM
Ñ Acceptable Picture files
• JPEG (.jpg)
32 x 32 to 5,000 x 5,000 resolution
– It may take time to display the file.
• BMP (.bmp)
32 x 32 to 5,000 x 5,000 resolution
– It may take time to display the file.
• PNG (.png)
32 x 32 to 5,000 x 5,000 resolution
– It may take time to display the file.
English |
21
About this Unit
Troubleshooting
What appears to be trouble is not always serious.
Check the following points before calling a service
center.
• For operations with the external components, refer
also to the instructions supplied with the adapters
used for the connections (as well as the instructions
supplied with the external components).
Ñ General
No sound comes out of the speakers.
• Adjust the volume to the optimum level.
• Check the cords and connections.
The unit does not work at all.
• Reset the unit. (P. 2)
The remote controller does not work.
• Replace the bat tery.
Ñ USB
While playing a track, sound is sometimes
interrupted.
• The tracks are not properly copied into the USB
device. Copy the tracks again, and try again.
Ñ iPod/iPhone
No sound comes out of the speakers.
• Disconnect the iPod/iPhone, then connect it again.
• Select another source, then reselect “iPod”.
The iPod/iPhone does not turn on or does not
work.
• Check the connecting cable and its connection.
• Update the firmware version of iPod/iPhone.
• Charge the battery of iPod/iPhone.
• Reset the iPod/iPhone.
Sound is distorted.
• Deactivate the equalizer either on this unit or the
iPod/iPhone.
A lot of noise is generated.
• Turn off (uncheck) “VoiceOver” on the iPod/iPhone.
For details, visit <http://www.apple.com>.
Ñ Tune r
Automatic presetting does not work.
• Store stations manually. (P. 8)
Static noise while listening to the radio.
• Connect the antenna firmly.
Ñ Bluetooth
Phone sound quality is poor.
• Reduce the distance between the unit and the
Bluetooth mobile phone.
• Move the car to a place where you can get a better
signal reception.
The sound is interrupted or skipped while using
a Bluetooth audio player.
• Reduce the distance between the unit and the
Bluetooth audio player.
• Turn off, then turn on the unit. (When the sound is
not yet restored) connect the player again.
The connected audio player cannot be
controlled.
• Check whether the connected audio player supports
AVRCP (Audio/Video Remote Control Profile).
The Bluetooth device does not detect the unit.
• Search from the Bluetooth device again.
The unit does not pair with the Bluetooth
device.
• Turn off, then turn on the Bluetooth device.
• Disconnect the Bluetooth device currently
connected and then register the new device.
(P.12)
22
About this Unit
Specifications
Ñ Monitor section
Picture Size
: 3.0 inch display
Drive System
: TFT active matrix system
Number of Pixels
: 320H x 240V
Aspect Ratio
: 16:9 (wide)
Back Lighting
: LED
Ñ USB interface section
USB Standard
: USB 2.0 High Speed
File System
: FAT 16/ 32, NTFS
Maximum Power Supply Current
: DC 5 V
Frequency Response
: 20 – 20,000 Hz
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC/ OGG
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ JPEG/ BMP/
Ñ Bluetooth section
Tec hnolog y
: Bluetooth Ver.4.2
Frequency
: 2.402 – 2.480 GHz
Output Power
: +8 dBm (AVE), Power Class1
Maximum Communication range
: Line of sight approx. 10 m (32.8 ft)
Audio Codec
SBC
Profile (Multi Profile support)
• HFP (Hands Free Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)
1.0 A
PNG
Ñ DAB section
Frequency Range
BAND III : 174.928 MHz — 239.200 MHz
Ñ Digital Antenna Connector section
Connector type
: SMB
Output Voltage
: 12 V DC car battery
Maximum Current
: <100 mA
Ñ FM tuner section
Frequency Range (step)
: 87.5 MHz – 108.0 MHz (50 kHz)
Usable Sensitivity
: 13.2 dBf
Frequency Response
: 30 Hz – 14 kHz
S/N Ratio (dB)
: 55 dB (MONO)
Stereo separation
: 35 dB (1kHz)
Ñ AM tuner section
Frequency Range (step)
: 531 – 1611 kHz (9 kHz)
Usable Sensitivity
: 35 dBμ
Ñ DSP section
Graphics equalizer
Band :13 Band
Frequency: 62.5/100/160/250/400/630/1k/1.6k/2.5k/
4k/6.3k/10k/16kHz
Gain: -9 – +9 (1 dB/Step)
2Way X’Over
High pass filter
Frequency: Through, 40/60/80/120/160 Hz
Slope: -6/-12/-18/-24 dB/O ct.
Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB
Low pass filter
Frequency: Through, 40/60/80/120/160 Hz
Slope: -6/-12/-18/-24 dB/O ct.
Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB
Position
Front/Rear/Subwoofer Delay:
0-18 mS (0.03 mS/Step)
English |
23
About this UnitAbout this Unit
Ñ Video section
Video Input Level
: 1.0 Vp-p/ 75 Ω
Ñ AUX section
External Audio Max input Level
: 1.5 V/ 25 kΩ
Ñ Audio section
Maximum Power (Front & Rear)
: 45 W × 4
Full Bandwidth Power (1% THD)
: 16 W × 4
Preout Impedance
: 10 kΩ
Preout Level/Load
: 2.0 V/10 kΩ
Speaker Impedance
: 4 – 8 Ω
Ñ General
Operating Voltage
: 12 V DC car battery
Installation Dimensions (W × H × D)
: 182 × 52 × 117 mm (with sleeve)
Weight
: 0.75 kg
NOTE
• Although the effective pixels for the liquid crystal
panel is given as 99.99% or more, 0.01% of pixels
may not light or may light incorrectly.
• Specifications subject to change without notice.
24
Copyrights
• The Bluetooth word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc.
and any use of such marks by JVC KENWOOD
Corporation is under license. Other trademarks and
trade names are those of their respective owners.
• Use of the Made for Apple badge means that an
accessory has been designed to connect specifically
to the Apple product(s) identified in the badge, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with an Apple product may
affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are
trademarks of Apple Inc., registered in the U.S. and
other countries.
• Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation
in the United States and/or other countries.
• THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE
OF A CONSUMER FOR (¡) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVIT Y AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA,
LLC. SEE HTTP://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE AVC
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
USE OF A CONSUMER OR OTHER USES IN WHICH IT
DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE
VIDEO IN COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED TO PROVIDE
AVC VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HT TP://WWW.MPEGLA.COM
About this Unit
• libFLAC
Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation
– Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE FOUNDATION OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
• libogg
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE FOUNDATION OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
English |
25
Ñ Information on Disposal of Old Electrical
and Electronic Equipment and Batteries
(applicable for EU countries that have
adopted separate waste collection
systems)
Products and batteries with the symbol (crossed-out
wheeled bin) cannot be disposed as household waste.
Old electrical and electronic equipment and batteries
should be recycled at a facility capable of handling
these items and their waste byproducts.
Contact your local authority for details in locating a
recycle facility nearest to you.
Proper recycling and waste disposal will help conserve
resources whilst preventing detrimental effects on our
health and the environment.
Notice: The sign “Pb” below the symbol for batteries
indicates that this battery contains lead.
For Israel
Ñ ילמשח דויצ לש הפשאל הכלשה רבדב עדימ
תונידמל יטנוולר( תוללוס ןכו ןשי ינורטקלאו
.)תדרפומ הפשא ףוסיא תכרעמב תושמתשמש
םע הפשא חפ( ןומיסה םע תוללוסו םירצומ ךילשהל ןתינ אל
.הליגר תיתיב הפשאכ )וילע X
ןקתמב תוללוס ןכו ןשי ינורטקלאו ילמשח דויצ רזחמל שי
.םהלש יאוולה ירצותבו הלאכ םיטירפב לפטל לגוסמה
ןקתמ תודוא םיטרפ תלבקל תימוקמה תושרה םע רשק ורצ
םיתואנ הפשאל הכלשהו רוזחימ .םכילא בורקה רוזחימה
ונתואירב לע תוילילש תועפשה עונמלו םיבאשמ רמשל ורזעי
.הביבסה לעו
ןייצמ תוללוס רובע ןומיסל תחתמש Pb ןומיסה :בל ומיש
.תרפוע הליכמ הללוסהש
For Europe sales area
Declaration of Conformity with regard to the RE
Directive 2014/53/EU
Declaration of Conformity with regard to the RoHS
Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa
221-0022, JAPAN
EU Representative:
JVCKENWOOD Europe B.V.
Amsterdamseweg 37, 1422 AC UITHOORN, THE
NETHERLANDS
English
Hereby, JVC KENWO OD declares that t he radio equipme nt KD-X561DBT/
KD-X56 0BT is in compliance wi th Directive 2014/53/EU. T he full text of th e EU
declarat ion of conformit y is available at the f ollowing interne t address:
Français
Par la prése nte, JVC KENWOOD déc lare que l’équipement r adio KD-X561DBT/
KD-X56 0BT est confor me à la directive 2014/53/UE . L’intégrali té de la
déclarat ion de conformi té UE est disponib le à l’adresse Intern et suivante :
Deutsch
Hiermit er klärt JVC KENWO OD, dass das Funkgerät K D-X561DBT/
KD-X56 0BT der Richtlinie 2 014/53/EU entsp richt. Der volle Tex t der
EU-Konf ormitätser klärung steht unt er der folgenden In ternetadres se zur
Verf ügung :
Nederlands
Hierbij ver klaart JVC KENWO OD dat de radioapp aratuur KD-X5 61DBT/
KD-X56 0BT in overeenste mming is met Richtli jn 2014/53/EU. De volledige
tekst van de EU-verklaring van overeens temming is te vinden op het volgende
internetadres:
Italiano
Con la prese nte, JVC KENWOOD dichi ara che l’apparecchi o radio KD-X561DBT/
KD-X56 0BT è conforme alla Di rettiva 2014/53/UE. Il t esto integrale d ella
dichiarazione di conformità UE è disponibile al seguente indiriz zo internet:
Español
Por la prese nte, JVC KENWOOD dec lara que el equipo de r adio KD-X561DBT/
KD-X56 0BT cumple la Direc tiva 2014/53/EU. El text o completo de la
declarac ión de conformid ad con la UE está disp onible en la siguiente d irección
de internet:
Português
Deste mo do, a JVC KENWOOD dec lara que o equipamen to de rádio
KD-X561DBT/ KD-X56 0BT está em conf ormidade com a Dire tiva 2014/53/
UE. O tex to integral da dec laração de confor midade da UE está d isponível no
seguinte e ndereço de intern et:
Polska
Niniejsz ym, JVC KENWOOD dek laruje, że sprzęt r adiowy KD-X5 61DBT/
KD-X56 0BT jest zgodny z dy rektywą 2 014/53/UE. Pełny teks t deklaracji
zgodnoś ci EU jest dostę pny pod adresem:
Český
Společn ost JVC KENWOOD tí mto prohlašuje, že rá diové zařízení KD -X561DBT/
KD-X56 0BT splňuje podmín ky směrnice 2014/53/EU. Plný te xt EU prohlášení o
shodě je dostupný na následující internetové adrese:
26
Magyar
JVC KENWOOD e zennel kijelent i, hogy a KD-X561DBT/ KD-X56 0BT
rádióbe rendezés megf elel a 2014/53/EU irányelvnek . Az EU konformi tási
nyilatkoza t teljes szövege az al ábbi weboldalon ér hető el:
Hrvatski
JVC KENWOOD o vim izjavljuje da je ra dio oprema KD-X5 61DBT/ KD-X560BT
u skladu s Dire ktivom 2014/53/EU. Cjelovi ti tekst dekla racije Europske un ije o
usklađen osti dostup an je na sljedećoj inte rnet adresi:
Svenska
Härmed f örsäkrar JVC KE NWOOD att radio utrustning en KD-X561DBT/
KD-X56 0BT är i enlighet med di rektiv 2014/53 / EU. Den full ständiga tex ten av
EU-försäkran om överenss tämmelse finns på följande Internetadress :
Suomi
JVC KENWOOD j ulistaa täten, et tä radiolaite K D-X561DBT/ KD-X560BT on
direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuu tus löytyy
kokonaisuudessaan seuraavas ta internet-osoitteesta:
Slovensko
S tem JVC KENWO OD izjavlja, da je radij ska oprema KD-X5 61DBT/ KD-X560BT
v skladu z Dire ktivo 2014/53/EU. Celotno b esedilo direk tive EU o skladnost i je
dostopn o na tem spletnem nas lovu:
Slovensky
Spoločn osť JVC KENWOOD t ýmto vyhlasuje , že rádiové zariade nie
KD-X561DBT/ KD-X56 0BT vyhovuje sm ernici 2014/53/EÚ. Celý tex t EÚ
vyhlásenia o zhode nájdete na nasledovnej internetovej adrese:
Dansk
Herve d erklærer JVC KENWO OD, at radioudst yret KD-X561DBT/
KD-X56 0BT er i overensstem melse med Direk tiv 2014/53/EU. EUoverensstemmelseserklæringens fulde ordlyd er tilgængelig på følgende
internetadresse:
Norsk
JVC KENWOOD e rklærer herve d at radiouts tyret KD-X5 61DBT/ KD-X560BT
er i samsva r med Direktiv 2 014/53/EU. Den full stendige teks ten til EUkonformitetserklæringen er tilgjengelig på følgende internettaddresse:
Ελληνικά
Με το παρόν, η JVC KE NWOOD δηλώνει ότ ι ο ραδιοεξοπλισ μός KD-X561DBT/
KD-X56 0BT συμμορφώ νεται με την Οδη γία 2014/53/ΕΕ. Το πλήρες κείμε νο
της δήλω σης συμμόρφω σης της ΕΕ είνα ι διαθέσιμο στ ην ακόλουθη διε ύθυνση
στο διαδ ίκτυο:
Eesti
Käesol evaga JVC KENWOOD ki nnitab, et KD-X561DBT/ KD-X5 60BT
raadiovar ustus on vast avuses direk tiiviga 2014/53/EL. ELi
vastavusdeklaratsio oni terviktekst on kättesaadav järgmisel intern etiaadressil:
Latviešu
JVC KENWOOD a r šo deklarē, ka radi o aparatūra KD-X 561DBT/ KD-X560 BT
atbilst di rektīvas 2014/53/ES p rasībām. Pilns E S atbilstīb as deklarācijas te ksts
ir pieejams š ādā tīmekļa adre sē:
Lietuviškai
Šiuo JVC KENWO OD pažymi, kad r adijo įranga KD-X 561DBT/ KD-X560 BT
atitink a 2014/53/EB direkty vos reikalavimus. V isą EB direkt yvos atitik ties
deklarac ijos tekstą gal ite rasti šiuo inte rnetiniu adres u:
Malti
B’dan, JVC KENWOO D jiddikjara li t-tagħ mir tar-radju KD-X 561DBT/
KD-X56 0BT huwa konformi m ad-Dirett iva 2014/53/UE. It-test kollu t addikjaraz zjoni ta’ konfor mità huwa dispo nibbli fl-ind irizz intrane t li ġej:
Українська
Таким чином, компанія JVC KENWOOD заявляє, що радіообладнання
KD-X561DBT/ KD-X560BT відповідає Директиві 2014/53/EU. Повний текст
деклар ації про відп овідність ЄС мо жна знайти в Інтер неті за такою
адресою:
Türkçe
Burada, JVC K ENWOOD KD-X561DBT/ KD-X56 0BT radyo ekipm anının 2014/53/
AB Direktifine uygun olduğunu bildirir. AB uyumluluk deklarasyonunun tam
metni aş ağıdaki interne t adresinde mevcu ttur.
Русский
JVC KENWOOD настоящим заявляет, что радиооборудование
KD-X561DBT/ KD-X560BT соответствует Директиве 2014/53/EU. Полный
текст дек ларации соот ветствия Е С доступен п о следующе му адресу в
сети Интернет:
Limba română
Prin prez enta, JVC KENWOOD de clară că echipam entul radio KD-X561DBT/
KD-X560BT este în confor mitate cu Direc tiva 2014/53/UE. Textu l integral
al declara ției de conformi tate UE este disp onibil la urmatoare a adresă de
internet:
Български език
С настоящото JVC KENWOOD декларира, че радиооборудването на
KD-X561DBT/ KD-X560BT е в съответс твие с Дирек тива 2014/53/ЕС.
Пълния т текст на ЕС дек ларацията за с ъответс твие е достъ пен на
следния интернет ад рес:
URL: http://ww w.jvc.n et/cs/car/eudoc/
English |
27
Loading...
