Integra DTR-6.3 Owner's Manual

Contents

AV Receiver

DTR-6.3/5.3

Instruction Manual

Before using 2

Facilities and connections 8

Setup and operation 37

Thank you for purchasing the AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.

Remote controller 62

Appendix 75

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safeguards

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

OUVRIR

NE PAS

1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Cleaning – Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned only as recommended by the manufacturer.

6. Attachments – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

7. Water and Moisture – Do not use the appliance near water –for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories – Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. The appliance should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least 20 cm (8 in.) and an opening behind the appliance.

11. Power Sources – The appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.

12. Grounding or Polarization – The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

PORTABLE CART WARNING

S3125A

13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

14. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the appliance, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antennadischarge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1.

15. Lightning – For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges.

16. Power Lines – An outside antenna system should not be lo- cated in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry – Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.

19. Servicing – Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service – Unplug the appliance form the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the

appliance, C. If the appliance has been exposed to rain or water, D. If the appliance does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper ad-

justment of other controls may result in damage and will

often require extensive work by a qualified technician to

restore the appliance to its normal operation, E. If the appliance has been dropped or damaged in any way,

and F. When the appliance exhibits a distinct change in perfor-

mance – this indicates a need for service.

21. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check – Upon completion of any service or repairs to the appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operation condition.

23. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

24. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

25. Liquid Hazards – The appliance shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the appliance.

Precautions

FIGURE 1: EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ELECTRIC SERVICE EQUIPMENT

NEC – NATIONAL ELECTRICAL CODE

S2898A

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

1. Recording Copyright

Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder.

2. AC Fuse

The fuse is located inside the chassis and is not user-serviceable. If power does not come on, contact your Integra/Onkyo authorized service station.

3. Care

From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out dry, and wipe off the dirt. Following this, dry immediately with a clean cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since these could damage the finish or remove the panel lettering.

4. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel.

For U.S. models

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian models

NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES

WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE: CET APPAREIL NUMÉRIQUE DE LA

CLASSE B EST CON-FORME À LA NORME NMB-003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Contents

Before using

Important Safeguards......................................... 2

Precautions ......................................................... 3

Contents .............................................................. 4

Features ...............................................................6

Supplied accessories ......................................... 7

Before using this unit......................................... 7

Installing the remote controller batteries ......................... 7

Using the remote controller.............................................. 7

Facilities and connections

Front panel facilities........................................... 8

Front panel .......................................................... 8

Front panel display ........................................... 11

Remote controller .............................................12

Connections ...................................................... 14

Connections (DTR-6.3) ..................................... 16

Connecting your audio components .............................. 16

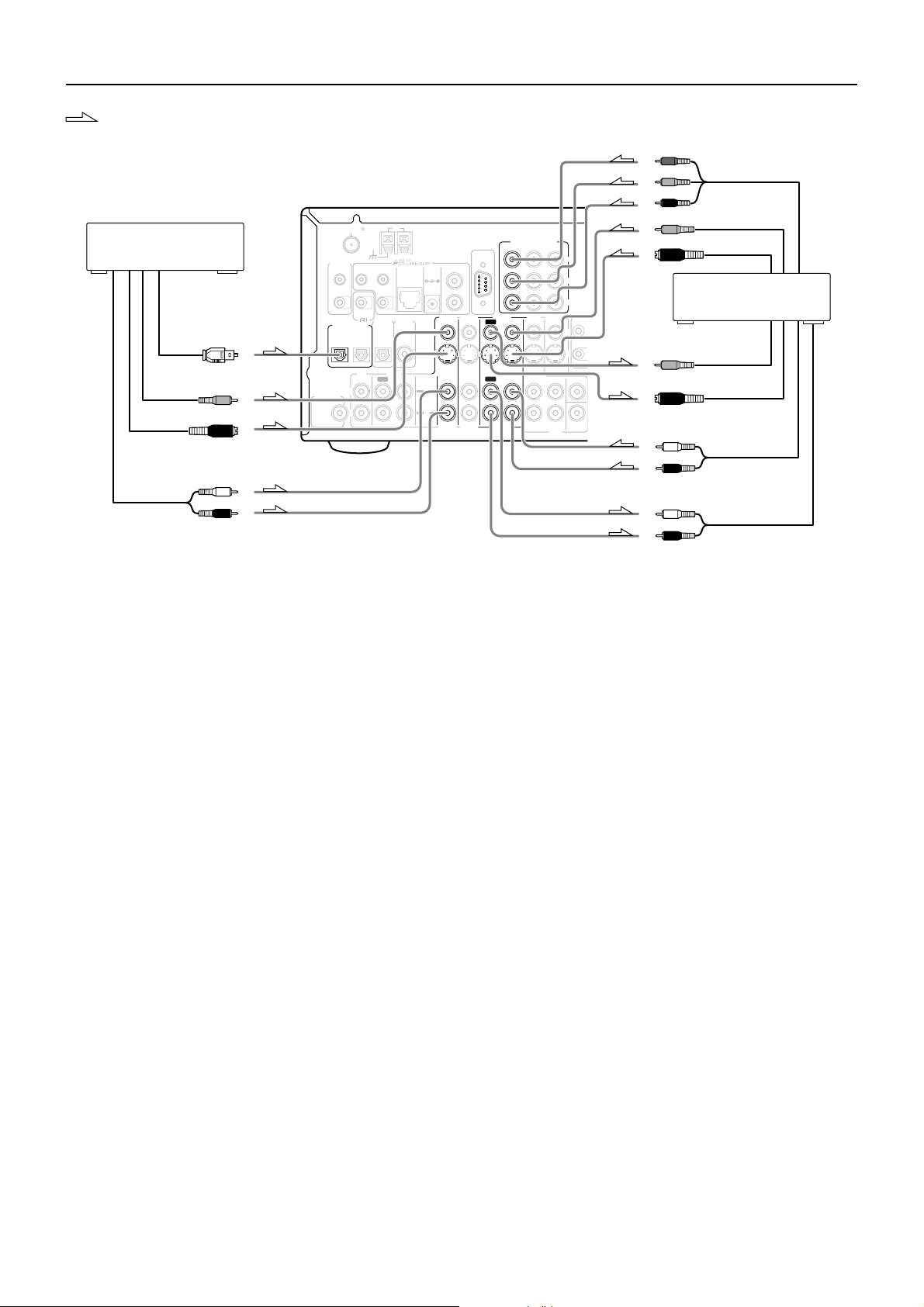

Connecting your video components .............................. 17

PRE OUT ........................................................................ 21

AC OUTLETS ................................................................ 28

RS 232 ............................................................................ 28

A-BUS ............................................................................ 28

12V TRIGGER OUT ...................................................... 28

AC INLET ...................................................................... 28

REMOTE CONTROL ............................................. 29

Connecting the remote zone (Zone 2) speakers

(DTR-6.3 only) .............................................. 22

When using the ZONE 2 SPEAKERS terminals........... 22

When using the ZONE 2 PRE OUT terminals .............. 22

When using the ZONE 2 OUT terminals....................... 22

Connections (DTR-5.3) ..................................... 23

Connecting your audio components .............................. 23

Connecting your video components .............................. 24

AC OUTLETS ................................................................ 28

RS 232 ............................................................................ 28

A-BUS ............................................................................ 28

12V TRIGGER OUT ...................................................... 28

AC INLET ...................................................................... 28

REMOTE CONTROL ............................................. 29

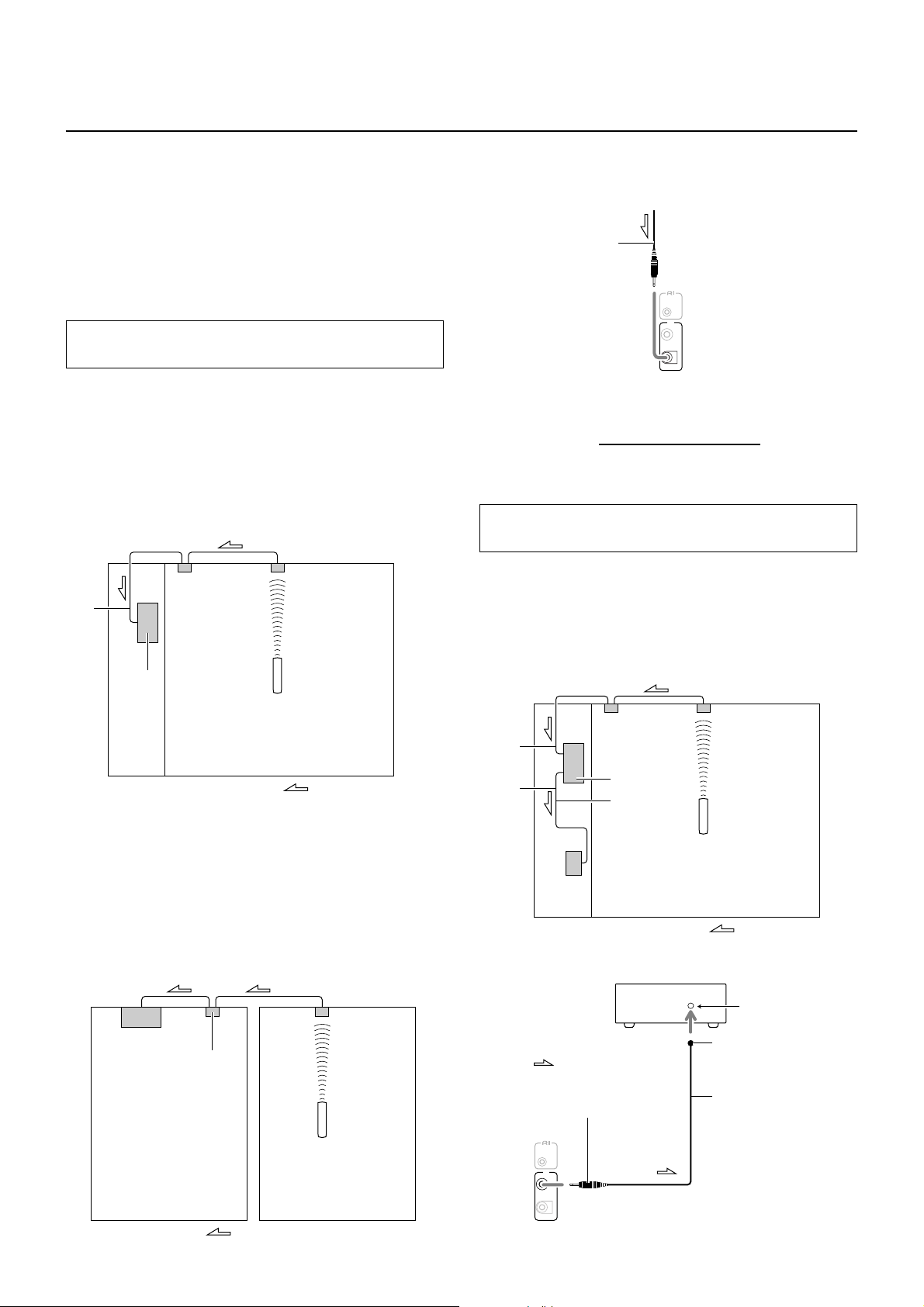

Operating components not reached by the

remote controller signals (IR IN)

(DTR-6.3/5.3) ................................................. 30

If the remote controller signal does not reach the DTR-

6.3/5.3 remote sensor .............................................. 30

If the remote controller signal does not reach other

components ............................................................. 30

Connecting speakers ....................................... 31

Standard speaker setup for surround sound ................... 31

Minimum speaker configuration for

surround sound playback ........................................ 31

Speaker placement .......................................................... 31

Using the speaker cable labels ....................................... 31

Connecting speakers ....................................................... 32

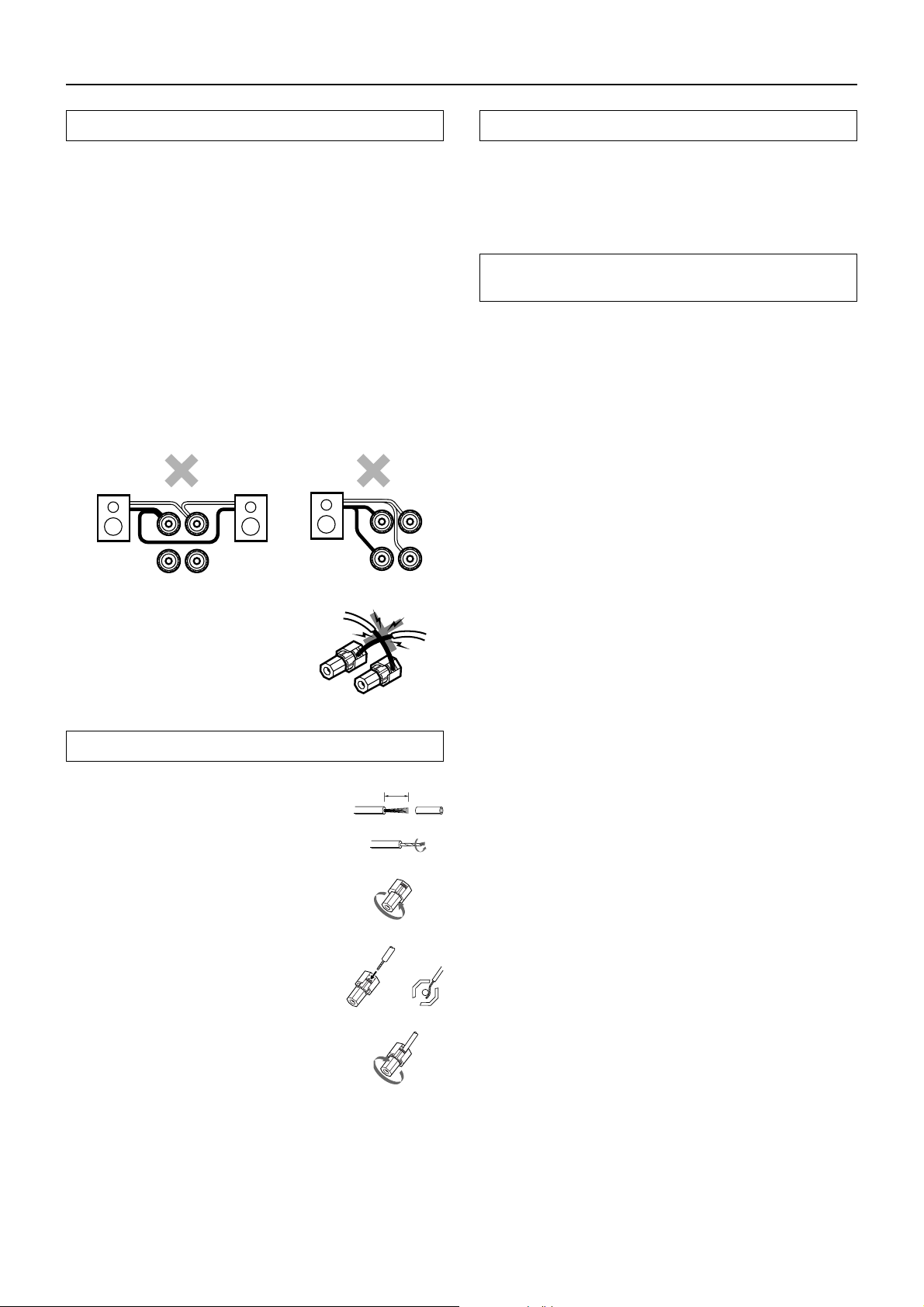

Connecting the speaker cable ......................................... 32

Connecting a subwoofer ................................................. 32

Connecting to the SPEAKERS B terminals

(DTR-5.3 only) ....................................................... 32

Connecting the power ...................................... 34

Turning on the power ..................................................... 34

Turning on the power from the remote controller ........ 34

Connecting antennas ....................................... 35

Assembling the AM loop antenna.................................. 35

Connecting the AM antenna cable ................................. 35

Connecting the included antennas ................................. 35

Connecting an FM outdoor antenna............................... 36

Connecting an AM outdoor antenna .............................. 36

Directional linkage ......................................................... 36

Setup and operation

Configuring the speakers ................................ 37

Displaying the Main Menu ............................................ 37

Speaker Configuration ................................................... 37

Setting the speaker distance from

your normal listening position ................................ 39

Calibrating the speaker levels ........................................ 39

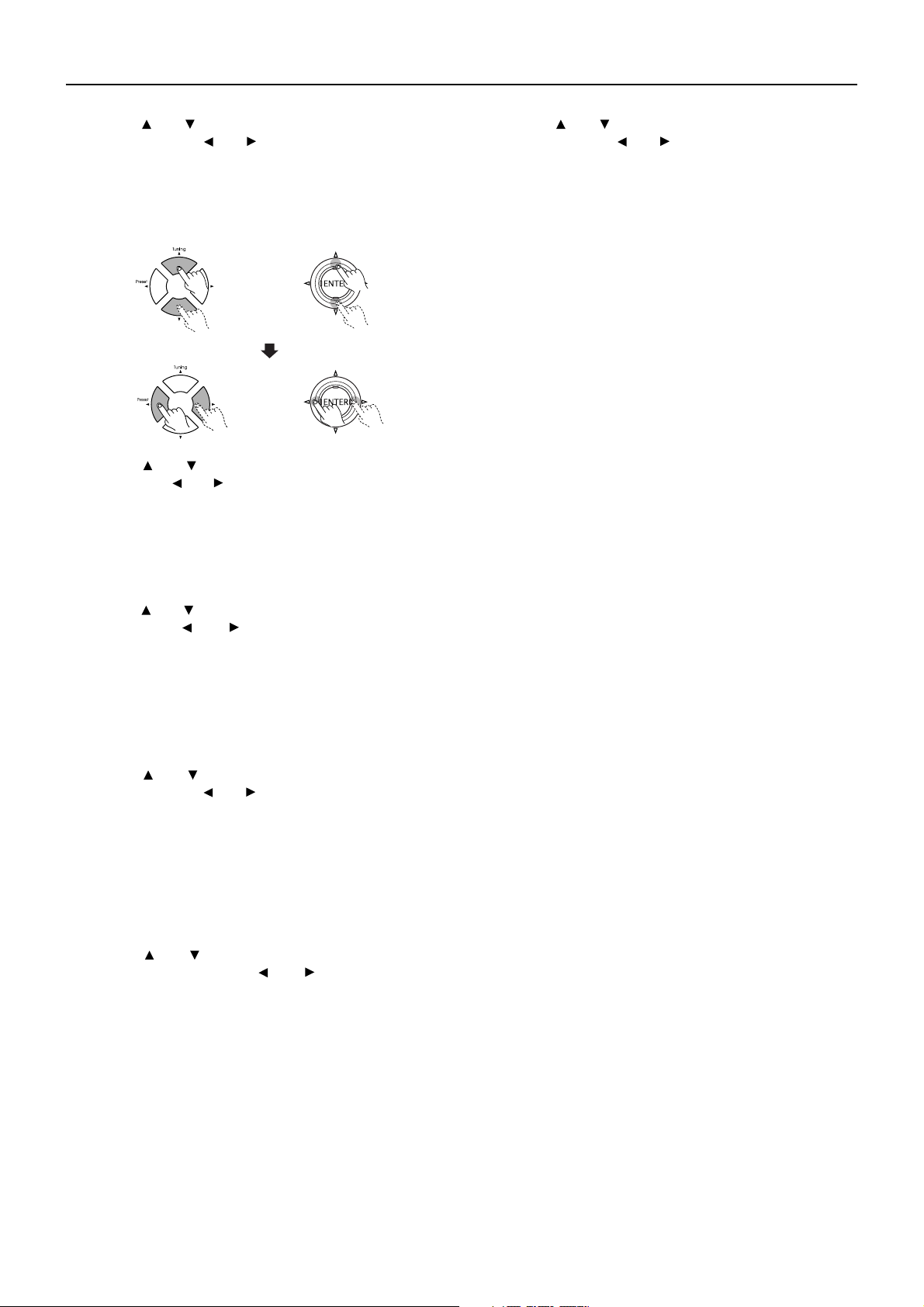

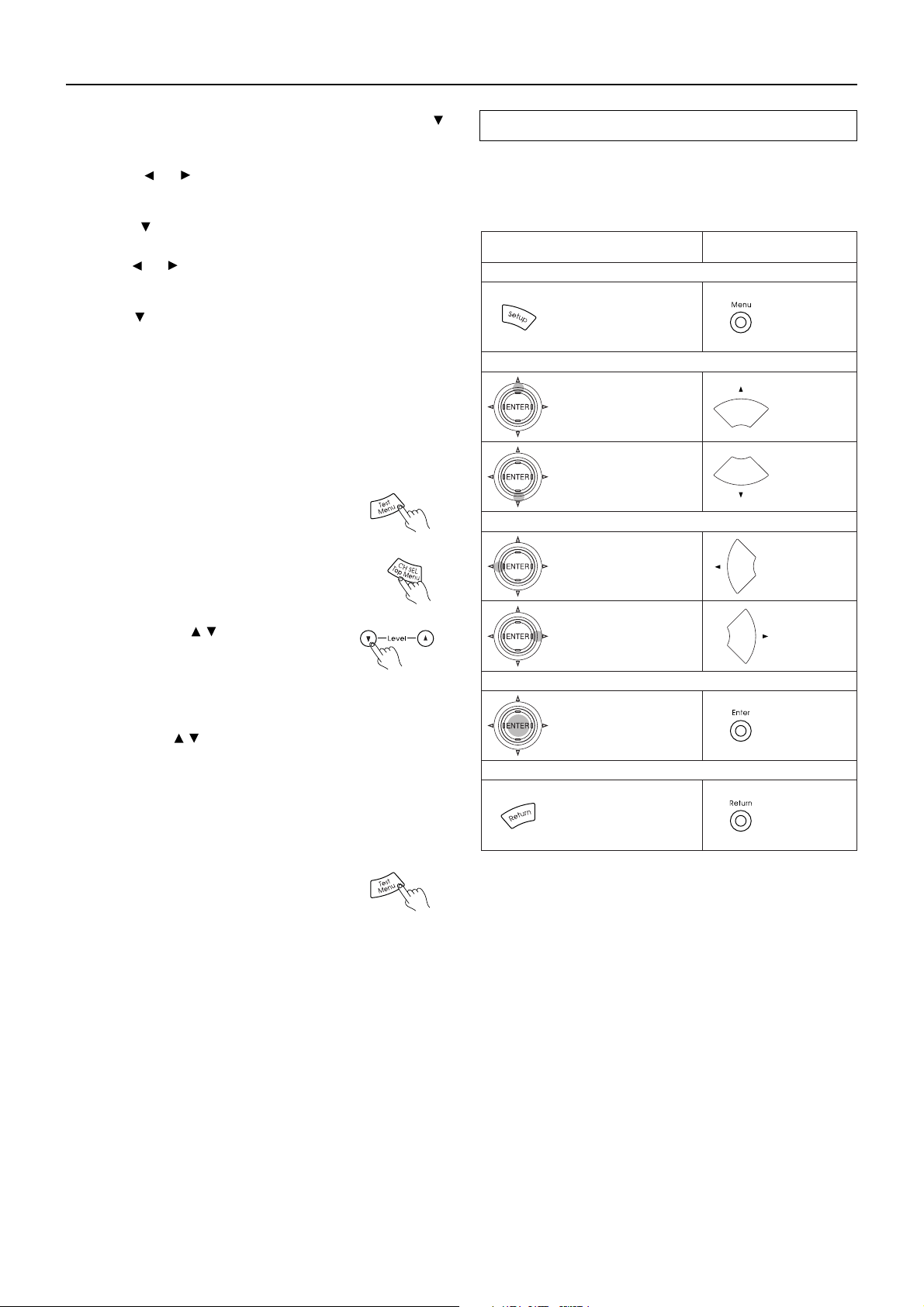

Buttons used for navigating through the menus ............ 40

Listening to Radio Broadcasts........................ 41

Tuning into a radio station ............................................. 41

Listening to a stereo radio station (FM mode) .............. 41

Presetting a radio station ................................................ 42

Selecting a preset radio station ...................................... 42

Erasing a preset radio station ......................................... 42

Contents

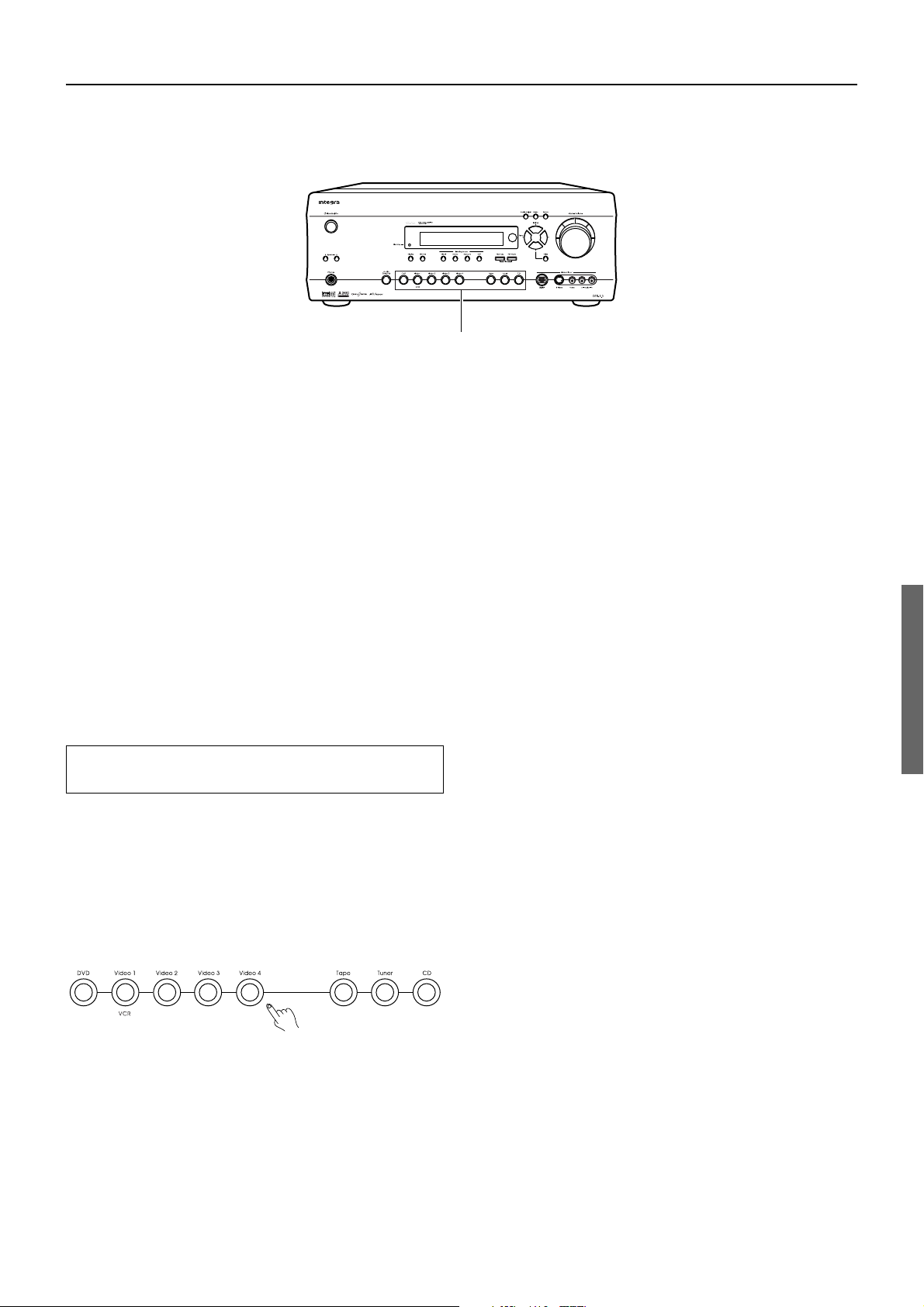

Selecting an Audio Component ...................... 43

Basic operation (DTR-6.3) ............................................. 43

Basic operation (DTR-5.3) ............................................. 44

Selecting speakers (Speakers A, B) (DTR-5.3 only)..... 44

Selecting the type of audio input signal......................... 45

Temporarily changing the speaker output levels ........... 45

To change the display of the input source

from TAPE to MD ................................................... 45

Using the sleep time (remote controller only) ............... 46

Listening with headphones............................................. 46

Enjoying DVD multichannel audio playback ................ 46

Switching the display ..................................................... 47

Temporarily turning off the sound ................................. 47

Listening Modes ............................................... 48

Selecting a listening mode ............................................. 50

Original filter (CinemaFILTER) loading for movies .... 51

Input Setup ........................................................ 52

OSD Setup and Other Settings........................ 55

OSD Setup ...................................................................... 55

Preference ....................................................................... 55

Audio Adjust...................................................... 56

Enjoying music in the remote zone

(DTR-6.3 only) .............................................. 59

Using the buttons on the DTR-6.3 ................................. 59

Using the remote controller............................................ 59

Adjusting the volume for the remote zone .................... 59

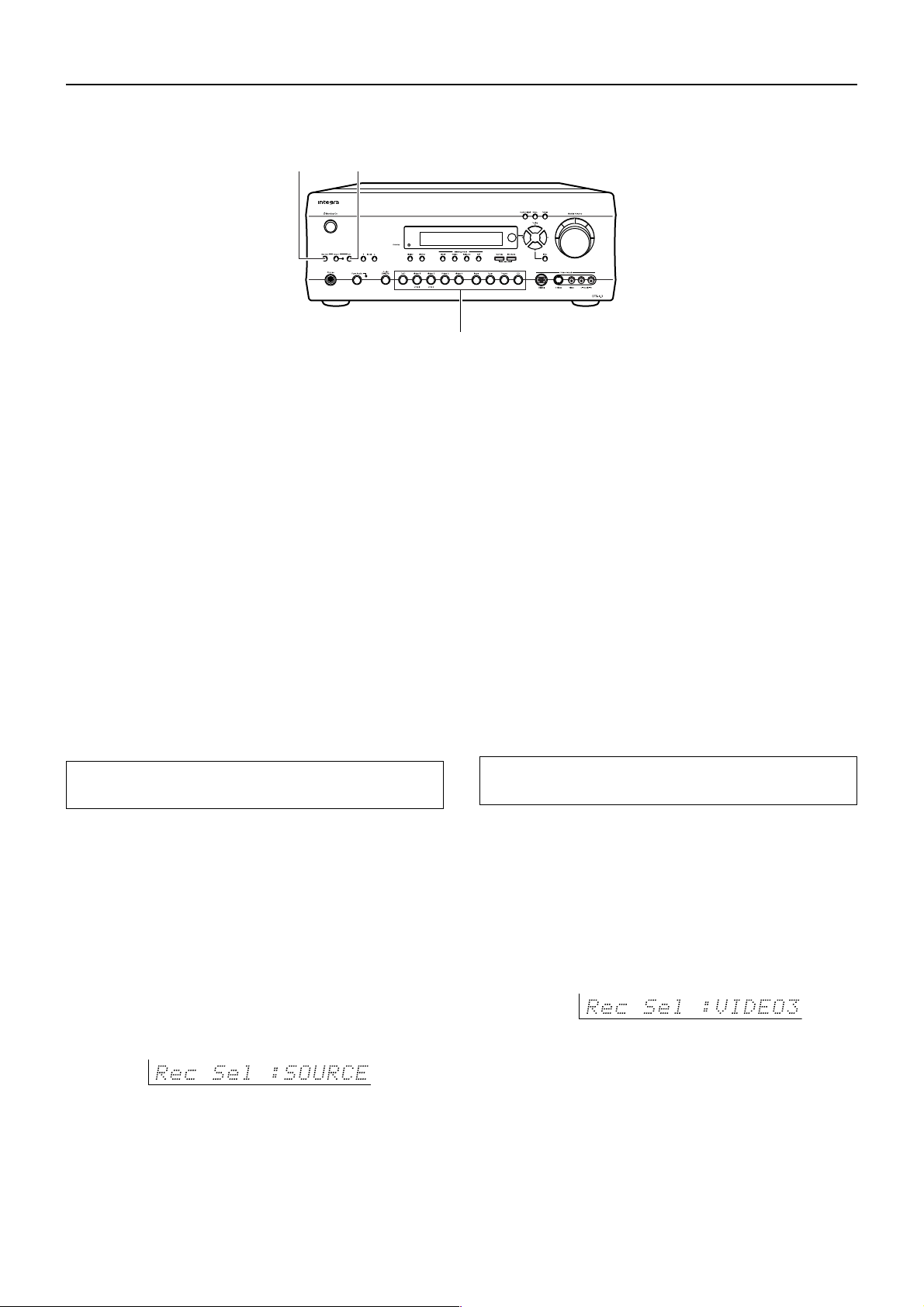

Recording a source (DTR-6.3) .........................60

To record the input source signal you are currently

watching or listening to .......................................... 60

To record an input source signal different from that you

are currently watching or listening to..................... 60

Recording a source (DTR-5.3) .........................61

To record the input source signal you are currently

watching or listening to .......................................... 61

Operating your programmed

remote controller ......................................... 68

DVD Mode (DVD Player Mode) ................................... 68

VCR Mode (VCR Mode) ............................................... 68

TV Mode (TV Mode) ..................................................... 68

Programming the commands of remote

controllers for other devices into the

remote controller ......................................... 69

Programming procedure ................................................. 69

Erasing the programmed command from one button .... 71

Erasing all the commands programmed under a Mode

button....................................................................... 71

Using the macro function ................................ 72

What is the macro function? .......................................... 72

Programming the macro ................................................. 72

Executing the macro ....................................................... 72

Erasing a macro from the Macro 1 (or 2) button ........... 73

Erasing all commands and macros that have been

programmed ............................................................ 73

Macro mode programming memo.................................. 74

Appendix

Troubleshooting guide .....................................75

POWER .......................................................................... 75

SPEAKERS .................................................................... 75

FM/AM TUNER............................................................. 75

VIDEO and AUDIO ....................................................... 76

REMOTE CONTROLLER ............................................ 76

OTHER ........................................................................... 76

If one of the messages shown below appears ................ 77

Specifications (DTR-6.3) .................................. 78

Specifications (DTR-5.3) .................................. 79

Remote controller

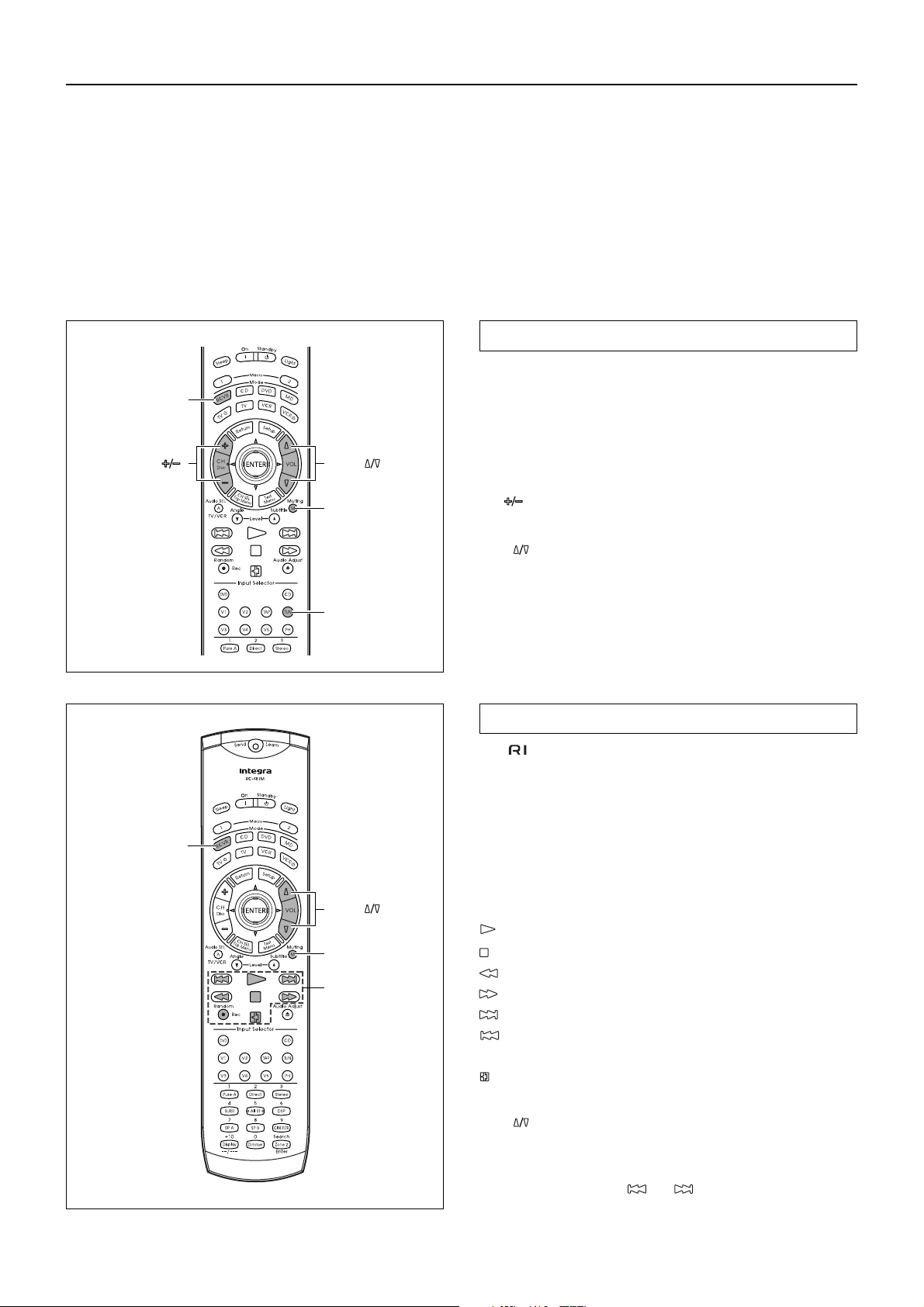

Using remote controller ................................... 62

Overview ........................................................................ 62

Calling up a preset radio station .................................... 62

Controlling an Onkyo cassette tape deck ...................... 62

Controlling an Integra/Onkyo CD player ...................... 63

Controlling an Integra/Onkyo DVD player ................... 64

Controlling an Integra/Onkyo MD recorder .................. 65

Entering a pre-programming code.................. 66

Learning a pre-programming code................................. 66

Pre-programming codes ................................................. 67

Features

DTR-6.3

Amplifier Features

■ 100 W × 2 (Front)/ 100 W (Center)/ 100 W × 2 (Surround)/ 100 W (Surround Back) at 8 ohms, 20 Hz 20 kHz, 0.08 % THD (FTC rated)

■ Wide Range Amplifier Technology (WRAT)

■ Powered Zone 2 Capability

■ State-of-the-art linear PCM 192kHz/24-bit DACs

for L/R channels

■ Optimum gain volume circuitry

■ A-BUS Ready

Audio/Video Features

■ Dolby®* Digital, Dolby Digital EX, Dolby Pro Logic II

■ DTS, DTS-ES Extended Surround, DTS Neo:6

■ Non-Scaling Configuration

■ CinemaFILTER

■ “Easy-set” speaker configuration

■ Pure Audio Mode

■ Crossover Adjustment (80/100/120 Hz)

■ Onscreen graphical displays

■ Digital Outputs (1 coaxial, 1 optical)

■ 2 component video inputs and 1 output

■ 3 Assignable digital inputs (1 coaxial, 2 optical)

■ 5 S-Video inputs and 3 outputs

■ Front panel A/V, S-Video, Optical inputs

■ Multi channel input for DVD-Audio

■ Rec out selector and Zone 2 selector

■ Pre-out terminals for Front L/R, Center, Surround

L/R, Surround Back, Subwoofer and Zone 2 L/R

■ Zone 2 Line out

■ Color-coded speaker terminals

DTR-5.3

Amplifier Features

■ 80 W × 2 (Front)/ 80 W (Center)/ 80 W × 2 (Surround)/ 80 W (Surround Back) at 8 ohms, 20 Hz - 20 kHz,

0.08 % THD (FTC rated)

■ Wide Range Amplifier Technology (WRAT)

■ State-of-the-art linear PCM 192kHz/24-bit DACs

for L/R channels

■ Optimum gain volume circuitry

■ A-BUS Ready

Audio/Video Features

■ Dolby®* Digital, Dolby Digital EX, Dolby Pro Logic II

■ DTS, DTS-ES Extended Surround, DTS Neo:6

■ Non-Scaling Configuration

■ CinemaFILTER

■ “Easy-set” speaker configuration

■ Crossover Adjustment (80/100/120 Hz)

■ Onscreen graphical displays

■ Optical Digital Output

■ 2 component video inputs and 1 output

■ 3 Assignable digital inputs (1 coaxial, 2 optical)

■ 5 S-Video inputs and 2 outputs

■ Front panel A/V, S-Video, Optical inputs

■ Multi channel input for DVD-Audio

■ Pre-out terminal for Subwoofer

■ Color-coded speaker terminals

■ A/B speaker drive

FM/AM Tuner Features

■ 40 FM/AM random presets

■ FM auto tuning

FM/AM Tuner Features

■ 40 FM/AM random presets

■ FM auto tuning

Other Performance Features

■ IntelliVolume

■ 12V Trigger output (A/B/for Zone 2)

■ IR input/output terminals

■ Powerful backlit/preprogrammed learning remote

with macro and mode-key LEDs

Other Performance Features

■ IntelliVolume

■ 12V Trigger output (A/B)

■ IR input/output terminals

■ Powerful backlit/preprogrammed learning remote

with macro and mode-key LEDs

* Manufactured under license from Dolby Laboratories.

“Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.

•“DTS,” “DTS-ES Extended Surround,” and “Neo:6” are trademarks of Digital Theater Systems, Inc.

• Xantech is a registered trademark of Xantech Corporation.

• Niles is a registered trademark of Niles Audio Corporation.

Supplied accessories

Check that the following accessories are supplied with the DTR-6.3/5.3.

AM loop antenna × 1

Remote controller (RC-481M) × 1

FM indoor antenna × 1

Left

Front

Right

Zone 2

Surround

SP-B

Zone 2

Front

Left

Front

Right

SP-B

Left

SP-B

Right

Surround

Front

Left

Front

Right

SP-B

Left

SP-B

Right

Speaker Cable

Left

Right

Center

Zone 2

Surround

Surround Back

Zone 2

Left

Surround

Right

Center

Left

Zone 2

Left

Surround Back

Right

Surround Back

Left

Surround

Right

Center

Surround

Left

Surround Back

Left

Speaker cable label × 1

Batteries (AA, R6 or UM-3) × 2

Before using this unit

Installing the remote controller batteries

1. Remove the battery compartment cover by pressing it and sliding it in the direction shown by the arrow below.

2. Insert two AA (R6 or UM-3) batteries into the battery compartment. Carefully follow the polarity diagram (positive (+) and negative (–) symbols) inside the battery compartment.

3. After the batteries are installed and seated correctly, replace the compartment cover.

Power cord × 1

Right

Zone 2

Right

Zone 2

Right

Protective caps

For digital jack × 1

For analog jack × 1

Protective caps for the Video4 jacks

on the front of the DTR-6.3/5.3. Be

sure to always attach the protective

caps when you are not connecting a

device to the VIDEO 4 jacks.

Using the remote controller

Point the remote controller toward the remote control sensor. The STANDBY indicator lights up when the unit receives a signal from the remote controller.

Remote control sensor

STANDBY indicator

DTR-6.3/5.3

321

Notes:

• Do not mix new batteries with old batteries or different kinds of batteries.

• To avoid corrosion, remove the batteries if the remote controller

will not be used for a long time.

• Remove dead batteries immediately to avoid damage from corrosion. If the remote controller does not operate smoothly, remove the old batteries and replace them both with two new AA batteries.

30˚

Approx. 16 feet

(5 meters)

Notes:

• Make sure that the remote control sensor is not subject to strong light such as direct sunlight or inverted fluorescent light for it may prevent proper operation of the remote controller.

• Using another remote controller in the same room or using the DTR-6.3/5.3 near equipment that uses infrared rays may cause operational interference.

• Do not put objects on the remote controller. Its buttons may be pressed by mistake and drain the batteries.

• Make sure the audio rack doors do not have colored glass. Placing the DTR-6.3/5.3 behind such doors may prevent proper remote controller operation.

• If there is any obstacle between the remote controller and the remote control sensor, the remote controller will not operate.

Front panel facilities

Here is an explanation of the controls and displays on the front panel of the DTR-6.3/5.3.

Front panel

<DTR-6.3>

<DTR-5.3>

Front panel facilities

For further operational instructions, see the pages indicated in brackets [ ].

Standby/On button [34]

If pressed with the receiver plugged in, the DTR-6.3/5.3 turns on and the display lights up. If pressed again, the DTR-6.3/5.3 returns to the standby state. In the standby state, the display is turned off and the DTR-6.3/5.3 cannot be operated.

Standby indicator [7, 34]

Lights when the DTR-6.3/5.3 is in the standby state and when a signal is received from the remote controller.

Display button [47]

Press to display information about the current input source signal. Each time you press the Display button, the screen changes to show you different information concerning the input signal.

Dimmer button

Press to set the brightness of the front display. There are 3 settings available: normal, dark, and very dark.

• The brightness of the front display can also be performed using the remote controller.

Listening Mode buttons [48-51]

Press these buttons to select a listening mode for the current input source. Press the Direct, Stereo, and Surround buttons to select a listening mode directly. Press the DSP button to select any of the possible listening modes for the input source currently selected.

Note:

During playback of a multichannel source, press the Direct button to turn off the tone control and the Surround button to turn on the tone control. [47]

Front display

Tuning / , Preset / , cursor ( / / / ) buttons [37, 41, 42]

To tune into a radio station, press the Tuning frequency is displayed in the front display and it can be changed in 50kHz increments for FM and 10-kHz increments for AM. When FM is selected as the input source, you can hold down either the Tuning search feature. It will search for a station in the direction of the button you pressed and stop when it tunes into one. When navigating through the menu settings, these buttons move the cursor up or down (or change the highlighted item). To select a radio station that was stored using the Memory button, press the Preset When navigating through the menu settings, these buttons select the value or item that you selected with the Tuning When you press the Menu button, the Tuning and Preset buttons become cursor buttons to be used for Setup Menu operations.

Press to display the screen for the item that is selected in the Setup Menu.

DTR-5.3:

Use to control the volume.

DTR-6.3:

Use to control the volume in the main zone. The volume for the remote zone (Zone 2) is independent.

Protective caps are provided for the Video 4 jacks. Be sure to always attach the protective caps when you are not connecting a device to the Video 4 jacks.

or button and then release it to activate the auto-

/ buttons.

Enter button [37]

Master Volume dial [43, 44]

Video 4 Input terminals [21, 28]

/ buttons. The tuner

/ buttons.

Memory button [42]

Press to assign the radio station that you are currently tuned into to a preset channel or press to delete a previously preset station.

FM Mode button [41]

Press to change the stereo mode from AUTO to MONO and vice versa. Each time this button is pressed, the AUTO indication turns on and off indicating the current mode. If you are listening to an FM radio station in stereo and the sound cuts out or there is a great deal of noise, switch from AUTO to MONO.

Remote control sensor [7]

Audio Adjust button [56]

Press to adjust the sound quality and the listening mode.

Menu button [37]

Press to enter the Setup Menu. The OSD Menu will appear on the TV monitor as well as the front display on the DTR-6.3/5.3.

Return button [37]

When in the Setup Menu, press to go back one level. If pressed while at the Main Menu, you will exit the Setup Menu.

Protective caps

Input source buttons (DVD, Video 1–4, Tape, Tuner, Phono (DTR-6.3 only), and CD) [43, 44, 52]

DTR-5.3:

These buttons are used to select the input source.

DTR-6.3:

Press these buttons to select the input source for the main zone. To select the input source for the remote zone (Zone 2) or recording out (Rec Out), first press the Zone 2 or Rec Out button, and then press the desired input source button. The input channel with its indicator lit red is output to Rec Out and the one with its indicator lit green is output to Zone 2.

Audio Selector button [45]

Press to select the type of audio input signal.

Pure Audio button and indicator (DTR-6.3 only) [49, 50]

Press to select the Pure Audio mode. The Pure Audio indicator lights during pure audio playback.

Phones jack [46]

This is a standard stereo jack for connecting stereo headphones.

Front panel facilities

Rec Out, Zone 2, Off, Level / buttons, and Zone 2 indicator (DTR-6.3 only) [60]

The Rec Out and Zone 2 buttons allow you to use the DTR-6.3 to output to a remote zone (Zone 2) or to another component for recording (Rec Out). Press the Rec Out button to output the audio and video signals to a recording component for recording. Press the Zone 2 button to enjoy the output from the DTR-6.3 in a different room, which is referred to as the remote zone (Zone 2). When either button is pressed, the currently selected input source for recording or outputting to the remote zone is displayed in the front panel display. If “SOURCE” is displayed, then the same input source as that selected for the main zone will be output. To select an input source, press the desired button (Rec Out or Zone

2) and then press one of the input source button within 5 seconds. That source will be output for recording or viewing in the remote zone. To set the output to the source channel, press the desired button (Rec Out or Zone 2) twice in succession. To turn off the output, press the Off button. The Zone 2 indicator lights when a signal is output to the remote zone (Zone 2). When the Zone 2 indicator is off, then either output to the remote zone is turned off or Rec Out is selected. Press the Level the remote zone (Zone 2).

Note:

The Rec Out and Zone 2 buttons use the same circuit and therefore cannot be used at the same time. When Rec Out is selected, nothing is output to Zone 2. When Zone 2 is selected, Rec Out is automatically fixed to SOURCE.

/ buttons to enter the mode for adjusting the volume in

Speakers A/B buttons (DTR-5.3 only) [44]

Press these buttons to turn on and off speakers systems A and B.

Front panel facilities

Front panel display

<DTR-6.3>

<DTR-5.3>

MUTING indicator

Flashes when the mute function is turned on.

Listening mode or digital input format indicators

One of these indicators lights to show the format of the current input source. In addition, one of the listening mode indicators lights to indicate the current listening mode.

Tuning indicators

TUNED indicator

Lights when a radio station is received.

AUTO indicator

Lights when receiving FM broadcasts in the stereo mode. Turns off when placed into the monaural mode.

MEMORY indicator

Lights when the Memory button is pressed to preset a radio station.

FM STEREO indicator

Lights when an FM broadcast station is received in stereo.

Multi function display

During normal operation, shows the current input source and volume. When the FM or AM input is selected, shows the frequency and preset number. When the Display button is pressed, shows the listening mode and input source format. However, does not show the source format when the FM or AM source is selected.

SLEEP indicator

Lights when the sleep timer is turned on.

ZONE 2 indicator (DTR-6.3 only)

Lights when using the remote zone (Zone 2).

REC OUT indicator (DTR-6.3 only)

Lights when recording the input source from one component to another (Rec Out).

Speakers A/B indicators (DTR-5.3 only)

Indicates which speaker system is currently in use.

Remote controller

Send/Learn indicator

Lights red when signals are sent by the remote controller. It also flashes when a button is pressed when the battery power is low.

On/Standby button [34]

On: Press to turn on the DTR-6.3/5.3. Standby: Press to place the DTR-6.3/5.3 in the standby state.

Be aware that pressing the Standby button only places the DTR-6.3/

5.3 in standby and does not turn the power completely off.

Sleep button [46]

Press to set the sleep function. The Sleep button enables you to set the DTR-6.3/5.3 to turn off automatically after a specified time period.

Macro 1, 2 button [72]

Press to program or execute the macro function.

Mode buttons and indicators [43, 44, 62–65]

Press to select the component to be operated by the remote controller. When a Mode button is pressed, it will light green for 8 seconds. The selected Mode button will also light whenever any other operation button is pressed.

Return button [34]

Press to enter the selected setting and return to the previous menu.

CH , Disc button

Press to select a preset channel for the tuner (CH). [42] When the CD mode is selected, also press to select a disc when operating components with disc changers (Disc). [63]

CH SEL/Top Menu button

Press to select a speaker channel when adjusting the speaker level (CH SEL). [40] When the DVD mode is selected, press to display the menu screens of the DVD player (Top Menu). [64]

Audio SEL/TV/VCR button [45]

Press to select the audio input signal. The setting changes from

“Auto” to “Multich” (only if DVD is selected as the input source) to “Analog” and back each time this button is pressed.

Level /Angle and Level /Subtitle buttons

Press to adjust the volume of the speaker selected using the CH SEL button (Level / ). [40] Press the Angle button to select a camera angle when playing a DVD-Video with multiple angle playback. Press the Subtitle button to select a subtitle language when playing a DVD-Video. [64]

CD/TAPE/DVD/MD operation buttons [62–65]

Press to operate other Integra/Onkyo components connected to the DTR-6.3/5.3 using the

terminals.

Remote controller

INPUT SELECTOR buttons [43, 44, 52]

Press to select an input source. Same as the input selector buttons on the front panel of the DTR-6.3/

5.3. The input source for each button is given here. DVD:DVD, CD:CD, V1:VIDEO1, V2:VIDEO2, V3:VIDEO3, V4:VIDEO4, V5:VIDEO5 (not used with the DTR-6.3/5.3), TAP:TAPE, TUN:FM/AM, PH:PHONO (not used with the DTR-5.3).

Numeric key/Listening mode, SP A, SP B, CINE FLTR, Display, Dimmer buttons

1 to 9, +10, --/---, 0: For entering the number of a track. [63–65]

Pure A:

DTR-5.3: Not used with the DTR-5.3. DTR-6.3: Press to select the Pure Audio mode. [50]

Direct, Stereo, SURR, All ST, DSP: You can select a listening

mode. [50]

Note:

During playback of a multichannel source, press the Direct button to turn off the tone control and the SURR button to turn on the tone control. [47]

SP A, SP B:

DTR-5.3: Switches between speakers A and B. [44] DTR-6.3: Not used with the DTR-6.3.

CINE FLTR: Depending on the listening mode, you can turn the

CinemaFILTER function on or off. [51]

Display: For changing the display in the front display. [47] Dimmer: Adjusts the display brightness.

There are three settings available: normal, dark, and very dark.

Zone 2/Search/Enter button

When the DVD mode is selected, press to find the specific section on a DVD where you want to start playback (Search). [64]

DTR-6.3: When in the RCVR mode, press to perform operations on the remote zone (Zone 2). [59]

DTR-5.3: Switches the audio signal output to the A-BUS keypad. [28]

When in the MD mode, press to enter the selected song (Enter). [65]

Light button

Press to turn on and off the lights in the buttons of the remote controller.

Setup button [37]

Press to display the Setup Menu on the TV screen and in the display. Press again to exit the menu.

/ / / , ENTER button [37]

When in the Setup Menu, press the upper and lower arrow buttons to select an item, press the right and left arrow buttons to select parameter values or modes, and press the ENTER button to advance to the next item.

VOL button [43, 44]

Press to adjust the volume.

Test/Menu button

This button is used to set the speaker output levels. Use this button in conjunction with the Level speakers levels without entering the Setup Menu. [40]

When the DVD mode is selected, press to display the DVD menu (Menu). [64]

Muting button [47]

Press to activate the mute function.

/ and CH SEL buttons to calibrate the

Connections

• Be sure to always refer to the instructions that came with the component that you are connecting.

• Do not plug in the power cord until all connections have been properly made.

• For input jacks, red connectors (marked R) are used for the right channel, white connectors (marked L) are used for the left channel, and yellow connectors (marked V) are used for video connection.

• Insert all plugs and connectors securely. Improper connections can result in noise, poor performance, or damage to the equipment.

Improper connection

Inserted completely

• Do not bind audio/video connection cables with power cords and speaker cables. Doing so may adversely affect the picture and sound quality.

Optical digital terminals

The optical digital terminals are provided with protection caps. Before you connect a cable to a terminal, remove the cap and keep it safely. If you disconnect the cable, put the cap back on the terminal.

Cables are depicted in the connection diagrams as shown below.

Left (white)

Right (red)

Audio connection cable

Component video connection cable

Video connection cable

S video connection cable

Coaxial cable

Optical cable

Connections

DTR-6.3

[35]

12V TRIGGER OUT [28]

Connecting a subwoofer [32]

ANTENNA

TRIGGER

DIGITAL INPUT

SUBWOOFER PRE OUT

12 V OUT

ZONE 2 LINE OUT [22]

A-BUS [28]

IR OUT

ZONE 2

40K

56K

ZONE 2

OPTICAL

OUT

VIDEO 3

DIGITAL

COAXIAL

OUTPUT

OPTICAL

COAXIAL

DIGITAL

INPUT

OUT

TAPE

VIDEO 3

Connecting your audio components [16]

RS 232 [28]

PHONO IN

COMPONENT VIDEO

INPUT 2

RS232

ZONE 2

LINE OUT

DC IN

24V 1A

VIDEO 1

VIDEO 2

OUT

VIDEO 2

OUT

VIDEO 1

Connecting your video components [17]

REMOTE

CONTROL [29]

GND

OUTPUT

INPUT 1

DVD

MONITOR

OUT

SURR

CENTER

FRONT

SUB WOOFER

DVD

FRONT SPEAKERS

REMOTE CONTROL

OUT

AV RECEIVER

MODEL NO.

RATING:

V 60 Hz

AC 120

DTR-6.3

IR IN/OUT [30]

When using the ZONE 2 SPEAKERS terminals [22]

Connecting speakers [32]Connecting antennas

6.7

ZONE SPEAKERS

PRE OUT

27122979

SURROUND SPEAKERS

SURROUND

FRONT

PRE OUT [21]

AC OUTLETS [28]

CENTER

SURROUND

BACK

ZONE 2

SPEAKER

SURROUND BACK SPEAKER

AC 120 V 60 Hz SWITCHED

TOTAL 120 W 1 A

AC INLET

AC OUTLETS

AC INLET [28]

When using the ZONE 2 PRE OUT terminals [22]

MAX.

DTR-5.3

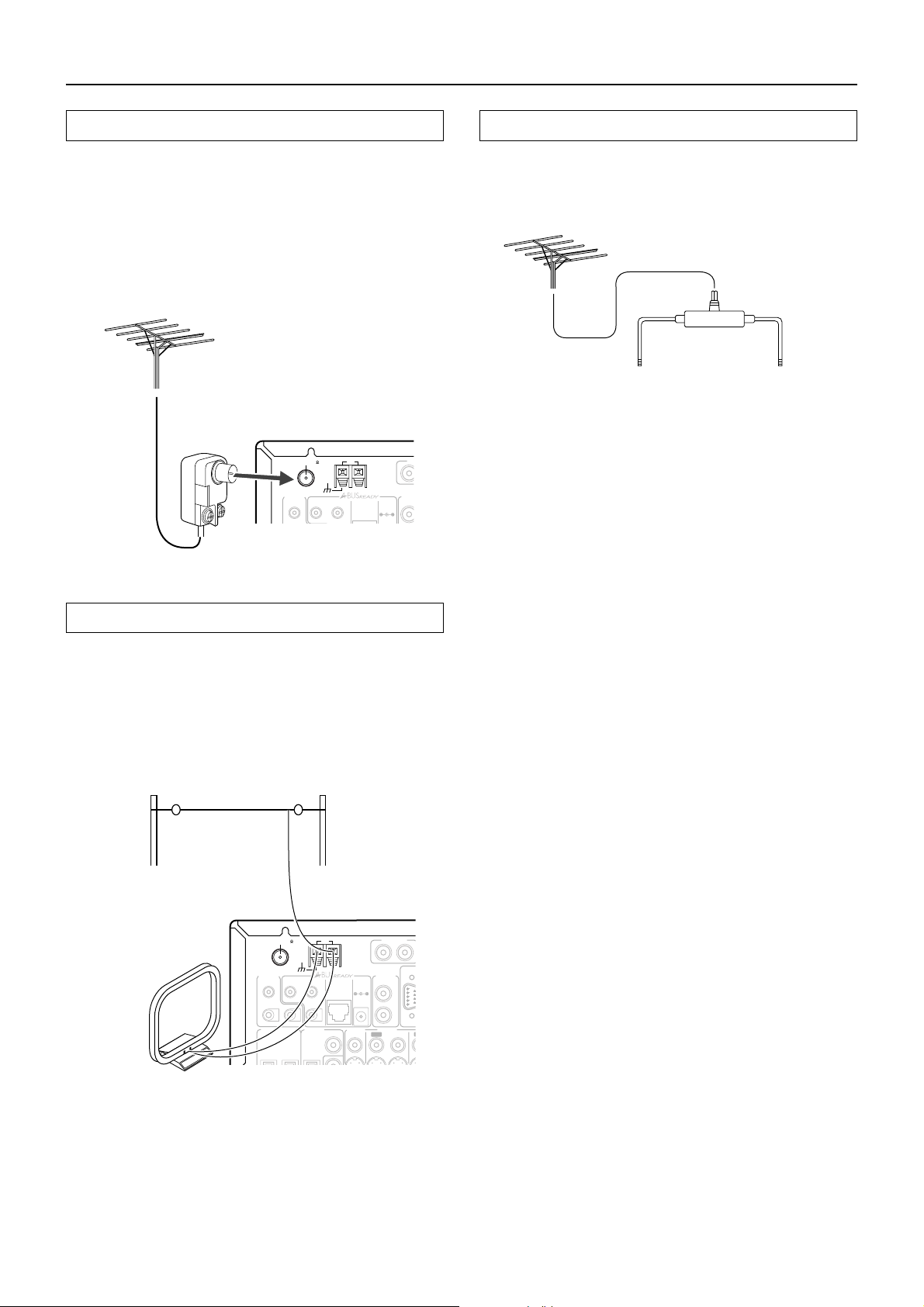

Connecting antennas [35]

12V TRIGGER OUT [28] A-BUS [28] RS 232 [28]

ANTENNA

12 V

TRIGGER

OUT

DIGITAL INPUT

SUBWOOFER PRE OUT

REMOTE

CONTROL [29]

Connecting a subwoofer [32]

IR OUT

OPTICAL

56K

REMOTE CONTROL

IR OUT

40K

DIGITAL OUTPUT

OPTICAL

DIGITAL

INPUT

COAXIAL

ZONE 2

LINE IN

DC IN

OUT

24V 1A

VIDEO 3

TAPE

OUT

VIDEO 3

Connecting your audio components [23]

VIDEO 2

COMPONENT VIDEO

INPUT 1

INPUT 2

RS232

VIDEO 1

OUT

ININ

OUT

VIDEO 1

FRONT

Connecting your video components [24]

IR IN/OUT [30]

OUTPUT

DVD

MONITOR

OUT

SURR

CENTER

SUB WOOFER

DVD

Connecting speakers [32] AC OUTLETS [28]

FRONT SPEAKERS

DTR-5.3

5.5

OUT

AV RECEIVER

MODEL NO.

RATING:

V 60 Hz

AC 120

SURROUND SPEAKERS

CENTER SPEAKER

AC OUTLETS

AC 120 V 60 Hz SWITCHED

TOTAL 120 W 1 A

MAX.

SURROUND BACK SPEAKER

AC INLET

AC INLET [28]

Connections (DTR-6.3)

Here is an explanation of typical ways to connect various components to the DTR-6.3. There are many ways that any one component can be connected, and it is up to you to decide which method best fits your situation. The directions given here are only one option and should only be thought of as such. It is best to fully understand the nature of each connector and terminal as well as those of your components and their features to ascertain which method of connection is best.

L (white)

: Signal flow

ANTENNA

12 V

TRIGGER

IR OUT

1. CD player (CD)

Digital audio output (optical)

Analog audio output

L (white)

R (red)

SUBWOOFER PRE OUT

OUT

DIGITAL INPUT

OPTICAL

56K

ZONE 2

40K

OUT

VIDEO 3

DIGITAL

COAXIAL

OUTPUT

OPTICAL

COAXIAL

DIGITAL INPUT

OUT

TAPE

VIDEO 3

Connecting your audio components

Below is an example of how you can connect your audio components to the DTR-6.3. Refer to the diagram above for the following connection examples.

AUDIO IN/OUT

These are the analog audio inputs and outputs. There are seven audio inputs and three audio outputs on the rear panel. The audio inputs and outputs require RCA-type connectors.

DIGITAL INPUT/OUTPUT

On the rear panel of the DTR-6.3, there are one coaxial digital input, two optical digital inputs, one coaxial digital output, and one optical digital output. To the digital inputs, connect CD players, LD players, DVD players, or other digital source component. To the digital outputs, connect MD recorders, CD recorders, DAT decks, or other similar components.

• Since an analog connection must be made when using REC OUT or ZONE 2, make sure that the connection to the input source is not digital only, but analog as well.

• When using an optical input or output jack, always use an optical fiber cable.

1. Connecting a compact disc player (CD)

Using an RCA audio cable, connect the output jacks of the compact disc player to the CD audio jacks of the DTR-6.3. Make sure that you properly connect the left channel to the L jack and the right channel to the R jack.

If the compact disc player has a digital output, connect it to either the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of the DTR-6.3 depending on the type of connector on the compact disc player.

With the initial settings of the DTR-6.3, the CD input source is set for digital input at the OPTICAL 1 jack (OPT 1).

If the digital connection is made to a different jack, this must be changed at “Input Setup” → “Digital Input” (see page 53).

Analog audio output

Ground wire (earth)

2. Turntable (PHONO)

3. Cassette tape deck, MD recorder, DAT deck, or CD recorder (TAPE)

Analog audio output

Analog audio input

DC IN

24V 1A

PHONO IN

ZONE 2

LINE OUT

VIDEO 2

OUT

VIDEO 2

R (red)

GND

COMPONEN

INPUT 1

INPUT 2

RS232

VIDEO 1

DVD

OUT

FRONT

OUT

VIDEO 1

L (white)

R (red)

L (white)

R (red)

2. Connecting a turntable (PHONO)

Using an RCA audio cable, connect the output jacks of the turntable to the PHONO audio jacks of the DTR-6.3. Make sure that you properly connect the left channel to the L jack and the right channel to the R jack.

Note:

The DTR-6.3 is designed for use with moving magnet cartridges. For proper operation, connect a ground (or earth) wire to the GND terminal. For some turntables, however, connecting the ground wire may cause increased noise, and in such a case, a ground wire is not necessary and should not be connected.

3. Connecting a cassette tape deck, MD recorder, DAT deck, or CD recorder (TAPE)

Using RCA audio cables, connect the output jacks (PLAY) of the device to the TAPE IN audio jacks of the DTR-6.3 and connect the input jacks (REC) of the device to the TAPE OUT audio jacks of the DTR-6.3. Make sure that you properly connect the left channels to the L jacks and the right channels to the R jacks. If the device has a digital output, connect it to either the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of the DTR-6.3 depending on the type of connector on the device.

With the initial settings of the DTR-6.3, nothing is allocated as the digital input source for TAPE (----).

If you connect the digital audio output, be sure to make the appropriate changes at “Input Setup” → “Digital Input” (see page 53).

If the device has a digital input, connect it to the DIGITAL OUTPUT (OPTICAL or COAXIAL) jack of the DTR-6.3 for digital recording of the signal from the digital input of the DTR-6.3.

Note:

The output from the DIGITAL OUTPUT jack of the DTR-6.3 is only the digital signal input to the DIGITAL INPUT jack.

Connections (DTR-6.3)

Connecting a DVD Player with 5.1-Channel Output

VIDEO 3

DC IN

24V 1A

ZONE 2

LINE OUT

VIDEO 2

OUT

VIDEO 2

PHONO IN

RS232

OUT

VIDEO 1

GND

COMPONENT VIDEO

INPUT 1

INPUT 2

DVD

FRONT

ANTENNA

TRIGGER

SUBWOOFER PRE OUT

12 V

OUT

DIGITAL INPUT

OPTICAL

56K

ZONE 2

IR OUT

ZONE 2

40K

OUT

DIGITAL

COAXIAL

OUTPUT

OPTICAL

COAXIAL

DIGITAL

INPUT

OUT

TAPE

: Signal flow

Connecting your video components

Below is an example of how you can connect your video components to the DTR-6.3. Refer to the diagram above for the following connection examples.

COMPONENT VIDEO INPUT/OUTPUT

For DVD players or other devices that have component video connectors, the DTR-6.3 has two banks of component video input connectors (Y, P

6.3 also has one bank of component video output connectors for direct component video output to the matrix decoder of a television, projector, or other display device. By sending the pure component video signal directly, the signal forgoes the extra processing that normally would degrade the image. The result is vastly increased image quality, with incredibly lifelike colors and crisp detail.

• The signal that comes in from COMPONENT VIDEO INPUT is only sent to COMPONENT VIDEO OUTPUT. When connecting a video player to the COMPONENT VIDEO INPUT jacks, be sure to connect your television to the COMPONENT VIDEO OUTPUT jacks.

VIDEO IN/OUT

These are the video inputs and outputs. On the rear panel, there are four video inputs and two video outputs and each one includes both composite video and S video configurations. Connect VCRs, VTRs, LD players, DVD players, and other video components to the video inputs. Connect VCRs, VTRs, and other recording components to the video outputs to make video recordings.

• When connecting a VCR or other video component, make sure you connect its audio and video leads to the same bank (e.g., both to VIDEO 3).

• The Video 4 inputs are located on the front panel.

B, PR) for direct component video input. The DTR-

OUTPUT

MONITOR

OUT

SURR

DVD

CENTER

SUB WOOFER

REMOTE CONTROL

OUT

Component video output

Video ouput

S video output

Analog audio output (center)

Analog audio output (subwoofer)

L (white)

R (red)

L (white)

R (red)

Analog audio output (surround L/R)

Analog audio output (front L/R)

Digital audio output (coaxial)

4. DVD player (DVD)

The flow of the video signals is as follows:

The signal that comes in from a VIDEO IN jack is sent to both the VIDEO OUT and S VIDEO OUT jacks. The signal that comes in from a S VIDEO IN jack is sent to both the S VIDEO OUT and VIDEO OUT jacks. It is not necessary to make both video and S video connections.

Notes:

• If your video output device (e.g., television or projector) is connected only to the MONITOR OUT VIDEO jack, MONITOR OUT S VIDEO jack, or both, and the video signal from the source component is input through the component video connectors, no picture will appear. Video sources input from the component video connectors can only be output from the component video connectors.

• For more information about the DIGITAL INPUT/OUTPUT jacks, see page 16.

Connections (DTR-6.3)

Connecting a DVD Player with 2-Channel (L/R) Audio Output

24V 1A

VIDEO 3

PHONO IN

GND

COMPONENT VIDEO

OUTPUT

INPUT 1

INPUT 2

RS232

ZONE 2

LINE OUT

DC IN

VIDEO 1

OUT

VIDEO 2

OUT

VIDEO 1

DVD

MONITOR

SURR

FRONT

DVD

ANTENNA

TRIGGER

DIGITAL INPUT

SUBWOOFER PRE OUT

12 V

IR OUT

OUT

OPTICAL

56K

ZONE 2

40K

OUT

DIGITAL

COAXIAL

OUTPUT

OPTICAL

COAXIAL

DIGITAL

INPUT

OUT

TAPE

: Signal flow

4. Connecting a DVD player (DVD)

Using an RCA video cable, connect the video output jack (composite) of the DVD player to the DVD VIDEO IN jack of the DTR-6.3. Or if the DVD player has an S video output jack, connect it to the DVD S VIDEO IN jack with an S video cable. Or if the device has component video outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2 jacks on the DTR-6.3.

With the initial settings of the DTR-6.3, the DVD input source is set for the COMPONENT VIDEO INPUT 1 jacks.

If you connect the DVD player to the COMPONENT VIDEO INPUT 2 jacks, this must be changed at “Input Setup” → “Component Video” (see page 53).

Using an RCA audio connection cable, connect the audio output jacks of the DVD player to the DVD FRONT L/R jacks of the DTR-

6.3. Make sure that you properly connect the left channel to the L jack and the right channel to the R jack.

If the device has a 5.1-channel output, connect the DVD FRONT L/ R, SURR L/R, CENTER, and SUBWOOFER (5.1-channel input) jacks of the DTR-6.3 to the 5.1-channel output jacks of the DVD player. Make sure that you properly connect the left channels to the L jacks and the right channels to the R jacks.

If the device has a digital output, connect it to either the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of the DTR-6.3 depending on the type of connector on the DVD player.

With the initial settings of the DTR-6.3, the DVD input source is set for digital input at the COAXIAL jack (COAX).

If the digital connection is made at a different jack, this must be changed at “Input Setup” → “Digital Input” (see page 53).

Note:

If the DVD player has both 5.1-channel audio outputs and 2-channel audio outputs, and you want to connect the DVD player only using the FRONT L/R jacks on the DTR-6.3, use the 2-channel audio output jacks on the DVD player.

REMOTE

CONTROL

OUT

CENTER

Component video output

Video ouput

S video output

4. DVD player (DVD)

SUB WOOFER

L (white)

R (red)

Analog audio output

Digital audio output (coaxial)

Connections (DTR-6.3)

: Signal flow

6. Satellite tuner or television (VIDEO 3)

Digital audio output (optical)

Video output

S Video output

L (white)

Analog audio output

R (red)

ANTENNA

TRIGGER

DIGITAL INPUT

SUBWOOFER PRE OUT

24V 1A

VIDEO 3

PHONO IN

GND

COMPONENT VIDEO

OUTPUT

INPUT 1

INPUT 2

RS232

ZONE 2

LINE OUT

DC IN

VIDEO 1

VIDEO 2

OUT

VIDEO 2

OUT

VIDEO 1

DVD

FRONT

REMO CONTR

MONITOR

OUT

SURR

CENTER

SUB WOOFER

DVD

L (white)

12 V

IR OUT

OUT

OPTICAL

56K

ZONE 2

40K

OUT

DIGITAL

COAXIAL

OUTPUT

OPTICAL

COAXIAL

DIGITAL

INPUT

OUT

TAPE

R (red)

Component video output

Video output

S video output

5. VCR (VIDEO 1)

Video input

S video input

Analog audio output

L (white)

R (red)

Analog audio input

5. Connecting a video cassette recorder (VIDEO 1)

Using RCA video cables, connect the video output jack (composite) of the video cassette recorder to the VIDEO 1 VIDEO IN jack of the DTR-6.3 and connect the video input jack of the video cassette recorder to the VIDEO 1 VIDEO OUT jack of the DTR-6.3. Or if the video cassette recorder has S video input and output jacks, using S video cables, connect the S video output jack of the video cassette recorder to the VIDEO 1 S VIDEO IN jack of the DTR-6.3 and connect the video input jack of the video cassette recorder to the VIDEO 1 S VIDEO OUT jack of the DTR-6.3. Or if the video cassette recorder has component video outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2 jacks on the DTR-6.3.

With the initial settings of the DTR-6.3, the VIDEO 1 input source is set for the COMPONENT VIDEO INPUT 2 jacks.

If you connect the video cassette recorder to the COMPONENT VIDEO INPUT 1 jacks, this must be changed at “Input Setup” → “Component Video” (see page 53).

Using RCA audio cables, connect the audio output jacks of the video cassette recorder to the VIDEO 1 IN audio jacks of the DTR-6.3 and connect the audio input jacks of the video cassette recorder to the VIDEO 1 OUT audio jacks of the DTR-6.3. Make sure that you properly connect the left channels to the L jacks and the right channels to the R jacks.

With the initial settings of the DTR-6.3, nothing is allocated as the digital input source for VIDEO 1 (----).

If you connect the digital audio output, be sure to make the appropriate changes at “Input Setup” → “Digital Input” (see page 53).

6. Connecting a satellite tuner, television, or settop box (VIDEO 3)

Using an RCA video cable, connect the video output jack (composite) of the device to the VIDEO 3 VIDEO IN jack of the DTR-6.3. Or if the device has an S video output jack, connect it to the VIDEO 3 S VIDEO IN jack of the DTR-6.3 using an S video cable. Or if the device has component video outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2 jacks on the DTR-6.3.

With the initial settings of the DTR-6.3, the VIDEO 3 input source is set for the COMPONENT VIDEO INPUT 2 jacks.

If you connect the device to the COMPONENT VIDEO INPUT 1 jacks, this must be changed at “Input Setup” → “Component Video” (see page 53).

Using an RCA audio cable, connect the audio output jack of the device to the VIDEO 3 IN audio jacks of the DTR-6.3. Make sure that you properly connect the left channel to the L jack and the right channel to the R jack.

If the device has a digital output, connect it to either the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of the DTR-6.3 depending on the type of connector on the device.

With the initial settings of the DTR-6.3, the VIDEO 3 input source is set for digital input at the OPTICAL 2 jack (OPT 2).

If the digital connection is made at a different jack, this must be changed at “Input Setup” → “Digital Input” (see page 53).

Connections (DTR-6.3)

8. TV monitor or projector (MONITOR OUT)

Component video input

S Video input

Video input

7. DVD recorder, other digital video recording device (VIDEO 2)

R (red)

L (white)

R (red)

L (white)

Video input

S Video input

Video output

S Video output

Analog audio input

Analog audio output

7. Connecting a DVD recorder or other digital video recording device (VIDEO 2)

Using RCA video cables, connect the video output jack (composite) of the device to the VIDEO 2 VIDEO IN jack of the DTR-6.3 and connect the video input jack of the device to the VIDEO 2 VIDEO OUT jack of the DTR-6.3. Or if the device has S video input and output jacks, using S video cables, connect the S video output jack of the device to the VIDEO 2 S VIDEO IN jack of the DTR-6.3 and connect the video input jack of the device to the VIDEO 2 S VIDEO OUT jack of the DTR-6.3. Or if the device has component video outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2 jacks on the DTR-6.3.

With the initial settings of the DTR-6.3, the VIDEO 2 input source is set for the COMPONENT VIDEO INPUT 2 jacks.

If you connect the device to the COMPONENT VIDEO INPUT 1 jacks, this must be changed at “Input Setup” → “Component Video” (see page 53).

Using RCA audio cables, connect the audio output jacks of the device to the VIDEO 2 IN audio jacks of the DTR-6.3 and connect the audio input jacks of the device to the VIDEO 2 OUT audio jacks of the DTR-6.3. Make sure that you properly connect the left channels to the L jacks and the right channels to the R jacks.

If the device has a digital output, connect it to either the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of the DTR-6.3 depending on the type of connector on the device.

With the initial settings of the DTR-6.3, nothing is allocated as the digital input source for VIDEO 2 (----).

If you connect the digital audio output, be sure to make the appropriate changes at “Input Setup” → “Digital Input” (see page 53).

If the device has a digital input, connect it to the DIGITAL OUTPUT (OPTICAL or COAXIAL) jack of the DTR-6.3 for digital recording of the signal from the digital input of the DTR-6.3.

Note:

The output from the DIGITAL OUTPUT jack of the DTR-6.3 is only the digital signal input to the DIGITAL INPUT jack.

ANTENNA

TRIGGER

SUBWOOFER PRE OUT

12 V OUT

DIGITAL INPUT

OPTICAL

56K

ZONE 2

VIDEO 3

DC IN

24V 1A

ZONE 2

LINE OUT

VIDEO 2

OUT

VIDEO 2

PHONO IN

RS232

OUT

INPUT 2

VIDEO 1

GND

COMPONENT VIDEO

INPUT 1

DVD

FRONT

OUTPUT

MONITOR

OUT

SURR

DVD

CENTER

SUB WOOFER

REMO

CONTR

IR OUT

ZONE 2

40K

OUT

DIGITAL

COAXIAL

OUTPUT

OPTICAL

COAXIAL

DIGITAL

INPUT

OUT

TAPE

: Signal flow

8. Connecting a television monitor or projector (MONITOR OUT)

The DTR-6.3 is equipped with a simple Y/C separate circuit and simple Y/C mixed circuit. Since both the signal from the S VIDEO and VIDEO inputs are output to the MONITOR OUT S VIDEO output, if the television or projector is equipped with an S video input, it is unnecessary to connect the video connectors. If it is equipped with only a video input, connect it to the MONITOR OUT VIDEO output.

Using an RCA video cable, connect the video input jack (composite) of the device to the MONITOR OUT VIDEO jack of the DTR-6.3. Or if the device has an S video input jack, connect it to the MONITOR OUT S VIDEO jack of the DTR-6.3 using an S video cable. Or if the device has component video inputs, connect them to the bank of COMPONENT VIDEO OUTPUT jacks on the DTR-6.3.

Note:

Note that the Setup Menu will only be displayed on the monitor connected to MONITOR OUT and not those connected to the COMPONENT VIDEO OUTPUT jacks.

Connections (DTR-6.3)

SUBWOOFER PRE OUT

FRONT

SURROUND

CENTER

ZONE 2

SURROUND

BACK

PRE OUT

SURROU BACK SPEAKE

9. Connecting video camera, etc. (Video 4 Input)

Using an RCA video cable, connect the video output jack (composite) of the device to the Video 4 Video jack of the DTR-6.3. Or if the device has an S video output jack, connect it to the Video 4 S Video jack of the DTR-6.3 using an S video cable.

Using an RCA audio cable, connect the audio output jack of the device to the Video 4 Audio jacks of the DTR-6.3. Make sure that you properly connect the left channel to the L jack and the right channel to the R jack.

If the device has an optical digital output, connect it to the Video 4 Digital jack of the DTR-6.3.

The Video 4 digital input is fixed to the Optical input on the front panel.

S Video output

Digital output (optical)

9. Video camera/Video game (Video 4 Input)

Video output

Left (white)

Analog output

Right (red)

PRE OUT

These jacks are for connecting an auxiliary power amplifier. You can use an auxiliary power amplifiers to listen at louder volumes than you can with the DTR-6.3 alone. When using a power amplifier, connect each speaker to the power amplifier.

PHONO IN

GND

ANTENNA

COMPONENT VIDEO

INPUT 1INPUT 2

RS232

12 V

TRIGGER

ZONE 2

IR OUT

OUT

LINE OUT

ZONE 2

40K

DC IN

56K

OUT

24V 1A

ZONE 2

VIDEO 1

VIDEO 2

DVD

VIDEO 3

DIGITAL

DIGITAL INPUT

COAXIAL

OUT

OUTPUT

OPTICAL

COAXIAL

DIGITAL

INPUT

FRONT

OUT

SUBWOOFER PRE OUT

TAPE

VIDEO 3

VIDEO 1

VIDEO 2

R (red)

L (white)

R (red)

L (white)

Subwoofer

Front

Surround

Power amplifier

27122979

CENTER

SURROUND

ZONE 2

FRONT

OUTPUT

SPEAKERS

SPEAKER

SPEAKERS

REMOTE CONTROL

MONITOR

OUT

AV RECEIVER

MODEL NO.

RATING:

V 60 Hz

AC 120

SURR

CENTER

SUB WOOFER

DVD

Surround back

AC OUTLETS

AC 120 V 60 Hz SWITCHED

W 1 A

MAX.

TOTAL 120

SURROUND BACK

ZONE 2

SURROUND

CENTER

FRONT

SPEAKER

DTR-6.3

AC INLET

PRE OUT

6.7

SURROUND BACK

Center

1. Subwoofer

2. Front right speaker

3. Front left speaker

4. Surround right speaker

7654321

5. Surround left speaker

6. Surround back speaker

7. Center speaker

Connecting the remote zone (Zone 2) speakers

(DTR-6.3 only)

The DTR-6.3 allows you to listen to two separate input sources at the same time. This allows you to, for example, place speakers in two different rooms so that two or more people can enjoy two different kinds of music at the same time. The room where the DTR-6.3 is actually located is referred to as the main room while the separate room is referred to as the remote zone (Zone 2). In addition, the IR IN terminal of the DTR-6.3 allows you to control the DTR-6.3 from the remote zone (Zone 2) with the remote controller even though the remote zone is physically separated. The diagram below shows how to make the proper connections for the remote zone.

When using the ZONE 2 SPEAKERS terminals

If you are using a 5.1-channel speaker system in the main room, you can connect the speakers for the remote zone (Zone 2) to the open ZONE 2 SPEAKERS terminals.

Remote Zone (Zone 2)Main Room

Zone 2

Left

speaker

Zone 2

Right

speaker

When using the ZONE 2 PRE OUT terminals

If you are using a 5.1-channel speaker system in the main room, you can connect the amplifier for the remote zone (Zone 2) to the open ZONE 2 PRE OUT terminals and connect the remote zone speakers.

Remote Zone (Zone 2)Main Room

Zone 2

Right

speaker

PRE OUT

FRONT

DTR-6.3

SURROUND

CENTER

SURROUND

BACK

ZONE 2

Left (white)

Right (red)

Zone 2

Left

speaker

Power amplifier

ZONE 2 SPEAKERS

DTR-6.3

Note:

It is important to be aware of the speaker impedance (see page 32).

When using the ZONE 2 OUT terminals

The ZONE 2 OUT terminal is a constant output. Connect to the LINE input of the amplifier (CD, tape, etc.). Adjust the volume with the amplifier connected to the ZONE 2 LINE OUT terminal.

1. Connect the DTR-6.3 to the amplifier for the remote zone.

2. Connect the remote zone speaker cables to the speaker terminals on the amplifier.

Adjust the volume level at the amplifier.

Remote Zone (Zone 2)

DC IN

24V 1A

Zone 2

Right

speaker

PHONO IN

ZONE 2

LINE OUT

RS232

Main Room

DTR-6.3

Zone 2

Left

speaker

Left (white)

Right (red)

Zone 2 amplifier

ZONE 2

OUT

Note:

The ZONE 2 OUT terminals of the DTR-6.3 are of a fixed output level.

Connections (DTR-5.3)

Here is an explanation of typical ways to connect various components to the DTR-5.3. There are many ways that any one component can be connected, and it is up to you to decide which method best fits your situation. The directions given here are only one option and should only be thought of as such. It is best to fully understand the nature of each connector and terminal as well as those of your components and their features to ascertain which method of connection is best.

: Signal flow

1. CD player (CD)

Digital audio output (optical)

Analog audio output

L (white)

R (red)

ANTENNA

TRIGGER

DIGITAL INPUT

SUBWOOFER PRE OUT

12 V

IR OUT

OUT

40K

56K

REMOTE CONTROL

DIGITAL

OUTPUT

OPTICAL

INPUT

COAXIAL

OPTICAL

TAPE

OUT

ZONE 2

LINE IN

DC IN

OUT

24V 1A

VIDEO 3

VIDEO 2

VIDEO 3

VIDEO 2

COMPONENT V

INPUT 1

INPUT 2

RS232

DVD

VIDEO 1

OUT

ININ

2. Cassette tape deck, MD recorder, DAT deck, or CD

OUT

VIDEO 1

FRONT

L (white)

R (red)

L (white)

recorder (TAPE)

Analog audio output

Connecting your audio components

Below is an example of how you can connect your audio components to the DTR-5.3. Refer to the diagram above for the following connection examples.

AUDIO IN/OUT

These are the analog audio inputs and outputs. There are six audio inputs and two audio outputs on the rear panel. The audio inputs and outputs require RCA-type connectors.

DIGITAL INPUT/OUTPUT

On the rear panel of the DTR-5.3, there are one coaxial digital input, two optical digital inputs, and one optical digital output. To the digital inputs, connect CD players, LD players, DVD players, or other digital source component. To the digital output, connect an MD recorder, CD recorder, DAT deck, or other similar component.

• Since an analog connection must be made when using REC OUT, make sure that the connection to the input source is not digital only, but analog as well.

• When using an optical input or output jack, always use an optical fiber cable.

1. Connecting a compact disc player (CD)

Using an RCA audio cable, connect the output jacks of the compact disc player to the CD audio jacks of the DTR-5.3. Make sure that you properly connect the left channel to the L jack and the right channel to the R jack.

If the compact disc player has a digital output, connect it to either the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of the DTR-5.3 depending on the type of connector on the compact disc player.

With the initial settings of the DTR-5.3, the CD input source is set for digital input at the OPTICAL 1 jack (OPT 1).

If the digital connection is made to a different jack, this must be changed at “Input Setup” → “Digital Input” (see page 53).

R (red)

Analog audio input

2. Connecting a cassette tape deck, MD recorder, DAT deck, or CD recorder (TAPE)

Using RCA audio cables, connect the output jacks (PLAY) of the device to the TAPE IN audio jacks of the DTR-5.3 and connect the input jacks (REC) of the device to the TAPE OUT audio jacks of the DTR-5.3. Make sure that you properly connect the left channels to the L jacks and the right channels to the R jacks. If the device has a digital output, connect it to either the DIGITAL INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of the DTR-5.3 depending on the type of connector on the device.

With the initial settings of the DTR-5.3, nothing is allocated as the digital input source for TAPE (----).

If you connect the digital audio output, be sure to make the appropriate changes at “Input Setup” → “Digital Input” (see page 53).

If the device has a digital input, connect it to the DIGITAL OUTPUT OPTICAL jack of the DTR-5.3 for digital recording of the signal from the digital input of the DTR-5.3.

Note:

The output from the DIGITAL OUTPUT jack of the DTR-5.3 is only the digital signal input to the DIGITAL INPUT jack.

Connections (DTR-5.3)

Connecting a DVD Player with 5.1-Channel Output

ANTENNA

LINE IN

VIDEO 3

VIDEO 2

ININ

VIDEO 2

RS232

OUT

TRIGGER

SUBWOOFER PRE OUT

12 V OUT

DIGITAL INPUT

OPTICAL

56K

REMOTE CONTROL

IR OUT

40K

DIGITAL OUTPUT

OPTICAL

OUT

TAPE

DIGITAL

INPUT

COAXIAL

ZONE 2

DC IN

OUT

24V 1A

OUT

VIDEO 1

COMPONENT VIDEO

INPUT 1

INPUT 2

DVD

FRONT

OUTPUT

MONITOR

SURR

DVD

OUT

CENTER

SUB WOOFER

Component video output

Video ouput

S video output

3. DVD player (DVD)

Analog audio output (center)

Analog audio output (subwoofer)

: Signal flow

Connecting your video components

Below is an example of how you can connect your video components to the DTR-5.3. Refer to the diagram above for the following connection examples.

COMPONENT VIDEO INPUT/OUTPUT

For DVD players or other devices that have component video connectors, the DTR-5.3 has two banks of component video input connectors (Y, P

5.3 also has one bank of component video output connectors for direct component video output to the matrix decoder of a television, projector, or other display device. By sending the pure component video signal directly, the signal forgoes the extra processing that normally would degrade the image. The result is vastly increased image quality, with incredibly lifelike colors and crisp detail.

VIDEO IN/OUT

These are the video inputs and outputs. On the rear panel, there are four video inputs and one video output and each one includes both composite video and S video configurations. Connect VCRs, VTRs, LD players, DVD players, and other video components to the video inputs. Connect VCRs, VTRs, and other recording components to the video outputs to make video recordings.

• When connecting a VCR or other video component, make sure you connect its audio and video leads to the same bank (e.g., both to VIDEO 3).

• The Video 4 inputs are located on the front panel.

B, PR) for direct component video input. The DTR-

L (white)

R (red)

L (white)

R (red)

Analog audio output (surround L/R)

Analog audio output (front L/R)

Digital audio output (coaxial)

The flow of the video signals is as follows:

Notes:

• For more information about the DIGITAL INPUT/OUTPUT jacks, see page 24.

+ 56 hidden pages
