Integra DTR-50.4 Owner's Manual

Download

AV Receiver

DTR-50.4

Instruction Manual

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand,

PORTABLE CART WARNIN

tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

S3125A

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or water,

Safety Information and Introduction

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

En-2

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

For models with [Power] button, or with both [Power] and [On/Standby] buttons: Pressing the [Power] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

For models with [On/Standby] button only: Pressing the [On/Standby] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for a

long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after

prolonged use. This is normal.

• If you do not use this unit for a long time, it may not

work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Safety Information and Introduction

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE: CET APPAREIL NUMÉRIQUE DE LA

CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION: POUR ÉVITER LES CHOCS

ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

En-3

Supplied Accessories

Make sure you have the following accessories:

Indoor FM antenna (➔ page 20) AM loop antenna (➔ page 20) Power cord (➔ page 20) Speaker cable labels (➔ page 13) Speaker setup microphone (➔ page 36) Remote controller (RC-841M) and two batteries (AA/R6)

In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

■ Installing the batteries

Batteries (AA/R6)

Safety Information and Introduction

■ Aiming the remote controller

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Remote control sensor

AV receiver

Approx. 16 ft. (5 m)

Thank you for purchasing an Integra AV receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV receiver. Please retain this manual for future reference.

Note

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

En-4

Safety Information and Introduction

Important Safety Instructions ......................................2

Precautions ...................................................................3

Supplied Accessories...................................................4

Table of Contents..........................................................5

Features .........................................................................6

Front & Rear Panels......................................................7

Remote Controller.......................................................10

Connections

Connecting the AV Receiver......................................11

Connecting Your Speakers .......................................11

About AV Connections..............................................16

Connecting Components with HDMI .........................17

Connecting Your Components ..................................18

Connecting Integra/Onkyo RI Components ..............19

Connecting the Antennas..........................................20

Connecting the Power Cord ......................................20

Turning On & Basic Operations

Turning On/Off the AV Receiver ................................21

Turning On ................................................................21

Turning Off ................................................................21

Initial Setup..................................................................22

Selecting the Language

for the Onscreen Setup Menus...............................22

Audyssey MultEQ XT32: Auto Setup ........................22

Source Connection....................................................23

Remote Mode Setup .................................................23

Network Connection..................................................23

Terminating the Initial Setup .....................................23

Playback ......................................................................24

Playing the Connected Component ..........................24

Controlling Contents of USB or Network Devices..... 25

Understanding Icons on the Display ......................... 26

Playing an iPod/iPhone via USB............................... 26

Playing a USB Device............................................... 27

Listening to vTuner Internet Radio............................ 27

Registering Other Internet Radio ..............................28

Changing the Icon Layout

on the Network Service Screen.............................. 29

Playing Music Files on a Server (DLNA) ..................29

Remote Playback...................................................... 30

Playing Music Files on a Shared Folder ...................31

Listening to AM/FM Radio ........................................32

Playing Audio and Video from Separate Sources..... 34

Using Basic Functions ............................................... 35

Using the Automatic Speaker Setup......................... 35

Using the Listening Modes .......................................38

Using the Home Menu ..............................................45

Using the Sleep Timer ..............................................46

Setting the Display Brightness.................................. 46

Displaying Source Information.................................. 46

Changing the Input Display....................................... 46

Using the Whole House Mode ..................................47

Selecting Speaker Layout......................................... 47

Muting the AV Receiver ............................................47

Using Headphones ...................................................47

Using Easy Macros................................................... 48

Advanced Operations

On-screen Setup......................................................... 49

Using the Quick Setup ..............................................49

Using the Audio Settings of Quick Setup.................. 50

Using the Setup Menu (Home) .................................53

About the Hybrid Standby Indicator .......................... 54

Setup Menu Items..................................................... 54

Input/Output Assign ..................................................55

Speaker Setup ..........................................................58

Audio Adjust.............................................................. 63

Source Setup ............................................................ 66

Listening Mode Preset .............................................. 71

Miscellaneous ........................................................... 72

Hardware Setup........................................................ 73

Remote Controller Setup ..........................................76

Lock Setup................................................................ 76

Safety Information and Introduction

Multi Zone ................................................................... 77

Making Multi Zone Connections ............................... 77

Setting the Zone 2/3 Out .......................................... 78

Controlling Multi Zone Components ......................... 78

Using the 12V Triggers............................................. 79

Using the Remote Controller in

Zone and Multiroom Control Kits ........................... 80

Controlling Other Components

iPod/iPhone Playback via Onkyo Dock .................... 81

Using the Onkyo Dock.............................................. 81

Controlling Your iPod/iPhone ................................... 82

Controlling Other Components................................. 83

Preprogrammed Remote Control Codes .................. 83

Looking up for Remote Control Codes ..................... 83

Entering Remote Control Codes............................... 84

Remapping Colored Buttons .................................... 84

Remote Control Codes for Integra/Onkyo

Components Connected via RI .............................. 85

Resetting the Remote Mode Buttons........................ 85

Resetting the Remote Controller .............................. 85

Controlling Other Components ................................. 85

Learning Commands ................................................ 88

Using Normal Macros ............................................... 89

Appendix

Troubleshooting ......................................................... 90

Firmware Update ........................................................ 96

Connection Tips and Video Signal Path ................ 100

Using an RIHD-compatible TV, Player,

or Recorder ............................................................ 104

About HDMI............................................................... 106

Network/USB Features............................................. 107

License and Trademark Information ...................... 110

Specifications ........................................................... 111

To reset the AV receiver to its factory defaults, turn it on and, while holding down CBL/SAT, press

8On/Standby (➔ page 90).

En-5

Safety Information and Introduction

Features

Amplifier

• 135 Watts/Channel @ 8 ohms (FTC)

• 180 Watts/Channel @ 6 ohms (IEC)

• 230 Watts/Channel @ 6 ohms (JEITA)

• WRAT–Wide Range Amplifier Technology (5 Hz to 100 kHz bandwidth)

• Linear Optimum Gain Volume Circuitry

• H.C.P.S. (High Current Power Supply) Massive High Power Transformer

• 3 Stage Inverted Darlington Amplifier Design

Processing

• THX Select2 Plus Certified

• Incorporates Qdeo™ technology for HDMI Video Upscaling (to 4K Compatible)

• HQV

• HDMI (Audio Return Channel, 3D, DeepColor,

• Dolby TrueHD and DTS-HD Master Audio

• Dolby Pro Logic IIz and Audyssey DSX

• DTS Neo:X

• Non-Scaling Configuration

• A-Form Listening Mode Memory

•Direct Mode

• Music Optimizer for Compressed Digital Music files

• 192 kHz/24-bit D/A Converters

• Powerful and Highly Accurate 32-bit Processing DSP

• Jitter Cleaning Circuit Technology

• Digital Processing Crossover Network

-Vida Video Processing with 1080p Video

upscaling of All Video Sources via HDMI

x.v.Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multi-CH PCM)

Connections

• 8 HDMI Inputs (1 on front panel) and 2 Outputs

• Integra/Onkyo p for System Control

• 6 Digital Inputs (3 Optical/3 Coaxial)

• Component Video Switching (2 Inputs/1 Output)

• Banana Plug-Compatible Speaker Posts

• Powered Zone 2/3

• Zone 2/3 Pre/Line Out

• IR Input/Output and 12 V Triggers

• RS232 Port for Interface Control

• Bi-Amping Capability for FL/FR with FHL/FHR

• Analog RGB Video Input (D-sub 15) for PC

• Internet Radio Connectivity

• Network Capability for Streaming Audio Files

• 2 USB Inputs (Front/Rear) for Memory Devices and

iPod

/iPhone® models (Enables Display of Album

Artwork)

Only the front-panel USB input is compatible with iPod/iPhone.

• MHL-Enabled AUX Front Input

Miscellaneous

• 40 FM/AM Presets

• Dolby Volume

• Audyssey MultEQ problems

• Audyssey Dynamic EQ

• Audyssey Dynamic Volume listening level and dynamic range

• Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)

• A/V Sync Control Function (up to 800 ms)

• Auto Standby Function

• On-Screen Display via HDMI

• Preprogrammed (with onscreen display setup) RI-Compatible Learning Remote with 4 Activities and Mode-Key LEDs

• ISF (Imaging Science Foundation) Video Calibration

XT32 to correct room acoustic

for loudness correction

to maintain optimal

En-6

Front & Rear Panels

Front Panel

(North American models) (Australian models)

Safety Information and Introduction

acedghfijkmln ob

spq

The AV receiver has various logos printed on it. They are not shown here for clarity. For detailed information, see the pages in parentheses.

a 8On/Standby button (21) b Hybrid Standby indicator (54) c Monitor Out button (55) d Remote control sensor (4) e Tone and Tone Level buttons (50, 79) f Display (8) g Listening Mode buttons (38) h Dimmer button (North American models) (46)

t ur

i Memory button (32) j Tuning Mode button (32) k Display button (46) l Setup button (53) m Tuning q/w (32), Preset e/r (32), cursor and

enter (middle) buttons

n Return button o Master Volume control (24) p Zone 2/Zone 3 and Off buttons (78) q Whole House Mode and Off buttons (47)

r Phones jack (47) s Setup Mic jack (36) t Input selector buttons (24) u USB port (18) v AUX Input jacks (17, 18) w RT/PTY/TP button (Australian models) (33)

En-7

Display

Safety Information and Introduction

dcb fe hga i

lj m n o pqk

For detailed information, see the pages in parentheses.

a Speaker/channel indicators b Z2 (Zone 2) indicator (78) c Z3 (Zone 3) indicator (78) d Listening mode and format indicators (38) e M.Opt indicator (51) f 1, 3 and cursor indicators (26) g NET indicator (27 to 31, 76) h Tuning indicators

RDS indicator (excluding North American models) (33)

AUTO indicator (32) TUNED indicator (32) FM STEREO indicator (32)

i Input indicators (102)

HDMI indicator (74)

DIGITAL indicator

ANALOG indicator

j Bi AMP indicator k Audyssey indicator (35, 66)

Dynamic EQ indicator (66)

- (Dolby) Vol indicator Dynamic Vol indicator (66)

l Headphone indicator (47) m Message area n MUTING indicator (47) o Volume level p USB indicator (26, 27) q SLEEP indicator (46)

En-8

Rear Panel

Safety Information and Introduction

qtsrpo

a uREMOTE CONTROL jack b USB port c ETHERNET port d RS232 port

Terminal for control.

e Composite video and analog audio jacks

(BD/DVD IN, CBL/SAT IN, STB/DVR IN, GAME 1 IN, PC IN, TV/CD IN and PHONO IN)

f COMPONENT VIDEO IN and MONITOR OUT

jacks

g HDMI IN and HDMI output (HDMI OUT MAIN and

HDMI OUT SUB) jacks

h IR IN A/B and OUT jacks i 12V TRIGGER OUT A/B/C jacks

ih jke gf mladb c

j ZONE 2 OUT V jack k ZONE 2 and ZONE 3 PRE/LINE OUT jacks l FM ANTENNA jack and AM ANTENNA terminal m PC IN jack n AC INLET o DIGITAL IN COAXIAL and OPTICAL jacks p GND screw q MONITOR OUT V jack r PRE OUT jacks

(FRONT L/R, CENTER, SURR L/R, SB/FH/FW SUBWOOFER)

s SB/FH/FW EXT AMP* jacks

t Speaker Terminals

(FRONT L/R, CENTER, SURR L/R,

SURR BACK L/R, FRONT HIGH/ZONE 3 L/R and FRONT WIDE/ZONE 2 L/R)

See “Connecting the AV Receiver” for connection (➔ pages 11 to 20).

SB···Surround Back, FH···Front High, FW···Front Wide

En-9

Remote Controller

Controlling the AV Receiver

a b

d e

l m

Safety Information and Introduction

To control the AV receiver, press Receiver to select Receiver mode. You can also use the remote controller to control Integra/Onkyo Blu-ray Disc/DVD player, CD player, and other components. See “Entering Remote Control Codes” for more details (➔ page 84).

For detailed information, see the pages in parentheses.

a 8 Receiver button (21)

b Activities buttons (48) c Remote Mode/Input Selector buttons (24) d SP (speaker layout) button (47) e q/w/e/r and Enter buttons f Q Setup button (49) g Listening Mode buttons (38) h Dimmer button (46) i Display button (46) j Muting button (47) k VOL q/w button (24) l Return button m Home button (45) n Sleep button (46)

■ Controlling the tuner

To control the AV receiver’s tuner, press Tuner (or Receiver).

You can select AM or FM by pressing Tuner repeatedly.

a q/w buttons (32) b D.TUN button (32) c Display button d CH +/– button (33) e Number buttons (32)

When you want to change the remote controller mode (target component) without changing the current input source, press Mode and within about 8 seconds, press Remote Mode. Then, using the same AV receiver’s remote controller, you can control the component corresponding to the button you pressed.

These buttons can also be used when a Remote Mode other than Receiver mode is selected.

En-10

Connections

Connecting the AV Receiver

Connecting Your Speakers

Speaker Configuration

The following table indicates the channels you should use depending on the number of speakers that you have. No matter how many speakers you use, a powered subwoofer is recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings automatically (➔ page 35) or manually (➔ page 58).

Number of speakers

Front speakers ✔✔✔✔✔✔✔✔✔✔✔✔✔✔ ✔ Center speaker ✔ ✔✔✔✔✔✔✔✔✔✔✔ ✔ Surround

speakers Surround back

speaker Surround back

speakers Front high

speakers Front wide

speakers

2 3 4 5 6 7 7 7 8 8 9 9 9 10 11

✔✔✔✔✔✔✔✔✔✔✔✔ ✔

✔✔✔✔

*1*2

✔✔✔✔

✔✔✔✔✔✔

Connecting the Speaker Cables

The following illustration shows how to connect the speakers to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURR BACK L terminals.

Tip

• You can specify whether surround back, front high, or front wide speakers are connected in the “Speaker Configuration” menu (➔ page 58) or during Audyssey MultEQ Correction and Speaker Setup (➔ page 35).

■ Screw-type speaker terminals

Strip 1/2" to 5/8" (12 to 15 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

1/2" to 5/8" (12 to 15 mm)

■ Banana Plugs (North American models)

• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

• Do not insert the speaker code directly into the center hole of the speaker terminal.

XT32 Room

If you’re using only one surround back speaker, connect it to the SURR BACK L terminals.

Front high, surround back and front wide speakers cannot be used at the same time.

En-11

■ 7.1-channel playback

Select the speakers (surround back, front high, front wide) you want to use for 7.1-channel playback. You can set which speakers you want to use by priority. See “Selecting Speaker Layout” (➔ page 47).

Front high

right Front leftFront right Center

Front wide

right

Front wide

left

Front high

left

Connections

■ 9.1-channel playback

By adding an external amplifier to the 7.1-channel configuration shown on the left, you can enjoy 9.1-channel playback.

Connect your power amplifier’s analog audio input jacks to the AV receiver’s SB/FH/FW EXT AMP

jacks with audio cables. To use the SB/FH/FW EXT AMP jacks, you must specify their channel with the “Preout to External Amplifier” setting (➔ page 58).

You can set which speakers you want to use by priority. See “Selecting Speaker Layout” (➔ page 47).

SB···Surround Back, FH···Front High, FW···Front Wide

Power amplifier

Surround

right

Surround

back right

Surround

back left

En-12

Surround

left

Surround back right/

Front high right/

Front wide right

Surround back left/

Front high left/ Front wide left

Attaching the Speaker Cable Labels

The speaker terminals are color-coded for identification purpose.

Speaker Color

Front left, Front high left, Front wide left, Zone 2 left, Zone 3 left

Front right, Front high right, Front wide right, Zone 2 right, Zone 3 right

Center Green Surround left Blue Surround right Gray Surround back left Brown Surround back right Tan

The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the table above. Then all you need to do is to match the color of each label to the corresponding speaker terminal.

White

Red

Speaker Connection Precautions

Read the following before connecting your speakers:

• You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure to set the minimum speaker impedance to “4ohms” (➔ page 58). If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

• Read the instructions supplied with your speakers.

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

Connections

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

• Don’t connect one speaker to several terminals.

En-13

Connections

Using Dipole Speakers

TV/screen

You can use dipole speakers for the surround and surround back speakers. Dipole speakers output the same sound in two directions. Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround dipole speakers (a) should be positioned so that their arrows point toward the TV/screen, while the surround back dipole speakers (b) should be positioned so that their arrows point toward each other, as shown.

Using Powered Subwoofers

LINE INPUT

Powered subwoofer

To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.

You can connect the powered subwoofer with two SUBWOOFER PRE OUT jacks respectively.

The same signal is output from each jack.

Tip

• If your subwoofer is unpowered and you’re using an external amplifier, connect the subwoofer pre out jack to an input on the amplifier.

LINE INPUT

Corner position

1/3 of wall

position

Bi-amping the Front Speakers

Important:

• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.

• Bi-amping can be used only with speakers that support biamping. Refer to your speaker manual.

Bi-amping provides improved bass and treble performance. When bi-amping is used, the AV receiver is able to drive up to a 5.1 speaker system in the main room. Once you’ve completed the bi-amping connections as

shown and turned on the AV receiver, you must set the speaker setting to enable bi-amping (➔ page 58).

Tweeter (high)

Woofer (low)

Front right Front left

En-14

Connections

Connecting a Power Amplifier

If you want to use a more powerful power amplifier, you can use the AV receiver as a preamp. Connect all speaker outputs to the power amplifier. See the manuals supplied with your amplifier for details.

Power amplifier

SB···Surround Back, FH···Front High, FW···Front Wide

Note

Specify “None” for any channel that you don’t want to output (➔ page 58).

When connecting to the SB/FH/FW EXT AMP jacks, you must set the “Preout to External Amplifier” setting (➔ page 58).

Using Speakers Without Crossover Network

Important:

• Speakers without crossover network are speakers with no built-in crossover network.

• With speakers without crossover network, be careful NOT to connect tweeters and woofers the wrong way around, as this may damage your speakers.

• With speakers without crossover network, be careful NOT to set “Speaker Type (Front)” to “Bi-Amp” as this may damage your speakers. Make sure that this setting is set to “Digital Crossover”.

• Confirm that your speakers are without crossover network by referring to your speaker manual.

Connecting speakers without crossover network provide a fine, three-dimensional sound field that extends bass and treble performance to the fullest extent. When speakers without crossover network are used, the AV receiver is able to drive up to a 5.1 speaker system in the main room. You must enable “Digital Crossover” in “Speaker Type

(Front)” (➔ page 58) and make the settings of “Digital Processing Crossover Network” (➔ page 62).

Note

• You need to make the setting before connecting the speakers.

Tweeter (high)

Woofer (low)

Front right Front left

En-15

About AV Connections

Connecting AV components

HDMI cable

TV, projector, etc.

Blu-ray Disc/

DVD player

Other cables

TV, projector, etc.

Blu-ray Disc/

DVD player

If your TV doesn’t support Audio Return Channel (ARC), you need to connect an optical digital cable together with the HDMI cable to the AV receiver.

• Before making any AV connections, read the manuals supplied with your AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

AV receiver

: Video

AV receiver

: Video & Audio

Game console

: Audio

Game console

• Push plugs in all the way to make

Right!

good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power

Wrong!

cords and speaker cables.

AV Cables and Jacks

■ HDMI

HDMI connections can carry digital video and audio.

■ Component video

Component video separates the luminance (Y) and color difference signals (P quality (some TV manufacturers label their component video sockets slightly differently).

■ Analog RGB

This is a conventional analog interface to connect a PC and a display device (also called D-Sub or D-subminiature).

■ Composite video

Composite video is commonly used on TVs, DVDs, and other video equipment.

B, PR), providing the best picture

Green

Blue

Red

Yellow

Connections

■ Optical digital audio

Optical digital connections allow you to enjoy digital sound such as PCM

, Dolby Digital or DTS. The audio

quality is the same as coaxial.

■ Coaxial digital audio

Coaxial digital connections allow you to enjoy digital

sound such as PCM

, Dolby Digital or DTS. The audio

quality is the same as optical.

Orange

■ Analog audio (RCA)

Analog audio connections (RCA) carry analog audio.

White

Red

For PCM signals, the supported sampling rates are 32/44.1/48/88.2/96 kHz. With HDMI connections, 176.4 and 192 kHz are also supported.

Note

• The AV receiver does not support SCART plugs.

• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution

• To prevent shutter damage, hold the optical plug straight when inserting and removing.

En-16

Connecting Components with HDMI

Satellite/cable set-top box, etc.

Connections

Personal computer

Game console

Set top box/digital video recorder, etc.

If your TV doesn’t support Audio Return Channel (ARC), you need to connect an optical digital cable together with the HDMI cable to the AV receiver.

When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.

TV, projector, etc.

Blu-ray Disc/DVD player

Connect your components to the appropriate jacks. The default input assignments are shown below.

✔: Assignment can be changed (➔ page 56).

Jack Components

IN1 Blu-ray Disc/DVD player ✔ IN2 Satellite/cable set-top box, etc. ✔ IN3 Set top box/digital video recorder, etc. ✔ IN4 Game console ✔ IN5 Game console ✔ IN6 Personal computer ✔ IN7 Other components ✔ Front Camcorder, etc. OUT MAIN TV OUT SUB Projector, etc.

See also:

• “Connection Tips and Video Signal Path” (➔ page 100)

• “Using an RIHD-compatible TV, Player, or Recorder” (➔ page 104)

• “About HDMI” (➔ page 106)

Camcorder, etc.

Tip

• To listen to the audio of a component connected via HDMI through your TV’s speakers, enable “HDMI Through” (➔ page 74) and set the AV receiver to standby mode.

Note

• In the case of Blu-ray Disc/DVD players, if no sound is output despite following the above-mentioned procedure, set your Bluray Disc/DVD player’s HDMI audio settings to PCM.

■ Audio Return Channel (ARC) function

The Audio Return Channel (ARC) function enables an HDMI capable TV to send the audio stream to HDMI OUT MAIN on the AV receiver.

• This function can be used when: – Your TV is ARC capable, and –The TV/CD input selector is selected, and –“HDMI Control(RIHD)” is set to “On”(➔ page 74), and –“Audio Return Channel” is set to “Auto” (➔ page 75).

■ MHL (Mobile High-Definition Link)

With its support for MHL (Mobile High-Definition Link), the AUX (Front) input allows you to deliver highdefinition video from a connected mobile device.

En-17

Connecting Your Components

The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

Front

Rear

D A E GF H I KJ

GND screw

Connections

✔: Assignment can be changed (➔ pages 56, 57).

No. Jack/Port Components

*1*2

USB

USB, AUX Input Video

AUX Input

Video Camcorder, etc Audio L/R Digital DIGITAL IN

COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔ COAXIAL 2 (CBL/SAT) COAXIAL 3 (STB/DVR) Set top box/digital video

OPTICAL 1 (GAME 1) Game consoles ✔ OPTICAL 2 (TV/CD) TV, CD player ✔ ETHERNET Router

AUDIO IN

BD/DVD IN Blu-ray Disc/DVD player CBL/SAT IN STB/DVR IN Set top box/digital video

GAME 1 IN Game console, RI dock PC IN Personal computer TV/CD IN TV, CD player, cassette

PHONO IN VIDEO IN

IN 1 (BD/DVD) Blu-ray Disc/DVD player ✔ IN 2 (CBL/SAT) IN 3 (STB/DVR) Set top box/digital video

IN 4 (GAME 1) Game console, RI dock ✔

iPod/iPhone, MP3 player, USB flash drive

iPod/iPhone (video playback)

Satellite/cable set-top box, etc.

recorder, etc

Satellite/cable set-top box, etc.

recorder, etc

tape deck, MD, CD-R, Turntable

Turntable

Satellite/cable set-top box, etc.

recorder, etc

, RI dock

✔

Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection Tips and Video Signal Path” for more information (➔ page 100).

En-18

To be continued

No. Jack/Port Components

MONITOR OUT TV, projector, etc.

COMPONENT VIDEO

MONITOR OUT TV, projector, etc. IN 1 (BD/DVD) Blu-ray Disc/DVD player,

IN 2 (CBL/SAT) Satellite/cable set-top box,

ZONE 2 OUT TV, projector, etc.

J K

Note

PC IN

Do not connect the AV receiver’s USB port to a USB port on your computer. Music on your computer cannot be played through the AV receiver in this way. Only the front-panel USB input is compatible with iPod/iPhone. When the USB input is selected, you can input video signals from the AUX Input Video jack. Video signals input from

AUX Input Video will be output from MONITOR OUT V, COMPONENT VIDEO MONITOR OUT, and the HDMI

output jacks. Select which of COMPONENT VIDEO MONITOR OUT and the HDMI output jacks will output the video signal in the “Monitor Out” setting (➔ page 55). Connect a turntable (MM) that has a built-in phono preamp to TV/CD IN, or connect it to PHONO IN with the phono preamp turned off. If your turntable (MM) doesn’t have a phono preamp, connect it to PHONO IN. If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer to connect to PHONO IN. See your turntable’s manual for details. If your turntable has a ground wire, connect it to the AV receiver’s GND screw. With some turntables, connecting the ground wire may produce an audible hum. If this happens, disconnect it. When you connect your personal computer to PC IN and select the PC input selector, the video of the personal computer is output from the HDMI outputs. However, if you have assigned the HDMI inputs to the PC input selector, the AV receiver will output signals received from the HDMI inputs instead of signals from PC IN. To have the signals output from PC IN,

RI dock

RI dock, etc.

Personal computer

select “-----” for “PC” in the “HDMI Input” setting (➔ page 56).

• With connection D, you can enjoy Dolby Digital and DTS. (To listen in Zone 2/3 as well, use D and F.)

• With connection G, you can enjoy analog video from

✔

external components while you are in Zone 2.

• With connection F, you can enjoy audio from external

✔

components while you are in Zone 2/3.

• With connection F, if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect the main stereo.

Connecting Integra/Onkyo RI Components

Make sure that each Integra/Onkyo component is

connected with an analog audio cable (connection

F in the hookup examples) (➔ page 18).

Make the u connection (see the illustration).

If you’re using an RI Dock, or cassette tape deck,

change the Input Display (➔ page 46).

With u (Remote Interactive), you can use the following special functions:

■ System On/Auto Power On

When you start playback on a component connected via u, while the AV receiver is on standby, the AV

receiver will automatically turn on and select that component as the input source.

■ Direct Change

When playback is started on a component connected via u, the AV receiver automatically selects that

component as the input source.

■ Remote Control

You can use the AV receiver’s remote controller to control your other u-capable Integra/Onkyo

Connections

components, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (➔ page 85).

L R

ANALOG

e.g., cassette tape deck

RI Dock

Note

•Use only u cables for u connections. u cables are supplied with Integra/Onkyo components.

• Some components have two u jacks. You can connect either one to the AV receiver. The other jack is for connecting

additional u-capable components.

• Connect only Integra/Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all u functions. Refer to the manuals supplied with your Integra/Onkyo components.

• While Zone 2/3 is on, the System On/Auto Power On and Direct Change u functions do not work.

AUDIO OUT

ANALOG

AUDIO OUT

L R

En-19

Connections

Connecting the Antennas

This section explains how to connect the supplied indoor FM antenna and AM loop antenna. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use

the tuner.

North American models Australian models

Insert the plug fully

Push. Insert wire. Release.

Assembling the AM loop antenna

into the jack.

Caution

• Be careful not to injure yourself when using thumbtacks.

Indoor FM antenna (supplied)AM loop antenna (supplied)

Note

• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible reception.

• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

Tip

• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.

Insert the plug fully into the jack.

Thumbtacks, etc.

Connecting the Power Cord

Connect the supplied power cord to the AV

receiver’s AC INLET.

To AC wall outlet

Plug the power cord into an AC wall outlet.

Note

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.

• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

En-20

Turning On & Basic Operations

Turning On/Off the AV Receiver

8On/Standby

8Receiver

Turning On

Press 8On/Standby on the front panel.

Press Receiver followed by 8Receiver on the remote controller.

The AV receiver comes on and its display lights.

Turning Off

Press 8On/Standby on the front panel.

Press Receiver followed by 8Receiver on the remote controller.

The AV receiver will enter standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

Tip

•The Hybrid Standby indicator may light depending on the status of settings (➔ page 54).

• For details on power management settings, see “Auto Standby” (➔ page 75).

■ Smooth Operation in a Few Easy Steps

(Initial Setup)

To ensure smooth operation, here’s a few easy steps to help you configure the AV receiver before you use it for the very first time. These settings only need to be made once. See “Initial Setup” for details (➔ page 22).

■ If the “Firmware Update Available” window

appears.

When a new version of the firmware is available, the notification window “Firmware Update Available” pops up. This notification only appears when the AV receiver is connected to your home network (➔ page 107). To perform the firmware update, follow the instructions on screen.

Use q/w and Enter on the AV receiver or remote controller to select one of the options.

` Update Now:

Starts the firmware update. Refer to “Firmware Update” (➔ page 96).

` Remind me Later:

The update notification will pop up again the next time you turn the AV receiver on.

` Never Remind me:

Disables the automatic update notification.

Tip

• The update notification window can be enabled or disabled in “Update Notice” (➔ page 76).

Receiver

En-21

Turning On & Basic Operations

Initial Setup

This section explains the settings that we recommend you to make before using the AV receiver for the very first time. A setup wizard is launched upon first-time use to let you perform those settings.

The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN.

Selecting the Language for the Onscreen Setup Menus

This step determines the language used for the onscreen setup menus. See “Language” in “OSD Setup” (➔ page 72).

Tip

• Pressing Home will close the setup wizard. To restart the initial setup, select “Initial Setup” in the “Hardware Setup” menu (➔ page 76).

After selecting the language for on-screen setup menus, a welcome screen is displayed.

Initial Setup

Welcome to initial setup. Have you connected all the speakers and devices? Before starting, please connect speakers and sources. Now, would you like to start initial setup?

1st Step : Audyssey MultEQ XT32: Auto Setup 2nd Step : Source Connection 3rd Step : Remote Mode Setup 4th Step : Network Connection

Yes No

Use q/w on the AV receiver or remote controller to

select one of the following options, and then press Enter.

` Yes:

Continues to “Audyssey MultEQ XT32: Auto Setup”.

` No:

Skips the settings and terminates the initial setup. The setup wizard goes to “Terminating the Initial Setup” (➔ page 23). You can always restart the initial setup by selecting “Initial Setup” in the “Hardware Setup” menu (➔ page 76).

HOME

Exit

Audyssey MultEQ XT32: Auto Setup

This step performs the automatic speaker setup.

Use q/w to select one of the following options, and

then press Enter.

` Do it Now:

The automatic speaker setup is performed following instructions on screen. Refer to step 2 of “Using the Automatic Speaker Setup” (➔ page 35). When this setting is complete, the setup wizard continues to “Source Connection”.

` Do it Later:

Skips this setting. Press Enter and continue to “Source Connection”.

En-22

Turning On & Basic Operations

Source Connection

This step checks the connection of source components. With this step, you can enter remote control codes for the

Use q/w to select one of the following options, and

then press Enter.

` Yes, Continue:

Performs the checkings.

` No, Skip:

Skips this step and continues to “Remote Mode

Setup”.

Select the input selector for which you want to

check the connection and press Enter.

The picture of the corresponding source should appear on screen with a verification prompt.

When prompted, use q/w to select one of the

following options and then press Enter.

` Yes:

Confirms that the source is properly displayed.

` No:

Displays an error report. Follow the troubleshooting instructions and recheck the source.

Use q/w to select one of the following options, and

then press Enter.

` Yes:

Returns to step 2.

` No, Done Checking:

The setup wizard continues to “Remote Mode Setup”.

Remote Mode Setup

components you want to operate.

Use q/w to select one of the following options, and

then press Enter.

` Yes:

Performs the remote control code input. Refer to step 5 of “Looking up for Remote Control Codes” (➔ page 83).

` No, Skip:

Skips this step and continues to “Network

Connection”.

When you’re finished, select one of the following

options and press Enter.

` Yes, Done:

The setup wizard continues to “Network Connection”.

` No, not yet:

You can enter other remote control codes.

Network Connection

This step checks your network connection.

Use q/w to select one of the following options, and

then press Enter.

` Yes:

Performs the checkings.

` No, Skip:

Skips this step and terminates the initial setup.

Follow the instructions on screen to perform the

network checking.

The checking is complete when the message “Successfully connected.” appears at the middle of the screen. Press Enter to terminate the initial setup.

Tip

• If you have selected “Wireless (Option)”, you need to configure the optional wireless adapter. For further details, see the instruction manual provided with the wireless adapter (UWF-1).

If an error message appears, select one of the

following options and press Enter.

` Retry:

Performs the checking again.

` No, Do it Later:

Skips this step and terminates the initial setup. The setup wizard goes to “Terminating the Initial Setup”.

Terminating the Initial Setup

This step ends the initial setup process.

Press Enter.

To restart the initial setup, select “Initial Setup” in the “Hardware Setup” menu (➔ page 76).

En-23

Playback

The on-screen information appears only on a TV that is connected to HDMI outputs. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

This section describes the procedure for using the remote controller, unless otherwise specified.

Playing the Connected Component

■ Operating with the remote controller

Input Selector

Receiver

VOL q/w

Listening mode buttons

Press Receiver followed by an Input Selector

button.

Start playback on the source component.

See also:

• “Playing an iPod/iPhone via USB” (➔ page 26)

• “Playing a USB Device” (➔ page 27)

• “Listening to vTuner Internet Radio” (➔ page 27)

• “Registering Other Internet Radio” (➔ page 28)

• “Playing Music Files on a Server (DLNA)” (➔ page 29)

• “Remote Playback” (➔ page 30)

• “Playing Music Files on a Shared Folder” (➔ page 31)

• “Listening to AM/FM Radio” (➔ page 32)

• “Playing Audio and Video from Separate Sources” (➔ page 34)

• “iPod/iPhone Playback via Onkyo Dock” (➔ page 81)

• “Controlling Other Components” (➔ page 83)

To adjust the volume, use VOL q/w.

Select a listening mode and enjoy!

See also:

• “Using the Listening Modes” (➔ page 38)

• “Sound Program Edit” (➔ page 65)

Turning On & Basic Operations

■ Operating on the AV receiver

Master VolumeListening Mode

Input selector buttons

Use the input selector buttons to select the input

source.

Start playback on the source component.

To adjust the volume, use the Master Volume

control.

Select a listening mode and enjoy!

■ Screen Saver

If there is no video signal on the current input source and no operation for a specific time (three minutes by default), a screen saver automatically comes on.

Tip

• The time until the screen saver activates itself can be changed in the “Screen Saver” setting (➔ page 72).

• The screen will return to its previous state if the AV receiver is operated.

En-24

Controlling Contents of USB or Network Devices

Press USB or NET first.

c d

e f

l m

n o

p q

Top Menu

This button displays the top menu for each media or service.

q/w and Enter

These buttons navigate through the menus.

e/r

This button cycles through pages.

Playlist e/r

In Standard Mode (iPod/iPhone), this button selects playlists.

This button starts playback.

This button selects the beginning of the current song. Pressing this button twice selects the previous song.

This button fast-reverses the current song.

This button pauses playback.

You can toggle between the playback screen and the list screen during playback.

Display

This button switches between song information during playback. Press this button while the list screen is displayed to return to the playback screen.

Album +/–

In Standard Mode (iPod/iPhone), this button selects albums.

This button displays the menu of Internet radio services.

Return

This button returns to the previous menu.

This button selects the next song.

This button fast-forwards the current song.

Turning On & Basic Operations

This button stops playback.

Mode

You can switch between Standard Mode and Extended Mode.

Random

This button performs random playback.

Repeat

Press this button repeatedly to cycle through the repeat modes.

Tip

• See “Controlling Other Components” about the operation of other components (➔ page 83).

Note

• The buttons you can use will differ depending on the devices and media used for playback.

En-25

Turning On & Basic Operations

Understanding Icons on the Display

This section describes icons that appear on the AV receiver’s display during media playback.

Icon Description

Folder

Track

Playback

Pause

Fast Forward

Fast Reverse

Artist

Album

Repeat One Track

Repeat Folder (USB Device)

Repeat

Shuffle

Shuffle Album (iPod/iPhone)

Playing an iPod/iPhone via USB

The on-screen information appears only on a TV that is connected to HDMI outputs.

This section explains how to play music/video files on the iPod/iPhone. Compatible iPod/iPhone models Made for: iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic, iPod nano (2nd, 3rd, 4th, 5th and 6th generation), iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone

Press USB repeatedly to select the “USB(Front)”

input.

Tip

• The same operation can be done by selecting “USB” in the Home menu.

Connect the USB cable that comes with the

iPod/iPhone to the USB port on the front of the AV receiver.

While reading the contents of your iPod/iPhone, the message “Connecting...” appears on the AV receiver’s display.

The USB indicator lights. It will flash if the AV receiver cannot read the iPod/iPhone.

Tip

• When connecting your iPod/iPhone with a USB cable, we recommend you use an official USB cable from Apple Inc.

Press Mode repeatedly to switch to Extended Mode

(Music) or Extended Mode (Video).

A list of your iPod/iPhone model’s contents appears.

Tip

• If you want to operate using the iPod/iPhone or the remote controller, press Mode repeatedly to switch to Standard mode.

• When you disconnect the iPod/iPhone, the AV receiver remembers the current mode. This means that if you disconnect when in Extended Mode (Music), the AV receiver will start in Extended Mode (Music) the next time you connect the iPod/iPhone.

Use q/w to select a folder, and then press Enter to

open it.

Tip

• You can also use the q/w, enter (middle) and Tuning Mode buttons on the front panel. Tuning Mode allows

you to switch modes.

Use q/w to select a music/video file, and press Enter

or 1 to start playback.

Note

• While the message “Connecting...” appears on the AV receiver’s display, do not disconnect the USB cable supplied with your iPod/iPhone or the USB device from the USB port.

• If you connect an iPod or iPhone to the USB port, no sound will be output from the headphones jack.

En-26

Turning On & Basic Operations

Extended Mode (Music) Control

The music content information is displayed (lists are displayed), and you can control the music content while looking at the screen. Top screen list: Playlists, Artists, Albums, Genres, Songs, Composers, Shuffle Songs, Now Playing.

Note

• In this mode, video contents are not displayed, even if they are input from the AUX Input Video jack on the AV receiver’s front panel.

Extended Mode (Video) control

The video content information is displayed (lists are displayed), and you can control the video content while looking at the screen. Top screen list: Movies, Music Videos, TV Shows, Video Podcasts, Rentals.

Note

• To view the video contents of your iPod/iPhone, connect it to the USB port and AUX Input Video jack on the AV receiver’s front panel, using the official Apple Composite AV Cable.

• Depending on your iPod/iPhone model and generation, the displayed items may vary and the support for Extended Mode (Video) is not guaranteed.

Standard Mode Control

The content information is not displayed, but can be operated using the iPod/iPhone or the remote controller.

Playing a USB Device

The on-screen information appears only on a TV that is connected to HDMI outputs.

This section explains how to play music files from a USB device (e.g., USB flash drives and MP3 players). See also:

• “Network/USB Features” (➔ page 107).

Press USB repeatedly to select the “USB(Front)” or

“USB(Rear)” input.

Plug your USB device into the AV receiver’s USB

port.

The USB indicator lights. It will flash if the AV receiver cannot read the USB device.

Press Enter.

A list of the device’s contents appears. To open a folder, use q/w to select it, and then press Enter.

Use q/w to select a music file, and press Enter or

1 to start playback.

Note

• While the message “Connecting...” appears on the AV receiver’s display, do not disconnect the USB cable supplied with your iPod/iPhone or the USB device from the USB port.

Listening to vTuner Internet Radio

You need to connect the AV receiver to your home network (➔ page 107). The on-screen information appears only on a TV that is connected to HDMI outputs.

The vTuner Internet Radio Service is a portal site featuring radio stations from all over the world.

You can search for stations by categories such as genre or location. The AV receiver is preinstalled with this service.

Press NET.

The network service screen appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

Tip

• The same operation can be done by selecting “Network Service” in the Home menu.

Use q/w/e/r to select “vTuner Internet Radio”

and then press Enter.

Use q/w to select a program and then press Enter.

Playback starts.

My Music

0 : 11 Great Artist My Favorite

En-27

Tip

• You can find stations similar to the one being played. During playback, press Menu on the remote controller, select “Stations like this” and press Enter.

Turning On & Basic Operations

■ Adding vTuner Internet Radio Stations to

Favorites

There are two ways you can register specific Internet radio stations (programs) from the vTuner Internet Radio.

Adding to My Favorites

The selected program will be added to “My Favorites” on the network service screen, which appears when pressing NET on the remote controller.

1. Press Menu with the station selected or while a station is playing.

2. Use q/w to select “Add to My Favorites”, and press Enter.

3. Use q/w/e/r to select “OK”, and press Enter.

Tip

• You can rename the stations saved in “My Favorites” (➔ page 28).

Adding to vTuner Internet Radio’s Favorites

Select “vTuner Internet Radio” and press Enter to display the “Favorites” folder that appears on the same screen as “Stations By Genre”, “Stations By Location”, etc. This is where your favorite Internet radio bookmarks will be stored. To register your favorite stations using a personal computer, you need to connect your PC to the same network as the AV receiver. Enter the ID# (MAC address) of your unit on http://integra.vtuner.com/. You can then register your favorite radio programs. The ID# is shown at the bottom of the “vTuner Internet Radio” top menu, and the AV receiver’s MAC address is shown on “Network” of the Setup menu (➔ page 75).

Registering Other Internet Radio

You need to connect the AV receiver to your home network (➔ page 107). The on-screen information appears only on a TV that is connected to HDMI outputs.

Internet radio URLs in the following formats are supported: PLS, M3U, and podcast (RSS). However, depending on the type of data or audio format used by the Internet radio station, you may not be able to listen to some stations.

To listen to other Internet radio stations, you must register your station in “My Favorites” of the network service screen, as described below.

Note

• Services available may vary depending on the region. See the separate instructions for more information.

Select “Network” on the Setup menu to verify your

IP address (➔ page 76).

Take a note of the IP address.

On your computer, start your web browser.

Enter the AV receiver’s IP address in the browser’s

Internet address (URL) field.

If you are using Internet Explorer the URL by selecting “Open...” on the “File” menu.

Information on the AV receiver is then shown on your Internet browser (Web Setup).

Click on the “My Favorites” tab, and enter the

Internet radio station’s name and URL.

, you can also enter

Click “Save” to save the Internet radio station.

The Internet radio station is then added to “My Favorites”. To play the registered station, press NET,

and then select “My Favorites” on the network service screen. A list of registered Internet radio stations appears. Select the one that you saved and press Enter.

Tip

• If you want to add a new station directly from “My Favorites”, select an empty slot in the list and press Menu. Then, select “Create New Station” and press Enter. Pressing Enter again will display the keyboard screen. Use that keyboard to enter the station’s name and URL respectively, and then press Enter.

• If you want to delete a station saved in “My Favorites”, press Menu with the station selected or while the station is playing.

Then, use q/w to select “Delete from My Favorites” and press Enter. You can also delete stations from the Web Setup.

• If you want to rename a station, select the desired station and press Menu. Then, use q/w to select “Rename this station” and

press Enter.

• You can save up to 40 Internet radio stations.

En-28

Turning On & Basic Operations

Changing the Icon Layout on the Network Service Screen

You need to connect your TV to the HDMI output (HDMI OUT MAIN) to make the following on-screen setting.

The layout of icons can be customized by switching their positions on the network service screen.

Press NET.

The network service screen appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

Tip

• The same operation can be done by selecting “Network Service” in the Home menu.

Press Mode/D (blue) on the remote controller.

Use q/w/e/r to select an icon to move, and then

press Enter.

Use q/w/e/r to select another icon as the

destination, and then press Enter.

The icons switch positions and the message “Completed!” appears.

Playing Music Files on a Server (DLNA)

You need to connect the AV receiver to your home network (➔ page 107). The on-screen information appears only on a TV that is connected to HDMI outputs.

This section explains how to play music files on a computer or media server through the AV receiver (Server Playback).

Start your computer or media server.

Press NET.

The network service screen appears. The NET indicator lights. If it flashes, confirm the network connection.

Tip

• The same operation can be done by selecting “Network Service” in the Home menu.

Use q/w/e/r to select “DLNA”, and press Enter.

Use q/w to select a server, and then press Enter.

The menu is displayed according to the server functions.

Note

• The search function does not work with media servers which do not support this function.

• Photos and movies stored on a media server cannot be accessed from the AV receiver.

• Depending on the sharing settings in the media server, the AV receiver may not able to access the content. See the instruction manual of the media server.

Use q/w to select an item, and then press Enter or

1 to start playback.

My favorite song 1

0 : 11

Artist name

My favorite album

Note

• Depending on the media server, 5/4/3 may not work.

• If the message “No Item.” appears, this means that no information can be retrieved from the server. In this case, check your server, network, and AV receiver connections.

Windows Media Player 11 Setup

This section explains how to configure Windows Media Player 11 so that the AV receiver can play the music files stored on your computer.

Start Windows Media Player 11.

On the “Library” menu, select “Media Sharing”.

The “Media Sharing” dialog box appears.

Select the “Share my media” check box, and then

click “OK”.

A list of the supported devices appears.

Select the AV receiver in the list, and then click

“Allow”.

The corresponding icon will be checked.

En-29

To be continued

Turning On & Basic Operations

Click “OK” to close the dialog box.

This completes the Windows Media Player 11 configuration.

You can now play the music files in your Windows Media Player 11 library through the AV receiver.

Tip

• Windows Media Player 11 can be downloaded for free from the Microsoft web site.

Remote Playback

You need to connect the AV receiver to your home network (➔ page 107). The on-screen information appears only on a TV that is connected to HDMI outputs.

Remote Playback means you can play the music files stored on a media server or personal computer with the AV receiver by operating the controller device in the home network.

Windows Media Player 12 Setup

This section explains how to configure Windows Media Player 12 so that the AV receiver can play the music files stored on your personal computer.

Start Windows Media Player 12.

On the “Stream” menu, select “Turn on media

streaming”.

A dialog box appears.

Tip

• If the media streaming is already activated, clicking on “More streaming options...” in the “Stream” menu will display a list of the playback devices connected to the network. You can skip step 3.

Move your cursor and click on “Turn on media

streaming”.

A list of media server appears. Wording may vary slightly depending on the network location.

On the “Media streaming options”, select the AV

receiver and confirm that it is set to “Allow”.

Click “OK” to close the dialog box.

This completes the Windows Media Player 12 configuration.

You can now play the music files in your Windows Media Player 12 library.

Tip

• On the “Stream” menu, confirm that “Allow remote control of my Player...” is checked.

Using Remote Playback

Turn on the AV receiver.

Start Windows Media Player 12.

To enable remote playback, you must first configure Windows Media Player 12.

On Windows Media Player 12, right-click on a

music file.

The right-click menu appears.

Tip

• For selecting another media server, select the desired media server from the “Other Libraries” menu on Windows Media Player 12.

Select the AV receiver in “Remote playback”.

The “Play to” window appears and playback on the AV receiver starts. Operations during remote playback can be made from the “Play to” window of Windows 7 on your personal computer.

A playback screen will be displayed on the connected TV.

Adjusting the Volume.

You can adjust the volume by adjusting the volume bar in the “Remote playback” window. The default maximum volume level is 82 (0dB). If you wish to change this, enter the value from the Web Setup in your browser. Refer to step 3 of “Registering Other Internet Radio” for details (➔ page 28).

The volume value of the remote window and the volume value of the AV receiver may not always match.

Adjustments you make to the volume in the AV receiver will not be reflected in the “Remote playback” window.

Note

• Remote playback cannot be used in any of the following cases: – Network services are being used. – Contents are being played from a USB device or iPod/iPhone. – Zones are turned on.

En-30

Playing Music Files on a Shared Folder

This section explains how to play music files on a computer or NAS (Network Attached Storage) through the AV receiver.

Windows 7 Setup

■ Setting the sharing options

Select “Choose homegroup and sharing options” on

the Control Panel.

Tip

• If this option is not available, verify that “View by:” is set to “Category”.

Select “Change advanced sharing settings”.

Under “Home or Work”, verify that the following

items are checked:

“Turn on network discovery”, “Turn on file and printer sharing”, “Turn on sharing so anyone with network access can read and write files in the Public folders”, and “Turn off password protected sharing”.

Select “Save changes” and click “OK” on the

confirmation screen.

■ Creating a shared folder

Right-click the folder that you want to share.

Select “Properties”.

On the “Sharing” tab, select “Advanced Sharing”.

Check the check box of “Share this folder” and then

click “OK”.

Under “Network File and Folder Sharing”, select

“Share”.

Select and add “Everyone” from the pull-down

menu and then click “Share”.

Tip

• With this setting, everyone is allowed to access the folder. If you want to assign a user name and password to the folder, make the corresponding settings for “Permissions” in “Advanced Sharing” of the “Sharing” tab.

• Verify that “Workgroup” is properly set.

Note

• When using NAS (Network Attached Storage), refer to the instruction manual provided with your NAS unit.

Turning On & Basic Operations

Playing music files on a shared folder

In order to enjoy Home Media, you must first create a shared folder on your computer.

On the remote controller, press Receiver followed

by NET.

The network service screen appears. The NET indicator lights. If it flashes, confirm the network connection.

Tip

• The same operation can be done by selecting “Network Service” in the Home menu.

Use q/w/e/r to select “Home Media”, and press

Enter.

Use q/w to select a server, and then press Enter.

Tip

• The server name of your computer can be viewed on the computer properties screen.

Use q/w to select the desired shared folder and then

press Enter.

When asked for a user name and password, enter

the necessary login information.

Tip

• The login information will be remembered for the next time you log in.

• The login information is that of the user account set when creating a shared folder.

Use q/w to select a music file and then press Enter

or 1.

The playback of the selected file starts.

En-31

Listening to AM/FM Radio

This section describes the procedure of using the buttons on the front panel, unless otherwise specified.

Using the Tuner

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.

You can also change the frequency steps (➔ page 73).

Press Tuner to select either “AM” or “FM”.

In this example, FM has been selected. Each time you press Tuner, the radio band changes

between AM and FM.

Band Frequency

Tuning into Radio Stations

■ Auto tuning mode

Press Tuning Mode so that the AUTO indicator

lights on the AV receiver’s display.

Press Tuning q/w.

Searching stops when a station is found.

When tuned into a station, the TUNED indicator lights. When tuned into a stereo FM station, the FM STEREO indicator lights as shown.

TUNED

AUTO

TERE

Turning On & Basic Operations

■ Tuning into stations by frequency

You can tune into AM and FM stations directly by entering the appropriate frequency.

On the remote controller, press Tuner repeatedly

to select “AM” or “FM”, followed by D.TUN.

(Actual display depends on the country.)

Within 8 seconds, use the number buttons to enter

the frequency of the radio station.

For example, to tune to 87.5 (FM), press 8, 7, 5 or 8, 7, 5, 0.

If you have entered the wrong number, you can retry after 8 seconds.

Presetting AM/FM Stations

(Actual display depends on the country.)

Tip

• Tuning into weak FM stereo stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to manual tuning mode and listen to the station in mono.

■ Manual tuning mode

In manual tuning mode, FM stations will be in mono.

Press Tuning Mode so that the AUTO indicator

goes off on the AV receiver’s display.

Press and hold Tuning q/w.

The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

En-32

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

Tune into the AM/FM station that you want to store

as a preset.

See the previous section.

Press Memory.

The preset number flashes.

(Actual display depends on the country.)

While the preset number is flashing (about 8

seconds), use Preset e/r to select a preset from 1 through 40.

To be continued

Turning On & Basic Operations

Press Memory again to store the station or channel.

The station or channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite AM/FM radio stations.

■ Selecting Presets

To select a preset, use Preset e/r on the AV

receiver, or the remote controller’s CH +/–.

Tip

• You can also use the remote controller’s number buttons to select a preset directly.

■ Deleting Presets

Select the preset that you want to delete.

See the previous section.

While holding down Memory, press Tuning Mode.

The preset is deleted and its number disappears from the AV receiver’s display.

Using RDS (excluding North American models)

RDS works only in areas where RDS broadcasts are available.

When tuned into an RDS station, the RDS indicator lights. When the station is broadcasting text information, the text can be displayed.

■ What is RDS?

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information:

PS (Program Service)

When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing Display will display the frequency for 3 seconds.

RT (Radio Text)

When tuned to an RDS station that’s broadcasting text information, the text will be shown on the AV receiver’s display as described in the next section.

PTY (Program Type)

This allows you to search for RDS radio stations by type.

TP (Traffic Program)

This allows you to search for RDS radio stations that broadcast traffic information (➔ page 34).

Note

• In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

• If the signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

■ Displaying Radio Text (RT)

Press RT/PTY/TP once.

The RT information scrolls across the AV receiver’s display.

Note

• The message “Waiting” may appear while the AV receiver waits for the RT information.

• If the message “No Text Data” appears, no RT information is available.

■ Finding Stations by Type (PTY)

You can search for radio stations by type.

Press RT/PTY/TP twice.

The current program type appears on the AV receiver’s display.

Use Preset e/r to select the type of program you

want.

See the table shown later in this chapter.

To start the search, press the enter button.

The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

When a station you want to listen to is found, press

the enter button.

If no stations are found, the message “Not Found” appears.

En-33

■ Listening to Traffic News (TP)

You can search for stations that broadcast traffic news.

Press RT/PTY/TP three times.

If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the AV receiver’s display. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

To locate a station that is broadcasting TP, press

the enter button.

The AV receiver searches until it finds a station that’s broadcasting TP. If no stations are found, the message “Not Found” appears.

RDS program types (PTY)

Type Display

None None News reports News Current affairs Affairs Information Info Sport Sport Education Educate Drama Drama Culture Culture Science and technology Science Varied Varied Pop music Pop M Rock music Rock M Middle of the road music Easy M Light classics Light M Serious classics Classics Other music Other M Weather Weather Finance Finance Children’s programmes Children Social affairs Social Religion Religion Phone in Phone In Travel Travel Leisure Leisure Jazz music Jazz Country music Country National music Nation M Oldies music Oldies Folk music Folk M Documentary Document Alarm test TEST Alarm Alarm!

Turning On & Basic Operations

Playing Audio and Video from Separate Sources

You can listen to the audio of one input source while watching the video of another. This function takes advantage of the fact that when an audio-only input source (BD/DVD, CBL/SAT, STB/DVR, Game 1, TV/CD, Phono) is selected, the video input source remains unchanged. The following procedure shows how to listen to a CD player’s audio source connected to TV/CD IN while watching a Blu-ray Disc/DVD player’s video source connected to BD/DVD.

Tip

• To use an input selector as audio-exclusive, you must assign all video inputs to “-----” (➔ pages 56, 57).

Press BD/DVD.

Press TV/CD.

The audio output changes to the CD source, but the video of previously-selected BD/DVD is retained.

Start playback on your Blu-Ray Disc/DVD and CD

players.

You can now enjoy watching your Blu-ray Disc/DVD with the sound of your CD player.

En-34

Turning On & Basic Operations

Using Basic Functions

Using the Automatic Speaker Setup

With the supplied calibrated microphone, Audyssey MultEQ®XT32 automatically determines the number of speakers connected, their size for purposes of bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position. Audyssey MultEQ XT32 then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Audyssey MultEQ XT32 can be used with Audyssey Dynamic EQ Audyssey Dynamic Volume® (➔ page 66). Before using this function, connect and position all of your speakers. Audyssey MultEQ XT32 offers two ways of measuring: the “Audyssey Quick Start” and “Audyssey MultEQ XT32 Full Calibration”.

•“Audyssey Quick Start” uses the measurement from one position to perform the speaker setting only.

•“Audyssey MultEQ XT32 Full Calibration” uses the measurement from eight positions to correct room response in addition to the speaker setting.

The more positions are used in measuring, the better the listening environment will become. We recommend using a measurement from eight positions to create the best listening environment.

The Quick Start takes 2 minutes and Full Calibration takes about 20 minutes.

Total measurement time varies depending on the number of speakers.

and

Measurement procedure

To create a listening environment in your home theater that all listeners will enjoy, Audyssey MultEQ XT32 takes measurements at up to eight positions within the listening area. Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce inaccurate results.

■ First measurement position

Also referred to as the Main Listening Position, this refers to the most central position where one would normally sit within the listening environment. Audyssey MultEQ XT32 uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

■ Second-eighth measurement positions

These are the other listening positions (i.e., the places where the other listeners will sit). You can measure up to eight positions.

fed

: Listening area

ato h: Listening position

Note

• Make the room as quiet as possible. Background noise and Radio Frequency Interference (RFI) can disrupt the room measurements. Close windows, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices. Turn off the cell phone (even if it is not in use) or place it away from all audio electronics.

• The microphone picks up test tones played through each speaker as Audyssey MultEQ XT32 Room Correction and Speaker Setup runs.

• Audyssey MultEQ XT32 Room Correction and Speaker Setup cannot be performed while a pair of headphones is connected.

En-35

Turning On & Basic Operations

Turn on the AV receiver and the connected TV.

On the TV, select the input to which the AV receiver is connected.

Set the speaker setup microphone at the Main

Listening Position a, and connect it to the Setup Mic jack.

Setup Mic jack

Speaker setup microphone

The speaker setting menu appears.

Note

• The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

When you’ve finished making the settings, press

Enter.

MultEQ XT32: Auto Setup

Speakers Type(Front) Powered Zone 2

Powered Zone 3

Preout to External Amplifier Subwoofer

AUDYSSEY

Normal

Perform the “Speaker Setup” according to your speaker configuration:

– Speakers Type (Front) (➔ page 58) – Powered Zone 2 (➔ page 58) – Powered Zone 3 (➔ page 58) – Preout to External Amplifier (➔ page 58) – Subwoofer (➔ page 58)

If you use a powered subwoofer(s), go to step 4. If not, go to step 5.

If “Speakers Type (Front)” is set to “Digital Crossover”, a confirmation screen appears. Select “Next (2-7. Digital Processing Crossover Network)” to display the screen for Digital Processing Crossover

Network (➔ page 62). Continue with the settings.

Adjust the subwoofer volume level to 75 dB, and

then press Enter.

Test tones are played through the subwoofer. Use the volume control on the subwoofer.

Note

• If your subwoofer does not have a volume control, disregard the displayed level and press Enter to proceed to the next step.

• If you set the subwoofer’s volume control to its maximum and the level displayed is lower than 75 dB, leave the subwoofer’s volume control at its maximum and press Enter to proceed to the next step.

Use q/w to select “Audyssey Quick Start” or

“Audyssey MultEQ XT32 Full Calibration”, and then press Enter.

Press Enter.

Audyssey MultEQ

XT32 Room Correction and

Speaker Setup starts.

When prompted, repeat step 7.

Use q/w to select an option, and then press Enter.

MultEQ XT32: Auto Setup

-- Review Speaker Configuration --

Subwoofer Front Center Surround Front Wide Front High Surround Back Surround Back Ch

Save Cancel

Yes 40Hz 40Hz

100Hz

None

100Hz 120Hz

2ch

The options are:

` Save:

Save the calculated settings and exit Audyssey MultEQ XT32 Room Correction and Speaker Setup.

` Cancel:

Cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup.

Tip

• You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by

using e/r.

AUDYSSEY

Test tones are played through each speaker as Audyssey MultEQ XT32 Room Correction and

To be continued

Speaker Setup runs. This process takes a few minutes.

Yes

Please refrain from talking during measurements and do not stand between speakers and the microphone. Do not disconnect the speaker setup microphone during Audyssey MultEQ XT32 Room Correction and Speaker Setup, unless you want to cancel the setup. If you select “Audyssey Quick Start”, you will go to step 9.

Place the speaker setup microphone at the next

position, and then press Enter.

Audyssey MultEQ XT32 performs more measurements. This takes a few minutes.

En-36

Turning On & Basic Operations

Use q/w to select a target, and use e/r to change

the setting.

After the results of Audyssey MultEQ

XT32 have been saved, the menu will display the “Audyssey” (➔ page 66), “Dynamic EQ” (➔ page 66), “Dynamic Volume” (➔ page 66) settings.

Note

•When “Audyssey Quick Start” has been used for

measurement, “Audyssey” cannot be selected.

• These settings are applied to all input selectors.

Press Enter.

Disconnect the speaker setup microphone.

Note

• You can cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup at any point in this procedure simply by disconnecting the setup microphone.

• Do not connect or disconnect any speakers during Audyssey MultEQ XT32 Room Correction and Speaker Setup.

• If the AV receiver is muted, it will be unmuted automatically when Audyssey MultEQ XT32 Room Correction and Speaker Setup starts.

• Changes to the room after Audyssey MultEQ XT32 Room Correction and Speaker Setup requires you run Audyssey MultEQ XT32 Room Correction and Speaker Setup again, as room EQ characteristics may have changed.

Error Messages

While Audyssey MultEQ XT32 Room Correction and Speaker Setup is in progress, one of the error messages below may appear.

The options are:

• Ambient noise is too high.

• Speaker Matching Error!

• Writing Error!

• Speaker Detect Error

• See “Speaker Configuration” for appropriate settings

MultEQ XT32: Auto Setup

Retry Cancel

Ambient noise is too high.

Error message

AUDYSSEY

` Retry:

Try again.

` Cancel:

Cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup.

The background noise is too loud. Remove the source of the noise and try again.

The number of speakers detected was different from that of the first measurement. Check the speaker connection.

This message appears if saving fails. Try saving again. If this message appears after 2 or 3 attempts, contact your Onkyo dealer.

This message appears if a speaker is not detected. “No” means that no speaker was detected.

Tip

(➔ page 11).

Changing the Speaker Setup Manually

You can manually make changes to the settings found during Audyssey MultEQ XT32 Room Correction and Speaker Setup. See also:

• “Speaker Configuration” (➔ page 58)

• “Speaker Distance” (➔ page 59)

• “Level Calibration” (➔ page 60)

• “Equalizer Settings” (➔ page 60)

Note

• Please note that THX recommends any THX main speakers be set to “80Hz(THX)”. If you set up your speakers using Audyssey MultEQ XT32 Room Correction and Speaker Setup, please make sure manually that any THX speakers are set to “80Hz(THX)” crossover (➔ page 58).

• Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

• Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.

Using a Powered Subwoofer

If you’re using a powered subwoofer and it outputs very low-frequency sound at a low volume level, it may not be detected by Audyssey MultEQ XT32 Room Correction and Speaker Setup.

If the “Subwoofer” appears on the “Review Speaker Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey MultEQ XT32 Room Correction and Speaker Setup again. Note that if the volume is set too high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a low-pass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

En-37

Using the Listening Modes

Selecting Listening Modes

See “About Listening Modes” for detailed information about the listening modes.

■ Listening Mode Buttons

Press Receiver first.

Movie/TV button

This button selects the listening modes intended for use with movies and TV.

Music button

This button selects the listening modes intended for use with music.

Game button

This button selects the listening modes intended for use with video games.

THX button

This button selects the THX listening modes.

• The Dolby Digital and DTS listening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).

• The listening modes you can select depends on the format of the input signal. To check the format, see “Displaying Source Information” (➔ page 46).

• While a pair of headphones is connected, you can select the following listening modes: Mono, Direct, and Stereo.

Turning On & Basic Operations

About Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

■ Explanatory Notes

ab f

Music

Movie/TV

Movie/TV, Music, Game

Game THX

En-38

abFront speakers c Center speaker deSurround speakers f Subwoofer(s) ghSurround back speakers ijFront high speakers klFront wide speakers

Turning On & Basic Operations

SP (speaker layout)

Listening mode buttons

Input Source

The following audio formats are supported by the listening modes.

A S

This is mono (monophonic) sound.

This is stereo (stereophonic) sound. Two independent audio signal channels are reproduced through two speakers.

This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth subwoofer channel (called the point-one channel).

This is 7.1-channel surround sound. This is a further sound enhancement to 5.1-channel sound with two additional speakers that provide greater sound envelopment and more accurate positioning of sounds.

This is DTS-ES surround sound. This surround system can produce a discrete or a matrix-encoded sixth channel from existing DTS 5.1 encoded material.

This is Dolby Digital EX surround sound. This provides a center back surround channel from 5.1channel sources.

Speaker Layout

The illustration shows which speakers are activated in each channel. See “Speaker Configuration” for the speaker setup (➔ page 58).

Press Receiver followed by SP (speaker layout) repeatedly to select the speakers you want to use: front high, front wide, or surround back.

After enabling the corresponding speakers, press Receiver followed by SP (speaker layout) repeatedly to select the layout you want to use. These layouts are only available when “Preout to External Amplifier” (➔ page 58) is enabled.

En-39

■ Onkyo-Original DSP Listening Modes

Listening Mode Description Input

Orchestra Suitable for classical or operatic music, this

Or c es t rah

mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

Unplugged Suitable for acoustic instruments, vocals and

Unp u gg edl

jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.

Studio-Mix Suitable for rock or pop music, listening to

Stu io– Mi xd

music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic This mode adds realistic acoustics to TV

TV og i cL

shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.

Game-RPG In this mode, the sound has a dramatic feel

Gam – R P Ge

with a similar atmosphere to Orchestra mode.

Game-Action In this mode, sound localization is distinct

Gam –A c t i one

with emphasis on bass.

Game-Rock In this mode, sound pressure is emphasized

Gam –Ro c ke

to heighten live feel.

Game-Sports In this mode, reverberation is increased and

Gam – S p or tse

sound localization decreased slightly.

Source

A S D F G H

Speaker Layout

CNM

Turning On & Basic Operations

Listening Mode Description Input

All Ch Stereo Ideal for background music, this mode fills

Al l Ch Stereo

the entire listening area with stereo sound from the front, surround, and surround back speakers.

Full Mono In this mode, all speakers output the same

Fu l Monol

sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

T-D (TheaterDimensional)

T – D

With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

Source

A S D F G H

Speaker Layout

XCN M

ZXC NM

En-40

■ Listening Modes

Listening Mode Description Input

Direct In this mode, audio from the input source is

Di rec t

output without surround-sound processing. The speaker configuration (presence of speakers) and speaker distance settings are enabled, but much of the processing set via the audio setup is disabled. See “On-screen Setup” for more details (➔ page 49).

Stereo Sound is output from the front left and right

Stereo

speakers and subwoofer.

Mono Use this mode when watching an old movie

Mono

with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.

Multichannel This mode is for use with PCM multichannel

Mu l t i ch

DSD

Dolby Digital

Dolby D

Dolby Digital Plus

Dolby D +

sources.

In this mode, audio from the input source is output without surround-sound processing. The speaker configuration (presence of speakers), crossover frequency, speaker distance, A/V Sync and much of the processing set via the audio setup are

enabled. See “On-screen Setup” for more details (➔ page 49).

Dolby TrueHD

Source

A S D F G H

D F

D XCN

F XCN

D XCN

F XCN

Speaker Layout

ZXC

ZXC NM

XCN M

Turning On & Basic Operations

Listening Mode Description Input

Source

DTS In this mode, audio from the input source is

DTS

DTS-HD High Resolution Audio

DTS– HD HR

output without surround-sound processing. The speaker configuration (presence of speakers), crossover frequency, speaker distance, A/V Sync and much of the processing set via the audio setup are enabled. See “On-screen Setup” for more

DXCN

FXCN

details (➔ page 49).

DTS-HD Master

DXCN

Audio

DTS– HD MS TR

DTS Express

DTS E xp r e s s

DTS 96/24

DTS 96 / 2 4

This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution,

FXCN

DXCN

providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.

DTS-ES Discrete

ES iscreteD

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/7.1-channel

playback. The seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the

DTS-ES Matrix

ES a t r i xM

DTS-ES logo, especially those with a DTSES Discrete soundtrack.

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix-encoded back-channel for 6.1/7.1-channel playback. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Matrix

soundtrack.

Speaker Layout

J K

En-41

Turning On & Basic Operations

Listening Mode Description Input

Source

Dolby Pro Logic IIx Dolby Pro Logic II

PL Mo v i e

PL Mu s i c

PL Game

PL x Mov i e

PL x Mus i c

PL x Game

Dolby Pro Logic IIx expands any 2-channel source for 7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging.

If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx.

• Dolby PLIIx Movie

Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).

S XCN

• Dolby PLIIx Music

Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).

•Dolby PLIIx Game

Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

• Dolby PLIIx Movie

• Dolby PLIIx Music

D H

These modes use the Dolby Pro Logic IIx modes to expand 5.1-channel sources for

7.1-channel playback.

Dolby Pro Logic IIz Height

PL z He i gh t

Dolby Pro Logic IIz Height is designed to more effectively use existing program material when height channel speaker outputs are present. Dolby Pro Logic IIz Height can be used to upmix a variety of sources from movies and music, but are

S D F G H

particularly well-suited to upmix game content.

Dolby EX These modes expand 5.1-channel sources for

Dolby EX

Dolby D EX

6.1/7.1-channel playback. They’re especially suited to Dolby EX soundtracks that include a matrix-encoded surround back channel. The additional channel adds an extra

D H

dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

Speaker Layout

V J K

B J L

V J K

Listening Mode Description Input

Source

DTS Neo:X

This mode expands various sources and various inputs up to 9.1 channel. DTS Neo:X provides semi-spherical sound field adding height/wide speakers to create a natural, immersive and spacious surround soundscape.

Neo 6:Ne o X C i nema:

Neo X Music:

Neo X Game:

Audyssey DSX

Aud s se y DSXy

• DTS Neo:X Cinema

This mode is suitable for movie viewing.

•DTS Neo:X Music

This mode is suitable for any music source.

•DTS Neo:X Game

This mode is suitable for video games.

• Audyssey DSX

Audyssey DSX adds new speakers to improve surround impression. Starting with a 5.1 system Audyssey DSX first adds Wide channels

is a scalable system that

S D F G H

D F G H

for the biggest impact on envelopment. Research in human hearing has proven that information from the Wide channels is much more critical in the presentation of a realistic soundstage than Back Surround channels found in traditional 7.1 systems. Audyssey DSX then creates a pair of Height channels to reproduce the next most important acoustical and perceptual cues. In addition to these new Wide and Height channels, Audyssey DSX applies Surround Envelopment Processing to enhance the blend between the front and surround channels.

Speaker Layout

XCN M

B bM

En-42

Turning On & Basic Operations

Listening Mode Description Input

Source

PL Mo v i e DSX

PL Mu s i c DSX

PL Game DSX

• Dolby Pro Logic II/IIx*6 Movie + Audyssey DSX

• Dolby Pro Logic II/IIx

Music +

Audyssey DSX

• Dolby Pro Logic II/IIx

Game +

Audyssey DSX

The combination of Dolby Pro Logic II/IIx

PL x Mov i e DSX

PL x Mus i c DSX

and Audyssey DSX

• Dolby Pro Logic IIx Movie + Audyssey DSX

modes can be used.

D H

• Dolby Pro Logic IIx Music +

PL x Game DSX

Audyssey DSX

The combination of Dolby Pro Logic IIx and Audyssey DSX modes can be used.

Do l by EXDSX

• Dolby EX + Audyssey DSX The combination of Dolby EX and

D H

Audyssey DSX modes can be used.

THX Founded by George Lucas, THX develops

stringent standards that ensure movies are reproduced in movie theaters and home theaters just as the director intended. THX Modes carefully optimize the tonal and spatial characteristics of the soundtrack for reproduction in the home-theater environment. They can be used with 2channel matrixed and multichannel sources. Surround back speaker output depends on the source material and the selected listening mode.

Speaker Layout

J K

Listening Mode Description Input

Source

THX C i n ema

Neo 6:THX Mu s i c

THX Games

•THX Cinema

THX Cinema mode corrects theatrical soundtracks for playback in a home theater environment. In this mode, THX Loudness Plus is configured for cinema levels and Re-EQ, Timbre Matching, and Adaptive

D F G H

Decorrelation are active.

•THX Music

THX Music mode is tailored for listening to music, which is typically mastered at significantly higher levels than movies. In this mode, THX Loudness Plus is configured for music playback and only Timbre Matching is active.

•THX Games

THX Games mode is meant for spatially accurate playback of game audio, which is often mixed similarly to movies but in a smaller environment. THX Loudness Plus is configured for game audio levels, with Timbre Matching active.

• Dolby Pro Logic II/IIx

Movie + THX

SCNM

Cinema

• Dolby Pro Logic II/IIx

Music + THX

Music

• Dolby Pro Logic II/IIx

Game + THX

Games

The combination of Dolby Pro Logic II/IIx and THX Cinema/Music/Games modes can be used. The PLII/PLIIx and THX indicators light on the AV receiver’s display.

• Dolby Pro Logic IIx Movie + THX Cinema

D H

• Dolby Pro Logic IIx Music + THX Music

The combination of Dolby Pro Logic IIx and THX Cinema/Music modes can be used. The PLIIx and THX indicators light on the AV receiver’s display.

Speaker Layout

CNM

V J K

En-43

Turning On & Basic Operations

Listening Mode Description Input

Source

• Dolby Pro Logic IIz Height + THX Cinema

• Dolby Pro Logic IIz Height + THX Music

• Dolby Pro Logic IIz Height + THX Games

S D F G H

The combination of Dolby Pro Logic IIz Height and THX Cinema/Music/Games modes can be used. The PLIIz and THX indicators light on the AV receiver’s display.

• DTS Neo:X Cinema + THX Cinema

• DTS Neo:X Music + THX Music

• DTS Neo:X Game + THX Games

The combination of DTS Neo:X Cinema/Music/Game and THX Cinema/ Music/Games modes can be used. The Neo:X indicator lights on the AV receiver’s display.

THX S2 C i n ema

Neo 6:

• THX Select2 Cinema

This mode expands 5.1-channel sources for

D H

7.1- channel playback. It does this by

THX S2 Music

analyzing the composition of the surround source, optimizing the ambient and

T H X S 2 G a m e s

directional sounds to produce the surround back channel output.

• THX Select2 Music

This mode is designed for use with music. It expands 5.1-channel sources for 7.1channel playback.

• THX Select2 Games

This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback.

THX Su r r EX

• THX Surround EX

This mode expands 5.1-channel sources for

D H

6.1/7.1- channel playback. It’s especially suited to Dolby Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

Speaker Layout

B J L

V J K

Listening Mode Description Input

Source

• Dolby Pro Logic II Game + THX Select2

Games

The combination of Dolby Pro Logic II Game and THX Select2 Games modes can

Speaker Layout

J K

be used. The PLII and THX indicators light on the AV receiver’s display.

• Dolby Pro Logic IIz Height + THX Select2 Games

The combination of Dolby Pro Logic IIz Height and THX Select2 Cinema/

S D H

Music/Games modes can be used.

• Dolby Pro Logic IIz Height + THX Select2 Cinema

D H

• Dolby Pro Logic IIz Height + THX Select2 Music

Note

Based on the audio channel signal contained in the source, the corresponding speakers will output the sound.

The AV receiver can input the DSD signal from HDMI IN. Depending on the player, setting the output on the player side to PCM might bring better sound.

For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.1-channel speaker system.

DTS is used depending on the configuration of the AV receiver.

If there are no surround back speakers, DTS is used.

If there are no surround back speakers, Dolby Pro Logic II is used.

DTS Neo:X cannot be selected in the case of 192 kHz input signals.

This listening mode can be selected only when all the following conditions are satisfied: – Center speaker is connected. – Either the front high or front wide speakers are connected.

• The listening modes cannot be selected with some source formats.

En-44

Using the Home Menu

The Home menu provides quick access to frequently used menus.

The Home menu appears only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

Press Receiver followed by Home.

The Home menu will be superimposed on the TV screen.

Use e/r or q/w and Enter to make the desired

selection.

Press Home to close the menu.

■ Network Service

You need to connect the AV receiver to your home network (➔ page 107).

` With this selection, you can use various Internet radio

services or play the contents stored in media connected to your home network (DLNA) (➔ pages 27 to 31). Note that this selection will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable.

Press Enter to display the network service screen. If you want to use the Internet radio services, use

q/w/e/r to select the desired service. Pressing Enter again switches to that selection. If you want to

play music files on a server, use q/w/e/r to select “DLNA” and then press Enter.

■ USB

` With this selection, you can play contents of portable

players (iPod, etc.) and USB storage devices connected to the AV receiver’s USB port (➔ pages 26, 27). Note that this selection will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable.

First, press USB repeatedly to select the “USB(Front)” or “USB(Rear)” input. Then, press Enter to select a drive or browse the

contents of the media connected, followed by q/w to select the desired folder or track. Pressing Enter as a track is selected will start playback.

Note

• Only the front-panel USB input is compatible with iPod/iPhone.

Turning On & Basic Operations

■ InstaPrevue

` With this selection, you can preview audio/video

streams coming from HDMI inputs (HDMI IN 1/2/3/4/AUX Input). Even with multiple

components connected through HDMI, you can easily switch between inputs as their previews are displayed on a single screen.

Press Enter to display the main preview (currently selected HDMI input) and the additional previews

(other HDMI inputs). Using q/w or e/r to select a preview thumbnail and pressing Enter will switch the AV receiver to that input source.

Tip

• If no video signals are present, the thumbnails will be filled in black.

• You can specify the number of preview thumbnails as well as their positioning on screen (➔ page 75).

Note

• This function cannot be selected when: – HDMI IN 5/6/7 is the current HDMI input source, or – No signal is present on the current input source.

• Depending on video signals, the picture may not be properly rendered on the preview thumbnails of InstaPrevue.

■ Setup

` With this selection, you can access the common

settings of the on-screen Setup menu.

Press Enter to display the Setup menu (➔ page 53).

Tip

• You can also access frequently used settings from Quick Setup (➔ page 49).

■ Firmware Update

` With this selection, you can update the firmware of the

AV receiver. Note that this selection will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable.

Press Enter to start the procedure (➔ page 96).

En-45

Turning On & Basic Operations

Using the Sleep Timer

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.

Press Receiver once followed by Sleep repeatedly

to select the required sleep time.

The sleep time can be set from 90 to 10 minutes in 10 minute steps.

The SLEEP indicator lights on the AV receiver’s display when the sleep timer has been set. The specified sleep time appears for about 5 seconds, then the previous display reappears.

Tip

• If you need to cancel the sleep timer, press Sleep repeatedly until the SLEEP indicator goes off.

• To check the time remaining until the AV receiver sleeps, press Sleep. Note that if you press again on Sleep as the time being displayed is 10 minutes or less, the sleep timer will go off.

Setting the Display Brightness

You can adjust the brightness of the AV receiver’s display.

Press Receiver once followed by Dimmer

repeatedly to switch between: normal, dim, or dimmer brightness.

Tip

• (North American models) Alternatively, you can use Dimmer on the AV receiver.

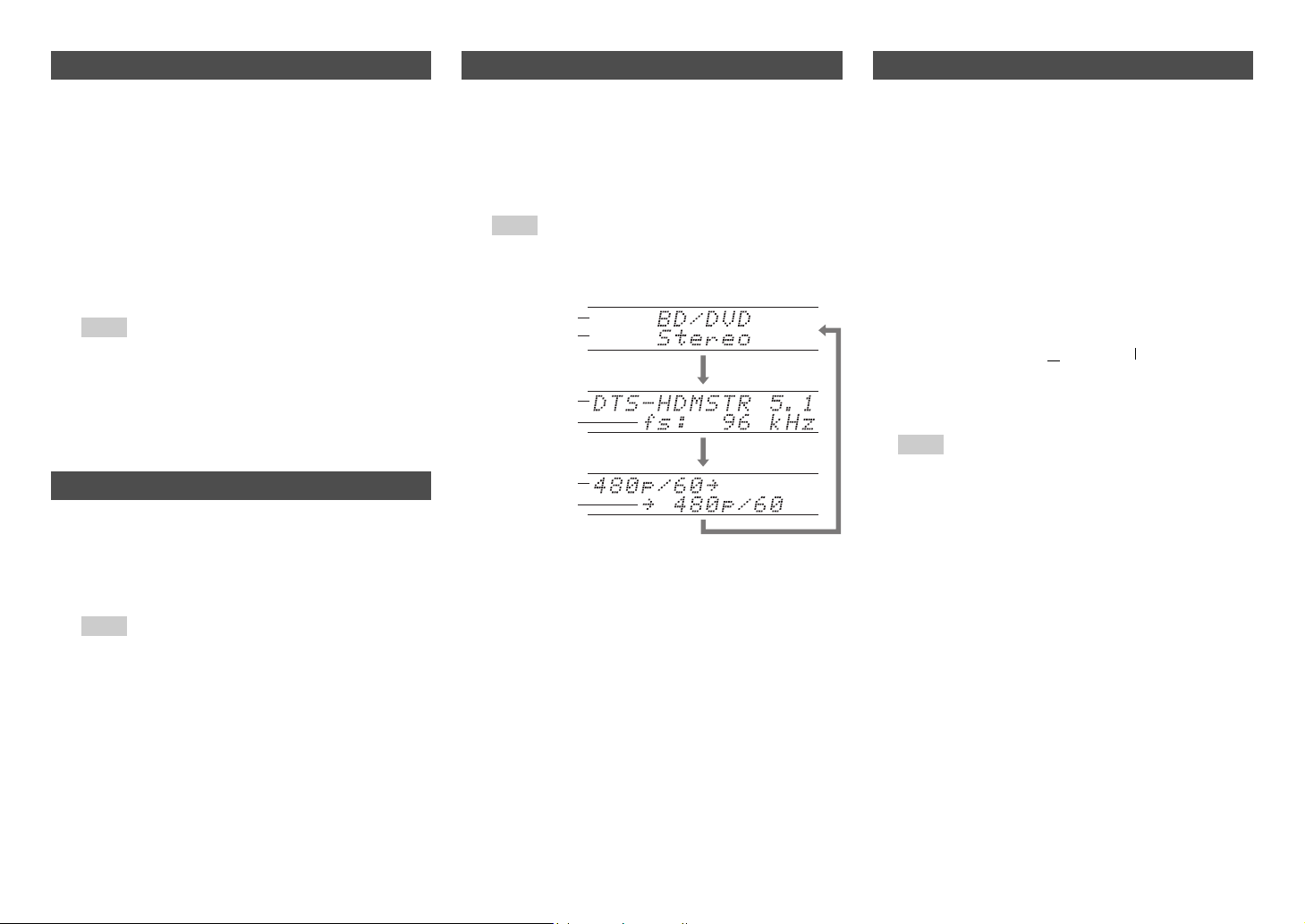

Displaying Source Information

You can display various information about the current input source as follows.

Press Receiver once followed by Display

repeatedly to cycle through the available information.

Tip

• Alternatively, you can use Display on the AV receiver.

The following information can be typically displayed.

Input source

Listening mode

Signal format

Input signal

Output resolution

If the input signal is digital, the signal format is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.

Sampling

frequency

resolution

Changing the Input Display

When you connect an u-capable Integra/Onkyo component, you must configure the input display so that

u can work properly. This setting can be done only from the front panel.

Press TV/CD or Game1.

“TV/CD” or “GAME1” appears on the AV receiver’s display.

Press and hold down the same button (about

3 seconds) to change the input display.

Repeat this step to select the desired input display.

■ TV/CD:

“

Note

•“DOCK” can be selected for the “TV/CD”, “GAME1” input selector, but not at the same time.

• Enter the appropriate remote control code before using the remote controller for the first time (➔ page 85).

TV/CD → DOCK

→

TAPE

GAME1 ↔ DOCK■ Game1:

→

En-46

Turning On & Basic Operations

Using the Whole House Mode

The Whole House Mode is useful when you want to add extra background music to your home party; this allows you to enjoy the same stereo music as the main room in separate rooms (Zone 2/3).

The Whole House Mode selects the same input source for Multi Zone as the main room’s.

See also:

• “Speaker Setup” (➔ page 58)

• “Multi Zone” (➔ page 77)

Press Whole House Mode on the front panel.

To cancel the Whole House Mode, press Off, change the input source for the main room, or select a listening mode (➔ page 38).

Note

• The Whole House Mode only supports analog audio.

• To adjust the volume of Multi Zone, switch the AV receiver to Multi Zone control. See “Adjusting the Volume for Zones” (➔ page 79) for the volume adjustment of Multi Zone.

• The Whole House Mode is not available in the following cases: –The “Audio TV Out” setting is set to “On”

(➔ page 74).

–“HDMI Control(RIHD)” is set to “On” (➔ page 74)

and you’re listening through your TV speakers.

– Digital Processing Crossover Network is used

(➔ page 62).

Selecting Speaker Layout

You can set which speakers you want to use by priority.

Press Receiver followed by SP (speaker layout)

repeatedly to select:

■ 9.1 ch playback

Important:

• The following layouts are only available when the “Preout to External Amplifier” setting (➔ page 58) and all corresponding speakers are enabled.

` Speaker Layout:SB/FH:

The sounds from surround back and front high speakers are output by priority.

` Speaker Layout:SB/FW:

The sounds from surround back and front wide speakers are output by priority.

` Speaker Layout:FH/FW:

The sounds from front high and front wide speakers are output by priority.

■ 7.1 ch playback

` Speaker Layout:FH:

The sound from front high speakers is output by priority.

` Speaker Layout:FW:

The sound from front wide speakers is output by priority.

` Speaker Layout:SB:

The sound from surround back speakers is output by priority.

Note

• This setting is not available in either of the following cases: –The “Speakers Type (Front)” setting is set to “Bi-Amp”

or “Digital Crossover”.

–The “Powered Zone 2/3” setting is set to “Yes” and

Zone 2/3 is turned on.

• Playback conditions may be limited depending on the settings in “Speaker Settings” (➔ page 58) and “Speaker Configuration” (➔ page 58).

• When a listening mode which doesn’t support front high, front wide or surround back speakers is used, this setting cannot be selected.

Muting the AV Receiver

You can temporarily mute the output of the AV receiver.

Press Receiver followed by Muting.

The output is muted and the MUTING indicator flashes on the AV receiver’s display.

Tip

• To unmute, press Muting again or adjust the volume.

• Muting is automatically cancelled when the AV receiver is set to standby.

Using Headphones

Connect a pair of stereo headphones with a

standard plug (1/4 inch or 6.3 mm) to the Phones jack.

While the headphones plug is inserted in the Phones jack, = indicator lights.

Note

• Always turn down the volume before connecting your headphones.

• While the headphones plug is inserted in the Phones jack, the speakers are turned off. (The Powered Zone 2/3 speakers are not turned off.)

• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, Direct.

• If you connect an iPod or iPhone to the USB port on the AV receiver, no sound will be output from the headphones jack.

En-47

Turning On & Basic Operations

Using Easy Macros

By using Activities in Easy macro mode, you can sequentially operate Integra/Onkyo components via simple commands from a single-button press.

These commands are user-definable. See “Using Normal Macros” (➔ page 89).

Press Activities (My Movie, My TV, or My Music)

to start the Easy macro command.

The default sequences of actions are described below. To change the related source component, see “Changing the Source Components” shown later in

this chapter.

■ My Movie

First, the TV, the Integra/Onkyo DVD player, and the AV receiver are turned on. The input selector is set to “BD/DVD”. Finally the player starts playback.

Depending on the start-up time of your Blu-ray Disc/DVD player, the AV receiver may not activate this playback

command. In this case, press 1 on the remote controller.

■ My TV

First, the TV, the cable set-top box, and the AV receiver are turned on. Then the input selector is set to “CBL/SAT”.

■ My Music

The Integra/Onkyo CD player and the AV receiver are turned on. The input selector is set to “TV/CD”. Finally, the player starts playback.

Note

• While the Easy Macro command is being processed, you cannot use other Activities. If you want to operate other components, first press All Off and use the desired Activities.

Turning Off the Components

This button turns off all components activated by the Easy Macro mode.

Press All Off.

First, the related components stop and turn off. Second, the AV receiver turns off. Finally, the TV turns off (or enters standby mode).

This step doesn’t apply to My Music, with the default settings.

With some televisions, the power may not be turned off (or enter standby mode).

*1*2

Changing the Source Components

You can change the source components activated by the Easy Macro mode.

While holding down Remote Mode for the

playback component you wish to assign, press and hold down the Activities to be changed (My Movie, My TV, or My Music) (about 3 seconds).

Activities flashes twice, indicating that the change is complete.

Examples:

If you wished to use My Music to start the Onkyo cassette recorder, you would press and hold down My Music (about 3 seconds) while holding down TV/CD until it flashes twice.

Restoring Default

You can restore Activities to the default settings.

While holding down Home, press and hold down

All Off until All Off lights (about 3 seconds).

Release Home and All Off, and press All Off again.

All Off flashes twice.

En-48

On-screen Setup

With the AV receiver connected to a TV, there are two ways of changing the settings on-screen: using the Quick Setup or the Setup menu (Home).

■ Quick Setup

The Quick Setup provides quick access to frequently used settings. You can change settings and view the current information.

■ Setup menu (Home)

The Setup menu (Home) provides a convenient way to change the AV receiver’s various settings. Settings are organized into 9 categories.

The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

This section describes the procedure for using the remote controller unless otherwise specified.

Using the Quick Setup

Receiver

Enter

q/w/e/r

Q Setup

Press Receiver followed by QSetup.

The Quick Setup will be superimposed on the TV screen.

Use q/w and Enter to make the desired selection.

Press QSetup to close the menu. Press Return to return to the previous menu.

Explanatory Notes

■ Music Optimizer

a b

a Setting target b Setting options (default setting underlined)

` Off ` On

BD/DVD Input Audio Video Information Listening Mode

Return

Advanced Operations

■ Input

` You can select input sources and view the following

information: the name of input selectors, input assignments, radio information, and ARC function setting. In addition, previews of the video streams coming from HDMI inputs (HDMI IN 1/2/3/4/AUX Input) are displayed.

Use q/w to select an input source and view the related information. Pressing Enter switches to the selected input source.

■ Audio (➔ page 50)

` You can change the following settings: “Sound

Program”, “Bass”, “Treble”, “Subwoofer Level”,

“Center Level”, “Dolby Volume “Dynamic EQ

*2*3

”, “Dynamic Volume

”, “Audyssey”,

*2*3

”, “Late Night”, “Music Optimizer”, “Re-EQ”, “Re-EQ(THX)” and “Screen Centered Dialog”.

■ Video

` You can change the following settings: “Wide Mode”

and “Picture Mode*5”.

See also:

• “Picture Adjust” (➔ page 68)

■ Information

` You can view the information of the following items:

“Audio”, “Video” and “Tuner”.

■ Listening Mode

` You can select the listening modes that are grouped in

the following categories: “MOVIE/TV”, “MUSIC”, “GAME”, and “THX”.

Use q/w to select the category and e/r to select the listening mode. Press Enter to switch to the selected listening mode.

To be continued

En-49

Note

• The video preview is not displayed when: – HDMI IN 5/6/7 is the current HDMI input source, or – No signal is present on the current input source.

• The video of the currently-selected input is displayed on the

main screen, not on a preview thumbnail.

“Dolby Volume”, “Dynamic EQ” and “Dynamic Volume” cannot be selected when any of the THX listening modes is selected, with “Loudness Plus” set to “On” or “Preserve THX Settings” set to “Yes” (➔ page 61).

When “Dynamic EQ” is set to “On” or “Dynamic Volume” is set to anything else than “Off”, “Dolby Volume” will be switched to “Off” (➔ page 64).

• When the “Monitor Out” setting is set to “Sub”, “Video”

cannot be selected (➔ page 55).

• This setting cannot be used with the NET input selector.

Only when you have selected “Custom” in the “Picture Mode” (➔ page 68), pressing Enter allows you to adjust the

following items via the Quick Setup: “Brightness”, “Contrast”, “Hue” and “Saturation”. Press Return to return to the “Picture Mode” setting.

Depending on the input source and listening mode, not all channels shown here output the sound.

• This setting is not available in either of the following cases: –The “Audio TV Out” setting is set to “On” (➔ page 74). –“HDMI Control(RIHD)” is set to “On” (➔ page 74) and

you’re listening through your TV speakers.

Using the Audio Settings of Quick Setup

You can change various audio settings from the Quick Setup (➔ page 49).

Note

• These settings are not available in either of the following cases: –The “Audio TV Out” setting is set to “On” (➔ page 74). –“HDMI Control(RIHD)” is set to “On” (➔ page 74) and

you’re listening through your TV speakers.

Sound Program

■ Sound Program

` Stereo Source 1, Stereo Source 2, Stereo Source 3,

Multich Source 1, Multich Source 2, Multich Source 3

` Off

With this setting, you can select the combination of settings that you registered in “Sound Program Edit” (➔ page 65).

Note

• If the input selector is changed, the “Sound Program” setting is switched back to “Off”.

Tone Control

■ Bass

` –10dB to 0dB

You can boost or cut low-frequency sounds output from the front speakers.

■ Treble

` –10dB to 0dB

You can boost or cut high-frequency sounds output from the front speakers.

You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected.

to +10dB in 2 dB steps

Advanced Operations

Operating on the AV receiver

Press Tone repeatedly to select either “Bass” or

“Treble”.

Use – and + to adjust.

Speaker Levels

■ Subwoofer Level

` –15.0dB to 0.0dB

■ Center Level

` –12.0dB to 0.0dB to +12.0dB in 0.5 dB steps

You can adjust the volume of each speaker while listening to an input source.

These temporary adjustments are cancelled when the AV receiver is set to standby. To save the setting you made here, go to “Level Calibration” (➔ page 60) before setting the AV receiver to standby.

Note

• You cannot use these function while the AV receiver is muted.

• These settings cannot be used while a pair of headphones is connected.

• Speakers that are set to “No” or “None” in “Speaker Configuration” (➔ page 58) cannot be adjusted.

• When “Sound Program” is enabled, “Subwoofer Level” cannot be used if the “Subwoofer” setting is set to “No” in “Sound Program Edit”.

to +12.0dB in 0.5 dB steps

En-50

Advanced Operations

Dolby Volume

■ Dolby Volume

See “Dolby Volume” of “Audio Adjust” (➔ page 64).

Note

• This setting cannot be used in either of the following cases: – The Direct listening mode is selected. – Any of the THX listening modes is selected, with “Loudness

Plus” set to “On” or “Preserve THX Settings” set to “Yes” (➔ page 61).

•When “Dolby Volume” is set to “On”, the “Dynamic EQ” and “Dynamic Volume” settings of all input selectors are switched to “Off”.

•When “Sound Program” is enabled, the setting must be made with “Sound Program Edit”.

Audyssey

■ Audyssey

See “Audyssey” in “Source Setup” (➔ page 66).

■ Dynamic EQ

See “Dynamic EQ” in “Source Setup” (➔ page 66).

■ Dynamic Volume

See “Dynamic Volume” in “Source Setup” (➔ page 66).

Note

• These technologies can be used when all the following conditions are met: – Room Correction and Speaker Setup is completed. Note that

“Audyssey” requires the “Audyssey MultEQ XT32 Full

Calibration” method. – Any listening mode other than Direct is selected. – A pair of headphones is not connected.

• The setting is stored individually for each input selector.

•“Dynamic EQ” and “Dynamic Volume” cannot be selected when any of the THX listening modes is selected, with “Loudness Plus” set to “On” or “Preserve THX Settings” set to “Yes” (➔ page 61).

•When “Sound Program” is enabled, the setting must be made with “Sound Program Edit”.

Late Night

■ Late Night

For Dolby Digital and Dolby Digital Plus sources, the options are:

` Off ` Low:

Small reduction in dynamic range.

` High:

Large reduction in dynamic range.

For Dolby TrueHD sources, the options are:

` Auto

: The Late Night function is set to “On” or “Off” automatically.

` Off ` On

Turn this setting on to reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don’t want to disturb anyone.

Note

• The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

• The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.

• The Late Night function is set to “Off” when the AV receiver is set to standby. For Dolby TrueHD sources, it will be set to “Auto”.

• With Dolby TrueHD sources, the Late Night function cannot be used when “TrueHD Loudness Management” is set to “Off”.

• The Late Night function cannot be used when “Dolby Volume” is set to “On”.

Music Optimizer

■ Music Optimizer

` Off ` On

The Music Optimizer function enhances the sound quality of compressed music files. When set to “On”, the M.Opt

indicator lights on the AV receiver’s display.

Note

• The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 kHz and analog audio input signals.

• The Music Optimizer is disabled when the Direct listening mode is selected.

• The setting is stored individually for each input selector.

• When “Sound Program” is enabled, the setting must be made with “Sound Program Edit”.

En-51

Advanced Operations

Re-EQ

With the Re-EQ function, you can compensate a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing.

■ Re-EQ

` Off ` On

This function can be used with the following listening modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Multichannel, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Express, DSD, Dolby EX, Dolby Pro Logic IIz Height, Dolby PLIIx Movie, DTS Neo:X Cinema.

■ Re-EQ(THX)

` Off ` On

This function can be used with the following listening modes: THX Cinema, THX Surround EX, and THX Select2 Cinema.

Note

• These settings are stored individually for each input selector. In THX listening mode however, the setting will return to “On” when the AV receiver is turned off.

• These settings cannot be used while a pair of headphones is connected.

Screen Centered Dialog

By using the front high speaker, this function moves the center image of dialogs etc. upwards, so that the image of dialogs is fixed to the display height.

■ Screen Centered Dialog

As the value increases, the center image moves upwards.

` 0 ` 1 to 5:

Screen Centered Dialog on.

Note

•The “Screen Centered Dialog” can be used when a compatible listening mode is selected.

• This setting cannot be used while a pair of headphones is connected.

En-52

Advanced Operations

Using the Setup Menu (Home)

Receiver

Enter

q/w/e/r

Return

Home

Press Receiver followed by Home.

Use e/r to select “Setup”, and then press Enter.

Use q/w to select a main menu item, and then press

Enter.

Use q/w to select a sub menu item, and then press

Enter.

Use q/w to select a setting target, and use e/r to

change the setting.

Press Home to close the menu. Press Return to return to the previous menu.

■ Screen Saver

If there is no video signal on the current input source and no operation for a specific time (three minutes by default), a screen saver automatically comes on.

Tip

• The time until the screen saver activates itself can be changed in the “Screen Saver” setting (➔ page 72).

• The screen will return to its previous state if the AV receiver is operated.

Explanatory Notes

c d

a Main Menu b Sub Menu c Setting target d Setting options (default setting underlined)

Main Menu Speaker Setup

Speaker Configuration

■ Subwoofer

` Yes ` No

Sub Menu

Main Menu

Note

• This procedure can also be performed on the AV receiver by using Setup, the cursor and enter (middle) buttons.

• During Audyssey MultEQ Setup, messages, etc., that are displayed on the TV screen will appear on the AV receiver’s display.

XT32 Room Correction and Speaker

En-53

Advanced Operations

About the Hybrid Standby Indicator

By way of optimized circuitry, this function reduces power consumption when the AV receiver is in standby mode. The Hybrid Standby indicator will light in either of the following conditions:

–“HDMI Through” is enabled (the HDMI indicator is

off).

–“Network Standby” is enabled (the NET indicator is

off).

Hybrid Standby

Note

• If Zones are turned on or, if a mobile device connected to the Front Input (MHL) is charging, the Hybrid Standby indicator won’t light.

Setup Menu Items

Main menu item Sub menu item

Input/Output Assign

(➔ page 55)

Speaker Setup

(➔ page 58)

Audio Adjust

(➔ page 63)

Source Setup

(➔ page 66)

Monitor Out

HDMI Input

Component Video Input

Composite Video Input

Digital Audio Input

Speaker Settings

Speaker Configuration

Speaker Distance

Level Calibration

Equalizer Settings

THX Audio Setup

Digital Processing Crossover Network

Multiplex/Mono

Dolby

DTS

Audyssey DSX

Theater-Dimensional

LFE Level

Sound Program Edit

Audyssey

IntelliVolume

A/V Sync

Name Edit

Picture Adjust

Audio Selector

Main menu item Sub menu item

Listening Mode Preset

(➔ page 71)

Miscellaneous

(➔ page 72)

Hardware Setup

(➔ page 73)

Remote Controller Setup

(➔ page 76)

Lock Setup

(➔ page 76)

BD/DVD

CBL/SAT

STB/DVR

GAME1

GAME2

AUX

TUNER

TV/CD

PHONO

NET

USB

Volume Setup

OSD Setup

12V Trigger A Setup

12V Trigger B Setup

12V Trigger C Setup

Multi Zone

Tuner

HDMI

Auto Standby

Network

Initial Setup

Remote ID

Remote Mode Setup

Setup

En-54

Input/Output Assign

1 2 3 4 5

Main Menu Input/Output Assign

Monitor Out

On the “Monitor Out” settings, you can select whether or not to have the video sources’ images output through the HDMI output.

If you connect your TV to the HDMI output, the “Monitor Out” setting is automatically set and composite video and component video sources are upconverted* and output.

Composite video, component video

If you connect your TV to the COMPONENT VIDEO MONITOR OUT (not the HDMI output), “Monitor Out”

setting is automatically set and composite video source is upconverted* and output.

Composite video Component video

Note

• See “Video Connection Formats” (➔ page 100) for charts showing how the “Monitor Out” and “Resolution” settings affect the video signal flow through the AV receiver.

“Setup”

HDMI

OUT

HDMI

OUT

■ Monitor Out

` Analog:

Select this if your TV is connected to the

COMPONENT VIDEO MONITOR OUT or MONITOR OUT V.

` Main

: Select this if your TV is connected to HDMI OUT MAIN.

` Sub:

Select this if your TV is connected to HDMI OUT SUB.

` Both:

Select this if your TVs are connected to HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs at the resolution supported by both TVs.

Changing the “Monitor Out” setting manually

Press Monitor Out on the front panel.

The current setting is displayed.

Press Monitor Out on the AV receiver repeatedly

to select:

` Analog, HDMI Main, HDMI Sub or Both.

■ Resolution

` Through

: Select this to pass video through the AV receiver at the same resolution and with no conversion.

` Auto*2:

Select this to have the AV receiver automatically convert video at resolutions supported by your TV.

` 480p (480p/576p), 720p, 1080i:

Select the desired output resolution.

Advanced Operations

` 1080p

: Select this for 1080p output and video conversion as necessary.

` 1080p/24*2:

Select this for 1080p output at 24 frames per second.

` 4K Upscaling

: Select this for an output resolution four times that of 1080p. Depending on the resolution supported by your TV, it will result in either 3840 × 2160 or 4096 × 2160 pixels.

` Source:

Select this for an output following the resolution level set in “Picture Adjust” (➔ page 68).

You can specify the output resolution for HDMI OUT MAIN and COMPONENT VIDEO MONITOR OUT so that the AV receiver upconverts the picture resolution as necessary to match the resolution supported by your TV.

Tip

•The “Resolution” setting is set respectively of main and analog.

• You can see the picture by pressing Enter to check the “Resolution” setting (excluding NET input source).

Note

• Depending on the incoming video signal, the video playback may not be smooth or the vertical resolution may be lowered. In this case select anything other than “1080p/24”.

• With some TVs, there may be no picture when this setting is set to “4K Upscaling”.

• If the “Monitor Out” setting is set to “Sub”, this setting is fixed to “Through”.

• If the “Monitor Out” setting is set to “Both”, this setting is fixed to “Auto”.

PC IN (Analog RGB) input signal is output at 480p (480p/576p), 720p, 1080i resolution when the “Monitor Out” setting is set to “Analog” and the “Resolution” setting is set to “Through”.

These settings are not available when the “Monitor Out” setting is set to “Analog”.

En-55

HDMI Input

If you connect a video component to an HDMI input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to HDMI IN 2, you must assign “HDMI2” to the “BD/DVD” input selector. If you’ve connected your TV to the AV receiver with an HDMI cable, composite video and component video sources can be upconverted output*1. You can set this for each input selector by selecting the “-----” option, but the video signal coming from the HDMI output depends on the assignments of “Component Video Input” and “Composite Video Input”. See “Video Connection Formats” for more information on video signal flow and upconversion (➔ page 100).

Composite video, component video

This applies only when “Monitor Out” setting is set to other than “Analog” (➔ page 55).

Here are the default assignments.

Input selector Default assignment

BD/DVD HDMI1

CBL/SAT HDMI2

STB/DVR HDMI3

GAME1 HDMI4

GAME2 HDMI5

PC AUX FRONT (Fixed)

TV/CD -----

PHONO -----

and output by the HDMI

HDMI

OUT

HDMI

HDMI6

■ BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2,

PC, TV/CD, PHONO

` HDMI1, HDMI2, HDMI3, HDMI4, HDMI5,

HDMI6, HDMI7:

Select the input to which the component has been connected.

` -----:

Output composite video and component video sources from the HDMI output. The video signal coming from the HDMI output depends on the assignments of “Component Video Input” and “Composite Video Input”.

If you connect your personal computer to PC IN (Analog RGB), you must assign “-----” to the “PC” input selector.

Each HDMI input cannot be assigned to two input selectors or more. When HDMI1 - HDMI7 have already been assigned, you must first set any unused input selectors to “-----” or you will be unable to assign HDMI1 - HDMI7 to other input selectors.

Note

• For composite video and component video upconversion for the HDMI output, the “Monitor Out” setting must be set to other than “Analog” (➔ page 55), and the “HDMI Input” setting must be set to “-----”. See “Connection Tips and Video Signal Path” for more information on video signal flow and upconversion (➔ page 100).

• If no video component is connected to the HDMI output (even if the HDMI input is assigned), the AV receiver selects the video source based on the setting of “Component Video Input” and “Composite Video Input”.

• When an HDMI IN is assigned to an input selector as explained here, the same HDMI IN will be set as a priority in the “Digital Audio Input”. In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector” setting (➔ page 70).

• Do not assign an HDMI IN to the TV/CD selector while “HDMI Control(RIHD)” is set to “On” (➔ page 74), otherwise appropriate CEC (Consumer Electronics Control) operation will not be guaranteed.

• If you assign “-----” to an input selector that is currently selected in “HDMI Through” (➔ page 74), the “HDMI Through” setting will be automatically switched to “Off”.

•“AUX” is used only for input from the front panel.

Advanced Operations

Component Video Input

If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign “IN2” to the “BD/DVD” input selector. If you’ve connected your TV to the AV receiver with a component video cable, you can set the AV receiver so that composite video source is upconverted

COMPONENT VIDEO MONITOR OUT

this for each input selector by selecting the “-----” option.

Composite video Component video

This applies only when “Monitor Out” setting is set to “Analog” (➔ page 55).

OUT

Here are the default assignments.

Input selector Default assignment

BD/DVD IN1

CBL/SAT IN2

STB/DVR -----

GAME1 -----

GAME2 -----

PC ----AUX -----

TV/CD -----

PHONO -----

and output by the

. You can set

En-56

■ BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2,

PC, AUX, TV/CD, PHONO

` IN1, IN2:

Select the input to which the component has been connected.

` -----:

Output composite video sources from the HDMI output. The upconverted output from HDMI depends on the assignment of “Composite Video Input”.

Note

• For composite video upconversion for the COMPONENT VIDEO MONITOR OUT, the “Monitor Out” setting must be

set to “Analog” (➔ page 55), and the “Component Video Input” setting must be set to “-----”. See “Connection Tips and

Video Signal Path” for more information on video signal flow and upconversion (➔ page 100).

Composite Video Input

If you connect a component to a composite video input, you must assign that input to an input selector. If you switch the input to “TV/CD” with its default assignment, the audio of “TV/CD” is output while the video of the previously-selected source is displayed. Here are the default assignments.

Input selector Default assignment

BD/DVD IN1

CBL/SAT IN2

STB/DVR IN3

GAME1 IN4

GAME2 ----PC PC IN (Fixed) AUX FRONT (Fixed)

TV/CD -----

PHONO -----

■ BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2,

TV/CD, PHONO

` IN1, IN2, IN3, IN4:

Select the input to which the component has been connected.

` -----:

The composite video is not input.

Note

•“AUX” is used only for input from the front panel.

•“PC” is used only for input from PC IN.

• Using these inputs as audio-exclusive allows you to enjoy audio and video from separate inputs. Refer to “Playing Audio and Video from Separate Sources” for details (➔ page 34).

Advanced Operations

Digital Audio Input

If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign “OPTICAL1” to the “TV/CD” input selector. Here are the default assignments.

Input selector Default assignment

BD/DVD COAXIAL1

CBL/SAT COAXIAL2

STB/DVR COAXIAL3

GAME1 OPTICAL1

GAME2 -----

PC ----AUX FRONT (Fixed)

TV/CD OPTICAL2

PHONO -----

■ BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2,

PC, TV/CD, PHONO

` COAXIAL1, COAXIAL2, COAXIAL3,

OPTICAL1, OPTICAL2:

Select the input to which the component has been connected.

` -----:

Select if the component is connected to an analog audio input.

Note

• When an HDMI IN is assigned to an input selector in “HDMI Input” (➔ page 56), the same HDMI IN will be set as a priority in this assignment. In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector” (➔ page 70).

• Supported sampling rates for PCM signals (stereo/mono) from a digital input (optical and coaxial) are 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.

•“AUX” is used only for input from the front panel.

En-57

Speaker Setup

1 2 3 4 5

Main Menu Speaker Setup

Some of the settings in this section are set automatically by Audyssey MultEQ®XT32 Room Correction and Speaker Setup (➔ page 35).

Here you can check the settings made by Audyssey MultEQ XT32 Room Correction and Speaker Setup function, or set them manually, which is useful if you change one of the connected speakers after using Audyssey MultEQ XT32 Room Correction and Speaker Setup function.

Note

• These settings are not available in either of the following cases: – a pair of headphones is connected. –the “Audio TV Out” setting is set to “On” (➔ page 74). –“HDMI Control(RIHD)” is set to “On” (➔ page 74) and

you’re listening through your TV speakers.

Speaker Settings

If you change these settings, you must run Audyssey MultEQ XT32 Room Correction and Speaker Setup again (➔ page 35).

If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms.

If you bi-amp the front speakers, you must change the “Speakers Type (Front)” setting. For details on speaker wire connection, see “Bi-amping the Front Speakers” (➔ page 14). When connecting speakers without crossover network, you need to change the “Speakers Type (Front)” setting beforehand. For details on

“Setup”

connection, refer to “Using Speakers Without Crossover Network” (➔ page 15).

Note

• When bi-amping is used, the AV receiver is able to drive up to 5.1 speakers in the main room.

• Before you change these settings, turn down the volume.

■ Speaker Impedance

` 4ohms:

Select if the impedance of any speaker is 4 ohms or more but less than 6.

` 6ohms

: Select if the impedances of all speakers are between 6 and 16 ohms.

■ Speakers Type (Front)

` Normal

: Select this if you’ve connected your front speakers normally.

` Bi-Amp:

Select this if you’ve bi-amped your front speakers.

` Digital Crossover:

Select this if you’re using speakers without crossover network.

Tip

• If “Speakers Type (Front)” is set to “Digital Crossover”, a confirmation screen appears. Select “Next (2-7. Digital Processing Crossover Network)” to display the screen for Digital Processing Crossover Network (➔ page 62). Continue with the settings.

■ Powered Zone 2, Powered Zone 3

` No ` Yes:

Zone 2/3 speakers can be used. (Powered Zone 2/3 enabled).

■ Preout to External Amplifier

` No ` Surr Back, Front High, Front Wide

Advanced Operations

For 9.1-channel playback, select the channel output by SB/FH/FW EXT AMP jacks. If you select speakers whose setting in Speaker Configuration is set to “None”, it will be automatically switched to “80Hz (THX)”.

Note

• If the “Speakers Type (Front)” setting is set to “Bi-Amp” or “Digital Crossover”, Powered Zone 2 cannot be used.

• When the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, the surround back and front high speakers cannot be used.

• If the “Powered Zone 2” setting is set to “No”, the “Powered Zone 3” setting cannot be selected.

•“Preout to External Amplifier” is not available in either of the following cases: –The “Speakers Type (Front)” setting is set to “Bi-Amp” or

“Digital Crossover”.

–The “Powered Zone 2” setting is set to “Yes”.

Speaker Configuration

This setting is set automatically by Audyssey MultEQ®XT32 Room Correction and Speaker Setup (➔ page 35).

With these settings, you can specify which speakers are connected and a crossover frequency for each speaker. Specify “Full Band” for speakers that can output low frequency bass sounds adequately, for example, speakers with a good sized woofer. For smaller speakers, specify a crossover frequency. Sounds below the crossover frequency will be output by the subwoofer instead of the speaker. Refer to your speaker’s manuals to determine the optimum crossover frequencies. If you set up your speakers using Audyssey MultEQ XT32 Room Correction and Speaker Setup, please make sure manually that any THX speakers are set to “80Hz(THX)” crossover.

■ Subwoofer

` Yes ` No

En-58

■ Front

` Full Band ` 40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80Hz(THX)

90Hz, 100Hz, 110Hz, 120Hz, 130Hz, 150Hz, 200Hz

Note

• If the “Subwoofer” setting is set to “No”, the “Front” setting is fixed at “Full Band”.

■ Center*1, Surround

*1*2

` Full Band ` 40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80Hz(THX)

90Hz, 100Hz, 110Hz, 120Hz, 130Hz, 150Hz, 200Hz

` None

■ Front Wide

*1*3*4*6*8

, Front High

*1*3*5*6*7*8

` Full Band ` 40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80Hz(THX),

90Hz, 100Hz, 110Hz, 120Hz, 130Hz, 150Hz, 200Hz

` None

■ Surround Back

*1*2*3*5*6*8

` Full Band ` 40Hz, 45Hz, 50Hz, 55Hz, 60Hz, 70Hz, 80Hz(THX)

90Hz, 100Hz, 110Hz, 120Hz, 130Hz, 150Hz, 200Hz

` None

Note

“Full Band” can be selected only when “Full Band” is selected in the “Front” setting.

When the “Powered Zone 3” setting is set to “Yes” and Zone 3 is turned on, this setting cannot be selected.

This setting cannot be selected if the “Speakers Type (Front)” setting is set to “Bi-Amp” or “Digital Crossover”.

When the “Powered Zone 2” setting is set to “Yes”, this setting cannot be selected.

When the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, this setting cannot be selected.

If the “Surround” setting is set to “None”, this setting cannot be selected.

When the “Powered Zone 3” setting is set to “Yes”, this setting cannot be selected.

If the “Preout to External Amplifier” setting is enabled for these speakers, “None” cannot be selected.

■ Surround Back Ch

` 1ch:

Select if only one surround back speaker L is connected.

` 2ch

: Select if two (left and right) surround back speakers are connected.

Note

• If the “Surround Back” setting is set to “None”, this setting cannot be selected.

■ LPF of LFE

(Low-Pass Filter for the LFE Channel)

` 80Hz, 90Hz, 100Hz, 110Hz, 120Hz ` Off:

Low-Pass Filter is not applied.

With this setting, you can specify the cutoff frequency of the LFE channel’s low-pass filter (LPF), which can be used to filter out unwanted hum. The LPF only applies to

sources that use the LFE channel.

Note

• If you’re using THX-certified speakers, select “80Hz”.

■ Subwoofer Phase

` 0

` 180º:

Moves the subwoofer phase.

Note

• If the “Subwoofer” setting is set to “No”, this setting cannot be selected.

Advanced Operations

■ Double Bass

This setting is NOT set automatically by Audyssey MultEQ

XT32 Room Correction and

Speaker Setup (➔ page 35).

` On ` Off(THX)

Turn this setting on to boost bass output by feeding bass sounds from the front left, right, and center channels to the subwoofer.

Note

• When the “Subwoofer” setting is set to “No” or the “Front” setting to anything other than “Full Band”, this setting is fixed to “-----”.

• This setting is set to “On” automatically when the “Subwoofer” and “Front” settings are set for the first time to “Yes” and “Full Band” respectively.

• If you’re using THX-certified speakers, select “Off(THX)”.

Speaker Distance

This setting is set automatically by Audyssey MultEQ XT32 Room Correction and Speaker Setup (➔ page 35).

Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended.

■ Unit

` feet:

Distances can be set in feet. Range: 0.2ft to 30.0ft in

0.2 foot steps.

` meters:

Distances can be set in meters. Range: 0.06m to

9.00m in 0.06 meter steps.

(The default setting varies from country to country.)

En-59

■ Left, Front Wide Left, Front High Left, Center,

Front High Right, Front Wide Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left, Subwoofer

` Specify the distance from each speaker to your

listening position.

Note

• Speakers that you set to “No” or “None” in “Speaker Configuration” cannot be selected (➔ page 58).

•When the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, the surround back and front high speakers cannot be used.

•When the “Powered Zone 3” setting is set to “Yes” and Zone 3 is turned on, the surround and surround back speakers cannot be used.

Level Calibration

This setting is set automatically by Audyssey MultEQ Speaker Setup (➔ page 35).

Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position.

■ Left, Front Wide Left, Front High Left, Center

Front High Right, Front Wide Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left

` –12.0dB to 0.0dB to +12.0dB in 0.5 dB steps.

XT32 Room Correction and

■ Subwoofer

` –15.0dB to 0.0dB to +12.0dB in 0.5 dB steps.

Note

• These settings cannot be calibrated when the AV receiver is muted.

• Speakers that you set to “No” or “None” in “Speaker Configuration” cannot be selected (➔ page 58).

• When the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, the surround back and front high speakers cannot be used.

• When the “Powered Zone 3” setting is set to “Yes” and Zone 3 is turned on, the surround and surround back speakers cannot be used.

• The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you normally listen at volume settings below this, be careful because the test tone will be much louder.

For the center speaker and subwoofer, the level settings made by using the Quick Setup are saved in this menu (➔ page 50).

Tip

• If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.

Equalizer Settings

With the Equalizer settings, you can adjust the tone of speakers individually with a 15-band equalizer. The

volume of each speaker can be set (➔ page 60).

■ Manual Equalizer

` On:

You can adjust the equalizer for each speaker manually. Continue with the following procedure:

Advanced Operations

Use q/w to select a frequency, and then use the e/r

to adjust the level at that frequency.

The volume at each frequency can be adjusted from –6dB to 0dB to +6dB in 1 dB steps.

Tip

• You can select: “25Hz”, “40Hz”, “63Hz”, “100Hz”, “160Hz”, “250Hz”, “400Hz”, “630Hz”, “1000Hz”, “1600Hz”, “2500Hz”, “4000Hz”, “6300Hz”, “10000Hz” or “16000Hz”. And for the subwoofer, “25Hz”, “40Hz”, “63Hz”, “100Hz”, or “160Hz”.

• Low frequencies (e.g., 25Hz) affect bass sounds; high frequencies (e.g., 16000Hz) affect treble sounds.

Use q to select “Channel”, and then use e/r to

select another speaker.

Repeat steps 1 and 2 for each speaker. You cannot select speakers that you set to “No” or

“None” in the “Speaker Configuration” (➔ page 58).

` Off

Tone off, response flat.

Note

• When the Direct listening mode is selected, the equalizer settings have no effect.

• If “Audyssey” is enabled, it prevails over this setting (➔ page 66).

Press w to select “Channel”, and then use e/r to

select a speaker.

En-60

THX Audio Setup

■ Surr Back Speaker Spacing

` <1ft (<0.3m) ` 1ft-4ft (0.3m-1.2m) ` >4ft (>1.2m)

You can specify the distance between your surround back speakers.

Note

• This setting is not available in any of the following cases: –“Surround Back” is set to “None” (➔ page 59). –“Surround Back Ch” is set to “1ch” (➔ page 59). –“Powered Zone 2/3” is set to “Yes” (➔ page 58) and

Zone 2/3 is turned on (➔ page 78).

■ THX Ultra2/Select2 Subwoofer

` No ` Yes

If you’re using a THX-certified subwoofer, set this setting to “Yes”.

Note

• If the “Subwoofer” setting is set to “No”, this setting cannot be selected (➔ page 58).

■ BGC

` Off ` On

You can apply THX’s Boundary Gain Compensation (BGC) to compensate the perceived exaggeration of low frequencies for listeners sitting very close to a room boundary (i.e., wall).

Note

• This setting is only available if “THX Ultra2/Select2 Subwoofer” is set to “Yes”.

• If the “Subwoofer” setting is set to “No”, this setting cannot be selected (➔ page 58).

■ Loudness Plus

` Off ` On

When the “Loudness Plus” setting is set to “On”, it is possible to enjoy even subtle nuances of audio expression at low volume. This is only available when the THX listening mode is selected.

■ Preserve THX Settings

` Yes ` No

If this setting is set to “Yes”, Dynamic EQ, Dynamic Volume and Dolby Volume have no effect in THX listening mode.

Note

• This setting is fixed at “Yes” if “Loudness Plus” is set to “On”.

■ Metadata Compatible

` On:

When Metadata Compatible is set to “On”, valid metadata is transmitted via the HDMI connections, and can be used by other devices in the system.

` Off

: When Metadata Compatible is set to “Off”, metadata is not transmitted via the HDMI connections.

The HDMI connection in your system is used to deliver uncompressed digital audio and video information from one device to the next. There is also additional information about this digital content that can be delivered. Such additional information is referred to as “metadata”. Metadata Compatible mode should be used when there are home theater components in your system, such as Blu-ray disc players, set top boxes and displays that use this additional metadata. For example, Metadata Compatible mode should be set to ON when there are THX Media Director™ Enabled devices in the system. This ensures that this additional information can be received by your Integra AVR and can be sent to other devices that are connected in your home theater system, with no interruption.

Advanced Operations

THX Loudness Plus

THX Loudness Plus is a new volume control technology featured in THX Ultra2 Plus™ and THX Select2 Plus™ Certified receivers. With THX Loudness Plus, home theater audiences can now experience the rich details in a surround mix at any volume level. A consequence of turning the volume below Reference Level is that certain sound elements can be lost or perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume is reduced by intelligently adjusting ambient surround channel levels and frequency response. This enables users experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. The new THX Cinema, THX Music, and THX Games modes are tailored to apply the proper THX Loudness Plus settings for each type of content.

En-61

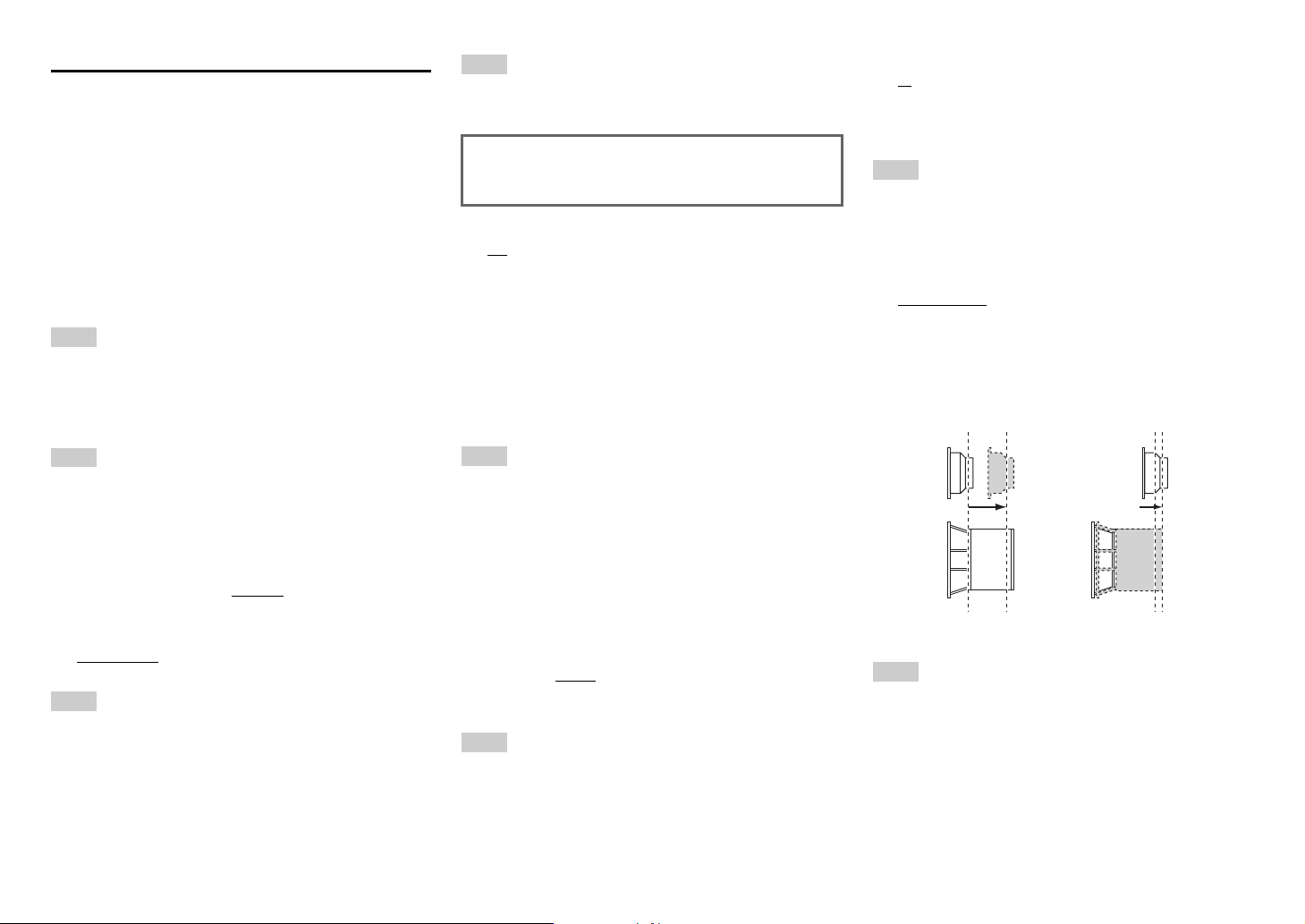

Digital Processing Crossover Network

Digital Crossover provides a separate routing system by splitting the audio signal into separate frequency bands optimized for each speaker driver. It provides a fine, threedimensional sound field that extend each driver’s performance to the uppermost. With its built-in time alignment function, this system also adjusts the sound shifting that occurs when there is a physical offset between sound drivers. At a digital processing level, it corrects this offset by delaying the related audio signal. Although this function is meant for speakers without crossover network, it can also be used with bi-amped speakers.

Tip

• This setting can be done while listening to an audio source.

• Press Mode/D (Blue) to switch from the current audio source to test noises. Pressing Mode/D (Blue) again or the cursor buttons will stop the test noises and switch back to the original audio source.

Note

• This setting can only be made when “Speakers Type (Front)” is set to “Digital Crossover” (➔ page 58).

■ Crossover

` “250Hz”, “320Hz”, “400Hz”, “500Hz, “630Hz”,

“800Hz”, “1000Hz”, “1250Hz”, “1600Hz”, “2000Hz”, “2500Hz”, “3200Hz”, “4000Hz”, “5000Hz”

Output Band for Test

` High + Low

Select the output for the audio signal.

Tip

• Pressing Mode/D (Blue) button plays band-limited test noises which center on the specified frequency.

• We recommend choosing a crossover value that creates no volume difference between “High” and “Low”.

, High, Low:

Note

• Refer to your speaker manual when setting without the use of test noises.

Cutoff frequencies of the woofers’ low-pass filter (LPF) and the tweeters’ high-pass filter (HPF) are set according to the frequency specified for “Crossover”.

■ Overlap

` No ` Yes

With this setting, a frequency band near the specified crossover frequency is output by both tweeters and woofers. Based on the frequency selected for “Crossover”, the cutoff frequency of the low-pass filter (LPF) will be set to 1/3 octave up and that of the high-pass filter (HPF) to 1/3 octave down. Example: With a “Crossover” of “3200Hz”, the cutoff frequency of the woofers’ LPF will be “4000Hz”, and the tweeters’ HPF will be “2500Hz”.

Tip

• Sounds processed by Digital Processing Crossover Network are played.

• You can switch from the current audio source to test noises by pressing Mode/D (Blue).

• In the case of usage of the bi-amped speakers, if there is a difference between the crossover frequency in the speakers’ builtin network and the crossover frequency to be set on the AV receiver, the frequency dip may be caused. Therefore, it is recommended that this function should be set to “Yes”.

■ High Level, Low Level

` –6.0dB to 0.0dB

to +6.0dB in 0.5 dB steps With this setting, you can set the volume of tweeters and woofers.

Tip

• Sounds processed by Digital Processing Crossover Network are

played.

• You can switch from the current audio source to test noises by

pressing Mode/D (Blue).

Advanced Operations

■ High Phase, Low Phase

` 0

` 180º:

With this setting, you can adjust the phase of tweeters and woofers.

Tip

• Sounds processed by Digital Processing Crossover Network are played.

• You can switch from the current audio source to test noises by pressing Mode/D (Blue).

■ High Distance, Low Distance

` 0inch(0.0cm)

to 12inch(30.0cm) in 1 inch(2.5 cm)

steps

With this setting, you can adjust the virtual position of tweeter and woofer units. Adjusting “High Distance” virtually shifts woofers behind tweeters. Adjusting “Low Distance” virtually shifts tweeters behind woofers.

Tweeter

Distance Distance

Woofer

(Low Distance)

Tip

• Sounds processed by Digital Processing Crossover Network are played.

• You can switch from the current audio source to test noises by pressing Mode/D (Blue).

(High Distance)

En-62

Audio Adjust

1 2 3 4 5

Main Menu Audio Adjust

With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like.

Multiplex/Mono

■ Multiplex

Input Channel

` Main ` Sub ` Main/Sub

This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.

■ Mono

Input Channel

` Left + Right ` Left ` Right

This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2channel analog/PCM source in the Mono listening mode.

Output Speaker

` Center

Mono audio is output by the center speaker.

` Left / Right:

Mono audio is output by the front left and right speakers.

This setting determines which speakers output mono audio when the Mono listening mode is selected.

“Setup”

Note

• If the “Center” setting is set to “None” (➔ page 59), this setting cannot be selected.

Dolby

■ PL IIx Music (2ch Input)

These settings apply to only 2-channel stereo sources. If you’re not using any surround back speakers, these

settings apply to Dolby Pro Logic II, not Dolby Pro Logic IIx.

Panorama

` On ` Off

With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode.

Dimension

` –3 to 0

With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic IIx Music listening mode. Higher settings move the sound field backward. Lower settings move it forward.

If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it’s in mono, or there’s not enough surround sound, move it backward.

Center Width

` 0 to 3

With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic IIx Music listening mode. Normally, if you’re using a center speaker, the center channel sound is output from only the center speaker. (If you’re not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center). This setting controls the front left, right, and center mix,

to +3

to 7

Advanced Operations

allowing you to adjust the weight of the center channel sound.

■ PL IIz Height Gain

` Low ` Mid ` High

The Height Gain Control in Dolby Pro Logic IIz enables the listener to select how much gain is applied to the front high speakers. There are three settings, “Low”, “Mid” and “High”, and the front high speakers are accentuated in that order. While “Mid” is the default listening setting, the listener may adjust the Height Gain Control to their personal preference.

Note

• If the “Front High” setting is set to “None” (➔ page 59), this setting cannot be selected.

• If the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, this setting cannot be selected.

■ Dolby EX

` Auto:

If the source signal contains a Dolby EX flag, the Dolby EX or THX Surround EX listening mode is used.

` Manual

You can select any available listening mode. This setting determines how Dolby EX encoded signals are handled. This setting is unavailable if no surround back

speakers are connected. This setting is effective with Dolby Digital, Dolby Digital Plus and Dolby TrueHD only.

Note

• If the “Surround Back” setting is set to “None” (➔ page 59),

this setting cannot be selected.

• If the “Powered Zone 2/3” setting is set to “Yes” and Zone 2/3 is

turned on, this setting cannot be selected.

• If the “Front High” or “Front Wide” setting is enabled

(➔ page 59), this setting is fixed to “Manual”.

En-63

■ TrueHD Loudness Management

` Off ` On

This setting specifies whether or not to apply the Late Night processing on a Dolby TrueHD source.

Note

• When this setting is set to “Off”, the Late Night function for Dolby TrueHD sources is automatically fixed to “Off”.

• When this setting is set to “Off”, the Dialogue Normalization information is not available for Dolby TrueHD sources.

■ Dolby Volume

` Off ` On

Dolby Volume automatically adjusts the difference in volume levels which can occur between different contents or source components, freeing the user from having to make volume adjustments. Also, by adjusting the frequency balance according to the playback volume, it recreates the original source audio. Dolby Volume therefore provides comfortable listening, effectively controlling the volume level difference without unnatural changes in volume or sound quality to recreate the balance and nuance of the source audio.

Note

•When the “Dolby Volume” setting is set to “On”, “Dynamic EQ” and “Dynamic Volume” will be set to “Off”.

• If you would like to use Dolby Volume in THX listening modes, set the “Loudness Plus” and “Preserve THX Settings” settings to “Off” and “No”, respectively.

•When “Dolby Volume” is set to “On”, the Late Night function cannot be set.

■ Volume Leveler

` Off ` Low:

Low Compression Mode activated.

` Mid:

Medium Compression Mode activated.

` High

: High Compression Mode activated. This setting affects volume the most, causing all sounds to be of equal loudness.

“Volume Leveler” maintains the perceived loudness of all contents, coming from different channels or input sources.

Note

• If the “Dolby Volume” setting is set to “Off”, this setting cannot be selected.

■ Half Mode

` Off ` On

The Half Mode parameter turns Dolby Volume Half Mode processing on and off.

In off mode, Dolby Volume applies a bass and treble attenuation to the audio when the system gain exceeds reference level. This enables a more perceptually flat listening experience as human ears are more sensitive to bass and treble at higher levels. Some listeners however, prefer to have more bass and treble performance at higher gain levels.

Note

• If the “Dolby Volume” setting is set to “Off”, this setting cannot be selected.

• During Half Mode on playback, Dolby Volume does not apply a bass and treble attenuation when the system volume exceeds reference level, thereby boosting perception of high and low frequencies.

Advanced Operations

Dialogue Normalization

Dialogue Normalization (DialogNorm) is a feature of Dolby Digital, which is used to keep the programs at the same average listening level so the user does not have to change the volume control between Dolby Digital, Dolby Digital Plus and Dolby TrueHD programs. When playing back software which has been encoded in Dolby Digital, Dolby Digital Plus and Dolby TrueHD, sometimes you may see a brief message in the front panel display which will read “DialogNorm: X dB” (X being a numeric value). The display is showing how the program level relates with THX calibration level. If you want to play the program at calibrated theatrical levels, you may wish to adjust the volume. For example, if you see the following message: “DialogNorm: + 4 dB” in the front panel display, to keep the overall output level at THX calibrated loudness, just turn down the volume control by 4 dB. However, unlike a movie theater where the playback loudness is preset, you can choose your preferred volume setting for best enjoyment.

DTS

■ Neo:X Music

Center Image

` 0 to 2

to 5

The DTS Neo:X Music listening mode creates 9-channel surround sound from 2-channel stereo sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel.

Changing the value from “0” to “5” will spread the sound of the center channel to left and right (outwards).

En-64

Audyssey DSX

■ Soundstage

` –3dB to Reference

to +3dB With this setting, you can adjust the sound stage when using Audyssey DSX.

Note

• This listening mode can be selected only when all the following

conditions are satisfied: – The center speaker is connected. – Either the front high or front wide speakers are connected. – Powered Zone 2 is not in use.

Theater-Dimensional

■ Listening Angle

` Wide

Select if the listening angle is greater than 30 degrees.

` Narrow:

Select if the listening angle is less than 30 degrees.

With this setting, you can optimize the TheaterDimensional listening mode by specifying the angle of the front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.

Front left speaker Front right speaker

Listening angle: 30°

Note

• For best results, we recommend setting “

“Wide” to 40°.

Narrow” to 20° and

LFE Level

■ Dolby Digital*1, DTS*2, Multich PCM, Dolby

TrueHD, DTS-HD Master Audio, DSD

` –QdB, –20dB, –10dB, or 0dB

With these settings, you can set the level of the LFE (Low Frequency Effects) channel individually for each input sources.

If you find that low-frequency effects are too loud when using one of these sources, change the setting to –20 dB or

–Q dB.

Dolby Digital and Dolby Digital Plus sources

DTS and DTS-HD High Resolution sources

DSD (Super Audio CD) sources

Sound Program Edit

■ Sound Program

` Stereo Source 1, Stereo Source 2, Stereo Source 3,

Multich Source 1, Multich Source 2, Multich Source 3

When playing back different content types on the same source, or when listening to a single content type on different sources, you can pre-register the settings that best suit each content in “Sound Program”. The registered settings can then be called up and modified in one set. Use “Sound Program Edit” to register and modify a combination of settings.

Tip

• To select the registered settings, see “Sound Program” (➔ page 50).

■ Listening Mode

You can assign a default listening mode that will be selected automatically when you select the sound program.

The “Last Valid” option means that the listening mode selected last will be used. The “Straight Decode” option means that straight decoding listening mode (Dolby Digital, DTS, etc.) is selected.

Advanced Operations

■ Subwoofer

` No, Yes

You can choose whether or not to use the subwoofer with the sound program.

■ Music Optimizer

` Off, On

See “Music Optimizer” (➔ page 51).

■ Equalizer

` Off ` Manual:

The manual setting in “Equalizer Settings” (➔ page 60) is applied.

■ Audyssey

` Off, Movie, Music

See “Audyssey” (➔ page 51).

■ Dynamic EQ

*1*2

` Off, On

See “Dynamic EQ” (➔ page 51).

■ Dynamic Volume

*1*2

` Off, Light, Medium, Heavy

See “Dynamic Volume” (➔ page 51).

■ Dolby Volume

` Off, On

See “Dolby Volume” (➔ page 51).

Note

• You cannot select the “Subwoofer” setting if you set it to “No” in “Speaker Configuration”.

•“Music Optimizer” is only available when “Stereo Source 1”, “Stereo Source 2” or “Stereo Source 3” is selected.

• When “Audyssey Quick Start” has been used for measurement, the “Audyssey”setting cannot be selected.

This setting cannot be used when the “Listening Mode” setting is set to “Direct”.

To enable this setting, you must first perform the Room Correction and Speaker Setup.

En-65

Source Setup

1 2 3 4 5

Main Menu Source Setup

Items can be set individually for each input selector.

Preparation

Press the input selector buttons to select an input source.

Audyssey®

The tone for each speaker is set automatically by Audyssey MultEQ Speaker Setup. To enable the following settings, you must first perform the Room Correction and Speaker Setup (➔ page 35).

• These technologies cannot be used when: –a pair of headphones is connected, or –Direct listening mode is selected.

■ Audyssey

` Off ` Movie:

Select this setting for movie material. The Audyssey indicator will light.

` Music:

Select this setting for music material. The Audyssey indicator will light.

Note

•When “Audyssey Quick Start” has been used for measurement, “Audyssey” cannot be selected.

• Audyssey equalizing does not work with DSD sources.

XT32 Room Correction and

“Setup”

■ Dynamic EQ

` Off ` On:

Audyssey Dynamic EQ

becomes active.

The Dynamic EQ indicator will light. With Audyssey Dynamic EQ, you can enjoy great sound even when listening at low volume levels. Audyssey Dynamic EQ solves the problem of deteriorating

sound quality as volume is decreased by taking into account human perception and room acoustics. It does so by selecting the correct frequency response and surround volume levels moment-by-moment so that the content sounds the way it was created at any volume level — not just at reference level.

■ Reference Level

Audyssey Dynamic EQ Reference Level Offset

` 0dB:

This should be selected for movie contents.

` 5dB:

Select this setting for content that has a very wide

dynamic range, such as classical music.

` 10dB:

Select this setting for jazz or other music that has a

wider dynamic range. This setting should also be

selected for TV content as that is usually mixed at

10 dB below film reference.

` 15dB:

Select this setting for pop/rock music or other

program material that is mixed at very high listening

levels and has a compressed dynamic range. Movies are mixed in rooms calibrated for film reference. To achieve the same reference level in a home theater

system each speaker level must be adjusted so that –30 dBFS band-limited (500 Hz to 2000 Hz) pink noise produces 75 dB sound pressure level at the listening position. A home theater system automatically calibrated by Audyssey MultEQ XT32 will play at reference level when the master volume control is set to the 0 dB position. At that level you can hear the mix as the mixers heard it.

Advanced Operations

Audyssey Dynamic EQ is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. Audyssey Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.

Note

• If “Dynamic EQ” setting is set to “Off”, this technology cannot be used.

■ Dynamic Volume

` Off ` Light:

Activates Light Compression Mode.

` Medium:

Activates Medium Compression Mode.

` Heavy:

Activates Heavy Compression Mode. This setting affects volume the most. It quiets the loud parts, such as explosions, and boosts the quiet parts so they can be heard.

Note

• If you want to use Audyssey Dynamic EQ or Audyssey Dynamic Volume “Loudness Plus” setting to “Off” and set “Preserve THX Settings” to “No” (➔ page 61).

• If you make Dynamic Volume active, “Dynamic EQ” is set to “On”. The Dynamic Vol indicator will light.

• When “Dynamic EQ” is set to “Off”, “Dynamic Volume” is automatically switched to “Off”.

with THX listening modes, set the

To be continued

En-66

Advanced Operations

About Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any user-selected volume setting. The result is bass response, tonal balance and surround impression that remain constant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution.

About Audyssey Dynamic Volume

Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression and dialog clarity remain the same whether watching movies, flipping between television channels or changing from stereo to surround sound content.

IntelliVolume

■ IntelliVolume

` –12dB to 0dB

to +12dB in 1 dB steps.

With IntelliVolume, you can set the input level for each input selector individually. This is useful if one of your source components is louder or quieter than the others.

Use e/r to set the level. If a component is noticeably louder than the others, use e

to reduce its input level. If it’s noticeably quieter, use r to increase its input level.

Note

• IntelliVolume does not work for Zone 2/3.

A/V Sync

■ A/V Sync

` 0msec

to 800msec in 1 msec steps

When using progressive scanning on your Blu-ray Disc/DVD player, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals.

To view the TV picture while setting the delay, press Enter.

To return to the previous screen, press Return.

The range of values you can adjust will depend on whether your TV or display supports HDMI Lip Sync and if the “Lip Sync” setting is set to “On” or not (➔ page 75).

Note

• A/V Sync is disabled when the Direct listening mode is used with an analog input source.

• This setting cannot be used with the NET input selector.

Name Edit

You can enter a custom name for each individual input selector and radio preset for easy identification. When entered, the custom name will appear on the display. The custom name is edited using the keyboard screen.

■ Name

Use q/w/e/r to select a character, and then

press Enter.

Repeat this step to enter up to 10 characters.

To store a name when you’re done, be sure to

select “OK” by using q/w/e/r, and then press Enter.

Name input area

4-4. Name Edit

Name

a b c d e f g h i j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 – ^ \ , . / ; : @ [ ]

Shift OK

Shift All Erase

+10 CLR

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ! ˝ # $ % & ’

+10 CLR

+ ?

Shift OK

Shift All Erase

Back Space

` { } < >

) ( _ = | ˜

Back Space

BD/DVD

Space

To be continued

En-67

Space:

Enters a space character.

Shift

Toggles between lower and upper case characters.

(Left)/ (Right):

Moves the cursor left or right in the Name input area.

Back Space

Moves the cursor backward and deletes one character.

OK:

Confirms your entry.

Tip

This can also be performed by using +10 on the remote controller.

Press CLR on the remote controller to delete all the characters you have input.

Tip

• To name a radio preset, use Tuner to select AM or FM, and then select the preset (➔ page 32).

• To restore a name to its default, erase all characters with CLR, select “OK” and then press Enter.

Note

• This setting cannot be used for the NET and USB input selectors.

Picture Adjust

Using Picture Adjust, you can adjust the picture quality and reduce any noise appearing on the screen. To view the TV picture while setting, press Enter. To return to the previous screen, press Return.

■ Wide Mode

This setting determines the aspect ratio.

` 4:3:

` Full:

` Zoom:

` Wide Zoom:

` Auto

According to the input signals and monitor output setting, the AV receiver automatically selects the “4:3”, “Full”, “Zoom” or “Wide Zoom” mode. See “Monitor Out” for details on the monitor output setting (➔ page 55).

*1*2

Advanced Operations

■ Picture Mode

*1*3

` Custom:

All settings can be performed manually.

` ISF Day:

Select when the room is bright.

` ISF Night:

Select when the room is dark.

` Cinema:

Select when the picture source is a movie or alike.

` Game:

Select when the video source is a game console.

` Streaming:

Attempts to reduce the mosquito noise and block artifact effects.

` Through:

Does not adjust picture quality (changes resolution).

` Direct:

Does not adjust picture quality (does not change resolution). The video coming from an analog input and output by the HDMI output is processed in the

same way as “Through”. With “Picture Mode”, you can change the following settings to be suitable for the movie or game screen by one

operation; “Game Mode”, “Film Mode”, “Edge Enhancement”, “Noise Reduction”, “Mosquito NR”, “Random NR”, “Block NR”, “Resolution”, “Brightness”, “Contrast”, “Hue”, “Saturation”, “Color

Temperature”, “Gamma”, “Red Brightness”, “Red Contrast”, “Green Brightness”, “Green Contrast”,

“Blue Brightness” or “Blue Contrast”. The receiver has been designed to incorporate setup and

calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from the receiver. Accordingly, Onkyo recommends that setup and calibration be performed by an ISF Certified installation technician.

En-68

■ Game Mode

*4*5*6

` Off ` On

If video signal delay occurs during playback on a video component (i.e., game console), select the corresponding input source and set the “Game Mode” setting to “On”. The delay will decrease but in return the picture quality will become poor.

■ Film Mode

*4*6

` Video:

“Film Mode” detection is not applied and the input signal is handled as a video source.

` Auto:

Detects whether the input signal is a video or a movie. If it is a movie, the appropriate conversion is applied.

The AV receiver will adjust to the picture source, automatically converting it to the appropriate progressive signal and reproducing the natural quality of the original picture.

■ Edge Enhancement

*4*6

` Off ` Low ` Mid ` High

With this setting, you can make the picture appear sharper.

■ Noise Reduction

*4*6

` Off ` Low ` Mid ` High

With this setting, you can reduce noise appearing on the screen. Select the desired level.

■ Mosquito NR

*4*6*7

` Off ` Low ` Mid ` High

With Mosquito Noise Reduction, you can remove the shimmering or haziness that sometimes appears around objects in the picture. Mosquito noise can be an issue with overly compressed MPEG content.

■ Random NR

*4*6*7

` Off ` Low ` Mid ` High

With Random Noise Reduction, you can remove indiscriminate picture noise, such as film grain.

■ Block NR

*4*6*7

` Off ` Low ` Mid ` High

With Block Noise Reduction, you can remove the block distortion that sometimes appears in the picture. Block noise can be an issue with overly compressed MPEG content.

Advanced Operations

■ Resolution

*4*6*8*9*10*11

` Through:

Select this to pass video through the AV receiver at

the same resolution and with no conversion.

` Auto:

Select this to have the AV receiver automatically

convert video at resolutions supported by your TV.

` 480p (480p/576p), 720p, 1080i:

Select the desired output resolution.

` 1080p:

Select this for 1080p output and video conversion as

necessary.

` 1080p/24:

Select this for 1080p output at 24 frames per second.

` 4K Upscaling:

Select this for an output resolution four times that of

1080p. Depending on the resolution supported by

your TV, it will result in either 3840 × 2160 or 4096

× 2160 pixels. You can specify the output resolution for the HDMI output and have the AV receiver upconvert the picture resolution

as necessary to match the resolution supported by your TV.

This setting is available only when “Source” has been

selected in “Resolution” of the “Monitor Out” setting

➔ page 55).

(

■ Brightness

*1*4*6

` –50 to 0 to +50

With this setting, you can adjust the picture brightness. “–50” is the darkest. “+50” is the brightest.

■ Contrast

*1*4*6

` –50 to 0 to +50

With this setting, you can adjust contrast. “–50” is the least. “+50” is the greatest.

En-69

*1*4*6

■ Hue

` –50 to 0 to +50

With this setting, you can adjust the color hue between “–50” and “+50”.

■ Saturation

*1*4*6

` –50 to 0 to +50

With this setting, you can adjust saturation. “–50” is the weakest color. “+50” is the strongest color.

■ Color Temperature

*4*6

` Warm ` Normal ` Cool

With this setting, you can adjust the color temperature.

■ Gamma

*4*6

` –3 to 0 to +3

With this setting, you can adjust the incoming picture’s R (red), G (green), and B (blue) color signal in relation to the output color signal.

■ Red Brightness

*4*6

` –50 to 0 to +50

With this setting you can adjust the brightness of red color. “–50” is the darkest. “+50” is the brightest.

■ Red Contrast

*4*6

` –50 to 0 to +50

With this setting you can adjust the contrast of red color. “–50” is the least. “+50” is the greatest.

■ Green Brightness

*4*6

` –50 to 0 to +50

With this setting you can adjust the brightness of green color. “–50” is the darkest. “+50” is the brightest.

■ Green Contrast

*4*6

` –50 to 0 to +50

With this setting you can adjust the contrast of green color. “–50” is the least. “+50” is the greatest.

■ Blue Brightness

*4*6

` –50 to 0 to +50

With this setting you can adjust the brightness of blue color. “–50” is the darkest. “+50” is the brightest.

■ Blue Contrast

*4*6

` –50 to 0 to +50

With this setting you can adjust the contrast of blue color. “–50” is the least. “+50” is the greatest.

Note

•“Picture Adjust” –The NET input selector is selected, or –“Monitor Out” is set to “Sub” (➔ pages 55).

This procedure can also be performed on the remote controller by using the Quick Setup (➔ page 49).

When a 3D video source is input, “Wide Mode” is fixed to “Full”.

When “Metadata Compatible” is enabled (➔ page 61), “Picture Mode” is fixed to “Direct”.

When the “Picture Mode” setting is set to anything other than “Custom”, this setting cannot be used.

If the “Resolution” setting is set to “4K Upscaling” (➔ pages 55, 69), this setting is fixed at “Off”.

Press CLR if you want to reset to the default value.

When the “Noise Reduction” setting is set to anything other than “Off”, this setting cannot be selected.

With some TVs, there may be no picture when this setting is set to “4K Upscaling”.

When “Resolution” is set to “1080p”, “1080p/24”, or “4K Upscaling” while “Monitor Out” is set to “Analog”, the

video is output in 1080i.

*10

When “Resolution” is set to “1080p/24” or “4K Upscaling” while “Monitor Out” is set to “Sub”, the video is output in 1080p.

*11

When “Resolution” is set to “Auto” while “Monitor Out” is set to “Analog”, the video is output as “Through”.

cannot be used when:

Advanced Operations

Audio Selector

■ Audio Selector

` ARC:

The audio signal from your TV tuner can be sent to HDMI OUT MAIN of the AV receiver. With this selection, the TV’s audio can be automatically selected as a priority among other assignments.

` HDMI:

This can be selected when HDMI IN has been assigned as an input source. If both HDMI (HDMI

IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) have been assigned, HDMI input is

automatically selected as a priority.

` COAXIAL:

This can be selected when COAXIAL IN has been assigned as an input source. If both coaxial and HDMI inputs have been assigned, coaxial input is automatically selected as a priority.

` OPTICAL:

This can be selected when OPTICAL IN has been assigned as an input source. If both optical and HDMI inputs have been assigned, optical input is automatically selected as a priority.

` Analog:

The AV receiver always outputs analog signals.

You can set priorities of audio output when there are both digital and analog inputs.

Note

• This setting can be made only for an input source that is assigned to HDMI IN, COAXIAL IN, or OPTICAL IN.

• This setting cannot be used with the NET and USB input selectors.

• When using the Whole House Mode, “Audio Selector” is fixed to “Analog”.

• With the Game2 input selector, “Analog” cannot be used.

You can select “ARC” if you select the TV/CD input selector. But you cannot if you’ve selected “Off” in the “Audio Return Channel” setting (➔ page 75).

En-70

Advanced Operations

Setting the Incoming Digital Signal (Fixed Mode)

■ Fixed Mode

` Off

: The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead.

` PCM:

Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and noise may also be produced.

` DTS:

Only DTS (but not DTS-HD) format input signals will be heard. If the input signal is not DTS, the dts indicator will flash and there will be no sound.

When “HDMI”, “COAXIAL” or “OPTICAL” is selected in the “Audio Selector” setting, you can then specify the signal type in “Fixed Mode”.

Normally, the AV receiver detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS.

• If the beginnings of tracks from a PCM source are cut off, try setting the format to PCM.

• If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS.

Note

• The setting will be reset to “Off” when you change the setting in “Audio Selector”.

Listening Mode Preset

1 2 3 4 5

Main Menu Listening Mode Preset

You can assign a default listening mode to each input source that will be selected automatically when you select each input source. For example, you can set the default listening mode to be used with Dolby Digital input signals. You can select other listening modes during playback, but the mode specified here will be resumed once the AV receiver has been set to standby.

Use q/w to select the input source that you want to

set, and then press Enter.

The following menu appears.

5-1. Listening Mode Preset

Analog/PCM Mono/Multiplex Source 2ch Source Dolby D/Dolby D Plus/TrueHD DTS/DTS-ES/DTS-HD Other Multich Source

Default listening mode for analog and PCM sources.

“Setup”

BD/DVD

All Ch Stereo e r Full Mono PLllx Movie Straight Decode Straight Decode Straight Decode

Use q/w to select the signal format that you want to

set, and then use e/r to select a listening mode.

Only listening modes that can be used with each input signal format can be selected (➔ pages 38 to 44). The “Last Valid” option means that the listening mode selected last will be used. The “Straight Decode” option means that straight decoding listening mode (Dolby Digital, DTS, etc.) is selected.

Note

•For the “TUNER” input selector, only “Analog” will be available.

•For the “NET” or “USB” input selector, only “Digital” will be available.

■ Analog/PCM/Digital

With this setting, you can specify the listening mode used when an analog (CD, TV, LD, VHS, MD, turntable, radio, cassette, cable, satellite, etc.) or PCM digital (CD, DVD, etc.) audio signal is played.

■ Mono/Multiplex Source

With this setting, you can specify the listening mode used when a mono digital audio signal is played (DVD, etc.).

■ 2ch Source

With this setting, you can specify the listening mode used when 2-channel (2/0) stereo digital sources, such as Dolby Digital or DTS, are played.

■ Dolby D/Dolby D Plus/TrueHD

With this setting, you can specify the listening mode used when Dolby Digital or Dolby Digital Plus format digital audio signals are played (DVD, etc.). Specifies the default listening mode for Dolby TrueHD sources, such as Blu-ray or HD DVD (input via HDMI).

En-71

■ DTS/DTS-ES/DTS-HD

With this setting, you can specify the listening mode used when DTS or DTS-HD High Resolution format digital audio signals are played (DVD, LD, CD, etc.). Specifies the default listening mode for DTS-HD Master Audio sources, such as Blu-ray or HD DVD (input via HDMI).

■ Other Multich Source

Specifies the default listening mode for multichannel PCM sources from HDMI IN such as DVD-Audio, and DSD multichannel sources such as Super Audio CD.

Miscellaneous

1 2 3 4 5

Main Menu Miscellaneous

Volume Setup

■ Volume Display

` Absolute

` Relative(THX):

With this setting, you can choose how the volume level is displayed. The absolute value 82 is equivalent to the relative value 0dB.

Note

• If the absolute value is set to 82, “82.0Ref” will appear on the display and the THX indicator will flash.

■ Muting Level

` –

This setting determines how much the output is muted when the muting function is used (➔ page 47).

■ Maximum Volume

` Off ` Off

With this setting, you can limit the maximum volume. To disable this setting, select “Off”.

■ Power On Volume

` Last

With this preference, you can specify the volume setting to be used each time the AV receiver is turned on.

Displayed range is Min, 0.5 to 99.5, Max.

Displayed range is –QdB, –81.5dB to +18.0dB.

QdB (fully muted), –50dB to –10dB in 10 dB steps.

, 50 to 99 (Absolute display) , –32dB to +17dB (Relative display)

, Min, 1 to 99 or Max (Absolute display) , –QdB, –81dB to +18dB (Relative display)

“Setup”

Advanced Operations

To use the same volume level that was used when the AV receiver was turned off, select “Last”.

The “Power On Volume” setting cannot be set higher than the “Maximum Volume” setting.

■ Headphone Level

` –12dB to 0dB

With this setting, you can specify the headphone volume relative to the main volume. This is useful if there’s a volume difference between your speakers and your headphones.

to +12dB

OSD Setup

■ On Screen Display

` On ` Off

This preference determines whether operation details are displayed on-screen when an AV receiver function is adjusted.

Even when “On” is selected, operation details may not be output if the input source is connected to an HDMI IN.

■ Language

` English

This setting determines the language used for the on-screen menus.

■ Screen Saver

` 3min ` Off

With this setting, you can set the time until the screen saver activates itself. Once active, the screen saver will go off and the screen will return to its previous state if the AV receiver is operated in any way.

, Deutsch, Français, Español, Italiano,

Nederlands, Svenska, 中文

, 5min, 10min

En-72

Advanced Operations

12V Trigger A/B/C Setup

Depending on their type, when some components are turned by using triggers A, B, and C, a large amount of current may be drawn at once. To prevent this, you can delay each trigger signal individually. Another application of trigger delay is to eliminate the “thump” noise that’s sometimes heard when a source component is turned on. You can accomplish this by delaying the trigger signal for your power amplifier, so that it’s the last component to be turned on.

■ Delay

` 0sec, 1sec, 2sec, 3sec:

When “0sec” is selected, the trigger signal is output as soon as the input source is changed.

Note

• By default, “12V Trigger A Setup” is set to “0sec”, “12V Trigger B Setup” to “1sec”, and “12V Trigger C Setup” to

“2sec”.

• Use a miniplug cable to connect the AV receiver’s 12V TRIGGER OUT A, B, or C jack to the 12 V trigger input of a connected component.

■ BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2,

PC, AUX, TUNER, TV/CD, PHONO, NET, USB

` Off:

No trigger signal is output.

A 12-volt trigger signal is output when the connected component is selected as the source for:

` Main, Zone 2, Main/Zone 2, Zone 3, Main/Zone 3,

Zone 2/Zone 3, Main/Zone 2/Zone 3

Note

• By default, all input sources on the “12V Trigger A Setup” menu are set to “Main”, those on “12V Trigger B Setup” are set to “Main/Zone 2/Zone 3”, and those on “12V Trigger C Setup” are set to “Zone 2”.

Hardware Setup

1 2 3 4 5

Main Menu Hardware Setup

Multi Zone

■ Zone 2 Out, Zone 3 Out

` Fixed

: The Zone 2/3 volume must be set on the amp in that zone.

` Variable:

The Zone 2/3 volume can be set on the AV receiver.

If you’ve connected your Zone 2/3 speakers to an amp with no volume control, set the “Zone 2 Out” and “Zone 3 Out” setting, respectively, to “Variable” so that you can set the volume, balance, and tone of zone 2 and volume of zone 3 on the AV receiver.

■ Zone 2 Maximum Volume,

Zone 3 Maximum Volume

, 50 to 99 (Absolute display)

` Off ` Off

, –32dB to +17dB (Relative display)

With this setting, you can limit the maximum volume for Zone 2/3.

■ Zone 2 Power On Volume,

Zone 3 Power On Volume

` Last, Min, 1 to 99 or Max (Absolute display)

, –QdB, –81dB to +18dB (Relative display)

` Last

This setting determines what the volume will be for Zone 2/3 each time the AV receiver is turned on.

To use the same volume level as when the AV receiver was last turned off, select “Last”.

The “Zone 2 Power On Volume” and “Zone 3 Power On

Volume” cannot be set higher than the “Zone 2 Maximum Volume” and “Zone 3 Maximum Volume” setting.

“Setup”

Tuner

■ AM/FM Frequency Step (North American

models)

` 10kHz/200kHz ` 9kHz/50kHz:

Select the frequency step according to your area.

■ AM Frequency Step (Australian models)

` 10kHz: ` 9kHz

Select the frequency step according to your area.

For AM/FM tuning to work properly, you must specify the AM/FM frequency step used in your area.

Note

• When this setting is changed, all radio presets will be deleted.

En-73

HDMI

■ HDMI Control(RIHD)

` Off ` On

Turn this setting on to allow components connected via HDMI to be controlled by the AV receiver (➔ page 104).

Note

• When the setting is set to “On” and the menu is closed, the names of connected p-compatible components and “RIHD On”

are displayed on the AV receiver. “Search…” → “(name)” → “RIHD On” When the AV receiver cannot receive the name of the component, it is displayed as “Player and indicates the number of components, when two or more are received).

•When an p-compatible component is connected to the AV receiver via an HDMI cable, the name of the connected component is displayed on the AV receiver display. For example, while you are watching TV broadcasting, if you operate a Blu-ray Disc/DVD player (being powered on) with the remote control of the AV receiver, the name of the Blu-ray Disc/DVD player will be displayed on the AV receiver.

• Set it to

• If operation is not normal when set to

“Off” when a connected piece of equipment is not

compatible or it is unclear whether the equipment is compatible or not.

“Off”.

• Refer to the connected component’s instruction manual for details.

•When the “HDMI Control(RIHD)” setting is set to “On”, the power consumption on standby mode slightly increases. (Depending on the TV status, the AV receiver will enter standby mode as usual.)

•The p control does not support HDMI OUT SUB. Use HDMI OUT MAIN instead.

• When the source equipment is connected with the u connection, it may malfunction if “HDMI Control(RIHD)” is set to “On”.

p-compatible

” or “Recorder*”, etc. (“*” shows up

“On”, change the setting to

■ HDMI Through

` Off ` BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2,

PC, AUX, TV/CD, PHONO:

Selects the input source for which the HDMI Through function is enabled.

` Last:

The HDMI Through function is activated on the input source selected at the time of setting the AV receiver

to standby mode. When enabling the HDMI Through function, regardless of whether the AV receiver is on or in standby, both audio

and video streams from an HDMI input will be output to the TV or other components via HDMI connection. The HDMI indicator will be dimly-lit in standby mode. Note that the indicator may not light under certain conditions

➔ page 54).

( This setting is fixed to “Auto” automatically when the above “HDMI Control(RIHD)” setting is set to “On”,

resulting in automatic input source selection.

Note

• Only an input source assigned to an HDMI IN via “HDMI Input”

setting is enabled (➔ page 56).

• The power consumption in standby mode will increase during the

HDMI Through function; however in the following cases, the power consumption can be saved: – The TV is in standby mode. – You are watching a TV program.

• Refer to the connected component’s instruction manual for

details.

• Depending on the connected component, the correct input source

may not be selected with the setting fixed to “Auto”.

• This setting is set to “Off” automatically when the “HDMI

Control(RIHD)” setting is set to “Off”.

Advanced Operations

■ Audio TV Out

` Off ` On

This preference determines whether the incoming audio signal is output from the HDMI output. You may want to turn this preference on if your TV is connected to the HDMI output and you want to listen to the audio from a connected component through your TV’s speakers. Normally, this should be set to “Off”.

Note

• If “On” is selected and the audio can be output from the TV, the AV receiver will output no sound through its speakers. In this case, “TV Speaker” appears on the AV receiver’s display by pressing Display.

• When “HDMI Control(RIHD)” is set to “On”, this setting is fixed to “Auto”.

• When Digital Processing Crossover Network is being used, this setting is not available.

• With some TVs and input signals, no sound may be output even when this setting is set to “On”.

• When “Audio TV Out” or

“HDMI Control(RIHD)” is set to

“On” and you’re listening through your TV’s speakers

(➔ page 17), turning up the AV receiver’s volume control will make the sound be output from the AV receiver’s front left and right speakers. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume.

• Listening mode cannot be changed when this setting is set to “On” and the input source is not HDMI.

En-74

■ Audio Return Channel (ARC)

` Off ` Auto:

The audio signal from your TV tuner can be sent to HDMI OUT MAIN of the AV receiver.

The audio return channel (ARC) function allows an ARC capable TV to send the audio stream to HDMI OUT MAIN of the AV receiver. To use this function, you must select the TV/CD input selector and your TV must be ARC capable. Default setting: “

Note

• This setting is fixed to “----” when the “HDMI Control(RIHD)” setting is set to “Off”.

• This setting is set to “Auto” automatically when the “HDMI Control(RIHD)” setting is set to “On” for the first time.

• If you set “Audio Return Channel” to “Auto”, the “Audio Selector” settings of the TV/CD input selector will be automatically switched to “ARC” (➔ page 70).

----”

After changing the settings of the “HDMI Control(RIHD)”, “HDMI Through” or “Audio Return Channel”, turn off the power on all connected

pieces of equipment and then turn them on again. Refer to the user’s manuals for all connected pieces of equipment.

■ Lip Sync

` Off ` On

This function allows the AV receiver to automatically correct any delay between the video and the audio, based on the data from the connected monitor.

Note

• This function works only if your HDMI-compatible TV supports HDMI Lip Sync.

■ InstaPrevue

These settings apply to “InstaPrevue” of the Home menu

(➔ page 45) and specify the preview display of HDMI

video streams.

Sub Window

` Multi:

Displays preview thumbnails all at once.

` Single:

Displays preview thumbnails one-by-one.

With this setting, you can set the number of preview thumbnails displayed.

Position

(with “Sub Window” set to “Multi”)

` Top, Bottom

, Left, Right

(with “Sub Window” set to “Single”)

` Upper Left, Upper Right, Lower Left, Lower Right

With this setting, you can set the position of preview thumbnails on the TV screen.

Note

• Depending on video signals, the picture may not be properly rendered on the preview thumbnails of InstaPrevue.

Auto Standby

■ Auto Standby

` Off ` On

When “Auto Standby” is set to “On”, the AV receiver will automatically enter standby mode if there is no operation for 30 minutes with no audio and no video signal input.

“Auto Standby” will appear on the AV receiver’s display and OSD 30 seconds before the Auto Standby comes on.

Default setting: On (Australian models), Off (North

American models)

Note

On”, the Auto Standby function may activate itself during

•Set to “ playback with some sources.

•The Auto

Standby function does not work when Zone 2/3 is on.

Advanced Operations

Network

After modifying the network settings, you must confirm the changes by executing “Save”.

This section explains how to configure the AV receiver’s network settings manually. If your router’s DHCP server is enabled, you don’t need to change any of these settings, as the AV receiver is set to use DHCP to configure itself automatically by default (i.e., DHCP is set to “Enable”). If, however, your router’s DHCP server is disabled (you’re for example using static IP), you’ll need to configure these settings yourself, in which case, a knowledge of Ethernet networking is essential.

What’s DHCP?

DHCP (Dynamic Host Configuration Protocol) is used by routers, computers, the AV receiver, and other devices to automatically configure themselves on a network.

What’s DNS?

The DNS (Domain Name System) translates domain names into IP addresses. For example, when you enter a domain name such as www.onkyousa.com in your Web browser, before accessing the site, your browser uses DNS to translate this into an IP address, in this case

63.148.251.142.

■ MAC Address

This is the AV receiver’s MAC (Media Access Control) address. This address cannot be changed.

En-75

■ DHCP

` Enable ` Disable

This setting determines whether or not the AV receiver uses DHCP to automatically configure its IP Address, Subnet Mask, Gateway, and DNS Server settings.

Note

• If you select “Disable”, you must configure the “IP Address”, “Subnet Mask”, “Gateway”, and “DNS Server” settings yourself.

■ IP Address

` Class A:

` Class B:

` Class C:

Enter a static IP address provided by your Internet Service Provider (ISP).

Most routers use Class C IP addresses.

■ Subnet Mask

Enter the subnet mask address provided by your ISP (typically 255.255.255.0).

■ Gateway

Enter the gateway address provided by your ISP.

■ DNS Server

Enter the DNS server address provided by your ISP.

■ Proxy URL

To use a Web proxy, enter its URL here.

■ Proxy Port

If you’re using a Web proxy, enter a proxy port number here.

■ Network Standby

` On ` Off

“10.0.0.0” to “10.255.255.255”

“172.16.0.0” to “172.31.255.255”

“192.168.0.0” to “192.168.255.255”

This setting enables or disables control over the network. When enabled, the NET indicator will be dimly-lit while

the AV receiver is in standby mode. Note that the indicator may not light under certain conditions (

Note

• When set to “On”, the power consumption slightly increases in standby mode.

■ Update Notice

` Enable ` Disable

When this setting is enabled, you will be notified if a firmware update via network is available.

Note

• Selecting “Never Remind me” on the notification window will switch this setting to “Disable” (➔ page 21).

• For details on the update notification, see “If the “Firmware Update Available” window appears.” (➔ page 21).

➔ page 54).

Initial Setup

If you skipped the initial setup wizard, for example on first-time use, you can reaccess it from here. See “Initial Setup” (➔ page 22).

Remote Controller Setup

1 2 3 4 5

Main Menu Remote Controller Setup

Remote ID

■ Remote ID

` 1

, 2, or 3 When several Integra/Onkyo components are used in the same room, their remote ID codes may overlap. To

differentiate the AV receiver from other components, you can change its remote ID from “1”, to “2” or “3”.

“Setup”

Advanced Operations

Note

• If you do change the AV receiver’s remote ID, be sure to change the remote controller to the same ID (see below), otherwise, you won’t be able to control it with the remote controller.

Changing the remote controller’s ID

While holding down Receiver, press and hold

down QSetup until the Receiver lights (about 3 seconds).

Use the number buttons to enter ID 1, 2, or 3.

Receiver flashes twice.

Remote Mode Setup

See “Looking up for Remote Control Codes” (➔ page 83).

Lock Setup

1 2 3 4 5

Main Menu Lock Setup

With this preference, you can protect your settings by locking the setup menus.

■ Setup

` Locked ` Unlocked

When “Locked” is selected, the setup menus will be locked and you cannot change any setting.

“Setup”

En-76

Advanced Operations

Multi Zone

In addition to the main listening room, you can also enjoy playback in the other room, or as we call Multi Zone. And, you can select a different source for each room.

Making Multi Zone Connections

There are two ways you can connect Zone speakers:

1. Connect them directly to the AV receiver.

2. Connect them to an additional amplifier.

Connecting Your Zone Speakers Directly to the AV receiver

This setup allows you to select different sources for Main room and Zone 2/3. This is called Powered Zone, as the Zone 2/3 speakers are powered by the AV receiver.

To use this setup, you must activate the Powered Zone 2/3 setting (➔ page 58).

Main room

AV receiver

Zone 3

R L

Note

• With this setup, the volume of Zone 2/3 is controlled by the AV receiver.

• When Powered Zone 2 is used, playback in the main room is reduced to 5.1 channels.

• When Powered Zone 3 is used, playback in the main room is reduced to 3.1 channels.

Connecting the Zone Speakers to an Additional Amplifier

This setup allows 7.1-channel playback in your main listening room and 2-channel stereo playback in Zone 2/3.

Main room

AV receiver

Zone 2

Receiver/

integrated amp

AV receiver

Zone 2

R L

En-77

Zone 3

Receiver/

integrated amp

Note

• With the default settings, the Zone 2/3 volume must be set on the Zone 2/3 amplifier. If your Zone 2/3 amplifier has no volume control, change the setting so that you can set the Zone 2/3 volume on the AV receiver. See “Multi Zone” (➔ page 73).

Zone 2 Video Output

The AV receiver features a composite video output for connection to a TV in Zone 2, so you can enjoy both audio and video in that zone.

Hookup

• Use a composite video cable to connect the AV receiver’s ZONE 2 OUT V jack to a composite video input on your Zone 2 TV.

Controlling Multi Zone Components

■ Operating on the AV receiver

Zone 2, Off

Zone 3, Off

Tone

–, +

Master Volume

Advanced Operations

■ Operating on the remote controller

To control Zone 2/3, you must press Zone on the remote controller first.

Zone turns red when Zone 2 is on, and green when Zone 3 is on.

8Receiver

Zone

Input selector buttons

Main room

AV r ecei ver

Zone 2

Note

•The ZONE 2 OUT V jack only outputs video from components connected to composite video inputs.

Setting the Zone 2/3 Out

See “Multi Zone” (➔ page 73).

Input selector buttons

Tip

• The Whole House Mode function shares the input source of main room with Multi Zone (➔ page 47).

To turn on Zone 2/3 and select an input source,

press Zone 2 or Zone 3 followed by an input selector button within 8 seconds.

Zone 2/3 turns on, the Z2 or Z3 indicator lights on the AV receiver’s display.

Tip

• The corresponding trigger output goes high (+12 V).

To select AM or FM, press Tune r input selector and Zone 2 or Zone 3 repeatedly.

To select the same source as the main room’s, press Zone 2 or Zone 3 twice. “Zone 2 Selector: Source” or “Zone 3 Selector: Source” appears on the AV receiver’s display.

To turn off Zone 2/3, press Off for each Zone.

The zone is turned off.

Tip

• The corresponding trigger output goes low (0 volts).

Muting

VOLq/w

Press Zone repeatedly, then point the remote

controller at the AV receiver and press 8Receiver.

Zone 2/3 turns on, the Z2 or Z3 indicator lights on the AV receiver’s display.

Tip

• The corresponding trigger output goes high (+12 V).

To select an input source for Zone 2/3, press Zone

repeatedly, followed by an Input Selector button.

To select AM or FM, press the Tun er input selector and Zone repeatedly.

To turn off Zone 2/3, press Zone repeatedly,

followed by 8Receiver.

The zone is turned off.

Tip

• The corresponding trigger output goes low (0 volts).

En-78

Advanced Operations

Adjusting the Volume for Zones

■ Operating on the remote controller

Press Zone repeatedly.

Use VOL q/w.

■ Operating on the AV receiver

Press Zone 2 or Zone 3 (the Z2/Z3 indicator on the

AV receiver’s display flashes).

Use Master Volume control within 8 seconds.

If your Zone 2/3 speakers are connected to a receiver or integrated amplifier in Zone 2/3, use its volume control to adjust the volume.

Muting Zones

■ Operating on the remote controller

Press Zone repeatedly, and then press Muting.

Tip

• To unmute, press Zone followed by Muting again. Zones can also be unmuted by adjusting the volume.

Adjusting the Tone and Balance of Zone 2

On the AV receiver, press Zone 2.

Use – or + to adjust the bass, treble or balance.

• You can boost or cut the bass or treble from –10 dB to +10 dB in 2 dB steps.

• You can adjust the balance from 0 in the center to +10 dB to the right or +10 dB to the left in 2 dB steps.

Note

• Only analog input sources are output by the ZONE 2/3 PRE/LINE OUT and FRONT WIDE/ZONE 2 L/R, FRONT HIGH/ZONE 3 L/R terminals. Digital input sources are not

output. If no sound is heard when an input source is selected, verify that the source is connected to an analog input.

• You cannot select different AM or FM radio stations for your main room and Zone 2/3. The same AM/FM radio station will be heard in each room. Namely, if you have selected an FM station for the main room, that station will also be output in Zone 2/3.

• When you have selected NET or USB as input selector, the last selector selected will be set for Main room and Zone 2/3.

• When Zone 2/3 is activated and its input selector is selected, the power consumption of standby mode slightly increases.

• While Zone 2/3 is on, u functions will not work.

• When setting the AV receiver to standby mode while Zone 2/3 is active, the Z2 or Z3 indicator is dimly lit.

• Even if you repeatedly press the remote controller’s Zone to select zones, the last zone selection will be retained once you have switched to other components by pressing other Remote Mode after pressing Zone.

• The Zone 2 level, balance, and tone functions have no effect on the ZONE 2 PRE/LINE OUT jacks when the “Zone 2 Out” setting is set to “Fixed” (➔ page 73).

• The Zone 3 volume function has no effect on ZONE 3 PRE/LINE OUT when the “Zone 3 Out” setting is set to “Fixed” (➔ page 73).

Using the 12V Triggers

The 12V triggers A, B, and C can be used to turn on 12V trigger-capable components automatically when they are selected as the input source. The triggers can be set so that they activate themselves once a connected component is selected as the input source for the main room, Zone 2, Zone 3, or any combination of rooms. When triggered, the output from a 12V TRIGGER OUT goes high (+12 volts and 150 milliamperes max. at 12V TRIGGER OUT A; +12 volts and 25 milliamperes max. at 12V TRIGGER OUT B and C).

See “12V Trigger A/B/C Setup” (➔ page 73).

Hookup

• Use a miniplug cable to connect the AV receiver’s 12V TRIGGER OUT A, B, or C jack to the 12 V trigger

input of a connected component.

Press the AV receiver’s Tone repeatedly to select

“Bass”, “Treble” or “Balance”.

En-79

Using the Remote Controller in Zone and Multiroom Control Kits

To control the AV receiver with the remote controller while you’re in Zone, you’ll need a commercially available multiroom remote control kit for each zone.

• Multiroom kits are made by Niles and Xantech. These kits can also be used when there isn’t a clear line of sight to the AV receiver’s remote sensor, such as when it’s

installed inside a cabinet.

The miniplug cable from the connecting block should be connected to the AV receiver’s IR IN A or B jack, as shown below. The IR IN A and B jacks are identical. Up to two IR receivers can be connected.

From the connecting block

Miniplug cable

Advanced Operations

Using a Multiroom Kit with Other Components

In this setup, an IR emitter is connected to the AV receiver’s IR OUT jack and placed in front of the other component’s remote control sensor. Infrared signals received at the AV receiver’s IR IN A or B jack are fed through to the other component via the IR emitter. Signals picked up by the AV receiver’s remote control sensor are not output.

Using a Multiroom Kit with Zone

In this setup, the IR receiver in Zone picks up the infrared signals from the remote controller and feeds them through to the AV receiver in the main room via the connecting block.

IR IN A or B

Connecting block

Remote controller

Main room Zone

Signal flow

IR receiver

AV receiver

Signal flow

Using a Multiroom Kit with a Cabinet

In this setup, the IR receiver picks up the infrared signals from the remote controller and feeds them to the AV receiver located in the cabinet via the connecting block.

IR receiver

IR IN A or B

Inside

cabinet

Connecting block

Remote controller

Signal flow

IR receiver IR IN A or B

IR OUT

Connecting block

AV receiver

IR emitter

Remote controller

Other component

Signal flow

The IR emitter should be connected to the AV receiver’s IR OUT jack, as shown below.

From the connecting block

Miniplug cable

Other component

Remote control sensor

AV receiver

Emitter

IR emitter

Miniplug

Signal flow

En-80

iPod/iPhone Playback via Onkyo Dock

Using the Onkyo Dock

The Dock is sold separately. Models sold are different depending on the region. For the latest information on the Onkyo Dock components, see the Onkyo web site at: http://www.onkyo.com Before using the Onkyo Dock components, update your iPod/iPhone with the latest software, available from the Apple web site. For supported iPod/iPhone models, see the instruction manual of the Onkyo Dock.

RI Dock

With the RI Dock, you can easily play the music of your iPod/iPhone, or watch the slideshows and videos of your iPod/iPhone on a TV. In addition, the on-screen display (OSD) allows you to view, navigate, and select your iPod/iPhone model’s contents on your TV, and with the supplied remote controller, you can control your iPod/iPhone from the comfort of your sofa. You can even use the AV receiver’s remote controller to operate your iPod/iPhone.

Note

• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (➔ page 84).

• Connect the RI Dock to the AV receiver with an u cable (➔ page 19).

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

• Set the AV receiver’s Input Display to “DOCK” (➔ page 46).

■ System Function

Depending on your iPod/iPhone model and generation, some of the linked operations may not be available.

System On

When you turn on the AV receiver, the RI Dock and iPod/iPhone turn on automatically. In addition, when RI Dock and iPod/iPhone are on, the AV receiver can be

turned on by pressing 8Source.

Auto Power On

If you press the remote controller’s 1 (Playback) while the AV receiver is on standby, the AV receiver will automatically turn on, select your iPod/iPhone as the input source, and your iPod/iPhone will start playback.

Direct Change

If you start iPod/iPhone playback while listening to another input source, the AV receiver will automatically switch to the input to which the RI Dock is connected.

Controlling Other Components

Other Remote Operations

You can use the remote controller that came with the AV receiver to control other iPod/iPhone functions. The available functionality depends on the AV receiver.

Note

• If you use your iPod/iPhone with any other accessories, iPod/iPhone playback detection may not work.

• The System On function may not work depending on the RI Dock.

iPod Alarm

If you use the Alarm function on your iPod to start playback, the AV receiver will turn on at the specified time and select your iPod as the input source automatically.

Note

• This linked operation won’t work while a video is being played or when the sound set for the alarm is a built-in sound (Beep).

• This linked operation won’t work with models on which music files cannot be used to set the alarm sound.

■ Operating Notes

• Use the AV receiver’s volume control to adjust the playback volume.

• While your iPod/iPhone is inserted in the RI Dock, its volume control has no effect.

• If you do adjust the volume control on your iPod/iPhone while it’s inserted in the RI Dock, be careful that it’s not set too loud before you reconnect your headphones.

En-81

Controlling Other Components

Controlling Your iPod/iPhone

By pressing the Remote Mode button that’s been programmed with the remote control code for your Dock, you can control your iPod/iPhone in the Dock with the buttons described further in this section.

See “Entering Remote Control Codes” for details on entering a remote control code (➔ page 84).

See the Dock’s instruction manual for more information.

RI Dock

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

• 8Source may not work with a remote control code (without u). In this case, make an u connection and enter the remote control code 81993 (with u).

■ With the RI Control

Make an u connection and enter the remote control code 81993 (with u).

• Set the AV receiver’s Input Display to “DOCK” (➔ page 46).

■ Without the RI Control

You must enter the remote control code 82990 first (➔ page 85).

Press the appropriate Remote Mode button first.

e f

g h

■ u Dock operation

Available buttons

Top Menu

a b q/w/e/r, Enter f 8Source

Playlist e/r g

c 1, 3, 2, 5, 4,

7, 6

Repeat

Random

• With some iPod/iPhone models, generations and RI Docks, certain buttons may not work as expected.

• For detailed operation of iPod/iPhone, please refer to the instruction manual of the RI Dock.

Top Menu works as the mode button when used with the DSA2 RI Dock.

Display turns on the backlight for a few seconds.

This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Also, your iPod/iPhone may not respond the first time you press this button, in which case you should press it again. This is because the remote controller transmits the On and Standby commands alternately, so if your iPod/iPhone is already on, it will remain on when the remote controller transmits the On command. Similarly, if your iPod/iPhone is already off, it will remain off when the remote controller transmits the Off command.

Resume mode With the Resume function, you can resume playback of the song that was playing when you removed your iPod/iPhone from the Onkyo DS-A2 RI Dock.

h i VOL q/w

j k

Display

Muting

Album +/–

Mode

En-82

Controlling Other Components

You can use the AV receiver’s remote controller to control your other AV components. This section explains how to enter the remote control code for a component that you want to control: DVD, TV, CD, etc.

See “Learning Commands” for learning commands directly from another component’s remote controller (➔ page 88).

See “Using Normal Macros” for programming Activities to perform a sequence of remote control actions (➔ page 89).

Preprogrammed Remote Control Codes

The following Remote Mode buttons are preprogrammed with remote control codes for controlling the components listed. You do not need to enter a remote control code to control these components. For details on controlling these components, see the indicated pages.

BD/DVD Integra/Onkyo Blu-ray Disc player

(➔ page 86)

TV/CD Integra/Onkyo CD player (➔ page 85) STB/DVR Apple TV

Looking up for Remote Control Codes

You can look up for an appropriate remote control code from the on-screen menu.

You need to connect your TV to the HDMI output (HDMI OUT MAIN) to make the following on-screen setting.

Press Receiver followed by Home.

Use e/r to select “Setup”, and then press Enter.

Use q/w to select “Remote Controller Setup”, and

then press Enter.

Use q/w to select “Remote Mode Setup”, and then

press Enter.

Use q/w to select a remote mode, and then press

Enter.

The menu of category selection appears.

Use q/w to select a category, and then press Enter.

The keyboard screen for brand name input appears.

Use q/w/e/r to select a character, and then press

Enter.

Repeat this step for the first three characters of the brand name. When you have entered the 3rd character, select “Search” and press Enter. A list of brand names is retrieved.

If the desired brand name is not found: Use r to select “Not Listed”, and then press Enter.

The keyboard screen for brand name input appears.

Use q/w to select a brand, and then press Enter.

A remote control code with its instructions are displayed. Follow the procedure.

If you can control the component, use q/w to select

“OK”, and then press Enter. The on-screen menu returns to the “Remote Mode Setup” front screen.

If you cannot control the component, use q/w to select “Try Next Code” and press Enter.

The next code is displayed.

En-83

Controlling Other Components

Entering Remote Control Codes

You’ll need to enter a code for each component that you want to control.

Look up the appropriate remote control code in the

separate Remote Control Codes list.

The codes are organized by category (e.g., DVD player, TV, etc.).

While holding down the Remote Mode button to

which you want to assign a code, press and hold down Display (about 3 seconds).

The Remote Mode button lights.

Note

• Remote control codes cannot be entered for Receiver and the multi zone button.

• Only TV remote control codes can be entered for TV.

• Except for Receiver, TV, and the multi zone button, remote control codes from any category can be assigned for the Remote Mode buttons. However, these buttons also work as input selector buttons (➔ page 24), so choose a Remote Mode button that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose TV/CD when entering its remote control code.

Within 30 seconds, use the number buttons to enter

the 5-digit remote control code.

The Remote Mode button flashes twice. If the remote control code is not entered successfully,

the Remote Mode button will flash once slowly.

Remapping Colored Buttons

You can change the configuration of colored buttons, with which Remote Mode buttons are preset.

While holding down the Remote Mode button that

you want to program, press and hold down A (Red) until the Remote Mode button lights (about 3 seconds).

You can only change colored buttons for components whose codes belong to categories of the Remote Control Codes list (BD/DVD player, TV, cable set-top box, etc).

Within 30 seconds, press the colored buttons in the

order that you want to reassign them.

The button presses are assigned to each button from left to right. The Remote Mode button flashes twice, indicating that the sequence has been successfully assigned. If the sequence is not successfully assigned, the Remote Mode button will flash once slowly.

Tip

• To reset the Remote Mode buttons to their default settings, see “Resetting the Remote Mode Buttons” (➔ page 85).

Note

• If any other button than the colored buttons is pressed, the operation will be cancelled.

• This operation cannot be done while the AV receiver is in Receiver mode or when Zone 2/3 is active.

Note

• Though the provided remote control codes are correct at the time of release, they are subject to change.

En-84

Remote Control Codes for Integra/Onkyo Components Connected via RI

Integra/Onkyo components that are connected via u are controlled by pointing the remote controller at the AV receiver, not the component. This allows you to control components that are out of view, in a rack, for example.

Make sure the Integra/Onkyo component is

connected with an u cable and an analog audio cable (RCA).

See “Connecting Integra/Onkyo RI Components” for details (➔ page 19).

Enter the appropriate remote control code for a

Remote Mode button, by referring to the previous section.

` 42157:

Onkyo cassette tape deck with u

` 81993:

Onkyo Dock with u

Press the Remote Mode button, point the remote

controller at the AV receiver, and operate the component.

Controlling Integra/Onkyo components without u

If you want to control an Integra/Onkyo component by pointing the remote controller directly at it, or you want to control an Integra/Onkyo component that’s not connected

via u, use the following remote control codes:

` 30627:

Integra/Onkyo DVD player without u

` 71817:

Integra/Onkyo CD player without u

` 32900/33100/33500:

Integra/Onkyo Blu-ray Disc player

` 32901/33104/33504:

Integra/Onkyo HD DVD player

` 70868:

Onkyo MD recorder without u

` 71323:

Onkyo CD recorder without u

` 82990:

Onkyo Dock without u

Resetting the Remote Mode Buttons

You can reset a Remote Mode button to its default remote control code.

While holding down the Remote Mode button that

you want to reset, press and hold down Home until the Remote Mode button lights (about 3 seconds).

Within 30 seconds, press the Remote Mode button

again.

The Remote Mode button flashes twice, indicating that the button has been reset. Each Remote Mode button is preprogrammed with a remote control code. When a button is reset, its preprogrammed code is restored.

Note

• The learning command is also reset.

Resetting the Remote Controller

You can reset the remote controller to its default settings.

While holding down Receiver, press and hold

down Home until Receiver lights (about 3 seconds).

Within 30 seconds, press Receiver again.

Receiver flashes twice, indicating that the remote controller has been reset.

Controlling Other Components

By pressing the Remote Mode button that’s been programmed with the remote control code for your component, you can control your component as described below.

For details on entering a remote control code for other components, see “Entering Remote Control Codes” (➔ page 84).

Controlling a TV

TV is preprogrammed with the remote control code for

controlling a TV that supports the p some models). The TV must be able to receive remote

control commands via p and be connected to the AV receiver via HDMI. If controlling your TV via

p doesn’t work very well, program your TV’s remote control code into TV and use the TV remote mode to control your TV.

Use the following remote control codes:

` 11807/13100/13500:

TV with p

Controlling Apple TV

By programming the supplied remote controller with the appropriate remote control code, you can use it to operate your Apple TV.

Use the following remote control codes:

` 02615:

Apple TV

(limited to

En-85

Controlling MHL-Enabled Mobile Device

By programming the supplied remote controller with the appropriate remote control code, you can use it to operate your MHL-enabled mobile device. Connect your MHL-enabled mobile device to the AUX Input MHL jack. We advise you to program the remote control code on the AUX button. Use the following remote control codes:

(North American models)

` 33101:

MHL-enabled mobile device

(Australian models)

` 32910:

MHL-enabled mobile device

Note

• With some mobile devices, reliable operation cannot be guaranteed.

Controlling a Blu-ray Disc/DVD Player, HD DVD Player or DVD Recorder

BD/DVD is preprogrammed with the remote control code

for controlling a component that supports the p (limited to some models). The component must be able to

receive remote control commands via p and be connected to the AV receiver via HDMI.

Use the following remote control codes:

` 32910/33101/33501/31612:

Blu-ray Disc/DVD player with p

The p supported by the AV receiver is the CEC system control function of the HDMI standard.

Controlling Other Components

■ TV operation

Press the appropriate REMOTE

Press the appropriate Remote

MODE button first.

Mode button first.

h i

Available buttons a 8, Input, TV VOL q/w g

Guide

b c q/w/e/r

Enter

Setup

d e 1, 3, 2, 5, 4,

7, 6

B C (Yellow) D (Blue)

(Red) (Green)

Number: 1 to 9, 0 Number: +10

Display

Muting

CH +/–

PREV CH

Return

CLR

■ Blu-ray Disc/HD DVD player operation

c d

Available buttons

Top Menu

b c q/w/e/r

Enter

Setup

d e 1, 3, 2, 5, 4,

7, 6

(Red)

(Green)

B C

(Yellow) (Blue)

Number: 1 to 9, 0

Number: +10 Display

h i 8Source

Muting

CH +/–

Disc +/– Menu

Return

CLR

En-86

Press the appropriate Remote Mode button first.

c d

h i

■ DVD player/DVD recorder operation

Available buttons

Top Menu

b c q/w/e/r

Enter

Setup

d e 1, 3, 2, 5, 4,

7, 6

(Red)

(Green)

B C D

(Yellow)

(Blue)

Number: 1 to 9, 0

Number: +10 Display

h i 8Source

Muting

CH +/–

Disc +/– Menu

Return

CLR

■ VCR/PVR operation

Available buttons

Guide

b c q/w/e/r

Enter

Setup

d e 1, 3, 2, 5, 4,

7, 6 Number: 1 to 9, 0

Number: +10

Display

h i 8Source

Muting

CH +/–

PREV CH

Return

CLR

■ Cassette tape deck operation

Available buttons

e 1, t (Reverse

Playback), 2, 5, 4, 7, 6

i 8Source

Muting

Controlling Other Components

■ Satellite receiver/Cable receiver operation

Available buttons

Guide

b c q/w/e/r

Enter

Setup

d e 1, 3, 2, 5, 4,

7, 6

(Red)

(Green)

(Yellow)

(Blue)

Number: 1 to 9, 0

Number: +10 Display

h i 8Source

Muting

CH +/–

PREV CH

Return

CLR

■ CD player/CD recorder/MD recorder operation

Available buttons

c q/w/e/r

Enter

Setup

d e 1, 3, 2, 5, 4,

7, 6

Repeat Random Mode

Note

• With some components, certain buttons may not work as expected, and some may not work at all.

• See “Controlling Your iPod/iPhone” about the operation of iPod/iPhone (➔ page 82).

The p function is not supported. The p supported by the AV receiver is the CEC system control function of the HDMI standard.

Number: 1 to 9, 0

Number: +10 Display

h i 8Source

Muting

Disc +/–

CLR

En-87

Learning Commands

UTI

The AV receiver’s remote controller can learn the commands of other remote controllers. By transmitting, for example, the Play command from your CD player’s remote controller, the supplied remote controller can learn it and

then reproduce the exact same command when its 1 is pressed in CD remote mode. This is useful when some buttons don’t work as expected though you entered the appropriate remote control code (➔ page 84).

If the command is learned successfully, the Remote Mode button flashes twice.

VOLUME

TONE

TEST

CH SEL

PRESET

TUNER

GROUP

DISC

TU NER

C D DVD

VIDEO-2

INPUT SELECTOR

TAPE DVD

VIDEO-1

SLEEP DIMM ER

POWER

Within about 4 inches (10 cm)

C D

INPUT MULTI-CH

PHONO

MODE

SUR

Supplied remote controller

Controlling Other Components

■ Deleting Acquired Commands

1. While holding down the Remote Mode button for the

mode from which you want to delete a command, press and hold down 8TV until the Remote Mode button

lights (about 3 seconds).

2. Press the Remote Mode button or the button from

which you want to delete the command. The Remote Mode button flashes twice. When you press the Remote Mode button, all commands learned in that mode will be deleted.

8Receiver

Remote

Mode

While holding down the Remote Mode button for

the mode in which you want to use the command, press and hold down

8Receiver until the Remote

Mode button lights (about 3 seconds).

On the supplied remote controller, press the

button to which you want to assign the new command.

Point the remote controllers at each other, within

about 4 inches (10 cm) apart, and then press and hold the button whose command you want to acquire until the Remote Mode button flashes.

To learn more commands, repeat steps 2 and 3.

Press any Remote Mode button when you’ve finished. The Remote Mode button flashes twice.

Note

• The following buttons cannot learn new commands: 8Receiver, All Off, My Movie, My TV, My Music, Remote Mode, Mode.

• The remote controller can learn approximately 70 to 90 commands, although this will be less if commands that use a lot of memory are learned.

• Remote controller buttons such as Play, Stop, and Pause are preprogrammed with commands for controlling Integra/Onkyo CD players, cassette decks, and DVD players. However, they can learn new commands, and you can restore the preprogrammed commands at any time by resetting the remote controller (➔ page 85).

• To overwrite a previously acquired command, repeat this procedure.

• Depending on the remote controller used, some buttons may not respond as expected, or the learning process itself may not be possible.

• Only commands from infrared remote controllers can be acquired.

• When the remote controller runs out of batteries, all commands acquired will be lost and will have to be learned all over again. Therefore, do not discard your other remote controllers.

En-88

Controlling Other Components

Using Normal Macros

You can program the remote controller’s Activities to perform a sequence of remote control actions.

Example:

To play a CD you typically need to perform the following actions:

1. Press Receiver to select the Receiver remote controller mode.

2. Press 8Receiver to turn on the AV receiver.

3. Press TV/CD to select the TV/CD input source.

4. Press 1 to start playback on the CD player.

You can program Activities so that all four actions are performed with just one button press.

Making Macros

Each Activities can store one macro, and each macro can contain up to 32 commands.

All Off

My Movie, My TV, My Music

Receiver

When you’ve finished, press Activities again.

Activities button flashes twice. If you enter 32 commands, the process will finish automatically.

Note

• Mode cannot be operated during the macro-making process.

• Once you assign new macro commands, the previously registered macro will no longer work. If you wish to retrieve it, you will have to reassign the commands with the macro-making.

Running Macros

Press My Movie, My TV, or My Music.

The commands in the macro are transmitted in the order in which they were programmed. Keep the remote controller pointed at the AV receiver until all of the commands have been transmitted.

Macros can be run at any time, regardless of the current remote controller mode.

Deleting Macros

While holding down Home, press and hold down

All Off until All Off lights (about 3 seconds). Press All Off again.

All Off flashes twice.

While holding down Receiver, press and hold

down My Movie, My TV, or My Music until My Movie, My TV, or My Music lights (about 3

seconds). Press the buttons whose actions you want to

program into the macro in the order you want them performed.

For the CD example above, you would press the following buttons: 8Receiver, TV/CD, 1.

Note

• When Normal macros are deleted, Activities are restored to their default settings, namely the Easy macro commands (➔ page 48).

• When using Normal macros, Easy macros cannot be used, which includes changing the source components.

En-89

Appendix

Troubleshooting

If you have any trouble using the AV receiver, look for a solution in this section. If you can’t resolve the issue yourself, contact the dealer from whom you purchased this unit.

If you can’t resolve the issue yourself, try resetting the AV receiver before contacting the dealer from whom you purchased this unit.

To reset the AV receiver to its factory defaults, turn it on and, while holding down CBL/SAT, press

8On/Standby. “Clear” will appear on the AV receiver’s display and the AV receiver will enter standby mode.

Note that resetting the AV receiver will delete your radio presets and custom settings.

Receiver

Home

To reset the remote controller to its factory defaults, while holding down Receiver, press and hold down Home until Receiver lights (about 3 seconds). Within 30 seconds, press Receiver again.

The on-screen information appears only on a TV that is connected to HDMI outputs. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

Power

■ Can’t turn on the AV receiver

Make sure that the power cord is properly plugged into the wall outlet.

Unplug the power cord from the wall outlet, wait five seconds or more, then plug it in again.

■ The AV receiver turns off unexpectedly

The AV receiver will automatically enter standby mode when Auto Standby has been set and launches.

■ The AV receiver turns off and after restoring the

power, it turns off again

The protection circuit has been activated. Remove the power cord from the wall outlet immediately. Make sure that all speaker cables and input sources are properly connected, and leave the AV receiver with its power cord disconnected for 1 hour. After that, reconnect the power cord and turn the power on. If the AV receiver turns off again, unplug the power cord and contact the dealer from whom you purchased this unit. Caution: If “CHECK SP WIRE” appears on the AV receiver’s display, the speaker cables may be shorting.

WARNING

If smoke, smell or abnormal noise is produced by the AV receiver, unplug the power cord from the wall outlet immediately and contact the dealer from whom you purchased this unit.

—

Audio

■ There’s no sound, or it’s very quiet

Make sure that the digital input source is selected properly.

Make sure that all audio connecting plugs are pushed in all the way.

Make sure that the inputs and outputs of all components are connected properly.

Make sure that the polarity of the speaker cables is correct, and that the bare wires are in contact with the metal part of each speaker terminal.

Make sure that the input source is properly selected. 24 Make sure that the speaker cables are not shorting. 13 Check the volume. The AV receiver is designed for

home theater enjoyment. It has a wide volume range, allowing precise adjustment.

If the MUTING indicator is flashing on the AV receiver’s display, press the remote controller’s Muting button to unmute the AV receiver.

While a pair of headphones is connected to the Phones jack, no sound is output from the speakers.

If there’s no sound from a DVD player connected to an HDMI IN, check the DVD player’s output settings, and be sure to select a supported audio format.

Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an audio output format from a menu.

If your turntable uses an MC cartridge, you must connect an MC head amp, or an MC transformer.

Make sure that none of the connecting cables are bent, twisted, or damaged.

Not all listening modes use all speakers. 38 Specify the speaker distances and adjust the

individual speaker levels. Make sure that the speaker setup microphone is not

still connected.

17-19

—

En-90

Appendix

If the input signal format is set to “PCM” or “DTS”. Set it to “Off”.

■ Only the front speakers produce sound

When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.

In the Mono listening mode, only the front speakers output sound if the “Output Speaker” setting is set to “Left / Right”.

Check the Speaker Configuration. 58

■ Only the center speaker produces sound

If you use the Dolby Pro Logic IIx Movie, Dolby Pro Logic IIx Music, or Dolby Pro Logic IIx Game listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.

In the Mono listening mode, only the center speaker output sound if the “Output Speaker” setting is set to “Center”.

Make sure the speakers are configured correctly. 58

■ The surround speakers produce no sound

When the T-D (Theater-Dimensional), Stereo or Mono listening mode is selected, the surround speakers produce no sound.

Depending on the source and current listening mode, not much sound may be produced by the surround speakers. Try selecting another listening mode.

When Powered Zone 3 is used, playback in the main room is reduced to 3.1channels.

Make sure the speakers are configured correctly. 58

■ The center speaker produces no sound

When the Stereo or Mono listening mode is selected, the center speaker produces no sound.

In the Mono listening mode, only the front speakers output sound if the “Output Speaker” setting is set to “Left / Right”.

—

Make sure the speakers are configured correctly. 58

■ The front high, front wide and surround back

speakers produce no sound

Depending on the current listening mode, no sound may be produced by the front high, front wide and surround back speakers. Select another listening mode.

Depending on the sources, the sound produced by the front high, front wide and surround back speakers may be weak.

Make sure the speakers are configured correctly. 58 When Powered Zone 2 is used, playback in the main

room is reduced to 5.1channels and the front high, front wide and surround back speakers produce no sound.

When Powered Zone 3 is used, playback in the main room is reduced to 3.1channels and the front high, front wide and surround back speakers produce no sound.

—

■ The subwoofer produces no sound

When you play source material that contains no information in the LFE channel, the subwoofer produces no sound.

Make sure the speakers are configured correctly. 58

—

■ There’s no sound with a certain signal format

Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an audio output format from a menu.

Depending on the input signal, some listening modes cannot be selected.

—

38-44

■ Can’t get 6.1/7.1 playback

If no surround back speakers, front wide and front high speakers are connected, or the Zone 2/3 speakers are being used, 6.1/7.1 playback is not possible.

—

Depending on the number of connected speakers, it is not always possible to select all of the listening modes.

38-44

■ The speaker volume cannot be set as required

Check to see if a maximum volume has been set. 72 If the volume level of each individual speaker has

been adjusted to high positive values, then the maximum master volume possible may be reduced. Note that the individual speaker volume levels are set automatically after the Audyssey MultEQ Room Correction and Speaker Setup has been performed.

XT32

35, 60

■ Noise can be heard

Using cable ties to bundle audio cables with power cords, speaker cables, and the like may degrade the audio performance, so refrain from doing it.

An audio cable may be picking up interference. Try repositioning your cables.

—

■ The Late Night function doesn’t work

Make sure the source material is Dolby Digital, Dolby Digital Plus, and Dolby TrueHD.

Make sure that the “TrueHD Loudness Management” setting is not set to “Off”. The Late Night function doesn’t work when this setting is disabled.

■ About DTS signals

When DTS program material ends and the DTS bitstream stops, the AV receiver remains in DTS listening mode and the dts indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, you may not hear any sound because the AV receiver does not switch formats immediately. In such case, you should stop your player for about three seconds and then resume playback.

—

En-91

Appendix

With some CD and LD players, you won’t be able to playback DTS material properly even though your player is connected to a digital input on the AV receiver. This is usually because the DTS bitstream has been processed (e.g., output level, sampling rate, or frequency response changed) and the AV receiver doesn’t recognize it as a genuine DTS signal. In such cases, you may hear noise.

Playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.

—

■ The beginning of audio received by an HDMI IN

can’t be heard

Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.

—

■ There’s no sound during Whole House Mode

Make sure you’ve selected an analog audio input. —

Video

■ There’s no picture

Make sure that all video connecting plugs are pushed in all the way.

Make sure that each video component is properly connected.

If your TV is connected to the HDMI output, set the “Monitor Out” setting other than “Analog”, and select “-----” in the “HDMI Input” setting to watch composite video, and component video sources.

If your TV is connected to the COMPONENT VIDEO MONITOR OUT or MONITOR OUT V, set the “Monitor Out” setting to “Analog”, select “-----” in “Component Video Input”, and assign a composite video input for that input selector in order to watch composite video sources.

17, 18

—

If the video source is connected to a component video input, you must assign that input to an input selector, and your TV must be connected to either the HDMI output or COMPONENT VIDEO MONITOR OUT.

If the video source is connected to a composite video input, you must assign that input to an input selector, and your TV must be connected to the HDMI output or the corresponding composite video output.

If the video source is connected to an HDMI input, you must assign that input to an input selector, and your TV must be connected to the HDMI output.

On your TV, make sure that the video input to which the AV receiver is connected is selected.

18, 56

17, 56

—

■ There’s no picture from a source connected to

an HDMI IN

Reliable operation with an HDMI-to-DVI adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.

When the “Monitor Out” setting is set to “Analog”, no video is output by the HDMI outputs.

When the resolution is set to any resolution not supported by the TV, no video is output from the HDMI output.

If the message “ AV receiver’s display, this indicates that your TV does not support the current video resolution and you need to select another resolution on your DVD player.

Resolution Error

” appears on the

106

—

■ The on-screen menus don’t appear

On your TV, make sure that the video input to which the AV receiver is connected is selected.

When the AV receiver is not connected to a TV via HDMI OUT MAIN, on-screen menus are not displayed.

—

■ The on-screen information does not appear

Depending on the input signal, the on-screen information may not appear when the input signal from HDMI IN is output to a device connected to the HDMI output.

Tuner

■ Reception is noisy, FM stereo reception is noisy,

or the FM STEREO indicator doesn’t light

Relocate your antenna. — Move the AV receiver away from your TV or

computer. Listen to the station in mono. 32 When listening to an AM station, operating the

remote controller may cause noise. Passing cars and airplanes can cause interference. — Concrete walls weaken radio signals. — If nothing improves the reception, install an outdoor

antenna.

—

Remote Controller

■ The remote controller doesn’t work

Before operating this unit, be sure to press Receiver.— Make sure that the batteries are installed with the

correct polarity. Install new batteries. Don’t mix different types of

batteries, or old and new batteries. Make sure that the remote controller is not too far

away from the AV receiver, and that there’s no obstruction between the remote controller and the AV receiver’s remote control sensor.

Make sure that the AV receiver is not subjected to direct sunshine or inverter-type fluorescent lights. Relocate if necessary.

If the AV receiver is installed in a rack or cabinet with colored-glass doors, the remote controller may not work reliably when the doors are closed.

Make sure you’ve selected the correct remote controller mode.

When using the remote controller to control other manufacturers’ AV components, some buttons may not work as expected.

Make sure you’ve entered the correct remote control code.

—

10, 85

—

En-92

Make sure to set the same ID on both the AV receiver and remote controller.

■ Can’t control other components

If it’s an Integra/Onkyo component, make sure that the u cable and analog audio cable are connected properly. Connecting only an u cable won’t be

enough. Make sure you’ve selected the correct remote

controller mode. If you’ve connected an cassette tape deck to the

TV/CD IN jack, or an RI Dock to the TV/CD IN or GAME 1 IN jacks, for the remote controller to work

properly, you must set the input display appropriately.

If you cannot operate it, you will need to enter the appropriate remote control code.

To control another manufacturer’s component, point the remote controller at that component.

To control an Integra/Onkyo component that’s connected via u, point the remote controller at the

AV receiver. Be sure to enter the appropriate remote control code first.

To control an Integra/Onkyo component that’s not connected via u, point the remote controller at the

component. Be sure to enter the appropriate remote control code first.

The entered remote control code may not be correct. If more than one code is listed, try each one.

10, 85

—

■ Can’t learn commands from another remote

controller

When learning commands, make sure that the transmitting ends of both remote controllers are pointing at each other.

Are you trying to learn from a remote controller that cannot be used for learning? Some commands cannot be learned, especially those that contain several instructions.

—

RI Dock for iPod/iPhone

■ There’s no sound

Make sure your iPod/iPhone is actually playing. — Make sure your iPod/iPhone is properly inserted in

the Dock. Make sure the AV receiver is turned on, the correct

input source is selected, and the volume is turned up. Make sure the plugs are pushed in all the way. — Try resetting your iPod/iPhone. —

■ There’s no video

Make sure that your iPod/iPhone model’s TV OUT setting is set to On.

Make sure the correct input is selected on your TV or the AV receiver.

Some versions of the iPod/iPhone do not output video.

■ The AV receiver’s remote controller doesn’t

control my iPod/iPhone

Make sure your iPod/iPhone is properly inserted in the Dock. If your iPod/iPhone is in a case, it may not connect properly to the Dock. Always remove your iPod/iPhone from the case before inserting it into the Dock.

The iPod/iPhone cannot be operated while it’s displaying the Apple logo.

Make sure you’ve selected the right remote mode. 82 When you use the AV receiver’s remote controller,

point it toward your AV receiver. If you still can’t control your iPod/iPhone, start

playback by pressing your iPod/iPhone model’s Play button. Remote operation should then be possible.

Try resetting your iPod/iPhone. — Depending on your iPod/iPhone, some buttons may

not work as expected.

—

Appendix

■ The AV receiver unexpectedly selects my

iPod/iPhone as the input source

Always pause iPod/iPhone playback before selecting a different input source. If playback is not paused, the Direct Change function may select your iPod/iPhone as the input source by mistake during the transition between tracks.

—

■ iPod/iPhone doesn’t work properly

Try reconnecting your iPod/iPhone. —

Zone 2/3

■ There’s no sound

Only components connected to analog inputs can be played in Zone 2/3.

—

■ The Zone 2/3 speakers produce no sound

If the “Speakers Type (Front)” setting is set to other than “Normal”, Powered Zone 2/3 cannot be used.

Music Server and Internet Radio

■ Can’t access the server or Internet radio

Check the network connection between the AV receiver and your router or switch.

Make sure that your modem and router are properly connected, and make sure they are both turned on.

Make sure the server is up and running and compatible with the AV receiver.

Check the “Network”settings. 75

■ Playback stops while listening to music files on

the server

Make sure your server is compatible with the AV receiver.

107

—

108

En-93

If you download or copy large files on your computer, playback may be interrupted. Try closing any unused programs, use a more powerful computer, or use a dedicated server.

If the server is serving large music files to several networked devices simultaneously, the network may become overloaded and playback may be interrupted. Reduce the number of playback devices on the network, upgrade your network, or use a switch instead of a hub.

—

■ Can’t connect to the AV receiver from a Web

browser

If you’re using DHCP, your router may not always allocate the same IP address to the AV receiver, so if you find that you can’t connect to a server or Internet radio station, recheck the AV receiver’s IP address on the “Network” screen.

Check the “Network” settings. 75

USB Device Playback

■ Can’t access the music files on a USB device

Make sure the USB device is plugged in properly. — The AV receiver supports USB devices that support

the USB mass storage device class. However, playback may not be possible with some USB devices even if they conform to the USB mass storage device class.

USB memory devices with security functions cannot be played.

108

—

Others

■ Standby power consumption

In the following cases, the power consumption in standby mode may reach up to a maximum of

12.0 W: –The “HDMI Control(RIHD)” setting is set to

“On”. (Depending on the TV status, the AV receiver will enter standby mode as usual.)

–The “HDMI Through” setting is set to other than

“Off”.

–The “Network Standby” setting is set to “On”.

If an MHL-enabled mobile device is connected to the AUX (front) input, the power consumption in standby mode will increase.

■ The sound changes when I connect my

headphones

When a pair of headphones is connected, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, or Direct.

■ The speaker distance cannot be set as required

The values entered may be automatically adjusted with values best-suited for your home theater.

■ How do I change the language of a multiplex

source

Use the “Multiplex” setting in the “Audio Adjust” menu to select “Main” or “Sub”.

■ The u functions don’t work

To use u, you must make an u connection and an analog audio connection (RCA) between the component and AV receiver, even if they are connected digitally.

While Zone 2/3 is selected, the u functions don’t work.

74, 76

—

Appendix

■ The functions System On/Auto Power On and

Direct Change don’t work for components connected via u

These functions don’t work when Zone 2/3 is turned on.

■ When performing Automatic Speaker Setup, the

measurement fails and the message “Ambient noise is too high.” is displayed.

This can be caused by a malfunction in your speaker unit. Check if the unit produces normal sounds.

—

■ The following setting can be made for

composite video inputs

• Video Attenuation

If you have a game console connected to the composite video input, and the picture isn’t very clear, you can attenuate the gain.

Video ATT :Off: The gain is not changed (default). Video ATT :On: The gain is reduced by the values

specified below.

– 2 dB for the ZONE 2 OUT V and HDMI output. – 6 dB for the MONITOR OUT V output.

To make this setting, you must use the buttons on the AV receiver.

Press the input selector button for the source that you want to set, simultaneously with Setup. Note that the input selector must be assigned to a composite video input. While holding down the input selector button, press Setup until “Video ATT :On” appears on the AV receiver’s display. Then, release both buttons. To turn the setting off, repeat the above process so that “Video ATT :Off” appears on the AV receiver’s display, and release the buttons.

Note

• With the USB input selector, this setting is only available when an iPod/iPhone is connected and set to Extended Mode (Video) or Standard Mode.

En-94

■ If the picture on your TV/monitor connected to

the HDMI output is unstable, try switching the DeepColor function off

To turn off the DeepColor function, simultaneously press the STB/DVR and 8On/Standby buttons on the

AV receiver. While holding down STB/DVR, press 8On/Standby until “Deep Color:Off” appears on the

AV receiver’s display. Then, release both buttons. To reactivate the DeepColor function, repeat the above process until “Deep Color:On” appears on the AV receiver’s display and release the buttons.

The AV receiver contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

Before disconnecting the power cord from the wall outlet, set the AV receiver to standby.

Important Note Regarding Video Playback

The AV receiver can upconvert component video and composite video sources for display on a TV connected to the HDMI output. However, if the picture quality of the source is poor, upconversion may make the picture worse or disappear altogether.

In this case, try the following:

If the video source is connected to a component

video input, connect your TV to COMPONENT VIDEO MONITOR OUT.

If the video source is connected to a composite video input, connect your TV to MONITOR OUT V.

On the main menu, select “Input/Output Assign”,

and then “Component Video Input” (➔ page 56).

If the video source is connected to COMPONENT VIDEO IN 1, select the relevant input selector, and

assign it to “IN1”. If the video source is connected to COMPONENT

VIDEO IN 2, select the relevant input selector, and assign it to “IN2”.

If the video source is connected to a composite video input, select the relevant input selector, and assign it to “-----”.

Tip

• To by-pass the upconversion, set the “Picture Mode” setting to “Direct” (➔ page 68).

Appendix

En-95

Appendix

Firmware Update

To update the firmware of the AV receiver, you can choose from the following two methods: update via network, or update via USB storage. Choose the one that best suits your environment. Before proceeding with the update, please read the corresponding explanations carefully.

■ Update via network

You need a wired Internet connection to update the firmware.

■ Update via USB storage (➔ page 98)

Please prepare a USB storage device such as a USB flash memory stick. You need at least 32 MB of available space to update the firmware.

Note

• Check the network connection before updating.

• Do not touch any cable or device connected to the AV receiver during the update process.

• Do not attempt to access the AV receiver from your PC while it is being updated.

• Do not shutdown the power of the AV receiver while it is being updated.

• The storage media in the USB card reader may not work.

• If the USB device is partitioned, each section will be treated as an independent device.

• If the USB device contains a lot of data, the AV receiver may take a while to read it.

• Operation is not guaranteed for all USB devices, which includes the ability to power them.

• Onkyo takes no responsibility whatsoever for the loss or damage of data resulting from the use of a USB device with the AV receiver. Onkyo recommends that you back up your important music files beforehand.

• If you connect a USB hard disk drive to the USB port, Onkyo recommends that you use its AC adapter to power it.

• USB hubs and USB devices with hub functions are not supported. Do not connect your USB device via a USB hub.

• USB devices with security functions are not supported.

Limitation of liability

The program and accompanying online documentation are furnished to you for use at your own risk. Onkyo will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

See the Integra web site for latest information.

Updating the Firmware via Network

The AV receiver allows you to update the firmware using network connection on the rear panel.

Note

• Make sure your AV receiver and TV are turned on and an Ethernet cable is connected to the rear panel of the AV receiver.

• Never unplug or turn off the AV receiver while it is being updated.

• Never plug or unplug an HDMI or Ethernet cable during the update process.

• Do not attempt to access the AV receiver from your PC while it is being updated.

• Never unplug the power cord during the update process.

• It takes up to 60 minutes to complete the firmware update.

• The AV receiver will retain all your settings after the update is finished.

Before Starting

• Set the “HDMI Control(RIHD)” setting to “Off” (➔ page 74).

• Turn off the controller device connected via RS232 and Ethernet cable.

• Turn off Multi Zone if this function is present.

• Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc.

En-96

Update Procedure Troubleshooting

Press Receiver followed by Home on the remote

controller.

The Home menu appears on the TV screen.

Select “Firmware Update” and press Enter.

Note that the “Firmware Update” option will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable.

Select “Update via NET” and press Enter.

Note that this option will not be available if there is no firmware file newer than the currently installed version.

Select “Update” and press Enter.

The update process will begin. During the update process, the on-screen display may

disappear depending on the updated program. When this occurs, you can still view the update progress on the AV receiver’s display. The on-screen display will reappear after the update is complete, and upon turning the AV receiver off and on again.

The message “Completed!” appears on the AV

receiver’s display, indicating that the update has been completed.

Turn off the AV receiver using 8On/Standby on

the front panel.

Do not use 8Receiver on the remote controller. Once turned off, the AV receiver will automatically

turn on again. Congratulations! You now have the latest firmware

installed on your Integra AV receiver.

Case 1:

If an error occurs, “Error!! *-**” is displayed on the AV receiver’s display. (Alpha-numeric characters on the front display are denoted by asterisks.) Refer to the following table and take appropriate action.

■ Errors during an update via network

Error Code Description

-10, *-20

-11, *-13, *-21,

-28

Others Retry the update procedure from the beginning.

The Ethernet cable was not detected. Reconnect the cable properly.

Internet connection error. Check the following items:

• Make sure the IP address, subnet mask, gateway address, and DNS server are configured properly.

• Make sure the router is turned on.

• Make sure the AV receiver and the router are connected with an Ethernet cable.

• Make sure your router is configured properly. See the instruction manual of the router.

• If your network allows only one client connection and there is any other device already connected, the AV receiver will not be able to access the network. Consult your Internet Service Provider (ISP).

• If your modem does not function as a router, you will need a router. Depending on your network, you may need to configure the proxy server if necessary. See the document provided by your ISP. If you are still unable to access the Internet, the DNS or proxy server may be temporarily down. Contact your ISP.

If the error persists, please contact Integra Support (➔ page 99) and provide the error code.

Appendix

Case 3:

If you do not have an Internet connection to the network, please contact Integra Support (➔ page 99).

Case 2:

If an error occurs during the update process, disconnect then reconnect the AC power cord and try again.

En-97

Appendix

Updating the Firmware via USB

The AV receiver allows you to update the firmware using a USB device.

Note

• Never unplug or turn off the AV receiver during the update process.

• Never plug or unplug an HDMI cable or a USB device during the update process.

• Never unplug the USB storage device containing the firmware file or the AC power cord during the update process.

• Do not attempt to access the AV receiver from your PC while it is being updated.

• It takes up to 60 minutes to complete the firmware update.

• The AV receiver will retain all your settings after the update is finished.

Before Starting

•Set the “HDMI Control(RIHD)” setting to “Off” (➔ page 74).

• Turn off the controller device connected via RS232 and Ethernet cable.

• Turn off Multi Zone if this function is present.

• Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc.

• If there is any data in the USB device, remove it first.

Update Procedure

Connect a USB device to your PC. If there is any

data in the USB device, remove it first.

Download the firmware file from the Integra web

site. The file name is as follows:

ONKAVR****_************.zip

Unzip the downloaded file. The following five files are created:

ONKAVR****_************.of1 ONKAVR****_************.of2 ONKAVR****_************.of3 ONKAVR****_************.of4 ONKAVR****_************.of5

Copy the extracted files to the USB device. Be

careful not to copy the zip file.

Remove the USB device from your PC and connect

it to the USB port on the AV receiver.

When the AV receiver has two USB ports, you can use either one.

Make sure the AV receiver and TV are turned on.

If the AV receiver is in standby mode, press 8On/Standby on the AV receiver to light up the

front display.

Select the USB input source.

“Now Initializing...” appears on the AV receiver’s display and then the name of the USB device is displayed. It takes 20 to 30 seconds to recognize the USB device.

Press Receiver followed by Home on the remote

controller.

The Home menu appears on the TV screen.

Select “Firmware Update” and press Enter.

Select “Update via USB” and press Enter.

Note that this option will not be available if there is no firmware file newer than the currently installed version.

Select “Update” and press Enter.

The update process will begin. During the update process, the on-screen display may

Do not turn off the AV receiver and do not remove the USB device during the update process.

The message “Completed!” appears on the AV

receiver’s display, indicating that the update has been completed. Remove the USB device.

Turn off the AV receiver using 8On/Standby on

the front panel.

Do not use 8Receiver on the remote controller. Once turned off, the AV receiver will automatically

turn on again. Congratulations! You now have the latest firmware installed on your Integra AV receiver.

En-98

Troubleshooting

Case 1:

■ Errors during an update via USB

Error Code Description

-10, *-20

-14

Others Retry the update procedure from the beginning.

Case 2:

If an error occurs during the update process, disconnect then reconnect the AC power cord and try again.

The USB device was not detected. Make sure the USB flash memory or USB cable is properly connected to the USB port. If the USB storage device has its own power supply, use it to power the USB device.

The firmware file was not found in the root folder of the USB device, or the firmware file is for another model. Retry and download the file on the support page of the web site, following the on-site instructions. If the error persists, please contact Integra Support and provide the error code.

If the error persists, please contact Integra Support and provide the error code.

Appendix

The Americas

Integra Division of

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-225-1946, 201-818-9200 Fax: 201-785-2650 Hours: M-F 9am-8pm/Sat-Sun 10am-8pm ET http://www.integrahometheater.com

Europe

Integra Division of

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555

http://www.integra.eu

China

Integra Division of

1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041

Tel: 86-21-52131366 Fax: 86-21-52130396 http://www.integra.com.cn

Asia, Oceania, Middle East, Africa

Please contact an Integra distributor referring to Integra Worldwide web site.

http://www.integraworldwide.com

Integra Division of

2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN http://www.integraworldwide.com

The above-mentioned information is subject to change without prior notice. Visit the Integra web site for the latest update.

En-99

Connection Tips and Video Signal Path

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your components. Use the following sections as a guide.

The on-screen setup menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

Video Connection Formats

Video components can be connected by using any one of the following video connection formats: composite video, PC IN (Analog RGB), component video, or HDMI, the latter offering the best picture quality.

The AV receiver can upconvert between video formats, depending on the “Monitor Out” setting (➔ page 55), which generally determines whether video signals are upconverted for the component video output or the HDMI output.

Tip

• For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component video input passing through to component video output).

• To by-pass the upconversion, set the “Picture Mode” setting to “Direct” (➔ page 68).

■ “Monitor Out” set to “Main” or “Sub”

Video input signals flow through the AV receiver as shown, with composite video, PC IN (Analog RGB), and component video sources all being upconverted for the HDMI output. Use these settings if you connect either

HDMI OUT MAIN or HDMI OUT SUB of the AV receiver to your TV.

The composite video and component video outputs pass through their respective input signals as they are.

When you connect a video component to an HDMI, COMPONENT or COMPOSITE input, you must assign that input to an input selector (➔ page 56, 57).

Video Signal Flow Chart

Blu-ray Disc/DVD player, etc.

AV receiver

Composite

(Analog RGB)

MONITOR OUT

TV, projector, etc.

Component

HDMIPC IN

HDMI

Appendix

■ “Monitor Out” set to “Both”

Video input signals flow through the AV receiver as shown, with composite video, PC IN (Analog RGB), and component video sources all being upconverted for both HDMI outputs. Use this setting if you connect both

HDMI OUT MAIN and HDMI OUT SUB of the AV receiver to your TV.

Note that video signals are output from both HDMI outputs at the resolution supported by both TVs.

The composite video and component video outputs pass through their respective input signals as they are.

When you connect a video component to an HDMI, COMPONENT or COMPOSITE input, you must assign that input to an input selector (➔ page 56, 57).

Video Signal Flow Chart

Blu-ray Disc/DVD player, etc.

Composite

AV receiver

Composite

Note

• When “Monitor Out” is set to “Both”, the “Resolution” setting cannot be selected.

PC IN

(Analog RGB)

MONITOR OUT

TV, projector, etc.

Component

HDMI

En-100
