QuickSpecs

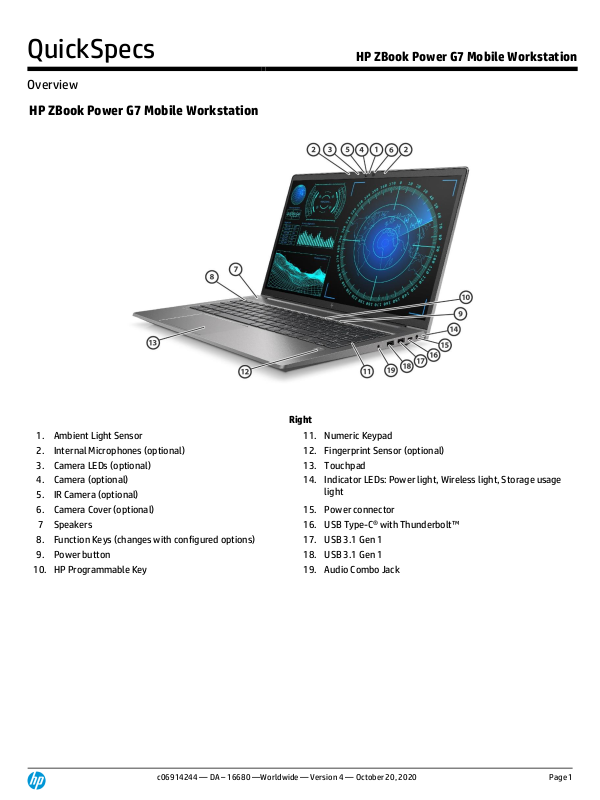

HP ZBook Power G7 Mobile Workstation

Overview

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 1

HP ZBook Power G7 Mobile Workstation

Right

Ambient Light Sensor

11.

Numeric Keypad

Internal Microphones (optional)

12.

Fingerprint Sensor (optional)

Camera LEDs (optional)

13.

Touchpad

Camera (optional)

14.

Indicator LEDs: Power light, Wireless light, Storage usage light

IR Camera (optional)

Camera Cover (optional)

15.

Power connector

Speakers

16.

USB Type-C® with Thunderbolt™

Function Keys (changes with configured options)

17.

USB 3.1 Gen 1

Power button

18.

USB 3.1 Gen 1

10.

HP Programmable Key

19.

Audio Combo Jack

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Overview

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 2

Left

Security lock slot

HDMI port

RJ-45

Smart Card Reader

USB 3.1 Gen 1 Charging Port

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Overview

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 3

At A Glance

• Work anywhere without compromising on performance or security with Windows 10 Pro

and HP’s collaboration and

connectivity technology.

• NVIDIA Quadro GPUs provide the interactive visual workspace you need to do great work wherever, whenever. With twice

the CUDA cores as previous generations, NVIDIA Quadro GPUs deliver the performance professionals need to work from anywhere.

• Take multitasking to the next level with 10th gen Intel® Core™ i9 or Intel® Xeon® processors

built to handle multithreaded apps like Adobe Premiere Pro®, and with fast clock speeds to boost your speed on single threaded apps like Autodesk 3ds Max3.

• Strenuously tested to meet ISV certification and deliver superb performance and support with leading software providers,

including Autodesk and Adobe®4.

• Have confidence with HP's most secure mobile workstations and defend against firmware and malware attacks with HP

Sure Start5 and Sure Sense6.

• Built with the environment in mind, this ZBook includes recycled ocean-bound plastics

, plastic-free packaging, and ultra-

efficient power consumption.

• Designed for ultimate durability, this ZBook undergoes brutal MIL-STD 810H

tests to help ensure this PC keeps rolling

through your workday.

• Plug in to greater connectivity at your desktop with the HP Thunderbolt™ Dock for lightning fast Thunderbolt™ 3

transfers and the flexibility to run up to two external 4K displays

10,11

• Work without limits in any location with up to 4TB

of local PCIe storage13.

Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See

http://www.windows.com

Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.

Adobe Premiere Pro® and Autodesk 3ds Max sold separately.

Adobe and Autodesk software sold separately.

HP Sure Start Gen6 is available on select HP PCs with Intel processors.

HP Sure Sense requires Windows 10.

Speaker enclosure component made with 5% ocean bound plastic as of 2/3/2020.

MIL STD testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Accidental damage requires an optional HP Accidental Damage Protection Care Pack.

HP Thunderbolt™ Dock with Thunderbolt™ 3 sold separately.

External displays sold separately.

Optional hybrid graphics is required to run up to two external 4K displays.

For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35GB (for Windows 10) of

system disk is reserved for system recovery software.

Optional, configurable feature.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 4

OPERATING SYSTEM

Preinstalled OS

Windows 10 Pro 64 - HP recommends Windows 10 Pro for business.1 Windows 10 Pro for Workstations 641 Windows 10 Home 641 Windows 10 Home Single Language 641 Windows 10 China Government Editions 1 FreeDOS 3.0

Web support OS

Windows 10 Enterprise 64

Supported Version

HP tested Windows 10, version 1809 on this platform. For testing information on newer versions of Windows 10, please see: https://support.hp.com/document/c05195282.

For detailed Linux® OS/hardware support information, see: http/www.hp.com/linux_hardware_matrix

PROCESSOR

10th Generation Intel® Xeon® W-10855M vPro™ with Intel® UHD Graphics (2.8 GHz base frequency, up to 5.1 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)

1,2,3,4,5

10th Generation Intel® Core™ i9-10885H vPro™ with Intel® UHD Graphics (2.4 GHz base frequency, up to 5.3 GHz with Intel® Turbo Boost Technology, 16 MB cache, 8 cores)

1,2,3,4,5

10th Generation Intel® Core™ i7-10850H vPro™ with Intel® UHD Graphics (2.7 GHz base frequency, up to 5.1 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)

1,2,3,4,5

10th Generation Intel® Core™ i7 10750H with Intel® UHD Graphics (2.6 GHz base frequency, up to 5.0 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores)

1,2,3,4,5

10th Generation Intel® Core™ i5-10400H vPro™ with Intel® UHD Graphics (2.6 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)

1,2,3,4,5

10th Generation Intel® Core™ i5 10300H with Intel® UHD Graphics (2.5 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)

1,2,3,4,5

Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.

Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. Energy Efficient Turbo is a power management feature that can lower the maximum core ratio (frequency), if the CPU thinks it can achieve about the same performance as with the maximum turbo frequency. Energy Efficient Turbo feature is disabled in Comet Lake H in order to prioritize performance in DC mode. It can be changed in F10 BIOS settings. See www.intel.com/technology/turboboost for more information.

In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on http://www.support.hp.com.

For full Intel® vPro® functionality, Windows, a vPro supported processor, vPro enabled Q370 chipset or higher and vPro enabled WLAN card are required. Some functionality, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependent on 3rd party software providers. Compatibility of this generation of Intel vPro technology-based hardware with future "virtual appliances" is yet to be determined.

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 5

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 6

CHIPSET

Intel® Commet Lake PCH-H, WM 490

INTEL® CORE™ I5 WITH VPRO/CORE I7 WITH VPRO/XEON® WITH VPRO TECHNOLOGY CAPABLE

Intel® Core™ i5 with vPro™, Core™ i7 with vPro™, Core™ i9 with vPro™ and Xeon® with vPro™ technology is a selectable

feature that is available on units configured with select processors, a qualified Intel® WLAN module and a preinstalled Windows® operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel® Active Management Technology (iAMT) offers built-in manageability and proactive security for networked mobile workstations, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update regardless of their power state.

1,2

Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (nonVPN) corporate network connection which is either cable or wireless LAN.

Some functionality of Intel® Core™ i5 with vPro™/Core™ i7 with vPro™/Core™ i9 with vPro™/Xeon® with vPro™ technology, such as Intel® Active Management technology and Intel® Virtualization technology, requires additional third- party software in order to run. Availability of future "virtual appliances" applications for Intel® Core™ i5 with vPro™/Core i7 with vPro™/Core™ i9 with vPro™/XEON® with vPro™ technology is dependent on third- party software providers. Compatibility with future "virtual appliances" is yet to be determined.

GRAPHICS

Integrated

Intel® UHD Graphics

1,2,3,4,5

Discrete

NVIDIA Graphic options:

NVIDIA® Quadro® T2000 with Max-Q Design (4 GB GDDR6 dedicated)

1,2,3,4,5

NVIDIA® Quadro® T1000 with Max-Q Design (4 GB GDDR6 dedicated)

1,2,3,4,5

NVIDIA® Quadro® P620 (4 GB GDDR5 dedicated)

1,2,3,4,5

UHD content required to view UHD images.

Support HD decode, DX11, DX12, HDMI 1.4, HDCP 2.3 via DP up to 4K @ 60Hz and via HDMI up to 4K @ 30Hz

HDMI cable Sold Separately

Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by other programs.

GPU configurations may be limited to specific panel options

Multi Display Support

With HP Thunderbolt™ Dock G2

HP ZBook Power configuration with hybrid graphics, supports a maximum of five independent displays provided DisplayPort™ is connected, Internal panel, one external display connected to the HDMI port and three external displays connected to the dock Type-C®, or VGA, and two DisplayPort™ ports

NOTE: If Thunderbolt™ only port on the dock is connected, then the three external displays will not function.

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 7

Without HP Thunderbolt™ Dock G2

HP ZBook Power with hybrid graphics and without the use of the dock supports up to a maximum of three independent displays, Internal panel plus two external displays connected to the two following ports: HDMI 2.0, Thunderbolt™ 3

NOTE: Resolutions are dependent upon monitor capability and resolution and color depth settings.

DISPLAY

Non-touch

• 15.6" diagonal FHD IPS eDP1.2 anti-glare bent WLED-backlit and ambient light sensor 250 nits 45% NTSC (1920 x 1080)

1,2

• 15.6" diagonal FHD Low Power IPS eDP1.4 + PSR2 anti-glare bent WLED-backlit and ambient light sensor 400 nits 100%

sRGB (1920 x 1080)

1,2

• 15.6" diagonal UHD Low Power IPS eDP 1.4 + PSR2 +PSR anti-glare bent WLED-backlit and ambient light sensor 400 nits

100% sRGB (3840 x 2160)

1,2

Touch

• 15.6" diagonal FHD IPS eDP1.2 anti-glare bent WLED-backlit Touch On Cell screen with ambient light sensor 250 nits 45%

NTSC (1920 x 1080)

1,2

UHD content required to view UHD images.

Resolutions are dependent upon monitor capability, and resolution and color depth settings.

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 8

STORAGE AND DRIVES*

Max Storage

4TB through two M.2 NVMe drives

(up to 2) M.2 Storage (NVMe™ PCIe SSD)

256 GB PCIe® NVMe™ M.2 SSD 512 GB PCIe® NVMe™ M.2 SSD 1 TB PCIe® NVMe™ M.2 SSD 2 TB PCIe® NVMe™ M.2 SSD 256 GB PCIe® NVMe™ M.2 SED SSD 512 GB PCIe® NVMe™ M.2 SED SSD

* For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35GB of disk is reserved for system recovery software.

DRIVE CONTROLLERS

M.2 Storage Bay (PCIe NVMe)

PCIe Gen 3 x 4 lanes NVMe Solid State Drive

RAID:

Not supported

MEMORY

Maximum Memory1

64 GB DDR4-3200 non-ECC SDRAM2 32 GB DDR4-2666 ECC SDRAM2 2 DDR4 SODIMMS

4,5

Supports Dual Channel Memory3 Slots are customer accessible / upgradeable

Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to

ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

Transfer rates up to 2933 MT/s on nECC memory and 2666 MT/z on ECC memory.

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory channels.

Intel® allows architectures designed with four DIMM slots to run at 2400 MT/s

Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 9

NETWORKING/COMMUNICATIONS

LAN

Intel® I219-LM GbE, vPro™ Intel® I219-V GbE, non-vPro™

GbE - The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

WLAN

Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5 combo, vPro™ 1 Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5 combo, non-vPro™ 1

Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited. The specifications for Wi-Fi 6 (802.11ax WLAN) are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ax WLAN devices. Only available in countries where 802.11ax is supported.

Optional Near Field Communication (NFC) module

AUDIO/MULTIMEDIA

Audio

HP Audio, dual stereo speakers, dual array digital microphone3, functions keys for volume up and down, combo microphone/headphone jack, HD audio

Camera

1, 2

720p HD webcam with IR 720p HD webcam

HD content required to view HD images respectively.

Windows Hello face authentication utilizes a camera specially configured for near infrared (IR) imaging to authenticate and unlock Windows devices as well as unlock your Microsoft Passport.

Dual-microphone array when equipped with optional webcam and optional world facing microphone.

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 10

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

HP Premium Quiet Keyboard, full-size, spill-resistant, backlit, with Programmable Key, with sperate numeric keypad, clickpad with glass surface, multi-touch gestures and taps enabled

Pointing Devices Clickpad with multi-touch gestures enabled, taps enabled as default; Microsoft Precision Touchpad Default Gestures Support

SOFTWARE AND SECURITY

Workstation ISV Certifications

See the latest list of certifications at: http://www.hp.com/go/isv

HP ZCENTRAL REMOTE BOOST SOFTWARE

The remote desktop solution for serious workstation users and their most demanding applications. Download at: http://www.hp.com/go/RGS

HP Performance Advisor

HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance. HP Performance Advisor will guide your system setup allowing a "custom" configuration that best matches the workstation to user requirements. Download at: http://www.hp.com/go/performanceadvisor

Software

Bing search for IE11 Buy Office HP Hotkey Support HP Image Assistant HP Noise Cancellation Software HP Performance Advisor8 HP Recovery Manager HP Remote Graphics Software HP Z Central Remote Boost2 HP Support Assistant 1 Native Miracast support 4 HP Connection Optimizer

HP Cloud Recovery myHP

Security Management

Absolute persistence module

HP Admin HP Device Access Manager HP FingerPrint Sensor HP Manageability Integration Kit Gen411 HP Power On Authentication Security lock slot12 Trusted Platform Module TPM 2.0 Embedded Security Chip with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified) Master Boot Record security Pre-boot authentication Microsoft Defender10 HP Client Security Manager Gen617 HP BIOSphere Gen6

HP Sure Recover Gen313

QuickSpecs

HP ZBook Power G7 Mobile Workstation

Features

c06914244 — DA – 16680 —Worldwide — Version 4 — October 20, 2020

Page 11

HP Sure Start Gen6 15 HP Secure Erase

HP Sure Sense

HP Security Manager HP Sure Click20 HP Sure Run Gen3 Smartcard Reader - Alcor AU9560 (FIPS 201 Compliant)

For more information on HP Client Security Software Suite, refer to http://www.hp.com/go/clientsecurity.

HP Support Assistant - Requires Windows and Internet Access.

HP Z Central Remote Boost Software does not come preinstalled on Z Workstations but can be downloaded and run on all Z desktop and laptops without license purchase. With non-Z sender devices, purchase of perpetual individual license or perpetual floating license per simultaneously executing versions and purchase of ZCentral Remote Boost Software Support is required. RGS requires Windows, RHEL (7 or 8), UBUNTU 18.04 LTS, or HP ThinPro 7 operating systems. MacOS (10.13 or newer) operating system is only supported on the receiver side. Requires network access. The software is available for download at hp.com/ZCentralRemoteBoost.

Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming media players that also support

Miracast. You can use Miracast to share what you’re doing on your PC and present a slide show. For more information:

http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast.

HP BIOSphere Gen6 is available on select HP Pro and Elite PCs. See product specifications for details. Features may vary depending on the platform and configurations.

Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a PreAuthorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.

HP Performance Advisor Software - HP Performance Advisor is ready and waiting to help you get the most out of your HP Workstation

from day one—and every day after. Learn more or download at: https://www8.hp.com/us/en/workstations/performance-advisor.html

HP Connection Optimizer requires Windows 10.

Microsoft Defender Opt in and internet connection required for updates.

HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement.

Security lock slot is Lock sold separately.

HP Sure Recover Gen3 is available on select HP PCs and requires an open network connection. You must back up important files, data,

photos, videos, etc. before using HP Sure Recover to avoid loss of data.

HP Sure Recover with Embedded Reimaging Gen2 is an optional feature which must be configured at purchase. See product

specifications for availability. You must back up important files, data, photos, videos, etc. before use to avoid loss of data. HP Sure Recover with Embedded Reimaging (Gen1) does not support platforms with Intel® Optane™.

HP Sure Start Gen6 is available on select HP PCs and requires Windows 10.

For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear" sanitation method.

HP Secure Erase does not support platforms with Intel® Optane™.

HP Client Security Manager Gen6 requires Windows and is available on the select HP Elite and Pro PCs.

HP Sure Sense requires Windows 10. See product specifications for availability.

Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited.

HP Sure Click requires Windows 10 Pro or Enterprise. See https://bit.ly/2PrLT6A_SureClick for complete details.

+ 25 hidden pages
