QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Overview
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 1
HP ZBook Studio G5 Mobile Workstation

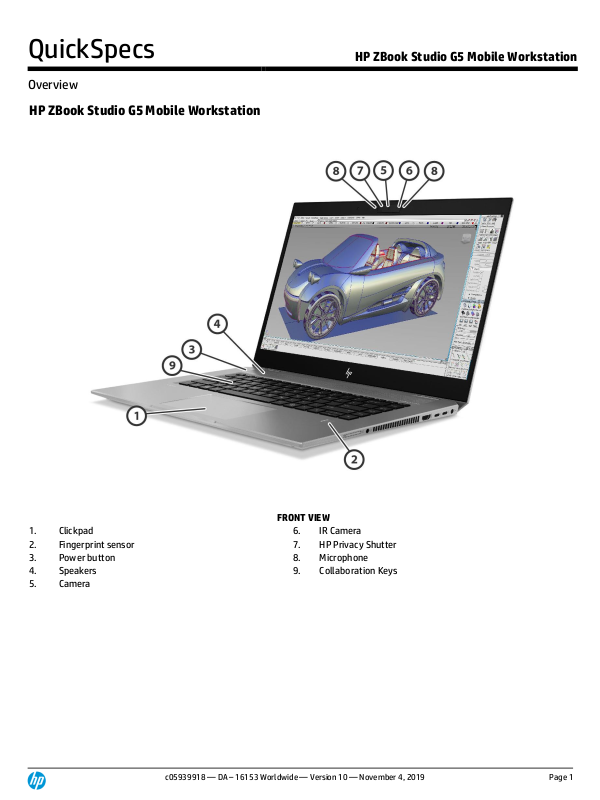

FRONT VIEW
1.
Clickpad
6.
IR Camera
2.
Fingerprint sensor
7.
HP Privacy Shutter
3.
Power button
8.
Microphone
4.
Speakers
9.
Collaboration Keys
5.
Camera
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Overview
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 2
LEFT VIEW
1.
USB 3.0
2.
USB 3.0 charging port
3.
Security cable slot
RIGHT VIEW
1.
Stereo microphone in / headphone-out combo jack
4.
Power connector
2.
HDMI 2.0
5.
Power LED
3.
2Thunderbolt™ 3 ports
6.
SD Card Reader
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Overview
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 3
BOTTOM VIEW
1.
Fan Venting
2.
Speakers
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Overview
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 4
At A Glance
• Thinner, lighter, smaller chassis over prior generation, 15” diagonal and 4.4 pounds. Designed with full sized chicklet,
optional backlit keyboard with numeric keyboard. Spill resistant design with drain.
• Tested and passed 14 MIL-STD-810G tests*.
• Workstation-caliber NVIDIA ® Quadro® discrete graphics featuring NVIDIA® Optimus technology:
o NVIDIA® Quadro® P1000 4GB GDDR5
o NVIDIA® Quadro® P2000 4GB GDDR5
• Intel Integrated graphics: Intel® UHD Graphics 630 integrated on Core™ i7 and Core™ i9 processors and Intel® UHD Graphics
P630 integrated on Xeon® processors.
• ISV certified to provide fast and reliable performance with workstation applications, including manipulation of 3D textures
• Choice of eight-core 9
th
Generation Intel® Core™ i9 processors, six-core Intel® Xeon® processors, 9th Generation Intel®
Core™ i7 processors, 8th Generation Intel® Core™ i9 or Core™ i7 or quad-core 8th Generation Core™ i5 processors.
• Intel® Core™ i9 with vPro™, Intel® Core™ i7 with vPro™, Intel® Core™ i5 with vPro™ technology or Intel® Xeon® with vPro™
technology (optional)
• HP Performance Advisor for optimal configuration, stability, compatibility and best performance
• Up to two SODIMMs supporting up to 64 GB DDR4-2667MHz dual-channel non-ECC memory and up to 32 GB DDR4-
2667MHz dual-channel ECC memory available with Intel® Xeon® processors
• Featuring HP Collaboration Keyboard with Clickpad to manage most commonly used conferencing functions with a single
keystroke
• Innovative HP World-Facing third mic supports HP Noise Cancellation Software.
• Supports multi-display, including up to three (3) displays without a docking solution, with hybrid graphics enabled.
Supports up to five (5) displays with HP Thunderbolt™ Dock G2 (sold separately), with hybrid graphics enabled.
• Two (2) Thunderbolt
™
3 ports (supporting DP 1.3, USB 3.1, PCIe Gen 3 devices) on the new USB-CTM connector, for high
speed data/video/audio transfer support.
• Audio by Bang and Olufsen optimized for high fidelity audio with immersive surround sound with deep, rich bass and
crystal-clear dialog without distortion at high volume, and new discrete amp.
• HP Long life battery solution: 4-cell (64 WHr) or 6-cell (96 WHr) supporting HP Fast Charge: charges 50% of the battery in
45 minutes.
• Widescreen 15.6-inch diagonal LED-backlit display:
o FHD IPS eDP + PSR anti-glare, 400 nits with ambient light sensor 72% NTSC (1920x1080)
o HP Sure View FHD IPS eDP + PSR anti-glare 650nits 72% NTSC (1920x1080)
o UHD IPS eDP + PSR anti-glare, 400 nits with ambient light sensor 72% NTSC (3840x2160)
o HP DreamColor Technology UHD IPS eDP + PSR anti-glare, 600 nits 100% Adobe RGB (3840x2160)
• Wireless connectivity options:
o Intel® Dual Band Wireless-AC 9560 802.11 AC/a/b/g/n (2x2) WLAN and Bluetooth® 5.0 combo adaptor (vPro™) or,
Intel® Dual Band Wireless-AC 9560 802.11 AC/a/b/g/n (2x2) WLAN and Bluetooth® 5.0 combo adaptor (non-vPro™)
• Three (3) dedicated drive slots, two (2) M.2 slots, and one (1) 2.5” drive supporting up to 6TB of storage
• Enterprise grade security with HP Sure Sense***, HP SureStart Gen4, HP Privacy Camera, HP Sure View, HP Sure Run, HP
Sure Recover, SmartCard Reader and Fingerprint sensor2, plus optional RAID 1** (mirroring) from HP.
*MIL STD 810G testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military
use. Test results are not a guarantee of future performance under these test conditions. Accidental damage requires an optional HP
Accidental Damage Protection Care Pack.
** RAID 1 Configuration requires 2 NVMe PCIe M.2 drives; both drives must be the same capacity and only available on NVMe
technology. Available December 2018
***HP Sure Sense requires Windows 10. See product specifications for availability.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 5
OPERATING SYSTEM
Preinstalled
Windows 10 Pro 64 – HP recommends Windows 10 Pro*
Windows 10 Pro for Workstations 64*
Windows 10 Home 64 *
FreeDOS 2.0
Supported
Windows 10 Enterprise 64*
RedHat® Enterprise Linux® (REHL) 7
Ubuntu Linux 16.04
For additional Linux OS information, please reference our Linux Hardware Matrix:
http://h10032.www1.hp.com/ctg/Manual/c00060684.pdf
*Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for
updates. See http://www.windows.com
PROCESSOR*
9th Generation Intel® Core™ i7 9750H with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.5 GHz with Intel® Turbo
Boost Technology, 12 MB cache, 6 cores)
9th Generation Intel® Core™ i7 9850H with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.6 GHz with Intel® Turbo
Boost Technology, 12 MB cache, 6 cores)
9th Generation Intel® Core™ i9 9880H vPro™ with Intel® UHD Graphics 630 (2.3 GHz base frequency, up to 4.8 GHz with Intel®
Turbo Boost Technology, 16 MB cache, 8 cores)
9th Generation Intel® Core™ i9 9980HK with Intel® UHD Graphics 630 (2.4 GHz base frequency, up to 5.0 GHz with Intel® Turbo
Boost Technology, 16 MB cache, 8 cores)
8th Generation Intel® Core™ i5 8300H with Intel® UHD Graphics 630 (2.3 GHz ( up to 4.0 GHz )/2667 MHz/ 8 MB L3 cache/45W )
8th Generation Intel® Core™ i5 8400H vPro™ processor with Intel® UHD Graphics 630 (2.5 GHz ( up to 4.2 GHz )/2667 MHz/ 8 MB L3
cache/45W )
8th Generation Intel® Core™ i7 8750H with Intel® UHD Graphics 630 (2.2 GHz ( up to 4.1 GHz )/2667 MHz/ 9 MB L3 cache/45W )
8th Generation Intel® Core™ i7 8850H vPro™ processor with Intel® UHD Graphics 630 (2.6 GHz ( up to 4.3 GHz )/2667 MHz/ 9 MB L3
cache/45W )
8th Generation Intel® Core™ i9 8950HK processor with Intel® UHD Graphics 630 (2.9 GHz base frequency, up to 4.8 GHz with Intel®
Turbo Boost Technology, 12 MB cache, 6 cores)
Intel® Xeon® E-2176M vPro™ processor with Intel® UHD Graphics P630 (2.7 GHz ( up to 4.4 GHz )/2667 MHz/12 MB L3 cache/45W )
Intel® Xeon® E-2186M vPro™ processor with Intel® UHD Graphics P630 (2.9 GHz ( up to 4.8 GHz )/2667 MHz/12 MB L3 cache/45W )
* Multicore is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload
and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher
performance.
**Intel Turbo Boost performance varies depending on hardware, software and overall system configuration. See
www.intel.com/technology/turboboost for more information.
***Some functionality of Intel® Core™ i5 with vPro™/Core™ i7 with vPro™/Core™ i9 with vPro™/Xeon® with vPro™ technology,
such as Intel® Active Management technology and Intel® Virtualization technology, requires additional third- party software in
order to run. Availability of future "virtual appliances" applications for Intel® Core™ i5 with vPro™/Core i7 with vPro™/ Cor e™ i9
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 6
with vPro™/XEON® with vPro™ technology is dependent on third- party software providers. Compatibility with future "virtual
appliances" is yet to be determined.
NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows® 8 or Windows 7 operating system on
products configured with Intel® and AMD 7th generation and forward processors or provide any Windows®8 or Windows 7 drivers
on http://www.support.hp.com
CHIPSET
Mobile Intel® CM246
INTEL® CORE™ I5 WITH VPRO/CORE I7 WITH VPRO/XEON® WITH VPRO TECHNOLOGY CAPABLE
Intel® Core™ i5 with vPro™, Core™ i7 with vPro™ and XEON® with vPro™ technology is a selectable feature that is available on
units configured with select processors, a qualified Intel® WLAN module and a preinstalled Windows® operating system. It
provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel® Active
Management Technology (iAMT) offers built-in manageability and proactive security for networked mobile workstations,
even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach
the network, isolate infected systems, and update regardless of their power state.
* Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (nonVPN) corporate network connection which is either cable or wireless LAN.
NOTE: Some functionality of Intel® Core™ i5 with vPro™/Core™ i7 with vPro™/Xeon® with vPro™ technology, such as Intel®
Active Management technology and Intel® Virtualization technology, requires additional third- party software in order to run.
Availability of future "virtual appliances" applications for Intel® Core™ i5 with vPro™/Core i7 with vPro™/XEON® with vPro™
technology is dependent on third- party software providers. Compatibility with future "virtual appliances" is yet to be
determined.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 7
GRAPHICS
Integrated
Intel® UHD graphics 630
1,2
Intel® UHD graphics P630
1,2
Discrete
3,4
NVIDIA® Quadro® P1000 with 4 GB dedicated GDDR5 video memory
Microsoft DirectX 12 (Shader Model 5.0) and OpenGL 4.4 capable
NVIDIA® Quadro® P2000 with 4 GB dedicated GDDR5 video memory
Microsoft DirectX 12 (Shader Model 5.0) and OpenGL 4.4 capable
NOTE 1: UHD content required to view UHD images
NOTE 2: Intel® UHD graphics 630 is configurable as a standalone graphics option; Intel® UHD graphics P630 only used when
NVIDIA® Optimus™ Technology is enabled.
NOTE 3: NVIDIA® Quadro® mobile professional graphics support up to four independent displays when using a HP ZBook Dock
with Thunderbolt™ 3 (sold separately) or DP 1.2 hubs with MST.
NOTE 4: Must be configured with the 6-cell 96 WHr battery; cannot be configured with a Hard Disk Drive.
NOTE: Intel® UHD Graphics 630 integrated on Core™ i9, Core™ i7 and Core™ i5 processors. Intel® UHD Graphics P630
integrated on Xeon® processors.
DisplayPort™ 1.3 protocol features supported on Thunderbolt™ 3 ports:
• Legacy displays (HDMI, DVI, VGA) may be attached to Thunderbolt™ port with the use of a certified dongle.
• DisplayPort™ monitors capable of supporting DP 1.3 may be directly attached to the Thunderbolt™ port to achieve
HBR2 with the use a dongle.
• Thunderbolt™ 3 enabled monitors may be directly attached to the Thunderbolt™ port to achieve HBR2 and MST.
• DisplayPort™ 1.3 MST feature ("daisy-chain" feature) is supported through Thunderbolt™ 3 port on Thunderbolt™ 3
enabled devices or DisplayPort™ 1.3 monitors (requires monitor with DisplayPort™ 1.3 MST capability) with the use
of a dongle.
• Up to 2 streams (eight lanes) of DisplayPort™ 1.3 are supported over a single Thunderbolt™ 3 port. Up to (2) 4K
displays 24/30-bit color depth at 60 Hz or (1) 5K display supported over a single Thunderbolt™ 3 port. (Requires
Intel® certified Thunderbolt™ cable).
• DisplayPort™ 1.3 w/MST (Multi-stream Transport): Supports resolutions up to Full 4K, 24/30-bit color depth at 60
Hz, and WUXGA (1920 x1200) monitors, 24/30-bit color depth at 120 Hz.
*Thunderbolt™ 3 is superset port supporting DisplayPort™ 1.3, USB 3.1 Gen 2, and PCIe Gen 3 devices over the new USB-C™
connector. Install all the latest drivers for your Thunderbolt™ device before connecting the device to the Thunderbolt™ port.
Thunderbolt™ cable and Thunderbolt™ device (sold separately) must be compatible with Windows. To determine whether
your device is Thunderbolt™ Certified for Windows, see https://Thunderbolttechnology.net/products.
Multi-Display Support
Without HP Thunderbolt Dock G2:
HP ZBook Studio with hybrid graphics and without the use of the ZBook dock supports up to a maximum of three
independent displays. These three displays are the internal panel plus two external displays connected two of the three
following ports: HDMI 2.0, Thunderbolt™ 3, Thunderbolt™ 3. HP ZBook Studio configuration with Intel® integrated graphics
and without the use of the ZBook dock supports up to a maximum of three independent displays. Any three display
combination of the system panel plus 2 of the following HDMI, Thunderbolt™ 3, Thunderbolt™ 3.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 8
With HP Thunderbolt Dock G2:
The HP Thunderbolt Dock G2 has Thunderbolt™ 3 port, VGA, two DisplayPort™ 1.3, and a USB-C port. When used together
with the HP ZBook Studio configuration with hybrid graphics, a maximum of five independent displays are supported. These
five displays are internal panel, one external display connected to the system’s HDMI port and four external displays
connected to the ZBook dock’s Thunderbolt™ 3, VGA, and two DisplayPort™ ports. When used together with the HP ZBook
Studio configuration with Intel® integrated graphics, a maximum of three independent displays are supported. Any three
display combination of the system panel, system ports and ZBook Dock ports.
DISPLAY
Internal
• 15.6” diagonal FHD IPS eDP + PSR anti-glare LED-backlit, 400 nits with ambient light sensor 72% NTSC (1920x1080)
• 15.6” diagonal UHD IPS eDP + PSR anti-glare LED-backlit, 400 nits with ambient light sensor 72% NTSC (3840x2160)
• HP DreamColor Display, 15.6” diagonal UHD IPS eDP + PSR anti-glare, RG phosphors - LED-backlit, 600 nits, 100%
AdobeRGB with 10-bit color (3840x2160)
• HP Sure View Display 15.6” diagonal FHD IPS eDP+PSR LED-backlit, 650 nits 72% NTSC (1920x1080)
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 9
STORAGE AND DRIVES*
Three (3) dedicated drive slots, two (2) M.2 slots, and one (1) 2.5”drive bays supporting up to 6TB of storage
Choose up to 2 M.2 drives:
SATA SED Solid State Drives*
256 GB SATA Self Encrypting Drive(SED)
NVMe Solid State Drives
16 GB Intel® Optane™ memory
**, ***
256GB PCIe (NVMe) TLC Solid State Drive
512GB PCIe (NVMe) TLC Solid State Drive
1 TB PCIe (NVMe) TLC Solid State Drive
2 TB PCIe (NVMe) TLC Solid State Drive
256GB PCIe (NVMe) TLC Self Encrypting Drive (SED) Solid State Drive
512GB PCIe (NVMe) TLC Self Encrypting Drive (SED) Solid State Drive
NVMe RAID 1***** (optional)
(2) 1 TB PCIe (NVMe) TLC Solid State Drive
(2) 2 TB PCIe (NVMe) TLC Solid State Drive
Choose up to 1 2.5” Storage Bay Drives*,****
2 TB 5400 rpm SATA Hard Disk Drive
500 GB SATA SSHD (Hybrid Drive) (8 GB cache)
1 TB SATA SSHD (Hybrid Drive) (8 GB cache)
2 TB SATA SSHD (Hybrid Drive) (8 GB cache)
500 GB 7200 rpm SATA Hard Disk Drive
1 TB 7200 rpm SATA Hard Disk Drive
500 GB 7200 rpm SATA SED (Self Encrypting Drive) Hard Disk Drive
500 GB 5400 rpm SATA FIPS 140-2 SED Hard Disk Drive
256GB SATA Solid State Drive
1 TB SATA Solid State Drive
HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses threeaxis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and
vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is
detected.
*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10)
is reserved for system recovery software.
**Must be configured with either a Hard Disk Drive or a Hybrid Drive. Cannot be configured with an additional M.2 SSD.
***Intel® Optane™ memory system acceleration does not replace or increase the DRAM in your system.
**** Must be configured with the 4-cell 64WHr battery and no discrete graphics
***** RAID 1 Configuration requires 2 NVMe PCIe M.2 drives; both drives must be the same capacity and only available on
NVMe technology. Available December 2018
DRIVE CONTROLLERS
2.5” Storage Bays and M.2 2280 (SATA):
SATA-3 or SATA-2 for HDD and SATA-3 for SSD
NVMe M.2 2280 SSD:
PCIe Gen 3 x4
RAID 1
PCIe Gen3 x 4*
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 10
Supported RAID 0, 1:
SATA M.2 only
NOTE: RAID 1 configuration from HP must be like for like capacity and only available on NVMe technology.
MEMORY
Standard
32 GB DDR4 ECC or 64 GB DDR4 Non-ECC SDRAM (With transfer rates up to 2667MT/s1)
Two SODIMM slots supporting dual-channel memory
4 GB, 8GB, 16, 32 GB SODIMMs (for Intel® Core™ and Xeon® Processors)
8GB and 16 GB ECC SODIMMs (for Intel® XEON® Processors)
Maximum
Upgradeable to 64 GB with optional 32 GB SODIMMs in 2 slots
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory channels.
NOTE 1: Only 2 DIMM configurations run at 2667 MHz.
NOTE: Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems,
memory above 3 GB may not all be available due to system resource requirements.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 11
NETWORKING/COMMUNICATIONS
Wireless
Support for a broad range of secure, integrated wireless LAN options featuring support for the latest industry standards.
Integrated Bluetooth® is also available (factory configurable only) and can be combined with any of the supported wireless
LAN options.
802.11 Wireless LAN options**
Intel® Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi® and Bluetooth® 5.0 Combo;
Intel® Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi® and Bluetooth® 5.0 Combo, non-vPro™
Near Field Communication1
NFC Mirage WNC XRAV-1 (NXP NPC300 I2C 10mmx17mm)
**Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet
service. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft
specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the
notebook to communicate with other 802.11ac WLAN devices.
1
Sold separately or as an optional feature.
AUDIO/MULTIMEDIA
Audio1
Audio Bang & Olufsen, dual stereo speakers
Dual array digital microphone
Optional HP World Facing microphone
Functions keys for volume up and down
Combo microphone/headphone jack
HD audio; featuring HP Noise Cancellation Software, HP Clear Sound Amp and Skype for Business® Certification
Webcam*,**
Optional HP Privacy Camera (720p HD webcam)
Optional HP Privacy Camera (720p HD webcam) IR camera for face authentication with Windows Hello
• Privacy Camera features sliding camera shutter (non-touch only)
• HD format (widescreen)
• Supports videoconferencing and still image capture
• High quality fixed focus lens
• Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
• M-JPEG compression supports higher frame rates for video capture and videoconferencing
• Improved low light sensitivity
• Improved dynamic range
* HD content required to view HD images.
**Optional or add-on feature.
Note 1: Dual-microphone array when equipped with optional webcam and optional world facing microphone
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 12
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
HP Collaboration Keyboard to manage the most common collaboration function with a keystroke. Backlit keyboard with
Function key control to toggle backlit brightness setting - off/full/half brightness. The HP spill-resistant keyboard is
designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the
bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 100-key compatible
keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control
and alt keys, function keys, and 18.7 x 18.4 mm key pitch (center-to-center spacing). U.S. and International key layouts are
available. Other features include hot keys for instant access to power conservation and brightness.
Pointing Devices
Clickpad with multi-touch gestures enabled, taps enabled as default
Microsoft Precision Touchpad Default Gestures Support
Buttons and Function Keys
Discrete buttons provide easy access to the following features:
F1 – Display Switching
F2 – HP SureView (if configured)
F3 - Brightness Down
F4 – Brightness Up
F5 – Audio mute
F6 – Volume down
F7 – Volume up
F8 – Microphone mute
F9 – Keyboard backlight
F10 – NumLock
F11 – Wireless on/off
F12 – Calendar
F13 – Share screen
F14 – Call
F15 – End Call
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 13
SOFTWARE AND SECURITY
Workstation ISV Certifications
See the latest list of certifications at: http://www.hp.com/go/isv
HP Remote Graphics Software
The remote desktop solution for serious workstation users and their most demanding applications.
Download at: http://www.hp.com/go/RGS
HP Performance Advisor
HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance.
HP Performance Advisor will guide your system setup allowing a "custom" configuration that best matches the workstation
to user requirements.
Download at: http://www.hp.com/go/performanceadvisor
Standard Security Features
HP BIOSphere Gen4
1
HP DriveLock & Automatic DriveLock
BIOS Update via Network
HP BIOS Config Utility (BCU)
9
Secure Erase
3
Absolute persistence module7
Pre-boot Authentication
Power-on authentication
SATA 0,1 port disablement (viaBIOS)
RAID configurations
Serial, USB enable/disable (viaBIOS)
Power-on password (viaBIOS)
Setup password (viaBIOS)
Support for chassis padlocks and cable lock devices
HP Sure Click4
One-Step Logon
Security lock slot
Support for Intel® AT
TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)
Measured Boot
HP Sure Click
HP Sure Start G42
HP Sure Run5
HP Sure Recover
6
HP Sure Sense13
Device Access Manager
HP Security Manager (including Credential Manager and Password Manager12)
Windows Defender 8
HP Host Based Mac Address
HP Client Catalog 9
HP Driver Packs 9
HP System Software Manager (SSM) 9
HP Manageability Integration Kit for Microsoft SCCM
10
TPM
Model: Infineon SLB9670
Version: 7.63.3353.0
Revision: TPM 2.0
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 14
FIPS 140-2 Compliant: Yes with Convert TPM to 2.0 (FIPS 140-2) option
Fingerprint Sensor (Optional)
Voltage: 3.0-3.6V
Operating temperature: -20° - 85°C
Imaging current: 31mA
Wake on finger current: 40 uA
Capture rate: 30ms/frame
ESD Resistance: IEC 6100-4-2 4B (+/-15KV)
Detection Matrix: 363 dpi, sensing area 8x8 mm
Optional Security Features
HP Fingerprint Sensor (optional)11
IR Camera with Windows Hello
Absolute Data Protect* with GPS Tracking - Subscription based security solution providing the ability to track, initiate physical
recovery, conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality
requires HP Mobile Broadband Module.
* The Absolute Data Protect agent is shipped turned off and must be activated by customers when they purchase a
subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for
availability outside the U.S.
1. HP BIOSphere Gen4 requires Intel® or AMD 8th generation processors.
2. HP Sure Start Gen4 is available on HP Z Workstations products equipped with 8th generation Intel® or AMD
processors.
3. For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear"
sanitation method.
4. HP Sure Click is available on most HP PCs and supports Microsoft® Internet Explorer and Chromium™. Supported
attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft
Office or Adobe Acrobat are installed.
5. HP Sure Run is available on HP Elite products equipped with Intel® or AMD® 8th generation processors
6. HP Sure Recover is available on HP Elite PCs with 8th generation Intel® or AMD processors and requires an open,
wired network connection. You must back up important files, data, photos, videos, etc. before using HP Sure Recover
to avoid loss of data
7. BIOS Absolute Persistence module is shipped turned off, and will be activated when customers purchase and activate
a subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional subscription
service of Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/computrace-agreement. If Data Delete is utilized, the
Recovery Guarantee payment is null and void. In order to use the Data Delete service, customers must first sign a
Pre-Authorization Agreement and either create a PIN or purchase one or more RSA SecurID tokens from Absolute
Software.
8. Windows Defender Opt In, Windows 10, and internet connection required for updates.
9. Not preinstalled, however available for download at http://www.hp.com/go/clientmanagement
10. HP Manageability Integration Kit can be downloaded from
http://www8.hp.com/us/en/ads/clientmanagement/overview.html
11. Finger Sensor is optional
12. HP Password manager requires Windows.
13. HP Sure Sense requires Windows 10. See product specifications for availability.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 15
HP CENTRAL MANAGEMENT
HP offers a variety of scalable hardware, software, and BIOS-based security features to help you defend your organization
against viruses and other threats. These integrated security features safeguard what matters to you the most - your data,
device and identity. Now, be confident your fleet of devices is protected in multiple layers of HP Client Security protection.
HP BIOS Protection keeps you up and running with enhanced protection against virus attacks and other threats. And if the
BIOS is accidently compromised, the auto recovery feature automatically restores it to its fully functional state.
HP Sure Start detects and negates a BIOS attack with automatic recovery of the BIOS even when the installation is
accidentally compromised (i.e. power outage). When HP Sure Start heals the BIOS an event log is generated that an IT
administrator can retrieve so the business is aware of a BIOS attack. Golden copy of BIOS is stored in protected nonvolatile
memory providing redundant, hardware-based protection against a new generation of attacks. This helps to future-proof
your technology and business.
An optional fingerprint sensor helps keep your identity secure. The security cable slot helps keep your notebook physically
secure.
You can even permanently destroy data on your hard drive in preparation for your system disposal or redeployment with
Secure Erase.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 16
POWER
Power Supply
HP 150W Slim Smart AC adapter
(153 x 66 x 22 mm)
Primary Battery
HP Long Life 4-cell Polymer Battery (64 WHr) *
HP Long Life 6-cell Polymer Battery (96 WHr) *
NOTE: Battery is internal and not replaceable by the customer
NOTE: HP Long Life 4-cell 64WHr battery can be configured with a hard disk drive and cannot be configured with discrete
graphics. HP Long Life 6-cell 96 WHr battery cannot be configured with a hard disk drive and is required in discrete graphics
configurations.
Battery Life
Battery life up to 18.5 hours for UMA graphics only configuration **
Battery life up to 16.5 hours for Hybrid graphics configuration **
System Standby Time
Up to 1.4 weeks***
* Available with 3-year limited warranty only
** Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless
functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and
usage. See MobileMark14 battery benchmark https://bapco.com/products/mobilemark-2014/ for additional details.
*** Standby life will vary depending on various factors including battery, Memory, CPU, EC and LAN chip. The maximum
capacity of the battery will naturally decrease with time and usage.
Power Conservation
NVIDIA® Optimus or AMD EnduroTM technology
Hibernation
Standby
ACPI compliance
ENVIRONMENTAL
US ENERGY STAR ®
IT ECO declaration
EPEAT® registered*
Low Halogen**
* EPEAT ® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by
country. See HP’s 3rd party option store for solar energy accessory www.hp.com/go/options.
**External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase
may not be low halogen.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 17
WEIGHTS & DIMENSIONS
Weight
Starting at 4.4 lb. (2.0kg.)
Dimensions (w x d x h)
14.17 in x 9.65 in x 0.35 in (front) – 0.69 in (rear)
360 mm x 254 mm x 8.8 mm (front) – 17.4 mm (rear)
Note: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and
components. Weight includes Quad Core CPU, UHD, 4-cell battery, Intel® UHD graphics, no FPR, 8GB x 1 SODIMM, WLAN, M.2
SSD, no camera, no WWAN, no BT
PORTS/SLOTS
Ports
Left side:
(1) USB 3.0 Charging Port
(1) USB 3.0
(1) Security lock slot
Right side:
(1) HDMI 2.0
(2) Thunderbolt™ 3* (Supporting DisplayPort™ 1.3, USB 3.1 Gen2, PCIe Gen 3 devices)
(1) Stereo microphone in / headphone-out combo jack
(1) Power Connector
(1) Full-size SD Card Reader
Thunderbolt™ 3
Thunderbolt™3 ports supports DisplayPort™ 1.3, USB 3.1 Gen 2, and PCIe Gen 3 devices over the new USB-C port connector.
The port is compatible with existing DisplayPort™ displays, devices, and cables. Install all the latest drivers for your
Thunderbolt™ device before connecting the device to the Thunderbolt™ port. Thunderbolt™ cable and Thunderbolt™ device
(sold separately) must be compatible with Windows®. To determine whether your device is Thunderbolt™ Certified for
Windows, see https://thunderbolttechnology.net/products.
Digital Media Slots
(1) SD UHS-II Flash Media slot (Supports next generation SD (Secure Digital), backward compatible to SDHC, SDXC
SERVICE AND SUPPORT
Limited 3-year or 1-year limited warranty options available, depending on country. Batteries have a default one year limited
warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the platform. Optional* HP
Care Pack Services are extended service contracts which go beyond your standard limited warranties. To choose the right
level of service for your HP product, use the HP Care Pack Services Lookup Tool at http://www.hp.com/go/cpc.
*Sold separately or as an optional feature. Service levels and response times for HP Care Packs may vary depending on your
geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. HP services are
governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase.
Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected
by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product. Consult your local HP
Customer Support Center for details.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Features
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 18
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
System Technical Specifications
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 19
SYSTEM UNIT
Stand-Alone Power
Requirements (AC Power)
Nominal Operating
Voltage
19.5 V
Average Operating Power
DreamColor
25 W (Windows® 10 64-bit)
Without DreamColor
16.8 W (Windows® 10 64-bit)
Max Operating Power
< 200 W
Temperature
Operating
32° to 95° F (0° to 35° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Shock
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude (unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Select models*
EPEAT®
Gold **
ICES
Complete
Australia /
NZ A-Tick Compliance
Complete
CCC
Complete
Japan VCCI Compliance
Complete
KC
Complete
BSMI
Complete
CE Marking Compliance
Complete
MIL STD 810G
Complete ***
* Configurations of the HP ZBook Studio that are ENERGY STAR® qualified are identified as HP ZBook Studio G5 ENERGY STAR® on
HP websites and on http://www.energystar.gov.
** EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by
country. See HP’s 3rd party option store for solar energy accessory www.hp.com/go/options.
*** MIL STD 810G testing is pending and is not intended to demonstrate fitness for U.S. Department of Defense contract
requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Accidental
damage requires an optional HP Accidental Damage Protection Care Pack.
For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Displays
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 20
DISPLAYS
15.6" diagonal FHD AG
LED IPS, with Ambient
light sensor 72% NTSC
(1920x1080) (400 nits)
Active Area (W x H)
344.16 x 193.59
Dimensions (W x H)
350.96 x 216.75
Weight
370 g (max)
Surface Treatment
Anti-glare
Contrast Ratio
600:1 (typical)
Refresh Rate
60 Hz
Brightness*
400 nits typical
Pixel Resolution
Format
1920 x 1080 (FHD)
Configuration
RGB Stripe
Backlight
LED
PPI
141
Viewing Angle
85/85/85/85 (Left/Right/Down/Up) (typical)
* All specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower.
HP Sure View Privacy
Display 15.6" diagonal
FHD AG LED IPS 72%
NTSC (1920x1080) (650
nits)
Active Area (W x H)
344.16 x 193.59
Dimensions (W x H)
350.96 x 216.75
Diagonal Size
15.6 in (39.6 cm)
Weight
320 g (max)
Surface Treatment
Anti-glare
Contrast Ratio
600:1 (typical)
Refresh Rate
120 Hz
Brightness*
650 nits typical
Pixel Resolution
Pitch
0.1793 x 0.1793 mm
Format
1920 X 1080 (FHD)
Configuration
RGB Stripe
Backlight
LED
PPI
141
Viewing Angle
85/85/85/85 (Left/Right/Down/Up) (typical)
* All specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower.
HP DreamColor Display
15.6" diagonal UHD IPS
AG - 10 (8+2) bit
color(3840x2160) (600
nits) 100% AdobeRGB
Active Area (W x H)
344.2176 x 193.62
Dimensions (W x H)
350.96 x 217.45
Diagonal Size
15.6 in (39.6 cm)
Weight
380 g (max)
Surface Treatment
Anti-glare
Contrast Ratio
1200:1 (typical)
Refresh Rate
60 Hz
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Displays
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 21
Brightness*
600 nits typical
Pixel Resolution
Format
3840 x 2160 (UHD)
Configuration
RGB Stripe
Backlight
LED
PPI
282
Viewing Angle
85/85/85/85 (Left/Right/Down/Up) (typical)
* All specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower.
15.6" diagonal UHD IPS
AG LED with Ambient
light sensor 72% NTSC
(3840x2160) (400 nits)
Active Area (W x H)
344.2176 x 193.62
Dimensions (W x H)
350.96 x 216.95
Diagonal Size
15.6 in (39.6 cm)
Weight
320 g (max)
Surface Treatment
Anti-glare
Contrast Ratio
1200:1 (typical)
Refresh Rate
60 Hz
Brightness*
400 nits typical
Pixel Resolution
Format
3840 x 2160 (UHD)
Configuration
RGB Stripe
Backlight
LED
PPI
282
Viewing Angle
85/85/85/85 (Left/Right/Down/Up) (typical)
* All specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Storage and Drives
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 22
STORAGE AND DRIVES
Internal Storage
Intel® Optane™ Memory
(SSD 16 GB 2280 PCI3-3x2
NVMe 3D Xpoint)
Form Factor
M.2 2280
Capacity
16 GB
NAND Type
3D Xpoint
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Interface
PCIe NVMe Gen3X2
Maximum Sequential
Read
900 MB/s
Maximum Sequential
Write
145 MB/s
Logical Blocks
28,181,188
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
L1.2
Must be configured with either a standard Hard Disk Drive or Solid-State Hybrid Drive. Cannot be
configured with an additional M.2
2 TB 5400 rpm SATA Hard
Disk Drive
Drive Weight
0.21 lbs ( 95 g)
Capacity
2 TB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
13 ms
Maximum
32 ms
Cache
128 MB
Rotational Speed
5400 rpm
Logical Blocks
3,907,029,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
500 GB 7200 rpm SATA
Hard Disk Drive
Drive Weight
0.21 lbs ( 95 g)
Capacity
500 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms ~ 2 ms
Average
11 ms ~ 13 ms
Maximum
18 ms ~ 22 ms
Cache
Up To 32 MB
Rotational Speed
7200 rpm
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Storage and Drives
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 23
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
1 TB 7200 rpm SATA Hard
Disk Drive
Drive Weight
0.21 lbs (95 g)
Capacity
1 TB
Height
0.28 in (7 mm)
Width
2.75 in (69.85mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
13 ms
Maximum
32 ms
Cache
128 MB
Rotational Speed
7200 rpm
Logical Blocks
1,953,525,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
500 GB Hybrid Drive,
8 GB cache
Drive Weight
0.20 lbs (92 g) ~ 0.21 lbs (95 g)
Capacity
500 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s
Seek Time
(typical reads, including
settling)
Single Track
2 ms
Average
12 ms
Maximum
22 ms
Cache
Up to 64MB
Rotational Speed
5400 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
1 TB Hybrid Drive,
8 GB cache
Drive Weight
90g
Capacity
1 TB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
13 ms
Maximum
32 ms
Cache
Up to 128MB
Rotational Speed
5400 rpm
Logical Blocks
1,953,525,168
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Storage and Drives
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 24
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
2 TB Hybrid Drive,
8 GB cache
Drive Weight
90g
Capacity
2 TB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
13 ms
Maximum
32 ms
Cache
Up to 128MB
Rotational Speed
5400 rpm
Logical Blocks
3,907,029,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
500 GB 7200 rpm SATA SED
FIPS* 140-2 compliant
Hard Disk Drive
Drive Weight
0.21 lbs (95g)
Capacity
500 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
12 ms
Maximum
21 ms
Cache
32 GB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security; TCG Opal 2.x, FIPS, S.M.A.R.T., NCQ, Ultra DMA
* FIPS-certified, hardware-based AES-256 encryption image.
500 GB 7200 rpm SATA SED
Hard Disk Drive
Drive Weight
0.21 lbs (95g)
Capacity
500 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
Synchronous (maximum)
600 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track
1.5 ms
Average
12 ms
Maximum
21 ms
Cache
32 MB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [case temp]
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Storage and Drives
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 25
Features
ATA Security, TCG Opal 2.x, S.M.A.R.T., NCQ, Ultra DMA
256 GB SATA TLC Solid
State Drive (2.5”)
Drive Weight
0.17 lb (78 g)
Capacity
256 GB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
NAND Type
TLC
Form-Factor (I/O)
2.5 inch
Performance
Maximum Sequential Read
Maximum Sequential Write
530 MB/s～ 560 MB/s
500 MB/s～ 525 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
1 TB SATA TLC Solid State
Drive (2.5”)
Drive Weight
0.17 lb (78 g)
Capacity
1 TB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
NAND Type
TLC
Form-Factor (I/O)
2.5 inch
Performance
Maximum Sequential Read
Maximum Sequential Write
530 MB/s～ 560 MB/s
500 MB/s～ 530 MB/s
Logical Blocks
2,000,409,264
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
256 GB M.2 SelfEncrypting Drive TLC Solid
State Drive
Drive Weight
0.02 lb (<10 g)
Capacity
256 GB
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Interface
ACS-3, SATA 3.2
NAND Type
TLC
Form-Factor (I/O)
M.2 2280
Interface
ATA-8, SATA 3.0
Performance
Maximum Sequential Read
Maximum Sequential Write
530 MB/s～ 560 MB/s
500 MB/s～ 530 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Storage and Drives
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 26
Features
ATA Security; TCG Opal 2.0, DIPM; TRIM; DEVSLP
256 GB M.2 NVMe TLC Solid
State Drive
Drive Weight
0.02 lb (<10 g)
Capacity
256 GB
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Generation
Samsung PM961/ Toshiba XG5
NAND Type
TLC
Form-Factor (I/O)
M.2 2280
Interface
PCIe NVMe Gen3X4
Performance
Maximum Sequential Read
Maximum Sequential Write
2580 MB/s～ 2600 MB/s
1000 MB/s～ 1100 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option),TRIM; L1.2
256 GB M.2 NVMe TLC SED
Solid State Drive
Drive Weight
0.02 lb (<10 g)
Capacity
256 GB
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Generation
Samsung PM961 SED Opal2/ Toshiba XG5 SED Opal2
NAND Type
TLC
Form-Factor (I/O)
M.2 2280
Interface
PCIe NVMe Gen3X4
Performance
Maximum Sequential Read
Maximum Sequential Write
2580 MB/s～ 2600 MB/s
Up to 1000 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
512 GB M.2 NVMe TLC Solid
State Drive
Drive Weight
0.02 lb (<10 g)
Capacity
512 GB
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Generation
Samsung PM981 / Toshiba XG5
NAND Type
TLC
Form-Factor (I/O)
M.2 2280
Interface
PCIe NVMe Gen3X4
Performance
Maximum Sequential Read
Maximum Sequential Write
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Storage and Drives
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 27
2800 MB/s～ 2900 MB/s
1000 MB/s～ 1800 MB/s
Logical Blocks
1,000,215,215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security,TRIM; L1.2
512 GB M.2 NVMe TLC Solid
State Drive
Drive Weight
0.02 lb (<10 g)
Capacity
512 GB
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Generation
Samsung PM981 SED Opal2/ Toshiba XG5 SED Opal2
NAND Type
TLC
Form-Factor (I/O)
M.2 2280
Interface
PCIe NVMe Gen3X4
Performance
Maximum Sequential Read
Maximum Sequential Write
2800 MB/s～ 2900 MB/s
1000 MB/s～ 1800 MB/s
Logical Blocks
1,000,215,215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security (Option); TCG Opal 2.0; TRIM; L1.2
1 TB, M.2 NVMe TLC Solid
State Drive
Drive Weight
0.02 lb (<10 g)
Capacity
1 TB
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Generation
Samsung PM981 / Toshiba XG5
NAND Type
TLC
Form-Factor (I/O)
M.2 2280
Interface
PCIe NVMe Gen3X4
Performance
Maximum Sequential Read
Maximum Sequential Write
2900 MB/s～ 3000 MB/s
Up to 2000MB/s
Logical Blocks
2,000,409,264
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security,TRIM; L1.2
Available in RAID 1
config**
Yes
2 TB, M.2 NVMe TLC Solid
State Drive
Drive Weight
0.02 lb (<10 g)
Capacity
2 TB
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Generation
Toshiba XG5P
NAND Type
TLC
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Storage and Drives
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 28
Form-Factor (I/O)
M.2 2280
Interface
PCIe NVMe Gen3X4
Performance
Maximum Sequential Read
Maximum Sequential Write
Up to 2900MB/s
Up to 2100 MB/s
Logical Blocks
3,907,029,168
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security,TRIM; L1.2
Available in RAID 1
config**
Yes
*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows® 10) disk
is reserved for system recovery software.
** RAID 1 Configuration requires 2 NVMe PCIe M.2 drives; both drives must be the same capacity and only available on NVMe
technology. Available December 2018
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Networking/Communications
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 29
NETWORKING/COMMUNICATIONS
Intel® Dual Band
Wireless-N 9560AC
802.11 a/b/g/n (2x2) WiFi
+ Bluetooth 5.0 Combo
Adaptor*
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
2.402 - 2.482 GHz
Note: The FCC has declared as of January 1,
2015 products that utilize passive scanning on
channel 12/13 and are capable of transmitting
must fully comply with requirements of 15.247
or otherwise disable those channels.
802.11a/n
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
Note: No support for this band in Indonesia
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15 (20MHz and 40MHz)
802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Security1
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power2
802.11b : +16dBm minimum
802.11g : +14dBm minimum
802.11a : +14dBm minimum
802.11n HT20(2.4GHz) : +14dBm minimum
802.11n HT40(2.4GHz) : +12dBm minimum
802.11n HT20(5GHz) : +14dBm minimum
802.11n HT40(5GHz) : +12dBm minimum
Power Consumption
Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode: 180 mW (WLAN Associated)
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Networking/Communications
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 30
Idle mode: 50 mW (WLAN unassociated)
Connect Standby: 10 mW (WLAN+BT)
Radio disabled: 5 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11a, 6Mbps : -88dBm maximum
802.11a, 54Mbps : -74dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
802.11ac, 1SS, MCS-0 : -86dBm maximum
802.11ac, 1SS, MCS-9 : -61dBm maximum
802.11ac, 2SS, MCS-0 : -83dBm maximum
802.11ac, 2SS, MCS-9 : -58dBm maximum
Antenna Type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber - Radio OFF; LED White - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
* Wireless access point and internet service required. Availability of public wireless access points
limited.
HP Integrated Module with Bluetooth 4.2 Wireless Technology
Bluetooth Specification
4.2 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and
Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Networking/Communications
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 31
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of + 4 dBm for BR and EDR.
Receiver Sensitivity
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Legacy Up to 33 ft (10 m)
BLE Up to 99 ft (30 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software
Supported
Microsoft Windows® Bluetooth Software
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
Full support of Bluetooth Security Provisions
Power Management
Microsoft Windows® ACPI, and USB Bus Support
Self-configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles
Supported
Serial Port Profile (SPP)
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)
Near Field
Communications (NFC)
Controller (optional)
Controller
NFC Mirage WNC XRAV-1 (NXP NPC300 I2C 10mmx17mm)
Supports
• Windows 8, Proximity Events
• Windows 7, PC/SC
• NFC Forum Compliant
• Near Field Communications Controller
Dimensions (L x W x H)
Module 25 mm by 10 mm by 2.0 mm
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Networking/Communications
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 32
Chipset
NPC100
System interface
I2C
NFC RF standards
standards ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 ISO/IEC 18092
ECMA-340 NFCIP-1 Target and Initiator ECMA-320 NFCIP-2
NFC Forum Support Tag
Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2
Reader
(PCD-VCD) Mode(1) ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 MIFARE
1K MIFARE 4K MIFARE DESFire FeliCa Jewel and Topaz cards
Card Emulation
(PICCVICC)
Mode
ISO/IEC 14443 A ISO/IEC 14443 B and B’ MIFARE FeliCa
Frequency
13.56 MHz
NFC Modes Supported
Reader/Writer, Peer-to-Peer
Raw RF Data Rates
106, 212, 424, 848 kbps
Operating temperature
0°C to 70°C
Storage temperature
-20°C to 125°C
Humidity
10-90% operating 5-95% non-operating
Supply Operating voltage
2.97 to 5.5 Volts
I/O Voltage
1.8V or 3.3V
Power Consumption
Booster enable,
VBAT= 3.3V,
VCC_BOOST = 5V) Mode
Power Consumption,
Typical2 Polling 7.3 mA Detected Test Tag Type
1 Total 283.8 mA Net Module 236.8 mA
Detected Test Tag Type 2 Total 288.8 mA Net
Module 241.8 mA Detected Test Tag Type 3
Total 287.7 mA Net Module 240.7 mA Detected
Test Tag Type 4 Total 282.3 mA Net Module
235.3 mA
Antenna connector
0.5mm pitch, 7 connector FPC. Antenna matching is external to module.
Notes
1. With application or UICC support
2. Actual Power Consumption is dependent on NFC antenna and
matching circuit and on the particular polling sequence and period
configured.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Audio/Multimedia
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 33
AUDIO/MULTIMEDIA – BANG & OLUFSEN
Hardware
Implementation
Synaptics CX8400 with two NXP TFA9891 discrete smart amplifiers
Function Key
Volume Controls
Volume up, volume down, and mute
Full Duplex
Yes
Microphone In
Stereo
Headphone/Line Out
Stereo
Integrated Microphone
Yes, (1) dual-array digital microphone and (1) HP World Facing Microphone
when equipped with optional webcam
Audio Output Quality
Frequency Response
20 Hz - 20 kHz
Signal to Noise Ratio
106dB (DAC), 102dB (ADC)
Total Harmonic
Distortion
91dB THD+n on LineOut/HP (0.003%)
Noise Floor
-110 dB
Play Sampling Rate(s)
Up to 192kHz
Record Sampling Rate(s)
Up to 96kHz
DAC
16, 20 or 24-bit
ADC
16, 20 or 24-bit
Internal Stereo Speaker
Power Rating
1 Watt/per top speaker
2 Watt/ bottom speaker
Impedance
8 ohms/per top speaker
4 ohms/per bottom speaker
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Power
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 34
POWER
HP 150W Slim Smart AC
Adapter
Dimensions
6.02 x 2.60 x .87 in ((153 x 66 x 22 mm)
Weight
0.71 lbs (320 g)
Input
100 to 240 VAC
Input Efficiency
88% min at 115 VAC
Input frequency range
47 to 63 Hz
Input AC current
2.9 A at 90 VAC, 1.45 A at 180 VAC
Output
Output power
150W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<16A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating
temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
20% to 80%
Storage Humidity
10% to 90%
EMI and Safety
Certifications
CE Mark- full compliance with LVD and EMC directives; Worldwide safety
standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency approvals- CUL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCIB, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.
HP Long Life 4-cell
Polymer Battery (64
WHr)
Dimensions (H x W x L)
7.9 x 3.49 x 0.32 in (20.08 x 8.86 x 0.81cm)
Weight (max)
0.619lb (281g)
Cells/Type
4-cell; Polymer
Energy
Voltage
15.4V
Amp-hour capacity
4.155Ah
Watt-hour capacity
64Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 140° F (-10° to 60° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
3 hours
System ON
3 to 5 hours
Fuel Gauge LED
No
Warranty*
3 year
* 3-year platform warranty is required for a 3-year Long Life Battery warranty.
Dimensions (H x W x L)
13.02 x 3.51 x 0.319 in (33.08 x 8.92 x0.81cm)
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Power
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 35
HP Long Life 6-cell
Polymer Battery (96
WHr)
Weight (max)
1.12lb (420g)
Cells/Type
6-cell; Polymer
Energy
Voltage
11.55V
Amp-hour capacity
8.31Ah
Watt-hour capacity
95Wh
Temperature
Operating (Charging)
32° to 122°F (0° to 50° C)
Operating (Discharging)
14° to 140°F (-10° to 60° C)
Non-operating
>140° F (>60° C)
Battery Re-Charge Time
System in OFF or Standby
Mode
3 hours
System ON
3 to 5 hours
Fuel Gauge LED
No LED
Warranty*
3 year
* 3-year platform warranty is required for a 3-year Long Life Battery warranty.
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Environmental
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 36
ENVIRONMENTAL DATA
Eco-Label Certifications &
declarations
This product has received or is in the process of being certified to the following approvals and
may be labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• US Federal Energy Management Program (FEMP)
• EPEAT® GOLD registered in the United States. See http://www.epeat.net for registration
status in your country.
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a “Typically Configured Notebook”.
Energy Consumption
(in accordance with US ENERGY
STAR® test method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation (Sort idle)
11.20 W
10.51 W
11.24 W
Normal Operation (Long idle)
6.70 W
6.30 W
6.37 W
Sleep
1.13 W
1.12 W
1.14 W
Off
0.41 W
0.43 W
0.42 W
Note:
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the
model family. HP computers marked with the ENERGY STAR® Logo are compliant with the
applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for
computers. If a model family does not offer ENERGY STAR® compliant configurations, then
energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high
efficiency power supply, and a Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation (Short idle)
38 BTU/hr
36 BTU/hr
38 BTU/hr
Normal Operation (Long idle)
23 BTU/hr
22 BTU/hr
22 BTU/hr
Sleep
4 BTU/hr
4 BTU/hr
4 BTU/hr
Off
1.4 BTU/hr
1 BTU/hr
1 BTU/hr
*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
Typically Configured – Idle
3.2
22
Fixed Disk – Random writes
3.2
21
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:
• 2 USB ports
• 2 Thunderbolt™ 3 ports
• 1 2.5” Storage Bay Drive
• 2 M.2 SATA SED Solid State Drives
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Environmental
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 37
• 2 SODIMM memory slots
• 1 HDMI 2.0 port
Spare parts are available throughout the warranty period and or for up to “5” years after the end
of production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Polymer
Battery size: 4-cell or 6-cell high capacity Polymer battery
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS)
directive - 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
• This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see
www.epeat.net
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469
and ISO1043.
• This product contains 0.0% post-consumer recycled plastic (by wt.)
• This product is 95.6% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated
383 g
Internal:
PLASTIC/Polyethylene Expanded - EPE
90 g
PLASTIC/Polyethylene low density - LDPE
10 g PLASTIC/Polypropylene - PP
5 g
The plastic packaging material contains at least 81.5% recycled content.
The corrugated paper packaging materials contains at least 80 % recycled content.
Material Usage
This product does not contain any of the following substances in excess of regulatory limits
(refer to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Technical Specifications – Environmental
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 38
• Nickel – finishes must not be used on the external surface designed to be frequently
handled or carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has
been voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in
packaging materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120
standards.
End-of-life Management and
Recycling
HP Inc.offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest
HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information
for each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the HP Inc. web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
HP Inc. Corporate
Environmental Information
For more information about HP’s commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755842
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
COUNTRY OF ORIGIN
China
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 39
Type
Description
Part #
Display
Z27x G2 27-inch DreamColor Studio display
2NJ08A4#xxx
Z32 31.5-inch 4k UHD Display
1AA81A4#xxx
Z38c 37.5-inch Curved Display
Z4W65A4#xxx
Z24n G2 24-inch Display
1JS09A4#xxx
Z27n G2 27-inch Display
1JS10A4#xxx
Memory
HP 4GB DDR4-2666 SODIMM
4VN05AA#ABA
HP 8GB DDR4-2666 SODIMM
4VN06UT#ABA
HP 16GB DDR4-2666 SODIMM
4VN07AA/UT#ABA
HP 8GB DDR4-2666 ECC SODIMM
4UY11AA
HP 16GB DDR4-2666 ECC SODIMM
4UY12AA
Cases
HP 15.6 Business Top Load– Refresh
2SC66AA
HP Exec Black Leather 15.6 Top Load
1LG83AA
HP Slim Ultrabook Messenger (up to 15.6" x .88"/22/5mm)
F3W14AA
HP Slim Ultrabook Backpack (up to 15.6" x .88"/22/5mm)
F3W16AA
HP Essential Backpack (up to 15.6")
H1D24AA
HP Essential Top Load Case (up to 15.6")
H2W17AA#xxx
Docking
HP TB Dock G2 w/Combo Cable
3TR87AA#xxx
HP Thunderbolt™ Dock 230W G2
2UK38AA
HP Thunderbolt™ Dock Audio
3AQ21AA
HP USB-C Mini Dock
1PM64AA
HP USB-C Universal Dock
1MK33AA
HP USB-C Dock G4
3FF69AA#xxx
HP Travel Hub
T0K30AA
HP 3005pr USB 3.0 Port Replicator w/ USB-C™ Adapter
Y4H06AA
Input/Output Mice
HP Wireless Premium Mouse
1JR31AA
HP USB Premium Mouse
1JR32AA
HP Slim Bluetooth Mouse
F3J92AA#xxx
HP USB Travel Mouse
G1K28AA#xxx
HP Comfort Grip Mouse
H2L63AA
HP X4000 Bluetooth Mouse
H3T50AA#xxx
HP 3-Button Laser Mouse
H4B81AA#xxx
HP Ultra Mobile Wireless Mouse
H6F25AA#xxx
HP Slim Wireless Keyboard and Mouse
T6L04AA
HP Slim USB Keyboard and Mouse
T6T83AA
HP Wireless (Link-5) Keyboard
T6U20AA
Power Adapters
HP 150W Slim Smart AC Adapter
4SC18UT#xxx
HP 200W Slim Smart AC Adapter
4SC19AA/UT#xxx
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 40
Adapters
HP HDMI to DVI adapter
F5A28AA
HDMI to VGA Adapter
H4F02AA
USB 3.0 to RJ45
N7P47AA
HP USB-C™ to VGA Adapter
N9K76AA
USB-C to RJ45
V7W66AA
HP USB-C™ to USB Hub
Z6A00AA
Storage - External
Storage
HP 256GB M2 NVME PCIe SSD (2280)
V3K66AA
HP 512GB M2 NVME PCIe SSD (2280)
V3K67AA
HP 256GB TLC PCI-e 3x4 NVMe M.2 SSD
1FU87AA
HP 512GB TLC PCI-e 3x4 NVMe M.2 SSD
1FU88AA
HP 1TB 2280 M2 PCIe3x4 SS NVME (MLC)
X2E90AA
HP External USB DVDRW Drive
F2B56AA
Security
HP Nano Keyed Cable Lock
1AJ39AA
HP Nano Dual Head Keyed Cable Lock
1AJ41AA
HP Docking Station Cable Lock
AU656AA#XXX
HP Keyed Cable Lock
T0Y14AA
HP Combination Lock
T0Y15AA
HP Essential Combination Lock
T0Y16AA
HP Keyed Cable Lock 10mm
T1A62AA
HP Dual Head Cable Lock (Non-Master key)
T1A64AA
HP Dual Head Cable Lock (Master Key)
T1A65AA
HP 3-year Next business day onsite Hardware Support w/Accidental Damage
Protection-G2 for Notebooks
UF631E
Collaboration
HP Elite Presenter Mouse
2CE30AA#xxx
HP UC Conferencing Keyboard
K8P74AA#xxx
HP Stereo 3.5mm Headset
T1A66AA
HP Stereo USB Headset
T1A67AA
HP USB Collaboration Keyboard
Z9N38AA
HP Wireless Collaboration Keyboard
Z9N39AA#xxx
HP Wireless Premium Keyboard
Z9N41AA#xxx
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
Summary of Changes
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 41
Date of change:
Version History:
Description of change:
April 6, 2018
From v1 to v2
Changed
Weight section
June 11, 2018
From v2 to v3
Changed
Operating system, Processor, Graphics, Storage, Wights & Dimensions
June 26, 2018
From v3 to v4
Changed
Processors, Storage and Drives, Software and Security, Power, System
Unit sections and format changes
August 27, 2018
From v4 to v5
Changed
Format
August 30, 2018
From v5 to v6
Changed
Intel® Xeon® E-2186M
October 15, 2018
From v6 to v7
Changed
October refresh
August 9, 2019
From v7 to v8
Added
9th Generation Intel Core Processors
September 4, 2019
From v8 to v9
Changed
Processors section
November 4, 2019
From v9 to v10
Changed
At A Glance, DISPLAY, SOFTWARE AND SECURITY sections
QuickSpecs
HP ZBook Studio G5 Mobile Workstation
c05939918 — DA – 16153 Worldwide — Version 10 — November 4, 2019
Page 42
Copyright © 2019 HP Development Company, L.P.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
Microsoft and Windows are registered trademarks of the Microsoft Group of companies. Intel, Core, vPro, Xeon and Thunderbolt
are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Linux is the registered trademark
of Linus Torvalds in the U.S. and other countries. Bluetooth is a registered trademark of its proprietor, used by HP Inc. under
license. Adobe is a trademark of Adobe Systems Incorporated. NVIDIA, the NVIDIA logo, Optimus and Quadro are trademarks
and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. ENERGY STAR is a registered trademark of the
U.S. Environmental Protection Agency. SD, SDHC, and SDXC, are trademarks or registered trademarks of SD-3C in the United
States, other countries or both. USB Type-C and USB-C are trademarks of USB Implementers Forum. DisplayPort™ and the
DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other
countries.
Loading...
