HP ZBook 15 G2 Maintenance And Service Manual

HP ZBook 15 G2 Mobile Workstation

Maintenance and Service Guide

© Copyright 2015 HP Development Company,
L.P.

AMD is a trademark of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by HP Inc. under license.
Intel, Celeron, and Pentium are trademarks of
Intel Corporation in the U.S. and other
countries. Microsoft and Windows are
trademarks of the Microsoft group of
companies.

The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.

Second Edition: August 2015

First Edition: September 2014

Document Part number: 768562-002

Product notice

This user guide describes features that are
common to most models. Some features may
not be available on your computer.

Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to

http://www.microsoft.com for details.

Software terms

By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a full refund subject to the
refund policy of your seller.

For any further information or to request a full
refund of the price of the computer, please
contact your seller.

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place

the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, at
surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as
pillows or rugs or clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft
surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with
the user-accessible surface temperature limits dened by the International Standard for Safety of
Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description ....................................................................................................................................... 1

2 External component identication .................................................................................................................. 7

Display .................................................................................................................................................................... 7

Top .......................................................................................................................................................................... 8

TouchPad ............................................................................................................................................. 8

Lights ................................................................................................................................................... 9

Buttons, speakers, and ngerprint reader (select models only) ...................................................... 10

Keys ................................................................................................................................................... 11

Front ..................................................................................................................................................................... 12

Left ....................................................................................................................................................................... 13

Right ..................................................................................................................................................................... 14

Rear ...................................................................................................................................................................... 15

Bottom ................................................................................................................................................................. 16

Service tag ........................................................................................................................................................... 18

3 Illustrated parts catalog .............................................................................................................................. 19

Computer major components .............................................................................................................................. 19

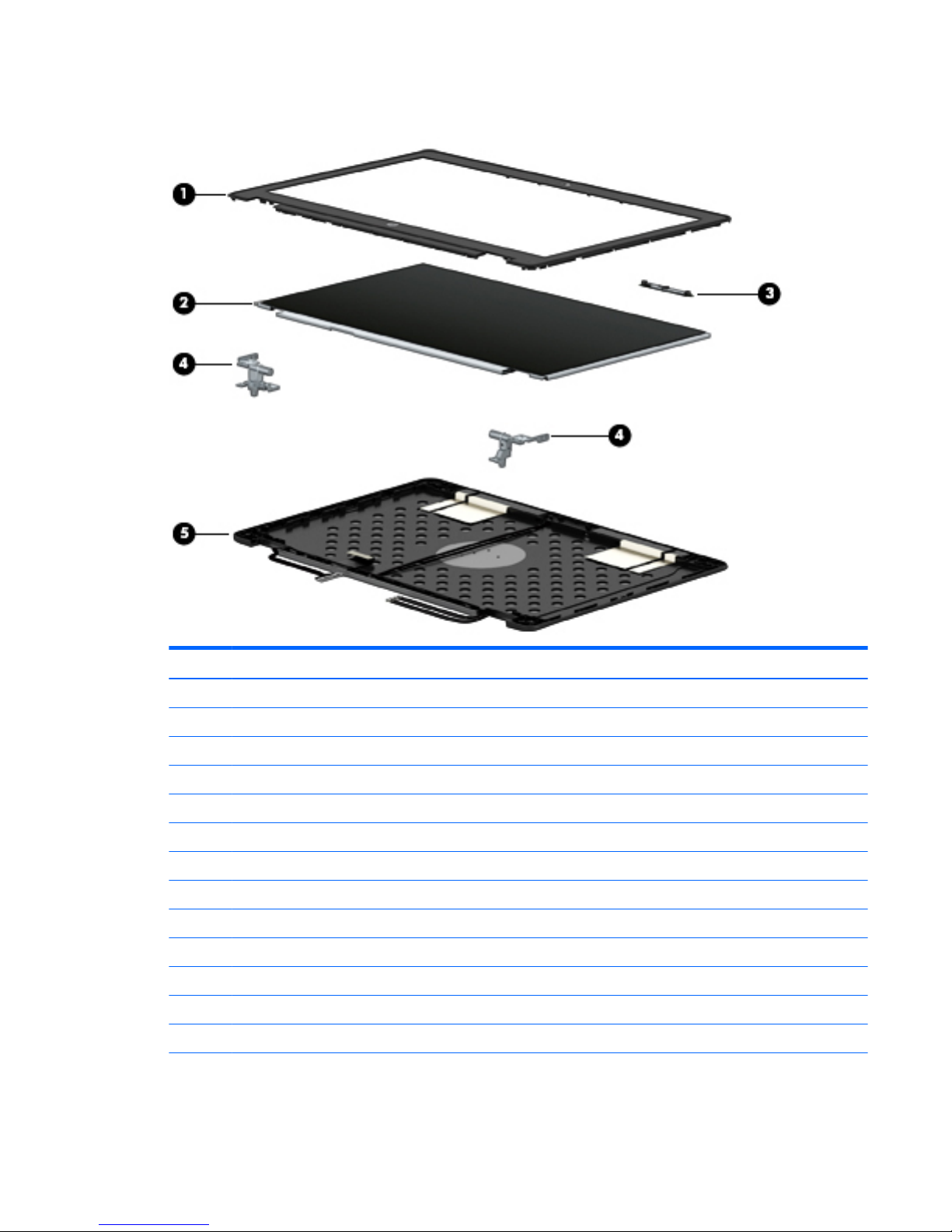

LED display assembly subcomponents ............................................................................................................... 25

Bracket Kit ............................................................................................................................................................ 26

Cable Kit ............................................................................................................................................................... 26

Plastics Kit ........................................................................................................................................................... 27

Mass storage devices ........................................................................................................................................... 28

Miscellaneous parts ............................................................................................................................................. 29

4 Removal and replacement procedures preliminary requirements .................................................................... 31

Tools required ...................................................................................................................................................... 31

Service considerations ......................................................................................................................................... 31

Plastic parts ....................................................................................................................................... 31

Cables and connectors ...................................................................................................................... 32

Drive handling ................................................................................................................................... 32

Grounding guidelines ........................................................................................................................................... 32

Electrostatic discharge damage ........................................................................................................ 32

Packaging and transporting guidelines .......................................................................... 34

Workstation guidelines ................................................................................ 34

v

5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 36

Component replacement procedures .................................................................................................................. 36

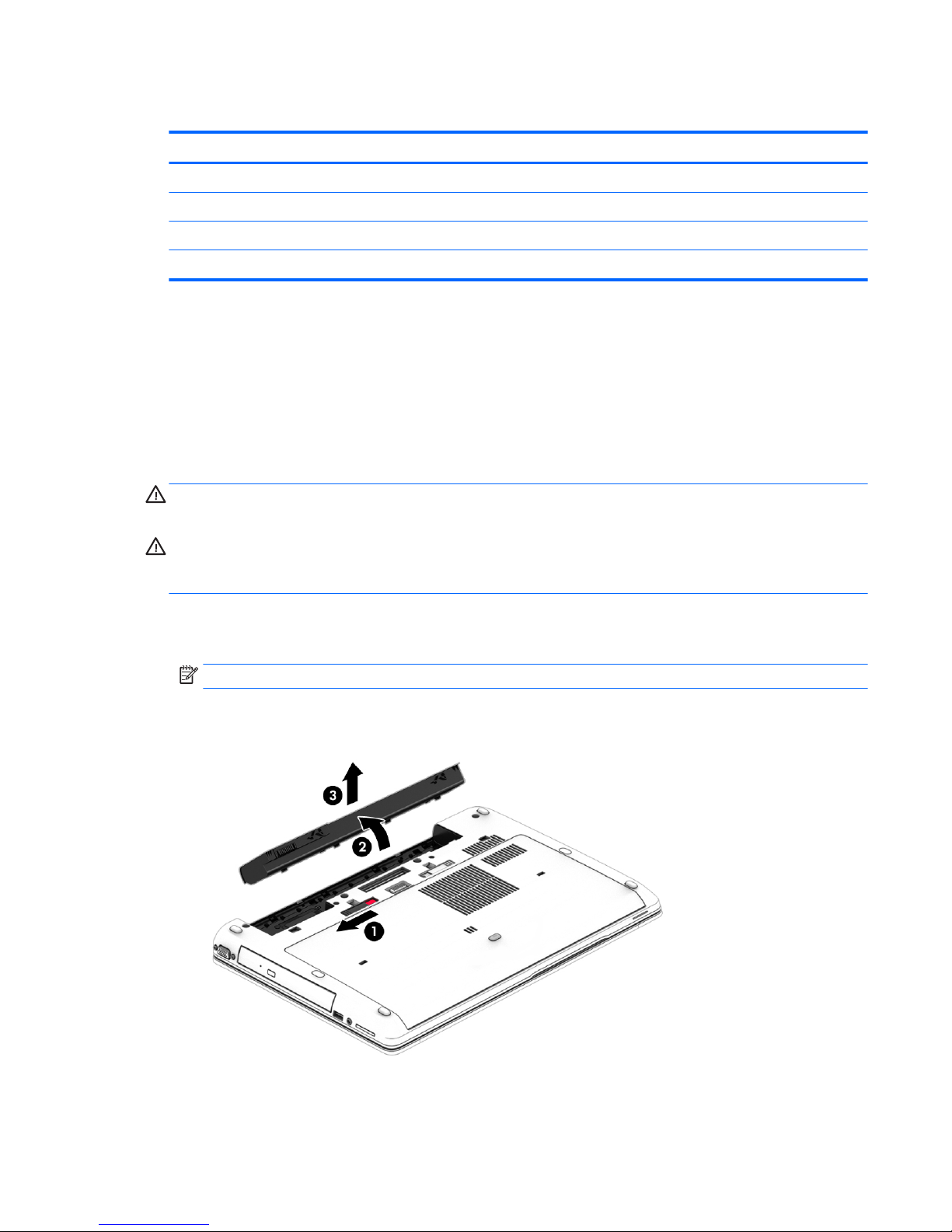

Battery ............................................................................................................................................... 37

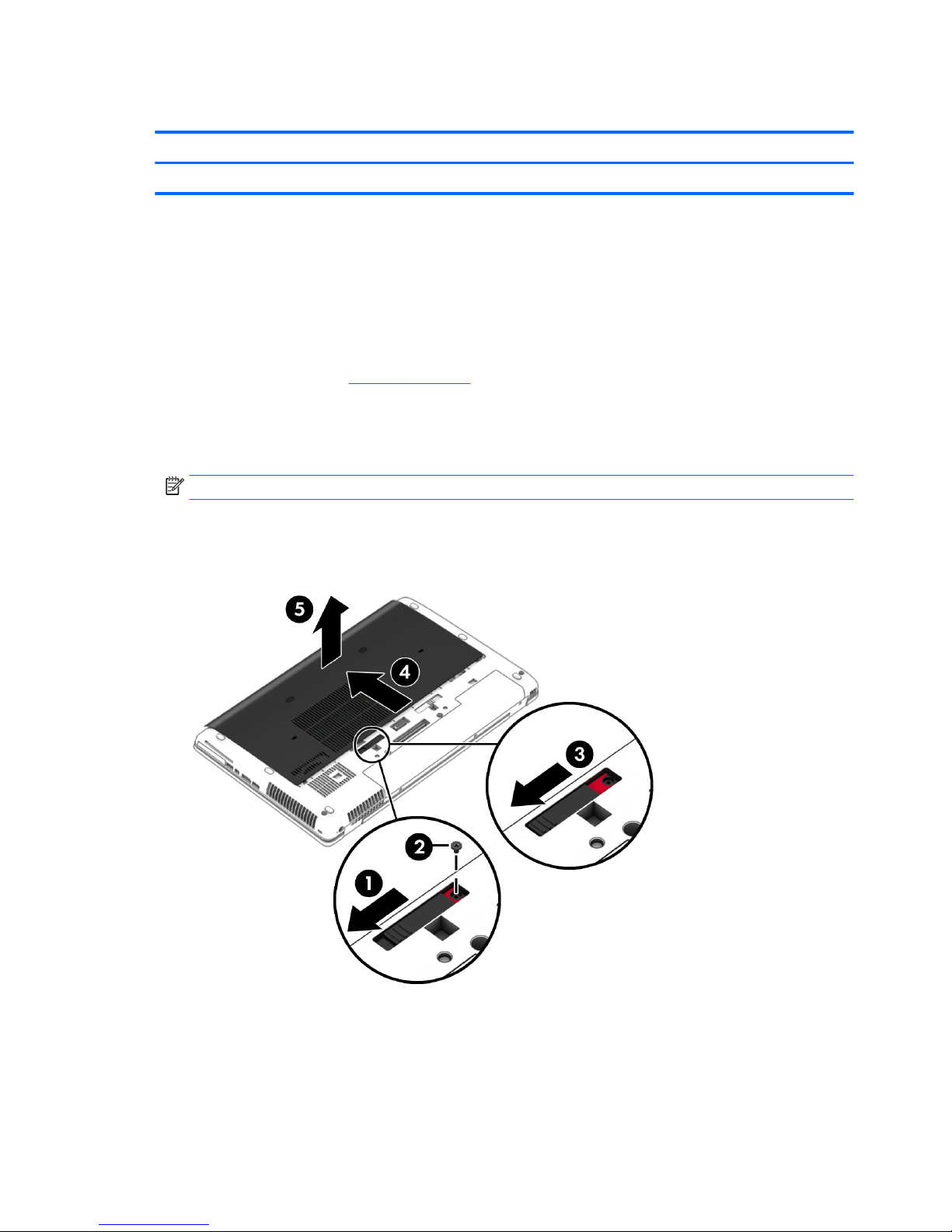

Service cover ..................................................................................................................................... 38

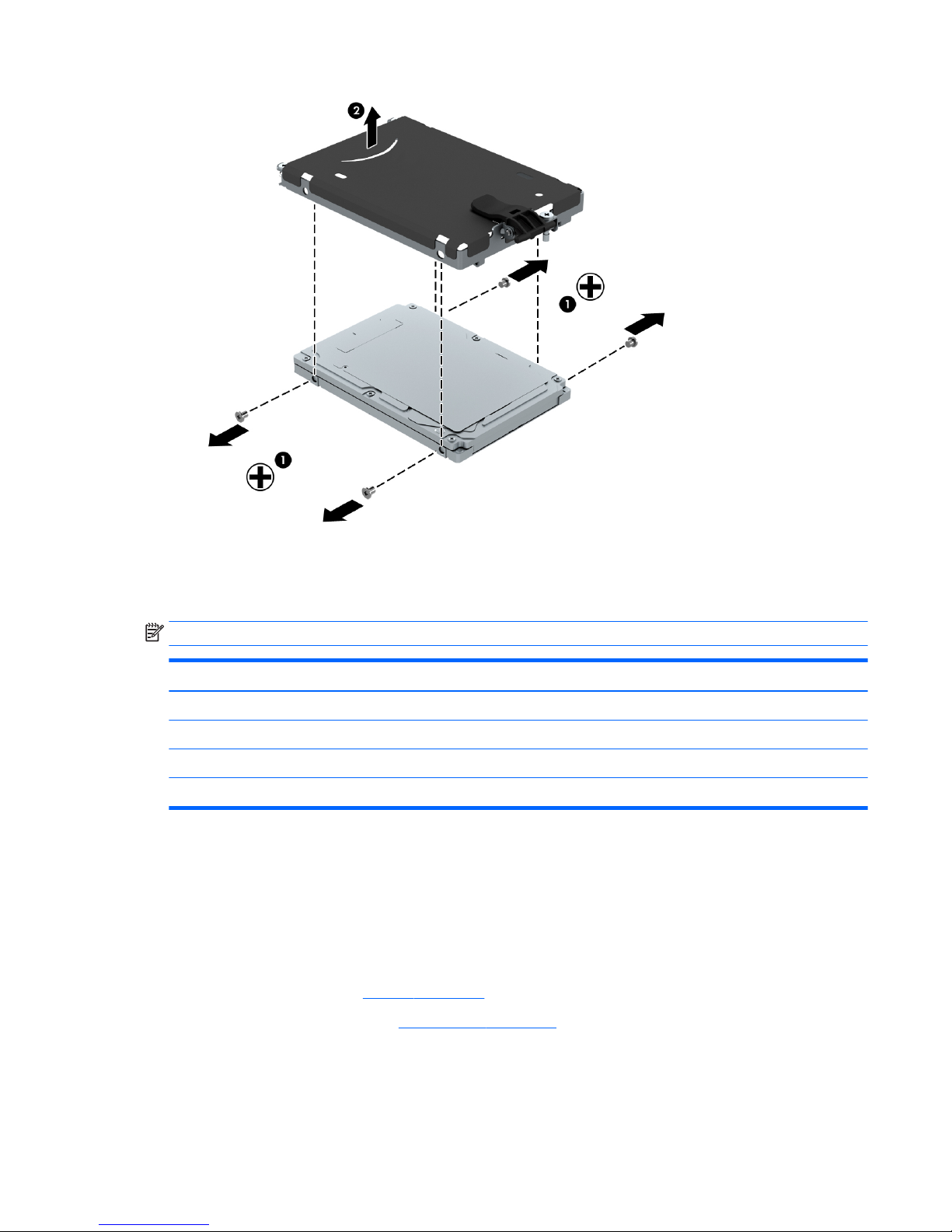

Hard drive .......................................................................................................................................... 39

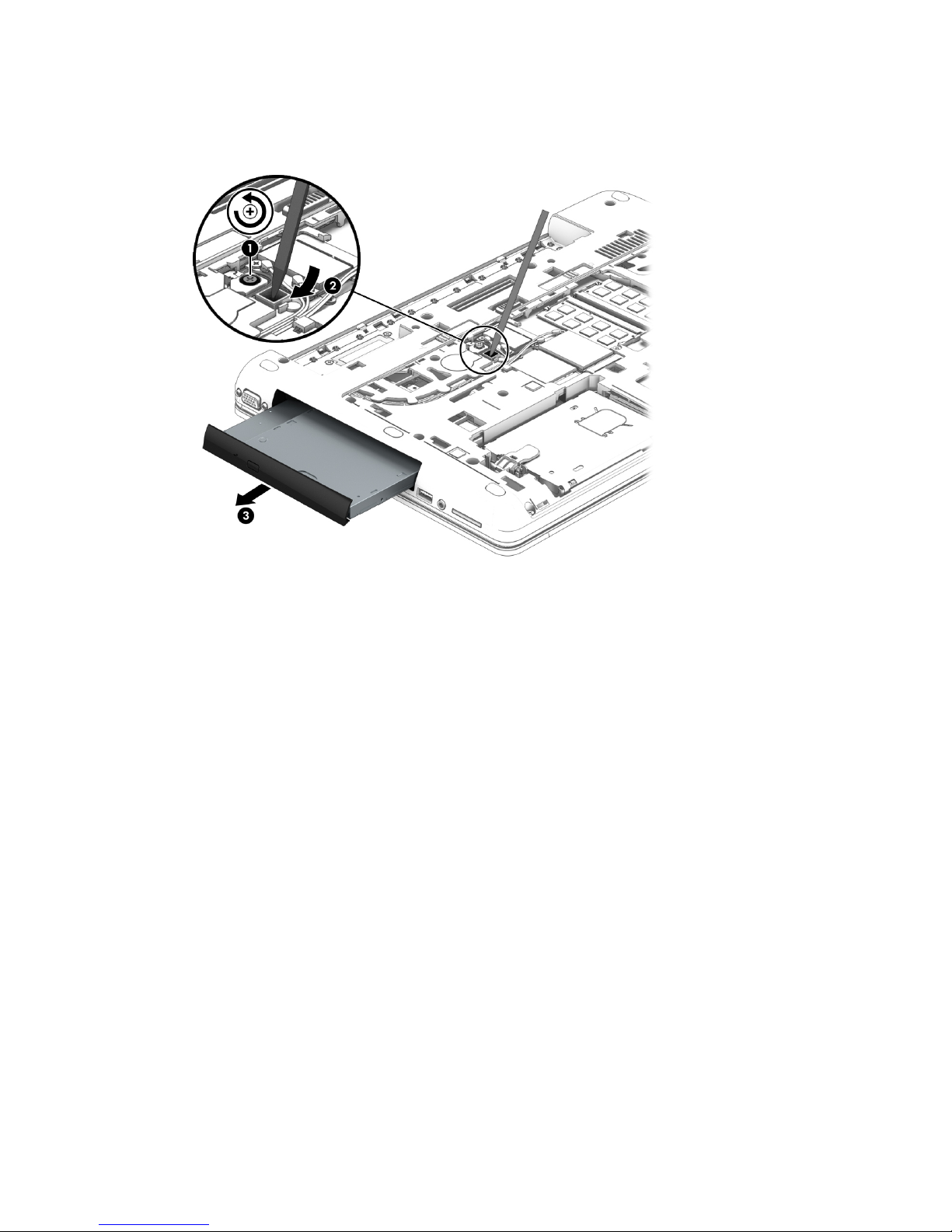

Optical drive ....................................................................................................................................... 41

WWAN module ................................................................................................................................... 43

Solid-state drive (M.2) ....................................................................................................................... 45

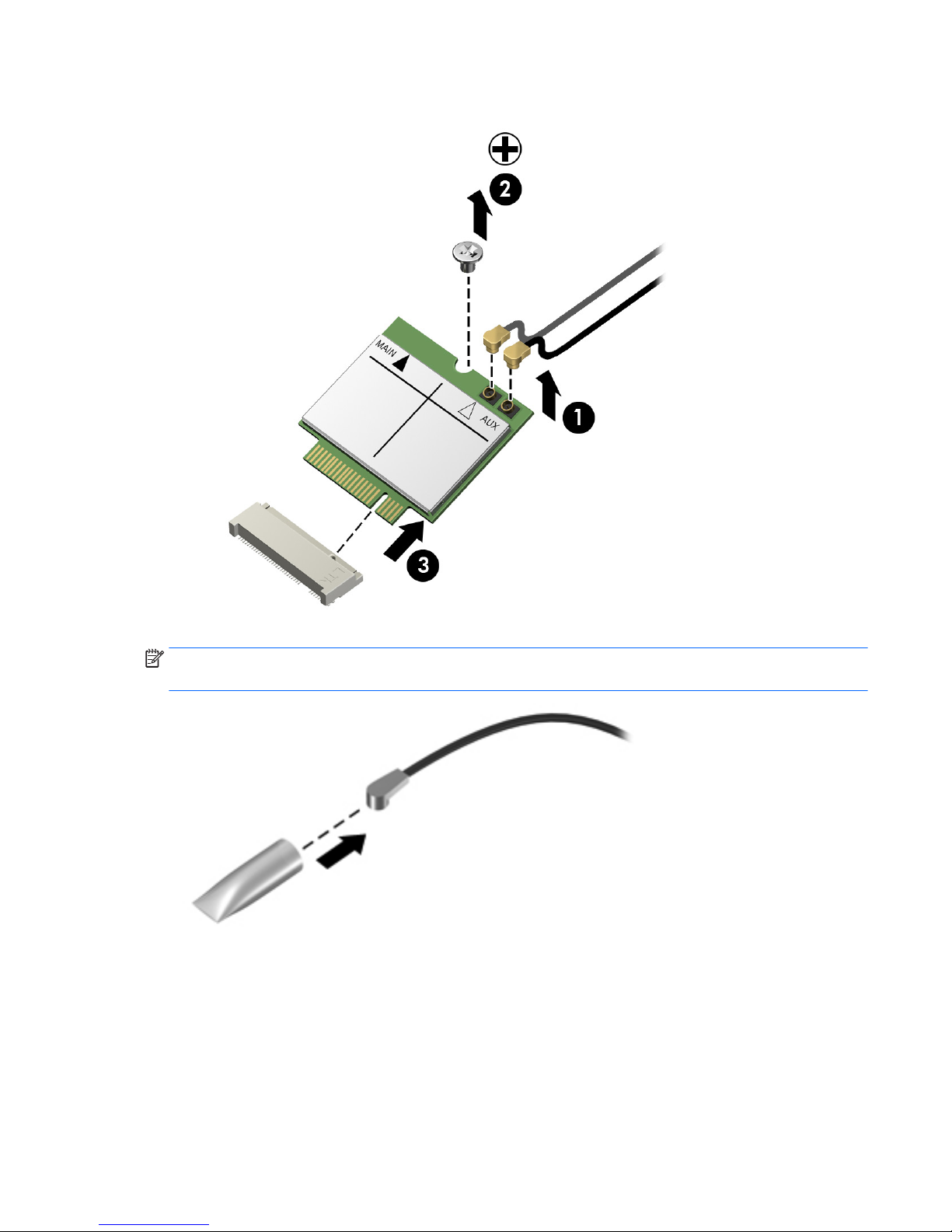

WLAN module .................................................................................................................................... 46

Primary memory module .................................................................................................................. 48

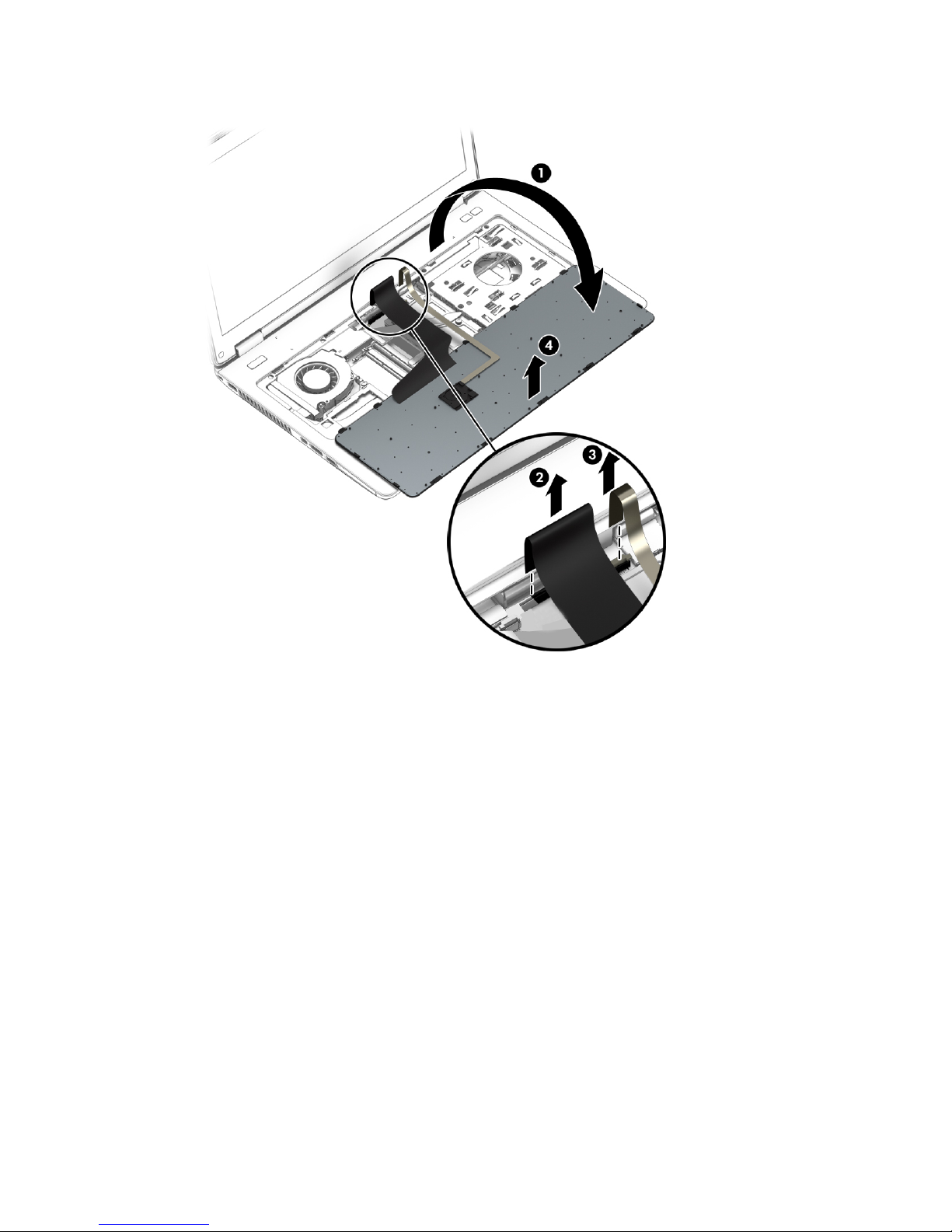

Keyboard ........................................................................................................................................... 50

Expansion memory module .............................................................................................................. 54

6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 56

Component replacement procedures .................................................................................................................. 56

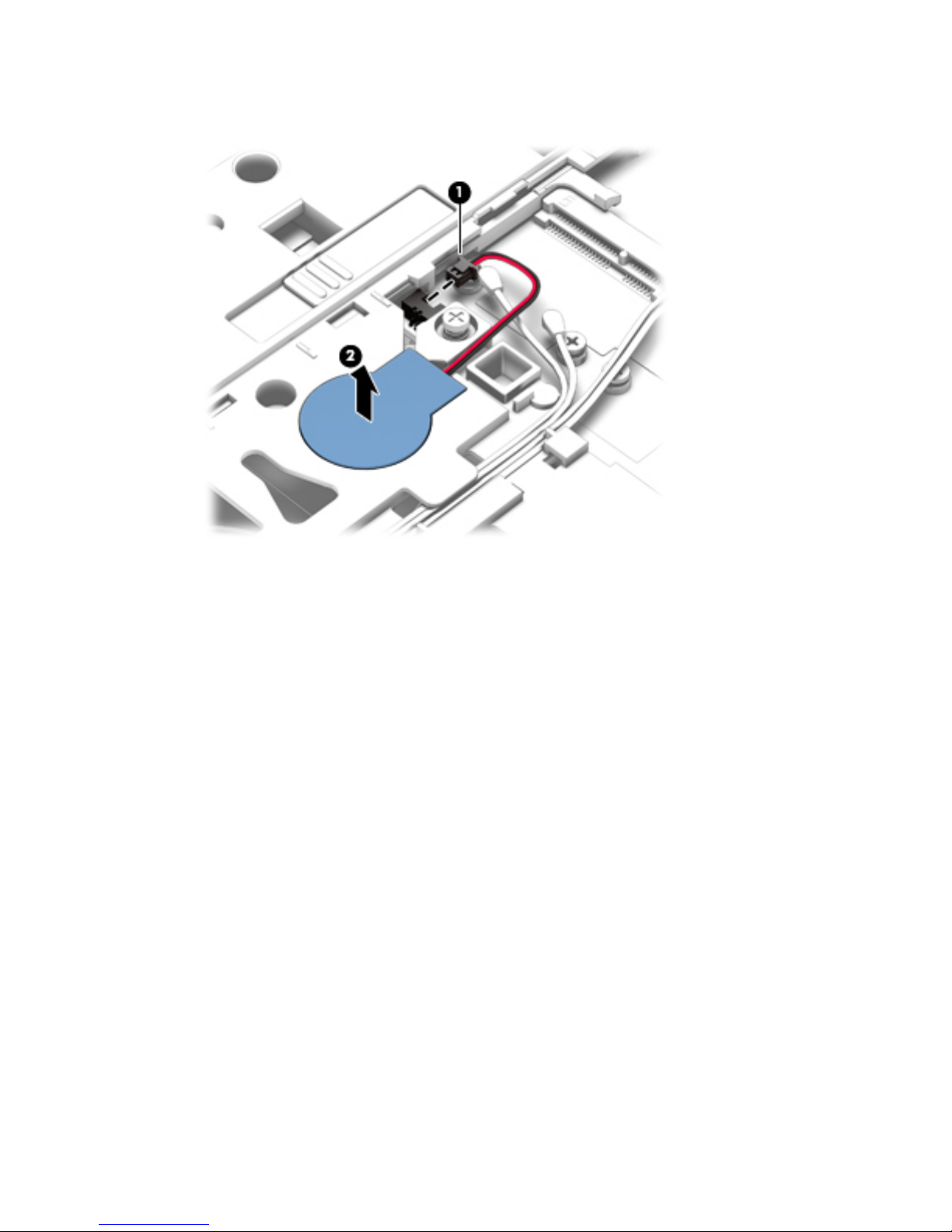

RTC battery ........................................................................................................................................ 56

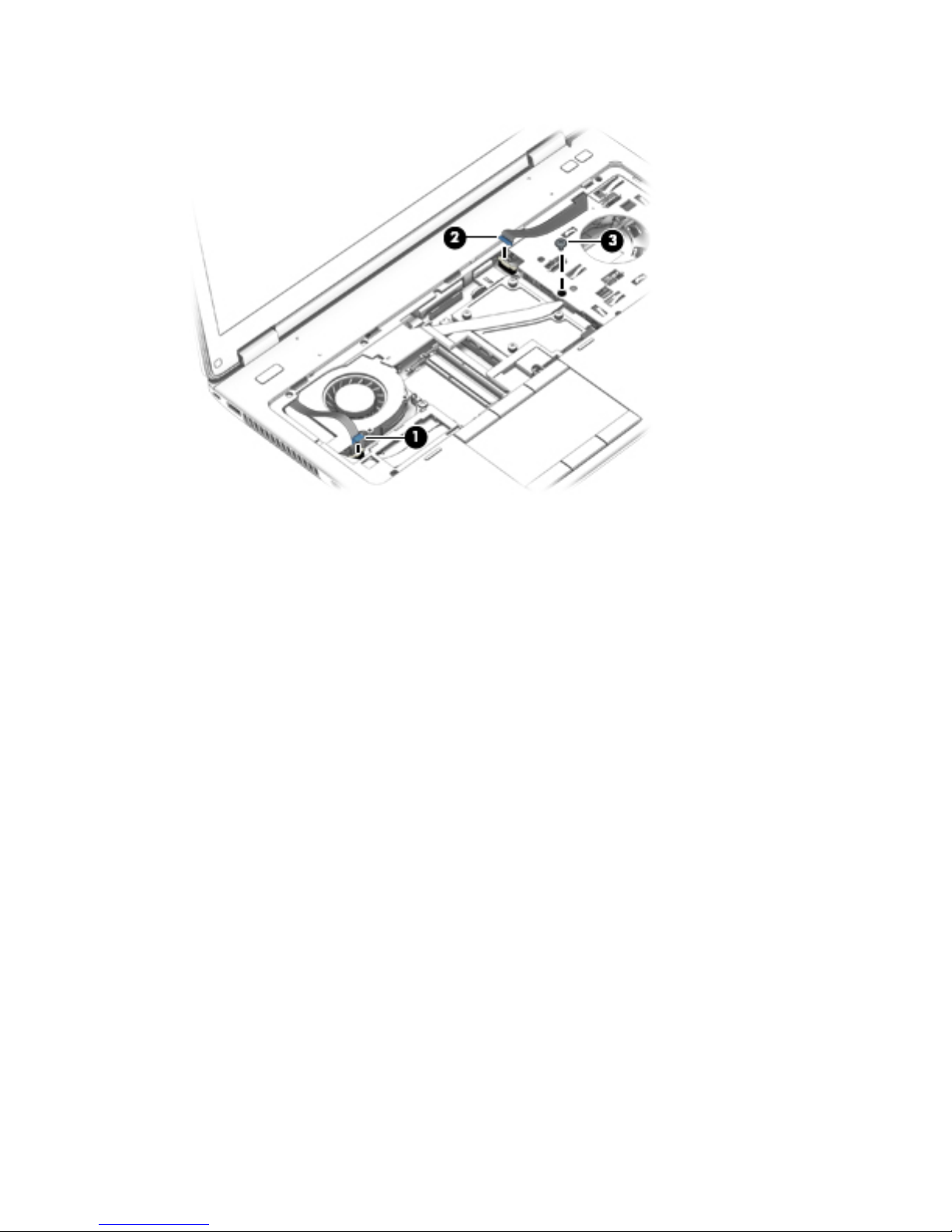

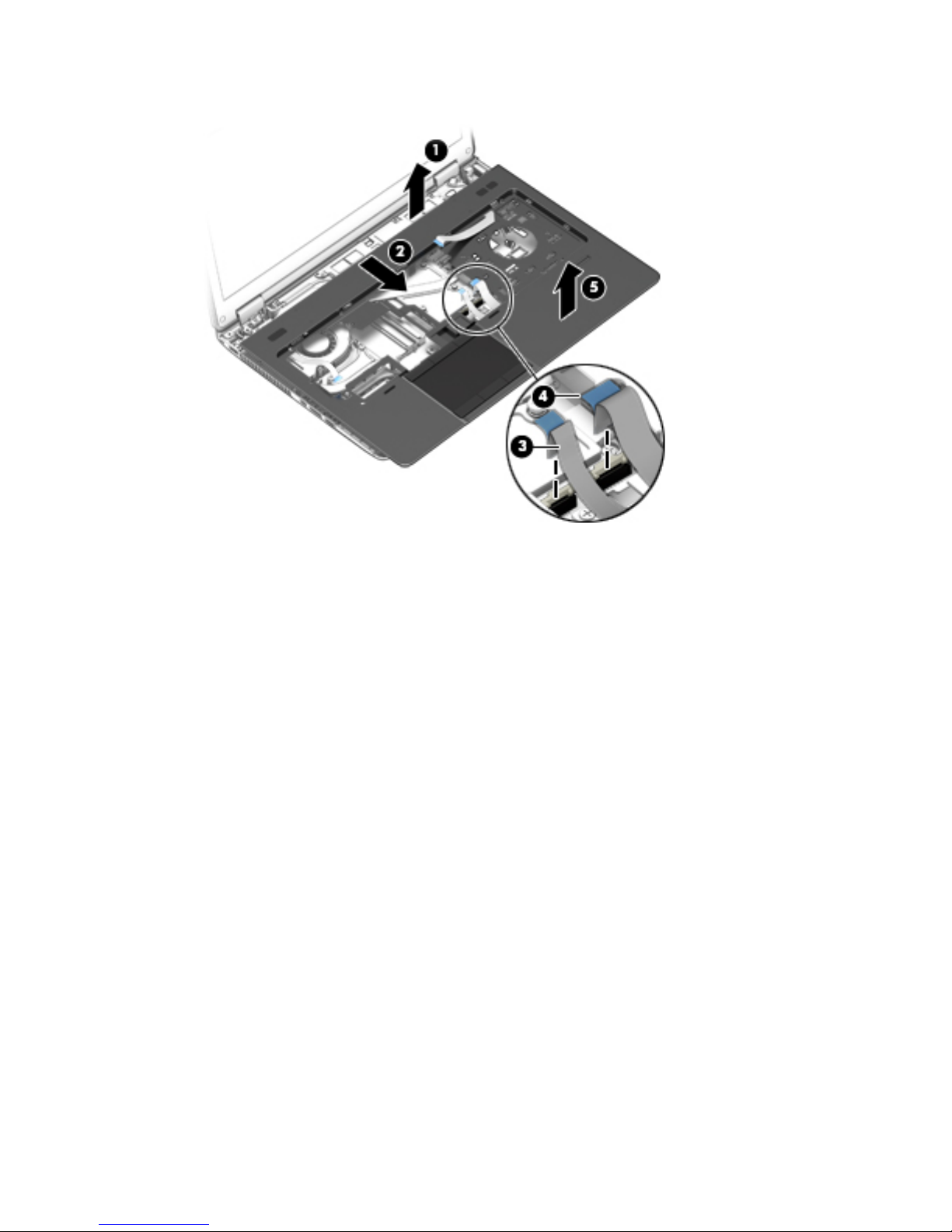

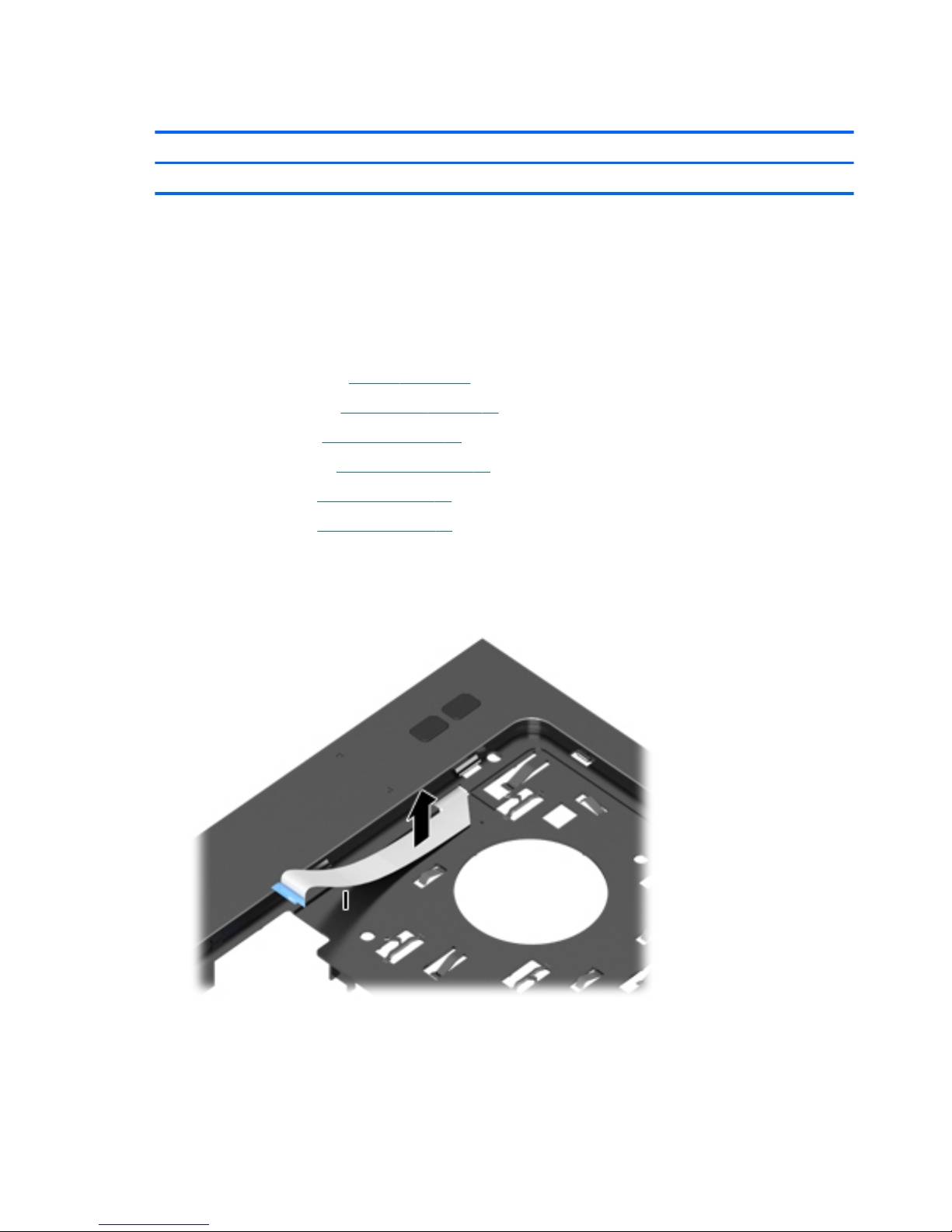

Top cover ........................................................................................................................................... 58

Fingerprint reader board ................................................................................................................... 62

Function button board ....................................................................................................................... 64

Power button board .......................................................................................................................... 66

ExpressCard assembly ...................................................................................................................... 67

Smart card reader .............................................................................................................................. 69

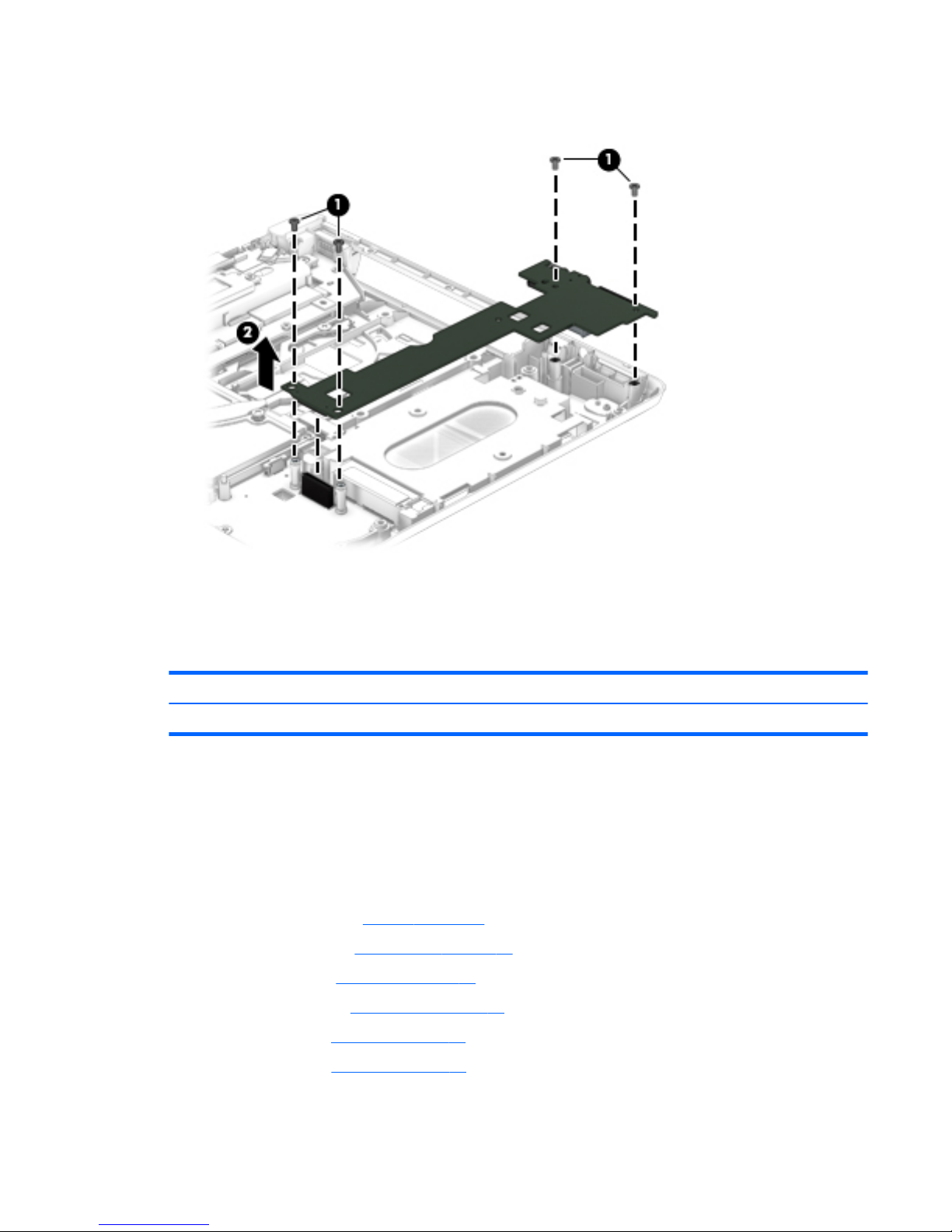

Audio/USB board ............................................................................................................................... 70

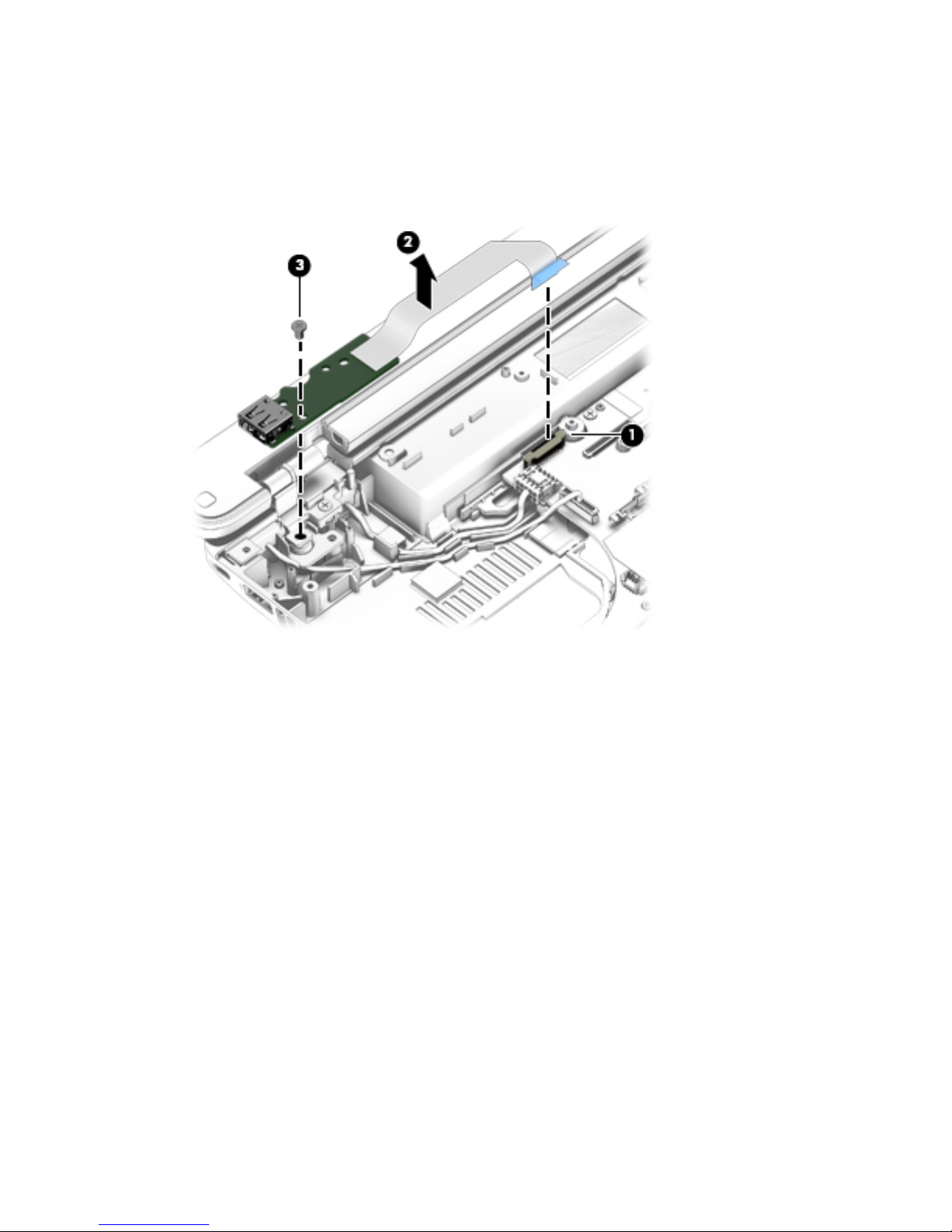

USB board .......................................................................................................................................... 71

Speakers ............................................................................................................................................ 73

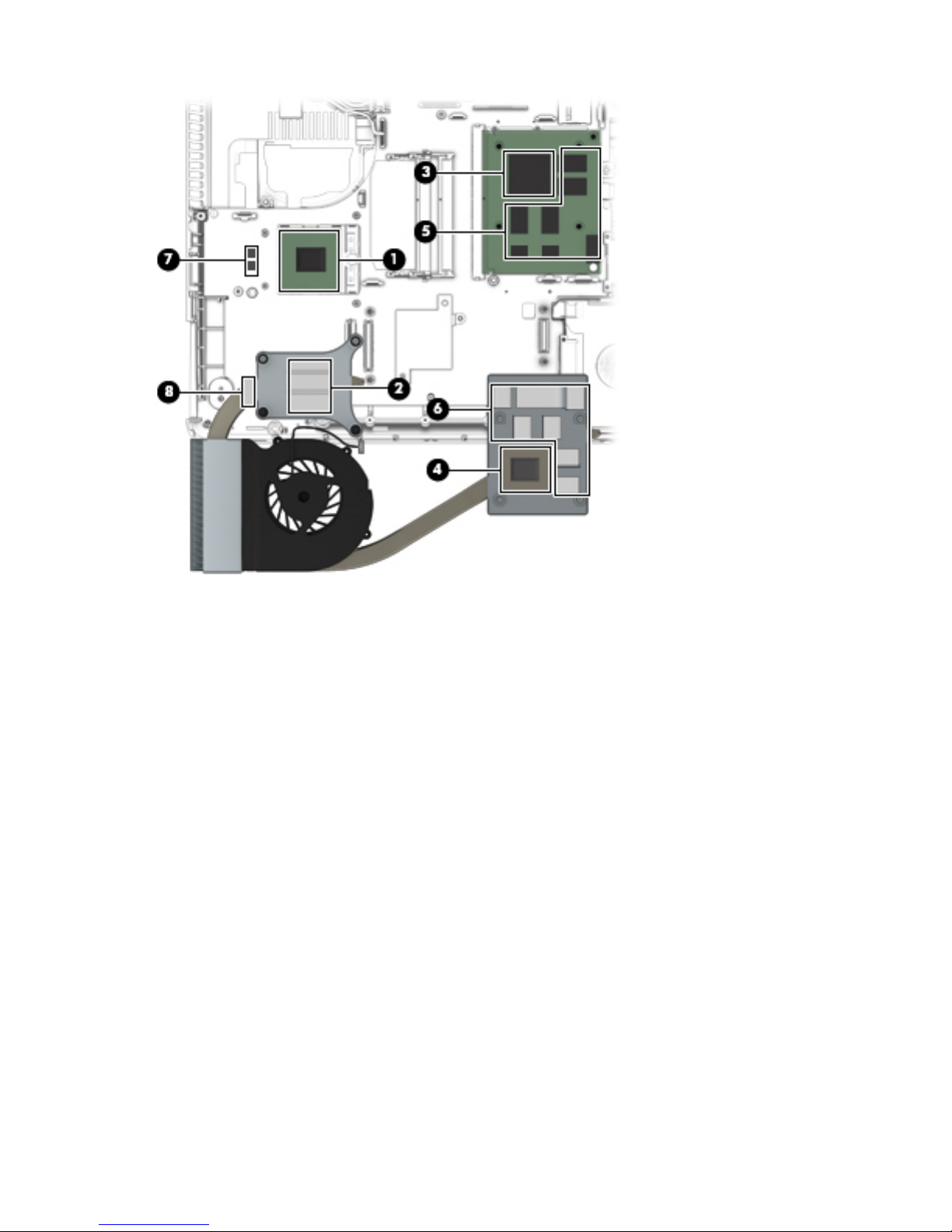

Fan/heat sink assembly .................................................................................................................... 74

Processor ........................................................................................................................................... 77

Graphics board .................................................................................................................................. 78

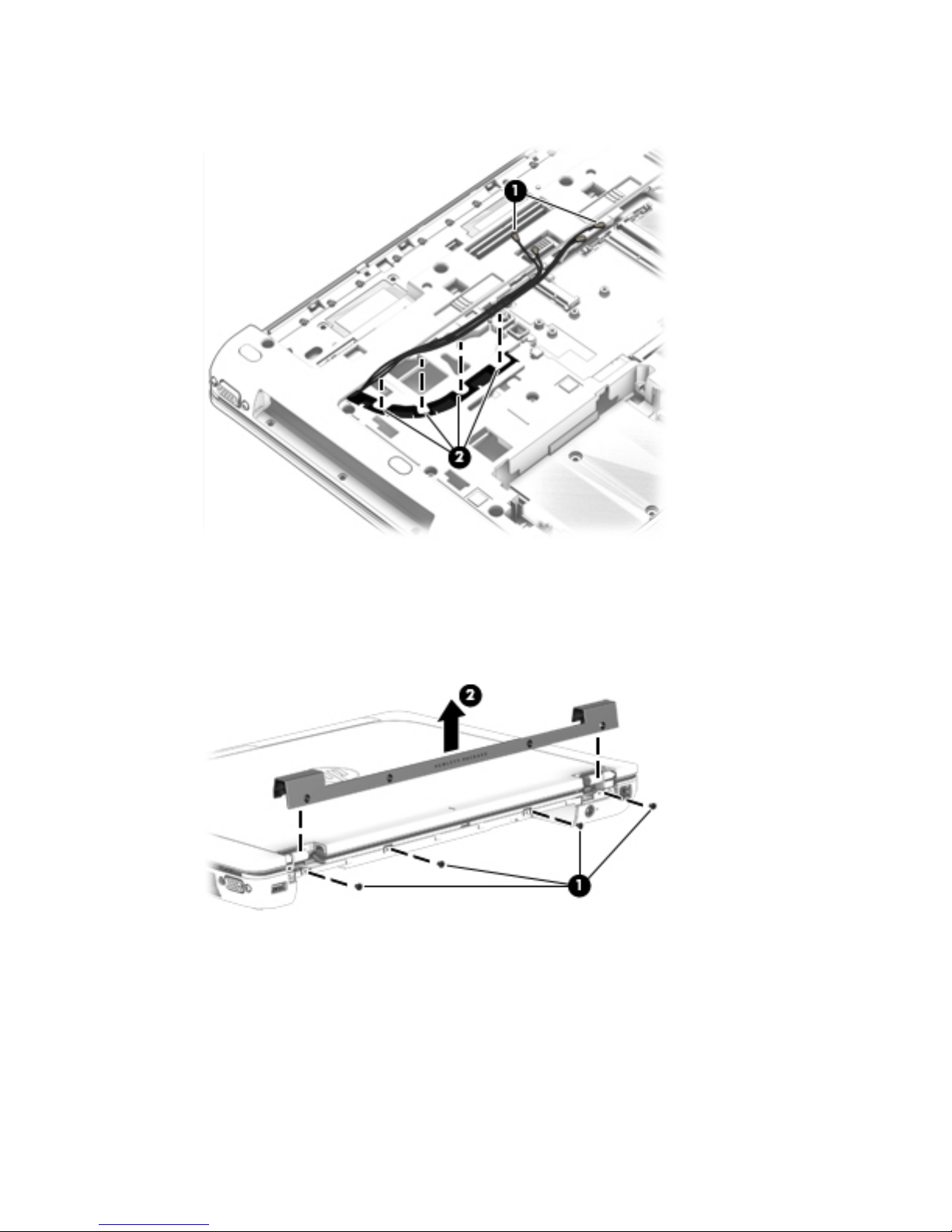

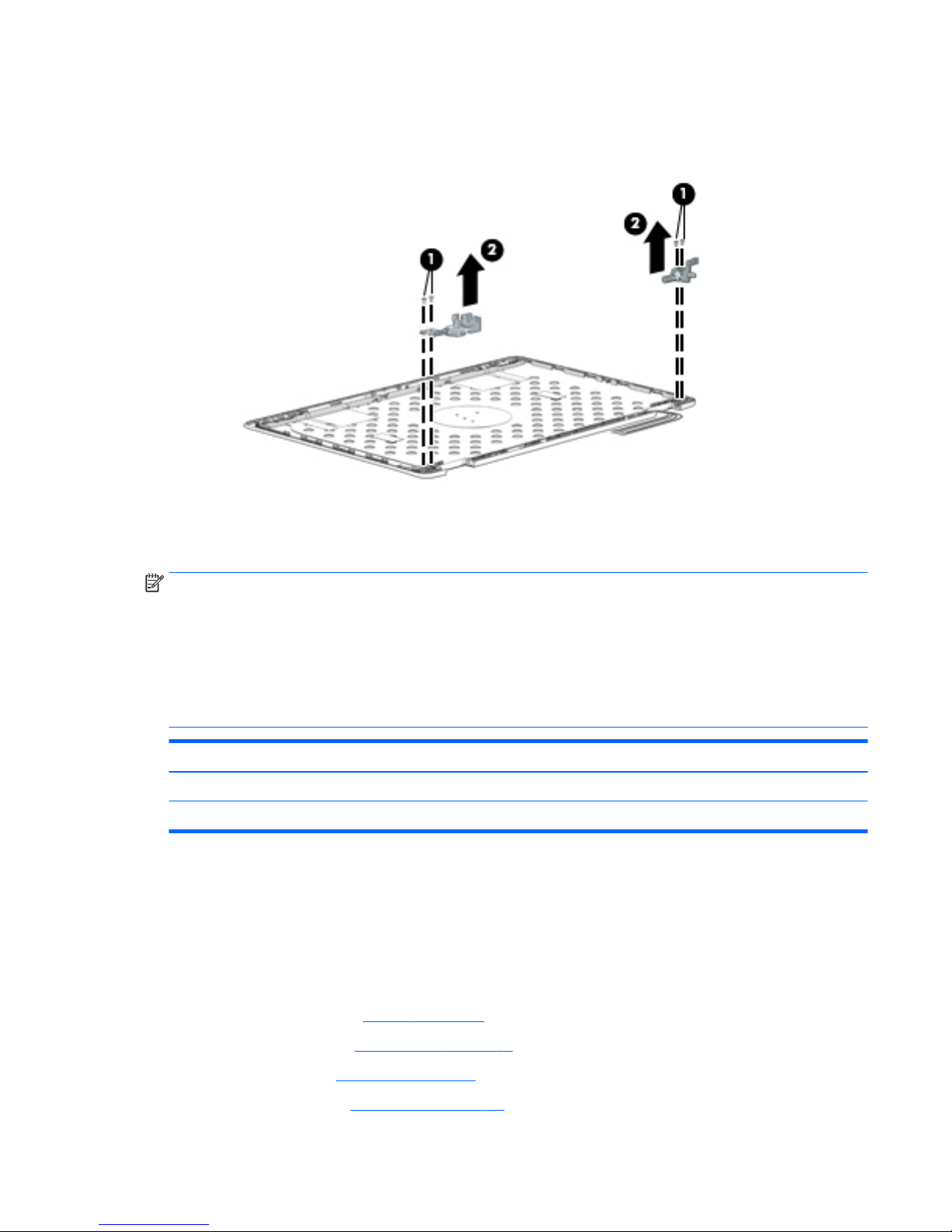

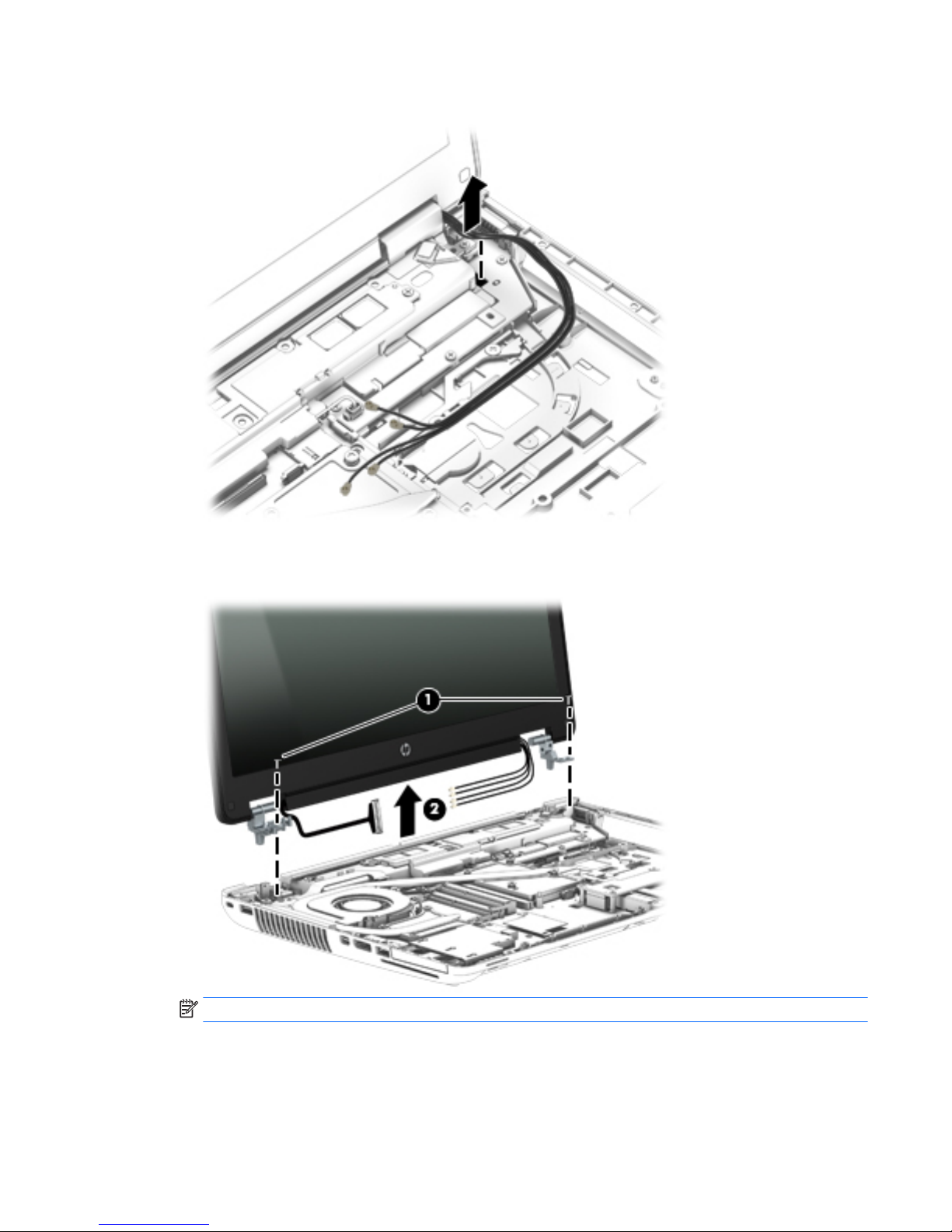

Display assembly ............................................................................................................................... 80

System board .................................................................................................................................... 87

Power connector cable ...................................................................................................................... 91

RJ-45 (network) cable ....................................................................................................................... 93

7 Computer Setup (BIOS) and MultiBoot in Windows 7 ....................................................................................... 96

Using Computer Setup ......................................................................................................................................... 96

Starting Computer Setup .................................................................................................................. 96

Navigating and selecting in Computer Setup ................................................................................... 96

Restoring factory settings in Computer Setup ................................................................................. 97

Updating the BIOS ............................................................................................................................. 97

Determining the BIOS version ......................................................................................... 97

vi

Downloading a BIOS update ........................................................................................... 98

Using MultiBoot ................................................................................................................................................... 99

About the boot device order ............................................................................................................. 99

Choosing MultiBoot preferences ....................................................................................................... 99

Setting a new boot order in Computer Setup ................................................................. 99

Dynamically choosing a boot device using the f9 prompt ............................................. 99

Setting a MultiBoot Express prompt ............................................................................ 100

Entering MultiBoot Express preferences ...................................................................... 100

Using HP Sure Start ........................................................................................................................................... 100

8 Computer Setup (BIOS) and MultiBoot in Windows 8.1 ................................................................................... 101

Using Computer Setup ....................................................................................................................................... 101

Starting Computer Setup ................................................................................................................ 101

Navigating and selecting in Computer Setup ................................................................................. 101

Restoring factory settings in Computer Setup ............................................................................... 102

Updating the BIOS ........................................................................................................................... 102

Determining the BIOS version ...................................................................................... 102

Downloading a BIOS update ......................................................................................... 103

Using MultiBoot ................................................................................................................................................. 104

About the boot device order ........................................................................................................... 104

Choosing MultiBoot preferences ..................................................................................................... 104

Setting a new boot order in Computer Setup ............................................................... 104

Dynamically choosing a boot device using the f9 prompt ........................................... 105

Setting a MultiBoot Express prompt ............................................................................ 105

Entering MultiBoot Express preferences ...................................................................... 105

Using HP Sure Start ........................................................................................................................................... 106

9 Computer Setup (BIOS), TPM, and HP Sure Start in Windows 10 ...................................................................... 107

Using Computer Setup ....................................................................................................................................... 107

Starting Computer Setup ................................................................................................................ 107

Navigating and selecting in Computer Setup ................................................................................. 107

Restoring factory settings in Computer Setup ............................................................................... 108

Updating the BIOS ........................................................................................................................... 109

Determining the BIOS version ...................................................................................... 109

Downloading a BIOS update ......................................................................................... 109

Changing the boot order using the f9 prompt ................................................................................ 110

TPM BIOS settings (select products only) ......................................................................................................... 110

Using HP Sure Start (select products only) ....................................................................................................... 111

vii

10 HP PC Hardware Diagnostics (UEFI) ............................................................................................................ 112

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................. 113

11 Backup and recovery in Windows 7 ............................................................................................................ 114

Creating recovery media and backups .............................................................................................................. 114

Guidelines ........................................................................................................................................ 114

Creating recovery media with HP Recovery Disc Creator ............................................................... 114

Creating recovery media ............................................................................................... 115

Backing up your information .......................................................................................................... 115

Performing a system recovery .......................................................................................................................... 116

Using the Windows recovery tools .................................................................................................. 116

Using f11 recovery tools (select models only) ............................................................................... 117

Using Windows 7 operating system media ..................................................................................... 117

12 Backup and recovery in Windows 8.1 ......................................................................................................... 119

Backing up your information ............................................................................................................................. 119

Performing a system recovery .......................................................................................................................... 119

Using the Windows recovery tools .................................................................................................. 119

Using f11 recovery tools ................................................................................................................. 120

Using Windows operating system media (purchased separately) ................................................. 121

Using Windows Refresh or Windows Reset .................................................................................... 121

Using HP Software Setup ................................................................................................................ 121

13 Backup and recovery in Windows 10 .......................................................................................................... 122

Creating recovery media and backups .............................................................................................................. 122

Creating HP Recovery media (select products only) ....................................................................... 122

Using Windows tools ......................................................................................................................................... 123

Restore and recovery ......................................................................................................................................... 124

Recovering using HP Recovery Manager ........................................................................................ 124

What you need to know before you get started ........................................................... 124

Using the HP Recovery partition (select products only) .............................................. 125

Using HP Recovery media to recover ............................................................................ 125

Changing the computer boot order .............................................................................. 126

Removing the HP Recovery partition (select products only) ....................................... 126

14 Specications .......................................................................................................................................... 127

Computer specications .................................................................................................................................... 127

Hard drive specications ................................................................................................................................... 128

viii

15 Statement of memory volatility ................................................................................................................ 129

Nonvolatile memory usage ............................................................................................................................... 131

Questions and answers ..................................................................................................................................... 133

Using HP Sure Start (select models only) .......................................................................................................... 134

16 Power cord set requirements .................................................................................................................... 135

Requirements for all countries .......................................................................................................................... 135

Requirements for specic countries and regions ............................................................................................. 135

17 Recycling ................................................................................................................................................ 137

Index ........................................................................................................................................................... 138

ix

x

1 Product description

Category Description

Product Name HP ZBook 15 G2 Mobile Workstation

Processors

●

Intel® Quad Core® i7-4910MQ 2.90-GHz (SC turbo up to 3.90-GHz) processor (1600-MHz
front-side bus (FSB), 8.0-MB L3 cache, 47 W)

●

Intel Quad Core i7-4810MQ 2.80-GHz (SC turbo up to 3.80-GHz) processor (1600-MHz
FSB, 6.0-MB L3 cache, 47 W)

●

Intel Quad Core i7-4710MQ 2.50-GHz (SC turbo up to 3.50-GHz) processor (1600-MHz
FSB, 6.0-MB L3 cache, 47 W)

●

Intel Quad Core i7-4610M 3.00-GHz (SC turbo up to 3.70-GHz) processor (1600-MHz
FSB, 4.0-MB L3 cache, 37 W)

●

Intel Dual Core i5-4340M 2.90-GHz (SC turbo up to 3.60-GHz) processor (1600-MHz FSB,

3.0-MB L3 cache, 37 W)

●

Intel Dual Core i5-4210M 2.60-GHz (SC turbo up to 3.20-GHz) processor (1600-MHz FSB,

3.0-MB L3 cache, 37 W)

Chipset Mobile Intel QM87

Graphics Switchable graphics:

●

NVIDIA® Quadro® K2100M NVIDIA N15P-Q3 with 2-GB GDDR5 graphics subsystem
memory (128-MB×16, 1.35-V, 1500-MHz, qty 8, 128-bit, FBW)

●

NVIDIA Quadro K1100M NVIDIA N15P-Q1 with 2-GB GDDR5 graphics subsystem memory
(128-MB×16, 1.35-V, 1400-MHz, qty 8, 128-bit, FBW)

●

NVIDIA Quadro K610M NVIDIA N15M-Q2 with 1-GB GDDR5 graphics subsystem memory
(128-MB×16, 1.35-V, 1300-MHz, qty 4, 64-bit, FBW)

●

AMD FirePro M5100) with 2-GB GDDR5 graphics subsystem memory (128-MB×16, 1.5-V,
1125-MHz, qty 8, 128-bit, FBW)

Support for hybrid (switchable) graphics

Support for open GL

Support for DisplayPort 1.2

Support for up to 4 total displays (through APR)

Support for NVIDIA Mosaic Technology

Panel

●

15.6-in, Quad HD+, AG, LED, UWVA (3200×1800 resolution, 300 nits) with or without
camera

●

15.6-in, full-high denition (FHD), AntiGlare (AG), light-emitting diode (LED), UWVA
(1920×1080 resolution, 300 nits), with or without camera

●

15.6-in, FHD, AG, LED, SVA (1280×1024 resolution), with or without camera

All panels are 16:9 aspect ratio

Memory Four customer-accessible/upgradable memory module slots

Support for DDR3L 1600-MHz PC3-12800 dual channel memory

Support for 32768-MB of system RAM in the following congurations:

1

Category Description

●

32768-MB total system memory (8192-MB×4)

●

16384-MB total system memory (8192-MB×2 or 4096-MB×4)

●

8192-MB total system memory (8192-MB×1, 4096-MB×2)

●

4096-MB total system memory (4096-MB×1)

MiniCard solid-state drive 512-GB mSATA SSD

256-GB mSATA SSD

Hard drive Support for 6.35-cm (2.5-in) hard drives in 7.0-mm (.28-in) and 9.5-mm (.37-in) thickness

Support for Serial ATA

Support for 3D DriveGuard hard drive protection

Support toolless removal

Support for the following hard drives:

●

1-TB, 7200-rpm

●

750-GB, 7200-rpm

●

500-GB, 7200-rpm

●

500-GB, 7200-rpm, self-encrypting drive

●

500-GB, 5400-rpm, self-encrypting drive, FIPS

Support for the following 6.35-cm (2.5-in) solid-state drives:

●

512-GB SATA-3 self-encrypting, OPAL2

●

512-GB SATA-3

●

256-GB SATA-3

●

256-GB SATA-3 self-encrypting, OPAL2

●

256-GB SATA-3 self-encrypting, OPAL1

●

240-GB SATA-3

●

180-GB SATA-3

●

128-GB SATA-3

Upgrade drive Support for the following 9.5-mm (.37-in) , SATA optical drives:

●

Blu-ray R/RE DVD±RW SuperMulti Double-Layer Drive

●

Blu-ray ROM DVD±RW SuperMulti Double-Layer Drive

●

DVD±RW SuperMulti Double-Layer Drive

Support for 6.35-cm (2.5-in) 750-GB, 7200-rpm SATA hard drive in 7.0-mm (.28-in) and 9.5­mm (.37-in) thicknesses

Support for the following 6.35-cm (2.5-in) drives:

●

1-TB, 7200-rpm

●

512-GB SATA-3 self-encrypting SSD, OPAL2

●

512-GB SSD

●

256-GB SED SSD, OPAL2

Supports for no Upgrade drive option (bezel)

2 Chapter 1 Product description

Category Description

Audio and video Stereo speakers

Dual array microphone

HD Audio with DTS Studio sound

Integrated HD 720p webcam (xed [no tilt], activity LED, 1280×720 by 30 frames per second)

Support for no webcam option

Ethernet Intel I217-LM 10/100/1000 Ethernet, with Intel I217-LM Gigabit Network Connection

Support for Power Optimizer

Intel Stable Image Platform Program (SIPP)

Wireless Integrated wireless local area network (WLAN) options by way of wireless module

Two WLAN antennas built into display assembly

Support for the following WLAN formats:

●

Intel Dual Band Wireless-AC 7260 802.11 AC 2x2 WiFi + BT 4.0 Combo Adapter

●

Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + BT 4.0 combo

●

Intel Dual Band Wireless-N 7260NB 802.11 a/b/g/n (2x2) WiFi

Integrated wireless wide area network (WWAN) options by way of wireless module (select

models only)

Two WWAN antennas built into display assembly

Security provided by subscriber identify module (SIM), slot located in battery bay

Support for the following WWAN formats:

●

HP hs3110 HSPA+ Mobile Broadband Module

●

HP lt4211 LTE/EV-DO/HSPA+ Gobi 4G Module

●

HP lt4112 LTE/HSPA+ Mobile Broadband Module

External media cards ExpressCard – 54mm

Integrated SD UHS-II ash media slot

Supports next generation SD (Secure Digital); Backward compatible with SDHC, SDXC

Ports

●

Multi-Pin AC Port

●

Combination mic-in/stereo headphone jack

●

Battery (secondary) connector

●

DisplayPort 1.2

●

Docking

●

RJ-45 (Ethernet)

●

Thunderbolt 2

●

USB 3.0 (2)

●

USB 3.0 charging (1)

●

USB: 2.0 (1)

●

VGA (Dsub 15 pin) supporting: 1920×1200 external resolution @ 75 Hz, hot plug and
unplug and autodetection for correct output to wide-aspect vs. standard aspect video

3

Category Description

Docking Docking support for HP Docking Station

Docking support for HP Advanced Docking Station

Keyboard/pointing devices Full-size, island-style, backlit (and non-backlit) keyboard with numeric keypad

Gesture support: MultiTouch gestures enabled, two-nger scrolling, and pinch­zoom as default

Support for Windows dual-point (pointing stick with 3 pointing stick buttons plus TouchPad
with 3 TouchPad buttons)

DuraKeys

Spill Resistant with drain

TouchPad requirements:

●

On/o button

●

Glass with chemical etched surface (DuraPad)

●

Support for 2-way scroll

●

Taps enabled by default

●

Gestures enabled by default:

◦

2-nger scrolling

◦

2-nger zoom (pinch)

●

Image sensor TouchPad

Power requirements Support for the following AC adapters:

●

200-W, HP Smart Adapter, slim

●

150-W, HP Smart Adapter, slim

3-wire plug (with ground pin)

Power requirements (continued) Support for the following batteries

●

9-cell, 100-WHr, 3.0-AHr, Li-ion battery

●

9-cell, 73-WHr, 2.2-AHr, Li-ion battery

●

8-cell, 83-WHr, 2.8-AHr, Li-ion battery

●

8-cell, 75-WHr, 2.8-AHr, Li-ion battery

Security Support security lock

Trusted platform module (TPM) 1.2 (Inneon; soldered down) and TPM Enhanced Drive Lock
(For the People's Republic of China and Asia Pacic countries and regions, disabled
but available)

Fingerprint reader

Integrated smart card reader

Preboot authentication (password, smart card)

Operating system Preinstalled:

●

Windows 10 Home 64 High-end

●

Windows 10 Home 64 High-end Chinese Market

●

Windows 10 Home 64 High-end Single Language

4 Chapter 1 Product description

Category Description

●

Windows 10 Professional 64

●

Windows 10 Professional 64 Downgrade Windows 7 64

●

Windows 8.1 CH 64-bit (only available in the People's Republic of China with Hardware
Kit)

●

Windows 8.1 CH 64 CPPP

●

Windows 8.1 Professional 64-bit

●

Windows 8.1 Professional 64-bit MSNA

●

Windows 8.1 Professional 64-bit for Education

●

Windows 8.1 Professional 64-bit DPK with Windows 7 Professional 64-bit Image

●

Windows 8.1 Professional 64-bit DPK with Windows 7 Professional 64-bit Image MSNA

●

Windows 7 Professional 64-bit

●

Windows 7 Professional 64-bit MSNA

●

FreeDOS 2.0

●

Ubuntu Linux

Restore media-DRDVD:

●

DRDVD Windows 10 (available with any Windows 10 operating system, required any
Windows 10 downgrade operating system)

●

DRDVD Windows 8.1 (available with any Windows 8.1 loc, required any Windows 8.1
Professional downgrade operating system)

●

DRDVD Windows 7 Service Pack 1 (available with any Windows 8.1 or Windows 7
Professional downgrade loc)

●

SRDVD Ubuntu Linux

Operating system (continued) Restore media-OSDVD:

●

Windows 8.1 64-bit (for service only)

●

Windows 8.1 Country-Specic 64-bit (for service only)

●

Windows 8.1 Emerging Market 64-bit (for service only)

●

Windows 8.1 Professional 64-bit (only available and required with Windows 8.1
downgrade operating systems)

●

Windows 7 Professional 64-bit, Service Pack 1 (available with any Windows 8.1
Professional or Windows 7 Professional downgrade loc, not available in the People's
Republic of China)

Certied:

●

Microsoft WHCK

●

SuSE Linux Enterprise (SLED) Service Pack 2, 64-bit

Web-only support:

●

Windows 10 Enterprise

●

Windows 8.1 Enterprise 64-bit

●

Windows 7 Enterprise 64-bit, Service Pack 1

●

Windows 7 Enterprise 32-bit, Service Pack 1

●

Windows 7 Professional 32-bit, Service Pack 1

5

Category Description

●

Windows 7 Ultimate 64-bit, Service Pack 1

●

Windows 7 Ultimate 32-bit, Service Pack 1

Serviceability End user replaceable parts:

●

AC adapter

●

Battery (system)

●

Hard drive

●

Keyboard

●

Memory modules (4, 2 expansion and 2 primary)

●

mSATA SSD

●

Optical drive

●

SSD

●

WLAN module

●

WWAN module

6 Chapter 1 Product description

2 External component identication

Display

Component Description

(1) WLAN antennas * Send and receive wireless signals to communicate with wireless local

area networks (WLAN).

(2) WWAN antennas * (select models only) Send and receive wireless signals to communicate with wireless wide

area networks (WWAN).

(3) Internal microphones Record sound.

(4) Webcam light (select models only) On: The webcam is in use.

(5) Webcam (select models only) Records video and captures photographs. Some models allow you to

video conference and chat online using streaming video.

To use the webcam:

Windows 7: Select Start > All Programs > Communication and Chat
> CyberLink YouCam.

Windows 8.1: Access HP Support Assistant. To access HP Support

Assistant, from the Start screen, select the HP Support Assistant
app.

Windows 10: Type camera in the taskbar search box, and then
select Camera.

(6) Internal display switch Turns o the display or initiates Sleep if the display is closed while

the power is on.

Display 7

Component Description

NOTE: The display switch is not visible from the outside of the

computer.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions. For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices
that applies to your country or region. To access this guide:

Windows 7: Select Start > Help and Support > User Guides.

Windows 8.1: From the Start screen, type support, and then select the HP Support Assistant app.

Windows 10: Select Start, select All apps, select HP Help and Support, and then select HP Documentation.

Top

TouchPad

Component Description

(1) Pointing stick Moves the pointer and selects or activates items on the screen.

(2) Left pointing stick button Functions like the left button on an external mouse.

(3) TouchPad on/o button Turns the TouchPad on and o.

(4) TouchPad zone Reads your nger gestures to move the pointer and select or

activate items on the screen.

NOTE: The TouchPad also supports edge-swipe gestures.

(5) Left TouchPad button Functions like the left button on an external mouse.

(6) Right pointing stick button Functions like the right button on an external mouse.

(7) Center pointing stick button Functions like the center button on an external mouse.

(8) Center TouchPad button Functions like the center button on an external mouse.

(9) Right TouchPad button Functions like the right button on an external mouse.

8 Chapter 2 External component identication

Lights

Component Description

(1) Power light

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state, a power-saving
state. The computer shuts o power to the display and
other unneeded components.

●

O: The computer is o or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.

NOTE: For select models, the Intel® Rapid Start Technology

feature is enabled at the factory. Rapid Start Technology allows
your computer to resume quickly from inactivity.

(2) Caps lock light On: Caps lock is on, which switches the keys to all capital letters.

(3) Microphone mute light

●

Amber: microphone sound is o.

●

O: microphone sound is on.

(4) Num lock light On: Num lock is on.

(5) Wireless light On: An integrated wireless device, such as a wireless local area

network (WLAN) device and/or a Bluetooth® device, is on.

NOTE: On some models, the wireless light is amber when all

wireless devices are o.

(6) Mute light

●

Amber: Computer sound is o.

●

O: Computer sound is on.

Top 9

Buttons, speakers, and ngerprint reader (select models only)

Component Description

(1) Power button

●

When the computer is o, press the button to turn on the
computer.

●

When the computer is on, press the button briey to initiate
Sleep.

●

When the computer is in the Sleep state, press the button
briey to exit Sleep.

●

When the computer is in Hibernation, press the button
briey to exit Hibernation.

CAUTION: Pressing and holding down the power button will

result in the loss of unsaved information.

If the computer has stopped responding and Windows shutdown
procedures are ineective, press and hold the power button for at
least 5 seconds to turn o the computer.

NOTE: For select models, the Intel® Rapid Start Technology

feature is enabled at the factory. Rapid Start Technology allows
your computer to resume quickly from inactivity.

To learn more about your power settings, see your power
options:

Windows 7: Select Start > Control Panel > System and Security
> Power Options.

Windows 8.1: From the Start screen, type power, select Power
and sleep settings, and then select Power and sleep from the

list of applications.

Windows 10: Type power in the taskbar search box, and then
select Power and sleep settings.

– or –

10 Chapter 2 External component identication

Component Description

Right-click the Start button, and then select Power Options.

(2) Speakers Produce sound.

(3) Wireless button Turns the wireless feature on or o but does not establish a

wireless connection.

(4) Volume mute button Mutes and restores speaker sound.

(5) Fingerprint reader (select models only) Allows a ngerprint logon to Windows, instead of a password

logon.

Keys

Component Description

(1) esc key Displays system information when pressed in combination with

the fn key.

(2) fn key Executes frequently used system functions when pressed in

combination with a function key, the num lk key, the esc key, or
the b key.

(3) Windows button Windows 7: Displays the Windows Start menu.

Windows 8.1: Returns you to the Start screen from an open app

or the Windows desktop.

NOTE: Pressing the Windows key again will return you to the

previous screen.

Windows 10: Opens the Windows Start menu.

NOTE: Pressing the Windows key again will close the Start

menu.

(4) Function keys Execute frequently used system functions when pressed in

combination with the fn key.

Top 11

Component Description

(5) num lk key Alternates between the navigational and numeric functions on

the integrated numeric keypad.

(6) Integrated numeric keypad When num lk has been enabled, it can be used like an external

numeric keypad.

Front

Component Description

(1) Wireless light On: An integrated wireless device, such as a wireless local

area network (WLAN) device and/or a Bluetooth® device, is
on.

NOTE: On some models, the wireless light is amber when

all wireless devices are o.

(2) Power light

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state, a power­saving state. The computer shuts o power to the
display and other unneeded components.

●

O: The computer is o or in Hibernation.
Hibernation is a power-saving state that uses the
least amount of power.

NOTE: For select models, the Intel® Rapid Start

Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity.

(3) AC adapter/Battery light

●

White: The computer is connected to external power
and the battery is charged from 90 to 99 percent.

●

Amber: The computer is connected to external power
and the battery is charged from 0 to 90 percent.

●

Blinking amber: A battery that is the only available
power source has reached a low battery level. When
the battery reaches a critical battery level, the
battery light begins blinking rapidly.

●

O: The battery is fully charged.

(4) Hard drive/optical drive light

●

Blinking white: The hard drive or optical drive is being
accessed.

●

Amber: HP 3D DriveGuard has temporarily parked the
hard drive.

12 Chapter 2 External component identication

Left

Component Description

(1) Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a deterrent, but

it may not prevent the computer from being mishandled or
stolen.

(2) USB 2.0 port Connects an optional USB device, such as a keyboard, mouse,

external drive, printer, scanner or USB hub.

(3) Vent Enables airow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for
the internal fan to cycle on and o during routine operation.

(4) Thunderbolt DisplayPort Connects an optional high-resolution display device or a high-

performance data device.

NOTE: Thunderbolt is new technology. Install all the latest

drivers for your Thunderbolt device before connecting the
device to the Thunderbolt DisplayPort. Thunderbolt cable and
Thunderbolt device (sold separately) must be compatible with
Windows. To determine whether your device is Thunderbolt
Certied for Windows, go to https://thunderbolttechnology.net/

products.

(5) Dual-Mode DisplayPort Connects an optional digital display device, such as a high-

performance monitor or projector.

(6) USB 3.0 charging (powered) port Connects an optional USB device, such as a keyboard, mouse,

external drive, printer, scanner or USB hub. Standard USB ports
will not charge all USB devices or will charge using a low current.
Some USB devices require power and require you to use a
powered port.

NOTE: USB charging ports can also charge select models of

cell phones and MP3 players, even when the computer is o.

(7) Smart card reader Supports optional smart cards.

(8) ExpressCard slot or smart card reader

(depending on the conguration)

Supports optional ExpressCards or smart cards.

Left 13

Right

Component Description

(1) Memory card reader Reads optional memory cards that store, manage, share, or

access information.

(2) Audio-out (headphone)/Audio-in (microphone)

jack

Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional microphone-only devices.

WARNING! To reduce the risk of personal injury, adjust the

volume before putting on headphones, earbuds, or a headset.
For additional safety information, see the Regulatory, Safety,
and Environmental Notices. To access this guide:

Windows 7: Select Start > Help and Support > User Guides.

Windows 8.1:

From the Start screen, type support, and then select the HP
Support Assistant app.

‒ or –

From the Windows desktop, click the question mark icon in the
notication area, at the far right of the taskbar.

Windows 10:

Select Start, select All apps, select HP Help and Support, and
then select HP Documentation.

NOTE: When a device is connected to the jack, the computer

speakers are disabled.

Be sure that the device cable has a 4-conductor connector that
supports both audio-out (headphone) and audio-in
(microphone).

(3) USB 3.0 port Connects an optional USB device, such as a keyboard, mouse,

external drive, printer, scanner, or USB hub.

(4) Upgrade bay (optical drive shown) (select

models only)

Depending on your computer model, reads an optical disc or
reads and writes to an optical disc.

(5) Optical drive eject button (select models only) Releases the optical drive disc tray.

(6) External monitor port Connects an external VGA monitor or projector.

14 Chapter 2 External component identication

Rear

Component Description

(1) USB 3.0 port Connects an optional USB device, such as a keyboard,

mouse, external drive, printer, scanner or USB hub.

(2) Power connector Connects an AC adapter.

(3) AC adapter/battery light

●

White: The computer is connected to external
power and the battery is charged from 90 to 99
percent.

●

Amber: The computer is connected to external
power and the battery is charged from 0 to 90
percent.

●

Blinking amber: A battery that is the only
available power source has reached a low
battery level. When the battery reaches a critical
battery level, the battery light begins blinking
rapidly.

●

O: The battery is fully charged.

(4) RJ-45 (network) jack/lights Connects a network cable.

●

Green (left): The network is connected.

●

Amber (right): The network is showing activity.

Rear 15

Bottom

Component Description

(1) Battery release latch Releases the battery from the battery bay.

(2) Battery bay Holds the battery.

(3) SIM slot Supports a wireless subscriber identity module (SIM). The

SIM slot is located inside the battery bay.

(4) Docking connector Connects an optional docking device.

(5) Accessory battery connector Connects an optional accessory battery.

(6) Service door release lock Locks the service door.

(7) Service door release latch Releases the service door on the computer.

(8) Vents (3) Enable airow to cool internal components.

16 Chapter 2 External component identication

Component Description

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and o during routine
operation.

(9) Service door Provides access to the hard drive bay, the wireless LAN

(WLAN) module slot, the WWAN module slot, and the
memory module slots.

CAUTION: To prevent an unresponsive system, replace

the wireless module only with a wireless module
authorized for use in the computer by the governmental
agency that regulates wireless devices in your country or
region. If you replace the module and then receive a
warning message, remove the module to restore computer
functionality, and then contact support..

To access Help and Support in Windows 7, select Start >
Help and Support.

To access HP Support Assistant in Windows 8.1, from the
Start screen, select the HP Support Assistant app.

Windows 10: Type support in the taskbar search box,
and then select the HP Support Assistant app.

– or –

Click the question mark icon in the taskbar.

Bottom 17

Service tag

When ordering parts or requesting information, provide the computer serial number and model number
provided on the service tag.

Item Description Function

(1) Product name This is the product name axed to the front of

the computer.

(2) Serial number (s/n) This is an alphanumeric identier that is unique to each

product.

(3) Part number/Product number (p/n) This number provides specic information about

the product's hardware components. The part number
helps a service technician to determine what
components and parts are needed.

(4) Warranty period This number describes the duration of the warranty

period for the computer.

(5) Model description This is the alphanumeric identier used to locate

documents, drivers, and support for the computer.

18 Chapter 2 External component identication

3 Illustrated parts catalog

Computer major components

Computer major components 19

Item Component Spare part number

(1) Display assembly: The DreamVision display assembly is spared as a whole unit assembly only. The LED display assembly

is spared at the subcomponent level only. For more LED display assembly spare part information, see LED display

assembly subcomponents on page 25.

15.6-in, FHD, UWVA, DreamVision display assembly equipped with a webcamera 735965-001

15.6-in, FHD, UWVA, DreamVision display assembly not equipped with a webcamera 735964-001

Hinge Cover Kit, includes: 734294-001

(2a) Hinge cover (includes HP logo)

(2b) Left-side rear corner cover

(2c) Right-side-side rear corner cover

(3) Keyboard (includes keyboard cable):

Keyboard with backlight and pointing stick (includes keyboard cable, backlight cable, and pointing stick cable):

For use in Belgium 733688-A41

For use in Brazil 733688-201

For use in Bulgaria 733688-261

For use in Canada 733688-DB1

For use in the Czech Republic and Slovakia 733688-FL1

For use in Denmark 733688-081

For use in France 733688-051

For use in Germany 733688-041

For use in Greece 733688-151

For use in Hungary 733688-211

For use in Iceland 733688-DD1

For use in India 733688-D61

For use in Israel 733688-BB1

For use in Italy 733688-061

For use in Japan 733688-291

For use in Latin America 733688-161

For use in the Netherlands 733688-B31

For use in Northwest Africa 733688-FP1

For use in Norway 733688-091

For use in Portugal 733688-131

For use in Romania 733688-271

For use in Russia 733688-251

For use in Saudi Arabia 733688-171

For use in Slovenia 733688-BA1

20 Chapter 3 Illustrated parts catalog

Item Component Spare part number

For use in South Korea 733688-AD1

For use in Spain 733688-071

For use in Sweden and Finland 733688-B71

For use in Switzerland 733688-BG1

For use in Taiwan 733688-AB1

For use in Thailand 733688-281

For use in Turkey 733688-141

For use in Turkey (F) 733688-541

For use in the United Kingdom and Singapore 733688-031

For use in the United States 733688-001

Keyboard with pointing stick (includes keyboard cable and pointing stick cable):

For use in Belgium 745663-A41

For use in Brazil 745663-201

For use in Bulgaria 745663-261

For use in Canada 745663-DB1

For use in the Czech Republic and Slovakia 745663-FL1

For use in Denmark 745663-081

For use in France 745663-051

For use in Germany 745663-041

For use in Greece 745663-151

For use in Hungary 745663-211

For use in Iceland 745663-DD1

For use in Israel 745663-BB1

For use in Italy 745663-061

For use in Japan 745663-291

For use in Latin America 745663-161

For use in the Netherlands 745663-B31

For use in Northwest Africa 745663-FP1

For use in Norway 745663-091

For use in Portugal 745663-131

For use in Romania 745663-271

For use in Russia 745663-251

For use in Saudi Arabia 745663-171

For use in Slovenia 745663-BA1

Computer major components 21

Item Component Spare part number

For use in South Korea 745663-AD1

For use in Spain 745663-071

For use in Sweden and Finland 745663-B71

For use in Switzerland 745663-BG1

For use in Taiwan 745663-AB1

For use in Thailand 745663-281

For use in Turkey

For use in Turkey F

745663-141

745663-541

For use in the United Kingdom and Singapore 745663-031

For use in the United States 745663-001

(4) Primary memory module (PC3L, 12800, 1600-MHz):

8-GB 693374-001

4-GB 691740-001

(5) Top cover (includes TouchPad, TouchPad cable, and TouchPad bracket) 734281-001

(6) Power button board (includes cable) 734285-001

(7) Function button board (includes cable and double-sided adhesive) 734284-001

(8) Fingerprint reader board (includes cable and double-sided adhesive) 734286-001

(9) ExpressCard assembly (includes activity LEDs and Thunderbolt port, Dual Mode

DisplayPort, and USB port)

794579-001

(10) Smart card reader (includes cable) 742159-001

(11) Audio/USB board (includes SD Card reader) 734288-001

(12) Fan/heat sink assembly (includes replacement thermal material):

For use only with an NVIDIA Quadro K1100M NVIDIA N15P-Q1 graphics board, spare part

number 785223-001

734289-001

For use only with an NVIDIA Quadro K610M NVIDIA N15M-Q2 graphics board, spare part

number 785225-001

734290-001

For use only with an NVIDIA Quadro K2100M NVIDIA N15P-Q3 graphics board, spare part

number 785224-001

734291-001

For use only with an AMD FirePro M5100 graphics board, spare part number 784470-001 784469-001

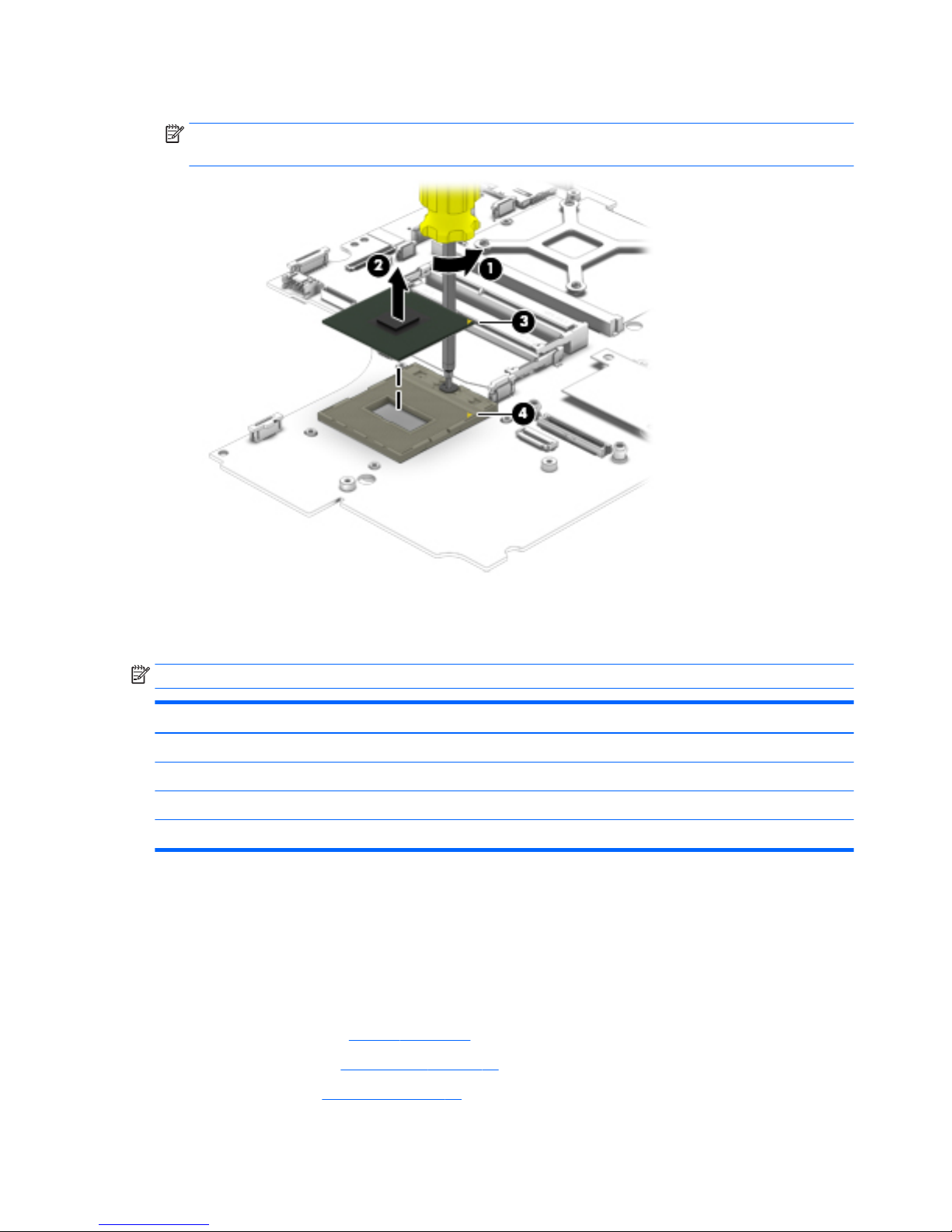

(13) Processor (includes replacement thermal material):

Intel Quad Core i7-4910MQ 2.90-GHz (SC turbo up to 3.90-GHz) processor (1600-MHz FSB,

8.0-MB L3 cache, 47 W)

778693-001

Intel Quad Core i7-4810MQ 2.80-GHz (SC turbo up to 3.80-GHz) processor (1600-MHz FSB,

6.0-MB L3 cache, 47 W)

778692-001

Intel Quad Core i7-4710MQ 2.50-GHz (SC turbo up to 3.50-GHz) processor (1600-MHz FSB,

6.0-MB L3 cache, 47 W)

773212-001

Intel Quad Core i7-4610M 3.00-GHz (SC turbo up to 3.70-GHz) processor (1600-MHz FSB,

4.0-MB L3 cache, 37 W)

765141-001

22 Chapter 3 Illustrated parts catalog

Item Component Spare part number

Intel Dual Core i5-4340M 2.90-GHz (SC turbo up to 3.60-GHz) processor (1600-MHz FSB,

3.0-MB L3 cache, 37 W)

765142-001

Intel Dual Core i5-4210M 2.60-GHz (SC turbo up to 3.20-GHz) processor (1600-MHz FSB,

3.0-MB L3 cache, 37 W)

768420-001

(14) Graphics board (includes replacement thermal material):

NVIDIA Quadro K1100M NVIDIA N15P-Q1 graphics board 785223-001

NVIDIA Quadro K610M NVIDIA N15M-Q2 graphics board 785225-001

NVIDIA Quadro K2100M NVIDIA N15P-Q3 graphics board 785224-001

AMD FirePro M5100 graphics board 784470-001

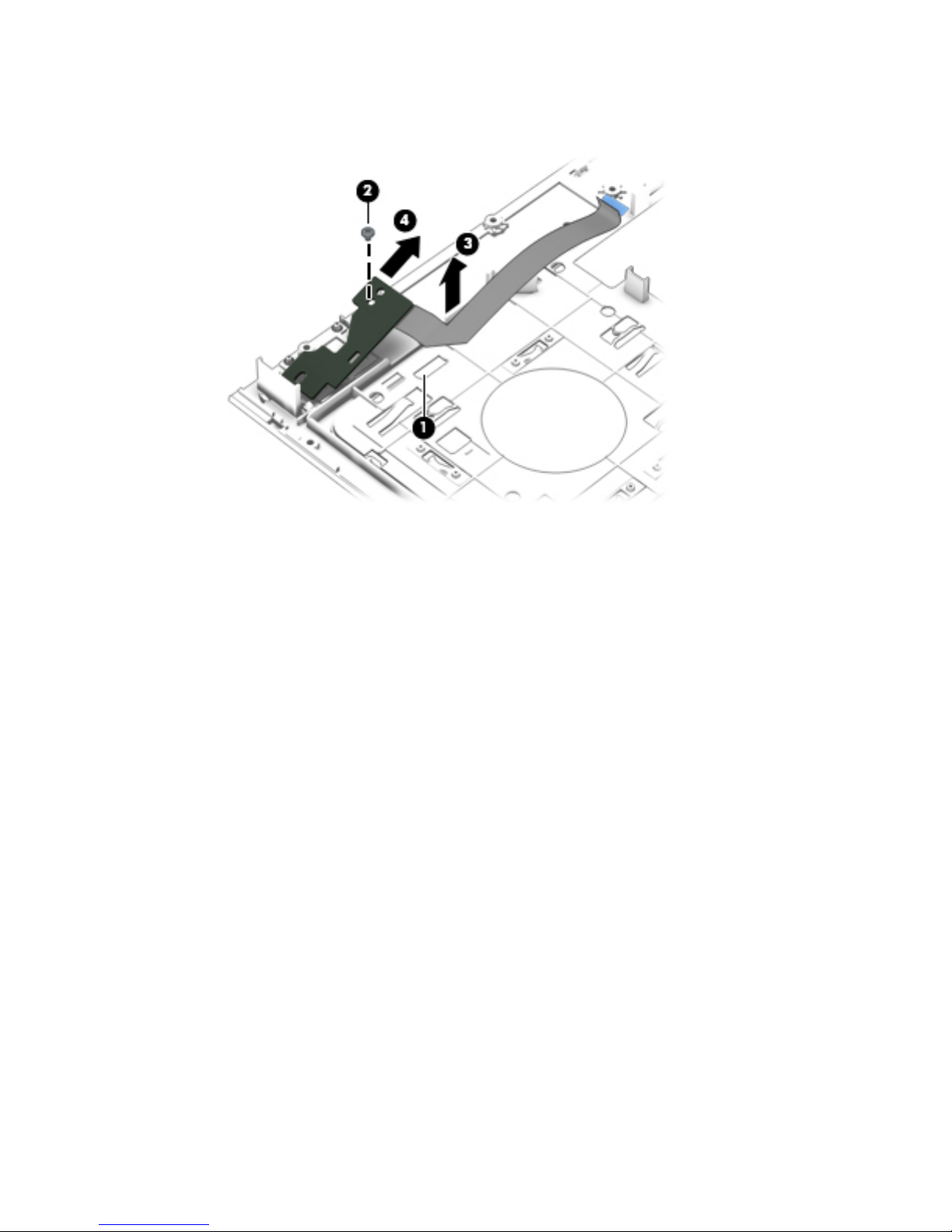

(15) USB board (includes cable and double-sided adhesive) 734293-001

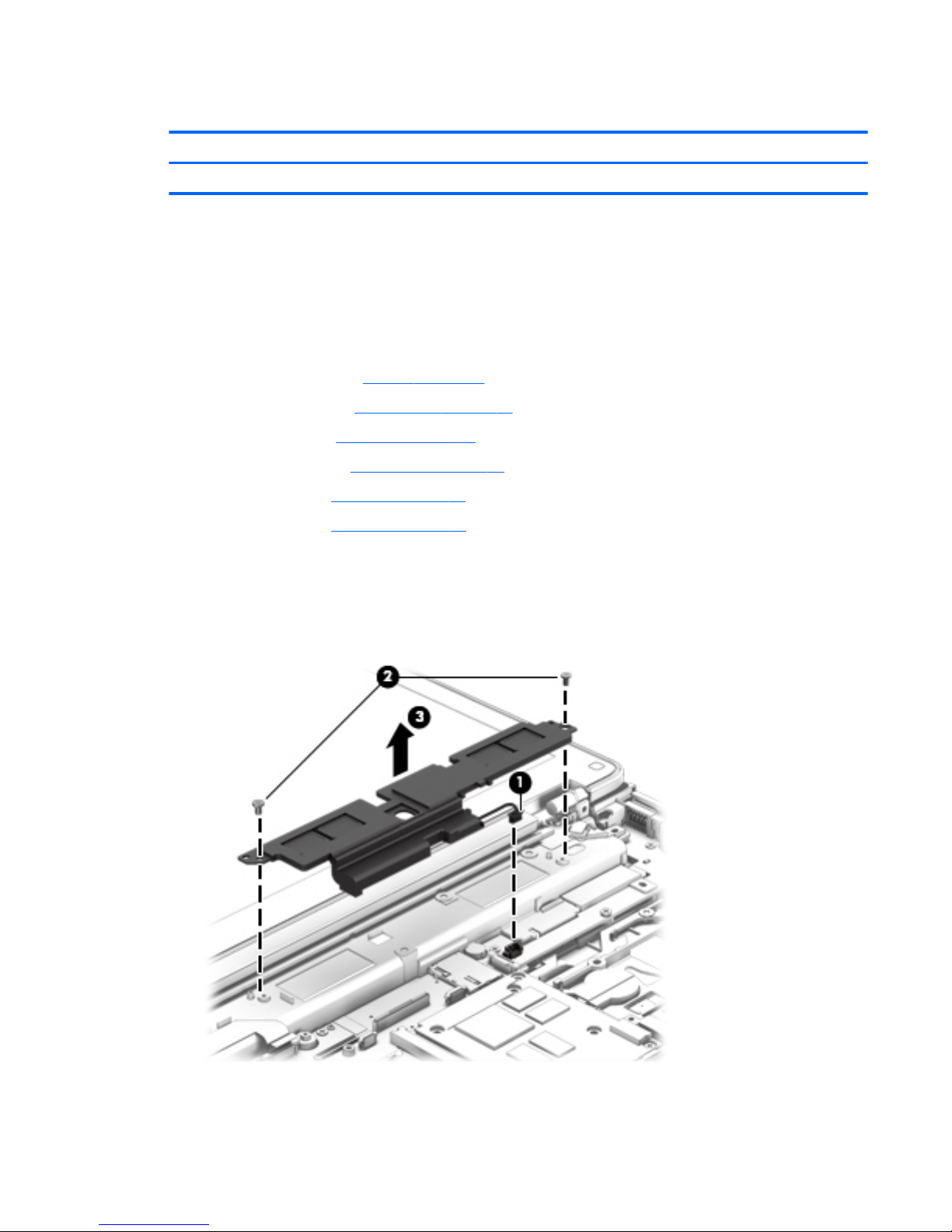

(16) Speakers (include cable) 734292-001

(17) RJ-45 (network) cable (included in the Cable Kit, spare part number 785222-001)

(18) Power connector cable (included in the Cable Kit, spare part number 785222-001)

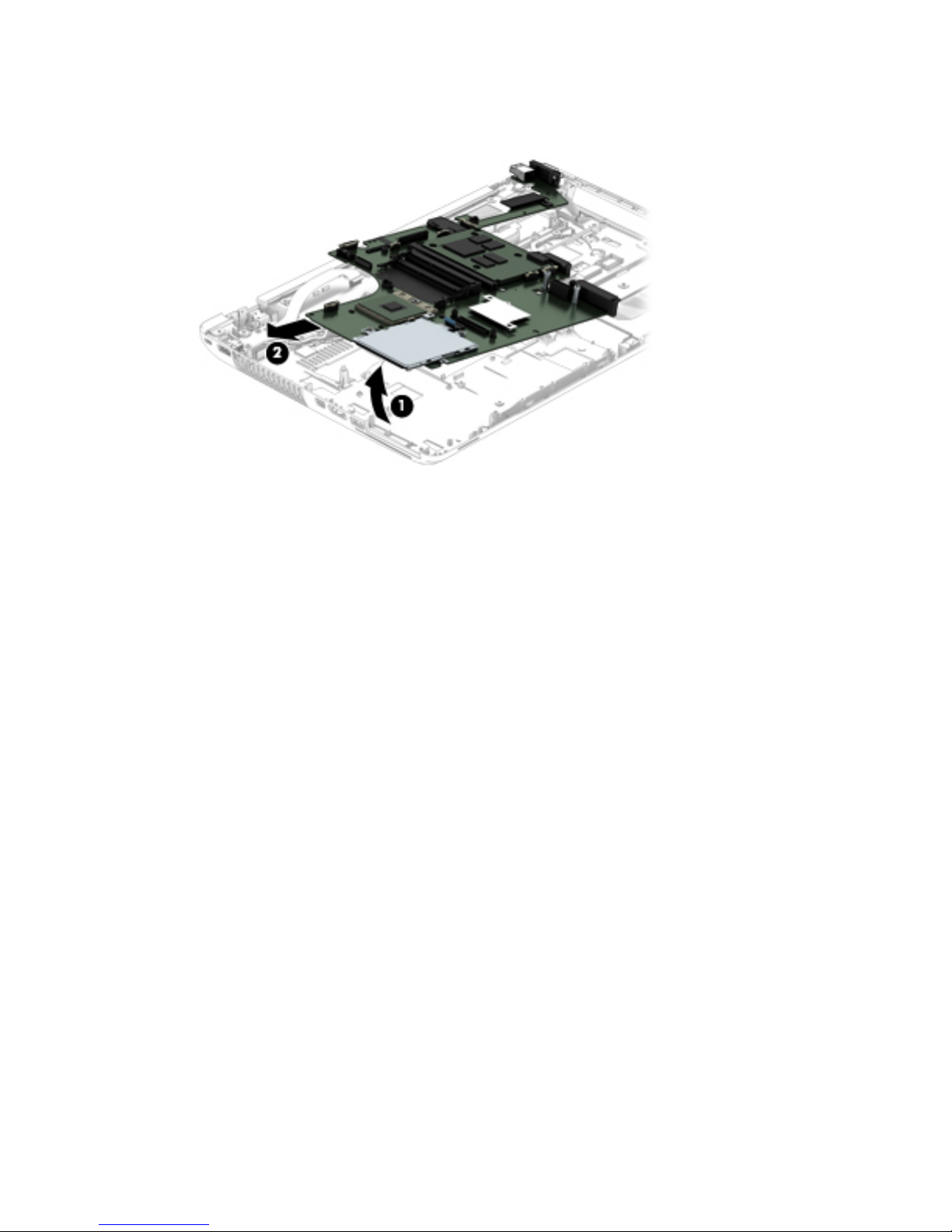

(19) System board (includes battery connector bracket and replacement thermal material):

All system boards use the following part numbers:

xxxxxx-001: Windows 7 or non-Windows operating systems

xxxxxx-501: Windows 8.1 Standard operating system

xxxxxx-601: Windows 8.1 or Windows 10 operating system

For use only on computer models equipped with an Intel Quad Core processor 784468-xxx

For use only on computer models equipped with an Intel Dual Core processor 784467-xxx

(20) Base enclosure (includes 4 rubber feet, battery lock latch, battery release latch, and RJ-45

cover)

785221-001

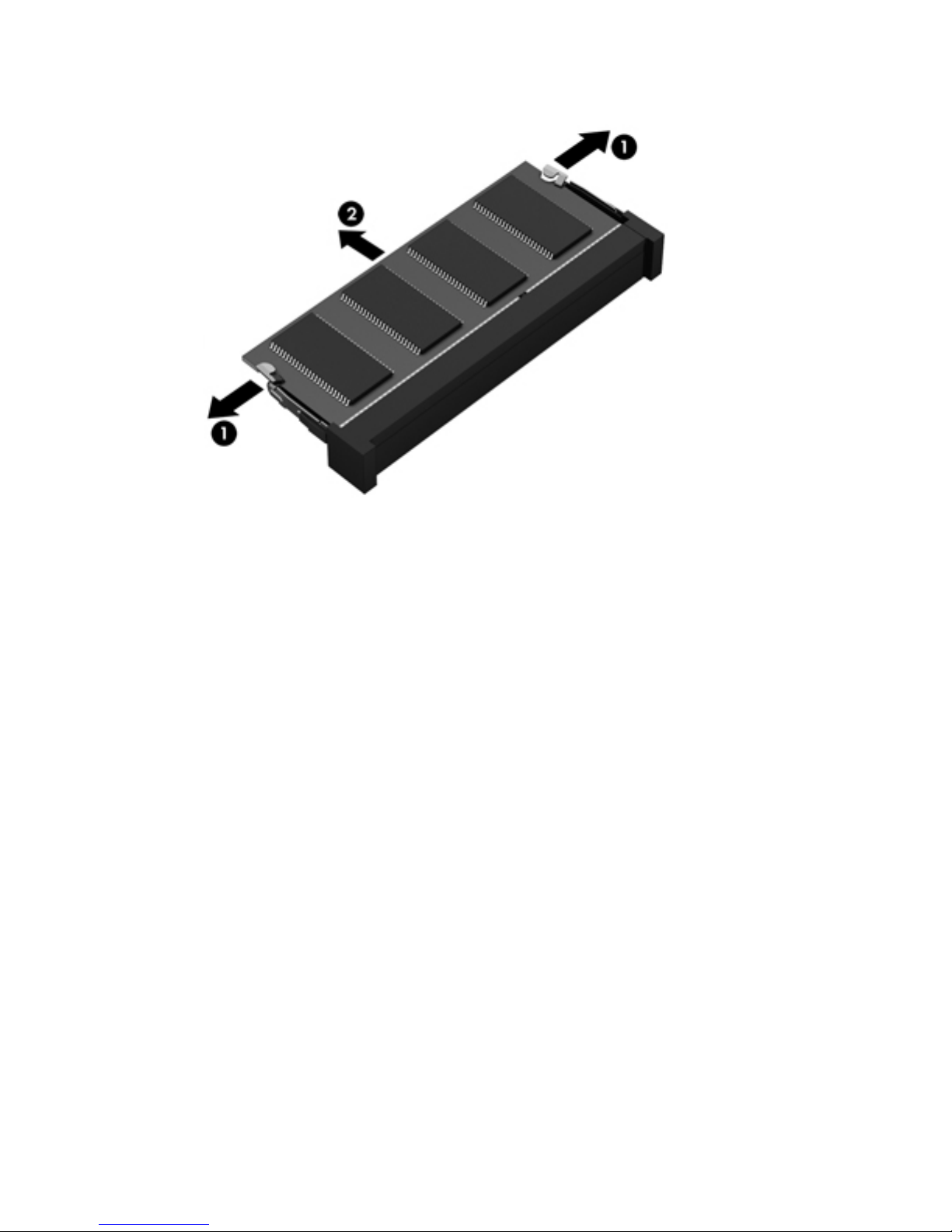

(21) Expansion memory modules (2, PC3L, 12800, 1600-MHz):

8-GB 693374-001

4-GB 691740-001

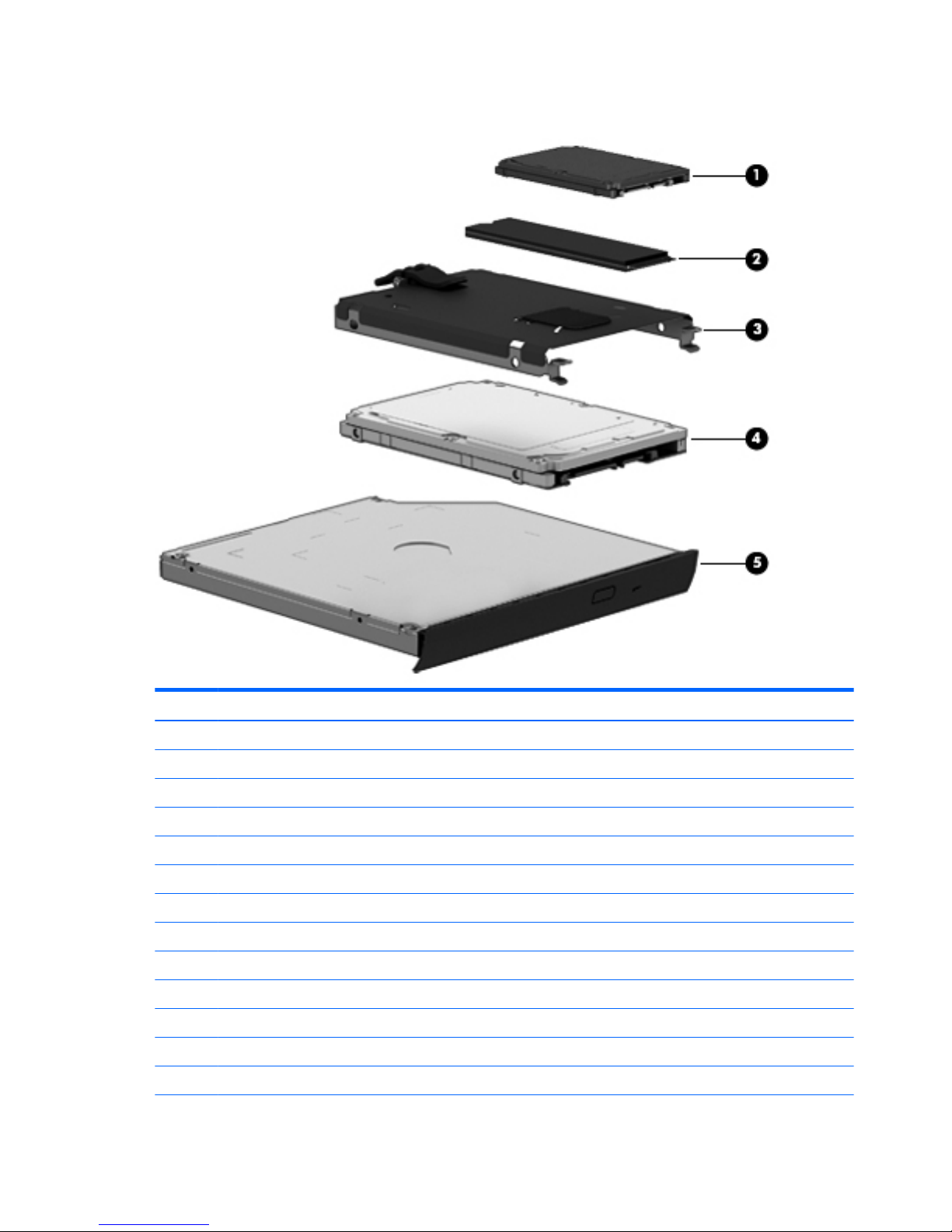

(22) Solid-state drive (SSD):

512-GB, SATA-3 795962-001

512-GB, Z Turbo Drive, PCIe 813138-001

512-GB, SATA-3, self-encrypting drive (SED), OPAL 2 813139-001

256-GB, SATA-3 795959-001

256-GB, SATA-3, self-encrypting drive (SED), OPAL 1 795960-001

256-GB, SATA-3, self-encrypting drive (SED), OPAL 2 795961-001

256-GB, M.2, PCIe 795955-001

240-GB, SATA-3 795958-001

180-GB, SATA-3 795957-001

128-GB, SATA-3 795956-001

Computer major components 23

Item Component Spare part number

128-GB, Z Turbo Drive, PCIe 813137-001

(23) WWAN module:

HP lt4111 LTE/EV-DO/HSPA+ Mobile Broadband Module (for use in the United States and

Canada)

740011-001

HP lt4111 LTE/EV-DO/HSPA+ Mobile Broadband Module 793116-001

HP hs3110 HSPA+ Mobile Broadband Module 822828-001

(24) WLAN module:

Intel Dual Band Wireless-AC 7260 802.11 AC 2x2 WiFi + BT 4.0 Combo Adapterr 710663-001

Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + BT 4.0 combo 717379-001

Intel Dual Band Wireless-N 7260NB 802.11 a/b/g/n (2x2) WiFi 717380-001

Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + BT 4.0 combo (for use in

Indonesia)

747833-001

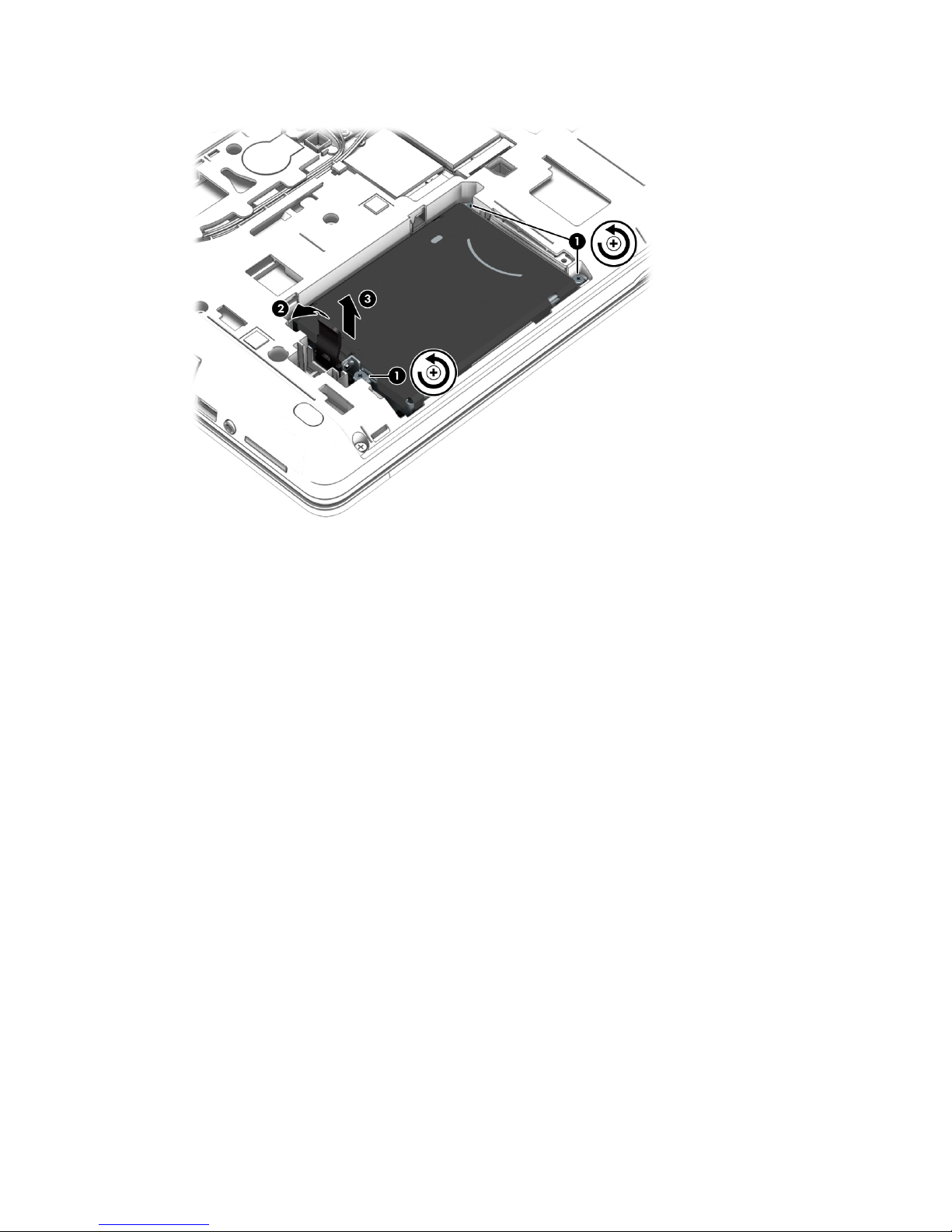

(25) Hard drive (does not include hard drive bracket or screws):

1-TB, 7200-rpm, 9.5-mm 766644-001

1-TB, 5400-rpm, 2.5-in 778192-001

750-GB, 7200-rpm, 2.5-in 778191-001

500-GB, 7200-rpm, 7.0-mm 703267-001

500-GB, 5400-rpm, 7.0-mm, FIPS 730946-001

500-GB, 7200-rpm, 7.0-mm, self-encrypting 703268-001

Hard Drive Hardware Kit (not illustrated, includes hard drive bracket and screws) 734280-001

(26) Optical drive (includes bezel and bracket):

Blu-ray R/RE DVD±RW SuperMulti Double-Layer Drive 735600-001

Blu-ray ROM DVD±RW SuperMulti Double-Layer Drive 735599-001

DVD±RW SuperMulti Double-Layer Drive 735602-001

Hard drive upgrade bay 734298-001

(27) RTC battery (includes cable and double-sided adhesive) 734300-001

(28) Service cover 734278-001

(29) Battery:

9-cell, 100-WHr, 3.0-AHr, Li-ion battery 634087-001

9-cell, 73-WHr, 2.2-AHr, Li-ion battery 634089-001

8-cell, 83-WHr, 2.8-AHr, Li-ion battery 708456-001

8-cell, 75-WHr, 2.8-AHr, Li-ion battery 708455-001

24 Chapter 3 Illustrated parts catalog

LED display assembly subcomponents

Item Component Spare part number

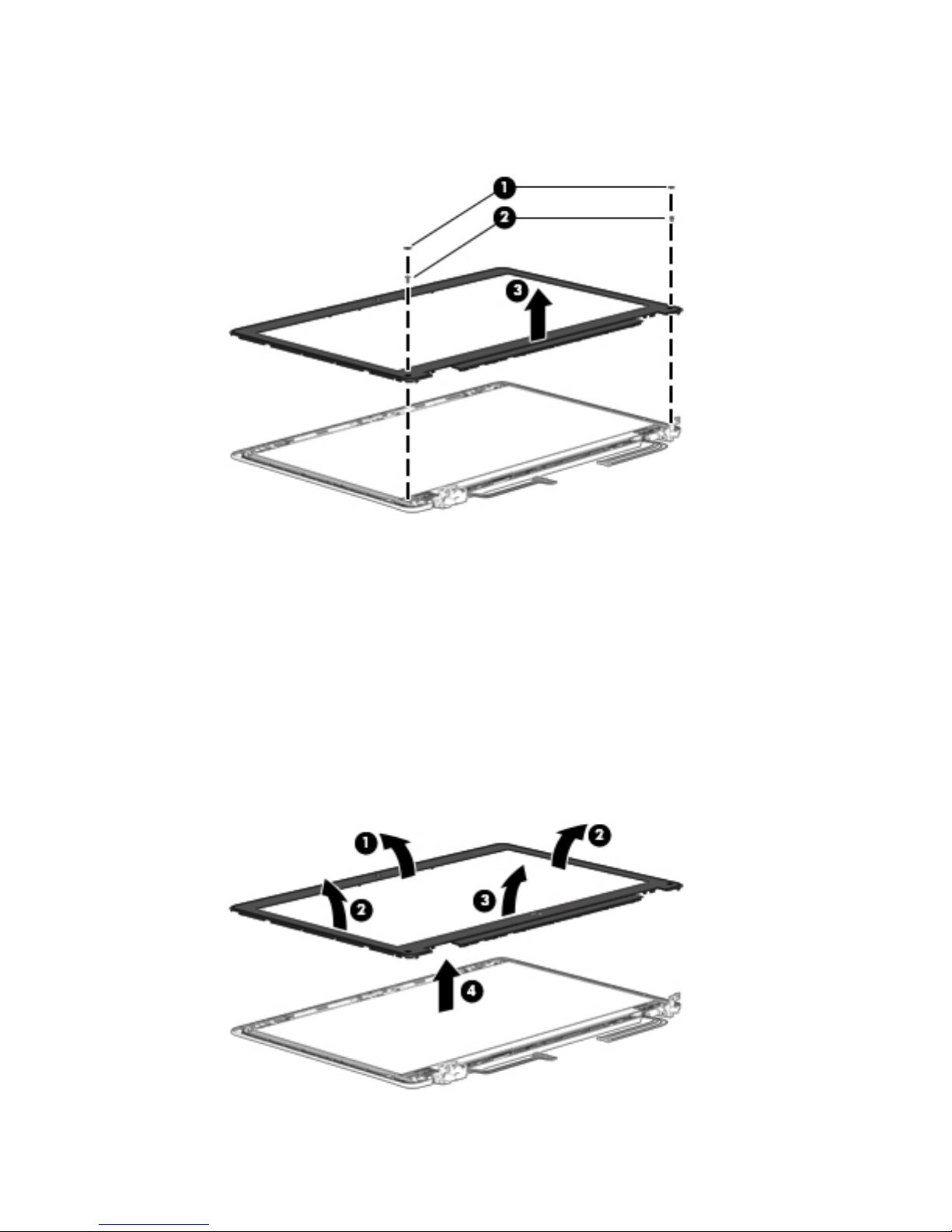

(1) Display bezel:

For use only on computer models equipped with a webcamera 734301-001

For use only on computer models not equipped with a webcamera 734302-001

For use only on computer models equipped with a QHD+ display and with a webcamera 784471-001

For use only on computer models not equipped with a QHD+ display and with a webcamera 784472-001

For use only on computer models equipped with an Innolux display and a webcamera 784473-001

For use only on computer models not equipped with an Innolux display and a webcamera 784474-001

(2) Display panel:

15.6-in, FHD, UWVA, LED display panel 735607-001

15.6-in, FHD, SVA, LED display panel 735604-001

15.6-in, QHD+, UWVA, LED display panel 797849-001

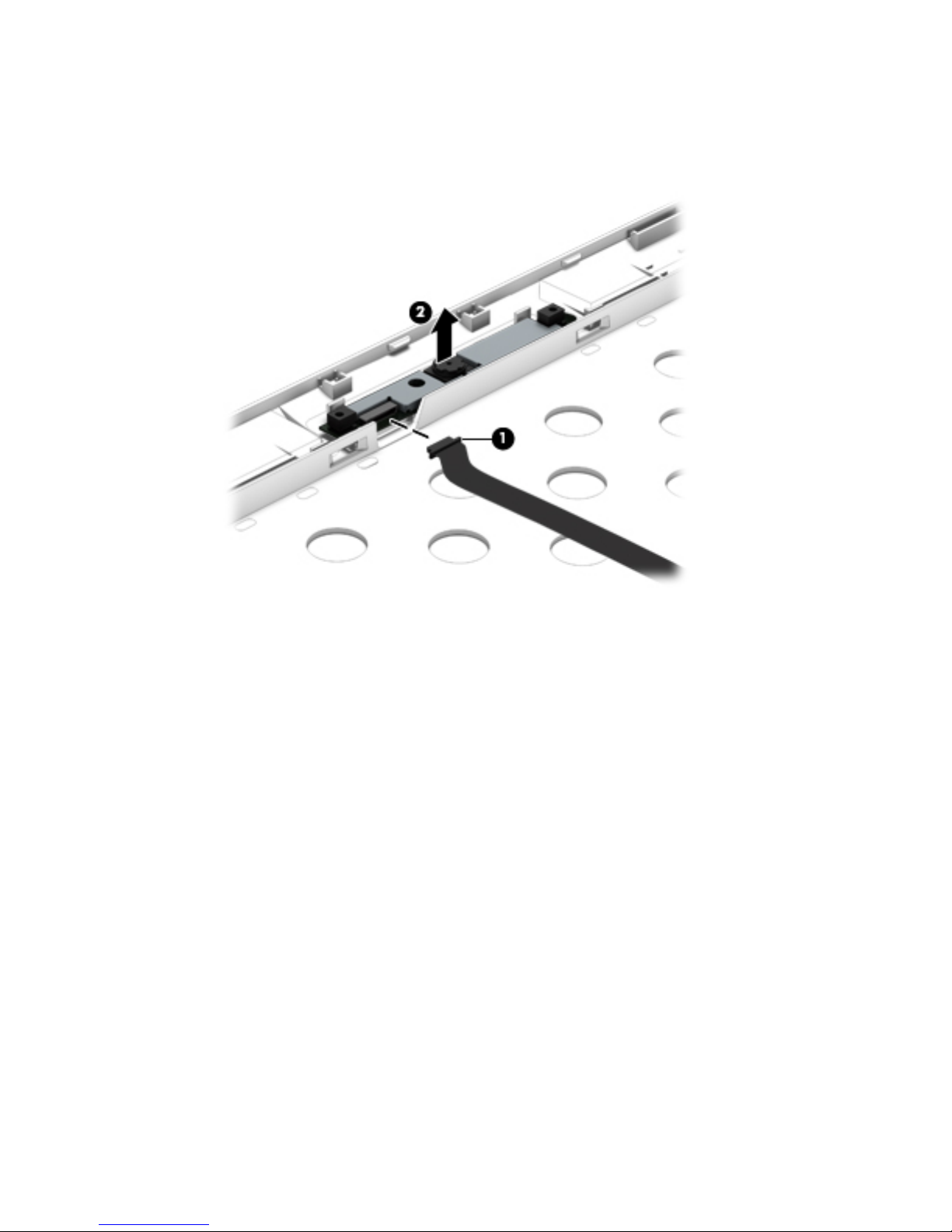

(3) Webcamera/microphone module (includes double-sided adhesive) 784208-001

Microphone module (includes double-sided adhesive) 735370-001

LED display assembly subcomponents 25

Item Component Spare part number

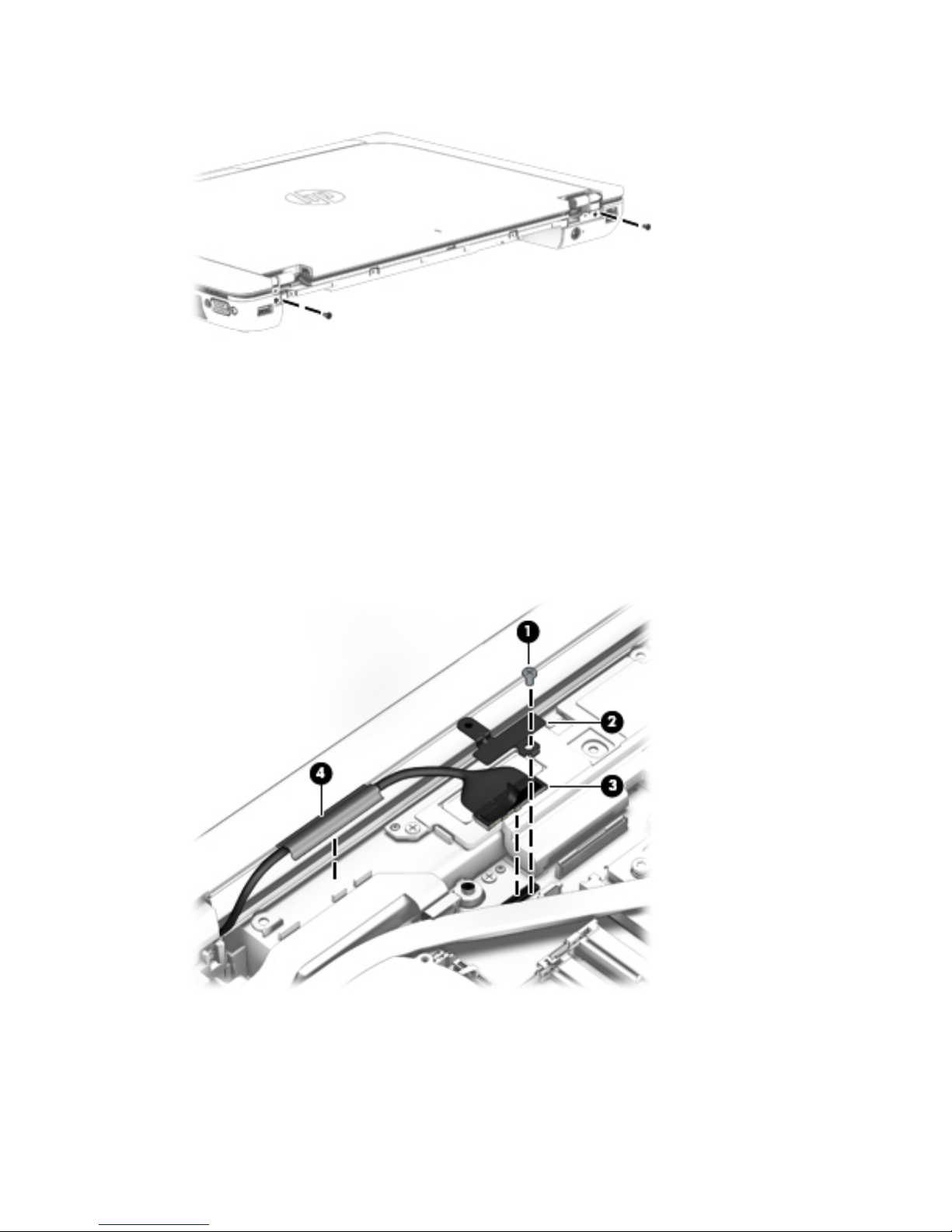

(4) Display hinges (includes left and right hinges and display panel cable bracket) 784464-001

(5) Display Panel Support Kit (includes display enclosure, display panel cable, and wireless

antenna cables and transceivers)

784466-001

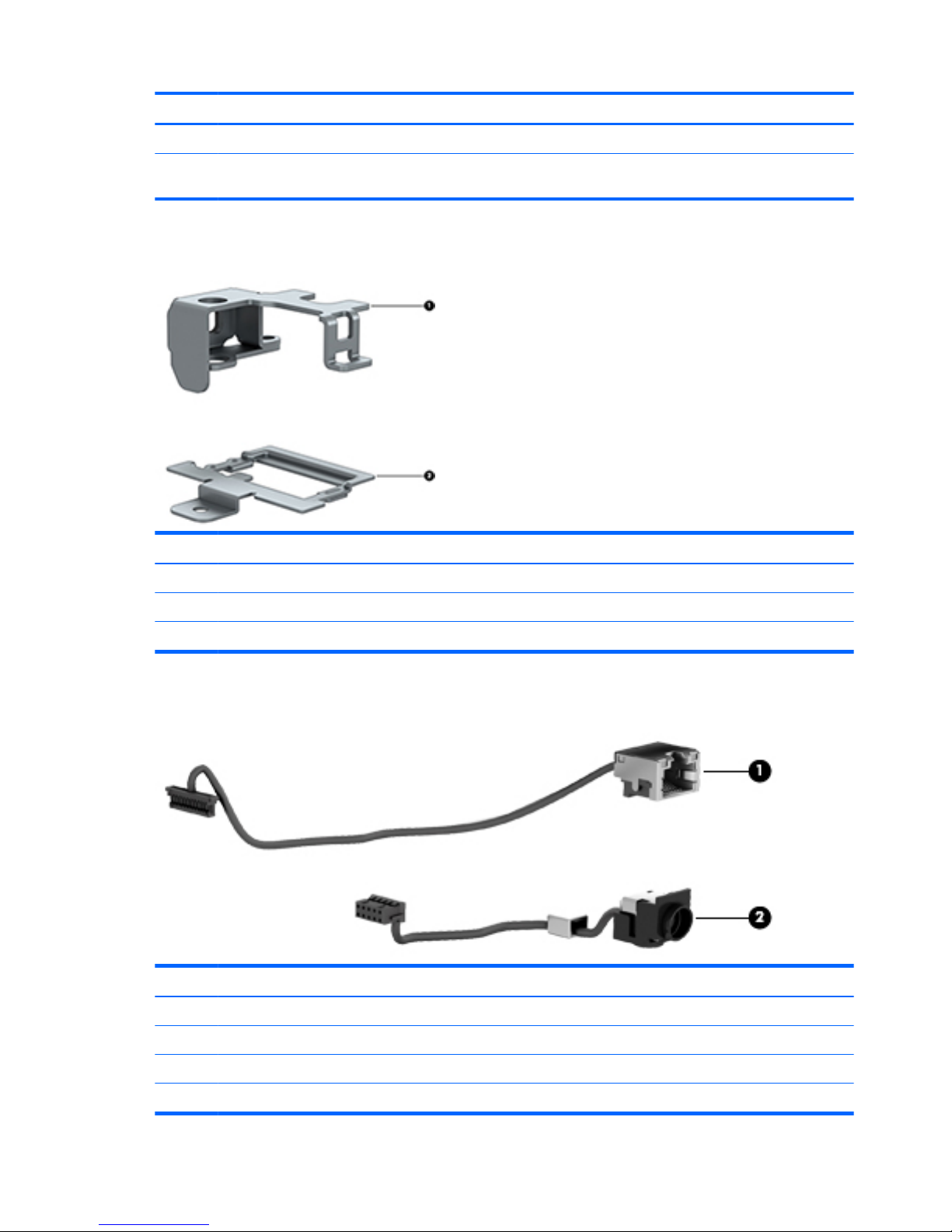

Bracket Kit

Item Component Spare part number

Bracket Kit, includes: 734299-001

(1) Security cable lock bracket

(2) Fingerprint reader board bracket

Cable Kit

Item Component Spare part number

Cable Kit, includes: 785222-001

(1) RJ-45 (network) cable

(2) Power connector cable

Replacement thermal material (not illustrated)

26 Chapter 3 Illustrated parts catalog

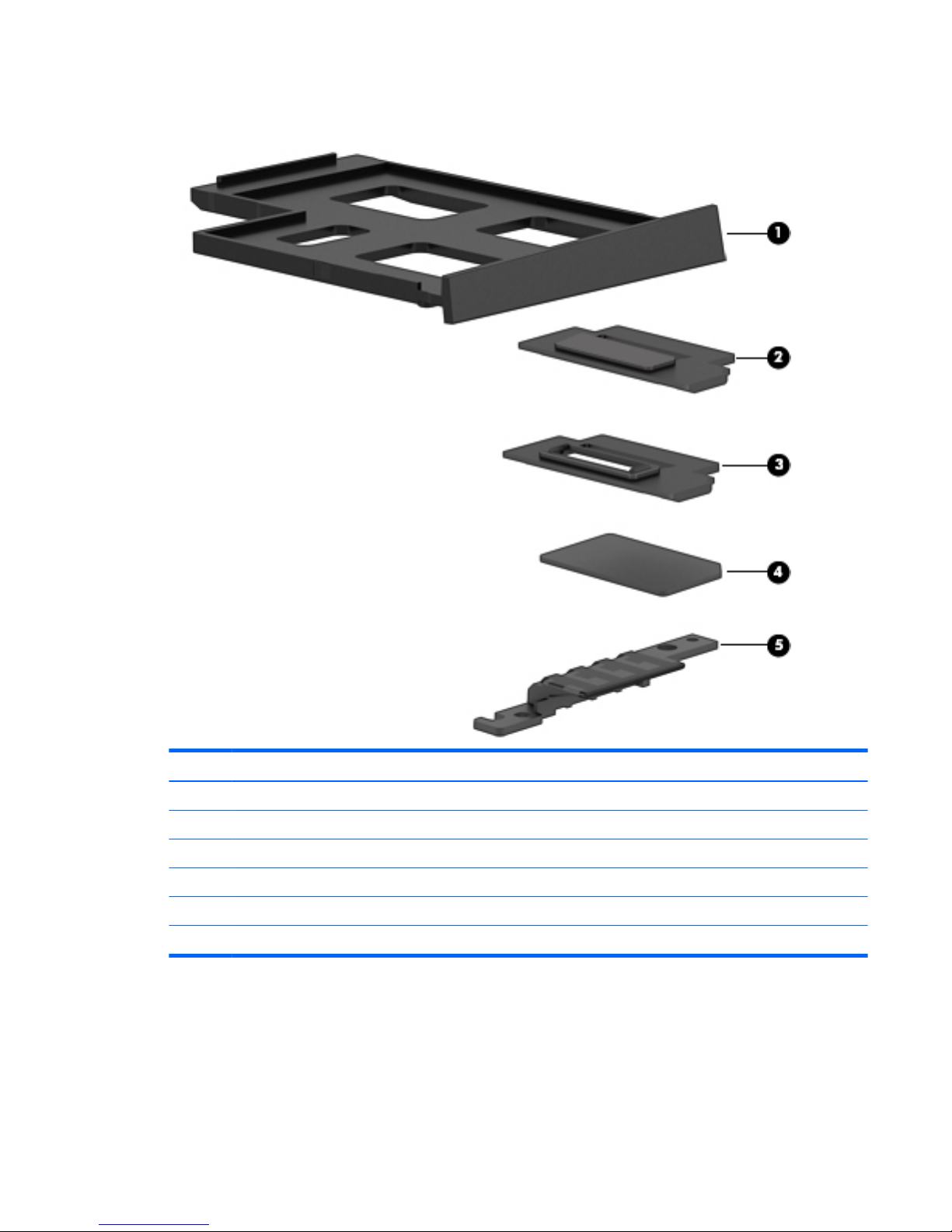

Plastics Kit

Item Component Spare part number

Plastics Kit, includes: 734297-001

(1) ExpressCard reader bezel

(2) Fingerprint reader blank cover

(3) Fingerprint reader bezel

(4) SD card reader bezel

(5) System lens

Plastics Kit 27

Mass storage devices

Item Component Spare part number

(1) Solid-state drive, 2.5-inch

512-GB, SATA-3 795962-001

512-GB, SATA-3, self-encrypting drive (SED), OPAL 2 813139-001

256-GB, SATA-3 795959-001

256-GB, SATA-3, self-encrypting drive (SED), OPAL 1 795960-001

256-GB, SATA-3, self-encrypting drive (SED), OPAL 2 795961-001

240-GB, SATA-3 795958-001

180-GB, SATA-3 795957-001

128-GB, SATA-3 795956-001

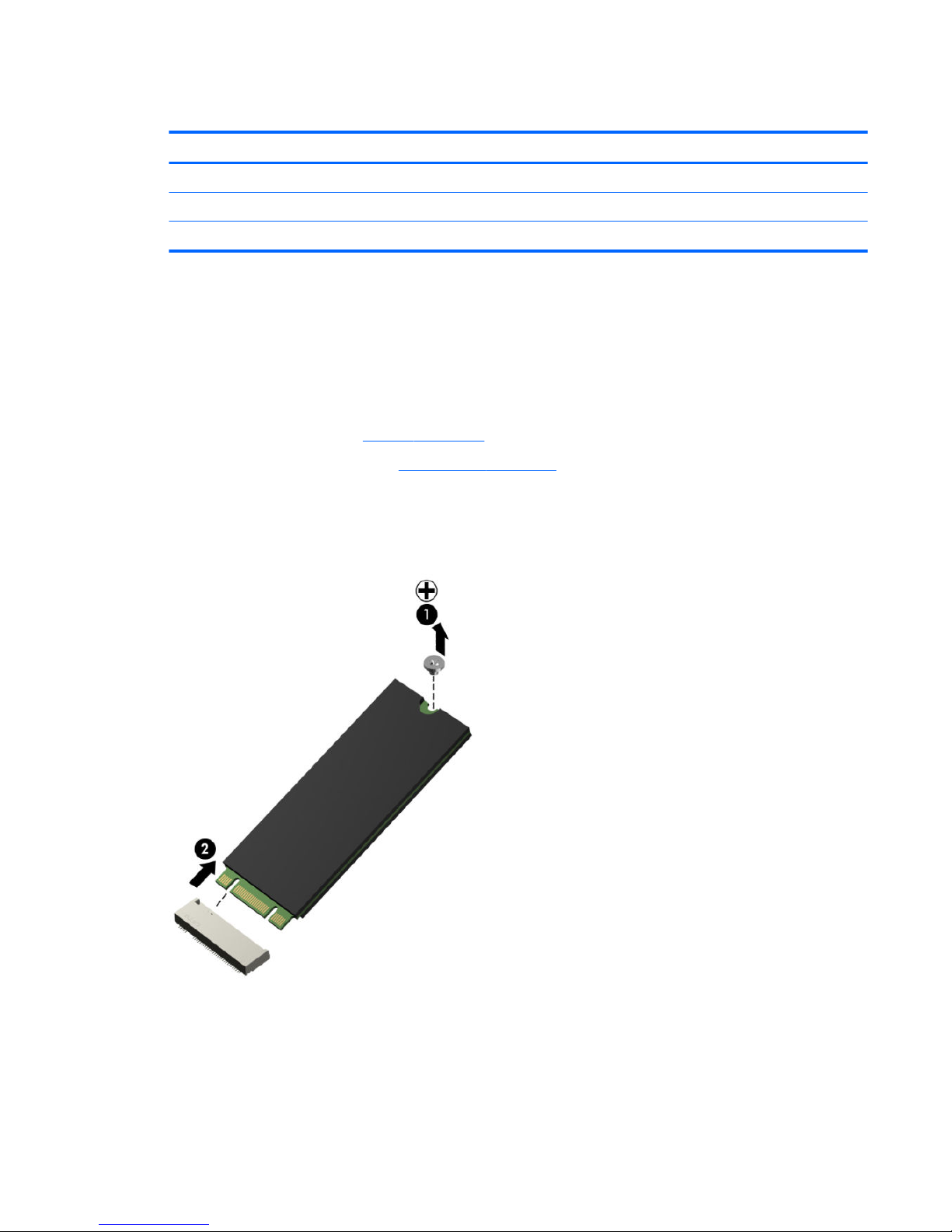

(2) Solid-state drive, M.2, PCIe

512-GB, Z Turbo Drive, PCIe 813138-001

256-GB 795955-001

128-GB, Z Turbo Drive, PCIe 813137-001

28 Chapter 3 Illustrated parts catalog

Item Component Spare part number

Hard Drive Hardware Kit, includes: 734280-001

(3) Hard drive bracket

Screws (not illustrated)

(4) Hard drive (does not include hard drive bracket or screws):

1-TB, 7200-rpm, 9.5-mm 766644-001

1-TB, 5400-rpm, 2.5-in 778192-001

750-GB, 7200-rpm, 2.5-in 778191-001

500-GB, 7200-rpm, 7.0-mm 703267-001

500-GB, 5400-rpm, 7.0-mm, FIPS 730946-001

500-GB, 7200-rpm, 7.0-mm, self-encrypting 703268-001

(5) Optical drive (includes bezel and bracket):

Blu-ray R/RE DVD±RW SuperMulti Double-Layer Drive 735600-001

Blu-ray ROM DVD±RW SuperMulti Double-Layer Drive 735599-001

DVD±RW SuperMulti Double-Layer Drive 735602-001

Hard drive upgrade bay 734298-001

Miscellaneous parts

Component Spare part number

AC adapter:

200-W HP Smart adapter (PFC, 3-wire, 4.5-mm) 693708-001

150-W HP Smart adapter (PFC, 3-wire, 4.5-mm) 693707-001

Power cord (3-pin, black, 1.83-m):

For use in APD 491683-D91

For use in Argentina 490371-D01

For use in Australia 490371-011

For use in Brazil 490371-202

For use in Denmark 490371-081

For use in Europe 490371-021

For use in India 490371-D61

For use in Israel 490371-BB1

For use in Italy 490371-061

For use in Japan 490371-291

For use in North America 490371-001

Miscellaneous parts 29

Component Spare part number

491683-001

For use in the People's Republic of China 490371-AA1

For use in Singapore 491683-AF1

For use in South Africa 490371-AR1

For use in South Korea 490371-AD1

For use in Switzerland 490371-111

For use in Thailand 490371-201

For use in the United Kingdom and Singapore 490371-031

491683-031

Power cord (3-pin, black, 1.00-m):

For use in Taiwan 755530-AB1

Docking station, cable lock 575921-001

HP Ultraslim Keyed Cable Lock 703372-001

HP DisplayPort to HDMI 1.4 Adapter 749288-001

Screw Kit 734282-001

Mouse

HP USB laser 674318-001

HP Wireless 691922-001

HP Professional Slim Top Load 703888-001

30 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

●

Flat-bladed screw driver

●

Magnetic screw driver

●

Phillips P0 and P1 screw drivers

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying

screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care

when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.

Tools required 31

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the

reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear
easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is
o or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure
that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing an internal hard drive to products that have magnetic elds, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life
expectancy.

32 Chapter 4 Removal and replacement procedures preliminary requirements

CAUTION: To prevent damage to the computer when you are removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity aects the electrostatic voltage levels generated by
dierent activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl oor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Grounding guidelines 33

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

●

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

●

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.

●

Use conductive eld service tools, such as cutters, screw drivers, and vacuums.

●

When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.

●

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids
and Styrofoam.

●

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

●

Turn o power and input signals before inserting or removing connectors or test equipment.

34 Chapter 4 Removal and replacement procedures preliminary requirements

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

●

When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.

●

When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be
used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be

eective, the conductive must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or oor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and oor mats.

Material Use Voltage protection level

Antistatic plastics Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Grounding guidelines 35

5 Removal and replacement procedures for

Customer Self-Repair parts

NOTE: The Customer Self-Repair program is not available in all locations. Installing a part not supported by

the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer
Self-Repair is supported in your location.

Component replacement procedures

NOTE: Please read and follow the procedures described here to access and replace Customer Self-Repair

parts successfully.

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See Service tag on page 16 for details.

This chapter provides removal and replacement procedures for Customer Self-Repair parts.

There are as many as 16 screws that must be removed, replaced, and/or loosened when servicing Customer
Self-Repair parts. Make special note of each screw size and location during removal and replacement.

36 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Battery

Description Spare part number

9-cell, 100-WHr, 3.0-AHr, Li-ion battery 634087-001

9-cell, 73-WHr, 2.2-AHr, Li-ion battery 634089-001

8-cell, 83-WHr, 2.8-AHr, Li-ion battery 708456-001

8-cell, 75-WHr, 2.8-AHr, Li-ion battery 708455-001

Before removing the battery, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

Remove the battery:

WARNING! To reduce potential safety issues, use only the user-replaceable battery provided with the

computer, a replacement battery provided by HP, or a compatible battery purchased from HP.

CAUTION: Removing a user-replaceable battery that is the sole power source for the computer can cause

loss of information. To prevent loss of information, save your work or shut down the computer through
Windows before removing the battery.

1. Turn the computer upside down on a at surface.

2. Slide the battery release latch (1) to release the battery.

NOTE: The battery release latch automatically returns to its original position.

3. Pivot the battery (2) upward.

4. Remove the battery (3) from the computer.

Reverse this procedure to install the battery.

Component replacement procedures 37

Service cover

Description Spare part number

Service cover 734278-001

Before removing the service cover, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

Remove the service cover:

1. Slide the service cover release latch to the left (1), and then remove the optional Phillips PM2.0×4.5

screw (if the screw is being used) (2).

NOTE: If you want to use the optional screw, it is stored inside the service cover.

2. Slide the release latch again (3) to release the service cover.

3. Slide the service cover toward the front of the computer (4), and then lift to remove the service cover

(5).

Reverse this procedure to install the service cover.

38 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Hard drive

NOTE: The hard drive spare part kit does not include the hard drive bracket or screws. These components

are included in the Hard Drive Hardware Kit, spare part number 734280-001.

Description Spare part number

Hard drive, 2.5-inch

1-TB, 7200-rpm, 9.5-mm 766644-001

1-TB, 5400-rpm, 2.5-in 778192-001

750-GB, 7200-rpm, 2.5-in 778191-001

500-GB, 7200-rpm, 7.0-mm 703267-001

500-GB, 5400-rpm, 7.0-mm, FIPS 730946-001

500-GB, 7200-rpm, 7.0-mm, self-encrypting 703268-001

Solid-state drive (SSD)

512-GB, SATA-3 795962-001

512-GB, SATA-3, self-encrypting drive (SED), OPAL 2 813139-001

256-GB, SATA-3 795959-001

256-GB, SATA-3, self-encrypting drive (SED), OPAL 1 795960-001

256-GB, SATA-3, self-encrypting drive (SED), OPAL 2 795961-001

240-GB, SATA-3 795958-001

180-GB, SATA-3 795957-001

128-GB, SATA-3 795956-001

Before removing the hard drive, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Service cover on page 38).

Remove the hard drive:

1. Loosen the 3 hard drive captive screws (1).

2. Pull the hard drive tab (2) to the left to disconnect the hard drive.

Component replacement procedures 39

3. Lift the hard drive (3), and then pull the hard drive out of the hard drive bay.

4. If it is necessary to disassemble the hard drive, perform the following steps:

a. Position the hard drive with the hard drive tab toward you.

b. Remove the four Phillips PM3.0×3.5 screws (1) that secure the hard drive bracket to the hard drive.

c. Remove the hard drive bracket (2) from the hard drive.

The hard drive bracket and screws are available in the Hard Drive Hardware Kit, spare part number
734280-001.

40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Reverse this procedure to install the hard drive.

Optical drive

NOTE: The optical drive spare part kit includes a bezel and bracket.

Description Spare part number

Blu-ray R/RE DVD±RW SuperMulti Double-Layer Drive 735600-001

Blu-ray ROM DVD±RW SuperMulti Double-Layer Drive 735599-001

DVD±RW SuperMulti Double-Layer Drive 735602-001

Hard drive upgrade bay 734298-001

Before removing the optical drive, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Service cover on page 38).

Remove the optical drive:

1. Position the computer with the left side toward you.

2. Loosen the captive screw (1) that secures the optical drive to the computer.

Component replacement procedures 41

3. Insert a thin tool into the optical drive tab access (2) and press the tab to the left to release the optical

drive from the computer.

4. Remove the optical drive (3).

Reverse this procedure to install the optical drive.

42 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

WWAN module

Description Spare part number

HP lt4111 LTE/EV-DO/HSPA+ Mobile Broadband Module (for use in the United States and Canada) 740011-001

HP lt4111 LTE/EV-DO/HSPA+ Mobile Broadband Module 793116-001

HP hs3110 HSPA+ Mobile Broadband Module 822828-001

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module

authorized for use in the computer by the governmental agency that regulates wireless devices in your
country or region. If you replace the module and then receive a warning message, remove the module to
restore device functionality, and then contact technical support.

Before removing the WWAN module, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Optical drive on page 41).

Remove the WWAN module:

1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.

NOTE: The WWAN antenna cable labeled “5” connects to the WWAN module “Main” terminal labeled

“5”. The WWAN antenna cable labeled “6” connects to the WWAN module “Aux/GPS” terminal labeled
“6”.

2. Remove the Phillips PM2.0×3.25 screw (2) that secures the WWAN module to the system board. (The

WWAN module tilts up.)

Component replacement procedures 43

3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.

NOTE: If the WWAN antenna cables are not connected to the terminals on the WWAN module, protective

sleeves should be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WWAN module.

44 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Solid-state drive (M.2)

Description Spare part number

512-GB, M.2, PCIe 813138-001

256-GB, M.2, PCIe 795955-001

128-GB, M.2, PCIe 813137-001

Before removing the solid-state drive, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Service cover on page 38).

Remove the solid-state drive:

1. Remove the Phillips PM2.0×3.5 screw (1) that secures the solid-state drive to the system board.

2. Remove the solid-state drive (2) by pulling the drive away from the slot at an angle.

Reverse this procedure to install the solid-state drive.

Component replacement procedures 45

WLAN module

Description Spare part number

Intel Dual Band Wireless-AC 7260 802.11 AC 2x2 WiFi + BT 4.0 Combo Adapter 710663-001

Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + BT 4.0 combo 717379-001

Intel Dual Band Wireless-N 7260NB 802.11 a/b/g/n (2x2) WiFi 717380-001

Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + BT 4.0 combo (for use in Indonesia) 747833-001

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module

authorized for use in the computer by the governmental agency that regulates wireless devices in your
country or region. If you replace the module and then receive a warning message, remove the module to
restore device functionality, and then contact technical support.

Before removing the WLAN module, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Service cover on page 38).

Remove the WLAN module:

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”.

The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”.

2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board. (The

WLAN module tilts up.)

46 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: If the WLAN antenna cables are not connected to the terminals on the WLAN module, protective

sleeves should be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WLAN module.

Component replacement procedures 47

Primary memory module

Description Spare part number

8-GB (PC3L, 12800, 1600-MHz) 693374-001

4-GB (PC3L, 12800, 1600-MHz) 691740-001

Update BIOS before adding memory modules

Before adding new memory, make sure you update the computer to the latest BIOS.

CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may result in

various system problems.

To update BIOS:

1. Navigate to www.hp.com.

2. Click Support & Drivers > click Drivers & Software.

3. In the Enter a product name/number box, type the computer model information, and then click Search.

4. Click the link for the computer model.

5. Select the operating system, and then click Next.

6. Under Step 2: Select a Download, click the BIOS link.

7. Click the link for the most recent BIOS.

8. Click the Download button, and then follow the on-screen instructions.

Before removing a memory module, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Optical drive on page 41).

Remove the memory module:

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The memory module tilts up.)

48 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

2. Remove the memory module (2) by pulling the module away from the slot at an angle.

Reverse this procedure to install a memory module.

Component replacement procedures 49

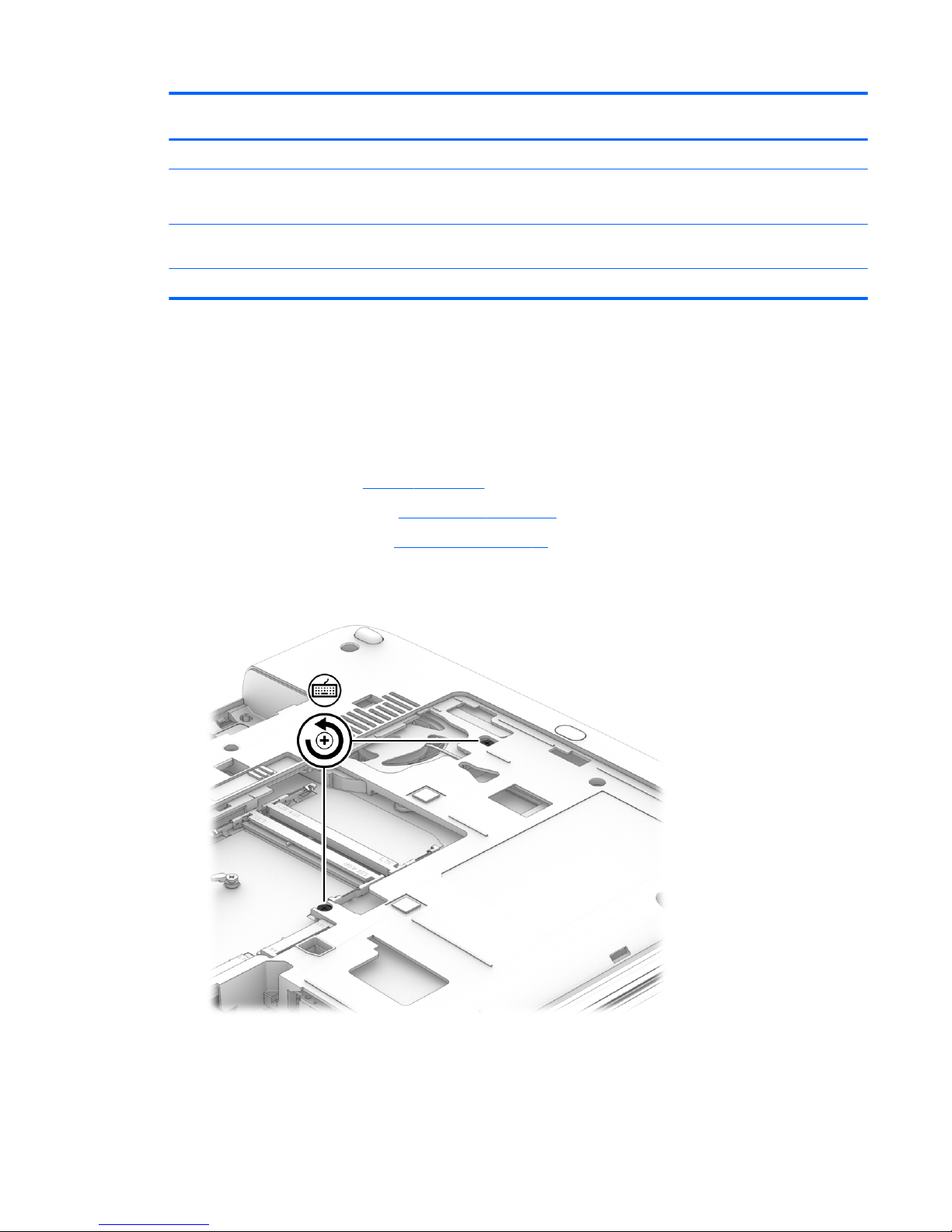

Keyboard

For use in country or region Spare part

number

For use in country or region Spare part number

Keyboard with backlight and pointing stick (includes keyboard cable, backlight cable, and pointing stick cable):

For use in Belgium 733688-A41 For use in Northwest Africa 733688-FP1

For use in Brazil 733688-201 For use in Norway 733688-091

For use in Bulgaria 733688-261 For use in Portugal 733688-131

For use in Canada 733688-DB1 For use in Romania 733688-271

For use in the Czech Republic and Slovakia 733688-FL1 For use in Russia 733688-251

For use in Denmark 733688-081 For use in Saudi Arabia 733688-171

For use in France 733688-051 For use in Slovenia 733688-BA1

For use in Germany 733688-041 For use in South Korea 733688-AD1

For use in Greece 733688-151 For use in Spain 733688-071

For use in Hungary 733688-211 For use in Sweden and Finland 733688-B71

For use in Iceland 733688-DD1 For use in Switzerland 733688-BG1

For use in India 733688-D61 For use in Taiwan 733688-AB1

For use in Israel 733688-BB1 For use in Thailand 733688-281

For use in Italy 733688-061 For use in Turkey

For use in Turkey F

733688-141

733688-541

For use in Japan 733688-291 For use in the United Kingdom

and Singapore

733688-031

For use in Latin America 733688-161 For use in the United States 733688-001

For use in the Netherlands 733688-B31

Keyboard with pointing stick (includes keyboard cable and pointing stick cable):

For use in Belgium 745663-A41 For use in Northwest Africa 745663-FP1

For use in Brazil 745663-201 For use in Norway 745663-091

For use in Bulgaria 745663-261 For use in Portugal 745663-131

For use in Canada 745663-DB1 For use in Romania 745663-271

For use in the Czech Republic and Slovakia 745663-FL1 For use in Russia 745663-251

For use in Denmark 745663-081 For use in Saudi Arabia 745663-171

For use in France 745663-051 For use in Slovenia 745663-BA1

For use in Germany 745663-041 For use in South Korea 745663-AD1

For use in Greece 745663-151 For use in Spain 745663-071

For use in Hungary 745663-211 For use in Sweden and Finland 745663-B71

For use in Iceland 745663-DD1 For use in Switzerland 745663-BG1

For use in Israel 745663-BB1 For use in Taiwan 745663-AB1

50 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

For use in country or region Spare part

number

For use in country or region Spare part number

For use in Italy 745663-061 For use in Thailand 745663-281

For use in Japan 745663-291 For use in Turkey

For use in Turkey F

745663-141

745663-541

For use in Latin America 745663-161 For use in the United Kingdom

and Singapore

745663-031

For use in the Netherlands 745663-B31 For use in the United States 745663-001

Before removing the keyboard, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Service cover on page 38).

6. Remove the optical drive (see Optical drive on page 41).

Remove the keyboard:

1. Loosen the two captive screws that secure the keyboard to the computer.

2. Partially open the computer.

3. Rest and secure the computer on its left side.

Component replacement procedures 51

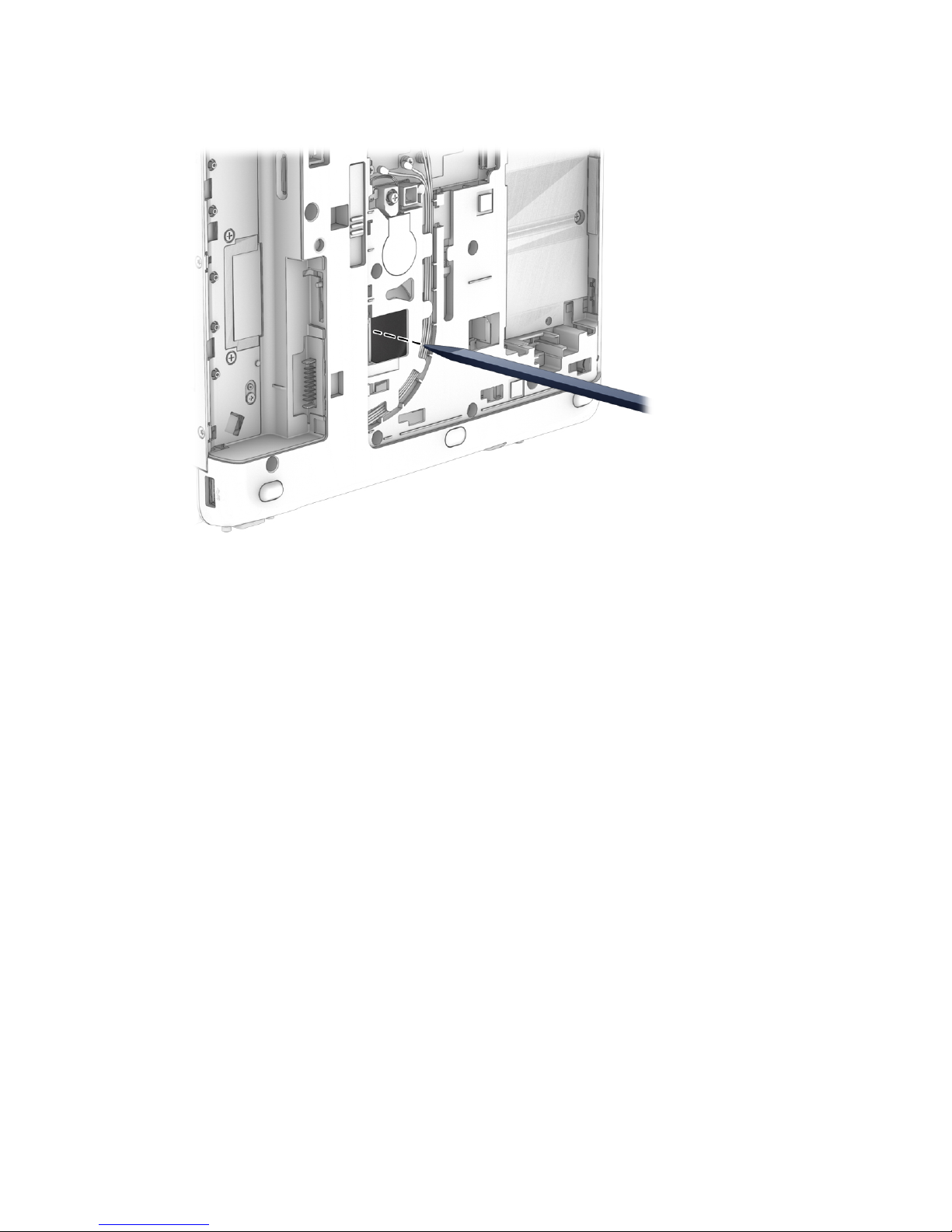

4. Insert a thin tool into the keyboard release hole in the optical drive bay, and then press on the back of

the keyboard until the keyboard disengages from the computer.

5. Turn the computer right-side up, with the front toward you.

6. Open the computer as far as it will open.

7. Lift the rear edge of the keyboard until it rests at an angle.

8. Swing the rear edge of the keyboard (1) up and forward until it rests upside down on the palm rest.

9. Release the zero insertion force (ZIF) connector (2) to which the keyboard cable is attached, and then

disconnect the keyboard cable from the system board.

10. Release the ZIF connector (3) to which the pointing stick cable is attached, and then disconnect the

pointing stick cable from the system board.

52 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

11. Remove the keyboard (4).

Reverse this procedure to install the keyboard.

Component replacement procedures 53

Expansion memory module

Description Spare part number

8-GB (PC3L, 12800, 1600-MHz) 693374-001

4-GB (PC3L, 12800, 1600-MHz) 691740-001

Update BIOS before adding memory modules

Before adding new memory, make sure you update the computer to the latest BIOS.

CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may result in

various system problems.

To update BIOS:

1. Navigate to www.hp.com.

2. Click Support & Drivers > click Drivers & Software.

3. In the Enter a product name/number box, type the computer model information, and then click Search.

4. Click the link for the computer model.

5. Select the operating system, and then click Next.

6. Under Step 2: Select a Download, click the BIOS link.

7. Click the link for the most recent BIOS.

8. Click the Download button, and then follow the on-screen instructions.

Before removing a memory module, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Optical drive on page 41).

Remove the memory module:

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The memory module tilts up.)

54 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

2. Remove the memory module (2) by pulling the module away from the slot at an angle.

Reverse this procedure to install a memory module.

Component replacement procedures 55

6 Removal and replacement procedures for

Authorized Service Provider parts

CAUTION: Components described in this chapter should only be accessed by an authorized service provider.

Accessing these parts can damage the computer or void the warranty.

Component replacement procedures

This chapter provides removal and replacement procedures for Authorized Service Provider only parts.

There are as many as 74 screws that must be removed, replaced, and/or loosened when servicing the
computer. Make special note of each screw size and location during removal and replacement.

RTC battery

Description Spare part number

RTC battery (includes cable and double-sided adhesive) 734300-001

Before removing the RTC battery, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37).

5. Remove the service cover (see Service cover on page 38).

Remove the RTC battery:

1. Disconnect the RTC battery cable (1) from the system board.

56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

2. Detach the RTC battery (2) from the base enclosure. (The RTC battery is attached to the base enclosure

with double-sided adhesive.)

3. Remove the RTC battery and cable.

Reverse this procedure to install the RTC battery.

Component replacement procedures 57

Top cover

Description Spare part number

Top cover (includes TouchPad, TouchPad cable, and TouchPad bracket) 734281-001

Before removing the top cover, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

NOTE: When replacing the top cover, be sure to remove the following components from the defective top

cover and install them on the replacement top cover:

●

Function button board (see Function button board on page 64)

●

Power button board (see Power button board on page 66)

●

Fingerprint reader board (see Fingerprint reader board on page 62)

Remove the top cover:

1. Close the computer.

2. Turn the computer upside down with the front toward you.

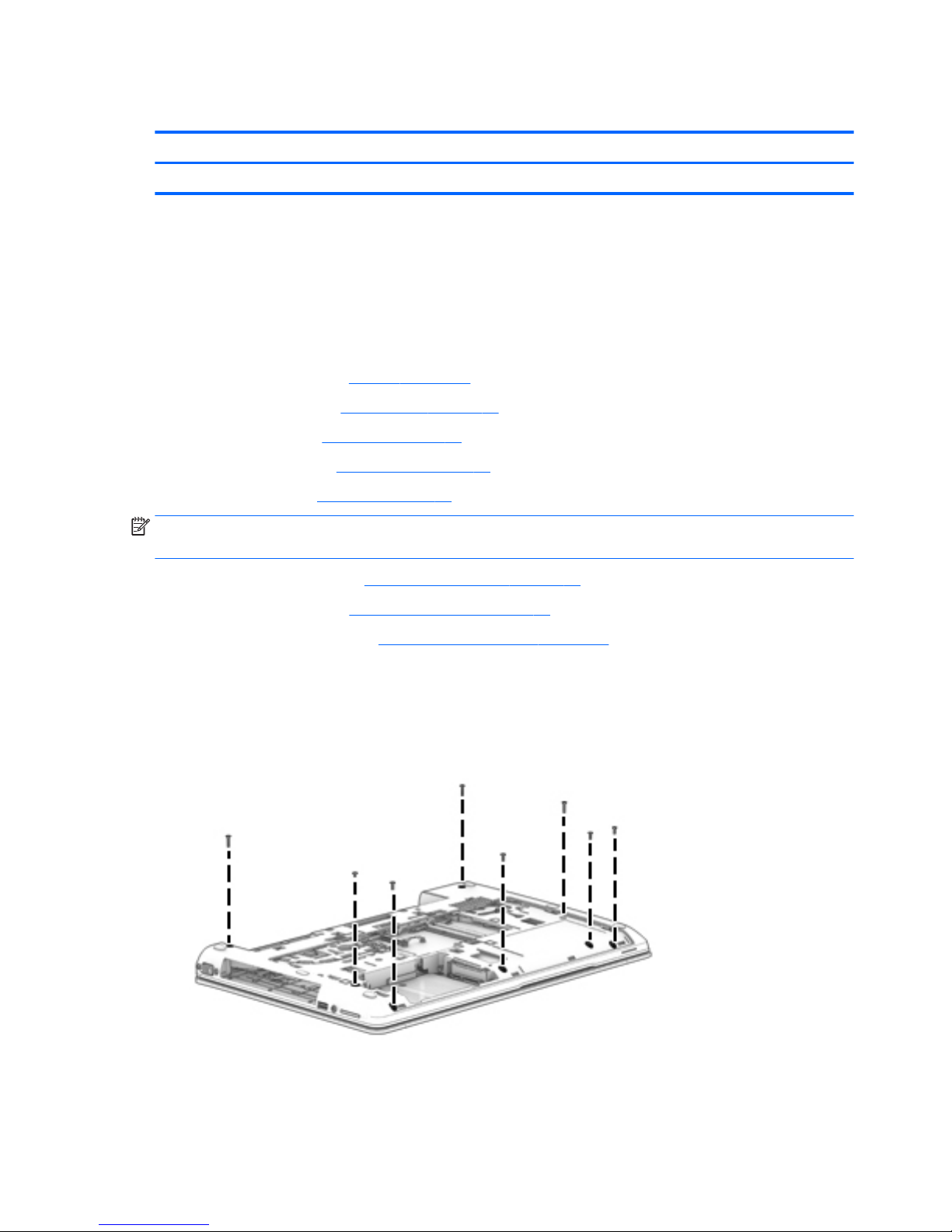

3. Remove the eight Torx T8M2.5×6.5 screws that secure the top cover to the computer.

58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

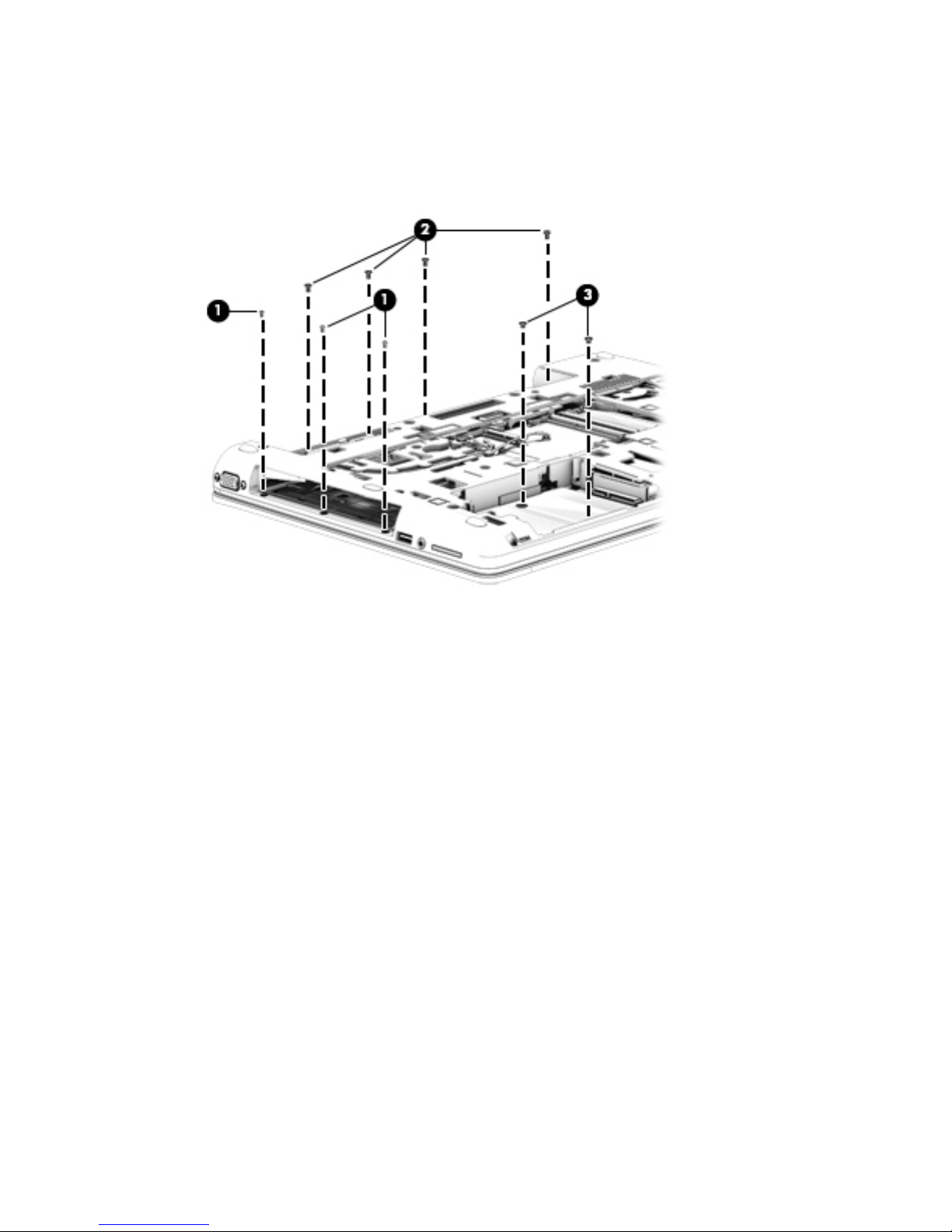

4. Remove the following screws that secure the top cover to the computer:

(1) Three Torx T8M2.5×4.5 screws in the optical drive bay

(2) Four Torx T8M2.5×4.5 screws in the battery bay

(3) Two Phillips PM2.0×3.0 screws in the hard drive bay

5. Turn the computer right side up with the front toward you.

6. Open the computer.

7. Release the ZIF connector (1) to which the power button board cable is attached, and then disconnect

the power button board cable from the system board.

8. Release the ZIF connector (2) to which the function button board cable is attached, and then disconnect

the function button board cable from the system board.

Component replacement procedures 59

9. Remove the Torx T8M2.5×6.5 screw (3) that secures the top cover to the computer.

10. Lift the rear edge of the top cover (1) until the left and right sides and the front edge detach from the

computer.

11. Slide the top cover (2) forward until the ngerprint reader board cable and the TouchPad cable are

accessible.

12. Release the ZIF connector to which the ngerprint reader board cable is attached, and then disconnect

the ngerprint reader board cable (3) from the system board.

13. Release the ZIF connector to which the TouchPad cable is attached, and then disconnect the TouchPad

cable (4) from the system board.

60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

14. Remove the top cover (5).

Reverse this procedure to install the top cover.

Component replacement procedures 61

Fingerprint reader board

Description Spare part number

Fingerprint reader board (includes cable and double-sided adhesive) 734286-001

Before removing the ngerprint reader board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

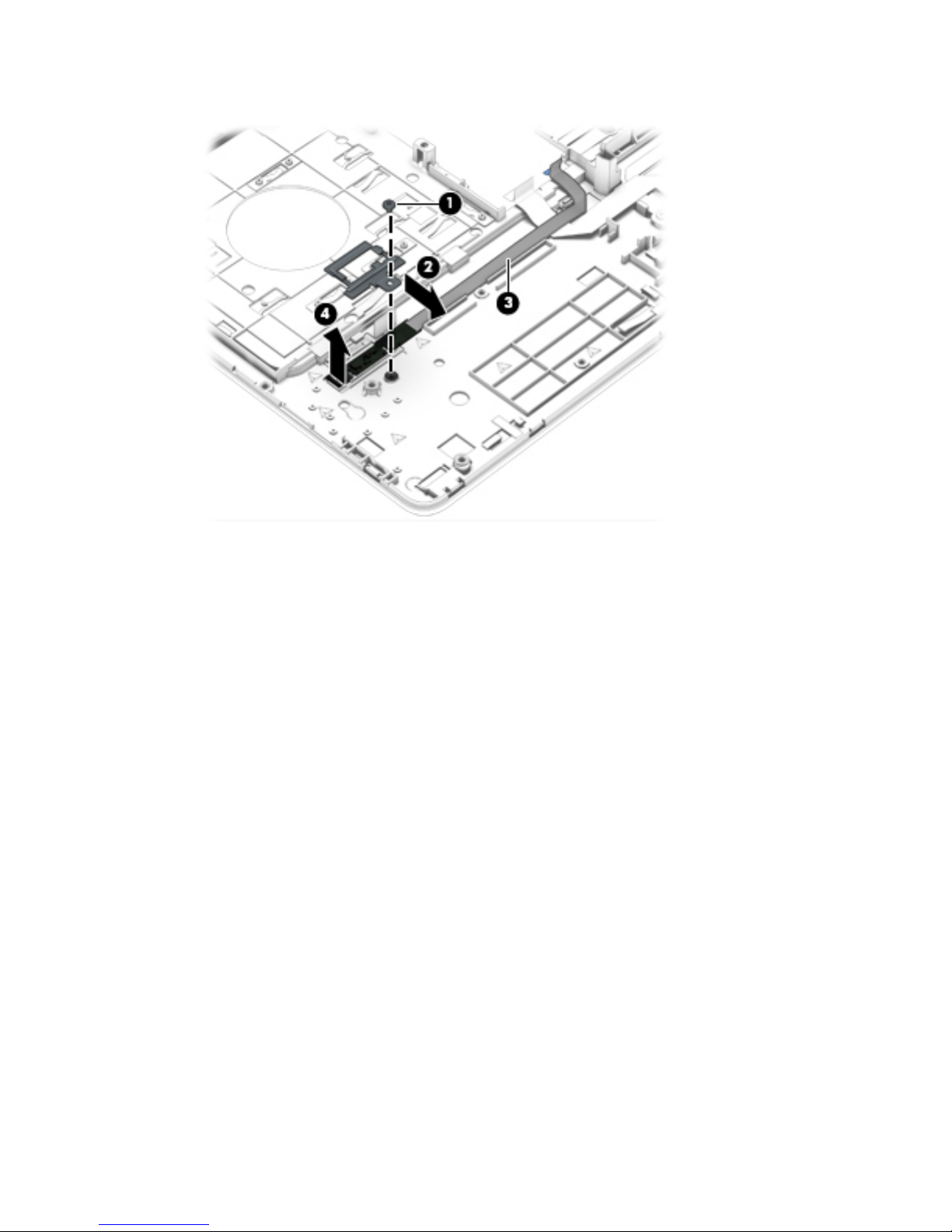

Remove the ngerprint reader board:

1. Turn the top cover upside down with the front toward you.

2. Remove the Phillips PM2.0×3.0 screw (1) that secures the ngerprint reader board and bracket to the

top cover.

3. Slide the ngerprint reader board (2) bracket forward and remove it.

The ngerprint reader board bracket is available in the Bracket Kit, spare part number 734299-001.

4. Detach the ngerprint reader board cable (3) from the top cover. (The ngerprint reader board cable is

attached to the top cover with double-sided adhesive.)

62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

5. Remove the ngerprint reader board (4) and cable.

Reverse this procedure to install the ngerprint reader board.

Component replacement procedures 63

Function button board

Description Spare part number

Function button board (includes cable and double-sided adhesive) 734284-001

Before removing the function button board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

Remove the function button board:

1. Detach the function button board cable from the top cover. (The function button board cable is attached

to the top cover with double-sided adhesive.)

2. Turn the top cover upside down, with the front toward you.

3. Release the function button board cable through the opening (1) in the top cover.

4. Remove the Phillips PM2.0×3.0 screw (2) that secures the function button board to the top cover.

64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

5. Lift the right side of the function button board (3) until it rests at an angle.

6. Remove the function button board (4) by sliding it up and to the right at an angle.

Reverse this procedure to install the function button board.

Component replacement procedures 65

Power button board

Description Spare part number

Power button board (includes cable) 734285-001

Before removing the power button board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

Remove the power button board:

1. Turn the top cover upside down, with the front toward you.

2. Remove the Phillips PM2.0×3.0 screw (1) that secures the power button board to the top cover.

3. Release the clips (2) that secure the power button board to the top cover.

4. Remove the power button board (3) and cable

66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Reverse this procedure to install the power button board.

ExpressCard assembly

Description Spare part number

ExpressCard assembly (includes activity LEDs and Thunderbolt port, Dual Mode DisplayPort, and USB
port)

794579-001

Before removing the ExpressCard assembly, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

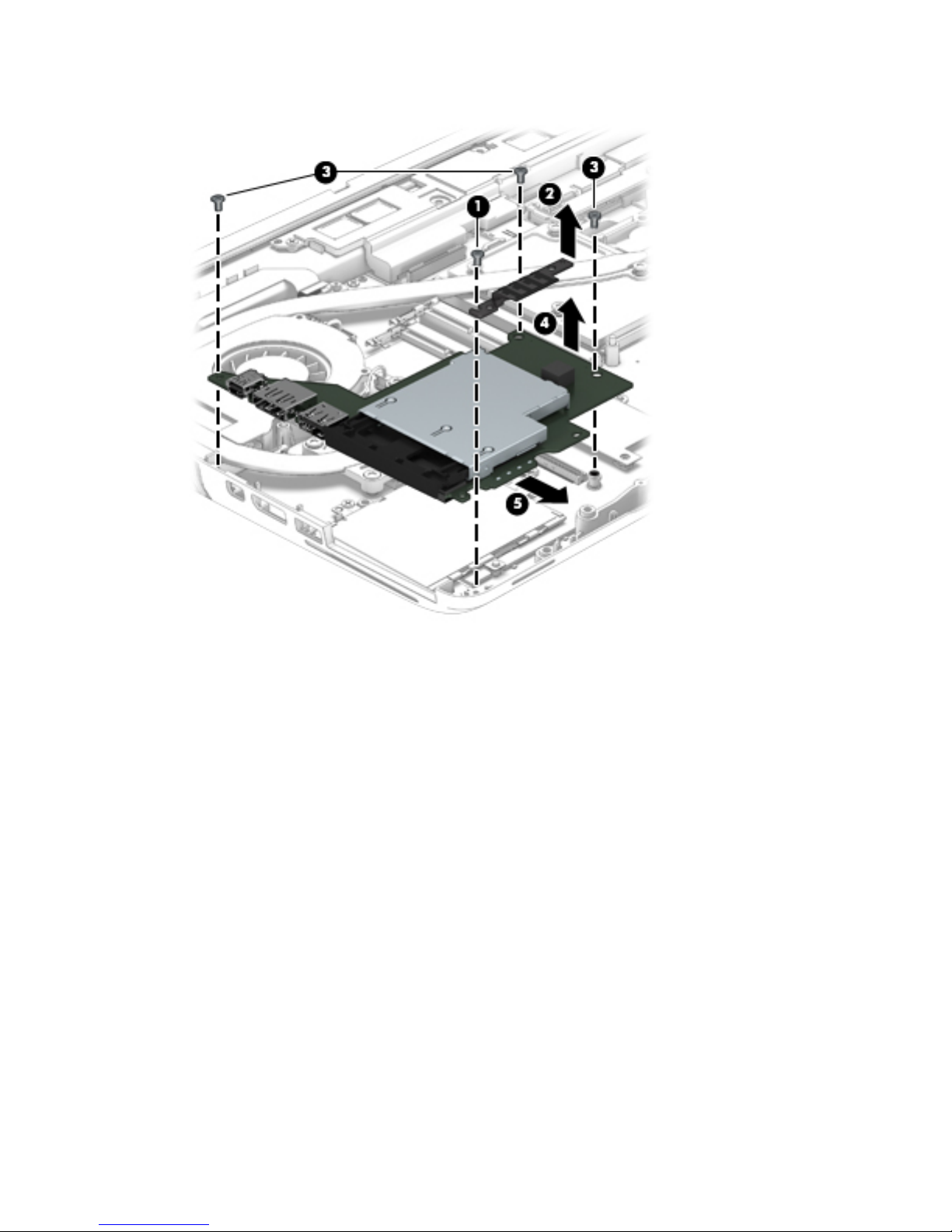

Remove the ExpressCard assembly:

1. Remove the Torx T8M2.5×4.5 screw (1) that secures the system lens to the base enclosure.

2. Remove the system lens (2).

The system lens is available in the Plastics Kit, spare part number 734297-001.

3. Remove the three Torx T8M2.5×4.5 screws (3) that secure the ExpressCard assembly to the

base enclosure.

4. Disconnect the ExpressCard assembly (4) from the system board by lifting up on the right side of the

assembly.

Component replacement procedures 67

5. Remove the the ExpressCard assembly (5).

Reverse this procedure to install the ExpressCard assembly.

68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

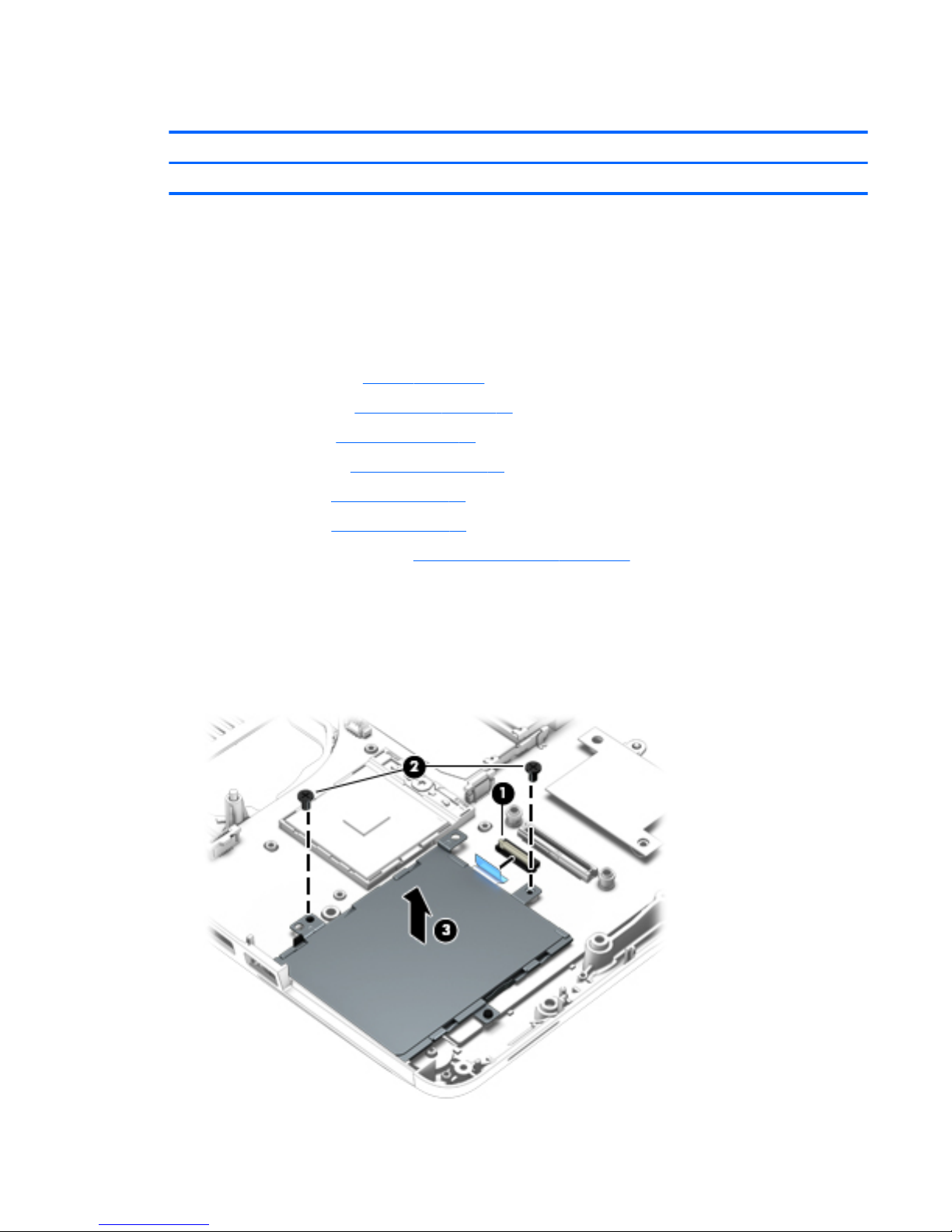

Smart card reader

Description Spare part number

Smart card reader (includes cable) 742159-001

Before removing the smart card reader, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

f. ExpressCard assembly (see ExpressCard assembly on page 67)

Remove the smart card reader:

1. Release the ZIF connector (1) to which the smart card reader cable is attached, and then disconnect the

smart card reader cable from the system board.

2. Remove the two Torx T8M2.5×4.5 screws (2) that secure the smart card reader to the base enclosure.

3. Remove the smart card reader (3).

Component replacement procedures 69

Reverse this procedure to install the smart card reader and cable.

Audio/USB board

Description Spare part number

Audio/USB board (includes SD Card reader) 734288-001

Before removing the audio/USB board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

Remove the audio/USB board:

1. Remove the four Torx T8M2.5×4.5 screws (1) that secure the audio/USB board to the base enclosure.

70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

2. Disconnect the audio/USB board (2) from the system board by lifting up on the left side of the audio/USB

board.

3. Remove the audio/USB board.

Reverse this procedure to install the audio/USB board.

USB board

Description Spare part number

USB board (includes cable and double-sided adhesive) 734293-001

Before removing the USB board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

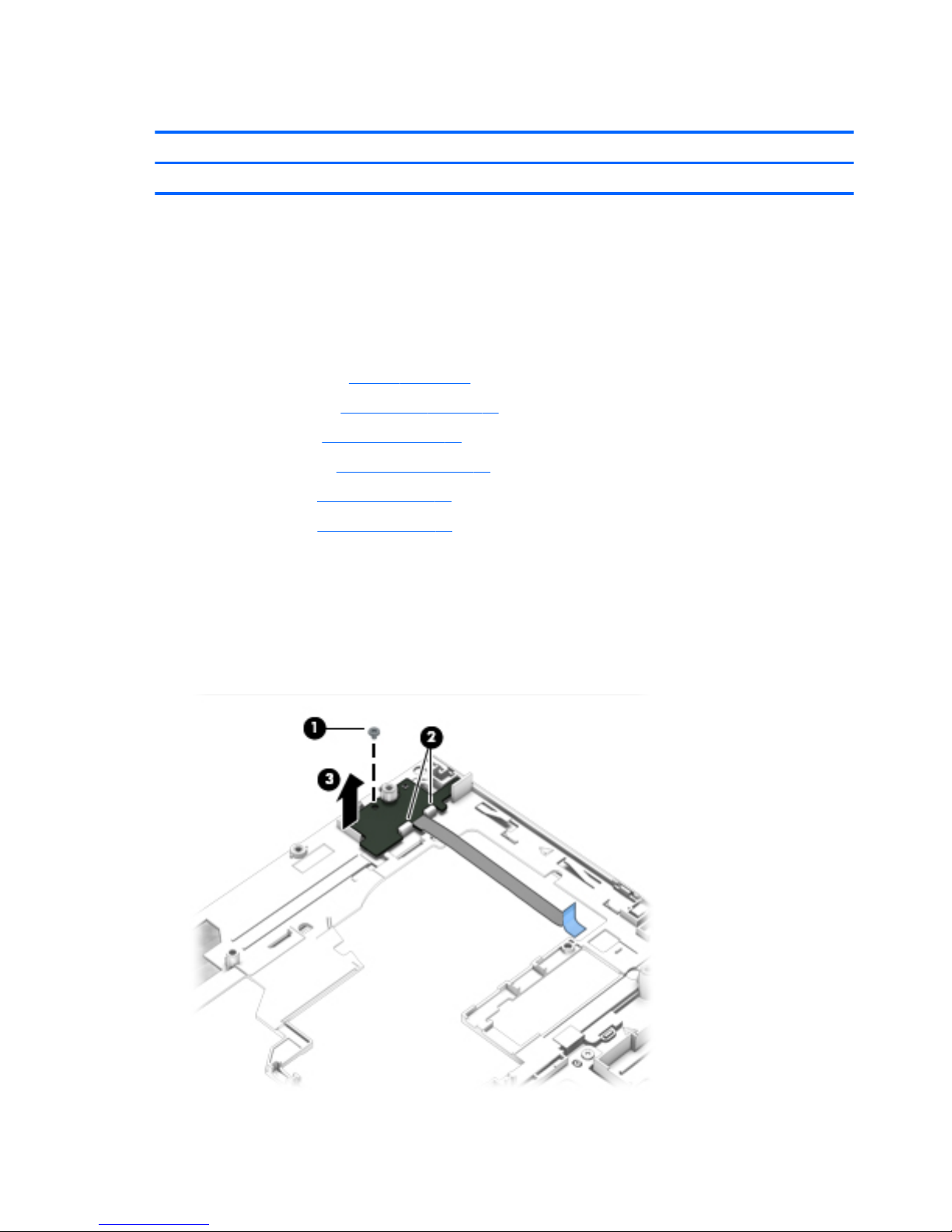

Remove the USB board:

Component replacement procedures 71

1. Release the ZIF connector (1) to which the USB board cable is attached, and then disconnect the USB

board cable from the system board.

2. Detach the USB board cable (2) from the base enclosure. (The USB board cable is attached to the

base enclosure with double-sided adhesive.)

3. Remove the Torx T8M2.5×4.5 screw (3) that secures the USB board to the base enclosure.

4. Remove the USB board and cable.

Reverse this procedure to install the USB board.

72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Speakers

Description Spare part number

Speakers (includes cable) 734292-001

Before removing the speakers, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

Remove the speakers:

1. Disconnect the speaker cable (1) from the system board.

2. Remove the two Phillips PM2.0×3.0 screws (1) that secure the speakers to the base enclosure.

3. Remove the speakers (3) and cable.

Reverse this procedure to install the speakers.

Component replacement procedures 73

Fan/heat sink assembly

NOTE: The fan/heat sink assembly spare part kit includes replacement thermal material.

Description Spare part number

For use only with an NVIDIA Quadro K1100M NVIDIA N15P-Q1 graphics board, spare part number
785223-001

734289-001

For use only with an NVIDIA Quadro K610M NVIDIA N15M-Q2 graphics board, spare part number
785225-001

734290-001

For use only with an NVIDIA Quadro K2100M NVIDIA N15P-Q3 graphics board, spare part number
785224-001

734291-001

For use only with an AMD FirePro M5100 graphics board, spare part number 784470-001 784469-001

Before removing the fan/heat sink assembly, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

Remove the fan/heat sink assembly:

1. Disconnect the fan cable (1) from the system board.

2. Following the 1 through 4 sequence stamped into the processor heat sink, loosen the four Phillips

captive screws (2) that secure the processor heat sink to the system board.

3. Following the 5 through 8 sequence stamped into the graphics board heat sink, loosen the four Phillips

captive screws (3) that secure the graphics board heat sink to the system board.

74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

4. Remove the fan/heat sink assembly (4).

NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink

assembly and the system board components, it may be necessary to move the fan/heat sink assembly
from side to side to detach it.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly

and the system board components each time the fan/heat sink assembly is removed. Replacement thermal
material is included with the fan/heat sink assembly, processor, and system board spare part kits.

●

Various thermal pads are used on the graphics board components (1) and (7) and the heat sink sections
(2) and (8) that service them

●

Thermal paste is used on the processor (3) and the heat sink section (4) that services it

●

Thermal paste is used on the graphics board processor (5) and the heat sink section (6) that services it

Component replacement procedures 75

Reverse this procedure to install the fan/heat sink assembly.

76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Processor

NOTE: The processor spare part kit includes replacement thermal material.

Description Spare part number

Intel Quad Core i7-4910MQ 2.90-GHz (SC turbo up to 3.90-GHz) processor (1600-MHz FSB, 8.0-MB L3
cache, 47 W)

778693-001

Intel Quad Core i7-4810MQ 2.80-GHz (SC turbo up to 3.80-GHz) processor (1600-MHz FSB, 6.0-MB L3
cache, 47 W)

778692-001

Intel Quad Core i7-4710MQ 2.50-GHz (SC turbo up to 3.50-GHz) processor (1600-MHz FSB, 6.0-MB L3
cache, 47 W)

773212-001

Intel Quad Core i7-4610M 3.00-GHz (SC turbo up to 3.70-GHz) processor (1600-MHz FSB, 4.0-MB L3
cache, 37 W)

765141-001

Intel Dual Core i5-4340M 2.90-GHz (SC turbo up to 3.60-GHz) processor (1600-MHz FSB, 3.0-MB L3
cache, 37 W)

765142-001

Intel Dual Core i5-4210M 2.60-GHz (SC turbo up to 3.20-GHz) processor (1600-MHz FSB, 3.0-MB L3
cache, 37 W)

768420-001

Before removing the processor, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

f. Fan/heat sink assembly (see Fan/heat sink assembly on page 74)

Remove the processor:

1. Use a Torx8 screw driver (1) to turn the processor locking screw one-half turn counterclockwise (2), until

you hear a click.

Component replacement procedures 77

2. Lift the processor (3) straight up, and remove it.

NOTE: The gold triangle (4) on the processor must be aligned with the triangle icon embossed on the

processor socket when you install the processor.

Reverse this procedure to install the processor.

Graphics board

NOTE: The graphics board spare part kit includes replacement thermal material.

Description Spare part number

NVIDIA Quadro K1100M NVIDIA N15P-Q1 graphics board 785223-001

NVIDIA Quadro K610M NVIDIA N15M-Q2 graphics board 785225-001

NVIDIA Quadro K2100M NVIDIA N15P-Q3 graphics board 785224-001

AMD FirePro M5100 graphics board 784470-001

Before removing the graphics board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

f. Fan/heat sink assembly (see Fan/heat sink assembly on page 74)

Remove the graphics board:

1. Remove the two Torx T8M2.5×4.5 screws (1) that secure the graphics board to the system board. (The

graphics board tilts up.)

2. Remove the graphics board (2) by pulling the board away from the slot at an angle.

Reverse this procedure to install the graphics board.

Component replacement procedures 79

Display assembly

NOTE: The DreamVision display assembly is spared as a whole unit assembly only. The LED display

assembly is spared at the subcomponent level only. For more LED display assembly spare part information,
see the individual removal subsections.

Description Spare part number

15.6-in, FHD, UWVA, DreamVision display assembly equipped with a webcamera 735965-001

15.6-in, FHD, UWVA, DreamVision display assembly not equipped with a webcamera 735964-001

To remove the display assembly and access the LED display assembly subcomponents, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

Remove the display assembly:

1. Close the computer.

2. Turn the computer upside down, with the rear toward you.

3. Make sure that the WWAN antenna cables are disconnected from the WWAN module (see WWAN module

on page 43).

4. Make sure that the WLAN antenna cables are disconnected from the WLAN module (see WLAN module

on page 46).

80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

5. Release the wireless antenna cables (1) from the routing clips (2) and channels built into the

base enclosure.

6. Turn the computer right side up, with the rear toward you.

7. Remove the four Torx T8M2.0×3.0 screws (1) that secure the hinge cover to the computer.

8. Remove the hinge cover (2).

The hinge cover is available using spare part number 734294-001.

Component replacement procedures 81

9. Remove the two Torx T8M2.5×4.5 screws that secure the display assembly to the base enclosure.

10. Position the computer with the front toward you.

11. Open the computer as far as it will open.

12. Remove the Phillips PM2.0×3.0 screw (1) that secures the display panel cable and bracket to the system

board.

13. Remove the display panel cable bracket (2).

The display panel cable bracket is included in the Hinge Kit, spare part number 784464-001.

14. Disconnect the display panel cable (3) from the system board.

15. Detach the display panel cable (4) from the base enclosure. (The display panel cable is attached to the

base enclosure with double-sided adhesive.)

82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

16. Release the wireless antenna cables from the routing channels built into the base enclosure.

17. Remove the two Torx T8M2.5×6.5 screws (1) that secure the display assembly to the base enclosure.

18. Remove the display assembly (2).

NOTE: Steps 19 through 22 apply only to LED display assemblies.

19. If it is necessary to replace the display bezel or any of the LED display assembly subcomponents:

Component replacement procedures 83

a. Remove the two screw covers (1) and the two Phillips PM2.0×5.5 screws (2) that secure the display

bezel to the display assembly.

The screw covers are available in all LED display assembly subcomponent spare part kits.

b. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge (3) of

the display bezel until the bezel disengages from the display enclosure.

c. Remove the display bezel (4).

The display bezel is available using the following spare part numbers:

734301-001: Models with a webcam

734302-001: Models without a webcam

784471-001: Models with a QHD+ display and a webcam

784472-001: Models with a QHD+ display and without a webcam

784473-001: Models with an Innolux display panel and a webcam

784474-001: Models with an Innolux display panel and without a webcam

84 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

20. If it is necessary to replace the display panel:

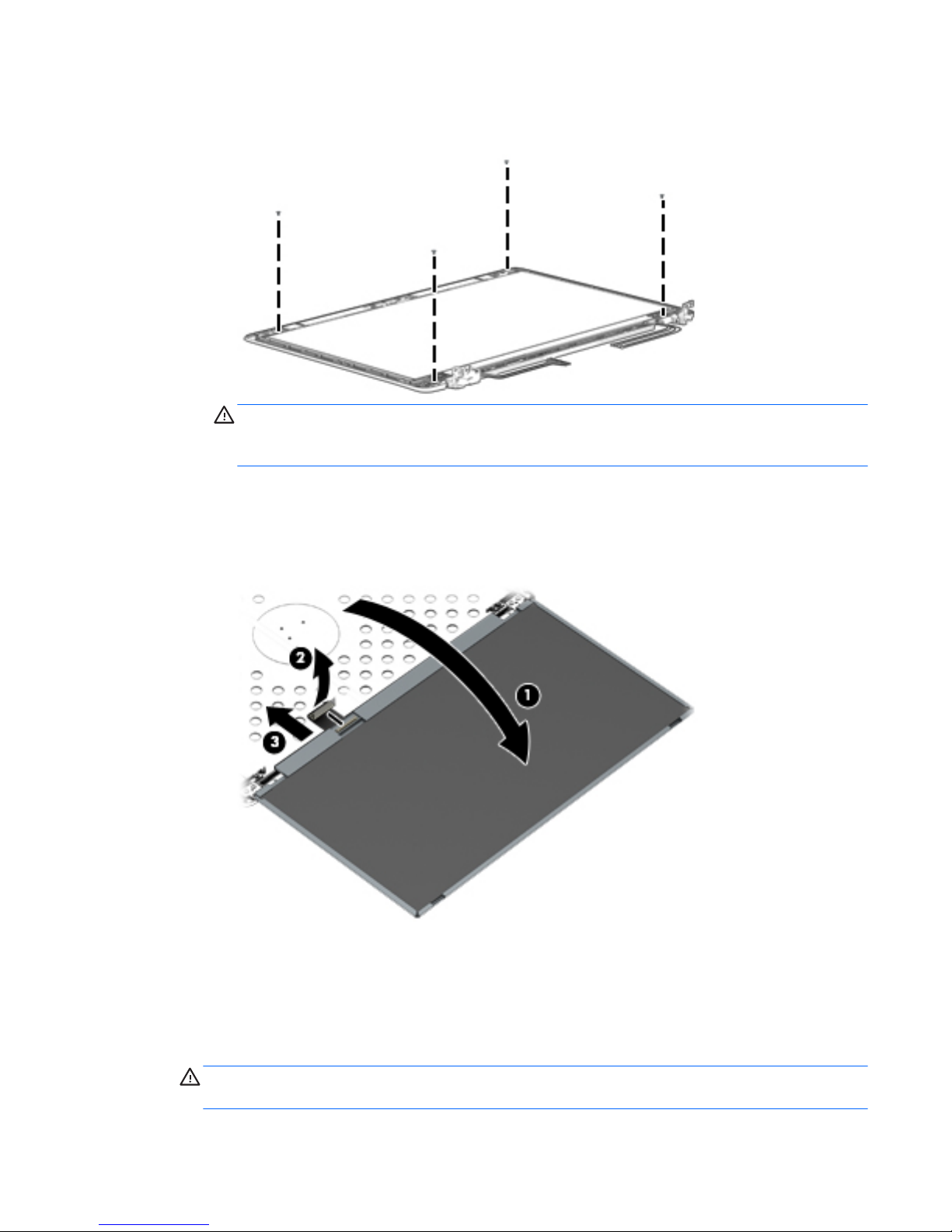

a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the display enclosure.

CAUTION: Before turning the display panel upside down, make sure the work surface is clear of

tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel.

b. Lift the top edge of the display panel (1) and swing it up and forward until it rests upside down in

front of the display enclosure.

c. Release the adhesive strip (2) that secures the display panel cable connector to the display panel.

d. Disconnect the display panel cable (3) from the display panel.

e. Remove the display panel.

The display panel is available using spare part numbers 735607-001 (15.6-in, FHD, UWVA, LED
display panel), 735604-001 (15.6-in, FHD, SVA, LED display panel) and 797849-001 (15.6-in, QHD
+, UWVA, LED display panel).

21. If it is necessary to replace the webcamera/microphone module or microphone module:

CAUTION: Handle the webcamera/microphone module and microphone module with caution. These

modules have a thin prole and are susceptible to damage when not handled carefully.

Component replacement procedures 85

a. Disconnect the webcamera/microphone module cable (1) from the webcamera/

microphone module.

b. Detach the webcamera/microphone module (2) from the display enclosure. (The webcamera/

microphone module is attached to the display enclosure with double-sided adhesive.)

c. Remove the webcamera/microphone module.

The webcamera/microphone module is available using spare part number 784208-001. The
microphone module is available using spare part number 735370-001.

22. If it is necessary to replace the display hinges:

a. Remove the four Torx T8M2.5×4.5 screws (1) that secure the display hinges to the display panel.

86 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

b. Remove the display hinges (2).

The display hinges are available using spare part number 784464-001 and include the left and
right hinges.

Reverse this procedure to reassemble and install the display assembly.

System board

NOTE: The system board spare part kit includes battery connector bracket and replacement

thermal material.

All system boards use the following part numbers:

xxxxxx-001: Windows 7 or non-Windows operating systems

xxxxxx-501: Windows 8.1 Standard operating system

xxxxxx-601: Windows 8.1 or Windows 10 operating system

Description Spare part number

For use only on computer models equipped with an Intel Quad Core processor 784468-xxx

For use only on computer models equipped with an Intel Dual Core processor 784467-xxx

Before removing the system board, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the battery (see Battery on page 37), and then remove the following components:

a. Service cover (see Service cover on page 38)

b. Hard drive (see Hard drive on page 39)

c. Optical drive (see Optical drive on page 41)

Component replacement procedures 87

d. Keyboard (see Keyboard on page 50)

e. Top cover (see Top cover on page 58)

f. ExpressCard assembly (see ExpressCard assembly on page 67)

g. Audio/USB board (see Audio/USB board on page 70)

h. Speakers (see Speakers on page 73)

i. Fan/heat sink assembly (see Fan/heat sink assembly on page 74)

j. Display assembly (see Display assembly on page 80)

NOTE: When replacing the system board, be sure that the following components are removed from the

defective system board and installed on the replacement system board:

●

WWAN module (see WWAN module on page 43)

●

Solid-state drive (see Solid-state drive (M.2) on page 45)

●

WLAN module (see WLAN module on page 46)

●

Expansion memory (see Primary memory module on page 48)

●

Primary memory (see Expansion memory module on page 54)

●

smart card reader (see Smart card reader on page 69)

●

Processor (see Processor on page 77)

●

Graphics board (see Graphics board on page 78)

Remove the system board:

1. Make sure that the RTC battery cable is disconnected from the system board (see RTC battery

on page 56).

88 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

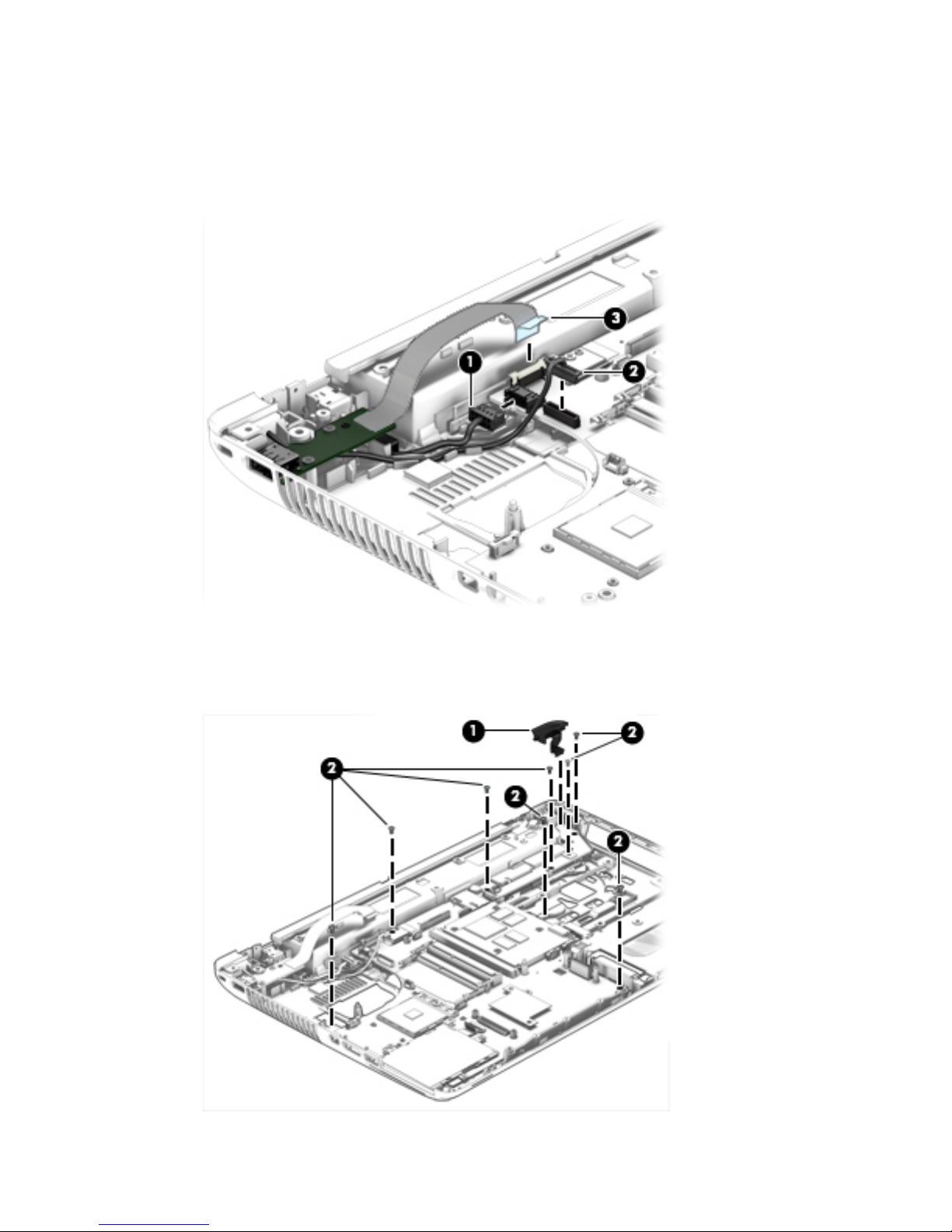

2. Disconnect the following cables from the system board:

(1) Power connector cable

(2) RJ-45 (network) cable

(3) USB board cable

3. Remove the right-side rear corner cover (1).

The right-side rear corner cover is included in the Hinge Cover Kit, spare part number 734294-001.

4. Remove the seven Torx T8M2.5×4.5 screws (2) that secure the system board to the base enclosure.

Component replacement procedures 89

5. Lift up on the left side of the system board (1) until it rests at an angle.

6. Remove the system board (2) by sliding it up and to the left at an angle.

Reverse this procedure to install the system board.

90 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
