1 Product features
Standard features
Thank you for purchasing an HP thin client. We hope you have years of use from our thin clients. Our
goal is to provide you with award-winning clients that are easy to deploy and manage with the power
and reliability you expect.
The next sections describe the features of the thin client. For a complete list of the hardware and
software installed on a specific model, visit
model.
The following features are common to all HP thin clients:
no hard drives or diskette drives
●
5 minutes or less hardware setup time
●
central deployment and management using HP Management Solutions
●
Various options are available for your thin client. For more information about available options, visit
the HP website at
http://www.hp.com and search for your specific thin client model.
http://www.hp.com and search for your specific thin client
Standard features 1
CAUTION: Ensure that the write filter is enabled after committing necessary configurations to the
thin client flash drive. During normal operation of the thin client, the write filter must be enabled. Also
ensure that Page File is not enabled on thin clients with flash memory storage. Failure to follow these
required actions can void the warranty of the flash storage device. In the event of damage to the flash
storage device due to operation with a disabled write filter or enabled Page File, the damage will not
be covered by HP warranty.
For more information about write filter usage, see the operating system guide for your thin client
available at
NOTE: Your computer model may look different than the model in the following illustrations.
http://www.hp.com/support/manuals/thinclients.
Front panel components
For more information, go to http://www.hp.com and search for your specific thin client model to find
the model-specific QuickSpecs.
(1) Power button (4) USB 3.0 ports (2)
(2) Flash drive activity LED (5) Microphone port
(3) USB 2.0 ports (2) (6) Headphone port
2 Chapter 1 Product features
Rear panel components
For more information, go to http://www.hp.com and search for your specific thin client model to find
the model-specific QuickSpecs.
(1) Half-height PCIe 2.0 expansion slot* (8) PS/2 keyboard port
(2) Serial port* (9) PS/2 mouse port
(3) Parallel port* (10) Serial port
Optional: VGA port or fiber NIC port
(4) Retractable power cord retention hook (11) Audio line-in port
(5) Ethernet RJ-45 port (12) Audio line-out port
(6) USB 2.0 ports (2) (13) Power
(7) Dual-mode DisplayPort 1.2 ports (2) (14) Cable lock slot
*Available on some models. Refer to the model-specific QuickSpecs at www.hp.com for details.
The devices connected at boot up or subsequently disconnected determine which video ports are
enabled and which is disabled.
If a VGA device is connected at boot up, then only one DisplayPort port may be used. If the VGA
●
device is subsequently disconnected, then both DisplayPort ports are enabled.
If a VGA device and one DisplayPort device are connected at boot up, then the other
●
DisplayPort port is disabled. If the VGA device is subsequently disconnected, then that
DisplayPort port is enabled.
● If two DisplayPort devices are connected at boot up, then the VGA port is disabled. If one or
both DisplayPort devices are subsequently disconnected, the VGA port is enabled.
Rear panel components 3
Using the keyboard
(1) Caps Lock key Activates/deactivates the Caps Lock feature.
(2) Scroll Lock key Activates/deactivates the Scroll Lock feature.
(3) Num Lock key Activates/deactivates the Num Lock feature.
(4) Ctrl key Use in combination with another key; its function depends on the
application software you are using.
(5)
Windows Logo Key
1, 2
Opens the Start menu in Windows®. Use in combination with other keys
to perform other functions. For more information, see
Windows Logo
Key on page 5.
(6) Alt key Use in combination with another key; its function depends on the
application software you are using.
(7)
Application key
1
Similar to the right mouse button, opens pop-up menus in a Microsoft
Office application. May perform other functions in other software
applications.
(8) Editing keys Include the following: Insert, Home, Page Up, Delete, End, and Page
Down.
Hold Ctrl and Alt while pressing Delete to restart the thin client.
1
Available in select geographic regions.
2
For local sessions, applies only to thin clients running Windows Embedded Standard. For full-screen remote Windows
sessions, applies to all thin clients.
®
4 Chapter 1 Product features
Windows Logo Key
Use the Windows Logo Key in combination with other keys to perform certain functions available in
Windows operating systems.
Windows Logo Key + Tab Switch between open items.
Windows Logo Key + e Open My Computer.
Windows Logo Key + f Search for a file or folder.
Windows Logo Key + Ctrl + f Search for computers.
Windows Logo Key + m Minimize all windows.
Windows Logo Key + Shift + m Undo minimize all.
Windows Logo Key + Break Display the System Properties dialog box.
Windows Logo Key + r Open the Run dialog box.
Additional function keys
The following key combinations also work on all thin clients regardless of operating system:
Alt + Esc Cycles through minimized applications.
Alt + Tab Cycles through open applications.
Alt + Shift + Tab Switches to the previous session.
Special mouse functions
Most software applications support the use of a mouse. The functions assigned to each mouse button
depend on the software applications you are using.
Special mouse functions 5
Serial number location
Every thin client includes a unique serial number located as shown in the following illustration. Have
this number available when contacting HP customer service for assistance.
6 Chapter 1 Product features
2 Hardware changes
Warnings and cautions
Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and
warnings in this guide.
WARNING! To reduce the risk of personal injury or equipment damage from electric shock, hot
surfaces, or fire:
Disconnect the power cord from the power outlet and allow the internal system components to cool
before you touch them.
Do not plug telecommunications or telephone connectors into the network interface controller (NIC)
receptacles.
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) outlet that is easily accessible at all times.
To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation,
setup, posture, and health and work habits for computer users, and provides important electrical and
mechanical safety information. The Safety & Comfort Guide is located on the HP website at
http://www.hp.com/ergo.
WARNING! Energized and moving parts inside.
Disconnect power to the equipment before removing the enclosure.
Replace and secure the enclosure before re-energizing the equipment.
CAUTION: Static electricity can damage the electrical components of the computer or optional
equipment. Before beginning the following procedures, be sure that you are discharged of static
electricity by briefly touching a grounded metal object. See
more information.
When the computer is plugged into an AC power source, voltage is always applied to the system
board. To prevent damage to internal components, you must disconnect the power cord from the
power source before opening the computer.
Electrostatic discharge on page 42 for
Warnings and cautions 7
Connecting the power cord
1. Plug the female end of the power cord into the power supply brick (1).
2. Connect the other end of the power cord to an electrical outlet (2).
3. Connect the round end of the power supply cord to the power supply connector on the rear of
the computer (3).
4. Use the slot (4) on the side of the retractable power cord retention hook to pull the hook out.
5. Press the power cord into the retention hook (5) and bundle any excess power cord.
CAUTION: Failure to secure the power cable with the retention hook may result in the power cord
becoming disconnected, causing loss of data.
8 Chapter 2 Hardware changes
Attaching the stand
CAUTION: The computer must be operated with the stand attached to ensure proper airflow around
the computer.

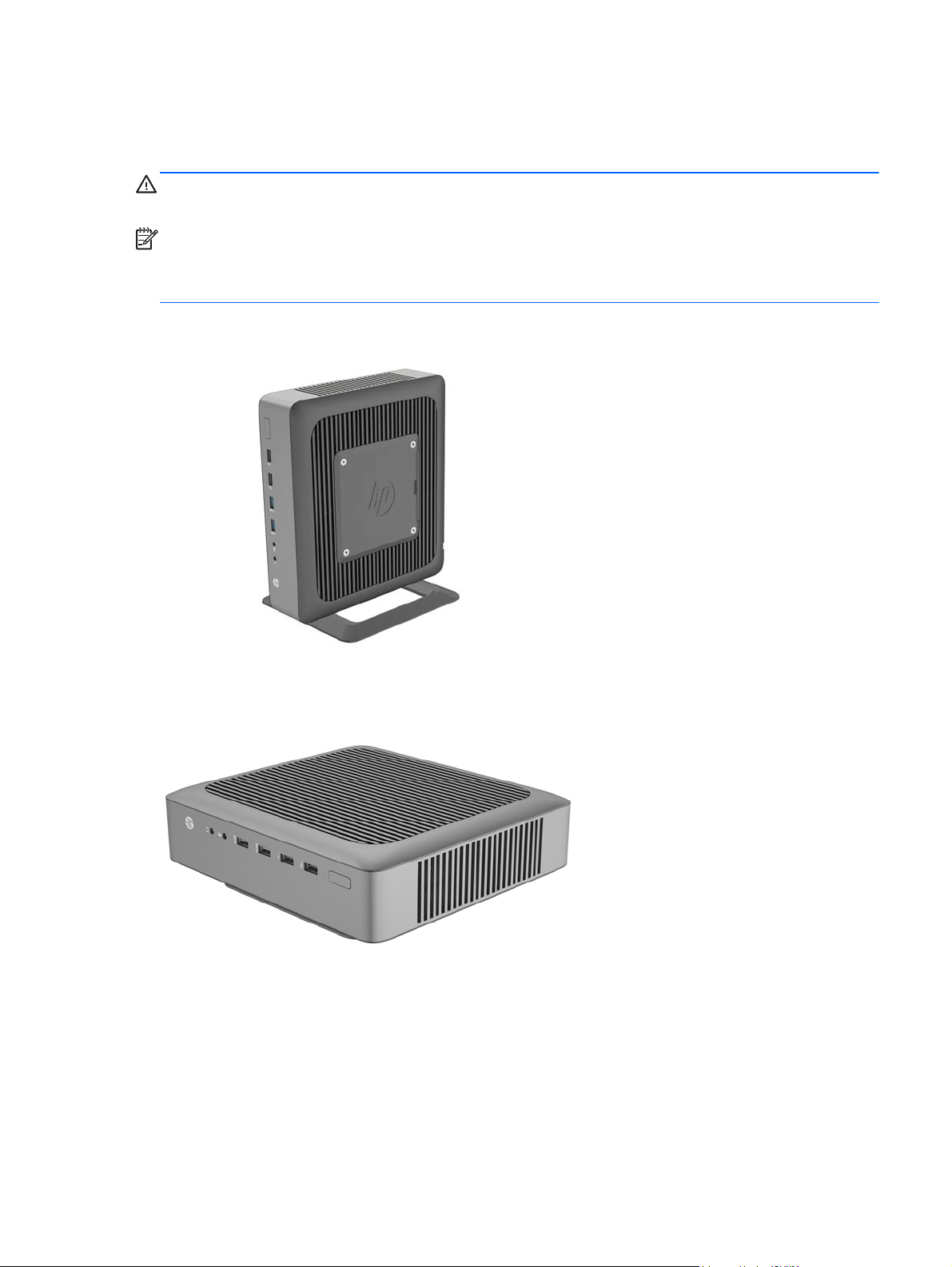

The computer can be used in either a tower or horizontal orientation with the stand included with the
computer.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
5. Attach the stand to the computer.
Attach the stand to the bottom of the computer to use the computer in the tower orientation.
●
a. Turn the computer upside down and locate the two screw holes in the grid on the
bottom of the computer.
b. Position the stand (1) over the bottom of the computer and line up the captive
thumbscrews in the stand with the screw holes in the computer.
c. Tighten the captive thumbscrews (2) securely.
Attach the stand to the right side of the computer to use it in the horizontal orientation.
●
a. Lay the computer down with the right side up and locate the two screw holes in the
grid on the right side of the computer.
b. Position the stand (1) over the side of the computer and line up the captive
thumbscrews in the stand with the screw holes in the computer.
c. Tighten the captive thumbscrews (2) securely.
Attaching the stand 9
6. Reconnect the external equipment, plug the power cord into a power outlet, and then turn the
computer on.
NOTE: Be sure that at least 10.2 centimeters (4 inches) of space on all sides of the computer
remain clear and free of obstructions.

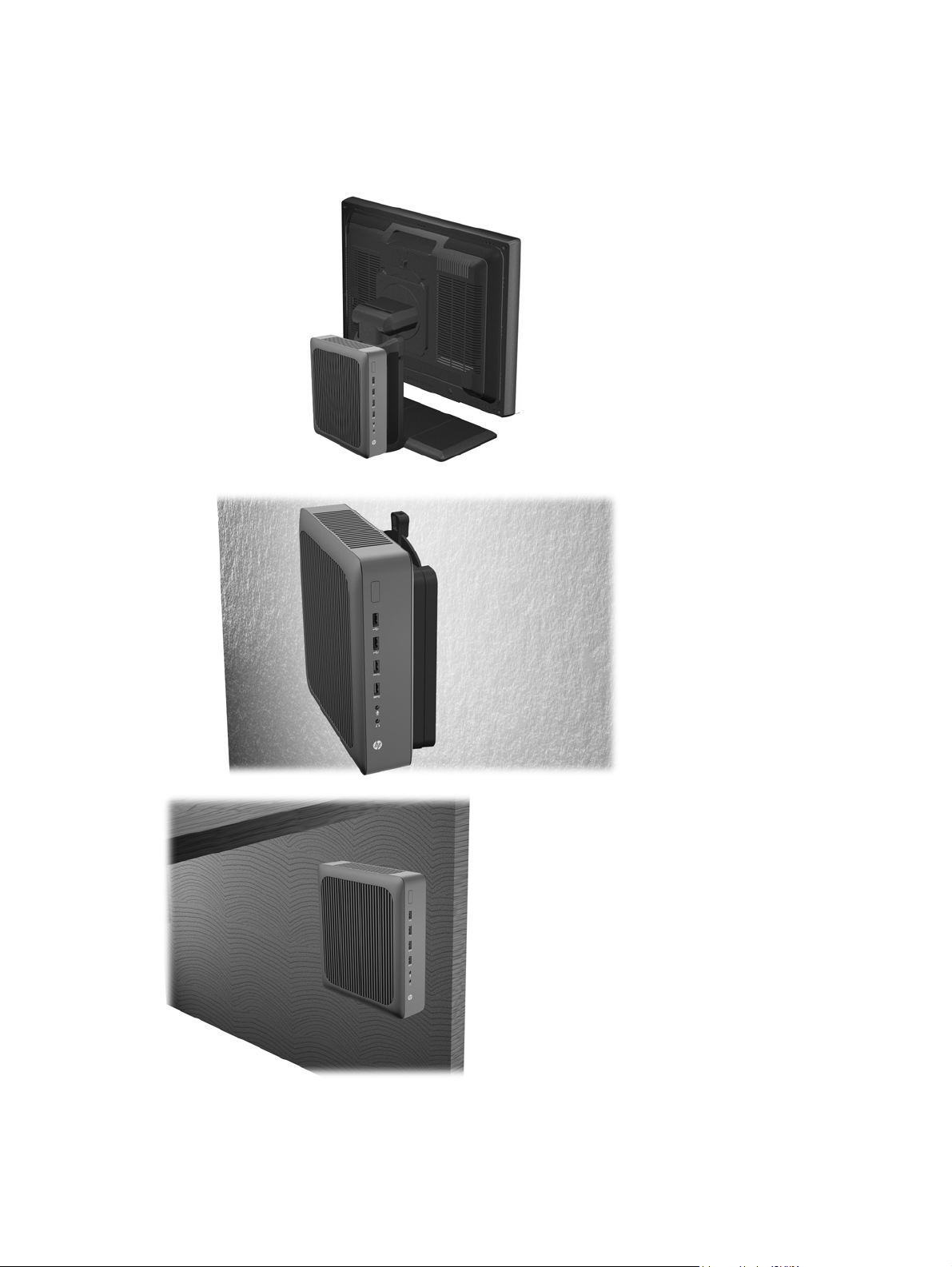

NOTE: An optional Quick Release mounting bracket is available from HP for mounting the computer
to a wall, desk, or swing arm. When the mounting bracket is used, do not install the computer with the
I/O ports oriented towards the ground.
Removing and replacing the access panel
Removing the access panel
WARNING! To reduce the risk of personal injury or equipment damage from electric shock, hot
surfaces, or fire, ALWAYS operate the computer with the access panel in place. In addition to
enhancing safety, the access panel may provide important instructions and identification information,
which may be lost if the access panel is not used. DO NOT use any access panel except the one that
is provided by HP for use with this computer.
Before removing the side access panel, be sure that the thin client is turned off and the power cord is
disconnected from the electrical outlet.
To remove the access panel:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
10 Chapter 2 Hardware changes
4. Disconnect the power cord from the power outlet, and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. You must disconnect the power cord
to avoid damage to the internal components of the computer.
5. Remove the computer from the stand.
6. Lay the unit flat on a stable surface with the right side up.

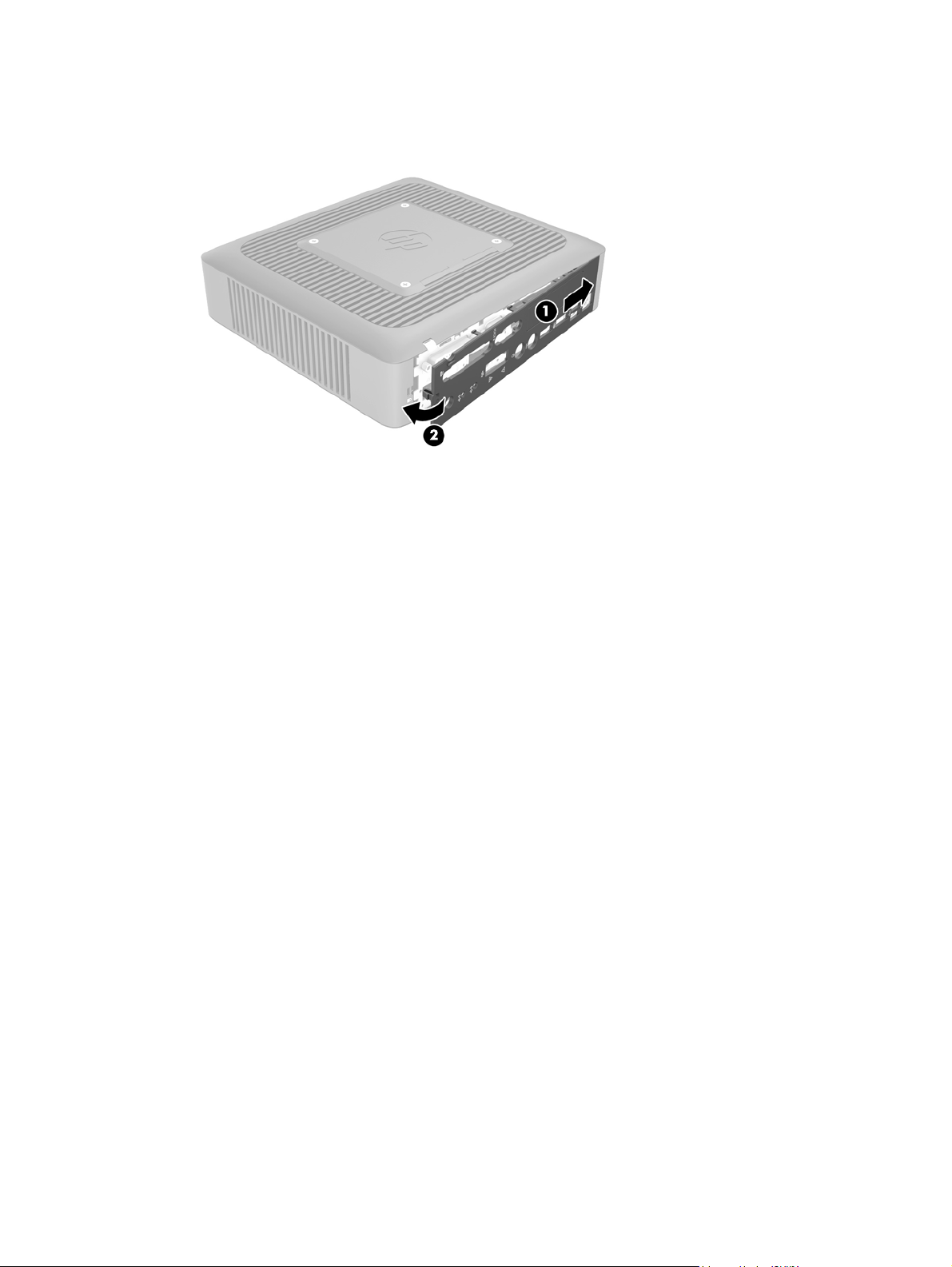

7. Release the latch (1) on the left side of the rear I/O panel, rotate the I/O panel (2) to the right,
and then lift it off the computer.
8. Move the access panel latch (1) to the left to release the access panel.
9. Slide the access panel (2) approximately 6 mm (.24 in) toward the back of the chassis, and then
lift the panel off of the computer.
Removing and replacing the access panel 11
Replacing the access panel
To replace the access panel:
1. Position the access panel (1) on the chassis, approximately 6 mm (.24 in) inside the edge of the
chassis. Be sure that the access panel covers the hood sensor, and then slide the panel toward
the front of the chassis (2) until it locks into place.
2. Move the access panel latch (3) to the right to secure the access panel.
12 Chapter 2 Hardware changes
3. Insert the hooks on the right side of the I/O panel (1) into the right side of the back of the
chassis, and then press the left side (2) to the chassis until it locks in place.
Removing and replacing the access panel 13
Installing internal USB flash drives
There are two USB flash drive ports on the system board.
To install a USB flash drive:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
4. Disconnect the power cord from the power outlet, and disconnect any external devices.
5. Remove the computer from the stand and lay the computer down with the right side up.
6. Remove the computer access panel and back I/O panel. See
access panel on page 10.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before you touch them.

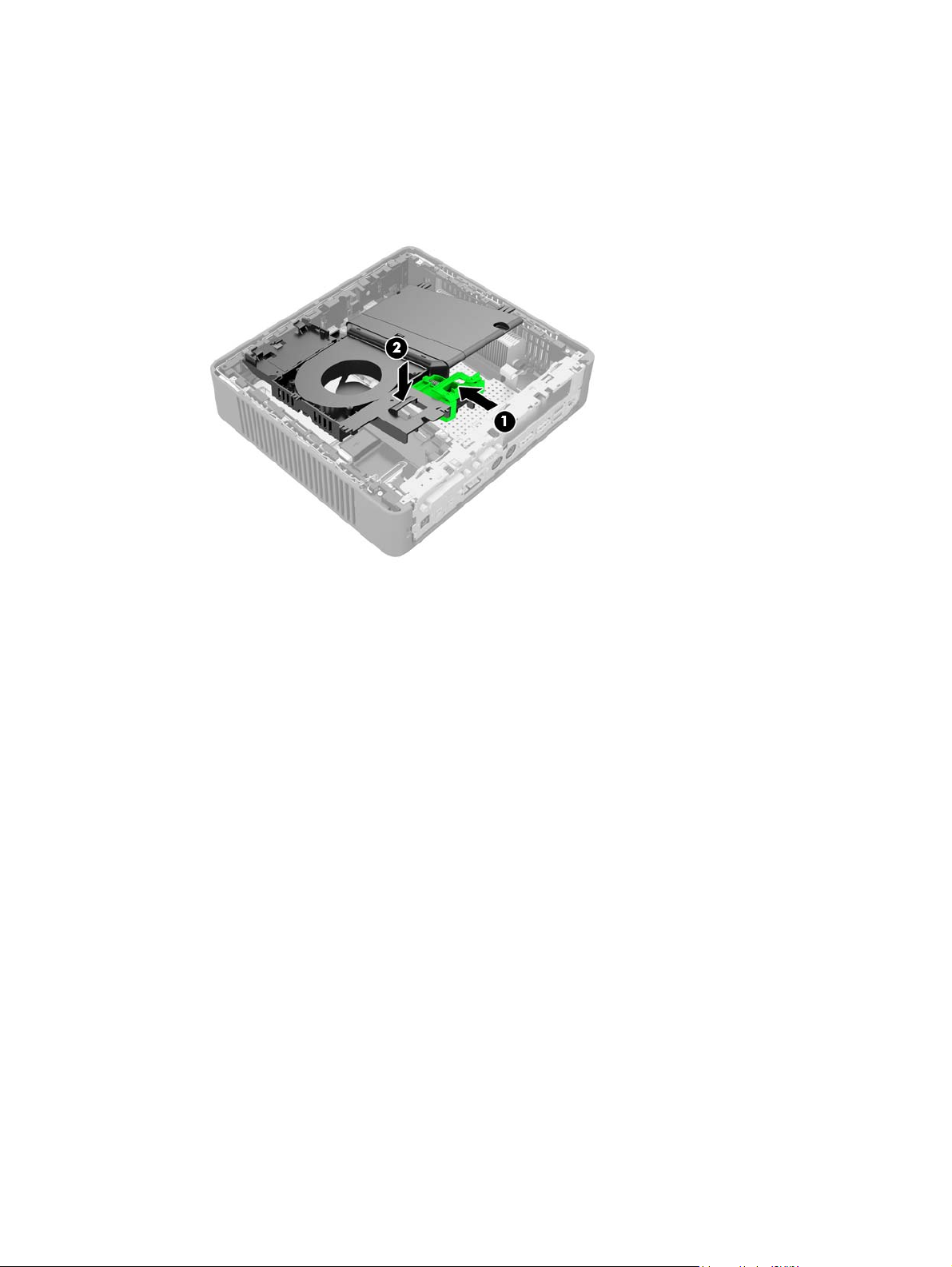

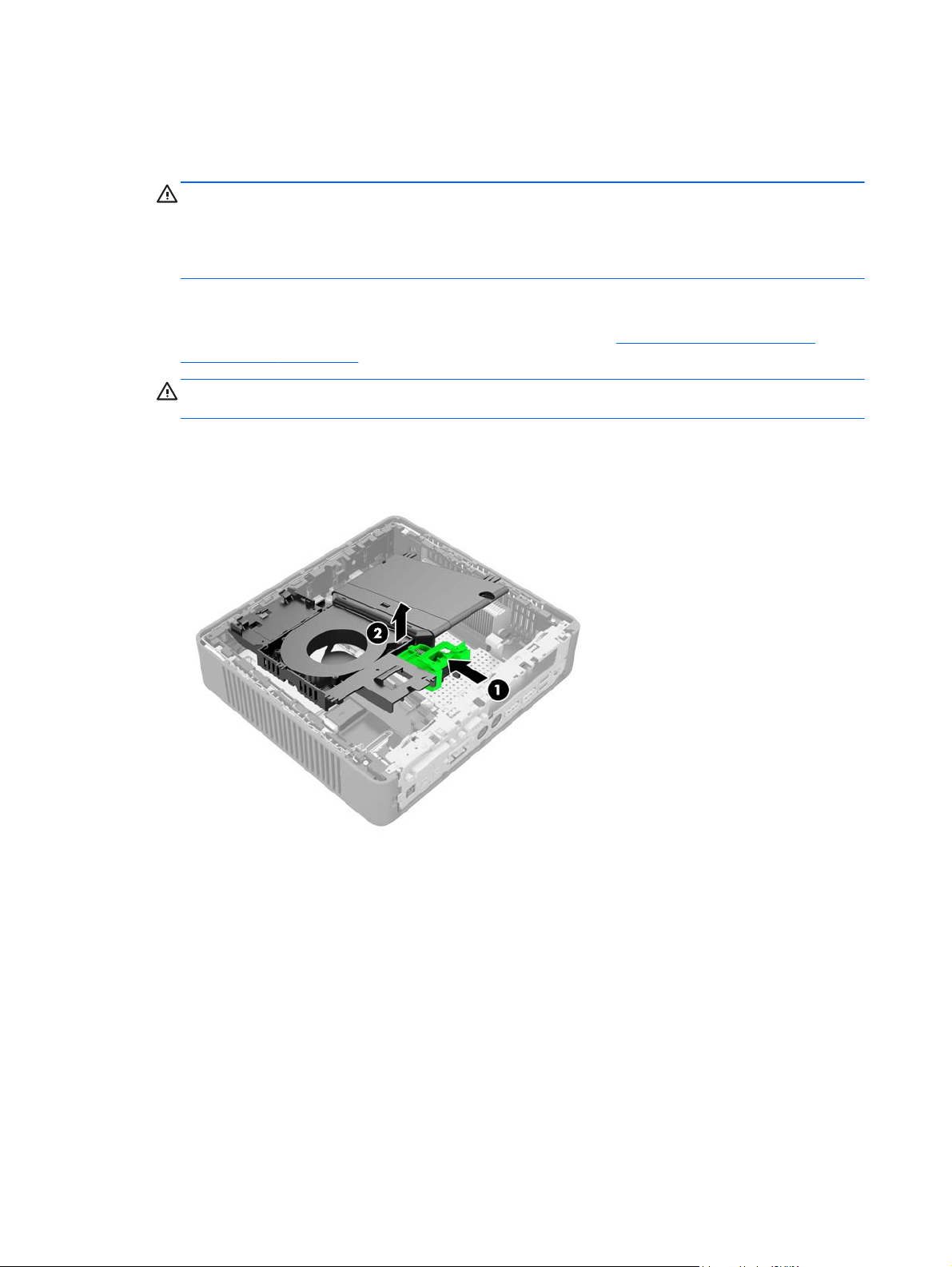

7. If the computer is an HP t620 PLUS Thin Client, push the fan assembly latch (1) toward the front
of the computer and rotate the assembly (2) up and out of the way.
Removing and replacing the
8. Locate the USB flash drive ports on the system board.
14 Chapter 2 Hardware changes
(1) USB-1 port
(2) USB-2 port
USB 2.0 flash drive: maximum dimensions 55
mm (L) x 16 mm (W) x 8 mm (H)
USB 2.0 flash drive: maximum dimensions 65
mm (L) x 25 mm (W) x 10 mm (H)
NOTE: Be sure that the USB flash drive to be installed does not exceed the maximum size for
that USB port.
9. Align the USB flash drive with the USB port and press the drive firmly into the port until it is
securely seated.
10. If the computer is an HP t620 PLUS Thin Client, rotate the fan assembly down, push the fan
assembly latch (1) toward the front of the computer, lower the assembly (2) until it stops, and
then release the latch.
11. Replace and latch the access panel, and then reinstall the I/O panel.
Installing internal USB flash drives 15
12. Replace the computer stand.
13. Reconnect the power cord and turn on the computer.
14. Lock any security devices that were disengaged when the computer cover or access panel was
removed.
Installing additional memory
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3LSDRAM) small outline dual inline memory modules (SODIMMs).
SODIMMs
The memory sockets on the system board can be populated with up to two industry-standard
SODIMMs. These memory sockets are populated with at least one preinstalled SODIMM. To achieve
the maximum memory support, you can populate the system board with up to 16 GB of memory.
DDR3L-SDRAM SODIMMs
For proper system operation, the SODIMMs must adhere to the following specifications:
industry-standard 204-pin
●
unbuffered non-ECC PC3L-12800 DDR3L-1600 MHz-compliant
●
1.35 volt DDR3L-SDRAM SODIMMs
●
● support CAS latency 11 DDR3L 1600 MHz (11-11-11 timing)
● contain the mandatory Joint Electronic Device Engineering Council (JEDEC) specification
The computer supports the following:
2 Gb and 4 Gb non-ECC memory technologies
●
single-sided and double-sided SODIMMS
●
SODIMMs constructed with x8 and x16 devices; SODIMMs constructed with x4 SDRAM are not
●
supported
NOTE: The system does not operate properly when unsupported SODIMMs are installed.
16 Chapter 2 Hardware changes
Populating SODIMM sockets

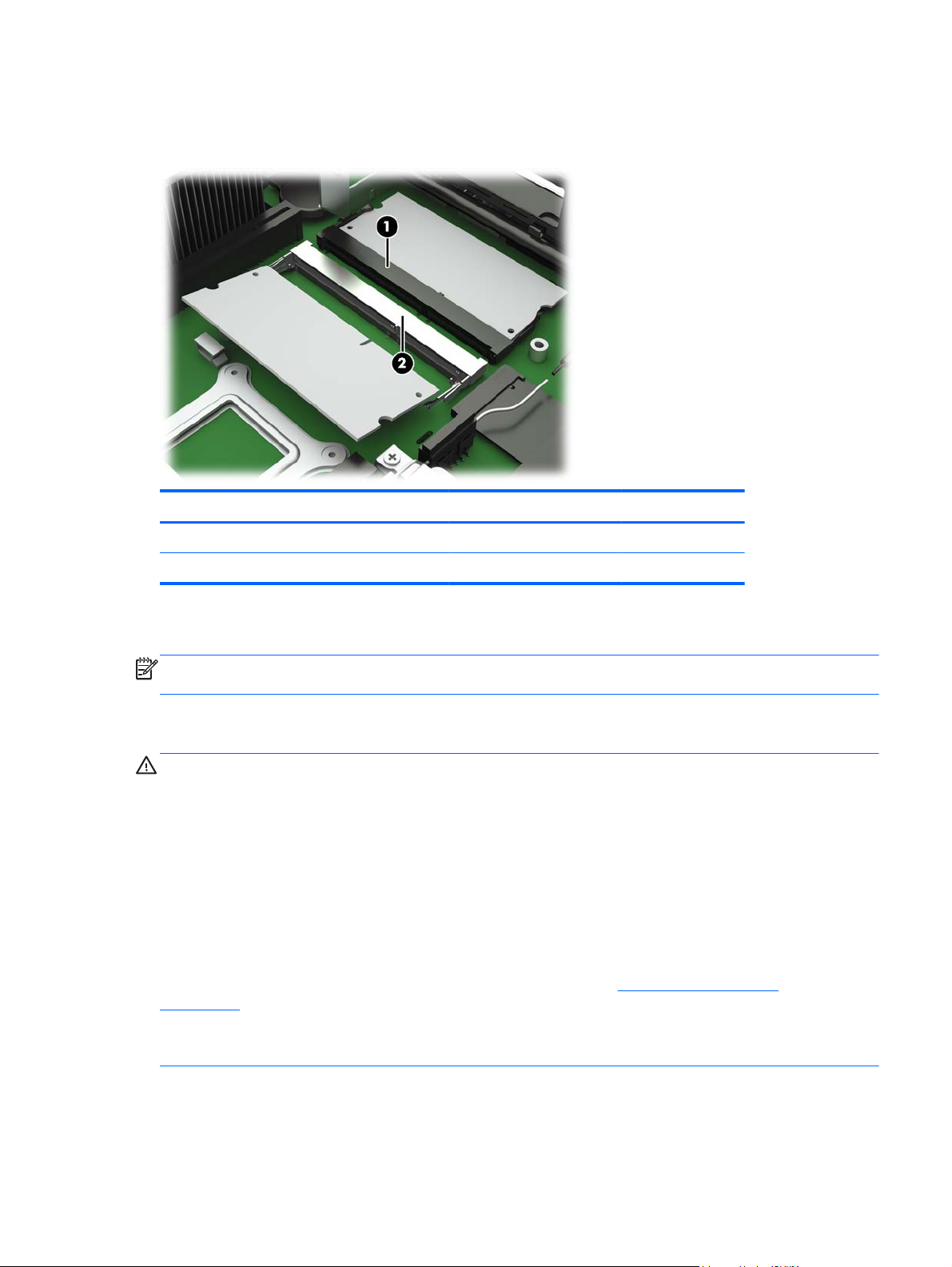

There are two SODIMM sockets on the system board. The sockets are labeled DIMM1 and DIMM2.
Item Description System Board Label Socket Color
1 SODIMM1 socket DIMM1 Black
2 SODIMM2 socket DIMM2 White
The system operates in single-channel mode.
NOTE: If both SODIMM sockets are populated with dual-sided SODIMMs, the system memory
speed is reduced to 1333 MHz.
Installing SODIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning the following procedures, be sure that you are discharged of static electricity by briefly
touching a grounded metal object. For more information, refer to
on page 42.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1. Remove/disengage any security devices that prohibit opening the computer.
Electrostatic discharge
2. Remove all removable media, such as USB flash drives, from the computer.
Installing additional memory 17
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
4. Disconnect the power cord from the power outlet, and disconnect any external devices.
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the
power to drain before adding or removing memory modules. Regardless of the power-on state,
voltage is always supplied to the memory modules as long as the computer is plugged into an
active AC outlet. Adding or removing memory modules while voltage is present may cause
irreparable damage to the memory modules or system board.
5. Remove the computer from the stand and lay the computer down with the right side up.
6. Remove the computer access panel and back I/O panel. See
Removing and replacing the
access panel on page 10.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before you touch them.
7. If the computer is an HP t620 PLUS Thin Client, push the fan assembly latch (1) toward the front
of the computer and rotate the assembly (2) up and out of the way.
18 Chapter 2 Hardware changes

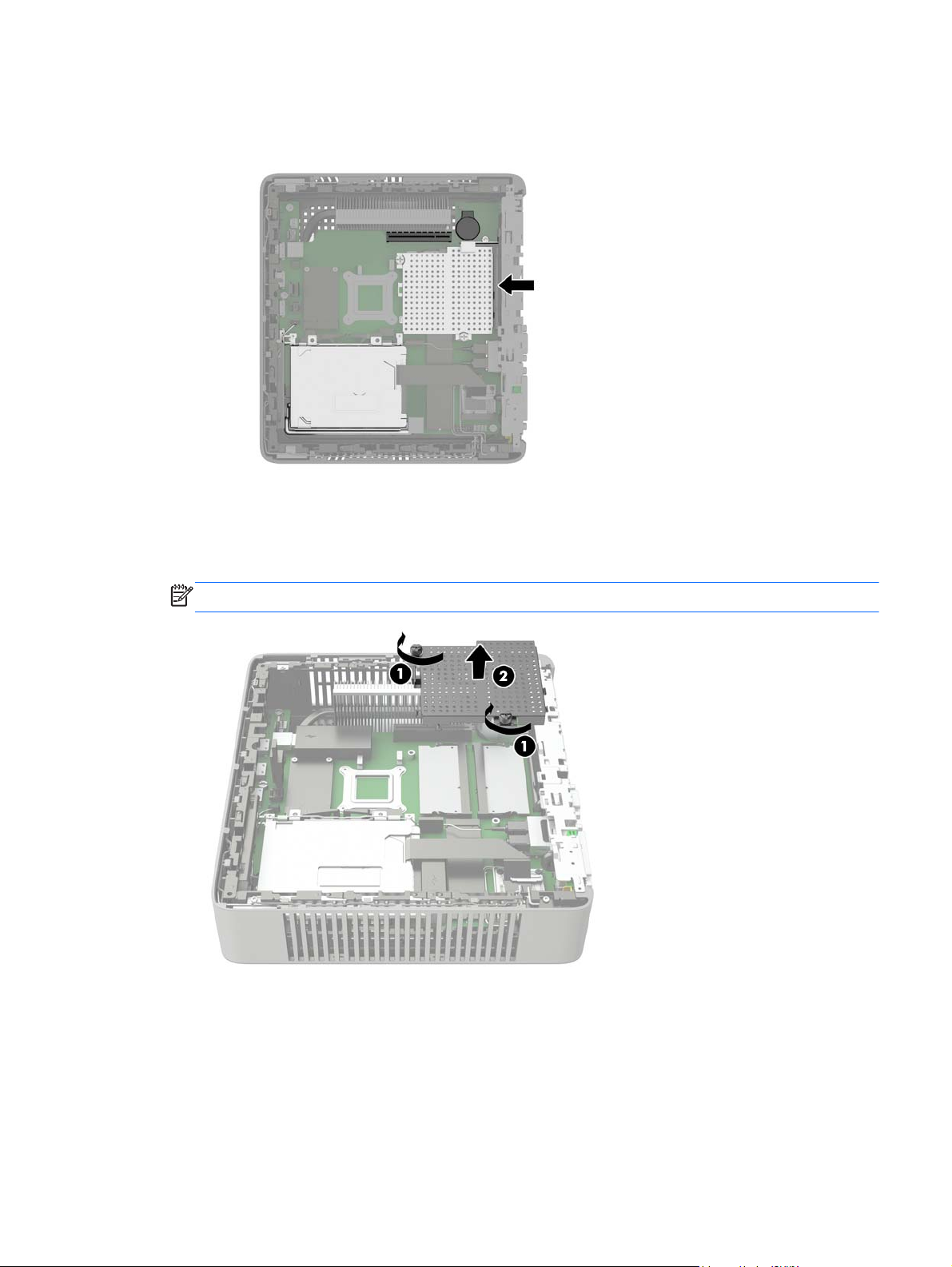

8. Locate the memory compartment on the system board.
9. If a fiber NIC is installed, move the cable carefully out of the slot in the memory compartment
cover.
10. Remove the two screws and springs (1) securing the memory compartment cover.
NOTE: Be sure to retain the two screws and the springs beneath them.
11. Slide the memory compartment cover (2) slightly toward the front of the computer to free it, and
then lift it out of the chassis.
Installing additional memory 19
12. To remove a SODIMM, press outward on the two latches (1) on each side of the SODIMM,
rotate the SODIMM up (2), and then pull the SODIMM out of the socket (3).
13. Slide the new SODIMM (1) into the socket at approximately a 30° angle, and then press the
SODIMM into the socket (2) so that the latches lock it in place.
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
20 Chapter 2 Hardware changes
14. Hold the memory compartment cover with the fiber NIC slot toward the front of the computer,
and then set the memory compartment cover (1) over the SODIMMs.
15. If a fiber NIC is installed, move the cable carefully into the slot in the memory compartment
cover.
16. Line up the screw holes in the memory cover with the screw posts in the chassis, and then
fasten the two screws (2) with the springs to secure the memory compartment cover.
17. If the computer is an HP t620 PLUS Thin Client, rotate the fan assembly down, push the fan
assembly latch (1) toward the front of the computer, lower the assembly (2) until it stops, and
then release the latch.
18. Replace and latch the access panel, and then reinstall the I/O panel.
19. Replace the computer stand.
Installing additional memory 21
20. Reconnect the power cord and turn on the computer.
21. Lock any security devices that were disengaged when the computer cover or access panel was
removed.
The computer automatically recognizes the additional memory when you turn on the computer.
22 Chapter 2 Hardware changes
Installing a half-height PCI-Express 2.0 card
You may install an optional half-height PCI-Express (PCIe) card in the HP t620 PLUS Thin Client. A
riser card is installed in this computer by default.
WARNING! To reduce the risk of personal injury or equipment damage from electric shock, hot
surfaces, or fire, disconnect the power cord from the power outlet and allow the internal system
components to cool before you touch them.
To install a PCIe card:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
4. Disconnect the power cord from the power outlet, and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. You must disconnect the power cord
to avoid damage to the internal components of the computer.
5. Remove the computer from the stand and lay the computer down with the right side up.
6. Remove the computer access panel and back I/O panel. See
access panel on page 10.
7. Push the fan assembly latch (1) toward the front of the computer and rotate the assembly (2) up
and out of the way.
Removing and replacing the
Installing a half-height PCI-Express 2.0 card 23
8. Locate the slot in the riser card.
9. Slide the expansion slot cover left and remove it.
24 Chapter 2 Hardware changes
10. Align the PCIe card connectors with the slot in the riser card and the metal tab at the end of the
card with the slot in the chassis. Press the PCIe card firmly into the slot in the riser card until it is
securely seated and the tab is in the slot.
11. Rotate the fan assembly down, push the fan assembly latch (1) toward the front of the computer,
lower the assembly (2) until it stops, and then release the latch.
12. Replace and latch the access panel, and then reinstall the I/O panel.
13. Replace the computer stand.
14. Reconnect the power cord and turn on the computer.
15. Lock any security devices that were disengaged when the computer cover or access panel was
removed.
Installing a half-height PCI-Express 2.0 card 25
Security
The thin client is equipped with a hood sensor. You may also use a cable lock to secure the
computer.
For an additional layer of security, you may purchase a port cover to prevent unauthorized access to
the rear ports.
Hood sensor
The hood sensor is a combination of hardware and software technology. If the access panel is
removed, the hood sensor is released and the computer alerts local users to tampering or removal of
the access panel.
26 Chapter 2 Hardware changes
Cable lock
These thin clients are designed to accept a security cable lock. This cable lock prevents unauthorized
removal of the thin client, as well as locking devices installed inside the case. To order this option,
visit the HP website at
1. Locate the cable lock slot on the back panel.
2. Insert the cable lock into the slot, and then use the key to lock it.
http://www.hp.com and search for your specific thin client model.
Security 27
Mounting the thin client
HP t620 Thin Client: HP recommends mounting the thin client in the vertical (tower) orientation, with
the HP logo right-side up. Mounting in other orientations may result in decreased performance under
certain conditions; operating the computer with limited power to prevent overheating is one such
condition. When the integrated fiber NIC is installed in the standard chassis and the chassis is
mounted in the horizontal orientation, the maximum ambient temperature for device operation is
reduced to 35°C (95°F).
HP t620 PLUS Thin Client: There is no orientation limitation for PLUS configurations. However,
optimal performance will be obtained in the vertical (tower) orientation.
This thin client incorporates four mounting points on the right side of the unit. These mounting points
follow the VESA (Video Electronics Standards Association) standard, which provides industrystandard mounting interfaces for Flat Displays (FDs), such as flat-panel monitors, flat displays, and
flat TVs. The HP Quick Release connects to the VESA-standard mounting points, allowing you to
mount the thin client in a variety of orientations.
NOTE: When mounting to a thin client, use the 15 mm screws supplied with the HP Quick Release.
To use the HP Quick Release:
1. Remove four screws from the right side of the computer.
28 Chapter 2 Hardware changes
2. Using four 15 mm screws included in the mounting device kit, attach one side of the HP Quick
Release to the thin client as shown in the following illustration.
3. Using four screws included in the mounting device kit, attach the other side of the HP Quick
Release to the device to which you will mount the thin client. Make sure the release lever points
upward.
Mounting the thin client 29
4. Slide the side of the mounting device attached to the thin client (1) over the other side of the
mounting device (2) on the device on which you want to mount the thin client. An audible 'click'
indicates a secure connection.
When attached, the HP Quick Release automatically locks in position. You only need to slide the
lever to one side to remove the thin client.
CAUTION: For proper function of the HP Quick Release and a secure connection of all
components, both the release lever on one side of the mounting device and the rounded opening on
the other side must face upward.
30 Chapter 2 Hardware changes
Supported mounting options
The following illustrations demonstrate some of the supported mounting options for the mounting
bracket.
Mounting the thin client 31
A Specifications
For the latest specifications or additional specifications on the HP t620 Thin Client or the HP t620
PLUS Thin Client, go to
the model-specific QuickSpecs.
Dimensions
http://www.hp.com/go/ quickspecs/ and search for your specific model to find
Width: HP t620 Thin Client
Width: HP t620 PLUS Thin Client
Depth
Height (without stand)
Height (with stand)
Temperature Range (fanless design)*
Operating**
With the fiber NIC is installed
(max. rate of change is 10°C per hour or 18°F per hour)
Nonoperating
(max. rate of change is 20°C per hour or 36°F per hour)
*Specifications are at sea level with altitude derating of
1°C/300 m (1.8°F/1000 ft) to a maximum of 3 Km (10,000
ft), with no direct, sustained sunlight. Upper limit may be
limited by the type and number of options installed.
Relative Humidity (non-condensing)
Operating
40 mm
65 mm
240 mm
219.70 mm
220 mm
10°C to 40°C
10°C to 35°C
-30°C to 60°C
** The operating temperature range when the thin
client is attached to a flat panel using the HP Quick
Release is 10°C to 35°C (50°F to 95°F).
1.57 in.
2.56 in.
9.45 in
8.65 In
8.66 in.
50°F to 104°F
50°F to 95°F
-22°F to 140°F
10% to 90%
(max. wet bulb temperature is 28°C or 84.2°F)
Nonoperating
(max. wet bulb temperature is 38.7°C or 101.6°F)
32 Appendix A Specifications
5% to 95%
Maximum Altitude (unpressurized)
Operating
(max. allowed rate of change is 457m per minute or 1500
ft per minute)
Nonoperating
(max. allowed rate of change is 457m per minute or 1500
ft per minute)
Power Supply
Operating Voltage Range
Rated Line Frequency
Power Output (maximum) 65 W 85 W
Rated Output Current (maximum) 3.33 A 4.36 A
Output Voltage +19.5 V dc +19.5 V dc
3048 m
9144 m
HP t620 Thin Client
100 VAC to 240 VAC
50 Hz to 60 Hz
10,000 ft
30,000 ft
HP t620 PLUS Thin Client
100 VAC to 240 VAC
50 Hz to 60 Hz
33
B Removing and replacing the battery
WARNING! Before removing the side access panel, be sure that the thin client is turned off and the
power cord is disconnected from the electrical outlet.
To remove and replace the battery:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
4. Disconnect the power cord from the power outlet, and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. You must disconnect the power cord
to avoid damage to the internal components of the computer.
5. Remove the computer from the stand and lay the computer down with the right side up.
6. Remove the computer access panel and back I/O panel. See
access panel on page 10.
Removing and replacing the
34 Appendix B Removing and replacing the battery
7. If the computer is an HP t620 PLUS Thin Client, perform the following steps:

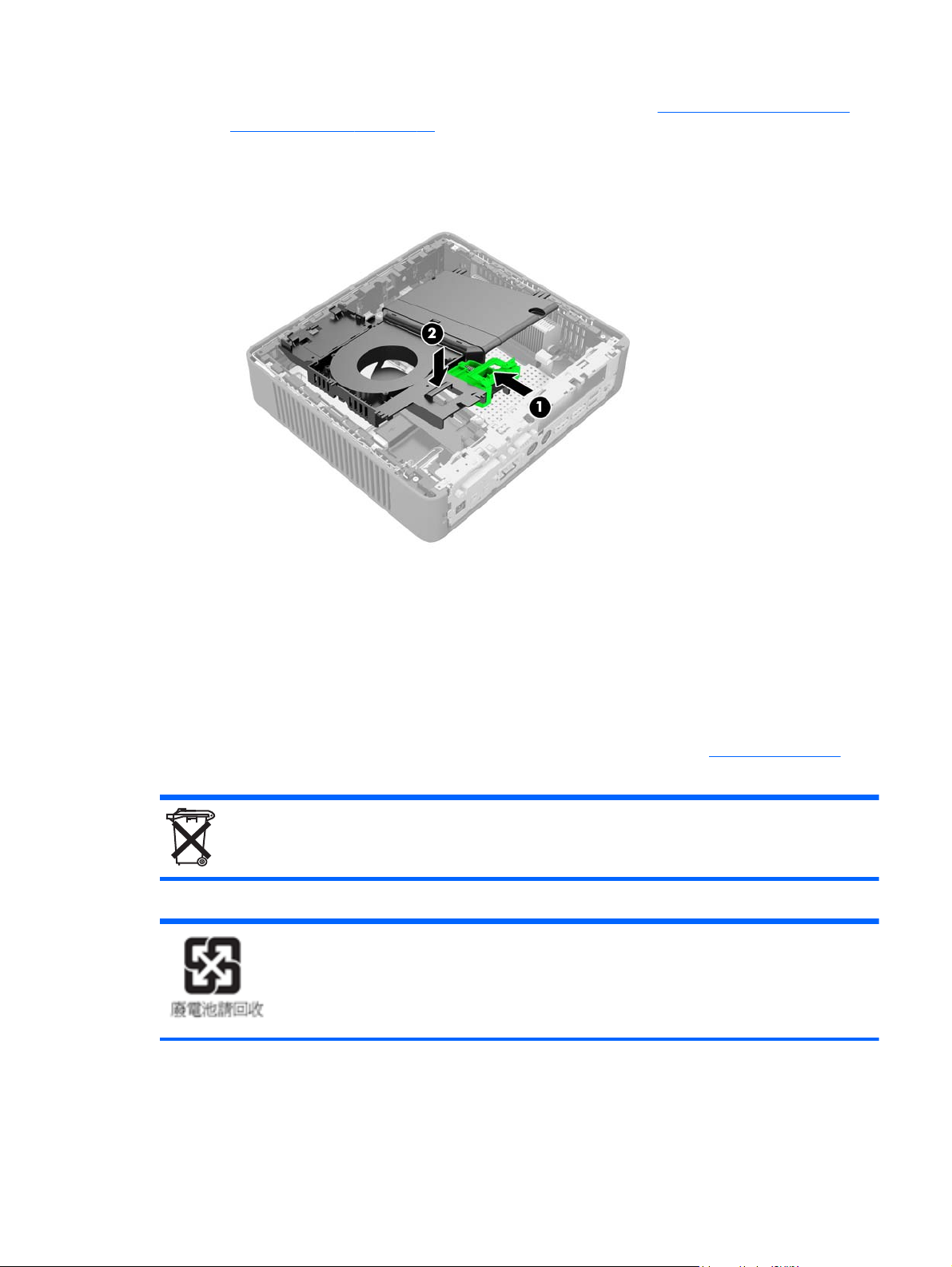

a. Push the fan assembly latch (1) toward the front of the computer and rotate the assembly
(2) up and out of the way.
b. If a PCIe card is installed, remove it carefully.
c. Pull the riser card out of the socket and carefully move it to one side.
Disconnecting the cables from the PCIe riser card is not necessary.
35
8. Locate the battery on the system board.
9. Carefully pry the battery up from the system board.
10. Unplug the battery cable connector from the system board.
11. Connect the cable connector from the new battery to the system board.
12. Carefully press the new battery down to adhere the battery securely to the system board.
13. If the computer is an HP t620 PLUS Thin Client, perform the following steps.
a. If the cables from the PCIe riser card were disconnected in step 7 c, reconnect them.
b. Align the riser card with the socket on the system board and press the riser card firm into
the socket.
NOTE: The riser card can be installed in only one way. Match the notch on the card with
the tab on the socket.
36 Appendix B Removing and replacing the battery
c. If a PCIe card was installed, reinstall it. For instructions, see Installing a half-height PCI-
Express 2.0 card on page 23.
d. Rotate the fan assembly down, push the fan assembly latch (1) toward the front of the
computer, lower the assembly (2) until it stops, and then release the latch.
14. Replace and latch the access panel, and then reinstall the I/O panel.
15. Replace the computer stand.
16. Reconnect the power cord and turn on the computer.
17. Lock any security devices that were disengaged when the computer cover or access panel was
removed.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to
http://www.hp.com and
search for “recycle”.
Batteries, battery packs, and accumulators should not be disposed of together with the general
household waste. In order to forward them to recycling or proper disposal, please use the public
collection system or return them to HP, an authorized HP partner, or their agents.
The Taiwan EPA requires dry battery manufacturing or importing firms, in accordance with Article 15 or
the Waste Disposal Act, to indicate the recovery marks on the batteries used in sales, giveaways, or
promotions. Contact a qualified Taiwanese recycler for proper battery disposal.
37
C Thin client operation
CAUTION: Ensure that the write filter is enabled after committing necessary configurations to the
thin client flash drive. During normal operation of the thin client, the write filter must be enabled. Also
ensure that Page File is not enabled on thin clients with flash memory storage. Failure to follow these
required actions can void the warranty of the flash storage device. In the event of damage to the flash
storage device due to operation with a disabled write filter or enabled Page File, the damage will not
be covered by HP warranty.
For more information about write filter usage, see the operating system guide for your thin client
available at
Routine thin client care
Use the following information to properly care for your thin client:
http://www.hp.com/support/manuals/thinclients.
Never operate the thin client with the outside panel removed.
●
Keep the thin client away from excessive moisture, direct sunlight, and extreme heat and cold.
●
For information about the recommended temperature and humidity ranges for the thin client, see
Specifications on page 32.
Keep liquids away from the thin client and keyboard.
●
Turn off the thin client and wipe the exterior with a soft, damp cloth as needed. Using cleaning
●
products may discolor or damage the finish.
38 Appendix C Thin client operation
Supported orientations
HP supports the following orientations for the thin client.
CAUTION: You must adhere to HP-supported orientations to be sure that your thin client functions
properly.
NOTE: HP t620 standard (slim) chassis: HP recommends mounting the thin client in the vertical
(tower) orientation, with the HP logo right-side up. Mounting in other orientations may result in
decreased performance under certain conditions; operating the computer with limited power to
prevent overheating is one such condition.
Supported orientations 39
40 Appendix C Thin client operation
Non-supported orientation
HP does not support the following orientations for the thin client.

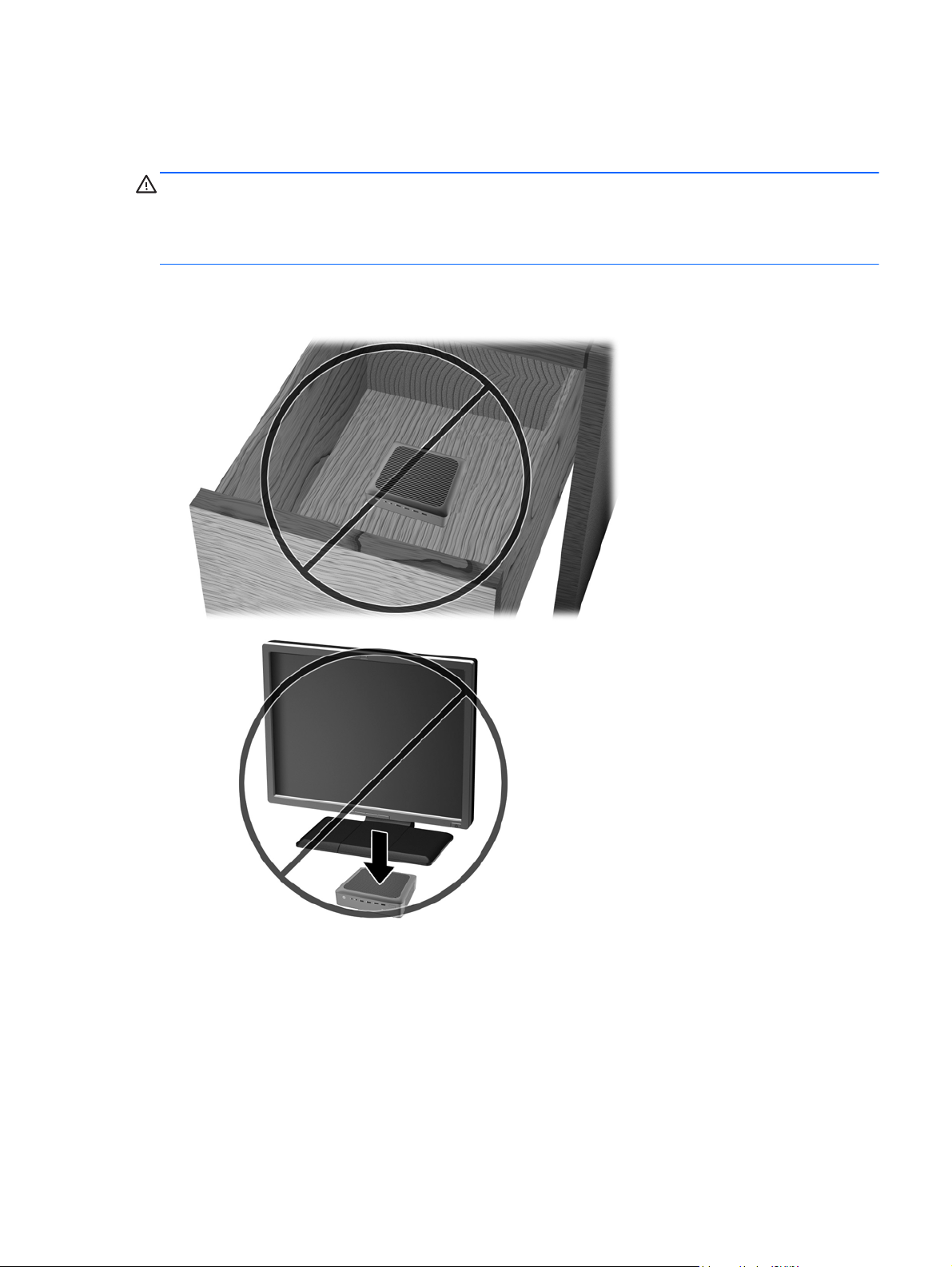

CAUTION: Non-supported placement of thin clients could result in operation failure and/or damage
to the devices.

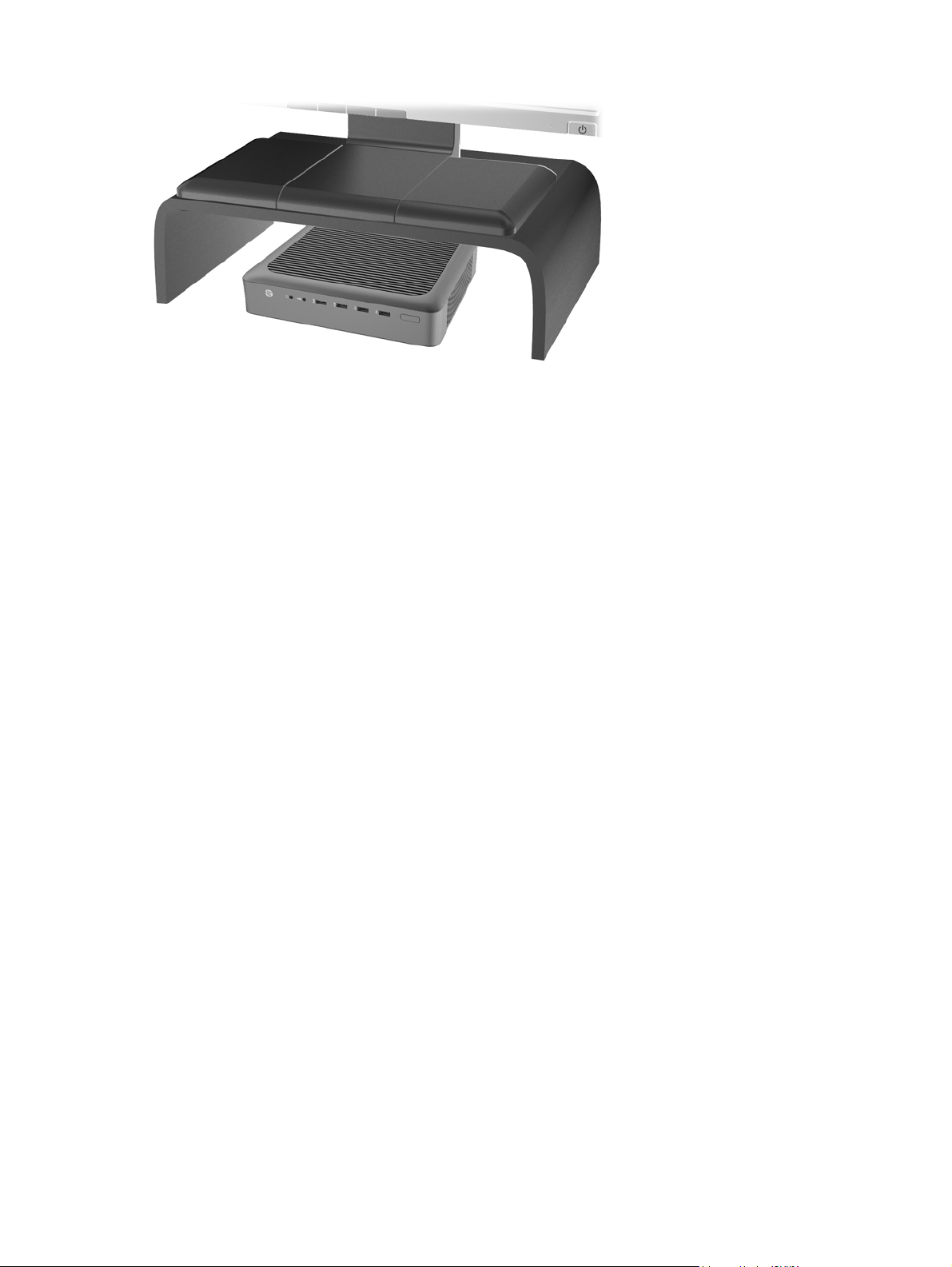

CAUTION: Thin clients require proper ventilation to maintain operating temperature. Do not block
the vents.
Do not put thin clients in drawers or other sealed enclosures. Do not place a monitor or other object
on top of the thin client. Thin clients require proper ventilation to maintain operating temperatures.
Non-supported orientation 41
D Electrostatic discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other
static-sensitive devices. This type of damage may reduce the life expectancy of the device.
Preventing electrostatic damage
To prevent electrostatic damage, observe the following precautions:
● Avoid hand contact by transporting and storing products in static-safe containers.
● Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
Place parts on a grounded surface before removing them from their containers.
●
Avoid touching pins, leads, or circuitry.
●
Always be properly grounded when touching a static-sensitive component or assembly.
●
Grounding methods
There are several methods for grounding. Use one or more of the following methods when handling
or installing electrostatic-sensitive parts:
Use a wrist strap connected by a ground cord to a grounded Thin Client chassis. Wrist straps
●
are flexible straps of 1 megohm +/- 10 percent resistance in the ground cords. To provide proper
grounding, wear the strap snug against the skin.
● Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
● Use conductive field service tools.
● Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, contact an HP authorized
dealer, reseller, or service provider.
NOTE: For more information about static electricity, contact an HP authorized dealer, reseller, or
service provider.
42 Appendix D Electrostatic discharge
E Shipping information
Shipping preparation
Follow these suggestions when preparing to ship the thin client:
1. Turn off the thin client and external devices.
2. Disconnect the power cord from the electrical outlet, and then from the thin client.
3. Disconnect the system components and external devices from their power sources, and then
from the thin client.
4. Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
NOTE: For environmental nonoperating ranges, see Specifications on page 32
Important service repair information
In all cases, remove and safeguard all external options before returning the thin client to HP for repair
or exchange.
In countries that support customer mail-in repair by returning the same unit to the customer, HP
makes every effort to return the repaired unit with the same internal memory and flash modules that
were sent.
In countries that do not support customer mail-in repair by returning the same unit to the customer, all
internal options should be removed and safeguarded in addition to the external options. The thin
client should be restored to the original configuration before returning it to HP for repair.
To remove the solid state drive (SSD), perform the following steps:
Removing the solid state drive (flash memory)
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
Shipping preparation 43
4. Disconnect the power cord from the power outlet, and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. You must disconnect the power cord
to avoid damage to the internal components of the computer.
5. Remove the computer from the stand and lay the computer down with the right side up.
6. Remove the computer access panel and back I/O panel. See
Removing and replacing the
access panel on page 10.
7. If the computer is an HP t620 PLUS Thin Client, push the fan assembly latch (1) toward the front
of the computer and rotate the assembly (2) up and out of the way.
8. Remove the two screws securing the SSD to the system board.
44 Appendix E Shipping information
9. Carefully pull the SSD out of the socket.
Store the SSD carefully until it can be installed in the returned computer.
10. Rotate the fan assembly down, push the fan assembly latch (1) toward the front of the computer,
lower the assembly (2) until it stops, and then release the latch.
11. Replace and latch the access panel, and then reinstall the I/O panel.
Important service repair information 45
Index
A
access panel
removing 10
replacing 12
altitude specifications 33
B
battery, replacing 34
C
cable lock 27
cable lock slot 3
cautions
attaching the stand 9
damage to flash storage
device 2, 38
electric shock 7, 10, 17, 23
HP Quick Release 30
installing SODIMMs 17
removing the battery 34
securing the power cable 8
static electricity 7
thin client orientation 39, 41
ventilation 41
write filter 2, 38
components
front panel 2
keyboard 4
mouse 5
rear panel 3
D
dimensions 32
dual-mode DisplayPort 1.2 ports
location 3
E
electrostatic discharge 42
Ethernet connector location 3
F
fiber NIC port location 3
Flash drive activity LED location
2
flash memory, removing 43
front panel components 2
function keys 5
G
grounding methods 42
H
half-height PCIe 2.0 card,
installing 23
half-height PCIe 2.0 expansion slot
location 3
hardware specifications 32
headphone port location 2
hood sensor 26
horizontal orientation 39
humidity specifications 32
I
installation guidelines 7
installing
half-heightPCIe 2.0 card 23
memory 16
SODIMMs 16
USB devices 14
K
keyboard
function keys 5
layout 4
Windows Logo Key 5
L
line-in audio port location 3
line-out audio port location 3
M
memory
installation 16
socket population 17
specifications 16
microphone port location 2
mounting options
on back of monitor stand 31
on wall 31
under desk 31
mounting thin client 28
mouse functions 5
N
non-supported orientations
in a drawer 41
under a monitor 41
O
options 1, 27
P
parallel port location 3
PCIe 2.0 card, half-height,
installing 23
PCIe 2.0 expansion slot location
3
power button location 2
power cord connection 8
power output specifications 33
power port location 3
power supply specifications 33
preventing electrostatic damage
42
PS/2 keyboard port location 3
PS/2 mouse port location 3
R
rated output current 33
46 Index
rear panel components 3
recycling 37
relative humidity specifications
32
removing
access panel 10
battery 34
flash memory 43
solid state drive 43
SSD 43
replacing
access panel 12
battery 34
retention hook location 3
RJ-45 connector location 3
routine care 38
S
security 26
cable lock 27
hood sensor 26
serial number location 6
serial port location 3
service repair 43
shipping preparation 43
SODIMMs
installation 16
socket population 17
solid state drive, removing 43
specifications
altitude 33
dimensions 32
hardware 32
humidity 32
power output 33
power supply 33
rated output current 33
relative humidity 32
temperature 32
thin client 32
specifications, memory 16
SSD, removing 43
stand, attaching 9
supported mounting options 31
supported orientations 39
horizontal 39
under monitor stand 39
vertical 39
T
temperature specifications 32
tower stand 9
U
USB devices, installing 14
USB ports
2.0 2, 3, 14
3.0 2
location 2, 3, 14
maximum size 14
V
vertical orientation 39
VGA port location 3
W
warnings
burn 7, 14, 18, 23
electric shock 7, 10, 23, 34
grounding plug 7
NIC receptacles 7
websites
HP 1
options 1
Windows Logo Key 5
Index 47
Loading...
