CATALOG OF
REPLACEMENT PARTS
SCALE PRINTERS
MODELS
SP600 ML-28945
SP600P ML-28946
SP600S ML-28967
A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 34579 (FEB. 2001)
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
F-34579 (FEB. 2001)
© HOBART CORPORATION, 1998, 2001
– 2 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
SP600/P/S
FORM 34579
TABLE OF CONTENTS WITH PL NUMBERS
PAGE DESCRIPTION
3 TABLE OF CONTENTS
PL-52893 4 HOUSING ASSEMBLY SP600
PL-52898 6 HOUSING ASSEMBLY SP600P
PL-53593 8 DISPLAY ASSEMBLY SP600
PL-53594 10 DISPLAY ASSEMBLY SP600P
PL-52896 12 PRINTER ASSEMBLY SP600
PL-52900 14 PRINTER ASSEMBLY SP600P
PL-52901 16 SP600S SCALE
PL-52902 18 PLATFORM
PL-50307 19 POST COUNTER OR SCALE TABLE
PL-50316 20 PLU LIBRARY
PL-52915 22 PLU LIBRARY SUPPORT
PL-50317 23 LOOK-UP POST
PL-52916 24 SCALE / PRINTER INSTALLATION
– 3 –
F-34579 (FEB. 2001)
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
1
38
24-25
52
50
48-49
43 Thru 46
40-41
39
42
51
47
2
3-4
5-6
7-8-9
10-11
12-13
14-15
16
17-18-19
20
21-22
ILLUS. PART
PL-52893 NO. NAME OF PART AMT.
1 00-184370 Cover - Platter .........................................................................................................................1
2 SC-121-10 Mach. Screw 1/4-28 X 2 Phil. Fil. Hd. .......................................................................................1
3 SC-040-11 Cap Screw 1/4-20 x 2 Socket Hex Hd. ..................................................................................... 2
F-34579 (FEB. 2001)
4 WL-006-16 Lockwasher 1/4 Light ................................................................................................................2
37
31 Thru 36
30
28-29
27
26
HOUSING ASSEMBLY SP600
– 4 –
23
PL-52893
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
HOUSING ASSEMBLY SP600
ILLUS. PART
PL-52893 NO. NAME OF PART AMT.
5 00-048387 Support - Platter Assembly ..................................................................................................... 1
6 SC-088-51 Set Screw 10-32 x 3/8 Hdls. Half Dog Pt. .................................................................................4
7 00-046594 Transformer 120/240 V ...........................................................................................................1
8 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................4
9 WL-007-07 Lockwasher 8 External Shakeproof ........................................................................................ 1
10 00-048625 Loadcell - 15 KG. (Multiple Range) .........................................................................................1
11 00-259169 Screw - Overload Stop ............................................................................................................1
12 00-046576 Fuseholder ..............................................................................................................................1
13 FE-022-29 Fuse 250V. - 1 Amp. ............................................................................................................... 1
14 00-258120 Filter - Power Input.................................................................................................................. 1
15 SD-015-38 Self-Tapping Screw 6-32 x
16 00-046559 Switch .....................................................................................................................................1
17 00-046414 Base ........................................................................................................................................1
18 00-259412 Clamp - Cable .........................................................................................................................2
19 SD-015-40 Self-Tapping Screw 8-32 x
20 00-259161 Partition ...................................................................................................................................1
21 00-042531 Door - Printer Access ..............................................................................................................1
22 00-042707 Magnet ....................................................................................................................................1
23 00-042530 Hinge ....................................................................................................................................... 1
24 00-042356 Ram Board (512K PSRAM) .................................................................................................... 1
25 00-042358 Board Assy. (2 MB PSRAM) ...................................................................................................1
26 00-259167 Foot .........................................................................................................................................4
27 00-046424 Cover Assembly ......................................................................................................................1
28 00-047015 Plug - Transparent .................................................................................................................. 1
29 00-043112 Level .......................................................................................................................................1
30 00-044671 Tear Bar Assembly .................................................................................................................1
31 00-259688 Retainer - Overlay ...................................................................................................................1
32 00-184266 Overlay - Keyboard (Self-Service) .......................................................................................... 1
33 00-046419 Keyboard ................................................................................................................................. 1
34 00-042715 Spacer ..................................................................................................................................... 3
35 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................3
36 WL-003-03 Lockwasher 4 Medium ............................................................................................................3
37 00-257200 Cord - Power Supply (Straight Plug) .......................................................................................1
38 00-046420 Bezel Assembly ......................................................................................................................1
39 00-046217 Display - Alpha Numeric .........................................................................................................1
40 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
41 WL-007-07 Lockwasher 8 External Shakeproof ........................................................................................ 2
42 00-252222 Post - Cabinet ......................................................................................................................... 4
43 00-047497 Board - Processor (2 MBYTE) ................................................................................................ 1
44 00-259170 Insulator - Mylar ...................................................................................................................... 1
45 00-252289 Plug - 2 Position (Jumper Plug) ............................................................................................ AR
46 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................1
47 00-047250 Cable - Display ........................................................................................................................ 1
48 00-183874 Block - Stop ............................................................................................................................. 1
49 SC-040-11 Cap Screw 1/4-20 x 2 Socket Hex Hd. ..................................................................................... 2
50 00-259515 Contact - Finger (16 Pieces) ...................................................................................................2
51 00-259185 Pad - Platter ............................................................................................................................8
52 00-046550 Battery (Nicad) ........................................................................................................................2
00-535236 Sealer .................................................................................................................................... AR
00-526582 Sealer .................................................................................................................................... AR
00-541890 Sealer .................................................................................................................................... AR
00-520228 Adhesive (Loctite 242) .......................................................................................................... AR
00-512987 Adhesive - Loctite 222 .......................................................................................................... AR
00-519504 Lubricant - Special (Thermo Joint Compound) (Size 250) (2 OZ) ........................................ AR
00-532280 Primer - Adhesive ................................................................................................................. AR
00-042714 Stud - Press ............................................................................................................................ 1
00-184983 Scale Cable Assy. - Interconnections (Inclds. Bracket Assy.) ................................................1
00-183896 Inspection Plate (Inclds. screws & lockwashers) .................................................................... 1
00-183358 Kit - Fish Pan & Arms .............................................................................................................. 1
00-047488 Board Assy. (Scalemaster Interface) ...................................................................................... 1
00-440699 Prom - System Controller Program .........................................................................................1
00-259003-00053 HC II (J3) Prom .......................................................................................................................1
00-046416 Overlay - Keyboard (English) ..................................................................................................1
00-047539 Overlay - Supervisor (English) ................................................................................................1
3
/8 Phil Pan Hd., Type TT .............................................................1
3
/8 Phil Pan Hd., Type TT .............................................................2
F-34579 (FEB. 2001)
– 5 –
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
45
28-29
42
43
36 Thru 41
48-49
20
30 Thru 35
44
1-2
3
4
5-6-7
8-9
10
11-12
13-14
F-34579 (FEB. 2001)
PL-52898
47
46
26-27
25
23-24
22
HOUSING ASSEMBLY SP600P
– 6 –
15
16-17
18
19
21
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
HOUSING ASSEMBLY SP600P
ILLUS. PART
PL-52898 NO. NAME OF PART AMT.
1 00-047050 Printer Cover Assembly (Inclds. items 2, 44 & 45) .................................................................1
2 00-259705 Cover - Printer ......................................................................................................................... 1
3 00-046845 Cover Assembly (Inclds. items 4, 36 Thru 41 & 43) ................................................................ 1
4 00-183748-00001 Indicator Assy. ........................................................................................................................1
5 00-046594 Transformer 120/240 V ...........................................................................................................1
6 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................4
7 WL-007-07 Lockwasher 8 External Shakeproof ........................................................................................ 4
8 00-258120 Filter - Power Input .................................................................................................................. 1
9 SD-015-38 Self-Tapping Screw 6-32 x
10 00-046559 Switch .....................................................................................................................................1
11 00-046576 Fuseholder ..............................................................................................................................1
12 FE-017-03 Fuse 125 V., 2 A. ....................................................................................................................1
13 SD-015-40 Self-Tapping Screw 8-32 x
14 WL-007-07 Lockwasher 8 External Shakeproof ........................................................................................ 2
15 00-047065 Cover - Base ...........................................................................................................................1
16 00-047346 Base ........................................................................................................................................1
17 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
18 00-259726 Ring - Clamping (For Post Mounting) .....................................................................................1
19 SC-037-82 Cap Screw 1/4-20 x 7/8 Hex Hd. ................................................................................................3
20 00-046550 Battery (Nicad) ........................................................................................................................2
21 00-259546 Plate - Strain Relief .................................................................................................................1
22 SD-015-38 Self-Tapping Screw 6-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
23 SC-018-30 Mach. Screw 8-32 x 1/4 Phil Pan Hd. .......................................................................................2
24 00-259825 Washer .................................................................................................................................... 2
25 00-044641 Plate - Cover Latch ................................................................................................................. 1
26 00-175481 Spring - Latch .......................................................................................................................... 1
27 SC-074-13 Mach. Screw 8-32 x 3/16 Phil Rd. Hd. ....................................................................................... 1
28 00-259167 Foot .........................................................................................................................................4
29 NS-017-03 Jam Nut 1/4-20 Hex ..................................................................................................................4
30 00-047493 Board - Processor ...................................................................................................................1
31 00-259170 Insulator - Mylar ...................................................................................................................... 1
32 00-252289 Plug-2 Position ...................................................................................................................... AR
33 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................1
34 WL-007-07 Lockwasher 8 External Shakeproof ........................................................................................ 1
35 00-047250 Cable - Display ........................................................................................................................ 1
36 00-259688 Retainer - Overlay ...................................................................................................................1
37 00-046419 Keyboard ................................................................................................................................. 1
38 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................3
39 WL-003-03 Lockwasher 4 Medium ............................................................................................................3
40 00-042715 Spacer ..................................................................................................................................... 3
41 00-042714 Stud - Press ............................................................................................................................ 1
42 00-046847 Bezel Assy. ............................................................................................................................. 1
43 00-046217 Display - Alpha Numeric .........................................................................................................1
44 00-044772 Stud - Printer Cover Latch ......................................................................................................1
45 00-044756 Tear Bar Assy. ........................................................................................................................ 1
46 SC-120-68 Mach. Screw 8-32 x 5/16 Phil Fil. Hd.........................................................................................2
47 00-257200 Cord - Power Supply (Straight Plug) .......................................................................................1
48 00-042356 Ram Board (512K PSRAM) .................................................................................................... 1
49 00-042358 Board Assy. (2 MB PSRAM) ...................................................................................................1
00-535236 Sealer .................................................................................................................................... AR
00-538960 Adhesive - Loctite #680 ........................................................................................................ AR
00-541890 Sealer .................................................................................................................................... AR
00-520228 Adhesive (Loctite 242) .......................................................................................................... AR
00-512987 Adhesive - Loctite 222 .......................................................................................................... AR
00-519504 Lubricant - Special (Thermo Joint Compound) (Size 250) (2 OZ) ........................................ AR
00-544590 Adhesive - Loctite ................................................................................................................. AR
00-183602-00001 Cable - Scale (Internal) ...........................................................................................................1
00-183896 Inspection Plate (Inclds. screws & lockwashers) .................................................................... 1
00-440699 Prom - System Controller Program .........................................................................................1
00-259003-00053 HC II (US) Prom ......................................................................................................................1
3
/8 Phil Pan Hd., Type TT .............................................................1
3
/8 Phil Pan Hd., Type TT .............................................................2
F-34579 (FEB. 2001)
– 7 –
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
1-2
3-4-5
6-7

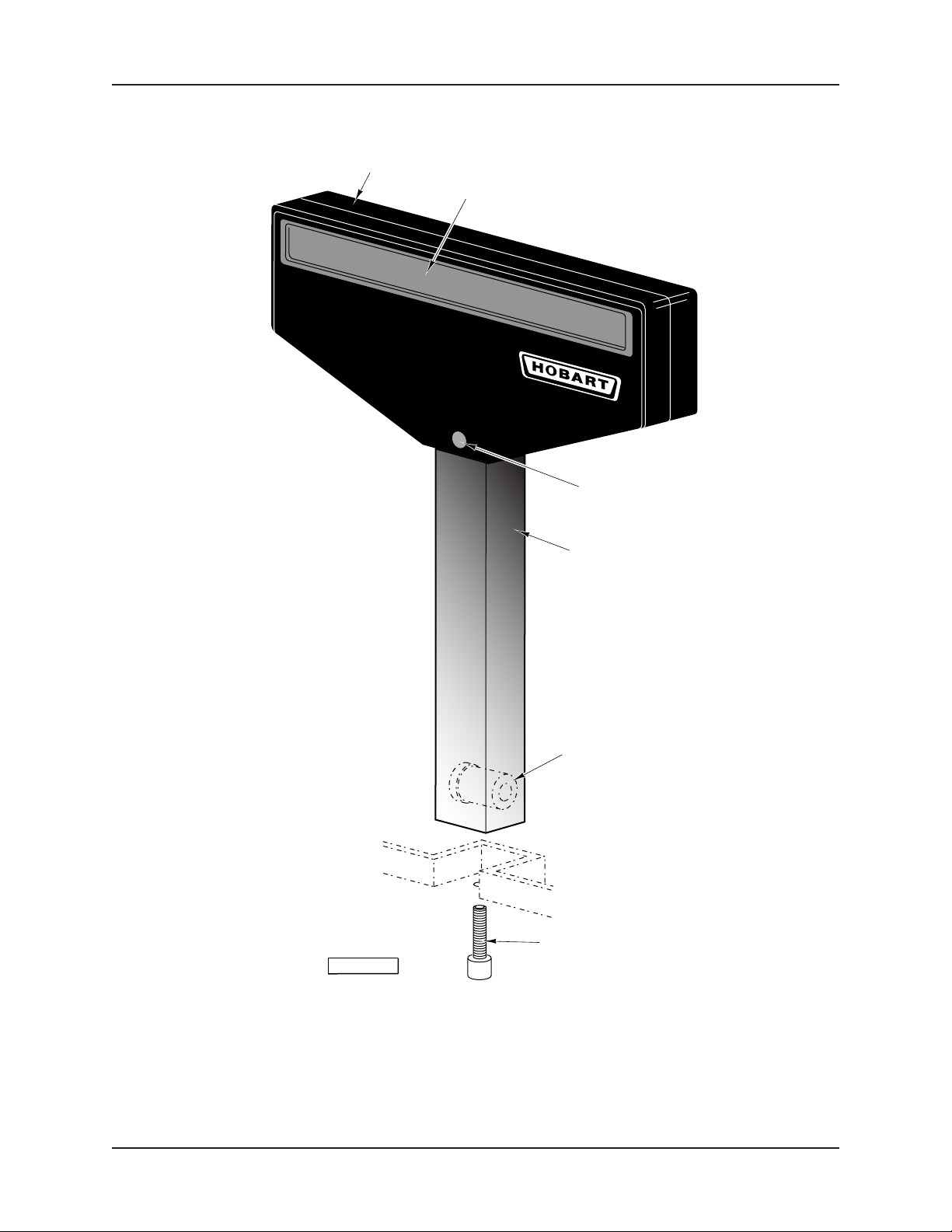

PL - 53593
8 Thru 12
13-14
15
F-34579 (FEB. 2001)
DISPLAY ASSEMBLY SP600
– 8 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
DISPLAY ASSEMBY SP600
ILLUS. PART
PL-53593 NO. NAME OF PART AMT.
1 00-046669 Display Assy. (Incls. items 2, 3, 4, 6 & 7) ................................................................................ 1
2 00-046425 Cover - Display .......................................................................................................................2
3 00-046561 Board Assy. VF Display .......................................................................................................... 1
4 SD-032-03 Self - Tapping Screw 6-19 x 3/8 Phil. Pan Hd. .........................................................................4
5 00-046857 Overlay - Display Screen ........................................................................................................ 2
6 00-046454 Cover - Screw ......................................................................................................................... 2
7 SC-018-30 Mach. Screw 8-32 x 1/4 Phil Pan Hd. .......................................................................................2
8 00-259232 Post - Display (8") ...................................................................................................................1
9 00-259437 Post - Display (14") .................................................................................................................1
10 00-259484 Insulator - Post (13.360") (Use with item 9) ............................................................................1
11 00-259454 Insulator - Post (7.360") (Use with 8) ......................................................................................1
12 00-047250 Cable - Display ........................................................................................................................ 1
13 00-047333 Bar-Draw Down ....................................................................................................................... 1
14 SC-115-35 Mach. Screw 8-32 x 1/2 Flat Hd. ..............................................................................................2
15 SC-089-04 Cap Screw 1/4-20 x 1 Soc. Hex Hd. .........................................................................................1
– 9 –
F-34579 (FEB. 2001)
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
1-2
3-4-5
6-7
PL - 53594
8 Thru 12
13-14
15
F-34579 (FEB. 2001)
DISPLAY ASSEMBY SP600P
– 10 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
DISPLAY ASSEMBLY SP600P
ILLUS. PART
PL-53594 NO. NAME OF PART AMT.
1 00-046669 Display Assy. (Incls. items 2, 3, 4, 6 & 7) ................................................................................ 1
2 00-046425 Cover - Display .......................................................................................................................2
3 00-046561 Board Assy. VF Display .......................................................................................................... 1
4 SD-032-03 Self - Tapping Screw 6-19 x 3/8 Phil. Pan Hd. .........................................................................4
5 00-046857 Overlay - Display Screen ........................................................................................................ 2
6 00-046454 Cover - Screw ......................................................................................................................... 2
7 SC-018-30 Mach. Screw 8-32 x 1/4 Phil Pan Hd. .......................................................................................2
8 00-259437 Post - Display (14") .................................................................................................................1
9 00-259484 Insulator - Post (13.360") (Use with item 8) ............................................................................1
10 00-047250 Cable - Display ........................................................................................................................ 1
11 00-259798 Post Display ............................................................................................................................1
12 00-183653 Insulator - Post (Use with item 11) ..........................................................................................1
13 00-047333 Bar-Draw Down ....................................................................................................................... 1
14 SC-115-35 Mach. Screw 8-32 x 1/2 Flat Hd..............................................................................................2
15 SC-089-04 Cap Screw 1/4-20 x 1 Soc. Hex Hd. .........................................................................................1
– 11 –
F-34579 (FEB. 2001)
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
1
58
59
60
61-62
50
57
55-56
53-54
51-52
2
3
4
5
6
71
72
64
65
66-67-68
47-48-49
44-45
63
69
43
42
36-37
41
40
39
38
70
34-35
46
10-11-12
33
13
29
28
14
31-32
30
27
7-8-9
15
24-25
16
22-23
17-18
21
26
19
20
PL-52896
ILLUS. PART
PL-52896 NO. NAME OF PART AMT.
1 00-334998 Hub Assy. ................................................................................................................................ 1
2 00-184462 Take - Up Shaft Assembly ...................................................................................................... 1
3 00-259197 Key - Label Roll ....................................................................................................................... 1
4 WL-003-12 Lockwasher 8 Medium ............................................................................................................3
5 SC-018-34 Mach. Screw 8-32 x 1/2 Phil Pan Hd. .......................................................................................3
6 00-184480 Left Side Frame Assembly (Inclds. Stud & Bearing) ...............................................................1
7 00-334793 Stepper Motor Assembly (Incls. item 9) ..................................................................................1
8 00-183946 Wrapping - Spiral Band ...........................................................................................................1
9 00-259204 Plate - Motor Screw ................................................................................................................1
10 00-175157 Plunger .................................................................................................................................... 1
F-34579 (FEB. 2001)
PRINTER ASSEMBLY SP600
– 12 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
PRINTER ASSEMBLY SP600
ILLUS. PART
PL-52896 NO. NAME OF PART AMT.
11 00-175167 Spring - Compression ............................................................................................................. 1
12 WS-023-21 Washer .................................................................................................................................... 1
13 00-259606 Washer .................................................................................................................................... 2
14 RR-007-10 Retaining Ring ........................................................................................................................ 2
15 00-042828 Bar - Head Spring ................................................................................................................... 1
16 00-175518 Lever - Head Latch .................................................................................................................1
17 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. ......................................................................................1
18 WL-003-12 Lockwasher 8 Medium ............................................................................................................1
19 00-042567 Right Frame Assembly (Inclds. Stud) .....................................................................................1
20 00-259213 Screw - Shoulder Latch ........................................................................................................... 1
21 00-259263 Bearing .................................................................................................................................... 1
22 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. ......................................................................................3
23 WL-003-12 Lockwasher 8 Medium ............................................................................................................3
24 SC-018-31 Mach. Screw 8-32 x
25 WL-003-12 Lockwasher 8 Medium ............................................................................................................2
26 00-259171 Plate - Latch ............................................................................................................................1
27 00-259144-00001 Head Up Switch Assy. ............................................................................................................1
28 WL-019-65 Lockwasher 3 Medium ............................................................................................................2
29 SC-119-17 Mach. Screw 3-48 x
30 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
31 00-259265 Screw - Dowel .........................................................................................................................2
32 WL-003-12 Lockwasher 8 Medium ............................................................................................................2
33 00-259148 Cable - Print Head ..................................................................................................................1
34 00-049843 Print Head - Thermal ............................................................................................................... 1
35 00-259605 Heatsink ..................................................................................................................................1
36 SC-119-16 Mach. Screw M3 x 6mm Pan Hd. ........................................................................................... 3
37 WL-019-58 Lockwasher Internal Shakeproof ............................................................................................3
38 RR-006-13 Retaining Ring ........................................................................................................................ 1
39 00-259261 Screw - Adjustment .................................................................................................................1
40 NS-018-39 Jam Nut 1/4-28 Hex ..................................................................................................................1
41 00-184514 Support Assembly ...................................................................................................................1
42 00-259236 Bar - Peel ................................................................................................................................1
43 00-259207 Roller - Drive (Ground) ............................................................................................................ 1
44 00-259201 Screw - Peel Bar .....................................................................................................................1
45 WL-003-12 Lockwasher 8 Medium ............................................................................................................1
46 00-259211 Pivot - Spring Bar ....................................................................................................................1
47 00-184279 Media Sensor Assembly ......................................................................................................... 1
48 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. ......................................................................................1
49 WS-029-24 Washer .................................................................................................................................... 1
50 00-259198 Belt - Timing ............................................................................................................................1
51 00-259632 Pulley - Drive Roller ................................................................................................................ 1
52 SC-047-74 Set Screw 8-32 x 1/4 Headless Cup Pt...................................................................................1
53 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. ......................................................................................2
54 WL-003-12 Lockwasher 8 Medium ............................................................................................................2
55 00-259205 Timing Pulley Assy. ................................................................................................................. 1
56 SC-075-22 Set Screw 5-40 x 1/4 Hdls. Cup Pt. .......................................................................................... 1
57 RR-010-06 Retaining Ring ........................................................................................................................ 1
58 00-183381 Belt - Take-up Drive ................................................................................................................1
59 00-259817 Take-Up Pulley Assy. .............................................................................................................. 1
60 00-184458 Nut - Special ...........................................................................................................................1
61 00-183676 Spacer - Printer Frame ...........................................................................................................1
62 00-259192 Guide - Paper .......................................................................................................................... 1
63 00-259176 Bar - Cable Hold Down ........................................................................................................... 1
64 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
65 00-259603 Bar - Hold Down ...................................................................................................................... 1
66 00-047368 Sensor - Label Taken .............................................................................................................. 1
67 WL-003-03 Lockwasher 4 Medium ............................................................................................................1
68 SC-120-27 Mach. Screw 4-40 x 7/16 Phil Rd. Hd. ....................................................................................... 1
69 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
70 00-259178 Bracket - Label Taken Sensor ................................................................................................1
71 00-259175 Paper Roll Holder Assy. ..........................................................................................................1
72 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
00-512987 Loctite (Use with item 40) ..................................................................................................... AR
00-519504-00004 Lubricant - Thermal Joint ...................................................................................................... AR
3
/8 Phil. Pan Hd. ......................................................................................2
3
/8 Pan Hd. ..............................................................................................2
F-34579 (FEB. 2001)
– 13 –
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
2
1
66
67
68
69
3
4
5
45-46-47
43-44
41-42
63
55-56-57
53-54
64
58
48
65
59-60
49
61-62
50
40
36
35
PL - 52900
52
51
37-38-39
34
27
28
33
6
7-8-9
10-11-12
13
14
15
16-17
18
19-20
21-22
23-24-25
26
29
30-31
32
ILLUS. PART
PL-52900 NO. NAME OF PART AMT.
1 00-259690 Paper Roll Holder Assy. ..........................................................................................................1
2 SD-015-40 Self-Tapping Screw 8-32 x 3/8 Phil Pan Hd., Type TT .............................................................2
3 00-334998 Hub Assy. ................................................................................................................................ 1
4 00-184463 Take - Up Shaft Assembly ...................................................................................................... 1
5 00-259197 Key - Label Roll ....................................................................................................................... 1
6 00-184483 Left Side Frame Assembly ......................................................................................................1
7 00-184394 Guide - Paper .......................................................................................................................... 1
8 00-183676 Spacer - Printer Frame ...........................................................................................................1
9 RR-011-72 Retaining Ring ........................................................................................................................ 1
F-34579 (FEB. 2001)
PRINTER ASSEMBLY SP600P
– 14 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
PRINTER ASSEMBLY SP600P
ILLUS. PART
PL-52900 NO. NAME OF PART AMT.
10 00-183676 Spacer - Printer Frame ...........................................................................................................1
11 00-259192 Guide - Paper .......................................................................................................................... 1
12 RR-011-72 Retaining Ring ........................................................................................................................ 1
13 00-259211 Pivot - Spring Bar ....................................................................................................................1
14 WL-003-12 Lockwasher 8 Medium ............................................................................................................3
15 SC-018-34 Mach. Screw 8-32 x 1/2 Phil Pan Hd. .......................................................................................3
16 00-184393 Actuator - Head-Up Switch .....................................................................................................1
17 00-259797 Spacer ..................................................................................................................................... 2
18 00-259796 Lever - Print ............................................................................................................................1
19 SC-112-42 Mach. Screw 6-32 x 1/2 Phil Pan Hd. .......................................................................................2
20 WL-008-02 Lockwasher 6 Internal Shakeproof .........................................................................................2
21 SC-068-14 Mach. Screw 8-32 x 3/8 Hex Hd. ..............................................................................................1
22 00-184287 Eccentric - Support .................................................................................................................1
23 00-259144-00001 Head Up Switch Assy. ............................................................................................................1
24 SC-119-17 Mach. Screw 3-48 x 3/8 Pan Hd. ..............................................................................................2
25 WL-019-65 Lockwasher 3 Medium ............................................................................................................2
26 00-183816 Frame - Right ..........................................................................................................................1
27 00-259265 Screw - Dowel .........................................................................................................................2
28 WL-003-12 Lockwasher 8 Medium ............................................................................................................2
29 00-042829 Bar - Head Spring ................................................................................................................... 1
30 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. ......................................................................................2
31 WL-003-12 Lockwasher 8 Medium ............................................................................................................2
32 RR-007-10 Retaining Ring ........................................................................................................................ 2
33 00-259606 Washer .................................................................................................................................... 1
34 RR-006-13 Retaining Ring ........................................................................................................................ 1
35 00-259261 Screw - Adjustment .................................................................................................................1
36 NS-018-39 Jam Nut 1/4-28 Hex ..................................................................................................................1
37 00-175157 Plunger .................................................................................................................................... 1
38 00-175167 Spring - Compression ............................................................................................................. 1
39 WS-023-21 Washer .................................................................................................................................... 1
40 00-259148 Cable - Print Head ..................................................................................................................1
41 00-047074 Print Head - Thermal ............................................................................................................... 1
41 00-049843 Print Head - Thermal ............................................................................................................... 1
42 00-259605 Heatsink ..................................................................................................................................1
43 SC-119-16 Mach. Screw M3 x 6mm Pan Hd. ........................................................................................... 2
44 WL-019-58 Lockwasher Internal Shakeproof ............................................................................................2
45 00-047368 Sensor - Label Taken.............................................................................................................. 1
46 WL-003-03 Lockwasher 4 Medium ............................................................................................................1
47 SC-120-27 Mach. Screw 4-40 x 7/16 Phil Rd. Hd. ....................................................................................... 1
48 00-259207 Roller - Drive (Ground) ............................................................................................................ 1
49 00-259236 Bar - Peel ................................................................................................................................1
50 00-184514 Support Assembly ...................................................................................................................1
51 00-334793 Stepper Motor Assembly (Inclds. Spiral Band Wrapping) .......................................................1
52 00-259211 Pivot - Spring Bar ....................................................................................................................1
53 00-259201 Screw - Peel Bar .....................................................................................................................1
54 WL-003-12 Lockwasher 8 Medium ............................................................................................................1
55 00-184279 Media Sensor Assembly ......................................................................................................... 1
56 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. ......................................................................................1
57 WS-029-24 Washer .................................................................................................................................... 1
58 00-259808 Belt - Timing 109T ................................................................................................................... 1
59 00-259632 Pulley - Drive Roller ................................................................................................................ 1
60 SC-047-74 Set Screw 8-32 x 1/4 Headless Cup Pt. ...................................................................................1
61 00-259205 Timing Pulley Assy. ................................................................................................................. 1
62 SC-075-22 Set Screw 5-40 x 1/4 Hdls. Cup Pt. .......................................................................................... 1
63 00-259728 Bracket - Printer ......................................................................................................................1
64 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. ......................................................................................7
65 WL-003-12 Lockwasher 8 Medium ............................................................................................................7
66 00-259819 Belt - Take-Up Drive ...............................................................................................................1
67 RR-010-06 Retaining Ring ........................................................................................................................ 1
68 00-259817 Take-Up Pulley Assy. .............................................................................................................. 1
69 00-184458 Nut - Special ...........................................................................................................................1
00-259800 Printer Assy. ............................................................................................................................ 1
00-512987 Adhesive - Loctite 222 .......................................................................................................... AR
00-519504-00004 Lubricant - Thermal Joint ...................................................................................................... AR
F-34579 (FEB. 2001)
– 15 –
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
24
22-23
1
2
3
4
5
19
15
13-14
21
16-17
12
20
18
6
7-8
9
10
11
PL - 52901
F-34579 (FEB. 2001)
SP600S SCALE
– 16 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
SP600S SCALE
ILLUS. PART
PL-52901 NO. NAME OF PART AMT.
1 00-259979 Platter ...................................................................................................................................... 1
2 00-183360 Cover Assy. - Right (Inclds. Cover, Clip & Tab) ......................................................................1
3 SC-110-12 Cap Screw
4 00-259185 Pad - Platter ............................................................................................................................8
5 SC-088-51 Set Screw 10-32 x 3/8 Hdls. Half Dog Pt. .................................................................................3
6 00-258958 Fastener - Dual Lock (Scotchmate Type 170) ........................................................................ 4
7 00-183923 Post - Stop .............................................................................................................................. 4
8 SC-088-51 Set Screw 10-32 x 3/8 Hdls. Half Dog Pt. .................................................................................4
9 00-048319 Base - Scale ............................................................................................................................ 1
10 SD-015-39 Self-Tapping Screw 8-32 x 1/4 Phil Pan Hd., Type T ............................................................. AR
11 00-047382 Level Assy. (Inclds. Level, Flange & Mtg. Plate) .....................................................................1
12 00-047054 Load Cell (15 KG) ................................................................................................................... 1
13 00-251199 Tie - Cable (4" Long) ............................................................................................................... 1
14 00-255503 Mount - Cable Tie ...................................................................................................................1
15 00-183634 Cable - Scale ..........................................................................................................................1
16 00-253363 Clamp ...................................................................................................................................... 1
17 SD-015-30 Self Tapping Screw 8-32 x 5/16 Phil Pan Hd., Type TT ............................................................ 3
18 00-183634 Cable - Scale ..........................................................................................................................1
19 00-183359 Cover Assy. - Left (Inclds. Clip & Tab) ....................................................................................1
20 00-047278 Support - Platter ......................................................................................................................1
21 00-259515 Contact - Finger (16 Pieces) ................................................................................................. AR
22 SC-120-70 Cap Screw 1/4-20 x 1 5/8 Soc. Hd. ..........................................................................................2
23 WL-003-39 Lockwasher 1/4 Light ................................................................................................................2
24 00-258959 Fastener - Dual Lock (Scotchmate Type 400) ........................................................................ 4
NS-017-03 Jam Nut 1/4-20 Hex .................................................................................................................4
00-259167 Foot .........................................................................................................................................4
00-520228 Adhesive (Loctite 242) .......................................................................................................... AR
00-526034 Solvent .................................................................................................................................. AR
1
/4-20 x 5/8 Hex Hd. ................................................................................................2
– 17 –
F-34579 (FEB. 2001)
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
8
9
10
5-6-7
12-13
11
14
3
4
2
1
PL-52902
PLATFORM
ILLUS. PART
PL-52902 NO. NAME OF PART AMT.
1 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. ................................................................................................1
2 SC-022-32 Mach. Screw 1/4-20 x 1/2 Flat Hd. ............................................................................................. 2
3 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. ................................................................................................2
4 WL-003-38 Lockwasher 1/4 Medium ...........................................................................................................2
5 00-175927 Tube-Roller ............................................................................................................................. 1
6 00-175924 Bushing ...................................................................................................................................2
7 00-175925 Shaft-Platform .........................................................................................................................1
8 00-175923 Pivot-Platform Support ............................................................................................................2
9 00-130439 Roller -Spring ..........................................................................................................................6
10 00-175926 Frame-Platform .......................................................................................................................2
11 00-175928 Bracket-Platform Stop .............................................................................................................1
12 NS-013-02 Full Nut 1/4-20 Hex ...................................................................................................................1
13 WL-003-38 Lockwasher 1/4 Medium ...........................................................................................................2
14 00-254206 Foot .........................................................................................................................................2
F-34579 (FEB. 2001)
00-183915 Platform Assy.(Incls. Items 1 & 3 Thru 14) .............................................................................1
– 18 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
9
8
1
2
3
7
4
5
6
PL-50307
POST COUNTER OR SCALE TABLE
ILLUS. PART
PL-50307 NO. NAME OF PART AMT.
1 00-254682 Post - Support .........................................................................................................................1
2 SC-023-48 Mach. Screw 1/4-20 x 1 3/8 Oval Hd. .........................................................................................3
3 00-252546 Base ........................................................................................................................................1
4 WS-022-10 Washer .................................................................................................................................... 3
5 WL-003-39 Lockwasher 1/4 Light ................................................................................................................3
6 NS-013-02 Full Nut 1/4-20 Hex ...................................................................................................................3
7 SC-116-95 Mach. Screw 8-32 x 3/8 Hex Hd. ..............................................................................................3
8 SC-116-95 Mach. Screw 8-32 x 3/8 Hex Hd. ..............................................................................................3
9 00-254680 Leg - Keyboard Support ..........................................................................................................1
00-182994 Post Support Assy. (Incls. items 1 thru 9) ...............................................................................1
F-34579 (FEB. 2001)
– 19 –
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
1
2
3
4
B
E
E
F
5 Thru 14
18
19
15
16
17
PL-50316
F-34579 (FEB. 2001)
PLU LIBRARY
– 20 –
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
PLU LIBRARY
ILLUS. PART
PL-50316 NO. NAME OF PART AMT.
1 00-183752 Strip - Reinforcement .............................................................................................................17
2 00-516298 Binder - 3-Ring ........................................................................................................................1
3 00-258780 Insert - Stiffener .....................................................................................................................17
4 00-258739 Tab - Index .............................................................................................................................25
5 00-258738-00001 Identifier - Page (Veal) ............................................................................................................2
6 00-258738-00002 Identifier - Page (Poultry) ........................................................................................................2
7 00-258738-00003 Identifier - Page (Pork) ............................................................................................................3
8 00-258738-00004 Identifier - Page (Misc.) ...........................................................................................................2
9 00-258738-00005 Identifier - Page (Operating Inst.)............................................................................................1
10 00-258738-00006 Identifier - Page (Beef) ............................................................................................................3
11 00-258738-00007 Identifier - Page (Lamb) ..........................................................................................................2
12 00-258738-00008 Identifier - Page (Seafood) ...................................................................................................... 2
13 00-258738-00009 Identifier - Page (Cheese) ....................................................................................................... 2
14 00-258738-00010 Identifier - Page (Produce) ......................................................................................................2
15 00-183763 Protector Sheet ......................................................................................................................17
16 00-258762 Rod - Support .......................................................................................................................... 1
17 SC-112-42 Mach. Screw 6-32 x
18 SC-110-97 Mach. Screw 10-32 x 1/2 Truss Hd. ..........................................................................................3
19 00-183905 Plate - Library .......................................................................................................................... 1
00-183912 PLU Library Assy. (Incls. items 1 thru 19) ............................................................................... 1
1
/2 Phil Pan Hd. .......................................................................................2
– 21 –
F-34579 (FEB. 2001)
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
1
2
3
4
5
6
7-8
PL-52915
PLU LIBRARY SUPPORT
ILLUS. PART
PL-52915 NO. NAME OF PART AMT.
1 00-183895 Library Pivot Assy ................................................................................................................... 1
2 00-183931 Printer Pivot Arm Assy ............................................................................................................1
3 00-183538 Knob - Film Centering .............................................................................................................2
4 00-184345 Pivot - Printer Arm ................................................................................................................... 1
5 00-175891 Block - Printer Pivot ................................................................................................................1
6 SC-047-41 Set Screw 3/8-16 x 3/8 Soc. Hdls., Cup Pt. ................................................................................1
7 SC-118-11 Cap Screw 3/8-16 x 7/8 Hex Hd. ...............................................................................................2
8 WL-004-06 Lockwasher 3/8 Medium ...........................................................................................................2
00-183911 PLU Library Support Assy. (Incls. items 1 thru 8) ...................................................................1
F-34579 (FEB. 2001)
– 22 –
14
13
REPLACEMENT PARTS SCALE PRINTERS SP600/SP600P/SP600S
1
10
12
2
11
3-4-5
9
8
7
6
PL-50317
LOOK-UP POST
(HWS)
ILLUS. PART
PL-50317 NO. NAME OF PART AMT.
1 00-258026 Pivot ........................................................................................................................................1
2 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................. 1
3 SC-118-57 Cap Screw 1/4-20 x 2 1/2 Hex Hd. .............................................................................................2
4 WL-003-39 Lockwasher 1/4 Light ................................................................................................................2
5 NS-013-02 Full Nut 1/4-20 Hex ...................................................................................................................2
6 00-183663 Protector - Cord ......................................................................................................................1
7 00-258194 Post - Display ..........................................................................................................................1
8 00-254866 Block - Post .............................................................................................................................2
9 00-258506 Bar - Post Mount .....................................................................................................................2
10 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. ................................................................................................4
11 SC-116-95 Mach. Screw 8-32 x 3/8 Hex Hd. ..............................................................................................3
12 00-258146 Post - Support .........................................................................................................................1
13 00-183687 Arm - Support .......................................................................................................................... 1
14 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................. 2
00-258511 Look Up Post Assy. (Incls. items 1 thru 4) ..............................................................................1
F-34579 (FEB. 2001)
– 23 –
SCALE PRINTERS SP600/SP600P/SP600S REPLACEMENT PARTS
1
2
7-8
9
22
19-20-21
16
17-18
10
15
3
4
5
6
12-13
11
14
PL-52916
ILLUS. PART
PL-52916 NO. NAME OF PART AMT.
1 00-175989 Printer Pivot Stud Assy ........................................................................................................... 1
2 00-183931 Printer Pivot Arm Assy ............................................................................................................1
3 00-183538 Knob - Film Centering .............................................................................................................2
4 00-184345 Pivot - Printer Arm ................................................................................................................... 1
5 00-175891 Block - Printer Pivot ................................................................................................................1
6 SC-047-41 Set Screw 3/8-16 x 3/8 Soc. Hdls., Cup Pt. ................................................................................1
7 SC-118-11 Cap Screw 3/8-16 x 7/8 Hex Hd. ................................................................................................2
8 WL-004-06 Lockwasher 3/8 Medium ...........................................................................................................2
9 00-175926 Frame-Platform .......................................................................................................................2
10 00-130439 Roller -Spring ..........................................................................................................................6
11 00-175928 Bracket-Platform Stop .............................................................................................................1
12 NS-013-02 Full Nut 1/4-20 Hex ...................................................................................................................4
13 WL-003-38 Lockwasher 1/4 Medium ...........................................................................................................4
14 00-254206 Foot .........................................................................................................................................2
15 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. ................................................................................................ 4
16 SC-022-32 Mach. Screw 1/4-20 x 1/2 Flat Hd. ............................................................................................. 2
17 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. ................................................................................................4
18 WL-003-38 Lockwasher 1/4 Medium ...........................................................................................................2
19 00-175927 Tube-Roller ............................................................................................................................. 1
20 00-175924 Bushing ...................................................................................................................................2
21 00-175925 Shaft-Platform .........................................................................................................................1
22 00-175923 Pivot-Platform Support ............................................................................................................2
F-34579 (FEB. 2001)
FORM 34579 FEBRUARY 2001 PRINTED IN U.S.A.
SCALE/PRINTER INSTALLATION
00-183910 Scale/Printer Kit (Incls. items 1 thru 8, 16 & clamps, bushing & fasteners) ............................1
FE-021-13 Bushing - Electrical Split (Used w/printer power cord) ............................................................1
00-086964 Clamp (For power cord) ..........................................................................................................2
00-086964 Clamp (For power cord) ..........................................................................................................1
SC-118-23 Mach. Screw 8-32 x 1/4 Phil. Pan Hd. (Use with clamps) ........................................................3
WL-004-40 Lockwasher 10 (Use with clamps) .......................................................................................... 3
FE-023-94 Clamp (For printer cord) ..........................................................................................................1
SC-007-68 Mach. Screw 8-32 x 5/8 Rd. Hd. (Use with FE023-94) .............................................................1
NS-009-12 Mach. Nut 8-32 Hex (Use with FE023-94) ..............................................................................1
WL-008-07 Lockwasher 8 (Use with FE023-94) ........................................................................................1
WS-028-06 Washer (Use with FE023-94) .................................................................................................. 1
00-183915 Platform Assy. (Incls. items 9 thru 15 & 17 thru 22) ................................................................ 1
– 24 –
Loading...
