Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
QUANTUM
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Full capacity tare – supports second tare value
■ Dual price frequent shopper labeling
■ NSF Certied, UL Listed
■ Lowest prole of any comparable scale on the market
– 51⁄4" high.
■ 5.7" LCD graphics display
■ ATM style console with LCD graphics display
■ 32 ashkeys
■ Graphics capability
■ Retailer dened security
■ Support for UPC-A, EAN13, EAN128, and GS1
barcodes
■ Easy cassette label loading system
■ Large label roll capacity
■ Custom label sizes and formats available from 1.75"
to 8" length
■ COOL records can be created on scale
■ Weighing capability
❑ 30 lb. x 0.01
❑ 50 lb. x 0.01 graduations
❑ Dual Range 12 lb. x 0.005, 30 lb. x 0.01
MEMORY
❑ 8 MB RAM standard (approximately 24,000 PLU’s
with basic item information)
❑ Flash upgradeable memory
SERVICE SCALE SYSTEM
MODEL
Quantum (Standard) Wide Cassette
Standard Wired TCP/IP
❑
QUANTM1-1❑ QUANTM1-1T❑ QUANTM1-1WDP
❑
QUANTMP-1❑ QUANTMP-1T❑ QUANTMP-1WDP
OPTIONAL ACCESSORIES
❑ F19403 Operator Manual
❑ F34350 Supervisor Manual
❑ F34001 Scale Networking Manual
❑ Manuals on CD – P/N 00-442330
❑ Fish Platter
❑ Remote scale with cable (does include platter)
❑ Wide label cassette 21⁄4" wide
❑ Narrow label cassette 11⁄2" wide
❑ HWS printer post, bracket & scale support
❑ Print head cleaning kit
❑ Keyboard Adapter for AT and PS2 style –
KYBADP-ATPS2
❑ Flash Upgrade – upgrade operating system and add
features via your network
❑ Buyer’s Assurance – Second year extended warranty
Specications, Details and Dimensions on Inside and Back.
Wireless
TCP/IP Bridge
QUANTUM SERVICE SCALE SYSTEM
PROGRAMMABILITY
❑ Manual entry with keypad or attached keyboard
❑ Network via serial, TCP/IP, or wireless
communications
❑ Disk backup and restore
COMMUNICATIONS CAPABILITY
❑ Serial – RS485
❑ TCPIP – Hardwired Ethernet
❑ TCPIP – Wireless Ethernet (Bridge and PCMCIA)
❑ Network online/ofine indicator
❑ 802.11 b/g
❑ WEP, LEAP, WPA, WPA2 security
❑ VPN security
F7720 – Quantum Service Scale System Page 1 of 8
QUANTUM
SERVICE SCALE SYSTEM
QUANTUM FEATURES:
Lowest prole of any comparable scale on the market –
51⁄4” high.
OPERATOR’S CONSOLE
■ ATM style, 5.7" monochrome pivoting display: provides
clear, concise graphic images which ensures best
operator viewing.
■ All PLU data is displayed on screen: Product number,
unit price, by count, weight, tare, shelf life, sell-by,
best-before, packed-on, freeze-by, UPC#, net weight,
total price, label type, label format, graphics, and
customer marquee message for verication.
NOTICE: Fluorescent lamp in display panel contains a
small amount of mercury. Please dispose of according
to local, state or federal laws.
■ Seven position screen adjustments ensure best viewing
angle, avoid glare.
■ Retailer dened operator security is accessed by operator ID on the console.
■ Eight – “F” Function keys located to the right of the
display screen are used to make menu selections
and accelerates product look-up. Data is immediately
accessed.
■ Four – “S” Function keys located below the display
screen are used to swiftly select operator ID, PLU search
& entry and Retailer dened macros.
SUPERIOR OPERATOR FUNCTIONS
■ Help key – Quantum is equipped with context sensitive
HELP-Key functions to assist in quick, efcient scale
operation.
■ Flash keys – Allow easy access to PLU Search and
Entry.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
❑ Unlimited multiple screens can be programmed to
Mirror your display case.
■ Weigh types (modes of operation)
❑ Wait on a customer
❑ Prepackaged Products
❑ Print Multiple Labels
❑ Production Entry
❑ Accumulate Items
❑ Verify Fixed Weight
❑ Forced Price
❑ Forced Tare
■ Total Types
Total types allow the Retailer/ Supervisor to audit and
track ALL Totals types. PRODUCTION totals are
permanently congured. In contrast, the Retailer/
Supervisor can congure additional total types required
for your operation. Examples:
❑ AD ITEMS
❑ CUTTING TEST
❑ RE-WRAPS
❑ MANAGER’S SPECIAL
❑ NEW ITEMS
❑ COUPON ITEMS
❑ MARK DOWNS – MARK UPS
Class totals track product categories. Hourly totals can
assist in scheduling Operator ID. Totals track operator
productivity.
❑ Maximum (32) FLASH KEYS displayed per screen at
one time.
Page 2 of 8 F7720 – Quantum Service Scale System
QUANTUM
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
MEMORY CAPACITY
■ 8 MB RAM standard memory (approximately 24,000
PLU’s with basic item information)
■ Flash upgradeable memory.
■ Battery back-up for memory retention for up to 100
hours.
MEMORY PROGRAMMING FORMATS
■ Through the external IBM XT/AT/PS2 type computer
keyboard, or
■ Manually through the Supervisor’s QWERTY keyboard.
■ IntraNet – Intradepartment Network. Allows high speed
programming to be performed by connecting the data
of all scales in the department through a Client Server
arrangement.
■ Mini Net allows programming to be performed by each
department on its own individual network.
■ Disk Player Recorder or External Disk Drive le transfer.
DISK PLAYER RECORDER
SERVICE SCALE SYSTEM
ITEM FILE INFORMATION STORED IN MEMORY
■ PLU number – 1 to 6 Digits
■ UPC Numbering Systems
❑ 2 & 4 Random Price
❑ 0, 6, & 7 Fixed Price
■ UPC Number – 1 to 10 Digits
■ Portrait Description – UP TO 2,000 Characters
■ Landscaped Description – UP TO 2,000 Characters
■ Special Message – up to 2,000 Characters
■ Portrait Expanded Text – UP TO 2,000 Characters
■ Landscaped Expanded Text – UP TO 2,000 characters
■ FDA Nutri-Data Template
■ Tare – Maximum of 30.09 lbs.
■ Shelf Life – UP TO 997 Days
■ Product Life – UP TO 997 Days
■ Class/Category Number 1 to 6 Digits
■ Information Tracker provides the supervisor information.
■ Any price or tare change is recorded by PLU, date and
Operator ID.
■ Graphic – 1 Graphic per PLU code
■ Graphic – 1 Graphic logo per store
■ Label Type – Assigned by PLU by Retailer/Supervisor or
Operator for primary and secondary printer.
■ Marquee Messages
REAR CUSTOMER DISPLAY INCORPORATES
MERCHANDISING DISPLAY
■ Four crisp, clear, bold marquee formats:
1. Permanent Message
2. Daily Message
3. Linked message by PLU – for cross merchandising
4. 24 – timed Daily messages – Capacity 8,760 messages per year or (1) different message per hour every
day of the year!
SCROLL, FLASH, HOLD, BLINK!
■ Customize each message as it is displayed.
F7720 – Quantum Service Scale System Page 3 of 8
QUANTUM
SERVICE SCALE SYSTEM
LABELS AND PRINTING OPTIONS:
■ LABELS
Cassette label loading system provides fast and
efcient change of label stock or easy label size
change for merchandising exibility.
■ PRINTING
The Quantum thermal printhead requires no ink or
ribbon.
Preprinted labels may be printed with a customer logo
and/or other information.
When using blank labels, the Quantum can be set up
to print all of the necessary information including store
logo.
Print elds available:
❑ Store Name & Address – 2 lines
❑ Bar Code – Portrait Top or Bottom
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
❑ Time
❑ Tare
❑ Operator ID
❑ Operator Name
❑ Special Message – UP TO 108 lines
❑ Merchandising Graphic
❑ Sell-by
❑ Packed-on
❑ Product Life
❑ Freeze-by
❑ Weight/Count
❑ Unit Price
❑ Total Price
❑ Store ID
❑ Bar Code – Landscaped Left or Right
❑ PLU Description – Up to 4 lines
❑ FDA Nutri-Data Template
❑ Expanded Text – Up to 108 lines
❑ Net Weight – (1/4' Format) in Ounces, Pounds or
Kilograms
❑ Customer Store Graphic Logo
■ NETWORKING
❑ Work with scale manegment software such as:
Plum, ADC, Interscale & Perisable solutions.
Page 4 of 8 F7720 – Quantum Service Scale System
QUANTUM
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
LANDSCAPE FORMAT
❑ 11⁄2" x 1"
❑ 11⁄2" x 2"
❑ 11⁄2" x 3"
❑ 11⁄2" x 31⁄2"
❑ 11⁄2" x 5"
❑ 11⁄2" x Continuous
❑ 21⁄4" x 1"
❑ 21⁄4" x 11⁄2"
❑ 21⁄4" x 13⁄4"
❑ 21⁄4" x 23⁄8"
❑ 21⁄4" x 3"
❑ 21⁄4" x 31⁄2"
SERVICE SCALE SYSTEM
LABELS & PRINTING OPTIONS
❑ 21⁄4" x 4"
❑ 21⁄4" x 41⁄2"
❑ 21⁄4" x 6"
❑ 21⁄4" x 61⁄2"
❑ 21⁄4" x 8"
❑ 21⁄4" x Continuous
F7720 – Quantum Service Scale System Page 5 of 8
QUANTUM
SERVICE SCALE SYSTEM
LABELS & PRINTING OPTIONS
PORTRAIT FORMAT
❑ 11⁄2" x 1"
❑ 11⁄2" x 2"
❑ 11⁄2" x 3"
❑ 11⁄2" x 31⁄2"
❑ 11⁄2" x 5"
❑ 11⁄2" x Continuous
❑ 21⁄4" x 1"
❑ 21⁄4" x 11⁄2"
❑ 21⁄4" x 13⁄4"
❑ 21⁄4" x 23⁄8"
❑ 21⁄4" x 3"
❑ 21⁄4" x 31⁄2"
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
❑ 21⁄4" x 4"
❑ 21⁄4" x 41⁄2"
❑ 21⁄4" x 6"
❑ 21⁄4" x 61⁄2"
❑ 21⁄4" x 8"
❑ 21⁄4" x Continuous
Page 6 of 8 F7720 – Quantum Service Scale System
QUANTUM
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
LABELS & PRINTING OPTIONS

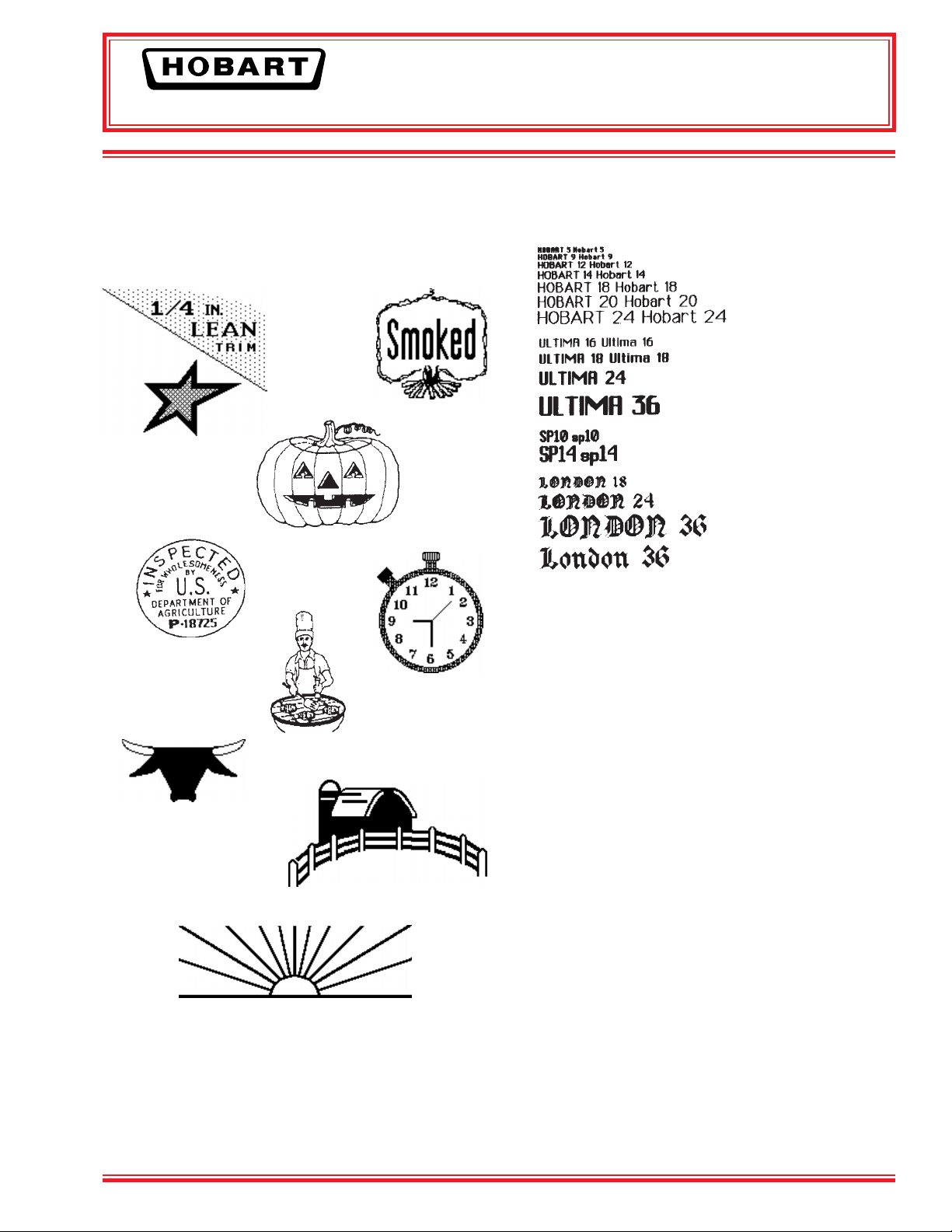

MERCHANDISING GRAPHICS
■ Design your own labels – We’ll create them!
SERVICE SCALE SYSTEM
FONTS
F7720 – Quantum Service Scale System Page 7 of 8
QUANTUM
SERVICE SCALE SYSTEM
DETAILS AND DIMENSIONS
PLATTER: Stainless steel 14" wide x 15" deep
CAPACITY: 30 lb. x 0.01 Graduations Unit Price – $999.99,
Total Price – $999.99
ELECTRICAL: 120 volts, 60 Hz, single phase, 1.5 amps,
180 watts. 9 foot standard cord cap with ground type
plug furnished. Battery back-up 100 hours.
WEIGHT: (Approximate) net 331⁄2 lbs., shipping 391⁄2 lbs.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
NATIONWIDE SERVICE: Same day Hobart Service
provided for your: Bakery, Deli, Seafood, Produce, Floral,
Photo, Food Service, Sushi, Coffee, Juice Bar, Service
Meat and other perishable departments enables you to
serve your customers quickly.
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
Page 8 of 8 F7720 – Quantum Service Scale System
F7720 (REV. 04/12) LITHO IN U.S.A. (H-01)
