HINO
Quick Reference Guide
2005-2010
(Updated June, 2009)
©2009 HINO MOTORS SALES USA INC • LT-0010
HINO 2005-2010 Quick Reference Guide
HINO Quick Reference Guide 2005-2010 Model Years
The Quick Reference Guide is designed to help you quickly look up parts for commonly ordered parts. The format has been changed from previous years.
The main sections are in alphabetical order but the Sub-sections are not.
The PART NAME is listed in the first column. The name refers to what HINO may call the part or what the typical truck industry name is.
The second column DESCRIPTION gives more detailed information about what the part includes or does not include.
HINO Production Series Code
In order to insure you are ordering the correct part number for the vehicle you are working on it is critical that you use the Production Series Code. This is located just below the VIN number on the VIN plate.
The plate is attached to the passenger side doorjamb on all conventional trucks. The Production Series
The third column is the actual PART NUMBER and should be entered as shown. Supercessions may apply.
The forth column is the MODEL this part applies to and the model years that it applies to.
The fifth column is the GROUP. HINO uses five major groups. Engine – Electrical – Drive – Cab Rear Body and Chassis/Tool
The sixth column is the FIGURE # that the part can be found in the Hino Electronic Parts Catalog and is helpful if you need other parts in addition to what’s listed in the Quick Reference Guide.
Code can also be found in Dealer Connect through the warranty screen. Go to DC600 then DC611 and then click on options. The vehicle options will be displayed and the Production Series Code is shown directly below the header – Options – It will always consist of two letters and 1 number.
See the example shown above from the EPC. The P/N 420807191A applies to the Production Series Code of AA2
The second part number of 420807201A applies to the Production Series Code of BA2
© 2009 HINO MOTOR SALES USA INC Subject to change without notice
OEM names for reference purposes only.
2
VIN
Identification
HINO 2005-2010 Quick Reference Guide
Explanation of HINO VIN Number
JHB NA 6J F 2 5 1 S 10001
(Manufactures I.D.) JHB – Built in Japan 5PV – Built in USA (1-3)
Model (see list*) (4-5)
Engine Type (see list**) (6-7)
Wheelbase - Higher Letter is a Longer Wheelbase (see list ***)
(8)
Check Digit
(9)
Model Year (see list ****)
(10)
Assembly Plant Code
1= Japan 2= Long Beach CA. (11)
Production Modification Code
(S)Starting (Initial Production)
(T)Major Production Modification) (12)
Sequential Series Number |
|
|
|
|
|||
Chassis I.D. Number |
|
|
|
|
|
||
(13-17) |
*Model |
|
|
|
|
|
|
|
Code |
|
Model |
GVW |
Brake |
|
|
|
NA |
|
145 |
14,050 |
Hydraulic |
|
|
|
NB |
|
165 |
16,000 |
Hydraulic |
|
|
|
NC |
|
185 |
18,000 |
Hydraulic |
|
|
|
ND |
|
238/258 |
23,000/ 25,500 |
Hydraulic |
|
|
|
NE |
|
268 |
25,950 |
Hydraulic |
|
|
|
NJ |
|
268A |
25,950 |
Full Air |
|
|
|
NV |
|
338 |
33,000 |
Full Air |
|
|
**Engine Type |
|
|
|
|
|
|
|||
|
6J |
J05D-TA |
|
175HP |
|
||||
|
8J |
J08E-TA |
|
220HP |
|
||||
|
8J |
J08E-TB |
260HP |
|
|||||
***Wheelbase |
|
|
|
|
|
|
|||
|
Code |
Inches |
|
Kind |
|
|
|
||
|
F |
|
147 |
|
LDT |
|
|
|
|
|
G |
|
152 |
|
MDT |
|
|
|
|
|
J |
|
175 |
|
LDT |
|
|
|
|
|
K |
|
183 |
|
LDT |
|
|
|
|
|
L |
|
187 |
|
LDT |
|
|
|
|
|
M |
|
201 |
|
MDT |
|
|
|
|
|
N |
|
212 |
|
MDT |
|
|
|
|
|
P |
|
217 |
|
MDT |
|
|
|
|
|
R |
|
235 |
|
MDT |
|
|
|
|
|
T |
|
253 |
|
MDT |
|
|
|
|
|
V |
|
271 |
|
MDT |
|
|
|
|
|
****Model Year |
|
|
|
|||||
|
Code |
Year |
Code |
|
Year |
||||
|
5 |
|
2005 |
B |
|
2011 |
|||
|
6 |
|
2006 |
C |
|
2012 |
|||
|
7 |
|
2007 |
D |
|
2013 |
|||
|
8 |
|
2008 |
E |
|
2014 |
|||
|
9 |
|
2009 |
F |
|
2015 |
|||
|
A |
|
2010 |
G |
|
2016 |
|||
3
Accessories
Guide
HINO 2005-2010 Quick Reference Guide
HINO 2005-2010 Accessories Guide
Note: some kit quantities are not shown in inventory and are assembled after order is placed.
Description |
|
Part Number |
|
|
|
Block Heater JO5E-TA (4 Cyl.) |
|
3510238K4 |
Block Heater JO8E-TA (6 Cyl.) |
|
3510238K6 |
Glow Plug Kit JO5E-TA (4 Cyl.) |
|
191101271K4 |
Glow Plug Kit JO8E-TA (6 Cyl.) |
|
191101271K6 |
Heated Mirror Kit with Lights |
|
87902KIT05 |
Chrome Heated Mirror Kit. '08 Models only |
87902KIT08C |
|
Black Heated Mirror Kit. '08 Models only |
87902KIT08B |
|
Chrome Mirror Cover Kit. 2008 Models Only |
87902KITCC |
|
Fender mounted Mirror Kit (contains one mir- |
97687 |
|
ror. Fits either side ALL MODELS) |
|
|
52 Gal. Dual Fuel Tank Conversion for ND, NE, |
D61 |
|
NJ, NV. 2005-2008 |
|
|
95 Gal. Fuel Tank Conversion for ND, NE, NJ, |
771004620K |
|
NV. 2005-2008 |
|
|
For 2009 trucks or trucks using Aluminum fuel |
FAD61 (parts kit only) |
|
tanks you must buy the parts kit and the tanks |
S7740E0430 Al. |
|
separate. For 52gl Dual Fuel Tank |
|
52gl tank |
For 2009 trucks or trucks using Aluminum fuel |
FA771004620K (parts |
|
tanks you must by the parts kit and the tank |
kit only) S7740E0450 |
|
separate. For 95gl Fuel Tank |
|
Al. 95gl tank |
Pac Brake (Exhaust Brake)4 Cyl. Eaton Manual |
C40012 |
|
Transmission. 2005-2007 |
|
|
Pac Brake (Exhaust Brake) 6 Cyl. |
With Air |
C40013 |
Brakes. 2005-2007 |
|
|
Pac Brake (Exhaust Brake) 6 Cyl. |
Without Air |
C40014 |
Brakes. 2005-2007 |
|
|
Pac Brake (Exhaust Brake) 4 Cyl. Aisin Trans- |
C40011 |
|
mission |
|
|
4" Bumper Extension Kit for NA, NB, NC |
52101LDTKIT |
|
Models Only. |
|
|
4" Bumper Extension Kit for ND,NE, NJ, NV |
52101MDTKIT |
|
Models Only. |
|
|
Chrome BumperNA, NB, NC. |
|
52101E0120 |
Chrome BumperND,NE,NJ,NV. |
|
52101E0130 |
Chrome GrillNA,NB, NC |
|
53101E0030 |
Chrome GrillND, NE, NV, NJ. |
|
53101E0060 |
Chrome Headlamp Bezel (Left) All Models- |
761081500A |
|
2005 ONLY |
|
|
Chrome Headlamp Bezel (Right) All Models- |
761071660A |
|
2005 ONLY |
|
|
Chrome Wheel Simulator Kit. 16" Front and |
42600H4010 |
|
Rear Wheel Covers with Lug Nut Covers |
|
|
Chrome Wheel Simulator Kit 19.5". FOR 258 |
42600H4090 |
|
LP ONLY. Front and Rear Wheel Covers with |
|
|
Lug Nut Covers. ND |
|
|
Description |
|
Part Number |
|
|
|
||
Chrome Wheel Simulator Kit. 19.5" FOR 258 |
42600H4095 |
||
ALP ONLY Front and Rear Wheel. Covers with |
|
||
Lug Nut Covers. NJ |
|
|
|
Chrome Wheel Simulator Kit. 22.5" Front |
42600H4100 |
||
and Rear Wheel Covers with Lug Nut Covers. |
|
||
ND-NV. |
|
|
|
Air |
Deflector Kits. All Models -White |
|
G-MAD-H-AS-01 |
Air |
Deflector Kits. All ModelsBlack |
|
G-MAD-H-AS-01-05 |
Air |
Deflector Kits. All ModelsRed |
|
G-MAD-H-AS-01-07 |
Sun Visor Fits All Conventional Models |
HIS54 |
||
Instrument Cluster. Simulated Wood Grain |
554141290A |
||
Trim Panel Kits. All Models - 2005-2007 only |
|
||
Door Trim Panel - L/S. Simulated Wood Grain |
681431030A |
||
Trim Panel Kits. All Models - 2005-2007 only |
|
||
Door Trim Panel - R/S. Simulated Wood Grain |
681441020A |
||
Trim Panel Kits. All Models - 2005-2007 only |
|
||
Mud Flaps 24"X30" |
|
HPJ530DW |
|
Mud Flaps 24"X36" |
|
HPJ536DW |
|
Floor Mats ( All Models) |
|
FLRMATNAPS |
|
Hino Seat Covers Drivers Side |
|
SA23623 |
|
Hino Seat Covers Passenger Side |
|
SA23624 |
|
Hino Seat Covers Bench Seat |
|
SA23625 |
|
Front Stabilizer Kit. 2005-2010 NA, NB, NC |
D67 |
||
Models Only |
|
|
|
Rear Stabilizer Kit. 2005-2010 ND,NE, NJ |
D68PL |
||
Models Only |
|
|
|
Rear Stabilizer Kit. 2005-2010 NV Model Only |
D68PL338 |
||
Rear Shock Kit. 2005-2010 NA, NB, NC |
D68LDT |
||
Models Only |
|
|
|
Rear Shock Kit. 2005-2010 ND,NE, NJ Models |
D68MDTC6 |
||
Only |
|
|
|
Rear Shock Kit. 2005-2010 NV Model Only |
D68MDTC7 |
||
Heavy Duty Rear Shock Kit for NV 338 Air |
66994000 |
||
Suspension Only |
|
|
|
Hendrickson Air ride Susp. Kit. Also, for 268A |
482501320A, |
||
and 338 Models |
|
3150D2578 |
|
Dump Valve Kit. '05-'07 NJ, NV. |
|
5018354KIT |
|
Dump Valve Kit. 2008-2010 ND,NE, NJ, NV |
27690E0010K |
||
Models |
|
|
|
Air Horn Kit 05-07 NJ-NV & All 2008-2010 |
135456 |
||
Models |
|
|
|
Differential Lock Kit. 2008-2010 NV and NJ |
154100 |
||
Models Only |
|
|
|
Vertical Exhaust Kit. 2005-2007 Only |
NDNV |
152120 |
|
Vertical Exhaust Kit. 2008-2010 Only |
NDNV |
255152-70-0001 |
|
4
Contents
HINO 2005-2010 Quick Reference Guide
Contents
|
. |
PAGE |
Air Conditioning |
Compressor, Belts, Condenser,s Receiver Driers, Evaporators, Thermostat, |
|
|
Expansion Valves, Idler Pulleys, Compressor Clutches, Control Panels, High |
|
|
Pressure Switches, Evaporator Filters and Air Conditioner Hoses................................ |
7-8 |
Brake System |
Hydraulic: Brake Pads, Master Cylinders, Boosters, Servo Assembles, Calipers, |
|
|
Rotors, Caliper Pins/Boots/Seals Kits, Caliper Pistons and Caliper Hardware Kits..... |
9-11 |
|
Electrical: Stop Light Switches, ABS System: Sensors/Brackets, |
|
|
Tone Rings, Brake Motor Relays and Modulator Valves............................................ |
12-13 |
|
Air: Brake Shoes and Drums, Brake Hardware Kits and Springs................................... |
13 |
|
Air: Slack Adjusters, S-Cams and Brake Chambers....................................................... |
14 |
|
Air & Hydraulic – ABS Systems: Wheel Speed Sensors, Extension Harnesses, |
|
|
Air Switches and Modulator Valvea............................................................................ |
14-15 |
|
Air: Pressure Regulators, Brake Valves, Driers, Pressure Control Valves, |
|
|
Rebuild Kits, Air Valves, Cartridges and Heater Assembly....................................... |
15-16 |
Bumpers |
Chrome, White and Black, Three Piece And One Piece Options................................... |
16 |
Clutches |
Clutch Kit, Spice Clutch Packs, Pilot/ Bearings, Release Bearings, Fork Springs |
|
|
Clutch Forks, Shaft Clutches, Shaft Keys, Spacers, Bushings and Lube Hose........ |
17-18 |
|
Master/Slave Cylinders, Push Rods, and Repair Kits..................................................... |
19 |
|
Flywheels, Ring Gears, Bolts, Pins and Collars.............................................................. |
20 |
Cooling System |
Water Pumps, O-Rings, Water Pump Belts, Pulleys and Bolts....................................... |
21 |
|
Thermostat Kits, Gaskets, Radiators, Retainers, Caps and Reserve Tanks................... |
22 |
|
Fan Clutches, Radiator Hoses, Low Coolant Sensors.................................................... |
23 |
Driveline |
Differential Pinion Seals, Axle Shafts............................................................................... |
24 |
|
Axle Gaskets, U-Joint Kits, Center Bearings, Boot Kits and U-Joint Scraps.................. |
25 |
Electrical (Cab) |

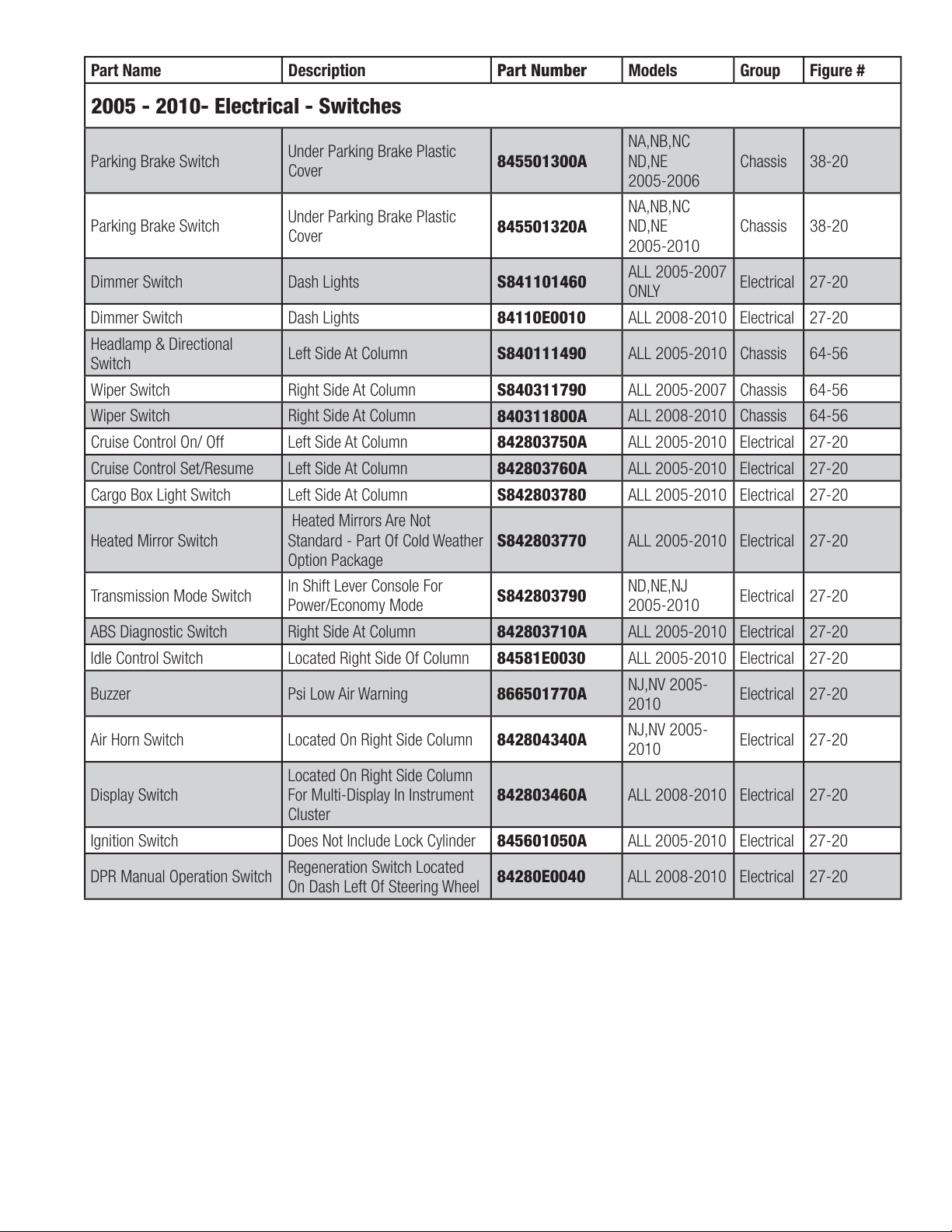

Switches: Park Brake, Dimmer, Head Lamp & Directional, Wiper, Cruise Control,........26 |
|
|
Cargo Box, Heated Mirror, Transmission Mode, ABS Diagnostic, Idle Control, |
|
|
Buzzer, Air Horn, Display, Ignition, and DPR Manual Operation |
|

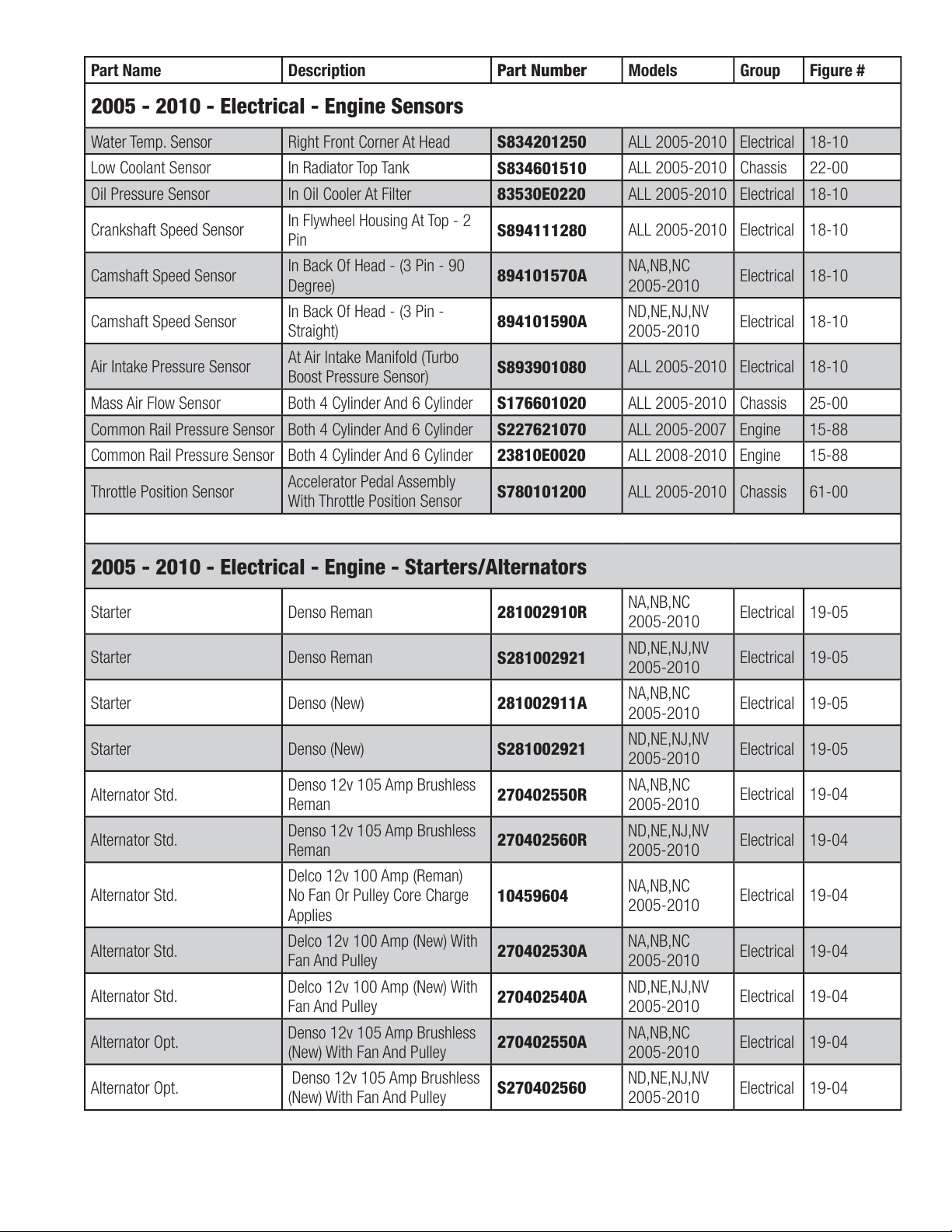

Engine (Electrical) |
Senstors: Water Temp, Low Coolant, Oil Pressure, Cam and Crank |
|
|
Speed, Air Intake Pressure, Mass Air Flow, Common Rail |
|
|
Pressure, Throttle Position............................................................................................... |
27 |
|
Starters, Alternators......................................................................................................... |
27 |
|
Headlight & Tail Lamp, Relays and Turn Signal Flashers............................................... |
28 |
|
EGR Solenoids, Computer Fuel Injection, and EGR Valves & Manifolds....................... |
29 |
|
Intake Shutter, Throttle Body, and Intake Meter Assy..................................................... |
29 |
|
Fuses, Fusible Links, and Fuse/Relay bBox Covers....................................................... |
29 |
5
HINO 2005-2010 Quick Reference Guide
Contents (Cont.) |
. |
|
. |
PAGE |
|
Engine |
Valves, Springs and Guides........................................................................................... |
30 |
|
Oil Pumps, Oil Caps, Plugs and Gaskets....................................................................... |
30 |
|

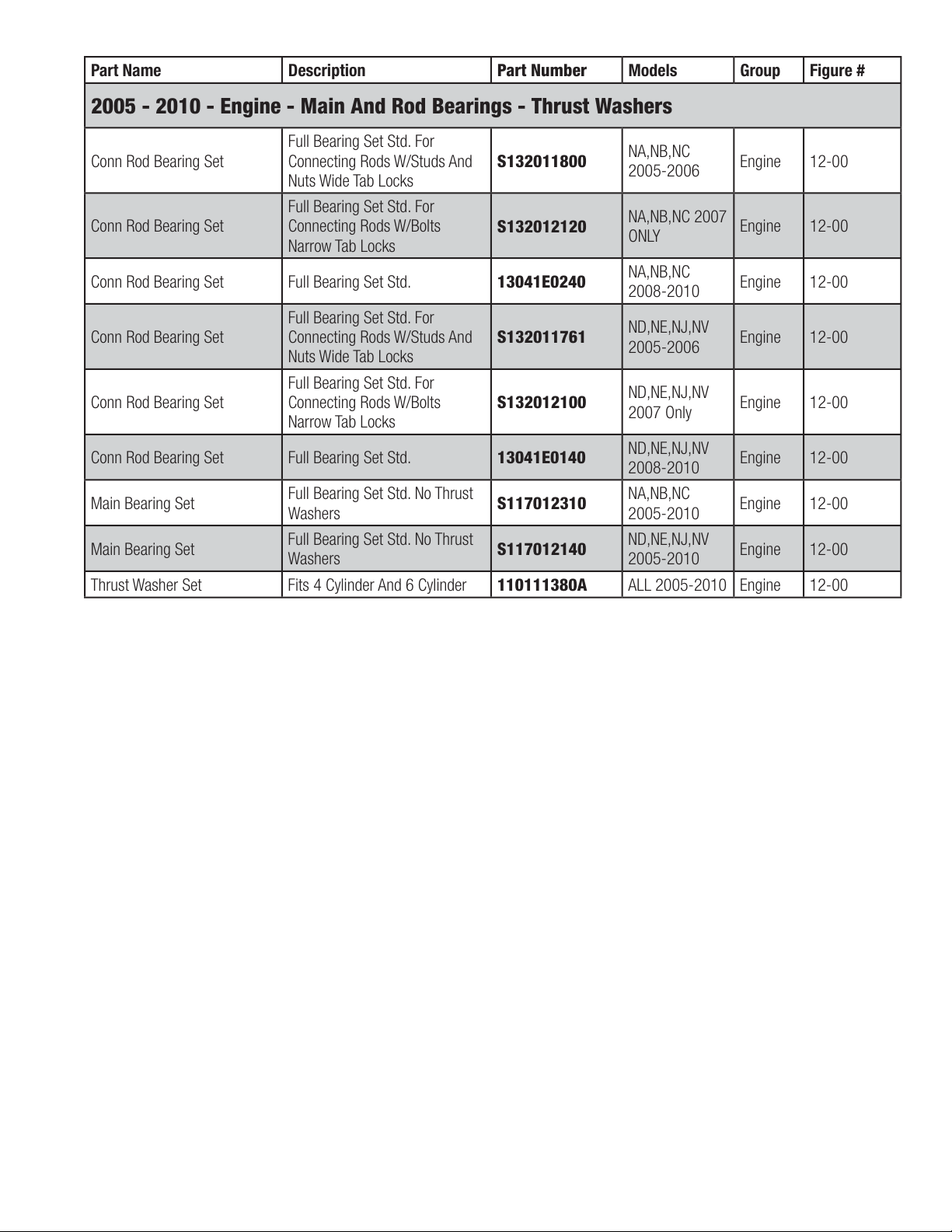

Conn Rod Bearing Sets, Main Bearings Sets and Thrust Washers................................ |
31 |
|

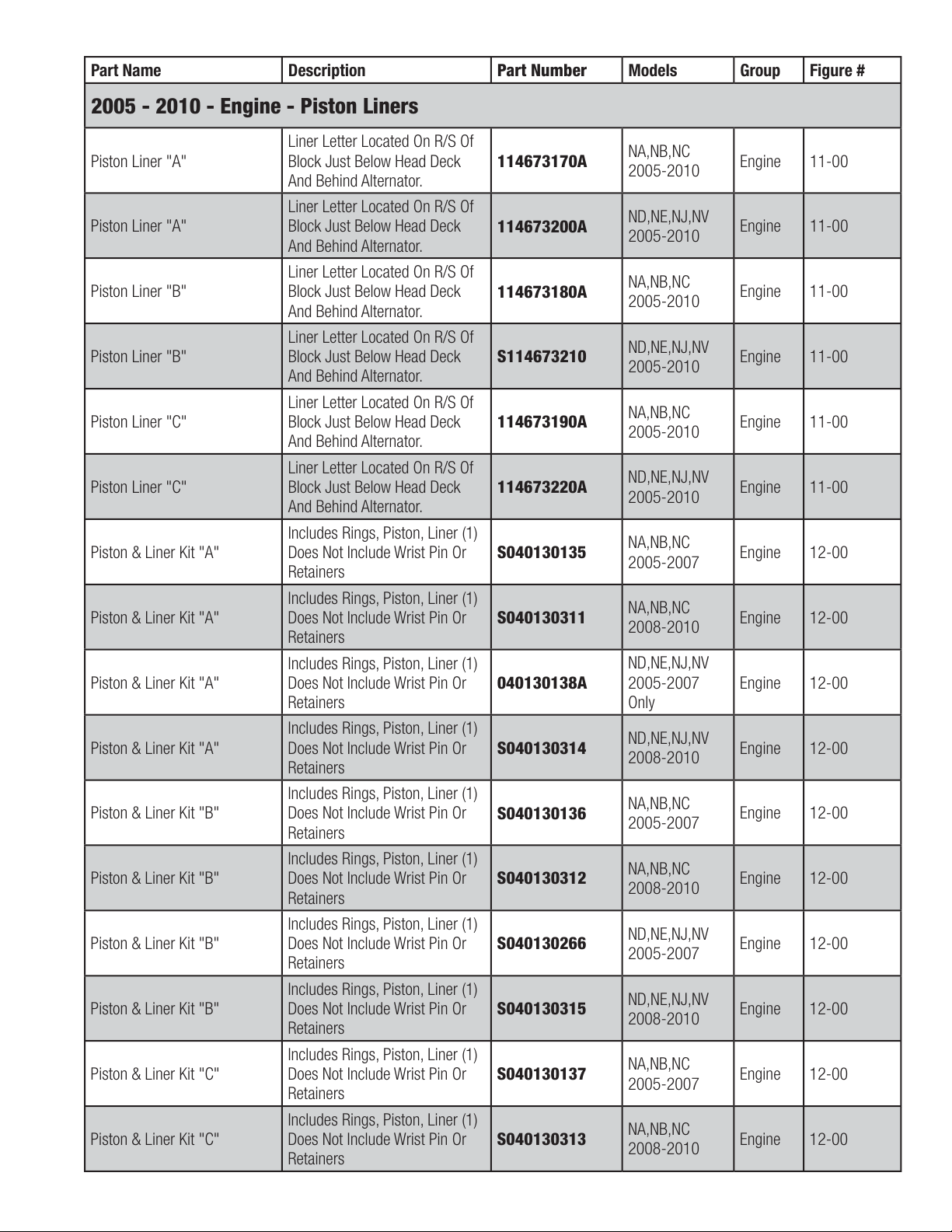

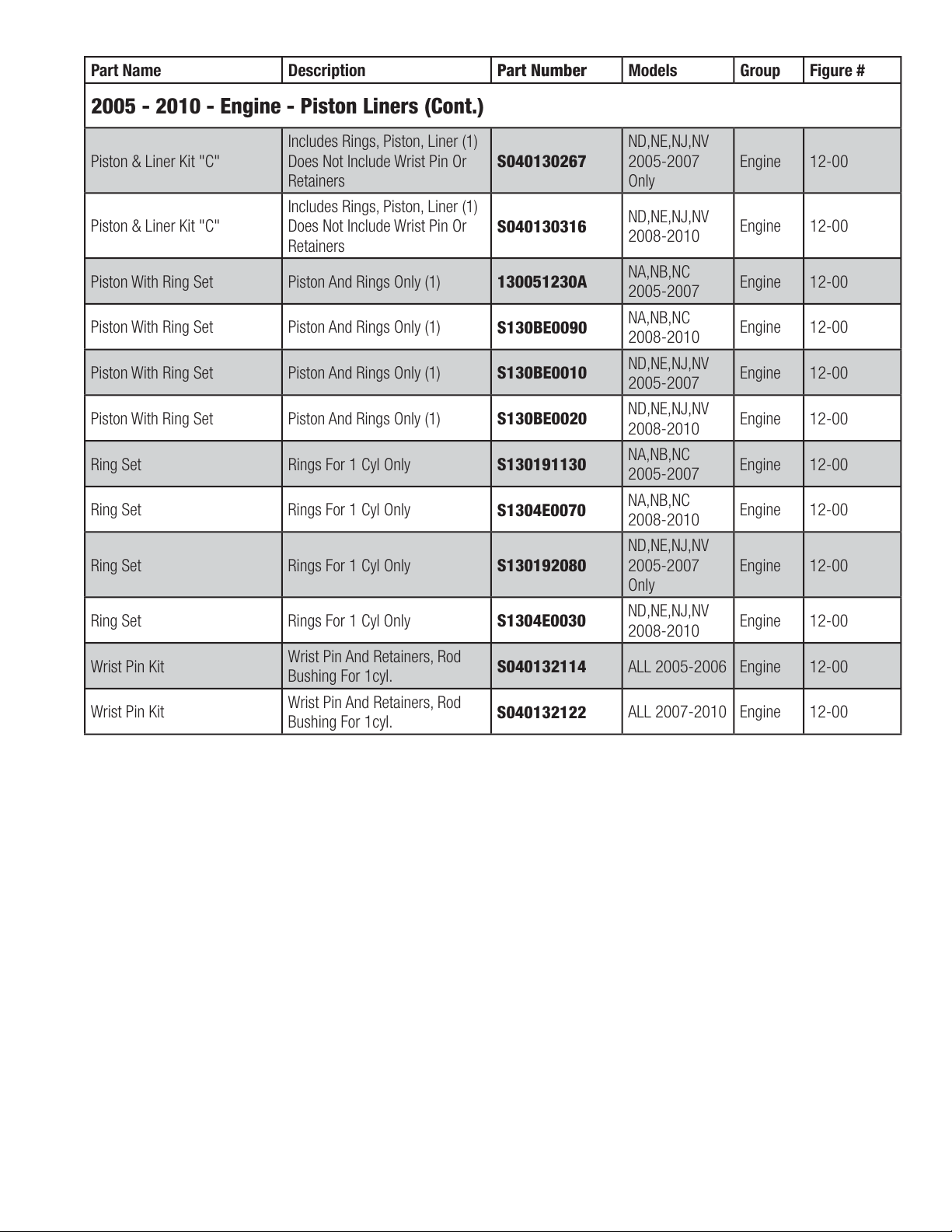

Piston Liners, Ring Sets and Wrist Pin Kits................................................................ |
32-33 |
|
Gaskets, Gasket Kits and Main Seals............................................................................. |
34 |
|
Intercooler and Intercooler Hoses................................................................................... |
35 |
|
Exhaust Systems: Turbochargers, Front and Tail Pipes, Muffler, Filters, ..................36-37 |
|
|
Exhaust Sensors, Exhaust Brakes; Gaskets: Turbo, Header Pipe, Oil Return, |
|
|
Oil Supply, Exhaust Manifold, EGR Manifold, Crossover Pipe, Exhaust Pipe |
|
Fuel Injection System |
Common Rail Fuel Injection System................................................................................ |
38 |
Filters |
Oil, Air, Fuel and Power Steering.................................................................................... |
39 |
Fuel |
Fuel Tanks, Straps, Brackets, Sending Units, Gaskets and Fuel Caps.......................... |
40 |
Heater |
Heater Fan Motor, Resistor, Heater Core and Cables..................................................... |
41 |
Horn |
Horns, Horn Spiral Cable and Horn Cover...................................................................... |
41 |
Hubs |
Hubs and Rotors, Hubs, Hob Seals, Front Covers and Gaskets............................... |
42-44 |
Lettering And Badges |
Lettering And Badges..................................................................................................... |
45 |
Lighting |
Head Lamps, Head Lamp Assemblies, Bulbs, Turn Signal Assemblies........................ |
46 |
|
Dome Lamp, Lens, Marker Lamp, Lens, Tail-Turn-Brake Light Assemblies. |
|
Locks/Keys/Ignition Switch |
Key Blanks, Door Locks, Lock Sets and Ignition Switches............................................ |
47 |
Mirrors |
Mirrors, Mirror Brackets and Mirror Light/Lamp Bulbs & Assemblies....................... |
48-49 |
Paint Codes |
Paint Codes..................................................................................................................... |
50 |
Parking Brake |
Cables, Handle Grip, Drums, Shoe-Brake Lining Assemblies and Park Brake ............ |
51 |
|
Assemblies |
|
Sealants |
Sealants. ......................................................................................................................... |
52 |
Steering |
Power Steering Box, Pump Assembly, Tie Rods, Pin Kits, Etc.................................. |
52-53 |
Suspension (Front/Rear) |
Shock Absorbers Front And Rear, Spring Assembly, Spring Bushings, U-bolts....... |
53-55 |
|
and Hardware |
|
Transmission (Manual) |
Pipe Plugs, Oil Seals, Gaskets, Transmissions, Speed Sensor Kits, Etc........................ |
56 |
Transmission (Automatic) |
Aisin: Gauge Oil Level, Tube Sub Assembly, Seals, Gaskets, Etc................................ |
57 |
|
Automatic Shift Cables, Speed Sensor Kits, Driven Gears, Switch Assembly, |
|
|
.Transmission Assembly, Retainer............................................................................... |
57-58 |
Wheels |
Wheel Bearings, Races, Wheels, Rims, Lug Nuts, Wheel Studs............................... |
59-62 |
Windshield/Wipers |
Windshield, Rubber Gasket Blades, Arms, Motor, Washer Reservoir, Cap, Pump........ |
62 |
6
A
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Air Conditioning |
|
|
|
|
||
|
|
|
|
|
|
|
A/C Compressor Drive Belt |
Single V-Belt |
SZ91045266 |
NA,NB,NC |
Engine |
18-50 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Compressor Drive Belt |
Single V-Belt |
883811100A |
ND,NE,NJ,NV |
Engine |
18-50 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Condenser |
The Condenser Has The Dryer |
S884102580 |
ALL MODELS |
Cab |
B9-04 |
|
Built Into It |
2005-2007 |
|||||
|
|
|
|
|||
A/C Condenser |
The Condenser Has The Dryer |
88460E0130 |
NA,NB,NC |
Cab |
B9-04 |
|
Built Into It |
2008-2010 |
|||||
|
|
|
|
|||
A/C Condenser |
The Condenser Has The Dryer |
88460E0120 |
ND,NE,NJ,NV |
Cab |
B9-04 |
|
Built Into It |
2008-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
A/C Drier Cartridge |
Dryer Desiccant Refill And Plug |
S884741040 |
ALL MODELS |
Cab |
B9-04 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Evaporator |
Core And Rubber Seal Around It |
S885011070 |
ALL MODELS |
Cab |
B9-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Thermostat |
Located At A/C-Heater/ |
S886251170 |
ALL MODELS |
Cab |
B9-00 |
|
Evaporator Box |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
A/C Expansion Valves |
Located At A/C-Heater/ |
S885151070 |
ALL MODELS |
R97469 |
B9-00 |
|
Evaporator Box |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
|
For Production Date Of 11/03 |
883601200A |
NA,NB,NC |
|
|
|
Idler Pulley Assembly |
Only Does Not Include Adjusting |
Engine |
18-50 |
|||
2005 ONLY |
||||||
|
Bolt |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
For Production Date Of 12/03 |
S883601430 |
NA,NB,NC |
|
|
|
Idler Pulley Assembly |
Forward Does Not Include |
Engine |
18-50 |
|||
2005-2010 |
||||||
|
Adjusting Bolt |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
Idler Pulley Assembly |
Does Not Include Adjusting Bolt |
S883601380 |
ND,NE,NJ,NV |
Engine |
18-50 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Compressor |
With Clutch |
S883101810 |
NA,NB,NC |
Cab |
B9-03 |
|
2005-2010 |
||||||
|
|
|
|
|
||
A/C Compressor |
With Clutch |
S883101800 |
ND,NE,NJ,NV |
Cab |
B9-03 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Compressor |
With Out Clutch |
883201820A |
NA,NB,NC |
Cab |
B9-03 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Compressor |
With Out Clutch |
S883201810 |
ND,NE,NJ,NV |
Cab |
B9-03 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Compressor Clutch |
New-Denso |
S883301270 |
ALL MODELS |
Cab |
B9-03 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C And Heater Fan Motor |
Has No KnobComes With The |
S874801270 |
ALL MODELS |
Cab |
B9-00 |
|
Switch |
2 Lights |
2005-2010 |
||||
|
|
|
||||
|
|
|
|
|
|
|
A/C On/Off Switch |
In A/C-Heater Control Panel In |
S886101150 |
ALL MODELS |
Cab |
B9-01 |
|
Dash |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
|
Threads Into High Pressure |
S833802500 |
ALL MODELS |
|
|
|
A/C High Pressure Switch |
Line-Not Shown In EPC |
Chassis |
91-00 |
|||
2005-2010 |
||||||
|
Illustration |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
Blower Resistor |
Located On Heater/Evaporator |
S871381200 |
ALL MODELS |
Cab |
B9-00 |
|
Box Under Dash |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
7
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Air Conditioning (Cont.) |
|
|
|
|
||
|
|
|
|
|
|
|
|
Includes Cables And Fan Switch |
S874101600 |
ALL MODELS |
|
|
|
A/C-Heater Control Panel |
- Does Not Include A/C On/Off |
Cab |
B9-00 |
|||
2005-2010 |
||||||
|
Switch |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
A/C Filter Element |
Filter/Screen In Evaporator Box |
S872121200 |
ALL MODELS |
Cab |
B9-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Discharge |
Condenser To Compressor |
S887114200 |
NA,NB,NC |
Chassis |
91-00 |
|
2005-2007 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Discharge |
Condenser To Compressor |
88711E0100 |
NA,NB,NC |
Chassis |
91-00 |
|
2008-2010 |
||||||
|
|
|
|
|
||
Hose Suction |
Compressor To Evaporator |
S887124770 |
NA,NB,NC |
Chassis |
91-00 |
|
2005-2007 |
||||||
|
|
|
|
|
||
Hose Suction |
Compressor To Evaporator |
88712E0180 |
NA,NB,NC |
Chassis |
91-00 |
|
2008-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Liquid |
Evaporator To Condenser |
S887132340 |
NA,NB,NC |
Chassis |
91-00 |
|
2005-2007 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Liquid |
Evaporator To Condenser |
88721E0020 |
NA,NB,NC |
Chassis |
91-00 |
|
2008-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Liquid |
Evaporator To Condenser |
S887132350 |
ND,NE,NJ,NV |
Chassis |
91-00 |
|
2005-2007 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Liquid |
Evaporator To Condenser |
88721E0010 |
ND,NE,NJ,NV |
Chassis |
91-00 |
|
2008-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Suction |
Compressor To Evaporator |
887124780A |
ND,NE,NJ,NV |
Chassis |
91-00 |
|
2005-2007 |
||||||
|
|
|
|
|
||
Hose Suction |
Compressor To Evaporator |
88712E0160 |
ND,NE,NJ,NV |
Chassis |
91-00 |
|
2008-2010 |
||||||
|
|
|
|
|
||
Hose Discharge |
Condenser To Compressor |
S887114210 |
ND,NE,NJ,NV |
Chassis |
91-00 |
|
2005-2007 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hose Discharge |
Condenser To Compressor |
88711E0080 |
ND,NE,NJ,NV |
Chassis |
91-00 |
|
2008-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
8
B
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brake System - Hydraulic - Disc Brake Pads |
|
|
|
|||
|
|
|
|
|
|
|
Disc Brake Pads |
4 Brake Pads With Holdown |
MDP5113 |
NA,NB,NC |
Drive |
66-10 |
|
Plate Front Axle |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Disc Brake Pads |
4 Brake Pads With Holdown |
MDP5113 |
NA,NB |
Drive |
68-10 |
|
Plate Rear Axle |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Disc Brake Pads |
4 Brake Pads - Front Axle |
KITD769AM |
ND,NE |
Drive |
66 -10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
Disc Brake Pads |
4 Brake Pads - Rear Axle |
KITD769AM |
NC,ND,NE |
Drive |
68-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|||||
2005 - 2010 - Brake System - Hydraulic - Front Calipers, Master Cylinders |
|
|||||
|
|
BX2234933 |
NA,NB,NC, |
|
|
|
Master Cylinder |
On Firewall |
ND,NE |
Chassis |
37-05 |
||
|
|
|
2005-2010 |
|
|
|
|
|
|
|
|
|
|
|
Brake Booster Attaches To Rear |
0204022940 |
NA,NB,NC, |
|
|
|
Booster |
ND,NE |
Chassis |
37-05 |
|||
Of Master Cylinder. |
||||||
|
|
2005-2010 |
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Includes Master Cylinder, |
447201011A |
NA,NB,NC, |
|
|
|
Servo Assembly |
Booster And Back Up Pump |
ND,NE |
Chassis |
37-05 |
||
|
Motor |
|
2005-2010 |
|
|
|
|
|
|
|
|
|
|
Disk Brake Caliper |
Right Front Caliper - No Pads |
LRG715 |
NA,NB,NC |
Drive |
66-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Disk Brake Caliper |
Left Front Caliper - No Pads |
LRG714 |
NA,NB,NC |
Drive |
66-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Disk Brake Caliper |
Right Front Caliper 64mm |
60450481 |
ND,NE |
Drive |
66-10 |
|
Piston 8k Axle |
2005-2010 |
|||||
|
|
|
|
|||
Disk Brake Caliper |
Right Front Caliper 64mm |
60450474005 |
ND.NE |
Drive |
66-10 |
|
Piston 8k Axle With Pads |
2005-2010 |
|||||
|
|
|
|
|||
Disk Brake Caliper |
Left Front Caliper 64mm Piston |
60450480 |
ND,NE |
Drive |
66-10 |
|
8k Axle |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Disk Brake Caliper |
Left Front Caliper 64mm Piston |
60450473005 |
ND,NE |
Drive |
66-10 |
|
8k Axle With Pads |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Disk Brake Caliper |
Right Front Caliper 70mm |
60450483 |
NE |
Drive |
66-10 |
|
Piston 10k Axle |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Disk Brake Caliper |
Right Front Caliper 70mm |
60450468005 |
NE |
Drive |
66-10 |
|
Piston 10k Axle With Pads |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Disk Brake Caliper |
Left Front Caliper 70mm Piston |
60450482 |
NE |
Drive |
66-10 |
|
10k Axle |
2005-2010 |
|||||
|
|
|
|
|||
Disk Brake Caliper |
Left Front Caliper 70mm Piston |
60450469005 |
NE |
Drive |
66-10 |
|
10k Axle With Pads |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
9
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brake System - Hydraulic - Rear Calipers |
|
|
|
|||
|
|
|
|
|
|
|
Disk Brake Caliper |
Right Rear Caliper |
LRG716 |
NA 2005-2010 |
Drive |
68-10 |
|
Disk Brake Caliper |
Left Rear Caliper |
LRG717 |
NA 2005-2010 |
Drive |
68-10 |
|
Disk Brake Caliper |
Right Rear Caliper |
LRG714 |
NB 2005-2010 |
Drive |
68-10 |
|
|
|
|
|
|
|
|
Disk Brake Caliper |
Left Rear Caliper |
LRG715 |
NB 2005-2010 |
Drive |
68-10 |
|
Disk Brake Caliper |
Right Rear Caliper - 64mm |
60450480 |
NC,ND |
Drive |
68-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Disk Brake Caliper |
Left Rear Caliper - 64mm |
60450481 |
NC,ND |
Drive |
68-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
Disk Brake Caliper |
Right Rear Caliper - 64mm With |
60450473005 |
NC,ND |
Drive |
68-10 |
|
|
Pads |
|
2005-2010 |
|
|
|
Disk Brake Caliper |
Left Rear Caliper - 64mm With |
60450474005 |
NC,ND |
Drive |
68-10 |
|
Pads |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Disk Brake Caliper |
Right Rear Caliper - 70mm |
60450482 |
NE 2005-2010 |
Drive |
68-10 |
|
Disk Brake Caliper |
Left Rear Caliper - 70mm |
60450483 |
NE 2005-2010 |
Drive |
68-10 |
|
|
|
|
|
|
|
|
Disk Brake Caliper |
Right Rear Caliper - 70mm With |
60450468005 |
NE 2005-2010 |
Drive |
68-10 |
|
|
Pads |
|
|
|
|
|
Disk Brake Caliper |
Left Rear Caliper - 70mm With |
60450469005 |
NE 2005-2010 |
Drive |
68-10 |
|
Pads |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|||
2005 - 2010 - Brake System - Hydraulic - Rotors |
|
|
|
|||
|
|
|
|
|
|
|
Front Rotor |
Rotor Only |
23123626002 |
NA 2005-2010 |
Drive |
66-00 |
|
Front Rotor |
Rotor Only |
23123625002 |
NB,NC |
Drive |
66-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Front Rotor |
Rotor Coated - Tone Ring |
23123557004 |
ND,NE |
Drive |
66-00 |
|
Machined In |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Rear Rotor |
Rotor-Tone Ring Included |
23123618007 |
NA 2005-2010 |
Drive |
68-00 |
|
Rear Rotor |
Rotor-Tone Ring Included |
23123624007 |
NB 2005-2010 |
Drive |
68-00 |
|
Rear Rotor |
Rotor Tone Ring Included |
23123617004 |
NC 2005-2010 |
Drive |
68-00 |
|
|
|
|
|
|
|
|
Rear Rotor |
Rotor - Tone Ring Machined In |
23123557004 |
ND,NE |
Drive |
38-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
10
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brake System - Hydraulic - Caliper, Seals, Hardware |
|
|
||||
|
|
|
|
|
|
|
Caliper Guide Pin Kit |
2 Guide Pins, Boots, Bolts, |
SJ1035 |
NA,NB,NC Front |
Drive |
66-10 |
|
|
Plugs, Grease |
|
2005-2010 |
|
|
|
Caliper Guide Pin Kit |
2 Guide Pins, Boots, Bolts, |
SJ1035 |
NA,NB Rear |
Drive |
68-10 |
|
Plugs, Grease |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Guide Pin Boot Kit |
2 Guide Pin Boots And Grease |
SP8566 |
NA,NB,NC Front |
Drive |
66-10 |
|
|
|
|
2005-2010 |
|
|
|
Guide Pin Boot Kit |
2 Guide Pin Boots And Grease |
SP8566 |
NA,NB Rear |
Drive |
68-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
Boot & Seal Kit |
2 Caliper Seals, Dust Boots And |
SP8597 |
NA,NB,NC Front |
Drive |
66-10 |
|
|
Pin Boots |
|
2005-2010 |
|
|
|
Boot & Seal Kit |
2 Caliper Seals, Dust Boots And |
SP8597 |
NA,NB Rear |
Drive |
68-10 |
|
Pin Boots |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Boot & Seal Kit |
For 64mm Piston-Contains 4 |
R4011731 |
NC Rear |
Drive |
68-10 |
|
Seals& Boots |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Boot & Seal Kit |
For 64mm Piston-Contains 4 |
R4011731 |
ND,NE Front |
Drive |
66-10/68-10 |
|
Seals& Boots |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Boot & Seal Kit |
For 64mm Piston-Contains 4 |
R4011731 |
ND Rear |
Drive |
66-10/68-10 |
|
Seals& Boots |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Boot & Seal Kit |
For 70mm Piston-Contains 4 |
R4011730 |
NE Front/Rear |
Drive |
66-10/68-10 |
|
Seals& Boots |
2005-2010 |
|||||
|
|
|
|
|||
Caliper-Piston |
1- 60 Mm Caliper Piston |
31320085 |
NA,NB,NC Front |
Drive |
66-10 |
|
|
|
|
2005-2010 |
|
|
|
Caliper-Piston |
1- 60 Mm Caliper Piston |
31320085 |
NA,NB Rear |
Drive |
68-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Caliper-Piston |
64mm Piston And Plug |
R4011511 |
NC Rear |
Drive |
68-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
R4011511 |
ND,NE |
|
|
|
Caliper-Piston |
64mm Piston And Plug 8k Axle |
Front/Rear |
Drive |
66-10/68-10 |
||
|
|
|
2005-2010 |
|
|
|
|
|
|
|
|
|
|
Caliper-Piston |
70mm Piston And Plug 10k Axle |
60050334 |
NE Front/Rear |
Drive |
66-10/68-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Hardware Kit |
For Both 64mm And 70mm |
R4011729 |
Front/Rear |
Drive |
66-10/68-10 |
|
Pistons |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
11
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brake System - Electrical - Brake Light Switches - ABS System |
|
|||||
|
|
|
|
|
|
|
|
|
843802220A |
NA,NB,NC |
|
|
|
Stop Light Switch |
At Brake Pedal Bracket |
ND,NE |
Chassis |
35-00 |
||
|
|
|
2005-2010 |
|
|
|
|
|
|
|
|
|
|
|
2nd Switch At Brake Pedal |
S843802190 |
NA,NB,NC |
|
|
|
Stop Light Switch |
ND,NE |
Chassis |
35-00 |
|||
Bracket |
||||||
|
|
2007-2010 |
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
Stop Light Switch |
Air Brake |
S843802180 |
NJ,NV |
Chassis |
35-00 |
|
2005-2006 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Stop Light Switch |
Air Brake |
S833802620 |
NJ,NV |
Chassis |
35-00 |
|
2007-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Front Sensor - W/O Retainer |
894417770A |
NA,NB,NC |
Drive |
66-00 |
|
Clip |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Sensor Bracket |
Bolts To Spider Front |
69180474 |
NA,NB,NC |
Drive |
66-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
ABS Wheel Speed Sensor |
Rear Sensor - W/O Retainer Clip |
894417810A |
NA,NB |
Drive |
66-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Sensor Bracket |
Bolts To Spider Rear |
69180473 |
NA,NB,NC |
Drive |
68-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Rear Sensor - W/O Retainer Clip |
894417830A |
NC 2005-2010 |
Drive |
68-00 |
|
|
Front Sensor - W/O Retainer |
894417780A |
ND,NE NJ ALP |
|
|
|
ABS Wheel Speed Sensor |
8k Axle |
Drive |
66-00 |
|||
Clip |
||||||
|
|
2005-2010 |
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Sensor Bracket |
Bolts To Spider Front |
69180474 |
ND,NE 8k Axle |
Drive |
66-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
ABS Wheel Speed Sensor |
Front Sensor - W/O Retainer |
894417790A |
ND,NE 10k Axle |
Drive |
66-00 |
|
Clip |
2005-2010 |
|||||
|
|
|
|
|||
ABS Sensor Bracket |
Bolts To Spider Front |
69180473 |
ND,NE 10k Axle |
Drive |
66-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Rear Sensor - W/O Retainer Clip |
894417830A |
ND,NE |
Drive |
68-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Sensor Bracket |
Bolts To Spider Rear Axle |
69180472 |
ND,NE |
Drive |
68-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Front Sensor - W/O Retainer |
894417800A |
NJ,NV |
Drive |
66-00 |
|
Clip |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Right Side Rear Sensor - W/O |
894417841A |
NJ,NV 2005- |
Drive |
68-00 |
|
Retainer Clip |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Left Side Rear Sensor - W/O |
894417851A |
NJ,NV |
Drive |
68-00 |
|
Retainer Clip |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Speed Sensor Retainer Clip |
R955459 |
ALL 2005-2010 |
Drive |
66-00 |
|
Bushing |
||||||
|
|
|
|
|
||
Tone Ring |
Rear Tone Ring Only - No |
09002221 |
NA,NB |
Not |
Not Shown |
|
Screws |
2005-2010 |
Shown |
||||
|
|
|
||||
|
|
|
|
|
|
|
Tone Ring |
Rear Tone Ring |
3237N1262 |
NJ 258 ALP |
Not |
Not Shown |
|
2008-2010 |
Shown |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Tone Ring |
Front Tone Ring |
09002217 |
NB,NC |
Not |
Not Shown |
|
2005-2010 |
Shown |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
12
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brake System - Electrical - Brake Light Switches - ABS System (Cont.) |
||||||
ABS Tone Ring Screws |
6 Required |
08205977 |
NA,NB 2005- |
Not |
Not Shown |
|
2010 |
Shown |
|||||
|
|
|
|
|||
|
|
BX2772777 |
NA,NB,NC, |
|
|
|
Brake Motor Relay |
Located At Servo |
ND,NE 2005- |
Chassis |
36-00 |
||
|
|
|
2010 |
|
|
|
|
|
S4784070580 |
NA,NB,NC, |
|
|
|
ABS Modulator Valve |
1 Required |
ND,NE 2005- |
Chassis |
37-03 |
||
|
|
|
2010 |
|
|
|
|
|
|
|
|||
2005 - 2010 - Brakes - Air - Brake Shoes/Drums |
|
|
|
|||
|
|
|
|
|
|
|
Brake Shoe W/Lining |
1 Brake Shoe And Lining - Front |
SMA2124702QP |
NJ,NV 2005- |
Drive |
66-10 |
|
|
Axle |
|
2010 |
|
|
|
|
Brake Shoe Kit 1 Per Wheel Or |
XK2124702QP |
NJ,NV 2005- |
|
|
|
Brake Shoe Kit |
2 Per Axle W/Hardware Front |
Drive |
66-10 |
|||
2010 |
||||||
|
Axle |
|
|
|
||
|
|
|
|
|
||
Brake Shoe W/Lining |
1 Brake Shoe And Lining - Rear |
SMA2124710QP |
NJ 258 ALP |
Drive |
66-10 |
|
Axle |
2007-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
|
Brake Shoe Kit 1 Per Wheel Or |
XK2124710QP |
NJ 258 ALP |
|
|
|
Brake Shoe Kit |
2 Per Axle W/Hardware Rear |
Drive |
66-10 |
|||
2007-2010 |
||||||
|
Axle |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
Brake Shoe W/Lining |
1 Brake Shoe And Lining - Rear |
SMA2124707QP |
NJ,NV 2005- |
Drive |
68-10 |
|
Axle |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
|
Brake Shoe Kit 1 Per Wheel Or |
XK2124707QP |
NJ,NV 2005- |
|
|
|
Brake Shoe Kit |
2 Per Axle W/Hardware Rear |
Drive |
68-10 |
|||
2010 |
||||||
|
Axle |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
Front Brake Shoe Hardware |
Contains All Springs, Bushings, |
KIT8824HD |
NJ,NV 2005- |
|
|
|
And Rollers Completes One |
Drive |
66-10 |
||||
Kit |
2010 |
|||||
Wheel |
|
|
|
|||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Contains All Springs, Bushings, |
KIT8000MBHD |
NJ,NV 2005- |
|
|
|
Rear Brake Shoe Hardware Kit |
And Rollers Completes One |
Drive |
68-10 |
|||
2010 |
||||||
|
Wheel |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
Shoe Retaining Spring |
2 Required Per Side |
2258H1230 |
NJ,NV 2005- |
Drive |
66-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Shoe Return Spring |
1 Required Per Side |
258L1234 |
NJ,NV 2005- |
Drive |
66-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Drum |
Front - Drum Only |
85123366002 |
NJ,NV 2005- |
Drive |
66-00 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
85123465002 |
NJ 258 A/LP 8k |
|
|
|
Drum |
Front - Drum Only |
Axle 2007- |
Drive |
66-00 |
||
|
|
|
2010 |
|
|
|
|
|
|
|
|
|
|
Drum |
Rear - Drum Only |
85123466002 |
NJ 258 A/LP |
Drive |
68-00 |
|
2007-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Drum |
Rear - Drum Only |
85123207002 |
NJ,NV 2005- |
Drive |
68-00 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
13
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brakes - Air - Slack Adjusters - Brake Chambers |
|
|
||||
|
|
|
|
|
|
|
Automatic Slack Adjuster |
Right Front |
R802699 |
NJ,NV 2005- |
Drive |
66-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Automatic Slack Adjuster |
Left Front |
R802698 |
NJ,NV 2005- |
Drive |
66-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Automatic Slack Adjuster |
Right Rear |
R802649 |
NJ,NV 2005- |
Drive |
68-10 |
|
2010 |
||||||
|
|
|
|
|
||
Automatic Slack Adjuster |
Left Rear |
R802648 |
NJ,NV 2005- |
Drive |
68-10 |
|
2010 |
||||||
|
|
|
|
|
||
S-Cam |
Right Front |
2210A7463 |
NJ,NV 2005- |
Drive |
66-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
S-Cam |
Left Front |
2210Z7462 |
NJ,NV 2005- |
Drive |
66-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
S-Cam |
Right Rear |
2210T7586 |
NJ,NV 2005- |
Drive |
68-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
S-Cam |
Left Rear |
2210U7587 |
NJ,NV 2005- |
Drive |
68-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Bushing SetOne Set |
KIT8042 |
NJ,NV 2005- |
Not |
|
|
S-Cam Bushing |
Completes One Axle Fits Front |
Not Shown |
||||
2010 |
Shown |
|||||
|
Or Rear. |
|
|
|||
|
|
|
|
|
||
|
|
|
|
|
|
|
Brake Chamber |
Front |
A703276T20 |
NJ,NV 2005- |
Drive |
66-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Brake Chamber |
Rear |
C313276D30 |
NJ,NV 2005- |
Drive |
68-10 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|||
2005 - 2010 - Brakes - Air & Hydraulic - ABS System |
|
|
|
|||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Front Sensor - No Retainer Clip |
894417800A |
NJ,NV 2005- |
Drive |
66-00 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Left Rear Sensor - No Retainer |
894417851A |
NJ,NV 2005- |
Drive |
66-00 |
|
Clip |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Wheel Speed Sensor |
Right Rear Sensor - No Retainer |
894417841A |
NJ,NV 2005- |
Drive |
66-00 |
|
|
Clip |
|
2010 |
|
|
|
ABS Wheel Speed Sensor |
Speed Sensor Retainer Clip |
S8997605104 |
ALL 2005-2010 |
Drive |
66-00 |
|
Bushing |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
82164E0L40 |
NA,NB,NC, |
Not |
|
|
ABS Extension Harness |
19" Long |
ND,NE 2005- |
Not Shown |
|||
Shown |
||||||
|
|
|
2010 |
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
ABS Extension Harness |
19'' Long |
820711490A |
NJ,NV 2005- |
Not |
Not Shown |
|
2006 ONLY |
Shown |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Extension Harness |
19" Long |
82164E0L50 |
NJ,NV 2007- |
Not |
Not Shown |
|
2010 |
Shown |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Extension Harness |
72" Long |
S820711510 |
NJ,NV 2005- |
Not |
Not Shown |
|
2010 |
Shown |
|||||
|
|
|
|
|||
ABS Extension Harness |
120" Long |
820711520A |
NJ,NV 2005- |
Not |
Not Shown |
|
2010 |
Shown |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
14
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brakes - Air & Hydraulic - ABS System (Cont.) |
|
|
||||
|
|
|
|
|
|
|
Air Switch |
On Front Air Valve At |
S833802620 |
NJ,NV 2005- |
Chassis |
36-00 |
|
Crossmember Controls Rpm |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
|
On Rear Valve At Crossmember |
833802440A |
NJ,NV 2005- |
|
|
|
Air Switch |
Top Of Valve Spring Brake |
Chassis |
36-00 |
|||
2010 |
||||||
|
Switch |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
Air Switch |
On Rear Valve At Crossmember |
833802430A |
NJ,NV 2005- |
Chassis |
36-00 |
|
Bottom Of Valve Buzzer Switch |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
ABS Modulator Valve |
1 For Each Wheel - Mounted On |
S4008500540 |
NJ,NV 2005- |
Chassis |
36-00 |
|
|
Frame |
|
2010 |
|
|
|
|
|
|
|
|||
2005 - 2010 - Brakes - Air - Valves/Rebuild Kits/Air Drier |
|
|
|
|||
|
|
|
|
|
|
|
Air Pressure Regulator |
Air Governor |
282436 |
NJ,NV 2005- |
Chassis |
36-51 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Governor Rebuild Kit |
O-Rings To Rebuild Valve |
276121 |
NJ,NV 2005- |
Chassis |
36-51 |
|
282436 |
2010 |
|||||
|
|
|
|
|||
Air Brake Valve |
Foot Valve |
800630 |
NJ,NV 2005- |
Chassis |
36-69 |
|
2010 |
||||||
|
|
|
|
|
||
Air Valve Rebuild Kit |
Minor Rebuild Kit For 800630 |
287368 |
NJ,NV 2005- |
Chassis |
36-69 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Air Valve Rebuild Kit |
Major Rebuild Kit For 800630 |
289352 |
NJ,NV 2005- |
Chassis |
36-69 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Pressure Control Valve |
Pressure Control Valve For |
288063N |
NJ,NV 2005- |
Chassis |
36-77 |
|
Spring Brake |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Air Valve Rebuild Kit |
O-Rings To Rebuild Valve |
108123 |
NJ,NV 2005- |
Chassis |
36-77 |
|
288063 |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Air Valve |
Spring Brake Control Valve- |
800310 |
NJ,NV 2005- |
Chassis |
36-86 |
|
Maxi Brake |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Air Valve Rebuild Kit |
O-Rings To Rebuild Valve |
5006939 |
NJ,NV 2005- |
Chassis |
36-86 |
|
800310 |
2010 |
|||||
|
|
|
|
|||
Air Valve |
Relay Air Valve |
103010N |
NJ,NV 2005- |
Chassis |
36-81 |
|
2010 |
||||||
|
|
|
|
|
||
Air Valve Rebuild Kit |
O-Rings To Rebuild Valve |
102802 |
NJ,NV 2005- |
Chassis |
36-81 |
|
103010 |
2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Air Drier Assembly |
Bendix-Complete Air Drier |
065612 |
NJ,NV 2005- |
Chassis |
36-94 |
|
2007 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
S4430E0160 |
NA,NB,NC, |
|
|
|
Air Drier Assembly |
Complete Air Drier |
ND,NE 2008- |
Chassis |
36-94 |
||
|
|
|
2010 |
|
|
|
|
|
|
|
|
|
|
Air Drier Assembly |
Complete Air Drier |
448303060A |
NJ,NV 2008- |
Chassis |
36-94 |
|
2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Major Repair Kit Includes |
5005622 |
NV,NJ Bendix |
|
|
|
Air Drier Repair Kit-Major |
Bottom Half Of Drier, Purge |
Chassis |
36-94 |
|||
2005-2007 |
||||||
|
Valve Kit, Delv. Chk. Valve Kit |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Major Repair Kit Includes |
S443061550 |
NA,NB,NC, |
|
|
|
Air Drier Repair Kit-Major |
Bottom Half Of Drier, Purge |
ND,NE 2008- |
Chassis |
36-94 |
||
|
Valve Kit, Delv. Chk. Valve Kit |
|
2010 |
|
|
|
|
|
|
|
|
|
|
15
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Brakes - Air - Valves/Rebuild Kits/Air Drier (Cont.) |
|
|
||||
|
Minor Repair Kit Includes |
440861100A |
NV,NJ Bendix |
|
|
|
Air Drier Repair Kit-Minor |
Desiccant Material And All |
Chassis |
36-94 |
|||
2005-2010 |
||||||
|
O-Rings |
|
|
|
||
|
|
|
|
|
||
Cartridge Assembly |
Complete Desiccant Cartridge |
S443061450 |
NV,NJ Bendix |
Chassis |
36-94 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
S443061440 |
NA,NB,NC, |
|
|
|
Cartridge Assembly |
Complete Desiccant Cartridge |
ND,NE 2008- |
Chassis |
36-94 |
||
|
|
|
2010 |
|
|
|
Heater Assembly |
Heater Element |
871102490A |
NV,NJ Bendix |
Chassis |
36-94 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
871102490A |
NA,NB,NC, |
|
|
|
Heater Assembly |
Heater Element |
ND,NE 2008- |
Chassis |
36-94 |
||
|
|
|
2010 |
|
|
|
|
|
|
|
|
|
|
2005 - 2010 - Bumpers
Bumpers |
White One Piece |
52101E0260 |
NA,NB,NC |
Chassis |
44-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Bumpers |
Black One Piece |
52101E0270 |
NA,NB,NC |
Chassis |
44-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Bumpers |
Chrome One Piece |
52101E0120 |
NA,NB,NC |
Chassis |
44-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
Bumpers |
White One Piece |
52101E0730 |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
Bumpers |
Black One Piece |
52101E0210 |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Bumpers |
Chrome One Piece |
52101E0130 |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Bumpers |
White Three Piece Center |
52101E0230 |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
Section Only |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Bumpers |
Black Three Piece Center |
52101E0240 |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
Section Only |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Bumpers |
Three Piece Bumper End Piece |
521051190A |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
Right Hand Side Black |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Bumpers |
Three Piece Bumper End Piece |
S521051170 |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
Right Hand Side White |
2005-2010 |
|||||
|
|
|
|
|||
Bumpers |
Three Piece Bumper End Piece |
521051200A |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
Left Hand Side Black |
2005-2010 |
|||||
|
|
|
|
|||
Bumpers |
Three Piece Bumper End Piece |
S521051180 |
ND,NE,NJ,NV |
Chassis |
44-00 |
|
Left Hand Side White |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
16
C
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Clutches |
|
|
|
|
||
|
|
|
|
|
|
|
|
Includes A 13.8 " Clutch And |
31200H3214 |
NA,NB,NC |
|
|
|
Clutch Kit |
Pressure Plate With A Pilot & |
Drive |
30-00 |
|||
2005-2010 |
||||||
|
Release Bearing |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Includes A Matched Spicer Disc |
312002010A |
ND,NE,NJ 2005 |
|
|
|
Spicer Clutch Pack |
& Pressure Plate (Standard |
Drive |
30-00 |
|||
ONLY |
||||||
|
Clutch) |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Includes A Matched Spicer Disc |
312001961A |
|
|
|
|
Spicer Clutch Pack |
& Pressure Plate (Standard |
NV 2005 ONLY |
Drive |
30-00 |
||
|
Clutch) |
|
|
|
|
|
|
|
|
|
|
|
|
|
14" Solo Spicer Self Adjusting |
312002061A |
ND,NE,NJ 2005 |
|
|
|
Spicer Clutch Pack |
Pressure Plate And Clutch Disk |
Drive |
30-00 |
|||
ONLY |
||||||
|
(Optional) |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Includes A Matched Spicer Disc |
312001961A |
ND,NE,NJ,NV |
|
|
|
Spicer Clutch Pack |
& Pressure Plate (Standard |
Drive |
30-00 |
|||
2006-2010 |
||||||
|
Clutch) |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
14" Solo Spicer Self Adjusting |
312002061A |
ND,NE,NJ,NV |
|
|
|
Spicer Clutch Pack |
Pressure Plate And Clutch Disc |
Drive |
30-00 |
|||
2006-2010 |
||||||
|
(Optional) |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
14" Pressure Plate, Center Plate |
312002080A |
ND,NE,NJ,NV |
|
|
|
Spicer Clutch Pack |
And Clutch Discs (Twin Disk |
Drive |
30-00 |
|||
2006-2010 |
||||||
|
Option) |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
14" Solo Spicer Self Adjusting |
312002090A |
ND,NE,NJ,NV |
|
|
|
Twin Disk Spicer Clutch Pack |
Pressure Plate, Center Plate And |
Drive |
30-00 |
|||
2006-2010 |
||||||
|
Clutch Discs (Twin Disk Option) |
|
|
|
||
|
|
|
|
|
||
17
HINO 2005-2010 Quick Reference Guide
Part Name |
Description |
Part Number |
Models |
Group |
Figure # |
|
2005 - 2010 - Clutch - Pilot/Release Bearings/Springs/Forks/Fork Shafts |
|
|||||
Pilot Bearing |
Double Shielded Bearing |
SZ37120022 |
ALL 2005-2010 |
Drive |
30-00 |
|
Release Bearing |
Bearing Only |
S312421141 |
NA,NB,NC |
Drive |
30-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Release Bearing Hub |
Hub Only |
S312311820 |
NA,NB,NC |
Drive |
30-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Fork Springs |
2 Required - Holds The Clutch |
312341020A |
NA,NB,NC |
Drive |
30-10 |
|
Fork To The Hub |
2005-2010 |
|||||
|
|
|
|
|||
Clutch Fork |
No Shafts |
312331330A |
NA,NB,NC |
Drive |
30-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
Clutch Fork |
No Shafts |
312331470A |
ND,NE,NJ,NV |
Drive |
30-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Shaft Clutch Release |
Right Side Fork Release Shaft |
312451440A |
ALL 2005-2010 |
Drive |
30-10 |
|
Shaft Clutch Release |
Left Side Fork Release Shaft |
312903250A |
NA,NB,NC |
Drive |
30-10 |
|
And Bushing |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Shaft Clutch Release |
Left Side Fork Release Shaft |
S312903260 |
ND,NE,NJ,NV |
Drive |
30-10 |
|
2006-2010 |
||||||
|
|
|
|
|
||
Key |
Left Side Shaft Key |
953905105A |
NA,NB,NC |
Drive |
30-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Spacer |
Left Side Shaft Key |
900312599A |
ND,NE,NJ,NV |
Drive |
30-10 |
|
2006-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Bushing |
Left Side Shaft Bushing |
986712118A |
NA,NB,NC |
Drive |
30-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
Bushing |
Bushings In Housing For Fork |
986725139A |
NA,NB,NC |
Drive |
30-10 |
|
Shafts |
2005-2010 |
|||||
|
|
|
|
|||
|
|
|
|
|
|
|
Lube Hose |
Hose And Fittings |
SZ93031104 |
NA,NB,NC |
Drive |
30-10 |
|
2005-2010 |
||||||
|
|
|
|
|
||
|
|
|
|
|
|
|
18
Loading...
