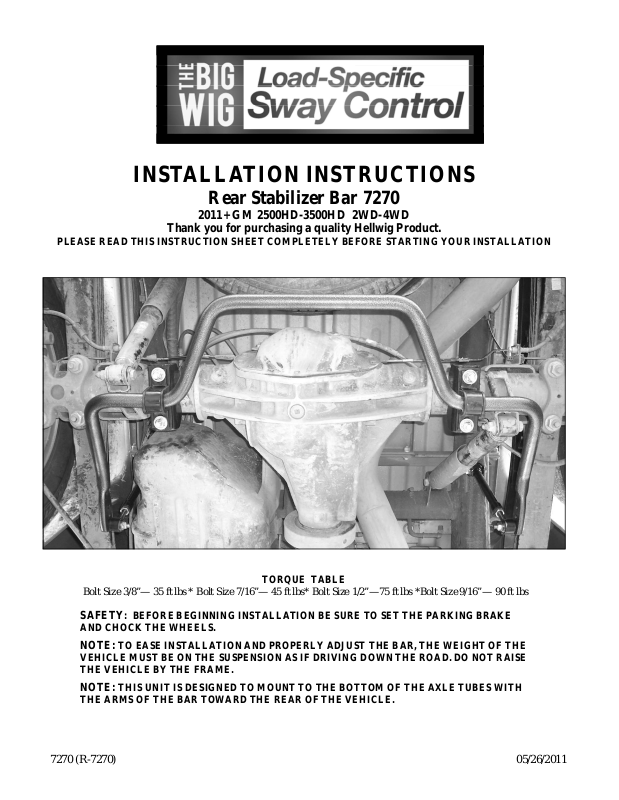

INSTALLATION INSTRUCTIONS
Rear Stabilizer Bar 7270
2011+ GM 2500HD-3500HD 2WD-4WD
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THIS INSTRUCTIONSHEET COMPLETELY BEFORE STARTING YOUR INSTALLATION
TORQUE TABLE
Bolt Size 3/8”— 35 ft lbs * Bolt Size 7/16”— 45 ft lbs* Bolt Size 1/2”—75 ft lbs *Bolt Size 9/16”— 90 ft lbs
SAFETY: BEFORE BEGINNING INSTALLATION BE SURE TO SET THE PARKING BRAKE
AND CHOCK THE WHEELS.
NOTE: TO EASE INSTALLATION AND PROPERLYADJUST THE BAR, THE WEIGHT OF THE
VEHICLE MUST BE ON THE SUSPENSION AS IF DRIVING DOWN THE ROAD. DO NOT RAISE
THE VEHICLE BY THE FRAME.
NOTE: THIS UNIT IS DESIGNED TO MOUNT TO THE BOTTOM OF THE AXLE TUBES WITH
THE ARMS OF THE BAR TOWARD THE REAR OF THE VEHICLE.
7270 (R-7270) 05/26/2011
559-734-7451 800-367-5480 FAX 559-734-7460

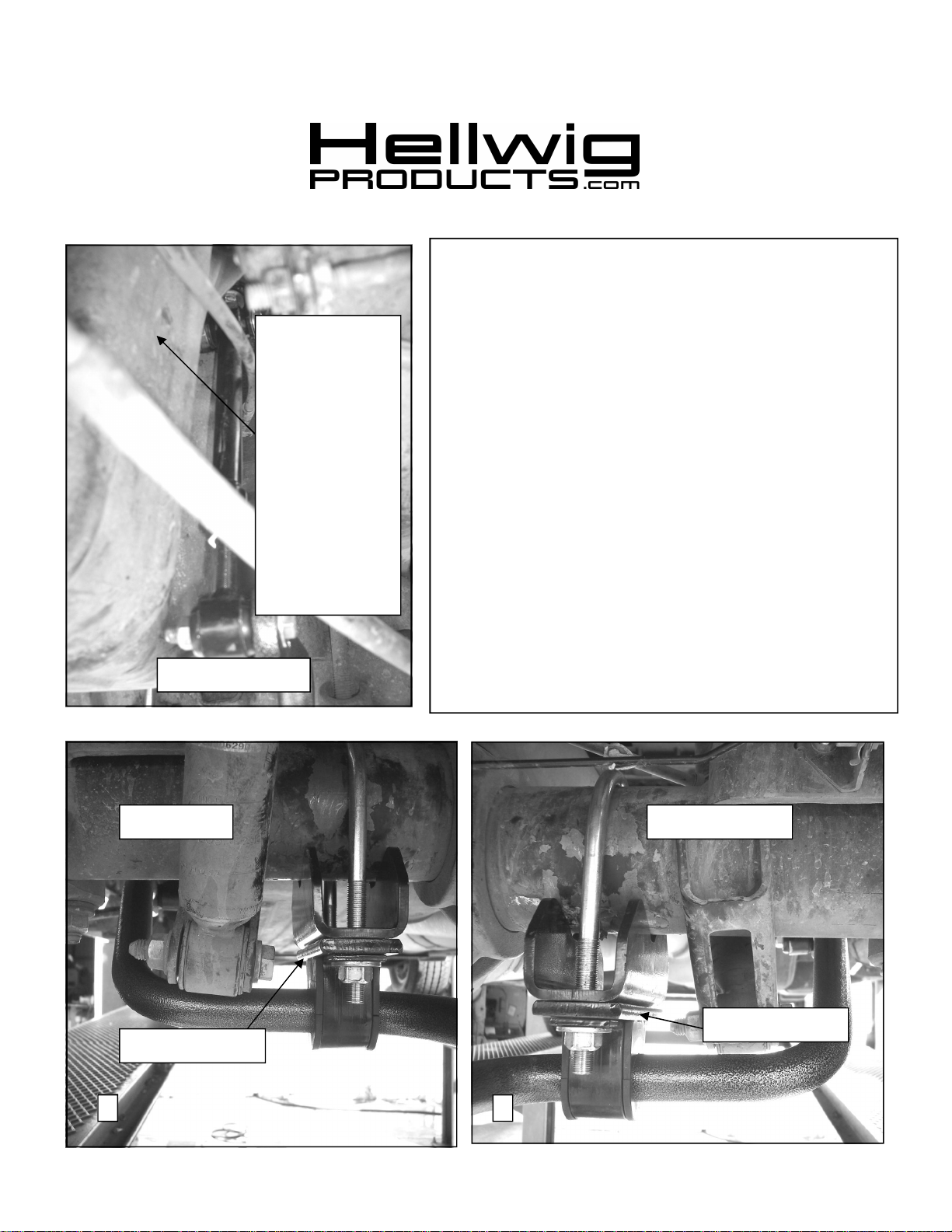

Insert threaded plate with pigtail
through this hole
Align this hole on threaded plate
with this hole in frame rail and
attach clevis as shown.
1 2

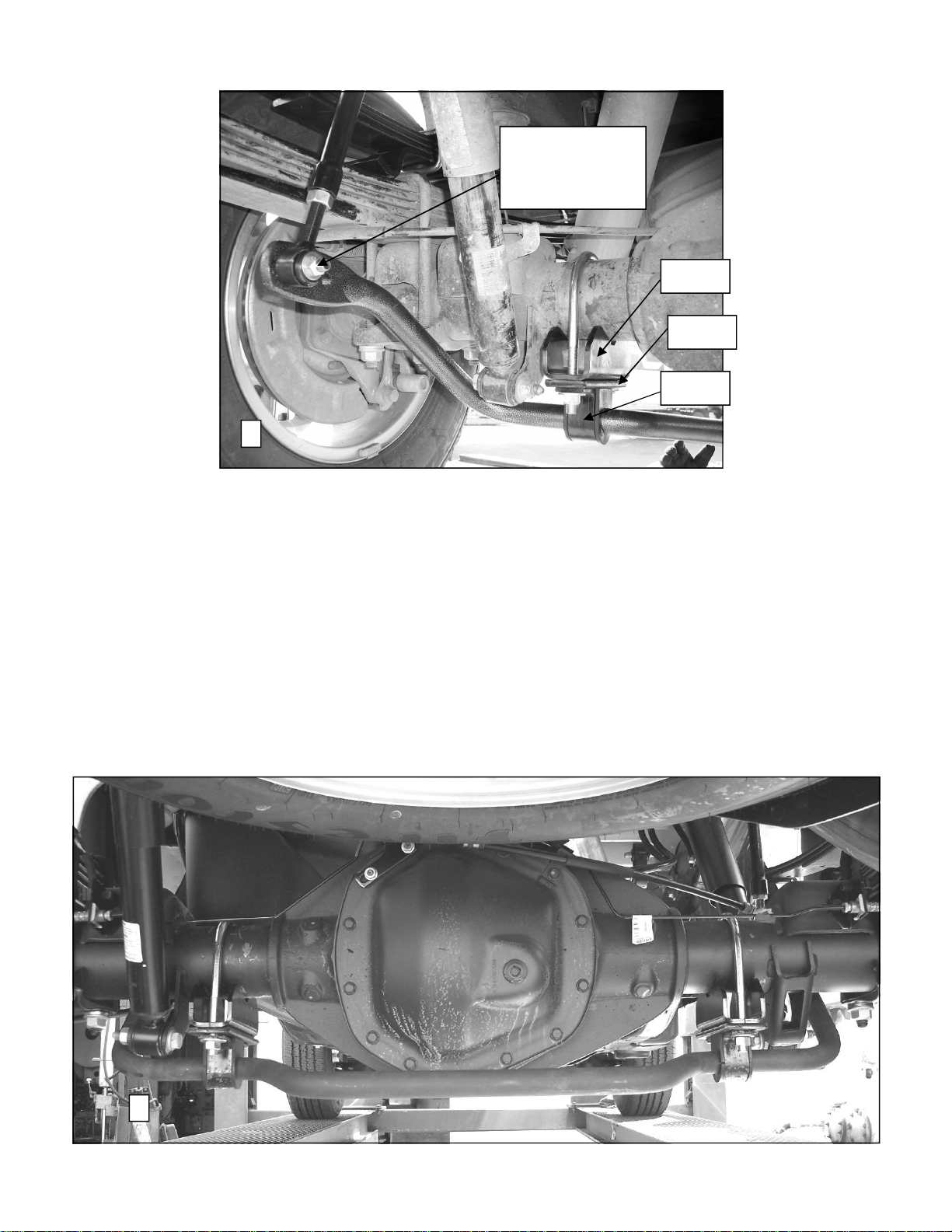

Passenger Side
End LinkAssembly
Bushing
Sleeve
9/16-18 Nut
Threaded plate will be
inserted into large hole
in framerail to attach
clevis to rail.
3
7270 (R-7270) 05/26/2011
Sleeve
Bushing
