559-734-7451 800-367-5480 FAX 559-734-7460

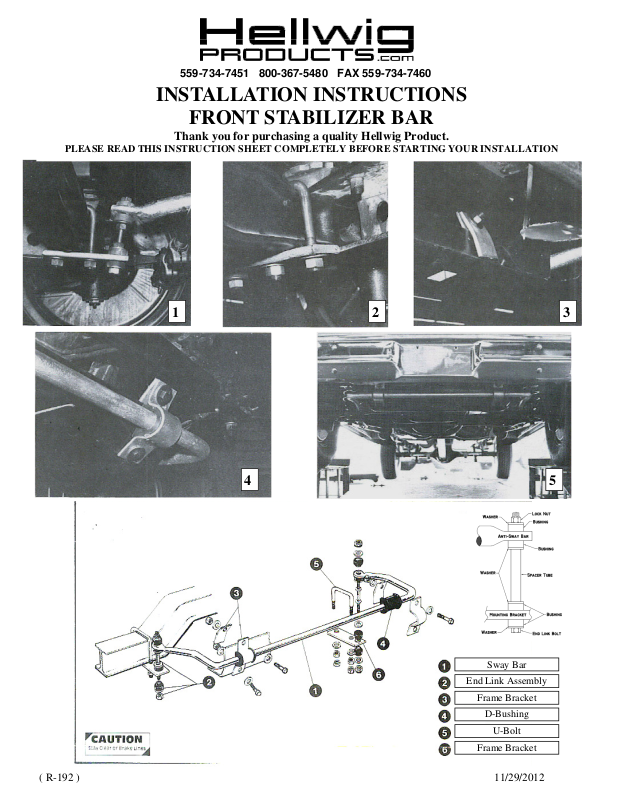

INSTALLATION INSTRUCTIONS
FRONT STABILIZER BAR
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THIS INSTRUCTION SHEET COMPLETELY BEFORE STARTING YOUR INSTALLATION

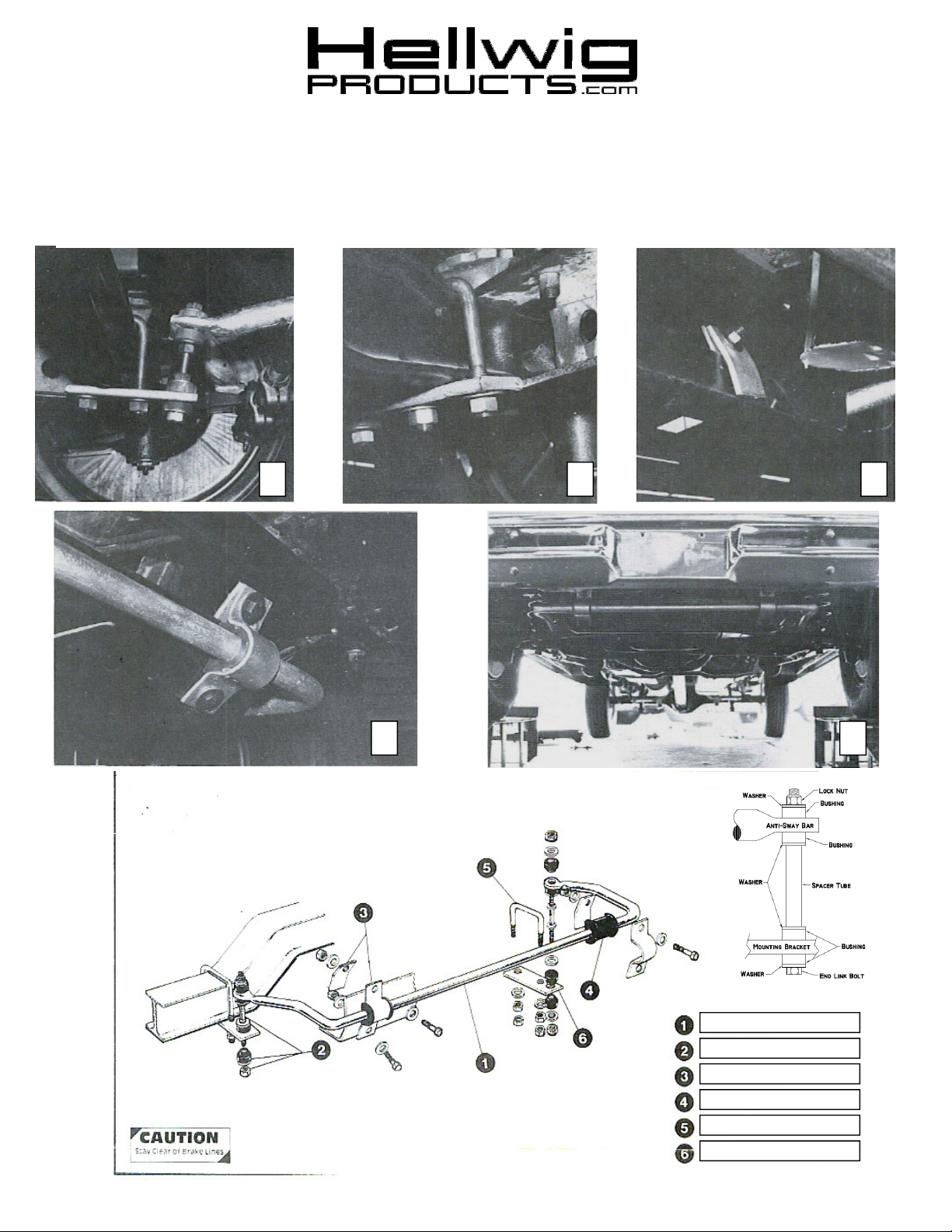

1
2 3
4 5
Sway Bar
End Link Assembly
Frame Bracket
D-Bushing
U-Bolt
Frame Bracket
( R-192 ) 11/29/2012
Page 2
559-734-7451 800-367-5480 FAX 559-734-7460
SAFETY: BEFORE STARTING YOUR INSTALLATION, BE SURE TO SET PARKING BRAKE AND CHOCK TIRES.
NOTE: TO EASE INSTALLATION AND TO PROPERLY ADJUST THE BAR, THE WEIGHT OF THE VEHICLE MUST BE
ON THE SUSPENSION, AS IF DRIVING DOWN THE ROAD. DO NOT RAISE VEHICLE BY THE FRAME.
NOTE: THIS KIT MAY INCLUDE LOCK NUTS WHICH REQUIRES TIGHTENING WITH A WRENCH AFTER BEING
STARTED BY HAND.
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – 1/2” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.-5/8”=120 ft. lbs.
1. As in Photo 1 and 2 mount lower I-bean plates using self locking 1/2” nuts. Do not tighten.
2. Using Photo 1 and line drawing of end link install end link on the plates just installed in the above step.
Tighten the nuts just until the bushings begin to bulge slightly.
3. As in Photos 3, 4 and 5 raise bar up to the front cross-member and install remaining U-plates and backing plates. Tighten securely.
4. Align lower I-beam plates so the end links are in a vertical or near vertical position. Securely tighten
these nuts. Be sure to use nock-nuts or double nuts on all U-bolts and cap screws.
5. Bounce the vehicle and check for clearance on all undercarriage components. Be sure all nuts and bolts
are securely fastened and double nuts used where necessary or provided.
6. Recheck your installation, look for clearance between gas lines, exhaust pipes, brake lines, wiring, etc.
After one week of driving check your installation and periodically thereafter.
Maintenance and Inspection:
Your Hellwig Suspension Product is built to last. However, as with all vehicle systems, it requires
routine inspection. Inspect your Hellwig installation looking for secure hardware and tight fitting
brackets and bushings. If you do not perform this inspection, have your professional mechanic inspect as described.
ATTENTION INSTALLER: BE SURE THE CUSTOMER RECEIVES THIS INSTRUCTION
SHEET, ALL IMPORTANT NOTE CARDS, WARNING CARDS AND THE WARRANTY FORM.
( R-192 ) 11/29/2012
