Hellwig 6707 User Manual
559-734-7451 800-367-5480 FAX 559-734-7460

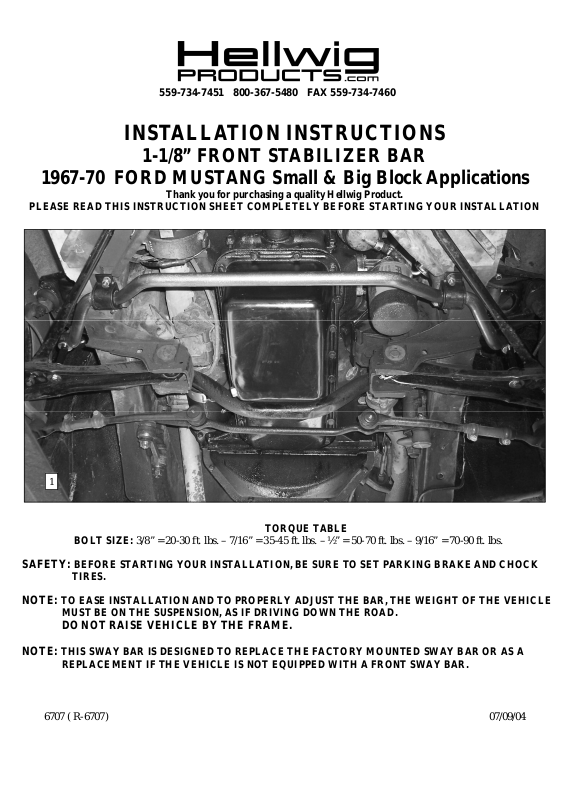

INSTALLATION INSTRUCTIONS
1-1/8” FRONT STABILIZER BAR
1967-70 FORD MUSTANG Small & Big BlockApplications
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THIS INSTRUCTION SHEET COMPLETELY BEFORE STARTING YOUR INSTALLATION
1
1
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.
SAFETY: BEFORE STARTING YOURINSTALLATION,BE SURE TOSET PARKING BRAKE AND CHOCK
TIRES.
NOTE: TO EASE INSTALLATION ANDTO PROPERLY ADJUST THE BAR, THE WEIGHT OF THE VEHICLE
MUST BE ON THE SUSPENSION, AS IF DRIVING DOWN THE ROAD.
DO NOT RAISE VEHICLE BY THE FRAME.
NOTE: THISSWAY BAR IS DESIGNED TO REPLACE THE FACTORY MOUNTED SWAY BAR OR AS A
REPLACEMENT IF THE VEHICLE IS NOT EQUIPPED WITH A FRONT SWAY BAR.
6707 ( R-6707) 07/09/04
559-734-7451 800-367-5480 FAX 559-734-7460
1. Remove the factory mounted front sway bar.
2. Install the D-shaped poly bushings on the sway bar in the position that they will make
contact with the mounting bracket on the vehicles frame.
3. Raise the sway bar up to the frame using the supplied U-plates and the mounting hardware. Start the mounting bolts but do not tighten - leave loose at this time to allow
for adjustment later.
4. Assemble the end link assemblies as per PHOTO TWO (2). Install the end links on the
lower control arms of the vehicle.
5. Raise the arms of the sway bar over the end links. Install the end links on the arms of
the sway bar. Tighten just slightly that the poly bushings start to bulge. Do not over
tighten or damage can result to the poly bushings.
6. With the sway bar centered and the end links as square as possible, torque the frame
mounting bolts to specifications.
7. Bounce the vehicle and check for clearance on all under carriage components. Make
sure that all mounting are securely tightened.
8. After one week of driving recheck your installation - readjust if necessary . Recheck
your installation on a monthly regular basis thereafter.
ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUCTION
SHEET, ALL IMPORTANT NOTE CARDS AND THE WARRANTY
FORM
2 3
6707 ( R-6707) 07/09/04
