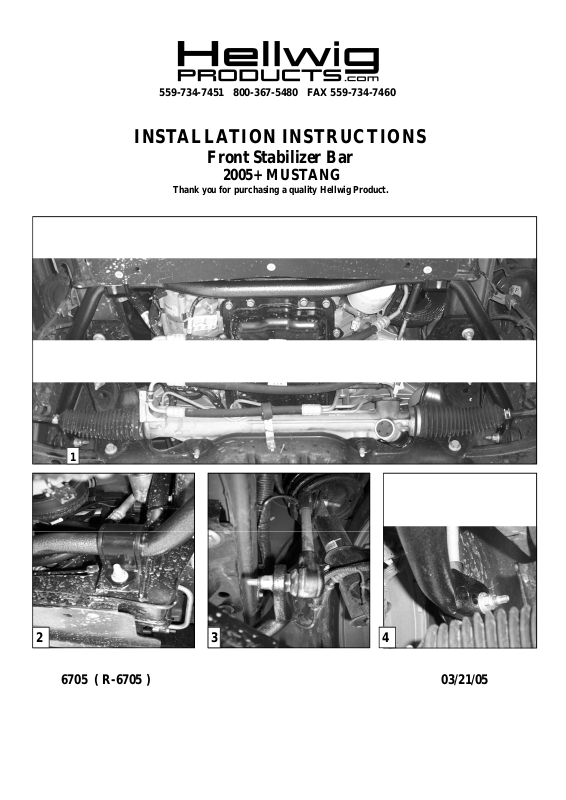

INSTALLATION INSTRUCTIONS
Front Stabilizer Bar
2005+ MUSTANG
Thank you for purchasing a quality Hellwig Product.
1
2 3 4
6705 ( R-6705 ) 03/21/05
559-734-7451 800-367-5480 FAX 559-734-7460
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.
SAFETY: BEFORE STARTING YOUR INSTALLATION, BE SURE TO SET PARKING BRAKE AND
CHOCK THE WHEELS.
NOTE: TO EASE INSTALLATION AND TO PROPERLY ADJUST BAR, THE WEIGHT OF THE
VEHICLE MUST BE ON THE SUSPENSION, AS IF DRIVING DOWN THE ROAD.
DO NOT RAISE THE VEHICLE BY THE FRAME.
NOTE: THIS UNIT IS DESIGNED TO MOUNT USING THE FACTORY U-PLATE MOUNTING HARD-
WARE AND THE FACTORY MOUNTED END LINKS
1. Remove the factory mounted sway bar. Do not discard the factory u-plates mounting bolts, they will be
used to install the new front sway bar. This installation will also require the factory end link assemblies
and mounting hardware.
2. Install the D-shaped poly bushings on the new sway bar as close a position as the factory sway bar. See
photo ( 2 ).
3. Raise the sway bar and attach to the vehicles frame with the U-plates supplied and the mounting hardware removed in STEP ( 1 ). Leave loose to allow for adjustment.
4. Raise the arms of the sway and attach the outermost hole to the factory mounted end links using the
factory mounting hardware. See photo ( 3 ).
5. With the sway bar properly aligned and the end links are straight up and down re-torque all mounting
hardware to the factory specifications. Check for clearance for steering linkages, electrical wires, brake
and fuel lines.
6. Test drive your vehicle and recheck your installation re-torque if needed. Re-check your installation on
a monthly regular basis thereafter.
7. Notice in photo ( 4 ) the sway bars arms have three (3) mounting holes. Attatching the sway bar
on the outer hole will be the mildest setting. Relocating the attachment to the inner holes will
make the bar more aggressive. We recommend starting with the outer mounting hole as shown
in photo ( 4 ) until you are accustomed to the vehicles new handling characteristics.
ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS
INSTRUCTION SHEET, ALL IMORTANT NOTE CARDS
AND THE WARRANTY FORM
