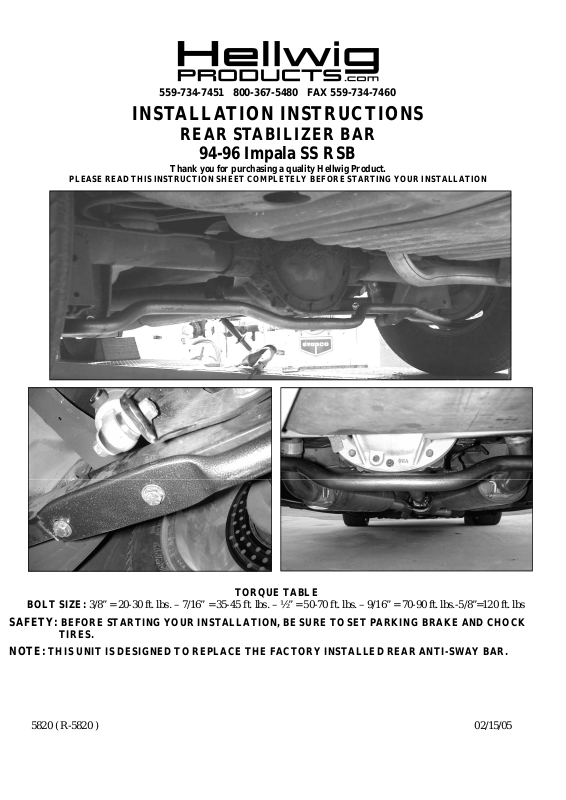

INSTALLATION INSTRUCTIONS
REAR STABILIZER BAR
94-96 Impala SS RSB
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THISINSTRUCTION SHEETCOMPLETELY BEFORE STARTINGYOUR INSTALLATION
TORQUE TABLE
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.-5/8”=120 ft. lbs
SAFETY: BEFORE STARTING YOUR INSTALLATION, BE SURE TO SET PARKING BRAKE AND CHOCK
TIRES.
NOTE: THIS UNIT IS DESIGNED TO REPLACE THE FACTORY INSTALLED REAR ANTI-SWAY BAR.
5820 ( R-5820 ) 02/15/05
559-734-7451 800-367-5480 FAX 559-734-7460
1. Remove factory sway bar and attach new sway bar using factory hardware. Pay careful
attention to orientation of sway bar as shown in photos.
2. Torque fasteners to factory specification.
3. Bounce vehicle a couple of times and check installation for clearance to fuel and brake
lines and other components. After one week of driving recheck your installation and
fastener torque. Recheck on a regular basis thereafter.
ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUC
TION SHEET, ALL IMORTANT NOTE CARDS AND THE
WARRANTY FORM
5820 ( R-5820 ) 02/15/05
