Harman Kardon AVR-5550 Service manual

Download
AVR 5550 Audio/VideoReceiver
SERVICE MANUAL
AVR 5550
ready
LOGIC 7
VMAx
™
®
TECHNICAL SPECIFICATIONS
Technical Specifications
Audio Section
Stereo Mode Continuous Average Power (FTC)
85 Watts per channel, 20Hz–20kHz, @ < 0.07% THD, both channels driven into 8 ohms
5/7 Channel Surround Modes Power Per Individual Channel
Front L&R channels: 70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
Center channel: 70 Watts, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
Surround (L & R Side, L & R Back) channels: 70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB (Pro Logic, etc.) Dolby Digital (AC-3) 55dB DTS 55dB
Frequency Response
@ 1W (+0dB, –3dB) 10Hz–100kHz
High Instantaneous Current Capability (HCC) ±45 Amps
Transient Intermodulation Distortion (TIM) Unmeasurable
Rise Time 16 µsec
Slew Rate 40V/µsec**
FM Tuner Section
Frequency Range 87.5–108MHz Usable Sensitivity IHF 1.3 µV/13.2dBf Signal-to-Noise Ratio Mono/Stereo: 70/65dB (DIN) Distortion Mono/Stereo: 0.15/0.3% Stereo Separation 35dB @ 1kHz Selectivity ±300kHz: 65dB Image Rejection 80dB IF Rejection 90dB
AM Tuner Section
Frequency Range 522–1611kHz Signal-to-Noise Ratio 45dB Usable Sensitivity Loop: 500µV Distortion 1kHz, 50% Mod: 0.8% Selectivity ±9kHz: 30dB
Video Section
Video Format PAL/NTSC Input Level/Impedance 1Vp-p/75 ohms Output Level/Impedance 1Vp-p/75 ohms Video Frequency Response (Composite and S-Video) 10Hz–8MHz (–3dB) Video Frequency Response (Component) 10Hz-35MHz (-3dB)
General
Power Requirement AC 220-240V/ 50Hz Power Consumption 120W idle, 1040W maximum
(7 channels driven)
Dimensions (Max)
Width 440mm Height 165mm Depth 435mm Weight 20 kg
Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis. All features and specifications are subject to change without notice.
Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman International Industries, Inc.
is a trademark of Harman International Industries, Inc.
(Patent No.5,386,478).
*Manufactured under license from Dolby Laboratories. “Dolby,”“Pro Logic,” “Pro Logic II” and the Double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992 –1999 Dolby Laboratories, Inc.All rights reserved.
DTS and DTS Surround, DTS-ES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.
UltraStereo is a trademark of UltraStereo Corp.
VMAx is a trademark of Harman International Industries, Inc.,and is an implementation of Cooper Bauck Transaural Stereo under patent license.
Logic 7 is a registered trademark of Harman International Industries, Incorporated.
Crystal is a registered trademark of Cirrus Logic Corp.
HDCD is a registered trademark of Pacific Microsonics,Inc.
A-BUS and A-BUS Ready are registered trademarks of Leisure Tech Electronics Pty Ltd Australia.
**Without input anti slewing and output isolation networks.
TM
r
Part list Exploded view AVR5550
# Part Numbe
1 55178050 1 AC PUN COVER TOP 2 55142780 1 DISPLAY HNA-15LL01 3 XXX 1 CONN-PHJAC 6.35 ST HORZ CKX3-6.35-04 BK 0 0 4 55124350 1 AC PUN BRACKET HEADPHONE 5 55178000 1 SW PUSH POWER SWITCH 5.0A 250.0V 100MI0OHM 1T 2P 6 55178020 1 AC MLD BUTTON INDICATOR STAND-BY 7 55177810 1 AC DEC BUTTON POWER 8 5177820X 1 AC DEC BUTTON STANDBY
9 XXX 1 AC DEC CABINET PANEL FRONT5550 10 55177800 1 AC DEC CRYSTAL FILTER DISPLAY 11 55191560 1 AC NON-METAL DIFFUSER 0.2T 62.5*41 WH 12 55177740 1 AC DEC KNOB MAIN HIPS 94H 13 55575870 1 AC DEC CRYSTAL DISPLAY AV5550 14 55177990 1 AC NON-METAL DIFFUSER 0.2T 59.6*41 WH 15 55177750 3 AC DEC KNOB TONE 16 55178030 2 AC MLD BUTTON INDICATOR VIDEO 4 17 XXX 1 AC DEC BUTTON 7 KEY 18 55125440 3 D-LEM TOTX178B RD RND CL 19 55175950 1 CON PHONO SCKT RCA 1P W/GND JE010003MN 20 55182550 1 AC PUN SHIELD DIGITAL ET 21 XXX 1 AC DEC BUTTON 3 KEY 22 XXX 1 AC DEC BUTTON 5 KEY 23 55174760 4 AC FOOT RUBBER ROUND 3.0MM 25.0MM JIS 60 Y DIA 24 XXX 4 AC FOOT ASSY ROUND 12.5MM 50MM 25 55406540 1 AC CPL CABINET CHASSIS MAIN SECC 1.0T 26 55171510 1 CON PHONO SCKT RCA-313P 3 PINS 27 55179910 1 PR-ROT 100K0 OHM NON-LINEAR RK14K12400BQ 0 0 28 55113960 1 CON DIN SCKT SOCKET CONNECTOR SVHS EST-S408J 29 55179920 2 2 PR-ROT 100K0 OHM NON-LINEAR RK14K12400BR 0 0 30 55177570 1 AC PUN SHIELD FENCE TONE 31 55134900 1 SWIROT EC16B24204A5 5V 500U0A 10T 3P 0 0 32 55191530 1 AC PLASTIC MOLD REFRACTOR B WH 33 55178940 1 AC PLASTIC MOLD REFRACTOR E WH 34 55178440 1 AC MLD HOLDER FL-GUIDE 35 55155930 1 IC-REMOTE RPM6938-RSIP-A3 RECEIVER 38KHZ 36 55177960 1 AC NON-METAL DIFFUSER REFLECTOR C WH 37 55178930 1 AC PLASTIC MOLD REFRACTOR F WH 38 55406440 1 AC CPL CABINET CHASSIS FRONT AVR325/525 39 55589450 1 TF-LAM POWER-TRANSFORMER 230V 40 55406640 1 AC PUN COVER TRANS BOTTOM AVR325/525 -­41 55406840 1 AC PUN BRACKET FAN FRONT AVR325/525 42 55509100 1 FAN RDL8025B C185HS10H1910 ( WIRE:300MM) 0 A0 43 55436090 1 CONN-SPE TERMINAL SPKR 6P SH0611708P FE 19MM 6 44 55168710 6 AC PUN BRACKET HEATSINK SECIT RT2250(PAV5005) 45 55406340 1 AC METAL HEATSINK(AMP) 3CH AVR525 -­46 55149520 7 CON DIN SCKT MIX SOCKET RCA-118JP1S 47 55436080 1 CON PHONO SCKT RCA 9P W/GNDCAP JW-4109RS 48 55178170 2 AC PUN BRACKET FRAME-GUIDE SECC T1.0 49 55222020 2 AC PUN BRACKET AC INLET
Q'ty Description
1/2
r
Part list Exploded view AVR5550
# Part Numbe
50 55407240 1 AC METAL STANDOFF HEX MF M4X8 6MMOD 111.2H 51 55176410 1 AC METAL HEATSINK 17*15*30 AVR525 -­52 55222010 1 CON MAINS INLET A/C INLET 7014-NGP 53 55206550 1 CONN-SPE AC OUTLET 2P 110V FE 12.75MM 2 BK 0 0 54 55506060 1 EPR TUNER MODULE KST-MB114MVW1-80 AVR4550/5550 EU 55 55555910 1 AC METAL HEATSINK(MAIN) AVR525 -­56 56 BLANK 1 56 BLANK 57 55509110 1 FAN RDL8025B C185HS10H1910 ( WIRE:400MM) 0 A0 58 55406940 1 AC PUN BRACKET FAN REAR AVR325/525 59 55246370 1 CON PHONO SCKT RCA 1P W/GND JE010003LN OG 60 55125440 1 D-LEM TOTX178B RD RND CL 61 55191600 1 CON PHONO SCKT RCA 2P W/GNDCAP JW-1502SN OO 62 55191420 2 CON PHONO SCKT RCA 4P JW-4104RSA 63 55191450 2 CON PHONO SCKT RCA 4P JW-4104RSC
Q'ty Description
1/2
Front board AVR5550
Pos Tocom# SName
C103 20267830 CE 47U0F +20% 16.0V 85C 20251640 C104 20269010 CE 47U0F +20% 50.0V 85C C107 20268880 CE 10U0F +20% 50.0V 85C C108 20268950 CE 100N0F +20% 50.0V 85C C110 20269010 CE 47U0F +20% 50.0V 85C C119 20268880 CE 10U0F +20% 50.0V 85C C131 20267830 CE 47U0F +20% 16.0V 85C 20251640 C132 20267830 CE 47U0F +20% 16.0V 85C 20251640 C133 20267830 CE 47U0F +20% 16.0V 85C 20251640 C134 20267830 CE 47U0F +20% 16.0V 85C 20251640 C135 10364820 CPF 47N0F +10% 100.0V C136 10364820 CPF 47N0F +10% 100.0V C137 20267830 CE 47U0F +20% 16.0V 85C 20251640 C138 20267830 CE 47U0F +20% 16.0V 85C 20251640 C141 15002130 CE 10U0F +20% 16.0V 85C C142 15002130 CE 10U0F +20% 16.0V 85C C143 20268880 CE 10U0F +20% 50.0V 85C C300 15002130 CE 10U0F +20% 16.0V 85C C301 15002130 CE 10U0F +20% 16.0V 85C C302 30936230 CC 100P0F +5% -5% 50.0V NP0 C303 30936230 CC 100P0F +5% -5% 50.0V NP0 C304 80434590 CC 22P0F +5% -5% 50.0V NP0 C305 80434590 CC 22P0F +5% -5% 50.0V NP0 C306 15002130 CE 10U0F +20% 16.0V 85C C307 15002130 CE 10U0F +20% 16.0V 85C C308 20267830 CE 47U0F +20% 16.0V 85C 20251640 C309 20267830 CE 47U0F +20% 16.0V 85C 20251640 C310 15002130 CE 10U0F +20% 16.0V 85C C311 15002130 CE 10U0F +20% 16.0V 85C C312 55179370 CPM 18N0F +5% 100.0V C313 55179370 CPM 18N0F +5% 100.0V C316 55179390 CPM 3N3F +5% 100.0V C317 55179390 CPM 3N3F +5% 100.0V C318 55179370 CPM 18N0F +5% 100.0V C319 55179370 CPM 18N0F +5% 100.0V Q100 55142670 TR-SLPLF MPSA06 N 500MI0A Q101 55133350 TR-SLPLF MPSA56 Y P -500MI0A -300V Q106 55133210 TR-SLPLF DTC114YSA N 100MI0A Q107 55133210 TR-SLPLF DTC114YSA N 100MI0A Q108 55133210 TR-SLPLF DTC114YSA N 100MI0A Q109 55133210 TR-SLPLF DTC114YSA N 100MI0A Q110 55133210 TR-SLPLF DTC114YSA N 100MI0A Q116 55179220 TR-SLPSWA KRA107M P C100 10138420 CCCFMIC 820P0F +10% -10% 50.0V X7R C101 10138420 CCCFMIC 820P0F +10% -10% 50.0V X7R C102 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C105 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C109 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C111 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C112 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C113 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C114 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C115 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C116 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C117 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C118 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V
1/10
Front board AVR5550
Pos Tocom# SName
C120 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C121 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C122 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C123 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C124 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C125 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C126 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C127 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C128 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C129 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C130 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C139 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C140 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C144 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C320 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V D100 20496510 D-SLP 1SS355 35.0V 225MI0A D101 20496510 D-SLP 1SS355 35.0V 225MI0A D102 20496510 D-SLP 1SS355 35.0V 225MI0A D103 20496510 D-SLP 1SS355 35.0V 225MI0A D104 20496510 D-SLP 1SS355 35.0V 225MI0A D105 20496510 D-SLP 1SS355 35.0V 225MI0A D106 20496510 D-SLP 1SS355 35.0V 225MI0A D110 20496510 D-SLP 1SS355 35.0V 225MI0A D111 20496510 D-SLP 1SS355 35.0V 225MI0A D112 20496510 D-SLP 1SS355 35.0V 225MI0A D113 20496510 D-SLP 1SS355 35.0V 225MI0A D114 20496510 D-SLP 1SS355 35.0V 225MI0A D115 20496510 D-SLP 1SS355 35.0V 225MI0A D116 20496510 D-SLP 1SS355 35.0V 225MI0A D117 20496510 D-SLP 1SS355 35.0V 225MI0A D119 20496510 D-SLP 1SS355 35.0V 225MI0A IC11 20718660 IC-LOGIC BU4094BF SHIFT REGISTER CMOS IC12 20718660 IC-LOGIC BU4094BF SHIFT REGISTER CMOS IC13 20718660 IC-LOGIC BU4094BF SHIFT REGISTER CMOS IC14 20718660 IC-LOGIC BU4094BF SHIFT REGISTER CMOS IC15 55087180 IC-LOGIC BU4051BCF MULTIPLEXER HCT J177 10328750 RMGCFMIC 0 OHM +0% 62MI5W J178 10328750 RMGCFMIC 0 OHM +0% 62MI5W J179 10328750 RMGCFMIC 0 OHM +0% 62MI5W J180 10328750 RMGCFMIC 0 OHM +0% 62MI5W J181 10328750 RMGCFMIC 0 OHM +0% 62MI5W J182 10328750 RMGCFMIC 0 OHM +0% 62MI5W J183 10328750 RMGCFMIC 0 OHM +0% 62MI5W J184 10328750 RMGCFMIC 0 OHM +0% 62MI5W J185 10328750 RMGCFMIC 0 OHM +0% 62MI5W J186 10328750 RMGCFMIC 0 OHM +0% 62MI5W J187 10328750 RMGCFMIC 0 OHM +0% 62MI5W J188 10328750 RMGCFMIC 0 OHM +0% 62MI5W J189 10328750 RMGCFMIC 0 OHM +0% 62MI5W J190 10328750 RMGCFMIC 0 OHM +0% 62MI5W J191 10328750 RMGCFMIC 0 OHM +0% 62MI5W J192 10328750 RMGCFMIC 0 OHM +0% 62MI5W J193 10328750 RMGCFMIC 0 OHM +0% 62MI5W J194 10328750 RMGCFMIC 0 OHM +0% 62MI5W J195 10328750 RMGCFMIC 0 OHM +0% 62MI5W J196 10328750 RMGCFMIC 0 OHM +0% 62MI5W
2/10
Front board AVR5550
Pos Tocom# SName
J197 10328750 RMGCFMIC 0 OHM +0% 62MI5W J198 10328750 RMGCFMIC 0 OHM +0% 62MI5W J200 10328750 RMGCFMIC 0 OHM +0% 62MI5W J201 10328750 RMGCFMIC 0 OHM +0% 62MI5W J202 10328750 RMGCFMIC 0 OHM +0% 62MI5W J203 10328750 RMGCFMIC 0 OHM +0% 62MI5W J208 10328750 RMGCFMIC 0 OHM +0% 62MI5W J310 10328750 RMGCFMIC 0 OHM +0% 62MI5W J400 10328750 RMGCFMIC 0 OHM +0% 62MI5W J401 10328750 RMGCFMIC 0 OHM +0% 62MI5W J402 10328750 RMGCFMIC 0 OHM +0% 62MI5W Q102 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q103 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q104 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q105 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q111 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q112 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q113 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q114 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q115 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q700 55133330 TR-SSD DTC114TKA N 10K0 OHM Q701 55133330 TR-SSD DTC114TKA N 10K0 OHM Q702 55133330 TR-SSD DTC114TKA N 10K0 OHM Q703 55133330 TR-SSD DTC114TKA N 10K0 OHM Q704 55133330 TR-SSD DTC114TKA N 10K0 OHM Q705 55133330 TR-SSD DTC114TKA N 10K0 OHM Q706 55133330 TR-SSD DTC114TKA N 10K0 OHM Q707 55133330 TR-SSD DTC114TKA N 10K0 OHM Q708 55133330 TR-SSD DTC114TKA N 10K0 OHM Q709 55133330 TR-SSD DTC114TKA N 10K0 OHM Q710 55133330 TR-SSD DTC114TKA N 10K0 OHM Q711 55133330 TR-SSD DTC114TKA N 10K0 OHM Q712 55133330 TR-SSD DTC114TKA N 10K0 OHM Q713 55133330 TR-SSD DTC114TKA N 10K0 OHM Q714 55133330 TR-SSD DTC114TKA N 10K0 OHM Q715 55133330 TR-SSD DTC114TKA N 10K0 OHM Q716 55133330 TR-SSD DTC114TKA N 10K0 OHM Q717 55133330 TR-SSD DTC114TKA N 10K0 OHM Q718 55133330 TR-SSD DTC114TKA N 10K0 OHM Q719 55133330 TR-SSD DTC114TKA N 10K0 OHM Q720 55133330 TR-SSD DTC114TKA N 10K0 OHM Q721 55133330 TR-SSD DTC114TKA N 10K0 OHM Q722 55133330 TR-SSD DTC114TKA N 10K0 OHM R100 10135290 RMGCFMIC 68K0 OHM +5% 62MI5W R101 10135290 RMGCFMIC 68K0 OHM +5% 62MI5W R102 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R103 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R104 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R105 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R106 10136000 RMGCFMIC 8K2 OHM +5% 62MI5W R108 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R109 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R110 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R111 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R112 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R113 10134890 RMGCFMIC 390R0 OHM +5% 62MI5W
3/10
Front board AVR5550
Pos Tocom# SName
R114 10134890 RMGCFMIC 390R0 OHM +5% 62MI5W R115 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R116 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R117 10134890 RMGCFMIC 390R0 OHM +5% 62MI5W R118 10134890 RMGCFMIC 390R0 OHM +5% 62MI5W R119 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R120 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R121 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R122 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R123 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R124 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R125 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R126 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R127 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R128 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R129 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R130 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R131 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R132 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R133 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R134 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R135 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R136 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R137 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R140 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R141 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R142 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R143 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R144 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R145 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R146 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R147 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R148 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R149 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R150 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R151 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R152 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R153 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R154 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R155 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R156 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R157 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R158 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R159 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R160 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R161 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R162 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R163 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R164 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R165 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R166 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R167 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R168 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R169 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R170 10328750 RMGCFMIC 0 OHM +0% 62MI5W R171 10328750 RMGCFMIC 0 OHM +0% 62MI5W
4/10
Front board AVR5550
Pos Tocom# SName
R173 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R174 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R176 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R177 10135920 RMGCFMIC 3K9 OHM +5% 62MI5W R302 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R303 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R304 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R305 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R306 10135620 RMGCFMIC 1M0 OHM +10% 62MI5W R307 10135620 RMGCFMIC 1M0 OHM +10% 62MI5W R308 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R309 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R310 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R311 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R312 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R313 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R314 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R315 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R316 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W R317 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W R318 10135920 RMGCFMIC 3K9 OHM +5% 62MI5W R319 10135920 RMGCFMIC 3K9 OHM +5% 62MI5W R320 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R321 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R322 10134950 RMGCFMIC 680R0 OHM +5% 62MI5W R323 10134950 RMGCFMIC 680R0 OHM +5% 62MI5W R501 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R502 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R503 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R504 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R505 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R506 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R507 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R508 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R509 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R510 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R511 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R512 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R513 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R514 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R515 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R516 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R517 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R518 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R519 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R520 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R521 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R522 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R523 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R524 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R525 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R526 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R527 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R528 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R529 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R530 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W
5/10
Front board AVR5550
Pos Tocom# SName
R531 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R532 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R533 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R534 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R535 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R700 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R701 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R702 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R703 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R704 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R705 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R706 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R707 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R709 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R711 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R713 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R715 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R717 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R718 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R720 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R722 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R724 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R725 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R726 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R727 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R728 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R729 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R730 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R731 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R732 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R733 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R734 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R735 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R736 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R737 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R738 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R739 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R740 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R741 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R742 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R743 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R744 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R745 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R746 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W C106 55134360 CM 47MI0F +80% -20% 5.5V 70C C119 20268880 CE 10U0F +20% 50.0V 85C C132 20267830 CE 47U0F +20% 16.0V 85C 20251640 C133 20267830 CE 47U0F +20% 16.0V 85C 20251640 C143 20268880 CE 10U0F +20% 50.0V 85C C314 55179410 CPM 82N0F +5% 100.0V C315 55179410 CPM 82N0F +5% 100.0V D107 55179310 D-LEM RED/GREEN 3PIE RD RND CL D108 20415060 D-SR 1N4004 400.0V 1.0A D109 55179310 D-LEM RED/GREEN 3PIE RD RND CL D120 20415060 D-SR 1N4004 400.0V 1.0A D700 55179290 D-LEM LTL-1CHGEC P-GN RND CL
6/10
Front board AVR5550
Pos Tocom# SName
D700 55179290 D-LEM LTL-1CHGEC P-GN RND CL D700 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D701 55179290 D-LEM LTL-1CHGEC P-GN RND CL D701 55179290 D-LEM LTL-1CHGEC P-GN RND CL D701 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D702 55179290 D-LEM LTL-1CHGEC P-GN RND CL D702 55179290 D-LEM LTL-1CHGEC P-GN RND CL D702 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D703 55179290 D-LEM LTL-1CHGEC P-GN RND CL D703 55179290 D-LEM LTL-1CHGEC P-GN RND CL D703 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D704 55179290 D-LEM LTL-1CHGEC P-GN RND CL D704 55179290 D-LEM LTL-1CHGEC P-GN RND CL D704 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D705 55179290 D-LEM LTL-1CHGEC P-GN RND CL D705 55179290 D-LEM LTL-1CHGEC P-GN RND CL D705 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D706 55179290 D-LEM LTL-1CHGEC P-GN RND CL D706 55179290 D-LEM LTL-1CHGEC P-GN RND CL D706 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D707 55179290 D-LEM LTL-1CHGEC P-GN RND CL D707 55179290 D-LEM LTL-1CHGEC P-GN RND CL D707 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D708 55179290 D-LEM LTL-1CHGEC P-GN RND CL D708 55179290 D-LEM LTL-1CHGEC P-GN RND CL D708 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D709 55179290 D-LEM LTL-1CHGEC P-GN RND CL D709 55179290 D-LEM LTL-1CHGEC P-GN RND CL D709 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D710 55179290 D-LEM LTL-1CHGEC P-GN RND CL D710 55179290 D-LEM LTL-1CHGEC P-GN RND CL D710 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D711 55179290 D-LEM LTL-1CHGEC P-GN RND CL D711 55179290 D-LEM LTL-1CHGEC P-GN RND CL D711 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D712 55179290 D-LEM LTL-1CHGEC P-GN RND CL D712 55179290 D-LEM LTL-1CHGEC P-GN RND CL D712 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D713 55179290 D-LEM LTL-1CHGEC P-GN RND CL D713 55179290 D-LEM LTL-1CHGEC P-GN RND CL D713 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D714 55179290 D-LEM LTL-1CHGEC P-GN RND CL D714 55179290 D-LEM LTL-1CHGEC P-GN RND CL D714 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D715 55179290 D-LEM LTL-1CHGEC P-GN RND CL D715 55179290 D-LEM LTL-1CHGEC P-GN RND CL D715 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D716 55179290 D-LEM LTL-1CHGEC P-GN RND CL D716 55179290 D-LEM LTL-1CHGEC P-GN RND CL D716 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D717 55179290 D-LEM LTL-1CHGEC P-GN RND CL D717 55179290 D-LEM LTL-1CHGEC P-GN RND CL D717 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D718 55179290 D-LEM LTL-1CHGEC P-GN RND CL D718 55179290 D-LEM LTL-1CHGEC P-GN RND CL D718 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD
7/10
Front board AVR5550
Pos Tocom# SName
D719 55179290 D-LEM LTL-1CHGEC P-GN RND CL D719 55179290 D-LEM LTL-1CHGEC P-GN RND CL D719 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D720 55179290 D-LEM LTL-1CHGEC P-GN RND CL D720 55179290 D-LEM LTL-1CHGEC P-GN RND CL D720 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D721 55179290 D-LEM LTL-1CHGEC P-GN RND CL D721 55179290 D-LEM LTL-1CHGEC P-GN RND CL D721 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D722 55179290 D-LEM LTL-1CHGEC P-GN RND CL D722 55179290 D-LEM LTL-1CHGEC P-GN RND CL D722 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D723 55179290 D-LEM LTL-1CHGEC P-GN RND CL D723 55179290 D-LEM LTL-1CHGEC P-GN RND CL D723 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D724 55179290 D-LEM LTL-1CHGEC P-GN RND CL D724 55179290 D-LEM LTL-1CHGEC P-GN RND CL D724 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D725 55179290 D-LEM LTL-1CHGEC P-GN RND CL D725 55179290 D-LEM LTL-1CHGEC P-GN RND CL D725 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D726 55179290 D-LEM LTL-1CHGEC P-GN RND CL D726 55179290 D-LEM LTL-1CHGEC P-GN RND CL D726 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D727 55179290 D-LEM LTL-1CHGEC P-GN RND CL D727 55179290 D-LEM LTL-1CHGEC P-GN RND CL D727 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D728 55179290 D-LEM LTL-1CHGEC P-GN RND CL D728 55179290 D-LEM LTL-1CHGEC P-GN RND CL D728 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D730 55179290 D-LEM LTL-1CHGEC P-GN RND CL D730 55179290 D-LEM LTL-1CHGEC P-GN RND CL D730 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D731 55179290 D-LEM LTL-1CHGEC P-GN RND CL D731 55179290 D-LEM LTL-1CHGEC P-GN RND CL D731 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D732 55179290 D-LEM LTL-1CHGEC P-GN RND CL D732 55179290 D-LEM LTL-1CHGEC P-GN RND CL D732 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D733 55179290 D-LEM LTL-1CHGEC P-GN RND CL D733 55179290 D-LEM LTL-1CHGEC P-GN RND CL D733 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D734 55179290 D-LEM LTL-1CHGEC P-GN RND CL D734 55179290 D-LEM LTL-1CHGEC P-GN RND CL D734 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D735 55179290 D-LEM LTL-1CHGEC P-GN RND CL D735 55179290 D-LEM LTL-1CHGEC P-GN RND CL D735 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D736 55179290 D-LEM LTL-1CHGEC P-GN RND CL D736 55179290 D-LEM LTL-1CHGEC P-GN RND CL D736 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D737 55179290 D-LEM LTL-1CHGEC P-GN RND CL D737 55179290 D-LEM LTL-1CHGEC P-GN RND CL D737 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D738 55179290 D-LEM LTL-1CHGEC P-GN RND CL D738 55179290 D-LEM LTL-1CHGEC P-GN RND CL
8/10
Front board AVR5550
Pos Tocom# SName
D738 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D739 55179290 D-LEM LTL-1CHGEC P-GN RND CL D739 55179290 D-LEM LTL-1CHGEC P-GN RND CL D739 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D740 55179290 D-LEM LTL-1CHGEC P-GN RND CL D740 55179290 D-LEM LTL-1CHGEC P-GN RND CL D740 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D741 55179290 D-LEM LTL-1CHGEC P-GN RND CL D741 55179290 D-LEM LTL-1CHGEC P-GN RND CL D741 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D742 55179290 D-LEM LTL-1CHGEC P-GN RND CL D742 55179290 D-LEM LTL-1CHGEC P-GN RND CL D742 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D743 55179290 D-LEM LTL-1CHGEC P-GN RND CL D743 55179290 D-LEM LTL-1CHGEC P-GN RND CL D743 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D744 55179290 D-LEM LTL-1CHGEC P-GN RND CL D744 55179290 D-LEM LTL-1CHGEC P-GN RND CL D744 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D745 55179290 D-LEM LTL-1CHGEC P-GN RND CL D745 55179290 D-LEM LTL-1CHGEC P-GN RND CL D745 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D746 55179290 D-LEM LTL-1CHGEC P-GN RND CL D746 55179290 D-LEM LTL-1CHGEC P-GN RND CL D746 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D747 55179290 D-LEM LTL-1CHGEC P-GN RND CL D747 55179290 D-LEM LTL-1CHGEC P-GN RND CL D747 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D748 55179290 D-LEM LTL-1CHGEC P-GN RND CL D748 55179290 D-LEM LTL-1CHGEC P-GN RND CL D748 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D749 55179290 D-LEM LTL-1CHGEC P-GN RND CL D749 55179290 D-LEM LTL-1CHGEC P-GN RND CL D749 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D750 55179290 D-LEM LTL-1CHGEC P-GN RND CL D750 55179290 D-LEM LTL-1CHGEC P-GN RND CL D750 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D751 55179290 D-LEM LTL-1CHGEC P-GN RND CL D751 55179290 D-LEM LTL-1CHGEC P-GN RND CL D751 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D752 55179290 D-LEM LTL-1CHGEC P-GN RND CL D752 55179290 D-LEM LTL-1CHGEC P-GN RND CL D752 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD D753 55179290 D-LEM LTL-1CHGEC P-GN RND CL D753 55179290 D-LEM LTL-1CHGEC P-GN RND CL D753 55199400 D-LEM CT-3SGTA GN RND 3.0 CL 60M0CD DP10 55142780 DISPLAY HNA-15LL01 FN10 55177570 AC PUN SHIELD FENCE TONE IC10 55519340 IC-MICROCONT CXP82860-376Q MAIN AVR525 IC10 55646060 IC-MICROCONT CXP82860-382Q MAIN AVR5550 IC16 55179630 PHOTCOUP PC-17T1 PHOTOCOUPLER DIP4 IC30 55142240 IC-OPERAMP NJM2068DD DUAL OP J215 55179380 LF 4U7H +10% 1.7 OHM 190.0A L100 55179380 LF 4U7H +10% 1.7 OHM 190.0A L101 55179380 LF 4U7H +10% 1.7 OHM 190.0A N102 55213140 WIRECONASY UNIQUE 4P 220MM UL1007 PVC DISCRETE 26
9/10
Front board AVR5550
Pos Tocom# SName
N103 55559140 WIRECONASY DL 2.0MM 4P 600MM UL1007 RIBBON 26 1 N103 5555914A WIRECONASY DL 2.0MM 4P 650MM UL1007 RIBBON 26 1 N104 55503680 WIRECONASY DL 2.0MM 10P 650MM UL1533 SHIELD 26 1 N104 55596550 WIRECONASY DL 2.0MM 10P 580MM UL1533 SHIELD 26 1 N105 55212800 WIRECONASY UNIQUE 7P 450MM UL1007 PVC DISCRETE 26 N105 55516480 WIRECONASY DL 2.0MM 7P 550MM UL1007 RIBBON 26 1 N105 55681380 WIRECONASY UNIQUE 7P 480MM UL1007 PVC DISCRETE 26 N106 55558760 WIRECONASY DL 2.0MM 9P 450MM UL1007 RIBBON 26 1 N107 55510380 WIRECONASY UNIQUE 4 600MM UL1533 SHIELD 26 1 N107 55558750 WIRECONASY DL 2.0MM 3P 600MM UL2547 26 1 N108 55558740 WIRECONASY DL 2.0MM 6P 550MM UL1533 SHIELD 26 1 N109 55175880 WIRECONASY UNIQUE 2P 100MM UL1007 PVC DISCRETE 26 1 N110 55503060 WIRECONASY DL 2.5MM 7P 350MM UL1007 RIBBON 24 1 N110 5550306A WIRECONASY DL 2.5MM 7P 400MM UL1007 RIBBON 24 1 N111 55213230 WIRECONASY UNIQUE 4P 100MM UL1007 PVC DISCRETE 26 NJ80 55171510 CON PHONO SCKT RCA-313P 3 PINS NJ81 55113960 CON DIN SCKT SOCKET CONNECTOR SVHS EST-S408J P100 55123320 CONN 2.0MM 5 MA ST NAT LW2002P05 0 0 P101 55123340 CONN 2.0MM 8 MA ST NAT LW2002P08 0 0 P103 55230490 CONN 1.25MM 31 FE R BK 00-6216-031-120-808 0 0 R175 50882970 RCF 470R0 OHM +5% 250MI0W R180 40435670 RCF 47K0 OHM +5% 250MI0W RM10 55155930 IC-REMOTE RPM6938-RSIP-A3 RECEIVER 38KHZ RV10 55134900 SWIROT EC16B24204A5 5V 500U0A 10T 3P 0 0 RV30 55179920 PR-ROT 100K0 OHM NON-LINEAR RK14K12400BR 0 0 RV31 55179920 PR-ROT 100K0 OHM NON-LINEAR RK14K12400BR 0 0 RV32 55179910 PR-ROT 100K0 OHM NON-LINEAR RK14K12400BQ 0 0 W100 55213360 WIRECONASY UNIQUE 1P 300MM UL1007 PVC DISCRETE 22 1 W101 55213360 WIRECONASY UNIQUE 1P 300MM UL1007 PVC DISCRETE 22 1 W102 55213360 WIRECONASY UNIQUE 1P 300MM UL1007 PVC DISCRETE 22 1 Y100 55126140 CRESONATOR 10M0 HZ 25.0 OHM 0F
10/10
Key board AVR5550
Pos Tocom# SName
C600 20251830 CE 1U0F +20% 50.0V 85C C601 20251830 CE 1U0F +20% 50.0V 85C C602 20251830 CE 1U0F +20% 50.0V 85C C603 20251830 CE 1U0F +20% 50.0V 85C C604 20251830 CE 1U0F +20% 50.0V 85C C605 20252050 CE 100U0F +20% 6.3V 85C Q600 55179220 TR-SLPSWA KRA107M P Q601 55179220 TR-SLPSWA KRA107M P S200 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S201 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S202 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S203 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S204 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S205 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S206 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S207 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S208 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S209 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S211 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S212 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S213 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S214 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S215 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S216 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S217 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S218 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S219 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM S220 55145270 SWITACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM C140 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C141 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C142 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C143 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C144 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C220 10138790 CCCFMIC 22N0F +80% -20% 50.0V Y5V C221 10138790 CCCFMIC 22N0F +80% -20% 50.0V Y5V C222 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C606 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C900 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C901 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R C902 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R C903 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V D600 20496510 D-SLP 1SS355 35.0V 225MI0A D601 20496510 D-SLP 1SS355 35.0V 225MI0A D602 20496510 D-SLP 1SS355 35.0V 225MI0A D900 20496510 D-SLP 1SS355 35.0V 225MI0A D901 20496510 D-SLP 1SS355 35.0V 225MI0A IC62 55197900 IC-SPECFUNC UPD4721 DRIVERS/RECEIVER CMOS RS-232C IC62 55197900 IC-SPECFUNC UPD4721 DRIVERS/RECEIVER CMOS RS-232C L102 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L103 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L600 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L601 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L602 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L603 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 Q800 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM R172 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W
1/3
Key board AVR5550
Pos Tocom# SName
R201 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R202 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R203 10135820 RMGCFMIC 1K5 OHM +5% 62MI5W R204 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R205 10135880 RMGCFMIC 2K7 OHM +5% 62MI5W R206 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R207 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R208 10136000 RMGCFMIC 8K2 OHM +5% 62MI5W R209 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R211 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R212 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R213 10135820 RMGCFMIC 1K5 OHM +5% 62MI5W R214 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R215 10135880 RMGCFMIC 2K7 OHM +5% 62MI5W R216 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R217 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R218 10136000 RMGCFMIC 8K2 OHM +5% 62MI5W R219 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R220 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R221 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R600 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R601 10135920 RMGCFMIC 3K9 OHM +5% 62MI5W R602 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R603 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R604 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R605 10134850 RMGCFMIC 270R0 OHM +5% 62MI5W R606 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R606 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R607 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R608 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R609 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R800 10134950 RMGCFMIC 680R0 OHM +5% 62MI5W R801 10134950 RMGCFMIC 680R0 OHM +5% 62MI5W R802 10134810 RMGCFMIC 180R0 OHM +5% 62MI5W R803 10134810 RMGCFMIC 180R0 OHM +5% 62MI5W BK60 55176420 AC PUN BRACKET BKT GROUND ET 0.5T AVR520 -­BK61 55182550 AC PUN SHIELD DIGITAL ET C901 20178570 CC 47N0F +80% -20% 50.0V Z5V C901 20178570 CC 47N0F +80% -20% 50.0V Z5V C902 20178570 CC 47N0F +80% -20% 50.0V Z5V C902 20178570 CC 47N0F +80% -20% 50.0V Z5V D800 55179330 D-LEM RED/GREEN 5 RD RND CL IC60 55179630 PHOTCOUP PC-17T1 PHOTOCOUPLER DIP4 IC61 55179630 PHOTCOUP PC-17T1 PHOTOCOUPLER DIP4 L900 55168840 LF 47U0H +10% 5.8 OHM 70MI0A N702 55175800 WIRECONASY UNIQUE 8P 100MM UL1007 PVC DISCRETE 26 1 N703 55175820 WIRECONASY UNIQUE 5P 100MM UL1007 PVC DISCRETE 26 1 N741 55504170 WIRECONASY DL 2.0MM 5P 800MM UL1007 RIBBON 26 1 N790 55503280 WIRECONASY DL 2.0MM 3P 600MM UL1007 RIBBON 26 1 NJ60 55176390 CON PHONO SCKT STEREO JACK JW350S NJ61 55176390 CON PHONO SCKT STEREO JACK JW350S NJ62 55176390 CON PHONO SCKT STEREO JACK JW350S NJ63 55554510 CONN-SPE 87204-6063 WITH DUST COVER FOR AVR325/525 NJ64 55125430 D-LEM TORX178B RD RND CL NJ65 55175950 CON PHONO SCKT RCA 1P W/GND JE010003MN NJ66 55050690 CONN-PHJAC 6.35 ST HORZ CKX3-6.35-04 BK 0 0
2/3
Key board AVR5550
Pos Tocom# SName
P760 55123310 CONN 2.0MM 4 MA ST NAT LW2002P04 0 0 P761 55123310 CONN 2.0MM 4 MA ST NAT LW2002P04 0 0 P780 55123310 CONN 2.0MM 4 MA ST NAT LW2002P04 0 0 P791 55090070 CONN 2.0MM 2 MA ST NAT LW2002P0200T 0 0 R173 40438910 RCF 2R2 OHM +5% 250MI0W R173 40438910 RCF 2R2 OHM +5% 250MI0W R174 40438910 RCF 2R2 OHM +5% 250MI0W R174 40438910 RCF 2R2 OHM +5% 250MI0W W100 55213360 WIRECONASY UNIQUE 1P 300MM UL1007 PVC DISCRETE 22 1 W900 55213360 WIRECONASY UNIQUE 1P 300MM UL1007 PVC DISCRETE 22 1
3/3
DSP board AVR5550
Pos Tocom# SName
C1 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C104 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C105 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C115 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C116 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C117 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C118 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C118 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C119 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C119 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C120 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C120 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C121 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C121 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C122 10138390 CCCFMIC 560P0F +10% -10% 50.0V X7R C123 10138390 CCCFMIC 560P0F +10% -10% 50.0V X7R C124 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C124 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C125 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C125 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C126 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C126 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C127 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C127 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C131 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C132 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C134 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C135 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C136 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C137 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C138 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C139 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C140 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C141 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C145 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C154 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C155 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C156 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C157 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C166 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C167 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C169 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C170 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C171 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C173 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C174 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C176 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C177 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C179 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C179 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C180 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C180 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C181 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C181 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C182 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0
1/22
DSP board AVR5550
Pos Tocom# SName
C184 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C184 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C185 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C185 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C186 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C186 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C188 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C189 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C190 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C191 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C192 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C193 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C195 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C196 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C197 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C198 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C199 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C2 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C201 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C202 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C203 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C205 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C206 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C218 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C219 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C220 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C223 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C224 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C225 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C226 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C227 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C228 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C233 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C235 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C236 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C237 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C238 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C241 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C245 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C246 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C247 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C249 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C250 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C251 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C252 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C254 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C255 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C257 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C258 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C259 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C260 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C261 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C264 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C265 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C266 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V
2/22
DSP board AVR5550
Pos Tocom# SName
C267 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C269 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C270 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C271 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C272 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C275 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C276 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C280 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C283 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C3 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C347 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C348 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C4 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C401 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C901 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R D100 20496510 D-SLP 1SS355 35.0V 225MI0A D102 20496510 D-SLP 1SS355 35.0V 225MI0A IC01 55204170 IC-SWITCH NJU201AM ANALOG SWITCH IC03 55142610 IC-OPERAMP NJM2068M DUAL OP IC04 55204160 IC-CONV CS5360-KS A/D IC05 55142610 IC-OPERAMP NJM2068M DUAL OP IC06 55451460 IC-CONV CS4382-KQ 8CH D/A IC07 55142610 IC-OPERAMP NJM2068M DUAL OP IC08 55204160 IC-CONV CS5360-KS A/D IC09 55133310 IC-LOGIC M74HCU04M1R INVERTER HCT IC10 55204160 IC-CONV CS5360-KS A/D IC11 55510180 IC-ASIC M4A3-32-10VC-12VI COMPLEX PLD IC12 55519370 IC-MICROCONT CXP82852-377Q SUB AVR525 IC12 55645960 IC-MICROCONT CXP82852-383Q SUB AVR5550 IC13 55204160 IC-CONV CS5360-KS A/D IC14 55133310 IC-LOGIC M74HCU04M1R INVERTER HCT IC15 55157760 IC-EPROM AT27LV040A-90JC IC16 55476130 IC-SPECFUNC AK4114VQ LQFP48 DIGITAL INTERFACE TRANS IC17 55125380 IC-LOWFREQ CS493263-CL DSP IC17 5512538A IC-LOWFREQ CS493263-CL G VERSION DSP IC17 5512538A IC-LOWFREQ CS493263-CL G VERSION DSP IC35 55142610 IC-OPERAMP NJM2068M DUAL OP L100 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L101 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L102 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L103 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L104 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L105 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L106 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L107 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L109 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L110 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L111 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L112 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L118 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L999 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 Q100 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q101 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q102 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q103 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A
3/22
DSP board AVR5550
Pos Tocom# SName
Q104 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM R10 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R100 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R101 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R102 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R103 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R104 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R105 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R106 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R107 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R108 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R109 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R11 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R110 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R111 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R112 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R113 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R114 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R115 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R116 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R117 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R118 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R119 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R12 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R120 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R121 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R122 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R123 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R124 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R125 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R126 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R127 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R128 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R129 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R130 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R131 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R132 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R133 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R134 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R135 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R136 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R137 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R138 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R139 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R140 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R141 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R142 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R143 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R144 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R145 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R146 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R147 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R148 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R149 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R150 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W
4/22
DSP board AVR5550
Pos Tocom# SName
R151 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R152 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R153 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R154 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R155 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R156 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R157 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R158 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R159 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R16 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R160 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R161 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R162 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R163 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R164 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R165 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R166 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R167 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R168 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R169 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R17 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R170 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R171 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R172 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R173 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R174 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R175 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R176 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R177 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R178 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R179 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R180 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R181 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R182 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R183 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R184 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R185 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R186 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R187 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R188 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R189 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R190 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R191 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R192 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R193 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R194 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R195 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R196 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R197 10135980 RMGCFMIC 6K8 OHM +5% 62MI5W R198 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R199 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R200 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R201 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R202 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R203 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W
5/22
DSP board AVR5550
Pos Tocom# SName
R204 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R205 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R206 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R207 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R208 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R209 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R21 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R210 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R211 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R212 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R213 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R214 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R215 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R216 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R217 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R218 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R219 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R22 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R220 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R221 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R222 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R223 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R224 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R225 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R226 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R227 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R228 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R229 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R230 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R231 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R232 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R233 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R234 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R235 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R236 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R237 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R238 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R239 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R240 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R241 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R242 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R243 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R244 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R245 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R246 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R247 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R248 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R249 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R250 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R251 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R252 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R253 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R254 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R255 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R256 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W
6/22
DSP board AVR5550
Pos Tocom# SName
R257 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R258 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R259 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R260 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R261 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R262 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R263 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R264 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R265 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R266 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R267 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R268 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R269 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R270 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R271 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R272 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R273 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R274 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R275 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R277 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R278 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R279 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R280 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R281 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R282 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R283 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R284 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R285 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R286 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R287 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R288 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R289 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R290 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R291 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R292 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R293 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R294 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R295 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R296 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R297 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R298 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R299 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R300 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R301 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R302 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R303 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R304 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R305 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R306 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R307 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R308 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R309 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R310 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R312 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R319 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W
7/22
DSP board AVR5550
Pos Tocom# SName
R320 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R322 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R323 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R324 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R325 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R326 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R327 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R328 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R329 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R330 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R331 10134940 RMGCFMIC 620R0 OHM +5% 62MI5W R333 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R335 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R335 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R336 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R336 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R337 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R338 10134940 RMGCFMIC 620R0 OHM +5% 62MI5W R339 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R347 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R348 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R350 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R351 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R352 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R353 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R355 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R356 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R357 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R357 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R359 10134950 RMGCFMIC 680R0 OHM +5% 62MI5W R360 10134940 RMGCFMIC 620R0 OHM +5% 62MI5W R361 10134560 RMGCFMIC 27R0 OHM +5% 62MI5W R361 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R362 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R363 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R364 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R365 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R365 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R366 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R367 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R368 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R369 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R370 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R371 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R372 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R372 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R373 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R373 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R374 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R375 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R375 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R376 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R377 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R378 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R4 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W
8/22
DSP board AVR5550
Pos Tocom# SName
R425 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R434 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R5 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R6 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R7 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R8 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R9 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R901 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R902 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R903 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R904 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R905 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R908 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R909 10328750 RMGCFMIC 0 OHM +0% 62MI5W R910 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C1 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C104 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C105 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C115 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C116 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C117 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C118 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C118 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C119 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C119 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C120 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C120 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C121 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C121 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C122 10138390 CCCFMIC 560P0F +10% -10% 50.0V X7R C123 10138390 CCCFMIC 560P0F +10% -10% 50.0V X7R C124 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C124 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C125 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C125 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C126 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C126 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C127 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C127 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C131 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C132 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C134 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C135 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C136 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C137 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C138 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C139 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C140 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C141 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C145 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C154 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C155 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C156 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C157 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C166 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0
9/22
DSP board AVR5550
Pos Tocom# SName
C167 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C169 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C170 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C171 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C173 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C174 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C176 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C177 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C179 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C179 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C180 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C180 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C181 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C181 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C182 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C182 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C183 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C183 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C184 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C184 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C185 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C185 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C186 11058710 CCCFMIN 560P0F +5% -5% 50.0V NP0 C186 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C188 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C189 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C190 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C191 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C192 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C193 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C195 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C196 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C197 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C198 10138630 CCCFMIC 2N7F +10% -10% 50.0V X7R C199 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C2 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C201 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C202 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C203 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C205 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C206 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C218 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C219 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C220 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C223 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C224 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C225 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C226 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C227 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C228 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C233 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C235 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C236 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C237 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C238 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R
10/22
DSP board AVR5550
Pos Tocom# SName
C241 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C245 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C246 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C247 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C249 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C250 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C251 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C252 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C254 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C255 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C257 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C258 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C259 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C260 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C261 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C264 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C265 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C266 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C267 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C269 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C270 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R C271 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C272 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C275 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C276 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C280 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C283 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C3 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C347 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C348 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C4 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C401 20506520 CCCFMIC 22P0F +5% -5% 50.0V NP0 C901 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R D100 20496510 D-SLP 1SS355 35.0V 225MI0A D102 20496510 D-SLP 1SS355 35.0V 225MI0A IC01 55204170 IC-SWITCH NJU201AM ANALOG SWITCH IC03 55142610 IC-OPERAMP NJM2068M DUAL OP IC04 55204160 IC-CONV CS5360-KS A/D IC05 55142610 IC-OPERAMP NJM2068M DUAL OP IC06 55451460 IC-CONV CS4382-KQ 8CH D/A IC07 55142610 IC-OPERAMP NJM2068M DUAL OP IC08 55204160 IC-CONV CS5360-KS A/D IC09 55133310 IC-LOGIC M74HCU04M1R INVERTER HCT IC10 55204160 IC-CONV CS5360-KS A/D IC11 55510180 IC-ASIC M4A3-32-10VC-12VI COMPLEX PLD IC12 55519370 IC-MICROCONT CXP82852-377Q SUB AVR525 IC12 55645960 IC-MICROCONT CXP82852-383Q SUB AVR5550 IC13 55204160 IC-CONV CS5360-KS A/D IC14 55133310 IC-LOGIC M74HCU04M1R INVERTER HCT IC15 55157760 IC-EPROM AT27LV040A-90JC IC16 55476130 IC-SPECFUNC AK4114VQ LQFP48 DIGITAL INTERFACE TRANS IC17 55125380 IC-LOWFREQ CS493263-CL DSP IC17 5512538A IC-LOWFREQ CS493263-CL G VERSION DSP IC17 5512538A IC-LOWFREQ CS493263-CL G VERSION DSP IC35 55142610 IC-OPERAMP NJM2068M DUAL OP
11/22
DSP board AVR5550
Pos Tocom# SName
L100 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L101 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L102 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L103 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L104 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L105 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L106 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L107 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L109 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L110 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L111 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L112 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L118 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L999 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 Q100 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q101 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q102 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q103 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q104 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM R10 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R100 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R101 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R102 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R103 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R104 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R105 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R106 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R107 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R108 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R109 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R11 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R110 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R111 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R112 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R113 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R114 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R115 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R116 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R117 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R118 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R119 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R12 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R120 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R121 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R122 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R123 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R124 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R125 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R126 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R127 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R128 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R129 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R130 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R131 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R132 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W
12/22
DSP board AVR5550
Pos Tocom# SName
R133 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R134 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R135 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R136 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R137 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R138 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R139 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R140 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R141 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R142 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R143 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R144 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R145 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R146 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R147 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R148 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R149 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R150 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R151 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R152 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R153 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R154 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R155 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R156 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R157 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R158 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R159 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R16 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R160 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R161 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R162 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R163 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R164 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R165 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R166 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R167 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R168 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R169 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R17 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R170 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R171 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R172 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R173 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R174 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R175 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R176 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R177 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R178 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R179 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R180 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R181 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R182 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R183 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R184 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R185 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W
13/22
DSP board AVR5550
Pos Tocom# SName
R186 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R187 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R188 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R189 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R190 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R191 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R192 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R193 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R194 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R195 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R196 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R197 10135980 RMGCFMIC 6K8 OHM +5% 62MI5W R198 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R199 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R200 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R201 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R202 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R203 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R204 10135960 RMGCFMIC 5K6 OHM +5% 62MI5W R205 10135790 RMGCFMIC 1K2 OHM +5% 62MI5W R206 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R207 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R208 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R209 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R21 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R210 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R211 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R212 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R213 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R214 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R215 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R216 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R217 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R218 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R219 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R22 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R220 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R221 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R222 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R223 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R224 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R225 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R226 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R227 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R228 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R229 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R230 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R231 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R232 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R233 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R234 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R235 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R236 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R237 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R238 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W
14/22
DSP board AVR5550
Pos Tocom# SName
R239 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R240 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R241 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R242 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R243 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R244 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R245 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R246 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R247 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R248 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R249 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R250 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R251 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R252 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R253 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R254 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R255 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R256 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R257 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R258 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R259 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R260 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R261 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R262 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R263 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R264 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R265 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R266 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R267 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R268 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R269 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R270 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R271 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R272 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R273 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R274 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R275 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R277 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R278 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R279 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R280 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R281 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R282 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R283 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R284 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R285 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R286 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R287 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R288 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R289 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R290 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R291 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R292 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R293 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R294 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W
15/22
DSP board AVR5550
Pos Tocom# SName
R295 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R296 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R297 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R298 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R299 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R300 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R301 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R302 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R303 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R304 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R305 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R306 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R307 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R308 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R309 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R310 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R312 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R319 10135220 RMGCFMIC 47K0 OHM +5% 62MI5W R320 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R322 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R323 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R324 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R325 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R326 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R327 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R328 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R329 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R330 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R331 10134940 RMGCFMIC 620R0 OHM +5% 62MI5W R333 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R335 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R335 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R336 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R336 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R337 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R338 10134940 RMGCFMIC 620R0 OHM +5% 62MI5W R339 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R347 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R348 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R350 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R351 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R352 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R353 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R355 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R356 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R357 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R357 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R359 10134950 RMGCFMIC 680R0 OHM +5% 62MI5W R360 10134940 RMGCFMIC 620R0 OHM +5% 62MI5W R361 10134560 RMGCFMIC 27R0 OHM +5% 62MI5W R361 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R362 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R363 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R364 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R365 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W
16/22
DSP board AVR5550
Pos Tocom# SName
R365 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R366 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R367 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R368 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R369 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R370 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R371 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R372 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R372 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R373 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R373 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R374 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R375 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R375 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W R376 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R377 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R378 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R4 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R425 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R434 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R5 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R6 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R7 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R8 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R9 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R901 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R902 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R903 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R904 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R905 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R908 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R909 10328750 RMGCFMIC 0 OHM +0% 62MI5W R910 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C103 20342060 CE 47U0F +20% 16.0V 85C C106 10121000 CE 10U0F +20% 16.0V 85C C107 20342060 CE 47U0F +20% 16.0V 85C C108 10121000 CE 10U0F +20% 16.0V 85C C109 10121000 CE 10U0F +20% 16.0V 85C C110 10121000 CE 10U0F +20% 16.0V 85C C111 10121000 CE 10U0F +20% 16.0V 85C C112 10121000 CE 10U0F +20% 16.0V 85C C113 10121000 CE 10U0F +20% 16.0V 85C C114 10121000 CE 10U0F +20% 16.0V 85C C133 10121000 CE 10U0F +20% 16.0V 85C C142 20269020 CE 100U0F +20% 16.0V 85C C143 10121000 CE 10U0F +20% 16.0V 85C C144 10121000 CE 10U0F +20% 16.0V 85C C146 10121000 CE 10U0F +20% 16.0V 85C C147 10121000 CE 10U0F +20% 16.0V 85C C148 10121000 CE 10U0F +20% 16.0V 85C C149 10121000 CE 10U0F +20% 16.0V 85C C150 10121000 CE 10U0F +20% 16.0V 85C C151 10121000 CE 10U0F +20% 16.0V 85C C152 10121000 CE 10U0F +20% 16.0V 85C C153 10121000 CE 10U0F +20% 16.0V 85C
17/22
DSP board AVR5550
Pos Tocom# SName
C158 10121000 CE 10U0F +20% 16.0V 85C C159 10244270 CE 100U0F +20% 16.0V 85C C160 10244270 CE 100U0F +20% 16.0V 85C C161 10121000 CE 10U0F +20% 16.0V 85C C162 10121000 CE 10U0F +20% 16.0V 85C C163 10121000 CE 10U0F +20% 16.0V 85C C164 10121000 CE 10U0F +20% 16.0V 85C C165 20269020 CE 100U0F +20% 16.0V 85C C168 10121000 CE 10U0F +20% 16.0V 85C C172 10121000 CE 10U0F +20% 16.0V 85C C175 10121000 CE 10U0F +20% 16.0V 85C C178 10244270 CE 100U0F +20% 16.0V 85C C187 10121000 CE 10U0F +20% 16.0V 85C C194 20342060 CE 47U0F +20% 16.0V 85C C200 10121000 CE 10U0F +20% 16.0V 85C C204 10121000 CE 10U0F +20% 16.0V 85C C207 10121000 CE 10U0F +20% 16.0V 85C C208 10244270 CE 100U0F +20% 16.0V 85C C209 10244270 CE 100U0F +20% 16.0V 85C C210 10121000 CE 10U0F +20% 16.0V 85C C211 10121000 CE 10U0F +20% 16.0V 85C C212 10121000 CE 10U0F +20% 16.0V 85C C213 10121000 CE 10U0F +20% 16.0V 85C C214 10121000 CE 10U0F +20% 16.0V 85C C215 10121000 CE 10U0F +20% 16.0V 85C C216 10121000 CE 10U0F +20% 16.0V 85C C217 10121000 CE 10U0F +20% 16.0V 85C C221 10121000 CE 10U0F +20% 16.0V 85C C222 10121000 CE 10U0F +20% 16.0V 85C C229 10244270 CE 100U0F +20% 16.0V 85C C234 10121000 CE 10U0F +20% 16.0V 85C C242 10244270 CE 100U0F +20% 16.0V 85C C243 10244270 CE 100U0F +20% 16.0V 85C C244 10121000 CE 10U0F +20% 16.0V 85C C248 10121000 CE 10U0F +20% 16.0V 85C C253 10244270 CE 100U0F +20% 16.0V 85C C256 10121000 CE 10U0F +20% 16.0V 85C C262 10244270 CE 100U0F +20% 16.0V 85C C263 10244270 CE 100U0F +20% 16.0V 85C C268 10121000 CE 10U0F +20% 16.0V 85C C273 10244270 CE 100U0F +20% 16.0V 85C C274 10121000 CE 10U0F +20% 16.0V 85C C278 10121000 CE 10U0F +20% 16.0V 85C C279 20268850 CE 2U2F +20% 50.0V 85C C281 20268830 CE 470N0F +20% 50.0V 85C C282 10121000 CE 10U0F +20% 16.0V 85C C284 10121000 CE 10U0F +20% 16.0V 85C C285 10244270 CE 100U0F +20% 16.0V 85C C232 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C286 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C288 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C289 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C290 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C291 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C292 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V
18/22
DSP board AVR5550
Pos Tocom# SName
C293 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C294 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C295 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C296 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C297 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C298 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C299 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C300 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C301 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C302 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C303 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C304 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C305 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C306 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C307 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C308 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C309 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C310 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C311 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C312 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C313 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C314 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C315 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C316 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C317 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C318 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C319 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C320 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C321 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C322 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C323 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C324 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C325 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C326 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C327 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C328 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C329 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C330 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C331 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C332 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C333 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C334 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C335 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C336 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C337 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C338 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C339 20678070 CCCFMIC 330P0F +5% -5% 50.0V NP0 C340 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C341 20288060 CCCFMIC 220N0F +80% -20% 16.0V Y5V C342 20678070 CCCFMIC 330P0F +5% -5% 50.0V NP0 C343 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C344 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C345 20506640 CCCFMIC 220P0F +5% -5% 50.0V NP0 C346 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C349 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V
19/22
DSP board AVR5550
Pos Tocom# SName
C350 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C351 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C352 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C400 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V D103 20496510 D-SLP 1SS355 35.0V 225MI0A IC18 55142610 IC-OPERAMP NJM2068M DUAL OP IC19 55142610 IC-OPERAMP NJM2068M DUAL OP IC20 55142610 IC-OPERAMP NJM2068M DUAL OP IC21 55142610 IC-OPERAMP NJM2068M DUAL OP IC22 55142610 IC-OPERAMP NJM2068M DUAL OP IC23 55142610 IC-OPERAMP NJM2068M DUAL OP IC24 55142610 IC-OPERAMP NJM2068M DUAL OP IC25 55142610 IC-OPERAMP NJM2068M DUAL OP IC26 55142610 IC-OPERAMP NJM2068M DUAL OP IC27 55142610 IC-OPERAMP NJM2068M DUAL OP IC28 55125420 IC-LOGIC 74VHC244MX INVERTER CMOS IC28 55125420 IC-LOGIC 74VHC244MX INVERTER CMOS IC29 55142610 IC-OPERAMP NJM2068M DUAL OP IC30 55142610 IC-OPERAMP NJM2068M DUAL OP IC31 55142610 IC-OPERAMP NJM2068M DUAL OP IC33 55170220 IC-LOGIC F/F 74VHC574MX FLIP/FLOP HCMOS IC33 55170220 IC-LOGIC F/F 74VHC574MX FLIP/FLOP HCMOS IC34 55170220 IC-LOGIC F/F 74VHC574MX FLIP/FLOP HCMOS IC34 55170220 IC-LOGIC F/F 74VHC574MX FLIP/FLOP HCMOS L113 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L114 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L115 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L116 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 L117 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L120 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L121 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 L122 55126650 FBEAD SURFACE MT 300OHM FCM2012V-301T07 Q105 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q106 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM R1 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R15 10328750 RMGCFMIC 0 OHM +0% 62MI5W R16 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R17 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R2 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R20 10134540 RMGCFMIC 22R0 OHM +5% 62MI5W R20 10328750 RMGCFMIC 0 OHM +0% 62MI5W R21 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R22 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R276 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R3 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R313 20740280 RMGCFMIC 3R3 OHM +5% 62MI5W R314 20740280 RMGCFMIC 3R3 OHM +5% 62MI5W R379 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R380 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R381 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R382 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R385 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R386 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R387 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R388 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W
20/22
DSP board AVR5550
Pos Tocom# SName
R389 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R390 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R391 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R392 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R393 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R394 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R396 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R397 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R398 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R399 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R400 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R401 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R402 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R403 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R404 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R405 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R407 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R408 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R409 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R410 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R411 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R412 10134780 RMGCFMIC 150R0 OHM +5% 62MI5W R413 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R415 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R416 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R418 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R421 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R422 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R423 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R424 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R428 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R429 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R430 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R431 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R432 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R433 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R907 10134830 RMGCFMIC 220R0 OHM +5% 62MI5W C108 10121000 CE 10U0F +20% 16.0V 85C C109 10121000 CE 10U0F +20% 16.0V 85C C112 10121000 CE 10U0F +20% 16.0V 85C C113 10121000 CE 10U0F +20% 16.0V 85C C144 10121000 CE 10U0F +20% 16.0V 85C C163 10121000 CE 10U0F +20% 16.0V 85C C172 10121000 CE 10U0F +20% 16.0V 85C C200 10121000 CE 10U0F +20% 16.0V 85C C214 10121000 CE 10U0F +20% 16.0V 85C C215 10121000 CE 10U0F +20% 16.0V 85C C216 10121000 CE 10U0F +20% 16.0V 85C C222 10121000 CE 10U0F +20% 16.0V 85C C230 20269180 CE 1MI0F +20% 6.3V 85C C231 20269180 CE 1MI0F +20% 6.3V 85C C234 10121000 CE 10U0F +20% 16.0V 85C C239 20269180 CE 1MI0F +20% 6.3V 85C C240 20269180 CE 1MI0F +20% 6.3V 85C C248 10121000 CE 10U0F +20% 16.0V 85C
21/22
DSP board AVR5550
Pos Tocom# SName
C256 10121000 CE 10U0F +20% 16.0V 85C C268 10121000 CE 10U0F +20% 16.0V 85C C500 20506570 CCCFMIC 47P0F +5% -5% 50.0V NP0 N400 55174670 CONN 2.0MM 19 MA R NAT SOCKET MOLEX 35237-1910 0 0 N401 55164150 WIRECONASY UNIQUE 4P 160MM UL1007 PVC DISCRETE 26 1 N401 55164170 WIRECONASY UNIQUE 4P 140MM UL1007 PVC DISCRETE 26 1 N402 55504060 WIRECONASY DL 2.0MM 15P 100MM UL1533 SHIELD 26 1 N402 55597160 WIRECONASY DL 2.0MM 15P 110MM UL1533 SHIELD 26 1 N403 55504120 WIRECONASY DL 2.0MM 3P 100MM UL2547 26 1 N403 55597170 WIRECONASY DL 2.0MM 3P 110MM UL2547 26 1 N404 55504060 WIRECONASY DL 2.0MM 15P 100MM UL1533 SHIELD 26 1 N404 55597160 WIRECONASY DL 2.0MM 15P 110MM UL1533 SHIELD 26 1 NJ71 55191450 CON PHONO SCKT RCA 4P JW-4104RSC NJ72 55191420 CON PHONO SCKT RCA 4P JW-4104RSA NJ73 55191600 CON PHONO SCKT RCA 2P W/GNDCAP JW-1502SN OO NJ74 55125430 D-LEM TORX178B RD RND CL NJ75 55125430 D-LEM TORX178B RD RND CL NJ76 55125440 D-LEM TOTX178B RD RND CL NJ77 55246370 CON PHONO SCKT RCA 1P W/GND JE010003LN OG P102 55598650 CON 2.54MM PITCH 8P HEADER LW0640-08 2.5MM PITCH P402 55123320 CONN 2.0MM 5 MA ST NAT LW2002P05 0 0 P403 55090050 CONN 2.0MM 10 MA ST NAT LW2002P10 0 0 SK10 55179930 RELAYPWR 5.0V 166.0OHM 1.0A 24.0V T100 55176550 TFPULSE TRANSFORMER 110UH FP-120 FERRIT MAGNET T101 55176540 TFPULSE TRANSFORMER 110UH FP-110 FERRIT MAGNET W402 55622850 WCL 330-05-05 UL1007 HOOK-UP 16 330MM BK 5 5 55622750 Y100 55126140 CRESONATOR 10M0 HZ 25.0 OHM 0F Y101 55348350 VCXO 12M288 HZ +50 PPM -50 PPM 0 OHM 3.3V
22/22
MAIN board AVR5550
Pos Tocom# SName
80 55178320 SCREW-ST 3MM 12MM JIS B 1122 53 0 A4
90 55127310 WASHER 3.3MM 8.0MM 0.5MM Y 53 0 A4 C101 20936650 CC 100P0F +10% -10% 50.0V Y5P C102 20936650 CC 100P0F +10% -10% 50.0V Y5P C103 20936650 CC 100P0F +10% -10% 50.0V Y5P C104 20936650 CC 100P0F +10% -10% 50.0V Y5P C107 20936650 CC 100P0F +10% -10% 50.0V Y5P C108 20936650 CC 100P0F +10% -10% 50.0V Y5P C109 20936650 CC 100P0F +10% -10% 50.0V Y5P C110 20936650 CC 100P0F +10% -10% 50.0V Y5P C111 20936650 CC 100P0F +10% -10% 50.0V Y5P C112 20936650 CC 100P0F +10% -10% 50.0V Y5P C113 20936650 CC 100P0F +10% -10% 50.0V Y5P C114 20936650 CC 100P0F +10% -10% 50.0V Y5P C115 20936650 CC 100P0F +10% -10% 50.0V Y5P C116 20936650 CC 100P0F +10% -10% 50.0V Y5P C117 20936650 CC 100P0F +10% -10% 50.0V Y5P C118 20936650 CC 100P0F +10% -10% 50.0V Y5P C119 20246470 CC 100N0F +80% -20% 25.0V Z5V C119 20293470 CC 100N0F +80% -20% 50.0V F C120 20246470 CC 100N0F +80% -20% 25.0V Z5V C120 20293470 CC 100N0F +80% -20% 50.0V F C209 20936650 CC 100P0F +10% -10% 50.0V Y5P C307 20762640 CC 270P0F +10% -10% 50.0V 2B4 C308 20762640 CC 270P0F +10% -10% 50.0V 2B4 C313 55126070 CC 680P0F +10% -10% 50.0V 2B4 C314 55126070 CC 680P0F +10% -10% 50.0V 2B4 C329 20737600 CC 2N2F +80% -20% 16.0V 3F4 C330 20737600 CC 2N2F +80% -20% 16.0V 3F4 C333 20513990 CC 4N7F +20% -20% 16.0V Y5R C403 20762640 CC 270P0F +10% -10% 50.0V 2B4 C404 20762640 CC 270P0F +10% -10% 50.0V 2B4 C425 20737600 CC 2N2F +80% -20% 16.0V 3F4 C426 20737600 CC 2N2F +80% -20% 16.0V 3F4 C433 20449010 CC 10N0F +20% -20% 16.0V Y5S C434 20513990 CC 4N7F +20% -20% 16.0V Y5R C527 20293470 CC 100N0F +80% -20% 50.0V F C569 55126070 CC 680P0F +10% -10% 50.0V 2B4 C570 55126070 CC 680P0F +10% -10% 50.0V 2B4 C601 20449010 CC 10N0F +20% -20% 16.0V Y5S C602 20449010 CC 10N0F +20% -20% 16.0V Y5S D204 55178040 D-ZENER MTZJ 12.0V 500MI0W D205 70436540 D-SLP 1N4148 100.0V 150E-3A D206 70436540 D-SLP 1N4148 100.0V 150E-3A D207 20526960 D-ZENER 1N5231B 5.1V 500MI0W D301 70436540 D-SLP 1N4148 100.0V 150E-3A D302 70436540 D-SLP 1N4148 100.0V 150E-3A D303 70436540 D-SLP 1N4148 100.0V 150E-3A D304 70436540 D-SLP 1N4148 100.0V 150E-3A D305 70436540 D-SLP 1N4148 100.0V 150E-3A D306 70436540 D-SLP 1N4148 100.0V 150E-3A D307 70436540 D-SLP 1N4148 100.0V 150E-3A D308 70436540 D-SLP 1N4148 100.0V 150E-3A D401 70436540 D-SLP 1N4148 100.0V 150E-3A D402 70436540 D-SLP 1N4148 100.0V 150E-3A D403 70436540 D-SLP 1N4148 100.0V 150E-3A
1/11
MAIN board AVR5550
Pos Tocom# SName
D404 70436540 D-SLP 1N4148 100.0V 150E-3A D405 70436540 D-SLP 1N4148 100.0V 150E-3A D406 70436540 D-SLP 1N4148 100.0V 150E-3A D407 70436540 D-SLP 1N4148 100.0V 150E-3A D408 70436540 D-SLP 1N4148 100.0V 150E-3A D409 70436540 D-SLP 1N4148 100.0V 150E-3A D410 70436540 D-SLP 1N4148 100.0V 150E-3A D411 70436540 D-SLP 1N4148 100.0V 150E-3A D412 70436540 D-SLP 1N4148 100.0V 150E-3A R101 50882950 RCF 100R0 OHM +5% 250MI0W R102 50882950 RCF 100R0 OHM +5% 250MI0W R105 50882950 RCF 100R0 OHM +5% 250MI0W R106 50882950 RCF 100R0 OHM +5% 250MI0W R109 50882950 RCF 100R0 OHM +5% 250MI0W R110 50882950 RCF 100R0 OHM +5% 250MI0W R113 50882950 RCF 100R0 OHM +5% 250MI0W R114 50882950 RCF 100R0 OHM +5% 250MI0W R207 30939510 RCF 100K0 OHM +5% 250MI0W R209 80437030 RCF 27K0 OHM +5% 250MI0W R211 11059640 RCF 1K0 OHM +5% 250MI0W R213 50882950 RCF 100R0 OHM +5% 250MI0W R214 30939510 RCF 100K0 OHM +5% 250MI0W R215 50882950 RCF 100R0 OHM +5% 250MI0W R216 30939510 RCF 100K0 OHM +5% 250MI0W R217 30939510 RCF 100K0 OHM +5% 250MI0W R218 30939510 RCF 100K0 OHM +5% 250MI0W R219 30939510 RCF 100K0 OHM +5% 250MI0W R220 30939510 RCF 100K0 OHM +5% 250MI0W R221 50882950 RCF 100R0 OHM +5% 250MI0W R223 70430600 RCF 51K0 OHM +5% 250MI0W R224 70430620 RCF 270K0 OHM +5% 250MI0W R225 30939490 RCF 33K0 OHM +5% 250MI0W R301 60441550 RCF 330R0 OHM +5% 250MI0W R302 60441550 RCF 330R0 OHM +5% 250MI0W R303 30939360 RCF 10R0 OHM +5% 250MI0W R304 30939360 RCF 10R0 OHM +5% 250MI0W R305 30939490 RCF 33K0 OHM +5% 250MI0W R306 30939490 RCF 33K0 OHM +5% 250MI0W R307 20469510 RCF 43K0 OHM +5% 250MI0W R308 20469510 RCF 43K0 OHM +5% 250MI0W R309 30939510 RCF 100K0 OHM +5% 250MI0W R310 30939510 RCF 100K0 OHM +5% 250MI0W R311 50882990 RCF 1K6 OHM +5% 250MI0W R312 50882990 RCF 1K6 OHM +5% 250MI0W R313 50882990 RCF 1K6 OHM +5% 250MI0W R314 50882990 RCF 1K6 OHM +5% 250MI0W R315 50882970 RCF 470R0 OHM +5% 250MI0W R316 50882970 RCF 470R0 OHM +5% 250MI0W R317 20469450 RCF 220R0 OHM +5% 250MI0W R318 20469450 RCF 220R0 OHM +5% 250MI0W R319 20469450 RCF 220R0 OHM +5% 250MI0W R320 20469450 RCF 220R0 OHM +5% 250MI0W R321 20469450 RCF 220R0 OHM +5% 250MI0W R322 20469450 RCF 220R0 OHM +5% 250MI0W R323 60441560 RCF 560R0 OHM +5% 250MI0W R324 60441560 RCF 560R0 OHM +5% 250MI0W
2/11
MAIN board AVR5550
Pos Tocom# SName
R325 60441560 RCF 560R0 OHM +5% 250MI0W R326 60441560 RCF 560R0 OHM +5% 250MI0W R327 55498510 RMF 33K0 OHM +1% 250MI0W R328 55498510 RMF 33K0 OHM +1% 250MI0W R329 60441560 RCF 560R0 OHM +5% 250MI0W R330 60441560 RCF 560R0 OHM +5% 250MI0W R331 55498500 RMF 1K45 OHM +1% 250MI0W R332 55498500 RMF 1K45 OHM +1% 250MI0W R333 60441560 RCF 560R0 OHM +5% 250MI0W R334 60441560 RCF 560R0 OHM +5% 250MI0W R335 60441560 RCF 560R0 OHM +5% 250MI0W R336 60441560 RCF 560R0 OHM +5% 250MI0W R337 60441560 RCF 560R0 OHM +5% 250MI0W R338 60441560 RCF 560R0 OHM +5% 250MI0W R339 90571090 RCF 200R0 OHM +5% 250MI0W R340 90571090 RCF 200R0 OHM +5% 250MI0W R341 50883010 RCF 15K0 OHM +5% 250MI0W R342 50883010 RCF 15K0 OHM +5% 250MI0W R343 50883010 RCF 15K0 OHM +5% 250MI0W R344 50883010 RCF 15K0 OHM +5% 250MI0W R345 90571090 RCF 200R0 OHM +5% 250MI0W R346 90571090 RCF 200R0 OHM +5% 250MI0W R347 90571090 RCF 200R0 OHM +5% 250MI0W R348 90571090 RCF 200R0 OHM +5% 250MI0W R349 90571090 RCF 200R0 OHM +5% 250MI0W R350 90571090 RCF 200R0 OHM +5% 250MI0W R351 55232810 RMF 10R0 OHM +5% 500MI0W R352 55232810 RMF 10R0 OHM +5% 500MI0W R353 50882950 RCF 100R0 OHM +5% 250MI0W R354 50882950 RCF 100R0 OHM +5% 250MI0W R363 30939370 RCF 15R0 OHM +5% 250MI0W R364 30939370 RCF 15R0 OHM +5% 250MI0W R365 30939370 RCF 15R0 OHM +5% 250MI0W R366 30939370 RCF 15R0 OHM +5% 250MI0W R367 55232810 RMF 10R0 OHM +5% 500MI0W R368 55232810 RMF 10R0 OHM +5% 500MI0W R369 50882950 RCF 100R0 OHM +5% 250MI0W R370 50882950 RCF 100R0 OHM +5% 250MI0W R371 40438910 RCF 2R2 OHM +5% 250MI0W R372 40438910 RCF 2R2 OHM +5% 250MI0W R373 40438910 RCF 2R2 OHM +5% 250MI0W R374 40438910 RCF 2R2 OHM +5% 250MI0W R375 11059590 RCF 82R0 OHM +5% 250MI0W R376 11059590 RCF 82R0 OHM +5% 250MI0W R380 40435630 RCF 1K5 OHM +5% 250MI0W R381 40435630 RCF 1K5 OHM +5% 250MI0W R382 90571130 RCF 39K0 OHM +5% 250MI0W R383 90571130 RCF 39K0 OHM +5% 250MI0W R384 50883010 RCF 15K0 OHM +5% 250MI0W R385 50883010 RCF 15K0 OHM +5% 250MI0W R386 40435630 RCF 1K5 OHM +5% 250MI0W R387 40435630 RCF 1K5 OHM +5% 250MI0W R388 30939360 RCF 10R0 OHM +5% 250MI0W R388 55242290 RCF 10R0 OHM +5% 250MI0W R389 30939360 RCF 10R0 OHM +5% 250MI0W R389 55242290 RCF 10R0 OHM +5% 250MI0W
3/11
MAIN board AVR5550
Pos Tocom# SName
R390 60441580 RCF 22K0 OHM +5% 250MI0W R391 60441580 RCF 22K0 OHM +5% 250MI0W R401 60441550 RCF 330R0 OHM +5% 250MI0W R402 60441550 RCF 330R0 OHM +5% 250MI0W R403 30939490 RCF 33K0 OHM +5% 250MI0W R404 30939490 RCF 33K0 OHM +5% 250MI0W R405 50882990 RCF 1K6 OHM +5% 250MI0W R406 50882990 RCF 1K6 OHM +5% 250MI0W R407 50882990 RCF 1K6 OHM +5% 250MI0W R408 50882990 RCF 1K6 OHM +5% 250MI0W R409 20469450 RCF 220R0 OHM +5% 250MI0W R410 20469450 RCF 220R0 OHM +5% 250MI0W R411 20469450 RCF 220R0 OHM +5% 250MI0W R412 20469450 RCF 220R0 OHM +5% 250MI0W R413 20469450 RCF 220R0 OHM +5% 250MI0W R414 20469450 RCF 220R0 OHM +5% 250MI0W R415 20469510 RCF 43K0 OHM +5% 250MI0W R416 20469510 RCF 43K0 OHM +5% 250MI0W R417 55498510 RMF 33K0 OHM +1% 250MI0W R418 55498510 RMF 33K0 OHM +1% 250MI0W R419 55498500 RMF 1K45 OHM +1% 250MI0W R420 55498500 RMF 1K45 OHM +1% 250MI0W R421 60441560 RCF 560R0 OHM +5% 250MI0W R422 60441560 RCF 560R0 OHM +5% 250MI0W R423 60441560 RCF 560R0 OHM +5% 250MI0W R424 60441560 RCF 560R0 OHM +5% 250MI0W R425 60441560 RCF 560R0 OHM +5% 250MI0W R426 60441560 RCF 560R0 OHM +5% 250MI0W R427 60441560 RCF 560R0 OHM +5% 250MI0W R428 60441560 RCF 560R0 OHM +5% 250MI0W R429 60441560 RCF 560R0 OHM +5% 250MI0W R430 60441560 RCF 560R0 OHM +5% 250MI0W R431 60441560 RCF 560R0 OHM +5% 250MI0W R432 60441560 RCF 560R0 OHM +5% 250MI0W R433 90571090 RCF 200R0 OHM +5% 250MI0W R434 90571090 RCF 200R0 OHM +5% 250MI0W R435 90571090 RCF 200R0 OHM +5% 250MI0W R436 90571090 RCF 200R0 OHM +5% 250MI0W R437 50883010 RCF 15K0 OHM +5% 250MI0W R438 50883010 RCF 15K0 OHM +5% 250MI0W R439 50883010 RCF 15K0 OHM +5% 250MI0W R440 50883010 RCF 15K0 OHM +5% 250MI0W R441 90571090 RCF 200R0 OHM +5% 250MI0W R442 90571090 RCF 200R0 OHM +5% 250MI0W R443 90571090 RCF 200R0 OHM +5% 250MI0W R444 90571090 RCF 200R0 OHM +5% 250MI0W R445 55232810 RMF 10R0 OHM +5% 500MI0W R446 55232810 RMF 10R0 OHM +5% 500MI0W R447 55232810 RMF 10R0 OHM +5% 500MI0W R448 55232810 RMF 10R0 OHM +5% 500MI0W R457 50882950 RCF 100R0 OHM +5% 250MI0W R458 50882950 RCF 100R0 OHM +5% 250MI0W R459 50882950 RCF 100R0 OHM +5% 250MI0W R460 50882950 RCF 100R0 OHM +5% 250MI0W R461 30939370 RCF 15R0 OHM +5% 250MI0W R462 30939370 RCF 15R0 OHM +5% 250MI0W
4/11
MAIN board AVR5550
Pos Tocom# SName
R463 30939370 RCF 15R0 OHM +5% 250MI0W R464 30939370 RCF 15R0 OHM +5% 250MI0W R465 40438910 RCF 2R2 OHM +5% 250MI0W R466 40438910 RCF 2R2 OHM +5% 250MI0W R467 40438910 RCF 2R2 OHM +5% 250MI0W R468 40438910 RCF 2R2 OHM +5% 250MI0W R469 11059590 RCF 82R0 OHM +5% 250MI0W R470 11059590 RCF 82R0 OHM +5% 250MI0W R473 30939360 RCF 10R0 OHM +5% 250MI0W R473 55242290 RCF 10R0 OHM +5% 250MI0W R474 30939360 RCF 10R0 OHM +5% 250MI0W R474 55242290 RCF 10R0 OHM +5% 250MI0W R477 30939360 RCF 10R0 OHM +5% 250MI0W R478 30939360 RCF 10R0 OHM +5% 250MI0W R479 30939510 RCF 100K0 OHM +5% 250MI0W R480 30939510 RCF 100K0 OHM +5% 250MI0W R481 40435630 RCF 1K5 OHM +5% 250MI0W R482 50883010 RCF 15K0 OHM +5% 250MI0W R483 40435630 RCF 1K5 OHM +5% 250MI0W R484 90571130 RCF 39K0 OHM +5% 250MI0W R485 30939480 RCF 10K0 OHM +5% 250MI0W R486 60441580 RCF 22K0 OHM +5% 250MI0W R487 90571130 RCF 39K0 OHM +5% 250MI0W R488 40435630 RCF 1K5 OHM +5% 250MI0W R489 50883010 RCF 15K0 OHM +5% 250MI0W R490 40435630 RCF 1K5 OHM +5% 250MI0W R491 90571130 RCF 39K0 OHM +5% 250MI0W R492 60441580 RCF 22K0 OHM +5% 250MI0W R493 70430570 RCF 8K2 OHM +5% 250MI0W R497 11059610 RCF 270R0 OHM +5% 250MI0W R498 80437030 RCF 27K0 OHM +5% 250MI0W R501 30939510 RCF 100K0 OHM +5% 250MI0W R501 90571130 RCF 39K0 OHM +5% 250MI0W R502 30939510 RCF 100K0 OHM +5% 250MI0W R502 90571130 RCF 39K0 OHM +5% 250MI0W R503 30939510 RCF 100K0 OHM +5% 250MI0W R503 60441580 RCF 22K0 OHM +5% 250MI0W R512 90571090 RCF 200R0 OHM +5% 250MI0W R513 11059630 RCF 680R0 OHM +5% 250MI0W R593 50882970 RCF 470R0 OHM +5% 250MI0W R594 50882970 RCF 470R0 OHM +5% 250MI0W R601 11059640 RCF 1K0 OHM +5% 250MI0W R602 30939510 RCF 100K0 OHM +5% 250MI0W R603 11059640 RCF 1K0 OHM +5% 250MI0W R604 30939510 RCF 100K0 OHM +5% 250MI0W R605 30939480 RCF 10K0 OHM +5% 250MI0W R606 30939480 RCF 10K0 OHM +5% 250MI0W R607 90571120 RCF 12K0 OHM +5% 250MI0W R608 30939480 RCF 10K0 OHM +5% 250MI0W R609 50882950 RCF 100R0 OHM +5% 250MI0W R610 30939480 RCF 10K0 OHM +5% 250MI0W R611 30939480 RCF 10K0 OHM +5% 250MI0W R612 90571120 RCF 12K0 OHM +5% 250MI0W R613 30939480 RCF 10K0 OHM +5% 250MI0W R614 50882950 RCF 100R0 OHM +5% 250MI0W R615 40438910 RCF 2R2 OHM +5% 250MI0W
5/11
MAIN board AVR5550
Pos Tocom# SName
R616 40438910 RCF 2R2 OHM +5% 250MI0W R701 80437000 RCF 1K2 OHM +5% 250MI0W R702 55261230 RCF 330R0 OHM +5% 250MI0W R702 60441550 RCF 330R0 OHM +5% 250MI0W R705 55261230 RCF 330R0 OHM +5% 250MI0W R705 60441550 RCF 330R0 OHM +5% 250MI0W R707 80437000 RCF 1K2 OHM +5% 250MI0W R708 55261230 RCF 330R0 OHM +5% 250MI0W R708 60441550 RCF 330R0 OHM +5% 250MI0W R709 55261230 RCF 330R0 OHM +5% 250MI0W R709 60441550 RCF 330R0 OHM +5% 250MI0W R710 80437000 RCF 1K2 OHM +5% 250MI0W R711 80437000 RCF 1K2 OHM +5% 250MI0W C206 20269070 CE 100U0F +20% 25.0V 85C C207 20268870 CE 4U7F +20% 50.0V 85C C208 20269070 CE 100U0F +20% 25.0V 85C C210 20268840 CE 1U0F +20% 50.0V 85C C211 20268880 CE 10U0F +20% 50.0V 85C C213 20269070 CE 100U0F +20% 25.0V 85C C301 20268880 CE 10U0F +20% 50.0V 85C C302 20268880 CE 10U0F +20% 50.0V 85C C309 20269070 CE 100U0F +20% 25.0V 85C C310 20269070 CE 100U0F +20% 25.0V 85C C315 20246330 CC 3P0F +0P25F -0P25F 50.0V NP0 C316 20246330 CC 3P0F +0P25F -0P25F 50.0V NP0 C317 80434720 CC 180P0F +10% -10% 50.0V Y5P C318 80434720 CC 180P0F +10% -10% 50.0V Y5P C319 20268880 CE 10U0F +20% 50.0V 85C C320 20268880 CE 10U0F +20% 50.0V 85C C321 20268880 CE 10U0F +20% 50.0V 85C C322 20268880 CE 10U0F +20% 50.0V 85C C323 55179400 CPM 68N0F +5% 63.0V C324 55179400 CPM 68N0F +5% 63.0V C325 55179360 CPM 100N0F +10% 63.0V C326 55179360 CPM 100N0F +10% 63.0V C327 55179360 CPM 100N0F +10% 63.0V C328 55179360 CPM 100N0F +10% 63.0V C329 11055540 CC 2N2F +10% -10% 50.0V Y5P C330 11055540 CC 2N2F +10% -10% 50.0V Y5P C331 20269080 CE 220U0F +20% 10.0V 85C C332 20269080 CE 220U0F +20% 10.0V 85C C401 20268880 CE 10U0F +20% 50.0V 85C C402 20268880 CE 10U0F +20% 50.0V 85C C405 20269070 CE 100U0F +20% 25.0V 85C C406 20269070 CE 100U0F +20% 25.0V 85C C407 20269080 CE 220U0F +20% 10.0V 85C C408 20269080 CE 220U0F +20% 10.0V 85C C409 20246330 CC 3P0F +0P25F -0P25F 50.0V NP0 C410 20246330 CC 3P0F +0P25F -0P25F 50.0V NP0 C411 80434720 CC 180P0F +10% -10% 50.0V Y5P C412 80434720 CC 180P0F +10% -10% 50.0V Y5P C413 20268880 CE 10U0F +20% 50.0V 85C C414 20268880 CE 10U0F +20% 50.0V 85C C415 20268880 CE 10U0F +20% 50.0V 85C C416 20268880 CE 10U0F +20% 50.0V 85C C417 55179360 CPM 100N0F +10% 63.0V
6/11
MAIN board AVR5550
Pos Tocom# SName
C418 55179360 CPM 100N0F +10% 63.0V C419 55179360 CPM 100N0F +10% 63.0V C420 55179360 CPM 100N0F +10% 63.0V C425 11055540 CC 2N2F +10% -10% 50.0V Y5P C426 11055540 CC 2N2F +10% -10% 50.0V Y5P C429 20268880 CE 10U0F +20% 50.0V 85C C430 55179400 CPM 68N0F +5% 63.0V C431 55179400 CPM 68N0F +5% 63.0V C432 20252670 CE 470U0F +20% 10.0V 85C C501 55095430 CPM 100N0F +10% 250.0V C502 55095430 CPM 100N0F +10% 250.0V C503 55095430 CPM 100N0F +10% 250.0V C506 10364820 CPF 47N0F +10% 100.0V C507 10364820 CPF 47N0F +10% 100.0V C508 10364820 CPF 47N0F +10% 100.0V C511 10364820 CPF 47N0F +10% 100.0V C512 10364820 CPF 47N0F +10% 100.0V C513 10364820 CPF 47N0F +10% 100.0V C516 10364820 CPF 47N0F +10% 100.0V C518 20268880 CE 10U0F +20% 50.0V 85C C519 20268880 CE 10U0F +20% 50.0V 85C C520 20268880 CE 10U0F +20% 50.0V 85C C521 20268880 CE 10U0F +20% 50.0V 85C C522 20268880 CE 10U0F +20% 50.0V 85C C523 20268880 CE 10U0F +20% 50.0V 85C C524 20268880 CE 10U0F +20% 50.0V 85C C526 20269070 CE 100U0F +20% 25.0V 85C C528 10364820 CPF 47N0F +10% 100.0V C529 10364820 CPF 47N0F +10% 100.0V Q301 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q302 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q303 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q304 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q305 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q306 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q307 20508080 TR-SLPLF KTC3198BL N 150MI0A Q308 20508080 TR-SLPLF KTC3198BL N 150MI0A Q309 55233090 TR-SLPLF 2SA1145Y TO-92MOD P -50MI0A -150V Q310 55233090 TR-SLPLF 2SA1145Y TO-92MOD P -50MI0A -150V Q311 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q312 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q313 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q314 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q315 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q316 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q317 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q318 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q319 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q320 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q321 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q322 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q323 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q324 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q327 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q328 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q337 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V
7/11
MAIN board AVR5550
Pos Tocom# SName
Q338 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q401 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q402 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q403 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q404 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q405 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q406 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q407 20508080 TR-SLPLF KTC3198BL N 150MI0A Q408 20508080 TR-SLPLF KTC3198BL N 150MI0A Q409 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q410 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q411 55233090 TR-SLPLF 2SA1145Y TO-92MOD P -50MI0A -150V Q412 55233090 TR-SLPLF 2SA1145Y TO-92MOD P -50MI0A -150V Q413 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q414 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q415 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q416 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q417 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q418 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q419 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q420 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q421 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q422 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q423 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q424 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q425 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q426 20508080 TR-SLPLF KTC3198BL N 150MI0A Q429 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q430 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q431 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q432 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q441 20508080 TR-SLPLF KTC3198BL N 150MI0A Q442 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q443 55179230 TR-SLPSWA KRC107M N Q601 55133290 TR-SLPLF KTD1302 B N 300MI0A 20V Q602 55133290 TR-SLPLF KTD1302 B N 300MI0A 20V Q605 20508210 TR-SLPLF KTA1266 Y P 150MI0A Q606 20508080 TR-SLPLF KTC3198BL N 150MI0A Q607 20508210 TR-SLPLF KTA1266 Y P 150MI0A Q608 20508080 TR-SLPLF KTC3198BL N 150MI0A C209 20936650 CC 100P0F +10% -10% 50.0V Y5P C212 20267290 CCCFMIN 100N0F +80% -20% 50.0V Y5V C212 20293470 CC 100N0F +80% -20% 50.0V F C214 20267290 CCCFMIN 100N0F +80% -20% 50.0V Y5V C214 20293470 CC 100N0F +80% -20% 50.0V F C303 13076940 CE 470U0F +20% 63.0V 85C C304 13076940 CE 470U0F +20% 63.0V 85C C305 13076940 CE 470U0F +20% 63.0V 85C C306 13076940 CE 470U0F +20% 63.0V 85C C421 13076940 CE 470U0F +20% 63.0V 85C C422 13076940 CE 470U0F +20% 63.0V 85C C423 13076940 CE 470U0F +20% 63.0V 85C C424 13076940 CE 470U0F +20% 63.0V 85C C504 55507480 CE 12MI0F +20% 63.0V 85C C505 55507480 CE 12MI0F +20% 63.0V 85C C509 40433130 CE 2MI2F +20% 35.0V 85C
8/11
MAIN board AVR5550
Pos Tocom# SName
C510 40433130 CE 2MI2F +20% 35.0V 85C C514 55126160 CE 6MI8F +20% 16.0V 85C C515 13039870 CE 2MI2F +20% 16.0V 85C C517 13039590 CE 1MI0F +20% 35.0V 85C C517 13039900 CE 2MI2F +20% 50.0V 85C D501 55179320 D-BRDLC BRIDGE BU10-04 D502 55179300 D-BRDLC BRIDGE W2-04F FRONTIER D503 55125540 D-BRDLC BU6-04F D505 55179300 D-BRDLC BRIDGE W2-04F FRONTIER F501 55505200 FUSTIM 2.0 A 250.0 V 0 A1 F502 55505200 FUSTIM 2.0 A 250.0 V 0 A1 F503 55505200 FUSTIM 2.0 A 250.0 V 0 A1 F504 55505200 FUSTIM 2.0 A 250.0 V 0 A1 F505 55505190 FUSTIM 1.0 A 250.0 V 0 A1 F506 55505190 FUSTIM 1.0 A 250.0 V 0 A1 G101 55135980 TERMLUG GND G102 55135980 TERMLUG GND HK11 55176400 AC HEATSINK REG 118*20*50H AVR520 -- ME HK12 55554410 AC HEATSINK DIODE 39X26X12 AVR525 -- ME
IC22 55142610 IC-OPERAMP NJM2068M DUAL OP IC51 20832440 IC-REGPOSFXD KIA7815API NORMAL IC52 55124020 IC-REGNEGFXD KIA7915PI NORMAL IC53 55125450 IC-REGPOSFXD BA033T NORMAL IC54 55505780 IC-REGPOSFXD KIA7824API TO-220IS NORMAL IC55 55123960 IC-REGPOSFXD KIA7805API NORMAL IC56 55123990 IC-REGNEGFXD KIA7905PI NORMAL IC57 55179240 IC-REGULADJ KA337 TO-220 IC57 55179240 IC-REGULADJ KA337 TO-220 IC59 55094390 IC-REGPOSFXD KIA7812API NORMAL
L301 55179560 LFA 1MM 10MM 5 LEFT 0.0MM NONE N801 55158680 WIRECONASY UNIQUE 2 80MM UL1007 PVC DISCRETE 26 N802 55158680 WIRECONASY UNIQUE 2 80MM UL1007 PVC DISCRETE 26 N803 55158680 WIRECONASY UNIQUE 2 80MM UL1007 PVC DISCRETE 26 N804 55158680 WIRECONASY UNIQUE 2 80MM UL1007 PVC DISCRETE 26 N805 55504030 WIRECONASY DL 2.0MM 8P 150MM UL1533 SHIELD 26 1 N805 55597850 WIRECONASY DL 2.0MM 8P 180MM UL1533 SHIELD 26 1 N806 55504040 WIRECONASY DL 2.0MM 15P 350MM UL1533 SHIELD 26 1 N807 55432960 WIRECONASY DL 2.0MM 3P 210MM UL1007 RIBBON 26 12 N807 55503510 WIRECONASY DL 2.0MM 3P 280MM UL1007 RIBBON 26 1 N808 55191240 WIRECONASY UNIQUE 3P 500MM UL1007 PVC DISCRETE 26 1 N808 55287670 WIRECONASY UNIQUE 3P 540MM UL1007 PVC DISCRETE 26 1 N809 55559240 WIRECONASY DL 2.0MM 3P 250MM UL1007 RIBBON 26 1 NJ11 55191450 CON PHONO SCKT RCA 4P JW-4104RSC NJ12 55191420 CON PHONO SCKT RCA 4P JW-4104RSA NJ13 55426050 JACK-TELE SNAP-IN GOLDEN TELECOM GDL1-8P8C 8T BK 0 0 NJ14 55436070 CONN-SPE TERMINAL SPKR 8P SH081136JP FE 19MM 8 -- 0 0 P801 55146560 CONN 2.5MM 2 MA ST NAT 0 0 P802 55146560 CONN 2.5MM 2 MA ST NAT 0 0 P803 55146560 CONN 2.5MM 2 MA ST NAT 0 0 P804 55146560 CONN 2.5MM 2 MA ST NAT 0 0 P805 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 P806 55123310 CONN 2.0MM 4 MA ST NAT LW2002P04 0 0 P807 55171550 CON 3.96MM PITCH MOLEX 35313-0310 P808 55146630 CONN 2.5MM 8 MA ST NAT 0 0 P809 55146560 CONN 2.5MM 2 MA ST NAT 0 0 P810 55146560 CONN 2.5MM 2 MA ST NAT 0 0
9/11
MAIN board AVR5550
Pos Tocom# SName
P811 55174630 CONN 2.0MM 19 MA ST NAT MOLEX 35336-1910 0 0 P812 55090070 CONN 2.0MM 2 MA ST NAT LW2002P0200T 0 0 P813 55090070 CONN 2.0MM 2 MA ST NAT LW2002P0200T 0 0 P814 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 P815 55090070 CONN 2.0MM 2 MA ST NAT LW2002P0200T 0 0 P816 55090070 CONN 2.0MM 2 MA ST NAT LW2002P0200T 0 0
PO71 55505180 POS 100R0 OHM 16.0V PO72 55179640 POS 100R0 OHM 16.0V Q329 55179190 TR-SHPLF 2SA1859A P -2.0A Q330 55179190 TR-SHPLF 2SA1859A P -2.0A Q331 55179200 TR-SHPLF 2SC4883A N 2.0A Q332 55179200 TR-SHPLF 2SC4883A N 2.0A Q333 55179180 TR-SHPLF 2SC5358-R N 15.0A Q334 55179180 TR-SHPLF 2SC5358-R N 15.0A Q335 55179150 TR-SHPLF 2SA1986-R P -15.0A Q336 55179150 TR-SHPLF 2SA1986-R P -15.0A Q433 55179190 TR-SHPLF 2SA1859A P -2.0A Q434 55179190 TR-SHPLF 2SA1859A P -2.0A Q435 55179200 TR-SHPLF 2SC4883A N 2.0A Q436 55179200 TR-SHPLF 2SC4883A N 2.0A Q437 55179180 TR-SHPLF 2SC5358-R N 15.0A Q438 55179180 TR-SHPLF 2SC5358-R N 15.0A Q439 55179150 TR-SHPLF 2SA1986-R P -15.0A Q440 55179150 TR-SHPLF 2SA1986-R P -15.0A Q701 55133270 TR-SHPLF 2SC4137 N 100MI0A 20V Q702 55133270 TR-SHPLF 2SC4137 N 100MI0A 20V Q703 55133270 TR-SHPLF 2SC4137 N 100MI0A 20V Q704 55133270 TR-SHPLF 2SC4137 N 100MI0A 20V
R378 55179340 RW 220MI0 OHM +5% 5.0W 100PPM/'C -100PPM/'C R379 55179340 RW 220MI0 OHM +5% 5.0W 100PPM/'C -100PPM/'C R392 60442550 RMOF 10R0 OHM +5% 1.0W R393 60442550 RMOF 10R0 OHM +5% 1.0W R471 55179340 RW 220MI0 OHM +5% 5.0W 100PPM/'C -100PPM/'C R472 55179340 RW 220MI0 OHM +5% 5.0W 100PPM/'C -100PPM/'C R475 60442550 RMOF 10R0 OHM +5% 1.0W R476 60442550 RMOF 10R0 OHM +5% 1.0W R504 40440550 RMOF 3R3 OHM +5% 2.0W R505 15022710 RMOF 10R0 OHM +5% 2.0W R506 15022710 RMOF 10R0 OHM +5% 2.0W R507 80442770 RMOF 2R2 OHM +5% 2.0W R507 80442780 RMOF 4R7 OHM +5% 2.0W R508 80442780 RMOF 4R7 OHM +5% 2.0W R509 80442780 RMOF 4R7 OHM +5% 2.0W R510 40440550 RMOF 3R3 OHM +5% 2.0W R514 40440550 RMOF 3R3 OHM +5% 2.0W R515 80442780 RMOF 4R7 OHM +5% 2.0W
VR71 55152180 PR 1K0 OHM +30% 100MI0W VR71 55244060 PR 220R0 OHM +30% 100MI0W VR71 55307870 PR 200R0 OHM +30% 100MI0W VR72 55152180 PR 1K0 OHM +30% 100MI0W VR72 55244060 PR 220R0 OHM +30% 100MI0W VR72 55307870 PR 200R0 OHM +30% 100MI0W VR73 55152180 PR 1K0 OHM +30% 100MI0W VR73 55244060 PR 220R0 OHM +30% 100MI0W VR73 55307870 PR 200R0 OHM +30% 100MI0W VR74 55152180 PR 1K0 OHM +30% 100MI0W
10/11
MAIN board AVR5550
Pos Tocom# SName
VR74 55244060 PR 220R0 OHM +30% 100MI0W VR74 55307870 PR 200R0 OHM +30% 100MI0W W801 55310330 WCL 110-10-10 UL1007 HOOK-UP 22 110MM RD 10 10 20300350 0.0MM
11/11
SURROUND board AVR5550
Pos Tocom# SName
D301 70436540 D-SLP 1N4148 100.0V 150E-3A D302 70436540 D-SLP 1N4148 100.0V 150E-3A D303 70436540 D-SLP 1N4148 100.0V 150E-3A D304 70436540 D-SLP 1N4148 100.0V 150E-3A D401 70436540 D-SLP 1N4148 100.0V 150E-3A D402 70436540 D-SLP 1N4148 100.0V 150E-3A D403 70436540 D-SLP 1N4148 100.0V 150E-3A D404 70436540 D-SLP 1N4148 100.0V 150E-3A D501 70436540 D-SLP 1N4148 100.0V 150E-3A D502 70436540 D-SLP 1N4148 100.0V 150E-3A D503 70436540 D-SLP 1N4148 100.0V 150E-3A D504 70436540 D-SLP 1N4148 100.0V 150E-3A D601 70436540 D-SLP 1N4148 100.0V 150E-3A R301 60441550 RCF 330R0 OHM +5% 250MI0W R302 30939490 RCF 33K0 OHM +5% 250MI0W R303 55232810 RMF 10R0 OHM +5% 500MI0W R304 20469510 RCF 43K0 OHM +5% 250MI0W R305 20469450 RCF 220R0 OHM +5% 250MI0W R306 20469450 RCF 220R0 OHM +5% 250MI0W R307 20469450 RCF 220R0 OHM +5% 250MI0W R308 50882970 RCF 470R0 OHM +5% 250MI0W R309 50882990 RCF 1K6 OHM +5% 250MI0W R310 50882990 RCF 1K6 OHM +5% 250MI0W R311 60441560 RCF 560R0 OHM +5% 250MI0W R312 55498510 RMF 33K0 OHM +1% 250MI0W R313 55498500 RMF 1K45 OHM +1% 250MI0W R314 60441560 RCF 560R0 OHM +5% 250MI0W R315 60441560 RCF 560R0 OHM +5% 250MI0W R316 60441560 RCF 560R0 OHM +5% 250MI0W R317 60441560 RCF 560R0 OHM +5% 250MI0W R318 60441560 RCF 560R0 OHM +5% 250MI0W R319 90571090 RCF 200R0 OHM +5% 250MI0W R320 50883010 RCF 15K0 OHM +5% 250MI0W R321 50883010 RCF 15K0 OHM +5% 250MI0W R322 90571090 RCF 200R0 OHM +5% 250MI0W R323 90571090 RCF 200R0 OHM +5% 250MI0W R324 90571090 RCF 200R0 OHM +5% 250MI0W R325 55232810 RMF 10R0 OHM +5% 500MI0W R326 50882950 RCF 100R0 OHM +5% 250MI0W R327 40438910 RCF 2R2 OHM +5% 250MI0W R328 30939370 RCF 15R0 OHM +5% 250MI0W R329 80437000 RCF 1K2 OHM +5% 250MI0W R330 60441550 RCF 330R0 OHM +5% 250MI0W R333 55232810 RMF 10R0 OHM +5% 500MI0W R334 11059590 RCF 82R0 OHM +5% 250MI0W R335 30939370 RCF 15R0 OHM +5% 250MI0W R336 50882950 RCF 100R0 OHM +5% 250MI0W R337 40438910 RCF 2R2 OHM +5% 250MI0W R339 40435630 RCF 1K5 OHM +5% 250MI0W R340 50883010 RCF 15K0 OHM +5% 250MI0W R341 40435630 RCF 1K5 OHM +5% 250MI0W R342 90571130 RCF 39K0 OHM +5% 250MI0W R343 55242290 RCF 10R0 OHM +5% 250MI0W R344 60441580 RCF 22K0 OHM +5% 250MI0W R346 30939510 RCF 100K0 OHM +5% 250MI0W R401 60441550 RCF 330R0 OHM +5% 250MI0W
1/5
SURROUND board AVR5550
Pos Tocom# SName
R402 30939490 RCF 33K0 OHM +5% 250MI0W R403 55232810 RMF 10R0 OHM +5% 500MI0W R404 20469510 RCF 43K0 OHM +5% 250MI0W R405 20469450 RCF 220R0 OHM +5% 250MI0W R406 20469450 RCF 220R0 OHM +5% 250MI0W R407 20469450 RCF 220R0 OHM +5% 250MI0W R408 50882970 RCF 470R0 OHM +5% 250MI0W R409 50882990 RCF 1K6 OHM +5% 250MI0W R410 50882990 RCF 1K6 OHM +5% 250MI0W R411 60441560 RCF 560R0 OHM +5% 250MI0W R412 55498510 RMF 33K0 OHM +1% 250MI0W R413 55498500 RMF 1K45 OHM +1% 250MI0W R414 60441560 RCF 560R0 OHM +5% 250MI0W R415 60441560 RCF 560R0 OHM +5% 250MI0W R416 60441560 RCF 560R0 OHM +5% 250MI0W R417 60441560 RCF 560R0 OHM +5% 250MI0W R418 60441560 RCF 560R0 OHM +5% 250MI0W R419 90571090 RCF 200R0 OHM +5% 250MI0W R420 50883010 RCF 15K0 OHM +5% 250MI0W R421 50883010 RCF 15K0 OHM +5% 250MI0W R422 90571090 RCF 200R0 OHM +5% 250MI0W R423 90571090 RCF 200R0 OHM +5% 250MI0W R424 90571090 RCF 200R0 OHM +5% 250MI0W R425 55232810 RMF 10R0 OHM +5% 500MI0W R426 50882950 RCF 100R0 OHM +5% 250MI0W R427 40438910 RCF 2R2 OHM +5% 250MI0W R428 30939370 RCF 15R0 OHM +5% 250MI0W R429 80437000 RCF 1K2 OHM +5% 250MI0W R430 60441550 RCF 330R0 OHM +5% 250MI0W R433 55232810 RMF 10R0 OHM +5% 500MI0W R434 11059590 RCF 82R0 OHM +5% 250MI0W R435 30939370 RCF 15R0 OHM +5% 250MI0W R436 50882950 RCF 100R0 OHM +5% 250MI0W R437 40438910 RCF 2R2 OHM +5% 250MI0W R439 40435630 RCF 1K5 OHM +5% 250MI0W R440 50883010 RCF 15K0 OHM +5% 250MI0W R441 40435630 RCF 1K5 OHM +5% 250MI0W R442 90571130 RCF 39K0 OHM +5% 250MI0W R443 55242290 RCF 10R0 OHM +5% 250MI0W R444 60441580 RCF 22K0 OHM +5% 250MI0W R446 30939510 RCF 100K0 OHM +5% 250MI0W R501 60441550 RCF 330R0 OHM +5% 250MI0W R502 30939490 RCF 33K0 OHM +5% 250MI0W R503 55232810 RMF 10R0 OHM +5% 500MI0W R504 20469510 RCF 43K0 OHM +5% 250MI0W R505 20469450 RCF 220R0 OHM +5% 250MI0W R506 20469450 RCF 220R0 OHM +5% 250MI0W R507 20469450 RCF 220R0 OHM +5% 250MI0W R508 50882970 RCF 470R0 OHM +5% 250MI0W R509 50882990 RCF 1K6 OHM +5% 250MI0W R510 50882990 RCF 1K6 OHM +5% 250MI0W R511 60441560 RCF 560R0 OHM +5% 250MI0W R512 55498510 RMF 33K0 OHM +1% 250MI0W R513 55498500 RMF 1K45 OHM +1% 250MI0W R514 60441560 RCF 560R0 OHM +5% 250MI0W R515 60441560 RCF 560R0 OHM +5% 250MI0W
2/5
SURROUND board AVR5550
Pos Tocom# SName
R516 60441560 RCF 560R0 OHM +5% 250MI0W R517 60441560 RCF 560R0 OHM +5% 250MI0W R518 60441560 RCF 560R0 OHM +5% 250MI0W R519 90571090 RCF 200R0 OHM +5% 250MI0W R520 50883010 RCF 15K0 OHM +5% 250MI0W R521 50883010 RCF 15K0 OHM +5% 250MI0W R522 90571090 RCF 200R0 OHM +5% 250MI0W R523 90571090 RCF 200R0 OHM +5% 250MI0W R524 90571090 RCF 200R0 OHM +5% 250MI0W R525 55232810 RMF 10R0 OHM +5% 500MI0W R526 50882950 RCF 100R0 OHM +5% 250MI0W R527 40438910 RCF 2R2 OHM +5% 250MI0W R528 30939370 RCF 15R0 OHM +5% 250MI0W R529 80437000 RCF 1K2 OHM +5% 250MI0W R530 60441550 RCF 330R0 OHM +5% 250MI0W R533 55232810 RMF 10R0 OHM +5% 500MI0W R534 11059590 RCF 82R0 OHM +5% 250MI0W R535 30939370 RCF 15R0 OHM +5% 250MI0W R536 50882950 RCF 100R0 OHM +5% 250MI0W R537 40438910 RCF 2R2 OHM +5% 250MI0W R539 40435630 RCF 1K5 OHM +5% 250MI0W R540 50883010 RCF 15K0 OHM +5% 250MI0W R541 40435630 RCF 1K5 OHM +5% 250MI0W R542 90571130 RCF 39K0 OHM +5% 250MI0W R543 55242290 RCF 10R0 OHM +5% 250MI0W R544 60441580 RCF 22K0 OHM +5% 250MI0W R546 30939510 RCF 100K0 OHM +5% 250MI0W R601 30939480 RCF 10K0 OHM +5% 250MI0W R602 90571130 RCF 39K0 OHM +5% 250MI0W C303 20268880 CE 10U0F +20% 50.0V 85C C304 70428390 CC 270P0F +10% -10% 50.0V Y5P C305 20269070 CE 100U0F +20% 25.0V 85C C306 40433580 CC 680P0F +10% -10% 50.0V Y5P C307 20246330 CC 3P0F +0P25F -0P25F 50.0V NP0 C308 20269080 CE 220U0F +20% 10.0V 85C C309 80434720 CC 180P0F +10% -10% 50.0V Y5P C310 55179400 CPM 68N0F +5% 63.0V C311 20268880 CE 10U0F +20% 50.0V 85C C312 20268880 CE 10U0F +20% 50.0V 85C C313 55179360 CPM 100N0F +10% 63.0V C314 55179360 CPM 100N0F +10% 63.0V C320 11055580 CC 4N7F +10% -10% 50.0V Y5P C331 11055560 CC 3N3F +10% -10% 50.0V Y5P C403 20268880 CE 10U0F +20% 50.0V 85C C404 70428390 CC 270P0F +10% -10% 50.0V Y5P C405 20269070 CE 100U0F +20% 25.0V 85C C406 40433580 CC 680P0F +10% -10% 50.0V Y5P C407 20246330 CC 3P0F +0P25F -0P25F 50.0V NP0 C408 20269080 CE 220U0F +20% 10.0V 85C C409 80434720 CC 180P0F +10% -10% 50.0V Y5P C410 55179400 CPM 68N0F +5% 63.0V C411 20268880 CE 10U0F +20% 50.0V 85C C412 20268880 CE 10U0F +20% 50.0V 85C C413 55179360 CPM 100N0F +10% 63.0V C414 55179360 CPM 100N0F +10% 63.0V C420 11055580 CC 4N7F +10% -10% 50.0V Y5P
3/5
SURROUND board AVR5550
Pos Tocom# SName
C431 11055560 CC 3N3F +10% -10% 50.0V Y5P C503 20268880 CE 10U0F +20% 50.0V 85C C504 70428390 CC 270P0F +10% -10% 50.0V Y5P C505 20269070 CE 100U0F +20% 25.0V 85C C506 40433580 CC 680P0F +10% -10% 50.0V Y5P C507 20246330 CC 3P0F +0P25F -0P25F 50.0V NP0 C508 20269080 CE 220U0F +20% 10.0V 85C C509 80434720 CC 180P0F +10% -10% 50.0V Y5P C510 55179400 CPM 68N0F +5% 63.0V C511 20268880 CE 10U0F +20% 50.0V 85C C512 20268880 CE 10U0F +20% 50.0V 85C C513 55179360 CPM 100N0F +10% 63.0V C514 55179360 CPM 100N0F +10% 63.0V C520 11055580 CC 4N7F +10% -10% 50.0V Y5P C531 11055560 CC 3N3F +10% -10% 50.0V Y5P C601 15002130 CE 10U0F +20% 16.0V 85C Q301 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q302 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q303 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q304 20508080 TR-SLPLF KTC3198BL N 150MI0A Q305 55233090 TR-SLPLF 2SA1145Y TO-92MOD P -50MI0A -150V Q306 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q307 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q308 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q309 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q311 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q312 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q313 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q315 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q320 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q401 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q402 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q403 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q404 20508080 TR-SLPLF KTC3198BL N 150MI0A Q405 55233090 TR-SLPLF 2SA1145Y TO-92MOD P -50MI0A -150V Q406 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q407 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q408 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q409 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q411 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q412 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q413 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q415 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q420 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q501 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q502 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q503 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q504 20508080 TR-SLPLF KTC3198BL N 150MI0A Q505 55233090 TR-SLPLF 2SA1145Y TO-92MOD P -50MI0A -150V Q506 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V Q507 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q508 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q509 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q511 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q512 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V Q513 55133240 TR-SLPLF KTC3206 Y N 50MI0A 150V
4/5
SURROUND board AVR5550
Pos Tocom# SName
Q515 55133260 TR-SLPLF KTA1024 Y P 50MI0A -150V Q520 20556600 TR-SHPLF KTC3200BL N 100MI0A 120V Q601 20647850 TR-SHPLF KTA1268BL P 100MI0A 120V C301 13076940 CE 470U0F +20% 63.0V 85C C302 13076940 CE 470U0F +20% 63.0V 85C C401 13076940 CE 470U0F +20% 63.0V 85C C402 13076940 CE 470U0F +20% 63.0V 85C C501 13076940 CE 470U0F +20% 63.0V 85C C502 13076940 CE 470U0F +20% 63.0V 85C G601 55135980 TERMLUG GND G602 55135980 TERMLUG GND G603 55135980 TERMLUG GND G604 55135980 TERMLUG GND G605 55135980 TERMLUG GND L301 55179560 LFA 1MM 10MM 5 LEFT 0.0MM NONE L401 55179560 LFA 1MM 10MM 5 LEFT 0.0MM NONE L501 55179560 LFA 1MM 10MM 5 LEFT 0.0MM NONE N306 55504010 WIRECONASY DL 2.0MM 6P 250MM UL1533 SHIELD 26 1 NJ31 55436090 CONN-SPE TERMINAL SPKR 6P SH0611708P FE 19MM 6 BK 0 0 P301 55104560 CONN 2.5MM 2 MA R NAT 0 0 P303 55171550 CON 3.96MM PITCH MOLEX 35313-0310 P304 55175430 CON 3.96MM PITCH MOREX 35313-0410 P307 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 P308 55104560 CONN 2.5MM 2 MA R NAT 0 0 P309 55104560 CONN 2.5MM 2 MA R NAT 0 0
P310 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 PO51 55179640 POS 100R0 OHM 16.0V PO52 55505180 POS 100R0 OHM 16.0V Q314 55133270 TR-SHPLF 2SC4137 N 100MI0A 20V Q316 55179190 TR-SHPLF 2SA1859A P -2.0A Q317 55179200 TR-SHPLF 2SC4883A N 2.0A Q318 55179180 TR-SHPLF 2SC5358-R N 15.0A Q319 55179150 TR-SHPLF 2SA1986-R P -15.0A Q414 55133270 TR-SHPLF 2SC4137 N 100MI0A 20V Q416 55179190 TR-SHPLF 2SA1859A P -2.0A Q417 55179200 TR-SHPLF 2SC4883A N 2.0A Q418 55179180 TR-SHPLF 2SC5358-R N 15.0A Q419 55179150 TR-SHPLF 2SA1986-R P -15.0A Q514 55133270 TR-SHPLF 2SC4137 N 100MI0A 20V Q516 55179190 TR-SHPLF 2SA1859A P -2.0A Q517 55179200 TR-SHPLF 2SC4883A N 2.0A Q518 55179180 TR-SHPLF 2SC5358-R N 15.0A Q519 55179150 TR-SHPLF 2SA1986-R P -15.0A
R338 55179340 RW 220MI0 OHM +5% 5.0W 100PPM/'C -100PPM/'C
R345 60442550 RMOF 10R0 OHM +5% 1.0W
R438 55179340 RW 220MI0 OHM +5% 5.0W 100PPM/'C -100PPM/'C
R445 60442550 RMOF 10R0 OHM +5% 1.0W
R538 55179340 RW 220MI0 OHM +5% 5.0W 100PPM/'C -100PPM/'C
R545 60442550 RMOF 10R0 OHM +5% 1.0W VR31 55250320 PR 200R0 OHM +20% 500MI0W VR41 55250320 PR 200R0 OHM +20% 500MI0W VR51 55250320 PR 200R0 OHM +20% 500MI0W W301 20649250 WCL 060-05-05 UL1007 HOOK-UP 22 60MM BK 5 5 20297640
5/5
Processor board AVR5550
Pos
C111 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C115 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C130 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C134 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C137 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C141 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C150 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R C154 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C157 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C161 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C167 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C171 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C199 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C200 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C66 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C68 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C93 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R D1 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D10 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D11 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D12 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D13 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D14 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D15 20496510 D-SLP 1SS355 35.0V 225MI0A D16 20496510 D-SLP 1SS355 35.0V 225MI0A D17 20496510 D-SLP 1SS355 35.0V 225MI0A D20 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D21 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D5 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D6 20496510 D-SLP 1SS355 35.0V 225MI0A D7 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D8 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D9 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W IC1 55142610 IC-OPERAMP NJM2068M DUAL OP IC11 55142610 IC-OPERAMP NJM2068M DUAL OP IC12 55142610 IC-OPERAMP NJM2068M DUAL OP IC13 55142610 IC-OPERAMP NJM2068M DUAL OP IC14 55506480 IC-SWITCH NJU7311AM ANALOG SWITCH IC15 55142610 IC-OPERAMP NJM2068M DUAL OP IC16 55142610 IC-OPERAMP NJM2068M DUAL OP IC17 55142610 IC-OPERAMP NJM2068M DUAL OP IC18 55142720 IC-LOWFREQ KIC9459F SOP24 TONE/VOL/BAL/MUTE IC19 55179480 IC-LOWFREQ TC9482F SOP28 TONE/VOL/BAL/MUTE IC2 55142720 IC-LOWFREQ KIC9459F SOP24 TONE/VOL/BAL/MUTE IC20 55142590 IC-OPERAMP NJM5532M DUAL OP IC21 55142610 IC-OPERAMP NJM2068M DUAL OP IC22 55142610 IC-OPERAMP NJM2068M DUAL OP IC23 55142610 IC-OPERAMP NJM2068M DUAL OP IC24 55142610 IC-OPERAMP NJM2068M DUAL OP IC25 55142610 IC-OPERAMP NJM2068M DUAL OP IC26 55142610 IC-OPERAMP NJM2068M DUAL OP IC3 55506490 IC-SWITCH NJU7312AM ANALOG SWITCH IC4 55142610 IC-OPERAMP NJM2068M DUAL OP IC5 55506480 IC-SWITCH NJU7311AM ANALOG SWITCH IC7 55142610 IC-OPERAMP NJM2068M DUAL OP IC8 55142610 IC-OPERAMP NJM2068M DUAL OP
Tocom#
SName
1/16
Processor board AVR5550
Pos
IC9 55142610 IC-OPERAMP NJM2068M DUAL OP J23 10328750 RMGCFMIC 0 OHM +0% 62MI5W J24 10328750 RMGCFMIC 0 OHM +0% 62MI5W J25 10328750 RMGCFMIC 0 OHM +0% 62MI5W Q10 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q11 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q12 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q13 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q14 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q15 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q16 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q17 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q20 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q23 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q25 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q3 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q32 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q34 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q35 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q37 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q41 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q43 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q50 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q51 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q52 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q53 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q58 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q59 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q7 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q8 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q9 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A R122 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R125 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R135 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R156 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R157 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R158 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R159 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R160 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R19 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R190 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R197 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R201 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R208 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R209 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R210 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R211 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R213 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R214 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R217 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R218 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R219 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R223 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R224 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R225 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R227 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W
Tocom#
SName
2/16
Processor board AVR5550
Pos
R228 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R23 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R232 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R24 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R242 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R243 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R253 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R257 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R258 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R260 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R261 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R262 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R265 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R266 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R267 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R271 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R272 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R273 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R275 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R276 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R280 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R290 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R291 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R295 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R296 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R297 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R299 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R300 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R304 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R314 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R315 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R316 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R317 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R318 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R322 10135050 RMGCFMIC 15K0 OHM +5% 62MI5W R323 10135050 RMGCFMIC 15K0 OHM +5% 62MI5W R328 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R330 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R331 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R332 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R333 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R37 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R38 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R53 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R54 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R55 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R7 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R72 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R8 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R83 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R84 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R87 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R89 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R90 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R97 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W AI01 55583740 AC ESABD SMD TOP PRO BD AVR5550
Tocom#
SName
3/16
Processor board AVR5550
Pos
C111 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C115 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C130 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C134 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C137 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C141 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C150 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R C154 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C157 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C161 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C167 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C171 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C199 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C200 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C66 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C68 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C93 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R D1 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D10 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D11 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D12 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D13 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D14 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D15 20496510 D-SLP 1SS355 35.0V 225MI0A D16 20496510 D-SLP 1SS355 35.0V 225MI0A D17 20496510 D-SLP 1SS355 35.0V 225MI0A D20 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D21 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D5 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D6 20496510 D-SLP 1SS355 35.0V 225MI0A D7 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D8 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D9 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W IC1 55142610 IC-OPERAMP NJM2068M DUAL OP IC11 55142610 IC-OPERAMP NJM2068M DUAL OP IC12 55142610 IC-OPERAMP NJM2068M DUAL OP IC13 55142610 IC-OPERAMP NJM2068M DUAL OP IC14 55506480 IC-SWITCH NJU7311AM ANALOG SWITCH IC15 55142610 IC-OPERAMP NJM2068M DUAL OP IC16 55142610 IC-OPERAMP NJM2068M DUAL OP IC17 55142610 IC-OPERAMP NJM2068M DUAL OP IC18 55142720 IC-LOWFREQ KIC9459F SOP24 TONE/VOL/BAL/MUTE IC19 55179480 IC-LOWFREQ TC9482F SOP28 TONE/VOL/BAL/MUTE IC2 55142720 IC-LOWFREQ KIC9459F SOP24 TONE/VOL/BAL/MUTE IC20 55142590 IC-OPERAMP NJM5532M DUAL OP IC21 55142610 IC-OPERAMP NJM2068M DUAL OP IC22 55142610 IC-OPERAMP NJM2068M DUAL OP IC23 55142610 IC-OPERAMP NJM2068M DUAL OP IC24 55142610 IC-OPERAMP NJM2068M DUAL OP IC25 55142610 IC-OPERAMP NJM2068M DUAL OP IC26 55142610 IC-OPERAMP NJM2068M DUAL OP IC3 55506490 IC-SWITCH NJU7312AM ANALOG SWITCH IC4 55142610 IC-OPERAMP NJM2068M DUAL OP
Tocom#
20 55514200 AC PCB PRE BD AVR525 DUAL LAYERS 20 5551420A AC PCB PRE BD AVR525 DUAL LAYERS 42 55015690 SOLDER PASTE SN63/PB37 NO CLEAN
SName
4/16
Processor board AVR5550
Pos
IC5 55506480 IC-SWITCH NJU7311AM ANALOG SWITCH IC7 55142610 IC-OPERAMP NJM2068M DUAL OP IC8 55142610 IC-OPERAMP NJM2068M DUAL OP IC9 55142610 IC-OPERAMP NJM2068M DUAL OP J23 10328750 RMGCFMIC 0 OHM +0% 62MI5W J24 10328750 RMGCFMIC 0 OHM +0% 62MI5W J25 10328750 RMGCFMIC 0 OHM +0% 62MI5W Q10 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q11 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q12 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q13 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q14 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q15 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q16 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q17 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q20 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q23 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q25 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q3 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q32 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q34 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q35 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q37 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q41 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q43 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q50 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q51 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q52 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q53 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q58 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q59 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q7 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q8 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q9 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A R122 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R125 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R135 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R156 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R157 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R158 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R159 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R160 10135900 RMGCFMIC 3K3 OHM +5% 62MI5W R19 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R190 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R197 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R201 10134650 RMGCFMIC 47R0 OHM +5% 62MI5W R208 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R209 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R210 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R211 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R213 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R214 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R217 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R218 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R219 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R223 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W
Tocom#
SName
5/16
Processor board AVR5550
Pos
R224 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R225 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R227 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R228 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R23 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R232 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R24 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R242 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R243 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R253 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R257 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R258 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R260 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R261 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R262 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R265 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R266 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R267 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R271 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R272 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R273 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R275 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R276 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R280 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R290 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R291 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R295 10135080 RMGCFMIC 18K0 OHM +5% 62MI5W R296 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R297 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R299 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R300 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R304 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R314 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R315 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R316 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R317 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R318 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R322 10135050 RMGCFMIC 15K0 OHM +5% 62MI5W R323 10135050 RMGCFMIC 15K0 OHM +5% 62MI5W R328 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R330 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R331 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R332 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R333 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R37 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R38 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R53 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R54 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R55 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R7 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R72 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R8 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R83 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R84 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R87 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R89 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W
Tocom#
SName
6/16
Processor board AVR5550
Pos
R90 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R97 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W C100 20267830 CE 47U0F +20% 16.0V 85C 20251640 C101 20267830 CE 47U0F +20% 16.0V 85C 20251640 C102 20267830 CE 47U0F +20% 16.0V 85C 20251640 C103 20267830 CE 47U0F +20% 16.0V 85C 20251640 C104 20267830 CE 47U0F +20% 16.0V 85C 20251640 C105 20267830 CE 47U0F +20% 16.0V 85C 20251640 C106 15002130 CE 10U0F +20% 16.0V 85C C107 15002130 CE 10U0F +20% 16.0V 85C C108 20267830 CE 47U0F +20% 16.0V 85C 20251640 C109 20267830 CE 47U0F +20% 16.0V 85C 20251640 C112 20267830 CE 47U0F +20% 16.0V 85C 20251640 C113 55558540 CE 10U0F +20% 16.0V 85C C114 55558540 CE 10U0F +20% 16.0V 85C C116 55558540 CE 10U0F +20% 16.0V 85C C118 55558540 CE 10U0F +20% 16.0V 85C C119 20267830 CE 47U0F +20% 16.0V 85C 20251640 C120 20267830 CE 47U0F +20% 16.0V 85C 20251640 C121 15002130 CE 10U0F +20% 16.0V 85C C122 20267830 CE 47U0F +20% 16.0V 85C 20251640 C123 15002130 CE 10U0F +20% 16.0V 85C C124 15002130 CE 10U0F +20% 16.0V 85C C125 15002130 CE 10U0F +20% 16.0V 85C C126 15002130 CE 10U0F +20% 16.0V 85C C127 20267830 CE 47U0F +20% 16.0V 85C 20251640 C129 20267830 CE 47U0F +20% 16.0V 85C 20251640 C13 15002130 CE 10U0F +20% 16.0V 85C C131 15002130 CE 10U0F +20% 16.0V 85C C132 20267830 CE 47U0F +20% 16.0V 85C 20251640 C133 20267830 CE 47U0F +20% 16.0V 85C 20251640 C138 20267830 CE 47U0F +20% 16.0V 85C 20251640 C139 55558540 CE 10U0F +20% 16.0V 85C C14 15002130 CE 10U0F +20% 16.0V 85C C140 55558540 CE 10U0F +20% 16.0V 85C C142 55558540 CE 10U0F +20% 16.0V 85C C144 55558540 CE 10U0F +20% 16.0V 85C C145 20267830 CE 47U0F +20% 16.0V 85C 20251640 C146 20267830 CE 47U0F +20% 16.0V 85C 20251640 C147 15002130 CE 10U0F +20% 16.0V 85C C149 15002130 CE 10U0F +20% 16.0V 85C C15 20267830 CE 47U0F +20% 16.0V 85C 20251640 C151 15002130 CE 10U0F +20% 16.0V 85C C152 15002130 CE 10U0F +20% 16.0V 85C C153 20267830 CE 47U0F +20% 16.0V 85C 20251640 C158 20267830 CE 47U0F +20% 16.0V 85C 20251640 C159 15002130 CE 10U0F +20% 16.0V 85C C16 15002130 CE 10U0F +20% 16.0V 85C C160 15002130 CE 10U0F +20% 16.0V 85C C162 15002130 CE 10U0F +20% 16.0V 85C C164 15002130 CE 10U0F +20% 16.0V 85C C165 20267830 CE 47U0F +20% 16.0V 85C 20251640 C168 20267830 CE 47U0F +20% 16.0V 85C 20251640 C169 15002130 CE 10U0F +20% 16.0V 85C C17 15002130 CE 10U0F +20% 16.0V 85C C170 15002130 CE 10U0F +20% 16.0V 85C
Tocom#
SName
7/16
Processor board AVR5550
Pos
C172 15002130 CE 10U0F +20% 16.0V 85C C174 15002130 CE 10U0F +20% 16.0V 85C C175 20267830 CE 47U0F +20% 16.0V 85C 20251640 C176 40433090 CE 1MI0F +20% 6.3V 85C C177 40433090 CE 1MI0F +20% 6.3V 85C C18 20267830 CE 47U0F +20% 16.0V 85C 20251640 C19 15002130 CE 10U0F +20% 16.0V 85C C195 15002130 CE 10U0F +20% 16.0V 85C C196 15002130 CE 10U0F +20% 16.0V 85C C197 15002130 CE 10U0F +20% 16.0V 85C C198 15002130 CE 10U0F +20% 16.0V 85C C20 15002130 CE 10U0F +20% 16.0V 85C C201 20267830 CE 47U0F +20% 16.0V 85C 20251640 C202 20267830 CE 47U0F +20% 16.0V 85C 20251640 C37 15002130 CE 10U0F +20% 16.0V 85C C38 15002130 CE 10U0F +20% 16.0V 85C C39 20267830 CE 47U0F +20% 16.0V 85C 20251640 C40 15002130 CE 10U0F +20% 16.0V 85C C41 15002130 CE 10U0F +20% 16.0V 85C C42 20267830 CE 47U0F +20% 16.0V 85C 20251640 C5 20267830 CE 47U0F +20% 16.0V 85C 20251640 C53 15002130 CE 10U0F +20% 16.0V 85C C54 15002130 CE 10U0F +20% 16.0V 85C C55 20267830 CE 47U0F +20% 16.0V 85C 20251640 C56 15002130 CE 10U0F +20% 16.0V 85C C57 15002130 CE 10U0F +20% 16.0V 85C C58 20267830 CE 47U0F +20% 16.0V 85C 20251640 C59 15002130 CE 10U0F +20% 16.0V 85C C6 15002130 CE 10U0F +20% 16.0V 85C C60 15002130 CE 10U0F +20% 16.0V 85C C7 15002130 CE 10U0F +20% 16.0V 85C C74 20267830 CE 47U0F +20% 16.0V 85C 20251640 C75 15002130 CE 10U0F +20% 16.0V 85C C76 15002130 CE 10U0F +20% 16.0V 85C C77 20267830 CE 47U0F +20% 16.0V 85C 20251640 C78 20267830 CE 47U0F +20% 16.0V 85C 20251640 C79 55558540 CE 10U0F +20% 16.0V 85C C8 20267830 CE 47U0F +20% 16.0V 85C 20251640 C80 55558540 CE 10U0F +20% 16.0V 85C C81 20267830 CE 47U0F +20% 16.0V 85C 20251640 C82 55558540 CE 10U0F +20% 16.0V 85C C83 55558540 CE 10U0F +20% 16.0V 85C C84 15002130 CE 10U0F +20% 16.0V 85C C85 15002130 CE 10U0F +20% 16.0V 85C C86 20267830 CE 47U0F +20% 16.0V 85C 20251640 C87 15002130 CE 10U0F +20% 16.0V 85C C88 15002130 CE 10U0F +20% 16.0V 85C C89 20267830 CE 47U0F +20% 16.0V 85C 20251640 C90 15002130 CE 10U0F +20% 16.0V 85C C91 15002130 CE 10U0F +20% 16.0V 85C C92 20267830 CE 47U0F +20% 16.0V 85C 20251640 C95 20267830 CE 47U0F +20% 16.0V 85C 20251640 C96 20267830 CE 47U0F +20% 16.0V 85C 20251640 C97 20267830 CE 47U0F +20% 16.0V 85C 20251640 C98 20267830 CE 47U0F +20% 16.0V 85C 20251640 C99 20267830 CE 47U0F +20% 16.0V 85C 20251640
Tocom#
SName
8/16
Processor board AVR5550
Pos
Q18 55133290 TR-SLPLF KTD1302 B N 300MI0A 20V Q2 55142670 TR-SLPLF MPSA06 N 500MI0A Q22 55133290 TR-SLPLF KTD1302 B N 300MI0A 20V Q47 55133290 TR-SLPLF KTD1302 B N 300MI0A 20V Q48 55133350 TR-SLPLF MPSA56 Y P -500MI0A -300V Q49 55142670 TR-SLPLF MPSA06 N 500MI0A Q5 55133350 TR-SLPLF MPSA56 Y P -500MI0A -300V Q6 55133290 TR-SLPLF KTD1302 B N 300MI0A 20V C1 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C10 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C11 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C110 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C117 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C12 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C128 10138420 CCCFMIC 820P0F +10% -10% 50.0V X7R C128 20678070 CCCFMIC 330P0F +5% -5% 50.0V NP0 C135 10138420 CCCFMIC 820P0F +10% -10% 50.0V X7R C135 20678070 CCCFMIC 330P0F +5% -5% 50.0V NP0 C136 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C143 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C148 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C155 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C156 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C163 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C166 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C173 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C178 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C179 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C180 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C181 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C182 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C183 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C184 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C185 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C186 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C187 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C188 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C191 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C192 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C193 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C194 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C2 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C203 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C204 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C21 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C22 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C23 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C24 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C25 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C26 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C27 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C28 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C29 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C3 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C30 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C31 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0
Tocom#
SName
9/16
Processor board AVR5550
Pos
C32 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C33 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C34 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C35 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C36 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C4 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C43 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C44 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C45 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C46 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C47 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C48 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C49 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C50 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C51 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C52 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C61 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C62 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C63 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C64 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C65 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C67 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C69 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C70 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C71 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C72 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C73 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C9 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C94 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R D18 55506380 D-ZENER UDZS 9.1B 9.1V 200MI0W D19 55177710 D-ZENER UDZS 5.1 B 5.1V 200MI0W D2 20496510 D-SLP 1SS355 35.0V 225MI0A D26 10328750 RMGCFMIC 0 OHM +0% 62MI5W J10 10328750 RMGCFMIC 0 OHM +0% 62MI5W J11 10328750 RMGCFMIC 0 OHM +0% 62MI5W J12 10328750 RMGCFMIC 0 OHM +0% 62MI5W J26 10328750 RMGCFMIC 0 OHM +0% 62MI5W J31 10328750 RMGCFMIC 0 OHM +0% 62MI5W J34 10328750 RMGCFMIC 0 OHM +0% 62MI5W J38 10328750 RMGCFMIC 0 OHM +0% 62MI5W J39 10328750 RMGCFMIC 0 OHM +0% 62MI5W J40 10328750 RMGCFMIC 0 OHM +0% 62MI5W J41 10328750 RMGCFMIC 0 OHM +0% 62MI5W J7 10328750 RMGCFMIC 0 OHM +0% 62MI5W J8 10328750 RMGCFMIC 0 OHM +0% 62MI5W J9 10328750 RMGCFMIC 0 OHM +0% 62MI5W Q1 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q19 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q21 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q24 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q26 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q27 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q28 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q29 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q30 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q31 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A
Tocom#
SName
10/16
Processor board AVR5550
Pos
Q33 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q36 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q38 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q39 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q4 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM Q40 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q42 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q44 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q45 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q46 55138710 TR-SLPSWA KTD1304 N 20V 300MI0A Q54 55133180 TR-SSD DTC114YKA N 10K0 OHM 47K0 OHM R1 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R10 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R100 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R101 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R103 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R104 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R106 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R107 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R109 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R11 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R110 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R112 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R113 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R114 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R115 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R116 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R117 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R118 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R119 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R12 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R120 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R121 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R123 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R124 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R126 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R127 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R128 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R129 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R13 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R130 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R131 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R132 10135850 RMGCFMIC 2K0 OHM +5% 62MI5W R133 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R134 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R136 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R137 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R138 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R139 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R14 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R140 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R141 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R142 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R143 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R144 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R145 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W
Tocom#
SName
11/16
Processor board AVR5550
Pos
R146 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R147 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R148 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R149 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R15 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R150 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R151 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R152 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R153 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R154 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R155 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R16 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R161 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R162 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R163 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R164 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R165 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R166 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R167 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R168 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R169 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R17 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R170 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R171 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R172 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R173 10134980 RMGCFMIC 820R0 OHM +5% 62MI5W R174 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R175 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R176 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R177 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R178 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R179 10135930 RMGCFMIC 4K3 OHM +5% 62MI5W R18 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R180 10134980 RMGCFMIC 820R0 OHM +5% 62MI5W R181 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R182 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R183 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R184 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R185 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R186 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R187 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R188 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R189 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R191 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R192 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R193 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R194 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R195 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R196 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R198 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R2 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R20 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R200 10135820 RMGCFMIC 1K5 OHM +5% 62MI5W R202 10135820 RMGCFMIC 1K5 OHM +5% 62MI5W R203 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R204 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W
Tocom#
SName
12/16
Processor board AVR5550
Pos
R205 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R207 10135910 RMGCFMIC 3K6 OHM +5% 62MI5W R21 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R212 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R215 10135910 RMGCFMIC 3K6 OHM +5% 62MI5W R216 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R22 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R220 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R221 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R222 10135910 RMGCFMIC 3K6 OHM +5% 62MI5W R226 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R229 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R230 10135910 RMGCFMIC 3K6 OHM +5% 62MI5W R231 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R233 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R234 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R235 10135820 RMGCFMIC 1K5 OHM +5% 62MI5W R236 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R237 10135820 RMGCFMIC 1K5 OHM +5% 62MI5W R238 10135940 RMGCFMIC 4K7 OHM +5% 62MI5W R239 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R240 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R241 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R244 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R245 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R246 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R247 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R248 10136010 RMGCFMIC 9K1 OHM +5% 62MI5W R249 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R25 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R250 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R251 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R252 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R254 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R255 10135850 RMGCFMIC 2K0 OHM +5% 62MI5W R256 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R259 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R26 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R263 10135840 RMGCFMIC 1K8 OHM +5% 62MI5W R264 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R268 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R269 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R27 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R270 10135850 RMGCFMIC 2K0 OHM +5% 62MI5W R274 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R277 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R278 10135850 RMGCFMIC 2K0 OHM +5% 62MI5W R279 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R28 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R281 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R282 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R283 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R284 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R285 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R286 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R287 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W
Tocom#
SName
13/16
Processor board AVR5550
Pos
R288 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R289 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R29 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R292 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R293 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R294 10135850 RMGCFMIC 2K0 OHM +5% 62MI5W R298 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R3 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R30 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R301 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R302 10135850 RMGCFMIC 2K0 OHM +5% 62MI5W R303 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R305 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R306 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R307 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R308 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R309 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R31 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R310 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R311 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R312 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R313 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R319 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R32 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R320 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R321 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R324 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R325 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R326 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R327 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R329 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R33 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R334 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R335 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R336 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R337 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R34 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R343 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R344 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R345 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R346 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R347 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R348 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R349 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R35 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R350 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R351 10135870 RMGCFMIC 2K4 OHM +5% 62MI5W R352 10135870 RMGCFMIC 2K4 OHM +5% 62MI5W R353 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R354 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R355 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R356 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R357 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R358 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R359 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R36 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W
Tocom#
SName
14/16
Processor board AVR5550
Pos
R360 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R361 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R362 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R363 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R364 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R365 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R366 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R367 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R368 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R369 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R370 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R371 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R372 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R373 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R374 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R375 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R39 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R4 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R40 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R41 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R42 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R43 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R44 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R45 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R46 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R47 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R48 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R49 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R5 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R50 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R51 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R52 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R56 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R57 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R58 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R59 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R6 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R60 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R61 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R62 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R63 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R64 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R65 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R66 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R67 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R68 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R69 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R70 10135950 RMGCFMIC 5K1 OHM +5% 62MI5W R71 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R73 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R74 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R75 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R76 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R77 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R78 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R79 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W
Tocom#
SName
15/16
Processor board AVR5550
Pos
R85 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R86 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W R9 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R91 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R92 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R93 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R94 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R95 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R96 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R99 10135340 RMGCFMIC 100K0 OHM +5% 62MI5W C152 15002130 CE 10U0F +20% 16.0V 85C GND1 55135980 TERMLUG GND IC10 55142750 IC-SWITCH TC9273N-007 DIP28 ANALOG SWITCH IC6 55142750 IC-SWITCH TC9273N-007 DIP28 ANALOG SWITCH N2 55174670 CONN 2.0MM 19 MA R NAT SOCKET MOLEX 35237-1910 0 0 NJ51 55176330 CON PHONO SCKT RCA 4P JW4104RS GND NJ52 55176330 CON PHONO SCKT RCA 4P JW4104RS GND NJ53 55176330 CON PHONO SCKT RCA 4P JW4104RS GND NJ54 55176330 CON PHONO SCKT RCA 4P JW4104RS GND NJ55 55176330 CON PHONO SCKT RCA 4P JW4104RS GND P1 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 P10 55123340 CONN 2.0MM 8 MA ST NAT LW2002P08 0 0 P11 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 P12 55123310 CONN 2.0MM 4 MA ST NAT LW2002P04 0 0 P13 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 P3 55090080 CONN 2.0MM 3 MA ST NAT LW2002P03 0 0 P3 55123310 CONN 2.0MM 4 MA ST NAT LW2002P04 0 0 P4 55123330 CONN 2.0MM 6 MA ST NAT LW2002P06 0 0 P5 55090050 CONN 2.0MM 10 MA ST NAT LW2002P10 0 0 P6 55123380 CONN 2.0MM 15 MA ST NAT LW2002P15 0 0 P7 55123380 CONN 2.0MM 15 MA ST NAT LW2002P15 0 0 P8 55230480 CONN 1.25MM 31 FE ST BK 00-6216-131-821-808 0 0 P9 55123380 CONN 2.0MM 15 MA ST NAT LW2002P15 0 0 SK1 55506590 RELAYSGNL 12.0V 960.0OHM 3.0A
Tocom#
SName
16/16
VIDEO board AVR5550
Pos Tocom# SName
D100 70436540 D-SLP 1N4148 100.0V 150E-3A D101 70436540 D-SLP 1N4148 100.0V 150E-3A D102 70436540 D-SLP 1N4148 100.0V 150E-3A D104 70436540 D-SLP 1N4148 100.0V 150E-3A D115 70436540 D-SLP 1N4148 100.0V 150E-3A L101 55179500 LFBEAD 80.582OHM 100M0HZ FB-30 HC-3580 L102 55179500 LFBEAD 80.582OHM 100M0HZ FB-30 HC-3580 L103 55168840 LF 47U0H +10% 5.8 OHM 70MI0A L104 55168840 LF 47U0H +10% 5.8 OHM 70MI0A L105 55168840 LF 47U0H +10% 5.8 OHM 70MI0A L106 55168840 LF 47U0H +10% 5.8 OHM 70MI0A L107 55179350 LF 22U0H +10% 3.4 OHM 130.0A L108 55179350 LF 22U0H +10% 3.4 OHM 130.0A L110 55168840 LF 47U0H +10% 5.8 OHM 70MI0A R130 11059640 RCF 1K0 OHM +5% 250MI0W R131 11059640 RCF 1K0 OHM +5% 250MI0W R132 11059640 RCF 1K0 OHM +5% 250MI0W R133 11059640 RCF 1K0 OHM +5% 250MI0W R134 11059640 RCF 1K0 OHM +5% 250MI0W R135 11059640 RCF 1K0 OHM +5% 250MI0W R154 50883030 RCF 150K0 OHM +5% 250MI0W R161 11059640 RCF 1K0 OHM +5% 250MI0W R162 11059640 RCF 1K0 OHM +5% 250MI0W R163 11059640 RCF 1K0 OHM +5% 250MI0W R255 11067570 RCF 1R0 OHM +5% 250MI0W C100 20269080 CE 220U0F +20% 10.0V 85C C101 15002130 CE 10U0F +20% 16.0V 85C C102 20269080 CE 220U0F +20% 10.0V 85C C103 20269080 CE 220U0F +20% 10.0V 85C C104 15002130 CE 10U0F +20% 16.0V 85C C105 20269080 CE 220U0F +20% 10.0V 85C C106 20269080 CE 220U0F +20% 10.0V 85C C107 15002130 CE 10U0F +20% 16.0V 85C C108 20269080 CE 220U0F +20% 10.0V 85C C109 20269080 CE 220U0F +20% 10.0V 85C C110 15002130 CE 10U0F +20% 16.0V 85C C111 20269080 CE 220U0F +20% 10.0V 85C C116 15002130 CE 10U0F +20% 16.0V 85C C122 15002130 CE 10U0F +20% 16.0V 85C C127 40433090 CE 1MI0F +20% 6.3V 85C C128 15002130 CE 10U0F +20% 16.0V 85C C128 20268840 CE 1U0F +20% 50.0V 85C C129 40433090 CE 1MI0F +20% 6.3V 85C C130 20252670 CE 470U0F +20% 10.0V 85C C131 20252670 CE 470U0F +20% 10.0V 85C C132 20252670 CE 470U0F +20% 10.0V 85C C133 20252670 CE 470U0F +20% 10.0V 85C C134 20252670 CE 470U0F +20% 10.0V 85C C135 20252670 CE 470U0F +20% 10.0V 85C C136 20269080 CE 220U0F +20% 10.0V 85C C137 15002130 CE 10U0F +20% 16.0V 85C C138 20269080 CE 220U0F +20% 10.0V 85C C139 20269080 CE 220U0F +20% 10.0V 85C C140 20269080 CE 220U0F +20% 10.0V 85C C141 20267830 CE 47U0F +20% 16.0V 85C 20251640 C145 20252670 CE 470U0F +20% 10.0V 85C
1/8
VIDEO board AVR5550
Pos Tocom# SName
C146 20252670 CE 470U0F +20% 10.0V 85C C147 20252670 CE 470U0F +20% 10.0V 85C C149 20252670 CE 470U0F +20% 10.0V 85C C151 20269020 CE 100U0F +20% 16.0V 85C C152 20269080 CE 220U0F +20% 10.0V 85C C153 20267830 CE 47U0F +20% 16.0V 85C 20251640 C161 20267830 CE 47U0F +20% 16.0V 85C 20251640 C164 20268840 CE 1U0F +20% 50.0V 85C C165 20268960 CE 330N0F +20% 50.0V 85C C166 20268840 CE 1U0F +20% 50.0V 85C C168 20268940 CE 100U0F +20% 10.0V 85C C171 80434590 CC 22P0F +5% -5% 50.0V NP0 C172 20268940 CE 100U0F +20% 10.0V 85C C174 80434590 CC 22P0F +5% -5% 50.0V NP0 C175 40433350 CC 18P0F +5% -5% 50.0V NP0 C176 20268840 CE 1U0F +20% 50.0V 85C C183 70428520 CC 10N0F +10% -10% 50.0V Y5P C184 20268850 CE 2U2F +20% 50.0V 85C C185 20268880 CE 10U0F +20% 50.0V 85C C186 20268940 CE 100U0F +20% 10.0V 85C C188 20269020 CE 100U0F +20% 16.0V 85C C190 20269020 CE 100U0F +20% 16.0V 85C C192 20269020 CE 100U0F +20% 16.0V 85C C194 20269020 CE 100U0F +20% 16.0V 85C C196 20268940 CE 100U0F +20% 10.0V 85C C198 20268880 CE 10U0F +20% 50.0V 85C C201 20268850 CE 2U2F +20% 50.0V 85C C202 20267250 CC 22N0F +10% -10% 50.0V Z5R C203 20269080 CE 220U0F +20% 10.0V 85C C204 15002130 CE 10U0F +20% 16.0V 85C C205 20269080 CE 220U0F +20% 10.0V 85C C206 15002130 CE 10U0F +20% 16.0V 85C C252 20268880 CE 10U0F +20% 50.0V 85C C254 20268880 CE 10U0F +20% 50.0V 85C C256 20268880 CE 10U0F +20% 50.0V 85C C258 20268880 CE 10U0F +20% 50.0V 85C C260 20268880 CE 10U0F +20% 50.0V 85C C262 20268880 CE 10U0F +20% 50.0V 85C C289 20269080 CE 220U0F +20% 10.0V 85C C291 20269020 CE 100U0F +20% 16.0V 85C C293 20269020 CE 100U0F +20% 16.0V 85C C295 20269080 CE 220U0F +20% 10.0V 85C C300 20268840 CE 1U0F +20% 50.0V 85C C301 20268840 CE 1U0F +20% 50.0V 85C C302 20268840 CE 1U0F +20% 50.0V 85C C303 20268840 CE 1U0F +20% 50.0V 85C C304 20268840 CE 1U0F +20% 50.0V 85C C305 20268840 CE 1U0F +20% 50.0V 85C C306 20267830 CE 47U0F +20% 16.0V 85C 20251640 C308 20268940 CE 100U0F +20% 10.0V 85C C309 20268940 CE 100U0F +20% 10.0V 85C C310 20268940 CE 100U0F +20% 10.0V 85C C313 20267830 CE 47U0F +20% 16.0V 85C 20251640 C314 20267830 CE 47U0F +20% 16.0V 85C 20251640 Q100 55133250 TR-SLPLF 2SC1740S R N 150MI0A 50V Q101 55101930 TR-SLPLF 2SA933ASR P -3.0A -20V
2/8
VIDEO board AVR5550
Pos Tocom# SName
Q104 55101930 TR-SLPLF 2SA933ASR P -3.0A -20V Q105 55133210 TR-SLPLF DTC114YSA N 100MI0A Q105 55133220 TR-SLPLF DTA114YSA P 100MI0A Q106 55133290 TR-SLPLF KTD1302 B N 300MI0A 20V Q107 55133210 TR-SLPLF DTC114YSA N 100MI0A Q110 55133210 TR-SLPLF DTC114YSA N 100MI0A Q111 55101930 TR-SLPLF 2SA933ASR P -3.0A -20V Q112 55133250 TR-SLPLF 2SC1740S R N 150MI0A 50V C112 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C113 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C114 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C118 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C119 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C120 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C123 20506680 CCCFMIC 470P0F +5% -5% 50.0V NP0 C124 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C125 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C126 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C148 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C150 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C154 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C155 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C156 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C157 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C158 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C159 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C160 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C162 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C163 20506540 CCCFMIC 10P0F +0P5F -0P5F 50.0V NP0 C167 10138620 CCCFMIC 2N2F +10% -10% 50.0V X7R C169 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C170 10138390 CCCFMIC 560P0F +10% -10% 50.0V X7R C173 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C177 20506560 CCCFMIC 33P0F +5% -5% 50.0V NP0 C178 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C180 20506590 CCCFMIC 100P0F +5% -5% 50.0V NP0 C181 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C187 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C189 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C191 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C193 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C195 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C197 10138960 CCCFMIC 10N0F +10% -10% 50.0V X7R C200 20678070 CCCFMIC 330P0F +5% -5% 50.0V NP0 C248 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C251 10328750 RMGCFMIC 0 OHM +0% 62MI5W C251 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C253 10328750 RMGCFMIC 0 OHM +0% 62MI5W C253 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C255 10328750 RMGCFMIC 0 OHM +0% 62MI5W C255 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C257 10328750 RMGCFMIC 0 OHM +0% 62MI5W C257 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C259 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C261 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C292 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V
3/8
VIDEO board AVR5550
Pos Tocom# SName
C294 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C307 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C311 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V C312 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V D106 20496510 D-SLP 1SS355 35.0V 225MI0A D107 20496510 D-SLP 1SS355 35.0V 225MI0A D109 20496510 D-SLP 1SS355 35.0V 225MI0A D110 20496510 D-SLP 1SS355 35.0V 225MI0A IC10 55125370 IC-SWITCH NJM2296 SOP16 VIDEO IC11 55125370 IC-SWITCH NJM2296 SOP16 VIDEO IC12 55125370 IC-SWITCH NJM2296 SOP16 VIDEO IC13 55489850 IC-VIDEOPROC MM1505XNRE AMPLIFIER&DRIVER IC13 55489850 IC-VIDEOPROC MM1505XNRE AMPLIFIER&DRIVER IC14 55489680 IC-VIDEOPROC MM1501XNRE AMPLIFIER&DRIVER IC14 55489680 IC-VIDEOPROC MM1501XNRE AMPLIFIER&DRIVER IC15 55489850 IC-VIDEOPROC MM1505XNRE AMPLIFIER&DRIVER IC15 55489850 IC-VIDEOPROC MM1505XNRE AMPLIFIER&DRIVER IC16 20718770 IC-LOGIC BU4053BF MULTIPLEXER CMOS IC17 55175530 IC-VIDEOPROC TSH95D VIDEO AMPLIFIER IC19 20718660 IC-LOGIC BU4094BF SHIFT REGISTER CMOS IC20 20718660 IC-LOGIC BU4094BF SHIFT REGISTER CMOS IC23 55489850 IC-VIDEOPROC MM1505XNRE AMPLIFIER&DRIVER IC23 55489850 IC-VIDEOPROC MM1505XNRE AMPLIFIER&DRIVER IC25 55489680 IC-VIDEOPROC MM1501XNRE AMPLIFIER&DRIVER IC25 55489680 IC-VIDEOPROC MM1501XNRE AMPLIFIER&DRIVER IC26 55489680 IC-VIDEOPROC MM1501XNRE AMPLIFIER&DRIVER IC26 55489680 IC-VIDEOPROC MM1501XNRE AMPLIFIER&DRIVER IC27 55489750 IC-VIDEOPROC MM1511XNRE AMPLIFIER&DRIVER IC27 55489750 IC-VIDEOPROC MM1511XNRE AMPLIFIER&DRIVER J101 10328750 RMGCFMIC 0 OHM +0% 62MI5W J105 10328750 RMGCFMIC 0 OHM +0% 62MI5W J108 10328750 RMGCFMIC 0 OHM +0% 62MI5W J125 10328750 RMGCFMIC 0 OHM +0% 62MI5W J126 10328750 RMGCFMIC 0 OHM +0% 62MI5W J132 10328750 RMGCFMIC 0 OHM +0% 62MI5W J134 10328750 RMGCFMIC 0 OHM +0% 62MI5W J135 10328750 RMGCFMIC 0 OHM +0% 62MI5W J198 10328750 RMGCFMIC 0 OHM +0% 62MI5W J199 10328750 RMGCFMIC 0 OHM +0% 62MI5W J202 10328750 RMGCFMIC 0 OHM +0% 62MI5W J203 10328750 RMGCFMIC 0 OHM +0% 62MI5W J234 10328750 RMGCFMIC 0 OHM +0% 62MI5W J257 10328750 RMGCFMIC 0 OHM +0% 62MI5W J301 10328750 RMGCFMIC 0 OHM +0% 62MI5W J307 10328750 RMGCFMIC 0 OHM +0% 62MI5W J308 10328750 RMGCFMIC 0 OHM +0% 62MI5W J309 10328750 RMGCFMIC 0 OHM +0% 62MI5W J310 10328750 RMGCFMIC 0 OHM +0% 62MI5W J315 10328750 RMGCFMIC 0 OHM +0% 62MI5W J316 10328750 RMGCFMIC 0 OHM +0% 62MI5W J317 10328750 RMGCFMIC 0 OHM +0% 62MI5W Q102 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM Q103 55133190 TR-SSD DTA114YKA P 10K0 OHM 47K0 OHM R100 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R100 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R101 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W
4/8
VIDEO board AVR5550
Pos Tocom# SName
R101 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R102 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R102 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R103 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R103 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R104 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R104 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R105 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R105 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R106 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R106 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R107 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R107 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R108 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R108 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R109 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R109 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R110 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R110 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R111 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R111 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R112 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R113 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R114 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R115 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R115 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R116 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R116 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R117 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R117 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R118 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R119 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R120 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R121 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R121 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R122 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R122 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R123 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R123 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R124 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R125 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R126 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R127 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R127 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R128 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R128 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R129 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R129 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R136 10134870 RMGCFMIC 330R0 OHM +5% 62MI5W R136 25481560 RMGCFMIC 174R0 OHM +1% 62MI5W R137 25419270 RMGCFMIC 162R0 OHM +1% 62MI5W R137 25481560 RMGCFMIC 174R0 OHM +1% 62MI5W R138 10134870 RMGCFMIC 330R0 OHM +5% 62MI5W R138 21061670 RMGCFMIC 392R0 OHM +1% 62MI5W R139 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W R140 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W
5/8
VIDEO board AVR5550
Pos Tocom# SName
R141 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W R142 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R143 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R144 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R145 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R146 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R147 10135030 RMGCFMIC 12K0 OHM +5% 62MI5W R148 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R149 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R150 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R151 10135530 RMGCFMIC 470K0 OHM +5% 62MI5W R152 10135620 RMGCFMIC 1M0 OHM +10% 62MI5W R153 10135380 RMGCFMIC 150K0 OHM +5% 62MI5W R155 10135620 RMGCFMIC 1M0 OHM +10% 62MI5W R156 10134910 RMGCFMIC 470R0 OHM +5% 62MI5W R157 10135090 RMGCFMIC 20K0 OHM +5% 62MI5W R157 10328750 RMGCFMIC 0 OHM +0% 62MI5W R158 10135420 RMGCFMIC 220K0 OHM +5% 62MI5W R159 10135980 RMGCFMIC 6K8 OHM +5% 62MI5W R160 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R164 10135480 RMGCFMIC 390K0 OHM +5% 62MI5W R165 10134740 RMGCFMIC 100R0 OHM +5% 62MI5W R166 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R167 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R168 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R169 10134810 RMGCFMIC 180R0 OHM +5% 62MI5W R169 10136000 RMGCFMIC 8K2 OHM +5% 62MI5W R170 10134640 RMGCFMIC 43R0 OHM +5% 62MI5W R170 10328750 RMGCFMIC 0 OHM +0% 62MI5W R171 10134810 RMGCFMIC 180R0 OHM +5% 62MI5W R171 10135380 RMGCFMIC 150K0 OHM +5% 62MI5W R172 10135170 RMGCFMIC 33K0 OHM +5% 62MI5W R173 10135860 RMGCFMIC 2K2 OHM +5% 62MI5W R174 10134700 RMGCFMIC 68R0 OHM +5% 62MI5W R175 10134870 RMGCFMIC 330R0 OHM +5% 62MI5W R176 10134480 RMGCFMIC 15R0 OHM +5% 62MI5W R176 10135000 RMGCFMIC 910R0 OHM +5% 62MI5W R177 10134640 RMGCFMIC 43R0 OHM +5% 62MI5W R177 10134850 RMGCFMIC 270R0 OHM +5% 62MI5W R178 10134870 RMGCFMIC 330R0 OHM +5% 62MI5W R178 21061670 RMGCFMIC 392R0 OHM +1% 62MI5W R180 10134920 RMGCFMIC 510R0 OHM +5% 62MI5W R181 10134870 RMGCFMIC 330R0 OHM +5% 62MI5W R182 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R183 10135770 RMGCFMIC 1K0 OHM +5% 62MI5W R184 10328750 RMGCFMIC 0 OHM +0% 62MI5W R185 10134720 RMGCFMIC 82R0 OHM +5% 62MI5W R186 10135360 RMGCFMIC 120K0 OHM +5% 62MI5W R187 10328750 RMGCFMIC 0 OHM +0% 62MI5W R188 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R189 10135920 RMGCFMIC 3K9 OHM +5% 62MI5W R200 10134850 RMGCFMIC 270R0 OHM +5% 62MI5W R251 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R251 10328750 RMGCFMIC 0 OHM +0% 62MI5W R252 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R252 10328750 RMGCFMIC 0 OHM +0% 62MI5W
6/8
VIDEO board AVR5550
Pos Tocom# SName
R253 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R253 10328750 RMGCFMIC 0 OHM +0% 62MI5W R254 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R254 10328750 RMGCFMIC 0 OHM +0% 62MI5W R255 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R256 10134410 RMGCFMIC 10R0 OHM +5% 62MI5W R300 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R301 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R302 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R303 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R304 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R305 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R306 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W R307 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W R308 10135120 RMGCFMIC 22K0 OHM +5% 62MI5W R309 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R310 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R311 10134710 RMGCFMIC 75R0 OHM +5% 62MI5W R312 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R313 10134920 RMGCFMIC 510R0 OHM +5% 62MI5W R314 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R315 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W R316 10134920 RMGCFMIC 510R0 OHM +5% 62MI5W R317 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R318 10135010 RMGCFMIC 10K0 OHM +5% 62MI5W R319 10134920 RMGCFMIC 510R0 OHM +5% 62MI5W R320 10134930 RMGCFMIC 560R0 OHM +5% 62MI5W C115 20267830 CE 47U0F +20% 16.0V 85C 20251640 C117 20267830 CE 47U0F +20% 16.0V 85C 20251640 C121 15002130 CE 10U0F +20% 16.0V 85C C199 20269080 CE 220U0F +20% 10.0V 85C IC18 20361320 IC-REGPOSFXD KIA7806PI NORMAL IC21 40440440 IC-LIN BA7046 2856 A0 00 IC22 55179610 IC-SPECFUNC M35013 OSD IC22 55179610 IC-SPECFUNC M35013 OSD L100 55179500 LFBEAD 80.582OHM 100M0HZ FB-30 HC-3580 L101 55179500 LFBEAD 80.582OHM 100M0HZ FB-30 HC-3580 L102 55179500 LFBEAD 80.582OHM 100M0HZ FB-30 HC-3580 N601 55158730 WIRECONASY UNIQUE 10P 320MM UL1007 RIBBON 26 1 N601 55548950 WIRECONASY DL 2.0MM 10P 380MM UL1007 RIBBON 26 1 N602 55174670 CONN 2.0MM 19 MA R NAT SOCKET MOLEX 35237-1910 0 0 NJ91 55436080 CON PHONO SCKT RCA 9P W/GNDCAP JW-4109RS NJ92 55149520 CON DIN SCKT MIX SOCKET RCA-118JP1S NJ93 55149520 CON DIN SCKT MIX SOCKET RCA-118JP1S NJ94 55149520 CON DIN SCKT MIX SOCKET RCA-118JP1S NJ95 55149520 CON DIN SCKT MIX SOCKET RCA-118JP1S NJ96 55149520 CON DIN SCKT MIX SOCKET RCA-118JP1S NJ97 55149520 CON DIN SCKT MIX SOCKET RCA-118JP1S NJ98 55149520 CON DIN SCKT MIX SOCKET RCA-118JP1S P600 55123330 CONN 2.0MM 6 MA ST NAT LW2002P06 0 0 P601 55090060 CONN 2.0MM 7 MA ST NAT LW2002P07 0 0 P602 55174630 CONN 2.0MM 19 MA ST NAT MOLEX 35336-1910 0 0 P603 55174630 CONN 2.0MM 19 MA ST NAT MOLEX 35336-1910 0 0 SK10 55489950 RELAYPWR 5.0V 178.0OHM SK11 55489950 RELAYPWR 5.0V 178.0OHM SK12 55489950 RELAYPWR 5.0V 178.0OHM
7/8
VIDEO board AVR5550
Pos Tocom# SName
Y100 55252250 FILQZ 17M734475 HZ +30 PPM 30K0 OHM PARALLEL 22P0 F Y101 55179470 FILQZ 14M31818 HZ +30 PPM 30K0 OHM PARALLEL 22P0 F
8/8
MECH AVR5550
Qty Tocom# SName
Qty Tocom# SName
1 55575850 AC DEC CABINET PANEL FRONT AVR5550
40 55127120 SCREW-ST 3MM 8MM JIS B 1122 J5636140040X 53 0 0
1 55164800 SCREW 3MM 8MM DIN963 62 2182 B7
62 55127070 SCREW-ST 3MM 10MM JIS B 1122 19 0 0
1 55445110 AC DEC BUTTON 3 KEY HIPS 9 HIPS 94HB 1 55445160 AC DEC BUTTON 5 KEY HIPS 94HB 1 55445260 AC DEC BUTTON 7 KEY HIPS 94HB 1 55177820 AC DEC BUTTON STANDBY -­1 55178020 AC MLD BUTTON INDICATOR STAND-BY AVR520 -­2 55178030 AC MLD BUTTON INDICATOR VIDEO 4 AVR520 -­1 55177800 AC DEC CRYSTAL FILTER DISPLAY 1 55191560 AC DIFFUSER 0.2T 62.5*41 WH NON-METAL 1 55177990 AC DIFFUSER 0.2T 59.6*41 WH NON-METAL 1 55575870 AC DEC CRYSTAL WINDOW DISPLAY AVR5550 1 55177740 AC DEC KNOB MAIN HIPS 94H 3 55177750 AC DEC KNOB TONE HIPS 1 55178000 SWIPUSH POWER SWITCH 5.0A 250.0V 100MI0OHM 1T 2P 1 55177810 AC DEC BUTTON POWER HIPS DVD10 -­4 55184350 SHRINK-PREF 20278040 30.0MM 1537 A4 2 55127070 SCREW-ST 3MM 10MM JIS B 1122 19 0 0 1 55124350 AC PUN BRACKET HEADPHONE RT2280/RT2250(PAV5007/5005) -­1 55178440 AC MLD HOLDER FL-GUIDE HIPS 94HB AVR520 1 55178930 AC MOLD REFRACTOR F WH PL 1 55177960 AC DIFFUSER REFLECTOR C WH NON-METAL 1 55178940 AC MOLD REFRACTOR E WH PL 1 55191530 AC MOLD REFRACTOR B WH PL 1 55178960 AC SPRING PLATE SPRING GND C5212 0.2T AVR520 1 55406440 AC CPL CABINET CHASSIS FRONT AVR325/525 2 55178170 AC PUN BRACKET FRAME-GUIDE SECC T1.0 -­1 55178050 AC PUN COVER TOP AVR520 METAL --
12 55127090 SCREW-ST 4MM 8MM JIS B 1122 25 0 0
1 55406540 AC CPL CABINET CHASSIS MAIN AVR325/525
29 55170390 CABLE-FIX WIRE-TIE MELLERMAI NYLON6 0 0
1 55406740 AC PUN COVER BOTTOM AVR325/525 METAL -­5 55127280 SCREW-ST 3MM 6MM JIS B 1122 25 0 0 1 55406640 AC PUN COVER TRANS BOTTOM AVR325/525 METAL -­4 55309240 SCREW-SPEC 4MM 10MM -- 08 0 A4 4 55309350 NUT-HEXAGON 4.0MM 5.0MM CIRCULAR EXTERNAL 53 0 0 4 55131550 WASHER-SPR 4.2MM 7.2MM 1.0MM N/A 53 0 0 4 55131730 WASHER 4.8MM 12MM 1.0MM -- 53 0 I5 4 55445360 AC FOOT HIPS 94HB ROUND 15.8MM 50MM NOT DEFINED Y DIA 4 55174760 AC FOOT RUBBER ROUND 3.0MM 25.0MM JIS 60 Y DIA
1 55555910 AC HEATSINK(MAIN) AVR525 -- ME 35 55178320 SCREW-ST 3MM 12MM JIS B 1122 53 0 A4 20 55127300 WASHER-SPR 3.1MM 6.2MM 0.8MM Y 53 0 I4
8 55127310 WASHER 3.3MM 8.0MM 0.5MM Y 53 0 A4
1 55406340 AC HEATSINK(AMP) 3CH AVR525 -- ME
6 55168710 AC PUN BRACKET HEATSINK SECIT RT2250(PAV5005) --
2 55091680 FCORE FERRIT MAGNET SRH9.9X20.0X5.1+CASE(LF-50BR) W5 15 55127300 WASHER-SPR 3.1MM 6.2MM 0.8MM Y 53 0 I4
6 55127310 WASHER 3.3MM 8.0MM 0.5MM Y 53 0 A4
1 55406840 AC PUN BRACKET FAN FRONT AVR325/525 --
1 55406940 AC PUN BRACKET FAN REAR AVR325/525 --
1 55575770 AC CPL REAR PANEL AVR5550 46 55135460 SCREW-SPEC 3MM 10MM JIS 27 0 0
1/2
Packing AVR5550
Pos Tocom# SName
Pos Tocom# SName
50 55575750 AC CARTON AVR5550 DW-2 80 55178610 AC CPL ENDCAP CUSHION POLY 0.024 90 55178620 AC PRI LABEL "PLEASE" AVR520
100 55575810 AC PRI LABEL BARCODE AVR5550 110 55178770 AC PRI LABEL SAFETY LEAF 120 55164890 AC CPL BAG POLY PE T0.05 500MM X 300MM 130 55170660 AC SHEET EPE DVD5 920MM X 1000MM 140 55575890 AC BOOK INSTR AVR5550 170 20357620 TAPE-ADH ROLL 3M #373 0.06MM 76MM TRA 180 20194840 TAPE-ADH ROLL 3M#610 0.11MM 12.7MM -­190 55127490 ANTENNA WIRE ANTENNA LOOP CT01-AM 0 0 200 55127460 ANTENNA WIRE 75 OHM WIRE CT03-FM 0 0 210 55575830 EPR RCT REMOCON AVR5550 OEM -- W/O BATTERY -­220 55178550 EPR RCT REMOCON AVR520 ZONE OEM -- W/O BATTERY -­230 5502022A BATNCALK 1.5V AAA 1.15 AH 240 55339780 WIRE-MCRDM 0.82MM2 2000MM BK CE 250 55688670 AC PRI LABEL FUSE RATING AVR4550/5550 260 55207970 AC BOOK INSTR SETUP CODE BOOKLET
1/1
MECH AVR5550
Qty Tocom# SName
4 55453660 SCREW-ST 5MM 10MM SAM 53 0 A4
2 55178420 AC PRI LABEL RISK
1 55174780 AC PRI LABEL DATE
1 55575790 AC PRI LABEL SERIAL AVR5550
1 55575810 AC PRI LABEL BARCODE AVR5550
2 20932870 AC PRI LABEL QC CHECK CRKD1217(20 X 13MM)
1 55451560 AC PRI LABEL LICENSE AVR525
3 55125220 AC RAW BUFFER PCB
4 55407040 AC STANDOFF HEX MF M4X0.7 6MMOD 31.9H -- ME
4 55407140 AC STANDOFF HEX MF M4X0.7 6MMOD 61.9H -- ME
1 55407240 AC STANDOFF HEX MF M4X0.7 6MMOD 111.2H -- ME
1 55273330 WIRECONASY UNIQUE 2P 500MM UL1617 PVC DOUBLE INSULA
1 55643470 TF-LAM POWER-TRANSFORMER 230V
1 55638760 EPR TUNER MODULE KST-MB114MW1-80 AVR4550/5550 OEM EU
1 55509100 FAN RDM8025S C185HK10H1910 ( WIRE:300MM) 0 A0
1 55509110 FAN RDM8025S C185HK10H1920 ( WIRE:400MM) 0 A0
2 55212250 CABLE-FIX CLAMP WIRE UL DENNISON 0 0
5 55231250 SCREW-ST 4MM 8MM D020400800 53 0 0
4 20372500 WASHER 3.0MM 7.9MM 0.8MM N/A 00 0 0
1 55559340 WIRECONASY DL 2.0MM 4P 230MM UL1007 RIBBON 26 1
1 55178300 AC RAW BUFFER CUSHION-BRK'T EVA 14 55261080 AC KNOB CORK SH08M790B0 BK PL
1 55505880 FFC-JUMPER 31X 1.25MM 600MM
2/2
AVR325/525 Alignment spec. rev01.

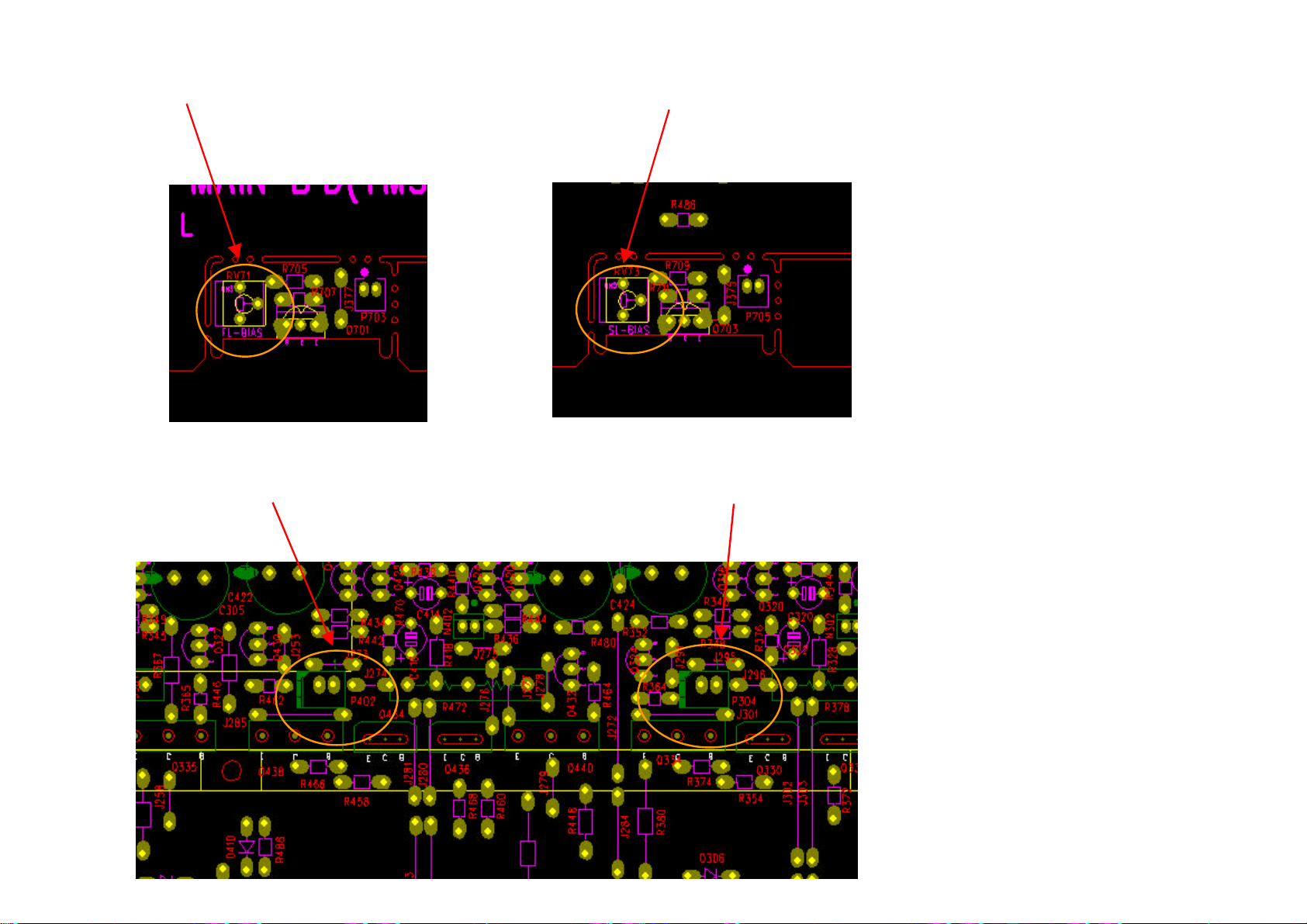

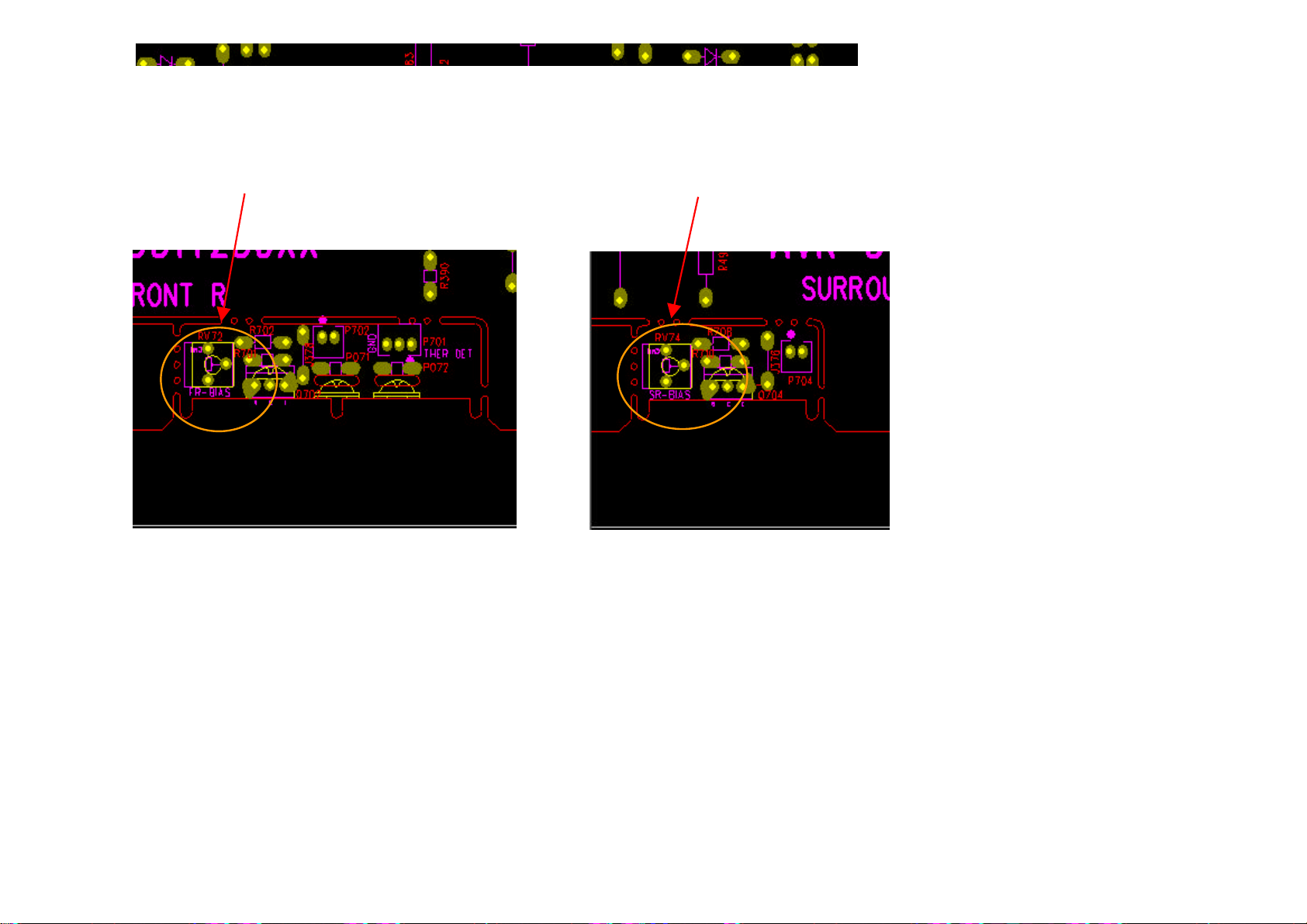

1. MAIN B'D : 5 Min. After power on, please set up Bias as below, Front Left > use RV71, set P401 as 23mV +2mV/- 1mV. Surr Left > use RV73 then set P303 as 23mV +2mv/-1mV. Front Right > use RV72 make P402 to 23mV +2mV/-1mV. Surr Right > use RV73 then make P303 to 23mV +2mV/-1mV.
P401 FRONT L-CH P303 SURROUND L-CH
RV71 FRONT L-CH RV73 SURROUND L-CH
P402 FRONT R-CH P304 SURROUND R-CH
RV72 FRONT R-CH RV74 SURROUND R-CH
2. BACK SURROUND B'D : 5 Min. After power on, please set up Bias as below, SBL > use VR31 then set P301 as 23mV +2mv/-1mV. Center > use VR41 make P401 to 23mV +2mV/-1mV. SBR > use VR51 then make P501 to 25mV +2mV/-1mV.
P301 VR31 BACK SURROUND L-CH P401 VR41 CENTER-CH
P501 VR51 BACK SURROUND R-CH

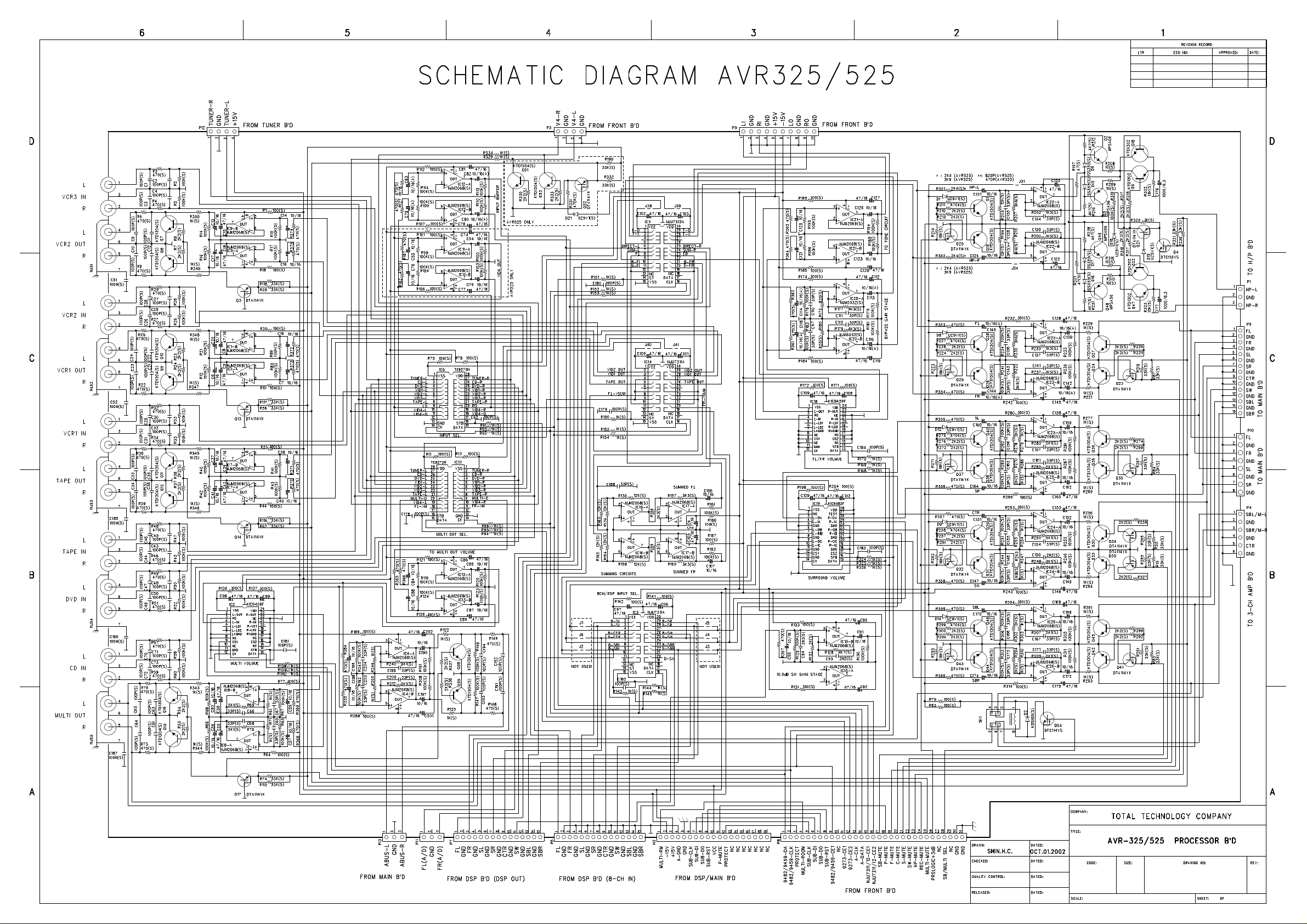

avr525_FRONT-MP.sch-1 - Tue Oct 01 12:06:27 2002
avr525_VIDEO_MP.sch-1 - Tue Oct 01 12:04:43 2002
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
